猛犸无线麦克风说明书
Shure MX400SE 手持麦克风说明书
MX400SEGooseneck MicrophonesShure MX400SE Series miniature gooseneck-mounted electret condenser microphones online user guide. Version: 5 (2019-J)Table of ContentsMX400SEGooseneck Microphones3 General Description3 Model Variations 3 Interchangeable Cartridges 3 Snap-Fit Windscreen 5 Preamp Gain5RFI Filtering5 Microphone Placement5 Permanent Installation 6 Changing from Side Exit to Bottom Exit 6 Flange 6 Shock Mount 7 Specifications8 Certifications 11••••••••MX400SEGooseneck Microphones General DescriptionShure Microflex MX400SE Series microphones are miniature gooseneck-mounted electret condenser microphones designed primarily for speech and vocal pickup. Their high sensitivity and broad frequency range make them suitable for recording, as well as sound reinforcement applications.The MX400SE series can be screwed onto a mic stand or the supplied 5/8 in. 27-threaded flange. They can be easily changed from side exit to bottom exit to conceal the cabling. All models include an in-line preamplifier, a 3.66 m (12 ft.) cable.Wide dynamic range and frequency response for accurate sound reproductionInterchangeable cartridges that provide a choice of polar pattern for each application Shock mount provides over 20 dB of isolation from surface vibration noise Snap-fit foam windscreen RF filteringModel VariationsMX400 microphones are available with 305 mm (12 in.) or 457 mm (18 in.) goosenecks, with or without a mute switch. They are available in supercardioid, cardioid and omnidirectional polar patterns."S" models include a mute button and LED."D" models include a desktop base with programmable mute button and LED and logic input and output."SE" models feature a surface mount flange with side-exit cable.The polar pattern of the included cartridge is indicated by a model number suffix:/C Cardioid/S Supercardioid /O Omnidirectional/N Cartridge not included®Interchangeable CartridgesMicroflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.•••••••Snap-Fit WindscreenSnap into the groove below the cartridge.To remove, spread the gap with a screwdriver or thumbnail.Provides 30 dB of "pop" protection.Preamp GainIf necessary, the preamplifier gain can be reduced by 12 dB. Contact an authorized Shure service center for information.RFI FilteringImportant: Microphones must be used with the RK100PK or RK202PK plate-mounted preamp to optimize RF immunity.Microphone PlacementAim the microphone toward the desired source, such as the talker.Aim it away from any unwanted source, such as a loudspeaker.Place the microphone within 15 to 30cm (6 to 12 in.) of the desired sound source.Always use the supplied windscreen or optional metal windscreen to control breath noise.•If four or more microphones will be open at the same time, use of an automatic mixer, such as the Shure SCM810 or SCM410, is recommended.Permanent InstallationChanging from Side Exit to Bottom ExitDo not cut the cable to reroute. This will compromise RF immunity.Mount the microphone using one of the following methods.FlangeSlip the mounting flange retaining ring over the bottom of the preamplifier and slide it up until it is flush to the bottom of the flange. Then press the ring firmly into place.1.2.3.4.Shock MountDrill a 44mm(1-3/4 in.) diameter hole in desired mounting surface.Mark and drill starter holes for screws, using shock mount as a template.Secure shock mount to mounting surface with screws.Thread the supplied adapter onto the MX400SE microphone before inserting it into the shock mount.SpecificationsTypeElectret CondenserFrequency Response50 to 17000 HzPolar PatternMX412SE/C, MX418SE/C CardioidMX412SE/S, MX418SE/S SupercardioidOutput Impedance180 ΩOutput ConfigurationActive BalancedSensitivity@ 1 kHz, open circuit voltageCardioid–35 dBV/Pa(18 mV)Supercardioid–34 dBV/Pa(21 mV)1 Pa=94 dB SPLMaximum SPL1 kHz at 1% THD, 1 kΩ loadCardioid124 dBSupercardioid123 dBSelf NoiseA-weightedCardioid28 dB SPLSupercardioid27 dB SPLSignal-to-Noise RatioRef. 94 dB SPL at 1 kHzCardioid66 dBSupercardioid68 dBDynamic Range1 kΩ load, @ 1 kHz96 dBCommon Mode Rejection10 Hz to 100 kHz45 dB, minimumClipping Levelat 1% THD–6 dBV (0.5 V)PolarityPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connectorEnvironmental ConditionsOperating Temperature–18–57°C (0–135°F)Storage Temperature–29–74°C (–20–165°F)Relative Humidity0–95%Power Requirements11–52 V DC, 2.0 mACable3.0 m (10 ft) , attachedCertificationsMeets essential requirements of all applicable European Directives.Eligible for CE marking.The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit The CE Declaration of Conformity can be obtained from: /europe/complianceAuthorized European representative:Shure Europe GmbHHeadquarters Europe, Middle East & AfricaDepartment: EMEA ApprovalJakob-Dieffenbacher-Str. 1275031 Eppingen, GermanyPhone: +49-7262-92 49 0Fax: +49-7262-92 49 11 4Email:*************。

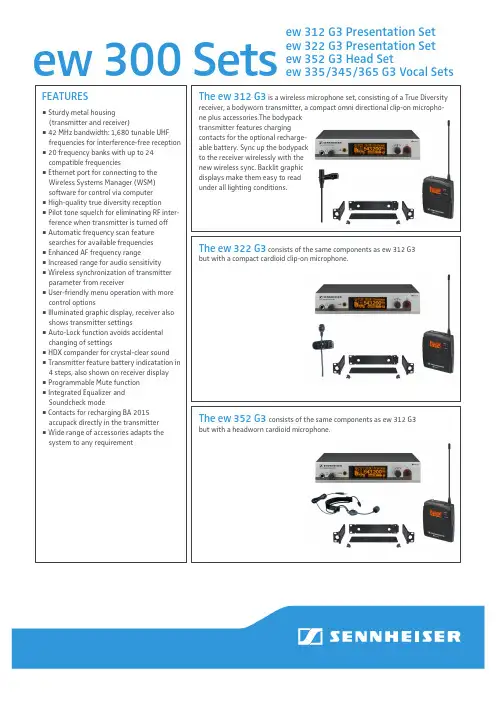

Sennheiser ew 系列无线麦克风系统用户手册说明书
The ew 322 G3 consists of the same components as ew 312 G3but with a compact cardioid clip-on microphone.The ew 352 G3 consists of the same components as ew 312 G3but with a headworn cardioid microphone.FEATURESSturdy metal housing(transmitter and receiver)42 MHz bandwidth: 1,680 tunable UHF frequencies for interference-free reception20 frequency banks with up to 24 compatible frequenciesEthernet port for connecting to theWireless Systems Manager (WSM) software for control via computer High-quality true diversity receptionPilot tone squelch for eliminating RF inter- ference when transmitter is turned off Automatic frequency scan feature searches for available frequencies Enhanced AF frequency rangeIncreased range for audio sensitivity Wireless synchronization of transmitter parameter from receiverUser-friendly menu operation with more control optionsIlluminated graphic display, receiver also shows transmitter settingsAuto-Lock function avoids accidental changing of settingsHDX compander for crystal-clear sound Transmitter feature battery indicatation in 4 steps, also shown on receiver display Programmable Mute function Integrated Equalizer and Soundcheck modeContacts for recharging BA 2015 accupack directly in the transmitter Wide range of accessories adapts the system to any requirementThe ew 312 G3 is a wireless microphone set, consisting of a True Diversityreceiver, a bodyworn transmitter, a compact omni directional clip-on micropho-ne plus accessories.The bodypack transmitter features charging contacts for the optional recharge-able battery. Sync up the bodypack to the receiver wirelessly with the new wireless sync. Backlit graphic displays make them easy to read under all lighting conditions.ew 300 Setsew 312 G3 Presentation Set ew 322 G3 Presentation Set ew 352 G3 Head Setew 335/345/365 G3 Vocal SetsFEATURESew 335 G3/ew 345 G3/ew 365 G3 Vocal SetsSee above mentioned list of features plus Programmable Mute switch, easyaccessableHandheld transmitter with easy-exchangeable microphone heads from evolution series The ew 335 G3 is a wireless microphone set, consisting of a True Diversity receiver, a handheld transmitter with e 835 microphone head plus accessories. It is versatile for every style of music and presentations. A wireless link from receiver to the transmitter allows synchronization of frequencies for easy setup. Backlit graphic displays make them easy to read under all lighting conditions. The ew 345 G3 consists of the same components as ew 335 G3but with an e 845 microphone head.The ew 365 G3consists of the same components as ew 335 G3but with an e 865 microphone head.ARCHITECT’S SPECIFICATIONSew 312 G3 Presentation SetComplete plug & play wireless microphone set with clip-on microphone (condenser, omni-directional) from Sennheiser evolution series for multi-purpose application. The devices shall have metal housings for rugged use. 42 MHz bandwidth with 1,680 tunable frequencies. 20 banks with up to 24 compatible frequencies, 1 bank for individual selectable frequencies, scan function and wireless synchronization to the transmitter for easy setup. HDX compander delivers high-quality sound performance. All parameters of transmitter and receiver can be monitored and controlled via Wireless Systems Manager (WSM) software from PC. The transmitter shall have a sensitivity range of 48 dB. The receiver offers a maximum output level of +18 dBu (+6 dB gain). True Diversity and pilot tone squelch for interference-free reception. Charging contacts on transmitter for recharging BA 2015 accupack directly in the transmitter shall be available. 3-step battery + LowBattery indication on transmitter and receiver shall give reliable information on operation time.Menu operation, auto-lock function and illuminated graphic displays on transmitter and receiver for user-friendly operation.A RF Mute function on transmitter and receiver allows offline settings.An easy accessable Mute switch on the transmitter can be programmed for AF on/off, RF on/off.A suitable Remote Mute Switch option also allows push-to-talk and push-to-muteAn equalizer and soundcheck mode is inte g rated in the receiver.ew 322 G3 Presentation SetComplete plug & play wireless microphone set with clip-on microphone (electret, cardioid) from Sennheiser evolution series for multi-purpose application. Further discription see paragraph ew 312 G3.ew 352 G3 Head SetComplete plug & play wireless microphone set with headworn microphone (condenser, cardioid) for hands-free application. Further discription see paragraph ew 312 G3.ew 335 G3 Vocal SetComplete plug & play wireless microphone set with easy-exchangeable e 835 microphone head (dynamic, cardioid) from Sennheiser evolution series for multi-purpose application. Further discription see paragraph ew 312 G3.ew 345 G3 Vocal SetComplete plug & play wireless microphone set with easy-exchangeable e 845 microphone head (dynamic, supercardioid) from Sennheiser evolution series for multi-pur p ose application. Further discription see paragraph ew 312 G3.ew 365 G3 Vocal SetComplete plug & play wireless microphone set with easy-exchangeable e 865 microphone head (electret-condenser, supercardioid) from Sennheiser evolution series for multi-purpose application. Further discription see paragraph ew 312 G3.SySTEMRF frequency range ................................................516.....865 MHzTransmission/receiving frequencies ...................1,680Frequency banks ..................................................... 20 (factory presets)6 (user presets)Presets .......................................................................24 max.Switching bandwidth .............................................42 MHzCompander ...............................................................HDXSignal-to-noise ratio ..............................................> 115 dB(A)THD, total harmonic distortion ............................< 0.9 %RECEIvERAF Frequency response..........................................25…18,000 HzAntenna connectors ...............................................BNC, 50 OhmAudio outputs .......................................................... X LR: +18 dBu max6.3 mm jack: +10 dBu maxDimensions ...............................................................212 x 202 x 43 mmWeight .......................................................................980 gTRANSMITTERRF output power .....................................................10/30 mW switchableOperating time ........................................................typ. 8hInput voltage range ................................................1.8 v lineInput voltage range ................................................2.4 v lineDimensions ...............................................................82 x 64 x 24 mmWeight .......................................................................~ 160 gMICROPHONETransducer; Microphone type ...............................permanent polarizedAF sensitivity ...........................................................1.6 mv/PaFrequency response ...............................................80.....18,000 HzPick-up pattern ........................................................omni-directionalContinued on page 5EM 300Modulation ...............................................................wideband FMRF frequency range ................................................ 516 – 558, 566 – 608, 626 – 668, 734 –776, 780 – 822, 823 – 865 MHz Transmission/receiving frequencies ...................1,680, tuneable in steps of 25 kHzReceiving frequencies ............................................ 1,680 frequencies, tuneable in steps of 25 kHz20 frequency banks, each with up to 24 factory-preset channels,intermodulation-free20 frequency banks with up to 24 user programmable channelsSwitching bandwidth .............................................42 MHzNominal/peak deviation .......................................±24 kHz/±48 kHzReceiver principle ....................................................true diversitySensitivity (with HDX, peak deviation) .............< 2 μv for 52 dBA rms S/NAdjacent channel rejection ...................................typ. ≥ 75 dBIntermodulation attenuation ...............................typ. ≥ 70 dBBlocking .....................................................................≥ 75 dBSquelch ...................................................................... O ff, 5 to 25 dBμv, adjustable in steps of 2 dBPilot tone squelch ...................................................can be switched offAntenna inputs .......................................................2 BNC socketsCompander system .................................................Sennheiser HDXEQ presets (switchable, affect the line and monitor outputs):Preset 1: “Flat”Preset 2: “Low Cut” ................................................–3 dB at 180 HzPreset 3: “Low Cut/High boost” .......................... –3 dB at 180 Hz+6 dB at 10 kHzPreset 4: “High Boost” ...........................................+6 dB at 10 kHzS/N ratio (1 mv, peak deviation) ........................≥ 115 dBATHD .............................................................................≤ 0.9 %AF output voltage (at peak deviation,1 kHz AF) .................................................................. ¼” (6.3 mm) jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBuAdjustment range of audio output level ........... 48 dB, adjustable in steps of 3 dB +6 dB gain reserveTemperature range .................................................–10 °C to +55 °CPower supply............................................................12 vPower consumption:...............................................350 mADimensions ...............................................................approx. 202 x 212 x 43 mmWeight (incl. batteries) .........................................approx. 980 gIn compliance with .................................................. C E, FCC, ETS 300422, ETS 300445MAINS UNITInput voltage............................................................100 to 240 v~, 50/60 HzPower/current consumption ................................max. 120 mAOutput voltage ........................................................12 vSecondary output current .....................................400 mATemperature range .................................................–10 °C to +40 °CIn compliance with .................................................. C E, FCC, IC, ETS 300422, ETS 300445Continued on page 6SK 300 and SKM 300Modulation ...............................................................wideband FMRF frequency range ................................................ 516 – 558, 566 – 608, 626 – 668, 734 –776, 780 – 822, 823 – 865 MHz Transmission/receiving frequencies ...................1,680, tuneable in steps of 25 kHzReceiving frequencies ............................................ 1,680 frequencies, tuneable in steps of 25 kHz20 frequency banks, each with up to 24 factory-preset channels, intermodulation-free6 frequency banks with up to 24 user programmable channelsSwitching bandwidth .............................................42 MHzNominal/peak deviation .......................................±24 kHz/±48 kHzFrequency stability .................................................≤ ±15 ppmRF output power at 50 O......................................typ. 10/30 mW, switchablePilot tone squelch ...................................................can be switched offAF characteristicsCompander system .................................................Sennheiser HDXAF frequency responseSK ................................................................................ m icrophone: 80 –18,000 Hzline: 25 –18,000 HzSKM ............................................................................80 –18,000 HzS/N ratio (1 mv, peak deviation) ........................≥ 115 dBATHD .............................................................................≤ 0.9 %Max. input voltage (SK) microphone/line ........3 vrmsInput impedance (SK) microphone/line ...........40 k O, unbalanced/1 M OInput capacitance (SK) ..........................................switchableAdjustment range of input sensitivity .............. S K: 60 dB, adjustable in steps of 3 dBSKM: 48 dB, adjustable in steps of 6 dBIn compliance with .................................................. C E, FCC, IC, ETS 300422, ETS 300445OvERALL DEvICETemperature range .................................................−10 °C to + 55 °CPower supply ........................................................... 2 AA size batteries, 1.5 v orBA 2015 accupackNominal voltage .....................................................2.4 vCurrent consumption: at nominal voltage ........typ. 180 mA (30 mW)with switched-off transmitter .............................≤ 25 μAOperating time .......................................................typ. 8 hrsDimensions ............................................................... S K: approx. 82 x 64 x 24 mmSKM: approx. Ø 50 x 265 mmWeight (incl. batteries) ......................................... S K: approx. 160 gSKM: approx. 450 gIn compliance with .................................................. C E, FCC, IC, ETS 300422, ETS 300445Continued on page 7Microphones (SK 300)ME 2ME 3-ew ME 4Microphone type .............................condenser condenser condenserSensitivity .........................................20 mv/Pa 1.6 mv/Pa40 mv/PaPick-up pattern ................................omni-directional cardioid cardioidMax. SPL ............................................130 dB SPL150 dB SPL120 dB SPL Microphone heads (SKM 300)MMD 835-1MMD 845-1MMK 865-1Radio microphone type .................dynamic dynamic condenserSensitivity ......................................... 2.1 mv/Pa 1.6 mv/Pa 1.6 mv/PaPick-up pattern ................................cardioid super-cardioid cardioid/super-cardioid,switchableMax. SPL ............................................154 dB SPL154 dB SPL152 dB SPL Frequency response .......................80.....18,000 Hz80.....18,000 Hz80.....18,000 HzDELIVERY INCLUDES for ew 312 / ew 322 / ew 352 G31 EM 300 G3 rack-mount receiver1 SK 300 G3 bodypack transmitter1 ME2 clip-on microphone (omni-directional) or1 ME 4 clip-on microphone (cardioid) or1 ME 3-ew headset microphone (cardioid)1 GA 3 rack mount1 NT2 power supply unit2 Antennas2 AA batteries1 Instruction manualDELIVERY INCLUDES for ew 335 / ew 345 / ew 365 G31 S KM 300-835 handheld transmitterwith cardioid dynamic head or1 S KM 300-845 handheld transmitterwith super-cardioid dynamic head or1 S KM 300-865 handheld transmitterwith super-cardioid condenser head1 EM 300 G3 rack receiver1 MZQ 1 microphone clip1 NT2 power supply unit2 Antennas1 GA 3 Rack mount kit2 AA batteries1 Instruction ManualPOLAR PATTERN0510152025dB30°30°60°60°90°90°120°150°120°150°0°180°125 Hz 250 Hz 500 Hz 1000 Hz2000 Hz 4000 Hz 8000 Hz 16000 HzMMD 835-1MME 865-1MMD 845-10510152025dB30°30°60°60°90°90°120°150°120°150°0°180°125 Hz 250 Hz 500 Hz 1000 Hz2000 Hz 4000 Hz 8000 Hz 16000 Hz0510152025dB30°30°60°60°90°90°120°150°120°150°0°180°125 Hz 250 Hz 500 Hz 1000 Hz2000 Hz 4000 Hz 8000 Hz 16000 HzME 3-ewME 4-ew0510152025dB30°30°60°60°90°90°120°150°120°150°0°180°125 Hz 250 Hz 500 Hz 1000 Hz2000 Hz 4000 Hz 8000 Hz 16000 Hz0510152025dB30°30°60°60°90°90°120°150°120°150°0°180°125 Hz 250 Hz 500 Hz 1000 Hz2000 Hz 4000 Hz 8000 Hz 16000 HzPRODUCT VARIANTSew 312 G3 Presentation Set Cat. No. ew 312 G3-A-EU 516 – 558 MHz 503112 ew 312 G3-A-US 516 – 558 MHz 503330 ew 312 G3-G-EU 566 – 608 MHz 503331 ew 312 G3-G-US 566 – 608 MHz 503332 ew 312 G3-B-EU 526 – 668 MHz 503333 ew 312 G3-B-US 526 – 668 MHz 503334 ew 312 G3-C-EU 734 –776 MHz 503335 ew 312 G3-C-US 734 –776 MHz 503336 ew 312 G3-D-EU 780 – 822 MHz 503337 ew 312 G3-D-EU-X 780 – 822 MHz 503338 ew 312 G3-D-UK 780 – 822 MHz 503339 ew 312 G3-E-EU 823 – 865 MHz 503340 ew 312 G3-E-EU-X 823 – 865 MHz 503341 ew 312 G3-E-UK 823 – 865 MHz 503342 ew 312 G3-GB 606 – 648 MHz 504649 ew 322 G3 Presentation Set Cat. No. ew 322 G3-E-UK 823 – 865 MHz 503357 ew 322 G3-A-EU 516 – 558 MHz 503113 ew 322 G3-A-US 516 – 558 MHz 503345 ew 322 G3-G-EU 566 – 608 MHz 503346 ew 322 G3-G-US 566 – 608 MHz 503347 ew 322 G3-B-EU 626 – 668 MHz 503348 ew 322 G3-B-US 626 – 668 MHz 503349 ew 322 G3-C-EU 734 –776 MHz 503350 ew 322 G3-C-US 734 –776 MHz 503351 ew 322 G3-D-EU 780 – 822 MHz 503352 ew 322 G3-D-EU-X 780 – 822 MHz 503353 ew 322 G3-D-UK 780 – 822 MHz 503354 ew 322 G3-E-EU 823 – 865 MHz 503355 ew 322 G3-E-EU-X 823 – 865 MHz 503356 ew 322 G3-GB 606 – 648 MHz 504650 ew 352 G3 Presentation Set Cat. No. ew 352 G3-A-EU 516 – 558 MHz 503114 ew 352 G3-A-US 516 – 558 MHz 503360 ew 352 G3-G-EU 566 – 608 MHz 503361 ew 352 G3-G-US 566 – 608 MHz 503362 ew 352 G3-B-EU 526 – 668 MHz 503363 ew 352 G3-B-US 526 – 668 MHz 503364 ew 352 G3-C-EU 734 –776 MHz 503365 ew 352 G3-C-US 734 –776 MHz 503366 ew 352 G3-D-EU 780 – 822 MHz 503367 ew 352 G3-D-EU-X 780 – 822 MHz 503368 ew 352 G3-D-UK 780 – 822 MHz 503369 ew 352 G3-E-EU 823 – 865 MHz 503370 ew 352 G3-E-EU-X 823 – 865 MHz 503371 ew 352 G3-E-UK 823 – 865 MHz 503372 ew 352 G3-GB 606 – 648 MHz 504651ew 335 G3 Vocal Set Cat. No. ew 335 G3-A-EU 516 – 558 MHz 503115 ew 335 G3-A-US 516 – 558 MHz 503375 ew 335 G3-G-EU 566 – 608 MHz 503376 ew 335 G3-G-US 566 – 608 MHz 503377 ew 335 G3-B-EU 526 – 668 MHz 503378 ew 335 G3-B-US 526 – 668 MHz 503379 ew 335 G3-C-EU 734 –776 MHz 503380 ew 335 G3-C-US 734 –776 MHz 503381 ew 335 G3-D-EU 780 – 822 MHz 503382 ew 335 G3-D-EU-X780 – 822 MHz 503383 ew 335 G3-D-UK 780 – 822 MHz 503384 ew 335 G3-E-EU 823 – 865 MHz 503385 ew 335 G3-E-EU-X823 – 865 MHz 503386 ew 335 G3-E-UK 823 – 865 MHz 503387 ew 335 G3-GB 606 – 648 MHz 504652 ew 345 G3 Vocal Set Cat. No. ew 345 G3-A-EU 516 – 558 MHz 503116 ew 345 G3-A-US 516 – 558 MHz 503390 ew 345 G3-G-EU 566 – 608 MHz 503391 ew 345 G3-G-US 566 – 608 MHz 503392 ew 345 G3-B-EU 526 – 668 MHz 503393 ew 345 G3-B-US 526 – 668 MHz 503394 ew 345 G3-C-EU 734 –776 MHz 503395 ew 345 G3-C-US 734 –776 MHz 503396 ew 345 G3-D-EU 780 – 822 MHz 503397 ew 345 G3-D-EU-X780 – 822 MHz 503398 ew 345 G3-D-UK 780 – 822 MHz 503399 ew 345 G3-E-EU 823 – 865 MHz 503400 ew 345 G3-E-EU-X823 – 865 MHz 503401 ew 345 G3-E-UK 823 – 865 MHz 503402 ew 345 G3-GB 606 – 648 MHz 504653 ew 365 G3 Vocal Set Cat. No. ew 365 G3-A-EU 516 – 558 MHz 503117 ew 365 G3-A-US 516 – 558 MHz 503405 ew 365 G3-G-EU 566 – 608 MHz 503406 ew 365 G3-G-US 566 – 608 MHz 503407 ew 365 G3-B-EU 526 – 668 MHz 503408 ew 365 G3-B-US 526 – 668 MHz 503409 ew 365 G3-C-EU 734 –776 MHz 503410 ew 365 G3-C-US 734 –776 MHz 503411 ew 365 G3-D-EU 780 – 822 MHz 503412 ew 365 G3-D-EU-X780 – 822 MHz 503413 ew 365 G3-D-UK 780 – 822 MHz 503414 ew 365 G3-E-EU 823 – 865 MHz 503415 ew 365 G3-E-EU-X823 – 865 MHz 503416 ew 365 G3-E-UK 823 – 865 MHz 503417 ew 365 G3-GB 606 – 648 MHz 504654RECOMMENDED ACCESSORIESCat. No. ME 4-ew – Clip-on microphone,cardioid, black 503156 AM 2 – Antenna Mount kit 009912 CC 3 – System Case 503168L 2015 – Charging unit 009928 BA 2015 – Rechargeable battery pack 009950 ASA 1 – Active antenna splitter 503165 NT 1-1 – plug-in mains unit forASA 1 & L 2015 E U: 503158US: 503873UK: 503874 NT 3-1 – Plug-in mains unit for L 2015 E U: 503159US: 503876UK: 503877 A 1031-U – Antenna 004645A 2003-UHF – Directional Antenna 003658 AB 3 – Antenna booster 505550 Ear Set 1-ew – Ear-worn microphone,omni, black 504232 Ear Set 1-ew-3 – Ear-worn microphone,omni, beige 504237 Ear Set 4-ew – Ear-worn microphone,cardioid, black 504236 Ear Set 4-ew-3 – Ear-worn microphone,cardioid, beige 504234 MKE 1-ew – Clip-on microphone,omni-directional, black 502876 MKE 1-ew-1 – Clip-on microphone,omni, white 502877 MKE 1-ew-2 – Clip-on microphone,omni, brown 502878 MKE 1-ew-3 – Clip-on microphone, beige 502879 MKE 2-ew Gold – Clip-on microphone,omni, black 009831 MKE 2-ew-3 Gold – Clip-on microphone,omni, beige 009832 MKE 40-ew – Clip-on microphone,cardioid, black 500527Cat. No. HSP 4-ew – Headworn microphone,cardioid, black 009864 HSP 4-ew-3 – Headworn microphone,cardioid, beige 009867 HSP 2-ew – Headworn microphone,omni, black 009866 HSP 2-ew-3 – Headworn microphone,omni, beige 009872 CI 1 – Instrument cable 503163ew 335 / ew 345 / ew 365 G3 Vocal SetsMMD 835-1 – evolution microphone head 502575 MMD 845-1 – evolution microphone head 502576 MME 865-1 – evolution microphone head 502581 MZW 1 – Windshield 004839 KEN 2 – Identification rings 530195 LA 2 – Charging adapter forhandheld microphones 503162 CC 3 – System case 503168Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany 0 4 / 1 3 S e n n h e i s e r i s a r e g i s t e r e d t r a d e m a r k o f S e n n h e i s e r e l e c t r o n i c G m b H & C o . K G . w w w . s e n n h e i s e r . c o m . C o p y r i g h t ©0 4 / 2 0 1 3 . A l l r i g h t s r e s e r v e d . E r r o r s a n d o m i s s i o n s e x c e p t e d .Contact your local Service Partner:。
Shure PGA48 狭窄类麦克风用户指南说明书
© 2015 Shure Incorporated 27A25227 (Rev. 2)WIRED MICROPHONEPGA 48USER GUIDELe Guide de l’UtilisateurGuia del UsuarioGuida dell’UtenteРуководство пользователяBedienungsanleitung日本語繁體中文用户指南Manual do UsuárioGebruikershandleiding사용자 가이드Panduan PenggunaPG AL TA SERIESTM Printed in China2PGA48Proximity Effect Directional microphones progressively boost bass frequencies as the microphone is placed in closer proximity to the source. This phenomenon, known as proximity effect, can be used to create a warmer, more powerful sound.PG Alta Microphones Congratulations on the purchase of a new Shure PG Alta series microphone. The PG Alta series delivers professional quality audio at an affordable price, with solutions for capturing nearly any source, including voice, acoustic instruments, drums, and amplified electric instruments. Suitable for live and studio applications, PG Alta microphones are built to last, and meet the same rigorous quality testing standards that make all Shure products trustworthy and reliable. • Do not cover any part of the microphone grille with your hand, as this will adversely affect microphone performance.• Aim the microphone toward the desired sound source (such as the talker, singer, or instrument) and away from unwanted sources.• Place the microphone as close as practical to the desired sound source.• Work close to the microphone for extra bass response.• Use only one microphone to pick up a single sound source.• For better gain before feedback, use fewer microphones.• Keep the distance between microphones at least three times the distance from each microphone to its source (“three to one rule”).• Place microphones as far as possible from reflective surfaces.• Add a windscreen when using the microphone outdoors.• Avoid excessive handling to minimize pickup of mechanical noise and vibration.On/Off SwitchAvoiding Pickup of Unwanted Sound SourcesPlace the microphone so that unwanted sound sources, such as monitors and loudspeakers, are directly behind it. To minimize feedback and ensure optimum rejection of unwanted sound, always test microphone placement before a performance.Recommended Loudspeaker Locations for Cardioid Microphones3Sensitivity at 1 kHz, open circuit voltage -53.5 dBV/Pa¹ (2.10 mV)Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3Weight 300 g (10.58 oz.)Switch On/Off Switch Connector Three-pin professional audio (XLR), male Environmental Conditions Operating Temperature -20° to 165°F (-29° to 74°C)Relative Humidity 0 to 95%1 Pa=94 dB SPL Optional Accessories and Replacement Parts Microphone Clip for SM58, SM57, SM87A, Beta 87A, Beta 87C, PGA57, PGA58, PGA48, PGA81 Microphone Clip for SM58, SM57, SM87A, Beta 87A, Beta 87C, PGA57, PGA58, PGA48, PGA81 A25D 5/8" to 3/8" Thread Adapter 31A18567.6 m (25 ft.) Cable (XLR-XLR)C25J 25 foot (7.5m) Triple-Flex ®Microphone XLR Cable with chrome connectors C25F PGA48 Replacement Grille RPMP48GTypical Frequency Response1000 Hz Typical Polar PatternCertificationsThis product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: /europe/complianceAuthorized European representative:Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA ApprovalJakob-Dieffenbacher-Str. 1275031 Eppingen, Germany Phone: 49-7262-92 49 0Fax: 49-7262-92 49 11 4Email:*************。
Sennheiser EM 300 SK 300无线麦克风说明书
Tastensymbole /Button icons /Icônes de touches /Simboli dei tasti /Símbolos de las teclas / Toetssymbolen / Símbolos dos botões / Символыкнопок/ 按键图标EM 300 SK 300РусскийNederlands Español Italiano Français Português 中文Tastensymbole / Button icons / Icônes de touches / Simboli dei tasti /S ímbolos de las teclas / Toetssymbolen / Símbolos dos botões /Символы кнопок / 按键图标SKM 300目录目录重要安全提示 (2)设备系统 (2)接收机 (2)背包式发射机和无线麦克风 (3)革命无线ew 300 G3系列 (4)频道库系统 (4)产品总览 (5)接收机EM 300总览 (5)EM 300显示总览 (6)背包式发射机SK 300总览 (8)SK 300显示总览 (9)无线麦克风SKM 300总览 (10)SKM 300显示总览 (11)设备使用前的准备 (12)接收机EM 300 (12)背包式发射机SK 300 (14)无线麦克风SKM 300 (15)设备的使用 (17)打开/关闭设备 (18)同步调整发射机和接收机 (21)暂时解除按键锁 (21)静音设置音频信号或关闭无线电信号 (22)选择标准显示 (25)操作菜单总览 (25)设备的清洁和维护 (29)技术参数 (32)制造商声明 (36)您可以在本公司网页中产品栏目下看到一个动画形式的使用说明。
无线麦克风A1-说明书
无线麦克风A1-说明书(完整版)-中英文-中性成品：65x75mm 展开：585x75mm印色：K+K 正面反面无线麦克风A1-说明书(完整版)-中英文-中性成品：65x75mm 展开：585x75mm印色：K+K 正面反面This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.。

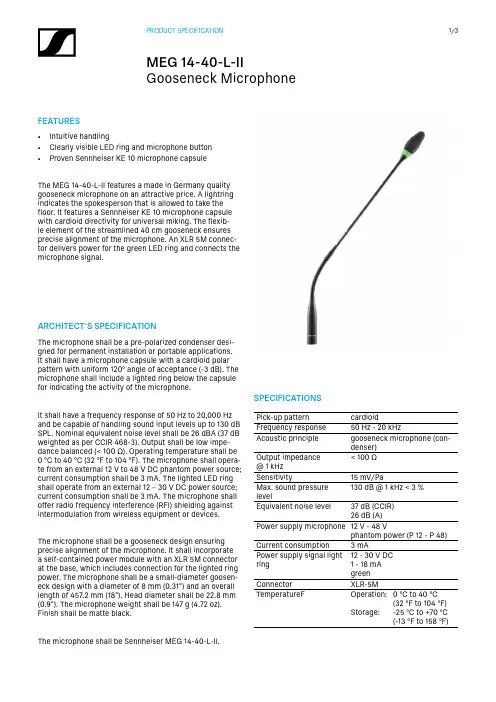

Sennheiser MEG 14-40-L-II 耳部麦克风说明书
FEATURES• Intuitive handling• Clearly visible LED ring and microphone button • Proven Sennheiser KE 10 microphone capsuleThe MEG 14-40-L-II features a made in Germany quality gooseneck microphone on an attractive price. A lightring indicates the spokesperson that is allowed to take the floor. It features a Sennheiser KE 10 microphone capsule with cardioid directivity for universal miking. The flexib-le element of the streamlined 40 c m gooseneck ensures precise alignment of the microphone. An XLR 5M connec-tor delivers power for the green LED ring and connects the microphone signal.SPECIFICATIONSPick-up patterncardioidFrequency response 50 Hz - 20 k HzAcoustic principle gooseneck microphone (con-denser)Output impedance @ 1 k Hz < 100 ΩSensitivity15 m V/PaMax. sound pressure level130 d B @ 1 kHz < 3 %Equivalent noise level37 dB (CCIR)26 dB (A)Power supply microphone 12 V - 48 Vphantom power (P 12 - P 48)Current consumption 3 mAPower supply signal light ring 12 - 30 V DC 1 - 18 mAgreenConnector XLR-5M TemperatureF Operation:Storage:0 °C to 40 °C(32 °F to 104 °F)-25 °C to +70 °C(-13 °F to 158 °F)ARCHITECT‘S SPECIFICATIONThe microphone shall be a pre-polarized condenser desi-gned for permanent installation or portable applications. It shall have a microphone capsule with a cardioid polar pattern with uniform 120° angle of acceptance (-3 d B). The microphone shall include a lighted ring below the capsule for indicating the activity of the microphone.It shall have a frequency response of 50 H z to 20,000 H z and be capable of handling sound input levels up to 130 d B SPL. Nominal equivalent noise level shall be 26 d BA (37 d B weighted as per CCIR 468-3). Output shall be low impe-dance balanced (< 100 Ω). Operating temperature shall be 0 °C to 40 °C (32 °F to 104 °F). The microphone shall opera-te from an external 12 V to 48 V D C phantom power source; current consumption shall be 3 m A. The lighted LED ring shall operate from an external 12 – 30 V D C power source; current consumption shall be 3 m A. The microphone shall offer radio frequency interference (RFI) shielding against intermodulation from wireless equipment or devices.The microphone shall be a gooseneck design ensuring precise alignment of the microphone. It shall incorporate a self-contained power module with an XLR 5M connector at the base, which includes connection for the lighted ring power. The microphone shall be a small-diameter goosen-eck design with a diameter of 8 m m (0.31") and an overall length of 457.2 m m (18"). Head diameter shall be 22.8 m m (0.9"). The microphone weight shall be 147 g (4.72 o z). Finish shall be matte black.The microphone shall be Sennheiser MEG 14-40-L-II.POLAR PATTERN0°330°300°270°240°210°180°150°120°90°60°30°DIMENSIONS⌀ 0.9"[22,8 m m ]PIN ASSIGNMENT1 Microphone Ground2 Microphone +3 Microphone –4 LED Ground5 LED: 12 – 30 V32145FREQUENCY RESPONSEHz501002005001k2k5k10k20kd B V-20-30-40-50-60PRODUCT VARIANTS Product FeaturesMEG 14-40 B Art. no. 504791• Gooseneck with integrated Senn-heiser KE 10 microphone capsule• RF shielding against intermodu-lation from wireless equipment/devices• Streamlined design for seamlessintegration• Premium quality made in GermanyThe MEG 14-40 features a made in Germany qualitygooseneck microphone on an attractive price. It featuresan integrated Sennheiser KE 10 microphone capsule withcardioid directivity for universal miking and a streamlined40 c m gooseneck with a XLR 3M connector. The flexibleelement ensures precise alignment of the microphone.MEG 14-40-L B Art. no. 504792• Gooseneck with integrated Senn-heiser KE 10 microphone capsule• RF shielding against intermodu-lation from wireless equipment/devices• Streamlined design for seamlessintegration• LED ring for speech indication• AC/DC lightring powering• Premium quality made in GermanyThe MEG 14-40-L features a made in Germany qualitygooseneck microphone on an attractive price. A lightringindicates the spokesperson that is allowed to take thefloor. It features a Sennheiser KE 10 microphone capsulewith cardioid directivity for universal miking. The flexibleelement of the streamlined 40 c m gooseneck ensuresprecise alignment of the microphone. A XLR 5M connec-tor delivers power for the red LED ring and connects themicrophone signal.MEG 14-40-L-II B Art. no. 506398• Intuitive handling• Clearly visible LED ring and micro-phone button• Proven Sennheiser KE 10 micro-phone capsuleThe MEG 14-40-L-II features a made in Germany qualitygooseneck microphone on an attractive price. A lightringindicates the spokesperson that is allowed to take thefloor. It features a Sennheiser KE 10 microphone capsulewith cardioid directivity for universal miking. The flexibleelement of the streamlined 40 c m gooseneck ensuresprecise alignment of the microphone. An XLR 5M connec-tor delivers power for the green LED ring and connectsthe microphone signal.COMPATIBILE PRODUCTSProduct compatible withMEG 14-40 B MAT 133, MAT 133 S-B, SL Tablestand 133-S DW MEG 14-40-L B MAT 153, MAT 153-S und MAS 1MEG 14-40-L-II B SL Tablestand 153-S DW, MAT 153-S B。
Sennheiser G3 专业无线麦克风收音器说明书
FEATURESSturdy metal housing42 MHz bandwidth: 1680 tunable UHFfrequencies for interference-free reception Enhanced frequency bank system with upto 12 compatible frequenciesHigh-quality true diversity receptionPilot tone squelch for eliminating RF inter-ference when transmitter is turned off Automatic frequency scan featuresearches for available frequencies Enhanced AF frequency rangeWireless synchronization of transmittersvia infrared interfaceUser-friendly menu operation with morecontrol optionsIlluminated graphic displayAuto-Lock function avoids accidentalchanging of settingsHDX compander for crystal-clear soundReceiver features transmitter batteryindicatation in 4 stepsIntegrated Equalizer, Soundcheck modeand guitar tunerWide range of accessories adapts thesystem to any requirementOptimized PLL synthesizer and micro-processor technology In every respect, this professional receiver from the new Sennheiser G3 line provides the most features and performance the evolution series has to offer.It begins with an especially high number of presets possible per frequency bank (32), making setup of many wireless systems a breeze. The built-in Ethernet port allows computer control and monitoring with a PC running Sennheiser’s Wireless System Manager software. The large graphic display provides a great deal of additional information at a glance. One-touch sync function automatically links up a G3 transmitterwith this receiver.Lastly, the switchingpower supply is idealfor touring acts andrental companies whoneed a wireless thatcan be powered fromworldwide sources.TECHNICAL DATAModulation ...............................................................wideband FMFrequency ranges.................................................... 516 – 558, 566 – 608, 626 – 668,734 –776, 780 – 822, 823 – 865 MHz Receiving frequencies ............................................ 1,680 frequencies, tuneable in stepsof 25 kHz20 frequency banks, each withup to 32 factory-preset channels,intermodulation-free6 frequency banks with up to 32user programmable channels Switching bandwidth .............................................42 MHzNominal/peak deviation .......................................± 24 kHz/± 48 kHzReceiver principle ....................................................true diversitySensitivity (with HDX, peak deviation) .............< 2 μV for 52 dBA rms S/N Adjacent channel rejection ...................................typ. ≥ 75 dBIntermodulation attenuation ...............................typ. ≥ 70 dBBlocking .....................................................................≥ 75 dBSquelch ...................................................................... O ff, 5 to 25 dBμV,adjustable in steps of 2 dBPilot tone squelch ...................................................can be switched offAntenna inputs........................................................2 BNC sockets, 50 Ohm Compander system .................................................Sennheiser HDXEQ presetsPreset 1: “Flat”Preset 2: “Low Cut” ................................................−3 dB at 180 HzPreset 3: “Low Cut/High boost” .......................... −3 dB at 180 Hz+6 dB at 10 kHzContinued on page 2EM 500 G3 Rack-mount receiverTECHNICAL DATAPreset 4: “High Boost” ...........................................+6 dB at 10 kHz S/N ratio (1 mV, peak deviation) ........................≥ 115 dBA THD .............................................................................≤ 0.9 %AF output voltage (at peak deviation,1 kHz AF) .................................................................. ¼” (6.3 mm) jack socket(unbalanced): +12 dBuXLR socket (balanced): +18 dBuAdjustment range of audio output level ........... 48 dB, adjustable in steps of 3 dB+6 dB gain reserveTemperature range .................................................−10 °C to + 55 °C Power supply............................................................12 V Power consumption:...............................................350 mADimensions ...............................................................approx. 202 mm x 212 mm x 43 mm Weight .......................................................................approx. 980 gARCHITECT ’S SPECIFICATIONSThe rack-mount receiver with true diversity technology shall be for use with a companion transmitter as part of a wireless RF trans-mission system.The receiver shall operate within six UHF frequency ranges, each with a 42 MHz switching bandwidth: 516 – 558 MHz, 566 – 608 MHz, 626 – 668 MHz, 734 –776 MHz, 780 – 822 MHz, 823 – 865 MHz; receiving frequencies shall be 1,680 per range and shall be tunable in 25 kHz steps. The receiver shall feature 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies.The receiver shall feature a balanced XLR-3M audio output with a maximum output of +18 dBu along with an unbalanced 1⁄4“ (6.3 mm) audio output with a maximum output of +12 dBu. A headphone output with headphone volume control shall be provi-ded and shall utilize a 1⁄4“ (6.3 mm) stereo jack socket. The receiver shall have an Ethernet port (RJ45) for remote network-based monitoring and control using the Sennheiser Wireless System Manager software. Two 50 O BNC-type input sockets shall be provided for connecting the antennas.The receiver shall be menu-driven with a backlit LC display showing the current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, pilot tone evaluation, equalizer setting, output gain, muting function, trans-mitter type and battery status of the associated transmitter. An auto-lock feature shall be provided to prevent settings from being accidentally altered. The receiver shall feature an integrated guitar tuner and shall provide a sound check mode.The parameters of associated transmitters shall be configurable in the receiver menu and synchronized with the transmitters via an integrated infrared interface.Nominal/peak deviation shall be ±24 kHz/±48 kHz. Squelch threshold shall be defeatable (off) or adjustable adjustable from 5–25 dBμV in 2 dB steps.Continued on page 4DELIVERy INCLUDES1 EM 500 G3 rack-mount receiver 1 N T 2-3 mains unit with one country adapter2 Rod antennas 1 GA3 rack adapter 1 Instruction manual1 Frequency information sheet 4 Device feetARCHITECT’SSPECIFICATIONSThe receiver shall incorporate the Sennheiser HDX compander system and a defeatable pilot tone squelch. Sensitivity shall be< 2 μV for 52 dBArms S/N with HDX engaged at peak deviation. Adjacent channel rejection shall be ≥ 75 dB (typical). Intermodu-lation attenuation shall be ≥ 70 dB (typical); blocking shall be ≥ 75 dB. Four selectable equalizer presets shall be provided: “Flat”, “Low Cut” (−3 dB at 180 Hz), “Low Cut/High Boost” (−3 dB at 180 Hz/+6 dB at 10 kHz) and “High Boost” (/+6 dB at 10 kHz). Signal-to-noise ratio at 1 mV and peak deviation shall be ≥ 115 dB. Total harmonic distortion (THD) shall be ≤ 0.9 %.The audio output level shall be adjustable within a 48 dB range in steps of 3 dB.The receiver shall operate on 12 V power supplied from the NT 2-3 mains unit. Power consumption shall be 350 mA. The receiver shall have a rugged metal housing; dimensions shall be approximately 202 x 212 x 43 mm (7.95“ x 8.35“ x 1.69“). Weight shall be approximately 980 grams (2.16 lbs). Operating temperature shall range from −10 °C to +55 °C (+14 °F to +131°F). The receiver shall be the Sennheiser EM 500 G3.PRODUCT vARIANTSEM 500 G3-A-EU – 516...558 MHz /Power supply unit EU Cat. No. 503138 EM 500 G3-A-US – 516...558 MHz /Power supply unit US Cat. No. 503658 EM 500 G3-G-EU – 566...608 MHz /Power supply unit EU Cat. No. 503659 EM 500 G3-G-US – 566...608 MHz /Power supply unit US Cat. No. 503660 EM 500 G3-B-EU – 626...668 MHz /Power supply unit EU Cat. No. 503661 EM 500 G3-B-US – 626...668 MHz /Power supply unit US Cat. No. 503662 EM 500 G3-C-EU – 734...776 MHz /Power supply unit EU Cat. No. 503663 EM 500 G3-C-US – 734...776 MHz /Power supply unit US Cat. No. 503664 EM 500 G3-D-EU – 780...822 MHz /Power supply unit EU Cat. No. 503665 EM 500 G3-D-EU-X – 780...822 MHz /Power supply unit EU / Germany Cat. No. 503666 EM 500 G3-D-UK – 780...822 MHz /Power supply unit UK Cat. No. 503667 EM 500 G3-E-EU – 823...865 MHz /Power supply unit EU Cat. No. 503668 EM 500 G3-E-EU-X – 823...865 MHz /Power supply unit EU / Germany Cat. No. 503669 EM 500 G3-E-UK – 823...865 MHz /Power supply unit UK Cat. No. 503670RECOMMENDED ACCESSORIESAM 2 – Antenna Mount Cat. No. 9912 CC 3 – Case Cat. No. 503168 L 2015 – Charging Adapter Cat. No. 9828 BA 2015 – Akku Cat. No. 9950 AC 1 – Active antenna combiner Cat. No. 503166 ASA 1 – Antenna spiltter Cat. No. 503165 NT-1 – plug-in mains unit for ASA 1 & L 2015 Cat. No. 4786 CL 2 – Linecable Cat. No. 4840A 1031-U – Antenna Cat. No. 4645 AB 3-A – Antenna booster module with +10 dBgain and 42 MHz bandwidth. (516-558 MHz)Cat. No. 502567 AB 3-B – Antenna booster module with +10 dBgain and 42 MHz bandwidth. (626-668 MHz) Cat. No. 502568 AB 3-G – Antenna booster module with +10 dBgain and 42 MHz bandwidth. (566-608 MHz)Cat. No. 502572 NT 2-3-US – Power supply for G3 EM rackmount receivers and transmitters - Cat. No. 503870GA 3 19“ Rack Adapter Cat. No. 503167 NT 1-1 EU – Mains unit for powering theASA 1 antenna splitter or the L 2015 charger,EU version Cat. No. 503158 NT 1-1 US – Mains unit for powering theASA 1 antenna splitter or the L 2015 charger,120 V version Cat. No. 503873 NT 1-1 UK – Mains unit for powering theASA 1 antenna splitter or the L 2015 charger,UK version Cat. No. 503874 NT 2-3 EU – Mains unit for powering theEM 100 G3 stationary receiver, EU version Cat. No. 503157 NT 2-3 US – Mains unit for powering theEM 100 G3 stationary receiver, 120 V version Cat. No. 503870 NT 2-3 UK – Mains unit for powering theEM 100 G3 stationary receiver, UK version Cat. No. 503871Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany 0 3 / 1 3 S e n n h e i s e r i s a r e g i s t e r e d t r a d e m a r k o f S e n n h e i s e r e l e c t r o n i c G m b H & C o . K G . w w w . s e n n h e i s e r . c o m . C o p y r i g h t ©0 3 / 2 0 1 3 . A l l r i g h t s r e s e r v e d . E r r o r s a n d o m i s s i o n s e x c e p t e d .Contact your local Service Partner:。
无线麦克风用户手册说明书
用户手册UserManual无线麦克风Wireless Microphone目录Content目录--------------------------------------------------------------------------------01 Content---------------------------------------------------------------------------01前言--------------------------------------------------------------------------------02 Foreword-------------------------------------------------------------------------10产品特性---------------------------------------------------------------------------02 Features--------------------------------------------------------------------------10适用场合---------------------------------------------------------------------------02 Application-----------------------------------------------------------------------10技术参数---------------------------------------------------------------------------02 Specification--------------------------------------------------------------------10标准配置---------------------------------------------------------------------------03 Product content-----------------------------------------------------------------11接收机功能------------------------------------------------------------------------03 Receiver function---------------------------------------------------------------11接收机LCD显示面板操作方法---------------------------------------------------04 Receiver LCD display and operation-----------------------------------------12麦克风使用和操作方法-------------------------------------------------------05-06 Microphone operation-----------------------------------------------------13-14系统操作方法----------------------------------------------------------------------07 System operation---------------------------------------------------------------15注意事项---------------------------------------------------------------------------07 Note-------------------------------------------------------------------------------15安全警告---------------------------------------------------------------------------08 Caution---------------------------------------------------------------------------16故障及解决方法-------------------------------------------------------------------09 Trouble shooting----------------------------------------------------------------17尊敬的用户：感谢您选购TAKSTAR 无线麦克风，为了您能够更好的了解使用本产品，建议您在使用前仔细阅读本说明书。
moments+wolves+edition+用户手册说明书
封面充电针充电盒指示灯耳机指示灯充电触点触控板麦克风将耳帽斜向下轻轻塞入耳道，以轻摆头部耳机不晃动为宜。
1.已有连接过手机，在手机蓝牙列表中，找到“Moment Wolves Edition ”，点击进 入设置，选择忽略或取消配对。
2.耳机在配对模式下，快速触摸触控板5下，耳机恢复出厂后关机，则表示耳机重置成功。
根据消费类电子产品的有关法规以及行业的实际情况，为消费者提供满意的售后服务，特制定以下售后服务条例：一、保修凭证主要包括：保修卡，产品包装盒上的防伪标签以及销售凭证。
二、售后服务范围：2.1 在产品保修期内，凡属于正常使用情况下，由于产品本身质量问题引起的故障， 未经拆修，本公司将负责给予免费维修；2.2 超出保修期产品，需出具保修凭证并支付维修费。
如需订配件，需支付配件费； 订购其他的配件则需把维修的产品寄到我司；经我司专业维修人员检测后维 修并更换配件；2.3 保修凭证一经涂改，保修即时失效；2.4 产品的保修凭证，请消费者妥善保存，遗失不补。
三、保修期3.1 购买本产品一年内，在正常使用情况下（非人为损坏）出现质量问题，未经拆修； 3.2 消费者由购买之日起7天内，在正常使 用情况下（非人为损坏）出现质量问题，未经 拆修，可享受包换服务；自开具销售凭证之日起计算，1年保修（包括所有配件）； 3.3 包换服务，仅限于同型号、同颜色的产品，在不缺货的情况下更换周期为5~10天。
1.打开充电盒拿起耳机，两个耳机开机后5秒内自动互配，成功后进入配对模式 （主耳机：红蓝交替闪 / 副耳机：蓝灯慢闪）；2.打开设备蓝牙列表搜索“Moment Wolves Edition ”；3.点击完成连接（蓝灯慢闪）。
如果连接失败，将耳机放回充电盒后关盖，重复上述操作。
双耳同时离开手机到超出距离，耳机进入回连蓝牙状态，5分钟内如果没有回连到手机，双耳机则自动关机。
首次连接后，耳机开机后可自动回连上一次配对设备（需开启设备蓝牙）通话时，将耳机麦克风朝向嘴部可使通话更清晰。
TOA EM-380-AM 耳朵型麦克风说明书
INSTRUCTION MANUALGOOSENECK MICROPHONE EM-380-AMThank you for purchasing the TOA gooseneck microphone.Carefully follow the instructions in this manual to ensure prolonged and trouble-free use of your equipment.1. OVERVIEWTOA's EM-380 gooseneck microphone has a unique shape and a high-quality condenser microphone designed for use in conference rooms, places of worship and voice applications.This product is equipped with an optional power supply that can be selected between battery power or phantom power.2. FEATURESl When you press the button, the microphone turns on or off.l Operation of the microphone by selecting the battery or ghost switch on the back of the microphone. lUse two "AA" size batteries .3. BEFORE USING THE UNITPrepare two AA (3 VDC) batteries or phantom power from 9 to 52 VDC to operate the unit.4. NOMENCLATURE AND FUNCTIONS5. BATTERY5.1.Life expectancyThe application and use of the battery for speech and voice is assumed, as shown in the following tableApplication 3 hours / week 3 hours / day Times* Discourse 20 months3 months- Paging- - 92,500※Approximately it is assumed to use a time voice de 10 secondsFoam Filter (Accessory)[Rear][Bottom]1. MicrophoneClosed type cardioid electret condenser microphone.The gooseneck shaft makes it easy to position the microphone for optimal acoustic effect.2. Gooseneck lampLight blue when the microphone is on and will turn off when the microphone is in off mode.3. Ignition lampLike the gooseneck lamp, the power lamp will turn on when the microphone is on and turn off when the microphone is off.Note: If the battery is low, the lamp will turn off, but the microphone can still be used.It is recommended to change the battery when this happens. 4. Microphone on/off buttonPress this key to turn the microphone on or off.5.XLR Output BalanceThe microphone output impedance is 750 ohms. Use the supplied cable to connect it to an amplifier.6. SelectorSelect this switch to use battery or phantom as the power supply for this unit.Note: It is recommended to use the supplied cable or a b-to-lance cable, especially if you use phantom power. Otherwise, the gooseneck lamp and the ignition lamp are dimly lit, although the unit may function normally.7. Battery compartmentPlace AA batteries (2 pcs).5.2. Battery insertionStep 1. Open the battery cover.Step 2. Insert batteries according to the polarity of the battery and make sure that the taperemaining is on top of the batteries. (see image on the right).Step 3. Put the battery cover back on the product.Caution: If the microphone is not to be used in more than 1 month, remove the battery from the unit toprevent battery leakage. To remove the batteries, carefully pull the remaining tape from thebattery compartment.6.CONNECTIONStep 1. Place the amplifier microphone volume controlin the minimum position.Step 2. Use the supplied cable to connect the microphonethe microphone unit to the microphone input of the amplifier.7.OPERATIONStep 1. Press the ON/OFF button on the microphone.The gooseneck lamp and the power lamp turn on and turn on the microphone.Step 2. Make an announcement.Keep your mouth at a distance of 5 to 10 cm from the microphone and speak normally for the best playback ofsound possible. Adjust the microphone orientation for the best position by rotating the axis of the gooseneck. If the distance from the mouth is too close, this causes distortion of the voice, just the microphone by pulling it or lowering it, because the microphone is of high sensitivity.Step 3. Once the announcement is complete, press the ON/OFF button on the microphone.Both the unit lamp and microphone will turn off.Note: Be sure to press the ON/OFF button after completing the ad. Failure to do so reduces battery life.ING SELECTOR SWITCH MODEThe selector switch has 2 modes. There is battery mode and ghost mode. If you use the battery as a power input, select the switch to the battery position. And if you use ghost as an energy input, select the ghost position. Be sure to turn on the phantom power from the amplifier or mixer. For reference, you can use the phantom power of TOA mixer amplifiers.9.ONES SPECIFICATIONElement Condenser microphonePolar Pattern CardioidRated impedance 750 Ohms, balancedNominal sensitivity -41 ± 3 dB (1 kHz 0 dB = 1 V/Pa)Power Source 3 VDC (2 "AA" batteries) or phantom power (9 - 52 VDC)Frequency response 50 - 16,000 HzOperating Temperature0°C to +40°C (32°F to 104°F)Finish Support = Resin ABS, black, paintAxis = Aleation of copper, black, paintDimensions 110 (w) x 145 (d) x 532 (h) mmWeight 550 g (without batteries)Accessories Foam Filter (1)XLR cable to TRS connector (Phone Jack) (7.5 m) (1)。
全向麦克风产品使用手册说明书
产品使用简介(1)除说明书有特殊标示的操作方式以外,请勿尝试拆卸或更换产品内的任何零件。
(2)请勿将产品放入任何液体中，此产品非防水设计。
(3)如果有任何液体不小心进入产品内时，请立即断开连接并移开此产品。
(4)为避免触电，请在安装或卸载产品时，确保手上没有沾水。
(5)请勿将此产品放置于热源附近或直接暴露在火源附近。
(6)请勿将本产品放置在有强大电磁力的环境中，否则会导致产品故障。
产品概述非常感谢您使用本公司的全向麦克风产品!在使用本产品之前,请仔细阅读产品使用说明书。
本说明书介绍了全向麦克风产品的功能、安装和使用操作的一般方法。
本产品全向麦克风是一款蓝牙无线或USB有线连接的网络会议通话设备，全向麦克风设备之间蓝牙级联可扩展拾音和放音应用范围，具有回声抵消和环境降噪的最新一代语音处理算法,通话音质清晰自然，机身轻便，便于携带,安装操作方便，特别适用于手机、平板、电脑终端之间的网络会议通话等应用场景。
产品使用手册中图片为示意说明图，具体请以产品实物为准。
包装清单全向麦克风X1数据线X1使用说明书X1Product introduction(1)Do not try to disassemble or replace any parts in the product except for the operation methods marked in the manual.(2)Do not put the product into any liquid,this product is not waterproof.(3)If any liquid accidentally enters the product,please disconnect and remove the product immediately.(4)To avoid electric shock,please make sure that your hands are not wet when installing or uninstalling the product.(5)Do not place this product near a heat source or directly expose it to a fire source.(6)Do not place this product in an environment with strong electromagnetic force,otherwise it will cause product failure.product descriptionThank you very much for using the omnidirectional microphone product of our company!Before using this product,please read the product instruction manual carefully.This manual introduces the function,installation and operation of omnidirectional microphone products.This product omnidirectional microphone is a network conference call device with Bluetooth wireless or USB wired connection.Bluetooth cascading between omnidirectional microphone devices can expand the application range of sound pickup and playback.It has the latest generation of voice echo cancellation and environmental noise reduction.Processing algorithm,the sound quality of the call is clear and natural,the body is light,easy to carry,easy to install and operate,especially suitable for application scenarios such as network conference calls between mobile phones, tablets,and computer terminals.The pictures in the product manual are schematic illustrations, please refer to the actual product for details.Packing listOmnidirectional microphone X1Data cable X1Instruction manual X1产品介绍②麦克风②扬声器③蓝牙指示灯③蓝牙键⑤开关机键⑤组队级联键⑤音量“一”键⑧麦克风静音键⑧音量“+”键⑩级联指示灯⑩环形指示灯⑩充电指示灯⑩USB-C接口设备指示灯说明(1)开机:环形指示灯绿灯逐渐亮起,语音提示“开机,等待蓝牙连接”。
数字无线话筒使用说明书K歌
数字无线话筒使用说明书K歌数字无线话筒使用说明书一、手持开关机1.将两节5号电池装入手持并拧紧网头（注意电池负极朝下，电池装反将损坏手持），向上推开关打开手持，此时电源指示灯亮，手持进入开机状态。
如果电源指示灯闪烁表示电池已耗尽，请更换电池再开机。
2.向下推开关电源指示灯熄灭，手持关机。
长时间不使用话筒请将电池取出。
二、接收机连接与开关机（专业）1.将音频连接线一头插接收机音频输出2另一头插到用户的音频设备（如功放、前级等）。
将12V开关电源插入220V 交流插座，输出直流12V插入接收机DCIN，蓝色电源指示灯亮，接收机进入开机状态。
2.按住电源键一秒能够开启和关闭接收机电源。
3.断电后重新通电主机将自动进入开机状态，此时无需再按电源键开机。
三、接收机与电脑的连接与开关机（个人）1.将USB连接线两头分别插入电脑和接收机的USB接口。
蓝色电源指示灯，接收机进入开机状态。
电脑自动把音频输入输出设备切换成接收机。
（首次使用接收机的时候，电脑会自动安装驱动，电脑会依次出现图3所示的画面，直到硬件安装成功）2.将音频连接线一头插接收机音频输出1另一头插到用户的桌面音响输入端。
3.此时接收机将自动成为酷我k歌或QQ等者其它应用软件的音频输入输出设备。
（如果不能使用请参见疑难解答）4.按住电源键一秒能够开启和关闭接收机电源。
5.断电后重新通电主机将自动进入开机状态，此时无需再按电源键开机。
四、对码1.接收机开机后按功能键进入A通道对码状态，电源指示灯和A通道的射频指示灯亮，此时A通道能够对码，再按功能键进入B通道对码状态，电源指示灯和B通道射频指示灯亮，此时B通道能够对码。
再按功能键又将切换到A通道，如此循环。
2.按照上一步将接收机切换到需要对码的通道，再按电源键，该通道射频指示灯闪烁，此时打开任意一支手持，接收机将自动与手持实现连接，连接成功后该通道射频指示灯和音频指示灯同时亮起一秒。
说明这个通道的手持对码成功，即可使用。
无线麦克风用户手册
HV-M300
V20110321 请妥善保留此手册以供日后查询。 该手册为无线麦克风通用手册，故实际产品可能与说明Biblioteka 有差异。北京鸿合科技集团
使用说明
注意
应把供电大于安全电压的产品组件安装或放置在儿童接触不到的位置。 使用被产品时请使用本机标配电源线，请勿使用其他类型的电源线，以免烧毁 本机造成危险。 为了避免电击危险，非专业维修人员请勿打开外壳。 使用前，请确认市电电压与接收主机电源相符，长期不使用时，并将接收主机 的电源拔离插座。 请不要将机器安装或放置在热源附近，如热炉，传热管，功放机等，也不要将 机器放在阳光直射的地方，或者多尘，潮湿的地方，以及有机械振动和易受撞 击的地方，为获得良好的效果，还应尽量远离高压输电网，大件金属物体，雷 达站等设备。 本产品属于移动便携式产品，使用中应防止滑落，避免摔坏。 麦克风模块内置电池，请勿掷于火中。
—1—
使用说明
接收主机
音频输出/L 音频输出/R
音频输入/L 电源接口 电源开关
音频输入/R
在使用当中， 在音频输入端可输入如电脑、 DVD 播放器等媒体设备的音频信号， 这些音频信号将和麦克风的声音一起混合输出。
麦克风模块
减小音量 增大音量 电源开关 切换麦克风和外接音频输入 蓝灯
红灯
充电接口 音频输入 麦克风输入
—3—
使用说明 若您需要了解更多的产品信息，请登录北京鸿合科技集团的网站： 若您需要进一步的协助，请发送邮件至我们的技术支持： service@ 本产品手册的内容如有修改，恕不另行通知。 本手册内容，本公司已经力求圆满，若有不明之处或错误，记载遗漏等，请及时与本公司求 证，对于未经求证而引致的一切损失和伤害，本公司不承担任何责任。
Shure KSM11 无线麦克风头部指南说明书
KSM11Wireless Microphone CapsuleOnline user guide for KSM11.Version: 1.0 (2022-D)Table of ContentsKSM11 Wireless Microphone Capsule3 General Description3 Features3 Setup and Compatibility3 Model Variations 3 Accessories and Parts 3 Optional Accessories 4Replacement Parts 4 Specifications4 Certifications6 SAFETY PRECAUTIONS7 LIMITED WARRANTY7 FOR ORIGINAL PURCHASES IN AUSTRALIA ONLY 8 Service Centers 9 China RoHS 9••••••KSM11Wireless Microphone Capsule General DescriptionThe Shure KSM11 wireless vocal microphone capsule is specifically optimized to more accurately protect and present artist vocals in modern digital wireless live sound productions. As stages have transitioned to more fully embrace digital technology, Shure developed the KSM11 to take advantage of increased linearity and control enabled by this transition. Featuring a premium cardioid condenser design, the KSM11 offers near-perfect off-axis rejection and a highly consistent polar response from an expertly crafted combination of transducer and shock mount technology. The result is an elegant and natural combination of low and mid-range clarity and essential high end detail, designed specifically for high-profile wireless applications, including live performance, live event recording and premium streaming.FeaturesProprietary wireless condenser capsule utilizing a ¾” gold diaphragm and premium electronics for exceptional dynamic range and transient response.Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail.Streamlined design for an overall smaller and lighter capsule footprint.Advanced suspended isolation system for virtually zero handling noise.Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals.Available in black or brushed nickel finish for use with compatible Shure handheld wireless transmitters.Setup and CompatibilityTo use the KSM11 microphone capsule, thread it onto a compatible wireless transmitter or wired handle.The KSM11 is compatible with all Shure handheld transmitters with removable capsules. It's also compatible with the Shure VPH wired handle XLR accessory, allowing the KSM11 to be used in typical XLR connections.Model VariationsThe KSM11 microphone capsule is available in a black or brushed nickel finish. It may be purchased as part of a Shure wireless system, or as an upgrade to an existing wireless handheld transmitter.RPW192: KSM11 condenser capsule with a black finish.RPW194: KSM11 condenser capsule with a brushed-nickel finish.Accessories and PartsOptional AccessoriesFoam Windscreen A85WSWired Handle VPHReplacement PartsGrille, Black RPM261Grille, Nickel RPM263SpecificationsSpecifications were calculated using a KSM11 cartridge with Shure digital wireless handheld transmitters. They may vary slightly depending on the transmitter used.TypeElectret condenserPolar PatternCardioidFrequency Response50 to 20,000 HzOutput Impedance (1 kHz)250 Ω with 5 VDCSensitivityat 1kHz, open circuit voltage -46.5 dBV/Pa1 Pa=94 dB SPLMaximum SPL151 dBSPL with 5 VDCSignal-to-Noise Ratio71.5 dBS/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weightedDynamic Range128.5 dB with 5 VDCClipping Level10 dBV with 5 VDCSelf Noise22.5 dBSPL typical,equivalent SPL, A-weightedPolarityPositive pressure on diaphragm produces positive voltage into transmitter with respect to groundPower Requirements5 Volt Bias from Shure transmitterWeight150 g (5.3 oz.)HousingAluminum and steel grilleTypical Frequency ResponseTypical Polar PatternDimensionsCertificationsCE Notice: Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with European Union requirements. The full text of the EU declaration of conformity is available at the following site: https:// /en-EU/support/declarations-of-conformity.Authorized European representative:Shure Europe GmbHDepartment: Global ComplianceJakob-Dieffenbacher-Str. 1275031 Eppingen, GermanyPhone: +49-7262-92 49 0Fax: +49-7262-92 49 11 4Email:********************UKCA Notice: Hereby, Shure Incorporated declares that this product with UKCA Marking has been determined to be in compliance with UKCA requirements. The full text of the UK declaration of conformity is available at the following site: https:///en-GB/support/declarations-of-conformity.UK Importer / UK Rep.Shure UK LimitedUnit 2, The IO Centre, Lea Road,Waltham Abbey, Essex, EN9 1 AS,UKWaste Electrical and Electronic Equipment (WEEE) DirectiveIn the European Union and the United Kingdom, this label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to regular household waste.Registration, Evaluation, Authorization of Chemicals (REACH) DirectiveREACH (Registration, Evaluation, Authorization of Chemicals) is the European Union (EU) and the United Kingdom (UK) chemical substances regulatory framework. Information on substances of very high concern contained in Shure products in a concentration above 0.1% weight over weight (w/w) is available upon request.SAFETY PRECAUTIONSBefore using this product, please read and save the enclosed warnings and safety instructions.WARNING: Ignoring these warnings may cause severe injury or death as a result of incorrect operation.If water or other foreign objects enter the inside of the device, fire or electric shock may result.Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.CAUTION: Ignoring these cautions may cause moderate injury or property damage as a result of incorrect operation.Never disassemble or modify the device, as failures may result.Do not subject to extreme force and do not pull on the cable or failures may result.Keep the microphone dry and avoid exposure to extreme temperatures and humidity.LIMITED WARRANTYShure Incorporated (“Shure”) hereby warrants to the original consumer purchaser only that, except as otherwise specified below, this product will be free in normal use of any defects in materials and workmanship for a period of two (2) years from the consumer’s original date of purchase directly from Shure or from a Shureauthorized reseller.Any rechargeable batteries contained in or packaged with this product are so warranted for a period of one (1) year from the consumer’s original date of purchase. However, rechargeable batteries are consumable and their capacity will be reduced over time based on temperature, amount of time in storage, charging cycles, and other factors; hence reduction in battery capacity does not constitute a defect in material or workmanship.At its sole option, Shure will repair or replace the defective product and promptly return it to you. In order for this warranty to be valid, the consumer must, at the time the product is returned, provide proof of purchase in the form of the original purchase receipt directly from Shure or from a Shureauthorized reseller. If Shure elects to replace the defective product, then Shure reserves the right to replace the defective product with another product of the same model or a model of at least comparable quality and features in Shure’s sole determination.If you believe this product is defective within the warranty period, carefully repack the unit, insure it and return it with proof of purchase, postage prepaid, to Shure Incorporated, Attention: Service Department, at the address below.Outside of the United States, return the product to your dealer or Authorized Service Center. Addresses are listed on or can be obtained by contacting Shure at the address listed below.This warranty is not transferable. This warranty does not apply in cases of abuse or misuse of the product, use contrary to Shure’s instruction, ordinary wear and tear, an act of God, negligent use, purchase from a party other than Shure or a Shureauthorized reseller, unauthorized repair, or modification of the product.ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED TO THE EXTENT PERMITTED UNDER APPLICABLE LAWS AND, TO THE EXTENT NOT PERMITTED, ARE HEREBY LIMITED TO THE DURATION AND TERMS OF THIS WARRANTY. SHURE ALSO HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES.Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.This warranty does not restrict the rights of the consumer mandated under applicable laws.THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES THAT ARE ASSOCIATED OR INCLUDED WITH THIS PRODUCT, EXCEPT THAT ANY SOFTWARE CONTAINED IN OR PACKAGED WITH THIS PRODUCT IS EXCLUDED FROM THIS WARRANTY AND INSTEAD SHALL BE COVERED BY THE WARRANTY, IF ANY, PROVIDED IN SHURE’S END USER LICENSE AGREEMENT ACCOMPANYING SUCH SOFTWARE.FOR ORIGINAL PURCHASES IN AUSTRALIA ONLYLIMITED WARRANTY AGAINST DEFECTSShure Incorporated ("Shure") hereby warrants to the original consumer purchaser in Australia only that, except as otherwise specified below, this product will be free in normal use of any defects in materials and workmanship for a period of two (2) years from the consumer's original date of purchase directly from Shure or from a Shure-authorized reseller.Any rechargeable batteries contained in or packaged with this product are so warranted for a period of one (1) year from the consumer’s original date of purchase. However, rechargeable batteries are consumable and their capacity will be reduced over time based on temperature, amount of time in storage, charging cycles, and other factors; hence reduction in battery capacity does not constitute a defect in material or workmanship.At its sole option, Shure will repair or replace the defective product and promptly return it to you. In order for this warranty to be valid, the consumer must, at the time the product is returned, provide proof of purchase in the form of the original purchase receipt directly from Shure or from a Shureauthorized reseller. If Shure elects to replace the defective product, then Shure reserves the right to replace the defective product with another product of the same model or a model of at least comparable quality and features in Shure's sole determination.If you believe this product is defective within the warranty period, carefully repack the unit, insure it and return it with proof of purchase, postage prepaid, to Shure Incorporated, Attention: Service Department, at the address below.Outside of the United States, return the product to your dealer or Authorized Service Center. Addresses are listed on or can be obtained by contacting Shure at the address listed below.This warranty is not transferable. This warranty does not apply in cases of abuse or misuse of the product, use contrary to Shure’s instruction, ordinary wear and tear, an act of God, negligent use, purchase from a party other than Shure or a Shureauthorized reseller, unauthorized repair, or modification of the product.ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED TO THE EXTENT PERMITTED UNDER APPLICABLE LAWS AND, TO THE EXTENT NOT PERMITTED, ARE HEREBY LIMITED TO THE EXTENT PERMITTED TO THE DURATION AND TERMS OF THIS WARRANTY. SHURE ALSO HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES FOR ANY PURCHASER ACQUIRING THIS PRODUCT, EXCEPT THAT THIS DOES NOT CONSTITUTE A DISCLAIMER OF RIGHTS GUARANTEED TO ANY “CONSUMER” UNDER THE AUSTRALIAN CONSUMER LAW.This warranty gives purchasers of this product in Australia specific legal rights which are in addition to the rights and remedies of consumers under the Australian Consumer Law, which cannot be excluded or limited. If you are a “consumer” under the Australian Consumer Law, you are entitled to a replacement or refund for a major failure and for compensation for any other reasonably forseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES THAT ARE ASSOCIATED OR INCLUDED WITH THIS PRODUCT, EXCEPT THAT ANY SOFTWARE CONTAINED IN OR PACKAGED WITH THIS PRODUCT IS EXCLUDED FROM THIS WARRANTY AND INSTEAD SHALL BE COVERED BY THE WARRANTY, IF ANY, PROVIDED IN SHURE’S END USER LICENSE AGREEMENT ACCOMPANYING SUCH SOFTWARE.Service CentersUnited States, Canada, Latin America, CaribbeanShure IncorporatedAttn: Service Department945 Chaddick Dr.Wheeling, IL 60090-6449 U.S.A.Europe, Middle East, and AfricaShure Europe GmbHAttn: ServiceJakob-Dieffenbacher-Str. 12,75031 Eppingen, GermanyIndonesiaService Center ResmiJakarta Hotline (021) 612 6388Medan (061) 6612550Surabaya (031) 5032219Jogjakarta (0274) 371710Denpasar (0361) 766788Makasar (0411) 324652AsiaShure Asia Limited22/F, 625 King's RoadNorth Point, Island EastHong KongAttention: Service DepartmentPhone: (852) 28934290Fax: (852) 28934055Email:**************.hkChina RoHS。
MKE 400 摄像机麦克风说明书
MKE 400 BedienungsanleitungInstructions for useNotice d‘emploiIstruzioni per l‘usoInstrucciones de uso GebruiksaanwijzingDas MKE 400Wichtige SicherheitsinformationHalten Sie Flüssigkeiten, wie z.B. Regenwasser, vom Mikrofon fern! Besondere Merkmaley Robustes Ganzmetallgehäusey Maximale Dämpfung von seitlichen Nebengeräuschen, optimiert für Ton-aufnahmen über Kameray Empfindlichkeit einstellbar auf die Entfernung der Schallquelley Minimierung von Windgeräuschen durch zuschaltbares Filtery Mehr als 300 Std. Betriebszeit (mit nur einer AAA Batterie)y Sehr gute Körperschalldämpfung durch integrierte SchwinghalterungBedienelementebarem Windschutz·Schalter …vol“»Anzeige LED …batt“¿Schalter …on/off“´Blitzschuh-Adapter mitStativgewinde²Rändelscheibe¶Entriegelung desBatteriefachsLieferumfang1Kameramikrofon MKE 400 mitAnschlusskabel (3,5-mm-Stereoklinkenstecker)1 Batterie (Typ AAA)1 Schaumwindschutz1Batterie/Akku einlegen/wechselnWenn die Batterie noch ausreichend Spannung hat, blinkt die Anzeige LED …batt“» nach dem Einschalten des Mikrofons kurz auf. Eine volle Batterie reicht für ca. 300 Stunden Betriebszeit.̈̈̈InbetriebnahmëSchieben Sie das Mikrofon in den Blitzschuh der Videokamera und verrie-geln Sie das Mikrofon mit der Rändelscheibe².̈Stecken Sie den 3,5-mm-Stereoklinkenstecker in die Buchse für denMikrofoneingang der Videokamera.2̈Schalten Sie das Mikrofon ein, indem Sie den Schalter …on/off“¿ in eine der beiden folgenden Positionen stellen:Die Anzeige LED …batt“» blinkt nach dem Einschalten kurz auf, wenn die Batterie in betriebsbereitem Zustand ist.̈Passen Sie die Mikrofon-Empfindlichkeit an die Lautstärke der Schall-quelle und die Eingangsempfindlichkeit der Kamera an, indem Sie den Schalter …vol“· in die korrekte Position stellen:34Technische Daten Empfohlenes ZubehörProfi-Zubehör-Set MZW 400 mit Fellwindschutz und 3-poligem XLR-Adapter ··Abmessungen (B x H x T)ca. 130 x 21 x 62 mm Gewicht (ohne Batterie)ca. 60 g RichtwirkungSuperniere/Keule Frequenzgang40 Hz bis 20 kHz mit und ohne Windschutz Empfindlichkeit8 mV/Pa 20 mV/Pa Grenzschalldruckpegel126 dB 118 dB Ersatzgeräuschpegel21 dB (A), 32 dB (CCIR)16 dB (A), 25 dB (CCIR)Stromversorgung1,5-V-Batterie (Typ AAA)Betriebszeitca. 300 Stunden Wendelkabel ca. 200 mm lang2,3 mm Durchmesser mit 3,5-mm-Stereoklinkenstecker5HerstellererklärungenGarantie2 JahreKonformitätserklärungAkkus und Batterien Alte Akkus und Batterien bitte nur leer über den Fachhandel oder Bat-teriecontainer entsorgen.WEEE-ErklärungBitte entsorgen Sie dieses Gerät am Ende seiner Nutzungs-dauer bei Ihrer örtlichen kommunalen Sammelstelle oder im Recycling Center.Frequenzkurve und RichtdiagrammFrequency response and polar patternRéponse en fréquence et diagramme de la directivitéRisposta in fréquenza e diagramma polare Respuesta en frequencia y diagrama de la directividadSennheiser electronic GmbH & Co. KG30900 Wedemark, GermanyPhone +49 (5130) 600 0Fax +49 (5130) 600 300Printed in Germany Publ. 06/07516599/A2。
Sennheiser MKE 1 耳边麦说明书
Whether used in musicals, live shows, broadcasts or presentations, the MKE 1, Sennheiser’s smallest clip-on microphone, delivers its best performance exactly where a microphone needs to be invisible – and still offers great sound without any trade-offs.Shielded from sweat by a new protective membrane, the MKE 1 lasts longer than other clip-on microphones, especially under the tough conditions of live performance. Its special gauze and an additional protective cap protect it from most moisture and mean that it only records what it’s supposed to: perfect sound.The MKE 1 builds on this feature with its robustness: its cable with low impact noise and integrated anti-kink protection makes it a microphone on which you can fully rely.FEATURES• Great strengths - small microphone• Very small dimensions (3.3 mm capsule diameter)• High maximum sound pressure level (142 dB)• Very high speech intelligibility; clear, pleasant treble • Full, natural sound with low ambient noise• Thin (1 mm diameter) and robust cable; flexible with minimum handling noise• Very sweat-resistant due to protective membrane • Flexible tubes for attaching the microphone with clips or adhesive tape DELIVERY INCLUDES• MKE 1 microphone• MZC 1-1 frequency response cap, small • MZC 1-2 frequency response cap, large • 3 make-up protection caps• instruction manualPRODUCT VARIANTSVariant Color Connector Applicable to Article number MKE 1-4black3-pin SE SK 50/SK 250/SK 6000/SK 9000/SK 2000/SK 5212Art. no. 502167MKE 1-4-1white3-pin SE SK 50/SK 250/SK 6000/SK 9000/SK 2000/SK 5212Art. no. 502833MKE 1-4-2brown3-pin SE SK 50/SK 250/SK 6000/SK 9000/SK 2000/SK 5212Art. no. 502834MKE 1-4-3beige3-pin SE SK 50/SK 250/SK 6000/SK 9000/SK 2000/SK 5212Art. no. 502168 MKE 1-5black open-ended cable Art. no. 502046 MKE 1-5-3beige open-ended cable Art. no. 502169 MKE 1-ew black 3.5 mm jack ew G3/ew G4/ew D1/SpeechLine DW/XSWArt. no. 502876MKE 1-ew-3beige 3.5 mm jack ew G3/ew G4/ew D1/SpeechLine DW/XSWArt. no. 502879Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · H z1001*00010*000-30-35-40-45-50-55-60-65-70dBV MZC 1-1MicrophoneMZC 1-2SPECIFICATIONSTransducer principle pre-polarized condensor microphone Pick-up patternomni-directional Sensitivity (free field, no load) (1 kHz) 5 mV/Pa, ± 2.5 dB Max. SPL at 1 kHz 142 dBFrequency response 20 to 20.000 Hz ± 2.5 dB Equivalent noise level A-weighted CCIR-weighted 27 dB 39 dBConnector see product variants Cable lengthapprox. 1.60 m Diameter of the microphone 3.3 mm Weight0.1 gFREQUENCY RESPONSE。
Sennheiser 高性能数字桌面讨论麦克风单元说明书
FEATURESGooseneck microphone with Sennheisersuper-cardioid capsuleDSP limiterModern industrial design, hidden cableconnectionsHigh-performance twin loudspeakersConvenient cabling via RJ45 socketsStrain relief available for fixedinstallationsPremium quality made in GermanyARCHITECT’S SPECIFICATIONSA digital desktop discussion microphone unit is provided for use as a delegate version for use with a central control unit. The digital desktop discussion micropho-ne unit connects to the central control unit via network using industry standard Category 5 (24 AWG) cabling. The unit shall include a 15.47” long gooseneck microphone with a super-cardioid capsule.A 3.5mm headphone output jack shall be included. Twin loudspeakers are provided in a top-mounted orientation. RJ45 jacks for connection are provided by hidden connections beneath the unit; optional strain reliefs are provided for fixed instal-lations. The audio signal path shall include a digital signal processor limiter. Opera-ting voltage shall be 35vDC to 52.8vDC. Maximum power consumption shall be3.8W. Total harmonic distortion shall bea maximum of 0.03% at 50mW/16 Ohms. Operating temperature shall be +10°Cto +40°C. The unit dimensions shall be, without gooseneck microphone, 7.28” x 2.48” x 5.51” (WxHxD). Weight shall be approximately 1.5 lbs. The digital desktop delegate discussion unit shall be manu-factured by Sennheiser and shall be type ADN D1.The ADN D1 digital delegate unit of theSennheiser Audio Distribution Network offershigh speech-intelligibility in a modern design. Thegoose-neck microphone is equipped with a super-cardioid capsule that attenuates unwanted ambientnoise efficiently. A twin-loudspeaker system guarantees a homogenous sound level in the meeting room. The cablingof the units, which is done by CAT5 cables and hidden con-nections can be optionally secured with strain reliefs forfixed installations.TECHNICAL DATAOperating voltage ................................................35 V to 52,8 V DC Power consumption ............................................max.Pick-up pattern ....................................................Super-cardioid THD, total harmonic distortion .........................0,03 % at 50 mW/16 O Operating temperature ......................................+10°C to +40°C Dimensions (WxHxD) .......................................... 185 x 63 x 140 mm(without gooseneck)7,28“ x 2,48“ x 5,51“Weight ...................................................................approx. 700g / 1,5 lbs Delivery includes: ................................................. A DN D1 delegate unit,Quick-GuideADN D1 digital delegate unitPRODUCT VARIANTSADN D1 Delegate unit Cat. No. 502758 ADN C1 Chairperson unit Cat. No. 502759RECOMMENDED ACCESSORIESADN TR 1, ADN strain relief Cat. No. 504001 SDC CBL RJ45-2, Cat 5 cable 2m Cat. No. 009842 SDC CBL RJ45-3, Cat 5 cable 3m Cat. No. 009843 SDC CBL RJ45-5, Cat 5 cable 5m Cat. No. 009844 SDC CBL RJ45-10, Cat 5 cable 10m Cat. No. 009845 SDC CBL RJ45-20, Cat 5 cable 20m Cat. No. 009846 SDC CBL RJ45-50, Cat 5 cable 50m Cat. No. 009847ADN D1 digital delegate unitSennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany 0 7 / 1 0 S e n n h e i s e r i s a r e g i s t e r e d t r a d e m a r k o f S e n n h e i s e r e l e c t r o n i c G m b H & C o . K G . w w w . s e n n h e i s e r . c o m . C o p y r i g h t ©2 0 1 0 . A l l r i g h t s r e s e r v e d . E r r o r s a n d o m i s s i o n s e x c e p t e d .Contact your local Service Partner:。
Nady SP-5 钼磁动态麦克风说明书
(8/31/01)
If the microphone is placed too near a speaker, an unpleasant howling effect (acoustic feedback) may occur. Although all microphones are prone to feedback to some extent, those with a unidirectional polar pattern (such as the SP-5) are specially designed to accept only signals from the audio source directly in front of the mic cartridge. Thus, the cardioid pattern of the SP-5 ensures that it will deliver only the desired audio in front of the mic, rejecting the unwanted audio from the rear, even in noisy ambient conditions with high sound pressure levels from the PA. and monitor speakers. This means that feedback will be greatly minimized with the SP-5 in all live performance miking applications.
cations, an external foam windscreen be used over the ball grille. This will prevent the buildup of saliva and perspiration on the cartridge diaphragm, which degrades performance and shortens the useful life of the microphone. Such a wind "sock" will also eliminate wind noise when the mic is used in a windy outdoor environment.
MAST UPR-09数字自动识别笔型无线话筒使用方法
MAST UPR-09数字自动识别笔型无线话筒使用方法打开接收机电源后，用户不需任何动作，内置的蓝牙数字识别系统会发出识别数字码寻讯号找3-5米之内的笔型无线发射机。
一旦笔型无线发射机打开电源，可自动双向识别接收机。
笔型无线发射机电源开ON有上下两档。
推上或下都可开电源。
OFF为关。
关时LED 红灯会闪一下，ON开时LED红绿会闪一下。
同时笔型无线发射机会自动调正与接收机一致的频率。
接收机锁定到笔型无线发射后会停止发出识别数字码。
一次自动识别只需0.5秒钟即完成。
使用距离在70米不掉线。
如一旦改变接收机的频率，笔型无线发射需重新识别接收机改变后的频率，笔型无线发射要关机再开机才可重新识别，否则笔型无线发射保持上次的频率。
每个笔型无线发射机都有100个以上频率。
产品出厂前将识别系统范围设定在3-5米之内。
不会与相邻的系统误判。
当两套或更多的笔型无线发射机同时使用时，应一套一套逐一完成识别后一起使用。
两套不可同时识别。
一个笔型无线发射机只可与一套接收机工作。
两套不可同时使用一套接收机。
与其它无线系统原理一致。
笔型无线发射机咪头设两档增益开关，HI向上为大增益可将笔型无线发射机当会议话筒和领夹式话筒用，可以直接放到上衣口袋使用。
LO向下为小增益可直接当手持式话筒用。
用HI 档时，开电源也向上推。
用LO 档时，开电源也向下推。
笔型无线发射机耗电在充电电池1.2V时55毫安，在干电池1.5V时38毫安。
采用一节A AA 可充电池时可连续用10小时以上。
系统功能指标：频率范围：740-765MHz调制方式：宽带FM可调范围：50MHz频道数目：100（或200个）面板数显；可调通道，接收灵敏度。
电源开关频道间隔：250 KHz频率稳定度：±0.005%以内动态范围：100dB最大频偏：±45KHZ音频响应：80HZ-18KHz (±3dB)综合信噪比：>105dB综合失真：≤0.5%工作温度：-10℃~+40℃a. 接收机指标：接收机方式：二次变频超外差中频频率：第一中频：110MHz,第二中频10.7MHz无线接口：BNC/50欧姆灵敏度：12 dBµV (80dBS/N) 面板调谐灵敏度调节范围：12-32 dBµV杂散抑制：≥75dB最大输出强度：+10 dBVb. 发射机指标：铝合金管体，轻巧，咪头设两档增益开关，HI 档适合放置桌面，衣袋，和挂置胸前LO档适合手持天线程式：内置螺旋天线输出功率0dB杂散抑制：-60dB供电：一节AAA电池使用时间：0dB时10个小时尺寸；直径15 MM X 55 长重；35克采用全套MINI 器件。
