飞利浦PPT课件

❖利益：让您观看电视画面的时候看
起来就像逼真的影院级图像。
音效
动态低音增强
集成式 WOOX 扬声器
Incredible Surround™ 超宽环绕声
动态低音增强
❖ 特征：动态低音增强 ❖ 优点：具有集成式低音扬声器的 2.1 声道
环绕声音响系统功能完备，采用了飞利浦超
宽环绕声处理技术。它从低音扬声器放大低音频率，同时优化中频和低频。
逐点高清技术
❖ 特征：逐点高清技术 ❖ 优点：逐点高清技术是一种图像处理技术，它
使观众能够欣赏到鲜艳、自然而逼真的图像。因此在播放任何高清信号源时都能提供品质超凡的逼真画面，展现极其丰富的细节及层次感。
❖ 利益：逐点高清技术，可获得更出众的细节、层次和清晰度。
逐点精晰技术
❖ 特征：逐点精晰技术 ❖ 优点：逐点精晰技术建立在卓越的逐点晶晰技
其原理就是采用动态映像系统，在传统的两帧图像之间加插一帧运动补偿帧，普通平板电视的60Hz刷新率提升至120Hz双倍帧速率，在高达 100 Hz 的刷新率下工作。与普通液晶屏相比，将动态再现的清晰度提高了两倍以上，这一独特的飞利浦技术将液晶显示屏的动态清晰度提升到了前所未有的水平。
❖ 利益：屏幕上出现快速移动的影像，依然能够清
❖ 利益：强力再现全范围音频频率（从深沉的
低音到清澈的高音。）
WOOX技术
❖ 特征： WOOX 技术
❖ 优点：WOOX技术通过捕捉和增强低频音效来营造出众的低音效果。
❖ 利益：使低音和音响体验显著改善。
超宽环绕声
❖ 特征：超宽环绕声 ❖ 优点：超宽环绕声让您能够体验到更深沉
、更宽广的全方位环绕声。它能与电视外观ቤተ መጻሕፍቲ ባይዱ

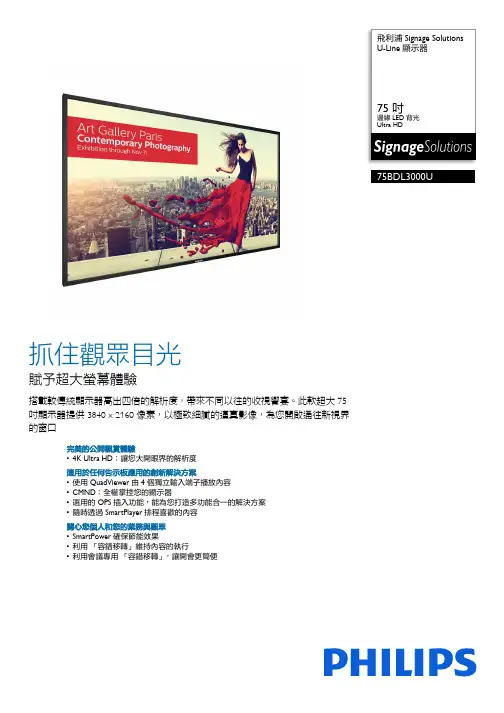

飞利浦 U-Line 75 吋显示器 75BDL3000U 商品说明书

飛利浦 Signage Solutions U-Line 顯示器75 吋邊緣 LED 背光Ultra HD75BDL3000U抓住觀眾目光賦予超大螢幕體驗搭載較傳統顯示器高出四倍的解析度，帶來不同以往的收視饗宴。

此款超大 75 吋顯示器提供 3840 x 2160 像素，以極致細膩的逼真影像，為您開啟通往新視界的窗口完美的公開觀賞體驗•4K Ultra HD ：讓您大開眼界的解析度適用於任何告示板應用的創新解決方案•使用 QuadViewer 由 4 個獨立輸入端子播放內容•CMND ：全權掌控您的顯示器•選用的 OPS 插入功能，能為您打造多功能合一的解決方案•隨時透過 SmartPlayer 排程喜歡的內容關心您個人和您的業務與觀眾•SmartPower 確保節能效果•利用「容錯移轉」維持內容的執行•利用會議專用「容錯移轉」，讓開會更簡便4K Ultra HD 解析度較傳統 Full HD 顯示器高出四倍的解析度，帶來前所未有的 Signage Solutions 收視饗宴。

3840 x 2160 像素提供極致細膩的逼真影像，為您開啟通往新視界的窗口。

QuadViewerQuadViewer 可在同一個螢幕上，播放來自於多達四個獨立輸入端的內容，讓您更靈活地運用螢幕空間，是適用於控制室、企業環境和會議室的理想選擇。

CMNDCMND 是一款強大耐用的顯示器管理平台，將掌控權完全交回您手中。

利用CMND & Create 更新和管理內容，或透過 CMND & Control 控制您的設定。

CMND 為您實現所有可能。

OPS 插入功能將您的顯示器轉化為多功能數位告示板的解決方案，並打造一個智慧、安全且相互連線的顯示器網路。

開放式易插拔規格 (OPS) 是工業標準插槽，可插入 OPS 標準化的多媒體播放機。

這個無線解決方案讓您可按照需求，隨時安裝、使用或維護您的硬體設備。

容錯移轉對於高需求的商業應用程式而言，維持內容的執行十分重要。

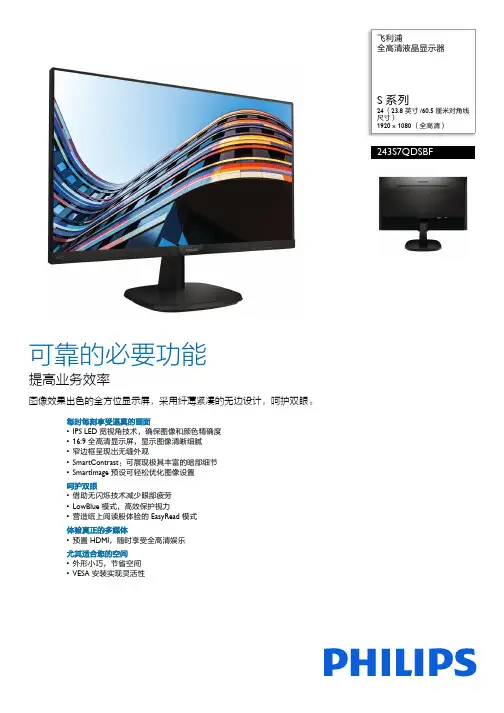

飞利浦S系列24英寸全高清液晶显示器说明书

飞利浦全高清液晶显示器S 系列24（23.8 英寸/60.5 厘米对角线尺寸）1920 x 1080（全高清）243S7QDSBF可靠的必要功能提高业务效率图像效果出色的全方位显示屏，采用纤薄紧凑的无边设计，呵护双眼。

每时每刻享受逼真的画面•IPS LED 宽视角技术，确保图像和颜色精确度•16:9 全高清显示屏，显示图像清晰细腻•窄边框呈现出无缝外观•SmartContrast ：可展现极其丰富的暗部细节•SmartImage 预设可轻松优化图像设置呵护双眼•借助无闪烁技术减少眼部疲劳•LowBlue 模式，高效保护视力•营造纸上阅读般体验的 EasyRead 模式体验真正的多媒体•预置 HDMI ，随时享受全高清娱乐尤其适合您的空间•外形小巧，节省空间•VESA 安装实现灵活性产品亮点IPS 技术IPS 显示屏采用可带给您 178/178 度超宽视角的先进技术，几乎可在任何角度观看显示屏。

与标准 TN 面板不同，IPS 显示屏可带给您色彩艳丽、极为清晰的图像，不仅适合观看照片、电影和网页浏览，而且适合要求始终确保颜色精确度和恒定亮度的专业应用领域。

16:9 全高清显示屏画质很关键。

普通显示屏提供高质量画质，但您期望获得更好的画质。

该显示屏具有增强的全高清 1920 x 1080 分辨率。

凭借全高清分辨率，清澈的细节配以高亮度、令人难以置信的对比度和逼真的色彩，眼前便会呈现出栩栩如生的画面。

超窄边框全新飞利浦显示屏采用细窄边框，尽可能减少了干扰，增加了观看尺寸。

本款超窄边框显示屏适用于多重显示或平铺设置，如游戏、图形设计和专业应用，让您感觉好像使用大显示屏一样。

SmartContrastSmartContrast 是飞利浦推出的一项技术，当观看暗色调的视频或玩暗色调的游戏时，它会分析所显示的内容，自动调节色彩并控制背光亮度，从而实现对比度的动态增强，展现优异的数字画面。

选择“节能”模式时，经过微调的对比度和背光可使日常办公应用程序呈现恰如其分的显示效果，将功耗保持在较低水平。

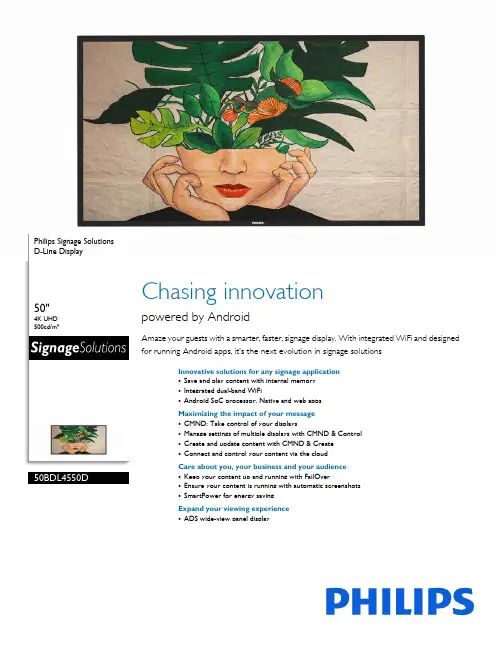

Philips 智能LED显示屏说明书

Philips Signage Solutions D-Line Display50"4K UHD 500cd/m²50BDL4550DChasing innovationpowered by AndroidAmaze your guests with a smarter, faster, signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutionsInnovative solutions for any signage application •Save and play content with internal memory •Integrated dual-band WiFi•Android SoC processor. Native and web appsMaximizing the impact of your message •CMND: Take control of your displays•Manage settings of multiple displays with CMND & Control •Create and update content with CMND & Create •Connect and control your content via the cloudCare about you, your business and your audience •Keep your content up and running with FailOver•Ensure your content is running with automatic screenshots •SmartPower for energy saving Expand your viewing experience •ADS wide-view panel displayHighlightsPowered by Android 8Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.Internal MemorySave and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cachedversion of the content, ensuring that your media stays up even if the network goes down.Proof of PlayContent is king, and with the automaticscreenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.FailOver Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.SmartPowerThe backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.CMNDA robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.CMND & CreateDesign and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.CMND & ControlWith CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.ADS wide-view panel displayBe seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.SmartBrowserConnect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, andenjoy your own created playlists.SpecificationsPicture/Display•Diagonal screen size: 49.5 inch / 125.7 cm •Panel resolution: 3840 x 2160•Optimum resolution: 3840 x 2160 @ 60Hz •Brightness: 500 cd/m²•Contrast ratio (typical): 4000:1•Dynamic contrast ratio: 500,000:1•Aspect ratio: 16:9•Response time (typical): 8 ms•Pixel pitch: 0.2854 x0.2854 mm•Display colors: 1.07 Billion•Viewing angle (H / V): 178 / 178 degree •Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan•Operating system: Android 8.0•Panel technology: VAConnectivity•Video input: Display Port1.2 (x1), DVI-I (x 1), HDMI 2.0 (x2), USB 2.0 (x2)•Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)•Audio input: 3.5 mm jack•Audio output: 3.5mm jack•External control: RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack•WiFi: dual antenna 2,4Ghz and 5Ghz•4G/LTE antenna connectors: mPCIe Supported Display Resolution •Computer formatsResolution Refresh rate1920 x 1080 60Hz1024 x 768 60Hz1280 x 1024 60Hz1280 x 720 60Hz1440 x 900 60 Hz1600 x 900 60Hz1680 x 1050 60Hz3840 x 2160 30, 60Hz640 x 480 60Hz800 x 600 60Hz•Video formatsResolution Refresh rate1080i 50, 60Hz576i 50Hz576p 50Hz480p 60Hz480i 60Hz1080p 50, 60Hz2160p 24, 30, 60Hz720p 50,60 HzDimensions•Set dimensions (W x H x D):1128.4 x 649.0 x 63.5 mm•Set dimensions in inch (W x H x D):44.43 x 25.55 x 2.50 inch•Bezel width: 14.9 mm (Even bezel)•Product weight (lb): 32.52 lb•Product weight: 14.75 kg•Wall Mount: 400 (H)x 400 (V) mm, M6Convenience•Placement: Landscape (24/7), Portrait (24/7)•Tiled Matrix: Up to 10 x 15•Keyboard control: Hidden, Lockable•Signal loop through: RS232, IR Loopthrough,DisplayPort, HDMI•Network controllable: RS232•Energy saving functions: Smart Power•Screen saving functions: Pixel Shift, Low Bright•WiFi protocol: a b g n, 802.1xPower•Standby power consumption: <0.5 W•Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz•Consumption (Typical): 100 W•Consumption (Max): 132 W•Energy Label Class: GOperating conditions•Temperature range (operation): 0 ~ 40 °C•Temperature range (storage): -20 ~ 60 °C•Altitude: 0 ~ 3000 m•MTBF: 50,000 hour(s)•Humidity range (operation)[RH]: 20 - 80% RH (Nocondensation)•Humidity range (storage) [RH]: 5 - 95% RH (Nocondensation)Sound•Built-in speakers: 2 x 10W RMSAccessories•Included accessories: Quick start guide, RS232 cable,AC Power Cord, IR sensor cable (1.8M), RemoteControl & AAA Batteries•Included Accessories: RS232 daisy-chain cable,Philips logo (x1), AC Switch Cover, USB Cover (x1),Screws•Stand: BM05922(Optional)Multimedia Applications•USB Playback Audio: AAC, HEAAC, MPEG•USB Playback Picture: BMP, JPEG, PNG•USB Playback Video: MPEG, H.263, H.264, H.265Miscellaneous•On-Screen Display Languages: English, French,German, Spanish, Polish, Turkish, Russian, Italian,Simplified Chinese, Traditional Chinese, Arabic,Japanese, Danish, Dutch, Finnish, Norwegian,Portuguese, Swedish•Regulatory approvals: CE, CCC, RoHS, BSMI, CB,VCCI, CU, EMF, EnergyStar 8.0, ETL, FCC, Class A,PSB•Warranty: 3 year warrantyInternal Player•CPU: 2 x A53 + 2 x A73•GPU: ARM Mali G51•Memory: 3GB DDR•Storage: 32 GB eMMcIssue date 2022-11-04 Version: 9.0.112 NC: 8670 001 68908 EAN: 87 12581 76921 5© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.。

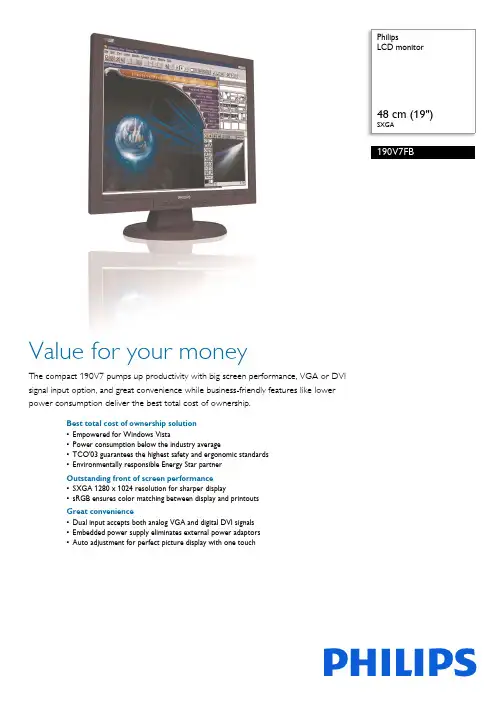

飞利浦（Philips）19英寸SXGA展示器（LCD监视器）产品简介说明书

PhilipsLCD monitor48 cm (19")SXGA190V7FB Value for your moneyThe compact 190V7 pumps up productivity with big screen performance, VGA or DVIsignal input option, and great convenience while business-friendly features like lowerpower consumption deliver the best total cost of ownership.Best total cost of ownership solution•Empowered for Windows Vista•Power consumption below the industry average•TCO'03 guarantees the highest safety and ergonomic standards•Environmentally responsible Energy Star partnerOutstanding front of screen performance•SXGA 1280 x 1024 resolution for sharper display•sRGB ensures color matching between display and printoutsGreat convenience•Dual input accepts both analog VGA and digital DVI signals•Embedded power supply eliminates external power adaptors•Auto adjustment for perfect picture display with one touchIssue date 2022-05-15Version: 3.0.612 NC: 8670 000 27786EAN: 87 12581 32025 6© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective SpecificationsLCD monitor48 cm (19") SXGAHighlightsWindows Vista readyPhilips Vista-ready monitors are empowered for vibrant, exciting display of this new, visuallysophisticated and demanding Windows operating system, designed to enhance your entertainment experience, make you more productive and help you control your computing experience at home and in the office, making viewing, finding and organizing information for work or play quick, efficient and easy.Lower power consumptionReduction of the electrical power required to operate a device.TCO '03 complianceA TCO (Swedish Confederation of Professional Employees) standard even more stringent than MPR-II for safety and ergonomics, especially concerning alternating electric fields (AEF).Energy Star partnerA manufacturer in compliance with power conservation requirements set forth by the Environmental Protection Agency of the U.S. government.SXGA, 1280 x 1024 resolutionFor graphics monitors, the screen resolution signifies the number of dots (pixels) on the entire screen. For example, a 1280-by-1024 pixel screen is capable of displaying 1280 distinct dots on each of 1024 lines, or about 1.3 million pixels.sRGB readysRGB is an industry standard that ensures the best possible match between the colors displayed on your screen and those in your printouts.Dual inputDual input provides connectors to accommodate input of both analog VGA and digital DVI signals.Embedded power supplyAn embedded power supply is a power adaptor built into the body of a display device that replaces a bulky external power adaptor.One-touch auto adjustmentThe auto adjustment key restores optimal screen position, phase and clock settings with the press of a single button - without navigation through OSDmenus and control keys.Picture/Display •LCD panel type: 1280 x 1024 pixels, Anti-glare polarizer, RGB vertical stripe •Panel Size: 19"/ 48 cm•Effective viewing area: 376.3 x 301.1 mm •Pixel pitch: 0.294 x 0.294 mm •Brightness: 300 cd/m²•Contrast ratio (typical): 600:1•Display colors: 16.2 M•Viewing angle: 160º (H) / 160º (V), @ C/R > 5•Response time (typical): 8 ms•White Chromaticity, 6500K: x = 0.313 / y = 0.329•White Chromaticity, 9300K: x = 0.283 / y = 0.297•Maximum Resolution: 1280 x 1024 @ 75 Hz (digital input)•Optimum resolution: 1280 x 1024 @ 60 Hz (digital input)•Video Dot Rate: 140 MHz•Horizontal Scanning Frequency: 30 - 83 kHz •Vertical Scanning Frequency: 56 - 76 Hz •sRGBConnectivity•Signal Input: VGA (Analog ), DVI-D•Sync Input: Composite Sync, Separate Sync, Sync on Green•Video input impedance: 75 ohm •Sync input impedance: 2.2k ohm •Video input signal levels: 0.7 VppConvenience•User convenience: On-screen Display•Monitor Controls: Auto, Brightness Control (Up/Down), Left/Right, Menu (OK), Power On/Off •OSD Languages: English, French, German, Italian, Russian, Spanish•Other convenience: Kensington lock compatible •Plug & Play Compatibility: DDC/CI, sRGB, Windows 98/ME/2000/XP/Vista•Regulatory approvals: CE Mark, EMC, Energy Star,FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo •Tilt: -5° to 20°•VESA Mount: 100 x 100 mmAccessories•Included accessories: AC Power Cord, VGA cable •Optional accessories: Super Ergo Base •User ManualDimensions•Box dimensions (W x H x D): 490 x 159 x 451 mm•Box dimensions in inch (W x H x D): 19.3 x 6.3 x 17.8 inch•Set dimensions (W x H x D): 424 x 361 x 65.1 mm•Set dimensions in inch (W x H x D): 16.7 x 14.2 x 2.6 inch•Set dimensions with stand (W x H x D): 424 x 418 x 211 mm•Set dimensions with stand in inch (W x H x D): 16.7 x 16.5 x 8.3 inch •MTBF: 50,000 hrs•Relative humidity: 20% - 80%•Temperature range (operation): 5°C to 40°C •Temperature range (storage): -20°C to 60°C •Product weight (+stand): 4.6 kg •Product weight (+stand) (lb): 10.1 lb •Weight incl. Packaging: 6.4 kg •Weight incl. Packaging (lb): 14.1Power•Complies with: Energy Star•Consumption (On mode): 34 W (Typical)•Consumption (Off Mode): < 1 W•Power LED indicator: Operation - green, Stand by/sleep - Amber•Power supply: Built-in, 100-240VAC, 50/60Hz。

《philips品牌介绍》课件

《Philips品牌介绍》PPT 课件
Philips成立于1891年，是一家全球领先的创新型技术企业。我们使用创新解决方案来改善人们的生活，让世界更加美好。欢迎来到我们的品牌介绍课件！
品牌简介
公司历史
Philips成立于1891年，以生产白炽灯泡起家，如今已成为全球领先的技术公司。
使命和价值观
我们的使命是通过创新的技术解决方案改善人们的生活，并秉持着可持续发展和客户至上的价值观。
社会责任
可持续性发展目标
• 减少碳排放 • 资源循环利用 • 促进人类健康
社会公益项目
• 支持教育事业 • 改善医疗条件 • 关注社区发展
道德和伦理原则
• 诚信和透明 • 尊重人权 • 遵守法律法规
企业社会责任的实践
• 贡献社会福祉 • 关注员工福利 • 促进可持续发展
经典案例解析
客户案例
一家跨国公司成功应用我们的解决方案，提高了效率，降低了成本，获得了巨大的业务增长。
市场推广案例
我们创新的市场推广活动吸引了广大用户的关注，提升了品牌知名度和销量。
创新发展案例
我们持续不断地进行技术创新，推出了一系列颠覆性的产品，领先于竞争对手。
可持续性发展案例
我们积极推进可持续发展，通过项目合作实现了环境保护和社会责任的双重目标。
4 品牌营销与推广
通过全球化的品牌营销和推广活动，提升品牌知名度和美誉度。
பைடு நூலகம்
产品介绍
家用电器
医疗设备
• 智能家居解决方案 • 厨房电器 • 个护健康产品
• 医学成像系统 • 健康监护设备 • 手术器械和设备
照明产品
• 家居照明 • 商业照明 • 城市照明

菲尔普斯 LED显示屏 22 英寸直视LED 22BDL7424L 商品说明书

Philips Signage Solutions LED Display22"Direct View LED22BDL7424LUnleash your imagination even moreLED Display for every form and shapeNo limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.Endless possibilities •Available in 3 dimensions •Dynamic Power Saving•Optional bevelled corners allow curved displays •Seamless linking for perfect imagery Next level performance •Dynamic Panel Connect •Factory calibrated•Philips Active Health Monitoring •High brightness LED panelReady for impact•Conformal coating and ingress protection•Forms any shape, L-shape corner, or curvature •Fire retardant designHighlightsOptional easy mount brackets Patented easy-mount brackets make installation even faster. These optional items are available for flat LED mounting, convex curved (177.5/175/172.5 degree), and L-shape 90 degree corners.Ingress protectionDust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion. Dynamic Panel ConnectMix and match each of the Philips L-Line 7000 LED panel sizes to form a single display of any shape and dimension. Dynamic flexible alignment pins ensure a perfect fit in any circumstance - resulting in a smooth, seamless display surface. For added convenience and efficiency, each LED panel features openings on each side to allow for versatile wired connection between the LED panels and any external input connection. Openings on the top and bottom of the LED panel can be popped out in case access is only available from the top or bottom of the panel.Dynamic Power SavingPhilips Professional LED Displays use high-performance LEDs, which are tested thoroughly, energy efficient and cost effective. Furthermore, enhanced technology allows thedisplay to dynamically save on powerconsumption.Factory calibratedEvery Philips L-Line LED panel is calibrated inour factory under perfect circumstances. Thatmeans there's no need for further calibrationon location, resulting in quicker installations.Calibration and configuration files are availableto ensure fast maintenance.Fire retardant designFire retardant design slows down the spread offlames in the event of fire, and help protect thestructural integrity of the LED panel in case offire. Tested and certified with Fire SafetyCertifications.L-shape corner, or curvatureThe Philips L-Line 7000 series LED panlescome with a height of 25 cm and are availablein 50 cm, 75 cm and 100 cm widths. Thesedisplays are ready to be installed in anylandscape format with no limitations to size.Also available with bevelled corners to formcurved designs in both convex and concaveformats.High brightness LED panelVisualize all kinds of content in any setting.Make a big impact with crisp and clearmessaging in bright locations, such asstorefront windows or places subject to directsunlight. This high bright LED panel is perfectfor attracting attention in large, busy areas thatare subject to high ambient light.Optional bevelled cornersCreate bezel-free displays of any shape, size orresolution. The modular design of PhilipsProfessional LED panels means you can adaptto any space. Build vast, immersive installationsor assemble intriguing patterns. Easily createdisplays that flow seamlessly around doorwaysand other openings. Even corners and curveddisplays become easy to create with the newPhilips 7000 series.Active Health MonitoringAchieve perfection through precision. ActiveHealth Monitoring makes maintenance fast,simple, and predictable by displaying the exactitem of failure and location. Utilising thissoftware that works in real-time both onlineand offline, replacing the relevant partbecomes an efficient process, and a must fordisplay owners with many geographicallocations.Perfect imageryYour Philips Professional LED Display featuresbuilt-in cable wiring to keep power and datacables tidy. Display panels are daisy-chained forboth power and data, allowing you to minimiseclutter and speed up installation.Issue date 2022-06-09 Version: 1.1.112 NC: 8670 001 79641 EAN: 87 12581 78122 4© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•Color temperature default: 6500±500 K •Color temperature adjust range: 4000~9500 K (by software)•Viewing angle (H / V): 160 degree / 155degree degree•Calibration(brightness/color): Supported •Refresh rate(Hz): 2100~3900 (14 bits: 3900Hz)•Frame frequency (Hz): 50 & 60•Aspect ratio: 2:1•Picture enhancement: Wide color gamut display •Placement: Landscape•Usage: Indoor•Brightness uniformity: >=97%•Contrast ratio (typical): 11000:1•Brightness before calibration: 3500 nits •Brightness after calibration: 2750 nits Convenience•Signal control loop through: RJ45•Ease of installation: Guide pins, Light weight •Power loop through: For 230V environments: 16 cabinets or less, for 110V environments: 8 cabinets or less, 10A maxOperating conditions•Temperature range (operation): -20~45 °C •Temperature range (storage): -20~50 °C •Humidity range (operation)[RH]: 10~80%•Humidity range (storage) [RH]: 10~85%Power•Input voltage: AC100~240V (50 & 60Hz)•Black screen power cons. (W): <9•Max. power cons. BC (W): <103.2•Typical power cons. (W): <26.9•Max. power cons. AC (W): <80.6 Miscellaneous•Warranty: 2 years •Regulatory approvals: EN55032, EN55035,EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/ UL62368, IEC62471, RoHS, FCC SDOC, Part 15, Class A, EAC•Fire retardancy certification: BS 476 Part7:1997, UL94•Conformal coating: hub board, backside LED moduleCabinet•Cabinet size (mm): 500x250x40•Side angle (degree): 90•Cabinet diagonal (inch): 22“•Cabinet resolution (W x H): 208x104•Weight (KG): 3.40•Cabinet pixels ( Dot ): 21.632•Cabinet area (m2): 0.125•Power connector: 3 core socket (C14 in, C13 out)•Data connector: RJ45•Cabinet construction: Die-Casting Aluminum •Receiving card quantity: 1 pcs•Receiving card spec.: A5S plus•Receving card brand: NovaStarModule•LED type: SMD 1515 Gold wire•Pixel constitution: 1R1G1B•LED lifetime(Hrs): 100,000 at half brightness •Pixel pitch (mm): 2.4•Module resolution (WxH pixels): 104x104•Module size (WxH in mm): 249.9*249.9 Accessories•Power cable: 1 pcs•LAN cable (RJ45, CAT-5): 1 pcs•QSG:1pcsPackaging Data•Dimension of packaging (mm): 650x421x224•Gross weight (KG): 7.39。

菲利普LED电视产品说明书

PhilipsLCD TV with Ambilight Spectra 2 and Pixel Precise HD81 cm (32")Full HD 1080p digital TV32PFL7685HBe part of the action!with Ambilight in an ultra-thin designLike a painting on your wall, experience the latest in ultra thin TV from Philips. Combining powerful LED picture performance and the immersion of Ambilight, be assured you are always part of the action.Enlarge your viewing experience•Ambilight Spectra 2 widens the viewing experience HD TV in stunning detail•Full HD TV with Pixel Precise HD for details in action •Brilliant LED images with low power consumption•100Hz LCD, 2ms performance for superb motion sharpness •Perfect Natural Motion for ultra smooth Full HD movies Impressive, invisible sound•Feel the power of 24W RMS and Incredible SurroundIn-built internet TV•Philips Net TV for popular online services on your TV•DLNA PC Network link to browse PC and Home network content Greener every day•LED TVs up to 40% more energy efficient than normal LCD TVsHighlightsAmbilight Spectra 2Add a new dimension to your viewing experience with Ambilight Spectra 2. This patented Philips technology enlarges the screen by projecting a glow of light, on the 2 sides of the TV, from the back of the screen onto the surrounding wall. Ambilight adjusts automatically the colour and brightness of the light to match the picture, creating an immersive viewing experience. The walladaptive function ensures that the color of the light always matches the picture, no matter what the color of your wall. With Ambilight Spectra 2 movies truly come to life!Pixel Precise HDPixel Precise HD builds on the award winning Pixel Plus foundation. It brings the highdefinition picture quality to the next level with 4 trillion colours. With Super Resolution, Pixel Precise HD now brings you the best HD TV picture quality whether you are watching a video from the internet or good quality Blu-ray movies.LEDThe most advanced LED lighting technology in this TV combines an eye-catching minimalistic design with stunning image quality as well as the lowest power consumption in its category. On top of that, LED lighting technology does not contain any hazardous materials. Thus,with LED backlight you can enjoy low power consumption, high brightness, incredible contrast, sharpness and vibrant colors.100Hz LCD, 2ms response time 100Hz LCD creates extreme motionsharpness. The Double Frame Rate Insertion increases the sharpness of motionreproduction to more than twice that ofconventional LCD, resulting in a performance with a response time of 2 milliseconds. Now you can enjoy clear images even with fast on-screen motion.Perfect Natural MotionEnjoy the action without any judder. Perfect Natural Motion estimates motion in thepicture and corrects juddering movements in both broadcast and pre-recorded moviematerial (including 1080p movies and 24p True Cinema on Blu-ray and DVD). The result is even smoother and quieter pictures with excellent sharpness. Enjoy motionperformance that surpasses cinema quality!24W RMS Incredible SurroundFeel the power of the music's beat and the real atmosphere of the movies. The powerful 24W RMS (2x12W RMS) amplifiers create a lifelike sound stage. Incredible Surround allows you to experience total surround with greater depth and width of sound complementary to the rich viewing experience.Energy efficient LEDUsing the latest LED backlight technology, LED-backlit TVs are a more sustainable choice, with a longer life and far lower energyconsumption than plasmas and conventional LCD TVs. Unlike CCFL backlights, LEDs do not use mercury in their manufacture. Inaddition, Philips TV designs have constantly improved, resulting in higher materialefficiency and reduced energy usage without compromising on safety and well-being.Philips Net TVExperience a rich selection of online services with Philips Net TV. Enjoy movies, pictures, infotainment and other internet directly on your TV whenever you like. Simply connect directly to your home network through the ethernet connection, and navigate and select what you want to watch with the remote control. The Philips menu gives you access to popular Net TV services fitted for your TV screen. Additionally, with the DLNA certified PC network you can watch videos or access pictures stored on your computer using yourremote control.Philips Green LogoPhilips Green Products can reduce costs, energy consumption and CO2 emissions. How? They offer a significantenvironmental improvement in one or more of the Philips Green Focal Areas – Energy efficiency, Packaging, Hazardous substances, Weight, Recycling anddisposal and Lifetime reliability.Issue date 2021-02-28 Version: 4.1.912 NC: 8670 000 61092 EAN: 87 12581 53164 5© 2021 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•Aspect ratio: Widescreen•Brightness: 450 cd/m²•Dynamic screen contrast: 500,000:1•Response time (typical): 2 ms•Viewing angle: 176º (H) / 176º (V)•Diagonal screen size: 32 inch / 81 cm •Display: LCD Full HD, edge LED backlight •Panel resolution: 1920x1080p•Picture enhancement: Pixel precise HD, Perfect Natural Motion, Active Control + Light sensor, 100Hz Clear LCD, Digital Noise Reduction, Dynamic contrast enhancement, Luminance Transient Improver, MPEG artifact reduction, Super Resolution, Color booster•Screen enhancement: Anti-Reflection coated screen•Peak Luminance ratio: 65 %•Color processing: 4 trillion colors (14bit RGB)•Color cabinet: Mid Silver Brush Aluminium Ambilight•Ambilight Version: 2-sided•Ambilight Features: Ambilight Spectra 2, Lounge light mode•Dimming Function: Manual and via Light Sensor •Ambilight light system: LED wide color Supported Display Resolution •Computer inputs: up to 1920x1080 @ 60Hz •Video inputs: up to 1920x1080p, 24, 25, 30, 50, 60 HzSound•Output power (RMS): 24W•Sound Enhancement: Auto Volume Leveler, Dynamic Bass Enhancement, Incredible Surround, Treble and Bass Control, Clear Sound •Sound System: Mono, Nicam Stereo, Stereo Convenience•Child Protection: Child Lock+Parental Control •Clock: Sleep Timer•Ease of Installation: Channel installation wizard, Network installation wizard, Settings assistant wizard, Device connection wizard, Auto detect Philips devices, Auto Program Naming, Autoinstall, Program Name, Sorting•Ease of Use: Smart Picture, Smart Sound,Onscreen Usermanual, EasyLink, Favorite programselection, Mozaïc channel grid, One-stopexperience button, One-stop Home button•Electronic Program Guide: Now + Next EPG, 8dayElectronic Program Guide*•Screen Format Adjustments: Auto Format, SuperZoom, Movie expand 16:9, Widescreen, unscaled(1080p dot by dot)•Teletext: 1200 page Hypertext•Firmware upgradeable: Firmware auto upgradewizard, Firmware upgradeable via USB, Onlinefirmware upgrade•Multimedia: DLNA media Browser, Net TVservices, USB media browserMultimedia Applications•Picture Playback Formats: JPEG•Music Playback Formats: MP3, WMA (v2 up tov9.2), AAC•Video Playback Formats: Codec support:, H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4,WMV9/VC1, Containers: AVI, MKVTuner/Reception/Transmission•Aerial Input: 75 ohm coaxial (IEC75)•TV system: DVB COFDM 2K/8K•Video Playback: NTSC, SECAM, PAL•Digital TV: DVB Terrestrial *, DVB-T MPEG4*,DVB-C MPEG4*•Tuner bands: Hyperband, S-Channel, UHF, VHFConnectivity•Ext 1 Scart: Audio L/R, CVBS in, RGB•Ext 2 Scart: Audio L/R, CVBS in, RGB•Ext 3: YPbPr, Audio L/R in•VGA-in: PC input, D-sub 15•HDMI1:HDMI v1.4(Audio Return Ch.)•HDMI2:HDMI v1.3•HDMI3:HDMI v1.3•HDMI Side: HDMI v1.3•Front/Side connections: USB, Common InterfaceSlot (CI-CI+), SD-card (Videostore)•Other connections: Headphone out, PC Audio in,Ethernet-LAN RJ-45•EasyLink (HDMI-CEC): One touch play, EasyLink,Pixel Plus link (Philips), Remote control pass-through, System audio control, System standby•Audio Output - Digital: Coaxial (cinch)•PC network link: DLNA 1.5 certifiedPower•Ambient temperature: 5 °C to 40 °C•Mains power: 220 - 240V, 50/60Hz•Power consumption (typical): 70 W•Standby power consumption: < 0.15 W•Off mode power consumption: < 0.01•Annual energy consumption: 102.2 kW·h•Presence of lead: Yes*•Power Saving Features: 0 Watt Power-off switch,Light sensor, Eco mode, Picture mute (for radio),Auto switch-off timerDimensions•Compatible wall mount: adjustable 200 x 300mm•Set dimensions(W x H x D): 777 x 472 x 42 mm•Set dimensions with stand (W x H x D):777 x 540 x 221 mm•Weight incl. Packaging: 13 kg•Product weight: 9.5 kg•Product weight (+stand): 11.6 kg•Box dimensions(W x H x D):950 x 572 x 158 mmAccessories•Included accessories: Tabletop swivel stand, Quickstart guide, Registration card, Warranty Leaflet,Remote Control, 2 x AAA Batteries, Safety/legalinstructions, Software declaration•Optional accessories: Wireless USB adaptor(PTA01)*8 days EPG, service not available in all countries*Net TV: Visit /smarttv to discover the servicesoffering in your country.*The TV supports DVB reception for 'Free to air' broadcast. SpecificDVB operators may not be supported. An up to date list can befound in the FAQ section of the Philips support website. For someoperators Conditional Access and subscripction are required.Contact your operator for more information.*Typical on-mode power consumption measured according toIEC62087 Ed 2.*Energy consumption in kWh per year, based on the powerconsumption of the television operating 4 hours per day for 365days. The actual energy consumption will depend on how thetelevision is used.*This television contains lead only in certain parts or componentswhere no technology alternatives exist in accordance with existingexemption clauses under the RoHS Directive.。

Philips 20.1 寸 WSXGA 商务显示器 200WS8FS说明书

PhilipsLCD widescreen monitor51 cm (20.1") wideWSXGA200WS8FS Vista-ready widescreen forbusiness productivityDo more, see more on budget! With high resolution and a large, wide viewing area, thisultra-slim Philips 200WS8 boosts your business productivity - and is ready for immediateor future upgrade to Windows Vista.Designed for maximum productivity•Big, widescreen ideal for viewing two A4 pages side-by-side•Display more images and content without scrollingBest total cost of ownership solution•Empowered for Windows Vista•Complies with RoHS standards to care for the environment•The lowest power consumption in the industryOutstanding front of screen performance•WSXGA+, wide format 1680x1050 resolution for sharper display•5ms fast response timeGreat convenience•Dual input accepts both analog VGA and digital DVI signals•Embedded power supply eliminates external power adaptors•Adjust display settings with hot key or on-screen controlsIssue date 2022-05-10Version: 4.0.1212 NC: 8670 000 30106EAN: 87 12581 30136 1© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective SpecificationsLCD widescreen monitor51 cm (20.1") wide WSXGAHighlightsWidescreenA big, widescreen display that improves productivity by displaying two A4 pages side-by-side.Large viewing areaViewing area is the visible portion of a monitor screen available for displaying data.Windows Vista readyPhilips Vista-ready monitors are empowered for vibrant, exciting display of this new, visuallysophisticated and demanding Windows operating system, designed to enhance your entertainment experience, make you more productive and help you control your computing experience at home and in the office, making viewing, finding and organizing information for work or play quick, efficient and easy.Compliant with RoHS standardsPhilips designs and produces display products in compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.Lowest power consumptionLower power consumption reduces the energy required to operate a device, saving its owner operating costs and conserving power.WSXGA+, wide format 1680x1050Wide format, super extended graphics array is a display specification that is capable of displaying 1680 x 1050 resolution or approximately 1.7 million pixels.5ms on/off response timeOn-Off response time is the period required for a liquid crystal cell to go from active (black) to inactive (white) and back to active (black) again. It ismeasured in milliseconds. Faster is better: Lower response time means faster transitions and,therefore, results in fewer visible image artifacts in the display of transition of texts and graphics. On-Off response time is a more important measure in the display of business content like documents, graphs and photos.Dual inputDual input provides connectors to accommodate input of both analog VGA and digital DVI signals.Embedded power supplyAn embedded power supply is a power adaptor built into the body of a display device that replaces a bulky external power adaptor.User friendly hot key and OSDThe user friendly hot key and on-screen display controls are dual systems for conveniently fine-tuning display settings to meet a variety of needs. Press the hot key on your monitor's frame for automatic picture, quick contrast and brightness control or use the on-screen display feature to fine-tune your display settings.Picture/Display•LCD panel type: 1680 x 1050 pixels, Anti-glare polarizer, RGB vertical stripe •Panel Size: 20.1"/ 51 cm•Effective viewing area: 433.4 x 270.9 mm •Pixel pitch: 0.258 x 0.258 mm •Brightness: 300 cd/m²•Contrast ratio (typical): 800:1•Display colors: 16.7 M•Viewing angle: 160º (H) / 160º (V), @ C/R > 10•Response time (typical): 5 ms•White Chromaticity, 6500K: x = 0.313 / y = 0.329•White Chromaticity, 9300K: x = 0.283 / y = 0.297•Maximum Resolution: 1680 x 1050 @ 60Hz •Optimum resolution: 1680 x 1050 @ 60Hz •Video Dot Rate: 205 MHz•Horizontal Scanning Frequency: 30 - 93 kHz •Vertical Scanning Frequency: 56 - 76 Hz •Aspect ratio: 16:10•sRGBConnectivity•Signal Input: VGA (Analog ), DVI-D•Sync Input: Composite Sync, Separate Sync, Sync on Green•Video input impedance: 75 ohm •Sync input impedance: 2.2k ohm •Video input signal levels: 0.7 VppConvenience•User convenience: On-screen Display•Monitor Controls: Auto, Brightness (Left), Contrast (Right), Menu, Power On/Off•OSD Languages: English, French, German, Italian, Russian, Spanish•Other convenience: Kensington lock compatible •Plug & Play Compatibility: DDC/CI, sRGB, Windows 98/ME/2000/XP/Vista•Regulatory approvals: CE Mark, Energy Star, FCCClass B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo, UL/cUL•Tilt: -5° to 25°•VESA Mount: 100 x 100 mmAccessories•Included accessories: AC Power Cord, VGA cable •User ManualDimensions•Box dimensions (W x H x D): 525 x 174 x 452 mm•Box dimensions in inch (W x H x D): 20.7 x 6.9 x 17.8 inch•Set dimensions (W x H x D): 472.89 x 310.23 x 73 mm•Set dimensions in inch (W x H x D): 18.6 x 12.2 x 2.9 inch•Set dimensions with stand (W x H x D): 472.89 x 400.42 x 213.59 mm•Set dimensions with stand in inch (W x H x D): 18.6 x 15.8 x 8.4 inch •MTBF: 50,000 hrs•Relative humidity: 20% - 80%•Temperature range (operation): 5°C to 35°C •Temperature range (storage): -20°C to 60°C •Product weight (+stand): 5.3 kg •Product weight (+stand) (lb): 11.7 lb •Weight incl. Packaging: 6.1 kg •Weight incl. Packaging (lb): 13.4 lbPower•Complies with: Energy Star•Consumption (On mode): < 43 W (Typical)•Consumption (Off Mode): < 1 W•Power LED indicator: Operation - green, Stand by/sleep - Amber•Power supply: Built-in, 100-240VAC, 50/60Hz。

飞利浦互动显示器说明书

PhilipsLCD monitor with SmoothTouchB Line16 (15.6" / 39.6 cm diag.)1366x768 HD162B9TBrilliant interactive display with SmoothTouchA sturdy, water and dust resistant touch screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts up productivity.Brilliant interactive display•SmoothTouch display for natural, fluid touch response•Monitor front surface meets IP65 for water & dust resistance •SmartContrast for rich black details•LowBlue Mode for easy on-the-eyes productivity •EasyRead mode for a paper-like reading experience Easy to experience•HDMI ensures universal digital connectivity •USB 3.1 high speed data transfer•DisplayPort connection for maximum visuals•SmartStand with adjustable angles, boosts productivity •VESA mount allows for flexibilityHighlightsSmoothTouchThis Philips display uses Projected capacitive 10 point touch technology for fluid response. You can fully utilize the new capabilities of touch based applications, and bring your olderapplications to life. Touch-type with 10 fingers, or play exciting interactive games with your friends. Collaborate with colleaguesinteractively at work or school environment and increase your productivity and efficiency.Water and dust resistantFor less than perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets international the IP rating for water and dust resistance, it will hold up to water splashes and dust that happen in the everyday world.SmartContrast SmartContrast is a Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.LowBlue ModeStudies have shown that just as ultra-violet rays can cause eye damage, shortwave length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.EasyRead modeEasyRead mode for a paper-like reading experienceSmartStandPhilips SmartStand allows for flexibleadjustment of the screen. Its Z type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control, or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required.HDMI ReadyAn HDMI-ready device has all the required hardware to accept High-DefinitionMultimedia Interface (HDMI) input. A HDMI cable enables high-quality digital video and audio all transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).High speed data transferUSB 3.1 high speed data transferIssue date 2023-08-02 Version: 7.0.112 NC: 8670 001 68504 EAN: 87 12581 76844 7© 2023 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•LCD panel type: TFT-LCD (TN)•Backlight type: W-LED system•Panel Size: 15.6 inch / 39.6 cm•Effective viewing area: 344.2 (H) x 193.5 (V)•Aspect ratio: 16:9•Optimum resolution: 1366 x 768 @ 60Hz •Pixel Density: 100 PPI•Response time (typical): 4 ms (Gray to Gray)*•Brightness: 220 cd/m²•Contrast ratio (typical): 500:1•SmartContrast: 20,000,000:1•Pixel pitch: 0.252 x 0.252 mm•Viewing angle: 90º (H) / 60º (V), @ C/R > 10•Picture enhancement: SmartImage•Color gamut (typical): NTSC 86%*, sRGB 100%*•Display colors: 262 K•Scanning Frequency: 30 - 60 kHz (H) / 50 - 75 Hz (V)•sRGB•EasyRead•LowBlue ModeTouch•Touch technology: Projected capacitive •Touch points: 10 point•Touch method: Stylus, Finger, Glove*•Touch interface:USB•Touch glass hardness: 7 H•Touch glass coating: Glare•Touch active area: 344.2 mm (H) x 193.5 mm (V)•Operating system: Windows 10 / 8.1 / 8 / 7; Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux versions*•Palm rejection area: >= 25 x 25 mm•Ingress protection: IP65 - front only •Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCDConnectivity•Signal Input: VGA (Analog ), DVI-D (digital, HDCP), DisplayPort 1.2, HDMI 1.4•USB: USB 3.1x2 (1 w/fast charging)*•Sync Input: Separate Sync, Sync on Green •Audio (In/Out): PC audio-in, Headphone out •HDCP: HDCP: HDCP 1.4 (HDMI / DP / DVI) Convenience•Built-in Speakers: 2 W x 2•User convenience: SmartImage, Input, Brightness, Menu, Power On/Off•Control software: SmartControl•OSD Languages: Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian •Other convenience: Kensington lock, VESA mount(100x100mm)•Plug & Play Compatibility: DDC/CI, sRGB,Windows 10 / 8.1 / 8 / 7Stand•Height adjustment: 184 (Horizontal), 105(Vertical) mm•Tilt: -5 ~ 90 degree•Folding angle: 0 ~ 70 degreePower•ECO mode: 5.6 W (typ.)•On mode: 7.1 W (typ.) (EnergyStar test method)•Standby mode: 0.3 W (typ.)•Off mode: 0.3 W (typ.)•Power LED indicator: Operation - White, Standbymode- White (blinking)•Power supply: External, 100-240VAC, 50-60HzDimensions•Product with stand(max height): 378 x 347 x227 mm•Product without stand (mm): 378 x 241 x 42 mm•Packaging in mm (WxHxD): 445 x 388 x 159 mmWeight•Product with stand (kg): 5.00 kg•Product without stand (kg): 2.01 kg•Product with packaging (kg): 6.31 kgOperating conditions•Temperature range (operation): 0°C to 40°C °C•Temperature range (storage): -20°C to 60°C °C•Relative humidity: 20%-80 %•Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)•MTBF (demonstrated): 70,000 hrs (excludedbacklight)Sustainability•Environmental and energy: EnergyStar 8.0,EPEAT*, RoHS, WEEE•Recyclable packaging material: 100 %•Specific Substances: PVC / BFR free housing,Mercury freeCompliance and standards•Regulatory Approvals: CB, CE Mark, FCC Class B,SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUVErgo, CU-EAC, EAEU RoHSCabinet•Front bezel: Black•Rear cover: Black•Foot:Black•Finish: Texture*Response time value equal to SmartResponse*NTSC Area based on CIE1976*sRGB Area based on CIE1931*Glove material and thickness: Nitrile (0.15 mm), Cotton (0.31 mm),CPE (0.03 mm), PVC (0.12 mm)*Please refer to "SmoothTouch" in user manual for more details ofoperating systems support in touch function.*Fast charging complies with USB BC 1.2 standard*EPEAT rating is valid only where Philips registers the product. Pleasevisit https:/// for registration status in your country.*The monitor may look different from feature images.。

产品管理-飞利浦优质生活产品介绍(PPT93页)

冰肌系列
18
HP6409/03 电源式
• 互换脱毛/剃毛刀头 • 防敏感保护盖 • 旋转按摩系统 • 两档速度选择 • 夹轮式设计(21片转动夹轮) • 附精美软袋 • 附清洁刷
市场价 RMB688
长效舒肤系列
HP6407/03电源式
• 能将毛发彻底拔除,保护皮肤数周光滑无短茬
• 旋转式按摩系统 • 去死皮沐浴球 • 可拆卸的脱毛刀头 • 2档速度调节 • 附清洁刷，精美软袋
贴身柔肤系列
HP 6317/01 干电式
• 可替换刀网更贴合身体曲线 • -金色网面更适用于敏感区域 • -银色网面适用于腿部 • 浮动刀头 • 干湿两用 • 两个修剪刀头 • 修剪器附件 • 附挂环,方便悬挂于浴室内
市场价 RMB219
市场价 RMB355
20
HP6308干电式
• 安全剃毛系统 • 防过敏刀网 • 两个修剪刀头 • 干湿两用 • 附清洁刷 • 附精美软袋
【智速】系列
HQ 9080 智速系列时尚版充电/电源式剃须刀
• SmartTouch 貼面系統 • Speed-XL 智速三環剃鬚刀頭 • 全方位 3D 貼面刀頭 • 獨立浮動刀頭 • 精確的切剃系統 • 水洗式 • ２LED指示灯 • 弹出式修发器 • 便捷底座 • 旅行软袋 • 产地：中国
市场价 RMB1499
HS 190 干电式电动剃须刀（全球产量4亿纪念版）
市场价 RMB899
市场价 RMB599
15
QG 3040 五合一修剪组合装
• 鼻毛、耳毛及眉毛修剪 • 全尺寸修剪器 • 9档胡须修剪 • 精确修剪器
电动理发器\修剪器
QC5005 电动剪发器
• 八档剪发长度调校 • 自动研磨不锈钢片 • 电源式操作

Philips显示器用户手册说明书

/welcome241B8B Line172B9ZH 用户手册 1 客户服务与保修 16故障排除和常见问题解答20目录1. 重要 (1)1.1 安全措施与维修 (1)1.2 标志说明 (2)1.3 产品和包装材料的废弃 (3)2. 设置显示器 (4)2.1 安装 (4)2.2 操作显示器 (5)2.3 卸下底座装置 (7)3. 图像优化 (8)3.1 SmartImage (8)3.2 SmartContrast (9)4. SmoothT ouch (10)5. 技术规格 (11)5.1 分辨率和预设模式 (14)6. 电源管理 (15)7. 客户服务与保修 (16)7.1 Philips平板显示器像素缺陷规定167.2 客户服务与保修 (19)8. 故障排除和常见问题解答 (20)8.1 故障检修 (20)8.2 一般常见问题解答 (21)8.3 SmoothT ouch (23)1. 重要此电子版用户指南适合使用Philips显示器的所有用户。

请在使用您的显示器之前花点时间阅读本用户手册。

它包含与使用显示器相关的重要信息和注意事项。

产品享受Philips保修须符合下列条件：产品适当用于其设计目的、符合操作说明、返修时提供原始帐单或付款收据，帐单或收据应载明购货日期、销售商名称、产品型号及生产号。

1.1 安全措施与维修警告使用本文档中未介绍的控制、调整或过程可能导致碰撞、电气危险和/或机械危险。

连接和使用电脑显示器时，请阅读并遵循以下说明。

操作• 请使显示器远离阳光直接照射、明亮强光线、以及任何其他热源。

长期暴露于此类环境可能导致显示器褪色和损坏。

• 使显示器远离油类物质。

油类物质可能会损坏显示器的塑料外壳，并导致保修失效。

• 移开任何可能掉入通风孔的物品或者会妨碍显示器电子器件正常冷却的物品。

• 请勿堵塞机壳上的通风孔。

• 放置显示器时，确保电源插头和插座便于插拔。

• 如果通过拔掉电源线或直流电源线关闭显示器电源，则在重新连接电源线或直流电源线以进行正常操作之前，必须等待6秒钟。

菲利普商业显示器USB-C Docking 24英寸说明书

Philips Business MonitorLCD monitor with USB-CB Line24 (23.8" / 60.5 cm diag.)1920 x 1080 (Full HD)243B9Simplify your connectionswith USB-C docking monitorThe Philips B line monitor with USB-C docking replaces cable clutter. View Full HD imageand re-charge your laptop, all at the same time with a single USB-C cable. SmartErgo base,Flicker-free and LowBlue mode make work easy-on-the eyes.Single cable USB-C connection•Connect your notebook with one USB-C cable•Power and re-charge compatible notebook from the monitor•USB 3.2 high speed data transferExcellent performance•IPS technology for full colors and wide viewing anglesDesigned for the way you work•SmartErgoBase enables people-friendly ergonomic adjustments•Less eye fatigue with Flicker-free technology•LowBlue Mode for easy on-the-eyes productivity•HDMI ensures universal digital connectivityDesigned for sustainability•PowerSensor saves up to 70% energy costs•100% Recycled packing materialHighlightsUSB-C connectionThis Philips display features a USB type-C connector with power delivery. Withintelligent and flexible power management, you can power charge your compatible device directly. Its slim, reversible USB-C allows for easy, one-cable connection. You can watch high resolution video and transfer data at a super-speed, while powering up and re-charging your compatible device at the same time.Power & re-charge notebookThis monitor features a built in USB-Cconnector which meets USB Power Delivery standard. With intelligent and flexible power management, you can now power up and or re-charge your compatible* Notebook directly from the Monitor using a single USB-C cable.IPS technologyIPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in 90 degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also forprofessional applications which demand color accuracy and consistent brightness at all times.SmartErgoBaseThe SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base can swivel, tilt and rotate to various angles to ensure maximum comfort. The height adjustable stand guarantees the optimalviewing level, reducing the physical strains of a long workday, while cable managementreduces cable clutter and keeps the workspace neat and professional.Flicker-free technologyDue to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eyefatigue. Philips Flicker-free Technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.LowBlue ModeStudies have shown that just as ultra-violet rays can cause eye damage, shortwave length bluelight rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.HDMI ReadyAn HDMI-ready device has all the required hardware to accept High-DefinitionMultimedia Interface (HDMI) input. A HDMI cable enables high-quality digital video and audio all transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).PowerSensorPowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 70 percent andprolonging monitor life.Issue date 2023-03-11 Version: 5.0.212 NC: 8670 001 66706 EAN: 87 12581 76633 7© 2023 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•LCD panel type: IPS technology•Backlight type: W-LED system•Panel Size: 23.8 inch / 60.5 cm•Display Screen Coating: Anti-Glare, 3H, Haze 25%•Effective viewing area: 527 (H) x 296.5 (V)•Aspect ratio: 16:9•Maximum resolution: 1920 x 1080 @ 75 Hz*•Pixel Density: 93 PPI•Response time (typical): 4 ms (Gray to Gray)*•Brightness: 250 cd/m²•Contrast ratio (typical): 1000:1•SmartContrast: 50,000,000:1•Pixel pitch: 0.275 x 0.275 mm•Viewing angle: 178º (H) / 178º (V), @ C/R > 10•Picture enhancement: SmartImage•Display colors: 16.7M•Color gamut (typical): NTSC 90%*, sRGB 104%*•Scanning Frequency: 30 - 85 kHz (H) / 48 - 75 Hz (V)•sRGB•Flicker-free•LowBlue Mode•EasyRead•Adaptive syncConnectivity•Signal Input: VGA (Analog), DisplayPort 1.2 x 1, HDMI 1.4 x 1, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 65W)•HDCP: HDCP 1.4 (DP / HDMI / USB-C)•USB:: USB-C 3.2 Gen 1 x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)•Audio (In/Out): PC audio-in, Headphone out •Sync Input: Separate Sync, Sync on GreenUSB•USB-C: Reversible plug connector•Super speed: Data and Video transfer•DP: Built-in Display Port Alt mode•Power delivery: USB PD version 3.0•USB-C max. power delivery: Up to 65W (5V/3A; 9V/3A; 10V/3A;12V/3A; 15V/3A; 20V/3.25A) Convenience•Built-in Speakers: 2 W x 2•User convenience: SmartImage, Input, PowerSensor, Menu, Power On/Off•Control software: SmartControl•OSD Languages: Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian •Other convenience: Kensington lock, VESA mount (100x100mm)•Plug & Play Compatibility: DDC/CI, Mac OS X,sRGB, Windows 10 / 8.1 / 8 / 7Stand•Height adjustment: 150 mm•Pivot: -/+ 90 degree•Swivel:-/+175 degree•Tilt: -5 ~ 30 degreePower•ECO mode: 12.8 W (typ.)•On mode: 14.99 W (typ.) (EnergyStar test method)•Standby mode: < 0.3 W (typ.)•Off mode: Zero watts with Zero switch•Power LED indicator: Operation - White, Standbymode- White (blinking)•Power supply: Built-in, 100-240VAC, 50-60HzDimensions•Product with stand(max height): 541 x 522 x216 mm•Product without stand (mm): 541 x 332 x 63 mm•Packaging in mm (WxHxD): 600 x 476 x 162 mmWeight•Product with stand (kg): 5.44 kg•Product without stand (kg): 3.83 kg•Product with packaging (kg): 8.09 kgOperating conditions•Temperature range (operation): 0°C to 40°C °C•Temperature range (storage): -20°C to 60°C °C•Relative humidity: 20%-80 %•Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)•MTBF (demonstrated): 70,000 hrs (excludedbacklight)Sustainability•Environmental and energy: EnergyStar 8.0,PowerSensor, TCO Certified Edge, WEEE, RoHS•Recyclable packaging material: 100 %•Post consumer recycled plastic: 85%•Specific Substances: PVC / BFR free housing,Mercury freeCompliance and standards•Regulatory Approvals: CE Mark, FCC Class B,SEMKO, CU-EAC, TUV Ergo, TUV/GS, EPA, ICES-003, UKRAINIAN, MEPS, RCM, CBCabinet•Front bezel: Black•Rear cover: Black•Foot:Black•Finish: Texture*"IPS" word mark / trademark and related patents on technologiesbelong to their respective owners.*The maximum resolution works for either USB-C, DP or HDMIinput.*Response time value equal to SmartResponse*NTSC Area based on CIE1976*sRGB Area based on CIE1931*Activities such as screen sharing, on-line streaming video and audioover the Internet can impact your network performance. Yourhardware, network bandwidth and its performance will determineoverall audio and video quality.*For USB-C power and charging function, your Notebook/devicemust support USB-C standard Power Delivery specifications. Pleasecheck with your Notebook user manual or manufacturer for moredetails.*For Video transmission via USB-C, your Notebook/device mustsupport USB-C DP Alt mode*The monitor may look different from feature images.。

菲利普LCD显示器商品说明书

PhilipsLCD monitor, LEDbacklight with Digital TV tunerMotivo23" (58.4 cm)Full HD display231TE4LBGreat TV entertainment on your Full HD LED monitorwith DTV tunerExperience great multimedia performance on the Philips Motivo Full HD display. Combined with digital TV tuner, HDMI input and powerful sound, it's a great choice.Best picture quality•Full HD LCD display, with a 1920 x 1080p resolution •LED technology for natural colours•SmartContrast 20,000,000:1 for incredible rich black details •SmartPicture for optimised display experience•SmartSound selects a perfect mode for audio performance Easy to connect and enjoy•Built-in digital TV tuner for viewing TV on your PC monitor •VGA input for PC connectivity•HDMI-ready for Full HD entertainment•USB for fantastic MP3 audio and JPEG photo playback Experience true multimedia•Incredible Surround for enhanced audio enjoyment •Digital audio and video reception via digital tunerHighlightsLED technologyWhite LED's are solid state devices which light up to full, consistent brightness faster saving startup time. LED's are free from mercury content, which allows for eco-friendlyrecycling and disposal process. LED's allow for better dimming control of the LCD backlight, resulting in a super high contrast ratio. It also gives superior colour reproduction thanks to consistent brightness across the screen.Digital TV tunerA digital television tuner built into a monitor to receive and display high quality TV signals from various sources.Full HD LCD display 1920 x 1080pThe Full HD screen has the widescreenresolution of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future-proof as it supports 1080p signals from all sources,including the most recent sources such as Blu-ray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colours.SmartContrast ratio 20,000,000:1You want the LCD flat display with the highest contrast and most vibrant images. Philipsadvanced video processing combined with unique extreme dimming and backlight-boosting technology results in vibrant images. SmartContrast will increase the contrast with excellent black level and accurate rendition of dark shades and colours. It gives a bright, lifelike picture with high contrast and vibrant colours.SmartPictureSmartPicture is an exclusive leading edge Philips technology that analyses the content displayed on your screen and gives you optimised display performance. This user friendly interface allows you to select various modes like Office, Image, Entertainment, Economy etc., to fit the application in use. Based on the selection, SmartPicturedynamically optimises the contrast, colour saturation and sharpness of images and videos for ultimate display performance. TheEconomy mode option offers you major power savings. All in real time with the press of a single button!Incredible SurroundIncredible Surround is an audio technology from Philips that dramatically magnifies the sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands thevirtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sounddimension. Incredible Surround allows you to experience total surround with greater depth and width of sound, without the use of additional speakers.SmartSoundSmartSound allows you to select variousmodes like Movie, Games, Music etc., thereby automatically activating predefined frequencies to enhance the sound related to the functionHDMI ReadyAn HDMI-ready device has all the required hardware to accept High-DefinitionMultimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).Digital audio and videoDigital audio and video reception via digitaltunerIssue date 2022-04-21Version: 1.1.212 NC: 8670 000 84779EAN: 87 12581 62595 5© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•LCD panel type: TFT-LCD •Backlight type: W-LED system•Diagonal screen size: 23 inch / 58.4 cm •Aspect ratio: 16:9, Widescreen •Panel resolution: 1920 x 1080•Response time (typical): 5 ms •Brightness: 250 cd/m²•SmartContrast: 20,000,000:1•Viewing angle: 170º (H)/160º (V), @ C/R > 10•Contrast ratio (typical): 1000:1•Picture enhancement: Progressive scan•Screen enhancement: Anti-Reflection coated screenSupported Display Resolution•Computer formats Resolution Refresh rate Optimum 1920 x 108060 Hz •Video formatsResolutionRefresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz1080p24, 50, 60 Hz Sound•Output power (RMS): 3 W x 2•Sound Enhancement: Incredible Surround, Smart Sound•Sound System: Mono, Stereo, Nicam StereoConvenience•Ease of Installation: Plug and Play, Automatic Tuning System (ATS)•Ease of Use: On-Screen Display, Programme List, Side Control•Remote control type: Philips RC6 Remote control •On-Screen Display languages: Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Kazakh, Latvian, Lithuanian, Norwegian,Portuguese, Polish, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish,Ukraine•Other convenience: VESA mount (100 x 100 mm)•Screen Format Adjustments: Auto (WSS), Movie expand 14:9, Movie expand 16:9, Widescreen, Super Zoom, Subtitle Zoom, 4:3•SmartPicture: Cinema, Custom, Energy saving, Game, Natural, Photo, Standard, Vivid•SmartSound: Cinema, Drama, Game, News, Personal, Sports, Standard•Teletext: 1000-page Smart TextStand•Tilt: 0/+15 degreeTuner/Reception/Transmission•Aerial Input: 75 ohm coaxial (IEC75)•TV system: PAL I, PAL B/G, PAL D/K, SECAM B/G, SECAM D/K, SECAM L/L'•Video Playback: NTSC, PAL, SECAM •Tuner Display:PLL•CI/CI+: yes (Burn CI+ key in set)•Digital TV: DVB-C, DVB-T •MHEG-5v1.06•MPEG-2, MPEG-4 support•Tuner bands: Hyperband, S-Channel, UHF, VHFConnectivity•Ext @ side: CI+, USB x 1 (JPG/MP3)•Ext @ rear: D-sub x 1, HDMI (1.4a) x 1,Headphone x 1, PC audio in x 1, Scart x 1, SPDIF out x 1 (RCA), Tuner x 1, YPbPr x 1 + L/R input x 1Power•On mode: 25.6 W (typ.)/34 W (max)•Off mode: 0.3 W (typ.)•Standby mode: 0.3 W (typ.)•Ambient temperature: 5°C to 40°C •Mains power: 100-240 V, 50/60 HzDimensions•Packaging in mm (W x H x D): 612 x 468 x 117 mm •Product with stand (mm): 573 x 410 x 174 mm •Product without stand (mm): 573 x 370 x 39 mmWeight•Product with packaging (kg): 4.83 kg •Product with stand (kg): 3.56 kg •Product without stand (kg): 3.32 kgAccessories•Included accessories: Power cord, Remote Control (with battery), Quick start guide, User Manual, VGA cable。

Philips 高亮度商业显示屏 55寸 2500cd m

Philips Signage Solutions H-Line Display55"2500cd/m²Full HD55BDL6002HTurn headsHigh-brightness 24/7 display.Stay visible day and night with a Philips H-Line High-brightness Professional Full HD Display. Astonishing clarity and contrast make this a perfect solution for window displays and bright locations. From museums to retail.Brilliant picture. High brightness.•Full HD. Clear images. Crisp contrast•High brightness (2500 cd/m2). Suited to semi-outdoor use •Automated light output with optional external light sensor Effortless setup. Total control.•Add Android processing power with an optional CRD50 module •Remote system management through CMND•Operate, monitor and maintain with CMND & Control •CMND & Create. Develop and launch your own content Versatile system solution•Energy-saving automatic backlight control •FailOver ensures content is always playing•OPS slot allows for PC embedding without cablingHighlightsOptional CRD50 moduleEmbed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).CMNDTake control of your Philips Professional Display network. CMND lets you manage, update, maintain, and play via one easy-to-use interface. From installation to daily operation.CMND & ControlRun your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputsand monitoring display status. Whether you're in charge of one screen or 100.CMND & CreateTake control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates andintegrated widgets ensure your stills, text, and video will be up and running in no time.FailOverFrom waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automaticallybetween primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.OPS slotIntegrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.High brightness (2,500 cd/m2)Make a big impact in bright or semi-outdoor locations. This ultra-high-brightness 2500 cd/m2 display is perfect for attracting attention in large, busy areas that are subject to highambient light.Issue date 2023-03-30Version: 2.0.112 NC: 8670 001 68696EAN: 87 12581 76873 7© 2023 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•Diagonal screen size: 54.6 inch / 138.7 cm •Optimum resolution: 1920 x 1080 @ 60Hz •Brightness: 2500 cd/m²•Contrast ratio (typical): 5000:1•Dynamic contrast ratio: 500,000:1•Aspect ratio: 16:9•Response time (typical): 8 ms •Pixel pitch: 0.63 x 0.63 mm•Viewing angle (H / V): 178 / 178 degree •Panel resolution: 1920x1080p •Display colors: 1.07 BConnectivity•Video input: Composite (Share component Y), Display Port1.2 (x1), DVI-D (x1), HDMI 1.4 (x2), VGA (Analog D-Sub) (x1), Component (BNC x3)•Video output: DisplayPort 1.2 (x1), DVI-I (x1)•Audio input: 3.5 mm jack, Audio Left/Right (RCA)•Audio output: 3.5mm jack, External speaker connector•External control: RS232C (in/out) 2.5 mm jack, RJ45, IR (in/out) 3.5 mm jack•Other connections: OPS, USB 2.0 (x1)Dimensions•Bezel width: 13.6 mm(Even bezel)•Set dimensions (W x H x D): 1243.2 x 714 x 137.7 mm•Set dimensions in inch (W x H x D): 48.9 x 28.1 x 5.42 inch•Wall Mount: 400 x 400 mm, M6•Product weight: 31.84 kg •Product weight (lb): 70.20 lb •Smart insert height: 200 mm•Smart Insert mount: 100mm x 100mm pitch, 6xM4L6Convenience•Placement: Landscape, Portrait •Network controllable: RS232, RJ45•Signal loop through: RS232, IR Loopthrough, DisplayPort, RJ45•Energy saving functions: Smart Power •Remote control signal: Lockable •Keyboard control: Hidden, Lockable•Ease of installation: Smart Insert, Carrying Handles•Other convenience: Carrying handles•Screen saving functions: Pixel Shift, Low Brightness •Picture performance: Advanced color controlPower•Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz •Consumption (Typical): 295 W•Standby power consumption: <0.5W •Consumption (Max): 420 WSound•Built-in speakers: 2 x 10W RMSOperating conditions•Temperature range (operation): 0 ~ 40 °C •Temperature range (storage): -20 ~ 60 °C •MTBF: 50,000 hour(s)•Altitude: 0 ~ 3000 m•Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation)•Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation)Accessories•Included accessories: AC Power Cord, Quick start guide, RS232 cable, Remote Control & AAA Batteries•Included Accessories: RS232 daisy-chain cable, Edge Alignment Kit (1) -1 pcs, Edge Alignment Kit (2) - 2 pcs, Philips logo (x1), Thumbscrew (8pcs)Miscellaneous•On-Screen Display Languages: English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Portuguese•Regulatory approvals: CB, CE, UL/cUL, EAC, EMF, FCC, Class A, PSB, PSE, VCCI •Warranty: 3 year warrantyMultimedia Applications•USB Playback Audio: AAC, M4A, MP3, WMA, AIF, AIFF, ASF, M3U, MP4, PLS, WAV•USB Playback Picture: BMP, GIF, JPEG, PNG, JPG •USB Playback Video: M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, VOB, ISM, Manifest, MPD, MT2Supported Display Resolution•Computer formats Resolution Refresh rate 1280 x 1024 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1360 x 768 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 720 x 400 70Hz 1024 x 768 60, 75Hz 1280 x 960 60Hz 1366 x 768 60Hz 640 x 480 60, 72, 75Hz 800 x 600 60, 75Hz •Video formats Resolution Refresh rate 1080i 25, 30Hz 1080p 50, 60Hz 720p 50, 60Hz。

Philips Brilliance 32其型号LCD显示屏说明书

Philips BrillianceLCD monitor with USB-C DockP Line32 (31.5" / 80 cm diag.)3840 x 2160 (4K UHD)329P9HUltra-clarity, outstanding color,for when it mattersWhen every detail matters, Philips Brilliance 32” 4K display delivers crisp visuals with accurate color. Convenient features like USB-C docking and a secure pop-up webcam with Windows Hello increase your productivity.Brilliant performance•UltraClear 4K UHD (3840x2160) resolution for precision •IPS technology for full colors and wide viewing angles Optimal Connectivity•Built in USB-C docking station•Built in RJ-45 ethernet gives data securityDesigned for the way you work•MultiView enables simultaneous dual connect and view•Securely sign in with pop-up webcam with Windows Hello™•SmartErgoBase enables people-friendly ergonomic adjustments •LowBlue Mode for easy on-the-eyes productivity Sustainable Eco-design•PowerSensor saves up to 70% energy costs•LightSensor for the perfect brightness with minimal powerHighlightsUltraClear 4K UHD ResolutionThese Philips displays utilize high performance panels to deliver UltraClear, 4K UHD (3840 x 2160) resolution images. Whether you are demanding professional requiring extremely detailed images for CAD solutions, using 3D graphics applications or a financial wizard working on huge spreadsheets, Philips displays will make your images and graphics come alive.IPS technologyIPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in 90 degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also forprofessional applications which demand color accuracy and consistent brightness at all times.Built in USB-C docking station This Philips display features a built-in USB type-C docking station with power delivery. Its slim, reversible USB-C connector allows for easy, one-cable docking. Simplify by connecting all your peripherals like keyboard, mouse and your RJ-45 Ethernet cable to the monitor's docking station. Simply connect yournotebook and this monitor with a single USB-C cable to watch high-resolution video and transfer super-speed data, while powering up and re-charging your notebook at the same time.MultiView technologyWith the ultra-high resolution PhilipsMultiView display you can now experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multi-tasking.Windows Hello™ pop-up webcamPhilips' innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you are not using it. The webcam is also equipped with advanced sensors for Windows Hello™ facialrecognition, which conveniently logs you into your Windows devices in less than 2 seconds, 3 times faster than a password.SmartErgoBaseThe SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base'speople-friendly height, swivel, tilt and rotation angle adjustments position the monitor for maximum comfort that can ease the physical strains of a long workday; cable management reduces cable clutter and keeps the workspace neat and professional.PowerSensorPowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 70 percent and prolonging monitor life.LightSensorLightSensor uses a smart sensor to adjust the picture brightness depending on the room light conditions for the perfect picture with minimalpower usage.Issue date 2022-05-15 Version: 6.0.112 NC: 8670 001 57966 UPC: 6 09585 25250 9© 2022 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.SpecificationsPicture/Display•LCD panel type: IPS technology•Backlight type: W-LED system•Panel Size: 31.5 inch / 80 cm•Display Screen Coating: Anti-Glare, 3H, Haze 25%•Effective viewing area: 697.3 (H) x 392.2 (V)•Aspect ratio: 16:9•Optimum resolution: 3840 x 2160 @ 60Hz •Pixel Density: 140 PPI•Response time (typical): 5 ms (Gray to Gray)*•Brightness: 350 cd/m²•Contrast ratio (typical): 1300:1•SmartContrast: 50,000,000:1•Pixel pitch: 0.182 x 0.182 mm•Viewing angle: 178º (H) / 178º (V), @ C/R > 10•Flicker-free•Picture enhancement: SmartImage•Display colors: Color support 1.07 billion colors •Color gamut (typical): NTSC 90%*, sRGB 108%*, Adobe RGB 87%*•Scanning Frequency: 30 - 160 kHz (H) / 23 - 80 Hz (V)•SmartUniformity: 97 ~ 102 %•Delta E:<2•sRGB•LowBlue Mode•EasyReadConnectivity•Signal Input: DisplayPort 1.2 x 1, DisplayPort out (Clone mode) x 1, HDMI 2.0 x 2, USB-C 3.1 Gen 2 x 1 (upstream, power delivery up to 65W)•HDCP: HDCP 2.2 (HDMI/DP/USB-C)•USB:: USB 3.1 x 4 (downstream with x 1 fast charge B.C 1.2)•Audio (In/Out): Headphone out•RJ45: Ethernet LAN up to 1G*•Sync Input: Separate Sync, Sync on GreenUSB•USB-C: Reversible plug connector•Super speed: Data and Video transfer•DP: Built-in Display Port Alt mode•Power delivery: USB PD version 2.0•USB-C max. power delivery: Up to 65W (5V/3A; 9V/3A; 10V/3A;12V/3A; 15V/3A; 20V/3.25A) Convenience•Built-in Speakers: 3 W x 2•Built-in webcam: 2.0 megapixel FHD camera with microphone and LED indictor (for Windows 10 Hello)•MultiView: PIP/PBP mode, 2x devices•User convenience: SmartImage, User 1, User 2,Menu, Power On/Off•Control software: SmartControl•OSD Languages: Brazil Portuguese, Czech, Dutch,English, Finnish, French, German, Greek,Hungarian, Italian, Japanese, Korean, Polish,Portuguese, Russian, Simplified Chinese, Spanish,Swedish, Traditional Chinese, Turkish, Ukranian•Other convenience: Kensington lock, VESA mount(100x100mm)•Plug & Play Compatibility: DDC/CI, Mac OS X,sRGB, Windows 10 / 8.1 / 8 / 7Stand•Height adjustment: 180 mm•Pivot: -/+ 90 degree•Swivel:-/+175 degree•Tilt: -5/25 degreePower•ECO mode: 30.8 W (typ.)•On mode: 33.95 W (typ.) (EnergyStar test method)•Standby mode: < 0.5 W (typ.)•Off mode: Zero watts with Zero switch•Power LED indicator: Operation - White, Standbymode- White (blinking)•Power supply: Built-in, 100-240VAC, 50-60HzDimensions•Product with stand(max height): 715 x 636 x246 mm•Product with stand(max height): 28.1 x 25.0 x9.7 inch•Product without stand (mm): 715 x 412 x 51 mm•Product without stand in inch: 28.1 x 16.2 x2.0 inch•Packaging in mm (WxHxD): 793 x 673 x 186 mm•Packaging in inch (WxHxD): 31.2 x 26.5 x 7.3 inchWeight•Product with stand (kg): 10.63 kg•Product with stand (lb): 23.39 lb•Product without stand (kg): 7.33 kg•Product without stand (lb): 16.13 lb•Product with packaging (kg): 14.43 kg•Product with packaging (lb): 31.74 lbOperating conditions•Temperature range (operation): 0°C to 40°C °C•Temperature range (storage): -20°C to 60°C °C•Relative humidity: 20%-80 %•Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)•MTBF (demonstrated): 70,000 hrs (excludedbacklight)Sustainability•Environmental and energy: PowerSensor,LightSensor, EnergyStar 8.0, EPEAT*, TCOCertified, WEEE, RoHS•Recyclable packaging material: 100 %•Post consumer recycled plastic: 85%•Specific Substances: PVC / BFR free housing,Mercury freeCompliance and standards•Regulatory Approvals: CE Mark, FCC Class B,China RoHS, UKRAINIAN, ICES-003, CU-EAC,TUV Ergo, TUV/GS, SEMKO, EPA, cETLusCabinet•Front bezel: Black•Rear cover: Black•Foot:Black•Finish: TextureWhat's in the box?•Monitor with stand•Cables: HDMI cable, DP cable, USB-C to C cable,USB-C to A cable, Power cable•User Documentation*"IPS" word mark / trademark and related patents on technologiesbelong to their respective owners.*Response time value equal to SmartResponse*NTSC Area based on CIE1976*sRGB Area based on CIE1931*Adobe RGB Coverage based on CIE1976*Activities such as screen sharing, on-line streaming video and audioover the Internet can impact your network performance. Yourhardware, network bandwidth and its performance will determineoverall audio and video quality.*For USB-C power and charging function, your Notebook/devicemust support USB-C standard Power Delivery specifications. Pleasecheck with your Notebook user manual or manufacturer for moredetails.*For Video transmission via USB-C, your Notebook/device mustsupport USB-C DP Alt mode*If your Ethernet connection seems slow, please enter OSD menuand select USB 3.0 or higher version which can support the LANspeed to 1G.*Cannot support USB-C vs HDMI for PIP/PBP at the same time*EPEAT rating is valid only where Philips registers the product. Pleasevisit https:/// for registration status in your country.*The monitor may look different from feature images.。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

• 目前CCFL背光源的面板和LED面板的价格差在15%，到2012年第3季度两者价格会持平
• Philips 新的LED产品有 : 4271VL, 4671VL, 5571VL, 4250EL, 4650EL, 5550EL, 5586XL and 5586SL
24
从 CCFL 到 LED
功能特色电压
• LED技术更节能，更低碳排放 • 侧入式LED使机身更薄，边框更窄 • LED 图像表现出色，色域范围更宽 • 产生的热量更少 • 无汞产品，绿色环保
20
Open Pluggable Specification
OPS 模块提供完整的数字告示板集成解决方案 OPS标准使任何品牌的嵌入式电脑可以用在任何显示器上
10. Smart start up settings 智能开机设置
液晶商用显示器显示器面板皆可可以可以有可锁/可藏可锁是有有
液晶电视机电视机面板只可横向摆放
不可不可无不可藏/不可锁不可锁否无无
3
飞利浦 Signage 产品介绍
五大系列20余款LCD专业显示器型号，大量应用于中国数字信息市场。
18
触摸屏
多点触摸的应用（配套 Windows 7 、 Linux等操作系统）打开了一个全新的客户交互领域光学多点触摸屏，具有敏捷的反应灵敏度红外感应器装于面框顶部，精度达到小于5毫米钢化玻璃强化屏幕保护 2011年有3个尺寸: 42”、55” 和65” 2012年扩充到全系列
19
LED 背光源的好处
5大系列： E系列 V系列 S系列 F系列 Q系列
6个尺寸: 32”,42”, 46”, 47”, 55”, 65”
4
E 系列
从32”到65”，5款产品都是全高清产品，分辨率为1920x1080。产品性能价格比高同类产品中功耗最低
E-Line ：32”, 42”, 46” ,55”, 65”
5
4. RS232 network controllable RS232控制
5. Pixel Shift
防屏幕灼伤
6. Security Control buttons 隐藏控制按钮
7. Security RC signal
可锁的遥控器
8. Low power consumption 较低工作功耗
9. Energy Saving Function 智能电源管理
V 系列
即窄边系列。都是全高清产品，分辨率为1920x1080。与E系列相比，有如下特点： 1）窄边框设计（边框宽度都在20mm内），外形时尚 2）亮度高，皆为700 nits 3）接口齐全，DVI 、HDMI外还有Display Port
V-Line ：42”, 55” 和 65”
6
• 超窄边
确保产品可每周7天，每天24小时连续工作
Pixel Shirft功能，防止长时间运行固态图像，产生屏幕灼伤，影响显示效果
举例：上海浦东国际机场，1号航站楼286台飞利浦显示器从2007年运行5年，全年365天每天24小时工作，显示器至今全部正常工作，期间只有1台因外接设备的原因损坏接口。产品质量得到上海浦东机场高度认可。
14
拼接显示墙
超窄边拼接显示墙适合不同市场需求 46”超窄边拼接，接缝仅为6.7毫米， 55”拼缝只有5.5毫米 4 台46”组成的92”拼接墙，成本仅是一台80”液晶显示屏的小部分专业安装工具简化安装，质量保证
15
16
17
VESA 多点安装孔位
多达12个安装点位，符合所有国际安装标准的完美设计，便于水平或垂直安装
色饱和度寿命亮度
厚度灯/LED数量亮度调整环保
CCFL
LED
高压的（600伏的）直流的、低压的 5～24V的低压电源
70％
>105%
五万个小时
十万小时以上
500 nits
400 nits =CCFL 500 nits
45毫米
32.5毫米
455
16
存在一个门槛
范围大
水银蒸汽
无 (荧光粉)
25
直下式LED背光与侧入式LED背光
直下式LED
LCD
光线路径较短
侧入式LED
LCD
直下式侧入式◎
○
节能
◎
○
造型
○
◎
LED
LED
电路板
节能环保、亮度均匀、显示色彩更加靓丽
26
飞利浦显示器支持以下所有解决方案
飞利浦商用显示器产品
1
整体概述
一请在这里输入您的主要叙述内容
二
请在这里输入您的主要叙述内容
三请在这里输入您的主要叙述内容
2
液晶商用显示器与液晶电视机的区别
10 个不同之处
1. Panel
面板种类
2. Placement
横向/竖直摆放
3. Designed for 24/7 operation 每天24小时工作
S系列
• 超薄
• 超亮
• 触摸
7
F 系列
• 基于电视机面板的显示器 • 目标客户
– 公司客户，用于休息室、董事室或小型会议室
– 数字标牌客户，用于零售商店、候诊室、健身俱乐部等
8
Q 系列
• 增加–RS232输入/输出，USB播放功能， RJ45
• 目标客户
– 小型的零售行业 – 医院的候诊厅
21
时间表
时间表可以针对每周中的每一天设置方便地设置每台显示器的开关机时间最多可有7种独立选择，对应不同的视频输入，极其灵活
22
2012 年飞利浦商用显示器的新特色
23
从CCFL灯管到 LED背光源
• 面板升级特点：以CCFL做背光源的面板会在2013年第一季度停止供应，2012年会有大量LED产品上市
9
飞利浦现有产品的特色
10
功耗最低
拥有同类产品中最低的功耗（同尺寸） Smart Power、Panel Saving等设计使产品能耗大幅降低所有产品符合欧洲能源之星标准 Energy Star standards和国家节能认证 CECP
11
高可靠性
专业级PD液晶屏面板（非TV面板）
专业级的耐高温、高稳定零件（MTBF 6万小时）
12
Smart Power（灵智电源）设计
根据使用环境选择背光强度（分3 级），降低功耗中级：降低功耗20% 高级：降低功耗35% 屏幕节能：比较最大功耗节能60%
13
Smart Insert
独有智能插槽，可安装微型电脑微型电脑安装在显示器背后并不增加显示器厚度提供更自由和便捷的解决方案
