1.概述
每台低压断路器出厂前都必须进行脱扣特性测试, 按照国家标准及IEC标准, 在进行脱扣动作调整时, 应该通以非周期分量为零的标准正弦波电流。
我公司经过多年努力, 精心开发的BT8―10型低压断路器脱扣特性测试台, 不但有效地解决了这一问题, 而且测试精度高, 性能完善, 有利于提高工作效率。
本产品应用了多项先进技术, 如: 采用永磁真空同步开关进行选相合、分闸操作, 使实际输出的电流波形完全为正弦波, 且永磁真空同步开关具有超过10万次的操作寿命, 能够进行特频繁的操作; 应用微机进行精密计量, 我公司特为这一测试台开发了一系列专用软件, 因此能获得试验电流波形图及试验电流最大值、有效值、限流值、动作时间值等准确数据。
测试台界面清晰、设置合理, 各项参数均能满足低压断路器的脱扣特性测试要求, 特别是对于有限流功能的断路器, 完美地解决了由限流引起的电流测量精度问题。
本产品设计合理, 使用方便, 功能强大, 外形美观。
可供各专业试验站、低压断路器的生产制造和研制单位, 作为产品质量检测和出厂检验之用。

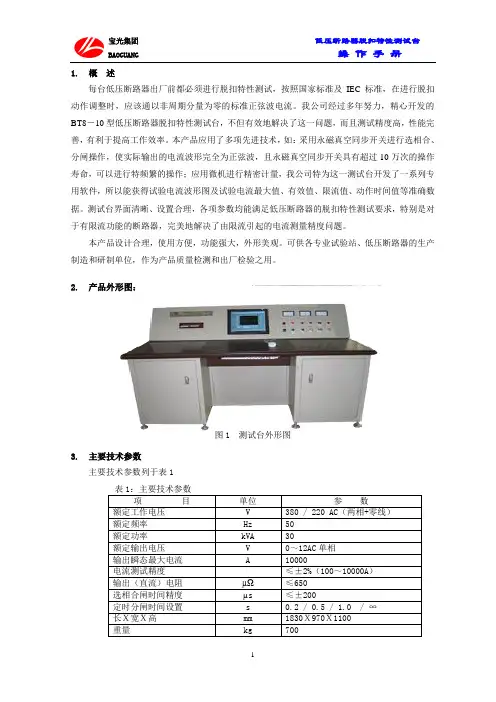

2.产品外形图:
图1 测试台外形图
3.主要技术参数
主要技术参数列于表1
表1: 主要技术参数
4.主要元件:
4.1 多磁路变压器
为得到稳定、可靠的大电流, 我们选用国家定点专业厂家生产的多磁路变压器, 以满足设备的各项测试要求。
4.1.1 多磁路变压器技术参数
多磁路变压器的技术参数如表2所示
表2: 多磁路变压器的技术参数
4.1.2 多磁路变压器工作原理
为了得到稳定的正弦波输出电流,多磁路变压器TD( 见图2)设四个单元磁路A、B、 C、 D, 总的二次输出电压为U2A, U2B, U2C, U2D之和。
U2 = U2A+ U2B+ U2C+ U2D
图2 多磁路变压器工作原理图
接在二次输出电流回路中有选相合闸开关ZK和被试断路器S, 分流器FL。
将输出电压U2 调到所需值, 再将试品断路器S合闸, 当永磁真空同步开关ZK合闸后, 试验回路出现电流．试验电流在分流器FL上产生的电压信号输入至微机并进行运算。
由于瞬动特性试验电流值( I) 很大, 永磁真空同步开关ZK合闸后, 被试断路器S立即分闸。
但作为设备的后备保护, 要求ZK合闸后, 经一定设定时间, ZK自动分闸, 详见第7条第3款。
必要时用手动分闸。
4.2 FLP1-10型低感分流器
为了测量试验回路的电流大小．需要在二次回路中串联低感分流器FL, 从FL上检测到精确的电压信号, 输入至微机进行采样计算。
低感分流器主要技术参数:
短时工作电流: 10 kA
信号电阻: 304.5 µΩ
输出信号电压: 3 V
4.3 调压器:
为得到连续可调、稳定的电压, 由两台TEDGC-5kVA 02～50V单相调压器同轴组装串联而成, 要求:
输入电压 380V AC单相
输出电压 0至430V AC单相
输出电流 23A
4.4 永磁真空同步开关:
采用BTM ─ D10型永磁真空同步开关( 以下简称同步开关) , 该开关应用最新先进技术, 采用单稳态永磁机构, 传动简单可靠, 永磁机构控制单元采用全电子化智能化控制。
由主开关电源、控制电源、电容器组、推挽驱动MOSFET开关器件、分合闸位置检测器、光电隔离器件、开关电压检测器等组成。
控制单元根据断口电压信号的采样, 经过逻辑计算后发出分、合闸指令。
经过高性能的电子元器件的选用、严格的工艺和调试控制、合理的测量电路及运算电路设计来减小控制信号的离散性, 使得选相合闸时间精度≤±200 µs , 其主要技术如下:
4.4.1 同步开关电参数
a)额定工作电压: 380 V AC;
b)额定电流: 1250 A;
c)额定短时耐受电流: 25 kA( 1s) ;
d)额定短路关合电流: 63kA( 峰值) 。
4.4.2、同步开关机械参数: 图3 永磁真空同步开关外形图
a)开距: 4±0.1 mm;
b)超行程: 2±0.5 mm
c)合闸速度 0.2±0.1 m/s;
d)分闸速度 0.3±0.1 m/s
e)合闸弹跳: 0 ms
4.4.3、同步开关外形见图3
5．系统原理图
5．1系统一次原理图见图4
图4 一次原理图
5．2系统二次原理图见图5
图5 二次原理图
6. 开机及参数设置
6.1 开机
测试台操作台面分下图所示三个区: 测试区屏幕显示区控制面板。
