COMSOL光学案例
comsol 案例
comsol 案例COMSOL（Computation Method for Science and Engineering）是一种用于多物理场问题建模和模拟的软件平台。
以下将介绍一个使用COMSOL的案例。
在某一电子设备生产厂家中，有一个问题需要解决：在电子元器件的生产过程中，需要将组件加热至一定温度，以便进行焊接等工艺。
然而，由于加热方式不当，过高的温度可能会导致电子元器件受损。
因此，厂家希望通过使用COMSOL软件来优化加热过程，以保证元器件的安全性。
首先，使用COMSOL建立了一个三维模型，包括了电子元器件和加热设备。
在模型中，定义了材料的热传导系数、热容量和密度等参数。
根据要求的加热温度，设置了加热设备的功率。
模型还考虑了元器件周围的导热情况，包括传导、对流和辐射。
然后，通过COMSOL进行模拟计算。
COMSOL利用有限元方法进行求解，将模型划分为多个小单元，计算出每个单元的温度分布。
通过迭代计算，最终得到整个模型在加热过程中的温度变化情况。
根据模拟结果，厂家可以优化加热过程。
例如，他们可以根据元器件的特性和要求的加热温度，调整加热设备的功率大小，以及加热设备和元器件之间的距离。
他们还可以通过改变元器件的材料和结构，来提高热传导性能，减少温度梯度。
通过使用COMSOL进行模拟和优化，厂家成功地解决了元器件加热过程中的温度控制问题。
他们能够确保元器件在安全温度范围内进行加热，避免了因过高温度导致的损坏。
此外，优化后的加热过程还能够提高元器件的生产效率和质量，降低生产成本。
综上所述，COMSOL软件在电子元器件加热过程的优化中发挥了关键作用。
它通过建立和求解多物理场模型，帮助厂家实现了对加热过程的精确控制，提高了产品的质量和性能。
COMSOL光学案例

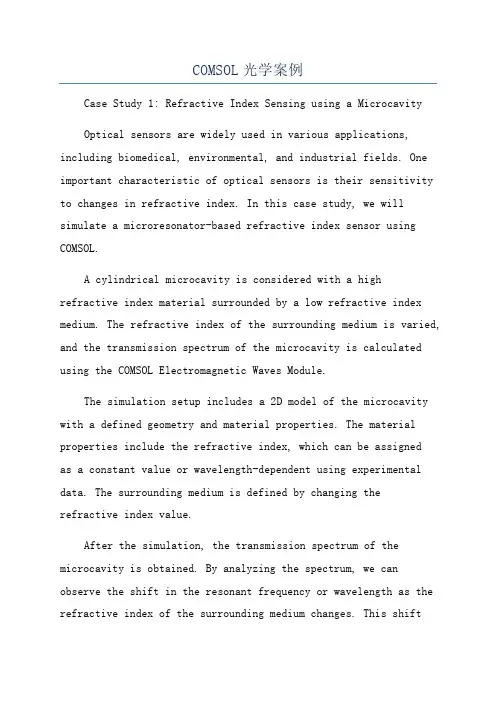

COMSOL光学案例Case Study 1: Refractive Index Sensing using a MicrocavityOptical sensors are widely used in various applications, including biomedical, environmental, and industrial fields. One important characteristic of optical sensors is their sensitivity to changes in refractive index. In this case study, we will simulate a microresonator-based refractive index sensor using COMSOL.A cylindrical microcavity is considered with a highrefractive index material surrounded by a low refractive index medium. The refractive index of the surrounding medium is varied, and the transmission spectrum of the microcavity is calculated using the COMSOL Electromagnetic Waves Module.The simulation setup includes a 2D model of the microcavity with a defined geometry and material properties. The material properties include the refractive index, which can be assignedas a constant value or wavelength-dependent using experimental data. The surrounding medium is defined by changing therefractive index value.After the simulation, the transmission spectrum of the microcavity is obtained. By analyzing the spectrum, we can observe the shift in the resonant frequency or wavelength as the refractive index of the surrounding medium changes. This shiftcan be used to determine the refractive index of an unknown sample, making the microresonator a sensitive refractive index sensor.Case Study 2: Design of a Grating Coupler for Efficient Light CouplingGrating couplers are essential devices in integrated optics for efficient coupling of light between waveguides and free space. In this case study, we will design a grating coupler using COMSOL to achieve high coupling efficiency.The design process involves optimizing the grating period, duty cycle, grating height, and refractive index contrast between the grating material and the surrounding medium. The goal is to maximize the coupling efficiency by enhancing the diffraction of light into the desired waveguide mode.COMSOL provides a powerful tool called the Optimization Module, which can be used to automate and streamline the design optimization process. The module allows users to defineobjective functions, design variables, and constraints for the optimization problem. The optimization algorithm then searches for the optimum solution by iteratively adjusting the design variables.In this case study, the design variables include the grating period, duty cycle, and grating height. The objective functionis defined as the maximum coupling efficiency, and constraints can be set to limit the range of values for the design variables.After the optimization process, the final design parameters are obtained, which can be used to fabricate the grating coupler. COMSOL provides post-processing tools to visualize the electric field distribution, power coupling, and other relevantparameters of the optimized design.ConclusionCOMSOL is a powerful and versatile simulation tool for modeling and analyzing optical systems. The two case studies discussed here demonstrate the capabilities of COMSOL in simulating refractive index sensing and grating coupler design. With its extensive range of modules and features, COMSOL enables researchers and engineers to explore and optimize variousoptical devices and systems.。
COMSOL在微纳光学领域中的应用
Simulating inspires innovation
COMSOL Multiphysics
基于偏微分方程或常微分方程通过 有限元算法实现多场耦合
仿 真 智 领 创 新
Simulating inspires innovation
仿 真 智 领 创 新
Simulating inspires innovation
Matlab PDE Toolbox 1.0 Femlab 1.0 ~ Femlab 3.1（2003年，v3.0具备独立求解器） COMSOL Multiphysics 3.2a (2005年) COMSOL Multiphysics 3.5a COMSOL Multiphysics v4.2a COMSOL Multiphysics 4.3a(现在)
仿 真 智 领 创 新
Simulating inspires innovation
• 选择物理场 -告诉软件分析问题中包含哪些物理现象 • CAD绘图
-软件自带CAD绘图、导入CAD模型
建 模 流 程
• 指定分析条件 -指定材料、输入、输出选项 -指定边界条件 • 网格 -结构化或非结构化网格 • 求解
仿 真 智 领 创 新
Simulating inspires innovation
COMSOL Multiphysics
模块简介
喷气发动机涡轮叶片温度场和应力分布
仿 真 智 领 创 新
Simulating inspires innovation
AC/DC模块
AC/DC模块的功能涵盖了静电场、静磁场、 直流交流电磁，以及与其它物理场的无限制耦合。 • 电容器 • 电感器
COMSOL在光电领域的应用
info@
什么是多物理场?
• 在描述一个对象时涉及多种物理现象的组合 • 这些现象都基于某种物理规律 • 这种物理规律可以借助于偏微分方程得到精确描述
F
• 有限元 • 有限差分 • 有限体积法 •…
中仿科技---专业信息化软件及技术咨询公司 CnTech Co.,Ltd--- Leading Engineering Virtual Prototyping Solutions Provider
激发SPP波
利用COMSOL 进行谐波传输分析
info@
温度对古斯-汉欣位移的影响
COMSOL模拟两种高斯波的古斯-汉欣位移： (a) = 413nm and q = 50 degrees (ee = −1.62+1.74i); (b) = 248nm, and q = 54 degrees (ee = 0.563+0.148i).
通过灵活的表达式描述入射场
灵活输入COMSOL： 指定的数值 插值函数 标量/矢量表达式 分段表达式 逻辑表达式
中仿科技---专业信息化软件及技术咨询公司 CnTech Co.,Ltd--- Leading Engineering Virtual Prototyping Solutions Provider
考虑相位失配的四波混频
w0 = wp 近紫外区域 c = 1 n = sqrt(2) a = -n0*n2/(e02*c12*h0)，h0 = sqrt(m0/e0) 2pc/w0 = 0.3 ～ 0.4 mm
FWM效率随传输距离增 大，先增加后降低
James E. Toney, Penn State University Electro-Optics Center 中仿科技---专业信息化软件及技术咨询公司 CnTech Co.,Ltd--- Leading Engineering Virtual Prototyping Solutions Provider info@
COMSOL在光电领域中的应用
COMSOL Multiphysics
——“第一款真正的任意多物理场直接耦合分析软件”
易用性 开放性
灵活性
仿 真 智 领 创 新
Simulating inspires innovation
COMSOL Multiphysics的特点
易用性
仿 真 智 领 创 新
Simulating inspires innovation
完全开放的架构
仿 真 智 领 创 新
Simulating inspires innovation
丰富的后处理功能
仿 真 智 领 创 新
Simulating inspires innovation
建立自己的模型/方程
磁
电磁
仿 真 智 领 创 新
Simulating inspires innovation
RF Module
天线、波导和谐振腔
表面等离子体生热
射频 微波 光学工程
超材料 微波和射频加热 微波器件 微波烧结 石油探测/海床探测 天线和波导中的热应力效应 传输线/波导线
金属、电介质、旋磁、工程特性的超材料
仿 真 智 领 创 新
Simulating inspires innovation
仿 真 智 领 创 新
Simulating inspires innovation
What is COMSOL Multiphysics®
Modules Livelinks for CAD CAD Import
Livelinks for Matlab Java Script
“COMSOL Multiphysics创新前线”系列活动之灵感工坊
Comsol经典实例012：高斯波速的二次谐波产生
Comsol经典实例012: 高斯波速的二次谐波产生激光系统是现代电子技术中的一个重要应用领域。
激光束的生成方法有很多种, 这些方法有个共同点: 波长由受激发射决定, 而受激发射取决于材料参数。
通常很难生成具有短波长的激光。
但是, 如果使用非线性材料, 就有可能产生频率为激光频率数倍的谐波。
通过使用二阶非线性材料可生成波长为基频光束波长一半的相干光。
本案例演示了如何设置非线性材料属性, 通过瞬态波仿真产生二次谐波。
模型中一束波长为1.06μm的激光聚焦于非线性晶体, 光束的腰部落于晶体内。
在激光的传播过程中, 大部分能量都集中在传播轴附近, 在求解麦克斯韦方程时可以近轴近似, 由此获得高斯波束。
一、物理场选择及预设研究Step01: 打开comsol软件, 单击“模型向导”选项创建模型, 在模型的“选择空间维度”界面选择“二维”, 在“选择物理场”界面分别选择“光学→波动光学→电磁波, 瞬态（ewt）”, 单击“添加”按钮。
对应变量设置完毕以后, 单击“研究”按钮, 在“选择研究”树中添加“预设研究”中的“瞬态”研究, 单击“完成”按钮进入软件主界面, 如图1所示。
图1 软件主界面二、全局定义1.参数Step02: 参数设置。
在模型开发器窗口的全局定义节点下, 单击“参数”子节点, 在“参数”设置窗口中, 定位到“参数”栏, 输入如图2所示的参数。
图2 设置全局参数2.解析定义Step03: 在“主屏幕”工具栏中单击“函数”选项, 在下拉菜单中选择“全局→解析”选项。
单击“解析1”子节点, 在“解析”设置窗口中, 定位到“函数名称”栏, 在文本输入框中输入“w”；定位到“定义”栏, 在“表达式”文本输入框中输入“w0*sqrt(1+(x/x)^2)”；定位到“单位”栏, 在“变元”文本输入框中输入“m”, 在“函数”在文本输入框中输入“m”,如图3所示。
Step04：在“主屏幕”工具栏中单击“函数”选项, 在下拉菜单中选择“全局→解析”选项。
COMSOL二维膜层光学性能-吸收率仿真教学
COMSOL⼆维膜层光学性能-吸收率仿真教学COMSOL⼆维膜层结构光学性能/吸收率仿真教学新建
1. 新建→模型向导→⼆维；
2. →选择物理场：光学→波动光学→电磁波，频域→增加→研究；
3. 选择研究：波长域→完成；
建模
4. ⼏何绘制多个长⽅形形成多层膜结构；
5. 必要的情况下可以在上下层加⼊空⽓层（真空层）；
边界条件
6. 添加“端⼝”，设置红外⼊射端⼝，在空⽓层边界上。
再添加“端⼝”，设置出射端⼝，另⼀端的空⽓层；
7. 模型两侧边界设置为“周期性边界条件”；
8. 对于膜层很薄的部分，可以设置为“过渡边界条件”，代替超薄层，厚度可在此条件下设置；
9. 进⾏⽹格化；
材料参数
10. 顶部⼯具栏：增加材料；
11. 可在右侧框内搜索要添加的材料，然后“增加到选择”；或者添加空材料，去选择⼀个域，然后材料属性⽬录下会出现做该仿真必要的参数，输⼊参数即可；研究：结果
12. 研究→波长域，设置波长范围及步长，点击“研究”；
13. 派⽣值→全局计算，表达式选“ewfd.Atotal” ；数据系列运算选“⽆”，计算；仿真图下⽅出现“表格”，得到“波长”与“吸收率”关系。
点击“表图”按钮，得到“吸收曲线”；
14. 派⽣值→全局计算，表达式选“ewfd.Atotal”；数据系列运算选“平均值”，计算；仿真图下⽅出现“表格”，得到“平均吸收率”值。
comsol学习案例
comsol学习案例篇一：COMSOL寻找最小曲面案例COMSOL寻找最小曲面案例觉得这个例子有点。
参考《COMSOLMulitiphyic基本操作指南和常见问题解答》P71问题提出：给定一个空间曲线，通过这条曲线的曲面有无数个，那么哪个曲面的面积最小呢？数学处理：曲线在某Y平面上有一个投影，在这个投影区域Ω的边界Ω上给定函数值u|Ω=Φ(某,y)，则曲面的最小面积为：采用Euler-Lagrange方程，上式转化为：变分法：采用试函数法求解该问题为：相当于输入：引入边界条件：u|Ω=Φ(某,y)即可求解。
这个算例告诉我们如何求解最小值问题，如果用COMSOL的弱形式，那么只须将求解函数丢到tet()中，加上合适的边界条件即可。
求解设置：引入边界条件：取Ω={(某,y)|某^2+y^2<1},u|Ω=某^2。
即求解域为一个半径为1的圆，边界值用dirichlet条件r=某^2,其空间曲线为一个马鞍线，解的边缘为该曲线，而显示的曲面为最小面积的曲面。
另外的例子：矩形求解域，边界值为(某-0.5)^2+(y-0.5)^2氯碱薄膜电池总结本描述氯碱薄膜电池中阳极和阴极结构上的二次电流分布。
