5050内置IC幻彩灯珠功能及应用领域

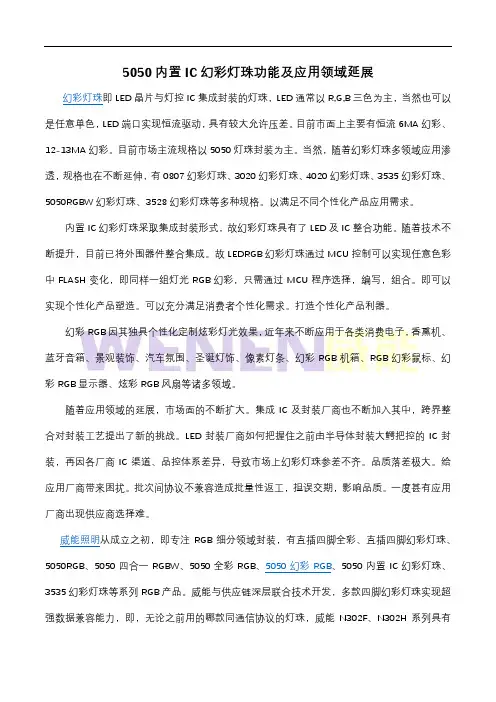

5050内置IC幻彩灯珠功能及应用领域延展幻彩灯珠即LED晶片与灯控IC集成封装的灯珠，LED通常以R,G,B三色为主，当然也可以是任意单色，LED端口实现恒流驱动，具有较大允许压差。

目前市面上主要有恒流6MA 幻彩、12-13MA幻彩。

目前市场主流规格以5050灯珠封装为主。

当然，随着幻彩灯珠多领域应用渗透，规格也在不断延伸，有0807幻彩灯珠、3020幻彩灯珠、4020幻彩灯珠、3535幻彩灯珠、5050RGBW幻彩灯珠、3528幻彩灯珠等多种规格。

以满足不同个性化产品应用需求。

内置IC幻彩灯珠采取集成封装形式，故幻彩灯珠具有了LED及IC整合功能。

随着技术不断提升，目前已将外围器件整合集成。

故LEDRGB幻彩灯珠通过MCU控制可以实现任意色彩中FLASH变化，即同样一组灯光RGB幻彩，只需通过MCU程序选择，编写，组合。

即可以实现个性化产品塑造。

可以充分满足消费者个性化需求。

打造个性化产品利器。

幻彩RGB因其独具个性化定制炫彩灯光效果，近年来不断应用于各类消费电子，香熏机、蓝牙音箱、景观装饰、汽车氛围、圣诞灯饰、像素灯条、幻彩RGB机箱、RGB幻彩鼠标、幻彩RGB显示器、炫彩RGB风扇等诸多领域。

随着应用领域的延展，市场面的不断扩大。

集成IC及封装厂商也不断加入其中，跨界整合对封装工艺提出了新的挑战。

LED封装厂商如何把握住之前由半导体封装大鳄把控的IC封装，再因各厂商IC渠道、品控体系差异，导致市场上幻彩灯珠参差不齐。

品质落差极大。

给应用厂商带来困扰。

批次间协议不兼容造成批量性返工，担误交期，影响品质。

一度甚有应用厂商出现供应商选择难。

威能照明从成立之初，即专注RGB细分领域封装，有直插四脚全彩、直插四脚幻彩灯珠、5050RGB、5050四合一RGBW、5050全彩RGB、5050幻彩RGB、5050内置IC幻彩灯珠、3535幻彩灯珠等系列RGB产品。

威能与供应链深层联合技术开发，多款四脚幻彩灯珠实现超强数据兼容能力，即，无论之前用的哪款同通信协议的灯珠，威能N302F、N302H系列具有95%以上兼容能力，不需要MCU任何调整。

5050RGB规格书(中文)

2. 储存 2-1. 准备使用产品前不要打开防潮袋。开封前请先检查包装袋有无漏气,开包后检查湿度标示卡 20%RH
标示区有无由蓝色变为粉红色.如漏气或变色现象,请联系厂家或退回厂家高温除湿处理,(高温除湿环境：120 度，6H)切勿自行处理 2-2. 打开包装前， LEDs 需储存在温度低于 30℃，湿度低于 70%RH 。 2-3. 打开包装后，在温度低于 30℃ ，湿度低于 60%RH 的情况下，且开封到焊接完成控制在 4H。 2-4. 如果吸湿材料 (硅凝胶)已经消退或是 LEDs 已经超过了储存时间, 则需要基于以下条件进行烘烤处理： 60±5℃ / 24 小时。 3. 回流焊注意事项 3-1. 无铅锡膏的温度曲线
