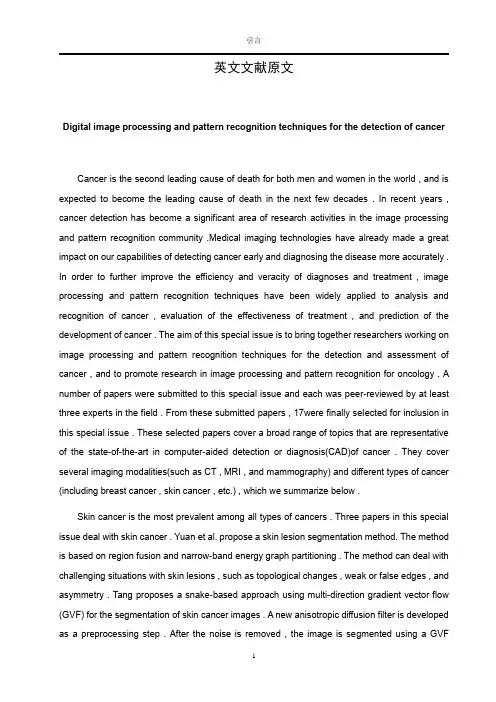

外文翻译----数字图像处理和模式识别技术关于检测癌症的应用

外文翻译----数字图像处理和模式识别技术关于检测癌症的应用

引言英文文献原文Digital image processing and pattern recognition techniques for the detection of cancerCancer is the second leading cause of death for both men and women in the world , and is expected to become the leading cause of death in the next few decades . In recent years , cancer detection has become a significant area of research activities in the image processing and pattern recognition community .Medical imaging technologies have already made a great impact on our capabilities of detecting cancer early and diagnosing the disease more accurately . In order to further improve the efficiency and veracity of diagnoses and treatment , image processing and pattern recognition techniques have been widely applied to analysis and recognition of cancer , evaluation of the effectiveness of treatment , and prediction of the development of cancer . The aim of this special issue is to bring together researchers working on image processing and pattern recognition techniques for the detection and assessment of cancer , and to promote research in image processing and pattern recognition for oncology . A number of papers were submitted to this special issue and each was peer-reviewed by at least three experts in the field . From these submitted papers , 17were finally selected for inclusion in this special issue . These selected papers cover a broad range of topics that are representative of the state-of-the-art in computer-aided detection or diagnosis(CAD)of cancer . They cover several imaging modalities(such as CT , MRI , and mammography) and different types of cancer (including breast cancer , skin cancer , etc.) , which we summarize below .Skin cancer is the most prevalent among all types of cancers . Three papers in this special issue deal with skin cancer . Y uan et al. propose a skin lesion segmentation method. The method is based on region fusion and narrow-band energy graph partitioning . The method can deal with challenging situations with skin lesions , such as topological changes , weak or false edges , and asymmetry . T ang proposes a snake-based approach using multi-direction gradient vector flow (GVF) for the segmentation of skin cancer images . A new anisotropic diffusion filter is developed as a preprocessing step . After the noise is removed , the image is segmented using a GVF1snake . The proposed method is robust to noise and can correctly trace the boundary of the skin cancer even if there are other objects near the skin cancer region . Serrano et al. present a method based on Markov random fields (MRF) to detect different patterns in dermoscopic images . Different from previous approaches on automatic dermatological image classification with the ABCD rule (Asymmetry , Border irregularity , Color variegation , and Diameter greater than 6mm or growing) , this paper follows a new trend to look for specific patterns in lesions which could lead physicians to a clinical assessment.Breast cancer is the most frequently diagnosed cancer other than skin cancer and a leading cause of cancer deaths in women in developed countries . In recent years , CAD schemes have been developed as a potentially efficacious solution to improving radiologists’diagnostic accuracy in breast cancer screening and diagnosis . The predominant approach of CAD in breast cancer and medical imaging in general is to use automated image analysis to serve as a “second reader”, with the aim of improving radiologists’diagnostic performance . Thanks to intense research and development efforts , CAD schemes have now been introduces in screening mammography , and clinical studies have shown that such schemes can result in higher sensitivity at the cost of a small increase in recall rate . In this issue , we have three papers in the area of CAD for breast cancer . Wei et al. propose an image-retrieval based approach to CAD , in which retrieved images similar to that being evaluated (called the query image) are used to support a CAD classifier , yielding an improved measure of malignancy . This involves searching a large database for the images that are most similar to the query image , based on features that are automatically extracted from the images . Dominguez et al. investigate the use of image features characterizing the boundary contours of mass lesions in mammograms for classification of benign vs. Malignant masses . They study and evaluate the impact of these features on diagnostic accuracy with several different classifier designs when the lesion contours are extracted using two different automatic segmentation techniques . Schaefer et al. study the use of thermal imaging for breast cancer detection . In their scheme , statistical features are extracted from thermograms to quantify bilateral differences between left and right breast regions , which are used subsequently as input to a fuzzy-rule-based classification system for diagnosis.Colon cancer is the third most common cancer in men and women , and also the third mostcommon cause of cancer-related death in the USA . Y ao et al. propose a novel technique to detect colonic polyps using CT Colonography . They use ideas from geographic information systems to employ topographical height maps , which mimic the procedure used by radiologists for the detection of polyps . The technique can also be used to measure consistently the size of polyps . Hafner et al. present a technique to classify and assess colonic polyps , which are precursors of colorectal cancer . The classification is performed based on the pit-pattern in zoom-endoscopy images . They propose a novel color waveler cross co-occurence matrix which employs the wavelet transform to extract texture features from color channels.Lung cancer occurs most commonly between the ages of 45 and 70 years , and has one of the worse survival rates of all the types of cancer . Two papers are included in this special issue on lung cancer research . Pattichis et al. evaluate new mathematical models that are based on statistics , logic functions , and several statistical classifiers to analyze reader performance in grading chest radiographs for pneumoconiosis . The technique can be potentially applied to the detection of nodules related to early stages of lung cancer . El-Baz et al. focus on the early diagnosis of pulmonary nodules that may lead to lung cancer . Their methods monitor the development of lung nodules in successive low-dose chest CT scans . They propose a new two-step registration method to align globally and locally two detected nodules . Experments on a relatively large data set demonstrate that the proposed registration method contributes to precise identification and diagnosis of nodule development .It is estimated that almost a quarter of a million people in the USA are living with kidney cancer and that the number increases by 51000 every year . Linguraru et al. propose a computer-assisted radiology tool to assess renal tumors in contrast-enhanced CT for the management of tumor diagnosis and response to treatment . The tool accurately segments , measures , and characterizes renal tumors, and has been adopted in clinical practice . V alidation against manual tools shows high correlation .Neuroblastoma is a cancer of the sympathetic nervous system and one of the most malignant diseases affecting children . Two papers in this field are included in this special issue . Sertel et al. present techniques for classification of the degree of Schwannian stromal development as either stroma-rich or stroma-poor , which is a critical decision factor affecting theprognosis . The classification is based on texture features extracted using co-occurrence statistics and local binary patterns . Their work is useful in helping pathologists in the decision-making process . Kong et al. propose image processing and pattern recognition techniques to classify the grade of neuroblastic differentiation on whole-slide histology images . The presented technique is promising to facilitate grading of whole-slide images of neuroblastoma biopsies with high throughput .This special issue also includes papers which are not derectly focused on the detection or diagnosis of a specific type of cancer but deal with the development of techniques applicable to cancer detection . T a et al. propose a framework of graph-based tools for the segmentation of microscopic cellular images . Based on the framework , automatic or interactive segmentation schemes are developed for color cytological and histological images . T osun et al. propose an object-oriented segmentation algorithm for biopsy images for the detection of cancer . The proposed algorithm uses a homogeneity measure based on the distribution of the objects to characterize tissue components . Colon biopsy images were used to verify the effectiveness of the method ; the segmentation accuracy was improved as compared to its pixel-based counterpart . Narasimha et al. present a machine-learning tool for automatic texton-based joint classification and segmentation of mitochondria in MNT-1 cells imaged using an ion-abrasion scanning electron microscope . The proposed approach has minimal user intervention and can achieve high classification accuracy . El Naqa et al. investigate intensity-volume histogram metrics as well as shape and texture features extracted from PET images to predict a patient’s response to treatment . Preliminary results suggest that the proposed approach could potentially provide better tools and discriminant power for functional imaging in clinical prognosis.We hope that the collection of the selected papers in this special issue will serve as a basis for inspiring further rigorous research in CAD of various types of cancer . We invite you to explore this special issue and benefit from these papers .On behalf of the Editorial Committee , we take this opportunity to gratefully acknowledge the autors and the reviewers for their diligence in abilding by the editorial timeline . Our thanks also go to the Editors-in-Chief of Pattern Recognition , Dr. Robert S. Ledley and Dr.C.Y. Suen , for their encouragement and support for this special issue .英文文献译文数字图像处理和模式识别技术关于检测癌症的应用世界上癌症是对于人类(不论男人还是女人)生命的第二杀手。

数字图像处理技术在文献叙述中的应用

数字图像处理技术在文献叙述中的应用

数字图像处理技术在文献叙述中的应用随着数字时代的到来,数字图像处理技术也得到了广泛的应用。

数字图像处理技术是指利用计算机技术对数字图像进行处理和分析的过程。

这样的处理和分析可以帮助我们更好地理解和利用数字图像。

在文献叙述中,数字图像处理技术也得到了广泛的应用。

下面就让我们具体了解数字图像处理技术在文献叙述中的应用吧。

一、数字图像处理的基础数字图像处理是一门交叉学科,它融合了图像处理、数字信号处理、计算机科学、数学等多个领域的知识。

数字图像处理的基础可以分为三个方面:数字图像的获取、数字图像的表示和数字图像处理的方法。

数字图像的获取是指采用各种图像获取设备(如数码相机、扫描仪等)对图像进行获取和捕捉,得到一定格式的数字化图像。

数字图像的表示主要是从几何、颜色和亮度等几个方面对数字图像进行描述和表示。

数字图像处理的方法可以分为线性和非线性两种,其中线性方法常常用于图像预处理和滤波,非线性方法则更适用于图像缩放、边缘检测和形态学等处理。

二、数字图像处理技术在文献叙述中有很多应用,包括以下几个方面:1.文化遗产保护数字图像处理技术可以用于文化遗产的保护和修复。

通过采用光学图像、红外图像和超声波图像等多种技术对文化遗产进行非接触式的测量和分析,可以更好地了解文化遗产的结构、质地和表面形态等信息,并利用数字重构技术进行保护和修复。

2.医学图像处理数字图像处理技术在医学图像处理中也得到了广泛的应用。

利用数字图像处理技术,可以对人体进行各种医学图像的获取和处理,如X光照片、MRI图像和CT图像等。

通过这些数字图像的处理和分析,可以帮助医生对病人的疾病进行更好的诊断和治疗。

3.农业和环境监测数字图像处理技术在农业和环境监测中也发挥了重要的作用。

通过各种数字化的图像和视频监测技术,可以对农业生产和环境变化进行实时的监测和分析。

这样可以更好地预测和避免植物病害、病毒感染和环境污染等问题。

4.图像识别和分析数字图像处理技术在图像识别和分析领域有着广泛的应用。

外文翻译----基于数字图像处理技术的边缘特征提取

外文翻译----基于数字图像处理技术的边缘特征提取
Edge feature extraction has been applied in many areas widely. This paper mainly discusses about advantages and disadvantages of several edge detection operators applied in the cable insulation parameter measurement. In order to gain more legible image outline, firstly the acquired image is filtered anddenoised. In the process ofdenoising, wavelet transformation is used. And then different operators are applied to detect edge including Differential operator, Log operator,Cannyoperator and Binary morphology operator. Finally the edge pixels of image are connected using the method of bordering closed. Then a clear and complete image outline will be obtained.
The traditionaldenoisingmethod is the use of a low-pass or band-pass filter todenoise. Its shortcoming is that the signal is blurred when noises are removed. There is irreconcilable contradiction between removing noise and edge maintenance. Yet wavelet analysis has been proved to be a powerful tool for image processing. Because Waveletdenoisinguses a different frequency band-pass filters on the signal filtering. It removes the coefficients of some scales which mainly reflect the noise frequency. Then the coefficient of every remaining scale is integrated for inverse transform, so that noise can be suppressed well. So wavelet analysis can be widely used in manyaspects such as image compression, imagedenoising, etc.

matlab图像处理外文翻译外文文献

matlab图像处理外文翻译外文文献

matlab图像处理外文翻译外文文献附录A 英文原文Scene recognition for mine rescue robotlocalization based on visionCUI Yi-an(崔益安), CAI Zi-xing(蔡自兴), WANG Lu(王璐)Abstract:A new scene recognition system was presented based on fuzzy logic and hidden Markov model(HMM) that can be applied in mine rescue robot localization during emergencies. The system uses monocular camera to acquire omni-directional images of the mine environment where the robot locates. By adopting center-surround difference method, the salient local image regions are extracted from the images as natural landmarks. These landmarks are organized by using HMM to represent the scene where the robot is, and fuzzy logic strategy is used to match the scene and landmark. By this way, the localization problem, which is the scene recognition problem in the system, can be converted into the evaluation problem of HMM. The contributions of these skills make the system have the ability to deal with changes in scale, 2D rotation and viewpoint. The results of experiments also prove that the system has higher ratio of recognition and localization in both static and dynamic mine environments.Key words: robot location; scene recognition; salient image; matching strategy; fuzzy logic; hidden Markov model1 IntroductionSearch and rescue in disaster area in the domain of robot is a burgeoning and challenging subject[1]. Mine rescue robot was developed to enter mines during emergencies to locate possible escape routes for those trapped inside and determine whether it is safe for human to enter or not. Localization is a fundamental problem in this field. Localization methods based on camera can be mainly classified into geometric, topological or hybrid ones[2]. With its feasibility and effectiveness, scene recognition becomes one of the important technologies of topological localization.Currently most scene recognition methods are based on global image features and have two distinct stages: training offline and matching online.。

Digital-Signal-Processing数字信号处理大学毕业论文英文文献翻译及原文

Digital-Signal-Processing数字信号处理大学毕业论文英文文献翻译及原文

毕业设计(论文)外文文献翻译文献、资料中文题目:数字信号处理文献、资料英文题目:Digital Signal Processing 文献、资料来源:文献、资料发表(出版)日期:院(部):专业:班级:姓名:学号:指导教师:翻译日期: 2017.02.14数字信号处理一、导论数字信号处理(DSP)是由一系列的数字或符号来表示这些信号的处理的过程的。

数字信号处理与模拟信号处理属于信号处理领域。

DSP包括子域的音频和语音信号处理,雷达和声纳信号处理,传感器阵列处理,谱估计,统计信号处理,数字图像处理,通信信号处理,生物医学信号处理,地震数据处理等。

由于DSP的目标通常是对连续的真实世界的模拟信号进行测量或滤波,第一步通常是通过使用一个模拟到数字的转换器将信号从模拟信号转化到数字信号。

通常,所需的输出信号却是一个模拟输出信号,因此这就需要一个数字到模拟的转换器。

即使这个过程比模拟处理更复杂的和而且具有离散值,由于数字信号处理的错误检测和校正不易受噪声影响,它的稳定性使得它优于许多模拟信号处理的应用(虽然不是全部)。

DSP算法一直是运行在标准的计算机,被称为数字信号处理器(DSP)的专用处理器或在专用硬件如特殊应用集成电路(ASIC)。

目前有用于数字信号处理的附加技术包括更强大的通用微处理器,现场可编程门阵列(FPGA),数字信号控制器(大多为工业应用,如电机控制)和流处理器和其他相关技术。

在数字信号处理过程中,工程师通常研究数字信号的以下领域:时间域(一维信号),空间域(多维信号),频率域,域和小波域的自相关。

他们选择在哪个领域过程中的一个信号,做一个明智的猜测(或通过尝试不同的可能性)作为该域的最佳代表的信号的本质特征。

从测量装置对样品序列产生一个时间或空间域表示,而离散傅立叶变换产生的频谱的频率域信息。

自相关的定义是互相关的信号本身在不同时间间隔的时间或空间的相关情况。

二、信号采样随着计算机的应用越来越多地使用,数字信号处理的需要也增加了。

外文翻译----数字图像处理方法的研究(中英文)(1)

外文翻译----数字图像处理方法的研究(中英文)(1)

The research of digital image processing technique1IntroductionInterest in digital image processing methods stems from two principal application areas:improvement of pictorial information for human interpretation;and processing of image data for storage,transmission,and representation for autonomous machine perception.1.1What Is Digital Image Processing?An image may be defined as a two-dimensional function,f(x,y),where x and y are spatial(plane)coordinates,and the amplitude of f at any pair of coordinates(x,y)is called the intensity or gray level of the image at that point.When x,y,and digital image.The field of digital image processing refers to processing digital images by means of a digital computer.Note that a digital image is composed of a finite number of elements,each of which has a particular location and value.These elements are referred to as picture elements,image elements,pels,and pixels.Pixel is the term most widely used to denote the elements of a digital image.We consider these definitions in more formal terms in Chapter2.Vision is the most advanced of our senses,so it is not surprising that images play the single most important role in human perception.However,unlike human who are limited to the visual band of the electromagnetic(EM)spectrum,imaging machines cover almost the entire EM spectrum,ranging from gamma to radio waves.They can operate on images generated by sources that human are not accustomed to associating with image.These include ultrasound,electron microscopy,and computer-generated images.Thus,digital image processing encompasses a wide and varied field of application.There is no general agreement among authors regarding where image processing stops and other related areas,such as image analysis and computer vision,start. Sometimes a distinction is made by defining image processing as a discipline in which both the input and output of a process are images.We believe this to be a limiting and somewhat artificial boundary.For example,under this definition,even the trivial task of computing the average intensity of an image(which yields a single number)would not be considered an image processing operation.On the other hand, there are fields such as computer vision whose ultimate goal is to use computer to emulate human vision,including learning and being able to make inferences and take actions based on visual inputs.This area itself is a branch of artificial intelligence(AI) whose objective is to emulate human intelligence.This field of AI is in its earliest stages of infancy in terms of development,with progress having been much slower than originally anticipated.The area of image analysis(also called image understanding)is in between image processing and computer vision.There are no clear-cut boundaries in the continuum from image processing at one end to computer vision at the other.However,one useful paradigm is to consider three types of computerized processes is this continuum:low-,mid-,and high-ever processes.Low-level processes involve primitive operation such as image preprocessing to reduce noise,contrast enhancement,and image sharpening.A low-level process is characterized by the fact that both its input and output are images. Mid-level processing on images involves tasks such as segmentation(partitioning an image into regions or objects),description of those objects to reduce them to a form suitable for computer processing,and classification(recognition)of individual object. Amid-level process is characterized by the fact that its inputs generally are images, but its output is attributes extracted from those images(e.g.,edges contours,and the identity of individual object).Finally,higher-level processing involves“making sense”of an ensemble of recognized objects,as in image analysis,and,at the far end of the continuum,performing the cognitive function normally associated with vision. Based on the preceding comments,we see that a logical place of overlap between image processing and image analysis is the area of recognition of individual regions or objects in an image.Thus,what we call in this book digital image processing encompasses processes whose inputs and outputs are images and,in addition, encompasses processes that extract attributes from images,up to and including the recognition of individual objects.As a simple illustration to clarify these concepts, consider the area of automated analysis of text.The processes of acquiring an image of the area containing the text.Preprocessing that images,extracting(segmenting)the individual characters,describing the characters in a form suitable for computer processing,and recognizing those individual characters are in the scope of what we call digital image processing in this book.Making sense of the content of the page may be viewed as being in the domain of image analysis and even computer vision, depending on the level of complexity implied by the statement“making cense.”As will become evident shortly,digital image processing,as we have defined it,is used successfully in a broad rang of areas of exceptional social and economic value.The concepts developed in the following chapters are the foundation for the methods used in those application areas.1.2The Origins of Digital Image ProcessingOne of the first applications of digital images was in the newspaper industry,when pictures were first sent by submarine cable between London and NewYork. Introduction of the Bartlane cable picture transmission system in the early1920s reduced the time required to transport a picture across the Atlantic from more than a week to less than three hours.Specialized printing equipment coded pictures for cable transmission and then reconstructed them at the receiving end.Figure 1.1was transmitted in this way and reproduced on a telegraph printer fitted with typefaces simulating a halftone pattern.Some of the initial problems in improving the visual quality of these early digital pictures were related to the selection of printing procedures and the distribution ofintensity levels.The printing method used to obtain Fig.1.1was abandoned toward the end of1921in favor of a technique based on photographic reproduction made from tapes perforated at the telegraph receiving terminal.Figure1.2shows an images obtained using this method.The improvements over Fig.1.1are evident,both in tonal quality and in resolution.FIGURE1.1A digital picture produced in FIGURE1.2A digital picture 1921from a coded tape by a telegraph printer made in1922from a tape punched With special type faces(McFarlane)after the signals had crossed theAtlantic twice.Some errors areVisible.(McFarlane)The early Bartlane systems were capable of coding images in five distinct level of gray.This capability was increased to15levels in1929.Figure1.3is typical of the images that could be obtained using the15-tone equipment.During this period, introduction of a system for developing a film plate via light beams that were modulated by the coded picture tape improved the reproduction process considerably. Although the examples just cited involve digital images,they are not considered digital image processing results in the context of our definition because computer were not involved in their creation.Thus,the history of digital processing is intimately tied to the development of the digital computer.In fact digital images require so much storage and computational power that progress in the field of digital image processing has been dependent on the development of digital computers of supporting technologies that include data storage,display,and transmission.The idea of a computer goes back to the invention of the abacus in Asia Minor, more than5000years ago.More recently,there were developments in the past two centuries that are the foundation of what we call computer today.However,the basis for what we call a modern digital computer dates back to only the1940s with the introduction by John von Neumann of two key concepts:(1)a memory to hold a stored program and data,and(2)conditional branching.There two ideas are the foundation of a central processing unit(CPU),which is at the heart of computer today. Starting with von Neumann,there were a series of advances that led to computers powerful enough to be used for digital image processing.Briefly,these advances maybe summarized as follow:(1)the invention of the transistor by Bell Laboratories in1948;(2)the development in the1950s and1960s of the high-level programminglanguages COBOL(Common Business-Oriented Language)and FORTRAN (Formula Translator);(3)the invention of the integrated circuit(IC)at Texas Instruments in1958;(4)the development of operating system in the early1960s;(5)the development of the microprocessor(a single chip consisting of the centralprocessing unit,memory,and input and output controls)by Inter in the early 1970s;(6)introduction by IBM of the personal computer in1981;(7)progressive miniaturization of components,starting with large scale integration(LI)in the late1970s,then very large scale integration(VLSI)in the1980s,to the present use of ultra large scale integration(ULSI).Figure1.3In1929from London to Cenerale Pershingthat New York delivers with15level tone equipmentsthrough cable with Foch do not the photograph by decorationConcurrent with these advances were development in the areas of mass storage and display systems,both of which are fundamental requirements for digital image processing.The first computers powerful enough to carry out meaningful image processing tasks appeared in the early1960s.The birth of what we call digital image processing today can be traced to the availability of those machines and the onset of the apace program during that period.It took the combination of those two developments to bring into focus the potential of digital image processing concepts.Work on using computer techniques for improving images from a space probe began at the Jet Propulsion Laboratory(Pasadena,California)in1964when pictures of the moontransmitted by Ranger7were processed by a computer to correct various types of image distortion inherent in the on-board television camera.Figure1.4shows the first image of the moon taken by Ranger7on July31,1964at9:09A.M.Eastern Daylight Time(EDT),about17minutes before impacting the lunar surface(the markers,called reseau mark,are used for geometric corrections,as discussed in Chapter5).This also is the first image of the moon taken by a U.S.spacecraft.The imaging lessons learned with ranger7served as the basis for improved methods used to enhance and restore images from the Surveyor missions to the moon,the Mariner series of flyby mission to Mars,the Apollo manned flights to the moon,and others.In parallel with space application,digital image processing techniques began in the late1960s and early1970s to be used in medical imaging,remote Earth resources observations,and astronomy.The invention in the early1970s of computerized axial tomography(CAT),also called computerized tomography(CT)for short,is one of the most important events in the application of image processing in medical diagnosis. Computerized axial tomography is a process in which a ring of detectors encircles an object(or patient)and an X-ray source,concentric with the detector ring,rotates about the object.The X-rays pass through the object and are collected at the opposite end by the corresponding detectors in the ring.As the source rotates,this procedure is repeated.Tomography consists of algorithms that use the sensed data to construct an image that represents a“slice”through the object.Motion of the object in a direction perpendicular to the ring of detectors produces a set of such slices,which constitute a three-dimensional(3-D)rendition of the inside of the object.Tomography was invented independently by Sir Godfrey N.Hounsfield and Professor Allan M. Cormack,who shared the X-rays were discovered in1895by Wilhelm Conrad Roentgen,for which he received the1901Nobel Prize for Physics.These two inventions,nearly100years apart,led to some of the most active application areas of image processing today.Figure1.4The first picture of the moon by a U.S.Spacecraft.Ranger7took this image on July31,1964at9:09A.M.EDT,about17minutes beforeImpacting the lunar surface.(Courtesy of NASA.)中文翻译数字图像处理方法的研究1绪论数字图像处理方法的研究源于两个主要应用领域:其一是为了便于人们分析而对图像信息进行改进;其二是为了使机器自动理解而对图像数据进行存储、传输及显示。

数字图像处理论文中英文对照资料外文翻译文献

数字图像处理论文中英文对照资料外文翻译文献

第 1 页中英文对照资料外文翻译文献原 文To image edge examination algorithm researchAbstract :Digital image processing took a relative quite young discipline,is following the computer technology rapid development, day by day obtains th widespread application.The edge took the image one kind of basic characteristic,in the pattern recognition, the image division, the image intensification as well as the image compression and so on in the domain has a more widesp application.Image edge detection method many and varied, in which based on brightness algorithm, is studies the time to be most long, the theory develo the maturest method, it mainly is through some difference operator, calculates its gradient based on image brightness the change, thus examines the edge, mainlyhas Robert, Laplacian, Sobel, Canny, operators and so on LOG 。

数字图像处理文献综述

数字图像处理文献综述

医学图像增强处理与分析【摘要】医学图像处理技术作为医学成像技术的发展基础,带动着现代医学诊断产生着深刻的变革。

图像增强技术在医学数字图像的定量、定性分析中扮演着重要的角色,它直接影响到后续的处理与分析工作。

本文以医学图像(主要为X光、CT、B超等医用透视图像)为主要的研究对象,研究图像增强技术在医学图像处理领域中的应用。

本文通过对多种图像增强方法的图像处理效果进行了比较和验证,最后总结出了针对医学图像的各项特点最有效的图像增强处理方法。

关键词:医学图像处理;图像增强;有效方法;Medical Image has been an important supplementary measure of the doctor's diagnosis and treatment. As the developmental foundation of these imaging technology, Medical Image Processing leads to profoundly changes of modern medical diagnosis. Image enhancement technology plays an important role in quantitative and qualitative analysis of medical imaging .It has affected the following treatment and analysis directly. The thesis chooses medical images (including X-ray, CT, B ultrasonic image) as the main research object, studies the application of image enhancement technology in the field of medical images processing. and then we sum up the most effective processing method for image enhancement according to the characteristics of image.Key words:Medical Image ;Medical image enhancement ;effective method11 引言近年来,随着信息时代特别是数字时代的来临数字医学影像成为医生诊断和治疗的重要辅助手段。

数字图像处理(DigitalImageProcessing)

数字图像处理(DigitalImageProcessing)
噪效果。
图像变换
傅里叶变换
将图像从空间域转换到频率域,便于分析图 像的频率成分。
离散余弦变换
将图像从空间域转换到余弦函数构成的系数 空间,用于图像压缩。
小波变换
将图像分解成不同频率和方向的小波分量, 便于图像压缩和特征提取。
沃尔什-哈达玛变换
将图像转换为沃尔什函数或哈达玛函数构成 的系数空间,用于图像分析。
理的自动化和智能化水平。
生成对抗网络(GANs)的应用
02
GANs可用于生成新的图像,修复老照片,增强图像质量,以及
进行图像风格转换等。
语义分割和目标检测
03
利用深度学习技术对图像进行语义分割和目标检测,实现对图
像中特定区域的识别和提取。
高动态范围成像技术
高动态范围成像(HDRI)技术
01
通过合并不同曝光级别的图像,获得更宽的动态范围
动态特效
数字图像处理技术可以用于制作动态特效,如电影、广告中的火焰、 水流等效果。
虚拟现实与增强现实
数字图像处理技术可以用于虚拟现实和增强现实应用中,提供更真 实的视觉体验。
05
数字图像处理的未 来发展
人工智能与深度学习在数字图像处理中的应用
深度学习在图像识别和分类中的应用
01
利用深度学习算法,对图像进行自动识别和分类,提高图像处
医学影像重建
通过数字图像处理技术,可以将 CT、MRI等医学影像数据进行重建, 生成三维或更高维度的图像,便于 医生进行更深入的分析。
医学影像定量分析
数字图像处理技术可以对医学影像 进行定量分析,提取病变区域的大 小、形状、密度等信息,为医生提 供更精确的病情评估。
安全监控系统
视频监控

数字图像处理英文原版及翻译

数字图像处理英文原版及翻译

数字图象处理英文原版及翻译Digital Image Processing: English Original Version and TranslationIntroduction:Digital Image Processing is a field of study that focuses on the analysis and manipulation of digital images using computer algorithms. It involves various techniques and methods to enhance, modify, and extract information from images. In this document, we will provide an overview of the English original version and translation of digital image processing materials.English Original Version:The English original version of digital image processing is a comprehensive textbook written by Richard E. Woods and Rafael C. Gonzalez. It covers the fundamental concepts and principles of image processing, including image formation, image enhancement, image restoration, image segmentation, and image compression. The book also explores advanced topics such as image recognition, image understanding, and computer vision.The English original version consists of 14 chapters, each focusing on different aspects of digital image processing. It starts with an introduction to the field, explaining the basic concepts and terminology. The subsequent chapters delve into topics such as image transforms, image enhancement in the spatial domain, image enhancement in the frequency domain, image restoration, color image processing, and image compression.The book provides a theoretical foundation for digital image processing and is accompanied by numerous examples and illustrations to aid understanding. It also includes MATLAB codes and exercises to reinforce the concepts discussed in each chapter. The English original version is widely regarded as a comprehensive and authoritative reference in the field of digital image processing.Translation:The translation of the digital image processing textbook into another language is an essential task to make the knowledge and concepts accessible to a wider audience. The translation process involves converting the English original version into the target language while maintaining the accuracy and clarity of the content.To ensure a high-quality translation, it is crucial to select a professional translator with expertise in both the source language (English) and the target language. The translator should have a solid understanding of the subject matter and possess excellent language skills to convey the concepts accurately.During the translation process, the translator carefully reads and comprehends the English original version. They then analyze the text and identify any cultural or linguistic nuances that need to be considered while translating. The translator may consult subject matter experts or reference materials to ensure the accuracy of technical terms and concepts.The translation process involves several stages, including translation, editing, and proofreading. After the initial translation, the editor reviews the translated text to ensure its coherence, accuracy, and adherence to the target language's grammar and style. The proofreader then performs a final check to eliminate any errors or inconsistencies.It is important to note that the translation may require adapting certain examples, illustrations, or exercises to suit the target language and culture. This adaptation ensures that the translated version resonates with the local audience and facilitates better understanding of the concepts.Conclusion:Digital Image Processing: English Original Version and Translation provides a comprehensive overview of the field of digital image processing. The English original version, authored by Richard E. Woods and Rafael C. Gonzalez, serves as a valuable reference for understanding the fundamental concepts and techniques in image processing.The translation process plays a crucial role in making this knowledge accessible to non-English speakers. It involves careful selection of a professional translator, thoroughunderstanding of the subject matter, and meticulous translation, editing, and proofreading stages. The translated version aims to accurately convey the concepts while adapting to the target language and culture.By providing both the English original version and its translation, individuals from different linguistic backgrounds can benefit from the knowledge and advancements in digital image processing, fostering international collaboration and innovation in this field.。

数字图像处理 外文翻译 外文文献 英文文献 数字图像处理

数字图像处理 外文翻译 外文文献 英文文献 数字图像处理

数字图像处理外文翻译外文文献英文文献数字图像处理Digital Image Processing1 IntroductionMany operators have been proposed for presenting a connected component n a digital image by a reduced amount of data or simplied shape. In general we have to state that the development, choice and modi_cation of such algorithms in practical applications are domain and task dependent, and there is no \best method". However, it isinteresting to note that there are several equivalences between published methods and notions, and characterizing such equivalences or di_erences should be useful to categorize the broad diversity of published methods for skeletonization. Discussing equivalences is a main intention of this report.1.1 Categories of MethodsOne class of shape reduction operators is based on distance transforms. A distance skeleton is a subset of points of a given component such that every point of this subset represents the center of a maximal disc (labeled with the radius of this disc) contained in the given component. As an example in this _rst class of operators, this report discusses one method for calculating a distance skeleton using the d4 distance function which is appropriate to digitized pictures. A second class of operators produces median or center lines of the digitalobject in a non-iterative way. Normally such operators locate critical points _rst, and calculate a speci_ed path through the object by connecting these points.The third class of operators is characterized by iterative thinning. Historically, Listing [10] used already in 1862 the term linear skeleton for the result of a continuous deformation of the frontier of a connected subset of a Euclidean space without changing the connectivity of the original set, until only a set of lines and points remains. Many algorithms in image analysis are based on this general concept of thinning. The goal is a calculation of characteristic properties of digital objects which are not related to size or quantity. Methods should be independent from the position of a set in the plane or space, grid resolution (for digitizing this set) or the shape complexity of the given set. In the literature the term \thinning" is not used - 1 -in a unique interpretation besides that it always denotes a connectivity preserving reduction operation applied to digital images, involving iterations of transformations of speci_ed contour points into background points. A subset Q _ I of object points is reduced by ade_ned set D in one iteration, and the result Q0 = Q n D becomes Q for the next iteration. Topology-preserving skeletonization is a special case of thinning resulting in a connected set of digital arcs or curves.A digital curve is a path p =p0; p1; p2; :::; pn = q such that pi is a neighbor of pi?1, 1 _ i _ n, and p = q. A digital curve is called simpleif each point pi has exactly two neighbors in this curve. A digital arc is a subset of a digital curve such that p 6= q. A point of a digital arc which has exactly one neighbor is called an end point of this arc. Within this third class of operators (thinning algorithms) we may classify with respect to algorithmic strategies: individual pixels are either removed in a sequential order or in parallel. For example, the often cited algorithm by Hilditch [5] is an iterative process of testing and deleting contour pixels sequentially in standard raster scan order. Another sequential algorithm by Pavlidis [12] uses the de_nition of multiple points and proceeds by contour following. Examples of parallel algorithms in this third class are reduction operators which transform contour points into background points. Di_erences between these parallel algorithms are typically de_ned by tests implemented to ensure connectedness in a local neighborhood. The notion of a simple point is of basic importance for thinning and it will be shown in this reportthat di_erent de_nitions of simple points are actually equivalent. Several publications characterize properties of a set D of points (to be turned from object points to background points) to ensure that connectivity of object and background remain unchanged. The report discusses some of these properties in order to justify parallel thinning algorithms.1.2 BasicsThe used notation follows [17]. A digital image I is a functionde_ned on a discrete set C , which is called the carrier of the image.The elements of C are grid points or grid cells, and the elements (p;I(p)) of an image are pixels (2D case) or voxels (3D case). The range of a (scalar) image is f0; :::Gmaxg with Gmax _ 1. The range of a binary image is f0; 1g. We only use binary images I in this report. Let hIi be the set of all pixel locations with value 1, i.e. hIi = I?1(1). The image carrier is de_ned on an orthogonal grid in 2D or 3D - 2 -space. There are two options: using the grid cell model a 2D pixel location p is a closed square (2-cell) in the Euclidean plane and a 3D pixel location is a closed cube (3-cell) in the Euclidean space, where edges are of length 1 and parallel to the coordinate axes, and centers have integer coordinates. As a second option, using the grid point model a 2D or 3D pixel location is a grid point.Two pixel locations p and q in the grid cell model are called 0-adjacent i_ p 6= q and they share at least one vertex (which is a 0-cell). Note that this speci_es 8-adjacency in 2D or 26-adjacency in 3D if the grid point model is used. Two pixel locations p and q in the grid cell model are called 1- adjacent i_ p 6= q and they share at least one edge (which is a 1-cell). Note that this speci_es 4-adjacency in 2D or 18-adjacency in 3D if the grid point model is used. Finally, two 3Dpixel locations p and q in the grid cell model are called 2-adjacent i_ p 6= q and they share at least one face (which is a 2-cell). Note that this speci_es 6-adjacency if the grid point model is used. Any of these adjacency relations A_, _ 2 f0; 1; 2; 4; 6; 18; 26g, is irreexive andsymmetric on an image carrier C. The _-neighborhood N_(p) of a pixel location p includes p and its _-adjacent pixel locations. Coordinates of 2D grid points are denoted by (i; j), with 1 _ i _ n and 1 _ j _ m; i; j are integers and n;m are the numbers of rows and columns of C. In 3Dwe use integer coordinates (i; j; k). Based on neighborhood relations wede_ne connectedness as usual: two points p; q 2 C are _-connected with respect to M _ C and neighborhood relation N_ i_ there is a sequence of points p = p0; p1; p2; :::; pn = q such that pi is an _-neighbor of pi?1, for 1 _ i _ n, and all points on this sequence are either in M or all in the complement of M. A subset M _ C of an image carrier is called _-connected i_ M is not empty and all points in M are pairwise _-connected with respect to set M. An _-component of a subset S of C is a maximal _-connected subset of S. The study of connectivity in digital images has been introduced in [15]. It follows that any set hIi consists of a number of _-components. In case of the grid cell model, a component is the union of closed squares (2D case) or closed cubes (3D case). The boundary of a 2-cell is the union of its four edges and the boundary of a 3-cell is the union of its six faces. For practical purposes it iseasy to use neighborhood operations (called local operations) on adigital image I which de_ne a value at p 2 C in the transformed image based on pixel- 3 -values in I at p 2 C and its immediate neighbors in N_(p).2 Non-iterative AlgorithmsNon-iterative algorithms deliver subsets of components in specied scan orders without testing connectivity preservation in a number of iterations. In this section we only use the grid point model.2.1 \Distance Skeleton" AlgorithmsBlum [3] suggested a skeleton representation by a set of symmetric points.In a closed subset of the Euclidean plane a point p is called symmetric i_ at least 2 points exist on the boundary with equal distances to p. For every symmetric point, the associated maximal discis the largest disc in this set. The set of symmetric points, each labeled with the radius of the associated maximal disc, constitutes the skeleton of the set. This idea of presenting a component of a digital image as a \distance skeleton" is based on the calculation of a speci_ed distance from each point in a connected subset M _ C to the complement of the subset. The local maxima of the subset represent a \distance skeleton". In [15] the d4-distance is specied as follows. De_nition 1 The distance d4(p; q) from point p to point q, p 6= q, is the smallest positive integer n such that there exists a sequence of distinct grid points p = p0,p1; p2; :::; pn = q with pi is a 4-neighbor of pi?1, 1 _ i _ n.If p = q the distance between them is de_ned to be zero. Thedistance d4(p; q) has all properties of a metric. Given a binary digital image. We transform this image into a new one which represents at each point p 2 hIi the d4-distance to pixels having value zero. The transformation includes two steps. We apply functions f1 to the image Iin standard scan order, producing I_(i; j) = f1(i; j; I(i; j)), and f2in reverse standard scan order, producing T(i; j) = f2(i; j; I_(i; j)), as follows:f1(i; j; I(i; j)) =8><>>:0 if I(i; j) = 0minfI_(i ? 1; j)+ 1; I_(i; j ? 1) + 1gif I(i; j) = 1 and i 6= 1 or j 6= 1- 4 -m+ n otherwisef2(i; j; I_(i; j)) = minfI_(i; j); T(i+ 1; j)+ 1; T(i; j + 1) + 1g The resulting image T is the distance transform image of I. Notethat T is a set f[(i; j); T(i; j)] : 1 _ i _ n ^ 1 _ j _ mg, and let T_ _ T such that [(i; j); T(i; j)] 2 T_ i_ none of the four points in A4((i; j)) has a value in T equal to T(i; j)+1. For all remaining points (i; j) let T_(i; j) = 0. This image T_ is called distance skeleton. Now weapply functions g1 to the distance skeleton T_ in standard scan order, producing T__(i; j) = g1(i; j; T_(i; j)), and g2 to the result of g1 in reverse standard scan order, producing T___(i; j) = g2(i; j; T__(i; j)), as follows:g1(i; j; T_(i; j)) = maxfT_(i; j); T__(i ? 1; j)? 1; T__(i; j ? 1) ? 1gg2(i; j; T__(i; j)) = maxfT__(i; j); T___(i + 1; j)? 1; T___(i; j + 1) ? 1gThe result T___ is equal to the distance transform image T. Both functions g1 and g2 de_ne an operator G, with G(T_) = g2(g1(T_)) = T___, and we have [15]: Theorem 1 G(T_) = T, and if T0 is any subset of image T (extended to an image by having value 0 in all remaining positions) such that G(T0) = T, then T0(i; j) = T_(i; j) at all positions of T_with non-zero values. Informally, the theorem says that the distance transform image is reconstructible from the distance skeleton, and it is the smallest data set needed for such a reconstruction. The useddistance d4 di_ers from the Euclidean metric. For instance, this d4-distance skeleton is not invariant under rotation. For an approximation of the Euclidean distance, some authors suggested the use of di_erent weights for grid point neighborhoods [4]. Montanari [11] introduced a quasi-Euclidean distance. In general, the d4-distance skeleton is a subset of pixels (p; T(p)) of the transformed image, and it is not necessarily connected.2.2 \Critical Points" AlgorithmsThe simplest category of these algorithms determines the midpointsof subsets of connected components in standard scan order for each row. Let l be an index for the number of connected components in one row of the original image. We de_ne the following functions for 1 _ i _ n: ei(l) = _ j if this is the lth case I(i; j) = 1 ^ I(i; j ? 1) = 0 in row i, counting from the left, with I(i;?1) = 0 ,oi(l) = _ j if this is the lth case I(i; j) = 1- 5 -^ I(i; j+ 1) = 0 ,in row i, counting from the left, with I(i;m+ 1)= 0 ,mi(l) = int((oi(l) ?ei(l)=2)+ oi(l) ,The result of scanning row i is a set ofcoordinates (i;mi(l)) ofof the connected components in row i. The set of midpoints of all rows midpoints ,constitutes a critical point skeleton of an image I. This method is computationally eÆcient.The results are subsets of pixels of the original objects, and these subsets are not necessarily connected. They can form \noisy branches" when object components are nearly parallel to image rows. They may be useful for special applications where the scanning direction is approximately perpendicular to main orientations of object components.References[1] C. Arcelli, L. Cordella, S. Levialdi: Parallel thinning ofbinary pictures. Electron. Lett. 11:148{149, 1975}.[2] C. Arcelli, G. Sanniti di Baja: Skeletons of planar patterns. in: Topolog- ical Algorithms for Digital Image Processing (T. Y. Kong, A. Rosenfeld, eds.), North-Holland, 99{143, 1996.}[3] H. Blum: A transformation for extracting new descriptors of shape. in: Models for the Perception of Speech and Visual Form (W. Wathen- Dunn, ed.), MIT Press, Cambridge, Mass., 362{380, 1967.19} - 6 -数字图像处理1引言许多研究者已提议提出了在数字图像里的连接组件是由一个减少的数据量或简化的形状。

介绍数字图像处理外文翻译

介绍数字图像处理外文翻译

附录1 外文原文Source: "the 21st century literature the applied undergraduate electronic communication series of practical teaching planThe information and communication engineering specialty in English ch02_1. PDF 120-124Ed: HanDing ZhaoJuMin, etcText A: An Introduction to Digital Image Processing1. IntroductionDigital image processing remains a challenging domain of programming for several reasons. First the issue of digital image processing appeared relatively late in computer history. It had to wait for the arrival of the first graphical operating systems to become a true matter. Secondly, digital image processing requires the most careful optimizations especially for real time applications. Comparing image processing and audio processing is a good way to fix ideas. Let us consider the necessary memory bandwidth for examining the pixels of a 320x240, 32 bits bitmap, 30 times a second: 10 Mo/sec. Now with the same quality standard, an audio stereo wave real time processing needs 44100 (samples per second) x 2 (bytes per sample per channel) x 2(channels) = 176Ko/sec, which is 50 times less.Obviously we will not be able to use the same techniques for both audio and image signal processing. Finally, digital image processing is by definition a two dimensions domain; this somehow complicates things when elaborating digital filters.We will explore some of the existing methods used to deal with digital images starting by a very basic approach of color interpretation. As a moreadvanced level of interpretation comes the matrix convolution and digital filters. Finally, we will have an overview of some applications of image processing.The aim of this document is to give the reader a little overview of the existing techniques in digital image processing. We will neither penetrate deep into theory, nor will we in the coding itself; we will more concentrate on the algorithms themselves, the methods. Anyway, this document should be used as a source of ideas only, and not as a source of code. 2. A simple approach to image processing(1) The color data: Vector representation①BitmapsThe original and basic way of representing a digital colored image in a computer's memory is obviously a bitmap. A bitmap is constituted of rows of pixels, contraction of the word s “Picture Element”. Each pixel has a particular value which determines its appearing color. This value is qualified by three numbers giving the decomposition of the color in the three primary colors Red, Green and Blue. Any color visible to human eye can be represented this way. The decomposition of a color in the three primary colors is quantified by a number between 0 and 255. For example, white will be coded as R = 255, G = 255, B = 255; black will be known as (R,G,B)= (0,0,0); and say, bright pink will be : (255,0,255). In other words, an image is an enormous two-dimensional array of color values, pixels, each of them coded on 3 bytes, representing the three primary colors. This allows the image to contain a total of 256×256×256 = 16.8 million different colors. This technique is also known as RGB encoding, and is specifically adapted to human vision. With cameras or other measure instruments we are capable of “seeing”thousands of other “colors”, in which cases the RG B encoding is inappropriate.The range of 0-255 was agreed for two good reasons: The first is that the human eye is not sensible enough to make the difference between more than 256 levels of intensity (1/256 = 0.39%) for a color. That is to say, an image presented to a human observer will not be improved by using more than 256 levels of gray (256shades of gray between black and white). Therefore 256 seems enough quality. The second reason for the value of 255 is obviously that it is convenient for computer storage. Indeed on a byte, which is the computer's memory unit, can be coded up to 256 values.As opposed to the audio signal which is coded in the time domain, the image signal is coded in a two dimensional spatial domain. The raw image data is much more straightforward and easy to analyze than the temporal domain data of the audio signal. This is why we will be able to do lots of stuff and filters for images without transforming the source data, while this would have been totally impossible for audio signal. This first part deals with the simple effects and filters you can compute without transforming the source data, just by analyzing the raw image signal as it is.The standard dimensions, also called resolution, for a bitmap are about 500 rows by 500 columns. This is the resolution encountered in standard analogical television and standard computer applications. You can easily calculate the memory space a bitmap of this size will require. We have 500×500 pixels, each coded on three bytes, this makes 750 Ko. It might not seem enormous compared to the size of hard drives, but if you must deal with an image in real time then processing things get tougher. Indeed rendering images fluidly demands a minimum of 30 images per second, the required bandwidth of 10 Mo/sec is enormous. We will see later that the limitation of data access and transfer in RAM has a crucial importance in image processing, and sometimes it happens to be much more important than limitation of CPU computing, which may seem quite different from what one can be used to in optimization issues. Notice that, with modern compression techniques such as JPEG 2000, the total size of the image can be easily reduced by 50 times without losing a lot of quality, but this is another topic.②Vector representation of colorsAs we have seen, in a bitmap, colors are coded on three bytes representing their decomposition on the three primary colors. It sounds obvious to a mathematician to immediately interpret colors as vectors in athree-dimension space where each axis stands for one of the primary colors. Therefore we will benefit of most of the geometric mathematical concepts to deal with our colors, such as norms, scalar product, projection, rotation or distance. This will be really interesting for some kind of filters we will see soon. Figure 1 illustrates this new interpretation:Figure 1(2) Immediate application to filters① Edge DetectionFrom what we have said before we can quantify the 'difference' between two colors by computing the geometric distance between the vectors representing those two colors. Lets consider two colors C1 = (R1,G1,B1) and C2 = (R2,B2,G2), the distance between the two colors is given by the formula :D(C1, C2) =(R1+This leads us to our first filter: edge detection. The aim of edge detection is to determine the edge of shapes in a picture and to be able to draw a resultbitmap where edges are in white on black background (for example). The idea is very simple; we go through the image pixel by pixel and compare the color of each pixel to its right neighbor, and to its bottom neighbor. If one of these comparison results in a too big difference the pixel studied is part of an edge and should be turned to white, otherwise it is kept in black. The fact that we compare each pixel with its bottom and right neighbor comes from the fact that images are in two dimensions. Indeed if you imagine an image with only alternative horizontal stripes of red and blue, the algorithms wouldn't see the edges of those stripes if it only compared a pixel to its right neighbor. Thus the two comparisons for each pixel are necessary.This algorithm was tested on several source images of different types and it gives fairly good results. It is mainly limited in speed because of frequent memory access. The two square roots can be removed easily by squaring the comparison; however, the color extractions cannot be improved very easily. If we consider that the longest operations are the get pixel function and put pixel functions, we obtain a polynomial complexity of 4*N*M, where N is the number of rows and M the number of columns. This is not reasonably fast enough to be computed in realtime. For a 300×300×32 image I get about 26 transforms per second on an Athlon XP 1600+. Quite slow indeed.Here are the results of the algorithm on an example image:A few words about the results of this algorithm: Notice that the quality of the results depends on the sharpness of the source image. Ifthe source image is very sharp edged, the result will reach perfection. However if you have a very blurry source you might want to make it pass through a sharpness filter first, which we will study later. Another remark, you can also compare each pixel with its second or third nearest neighbors on the right and on the bottom instead of the nearest neighbors. The edges will be thicker but also more exact depending on the source image's sharpness. Finally we will see later on that there is another way to make edge detection with matrix convolution.②Color extractionThe other immediate application of pixel comparison is color extraction.Instead of comparing each pixel with its neighbors, we are going to compare it with a given color C1. This algorithm will try to detect all the objects in the image that are colored with C1. This was quite useful for robotics for example. It enables you to search on streaming images for a particular color. You can then make you robot go get a red ball for example. We will call the reference color, the one we are looking for in the image C0 = (R0,G0,B0).Once again, even if the square root can be easily removed it doesn't really improve the speed of the algorithm. What really slows down the whole loop is the NxM get pixel accesses to memory and put pixel. This determines the complexity of this algorithm: 2xNxM, where N and M are respectively the numbers of rows and columns in the bitmap. The effective speed measured on my computer is about 40 transforms per second on a 300x300x32 source bitmap.3.JPEG image compression theory(一)JPEG compression is divided into four steps to achieve:(1) Color mode conversion and samplingRGB color system is the most common ways that color. JPEG uses a YCbCr colorsystem. Want to use JPEG compression method dealing with the basic full-color images, RGB color mode to first image data is converted to YCbCr color model data. Y representative of brightness, Cb and Cr represents the hue, saturation. By the following calculation to be completed by data conversion. Y = 0.2990R +0.5870 G+0.1140 B Cb =- 0.1687R-0.3313G +0.5000 B +128 Cr = 0.5000R-0.4187G-0.0813B+128 of human eyes on the low-frequency data than high-frequency data with higher The sensitivity, in fact, the human eye to changes in brightness than to color changes should be much more sensitive, ie Y component of the data is more important. Since the Cb and Cr components is relatively unimportant component of the data comparison, you can just take part of the data to deal with. To increase the compression ratio. JPEG usually have two kinds of sampling methods: YUV411 and YUV422, they represent is the meaning of Y, Cb and Cr data sampling ratio of three components.(2)DCT transformationThe full name is the DCT-discrete cosine transform (Discrete Cosine Transform), refers to a group of light intensity data into frequency data, in order that intensity changes of circumstances. If the modification of high-frequency data do, and then back to the original form of data, it is clear there are some differences with the original data, but the human eye is not easy to recognize. Compression, the original image data is divided into 8 * 8 matrix of data units. JPEG entire luminance and chrominance Cb matrix matrix, saturation Cr matrix as a basic unit called the MCU. Each MCU contains a matrix of no more than 10. For example, the ratio of rows and columns Jie Wei 4:2:2 sampling, each MCU will contain four luminance matrix, a matrix and a color saturation matrix. When the image data is divided into an 8 * 8 matrix, you must also be subtracted for each value of 128, and then a generation of formula into the DCT transform can be achieved by DCT transform purposes. The image data value must be reduced by 128, because the formula accepted by the DCT-figure range is between -128 to +127.(3)QuantizationImage data is converted to the frequency factor, you still need to accept a quantitative procedure to enter the coding phase. Quantitative phase requires two 8 * 8 matrix of data, one is to deal specifically with the brightness of the frequency factor, the other is the frequency factor for the color will be the frequency coefficient divided by the value of quantization matrix to obtain the nearest whole number with the quotient, that is completed to quantify. When the frequency coefficients after quantization, will be transformed into the frequency coefficients from the floating-point integer This facilitate the implementation of the final encoding. However, after quantitative phase, all the data to retain only the integer approximation, also once again lost some data content.(4)CodingHuffman encoding without patent issues, to become the most commonly used JPEG encoding, Huffman coding is usually carried out in a complete MCU. Coding, each of the DC value matrix data 63 AC value, will use a different Huffman code tables, while the brightness and chroma also require a different Huffman code tables, it needs a total of four code tables, in order to successfully complete the JPEG coding. DC Code DC is a color difference pulse code modulation using the difference coding method, which is in the same component to obtain an image of each DC value and the difference between the previous DC value to encode. DC pulse code using the main reason for the difference is due to a continuous tone image, the difference mostly smaller than the original value of the number of bits needed to encode the difference will be more than the original value of the number of bits needed to encode the less. For example, a margin of 5, and its binary representation of a value of 101, if the difference is -5, then the first changed to a positive integer 5, and then converted into its 1's complement binary number can be. The so-called one's complement number, that is, if the value is 0 for each Bit, then changed to 1; Bit is 1, it becomes 0. Difference between the five should retain the median 3, the following table that lists the difference between the Bit to be retained and the difference between the number of content controls.In the margin of the margin front-end add some additional value Hoffman code, such as the brightness difference of 5 (101) of the median of three, then the Huffman code value should be 100, the two connected together shall be 100101. The following two tables are the brightness and chroma DC difference encoding table. According to these two forms content, you can add the difference for the DC value Huffman code to complete the DC coding.4. ConclusionsDigital image processing is far from being a simple transpose of audiosignal principles to a two dimensions space. Image signal has its particular properties, and therefore we have to deal with it in a specificway. The Fast Fourier Transform, for example, which was such a practical tool in audio processing, becomes useless in image processing. Oppositely, digital filters are easier to create directly, without any signal transforms, in image processing.Digital image processing has become a vast domain of modern signal technologies. Its applications pass far beyond simple aesthetical considerations, and they include medical imagery, television and multimedia signals, security, portable digital devices, video compression,and even digital movies. We have been flying over some elementarynotions in image processing but there is yet a lot more to explore. Ifyou are beginning in this topic, I hope this paper will have given you thetaste and the motivation to carry on.附录2 外文翻译文献出处:《21 世纪全国应用型本科电子通信系列实用规划教材》之《信息与通信工程专业英语》ch02_1.pdf 120-124页主编:韩定定、赵菊敏等正文:介绍数字图像处理1.导言有几个原因使数字图像处理仍然是一个具有挑战性的领域。

数字图像处理课件(冈萨雷斯第三版)英文翻译优秀课件

数字图像处理课件(冈萨雷斯第三版)英文翻译优秀课件

The image on the left is the image processing technique . Used to test computer algorithms A standard image of actual effects . The name of this image is lenna . It is made up of a set of numbers. Original image The width and height are 256 pixels each .There are eight bits in pixels. It is in BMP form at About 66K bytes in size.
The objective world is a three-dimensional space, but the general image is two-dimensional. Two dimensional images inevitably lose part of the information in the process of reflecting the three-dimensional world. Even recorded information can be distorted and even difficult to recognize objects. Therefore, it is necessary to recover and reconstruct information from images, and to analyze and extract mathematical models of images so that people can have a correct and profound understanding of what is recorded in the image. This process becomes the process of image processing.

数字图像处理英文词汇

数字图像处理英文词汇

Algebraic operation 代数运算;一种图像处理运算,包括两幅图像对应像素的和、差、积、商。
Aliasing 走样(混叠);当图像像素间距和图像细节相比太大时产生的一种人工痕迹。
Arc 弧;图的一部分;表示一曲线一段的相连的像素集合。
Run 行程;在图像编码中,具有相同灰度的相连像素序列
Run length 行程长度,行程;在行程中像素的个数
Run length encoding 行程编码;图像行以行程序列表示的图像压缩技术,每一行程以一个给定的行程长度和灰度值定义
Sampling 采样;(根据采样网络)将图像分为像素并测量其上局部特性(如亮度、颜色)的过程
Image matching 图像匹配;为决定两副图像相似程度对它们进行量化比较的过程。
Image-processing operation 图像处理运算;将输入图像变换为输出图像的一系列步骤
Image reconstruction 图像重构;从非图像形式构造或恢复图像的过程
Image registration 图像匹准;通过将景物中的一图幅像与相同景物的另一幅图像进行几何运算,以使其中物体对准的过程
Quantitative image analysis 图像定量分析;从一副数字图像中抽取定量数据的过程
Quantization 量化;在每一个像素处,将图像的局部特性赋予一个灰度集合中的元素的过程
Region 区域;一副图像中的相连子集
Region growing 区域增长;通过重复地求具有相似灰度或纹理的相邻子区域的并集形成区域的一种图像分割技术
Edge detection 边缘检测; 通过检查邻域,将边缘像素标识出的一种图像分割技术。
  1. 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。

研究数字图像处理技术外文翻译
研究数字图像处理技术
1介绍
数字图像处理方法的兴趣源于两个主要应用领域:提高图象信息处理的人工解释;图像数据进行存储、传输及机器自主感知。

这一章有几个目的:(1)定义的领域范围,我们称之为图像处理;(2)从历史的角度来看这一领域的起源;(3)为国家的艺术提供一些方法,在通过图像处理检查一些主要应用领域时;(4)简要的讨论用于数字图像处理的主要方法;(5)概述了包含在一个典型的、通用的图像处理系统组件;(6)提供方向的书籍和其他文学中图像处理工作通常是记者。

1.1什么是数字图像处理吗?
一个图像可以被定义为一个二维函数f(x,y),x和y是空间(平面)的坐标以及在任何一对坐标(x,y)的振幅f称为图像在这一点上的强度或灰度。

数字图像处理领域是指处理数字图像通过数字计算机。

注意,数字图像是由一个有限数目的元素,每一个都有一个特定的位置和幅值。

这些元素被称为图像元素,象素,像素。

像素是最广泛使用的术语来表示元素的一个数字图像。

我们认为这些定义更正式的术语在第二章。

视觉是最先进的感官,难怪在人类感知中图片扮演最重要的角色。

然而,与人仅限于在可见光波段的电磁(EM)谱,成像机器覆盖几乎整个电磁光谱,从射线到无线电波。

他们可以处理图像所产生的来源,这是人类不习惯图像处理。

这些包括超声波、电子显微镜和计算机生成的图片。

因此,数字图像处理包括多种多样的应用领域。

在开始没有通用的协议,关于在哪里图像处理停止和其他相关领域,如图像分析和计算机视觉。

有时一个区别是由定义图像处理作为一门学科都在输入和输出过
程的照片。

我们相信这是一个限制,有些人工边界。

例如,根据这个定义,甚至微不足道的任务计算平均强度的一个图像(收益率一个数字)将不会被认为是一个图像处理操作。

另一方面,计算机视觉等领域的最终目标是利用计算机来模拟人类的视觉,包括学习和能够做出推论和采取行动基于视觉输入。

这个区域本身就是一个分支,人工智能(AI)的目的是模拟人类智能。

这一领域的人工智能是在其早期阶段的初级阶段发展而言,进步已经比最初预想要慢得多。

区域的图像分析(也称为图像理解)是在图像处理和计算机视觉之间。

没有明确的边界在连续体的一端从图像处理,计算机视觉在其他。

然而,一个有用的范例是考虑三种类型的计算机化过程是这个统一体:低,中,和高过过程。

低级处理涉及原始操作如图像预处理来降低噪声,对比度增强,图像锐化。

一个低级过程的特点在于,实际上两个其输入和输出图像。

中级处理图像的工作包括诸如分割(分区一个图像到区域或对象),描述的对象来减少他们一种适于计算机处理和分类(识别)的个别对象。

在水平过程的特点是事实,它的输入通常是图像,但其输出属性从这些影像中(e . g。

,边缘轮廓,这个身份的个人对象)。

最后,高级处理涉及“让意义”的一套公认的对象,见图像分析,远远的连续介质,执行认知功能通常与视觉有关。

基于前面的评论,我们看到,一个逻辑位置重叠的图像处理和图像分析的面积是识别个别地区或对象。

因此,我们所说的在这本书中数字图像处理包括流程的输入和输出是图像,此外,包括流程,从图像中提取属性,包括单个对象的识别。

作为一个简单的例子来阐明这些概念,考虑该地区的自动化分析的文本。

这个过程获得的图像区域包含文本。

预处理,图像,提取(分段)的单个字符,描述人物以一种适于计算机处理和识别那些个别字符范围内的我们称之为数字图像处理在这本书。

使意义的内容页面可以被看作是在域的图像分析,甚至计算机视觉,这取决于水平的复杂性所暗示的语句”使得用香熏。

”不久将随处可见,数字图像处理,因为我
们已经定义了它,是成功应用于广泛的领域的特殊社会响和经济价值。

这个概念在以下章节是开发的基础方法用于这些应用领域。

1.2数字图像处理的起源
第一个数字图像的应用是在报纸行业,当第一次发送的图片是伦敦和纽约之间的海底电缆。

介绍Bartlane电缆视频传输系统在1920年代早期减少所需的时间运输一幅横跨大西洋的一个多星期,不到三个小时。

专业印刷设备编码的图片为电缆传输,然后在接收端重建它们。

图1.1是通过这种方式传播和复制在电报打印机安装字体模拟半色调图案。

最初的一些问题在改善视觉质量的这些早期的数码照片相关的选择印刷过程和分布的强度水平。

印刷方法用于获得无花果。

1.1是放弃了向1921年底赞成一个技术基于摄影再生产由磁带穿孔在电报接收终端。

图1.2显示了一个使用这种方法得到的图像。

在图1.1的进步是明显的,无论是在音质和分辨率。

图1.1 数字图像是在1921年从一个编码带由图1.2数码照片是在1922年, 电报打印机打印的(麦克法兰) 根据一个穿越大西洋传递两用特殊的打印方式次的的信号,打印出来的。

有些错误是可见的。

早期的Bartlane系统能够编码图像在五个不同层次的灰色。

此功能是在1929年增加到15水平。

图1.3是典型的图像,可以获得使用15音设备。

在此期间,介绍
系统开发一个膜板通过光束,被调制的编码图像复制过程大大提高了磁带容量。

尽管这个例子只是引用涉及数字图像,他们不认为是数字图像处理的结果在上下文的定义,因为电脑没有参与他们的创造。

因此,数字处理的历史与发展密切的数字计算机。

事实上数字图像需要如此多的存储和计算能力的进步,数字图像处理领域一直依赖于开发的数字计算机支持技术,包括数据存储、显示、传输。

一台电脑的想法可以追溯到算盘的发明在小亚细亚,超过5000年前。

最近,有
进展在过去两个世纪的基础的今天我们所说的计算机。

然而,依据我们所说的现代数字计算机可以追溯到1940年代只有通过引入约翰•冯•诺伊曼的两个关键概念:(1)内存来保存一个存储程序和数据,以及(2)条件分支。

有两个想法的基础的一个中央处理单元(CPU),它的核心是计算机今天。

从冯?诺依曼,有一系列的进步,导致电脑强大到足以被用于数字图像处理。

简单地说,这些进步可能总结如下:
(1)晶体管的发明在1948年由贝尔实验室;
(2)发展在1950年代和1960年代的高级编程语言COBOL(面向商业的通用语言)和FORTRAN(公式翻译);
(3)发明集成电路(IC)在德州仪器1958年;
(4)操作系统的发展在1960年代早期;
(5)微处理器的开发(单个芯片组成的中央处理单元、存储器、输入和输出控件),国米在1970年代早期;
(6)介绍IBM的个人电脑在1981;
(7)逐步小型化的组件,从大规模集成(LI)在1970年代后期,然后超大规模集成电路(VLSI)在1980年代,到现在使用超大规模集成(超大规模集成)。

图1.3 在 1929年从伦敦到Cenerale潘兴
在纽约通过15平调设备
传输没有处理的照片。

同时这些进步是大规模发展存储和显示系统, 数字图像处理领域的基本要求,。

第一个电脑强大到足以进行有意义的图像处理任务出现在1960年代早期。

出生的我们称之为数字图像处理今天可以追溯到这些机器的可用性和快速的爆发程序在那段时期。

它把这两个发展的结合将成为关注焦点的潜在的数字图像处理的概念。

利用计算机技术工作为提高图像从一个太空探测器开始在喷气推进实验室(帕萨迪纳,加利福尼亚州)在1964年当月球的画面通过管理员7处理由计算机来纠正各种类型的图像失真所固有的车载电视摄像机。

Figure1.4shows第一映像的月亮被管理员7 1964年7月31日上午9:09年a . m .东部夏令时间(EDT),约17分钟前撞击月球表面(标记,称为网格标记,用于几何修正,详见第五章)。

这也是第一映像的月亮被一个美国宇宙飞船。

成像的教训与游侠7担任基础改进方法用来提高和恢复图像的测量任务到月球,水手系列飞越火星任务,阿波罗载人飞行到月球,和其他人。

在平行空间应用,数字图像处理技术始于1960年代末和1970年代早期用于医疗成像、远程地球资源观测和天文。

本发明在1970年代早期的计算机轴向断层扫描(猫),也称为计算机断扫描(CT)断层,是最重要的事件之一在图像处理的应用在医学诊断。

计算机轴向断层是一个过程,在这一圈环绕一个对象的探测器(或病人)和一个x射线源,同心探测器环,旋转对象。

x射线穿过物体和收集另一端通过相应的探测器在环。

作为源的旋转,这个过程是重复的。

断层由算法,利用感知数据构建一种形象,代表了一个“切”通过对象。

运动的物体在一个方
向垂直于环探测器产生一组这样的片,构成一个三维(3 - d)引渡的内部对象。

断层摄影术发明独立爵士戈弗雷?艾伦?m?科尔马克打进Hounsfield和教授,他们分享的x射线被发现是在1895年由威廉?康拉德伦琴,为此他获得了1901年诺贝尔物理学奖。

这两个发明,近100年的分离,导致了一些最活跃的应用领域的图像处理今天。

图1.4第一张月球照片由美国
宇宙飞船骑警7在 7月31日拍摄了这张图片,
1964年在美国东部时间上午9:09,约17分钟前
月球表面的影响。

(由美国国家航空航天局)。
