偏光显微镜在岩矿鉴定工作中的使用技巧和方法

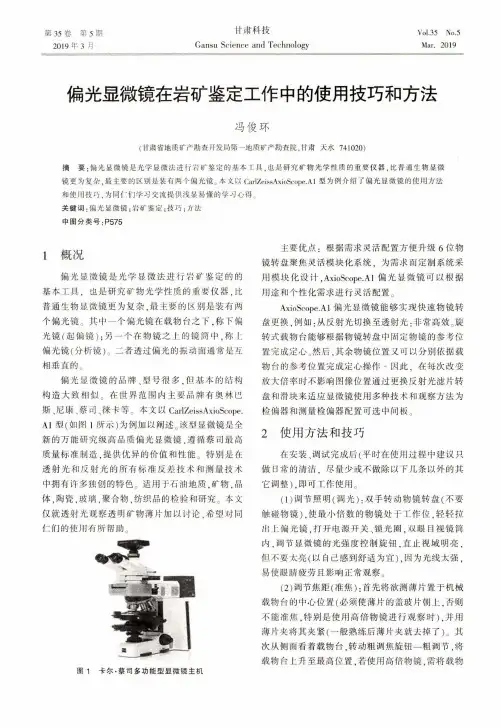

Vol.35 No.5Mar. 2019第35卷第5期2019年3月甘肃科技Gansu Science and Technology偏光显微镜在岩矿鉴定工作中的使用技巧和方法冯俊环（甘肃省地质矿产勘査开发局第一地质矿产勘査院，甘肃天水741020）摘要：偏光显微镜是光学显微法进行岩矿鉴定的基本工具，也是研究矿物光学性质的重要仪器，比普通生物显微镜更为复杂，最主要的区别是装有两个偏光镜。

本文以CarlZeissAxioScope.Al 型为例介绍了偏光显微镜的使用方法和使用技巧，为同仁们学习交流提供浅显易懂的学习心得。

关键词：偏光显微镜；岩矿鉴定；技巧；方法中图分类号:P5751概况偏光显微镜是光学显微法进行岩矿鉴定的的基本工具，也是研究矿物光学性质的重要仪器，比普通生物显微镜更为复杂，最主要的区别是装有两个偏光镜。

其中一个偏光镜在载物台之下，称下偏光镜（起偏镜）；另一个在物镜之上的镜筒中，称上偏光镜（分析镜）。

二者透过偏光的振动面通常是互相垂直的。

偏光显微镜的品牌、型号很多，但基本的结构构造大致相似。

在世界范围内主要品牌有奥林巴斯、尼康、蔡司、彳来卡等。

本文以CarlZeissAxioScope.Al 型（如图1所示）为例加以阐述。

该型显微镜是全新的万能研究级高品质偏光显微镜，遵循蔡司最高质量标准制造，提供优异的价值和性能。

特别是在透射光和反射光的所有标准反差技术和测量技术中拥有许多独创的特色。

适用于石油地质，矿物，晶体，陶瓷，玻璃，聚合物，纺织品的检验和研究。

本文仅就透射光观察透明矿物薄片加以讨论，希望对同仁们的使用有所帮助。

图1卡尔•蔡司多功能型显微镜主机主要优点：根据需求灵活配置方便升级6位物镜转盘聚焦灵活模块化系统，为需求而定制系统采用模块化设计.AxioScope.Al 偏光显微镜可以根据用途和个性化需求进行灵活配置。

AxioScope.Al 偏光显微镜能够实现快速物镜转盘更换，例如：从反射光切换至透射光:非常高效。

zeiss 科研级正置显微镜AXIO scope A1中文介绍
