水泵安装、使用、维护说明书Type NG slurry PumpINST ALL TION, OPERA TION, MAINTENANCEMANUAL一、水泵的安装Pump installation水泵的安装Pump installation1、水泵安装准备工作1. The preparation work for pump installation.（1）检查水泵和电机，确知在运输和装卸过程中没有损伤。
Check the pump and motor, ensure there were no damage during the transportation and load or unload.（2）检查工具和起重机械，并检查机器的基础。
Check the tools and lifting equipment and also the basement of machine. （3）检查配套提供的压力表及表座。
Check the manometer and gauge stand of affiliated equipments2、水泵安装顺序Pump installation order（1）整套泵运抵现场时，都已装好电机；校平底座时，可不必卸下水泵和电机。
The motor have been installed when a whole set of pump arrived scene. When collate the basement, no need to demount the pump and motor.（2）在水泥基础上安装水泵时，基础平面应用水平找平，待基础水泥凝固后将泵安装在基础上，并用水平仪检查水平情况，如不平，应用垫铁调正，直到水平为止，然后通过灌浆孔由混凝土浇灌底座和地脚螺栓孔眼。
When install pump on the cement base, regulate the foundation flat by the standard. Check the condition of standard by thegradienter, if not flat, regulate it by the parallels until horizontal, use concrete to irrigate basement and foundation bolt hole by the grout hole. （3）水泥干固后，检查底座和地脚螺栓是否松动，合适后拧紧地脚螺栓的螺母，最后再检查一下整台机组的水平度，稍有不平时，可用斜铁找平。
中英文版泵规格书(非常规范)
( )
kW
26
Min.flow check valve
最小流量止回阀
/no
/无
Self priming自吸
/ no
/无
27
Construction Features结构特征
28
Rateddesignpressure
额定设计压力
required
要求
16
barg
60
°C
TotalClearance
Type型号:
Orderer订货商:
Manufacturer制造商:
Inquiry No.询价号.:
Offer No.供应号.:
Order No.订货号.:
Job No.项目号.:
Issue
版本
State阶段
Date
日期
Prepared
准备
Checked
检查
Approved
批准
Remark
备注
11
Server for plant: Air seperation plant2Plant
Total weight incl. Driver
包括电机的总重量
()
kg
49
Remarks:(1) *) viewed from driver to pump**) viewed from pump to driver
kW
22
normal
正常
619.8
m³/h
normal
正常
( )
kW
23
minimum
最小
479.3
m³/h
maximum
LC型泵安装使用说明书-中英文
LC型泵Type LC Pump安装使用说明书Installation and Operation ManualC a u t i o n■请仔细阅读本说明书，理解各项内容，以便能正确安装、运行操作和保养维护等。
Please read this manual carefully and understand all the contents in it for correct installation, operation andmaintenance.■本说明书应保存在实际最终使用人的手中。
This manual should be kept in the hands of the actual end users.■本产品技术规范可能发生变化，恕不另行通知。
The technical specification of this product may change without notice.襄樊525泵业有限公司Xiangfan 525 Pump Industry Co., Ltd.目录Contents 1. 适用范围Scope of application2．泵的结构The Structure of the pump.3．开箱检查Unpacking and checking4．泵的安装Installation of the pump5．泵的运行Startup and operation of the pump 6．泵的维护Maintenance of the pump7．泵的拆卸Disassembling8．泵的装配Assembling9．故障原因及解决办法Possible troubleshooting and solutions 10．常用备件Spare parts1.适用范围Scope of applicationLC、LC——B系列泵是我公司引进的法国日蒙施乃德（JS）公司制造许可证技术，奥特桑伯尔（HS）公司耐腐蚀耐磨蚀泵用材料冶炼铸造技术。
轴向中开标准双吸泵系列中英文说明书

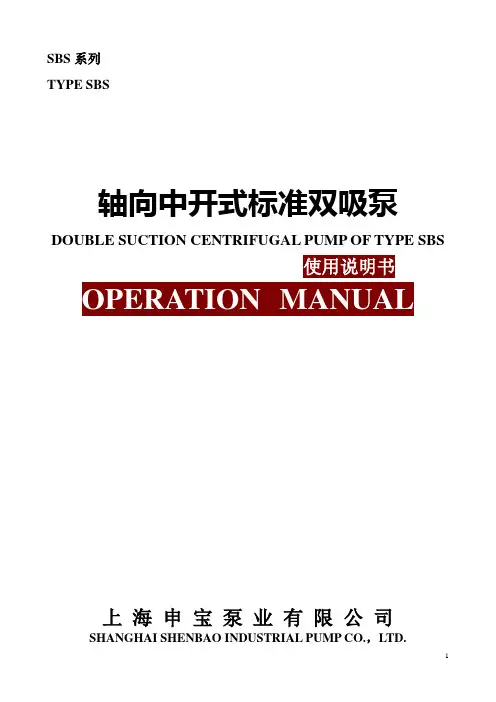

SBS系列TYPE SBS轴向中开式标准双吸泵DOUBLE SUCTION CENTRIFUGAL PUMP OF TYPE SBS上海申宝泵业有限公司SHANGHAI SHENBAO INDUSTRIAL PUMP CO.，LTD.SBS 型泵广泛适用于自来水，灌溉，排水泵站，电站，市政工程供水系统，消防系统，船舶工业。
