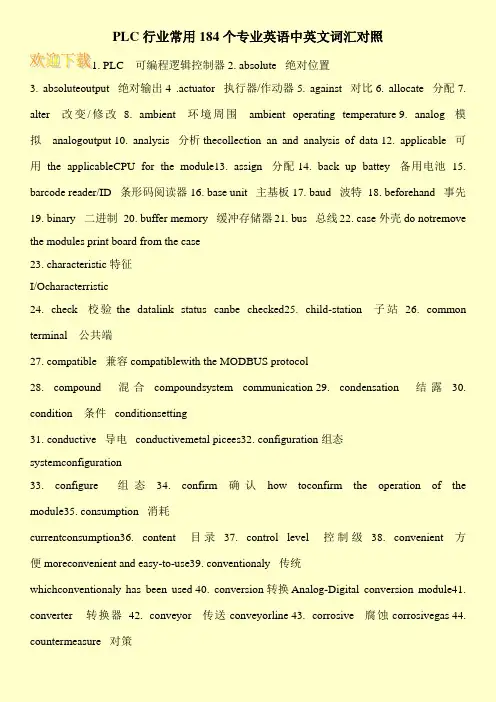

PLC行业常用184个专业英语中英文词汇对照1. PLC 可编程逻辑控制器2. absolute 绝对位置3. absoluteoutput 绝对输出4 .actuator 执行器/作动器5. against 对比6. allocate 分配 7. alter 改变/修改8. ambient 环境周围ambient operating temperature 9. analog 模拟 analogoutput 10. analysis 分析 thecollection an and analysis of data 12. applicable 可用 the applicableCPU for the module13. assign 分配 14. back up battey 备用电池15. barcode reader/ID 条形码阅读器16. base unit 主基板17. baud 波特 18. beforehand 事先19. binary 二进制 20. buffer memory 缓冲存储器21. bus 总线22. case 外壳 do notremove the modules print board from the case23. characteristic 特征I/Ocharacterristic24. check 校验 the datalink status canbe checked25. child-station 子站26. common terminal 公共端27. compatible 兼容 compatiblewith the MODBUS protocol28. compound 混合 compoundsystem communication 29. condensation 结露30. condition 条件conditionsetting31. conductive 导电conductivemetal picees32. configuration 组态systemconfiguration33. configure 组态34. confirm 确认how toconfirm the operation of the module35. consumption 消耗currentconsumption36. content 目录37. control level 控制级38. convenient 方便 moreconvenient and easy-to-use39. conventionaly 传统whichconventionaly has been used 40. conversion 转换 Analog-Digital conversion module41. converter 转换器42. conveyor 传送 conveyorline 43. corrosive 腐蚀 corrosivegas 44. countermeasure 对策。

自动化制造系统与PLC论文中英文资料外文翻译文献

中英文资料外文翻译文献外文原文Automating Manufacturing Systems with PLCs2.1 INTRODUCTIONControl engineering has evolved over time. In the past humans were the main method for controlling a system. More recently electricity has been used for control and early electrical control was based on relays. These relays allow power to be switched on and off without a mechanical switch. It is common to use relays to make simple logical control decisions. The development of low cost computer has brought the most recent revolution,the Programmable Logic Controller (PLC). The advent of the PLC began in the1970s, and has become the most common choice for manufacturing controls.PLCs have been gaining popularity on the factory floor and will probably remain predominant for some time to come. Most of this is because of the advantages they offer. • Cost effective for controlling complex systems.• Flexible and can be reapplied to control other systems quickly and easily.• Computational abilities allow more sophisticated control.• Tr ouble shooting aids make programming easier and reduce downtime.• Reliable components make these likely to operate for years before failure.2.1.1 Ladder logicLadder logic is the main programming method used for PLCs. As mentioned before, ladder logic has been developed to mimic relay logic. logic diagrams was a strategic one. By selecting ladder logic as the main programming method, the amount of retraining needed forengineers and trades people was greatly reduced.Modern control systems still include relays, but these are rarely used for logic. A relay is a simple device that uses a magnetic field to control a switch, as pictured in Figure 2.1. When a voltage is applied to the input coil, the resulting current creates a magnetic field. The magnetic field pulls a metal switch (or reed) towards it and the contacts touch, closing the switch. The contact that closes when the coil is energized is called normally open. The normally closed contacts touch when the input coil is not energized. Relays are normally drawn in schematic form using a circle to represent the input coil. The output contacts are shown with two parallel lines. Normally open contacts are shown as two lines, and will be open (non-conducting) when the input is not energized. Normally closed contacts are shown with two lines with a diagonal line through them. When the input coil is not energized the normally closed contacts will be closed (conducting).Figure 2.1 Simple Relay Layouts and SchematicsRelays are used to let one power source close a switch for another (often high current) power source, while keeping them isolated. An example of a relay in a simple control application is shown in Figure 2.2. In this system the first relay on the left is used as normally closed, and will allow current to flow until a voltage is applied to the input A. The second relay is normally open and will not allow current to flow until a voltage is applied to the input B. If current is flowing through the first two relays then current will flow through the coil in the third relay, and close the switch for output C. This circuit would normally be drawn in the ladder logic form. This can be read logically as C will be on if A is off and B is on.Figure 2.2 A Simple Relay ControllerThe example in Figure 2.2 does not show the entire control system, but only the logic. When we consider a PLC there are inputs, outputs, and the logic. Figure 2.3 shows a more complete representation of the PLC. Here there are two inputs from push buttons.We can imagine the inputs as activating 24V DC relay coils in the PLC. This in turn drives an output relay that switches 115V AC, that will turn on a light. Note, in actual PLCs inputs are never relays, but outputs are often relays. The ladder logic in the PLC is actually a computer program that the user can enter and change. Notice that both of the input push buttons are normally open, but the ladder logic inside the PLC has one normally open contact, and one normally closed contact. Do not think that the ladder logic in the PLC need so match the inputs or outputs. Many beginners will get caught trying to make the ladder logic match the input types.Figure 2.3 A PLC Illustrated With RelaysMany relays also have multiple outputs (throws) and this allows an output relay to also be an input simultaneously. The circuit shown in Figure 1.4 is an example of this, it is called a seal in circuit. In this circuit the current can flow through either branch of the circuit, through the contacts labelled A or B. The input B will only be on when the output B is on. If B is off, and A is energized, then B will turn on. If B turns on then the input B will turn on, and keep output B on even if input A goes off. After B is turned on the output B will not turn off.Figure 2.4 A Seal-in Circuit2.1.2 ProgrammingThe first PLCs were programmed with a technique that was based on relay logic wiring schematics. This eliminated the need to teach the electricians, technicians and engineers how to program a computer - but, this method has stuck and it is the most common technique for programming PLCs today. An example of ladder logic can be seen in Figure 2.5. To interpret this diagram imagine that the power is on the vertical line on the left hand side, we call this the hot rail. On the right hand side is the neutral rail. In the figure there are two rungs, and on each rung there are combinations of inputs (two vertical lines) and outputs (circles). If the inputs are opened or closed in the right combination the power can flow from the hot rail, through the inputs, to power the outputs, and finally to the neutral rail. An input can come from a sensor, switch, or any other type of sensor. An output will be some device outside the PLC that is switched on or off, such as lights or motors. In the top rung the contacts are normally open and normally closed. Which means if input A is on and input B is off, then power will flow through the output and activate it. Any other combination of input values will result in the output X being off.Figure 2.5 A Simple Ladder Logic DiagramThe second rung of Figure 2.5 is more complex, there are actually multiple combinations of inputs that will result in the output Y turning on. On the left most part of the rung, power could flow through the top if C is off and D is on. Power could also (and simultaneously) flow through the bottom if both E and F are true. This would get power half way across the rung, and then if G or H is true the power will be delivered to output Y. In later chapters we will examine how to interpret and construct these diagrams.There are other methods for programming PLCs. One of the earliest techniques involved mnemonic instructions. These instructions can be derived directly from the ladderlogic diagrams and entered into the PLC through a simple programming terminal. An example of mnemonics is shown in Figure 2.6. In this example the instructions are read one line at a time from top to bottom. The first line 00000 has the instruction LDN (input load and not) for input A. . This will examine the input to the PLC and if it is off it will remember a 1 (or true), if it is on it will remember a 0 (or false). The next line uses an LD (input load) statement to look at the input. If the input is off it remembers a 0, if the input is on it remembers a 1 (note: this is the reverse of the LD). The AND statement recalls the last two numbers remembered and if the are both true the result is a 1, otherwise the result is a 0. This result now replaces the two numbers that were recalled, and there is only one number remembered. The process is repeated for lines 00003 and 00004, but when these are done there are now three numbers remembered. The oldest number is from the AND, the newer numbers are from the two LD instructions. The AND in line 00005 combines the results from the last LD instructions and now there are two numbers remembered. The OR instruction takes the two numbers now remaining and if either one is a 1 the result is a 1, otherwise the result is a 0. This result replaces the two numbers, and there is now a single number there. The last instruction is the ST (store output) that will look at the last value stored and if it is 1, the output will be turned on, if it is 0 the output will be turned off.Figure 2.6 An Example of a Mnemonic Program and Equivalent Ladder LogicThe ladder logic program in Figure 2.6, is equivalent to the mnemonic program. Even ifyou have programmed a PLC with ladder logic, it will be converted to mnemonic form before being used by the PLC. In the past mnemonic programming was the most common, but now it is uncommon for users to even see mnemonic programs.Sequential Function Charts (SFCs) have been developed to accommodate the programming of more advanced systems. These are similar to flowcharts, but much more powerful. The example seen in Figure 2.7 is doing two different things. To read the chart, start at the top where is says start. Below this there is the double horizontal line that says follow both paths. As a result the PLC will start to follow the branch on the left and right hand sides separately and simultaneously. On the left there are two functions the first one is the power up function. This function will run until it decides it is done, and the power down function will come after. On the right hand side is the flash function, this will run until it is done. These functions look unexplained, but each function, such as power up will be a small ladder logic program. This method is much different from flowcharts because it does not have to follow a single path through the flowchart..Figure 2.7 An Example of a Sequential Function CharStructured Text programming has been developed as a more modern programming language. It is quite similar to languages such as BASIC. A simple example is shown in Figure 2.8. This example uses a PLC memory location i. This memory location is for an integer, as will be explained later in the book. The first line of the program sets the value to 0. The next line begins a loop, and will be where the loop returns to. The next line recalls thevalue in location i, adds 1 to it and returns it to the same location. The next line checks to see if the loop should quit. If i is greater than or equal to 10, then the loop will quit, otherwise the computer will go back up to the REPEAT statement continue from there. Each time the program goes through this loop i will increase by 1 until the value reaches 10.Figure 2.8 An Example of a Structured Text Program2.1.3 PLC ConnectionsWhen a process is controlled by a PLC it uses inputs from sensors to make decisions and update outputs to drive actuators, as shown in Figure 2.9. The process is a real process that will change over time. Actuators will drive the system to new states (or modes of operation). This means that the controller is limited by the sensors available, if an input is not available, the controller will have no way to detect a condition.Figure 2.9 The Separation of Controller and ProcessThe control loop is a continuous cycle of the PLC reading inputs, solving the ladder logic, and then changing the outputs. Like any computer this does not happen instantly. Figure 2.10 shows the basic operation cycle of a PLC. When power is turned on initially the PLC does a quick sanity check to ensure that the hardware is working properly.If there is a problem the PLC will halt and indicate there is an error. For example, if the PLC power is dropping andabout to go off this will result in one type of fault. If the PLC passes the sanity check it will then scan (read) all the inputs. After the inputs values are stored in memory the ladder logic will be scanned (solved) using the stored values not the current values. This is done to prevent logic problems when inputs change during the ladder logic scan. When the ladder logic scan is complete the outputs will be scanned (the output values will be changed). After this the system goes back to do a sanity check, and the loop continues indefinitely. Unlike normal computers, the entire program will be run every scan. Typical times for each of the stages is in the order of milliseconds.Figure 2.10 The Scan Cycle of a PLC2.1.4 Ladder Logic InputsPLC inputs are easily represented in ladder logic. In Figure 2.11 there are three types of inputs shown. The first two are normally open and normally closed inputs, discussed previously. The IIT (Immediate InpuT) function allows inputs to be read after the input scan, while the ladder logic is being scanned. This allows ladder logic to examine input values more often than once every cycle.Figure 2.11 Ladder Logic Inputs2.1.5 Ladder Logic OutputsIn ladder logic there are multiple types of outputs, but these are not consistently available on all PLCs. Some of the outputs will be externally connected to devices outside the PLC, but it is also possible to use internal memory locations in the PLC. Six types of outputs are shown in Figure 2.12. The first is a normal output, when energized the output will turn on, and energize an output. The circle with a diagonal line through is a normally on output. When energized the output will turn off. This type of output is not available on all PLC types. When initially energized the OSR (One Shot Relay) instruction will turn on for one scan, but then be off for all scans after, until it is turned off. The L (latch) and U (unlatch) instructions can be used to lock outputs on. When an L output is energized the output will turn on indefinitely, even when the output coil is deenergized. The output can only be turned off using a U output. The last instruction is the IOT (Immediate OutpuT) The last instruction is the IOT (Immediate OutpuT)that will allow outputs to be updated without having to wait for the ladder logic scan to be completed.3.1 INPUTS AND OUTPUTSInputs to, and outputs from, a PLC are necessary to monitor and control a process. Both inputs and outputs can be categorized into two basic types: logical or continuous. Considerthe example of a light bulb. If it can only be turned on or off, it is logical control. If the light can be dimmed to different levels, it is continuous. Continuous values seem more intuitive, but logical values are preferred because they allow more certainty, and simplify control. As a result most controls applications (and PLCs) use logical inputs and outputs for most applications. Hence, we will discuss logical I/O and leave continuous I/O for later.Outputs to actuators allow a PLC to cause something to happen in a process. A short list of popular actuators is given below in order of relative popularity.Solenoid Valves - logical outputs that can switch a hydraulic or pneumatic flow. Lights - logical outputs that can often be powered directly from PLC output boards.Motor Starters - motors often draw a large amount of current when started, so they require motor starters, which are basically large relays.Servo Motors - a continuous output from the PLC can command a variable speed or position.Outputs from PLCs are often relays, but they can also be solid state electronics such as transistors for DC outputs or Triacs for AC outputs. Continuous outputs require special output cards with digital to analog converters.Inputs come from sensors that translate physical phenomena into electrical signals. Typical examples of sensors are listed below in relative order of popularity.Proximity Switches - use inductance, capacitance or light to detect an object logically. Switches - mechanical mechanisms will open or close electrical contacts for a logical signal. Potentiometer - measures angular positions continuously, using resistance.LVDT (linear variable differential transformer) - measures linear displacement continuously using magnetic coupling.Inputs for a PLC come in a few basic varieties, the simplest are AC and DC inputs. Sourcing and sinking inputs are also popular. This output method dictates that a device does not supply any power. Instead, the device only switches current on or off, like a simple switch. Sinking - When active the output allows current to flow to a common ground. This is best selected when different voltages are supplied. Sourcing - When active, current flows from asupply, through the output device and to ground. This method is best used when all devices use a single supply voltage. This is also referred to as NPN (sinking) and PNP (sourcing). PNP is more popular. This will be covered in detail in the chapter on sensors.3.1.1 InputsIn smaller PLCs the inputs are normally built in and are specified when purchasing the PLC. For larger PLCs the inputs are purchased as modules, or cards, with 8 or 16 inputs of the same type on each card. For discussion purposes we will discuss all inputs as if they have been purchased as cards. The list below shows typical ranges for input voltages, and is roughly in order of popularity. PLC input cards rarely supply power, this means that an external power supply is needed to supply power for the inputs and sensors. The example in Figure 3.1 shows how to connect an AC input card.Figure 3.1 An AC Input Card and Ladder LogicIn the example there are two inputs, one is a normally open push button, and the second is a temperature switch, or thermal relay. (NOTE: These symbols are standard and will be discussed later in this chapter.) Both of the switches are powered by the positive/ hot output ofthe 24Vac power supply - this is like the positive terminal on a DC supply. Power is supplied to the left side of both of the switches. When the switches are open there is no voltage passed to the input card. If either of the switches are closed power will be supplied to the input card. In this case inputs 1 and 3 are used - notice that the inputs start at 0. The input card compares these voltages to the common. If the input voltage is within a given tolerance range the inputs will switch on. Ladder logic is shown in the figure for the inputs. Here it uses Allen Bradley notation for PLC-5 racks. At the top is the location of the input card I:013 which indicates that the card is an Input card in rack 01 in slot 3. The input number on the card is shown below the contact as 01 and 03.Many beginners become confused about where connections are needed in the circuit above. The key word to remember is circuit, which means that there is a full loop that the voltage must be able to follow. In Figure 3.1 we can start following the circuit (loop) at the power supply. The path goes through the switches, through the input card, and back to the power supply where it flows back through to the start. In a full PLC implementation there will be many circuits that must each be complete. A second important concept is the common. Here the neutral on the power supply is the common, or reference voltage. In effect we have chosen this to be our 0V reference, and all other voltages are measured relative to it. If we had a second power supply, we would also need to connect the neutral so that both neutrals would be connected to the same common. Often common and ground will be confused. The common is a reference, or datum voltage that is used for 0V, but the ground is used to prevent shocks and damage to equipment. The ground is connected under a building to a metal pipe or grid in the ground. This is connected to the electrical system of a building, to the power outlets, where the metal cases of electrical equipment are connected. When power flows through the ground it is bad. Unfortunately many engineers, and manufacturers mix up ground and common. It is very common to find a power supply with the ground and common mislabeled.One final concept that tends to trap beginners is that each input card is isolated. This means that if you have connected a common to only one card, then the other cards are not connected. When this happens the other cards will not work properly. You must connect acommon for each of the output cards.3.1.2.Output ModulesAs with input modules, output modules rarely supply any power, but instead act as switches. External power supplies are connected to the output card and the card will switch the power on or off for each output. Typical output voltages are listed below, and roughly ordered by popularity.120 Vac24 Vdc12-48 Vac12-48 Vdc5Vdc (TTL)230 VacThese cards typically have 8 to 16 outputs of the same type and can be purchased with different current ratings. A common choice when purchasing output cards is relays, transistors or triacs. Relays are the most flexible output devices. They are capable of switching both AC and DC outputs. But, they are slower (about 10ms switching is typical), they are bulkier, they cost more, and they will wear out after millions of cycles. Relay outputs are often called dry contacts. Transistors are limited to DC outputs, and Triacs are limited to AC outputs. Transistor and triac outputs are called switched outputs. Dry contacts - a separate relay is dedicated to each output.This allows mixed voltages (AC or DC and voltage levels up to the maximum), as well as isolated outputs to protect other outputs and the PLC. Response times are often greater than 10ms. This method is the least sensitive to voltage variations and spikes. Switched outputs - a voltage is supplied to the PLC card, and the card switches it to different outputs using solid state circuitry (transistors, triacs, etc.) Triacs are well suited to AC devices requiring less than 1A. Transistor outputs use NPN or PNP transistors up to 1A typically. Their response time is well under 1ms.中文翻译自动化制造系统与PLC2．1介绍控制工程随着时间的推移在不断发展。

关于PLC的中英文对照翻译

原文：PLC Communication using PROFINET: ExperimentalResults and AnalysisAbstractPROFINET is the Industrial Ethernet Standard devised by PROFIBUS International for “Ethernet on the plant ﬂoor”. PROFINET allows to implement a comprehensive communications solution on Ethernet which includes peer-to-peer communication between controllers, distributed I/O, machine safety, motion control and data acquisition. In this paper an analysis is conducted on the peer-to-peer interlocking performance based on PROFINET speciﬁcation. Tests were performed to determine the performance of the peer-to-peer communication mechanism, to evaluate the impact of switches on the system, and to measure the impact of data size on peer-to-peer communication performance. The paper summarizes the test results. 1.IntroductionAlthough a wide variety of networks and ﬁeldbuse s have been used in the manufacturing industry over the past decade [1], the widespread adoption of Ethernet as a de facto standard in other domains (e.g., the internet) has made it an attractive option to consider. The increased network speed and the reduced cost of devices has further heightened interest. The introduction of switched Ethernet has allowed formore deterministic behavior and alleviated many of the concerns about unbounded delays [2, 3, 4]. Ethernet is already being widely used as a diagnostic network in manufacturing systems and is making inroads into the control networking domain [5, 6].However, standard Ethernet (IEEE 802.3) is not a deterministic protocol, and network quality of service cannot be guaranteed. To address this inherent nondeterminism, different “ﬂavors” of Ethernet have been proposed for use in industrial automation. Several of these add layers on top of standard Ethernet or on top of the TCP/IP protocol suite to enable the behavior of Ethernet to be moredeterministic [7]. However, the network solutions may no longer be “Ethernet” other than at the physical layer.Since time delay is an important issue in control systems, there have been a number of projects devoted to analyzing and experimentally testing network performance for use in control systems. It has been shown that the largest component of the time delay in sending messages from one node to another is typically not on the network itself, but rather the application layer that interfaces to the network [8, 9]. Experimental analyses have been carried out to speciﬁcally address the issue of delays in switched Ethernet [10, 4]. However, due to the relatively recent introduction of commercial devices that implement the new industrial Ethernet protocols, there have been only a few published accounts of their actual performance [11, 12].Over the past six months, our group at the University of Michigan has undertaken an industrial Ethernet testing project [13]. The goal of the project was to evaluate the suitability of real-time Ethernet for peer-to-peer communication between PLCs on a factory ﬂoor. The purpose of this paper is to summarize the results of our tests on PROFINET, and discuss our ﬁndings.The outline of the paper is as follows. In Section II, we summarize how PROFINET enables real-time communication over Ethernet. In Section III, we describe the tests that were performed. Section IV presents the results of those tests, and conclusions are given in Section V.2.PROFINET CBA with Real-Time Channel Communication PROFINET distinguishes two views: PROFINET IO for integration of distributed I/O and PROFINET CBA (Component Based Automation) for creation of peer-to-peer communication and interlocking between controllers in modular plants (Figure 1)All other PROFINET applications such as safety, motion control, and HMI (Human Machine Interface) are based on these communication modes. PROFINET communication is scalable in three levels: PROFINET TCP/IP Communication (NRT) enables cycle times as low as 100 ms, PROFINET Real-Time Communication (RT) enables cycle times up to 1-10 ms and Isochronous Real-Time Communication (IRT) enables cycle times up to 1 ms with Jitter less than 1µs.Component based communication is realized through PROFINET CBA which uses selectively the TCP/IP or the Real-Time (RT) channel. Communication for distributed I/O is implemented through PROFINET I/O which uses Real-Time and Isochronous Real-Time (IRT) communication.PROFINET Real-Time Channel The PROFINET Real Time Channel is a cyclic communication path used by individual stations to exchange time critical data at periodic intervals speciﬁed by the programmer. It is based on the IEEE and IEC deﬁnition s [14], which only permit a limited time for execution of Real-Time services within a bus cycle. Real-Time data are handled with higher priority than Non-Real-Time (NRT) data. The tightness of the window depends on the Real-Time characteristics. The Real-Time mechanism is based on Layer 2 of the OSI model and several protocol layers are omitted. Thus the communication overhead associated with preparing data, transferring it and making it available to the overlying application for use are reduced. Using Ethereal it was found that the total overhead associated with Cyclic Real Time communication is 56 bytes.3.Tests PerformedThe following tests were designed to measure the impact of system parameters on peer-to-peer interlocking performance using PROFINET CBA with RTcommunication method. The system parameters include data size and number of switches. The tests are vendor neutral so that any implementation can be conﬁgured to undergo each test. Connection failures or errors are not included in this test plan. To perform tests the following equipment was used: one computer with Matlab and the protocol analyzer Ethereal, SIMATIC iMap and STEP7 as conﬁguration software, ﬁve switches from Hirschmann and two Siemens SIMATIC PLCs (Programmable Logic Controllers). The PLCs were conﬁgured using the factory defaults for processor and communication allocation options. The Hirschmann switches (100Mbps) were conﬁgured for port speed auto negotiation. Due to the fact that PROFINET is based on Unicast communication the Multic ast functionality was not conﬁgured in the switches.3.1 PerformanceMetricsThe performance metrics analyzed are PLC1 Packet Time Interval and Round Trip Time Interval.PLC1 Packet Time Interval is the time between two successive transmittals of packets from PLC1. Ideally, the PLC1 Packet Time Interval is always exactly the same as the conﬁgured update interval in the PLC. However, in practice there is some variability associated with this interval. The experimental results that follow summarize the average (mean value) and the jitter (standard deviation) of the PLC1 packet time interval. These metrics (mean and standard deviation) are important, as they give ameasure of the determinismthat can be obtained for realtime control using PROFINET.Round Trip Time Interval is deﬁned as the Time Interval needed for a packet from PLC1 to reach PLC2, be echoed and come back to PLC1. Consider a test where PLC1 generates data and PLC2 echoes themback to PLC1 through a switch.Figure 2 shows the timing chart for the communication between PLC1 and PLC2 where PLC1 sends messages at T1, T2, T3,. . . and PLC2 echoes at t1, t2, t3,. . . . PLC1 Packet Time Interval should be equal to the conﬁgured update interval on PLC1, and PLC2 Packet Time Interval should be equal to conﬁgured update interval on PLC2. If the echo from PLC2 arrives before T2, then the round trip counter getsincremented and the new value is transmitted from PLC1 at T2. Since the increment of the round trip counter is taken for calculation of the Round Trip Time Interval, in this case it should be equal to the PLC1 Packet Time Interval. Consider the case when t1 shifts relative to T2. Then the echo fromPLC2 is received after T2, and the round trip counter is not incremented in themessage transmitted from PLC1 at T2. Hence, the Round Trip Time Interval becomes twice the PLC1 Packet Time Interval.Figure 2. Timing chartFrom the above observations it is noticed that Round Trip Time interval mean and standard deviation are also important as measures of the degree of synchronization for real-time control using PROFINET.3.2 Test DescriptionsTest1: Benchmark Test1 is the benchmark test. The other tests are compared to Test1. In this test PLC1 generates eight bytes of data and PLC2 echoes it back to PLC1 through a switch. PLC1 uses the last 4 bytes (dint) of the data for a new data received counter. PLC1 increments this counter as discussed in section 3.1.To perform measurements, a PC running Ethereal was connected to the managed switch which connects to the PLCs. All packets going to and from PLC2 and theirrespective timestamps were mirrored onto this port.Test2: Network Switches The objective of Test2 is to evaluate the impact that switches introduce to the system. The number of switches between two PLCs is the test variable. The same variables are measured as in Test1. We will consider the case of three and ﬁve switches between the PLCs.Test3: Size of Data The objective of Test3 is to measure the impact of data size on peer-to-peer communication performance. The test variable is the data size. Measurements are performed as described in Test1. We will consider two cases. In the ﬁrst case 216 bytes of unused data, in the second 440 bytes of unused data.4.Test ResultsIn performing the tests and analyzing the results a data capture of 5000 packets per PLC is considered in order to assess the timing performance. The average and standard deviation values of PLC1 Packet Time Interval and Round Trip Time Interval are measured in milliseconds and rounded off to th ree signiﬁcant digits after the decimal point. All tests are performed with an update time of 8ms which is typical for these applications in the factory. Figures 3, 4 and 5 show the benchmark test results, PLC1 Packet Time Interval, Round Trip Time Interval histogram, and Round Trip Time Interval scattering diagram respectively. We can notice the highly deterministic behavior of the network. Since we are using the PROFINET RT protocol a similar behavior is expected also from the other tests.Figure 3. Test1 PLC1 Packet Time Interval histogram4.1 Network SwitchesTo evaluate the impact that switches introduce to the system, data results from Test1 will be compared to those obtained from Test2. Tables 1 and 2 show that, in the case of three or ﬁve switche s between two PLCs, there are no signiﬁcant changes between the two tests. PLCs Packet Time Interval and Round Trip Time Interval present the same average value and similar standard deviation. Figure 6 shows the histogram of round trip time interval for Test2 which is close to that of Test1 (Figure 4). As expected the switches do not alter the performance metrics. Similar resultswere found in [10].Figure 4. Test1 Round Trip Time Interval histogramFigure 5. Test1 Round Trip Time Interval scattering diagramFigure 6. Test2 Round Trip Time Interval histogram, case with 3 switches4.2 Size of DataBy comparing the results of Test1 and Test3 we will measure the impact of data size on peer-to-peer communication performance. As observed in Tables 1 and 2, PLC1 packet and Round Trip Time Interval average values are the same. In both PLC1 packet and Round Trip Time Intervals there is a decrease of value in standard deviation. Figure 7 shows the Round Trip Time Interval of Test3 with three switches which behaves like Test1 round trip interval (Figure 4). From the results obtained (Tables 1 and 2) we can conclude that data size does not impact Packet and RoundTrip Time Interval.Figure 7. Test3 Round Trip Time Interval histogram, case with 216 bytes 5.ConclusionsTo measure the impact of data size carried by a packet and switches on a PROFINET CBA with RT communication based network three tests were designed. Test1, represented by a simple network made of two PLCs and one switch, was used as benchmark. Figures 3, 4 and 5 showed the deterministic behavior of the network. Test2 is similar to Test1 but instead of one switch, three to ﬁve have been used. Test3 is also similar to Test1 but, instead of using 8 bytes data per packet, 216 and 440 bytes were used. To investigate the delay introduced by the switches Test1 and Test2 results were compared. The impact of data size was analyzed by comparing Test1 and Test3. Results show that PLC1 Packet Time Interval and Round Trip Time Interval are unaffected by data size per packet and number of switches. AcknowledgementsThis work was supported in part by the Engineering Research Center for Reconﬁgurable Manufacturing Systems of the National Science Foundation under Award Number EEC-9529125. The authors would also like to acknowledge the support received from General Motors Powertrain, Siemens and Hirschmann in thecompletion of the tests.References[1] J.-P. Thomesse, “Fieldbus Technology in Industrial Automation”, Proc. of theIEEE, vol. 93, no. 6, 2005.[2] J. M oyne and F. Lian, “Design considerations for a sensor bus system insemiconductor manufacturing”, in International SEMATECH AEC/APC Workshop XII, 2000.[3] P. G. Otanez, J. T. Parrott, J. R.Moyne, and D. M. Tilbury, “The Implications ofEthernet as a Co ntrol Network”, in Proc. of the Global Powertrain Congress, 2002.[4] K. C. Lee and S. Lee, “Performance evaluation of switched Ethernet fornetworked control systems”, in Proc. of IEEE Conf. of the Industrial Electronics Society, volume 4, 2002.[5] J.-D. Decotignie, “Ethernet-Based Real-Time and Industrial Communications”,Proc. of the IEEE, vol. 93, no. 6, 2005.[6] J. Montague, “Networks Busting Out All Over”, Control Engineering, vol. 52, no.3, March 2005.[7] M. Felser, “Real-Time Ethernet—Indus try Prospective”, Proc. of the IEEE, vol. 93,no. 6, 2005.[8] F.-L. Lian, J. R. Moyne, and D. M. Tilbury, “Network Design Consideration forDistributed Control Systems”, IEEE Trans. on Control Systems Technology, vol.10, no. 2, 2002.[9] J. T. Parrott, J. R. Moyne, and D. M. Tilbury, “Experimental Determination ofNetwork Quality of Service in Ethernet: UDP, OPC, and VPN”, in Proc. of the American Control Conf., 2006.[10] E. V onnahme, S. Ruping, and U. Ruckert, “Measurements in switched Ethernetne tworks used for automation systems”, in Proc. of IEEE International Workshop on Factory Communication Systems, 2000.[11] P. Ferrari, A. Flammini, and S. Vitturi, “Response Times Evaluation ofPROFINETNetworks”, in Proc. of the IEEE Int. Symposium on IndustrialElectronics, 2005.[12] P. Ferrari, A. Flammini, D.Marioli, and A. Taroni, “Experimental evaluation ofPROFINET performance”, in Proc.of the IEEE Int.Workshop on Factory Communication Systems (WFCS), 2004.[13] K. Acton, S. Mantri, J. Parrott, N. Kalappa, M. Antolovic, J. Luntz, J. Moyne,and D. Tilbury, “UM-ERC Industrial Ethernet Evaluation Project: Peer-to-peer Interlockign Performance Report”, Technical report, University of Michigan Engineering Research Center for Reconﬁgurable Manufactu ring Systems, February 2006.[14] M. Popp, K. Weber, “The Rapid Way to PROFINET”,Editor PROFIBUSNutzeroranisation e.V., 2004.译文：PROFINET在PLC通讯中的使用：实验结果及分析摘要：PROFINET是国际现场总线在“以太网物理层”分离出来的工业以太网标准。

PLC中英文资料外文翻译

可编程控制器外文翻译、中英文翻译、外文文献翻译

毕业设计中英文翻译院系专业班级姓名学号指导教师20**年 4 月Programmable Logic Controllers (PLC)1、MotivationProgrammable Logic Controllers (PLC), a computing device invented by Richard E. Morley in 1968, have been widely used in industry including manufacturing systems, transportation systems, chemical process facilities, and many others. At that time, the PLC replaced the hardwired logic with soft-wired logic or so-called relay ladder logic (RLL), a programming language visually resembling the hardwired logic, and reduced thereby the configuration time from 6 months down to 6 days [Moody and Morley, 1999].Although PC based control has started to come into place, PLC based control will remain the technique to which the majority of industrial applications will adhere due to its higher performance, lower price, and superior reliability in harsh environments. Moreover, according to a study on the PLC market of Frost and Sullivan [1995], an increase of the annual sales volume to 15 million PLCs per year with the hardware value of more than 8 billion US dollars has been predicted, though the prices of computing hardware is steadily dropping. The inventor of the PLC, Richard E Morley, fairly considers the PLC market as a 5-billion industry at the present time.Though PLCs are widely used in industrial practice, the programming of PLC based control systems is still very much relying on trial-and-error. Alike software engineering, PLC software design is facing the software dilemma or crisis in a similar way. Morley himself emphasized this aspect most forcefully by indicating [Moody and Morley, 1999, p. 110]:`If houses were built like software projects, a single woodpecker could destroy civilization.”Particularly, practical problems in PLC programming are to eliminate software bugs and to reduce the maintenance costs of old ladder logic programs. Though the hardware costs of PLCs are dropping continuously, reducing the scan time of the ladder logic is still an issue in industry so that low-cost PLCs can be used.In general, the productivity in generating PLC is far behind compared to other domains, for instance, VLSI design, where efficient computer aided design tools are in practice. Existent software engineering methodologies are not necessarily applicable to the PLC basedsoftware design because PLC-programming requires a simultaneous consideration of hardware and software. The software design becomes, thereby, more and more the major cost driver. In many industrial design projects, more than SO0/a of the manpower allocated for the control system design and installation is scheduled for testing and debugging PLC programs [Rockwell, 1999].In addition, current PLC based control systems are not properly designed to support the growing demand for flexibility and reconfigurability of manufacturing systems. A further problem, impelling the need for a systematic design methodology, is the increasing software complexity in large-scale projects.PLCs (programmable logic controllers) are the control hubs for a wide variety of automated systems and processes. They contain multiple inputs and outputs that use transistors and other circuitry to simulate switches and relays to control equipment. They are programmable via software interfaced via standard computer interfaces and proprietary languages and network options.Programmable logic controllers I/O channel specifications include total number of points, number of inputs and outputs, ability to expand, and maximum number of channels. Number of points is the sum of the inputs and the outputs. PLCs may be specified by any possible combination of these values. Expandable units may be stacked or linked together to increase total control capacity. Maximum number of channels refers to the maximum total number of input and output channels in an expanded system. PLC system specifications to consider include scan time, number of instructions, data memory, and program memory. Scan time is the time required by the PLC to check the states of its inputs and outputs. Instructions are standard operations (such as math functions) available to PLC software. Data memory is the capacity for data storage. Program memory is the capacity for control software.Available inputs for programmable logic controllers include DC, AC, analog, thermocouple, RTD, frequency or pulse, transistor, and interrupt inputs. Outputs for PLCs include DC, AC, relay, analog, frequency or pulse, transistor, and triac. Programming options for PLCs include front panel, hand held, and computer.Programmable logic controllers use a variety of software programming languages for control. These include IEC 61131-3, sequential function chart (SFC), function block diagram (FBD), ladder diagram (LD), structured text (ST), instruction list (IL), relay ladder logic (RLL), flow chart, C, and Basic. The IEC 61131-3 programming environment provides support for five languages specified by the global standard: Sequential Function Chart,Function Block Diagram, Ladder Diagram, Structured Text, and Instruction List. This allows for multi-vendor compatibility and multi-language programming. SFC is a graphical language that provides coordination of program sequences, supporting alternative sequence selections and parallel sequences. FBD uses a broad function library to build complex procedures in a graphical format. Standard math and logic functions may be coordinated with customizable communication and interface functions. LD is a graphic language for discrete control and interlocking logic. It is completely compatible with FBD for discrete function control. ST is a text language used for complex mathematical procedures and calculations less well suited to graphical languages. IL is a low-level language similar to assembly code. It is used in relatively simple logic instructions. Relay Ladder Logic (RLL), or ladder diagrams, is the primary programming language for programmable logic controllers (PLCs). Ladder logic programming is a graphical representation of the program designed to look like relay logic. Flow Chart is a graphical language that describes sequential operations in a controller sequence or application. It is used to build modular, reusable function libraries. C is a high level programming language suited to handle the most complex computation, sequential, and data logging tasks. It is typically developed and debugged on a PC. BASIC is a high level language used to handle mathematical, sequential, data capturing and interface functions.Programmable logic controllers can also be specified with a number of computer interface options, network specifications and features. PLC power options, mounting options and environmental operating conditions are all also important to consider.2、ResumeA PLC (programmable Logic Controller) is a device that was invented to replace the necessary sequential relay circuits for control.The PLC works by looking at its input and depending upon their state, turning on/off its outputs. The user enters a program, usually via software or programmer, which gives the desired results.PLC is used in many "real world" applications. If there is industry present, chance are good that there is a PLC present. If you are involved in machining, packing, material handling, automated assembly or countless other industries, you are probably already using them. If you are not, you are wasting money and time. Almost any application that needs some type of electrical control has a need for a PLC.For example, let's assume that when a switch turns on we want to turn a solenoid on for 5second and then turn it off regardless of how long the switch is on for. We can do this with a simple external timer. But what if the process included 10 switches and solenoids? We should need 10 external times. What if the process also needed to count how many times the switch individually turned on? We need a lot of external counters.As you can see the bigger the process the more of a need we have for a PLC. We can simply program the PLC to count its input and turn the solenoids on for the specified time.We will take a look at what is considered to be the "top 20" PLC instructions. It can be safely estimated that with a firm understanding of these instructions one can solve more than 80% of the applications in existence.Of course we will learn more than just these instruction to help you solve almost ALL potential PLC applications.The PLC mainly consists of a CPU, memory areas, and appropriate circuits to receive input/output data. We can actually consider the PLC to be a box full of hundreds or thousands of separate relay, counters, times and data storage locations,Do these counters,timers, etc. really exist? No,they don't "physically" exist but rather they simulated and be considered software counters, timers, etc. . These internal relays are simulated through bit locations in registers.What does each part do? Let me tell you.Input RelaysThese are connected to the outside world.They physically exsit and receive signals from switches,sensors,ect..Typically they are not relays but rather they are transistors.Internal Utility RelaysThese do not receive signals from the outside world nor do they physically exist.they are simulated relays and are what enables a PLC to eliminate external relays.There are also some special relays that are dedicated to performing only one task.Some are always on while some are always off.Some are on only once during power-on and are typically used for initializing data that was stored.CountersThese again do not physically exist. They are simulated counters and they can be programmed to count pulses.Typically these counters can count up,down or both up anddown.Since they are simulated,they are limited in their counting speed.Some manufacturers also include high-speed counters that are hardware based.We think of these as physically existing.Most times these counters can count up,down or up and down.TimersThese also do not physically exist.They come in many varieties and increments.The most common type is an on-delay type.Others include off-delays and both retentive and non-retentive types.Increments vary from 1ms through 1s.Output RelaysThere are connected to the outside world.They physically exist and send on/off signals to solenoids,lights,etc..They can be transistors,relays,or triacs depending upon the model chosen Data StorageTypically there are registers assigned to simply store data.They are usually used as temporary storage for math or data manipulation.They can also typically be used to store data when power is removed form the PLC.Upon power-up they will still have the same contents as before power was moved.Very convenient and necessary!A PLC works by continually scanning a program.We can think of this scan cycle as consisting of 3 important steps.There are typically more than 3 but we can focus on the important parts and not worry about the others,Typically the others are checking the system and updating the current internal counter and timer values,Step 1 is to check input status,First the PLC takes a look at each input to determine if it is on off.In other words,is the sensor connected to the first input on?How about the third...It records this data into its memory to be used during the next step.Step 2 is to execute program.Next the PLC executes your program one instruction at a time.Maybe your program said that if the first input was on then it should turn on the first output.Since it already knows which inputs are on/off from the previous step,it will be able to decide whether the first output should be turned on based on the state of the first input.It will store the execution results for use later during the next step.Step 3 is to update output status.Finally the PLC updates the status the outputs.It updates the outputs based on which inputs were on during the first step and the results executing your program during the second step.Based on the example in step 2 it would now turn on the firstoutput because the first input was on and your program said to turn on the first output when this condition is true.After the third step the PLC goes back to step one repeats the steps continuously.One scan time is defined as the time it takes to execute the 3 steps continuously.One scan time is defined as the time it takes to execute the 3 steps listed above.Thus a practical system is controlled to perform specified operations as desired.3、PLC StatusThe lack of keyboard, and other input-output devices is very noticeable on a PLC. On the front of the PLC there are normally limited status lights. Common lights indicate;power on - this will be on whenever the PLC has powerprogram running - this will often indicate if a program is running, or if no program is runningfault - this will indicate when the PLC has experienced a major hardware or software problemThese lights are normally used for debugging. Limited buttons will also be provided for PLC hardware. The most common will be a run/program switch that will be switched to program when maintenance is being conducted, and back to run when in production. This switch normally requires a key to keep unauthorized personnel from altering the PLC program or stopping execution. A PLC will almost never have an on-off switch or reset button on the front. This needs to be designed into the remainder of the system.The status of the PLC can be detected by ladder logic also. It is common for programs to check to see if they are being executed for the first time, as shown in Figure 1. The ’first scan’ input will be true on the very first time the ladder logic is scanned, but false on every other scan. In this case the address for ’first scan’ in a PLC-5 is ’S2:1/14’. With the logic in the example the first scan will seal on ’light’, until ’clear’ is turned on. So the light will turn on after the PLC has been turned on, but it will turn off and stay off after ’clear’ is turned on. The ’first scan’ bit is also referred to at the ’first pass’ bit.Figure 1 An program that checks for the first scan of the PLC4、Memory TypesThere are a few basic types of computer memory that are in use today.RAM (Random Access Memory) - this memory is fast, but it will lose its contents when power is lost, this is known as volatile memory. Every PLC uses this memory for the central CPU when running the PLC.ROM (Read Only Memory) - this memory is permanent and cannot be erased. It is often used for storing the operating system for the PLC.EPROM (Erasable Programmable Read Only Memory) - this is memory that can be programmed to behave like ROM, but it can be erased with ultraviolet light and reprogrammed.EEPROM (Electronically Erasable Programmable Read Only Memory) – This memory can store programs like ROM. It can be programmed and erased using a voltage, so it is becoming more popular than EPROMs.All PLCs use RAM for the CPU and ROM to store the basic operating system for the PLC. When the power is on the contents of the RAM will be kept, but the issue is what happens when power to the memory is lost. Originally PLC vendors used RAM with a battery so that the memory contents would not be lost if the power was lost. This method is still in use, but is losing favor. EPROMs have also been a popular choice for programming PLCs. The EPROM is programmed out of the PLC, and then placed in the PLC. When the PLC is turned on the ladder logic program on the EPROM is loaded into the PLC and run. This method can be very reliable, but the erasing and programming technique can be time consuming. EEPROM memories are a permanent part of the PLC, and programs can be stored in them like EPROM. Memory costs continue to drop, and newer types (such as flash memory) are becoming available, and these changes will continue to impact PLCs.5、Objective and Significance of the ThesisThe objective of this thesis is to develop a systematic software design methodology for PLC operated automation systems. The design methodology involves high-level description based on state transition models that treat automation control systems as discrete event systems, a stepwise design process, and set of design rules providing guidance and measurements to achieve a successful design. The tangible outcome of this research is to find a way to reduce the uncertainty in managing the control software development process, that is, reducing programming and debugging time and their variation, increasing flexibility of theautomation systems, and enabling software reusability through modularity. The goal is to overcome shortcomings of current programming strategies that are based on the experience of the individual software developer.A systematic approach to designing PLC software can overcome deficiencies in the traditional way of programming manufacturing control systems, and can have wide ramifications in several industrial applications. Automation control systems are modeled by formal languages or, equivalently, by state machines. Formal representations provide a high-level description of the behavior of the system to be controlled. State machines can be analytically evaluated as to whether or not they meet the desired goals. Secondly, a state machine description provides a structured representation to convey the logical requirements and constraints such as detailed safety rules. Thirdly, well-defined control systems design outcomes are conducive to automatic code generation- An ability to produce control software executable on commercial distinct logic controllers can reduce programming lead-time and labor cost. In particular, the thesis is relevant with respect to the following aspect Customer-Driven ManufacturingIn modern manufacturing, systems are characterized by product and process innovation, become customer-driven and thus have to respond quickly to changing system requirements.A major challenge is therefore to provide enabling technologies that can economically reconfigure automation control systems in response to changing needs and new opportunities. Design and operational knowledge can be reused in real-time, therefore, giving a significant competitive edge in industrial practice.Higher Degree of Design Automation and Software QualityStudies have shown that programming methodologies in automation systems have not been able to match rapid increase in use of computing resources. For instance, the programming of PLCs still relies on a conventional programming style with ladder logic diagrams. As a result, the delays and resources in programming are a major stumbling stone for the progress of manufacturing industry. Testing and debugging may consume over 50% of the manpower allocated for the PLC program design. Standards [IEC 60848, 1999; IEC-61131-3, 1993; IEC 61499, 1998; ISO 15745-1, 1999] have been formed to fix and disseminate state-of-the-art design methods, but they normally cannot participate in advancingthe knowledge of efficient program and system design.A systematic approach will increase the level of design automation through reusing existing software components, and will provide methods to make large-scale system design manageable. Likewise, it will improve software quality and reliability and will be relevant to systems high security standards, especially those having hazardous impact on the environment such as airport control, and public railroads.System ComplexityThe software industry is regarded as a performance destructor and complexity generator. Steadily shrinking hardware prices spoils the need for software performance in terms of code optimization and efficiency. The result is that massive and less efficient software code on one hand outpaces the gains in hardware performance on the other hand. Secondly, software proliferates into complexity of unmanageable dimensions; software redesign and maintenance-essential in modern automation systems-becomes nearly impossible. Particularly, PLC programs have evolved from a couple lines of code 25 years ago to thousands of lines of code with a similar number of 1/O points. Increased safety, for instance new policies on fire protection, and the flexibility of modern automation systems add complexity to the program design process. Consequently, the life-cycle cost of software is a permanently growing fraction of the total cost. 80-90% of these costs are going into software maintenance, debugging, adaptation and expansion to meet changing needs [Simmons et al., 1998].Design Theory DevelopmentToday, the primary focus of most design research is based on mechanical or electrical products. One of the by-products of this proposed research is to enhance our fundamental understanding of design theory and methodology by extending it to the field of engineering systems design. A system design theory for large-scale and complex system is not yet fully developed. Particularly, the question of how to simplify a complicated or complex design task has not been tackled in a scientific way. Furthermore, building a bridge between design theory and the latest epistemological outcomes of formal representations in computer sciences and operations research, such as discrete event system modeling, can advance future development in engineering design.Application in Logical Hardware DesignFrom a logical perspective, PLC software design is similar to the hardware design of integrated circuits. Modern VLSI designs are extremely complex with several million parts and a product development time of 3 years [Whitney, 1996]. The design process is normally separated into a component design and a system design stage. At component design stage, single functions are designed and verified. At system design stage, components are aggregated and the whole system behavior and functionality is tested through simulation. In general, a complete verification is impossible. Hence, a systematic approach as exemplified for the PLC program design may impact the logical hardware design.可编程控制器1、前言可编程序的逻辑控制器（PLC），是由Richard E.Morley 于1968年发明的，如今已经被广泛的应用于生产、运输、化学等工业中。

(完整版)PLC英文文献+翻译

自动化专业本科毕业设计英文翻译学院(部)：专业班级：学生姓名：指导教师：年月日Programmable Logic ControllerONE：PLC overviewProgrammable controller is the first in the late 1960s in the United States, then called PLC programmable logic controller (Programmable Logic Controller) is used to replace relays. For the implementation of the logical judgment, timing, sequence number, and other control functions. The concept is presented PLC General Motors Corporation. PLC and the basic design is the computer functional improvements, flexible, generic and other advantages and relay control system simple and easy to operate, such as the advantages of cheap prices combined controller hardware is standard and overall. According to the practical application of target software in order to control the content of the user procedures memory controller, the controller and connecting the accused convenient target.In the mid-1970s, the PLC has been widely used as a central processing unit microprocessor, import export module and the external circuits are used, large-scale integrated circuits even when the Plc is no longer the only logical (IC) judgment functions also have data processing, PID conditioning and data communications functions. International Electro technical Commission (IEC) standards promulgated programmable controller for programmable controller draft made the following definition : programmable controller is a digital electronic computers operating system, specifically for applications in the industrial design environment. It used programmable memory, used to implement logic in their internal storage operations, sequence control, timing, counting and arithmetic operations, such as operating instructions, and through digital and analog input and output, the control of various types of machinery or production processes. Programmable controller and related peripherals, and industrial control systems easily linked to form a whole, to expand its functional design. Programmable controller for the user, is a non-contact equipment, the procedures can be changed to change production processes. The programmable controller has become a powerful tool for factory automation, widely popular replication.Programmable controller is user-oriented industries dedicated control computer, with many distinctive features.First, high reliability, anti-interference capability;Second，programming visual, simple;Third, adaptability good;Fourth functional improvements, strong functional interface. TWO：History of PLCProgrammable Logic Controllers (PLC), a computing device invented by Richard E. Morley in 1968, have been widely used in industry including manufacturing systems, transportation systems, chemical process facilities, and many others. At that time, the PLC replaced the hardwired logic with soft-wired logic or so-called relay ladder logic (RLL), a programming language visually resembling the hardwired logic, and reduced thereby the configuration time from 6 months down to 6 days [Moody and Morley, 1999].Although PC based control has started to come into place, PLC based control will remain the technique to which the majority of industrial applications will adhere due to its higher performance, lower price, and superior reliability in harsh environments. Moreover, according to a study on the PLC market of Frost and Sullivan [1995], an increase of the annual sales volume to 15 million PLC per year with the hardware value of more than 8 billion US dollars has been predicted, though the prices of computing hardware is steadily dropping. The inventor of the PLC, Richard E Morley, fairly considers the PLC market as a 5-billion industry at the present time.Though PLCs are widely used in industrial practice, the programming of PLC based control systems is still very much relying on trial-and-error. Alike software engineering, PLC software design is facing the software dilemma or crisis in a similar way. Morley himself emphasized this aspect most forcefully by indicatingIf houses were built like software projects, a single woodpecker could d estroy civilization.”Particularly, practical problems in PLC programming are to eliminate software bugs and to reduce the maintenance costs of old ladderlogic programs. Though the hardware costs of PLC are dropping continuously, reducing the scan time of the ladder logic is still an issue in industry so that low-cost PLC can be used.In general, the productivity in generating PLC is far behind compared to other domains, for instance, VLSI design, where efficient computer aided design tools are in practice. Existent software engineering methodologies are not necessarily applicable to the PLC based software design because PLC-programming requires a simultaneous consideration of hardware and software. The software design becomes, thereby, more and more the major cost driver. In many industrial design projects, more than of the manpower allocated for the control system design and installation is scheduled for testing and debugging PLC programs.In addition, current PLC based control systems are not properly designed to support the growing demand for flexibility and reconfigurability of manufacturing systems. A further problem, impelling the need for a systematic design methodology, is the increasing software complexity in large-scale projects.The objective of this thesis is to develop a systematic software design methodology for PLC operated automation systems. The design methodology involves high-level description based on state transition models that treat automation control systems as discrete event systems, a stepwise design process, and set of design rules providing guidance and measurements to achieve a successful design. The tangible outcome of this research is to find a way to reduce the uncertainty in managing the control software development process, that is, reducing programming and debugging time and their variation, increasing flexibility of the automation systems, and enabling software reusability through modularity. The goal is to overcome shortcomings of current programming strategies that are based on the experience of the individual software developer. Three：now of PLCFrom the structure is divided into fixed PLC and Module PLC, the two kinds of PLC including CPU board, I/O board, display panel, memory block, power, these elements into a do not remove overall. Module type PLC including CPU module, I/O modules, memory, thepower modules, bottom or a frame, these modules can be according to certain rules combination configuration.In the user view, a detailed analysis of the CPU's internal unnecessary, but working mechanism of every part of the circuit. The CPU control works, by it reads CPU instruction, interprets the instruction and executes instructions. But the pace of work by shock signal control.Unit work under the controller command used in a digital or logic operations.In computing and storage register of computation result, it is also among the controller command and work. CPU speed and memory capacity is the important parameters fot PLC . its determines the PLC speed of work, IO PLC number and software capacity, so limits to control size.Central Processing Unit (CPU) is the brain of a PLC controller. CPU itself is usually one of the microcontrollers. Aforetime these were 8-bit microcontrollers such as 8051, and now these are 16-and 32-bit microcontrollers. Unspoken rule is that you’ll find mostly Hitachi and Fujicu microcontrollers in PLC controllers by Japanese makers, Siemens in European controllers, and Motorola microcontrollers in American ones. CPU also takes care of communication, interconnectedness among other parts of PLC controllers, program execution, memory operation, overseeing input and setting up of an output.System memory (today mostly implemented in FLASH technology) is used by a PLC for a process control system. Aside form. this operating system it also contains a user program translated foram ladder diagram to a binary form. FLASH memory contents can be changed only in case where user program is being changed. PLC controllers were used earlier instead of PLASH memory and have had EPROM memory instead of FLASH memory which had to be erased with UV lamp and programmed on programmers. With the use of FLASH technology this process was greatly shortened. Reprogramming a program memory is done through a serial cable in a program for application development.User memory is divided into blocks having special functions. Some parts of a memory are used for storing input and output status. The real status of an input is stored either as “1”or as “0”in a specific memory bit/each input or output has one corresponding bit in memory. Other parts of memory are used to store variable contents for variables used in used program. For example, time value, or counter value would be stored in this part of the memory.PLC controller can be reprogrammed through a computer (usual way), but also through manual programmers (consoles). This practically means that each PLC controller can programmed through a computer if you have the software needed for programming. Today’s transmission computers are ideal for reprogramming a PLC controller in factory itself. This is of great importance to industry. Once the system is corrected, it is also important to read the right program into a PLC again. It is also good to check from time to time whether program in a PLC has not changed. This helps to avoid hazardous situations in factory rooms (some automakers have established communication networks which regularly check programs in PLC controllers to ensure execution only of good programs).Almost every program for programming a PLC controller possesses various useful options such as: forced switching on and off of the system input/outputs (I/O lines), program follow up in real time as well as documenting a diagram. This documenting is necessary to understand and define failures and malfunctions. Programmer can add remarks, names of input or output devices, and comments that can be useful when finding errors, or with system maintenance. Adding comments and remarks enables any technician (and not just a person who developed the system) to understand a ladder diagram right away. Comments and remarks can even quote precisely part numbers if replacements would be needed. This would speed up a repair of any problems that come up due to bad parts. The old way was such that a person who developed a system had protection on the program, so nobody aside from this person could understand how it was done. Correctly documented ladder diagram allows any technician to understand thoroughly how system functions.Electrical supply is used in bringing electrical energy to central processing unit. Most PLC controllers work either at 24 VDC or 220V AC. On some PLC controllers you’ll find electrical supply as a separatemodule. Those are usually bigger PLC controllers, while small and medium series already contain the supply module. User has to determine how much current to take from I/O module to ensure that electrical supply provides appropriate amount of current. Different types of modules use different amounts of electrical current.This electrical supply is usually not used to start external input or output. User has to provide separate supplies in starting PLC controller inputs because then you can ensure so called “pure” supply for the PLC controller. With pure supply we mean supply where industrial environment can not affect it damagingly. Some of the smaller PLC controllers supply their inputs with voltage from a small supply source already incorporated into a PLC.Four：PLC design criteriaA systematic approach to designing PLC software can overcome deficiencies in the traditional way of programming manufacturing control systems, and can have wide ramifications in several industrial applications. Automation control systems are modeled by formal languages or, equivalently, by state machines. Formal representations provide a high-level description of the behavior of the system to be controlled. State machines can be analytically evaluated as to whether or not they meet the desired goals. Secondly, a state machine description provides a structured representation to convey the logical requirements and constraints such as detailed safety rules. Thirdly, well-defined control systems design outcomes are conducive to automatic code generation- An ability to produce control software executable on commercial distinct logic controllers can reduce programming lead-time and labor cost. In particular, the thesis is relevant with respect to the following aspects.In modern manufacturing, systems are characterized by product and process innovation, become customer-driven and thus have to respond quickly to changing system requirements. A major challenge is therefore to provide enabling technologies that can economically reconfigure automation control systems in response to changing needs and new opportunities. Design and operational knowledge can be reused inreal-time, therefore, giving a significant competitive edge in industrial practice.Studies have shown that programming methodologies in automation systems have not been able to match rapid increase in use of computing resources. For instance, the programming of PLC still relies on a conventional programming style with ladder logic diagrams. As a result, the delays and resources in programming are a major stumbling stone for the progress of manufacturing industry. Testing and debugging may consume over 50% of the manpower allocated for the PLC program design. Standards [IEC 60848, 1999; IEC-61131-3, 1993; IEC 61499, 1998; ISO 15745-1, 1999] have been formed to fix and disseminate state-of-the-art design methods, but they normally cannot participate in advancing the knowledge of efficient program and system design.A systematic approach will increase the level of design automation through reusing existing software components, and will provide methods to make large-scale system design manageable. Likewise, it will improve software quality and reliability and will be relevant to systems high security standards, especially those having hazardous impact on the environment such as airport control, and public railroads.The software industry is regarded as a performance destructor and complexity generator. Steadily shrinking hardware prices spoils the need for software performance in terms of code optimization and efficiency. The result is that massive and less efficient software code on one hand outpaces the gains in hardware performance on the other hand. Secondly, software proliferates into complexity of unmanageable dimensions; software redesign and maintenance-essential in modern automation systems-becomes nearly impossible. Particularly, PLC programs have evolved from a couple lines of code 25 years ago to thousands of lines of code with a similar number of 1/O points. Increased safety, for instance new policies on fire protection, and the flexibility of modern automation systems add complexity to the program design process. Consequently, the life-cycle cost of software is a permanently growing fraction of the total cost. 80-90% of these costs are going into software maintenance, debugging, adaptation and expansion to meet changing needs.Today, the primary focus of most design research is based on mechanical or electrical products. One of the by-products of this proposed research is to enhance our fundamental understanding of design theory and methodology by extending it to the field of engineering systems design. A system design theory for large-scale and complex system is not yet fully developed. Particularly, the question of how to simplify a complicated or complex design task has not been tackled in a scientific way. Furthermore, building a bridge between design theory and the latest epistemological outcomes of formal representations in computer sciences and operations research, such as discrete event system modeling, can advance future development in engineering design.From a logical perspective, PLC software design is similar to the hardware design of integrated circuits. Modern VLSI designs are extremely complex with several million parts and a product development time of 3 years [Whitney, 1996]. The design process is normally separated into a component design and a system design stage. At component design stage, single functions are designed and verified. At system design stage, components are aggregated and the whole system behavior and functionality is tested through simulation. In general, a complete verification is impossible. Hence, a systematic approach as exemplified for the PLC program design may impact the logical hardware design.可编程控制器一、PLC概述可编程控制器是60年代末在美国首先出现的，当时叫可编程逻辑控制器PLC（Programmable Logic Controller），目的是用来取代继电器。

PLC中英文资料外文翻译

rely on manual operation does not satisfy the current industry outlook, there is no guarantee of higher quality requirements and high-tech corporate image.People saw in the production practice, automation to bring great convenience and product quality assurance, but also reduce the labor intensity, reducing the staff on the establishment in many complex production process is difficult to achieve target control, the overall optimization, optimal decision-making, skilled operatives, technicians or specialists, managers can easily determine and operate it, you can get satisfactory results. artificial intelligence research is the use of computers to achieve the target, the analog These intelligent behavior, through coordination of the human brain and a computer to combine human models for solving very complex problem of finding the best way.PLC's most important feature is: electrical engineer electrical hardware no longer spend too much scheming, as long as the button switch or sensor input connected to the PLC input point will solve the problem by connecting the output point contacts or relay to control the power of the boot device, and small power output devices can be connected directly.Contained within the PLC having a central processor of the CPU, and with an external I / O port expansion I / O interface and the memory addresses of three major components, CPU core is formed by one or more accumulators, which have the logical math capabilities, and can read the contents of the program memory to drive through the calculation of the corresponding memory and I / O interface。

PLC-外文文献+翻译

Programmable logic controllerA programmable logic controller (PLC） or programmable controller is a digital computer used for automation of electromechanical processes, such as control of machinery on factory assembly lines, amusement rides， or lighting fixtures。

PLCs are used in many industries and machines。

Unlike general—purpose computers，the PLC is designed for multiple inputs and output arrangements, extended temperature ranges, immunity to electrical noise，and resistance to vibration and impact。

Programs to control machine operation are typically stored in battery—backed or non—volatile memory. A PLC is an example of a real time system since output results must be produced in response to input conditions within a bounded time，otherwise unintended operation will result。

1.HistoryThe PLC was invented in response to the needs of the American automotive manufacturing industry。

有关PLC中英文翻译资料【范本模板】

PLC简介可编程控制器是60年代末在美国首先出现的，当时叫可编程逻辑控制器PLC （Programmable Logic Controller），目的是用来取代继电器。

以执行逻辑判断、计时、计数等顺序控制功能。

提出PLC概念的是美国通用汽车公司。

PLC的基本设计思想是把计算机功能完善、灵活、通用等优点和继电器控制系统的简单易懂、操作方便、价格便宜等优点结合起来，控制器的硬件是标准的、通用的.根据实际应用对象，将控制内容编成软件写入控制器的用户程序存储器内,使控制器和被控对象连接方便。

70年代中期以后，PLC已广泛地使用微处理器作为中央处理器，输入输出模块和外围电路也都采用了中、大规模甚至超大规模的集成电路,这时的PLC已不再是仅有逻辑(Logic)判断功能，还同时具有数据处理、PID调节和数据通信功能.国际电工委员会(IEC）颁布的可编程控制器标准草案中对可编程控制器作了如下的定义：可编程控制器是一种数字运算操作的电子系统，专为在工业环境下应用而设计。

它采用了可编程序的存储器,用来在其内部存储执行逻辑运算，顺序控制、定时、计数和算术运算等操作的指令，并通过数字式和模拟式的输入和输出，控制各种类型的机械或生产过程。

可编程控制器及其有关外围设备，易于与工业控制系统联成一个整体，易于扩充其功能的设计。

可编程控制器对用户来说，是一种无触点设备，改变程序即可改变生产工艺。

目前，可编程控制器已成为工厂自动化的强有力工具，得到了广泛的普及推广应用。

可编程控制器是面向用户的专用工业控制计算机，具有许多明显的特点。

①可靠性高,抗干扰能力强；②编程直观、简单；③适应性好；④功能完善，接口功能强。

可编程逻辑控制器（PLC ）的计算模块是由理查德.e。

莫雷在1968年发明的，现在已广泛应用于工业中的制造系统，运输系统，化工过程控制,以及许多其他领域。

PLC 使用软连线逻辑或所谓的梯形图取代硬接线逻辑，采用编程语言和可视化的模拟硬接线逻辑设计，这样使的系统的配置时间从以前的6个月减少到了6天。

外文翻译-关于PLC的外文及翻译

PLCs --Past, Present and FutureEveryone knows there's only one constant in the technology world, and that's change. This is especially evident in the evolution of Programmable Logic Controllers (PLC) and their varied applications. From their introduction more than 30 years ago, PLCs have become the cornerstone of hundreds of thousands of control systems in a wide range of industries.At heart, the PLC is an industrialized computer programmed with highly specialized languages, and it continues to benefit from technological advances in the computer and information technology worlds. The most prominent of which is miniaturization and communications.The Shrinking PLCWhen the PLC was first introduced, its size was a major improvement - relative to the hundreds of hard-wired relays and timers it replaced. A typical unit housing a CPU and I/O was roughly the size of a 19 television set. Through the 1980s and early 1990s, modular PLCs continued to shrink in footprint while increasing in capabilities and performance (see Diagram 1 for typical modular PLC configuration).In recent years, smaller PLCs have been introduced in the nano and micro classes that offer features previously found only in larger PLCs. This has made specifying a larger PLC just for additional features or performance, and not increased I/O count, unnecessary, as even those in the nano class are capable of Ethernet communication, motion control, on-board PID with autotune, remote connectivity and more.PLCs are also now well-equipped to replace stand-alone process controllers in many applications, due to their ability to perform functions of motion control, data acquisition, RTU (remote telemetry unit) and even some integrated HMI (human machine interface) functions. Previously, these functions often required their own purpose-built controllers and software, plus a separate PLC for the discrete control and interlocking.The Great CommunicatorPossibly the most significant change in recent years lies in the communications arena. In the 1970s Modicon introduction of Modbus communications protocol allowed PLCs to communicate over standard cabling. This translates to an ability to place PLCs in closer proximity to real world devices and communicate back to other system controls in a main panel.In the past 30 years we have seen literally hundreds of proprietary and standard protocols developed, each with their own unique advantages.Today's PLCs have to be data compilers and information gateways. They have to interface with bar code scanners and printers, as well as temperature and analog sensors. They need multiple protocol support to be able to connect with other devices in the process. And furthermore, they need all these capabilities while remaining cost-effective and simple to program.Another primary development that has literally revolutionized the way PLCs are programmed, communicate with each other and interface with PCs for HMI, SCADA or DCS applications, came from the computing world.Use of Ethernet communications on the plant floor has doubled in the past five years. While serial communications remain popular and reliable, Ethernet is fast becoming the communications media of choice with advantages that simply can't be ignored, such as: * Network speed. * Ease of use when it comes to the setup and wiring. * Availability of off-the-shelf networking components. * Built-in communications setups.Integrated Motion ControlAnother responsibility the PLC has been tasked with is motion control. From simple open-loop to multi-axis applications, the trend has been to integrate this feature into PLC hardware and software.There are many applications that require accurate control at a fast pace, but not exact precision at blazing speeds. These are applications where thestand-alone PLC works well. Many nano and micro PLCs are available withhigh-speed counting capabilities and high-frequency pulse outputs built into the controller, making them a viable solution for open-loop control.The one caveat is that the controller does not know the position of the output device during the control sequence. On the other hand, its main advantage is cost. Even simple motion control had previously required an expensive option module, and at times was restricted to more sophisticated control platforms in order to meet system requirements.More sophisticated motion applications require higher-precision positioning hardware and software, and many PLCs offer high-speed option modules that interface with servo drives. Most drives today can accept traditional commands from host (PLC or PC) controls, or provide their own internal motion control. The trend here is to integrate the motion control configuration into the logic controller programming software package.Programming LanguagesA facet of the PLC that reflects both the past and the future is programming language. The IEC 61131-3 standard deals with programming languages and defines two graphical and two textual PLC programming language standards: * Ladder logic (graphical). * Function block diagram (graphical). * Structured text (textual).Instruction list (textual).This standard also defines graphical and textual sequential function chart elements to organize programs for sequential and parallel control processing. Based on the standard, many manufacturers offer at least two of these languages as options for programming their PLCs. Ironically, approximately 96 percent of PLC users recently still use ladder diagrams to construct their PLC code. It seems that ladder logic continues to be a top choice given it's performed so well for so long.Hardware PlatformsThe modern PLC has incorporated many types of Commercial off the Shelf (COTS) technology in its CPU. This latest technology gives the PLC a faster, more powerful processor with more memory at less cost. These advances have also allowed the PLC to expand its portfolio and take on new tasks like communications, data manipulation and high-speed motion without giving up the rugged and reliable performance expected from industrial control equipment.New technology has also created a category of controllers called Programmable Automation Controllers, or PACs. PACs differ from traditional PLCs in that they typically utilize open, modular architectures for both hardware and software, using de facto standards for network interfaces, languages and protocols. They could be viewed as a PC in an industrial PLC-like package.The FutureA 2005 PLC Product Focus Study from Reed Research Group pointed out factors increasingly important to users, machine builders and those making the purchasing decisions. The top picks for features of importance were.* The ability to network, and do so easily. Ethernet communications is leading the charge in this realm. Not only are new protocols surfacing, but many of the industry de facto standard serial protocols that have been used for many years are being ported to Ethernet platforms. These include Modbus (ModbusTCP), DeviceNet (Ethernet/IP) and Profibus (Profinet). Ethernet communication modules for PLCs are readily available with high-speed performance and flexible protocols. Also, many PLC CPUs are now available with Ethernet ports on board, saving I/O slot space. PLCs will continue to develop more sophisticated connectivity to report information to other PLCs, systemcontrol systems, data acquisition (SCADA) systems and enterprise resource planning (ERP) systems. Additionally, wireless communications will continue to gain popularity.* The ability to network PLC I/O connections with a PC. The same trends that have benefited PLC networking have migrated to the I/O level. Many PLC manufacturers are supporting the most accepted fieldbus networks, allowing PLC I/O to be distributed over large physical distances, or located where it was previously considered nearly impossible. This has opened the door for personal computers to interface with standard PLC I/O subsystems by using interface cards, typically supplied by the PLC manufacturer or a third party developer. Now these challenging locations can be monitored with today a PC. Where industrial-grade control engines are not required, the user can take advantage of more advanced software packages and hardware flexibility at a lower cost.* The ability to use universal programming software for multipletargets/platforms. In the past it was expected that an intelligent controller would be complex to program. That is no longer the case. Users are no longer just trained programmers, such as design engineers or systems integrators, butend-users who expect easier-to-use software in more familiar formats. The Windows-based look and feel that users are familiar with on their personal computers have become the most accepted graphical user interface. What began as simple relay logic emulation for programming PLCs has evolved into languages that use higher level function blocks that are much more intuitive to configure. PLC manufacturers are also beginning to integrate the programming of diverse functions that allow you to learn only one package in configuring logic, HMI, motion control and other specialized capabilities. Possibly the ultimate wish of the end-user would be for a software package that could seamlessly program many manufacturers PLCs and sub-systems. After all, Microsoft Windows operating system and applications work similarly whether installed on a Dell, HP or IBM computer, which makes it easier for the user.Overall, PLC users are satisfied with the products currently available, while keeping their eye on new trends and implementing them where the benefits are obvious. Typically, new installations take advantage of advancing technologies, helping them become more accepted in the industrial world.PLC的过去、现在与未来众所周知，科技世界里只有一个永恒真理，那就是变化。

PLC中英文资料外文翻译

PLC及变频器技术中英文对照外文翻译文献

(文档含英文原文和中文翻译)中英文资料对照外文翻译PLC and inverter technology trends1. The development trend of the programmable controller“PLC is one kind specially for the digital operation operation electronic installation which applies under the industry environment designs. It uses may the coding memory, uses for in its internal memory operation and so on actuating logic operation, sequence operation, time, counting and arithmetic operation instructions, and can through digital or the simulation-like input and the output, controls each type the machinery or the production process. PLC and the related auxiliary equipment should according to form a whole easy with the industrial control system, easy to expand its function the principle to design.”In the 21st century, PLC will have a bigger development. Technologically speaking, computer technology's new achievement more will apply in the programmable controller's design and the manufacture, will have the operating speed to be quicker, the storage capacity to be bigger, an intelligent stronger variety to appear; Looked from the product scale that further develops to subminiature and the ultra-large direction; Looked from the product overcoatability that the product variety will be richer, the specification to be more complete, the perfect man-machine contact surface, the complete communication facility will adapt eachindustrial control situation demand well; Looked from the market that various countries will produce the multi-variety product the situation to break respectively along with the international competition aggravating, will present the minority several brand monopoly international market the aspect, will present the international general programming language; Looking from the network state of play, the programmable controller and other industrial control computer network constitution large-scale control system is the programmable controller technology development direction. Present computer collection and distribution control system DCS (Distributed Control System) had the massive programmable controller application. Is following computer network's development, the programmable controller takes the automation directed net and the international universal network important component, outside industry and industry numerous domain display more and more major function.2. Inverter technology development trendsInverter into the practical phase of more than 1 / 4 century during this period, the frequency converter technology as the basis of power electronics technology and microelectronics technology manager of a leap in the development, as the new power electronic devices and high-performance microprocessor The application of control technologyand the development of increasingly high cost performance of the inverter, more and more small size, but manufacturers are still in constant frequency converter to achieve the further miniaturization and doing new efforts. From a technical point of view, with the frequency converter to further expand the market of the future, with the converter and inverter technology will be on the development of technologies in the following areas further development:(1) large capacity and small size;(2) high-performance and multi-function;(3) enhance the ease-of-use;(4) increase in life expectancy and reliability;(5) of pollution-free.Large capacity and small size of the power semiconductor devices will be with the development of continuous development. In recent years, driven by a voltage power semiconductor devices IGBT (Isolated Gate Bipolar Transistor, isolation gate bipolar transistors) has developed very rapidly and quickly into the traditional use of BJT (bipolar power transistor) and power MOSFET (FET) The various fields. In addition, the IGBT switching device for the IPM (Intelligent Power Module, IPM) and Monolithic Power IC chip will power switching devices and driving circuit,such as the protection of integrated circuits in the same package, with high performance and reliability The merits, with their high current and high pressure of the development of small and medium-sized converter will certainly be more widely used.With micro-electronics technology and semiconductor technology development, for Inverter CPU and semiconductor devices and a variety of sensors of getting higher and higher. With the frequency converter technology and the development of the growing maturity of the exchange governor, modern control theory are constantly new applications. These have further improved the performance of inverter provided the conditions. In addition, with the frequency converter to further promote the use and support are also constantly made new demands, the frequency converter manufacturers to continuously improve the performance and frequency converter functions in Inverter new efforts to meet user And the need for the fierce competition in the market in an invincible position.With the frequency converter market continues to expand, how to further enhance the ease-of-use inverter, so that the technical staff and even ordinary non-technical staff can quickly master the use of frequency converter technology has become manufacturers must consider the issue. Because only easy-to-use products can continue to acquire new customersand further expand the market, so the future of the new converter will be more easy to operate.With the development of semiconductor technology and the development of power electronics technology, the frequency converter used in the various components of the life and reliability are constantly improving, they will make their own life and the frequency converter to further increase reliability.In recent years, people have attached great importance to environmental issues, and thus a "green products" name. Therefore, the inverter, must also consider its impact on the surrounding environment.Promote the use of the frequency converter in the early stages of the noise problem was once a big problem. With the low-noise converter IGBT the emergence of this issue has basically been resolved. However, with the noise problem to solve, people's looks and a converter to the surrounding environment and the impact of other continuously explore new solutions. For example, the use of a diode-voltage converter and PWM inverter circuit converter, the frequency converter itself the high harmonics will bring supply voltage and current distortion, and at the same power to affect the other equipment. However, through the use of the frequency converter Rectifier circuit PWM, we can basically solve the problem. Althoughbecause of price and control technology and other aspects of the reasons for the current PWM converter has not been promoting the inverter, but, with the frequency converter technology development and the people of the importance of environmental issues.PLC及变频器技术的发展趋势1．可编程控制器的发展趋势可编程控制器是一种数字运算操作的电子系统，专为在工业环境下应用而设计。

PLC中英文对照简介

PLC简介可编程控制器是60年代末在美国首先出现的，当时叫可编程逻辑控制器PLC （ProgrammableLogicController），目的是用来取代继电器。

以执行逻辑判断、计时、计数等顺序控制功能。

提出PLC概念的是美国通用汽车公司。

PLC的基本设计思想是把计算机功能完善、灵活、通用等优点和继电器控制系统的简单易懂、操作方便、价格便宜等优点结合起来，控制器的硬件是标准的、通用的。

根据实际应用对象，将控制内容编成软件写入控制器的用户程序存储器内,使控制器和被控对象连接方便。

70年代中期以后，PLC已广泛地使用微处理器作为中央处理器，输入输出模块和外围电路也都采用了中、大规模甚至超大规模的集成电路，这时的PLC已不再是仅有逻辑(Logic)判断功能，还同时具有数据处理、PID调节和数据通信功能。

国际电工委员会(IEC)颁布的可编程控制器标准草案中对可编程控制器作了如下的定义：可编程控制器是一种数字运算操作的电子系统，专为在工业环境下应用而设计。

它采用了可编程序的存储器，用来在其内部存储执行逻辑运算，顺序控制、定时、计数和算术运算等操作的指令，并通过数字式和模拟式的输入和输出，控制各种类型的机械或生产过程。

可编程控制器及其有关外围设备，易于与工业控制系统联成一个整体，易于扩充其功能的设计。

可编程控制器对用户来说，是一种无触点设备，改变程序即可改变生产工艺。

目前，可编程控制器已成为工厂自动化的强有力工具，得到了广泛的普及推广应用。

可编程控制器是面向用户的专用工业控制计算机，具有许多明显的特点。

①可靠性高，抗干扰能力强；②编程直观、简单；③适应性好；④功能完善，接口功能强。

Plc Introduction Programmable controller is the first in the late 1960s in the United States, then called Plc programmable logic controller (ProgrammableLogicController) is used to replace relays. For the implementation of the logical judgement, timing, sequence number, and other control functions. The concept is presented Plc General Motors Corporation. Plc and the basic design is the computer functional improvements, flexible, generic and other advantages and relay control system simple and easy to operate, such as the advantages of cheap prices combined controller hardware is standard and overall. According to the practical application of target software in order to control the content of the user procedures memory controller, the controller and connecting the accused convenient target. In the mid-1970s, the Plc has been widely used as a central processing unit microprocessor, import export module and the external circuits are used,large-scale integrated circuits even when the Plc is no longer the only logical (IC) judgement functions also have data processing, PID conditioning and data communications functions. International Electrotechnical Commission (IEC) standards promulgated programmable controller for programmable controllerdraft made the following definition : programmable controller is a digital electronic computers operating system, specifically for applications in the industrial design environment. It used programmable memory, used to implement logic in their internal storage operations, sequence control, timing, counting and arithmetic operations, such as operating instructions, and through digital and analog input and output, the control of various types of machinery or production processes. Programmable controller and related peripherals, and industrial control systems easily linked to form a whole, to expand its functional design. Programmable controller for the user, is anon-contact equipment, the procedures can be changed to change production processes. The programmable controller has become a powerful tool for factory automation, widely popular replication. Programmable controller is user-oriented industries dedicated control computer, with many distinctive features. First, high reliability, anti-interference capability; Second programming visual, simple; Third, adaptability good; ④functional improvements, strong functional interface.。

(完整word版)PLC英文文献翻译

附录外文资料PLC technique discussion and future developmentAlong with the development of the ages, the technique that is nowadays is also gradually perfect, the competition plays more strong; the operation that list depends the artificial has already can't satisfied with the current manufacturing industry foreground, also can't guarantee the request of the higher quantity and high new the image of the technique business enterprise.The people see in produce practice, automate brought the tremendous convenience and the product quantities for people up of assurance, also eased the personnel's labor strength, reduce the establishment on the personnel. The target control of the hard realization in many complicated production lines, whole and excellent turn, the best decision etc., well-trained operation work, technical personnel or expert, governor but can judge and operate easily, can acquire the satisfied result. The research target of the artificial intelligence makes use of the calculator exactly to carry out, imitate these intelligences behavior, moderating the work through person's brain and calculators, with the mode that person's machine combine, for resolve the very complicated problem to look for the best pathWe come in sight of the control that links after the electric appliances in various situation, that is already the that time generation past, now of after use in the mold a perhaps simple equipments of grass-roots control that the electric appliances can do for the low level only; And the PLC emergence also became the epoch-making topic, adding the vivid software control through a very and stable hardware, making the automation head for the new high tide.The PLC biggest characteristics lie in: The electrical engineering teacher already no longer electric hardware up too many calculations of cost, as long as order the importation that the button switch or the importation of the sensors order to link the PLC up can solve problem, pass to output to order the conjunction contact machine or control the start equipments of the big power after the electric appliances, but the exportation equipments direct conjunction of the small power can.PLC internal containment have the CPU of the CPU, and take to have an I/ O for expand of exterior to connect a people's address and saving machine three big pieces to constitute, CPU core is from an or many is tired to add the machine to constitute, mathematics that they have the logic operation ability, and can read the procedure save the contents of the machine to drive the homologous saving machine and I/ Os to connect after pass the calculation; The I/ O add inner part is tired the input and output system of the machine and exterior link, and deposit the related data into the procedure saving machine or data saving machine; The saving machine can deposit the data that the I/ O input in the saving machine, and in work adjusting to becometired to add the machine and I/ Os to connect, saving machine separately saving machine RAM of the procedure saving machine ROM and dates, the ROM can do deposit of the data permanence in the saving machine, but RAM only for the CPU computes the temporary calculation usage of hour of buffer space.The PLC anti- interference is very and excellent, our root need not concern its service life and the work situation bad, these all problems have already no longer become the topic that we fail, but stay to our is a concern to come to internal resources of make use of the PLC to strengthen the control ability of the equipments for us, make our equipments more gentle.PLC language is not we imagine of edit collected materials the language or language of Cs to carry on weaving the distance, but the trapezoid diagram that the adoption is original after the electric appliances to control, make the electrical engineering teacher while weaving to write the procedure very easy comprehended the PLC language, and a lot of non- electricity professional also very quickly know and go deep into to the PLC.Is PLC one of the advantage above and only, this is also one part that the people comprehend more and easily, in a lot of equipments, the people have already no longer hoped to see too many control buttons, they damage not only and easily and produce the artificial error easiest, small is not a main error perhaps you can still accept; But lead even is a fatal error greatly is what we can't is tolerant of. New technique always for bringing more safe and convenient operation for us, make we a lot of problems for face on sweep but light, do you understand the HMI? Says the HMI here you basically not clear what it is, also have no interest understanding, change one inside text explains it into the touch to hold or man-machine interface you knew, and it combines with the PLC to our larger space.HMI the control not only is reduced the control press button, increase the vivid of the control, more main of it is can sequence of, and at can the change data input to output the feedback with data, control in the temperature curve of imitate but also can keep the manifestation of view to come out. And can write the function help procedure through a plait to provide the help of various what lies in one's power, the one who make operate reduces the otiose error. Currently the HMI factory is also more and more, the function is also more and more strong, the price is also more and more low, and the noodles of the usage are wide more and more. The HMI foreground can say that think ° to be good very.At a lot of situations, the list is a smooth movement that can't guarantee the equipments by the control of the single machine, but pass the information exchanges of the equipments and equipments to attain the result that we want. For example fore pack and the examination of the empress work preface, we will arrive wrapping information feedback to examine the place, and examine the information of the place to also want the feedback to packing. Pass the information share thus to make both the chain connect, becoming a total body, the match of your that thus make is more close,at each other attain to reflect the result that mutually flick.The PLC correspondence has already come more body now its value, at the PLC and correspondence between PLCs, can pass the communication of the information and the share of the dates to guarantee that of the equipments moderates mutually, the result that arrive already to repair with each other. Data conversion the adoption RS232 between PLC connect to come to the transmission data, but the RS232 pick up a people and can guarantee 10 meters only of deliver the distance, if in the distance of 1000 meters we can pass the RS485 to carry on the correspondence, the longer distance can pass the MODEL only to carry on deliver.The PLC data transmission is just to be called a form to it in a piece of and continuous address that the data of the inner part delivers the other party, we, the PLC of the other party passes to read data in the watch to carry on the operation. If the data that data in the watch is a to establish generally, that is just the general data transmission, for example today of oil price rise, I want to deliver the price of the oil price to lose the oil ally on board, that is the share of the data; But take data in the watch for an instruction procedure that controls the PLC, that had the difficulty very much, for example you have to control one pedestal robot to press the action work that you imagine, you will draw up for it the form that a procedure combine with the data sends out to pass by.The form that information transport contain single work, the half a work and the difference of a workers .The meaning of the single work also is to say both, a can send out only, but a can receive only, for example a spy he can receive the designation of the superior only, but can't give the superior reply; A work of half is also 2 and can send out similar to accept the data, but can't send out and accept at the same time, for example when you make a phone call is to can't answer the phone, the other party also; But whole pair works is both can send out and accept the data, and can send out and accept at the same time. Be like the Internet is a typical example.The process that information transport also has synchronous and different step cent: The data line and the clock lines are synchronous when synchronous meaning lie in sending out the data, is also the data signal and the clock signals to be carry on by the CPU to send out at the same time, this needs to all want the specialized clock signal each other to carry on the transmission and connect to send, and is constrained, the characteristics of this kind of method lies in its speed very quick, but correspond work time of take up the CPU and also want to be long oppositely, at the same time the technique difficulty also very big. Its request lies in canting have an error margins in a dates deliver, otherwise the whole piece according to compare the occurrence mistake, this on the hardware is a bigger difficulty. Applied more and more extensive in some appropriative equipments, be like the appropriative medical treatment equipments, the numerical signal equipments...etc., in compare the one data deliver, its result is very good.And the different step is an application the most extensive, this receive benefit init of technique difficulty is opposite and want to be small, at the same time not need to prepare the specialized clock signal, its characteristics to lie in, its data is partition, the long-lost send out and accept, be the CPU is too busy of time can grind to a stop sex to work, also reduced the difficulty on the hardware, the data throw to lose at the same time opposite want to be little, we can pass the examination of the data to observe whether the data that we send out has the mistake or not, be like strange accidentally the method, tired addition and eight efficacies method etc., can use to helps whether the data that we examine to send out have or not the mistake occurrence, pass the feedback to carry on the discriminator.A line of transmission of the information contains a string of and combine the cent of: The usual PLC is 8 machines, certainly also having 16 machines. We can be an at the time of sending out the data a send out to the other party, also can be 88 send out the data to the other party, an and 8 differentiations are also the as that we say to send out the data and combine sends out the data. A speed is more and slowly, but as long as 2 or three lines can solve problem, and can use the telephone line to carry on the long range control. But combine the ocular transmission speed is very quick of, it is a string of ocular of 25600%, occupy the advantage in the short distance, the in view of the fact TTL electricity is even, being limited by the scope of one meter generally, it combine unwell used for the data transmission of the long pull, thus the cost is too expensive.Under a lot of circumstances we are total to like to adopt the string to combine the conversion chip to carry on deliver, under this kind of circumstance not need us to carry on to deposited the machine to establish too and complicatedly, but carry on the data exchanges through the data transmission instruction directly, but is not a very viable way in the correspondence, because the PLC of the other party must has been wait for your data exportation at the time of sending out the data, it can't do other works.When you are reading the book, you hear someone knock on door, you stop to start up of affair, open the door and combine to continue with the one who knock on door a dialogue, the telephone of this time rang, you signal hint to connect a telephone, after connecting the telephone through, return overdo come together knock on door to have a conversation, after dialogue complete, you continue again to see your book, this kind of circumstance we are called the interruption to it, it has the authority, also having sex of have the initiative, the PLC had such function .Its characteristics lie in us and may meet the urgently abrupt affairs in the operation process of the equipments, we want to stop to start immediately up of work, the whereabouts manages the more important affair, this kind of circumstance is we usually meet of, PLC while carry out urgent mission, total will keep the current appearance first, for example the address of the procedure, CPU of tired add the machine data etc., be like to stick down which the book that we see is when we open the door the page or simply make a mark, because we treat and would still need to continue immediately after book of see the behind. The CPU always does the affair that should do according to our will, but your mistake of give it an affair, it also would be same to do, this we must notice.The interruption is not only a, sometimes existing jointly with the hour several inside break, break off to have the preferred Class, they will carry out the interruption of the higher Class according to person's request. This kind of breaks off the medium interruption to also became to break off the set. The Class that certainly break off is relevant according to various resources of CPU with internal PLC, also following a heap of capacity size of also relevant fasten.The contents that break off has a lot of kinds, for example the exterior break off, correspondence in of send out and accept the interruption and settle and the clock that count break off, still have the WDT to reset the interruption etc., they enriched the CPU to respond to the category while handle various business. Speak thus perhaps you can't comprehend the internal structure and operation orders of the interruption completely also, we do a very small example to explain.Each equipment always will not forget a button, it also is at we meet the urgent circumstance use of, which is nasty to stop the button. When we meet the Human body trouble and surprised circumstances we as long as press it, the machine stops all operations immediately, and wait for processing the over surprised empress recover the operation again. Nasty stop the internal I/ O of the internal CPU of the button conjunction PLC to connect up, be to press button an exterior to trigger signal for CPU, the CPU carries on to the I/ O to examine again, being to confirm to have the exterior to trigger the signal, CPU protection the spot breaks off procedure counts the machine turn the homologous exterior I/ O automatically in the procedure to go to also, be exterior interruption procedure processing complete, the procedure counts the machine to return the main procedure to continue to work. Have 1:00 can what to explain is we generally would nasty stop the button of exterior break off to rise to the tallest Class, thus guarantee the safety.When we are work a work piece, giving the PLC a signal, counting PLC inner part the machine add 1 to compute us for a day of workload, a count the machine and can solve problem in brief, certainly they also can keep the data under the condition of dropping the electricity, urging the data not to throw to lose, this is also what we hope earnestly.The PLC still has the function that the high class counts the machine, being us while accept some dates of high speed, the high speed that here say is the data of the in all aspects tiny second class, for example the bar code scanner is scanning the data continuously, calculating high-speed signal of the data processor DSP etc., we will adopt the high class to count the machine to help we carry on count. It at the PLC carries out the procedure once discover that the high class counts the machine to should of interruption, will let go of the work on the hand immediately. The trapezoid diagram procedure that passes by to weave the distance again explains the high class for us to carry out procedure to count machine would automatic performance to should of work, thus rise the Class that the high class counts the machine to high one Class.You heard too many this phrases perhaps:" crash", the meaning that is mostly is a workload of CPU to lead greatly, the internal resources shortage etc. the circumstance can't result in procedure circulate. The PLC also has the similar circumstance, there is a watchdog WDT in the inner part of PLC, we can establish time that a procedure of WDT circulate, being to appear the procedure to jump to turn the mistake in the procedure movement process or the procedure is busy, movement time of the procedure exceeds WDT constitution time, the CPU turn but the WDT reset the appearance. The procedure restarts the movement, but will not carry on the breakage to the interruption.The PLC development has already entered for network ages of correspondence from the mode of the one, and together other works control the net plank and I/ O card planks to carry on the share easily. A state software can pass all se hardwires link, more animation picture of keep the view to carries on the control, and cans pass the Internet to carry on the control in the foreign land, the blast-off that is like the absolute being boat No.5 is to adopt this kind of way to make airship go up the sky.The development of the higher layer needs our continuous effort to obtain. The PLC emergence has already affected a few persons fully, we also obtained more knowledge and precepts from the top one experience of the generation, coming to the continuous development PLC technique, push it toward higher wave tide.Knowing the available PLC network options and their best applications will ensure an efficient and flexible control system design.The programmable logic controller's (PLC's) ability to support a range of communication methods makes it an ideal control and data acquisition device for a wide variety of industrial automation and facility control applications. However, there is some confusion because so many possibilities exist. To help eliminate this confusion, let's list what communications are available and when they would be best applied.To understand the PLC's communications versatility, let's first define the terms used in describing the various systems.ASCII: This stands for "American Standard Code for Information Interchange." As shown in Fig. 1, when the letter "A" is transmitted, for instance, it's automatically coded as "65" by the sending equipment. The receiving equipment translates the "65" back to the letter "A." Thus, different devices can communicate with each other as long as both use ASCII code.ASCII module: This intelligent PLC module is used for connecting PLCs to other devices also capable of communicating using ASCII code as a vehicle.Bus topology: This is a linear local area network (LAN) arrangement, as shown in Fig. 2A, in which individual nodes are tapped into a main communications cable at a single point and broadcast messages. These messages travel in both directions on thebus from the point of connection until they are dissipated by terminators at each end of the bus.CPU: This stands for "central processing unit," which actually is that part of a computer, PLC, or other intelligent device where arithmetic and logical operations are performed and instructions are decoded and executed.Daisy chain: This is a description of the connection of individual devices in a PLC network, where, as shown in Fig. 3, each device is connected to the next and communications signals pass from one unit to the next in a sequential fashion.Distributed control: This is an automation concept in which portions of an automated system are controlled by separate controllers, which are located in close proximity to their area of direct control (control is decentralized and spread out over the system).Host computer: This is a computer that's used to transfer data to, or receive data from, a PLC in a PLC/computer network.Intelligent device: This term describes any device equipped with its own CPU.I/O: This stands for "inputs and outputs," which are modules that handle data to the PLC (inputs) or signals from the PLC (outputs) to an external device.Kbps: This stands for "thousand bits per second," which is a rate of measure for electronic data transfer.Mbps: This stands for "million bits per second."Node: This term is applied to any one of the positions or stations in a network. Each node incorporates a device that can communicate with all other devices on the network.Protocol: The definition of how data is arranged and coded for transmission on a network.Ring topology. This is a LAN arrangement, as shown in Fig. 2C, in which each node is connected to two other nodes, resulting in a continuous, closed, circular path or loop for messages to circulate, usually in one direction. Some ring topologies have a special "loop back" feature that allows them to continue functioning even if the main cable is severed.RS232. This is an IEEE standard for serial communications that describes specific wiring connections, voltage levels, and other operating parameters for electronic data communications. There also are several other RS standards defined.Serial: This is an electronic data transfer scheme in which information istransmitted one bit at a time.Serial port: This the communications access point on a device that is set up for serial communications.Star topology. This is a LAN arrangement in which, as shown in Fig. 2B, nodes are connected to one another through a central hub, which can be active or passive. An active hub performs network duties such as message routing and maintenance. A passive central hub simply passes the message along to all the nodes connected to it.Topology: This relates to a specific arrangement of nodes in a LAN in relation to one another.Transparent: This term describes automatic events or processes built into a system that require no special programming or prompting from an operator.Now that we're familiar with these terms, let's see how they are used in describing the available PLC network options.PLC network optionsPLC networks provide you with a variety of networking options to meet specific control and communications requirements. Typical options include remote I/O, peer-to-peer, and host computer communications, as well as LANs. These networks can provide reliable and cost-effective communications between as few as two or as many as several hundred PLCs, computers, and other intelligent devices.Many PLC vendors offer proprietary networking systems that are unique and will not communicate with another make of PLC. This is because of the different communications protocols, command sequences, error-checking schemes, and communications media used by each manufacturer.However, it is possible to make different PLCs "talk" to one another; what's required is an ASCII interface for the connection(s), along with considerable work with software.Remote I/0 systemsA remote I/O configuration, as shown in Fig. 4A, has the actual inputs and outputs at some distance from the controller and CPU. This type of system, which can be described as a "master-and-slave" configuration, allows many distant digital and analog points to be controlled by a single PLC. Typically, remote I/Os are connected to the CPU via twisted pair or fiber optic cables.Remote I/O configurations can be extremely cost-effective control solutions where only a few I/O points are needed in widely separated areas. In this situation, it's not always necessary, or practical for that matter, to have a controller at each site. Noris it practical to individually hard wire each I/O point over long distances back to the CPU. For example, remote I/O systems can be used in acquiring data from remote plant or facility locations. Information such as cycle times, counts, duration or events, etc. then can be sent back to the PLC for maintenance and management reporting.In a remote I/O configuration, the master controller polls the slaved I/O for its current I/O status. The remote I/O system responds, and the master PLC then signals the remote I/O to change the state of outputs as dictated by the control program in the PLC's memory. This entire cycle occurs hundreds of times per second.Peer-to-peer networksPeer-to-peer networks, as shown in Fig. 4B, enhance reliability by decentralizing the control functions without sacrificing coordinated control. In this type of network, numerous PLCs are connected to one another in a daisy-chain fashion, and a common memory table is duplicated in the memory of each. In this way, when any PLC writes data to this memory area, the information is automatically transferred to all other PLCs in the network. They then can use this information in their own operating programs.With peer-to-peer networks, each PLC in the network is responsible for its own control site and only needs to be programmed for its own area of responsibility. This aspect of the network significantly reduces programming and debugging complexity; because all communications occur transparently to the user, communications programming is reduced to simple read-and-write statements.In a peer-to-peer system, there's no master PLC. However, it's possible to designate one of the PLCs as a master for use as a type of group controller. This PLC then can be used to accept input information from an operator input terminal, for example, sending all the necessary parameters to other PLCs and coordinating the sequencing of various events.Host computer linksPLCs also can be connected with computers or other intelligent devices. In fact, most PLCs, from the small to the very large, can be directly connected to a computer or part of a multi drop host computer network via RS232C or RS422 ports. This combination of computer and controller maximizes the capabilities of the PLC, for control and data acquisition, as well as the computer, for data processing, documentation, and operator interface.In a PLC/computer network, as shown in Fig. 4C, all communications are initiated by the host computer, which is connected to all the PLCs in a daisy-chain fashion. This computer individually addresses each of its networked PLCs and asks for specific information. The addressed PLC then sends this information to the computer for storage and further analysis. This cycle occurs hundreds of times per second.Host computers also can aid in programming PLCs; powerful programming and documentation software is available for program development. Programs then can be written on the computer in relay ladder logic and downloaded into the PLC. In this way, you can create, modify, debug, and monitor PLC programs via a computer terminal.In addition to host computers, PLCs often must interface with other devices, such as operator interface terminals for large security and building management systems. Although many intelligent devices can communicate directly with PLCs via conventional RS232C ports and serial ASCII code, some don't have the software ability to interface with individual PLC models. Instead, they typically send and receive data in fixed formats. It's the PLC programmer's responsibility to provide the necessary software interface.The easiest way to provide such an interface to fixed-format intelligent devices is to use an ASCII/BASIC module on the PLC. This module is essentially a small computer that plugs into the bus of the PLC. Equipped with RS232 ports and programmed in BASIC, the module easily can handle ASCII communications with peripheral devices, data acquisition functions, programming sequences, "number crunching," report and display generation, and other requirements.Access, protocol, and modulation functions of LANsBy using standard interfaces and protocols, LANs allow a mix of devices (PLCs, PCs, mainframe computers, operator interface terminals, etc.) from many different vendors to communicate with others on the network.Access: A LAN's access method prevents the occurrence of more than one message on the network at a time. There are two common access methods.Collision detection is where the nodes "listen" to the network and transmit only if there are no other messages on the network. If two nodes transmit simultaneously, the collision is detected and both nodes retransmit until their messages get through properly.Token passing allows each node to transmit only if it's in possession of a special electronic message called a token. The token is passed from node to node, allowing each an opportunity to transmit without interference. Tokens usually have a time limit to prevent a single node from tying up the token for a long period of time.Protocol: Network protocols define the way messages are arranged and coded for transmission on the LAN. The following are two common types.Proprietary protocols are unique message arrangements and coding developed by a specific vendor for use with that vendor's product only.Open protocols are based on industry standards such as TCP/IP or ISO/OSI。

PLC的工作原理中英文翻译

PLC的工作原理可编程控制器，英文称ProgrammableLogicController，简称PLC。

PLC是基于电子计算机，且适用于工业现场工作的电控制器。

它源于继电控制装置，但它不像继电装置那样，通过电路的物理过程实现控制，而主要靠运行存储于PLC内存中的程序，进行入出信息变换实现控制。

PLC基于电子计算机，但并不等同于普通计算机。

普遍计算机进行入出信息变换，多只考虑信息本身，信息的入出，只要人机界面好就可以了。

而PLC 则还要考虑信息入出的可靠性、实时性，以及信息的使用等问题。

特别要考虑怎么适应于工业环境，如便于安装，抗干扰等问题。

当PLC投入运行后，其工作过程一般分为三个阶段，即输入采样、用户程序执行和输出刷新三个阶段。

完成上述三个阶段称作一个扫描周期。

在整个运行期间，PLC的CPU以一定的扫描速度重复执行上述三个阶段。

1．输入采样阶段在输入采样阶段，PLC以扫描方式依次地读入所有输入状态和数据，并将它们存入I/O映象区中的相应得单元内。

输入采样结束后，转入用户程序执行和输出刷新阶段。

在这两个阶段中，即使输入状态和数据发生变化，I/O映象区中的相应单元的状态和数据也不会改变。

因此，如果输入是脉冲信号，则该脉冲信号的宽度必须大于一个扫描周期，才能保证在任何情况下，该输入均能被读入。

2.用户程序执行阶段在用户程序执行阶段，PLC总是按由上而下的顺序依次地扫描用户程序(梯形图)。

在扫描每一条梯形图时，又总是先扫描梯形图左边的由各触点构成的控制线路，并按先左后右、先上后下的顺序对由触点构成的控制线路进行逻辑运算，然后根据逻辑运算的结果，刷新该逻辑线圈在系统RAM存储区中对应位的状态；或者刷新该输出线圈在I/O映象区中对应位的状态；或者确定是否要执行该梯形图所规定的特殊功能指令。

即，在用户程序执行过程中，只有输入点在I/O映象区内的状态和数据不会发生变化，而其他输出点和软设备在I/O映象区或系统RAM存储区内的状态和数据都有可能发生变化，而且排在上面的梯形图，其程序执行结果会对排在下面的凡是用到这些线圈或数据的梯形图起作用；相反，排在下面的梯形图，其被刷新的逻辑线圈的状态或数据只能到下一个扫描周期才能对排在其上面的程序起作用。

【免费下载】PLC中英文资料外文翻译

可编程控制器技术讨论与未来发展学生姓名：******所在院系：******所学专业：******导师姓名：******完成时间：******外文资料PLC technique discussion and future developmentWith the development of the times, today's technology is maturing, competition intensified; rely on manual operation does not satisfy the current industry outlook, there is no guarantee of higher quality requirements and high-tech corporate image.People saw in the production practice, automation to bring great convenience and product quality assurance, but also reduce the labor intensity, reducing the staff on the establishment in many complex production process is difficult to achieve target control, the overall optimization, optimal decision-making, skilled operatives, technicians or specialists, managers can easily determine and operate it, you can get satisfactory results. artificial intelligence research is the use of computers to achieve the target, the analog These intelligent behavior, through coordination of the human brain and a computer to combine human models for solving very complex problem of finding the best way.PLC's most important feature is: electrical engineer electrical hardware no longer spend too much scheming, as long as the button switch or sensor input connected to the PLC input point will solve the problem by connecting the output point contacts or relay to control the power of the boot device, and small power output devices can be connected directly.Contained within the PLC having a central processor of the CPU, and with an external I / O port expansion I / O interface and the memory addresses of three major components, CPU core is formed by one or more accumulators, which have the logical math capabilities, and can read the contents of the program memory to drive through the calculation of the corresponding memory and I / O interface; I / O port to the internal accumulator and external input and output systems together, and the relevant data stored in the program memory or data memory; memory can be I / O port input data stored in memory and transferred to the accumulator at work, and I / O interfaces, memory sub-ROM program memory and data memory RAM, ROM data can be permanently stored in memory, CPU and RAM only as a temporary calculated using the calculation buffer space.PLC immunity is extremely good, we do not have to care about the life and work of its harsh occasions, all of these issues are no longer the subject of our failure, and left us is concerned with how to take advantage of the PLC's internal resources tostrengthen our ability to control the device, so that our equipment is more flexible.PLC language is not what we imagine the assembly language or C language programming, instead of using the existing relay control of the ladder, making an electrical engineer in the preparation of the program is very easy to understand the language of the PLC, and many non- Electrical professionals and in-depth understanding of the PLC quickly.PLC communication has become increasingly reflect its value, in the communication between the PLC and the PLC, through information, communication and data sharing to ensure coordination between devices, has reached a complementary effect.PLC data transfer only the internal data to the other side of a consecutive addresses, we called it a table, the other PLC by reading data in the table to operate.The transmission of information has serial and parallel port lines of the points: the usual PLC is 8 machine, of course, there are 16 machines. When we send the data transmission can be a one to the other, you can also eight 8-bit send data to each other, one and eight difference is what we call the serial port and parallel port to send data to send data. Serial port speed is relatively slow, but as long as two or three port lines will solve the problem, and can use the phone line for remote control. The parallel port transmission speed is very fast, which is 256 times the serial port, a short distance advantage, because it is TTL level, generally limited to one meter range, it does not apply to long-distance data transmission, so the cost is too expensive.Many cases, we always like to use string and conversion chip for transmission, in which case we do not need to be overly complex register set, and direct data transfer instruction through the exchange of data, but not a very viable communication approach, because the transmit data when the PLC must have been waiting for the other side of your data output, it can not do other work.When you are reading a book, when you hear someone knocking at the door, you stop the hands of things, play to open the door, and knock on the door with a dialogue, this time the phone rings, you answer the phone schematically in take calls, back to knock on the door to continue with the dialogue, has been completed, you then continue to read your book, in which case we call it an interrupt, it has authority, also has priority, PLC have this kind of functionality. It is characterized by the operation of the device is that we may encounter during emergency incidents, we have to stop immediately the task at hand, to deal with more important things, this situation is thatwe often encounter, PLC to perform tasks in an emergency, always first save the current state, such as the program's address, CPU accumulator data, like when we went to open the door to note we are looking at the first few pages of the book or simply to make a sign, because we will have to continue to be followed to see the back of the book.CPU always in accordance with the wishes we should do, but you give it a wrong thing, it will do the same, which we must pay attention.Interrupt is not the only one, sometimes exist several interrupt, the interrupt priority level with them according to the person's request to perform higher-level interrupts. This will form the interrupt interrupt interrupt nesting. Of course, the level of disruption inside the PLC CPU based on a variety of resource-related, but also with the capacity of the stack size are also related.When we finished work a workpiece, a signal to the PLC, the PLC's internal counter is incremented by one to calculate the workload of our day, a simple counter to solve the problem, of course, they can also be kept in case of power failure data , prompting the data is not lost, it is our desire.PLC also has advanced features counter, when we accept some of the high-speed data, high speed mentioned here is in the microsecond-level data, such as bar code scanners constantly scan data, high-speed signal processor (DSP) calculated and so on, we will adopt to advanced counters to help us count. It is in the PLC program is executed once found senior counter corresponding interrupt, it will immediately put his work. After re-programming of the ladder program that we advanced in the implementation of the program counter will automatically perform the corresponding task, which will rise to a high level of senior counter a level.PLC development has grown from a single model into the era of communication networks and network with other industrial control panels and I / O card board easily be shared.Configuration software can connect all of these hardware through a more intuitive animated pictures to be controlled and can be controlled via the Internet in different places, such as the launch of Shenzhou V is using this approach to make the spaceship launch.Higher level of development we need to continue efforts to obtain. PLC has been around for a full impact on the generations, we have the experience from the previous generation to get more knowledge and lessons learned, to continue the development of PLC technology, to bring it to a higher tide.中文资料可编程控制器技术讨论与未来发展随着时代的发展,当今的技术也日趋完善、竞争愈演愈烈;单靠人工的操作已不能满足于目前的制造业前景,也无法保证更高质量的要求和高新技术企业的形象.人们在生产实践中看到,自动化给人们带来了极大的便利和产品质量上的保证,同时也减轻了人员的劳动强度,减少了人员上的编制.在许多复杂的生产过程中难以实现的目标控制、整体优化、最佳决策等,熟练的操作工、技术人员或专家、管理者却能够容易判断和操作,可以获得满意的效果.人工智能的研究目标正是利用计算机来实现、模拟这些智能行为,通过人脑与计算机协调工作,以人机结合的模式,为解决十分复杂的问题寻找最佳的途径PLC的最大特点在于：电气工程师已不再电气的硬件上花费太多的心计，只要将按钮开关或感应器的输入点连接到PLC的输入点上就能解决问题，通过输出点连接接触器或继电器来控制大功率的启动设备，而小功率的输出设备直接连接就可以。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

可编程控制器技术讨论与未来发展摘自《可编程控制器技术讨论与未来发展》数字媒体系 08165110 多衡随着时代的发展,当今的技术也日趋完善、竞争愈演愈烈;单靠人工的操作已不能满足于目前的制造业前景,也无法保证更高质量的要求和高新技术企业的形象.人们在生产实践中看到,自动化给人们带来了极大的便利和产品质量上的保证,同时也减轻了人员的劳动强度,减少了人员上的编制.在许多复杂的生产过程中难以实现的目标控制、整体优化、最佳决策等,熟练的操作工、技术人员或专家、管理者却能够容易判断和操作,可以获得满意的效果.人工智能的研究目标正是利用计算机来实现、模拟这些智能行为,通过人脑与计算机协调工作,以人机结合的模式,为解决十分复杂的问题寻找最佳的途径我们在各种场合看到了继电器连接的控制，那已经是时代的过去，如今的继电器只能作为低端的基层控制模块或者简单的设备中使用到；而PLC的出现也成为了划时代的主题，通过极其稳定的硬件穿插灵活的软件控制，使得自动化走向了新的高潮。

PLC的最大特点在于：电气工程师已不再电气的硬件上花费太多的心计，只要将按钮开关或感应器的输入点连接到PLC的输入点上就能解决问题，通过输出点连接接触器或继电器来控制大功率的启动设备，而小功率的输出设备直接连接就可以。

PLC的内部包含了具有中央处理器的CPU，并带有外部I/O口扩展的I/O接口地址和存储器三大块组成，CPU的核心是由一个或者多个累加器组成，它们具有逻辑的数学运算能力，并能读取程序存储器的内容通过计算后去驱动相应的存储器和I/O接口；I/O口将内部累加器和外部的输入和输出系统连接起来，并将相关的数据存入程序存储器或者数据存储器中；存储器可以将I/O口输入的数据存入存储器中，并在工作时调转到累加器和I/O接口上，存储器分程序存储器ROM和数据存储器RAM,ROM可以将数据永久的存入存储器中，而RAM只能作为CPU计算时临时计算使用的缓冲空间。

PLC的抗干扰是极其优秀的，我们根本不用去关心它的使用寿命和工作场合的恶劣，这些所有的问题已不再成为我们失败的主题，而留给我们的是关心如何来利用PLC的内部资源为我们加强设备的控制能力，使我们的设备更加的柔性。

PLC的语言并不是我们所想象的汇编语言或C语言来进行编程，而是采用原有的继电器控制的梯形图，使得电气工程师在编写程序时很容易就理解了PLC的语言，而且很多的非电气专业人士也对PLC很快认识并深入。

以上仅仅是PLC的优点之一，这也是人们比较容易理解的一部分，在很多的设备中，人们已不再希望看到太多的控制按钮，它们不但容易损坏而且极易产生人为的失误，小的并不是主要的失误也许你还能够接受；但过大的甚至是致命的失误是我们无法容忍的。

新的技术总是为了给我们带来更安全和便捷的操作，使得我们面临的一大堆问题一扫而光，你有了解过HMI吗？这里说HMI你根本不清楚它是什么，也没有兴趣了解，换一个中文把它说明为触摸屏或者人机界面你就知道了，它和PLC的结合给了我们更大的空间。

HMI控制不仅仅是减少了控制按钮，增加控制的灵活性，更主要的它是可顺序性的，而且在能够改变数据输入和数据输出反馈，在温度控制曲线的模拟也能直观的显示出来。

并且能够通过编写功能帮助程序来提供各种力所能及的帮助，使得操作者减少不必要的失误。

HMI 的厂商目前也越来越多，功能也越来越强，价格也越来越低，使用的面越来越广。

HMI的前景可以说十分的看好。

在很多场合，单靠单机的控制是无法保证设备的顺畅运行，而通过设备与设备的信息交流达到我们想要的效果。

比如在前包装和后工序的检测，我们就要将包装的信息反馈到检测处，而检测处的信息也要反馈到包装来。

这样通过信息共享来使得两者之间链接起来，形成一个共体，从而使的两者间的配合更加的紧密，在彼此间达到映影相挥的效果。

PLC的通信已经愈来愈体现它的价值，在PLC与PLC之间的通信，能够通过信息的沟通和数据的共享来保证设备之间的相互协调，已达到互补的效果。

PLC之间的数据转换采用RS232接口来传送数据，而RS232接口只能保证10米的传输距离，如果在1000米的距离内我们可以通过RS485来进行通信，更长的距离只能通过MODEL来进行传输。

PLC的数据传送只是将内部的数据传送到对方的一块连续的地址中，我们把它称为一个表，对方的PLC通过读取表中的数据来进行操作。

如果表中的数据是一个一般设置的数据的话，那只是一般的数据传送，比如今天的油价上升了，我要把油价的价格传送到所有的输油机上，那就是数据的共享；而当表中的数据是一段控制PLC的指令程序，那就很有难度了，比如你要控制一台机器人来按你想象的动作工作，你会给它编制一段程序并以数据的形式发送过去。

信息输送的形式有单工位、半双工位和全双工位的分别。

单工位的意义也就是说两者之间，一个只能发送，而一个只能接收，比如一个特务他只能接收上司的指示，而无法给上司回复；半双工位也就是两个能都能发送和接受数据，但不能同时发送和接受，比如你打电话时是不能接电话,对方也一样；而全双工位是两者之间都能发送和接受数据，并可同时发送和接受。

像互联网就是典型的例子。

信息输送的过程也有同步和异步之分：同步的意义在于发送数据时数据线和时钟线是同步的，也就是数据信号和时钟信号同时由CPU进行发送，这需要彼此都要专门的时钟信号来进行传送和接送，并且是强制性的，这种方法的特点在于它的速度极快、但相应占用CPU 的工作时间也相对的要长、同时技术难度也非常的大。

它的要求在于在一帧的数据传送中不能有一位的误差，不然的话整个数据将发生错误，这在硬件上是一个比较大的难度。

在一些专用的设备中应用的越来越广泛，像专用的医疗设备、数字信号设备等，在比较单一数据的传输中，它的效果非常的好。

而异步是应用范围最广泛的，这得益于它的技术难度相对要小、同时不需要配制专门的时钟信号、它的特点在于，它的数据是间隔性的，离散性的发送和接受，当CPU太忙的时候可以停顿性去工作，在硬件上也减少了难度，同时数据的丢失相对要少，我们可以通过数据的检测来观察我们发送的数据是否有错误，像奇偶法、累加法和八位效验法等，都可以用来帮助我们检测发送的数据是否有错误发生，通过反馈来进行辨别。

信息的传送口线有串口和并口之分：通常的PLC是8位机，当然也有16位机。

我们在发送数据的时候可以是一位一位的发送给对方，也可以8位8位的将数据发送到对方，一位和8位区别也就是我们所说的串口发送数据和并口发送数据。

串口速度比较慢，但只要两条或者三条口线就能解决问题，并能借用电话线来进行远程控制。

而并口的传送速度是极快的，它是串口的256倍，在短距离占有优势，由于是TTL电平，一般限于1米的范围，它并不适用于长距离的数据传送，这样成本太昂贵了。

很多的情况下我们总喜欢采用串并转换芯片来进行传输，这种情况下不需要我们进行过于复杂的寄存器设置了，而直接通过数据传送指令进行数据交流，但在通信中并不是一个十分可行的办法，因为在发送数据的时候对方的PLC必须一直等待你的数据输出，它不能去做其他的工作。

当你在看书的时候，你听到有人敲门、你停下手上的事情、去打开门、并同敲门者对话、这个时候电话响了、你示意接个电话、在接完电话后、回过头来同敲门者继续对话、对话完毕后、你再继续看你的书，这种情况我们把它称为中断，它具有权威性，也具有优先性，PLC 具备了这样的功能。

它的特点在于我们在设备的操作过程中可能会遇到紧急的突发事件，我们要立刻的停下手上的工作，去处理更重要的事情，这种情况是我们经常所遇到的，PLC在去执行紧急的任务时，总会先保存目前的状态，比如程序的地址，CPU的累加器数据等，就像我们去开门时要记下我们看的书在第几页了或者干脆作个记号，因为我们待会还要继续接着看后面的书。

CPU总是按照我们的意愿去做应该做的事情，但你错误的给它一件事情，它也会同样的去做，这一点我们必须注意。

中断并不是只有一个，有时会同时存在几个中断，中断具有优先的级别，他们会根据人的要求去执行更高级别的中断。

这种中断中的中断也就形成了中断嵌套。

当然中断的级别根据各种PLC内部CPU的资源有关，同时也跟堆栈的容量大小也有关系。

中断的内容有很多种，比如外部中断、通信中的发送和接受中断、定时和计数的时钟中断、还有WDT复位中断等，它们丰富了CPU在处理各种事务时响应种类。

这样讲也许你并不能完全理解中断的内部结构和操作顺序，我们做一个小小的例子来说明.每一个设备总是不会忘记有一个按钮，它也是在我们遇到紧急情况时使用的，那就是急停按钮。

当我们遇到人身事故和意外情况时我们只要按下它，机器立即停止所有的操作，并等待处理完意外后再恢复操作。

急停按钮连接PLC内部CPU的内部I/O接口上，当按钮给CPU一个外部触发信号时，CPU对I/O进行再次检测，当确认有外部触发信号时，CPU保护现场并将程序计数器自动转到相应的外部I/O中断程序中去，当外部中断程序处理完毕，程序计数器返回到主程序继续工作。

有一点可以说明的是我们一般会把急停按钮的外部中断升至最高级别，从而保证安全。

当我们在工作完一个工件时，给PLC一个信号，将PLC的内部计数器加1来计算我们一天的工作量时，一个简单的计数器能解决问题，当然它们也能够在掉电的情况下保持数据，促使数据不丢失，这也是我们所渴望的。

PLC还具有高级计数器的功能，当我们在接受一些高速的数据时，这里所说的高速是在在微秒级的数据，比如条码扫描机在不断的扫描数据，数据处理器DSP计算的高速信号等，我们就要采用到高级计数器来帮助我们进行计数。

它在PLC执行程序时一旦发现高级计数器对应的中断，就会立即放下手上的工作。

经过再次编程的梯形图程序说明我们在执行程序时高级计数器会自动的执行对应的工作，从而将高级计数器的级别升至高一级别。

你也许听过太多的这个词:“死机”，大致的意思是CPU工作量过大，内部资源不足等情况造成程序无法运行。

PLC也有类似的情况，在PLC内部有一个看门狗WDT，我们可以设置WDT一个程序运行的时间，当程序运行过程中出现程序跳转错误时或者程序繁忙时，程序的运行时间超过WDT的设置时间，CPU转而WDT复位状态。

程序重新开始运行，但对中断不会进行破坏。

PLC的发展已经从单一的模式进入了通信的网络时代，并同其它的工控网板和I/O卡板轻易的进行共享。

组态软件可以将所有的这些硬件连接起来，通过更直观的动画图片来进行控制，并可以通过互联网在异地进行控制，像神舟五号的发射就是采用这种办法来使飞船升空。

更高层次的发展需要我们不断的努力来取得。

PLC的出现已经足足影响了几代人，我们也从上一辈的经验中获取了更多的知识和教训，来不断的发展PLC技术，将它推向更高浪潮。
