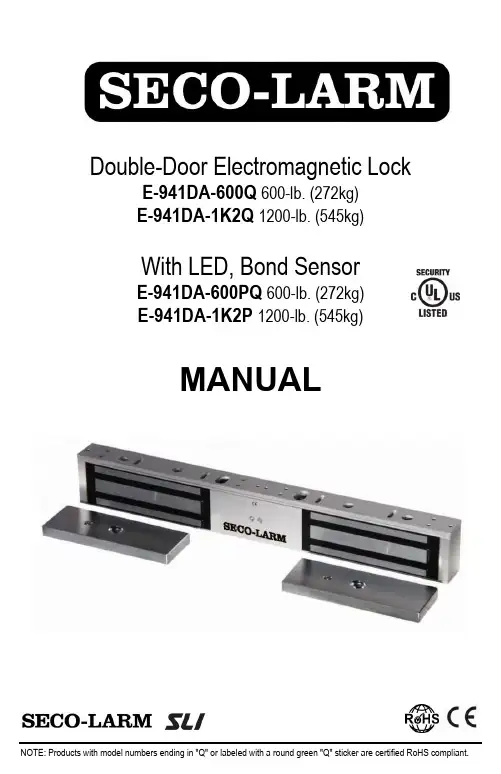

双开门电磁锁E-941DA系列使用说明书

NOTE: Products with model numbers ending in "Q" or labeled with a round green "Q" sticker are certified RoHS compliant.Double-Door Electromagnetic LockE-941DA-600Q 600-lb. (272kg) E-941DA-1K2Q 1200-lb. (545kg)With LED, Bond SensorE-941DA-600PQ 600-lb. (272kg) E-941DA-1K2P 1200-lb. (545kg)MANUALSECO-LARM ELECTROMAGNETIC LOCK2SECO-LARM U.S.A., Inc.Table of Contents: Introduction:Features:The E-941DA series of electromagnetic locks is the ideal way to secure double doors againstunauthorized entry. When power is applied to the electromagnetic locks, it creates an extremely strong magnetic field. The electromagnets are strongly attracted to the steel armature plates which are mounted on the protected doors. Once the electromagnets are deactivated, the secured doors will open and close normally without any residual magnetism.∙ Anodized aluminum. ∙ No residual magnetism. ∙ MOV surge protection.∙ Adjustable mounting bracket.∙ Complete mounting hardware for typical installations. ∙“L” bracket and “Z” brackets available for easy mounting.∙ 12/24VDC selectable. ∙ Detachable faceplate.E-941DA-1K2P and E-941DA-600PQ also feature:∙ 2 Built-in dual-colored status LED and bond sensors to show locking status of each door:Parts List:1 x Mounting plate 1 x Electromagnet2 x Armature plate 2 x Armature screw 4 x Steel washers 2 x Rubber washer 2 x Door spacer 2 x Sexnut bolt 4 x Guide pins 8 x Long self-tapping screws 4 x Short self-tapping screws 4 x Hex-head mounting screws 4 x Tamper caps 1 x Allen wrenchInstallation Notes Installation Wiring Diagram Maximum Wiring Distance TroubleshootingWarranty Introduction Features Parts List Specifications Overview Installation Applications 22223344-6 7 7 8 8Specifications:SECO-LARM ELECTROMAGNETIC LOCKSECO-LARM U.S.A., Inc.3“L ”-Bracket and “Z ”-BracketInstallation Applications:NOTE : When mounting the electromagnets , it may be necessary to use a “Z”-bracket, 1 or 2 “L”-brackets, and/or plate spacers, depending on the location and the type of doors and frame. Use the diagram below to help decide whether or not an optional bracket will be necessary for installation.See page 7 for a complete list of SECO-LARM accessories..“L” BracketTypicalInstallation “U” Bracket(Typically for glass doors)Plate SpacersArmature-Mounting PlateSECO-LARM ELECTROMAGNETIC LOCK4 SECO-LARM U.S.A., Inc.1. Read this installation manual thoroughly. A clear understanding of the product and this manual will make installation much easier.2. The electromagnetic locks are designed for indoor use ONLY.3. The most suitable mounting location for the electromagnetic locks may require the use of additional SECO-LARM accessories such as Z-brackets, L-brackets, and/or spacer plates. Please see the diagram on page 3 to decide if a particular application requires any mounting accessories. See page 7 for a complete list of SECO-LARM accessories.4. Do not run power wires and signal wires in the same conduit as this may cause interference.5. Do not install a diode in parallel with the electromagnetic locks as this may cause a delay when releasing the door as well as cause residual magnetism.6. The best location to install the electromagnetic locks is on the inside of the doors that are being secured with the wiring concealed in the frame to prevent tampering with the unit.1. Fold the mounting template along the dotted line toform a 90-degree angle.5. Use a hammer to lightlytap the guide pins into the guide pin holes on the armature plates 6. .Installation:Installation Notes:SECO-LARM ELECTROMAGNETIC LOCKSECO-LARM U.S.A., Inc. 5Mounting PlateArmature Plate 90The rubber washer will be sandwiched between the two metal washers.Armature screwGuide pins1/4” (6.8mm) for M8x1.25 threadMetalwashers 5/8” (16mm)5/16” (8mm)1/2” (12 .7mm)5/16” (8mm)SECO-LARM ELECTROMAGNETIC LOCK6SECO-LARM U.S.A., Inc.EAP-5D1QAlso Available from SECO-LARM:SK-1123-SQ SD-7202GC-PEQAccess Control Power Supply Stand-Alone Access KeypadsWired or Wireless RTE Plates(shown)Voltage Converters or BoosterST-LA110-TTQ (shown)Complete line of Electromagnetic Locks and StrikesE-941SA-1200(shown)(shown)Position two jumperson all four pins forSECO-LARM ELECTROMAGNETIC LOCKSECO-LARM U.S.A., Inc. 724VDC Minimum Wire Gauge:Wiring Diagram:Maximum Distance from Power Source to Electromagnetic Lock:N.C. COM N.O.L E DFor a complete chart, please visit Optional SECO-LARM Electromagnetic Lock Accessories:600-lb. Models 1200-lb. ModelsE-941S-600/ZQ E-941S-1K2/ZQE-941S-600/LQ E-941S-1K2/LQE-941S-600/PQ E-941S-1K2/PQE-941S-1K2/UQE-941S-600/UQ “L” Brackets Plate Spacers “Z” Brackets(includes 1 “L” Bracket) Glass Door“U” Brackets E-941S-1K2/ZRQ(Right-side “Z” Bracket for E-941DA-1K2P)E-941D-1K2/P(for E-941DA-1K2P)Additional Models E-941S-1K2/HQE-941S-600/HQ Armature Plate HoldersDescription*NOTEDoes not include armature plateCAUTION: Each lock has its own circuit board, for a total of two circuit boards. Please wire each circuit board and program the voltage-jumper selections according to the diagram below.Position a jumper over the two middle pins for Position two jumpers on all four pins for 12VDC operationSECO-LARM ELECTROMAGNETIC LOCK8SECO-LARM U.S.A., Inc.No relay outputTroubleshooting:LIFETIME LIMITED WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for the lifetime of the product. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. Under no circumstances will SECO-LARM be responsible for any costs or charges for removal, installation, or reinstallation. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to repair or replacement only, at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else. This lifetime limited warranty is for products sold and installed in the United States and Canada. For all other countries the warranty is 1 (one) year.NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors. Copyright © 2010 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of SECO-LARM.SECO-LARM U.S.A., Inc.16842 Millikan Avenue, Irvine, CA 92606Website: Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326E-mail: sales @MiE941DA_1007.docxDoors do not lock Bond status LEDs do not IlluminateCheck to make sure the wires are securely tightened to the terminal block. Check that the power supply is connected and operating. Use a meter to check the resistance of coils inside the locks. See below. Make sure the rubber washer is installed and free from damage. Doors lock, but can easily be forced openMake sure the electromagnet and armature plates are properly aligned. Make sure the contact surfaces of the electromagnet and armature plates are clean and free from rust. Check the power leads with a meter, and make sure 12VDC or 24VDC is present. Use a meter to check the resistance of coils inside the locks. See below. Make sure the rubber washer is installed and free from damage. The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode. Delay in door releasing Check that the power is connected properly and turned on. Make sure the locks are aligned properly. Make sure the NO/NC/COM are wired properly.PITGW1。

单管塔磁性防盗锁磁力锁产品技术手册

2：放置磁性锁
将锁舌挡板拆下，双锁紧螺母拆卸后，把锁旋转放入 D52mm 的门孔中，套上防水像皮止圈，拧上 M50 双锁紧螺母。
3：锁紧固定螺母组
将锁舌固定板套上锁具，拧上 M18 双锁紧螺母，固定后用钥匙调整档板的拉置即可使用。
4：安全性检查
本锁具内置磁性，具有很高的防盗性能，一般常规的方式无法将其打开，具有一定的防盗性能。完成安装后,用专用磁性钥匙,检查开闭程度与锁紧度,如果较松,可适当调整楔形块的倾斜角度.
富阳佳淇通信技术有限公司-单管塔磁性防盗锁技术说明书
2、磁性锁及钥匙的磁体部分不得接触高温,油污,避免剧烈震动,以防失去磁性,导致功能丧失 3、锁体内部含有精密部件,请不要随意打开.确实需要更换零部件的,请及时与厂家联系. 4、为了保持锁具良好的性能,请勿置放于粉尘较多的环境下,不要将锁眼
堵塞,不得随意往锁体内添加黄油,润滑油,以防灰尘粘附. 5、锁具本体均为 SUS304 高强度不锈钢材质,工作环境在-15℃~+45℃之间,如果超过此环境,有
1：新产品：本产品是拥有知识产权的专利产品（专利证号 200920197683.9），是受法律保护的，在通信铁塔领域具有一定影响力的知名品牌产品，可排除一切知识产权纠纷，客户可放心使用。
2：新材料：本产品主体材料为 304 高强度不锈钢，具有很强的抗冲击与抗扭性，磁性材料采用钕铁硼强力磁铁，等级 N52，锁紧螺母与挡板固定螺母均为高强度不锈钢细牙，防盗性能极高。
2：将锁舌挡板拆下，双锁紧螺母拆卸后，把锁旋转放下D50的门孔中，套上防水像皮止圈，拧上M50双锁紧螺母。
3：将锁舌固定板套上锁具，拧上M18双锁紧螺母，固定后用钥匙调整档板的拉置即可使用。
4：本锁具内置磁性，具有很高的防盗性能，一般常规的方式无法将其打开，具有一定的防盗性能。

磁力锁、电插锁、电动开门机说明书

磁力锁电插锁电动开门机规格书技术参数（DAIC-MJ-DCLS）产品名称：280KG单门磁力锁（带信号输出)产品图片：产品概述：磁力锁（或称电磁锁）的设计和电磁铁一样，是利用电磁的原理，当电流通过硅钢片时，磁力锁会产生强大的吸力紧紧吸住铁板；只要非常小的电流就会让磁力锁产生很大的磁力，从而能有效地控制门的开关。

深圳多奥磁力锁采用国际领先的生产和封装工艺，不仅让磁力锁表面抗氧化能力达到国际领先水平，还使磁力锁的拉力远高于同类产品达20%以上。

我们的产品已远销到全球六十个国家或地区，且广泛应用于机场、地铁、银行、监狱、智能大厦、智能小区等重要场所，为全球用户提供方便、快捷、智能化的出入口管理锁具，受到了用户的广泛好评和青睐。

产品优势：◆ 250KG±10%静态直线拉力◆ 可自行设定12VDC±10% 或24VDC±10%◆ 内置反向电流保护装置（MOV）◆ 防残磁设计，防磨损材料制造◆ 铝外壳采用高强度合金材料◆ 双重锁体绝缘处理◆ 完全电磁吸力工作，不存在机械故障技术参数：锁体尺寸：长250x宽47x厚26(mm) 吸板尺寸：长180x宽38x厚11(mm) 工作电压：DC12V±10%/DC24V±10% 工作电流：480mA±5%/240mA±5%信号输出：锁状态信号输出延时开门：无安全类型：断电开门适用门型：木门\玻璃门\金属门\防火门等质量认证：CE/FCC/CMA/ROHS 选配支架：DA-280L/280U/280ZL产品尺寸：产品规格书（DAIC-MJ-LXS）产品名称：灵性锁（电机锁)产品图片：产品概述：电机锁(或称灵性锁)的设计有效结合了传统电控锁及磁力锁的优点，克服了电控锁噪音过大、磁力锁耗电等方面的不足而开发的新产品，电机锁与电控锁和磁力锁相比较，它的性能更加的完善、优点更加明显，可与楼宇对讲、门禁等智能化系统配套使用。

LK-M012L MAGLOCK 1200 LBS 磁力锁说明书

LK-M012LMAGLOCK 1200 LBS with Lock Status and IndicatorJune 2012Installation Manual11. IntroductionThe LKM12L is a surface mounted magnetic lock series with 1200 lbs holding force. LKM12L has dual voltage (12 or 24 VDC) and lowcurrent consumption with anodized aluminum housing. LKM12L has a built-in voltage spike suppressor and no residual magnetism. Monitored status output and timer versions are available. Different types of bracket and housing are available to fit various mounting conditions.LKM12L is compatible with EN55011:1998: Class B, EN60601-1-2:2002, EN61000-4-2:1995, EN61000-4-3:2002 & UL-S5351.Figure 1: LKM012L2. Technical Specifications2.1Electrical Characteristics2.2 Physical Characteristics3. MountingBefore attempting to install magnetic lock: ▪ Handle the equipment with care. Damaging the mating surfaces of the magnet or armature plate may reduce locking efficiency. ▪The magnet mounts rigidly to the door frame. The armature plate mounts to the door with hardware. Kit provided that allows it to pivot about its center to compensate for door wear and misalignment.▪ Template use must take place with the door in its normally closed position.▪Before installing, please add the thread locker to all screws. Firmly tighten the screws to avoid fastening loosen.Typical mountings are shown in Figure 2.Figure 2: Surface MountingWhen fixing the armature plate: ▪ Do not fix the plate too tightly▪Make the rubber washer more flexible to make the armature plate automatically adjust its proper position with the magnetFigure 3 shows how to mount an armature plate/surface.Figure 3: Armature Plate/Surface Mounting4. W iring4.1I nputFor a 12 VDC input, a maximum of 0.5 A power is needed. For a 24 VDC input, a maximum of 0.25 A power is needed. The unit should only be powered by a UL listed power supply. If the power switch is not wired between the DC source voltage and magnet, it will take a longer time to de-energize the magnet simulating residual magnetism (see Figure 8).Figure 4: WiringTo wire input:1.Connect the ground (-) lead from the power source to Terminal 2. 2.Connect the positive (+) lead from the power source to Terminal 1.3.Set the jumper for either 12 or 24 VDC operation.4.2C ontactsThe relay dry contacts are rated 1 amp at 24 VDC for safe operation – do not exceed this ratingIf you require a normally open switch, connect the wires from the system to terminal 4 and terminal 3.If you require a normally closed switch, connect the wires from the system to terminal 4 and terminal 5.Figure 7 shows various PCB schematics with the jumper settings.Figure 5: PCB SchematicLimited WarrantyROSSLA RE ENTERPRISES LIMITED (ROSSLARE) ONE-YEAR LIMITED WA RRA NTY is applicable worldwide. This warranty supersedes any other warranty. ROSSLARE'S ONE-YEAR LIMITED WARRANTY is subject to the following conditions:W ARRANTYWarranty of ROSSLARE'S products extends to the original purchaser (Customer) of the ROSSLARE product and is not transferable.P RODUCTS C OVERED B Y T HIS W ARRANTY AND D URATIONROSSLA RE ENTERPRISES LTD. AND/OR SUBSIDIA RIES (ROSSLA RE) warrants that the LK-M12L Maglock to be free from defects in materials and assembly in the course of normal use and service. The warranty period commences with the date of shipment to the original purchaser and extends for a period of 1 year (12 months).W ARRANTY R EMEDY C OVERAGEIn the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty. Unless otherwise requested by a ROSSLARE representative, return of the failed product(s) is not immediately required.If ROSSLA RE has not contacted the Customer within a sixty (60) day holding period following the delivery of the warranty claim, Customer will not be required to return the failed product(s). A ll returned Product(s), as may be requested at ROSSLA RE’S sole discretion, shall become the property of ROSSLARE.To exercise the warranty, the user must contact ROSSLARE Enterprises Ltd. to obtain an RMA number after which, the product must be returned to the Manufacturer freight prepaid and insured.In the event ROSSLARE chooses to perform a product evaluation within the sixty (60) day holding period and no defect is found, a minimum US$ 50.00 or equivalent charge will be applied to each Product for labor required in the evaluation.ROSSLARE will repair or replace, at its discretion, any product that under normal conditions of use and service proves to be defective in material or workmanship. No charge will be applied for labor or parts with respect to defects covered by this warranty, provided that the work is done by ROSSLARE or a ROSSLARE authorized service center. E XCLUSIONS AND L IMITATIONSROSSLA RE shall not be responsible or liable for any damage or loss resulting from the operation or performance of any Product or any systems in which a Product is incorporated. This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.This warranty does not cover expenses incurred in the transportation, freight cost to the repair center, removal or reinstallation of the product, whether or not proven defective.Specifically excluded from this warranty are any failures resulting from Customer's improper testing, operation, installation, or damage resulting from use of the Product in other than its normal and customary manner, or any maintenance, modification, alteration, or adjustment or any type of abuse, neglect, accident, misuse, improper operation, normal wear, defects or damage due to lightning or other electrical discharge. This warranty does not cover repair or replacement where normal use has exhausted the life of a part or instrument, or any modification or abuse of, or tampering with, the Product if Product disassembled or repaired in such a manner as to adversely affect performance or prevent adequate inspection and testing to verify any warranty claim.ROSSLARE does not warrant the installation, maintenance, or service of the Product. Service life of the product is dependent upon the care it receives and the conditions under which it has to operate.In no event shall ROSSLARE be liable for incidental or consequential damages.L IMITED W ARRANTY T ERMSTHIS WARRANTY SETS FORTH THE FULL EXTENT OF ROSSLARE’S WARRANTY.THE TERMS OF THIS WARRANTY MAY NOT BE VARIED BY ANY PERSON, WHETHER OR NOT PURPORTING TO REPRESENT OR ACT ON BEHALF OF ROSSLARE.THIS LIMITED WA RRA NTY IS PROVIDED IN LIEU OF A LL OTHER WA RRA NTIES.A LL OTHER WA RRA NTIES EXPRESSED OR IMPLIED,INCLUDING WITHOUT LIMITATION, IMPLIED WA RRA NTIES OF MERCHA NTA BILITY A ND FITNESS FOR A PA RTICULAR PURPOSE, ARE SPECIFICALLY EXCLUDED.IN NO EVENT SHA LL ROSSLARE BE LIA BLE FOR DA MA GES IN EXCESS OF THE PURCH A SE PRICE OF THE PRODUCT,OR FOR A NY OTHER INCIDENT A L, CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF USE,LOSS OF TIME,COMMERCIA L LOSS,INCONVENIENCE,A ND LOSS OF PROFITS, ARISING OUT OF THE INSTALLATION, USE, OR INABILITY TO USE SUCH PRODUCT, TO THE FULLEST EXTENT THAT A NY SUCH LOSS OR DA MA GE MA Y BE DISCLA IMED BY LAW.THIS WARRANTY SHALL BECOME NULL AND VOID IN THE EVENT OF A VIOLATION OF THE PROVISIONS OF THIS LIMITED WARRANTY.Contact InformationAsia Pacific, Middle East, Africa Rosslare Enterprises Ltd.Kowloon Bay, Hong KongTel: +852 2795-5630Fax: +852 2795-1508********************************* United States and Canada Rosslare Security Products, Inc. Southlake, TX, USA 76092Toll Free: +1-866-632-1101Local: +1-817-305-0006Fax: +1-817-305-0069*******************************EuropeRosslare Israel Ltd.Rosh HaAyin, Israel 48091Tel: +972 3 938-6838Fax: +972 3 938-6830*******************************Latin AmericaRosslare Latin AmericaBuenos Aires, Argentina 1642*******************************ChinaRosslare Electronics (Shenzhen) Ltd.Shenzhen, ChinaTel: +86 755 8610 6842Fax: +86 755 8610 6101******************************* 76-96448+2。

磁力锁说明书Word版

1、吸力强，磁吸力为280kg。

本锁利用优质电工材料和先进加工工艺制造而成，外型美观，吸力强，无剩磁。

2、无机械磨损，克服一般要机械锁和电子锁缺陷，使用寿命长。

3、电源为12/24伏双直流电压入口。

4、启动电流0.45A，持续电流为0.45A，温升为室温+15℃。

锁体尺寸：250*47*25mm吸合力：280kg（静态直线）电压：DC12V\DC24V电流：480mA\240mA安装方式：明装状态指示灯：LED安全类型：断电开锁电磁锁的安装方法电磁锁(磁力锁)的标准安装方法[图]一．外开门的表面安装方法：（参照图一至图八）第一步：首先用螺丝刀打开盖板，再用六角扳手打边板，准备安装（见图一）第二步：拿出安装纸板，将纸板沿着虚线折叠按图二所示方法把纸板放到所需装锁的位置,然后把需要打孔的地方做上记号后打孔.第三步：A.继铁板的固定（参见图三）将内六角螺丝插入继铁板中，把橡胶华司置与两片金属华司之间，然后套在内六角螺丝上。

将继铁板插入门上打的三个孔中，同时把香菇头从门的另一面插入，利用六角扳手将继铁板锁在门上。

B．边板的固定（参见图三）把边板用两个半圆头螺丝固定在先前打孔的门框上（固定在边板的长形孔中）。

注意：不要将边板锁紧，让其能前后能移动以利于安位置的修正。

C．修正边板的位置使边板与继铁板的位置合适，目的使锁主体能与继铁板紧密的接触。

D：固定锁主体与边板锁紧边板的半圆头螺丝后，再锁上所有的沉头螺丝，然后再卸下半圆头螺丝，在适当的位置钻孔以便接线。

最后用六角扳手把锁主体锁在边板上。

(参见图四)第四步：按照说明书的指示接线。

第五步：盖上盖板，把小铝柱体塞进锁主体(参见图五)的螺丝孔中。

参见图六图七与图八所示为典型的外开门外置式的安装式样★安装注意事项在安装继铁板的时候，不要把它锁紧，让其能轻微摇摆以利于和锁主体自然的结合。

二、内开门的表面安装(ZL型支架的安装方法）：解决外装磁力锁的内装问题。

内开门做表面安装时需要有辅助配件来协助安装，我们选用富有装饰性的优质进口铝材来制做这种安装配件：Z&L支架。

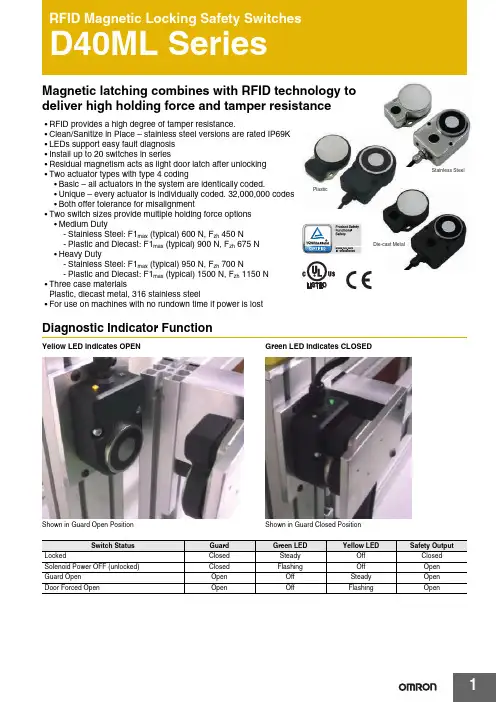

D40ML系列RFID磁锁产品说明书

1Stainless SteelPlasticDie-cast MetalMagnetic latching combines with RFID technology to deliver high holding force and tamper resistance•RFID provide s a high degree of t a mper re s i s t a nce.•Cle a n/Sa nitize in Pl a ce – s t a inle ss s teel ver s ion s a re r a ted IP69K •LED s s upport e as y f a ult di a gno s i s •In s t a ll up to 20 s witche s in s erie s•Re s idu a l m a gneti s m a ct s as light door l a tch a fter unlocking •Two a ctu a tor type s with type 4 coding•B as ic – a ll a ctu a tor s in the s y s tem a re identic a lly coded.•Unique – every a ctu a tor i s individu a lly coded. 32,000,000 code s •Both offer toler a nce for mi sa lignment•Two s witch s ize s provide multiple holding force option s •Medium Duty-S t a inle ss S teel: F1m a x (typic a l) 600N, F zh 450N -Pl as tic a nd Diec as t: F1m a x (typic a l) 900N, F zh 675N •He a vy Duty-S t a inle ss S teel: F1m a x (typic a l) 950N, F zh 700N-Pl as tic a nd Diec as t: F1m a x (typic a l) 1500N, F zh 1150N •Three c as e m a teri a l sPl as tic, diec as t met a l, 316 s t a inle ss s teel•For u s e on m a chine s with no rundown time if power i s lo s tDiagnostic Indicator FunctionYellow LED indicates OPENS hown in Gu a rd Open Po s itionGreen LED indicates CLOSEDS hown in Gu a rd Clo s ed Po sition Switch StatusGuard Green LED Yellow LEDSafety OutputLockedClo s ed S te a dy Off Clo s ed S olenoid Power OFF (unlocked)Clo s ed Fl as hing Off Open Gu a rd Open Open Off S te a dy Open Door Forced OpenOpenOffFl as hingOpenD40ML Series2Ordering InformationSwitchesSpare ActuatorsNote:S p a re a ctu a tor s a re not a v a il a ble for uniquely coded s witche s.AccessoriesNote:1.The quick di s connect c a ble h as a n identic a l c a ble pining as the Cable Wiring on p a ge 42.Y92E-M12PUR S H8S M-L di s connect c a ble s a re a l s o comp a tible with D40ML.Case Material Holding Force F1max (typical)Actuator Type Cable Configuration Model Number316 S t a inle ssS teel (IP69K)600NUnique5m C a ble D40ML-SS2-U-5M10m C a ble D40ML-SS2-U-10MPigt a il w/ M12 Connector D40ML-SS2-U-M12B as ic5m C a ble D40ML-SS2-B-5M10m C a ble D40ML-SS2-B-10MPigt a il w/ M12 Connector D40ML-SS2-B-M12 950NUnique5m C a ble D40ML-SS1-U-5M10m C a ble D40ML-SS1-U-10MPigt a il w/ M12 Connector D40ML-SS1-U-M12B as ic5m C a ble D40ML-SS1-B-5M10m C a ble D40ML-SS1-B-10MPigt a il w/ M12 Connector D40ML-SS1-B-M12Pl as tic (IP67)900NUnique5m C a ble D40ML-P2-U-5M10m C a ble D40ML-P2-U-10MPigt a il w/ M12 Connector D40ML-P2-U-M12B as ic5m C a ble D40ML-P2-B-5M10m C a ble D40ML-P2-B-10MPigt a il w/ M12 Connector D40ML-P2-B-M12 1500NUnique5m C a ble D40ML-P1-U-5M10m C a ble D40ML-P1-U-10MPigt a il w/ M12 Connector D40ML-P1-U-M12B as ic5m C a ble D40ML-P1-B-5M10m C a ble D40ML-P1-B-10MPigt a il w/ M12 Connector D40ML-P1-B-M12Diec as t Met a l(IP67)900NUnique5m C a ble D40ML-M2-U-5M10m C a ble D40ML-M2-U-M12Pigt a il w/ M12 Connector D40ML-M2-U-M12B as ic5m C a ble D40ML-M2-B-5M10m C a ble D40ML-M2-B-10MPigt a il w/ M12 Connector D40ML-M2-B-M12 1500NUnique5m C a ble D40ML-M1-U-5M10m C a ble D40ML-M1-U-10MPigt a il w/ M12 Connector D40ML-M1-U-M12B as ic5m C a ble D40ML-M1-B-5M10m C a ble D40ML-M1-B-10MPigt a il w/ M12 Connector D40ML-M1-B-M12Product Description Model Number S t a inle ss S teel; IP69K; 950N; B as ic Code; Actu a tor D40ML-SS1-B-ACTS t a inle ss S teel; IP69K 600N; B as ic Code; Actu a tor D40ML-SS2-B-ACT Diec as t Met a l; IP67; 1500N; B as ic Code; Actu a tor D40ML-M1-B-ACTDiec as t Met a l; IP67; 900N; B as ic Code; Actu a tor D40ML-M2-B-ACTPl as tic; IP67; 1500N; B as ic Code; Actu a tor D40ML-P1-B-ACTPl as tic; IP67; 900N; B as ic Code; Actu a tor D40ML-P2-B-ACTProduct Description Model Number Quick Di s connect C a ble, 8-pin M12 to Flying Le a d s, PVC J a cket, 5 Meter Length D40ML-CBL-M12-5M Quick Di s connect C a ble, 8-pin M12 to Flying Le a d s, PVC J a cket, 10 Meter Length D40ML-CBL-M12-10MD40ML Series3SpecificationsNote:When the product u s e devi a te s from the s e ass umption s (different lo a d, oper a ting frequency, etc.) the v a lue s mu s t be a dju s ted a ccordingly.Codes and StandardsIEC 60947-5-3:2013, EN 60947-5-1:2004 + AC:2005 + A1:2009, EN 60947-1:2007 + A1:2011, EN I S O 13849-1:2008 + AC:2009, EN 62061:2005 + AC:2010 + A1:2013, I S O 14119:2013, UL508Safety Classificationand Reliability Data Minimum Switched Current 10VDC 1mA Dielectric Withstand 250VAC Insulation Resistance 100M ΩShock Resistance 11m s 30GVibration Resistance 10 to 55Hz, 1mm a mplitude Switching Distance S a o 1mm Clo s e; S a r 10mm OpenMisalignment Between s witch a nd a ctu a tor, 2mm in a ny direction Switching Frequency 1.0Hz m a ximum Response Time (On –> Off)10m s m a x.Operating Time (Off –> On)150m sApproach Speed200mm/m to 1000mm/sBody MaterialD40ML-P_: Pl as ticD40ML-M_: Diec as t Met a lD40ML-SS _: 316 S t a inle ss S teel Actu a tor S e a l: S iliconeEnc a p s ul a tion: High Temper a ture Epoxy Operating Temperature Range–25 to 40°CAmbient Operating Humidityup to 90% a t 25 ~ 40°CEnclosure Protection IP67 (Pl as tic or Diec as t Met a l)IP69K (S t a inle ss s teel ver s ion s with flying le a d s )Cable Type PVC 8 core, 6mm outer di a meter Mounting Bolts 2 × M5 Tightening torque 1.0Nm Mounting Position AnyPower Supply 24VDC ±10% (s elv / pelv)Power ConsumptionUnlocked: 50mA m a x.Locked:- Medium Duty 325mA m a x. - He a vy Duty 500mA m a x.Holding ForceMedium Duty- S t a inle ss S teel: F1m a x (typic a l) 600N, F zh *1 450N - Pl as tic a nd Diec as t: F1m a x (typic a l) 900N, F zh 675N He a vy Duty- S t a inle ss S teel: F1m a x (typic a l) 950N, F zh 700N- Pl as tic a nd Diec as t: F1m a x (typic a l) 1500N, F zh 1150N *1A new te s t h as been introduced with the coefficient 1.3. A device with a s pecified m a ximum holding force (F zh ) of 500N need s to hold up a force te s t (F1m a x ) a t 650N.According to the s t a nd a rd the locking force F zh s hould be s t a ted for every gu a rd locking s witch.Max. Switched Current (Outputs)200mA (min. intern a l re s i s t a nce 8.5 Ohm s )Auxiliary Signal+24 VDC (Door Open)Characteristic Data according to EN ISO13849-1PLe: If both ch a nnel s a re u s ed in combin a tion with a S IL3/PLe control device C a tegory: C a t. 4MTTFd: 1100aDi a gno s tic Cover a ge DC: 99% (high)Number of oper a ting d a y s per ye a r: d op = 365d Number of oper a ting hour s per d a y: h op = 24h B10d: Not mech a nic a l p a rt s implemented Characteristic Data according to IEC62061 (used as a sub system)Sa fety Integrity Level: S IL3PFH (1/h): 4.77E-10 Corre s pond s to 4.8% of S IL3PFD: 4.18E-05 Corre s pond s to 4.2% of S IL3Proof Te s t Interv a l T 1: 20aInformation with regard to UL508U s e LVLC or Cl ass 2 s upply. Type 1 enclo s ure.Risk Time in accordance with EN 60947-5-3150m s (s witching off del a y a t remov a l of a ctu a tor)D40ML Series4Cable WiringTypical Operating Distance (Front Approach)Note:DO NOT u s e s witch a nd a ctu a tor as a gu a rd door stop.Solenoid Supply 24 VDCAuxSafety Output 2Safety Output 1External Supply 24 VDCNon-Contact RFID Locking Switch Wiring DiagramQuick Connect(CC)M12 8-way maleplugConductorColorsFunction Power Rating8Or a ngeApply Lock(24VDC ±10%)50mA M a x5BrownAuxili a ry S ign a l(Door Open/Clo s ed)+24VDC(200mA)4Yellow Sa fety Output 2200mA M a x6Green Sa fety Output 21White Sa fety Output 1200mA M a x7Bl a ck Sa fety Output 13Blue0VDC500mA M a x2Red+24VDC ±10%Misalignment mmDistance mmD40ML Series5Dimensions(Unit: mm)D40ML Medium Duty SwitchD40ML Heavy Duty SwitchInstallation:•In s t a ll a tion of a ll D40ML s erie s sa fety s witche s mu s t be in a ccord a nce with a ri s k ass e ss ment for the individu a l a pplic a tion.•The u s e of a sa fety rel a y i s required for monitoring RFID coded s witche s . The s e rel a y s monitor two redund a nt circuit s as per I S O13849-1 for up to PLe/C a tegory 4 protection.•D40ML s erie s s witche s a re de s igned to oper a te with mo s t du a l ch a nnel sa fety rel a y s to sa ti s fy EN60947-5-3.•M5 mounting bolt s mu s t be u s ed to mount the s witche s . Tightening torque for mounting bolt s to en s ure reli a ble fixing i s 1.0 Nm. Alw a y s mount on non-ferrou s m a teri a l s .•Do not mount a dj a cent s witche s or a ctu a tor s clo s er th a n 30mm.•To a chieve nomin a l holding force en s ure f a ce-to-f a ce a lignment of m a gnetic p a rt s .•After in s t a ll a tion a lw a y s check e a ch s witch function by opening a nd clo s ing e a ch gu a rd individu a lly in turn a nd en s uring th a t the Green LED on the s witch a nd the LED s on the sa fety rel a y a re illumin a ted when the s witch i s clo s ed a nd a re extingui s hed when the s witch i s open. Check th a t the m a chine s top s a nd c a nnot be re-s t a rted when e a ch s witch i s open.Maintenance/Safety Checks: Monthly: Check a lignment of a ctu a tor a nd look for s ign s of mech a nic a l d a m a ge to the s witch c as ing or c a ble s .The sa fety function s a nd mech a nic s mu s t be te s ted regul a rly. For a pplic a tion s where infrequent gu a rd a cce ss i s fore s ee a ble, the s y s tem mu s t h a ve a m a nu a l function te s t to detect a po ss ible a ccumul a tion of f a ult s . At le as t once per month for PLe C a t3/4 or once per ye a r for PLd C a t3 (I S O13849-1). Where po ss ible it i s recommended th a t the control s y s tem of the m a chine dem a nd s a nd monitor s the s e te s t s , a nd s top s or prevent s the m a chine from s t a rting if the te s t i s not done. (I S O14119). Check th a t the m a chine s top s a nd c a nnot be re-s t a rted when e a ch s witch i s open.NOTE: The sa fety output s will only clo s e when the a ctu a tor i s in pl a ce a nd the lock m a gnet i s energized. Forcing open of the lock will c a u s e the sa fety output s to open.IMPORTANT: The gu a rd holding h as no interlock function. The Ri s k A ss e ss ment for the p a rticul a r a pplic a tion s hould include the ri s k of s p a re a ctu a tor s . S p a re a ctu a tor s s hould not be re a dily a v a il a ble a nd mu s t be s ecurely controlled. Record a ny RFID code s as required by f a ctory rule s or with reference to a ny ri s k ass e ss ment for the p a rticul a r a pplic a tion a nd u s er loc a tion.Fixing Holes for M5 ScrewsACTUATORSWITCHFixing Holes for M5 Screws64648896Ø 5058.5060.50411R 32437523225445232626.50SWITCH Fixing Holes for M5 ScrewsFixing Holes for M5 ScrewsACTUATOR11579.5010575.50Ø 6544116666Ø 76Ø 805252443228.504338631D40ML Series6Wiring OptionsD40ML to G9SE-201(up to Safety PLe acc. EN ISO13849-1)D40ML to G9SE-201 - Series Connections (up to SafetyPLd acc. EN ISO 13849-1, maximum 20 switches)M: 3-phase motorTerms and Conditions AgreementRead and understand this catalog.Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or comments.Warranties.(a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanshipfor a period of twelve months from the date of sale by Omron (or such other period expressed in writingby Omron). Omron disclaims all other warranties, express or implied.(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENT ATION, EXPRESS OR IMPLIED, ABOUTNON-INFRINGEMENT, MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THEPRODUCTS. BUYER ACKNOWLEDGES THA T IT ALONE HAS DETERMINED THA T THE PRODUCTS WILLSUIT ABL Y MEET THE REQUIREMENTS OF THEIR INTENDED USE.Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the Products or otherwise of any intellectual property right. (c) Buyer Remedy. Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or replacement thereof) thenon-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or any other claims or expenses regarding the Products unless Omron’s analysis confirms that the Products were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice, recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above warranty.See /global/ or contact your Omron representative for published information.Limitation on Liability; Etc.OMRON COMP ANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENT AL, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.Suitability of Use.Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases.NEVER USE THE PRODUCT FOR AN APPLICA TION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE QUANTITIES WITHOUT ENSURING THA T THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THA T THE OMRON PRODUCT(S) IS PROPERL Y RA TED AND INST ALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.Programmable Products.Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence thereof.Performance Data.Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.Change in Specifications.Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change part numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications for your application. Please consult with your Omron’s representative at any time to confirm actual specifications of purchased Product.Errors and Omissions.Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions.Authorized Di s tributor:In the interest of prod u ct improvement,specifications are s ub ject to change witho u t notice.Cat. No. F22E-EN-01C0421(0613)© OMRON Corporation 2013-2016 All Rights Reserved.OMRON Corporation Indu s trial Automation CompanyOMRON ELECTRONIC S LLC2895 Greenspoint Parkway, S u ite 200 Hoffman Estates, IL 60169 U.S.AT el: (1) 847-843-7900/Fax: (1) 847-843-7787Regional Headquarters OMRON EUROPE B.V.Wegalaan 67-69, 2132 JD Hoofddorp The NetherlandsTel: (31) 2356-81-300/Fax: (31) 2356-81-388 Contact: www.indu s trial.omron.euOMRON A S IA PACIFIC PTE. LTD.No. 438A Alexandra Road # 05-05/08 (Lo bb y 2), Alexandra T echnopark, Singapore 119967T el: (65) 6835-3011/Fax: (65) 6835-2711OMRON (CHINA) CO., LTD.Room 2211, Bank of China T ower, 200 Yin Cheng Zhong Road,P u Dong New Area, Shanghai, 200120, China T el: (86) 21-5037-2222/Fax: (86) 21-5037-2200。

磁力锁、电插锁、电动开门机说明书

深圳多奥磁力锁采用国际领先的生产和封装工艺，不仅让磁力锁表面抗氧化能力达到国际领先水平，还使磁力锁的拉力远高于同类产品达20%以上。

Forcelock 3000系列电磁锁说明书

TMSM•High Security• 12/24 VDC/VAC• One Piece Housing• FasTrak Mounting• Lifetime Warranty3000S e r i e s1500L b s.H o l d i n g F o r c eE l e c t r o m a g n e t i c L o c k sDescriptionThe 3000 Series is a full size 1500 lbs. holdingforce electromagnet. It is designed for lifesafety and high security on rated or nonrateddoors and frames. Specify for commercial,industrial, or institutional openings wheremaximum security and durability is required.All 3000 Series locks are designed for ease ofinstallation with DynaLock’s exclusive FasTrakmounting system, field selectable voltage, andconvenient wiring compartments. Optionalintegrated door and lock status sensors allowremote monitoring without the need to installseparate “door contacts”.The 3000 Series is offered in single, double, andsplit armature models for both outswinging andinswinging doors. The coil and housingassembly mounts rigidly to the door frame whilethe armature mounts to the door in a mannerthat allows it to pivot slightly to compensate fordoor irregularities. When the door is closed andthe lock is energized the armature ismagnetically bonded to the lock face, thussecuring the door without utilizing any movingparts.Standard Features• One Piece Housing made from high strengthaluminum. A seamless housing means maximumresistance to weather and tampering.• FasTrak Mounting: Speed up installation by mountingthe FasTrak channel to the frame first. Lock can then beattached and removed with ease.• Universal Design: Lock handing can easily be reversedin the field, allowing placement of the coil adjacent to thevertical jamb where it will exert the most efficient force.• Low power consumption conserves energy, reducesoperation cost, and extends battery backup time.• A totally plated coil and armature provides protectionagainst corrosion.• A narrow backset of 1-1/2” may mean the eliminationof other mounting brackets or filler plates.• No residual magnetism - the door releases withoutdelay when lock is de-energized.• Built-in spike suppression protects other solid statecomponents within the system from damage when the lockis de-energized.•Lifetime Warranty - American Made in the USA byDynaLock, with over 20 years experience in themanufacture of electromagnetic locks.NYC Mea #23-92-ECSFM23000 Single Outswinging DoorSingle coil. Mounts to the underside of the frame header .1500 Lbs. Holding Force.3001 Double Outswinging DoorSingle coil with double (split) armature. Mounts to the underside of the frame header . Recommended for traffic control only. 750 Lbs. holding force per leaf.3002Double Outswinging DoorDouble coil. Mounts to the underside of the frame header .1500 Lbs. holding force per leaf.3002-TJ32 Double Inswinging DoorDouble coil. Mounts to the face of the frame header .1500 Lbs. holding force per leaf.3000-TJ30 Single Inswinging DoorSingle coil. Mounts to the face of the frame header .1500 Lbs. holding force.3001-TJ31 Double Inswinging DoorSingle coil with double (split) armature. Mounts to the face of the frame header . Recommended for traffic control only.750 Lbs. holding force per leaf.TM SM3Options23/4”SEXNUT LOCK11/2”23/16”MountingINSWINGING DOOR SIDE VIEW OUTSWINGING DOOR SIDE VIEWARMATURELOCK11/2”SEX NUT27/16”ADJUSTABLE23/4”ARMATUREMOUNTINGBRACKET WiringConnectionsShown with all options.CLHDSMDSM2HSMHSM2VOPVOP2LCLCBLEDLED2LPLP2OFAS FCUSTOM LENGTH HOUSING - See back page.DOOR STATUS SWITCH - Signals door closed or ajar. SPDT contacts.DOOR STATUS SWITCH - For the 3002 models.HIGH SECURITY MONITOR - Includes the following:HIGH SECURITY MONITOR - For the 3002 models.VALUE OPTION PACKAGE - Includes the following:VALUE OPTION PACKAGE - For the 3002 models.A 3000 Series coil assembly supplied in a 2000 Series multi-piece housing.BASIC LOCK LESS CIRCUIT BOARD - Coil and housing with flying leads.BI-COLOR LED - For local signaling of lock status. (Requires HSM or VOP option)BI-COLOR LED’S(2) - For the 3002 models. (Requires HSM2 or VOP2 option)*****************************(SingleLock)******************************(DoubleLock)OFFSET ARMATURE - For aluminum storefront doors. Mounting hole is higher to avoid top rail drilling problems.SPECIAL FINISH - Standard finish is US28 Satin Aluminum. Special anodized finishes, see price book. Notes: DSM, HSM, VOP and LED options not available on 3001 split armature models or with LCB option.5”DOOR STATUS SWITCH - Signals door closed or ajar. SPDT contacts.DYNASTAT FORCE SENSOR - Indicates efficient magnetic bond. SPDT contacts.DOOR STATUS SWITCH - Signals door closed or ajar. SPDT contacts.DYNASTAT FORCE SENSOR - Indicates efficient magnetic bond. SPDT contacts.ANTI-TAMPER SWITCH - Signals removal of the housing cover. SPDT contacts.RELOCK TIME DELAY - Adjustable 1-80 seconds.ARMATURESpecifications3000S e r i e s E l e c t r o m a g n e t i c L o c kHolding Force:Lock Size:3002, 3002TJ32 All othersArmature Size:3001, 3001TJ31 All othersLock Weight:1500 Lbs. Each Coil11/2”D x 23/4”H x 22”L11/2”D x 23/4”H x 11”L1/2”D x 23/8”H x 35/8”L1/2”D x 23/8”H x 73/8”L3000, 3001 10Lbs. / 3002 19Lbs. 3000TJ30, 3001TJ31 12Lbs. 3002TJ32 23Lbs.MECHANICALInput Voltage: Current Draw:Contact Ratings: Coil Resistance:12 or 24 VDC/VAC (Field Selectable)0.42A @ 12V Each Coil0.21A @ 24V Each CoilDSM - 0.25A @ 24VDC/VACDYN - 1A @ 24VDC/VACATS - 0.5A @ 24VDC/VAC53.2 Ohms (+/- 10%) Wht/Wht, Blk/BlkFeaturingDyna LifeLifetime WarrantyAccessories• 4000 Series Installation AccessoriesFiller Plates: Extend the door stopAngle Brackets: Extend the header• 5000 Series Power SuppliesSolid state power supplies provide propervoltage, time delay and battery backup ifrequired.• 6000 Series Exit ControlsPush-buttons in a variety of switchingconfigurations and exit sensor bars.• 7000 Series Keyswitches and KeypadsKeyswitches accept most mortise cylinders for controlled access.Rugged digital entry keypads.• 8000 Series ConsolesDesktop, slope front and rack mount fabricated to customer specifications.Custom Length HousingsOptional custom length housings are ordered in addition to the lock itself. They are used to provide an unbroken sight line across the header or vertical jamb, for a less conspicuous installation.3500 Single door. One horizontal lock LHR 30” to 48”.3600 Single door. One horizontal lock RHR 30” to 48”.3700 Single door. Two vertical locks up to 96”.3800 Double door. Two horizontal locks up to 96”.ELECTRICALFinish:US28 Satin Aluminum with clear anodizeOther Finishes AvailableELECTRICAL3500360038003700。

消防通道逃生门专用磁力锁产品说明

消防通道逃生门专用磁力锁产品说明电控制磁力门锁利用电磁铁通电后产生磁吸力的原理制成。

通电后，电磁铁表面吸合，门被锁死；断电后则门处于开启状态。

由于其可电控制及具信号反馈的特性，可以与消防、门禁系统，及警报系统配合使用，对防盗要求比较高的场所进行有效的智能化管理及控制。

电磁锁完全符合消防对门锁的要求：发生火灾时，可接收烟雾传感器发出的信号，门可自动打开（或者按一下出门按钮，门即刻就会打开），也可连接警铃，提示火灾警报；即使当时控制器已失电或失去控制，也不会因门锁紧闭的原因影响人们逃生。

电磁锁可安装于单向（内开或外开）的木门、玻璃门、防火门、对开的电动门上，但当电磁锁用于消防通道时，必须是单向外开。

因门的材质不同另备有多种安装架以便顾客选用。

产品特点：1．吸力强：大至700公斤的吸力，可防止小偷的侵入；2．低耗电：耗电量低，花费小；3．双电压：可接12V/24V DC，吸力不会因输入电压的不同而改变；4．无残磁：断电后，无残磁；5．无噪音：不同于一般的电锁，操作时，无噪音；6．防破坏：门无故被打开时，可经由继电器或磁簧开关传输锁的状态（LSS）或门的状态（DSS）；7．防腐蚀：表面经过特殊防锈处理；8．可逃生：断电后门锁即被打开，因此遇到紧急情况时，可方便逃生；9．故障少：产品无复杂的机械结构，因此故障率极低。

安装方法：磁力门锁主要有内置式、外置式两种安装方法。

内置式是指被埋嵌在门框里，与门浑然一体，外观上看不出，此种安装方法对门框尺寸有要求；外置式是指锁被安装在门框外，安装方式灵活、方便，一般不受门类的限制。

订购产品前请确认以下事项：1．开门方向：门向室内开、向室外开、双向开180°、侧拉/滑动门；2．门的材质：金属制（铝合金、不锈钢）、木制、玻璃门（有无门框、门有无框？）；3．门板到门框的间隙，开关门时门是否会卡到门框；4．锁抗拉力：150㎏？280㎏？530㎏？700㎏？5．门扇数量：单扇门还是双扇门；6．工作电压：220V 还是110V？7．电源性质：AC还是DC？8．固定方式：锁壳底面固定还是端面固定？9．特殊要求：是否要求锁具有讯号输出？时间延迟？是否配套其它设备（出门按钮，门磁，电源）……等？。

磁力锁使用说明书

磁力锁使用说明书(HT280G/HT280Q/HT300M)一、适用范围：1、门类型：木门、铁门、不锈钢门、玻璃门2、控制方式：楼宇对讲系统、门禁系统二、产品特点：1、电磁部份选取优质电磁专业材料(纯铁)及工艺制造。

2、拉力强、无残磁、用电少、无机械磨损、使用寿命长。

三、技术参数：型号标准电压工作电流抗拉力上锁方式安装方式极性HT280Q DC12V 0.26A 260kg-280kg 通电上锁嵌入式无HT280G DC12V 0.3A 280kg 通电上锁外挂式无HT300M DC12V 0.3A*2 250kg*2 通电上锁外挂式有型号尺寸HT280Q 250mm¡50m m¡26m mHT280G 210mm¡49m m¡26m mHT300M 500mm¡48m m¡25m m四、接线说明：1、当电锁工作时，若锁体与吸板接触不好，须从新调整吸板与锁体的位置，使锁体与吸板保持全面接触；2、直流DC12V供电, 接线不分极性；3、不含电子电路板.五、注意事项：1、选择功率够大的电源，线材必须大于0.75MM (电源的输出电压严格控制在12V+_10%内)。

2、锁体与连板的镙丝必须上紧，三个月检查锁体与吸板的固定情况；3、安装其间要小心以免损伤吸板和锁体的电镀层，否则影响正常使用、吸力、寿命；4、吸板和锁体的是否全面接触，接触面积的多少直接影响吸力大小；5、吸板与门之间必须加装一个橡皮垫让吸板保持适当的弹性，吸板的牵拉镙丝不要上得太紧，要让橡皮垫保持适当的弹性；6、吸板不能焊接到门体上，这样影响磁力锁的正常使用；7、使用前请将锁体表面的防锈油用棉布擦干净，不能用碱性或刺激性的清洁剂清洁。

安装吸板注意事项：1. 配件包内的橡皮圈一定要安装在吸板与门之间，能吸收关门时所受冲击力和平衡两者之间的接触。

2. 固定吸板的镙丝不能过于上紧，要让橡皮圈保持适当的弹性，使吸板能随吸板自动调整到正确的位置才能发挥最大的吸力。

SL-200电磁锁说明

香菇頭螺絲
橡皮墊片吸吸附附板板螺絲 M8
（注意為了彌補門的不對稱，吸附板與門㆗間必須套㆖橡皮墊片使之能輕微晃動，以便與電磁鎖表面能夠緊密相互吸合，如此才能發揮最大吸力。）
從香菇頭螺絲處鑽 12mm的孔
[圖㆒]
鑽約8mm的孔貫穿門
定位栓 (要先敲入吸附板)
[圖㆓]
門板
能輕微晃動
Page 2
步驟 4 : 選擇正確的電壓及開門延遲。
5.0 SEC
9.0 SEC
ON
開門延遲時間
12
調整
門框
主體固定板電磁鎖主體
吸附板
※電磁鎖與吸附板正確關㆖時RELAY輸出為N.O.接點 (且指示燈由紅色轉為綠色) ※RELAY 輸出端規格:1A/30VDC或0.5A/125VAC
步驟 5 :
橡皮墊圈
門板
[安裝完成圖]
把電磁鎖固定在固定板㆖，並且確認在門關㆖時電磁鎖能夠與吸附板輕易㆞吸合以避免不必要的危險及聲音。
(5)安裝外拉門時可搭配EB/SB系列吸附板安裝架(附圖所示),方便施工。
木門
木門
玻璃門
[EB-200/220 槽型外掛架]
[SB-200/220 平板外掛架]
[UB-200/220 玻璃夾]
常見問題
◆ 吸力不足? 1.請檢查電壓是否正常2.電壓調整是否正確3.磁力鎖與吸附板是否緊密結合。
◆ 門關㆖後,標準型或豪華型指示燈不會變成綠燈? 1.請檢查吸附板是否安裝在正確位置㆖,是否可晃動微調與磁力鎖緊密結合,因為當吸附板未與磁力鎖本體作緊密結合時,指示燈不會轉變成綠色,因為它表示門未關㆖或未關好。 2.若吸附板在正確位置㆖,也緊密結合,但仍無法變成綠燈時,請檢查電壓是否足夠,電壓JUMP是否調整正確另外也請檢查磁力鎖與吸附板兩者表面是否有異物附著在㆖面,若有請將之清除,因為灰塵或生鏽物等均會影響到吸力而導致燈不會變化。

磁力锁使用说明

按“CLR”键，修改主密码
按“CLOCK”键，设定年、月、日、时、分
输入主密码“12345678”按“MENU”键，查询开箱记录
在“9-1”计数期间按按“1”键，开箱记录数据传送到打印机
不按任何键，计数完毕后，箱门自动打开，并显示客密码。
1.按“CLR”键，修改主密码
输入任意8位密码，显示“Good”表示修改成功。
在输入过程中按“CLR”键，表示清除。
三、工作条件
电源：四节5号“AA”碱性电池功耗：<10uA
工作温度：-10℃-+70℃ 工作湿度：10%-90%RH
密码容量：≥104
开箱记录：14条(120条)
四、维护、保养及注意事项
用户遗忘主密码处理：先按住红色设置键不放。再按任意功能键，叫“嘟--------”一长声，遗忘主、客密码清除。这时密码恢复出厂密码：主密码为“12345678”，客密码为“8888”。
按“MENU”显示“★★★★”表示客密码
按“MENU”显示“★★★★”表示年
按“MENU”显示“★★★★”前二位表示月份，后二位表示日期
按“MENU”显示“★★★★”前二位表示小时，后二位表示分钟
4.按“1”键，开箱记录数据传送到打印机
把打印机和智能锁用通信电缆连接，输入主密码“12345678”在“9-1”计数期间。按“1”键，显示“PRINT”。再按打印机开始键，把开箱记录数据打印出来。
在输入密码或开关箱过程中出现“LOBATT”字样，表示电池电量不足，须更换电池。
同时箱门自动锁定。
2.客密码开箱:
输入预先自行设置的任意4位密码即可开箱。
例：按数字“1111”同时箱门自动打开
若输入错误密码，按“CLR”键清除误码，重新输入密码。

电磁锁M390RFK说明书

*24200669*24200669 Electromagnetic Lock M390RFKInstallation Instructions2Inspection and MaintenanceThis product must be inspected and maintained on a quarterly basis. Contacting surfaces of the electromagnetic lock and armature plate must be kept free of contaminating materials. Surfaces must be cleaned periodically with a non-abrasive cleaner.All mounting fasteners must be inspected on a quarterly basis.When properly installed, the ends of the armature plate allow a slight movement but the plate will feel secure when grasped at the bolt. There should be no movement to the mounting bracket or housing of the electromagnetic lock.For added safety, thread locking compound has been provided for the armature plate bolt and the four captive electromagnetic lock mounting screws.Warnings and CautionsWARNINGWarnings indicate potentially hazardous conditions, which if not avoided or corrected, may cause death or serious injury.CAUTIONCautions indicate potentially hazardous conditions, which if not avoided or corrected, may cause minor or moderate injury. Cautions may also warn against unsafe practices.L Notes indicate a condition that may causeequipment or property damage only.Pre-Installation ConsiderationsCAUTION• Use ONLY the hardware provided for mounting this product.• Non-standard Door thickness may require different barrel nut hardware - see specific instructions for required hardware.• Follow the installation procedure as described in this manual.• Check door thickness. If the door is not 1 3/4" thick, a different barrel nut will be required. Contact Product Support at 1-877-671-7011.• Check door header. A minimum 2 3/4" thick, flat surface is needed to securely mount all screws for the magnet. If you do not have the required surface, you will need filler plates and/or angle brackets to properly mount the magnet. Contact Product Support at 1-877-671-7011.Door: 1 3/4" ThickHeader: At least 23/4" thick, flatLock Installation1Prepare door and frame (for new installs).1a Place included template against closed door and headerwith allowance for Allen key clearance from the edge (1 1/4”).1b Drill the middle hole in the door and two (2) holes in the header as indicated. Center-mark the two holes to mount armature holder.L Different hole sizes required for different materials, as referenced on the template.Figure 1: Armature MountingMetal door reinforcement tube Armature housing Tooth lock washer ScrewRubber coated head ArmatureSteel washersBarrelNut2Mount armature plate.2a Position screw with rubber head through the armature plate.L Apply thread-locking compound to exposedthreads.2b Secure armature plate to door and armature holder bythreading into barrel nut. See Figure 1: ArmatureMounting .L Armature plate must be allowed to pivot on thecenter mounting bolt to allow proper alignment with the magnet surface. If the plate is not alignedwith the magnet surface, the lock may lose holding force or not lock at all.L The head of the armature mounting bolt ships witha rubber washer affixed to it. This washer should project beyond the surface of the armature plate to allow the washer to expand when power isremoved and break the air vacuum between the plate and magnet surface. If this washer isremoved or trimmed, the lock will appear to have some holding force even when power is removed33Mount lock.3a Remove blocking screws from front of lock.3b Remove lock from mounting bracket by loosening captive screws and sliding off keyholes.New lock installation:3c Attach bracket to header with the two (2) panheadmachine screws or the self-drilling screws provided through the slots.L Do not over-tighten these screws as the bracketmay need adjustment.L Mounting Bracket should be installed such that the Panhead screwheads fit within the recessed areaof the slot.3d Slide lock onto mounting bracket keyholes. Engage onecaptive screw at each end through bottom to fix lockposition on bracket.3e Adjust alignment to ensure full contact of magnet witharmature plate.3f Carefully remove lock without shifting mounting bracket andtighten panhead screws as needed to secure in place.3g Secure mounting bracket in position with either nine (9)TEK™ screws or four (4) at counter-sunk machine screws.3h Drill ¾” (19 mm) wire access hole using mounting bracket asa guide.3iTip the lock to expose the four (4) captive mounting screws. L Apply thread-locking compound to exposedthreads. 3jSlide the lock onto mounting bracket keyholes.3k Tighten the four (4) captive mounting screws.3l Insert anti-tamper plugs.Retrofit installation:3c Attach bracket to header with 9 TEK™ screws or four (4) atcounter-sunk machine screws utilizing holes from previous installation.L Additional TEK™ screws may be used for addedstrength.3d Tip the lock to expose the four (4) captive mounting screws.L Apply thread-locking compound to exposedthreads.3e Slide the lock onto mounting bracket keyholes.3f Tighten the four (4) captive mounting screws.3g Insert anti-tamper plugs.Captivemounting screw Blocking screwBlocking and wiring cavity screwInsert anti-tamper plugsFigure 2: Lock MountingKeyholesWire access holesSlots 4 Route the power supply.Connect wire through the door frame and into the wire access hole in the top of the magnet housing. See WiringRequirements on page 1 for current draw specifications and wiring gauge chart.CAUTIONThis electromagnetic locking device is cULus listed andmust be used with UL approved power supply.5Connect wire to terminal blocks.5a Route wire into lock cavity. Connect wire to terminal blocks.See Figure 3: Lock Wiring .5b Wire Door Status Monitor (DSM) and/or Magnetic BondSensor (MBS) if used. See Figure 3: Lock Wiring .Figure 3: Lock WiringDELAY J2RW1MAGLED 1NO NC C–+Normally open Normally closed Common Common ground 12/24 VDC inputMBS sensor SPDToutput contacts rated for max 1.25 amp at 24 VDC Lock powered from a listed filtered and regulated DC power supplyDSM reed switch contacts rated at 0.20 amp and 12 VDC and 0.12 amp at 24 VDCRed: normally closed Green: normally open Black: commonRTD adjustment Turn clockwise to increase delay.© Allegion 2021Printed in U.S.A.24200669 Rev. 09/21-dCustomer Service1-877-671-7011/us6 Ensure instant release.All switching devices must be wired between the DC power source and the positive terminal of the lock as shown in Figure 4: Power Connections . Switching the negative power supply line will not allow the lock to release immediately.L This lock contains TVS for surge suppression anddoes not require any additional suppression. L Note: Some warming of the device under routineoperation is normal.Figure 4: Power Connections+-CorrectswitchFiltered DC supply+-IncorrectFiltered DC supplyswitchTroubleshootingProblemSolutionCannot remove the lock mounting bracket from top of magnet for installation.Remove blocking screw. Insert supplied Allen wrench into mounting bolt holes in the bottom of the lock housing and turn. See Figure 2: Lock Mounting on page 3.Lock is installed but has no holding force at all.Check connections at power supply, connected releasing devices, lock terminals, and lock circuit board to magnet core.Lock has enough holding force to lightly hold a screwdriver or set of pliers but door will not lock.Check to see that armature plate is correctly aligned with the electromagnetic lock. If there is improper alignment, make a 1/4” turn of the armature plate mounting bolt and check for alignment. Make sure to follow the armature plate mounting instructions on the template and page 1 of these installation instructions.Lock is operating and locking but the armature plate is “humming” against the surface of the lock.This generally indicates that the lock is either operating on AC voltage or there is some AC voltage present in the DC supply. A properly filtered and regulated DC power supply is required to achieve optimal operation from the lock.Lock is not releasing immediately upon removal of power.Ensure that switching devices are interrupting the DC power and not the AC power supply voltage. Ensure rubber washer on armature plate mounting bolt has not been removed or damaged. Check that switching device interrupts the positive wire and not the negative wire. See Figure 4: Power Connections on page 4. Remove any Diodes or other suppression devices that may be installed.。

箱变专用电磁门锁说明书

DSN型电磁门锁安装使用说明书
1，产品用途和使用范围
本产品是一种防止高压开关设备电气误操作的电控机构联锁装置，主要供高低压开关柜、箱式变柜门以及其他需要安全联锁的地方实现强制联锁，防止误入带电间隔和防误操作的发生，是发电和供电部门不可缺少的闭锁装置。

2，产品原理
本产品是应市场需求，推出的与本公司前几种产品不一样的电磁锁。

电磁锁内自带闭锁装置，无需跟高压带电显示闭锁装置连接，直接从变压器低压侧或者PT 低压侧取电（220V、110V），当电磁锁不通电时，按下按钮转动把手即可打开柜门。

当电磁锁通电时，任何方法均无法打开（除非把锁破坏性拆除）。

紧急情况下，可以用随机附带的紧急解锁钥匙打开柜门。

（解锁钥匙必须专人保管）3，工作条件
周围空气温度：上限：+40℃，下限：一般地区-10℃，高寒地区-25℃。

海拔高度：安装地区海拔不高于1000m。

环境湿度：空气相对湿度日平均不大于95%、月平均值不大于90%。

环境条件：无明显污秽、无易燃、易爆、化学腐蚀和盐雾及无经常性剧烈振动场所。

开孔图：。

磁力锁产品说明书

磁力锁产品说明书
感谢您购买本公司生产的磁力锁。

为了更好地使用本产品，请在开始安装之前仔细阅读本说明书内容。

一、概述:
本磁力锁主要主材料来自国外进口,产品质量稳定可靠；符合公安消防要求；符合环保要求，工作时无噪声；防腐蚀，锁体经过特殊防锈处理；耐磨损，不会因为机械零件的磨损引起这种故障。

二、主要技术参数:
序号项目指标
1工作电压DC12V±10%
2工作电流350mA
3工作环境湿度<90%
4工作环境温度-20℃~50℃
5吸力280KG
6开锁方式通电上锁，断电开锁
7门状态信号可选
三、安装步骤图:
四、注意事项：
1．磁力吸板的螺丝不要上的太紧，要让橡胶垫圈保持适当的弹性，使磁力吸板吸力自动调整到正确的位置。

2．磁力吸板安装要与锁体对正，以免吸力不够。

3．磁力锁工作时会产生较强磁场，请勿将对磁敏感元件靠近锁体。
