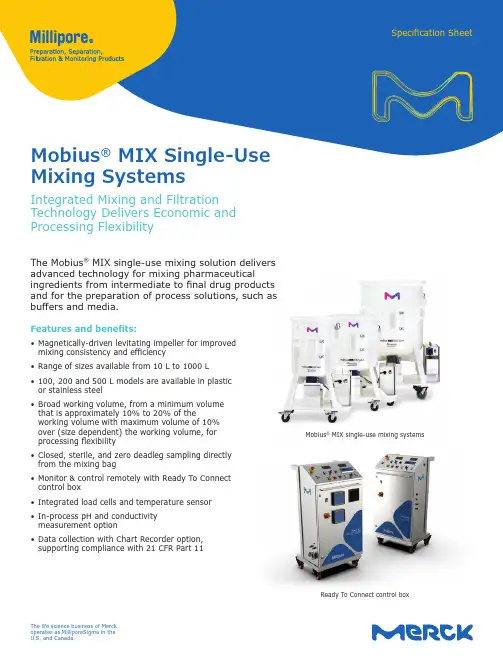

Mobius MIX单用途混合系统产品说明书
Specification SheetMobius® MIX Single-UseMixing SystemsIntegrated Mixing and FiltrationTechnology Delivers Economic andProcessing FlexibilityThe Mobius® MIX single-use mixing solution deliversadvanced technology for mixing pharmaceuticalingredients from intermediate to final drug productsand for the preparation of process solutions, such asbuffers and media.Features and benefits:• Magnetically-driven levitating impeller for improvedmixing consistency and efficiency• Range of sizes available from 10 L to 1000 L• 100, 200 and 500 L models are available in plasticor stainless steel• Broad working volume, from a minimum volumethat is approximately 10% to 20% of theworking volume with maximum volume of 10%over (size dependent) the working volume, forMobius® MIX single-use mixing systems processing flexibility• Closed, sterile, and zero deadleg sampling directlyfrom the mixing bag• Monitor & control remotely with Ready To Connectcontrol box• Integrated load cells and temperature sensor• In-process pH and conductivitymeasurement option• Data collection with Chart Recorder option,supporting compliance with 21 CFR Part 11Ready To Connect control boxThe life science business of Merckoperates as MilliporeSigma in theU.S. and Canada.SpecificationsMaterials of constructionTank304L stainless steel304L stainless steel304L stainless steel304L stainless steel Stand304L stainless steel304L stainless steel304L stainless steel304L stainless steel Latch18-8 stainless steel18-8 stainless steel18-8 stainless steel18-8 stainless steel Casters304L stainless steel304L stainless steel304L stainless steel304L stainless steel DimensionsL X W (jacketed)33 x 26 in.(830 x 670 mm)37 x 31 in.(940 x 790 mm)46 x 41 in.(1170 x 1050 mm)58 x 49 in.(1470 x 1240 mm)L X W 33 x 26 in.(830 x 670 mm)37 x 31 in.(940 x 790 mm)46 x 41 in.(1170 x 1050 mm)54 x 49 in.(1370 x 1240 mm)Height50 in. (1270 mm)52 in. (1310 mm)65 in. (1660 mm)70 in. (1770 mm) Weight (jacketed)410 lb (186 kg)485 lb (220 kg)825 lb (374 kg)1200 lb (544 kg) Weight (unjacketed)285 lb (129 kg)325 lb (147 kg)530 lb (240 kg)900 lb (408 kg) Minimum working volume(to cover the impeller)9 L23 L26 L25 LMinimum sampling volume40 L80 L210 L290 L Maximum working volume110 L220 L550 L1100 LFluid volume in jacket (approx.) 1.6 gal (6 L) 2.1 gal (7.8 L) 4.4 gal (16.8 L) 5.4 gal (20.5 L)Heat transfer area of jacket (approx.)10.4 sq. ft(0.97 sq. m)13.2 sq. ft(1.23 sq. m)28.5 sq. ft(2.65 sq. m)34.9 sq. ft(3.24 sq. m)Maximum working pressure of jacket150 psi (10.3 bar)150 psi (10.3 bar)150 psi (10.3 bar)150 psi (10.3 bar) Stainless steel jacketed mixers ASME U-1code stampedOptional Optional Optional OptionalMettler Toledo SWB505 MultiMount™* load cells (qty 3)Load Cell Ingress protection rating 0-120 kg ±1% FSIP 680-240 kg ±1% FSIP 680-600 kg ±1% FSIP 680-1200 kg ±1% FSIP 68RTD temperature sensor JUMO*0–60°C ± 1°C0–60°C ± 1°C0–60°C ± 1°C0–60°C ± 1°C pH sensor Hamilton**0–14 pH ±0.1 pH0–14 pH ±0.1 pH0–14 pH ±0.1 pH0–14 pH ±0.1 pHConductivity sensor Hamilton**0.2-200 mS/cm±10% FS 0.2-200 mS/cm±10% FS0.2-200 mS/cm±10% FS0.2-200 mS/cm±10% FSStorage temperature0-40 °C(non-condensingenvironment)0-40 °C(non-condensingenvironment)0-40 °C(non-condensingenvironment)0-40 °C(non-condensingenvironment)Operating temperature4-60 °C(non-condensingenvironment)4-60 °C(non-condensingenvironment)4-60 °C(non-condensingenvironment)4-60 °C(non-condensingenvironment)* I ncluded with carriers compatible with Ready To Connect control box Available as an option with the carriers compatible with standard control box ** Only available as an option with the Ready To Connect control box2Materials of construction304L stainless steel304L stainless steelDimensionsL X W 26 x 22 in. (660 x 560 mm)26 x 22 in. (660 x 560 mm)Height52 in. (1320 mm)52 in. (1320 mm)Weight238 lb (108 kg)238 lb (108 kg)Electrical100/240 VAC, 50/60Hz, 7.7/4.4 A single phase200-240 VAC, 50/60Hz, 9.8 A single phase200-208 VAC, 3 Phase, 8.3 A (North America) Cable length16 ft (4.9 m)16 ft (4.9 m)Ingress protection rating IP 55IP 55Regulatory information CE. CB Scheme CE. CB SchemeData Recorder Eurotherm Optional Optional* Maximum operating speed has to be validated for each process individually, depending on volume, viscosity, etc.DescriptionMixer Container Assembly Materials of ConstructionMix container PureFlex™ or PureFlex™ Plus FilmAdapters SterilEnz™ LDPELuer plugs Kynar® polyvinylidene fluorideConnectivity CPC® polysulfoneTubing SiliconePinch clamp PVDFImpeller Sintered neodymium magnet NdFeB encased in polypropylenePowder port PolyethyleneTC gasket SiliconeTC clamp NylonTC end cap PolypropyleneCup HDPEProbe port HDPEO-ring SiliconePlug PolypropyleneNeedle-free sample port HDPEO-ring SiliconeConductivity and pH sensor (multi-use)EPDM and stainless steel 316L34Example of a 100 L single-use assemblyOrdering InformationMobius ®MIX carriers with standard control boxPlease refer to spare parts list MK_CA7420EN (available on )A complete system is made up of a carrier, control box, motor, and hand control. A power cord with plug is provided with the control box.*Another power cord has to be ordered separately to get the right plug for customers located in the following countries: Argentina, Australia, Columbia, New Zealand, Paraguay, Uraguay, Denmark, Israel, Chile, Ethiopia, Italy, Bangledesh, Burma, Pakistan, S. Africa, Sri Lanka, and Switzerland.Single-Use assemblies to fit Mobius®MIX Carriers with standard control box10 LPureFlex™MIX0010LB05√Bronze51111MIX0010LG05√Gold5111MIX0010LSG05√Gold51111 MIX0010LLIN√Bronze5150 L MIX0050LB05√Bronze51111MIX0050LG05√Gold5111MIX0050LSPB05√Bronze511111 MIX0050LSG05√Gold51111 MIX0050LLIN√Bronze51100 L MIX0100LB05√Bronze511111MIX0100LG05√Gold511111MIX0100LSPB04√Bronze4111112 MIX0100LSG04√Gold4111112 MIX0100LLIN√Bronze51200 L MIX0200LB05√Bronze511111MIX0200LG05√Gold511111MIX0200LSPB04√Bronze4111112 MIX0200LSG04√Gold4111112 MIX0200LLIN√Bronze51500 LPureFlex™MIX0500LB04√Bronze411111MIX0500LG04√Gold41111MIX0500LSPB04√Bronze4111112 MIX0500LSG04√Gold411112 MIX0500LLIN√Bronze411000 L MIX1000LSPB03√Bronze312113MIX1000LSPG03√Gold31211356Example of 200 L single-use assemblyMobius ® MIX Carriers with Ready To Connect control boxA complete system is made up of carrier, control box, motor, and power cordPlease refer to spare parts list MK_CA7420EN (available on )Single-Use assemblies to fit Mobius®MIX Carriers with Ready To Connect control box100 L PureFlex™SMIX0100LB4M√Bronze411111112 SMIX0100LS4M√Silver411111112 SMIX0100LG4M√Gold411111112 SMIXL0100LB4M√Bronze4112PureFlex™PlusSMIX0100LBPL4M√Bronze411111112 SMIX0100LSPL4M√Silver411111112 SMIX0100LGPL4M√Gold411111112 SMIXL0100LBPL4M√Bronze4112200 L PureFlex™SMIX0200LB4M√Bronze411111112 SMIX0200LS4M√Silver411111112 SMIX0200LG4M√Gold411111112 SMIXL0200LB4M√Bronze4112PureFlex™PlusSMIX0200LBPL4M√Bronze411111112 SMIX0200LSPL4M√Silver411111112 SMIX0200LGPL4M√Gold411111112 SMIXL0200LBPL4M√Bronze4112500 L PureFlex™SMIX0500LS3M√Silver31121112 SMIX0500LG3M√Gold31121112 SMIXL0500LB3M√Bronze3112PureFlex™PlusSMIX0500LBPL3M√Bronze31121112 SMIX0500LSPL3M√Silver31121112 SMIX0500LGPL3M√Gold31121112 SMIXL0500LBPL3M√Bronze31121000 L PureFlex™SMIX1000LB3M√Bronze3131112 SMIX1000LS3M√Silver3131112 SMIX1000LG3M√Gold3131112 SMIXL1000LB3M√Bronze3112PureFlex™PlusSMIX1000LBPL3M√Bronze3131112 SMIX1000LSPL3M√Silver3131112 SMIX1000LGPL3M√Gold3131112 SMIXL1000LBPL3M√Bronze31127MK_SS7418EN Ver. 1.03462306/2021© 2021 Merck KGaA, Darmstadt, Germany and/or its affiliates. All Rights Reserved. Merck, the vibrant M, Millipore, Mobius, PureFlex and NovaSeptum are trademarks of Merck KGaA, Darmstadt, Germany or its affiliates. All other trademarks are the property of their respective owners. Detailed information on trademarks is available via publicly accessible resources.Merck KGaAFrankfurter Strasse 250 64293 Darmstadt, GermanyFor additional information,please visit To place an order or receive technical assistance, please visit /contactPS。
Millipore Mobius FlexReady Solution 说明书
Mobius ®FlexReady Solution for ClarificationFast setup. Maximum adaptability. Pre-designed and optimized.Part of the Mobius FlexReady family of application-specific solutions, the Mobius FlexReady Solution for Clarification is an easy-to-use system featuring an optimized single-use flowpath designed to fully support your clarification needs. It features Millipore’s innovative, high-performance Millistak+® Pod disposable depth filters which are ideally suited for primary and secondary clarification. The Mobius FlexReady Solution for Clarification consists of single-use Flexware ™ assemblies, innovative separation devices and process-ready hardware systems to deliver optimal operational flexibility, from process development to clinical production to small-scale commercial manufacturing. The self-contained anddisposable nature of the system eliminates maintenance as well as cleaning validation requirements. Accompanied by extensive Millipore support and services, the Mobius FlexReady Solution for Clarification can help you maximize resource productivity and reduce risk.2EFFiciEnt ProcESSing FroMlab to PilotThe Mobius FlexReady Solution for Clarification is designedto process up to 250 liters of high cell density, low viabilitymammalian cell culture using Millistak+ Pod disposabledepth filters without centrifugation. Processing volumescan range up to 500L or even higher, depending uponthe feed quality and the use of the centrifuge. TheMobius solution enables clarification operations acrossa membrane area range of 0.054 m2 to 5.5 m2. The CL-1system is designed for lab scale processing, and the CL-2system efficiently manages pilot scale processing.•CL-2 system features an ergonomic cart that supportspilot scale Pod filters•Innovative low dead volume t-connectors, enabling theuse of traditional pressure transducers•Peristaltic pump with preset pressure controls•High-pressure cut-off switch ensures operator safety•Presized sterilizing-grade filter and product collectionassembly•Flexware assemblies designed to fit the hardware andinstall quickly and easilyFigure 2. Hardware system components moveand connect easily for maximum mobility.Figure 1. the filter end cart works with all MobiusFlexready Solutions for optimum equipmentutilization.MoDular, oPtiMizED DESignMobius FlexReady Solutions are ergonomically designedfor fast setup, maximum adaptability to changing processneeds and reduced operator error. Specially designedhardware conveniently holds pumps, instrumentation,filters and containers, right where you need them. Amodular, interlocking multi-cart system offers maximummobility. The filter end cart is designed to work with allMobius FlexReady Solutions, leveraging your investment incapital equipment and maximizing resource utilization.3novEl intEgratED tEcHnologiESlow Dead volume t-connectorsMobius FlexReady Systems feature Millipore’s innovative low dead volume t-connector built into the flowpath which is specifically designed for use with traditional pressure transducers. A LLDPE septum provides the barrier between the process fluid and the transducer that eliminates the need to clean sensors while eliminating the risk of contamination.SaFE anD EaSy loaDing oF Pilot ScalE PoD FiltErSThe Mobius FlexReady Solution , CL-2, for pilot scaleprocessing is uniquely designed with user safety and utility in mind. The Pod cart includes a Pod holder and extension kit, and is ergonomically designed at a convenient height to load pilot scale Pod filters. This cart also includes an easy to clean drip tray, and convenient drawer for supply storage.Millistak+ Pod Disposable Depth Filter SystemMillistak+ depth filter media is offered in a scalable, single-use format, the Pod Filter System. The Millistak+ Podsystem is ideal for a wide variety of primary and secondary clarification applications, including cell cultures, yeast and E. coli lysates post centrifuge, E. coli refolds, media, vaccines, plasma proteins and sera. Millistak+ Pod filters are available in three distinct series of media grades in order to meet your specific application needs. Millistak+ DE, CE and HC media deliver optimal performance through a gradient density matrix as well as positive surface charge properties. Although the Mobius FlexReady Solutions forclarification are designed to accommodate applications from lab to pilot, the Pod depth filter system is also scalable to process scale applications. See datasheet DS0217EN00 to learn more about Pod for process scaleapplications.Figure 3. the innovative low dead volumet-connector protects the process fluid from contami-nation.Figure 4. Ergonomic cart for easy loading of pilot scale Pod depth filters.Figure 5. Easy to clean drip tray.4StanDarDizED conFigurationS For rEliablE rESultSThe flowpath has been carefully designed and tested by our design and applications engineers, resulting in a consistent, standardized flowpath. The flexware assemblies are gamma-irradiated for low bioburden operations and include a sterilizing-grade filter for final product collection to safeguard product quality. The flowpath (See Fig. 6) consists of:• Core Flexware assemblies which includes pump tubing assembly, Pod drain & sampling assembly, filter drain line, and Pod vent line• Sterilizing-grade filter assembly for final collection with sampling containers and NovaSeal ™ Crimping Sleeve for sterile disconnect• Optional process containers for source, buffer, WFI, waste and sampling •Millistak+ Pod Disposable Depth Filter5The system is manufactured according to the ISO® 9001 quality standard. The system is designed to be compliant with CE and EN 60204. 67Collapsible Containers250L bin (holds 100L or 250L process containers)MBSACC006U 500 - 1,000L bin (holds 500L process container designed for this system)MBSACC007UContainment trays10L tray (holds 5 or 10L process containers)MBSACC005U 50L tray (holds 20L or 50L process container)MBSACC004UWeigh Scales60 kg (132.3 lbs) for CL-1 MBSACC019U 600 kg (1,328 lbs) for CL-2 MBSACC020U Display 100 -110 VAC 50/60Hz MBSACC022U Display 230VAC 50/60HzMBSACC023UorDEring inForMationAll Millistak + Pod depth filters must be purchased separately.See datasheets DS0217EN00 for ordering information.Choose from a suite of services, including installation,commissioning validation, training and annual performance review to meet your specific processing requirements. Allservices are performed by Mobius FlexReady services certified engineers.Factory Acceptance TestingSVCMBSCFAT Installation and Operational Qualification Protocol Performance Zone* 1SVCMBSCIQOQZ1Installation and Operational Qualification Protocol Performance Zone* 2SVCMBSCIQOQZ2Installation and Operational Qualification Protocol Performance Zone* 3SVCMBSCIQOQZ3Installation and Operational Qualification Protocol, CL-1DOCMBSC1IQOQ Installation and Operational Qualification Protocol, CL-2DOCMBSC2IQOQ Annual Performance Review Zone* 1SVCMBSCAPRZ1Annual Performance Review Zone* 2SVCMBSCAPRZ2Annual Performance Review Zone* 3SVCMBSCAPRZ3For flowpath drawing, see Fig. 6 on pg. 4. Consult with your sales representative to configure your Clarification flowpath using standard, optimized options.Each system has a dedicated flowpath, and the flowpath components are not interchangeable between CL-1 and CL-2. Ensure you order the flowpath for the hardware system you have selected.* For Zone and pricing information, contact your local Milliporerepresentative.The flowpath includes the NovaSeal Crimping Sleeve for sterile disconnect of sample containers. The NovaSeal Crimping Tool is sold separately. See datasheet DS1040EN00 Rev. B for ordering information.8Millipore, Mobius, Millistak+, Durapore, Opticap and Millipore Express are registered trade-marks of Millipore Corporation.ISO is a registered trademark of the International Standards Organization.Bioprene is a registered trademark of Watson-Marlow Ltd.SmartSite is a registered trademark of Cardinal Health, Inc.The M mark and Advancing Life Science Together, FlexReady, Flexware, PureFlex and NovaSeal are trademarks of Millipore Corporation.Lit. No. DS1065EN00 Rev. B 07/09 DP SBU-09-01811 Printed in U.S.A. © 2009 Millipore Corporation, Billerica, MA 01821 U.S.A. All rights reserved./mobiusto PlacE an orDEr or rEcEivE tEcHnical aSSiStancEFor additional information call your nearest Millipore office:In the U.S. and Canada, call toll-free 1-800-MILLIPORE (1-800-645-5476)In the U.S., Canada and Puerto Rico, fax orders to 1-800-MILLIFX (1-800-645-5439)Outside of North America contact your local office.To find the office nearest you: /offices Internet: Technical Service: /techservice。

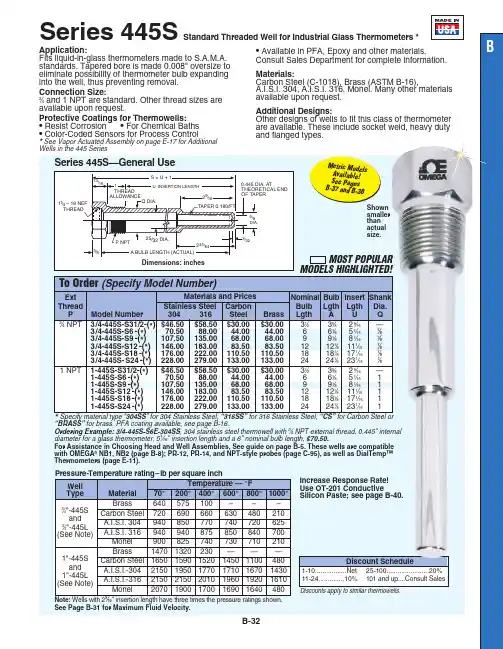

美国菲尔兹公司产品说明书：B-32 BSeries 445S标准线性玻璃温度计井
B-32Series 445SStandard Threaded Well for Industrial Glass Thermometers *Application:Fits liquid-in-glass thermometers made to S.A.M.A.standards. Tapered bore is made 0.008" oversize to eliminate possibility of thermometer bulb expanding into the well, thus preventing removal.Connection Size:3⁄4and 1 NPT are standard. Other thread sizes are available upon request.Protective Coatings for Thermowells:•Resist Corrosion •For Chemical Baths •Color-Coded Sensors for Process Control*See Vapor Actuated Assembly on page E-17 for Additional •Available in PFA, Epoxy and other materials.Consult Sales Department for complete information.Materials:Carbon Steel (C-1018), Brass (ASTM B-16),A.I.S.I. 304, A.I.S.I. 316, Monel. Many other materials available upon request.Additional Designs:Other designs of wells to fit this class of thermometer are available. These include socket weld, heavy duty and flanged types.Discount ScheduleIncrease Response Rate! Silicon Paste; see page B-40.smaller for Carbon Steel or NPT external thread, 0.445" internal For Assistance in Choosing Head and Well Assemblies, See guide on page B-5. These wells are compatible NB1, NB2 (page B-8); PR-12, PR-14, and NPT-style probes (page C-95), as well as DialTemp™MOST POPULAR MODELS HIGHLIGHTED!ShankCANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. Manchester, England0800-488-488GERMANY www.omega.deDeckenpfronn, Germany************FRANCE www.omega.frGuyancourt, France088-466-342BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44UNITED STATES 1-800-TC-OMEGA Stamford, CT.CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic596-311-899TemperatureCalibrators, Connectors, General Test and MeasurementInstruments, Glass Bulb Thermometers, Handheld Instruments for Temperature Measurement, Ice Point References,Indicating Labels, Crayons, Cements and Lacquers, Infrared Temperature Measurement Instruments, Recorders Relative Humidity Measurement Instruments, RTD Probes, Elements and Assemblies, Temperature & Process Meters, Timers and Counters, Temperature and Process Controllers and Power Switching Devices, Thermistor Elements, Probes andAssemblies,Thermocouples Thermowells and Head and Well Assemblies, Transmitters, WirePressure, Strain and ForceDisplacement Transducers, Dynamic Measurement Force Sensors, Instrumentation for Pressure and Strain Measurements, Load Cells, Pressure Gauges, PressureReference Section, Pressure Switches, Pressure Transducers, Proximity Transducers, Regulators,Strain Gages, Torque Transducers, ValvespH and ConductivityConductivity Instrumentation, Dissolved OxygenInstrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis InstrumentationHeatersBand Heaters, Cartridge Heaters, Circulation Heaters, Comfort Heaters, Controllers, Meters and SwitchingDevices, Flexible Heaters, General Test and Measurement Instruments, Heater Hook-up Wire, Heating Cable Systems, Immersion Heaters, Process Air and Duct, Heaters, Radiant Heaters, Strip Heaters, Tubular HeatersFlow and LevelAir Velocity Indicators, Doppler Flowmeters, LevelMeasurement, Magnetic Flowmeters, Mass Flowmeters,Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area Flowmeters, Vortex Shedding FlowmetersData AcquisitionAuto-Dialers and Alarm Monitoring Systems, Communication Products and Converters, Data Acquisition and Analysis Software, Data LoggersPlug-in Cards, Signal Conditioners, USB, RS232, RS485 and Parallel Port Data Acquisition Systems, Wireless Transmitters and Receivers。
希尔思 S450 复杂工况及防爆型热式质量流量计操作手册说明书
希尔思中文操作手册S450复杂工况及防爆型热式质量流量计(插入式)尊敬的客户：感谢您选择我们的产品。
用户须在启动设备前完整阅读该操作手册并认真遵守。
对于因未仔细查看或者未遵守此操作手册规定而造成的任何损失，制造商概不负责。
如果用户违反此操作手册所描述或规定的方式，擅自改动设备，仪器保修将自动失效并且制造商免除责任。
请按照此操作手册说明的专业用途使用该设备。
对于该设备在未描述用途上的适用性，希尔思公司不做任何保证。
由于运输、设备性能或使用造成的间接损失，希尔思公司不承担责任。
2 SUTO · S450目录1 安全说明 (4)2 注册商标声明 (6)3 应用 (6)4 特点 (6)5 技术参数 (7)5.1 常规 (7)5.2 电气参数 (8)5.3 输出信号 (8)5.4 精度 (8)5.5 流量范围 (9)6 尺寸图 (10)7 确定安装点 (11)7.1 预留上下游段均衡区 (11)8 安装 (13)8.1 安装要求 (14)8.2 安装步骤 (14)8.2.1 确定流量计的插入深度 (15)8.2.2 安装流量计 (16)8.2.3 拆卸流量计 (17)8.3 电气连接 (17)8.3.1 连接图 (17)8.3.2 引脚分配 (18)9 信号输出 (19)9.1 模拟与脉冲输出 (19)9.1.1 模拟输出 (19)9.1.2 脉冲输出 (19)9.2 HART 输出 (20)9.3 Modbus接口 (20)9.4 M-Bus 输出 (22)9.5 S450信号输出与用户设备的连接 (22)10 显示屏 (25)10.1 启动信息 (25)10.2 测量数据及符号 (25)11 配置 (26)12 可选配件 (28)12.1 显示屏 (28)12.2 服务套装 (28)13 校准 (29)14 维护 (29)15 废弃物的处置 (29)SUTO · S45031 安全说明1 安全说明请检查此操作手册和产品类型是否匹配。
外文翻译对由ansys开发的大型工程模型的降阶大学论文
对由ansys开发的大型工程模型的降阶Evgenii B. Rudnyi 和 Jan G. KorvinkIMTEK微控技术研究所弗赖堡大学Georges-K ohler-Allee,103D - 79110,德国弗赖堡{ rudnyi,korvink } @imtek.dehttp://www.imtek.uni-freiburg.de/simulation/摘要工程师能够在ANSYS开发的有限元模型中运用现有的软件实现现代模型降阶技术。
我们着于一个人如何独立的从在ANSYS和C ++上实现的执行模型中提取所需的信息，而不用依靠特别的专业人士，我们将利用与结构力学和热力学有限元模型相关的实例来讨论计算成本。
1.介绍大型线性动态系统模型降阶已经是相当成熟的领域[1]。
许多论文（见参考文献[2]）指出，模型降价的优势已在各种科学和工程应用上被证实。
我们目前的工作是集中讨论工程师如何将该技术与现有的商业有限元软件相结合，以达到如下目的：—加快对瞬变电压、谐波的分析；—自动生成系统级仿真的紧凑模型；—在设计阶段纳入有限元程序包。
通常大规模动态系统模型降阶第一步如下Ex˙=Ax+Bu (1.1)y=Cx其中A和E是系统矩阵，B是输入矩阵，C是输出矩阵。
模型降阶的目的是产生一个低维式以逼近（1.1），Erz=Arz.+BruY=Crz. (1.2)此式描述了输入向量u对输出向量y的依赖，因此,同一时间降阶后向量z的维数远小于原来x的状态向量维数。
对由偏微分描述的用户模型方程进行空间离散化后，有限元程序包通常产生一个常微分方程系统。
在这阶段，它有可能直接适用于模型降阶的方法[1]。
然而，从商业包装过的系统矩阵里提取却不是这样，我们将介绍我们是怎么用ANSYS有限元分析做到的[3]。
我们选择了市场矩阵形式来表示简化模型（1.2）[4]。
我们假设在另一个包如Matlab或Mathematica 上完成其仿真。
降价模型在数学方面的运作是可行的。

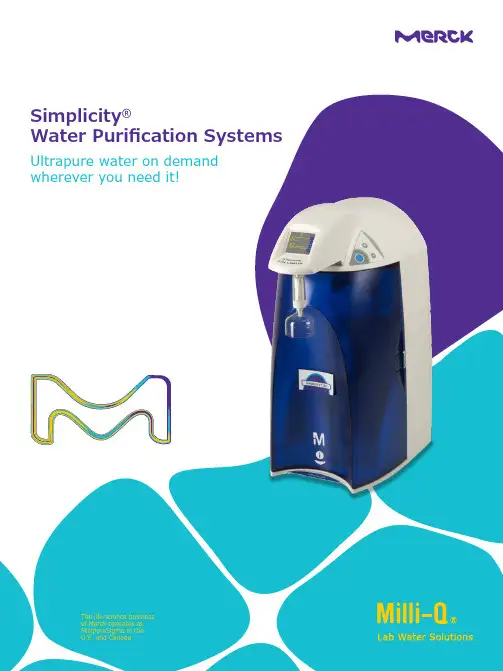

Simplicity 水纯化系统说明书
Simplicity®Water Purification Systems Ultrapure water on demand wherever you need it!The life science businessof Merck operates asMilliporeSigma in theU.S. and Canada.Simplicity ® Water Purification SystemsUltrapure water on demand wherever your need it!Simplicity ® Systems Water Purification PathwayUltrapure water on demand wherever and whenever you need it in your labCompact, portable Simplicity ® water purification systems produce ultrapure water on demand where you really need it: on your lab bench where you perform your experiments.Convenient, high quality fresh feed water for successful experiments without the water contamination issues linked to carboy use Simplicity ® systems produce ultrapure water on demand using pure water from the removable 2-liter integrated reservoir.Flexible feed water production possibilitiesSimplicity ® systems can produce ultrapure water from a variety of pretreated water types, including water from Elix ® systems, and distilled, de-ionized, or reverse osmosis (e.g., RiOs™ systems) pact design for the most efficient use of your lab spaceA small footprint makes it easy to install the Simplicity ® systems wherever you want to in your lab.Flow rates adapted to your ultrapure water needsSimplicity ® systems can dispense > 0.5 L/min of ultrapure water.High quality water to meet the requirements of your most critical applicationsOptions such as a UV lamp and a range of Application Pak point-of-use polishers are available to fine-tune your ultrapure water.Easily accessible information on system operationThe user-friendly display provides system status at a glance; the concise Quick Reference Guide is a handy guide for daily operation.Simple, low-level self-maintenanceThe snap-in-and-out design of the SimpliPak ® purification cartridge enables easy and rapid replacement.1. 2-Liter Removable Reservoir2. Distribution Pump3. UV Lamp 185/254 nm (UV System)4. SimpliPak ®1, 2 or 3 Cartridge5. Product Resistivity Cell6. Point-of-Use (POU) Solenoid Valve7. Final Filter / Application Pak8. Recirculation Loop9. Check Valve1Choose the solution that’s right for youCompact and portable “nomadic” systemsInstallation for Simplicity® systems is simple so thatyou can do it yourself! Just plug in the system, insertthe SimpliPak® cartridge, fill the removable reservoirwith pretreated water, and you’re ready to go! If youlater find that it would be handier to move your systemsomewhere else ― either within your lab or even downthe hall as a temporary solution for a colleague ―nothing could be easier. Turn off the power, unplug thesystem, and move the system to its new location. Plugit back in, power on the system, and presto, the systemis ready again to produce ultrapure water. This alsomakes also the Simplicity® an ideal system for use inmobile laboratories.Integrated pure water reservoir ― no morecarboys!Simplicity® systems have an integrated pure waterreservoir that lets you do away with cumbersomecarboys and their doubtful water quality. It’s easyto remove the 2-liter reservoir from your Simplicity®system and refill it from a pretreated pure water source― Elix® system, distilled, deionized or reverse osmosis(RiOs™ system) water. Additionally, when not in use,the system recirculates water to maintain water quality,so that you don’t have to wait for water quality toimprove when you need to source water.Optimized lab spaceDesigned to facilitate your work, the Simplicity®system’s small footprint will allow you to find a spacefor it anywhere in your laboratory.High ultrapure flow rates to match yourrequirementsWith flow rates greater than 0.5 L/min,Simplicity® systems provide ultrapure water ondemand in the volumes required to satisfy criticalapplications.Fine-tune your water qualityPoint-of-use ultrapure water on demandFor laboratories with an existing access to pure water, Simplicity® systems provide a solution to point-of-use ultrapure water needs. The high quality ultrapure water produced by Simplicity® systems is suitable for applications such as production of mobile phase for chromatographic separations; preparation of blanks and standard solutions for spectrophotometry, spectroscopy or other analytical techniques; and preparation of buffers for biochemical experiments.Organic-sensitive applicationsIf you work with organic-sensitive applications such as HPLC, GC or TOC analyses, the Simplicity® UV system contains a built-in 185/254 nm UV lamp to reduce TOC to less than 5 ppb. Water with low TOC provides important benefits to HPLC users such as higher sensitivity and longer column lifetime.Application Pak point-of-use polishersOur range of Application Pak polishers makes it possible to fine-tune your ultrapure water quality to match your research. Are your applications sensitive to bacteria, particulates, pyrogens, nucleases, endocrine disruptors or volatile organic compounds? If so, just choose the appropriatefinal polisher from our range of Application Paks to provide optimal water quality for your requirements.For more information, please visit /labwater.We offer more than waterJust the information you needThe intuitive color graphic display shows key system parameters at a glance, enabling easy water quality and maintenance warning monitoring. Additional information on system operation and maintenance is provided by the Quick Reference Guide and User Manual stored on the water production unit.User-friendly maintenanceThe single SimpliPak® purification cartridge has a snap-in-and-out design that means you can change it in a couple of minutes. You’ll receive an automatic notification from the Simplicity® system when it’s time to change the cartridge.Milli-Q® Service PlansTo optimize the performance and lifetime of your water purification system, we offer a complete portfolio of service plans ranging from a single annual checkup to a full system cover. For more information, please check with your applications specialist or visit: /Milli-QServicesSpecificationsUltrapure (Type 1) Product Water Quality*Resistivity18.2 MΩ·cm @ 25 °CInstant flow rate (with Application Pak final filter)> 0.5 L/minTOC (w/o 185/254 nm UV lamp)< 15 ppbTOC (with 185/254 nm UV lamp)< 5 ppbParticulates (size > 0.22 µm)**< 1 particulate/mLBacteria**< 0.1 cfu/mLEndotoxin (pyrogens)***< 0.001 EU/mLRNases***< 0.01 ng/mLDNases***< 4 pg/µL* In regular operating conditions** With SimFilter (0.05 µm) end filter or with Biopak ultrafiltration cartridge as final polisher*** Only with Biopak ultrafiltration cartridge as final polisherSystem InformationDimensions (H x W x D)51 x 29 x 36 cm (20.1 x 11.4 x 14.2 in) Net weight (Simplicity® system w/o 185/254 nm UV lamp) 4.9 kg (10.8 lb)Net weight (Simplicity® system with 185/254 nm UV lamp) 5.4 kg (11.9 lb)Operating weight (Simplicity® system w/o 185/254 nm UV lamp)8.4 kg (18.4 lb)Operating weight (Simplicity® system with 185/254 nm UV lamp)9 kg (19.8 lb)Built-in removable reservoir volume 2 LElectrical feed voltage100-250 V ± 10%Electrical feed frequency50-60 Hz ± 10%Merck KGaAFrankfurter Strasse 250 64293 Darmstadt, Germany 。
基于Flexsim的生产线管理与成本控制模型
为 生产 管 理 提 供 形 象 的仿 真 依 据 ，帮 助 生 产 管 理
者 直观 找 到 生 产 系 统 中存 在 的瓶 颈 ，并 通 过 仿 真 模 型 的建立 和调 整 ，为生 产线 的优 化提供 依据 。
２ 基 于 Ｆｅ ｓ 生 产 线 管 理 与 成 本 控 制 ｌｘｉ ｍ 模 型
控 制在 为 企 业 的发 展 做 出 贡献 的 同 时 ，已无 法 满
足 当今 生 产 发 展 的需 要 。国 内企 业 往 往 无 法 真 实 地 了解 其 生产 能力 ，造成 许 多 订 单 的 流失 。另 外 ， 在生产 线 的 改 善方 面 ，企 业 进 行 事 后 的处 理 ，从 而 因预生产 而加 重 了企业 的生存 负 担 。
掌 握 车 间生 产 系 统 的运 营情 况 ，使 现 场 生 产 管 理 和成本 控 制 有 据 可依 。进 而 ，通 过 具 体 的生 产 管 理和成 本 控 制 的 手 段 ，进 行 相 关 的 技 术 改 革 ，以 实现有 效 的生产 管 理 和成 本 控 制 。基 于 Ｆｅｓ ｌ ｉ ｘ ｍ生 产线管 理 与成本 控制 模型 如 图 １ 所示 。 ２ ２ １ 生产 线建模 仿 真 ．． 在 车 间的生 产 管 理 过 程 中 ，管 理 者 从 车 间现
是迄 今第 １ 在 图形 环 境 中集 成 了 ｃ＋＋ＩＥ和 编 个 Ｄ
译器 的仿 真 软 件 … 。 Ｆｅｓ 仿 真 软 件所 具 有 的重 ｌ ｉ ｘｍ
ቤተ መጻሕፍቲ ባይዱ
要 特 点 是 建 模 快 捷 方 便 ，显 示 能 力 强 。其 资 料 、
图象和 结 果 都 可 以与 其 他 个 体 导 向 的软 件 公 用 ，
１ 引言
车 间生 产 系 统 的 不 断 发 展 ，为 企 业 的生 存 和 发展 带来 了新 的 增 长 点 和 利 润 源 ，对 于 企 业 控 制 成本 ，提高 生 产 效 率 ，增 强 市 场 竞 争 力 具 有 重 要 意义 。随着 经 济 全 球 化 和 企 业 竞 争 的加 剧 ，如 何 有效 地 改 进 车 间 生 产 管 理 ，提 高 生 产 效 率 ，降低 成本 费用 ，显 得 日益迫 切 。 Ｆｅ ｓ 是新一 代 的 面 向对 象 的 ３ ｌｘｉ ｍ Ｄ模 拟 软 件 ，
XULM(简体版)操作说明书(HK)
第一章符号，说明，商标1.1 符号和标志本操作手册使用了下面的符号和标志：表示安全标志和对仪器或附件，也可能是操作员本人有潜在危险的警告标志。
表示特别重要的提示和注释。
·显示列表。
/ 1 / 参考“第九章参考文献“中所列的技术文献→“6 Start Up”参考本操作手册中的某一章。
表示某一操作（例如测量）的开始和结束过程将顺序进行。
<START> 通常指测量头控制台上的操作键，也指计算机键盘上的按键。
[CANCEL] 通常指显示在屏幕上等命令按钮。
<<HV ON>> 通常指测量头的控制台上的指示灯。
"File" 表示屏幕上的菜单，菜单选项和窗口标题符号。
1.2 说明本手册中的插图只是例子而已。
实际的涂镀层厚度，组成，或统计结果取决于每个产品程式。
可能与你的显示屏显示或打印机打印出的数据不同。
这并不表示操作有误。
1.3 商标FISHERSCOPE®，WinFTM®是Helmut Fischer GmbH + Co.的注册商标。
Microsoft®,MS-DOS®,Microsoft® Press®和Windows®是微软的注册商标。
说明：本操作手册中提到的产品名称都是相应公司的商标。
产品名称没有商标符号®或TM并不表示它是非注册商标。
第二章仪器及附件操作，维修和保管须知2.1仪器用途FISCHERSCOPE® X-RAY仪器只适合于涂镀层厚度的测量和材料分析。
连接到仪器上的附件(例如打印机)必须使用Fischer推荐或提供的产品。
2.2操作员技能要求操作FISCHERSCOPE® X-RAY仪器的人员必须经过培训。
另外,为了进行正确的测量和计算,操作员最好具有仪器和按照DIN 1319标准或ASTM B568标准进行测量的基本知识。
使用WinFTM®软件时,操作员应具备微软Windows®的基础知识。
希氏曼hiacshmann 电子吸液器pipetus 说明书
Venting occurs automatically at the highest motor power, provided no other level is selected. The battery charging status is permanently indicated. An additional acoustic alarm signal also sounds as soon as the battery charge falls below 10 per cent during pipetting.
station. The sop/Vsticated ergooooic s~ ol the pipetus- aids non-fatigt*lg work.
Overview of details
NiMH batteries Includes an inductive charging and park station Standard wall bracket Pump motor emits low noise levels and is free of vibration • Highly accurate plpetting enabled through fine dispensing valves with valve pins made of ceramic compound. Hydrophobic PTFE diaphragm filter with 0.1 ~m pore size For measuring, volumetric and Pasteur pipettes, from 0.1 ml to 200 ml
Henry Schein 2014 春季产品说明书
SPRINGFederal Flyer20148am–8pm (et)24 Hours s mSpring EditionJOIN OUR COMMUNITY14FD11548am–8pm, et • To Fax:1.877.350.789024 Hrs 3Lidocaine HCl 2% withEpinephrine Injection, USP 1.8-mL Anesthetic Cartridges• Validated siliconization process: ensures smooth injection• Meets all FDA requirements: allows total flexibility in brand selection• Color-coded stoppers and labeling: easy identification of each anesthetic formula • Mylar ®wrap: prevents breakage• Blister packaging: no glass/glass contact 1:100,000, Red(465-1205).........................50/boxContains: 5 blister packs of 10 cartridges per package.1:50,000, Green(465-0015).........................50/boxContains: 5 blister packs of 10 cartridges per package.Approved for sale only to licensed practitioners in the US.Oraqix ®Lidocaine and Prilocaine Periodontal Gel 2.5%Patient-friendly, needle-free application that dispenses as a liquid, then sets as a gel at body temperature. Ideal for patients requiring local anesthesia in periodontal pockets during scaling and/or root planing. Applied to gingival margin, then to periodontal pocket. Fast,30-second onset provides 20 minutes of anesthesia. Unique, easy-loading dispenser provides increased access to all periodontal pockets.(555-4520)...............................Ea.(555-0626).........................20/BoxOraVerse™ (Phentolamine Mesylate) InjectableIndicated for reversing soft-tissue anesthesia and the associated deficits from an intraoral submucosal injection of a local anesthetic containing a vasoconstrictor. Patientsexperience a return-to-normal sensation andfunction in about half the time. Not recommended for children less than 6 years of age.0.4 mg./1.7 mL Cartridges(228-2237).........................10/Box14FD1154TRANSPARENT MIXING PADS100 Sheets per PadTransparency of the pad allows you to see the product and how well it has been mixed before you apply.• Nonslip foam backing allows mixing without movement of the pad• Great for cements, liners, composites, and impression materials23/4" x 31/8"(900-4265)................................ea 31/8" x 51/2"(900-4266)................................eaNATURAL ELEGANCE ®RESIN CEMENTDual-Cure Automix Resin CementDual-cure, automix resin cement. High bond strength for longer lasting restoration. Use for a wide variety of dental restorations, including metal, composite crown/bridge, inlays, onlays,posts, and ceramic and porcelain crowns.• Versatile shading with 3 levels of opacity • Microparticulate formulation provides high bond strength for longer-lasting restorations • Designed for use for cementing all ceramic and all-composite indirect restorations (veneers, crowns, inlays, and onlays) and for intraoral porcelain repair Syringe Refills ........................eaSpecify:A2..................................................(900-4110)White..............................................(900-4111)Translucent....................................(900-4112)Automix Mixing Tips–Brown(900-7434).........................20/pkgGC FujiCEM ™2Resin-modified, glass-ionomer luting cement.Powered by F 2Flex Fuse Technology, which improves indirect restorations with increased strength, high fluoride release, low film thick-ness, and excellent marginal integrity. Use on all types of metal, resin, alumina, and zirconia-based inlays, onlays, and crowns and bridges.Radiopaque.Introductory Kit(333-3271)................................eaContains: 1–13.3 Gm cartridge, 20 mixing tips & 1 dispenser.Refill Package with Tips(333-3267)................................eaContains: 2–13.3 Gm. cartridges & 44 mixing tips.Refill Package without Tips(333-3268)................................eaContains: 1–13.3 Gm. cartridge & 1 mixing pad.Mixing Tips(333-2234).........................20/pkgDispenser(333-3270)................................ea8am–8pm, et • To Fax:1.877.350.789024 Hrs 5SureFil ®SDR ®Flow Posterior Bulk Fill Flowable Base Posterior, light-cured, bulk-fill, flowable composite base. The advanced StressDecreasing Resin (SDR) technology features an extended pregel phase that absorbs the polymerization stress buildup within the composite by up to 60%. Can be placed in increments up to 4mm. Radiopaque and contains fluoride.Introductory Kit(222-0225)................................eaContains: 25–0.25 Gm. Compula ®tips & 1 Compule ®tip gun.Refill Package ........................eaSpecify:A1..................................................(222-0346)A2..................................................(222-0347)A3..................................................(222-0348)Contains: 15–0.25-g Compula ®tips.Bulk Kit(222-0282)................................ea Contains: 50–0.25-g Compula ®tips.OptiBond ®Solo Plus ™A 15%-filled, single-component, light-cure adhesive. The optimum particle size allows it to be used for direct and indirect applications,providing the ultimate in convenience,protection, and strength.Bottle Kit(123-1507)................................ea Unidose Kit(123-0155)................................eaContains: Bottle Kit: 2–5-mL OptiBond Solo Plus adhesive,1 gel etchant syringe, 10 gel etchant syringe tips, 25disposable mixing wells, & 50 disposable applicator tips.Unidose Kit: 100 OptiBond Solo Plus packets (10 mL total),1 gel etchant syringe, 10 gel etchant syringe tips, & 50disposable applicator tips.Paradigm ™Nano Hybrid CompositeNanohybrid universal restorative. Excellent strength and wear resistance. Easy to polish.No slumping and easy to shape. Does not stick to instruments. Use for anterior and posterior restorations.Capsule Refills.................20/pkgSpecify:A1....................................(777-0381)A2....................................(777-0382)A3....................................(777-0386)B1....................................(777-0390)B2....................................(777-0391)Opaque A2.......................(777-0403)Opaque A3.......................(777-0404)14FD1154SafeGauze ®Green Nonwoven Sponges 2" x 2"(113-5501)....................4000/case 4" x 4"(113-5494)....................2000/caseTranslucent Plastic Cups Embossed Drinking Cups with Rolled Lips 5 oz(104-9869).......................100/pkgSaliva EjectorsSmooth edges. Will not aspirate tissue.Flexible bonded tips. Latex-free.Disposable.....................100/bagSpecify:White Opaque................................(100-5205)Clear with Blue Tip........................(100-4092)Pink................................................(900-4272)Plastic Drinking Cup DispenserClear plastic with white base. Attaches to wall and holds 50–5-oz plastic cups.(100-2626)................................ea8am–8pm, et • To Fax:1.877.350.789024 Hrs 7Polycoated Headrest Covers Soft, facial tissue combined with poly. Providesstrong, absorbent, fluid-resistant barrier.Small10" x 10"......................500/caseSpecify:White..............................................(107-1143)Lavender........................................(108-7903)Blue................................................(108-9564)Regular10" x 13"......................500/caseSpecify:White..............................................(107-0548)Dusty Rose....................................(107-7590)Lavender........................................(107-1341)Blue................................................(108-9803)Green.............................................(108-7228)Jumbo13" x 13", White(107-1231)......................500/caseTIDI ®Slipover Adult Bibs Fabricel, 20" x 30"(101-8381)......................250/case XL Tissue/Poly, Die-Cut Neck Blue, 20" x 29"(895-6634)......................500/case Mauve, 18" x 25"(101-7499)......................250/case Tissue/Poly Slipover White, 18" x 30"(895-7875)......................150/caseEAR LOOP PROCEDURE FACE MASKSLight, comfortable masks for extended wear when necessary. Ear loops are made from special stretch yarn: no irritating rubber or plastic touches the skin. Three-ply, glass-free filter media is surrounded by soft, nonirritating inner and outer facing. Full-width flexible nosepiece provides fit and security. Exceeds all current ASTM F2100-03a tex-free.Face Masks.....................50/boxSpecify:Blue................................................(104-3809)White..............................................(104-6611)Lavender........................................(104-8600)Pink................................................(104-3730)Yellow............................................(104-2849)ASTM: Level 1 l PFE:≥98% @ 0.1 micron (μ) l BFE:≥95%14FD1154Confirm ®10 In-OfficeBiological Monitoring System Now with 10-hour test results. Easy to use:simply process indicator in a normalautoclave cycle, then follow with a 10-hour incubation cycle. A color change to yellow indicates failure to sterilize.In-Office Monitor(774-0123)................................ea Indicator Refills(774-0124).........................25/boxMonarch ™Surface Disinfectant One-step, ready-to-use,hospital-level disinfectant for use on nonporous surfaces.EPA-registered, broad-spec-trum disinfectant. Effectively kills TB, HBV, and all bacteria and fungi in less than 1 minute. Noncorrosive and nonstaining. Contains no phenols or aldehydes.Spray Bottle(698-0420)..........................24 oz.Refill(698-0429)........................102 oz.Super Sani-Cloth ®Intermediate-level disinfectant that kills 26microorganisms with a fast kill time of only 2 minutes on hard, nonporous surfaces and patient-care equipment. Contains 55% alcohol.Bactericidal, tuberculocidal and virucidal.• Kills TB and RSV in 1 minute; HBV, HCV and HIV-1 in 2 minutes; TB, MRSA, VRE, influenza A (H1N1) virus, Acinetobacter baumannii ,Campylobacter jejuni in 2 minutes • Kills Candida albicans and rhinovirus • Diamond-embossed material is thick and strong to help clean soiled surfaces CanistersLarge, 6" x 63/4"(113-5423)......160 wipes/canister X-large, 81/2" x 15"(267-0005)........65 wipes/canister X-Large, 111/2" x 113/4"(373-2662)...............50 wipes/boxFlipEase ™Eye Protection Ready-to-wear eye protection.Comes flat and assembled. Just flip!• Fits comfortably with a mask and over glasses • CE certified• Revolutionary, patent-pending design • Extremely lightweight and comfortable • Provides front and side eye protection • Optical-grade, anti-static, fog-resistant (895-0045).........................25/Box8am–8pm, et• To Fax:1.877.350.789024 Hrs9Microflex®XCEED™NitrilePowder-FreeNon-sterile, BluePolymer technology, textured fingertips,beaded. Palm thickness: 2.8 mil.;Finger thickness: 3.5 mil.Gloves............................250/boxSpecify:X-small...........................................(565-0003)Small..............................................(565-0004)Medium..........................................(565-0005)Large..............................................(565-0006)X-large(565-0007).......................230/boxCriterion®N200 Powder-FreeNitrile Exam Gloves• Eliminates type-1 allergic reactions associatedwith natural latex• Innovative formulation emulates the fit and feelof latex with added strength and punctureresistance• Eco-friendly, 200-count box increases yourstorage by 50%, reduces cardboard waste,and still fits your glove box holders. You savemoney while reducing yourenvironmental impact• “Real-feel” grip provides optimal tactile sensi-tivity, and textured fingers provide enhanced,superior grip in both wet and dry applications• Easy donning: very smooth inside, so gloveslides onto your hand with ease. No need tofight with it when you are in a hurryGloves............................200/boxSpecify:X-small ..........................................(900-7437)Small .............................................(900-7438)Medium .........................................(900-7439)Large ............................................(900-7440)X-large (180/box) ..........................(900-7441) Ultraform®Nitrile Powder-Free ExamIncreased tactile sensation and improvedcomfort. Soft formulation conforms to thehand effortlessly. Textured. Higher-countbox. Colbalt Blue.Gloves............................300/boxSpecify:X-Small..........................................(565-0013)Small..............................................(565-0014)Medium..........................................(565-0015)Large..............................................(565-0016)X-Large(565-0017).......................250/box14FD1154ProFluorid ®Varnish5% sodium-fluoride varnish delivers with enhanced flowcharacteristics for hard-to-reach areas. Single-dose delivery systemadheres to moist surface and sets quickly after contact with saliva. White, transparentvarnish without yellow discoloration immediately releases fluoride to relieve hypersensitivity.Contains no saccharin, aspartame, or gluten.Single Dose, 0.25 mL, Kids, Melon (840-9282).........................50/boxSingle Dose, 0.4 mL, Adult/Assorted Flavors(999-1366).........................48/boxContains: Carmel, Cherry, Melon and Mint.Single Dose, 0.4 mLAdults....................................................50/boxSpecify:Caramel.........................................(999-1362)Cherry............................................(999-1363)Melon.............................................(840-9285)Mint................................................(999-1364)Single Dose, 0.4 mLAdult...............................200/boxSpecify:Caramel.........................................(999-1367)Cherry............................................(999-1369)Melon.............................................(999-1370)Mint................................................(999-1368)10 mL Tube............................eaSpecify:Caramel.........................................(999-1669)Cherry............................................(999-1670)Melon.............................................(114-3932)Mint................................................(999-1671)Sensodyne ®Repair &Protect ToothpasteProvides proven relief and daily protection for sensitive teeth. Relieves the pain and helps to stop it from coming back by creating a repair layer over sensitive areas. Contains fluoride for cavity protection.3.4 oz. Bottle..........................eaSpecify:Original ..........................................(583-1303)Extra Fresh....................................(583-1316)G•u•m ®Toothbrushes Adult Angle......................12/pkgSpecify:#430, Soft, Full Size......................(712-1189)#431, Soft, Compact Size..............(712-1845)#435, Sensitive, Compact Size .....(712-3344)8am–8pm, et• To Fax:1.877.350.789024 Hrs11Hand Essentials™Skin Repair CreamContains Olivamine®, a patented blend of ingredients that delivers all of theessential nutrients necessary for optimal skin health, including amino acids,vitamins, antioxidants, and methylsulfonlymethane (MSM). Natural moisture-retaining oils, aloe vera, and dimethicone leave the skin feeling silky with nogreasy residue. Specially formulated for dental professionals who are at riskfor skin breakdown.2-oz Bottle(600-1906)...................ea Call4-oz Bottle(600-1907)...................ea Call32-oz Bottle(600-1908)...................ea Call(600-1912)........144/case CallMonarch™HydratingInstant Hand SanitizerWaterless, alcohol-based gel.Smooth application with a silky feel.Contains no hormone-disruptingsurfactants. Skin-enriching emol-lients enhance skin-cell regrowthand prevent dryness with repeateduse. Maintains moisture duringrepeated washings.Personal Size(698-0426)............................2 oz.CallPump Bottle(698-0421).........................15.2oz Call Antibacterial LiquidHand SoapProvides a luxurious feel, leavinghands smooth and soft. Mild, gentle,and moisturizing. Pleasant cucumberand aloe fragrance. Active ingredientis 0.2% triclosan.8-fl-oz Pump Bottle(900-4439)................................ea Call16-fl-oz Pump Bottle(900-4438)................................ea Call1-gal Refill Bottle(900-4440)................................ea Call14FD1154JAZZ™C1S 1-Step Single-PatientPolishing SystemDiamond impregnated to achieve a highgloss on all direct-aesthetic materials.Single-patient use saves sterilization costand time.Assortment Pack(999-0670)................................eaContains: 12 universal polishers (4 of each shape:cup, disc & flame).Refills...............................20/pkgSpecify:Flame.............................................(999-2315)Cup................................................(999-5060)C-TYPE HANDPIECES• Canister-type cartridge:for easychairside replacement• Powerful:400,000 rpm at 32 psi• Smooth finish:for easy maintenance• Mini head:Compact size for greateraccess and visibility• Ergonomic design features• Lightweight and quiet operation• 400,000 rpm at 32 psi• 4-hole connection• Manual chuck• Easy chairside replacement of turbine cartridge• Fully autoclavable• 6-month warrantyC-Type Handpiece(112-4122)................................eaC-Type Replacement Cartridge(112-3909)................................eaC-TYPE MINIATURE HANDPIECE• Canister Type Cartridge:for easy chairsidereplacement• Powerful:400,000 rpm at 32 psi• Smooth Finish:for easy maintenance• Mini Head:Compact size for greater accessand visibilitySame features as the C-Type Handpiece butwith smaller head size for greater access andvisibility.4-Hole(112-5578)................................eaPUREVAC®2-liter BottleYields 67 uses.(312-6475)................................ea5-liter BottleYields 169 uses.(312-5825)................................ea8am–8pm, et • To Fax:1.877.350.789024 Hrs 13Evacuator Tips• Unique “S” tips with a softer end for patient comfort • Latex-free• Opaque plastic • Disposable Nonvented(100-4568).........................50/bag Vented (One End Only)(101-4856).........................50/bagINSTRUMENT CASSETTES • Stainless steel locking tray complete with silicone rails for storing dental instruments • Fully autoclavable, features unique design that optimizes sterilization process• Upper and lower sections of tray are fully interchangeable• Colored rails for instrument identification and organization 5-Instrument Tray7.1" x 2.8" x 1.3".....................eaSpecify:Blue................................................(112-4963)Green.............................................(112-5301)Purple ............................................(112-5336)Red................................................(112-5297)Yellow............................................(112-5442)10-Instrument Tray7.1" x 5.6" x 1.3".....................eaSpecify:Blue................................................(112-4964)Green.............................................(112-5302)Purple ............................................(112-5439)Red................................................(112-5299)Yellow............................................(112-5443)16-Instrument Tray11.3" x 7.1" x 1.3"...................eaSpecify:Blue................................................(112-4965)Green.............................................(112-5303)Purple ............................................(112-5441)Red................................................(112-5300)Yellow............................................(112-5444)MaxiTabs ™Ultrasonic Cleaning Tablets General Purpose Cleaner• Provide safe and effective cleaning properties in multiple cleaning cycles throughout the day• Does not leave a residue on instruments or insidetank• 1 tablet makes 1 gallon of solution • 1 box makes 32 gallons General Purpose Cleaner(900-4088).........................32/boxTartar & Stain Remover• Offers safe and effective cleaning efficacy for removal of calculus, tartar, tobacco,and food stains• Specifically designed for dentures,bridges, and dental appliances. 1 tablet makes 5 oz of solution(900-4089).........................32/boxDRI-GARD ®CSR WRAP • All-purpose sterilization overwraps• Provide high protection against air- and fluid-borne particles, yet allow effective penetration for various methods of sterilization, including steam, ethylene oxide, radiation, and E-beam • Resistant to tears and punctures• Conform to various pack and tray sizes and are easily secured with standard adhesives or tapes for full enclosure and assured sterility • Autoclavable, 1-ply sheets 12" x 12"(900-7447)......................500/case 15" x 15"(900-7448)......................500/case20" x 20"(900-7449)......................500/case24" x 24"(900-7450)......................500/caseMaxi-Gard ®Fitted Digital Sensor Sleeves• Disposable, fitted digital sensor sheaths helps prevent cross contamination• Soft, textured vinyl with rounded corners fits the sensor snugly to maintain the position of the bite tab and enhance patient comfort• Large opening for easy sensor loading and simple tear-away design for instant sensor removal• Comes conveniently packaged in a dispenser roll • Latex-free Size 1(1.638"W x 7.465"L x 1.262" Head Size)Fits Kodak 6100 #0, Schick Elite #0,Schick #0 & #1, Gendex GX-S #1, EVA #1,XDR #1, Instrumentarium Sordex #1,Progeny #2, Myray #1, and Planmeca #1.(112-6020).......................500/boxSize 2(1.638"W x 7.465"L x 1.342" Head Size)Fits Kodak 6100 #1, Schick Elite #1, Schick,Gendex GX-S #2, EVA #2, and Plameca #1.(112-6021).......................500/boxSize 3(1.88"W x 7.465"L x 1.506" Head Size)Fits Kodak 6100 #2, Schick Elite #2, Dexis #2,XDR #2, Instrumentarium Sordex #2, EVA+ #2,MyRay #2, and Planmeca #2.(112-6023).......................500/boxFlex Bite Tabs • Adjustable bitewing tabs• Fits snugly over digital sensors, conventional film,and phosphor plates of all sizes• Universal for both horizontal and vertical angles • Made with ultrasoft material for enhanced patient comfort(112-6019).......................300/box14FD1154Sterile Surgical Blades Manufactured by Kai.Stainless Steel Blades...100/boxSpecify:#10, Part #4-310............................(953-6694)#11, Part #4-311............................(953-7469)#12, Part #4-312............................(953-7546)#12B, Part #4-312B.......................(953-6343)#15, Part #4-315............................(953-7616)#15C, Part #4-315C.......................(953-7101)#20, Part #4-320............................(953-7810)#21, Part #4-321............................(953-7906)#22, Part #4-322............................(953-8126)#23, Part #4-323............................(953-8193)#25, Part #4-325............................(953-3557)Lifepak ®1000An easy-to-use and rugged AED that isadaptable enough for professional responders.Features a large, intuitive screen that displays graphics and ECG readings that are clear and easy to read. 5-year warranty.Lifepak ®1000 Unit with Graphical Display Pediatric ready: includes an infant/child reduced-energy electrode starter kit.(373-0005)................................eaLifepak ®Unit with ECG DisplayIncludes a 3-wire ECG cable and pouch plus a 3-pack of Life-Patch ®ECG electrodes.(373-0006)................................eaContains: cprMax ™Technology, 2 pair of Quik-Combo ®pacing/defibrillation/ECG electrodes with 1 Redi-Pak ™preconnect system, 1 set of operating Instructions, 1 “Getting Started” guide, 1 nonrechargeable lithium-manganese-dioxide battery, 1 soft-shell carrying case & 1 shoulder strap.Sterile Suture Removal Kit with Floor-Grade Instruments(788-1565)................................eaContains: 1pair floor-grade Iris suture scissors,1pair floor-grade Adson tissue forceps, 3" x 3" gauze sponge,large alcohol prep pad, & iodophor PVP prep pad.8am–8pm, et• To Fax:1.877.350.789024 Hrs15Proudly supports all of your dental, medical, and supply needs.S UPPORTING YOUR SUPPLY NEEDS THROUGH THE FOLLOWING CONTRACTS:DLA ECAT Dental Program SPM2DE-09-D-7444DLA ECAT Lab Contract SPM2DE-10-D-7342DLA Medical/Surgical DAPA Holder SP0200-96-H-5014FEDERAL SUPPLY SCHEDULES:Pharmaceuticals and Drugs (Anesthetics) V797P-2280DDental Equipment and Supplies V797P-3160M X-ray Equipment and Supplies V797P-3022MHENRY SCHEIN, INC. IS A PROUD FEDERAL SUPPLY SCHEDULE DISTRIBUTOR FOR:Welch Allyn—Medical Equipment and Supplies V797P-4333B Brewer Design Medical Equipment and Supplies V797P-3206M Ace Surgical Dental Equipment and Supplies V797P-3199MSharps Compliance V797P-4265B KaVo Dental Equipment V797P-3218MGYN Disposables V797P-4377BKerr V797D-30021Imaging Sciences Dental Equipment V797P-3235MPelton & Crane Contract V797P-3241MBusse Hospital Disposables—Medical Equipment and Supplies V797P-4488B NEW!。
WinFTM V6操作说明-简体
(XULM-XYm.M9A(6.14))P.1荧光膜厚仪 Fischerscope 使用手册机型：Fischerscope XULM XULM--XYm(德国 Fischer 公司)(2006/6)(版本 6.14)内容内容页数1、仪器理想放置环境………………………………………………. P. 22、测试台简介………………………………………………………………………………………………………………P. 2 3、电源开启………………………………………………………….P. 44、计算机开机……………………………………………………………………………………………….……………………. P. 55、基准测量…………………………………………………………. P. 56、选择测试程式…………………………………………………………………………………………….……………. P. 97、归一化(Norm (Normalize alize alize))……………………………………………………………………………………………… P. 108、测试步骤及样品放置方向……………………………………….P. 129、报表抬头的编辑、更改…………………………………………. P. 14 10、快速打印步骤……………………………………………………. P. 15 11、删除读数………………………………………………………………………… P. 17 12、更改测试时间……………………………………………………………………………………………. P. 18 13、测试单位公制(µm µm))或英制(u”)的选择………………………. P. 19 14、光谱分析…………………………………………………………. P. 20 15、样品图像放大倍数………………………………………………. P. 21 16、中英文版软件切换………………………………………………. P. 22 17、打印测试样品图像……………………………………………………………………………………… P. 23 18、产品程序备份与恢复………………………………………………………………….……………………. P. 25 19、计算机死机的排除………………………………………………….P. 30 20、计算机关机步骤…………………………………………………. P. 30 21、注意事项…………………………………………………………. P. 32 22、辐射安全方面………………………………………………………………………………………………………………………………… P. 32 23、电器安全方面……………………………………………………. P. 33 24、仪器和附件的维修………………………………………………. P. 33 25、常用元素符号、原子序、密度及合金的表示………………….P. 33 26、列表符号意义……………………………………………………. P. 34 27、列表文字意义……………………………………………………. P. 35 28、测试范围………………………………………………………………………………………………………………………………………………………….…. P. 35 29、S tandard Deviation(S)标准偏差的计算公式及意义……………… P. 37 30、C.O.C.O.V V .[%].[%]--变动率的计算公式………………………………………………………………………………… P. 38 31、XULM XULM--XYm 图像无法显示的处理步骤………………………………………………………………………… P. 39 32、底材修正步骤……………………………………………………………………………………………………………… P. 41 33、附录……………………………………………………………… P. 421理想放置环境、仪器想放置环境温：10-25℃A、使用工作环境： 1)度湿：40-60%RH2)度3)避免高温、潮湿及酸性腐蚀工作环境、耗电：5A(安培)B量测试台简介2、测试台简介可移动台面 X-Y：250 × 280 mmX-光管：微聚焦型 (Micro-focus)测试孔径(Collimators)：共 4 个No.1 圆型、直径：0.10 mm (4.0 mils)No.2 圆型、直径：0.20 mm (8.0 mils)No.3 正方形：0.05 × 0.05 mm (2.0 × 2.0 mils)No.4 长方形：0.03 × 0.20 mm (1.0 × 8.0 mils)测试台左方图示1.焦距调整2.高压开关3.电源开关4.视频输出5.RS-232系统连接头6.电源接头测试台右方图示1.X,Y工作台2.系统散热进气口过滤海绵测试台正面图示1.测量键2.停止键3.高压指示灯4.射线指示灯5.快门指示灯6.测试门关闭指示灯7.电源指示灯8.样品测试台更换电源保险丝:保险丝位于电源座下，请用一字起子，打开保险丝座，换上同等安培数的保险 丝即可。
Endress+Hauser 流量计解决方案预合格包说明书
Prequalification Package2ContentsThe Endress+Hauser Group (3)Oil & Gas: Fuel for thought (5)Project management (6)Successful projects all over the world (7)3Endress+Hauser is best known as a world classmanufacturer of measurement instruments and automationsolutions. In addition, Endress+Hauser has built a goodreputation as a quality supplier of Flow Metering Solutionsto the global Oil & Gas industry. Promass, our Coriolis massflow meters provide the ‘best in class’ core sensor uponwhich most of our systems are built. Our background inautomation and project solutions ensures that they are fullyintegrated into the higher level supervisory and controlstructure to operate as systems, and not just as individualinstruments.We provide full turnkey solutions for metering systems.Endress+Hauser operates in the best of all worlds - we are aglobal company with engineering teams and productionfacilities on every continent, but we also benefit from theflexibility of being an independent Swiss-family ownedcompany. Few system builders have this strength to offer toits customers.Other solutions in theEndress+Hauser rangeInventory Monitoring Solutions, Tank Gauging andTerminal AutomationAlmost all flow metering solutions tie-into tank or terminalsystems either up or downstream. Endress+Hauser areproven industry leaders in the supply of custody andallocation tank gauging and terminal automation systemsusing its own range of proven level measurementinstrumentation. We specialise in integrating themeasuring elements of the system into the overall businessprocess.Group facts – “at a glance”The family-owned Endress+Hauser Group is a network ofindependent companies, managed and coordinated by aholding company in Reinach, Switzerland. The closerelationship of the family extends far beyond ownershipand is a core value of the company and its employees.Founded in 1953 by Georg H. Endress and Ludwig Hauser,the company has developed from an instrumentationspecialist to a provider of complete process automationsolutions meeting the needs of our customers for improvedprocess efficiency and profitability.The Endress+Hauser GroupGeneral company profileCustomers are primarily from the chemical/petrochemical,food & beverage, oil & gas, water/wastewater, power &energy, life science, primaries & metal, renewable energies,pulp & paper and shipbuilding industries.World-wide presenceAt the end of 2014 we have 127 companies in 46countries, and representation support in every country ofthe world. Our production facilities are located inSwitzerland, Germany, France, United Kingdom, Italy, CzechRepublic, China, Japan, India, South Africa and the USAwith our main holding company in Reinach, Switzerland.Quality standardsOur production and engineering centers, design andinstruments are qualified according to the ISO 9001:2008series, but also to numerous customer and internationalstandards including:• PTB, Germany• NMi, The Netherlands• METAS, Switzerland• NTEP, USA• MC, Canada• ATEX, FM, CSA, TIIS, IECEx, NEPSI• Measuring Instruments Directive 2004/22/EG(MID) - Annex MI-002 MI-005• API MPMS Manual Of Petroleum MeasurementStandards• EU PED Pressure Equipment Directive 97/23/EC• ASME B31.3 Process Piping• ISO 14000 waste and environmental• BEV, Austria• SIRIM Malaysia…..And many othersPrequalification Package4Financial highlightsCertificationOur sub-vendor qualification system ensures that we use the most effective trusted and reliable manufacturers for allsub-vendor components and activities.C e r t i f i e d MmsSQS herewith certifies that the company named below has a management system which meets the requirements of the standards specified below.Endress+Hauser GmbH+Co. KGISO 9001:2008 ISO 14001:2004 Environmental Management System OHSAS 18001:20075 Oil & Gas: Fuel for thoughtWith vast experience in the Oil & Gas sector, we help you to perform, comply and thrive.Meeting evolving demandsFrom exploration to refinery, from storage to distribution, from plant upgradesto new projects, we have the application expertise to help you succeed.At a time when the sector faces skills shortages and regulations tightening, ourorganization is here across the full life cycle of your project always with yourdeadlines in mind.While complexity of facilities and processes are ever increasing, and downtimemust be reduced, your competitiveness is enhanced with reliable, accurate andtraceable asset information.In short, you need to do more with less, benefiting from a stable partner who ishere for the long haul and ready across the globe, offering:Production optimization - better return on investmentJust as your goal is to extract maximum resources, ours is to maximize yourefficiency and return on investment (ROI).Best-fit products, solutions and servicesThe Oil & Gas sector face three challenges: the availability of resources, servicesand technology. Endress+Hauser can assist you with each.Prequalification Package6Project managementFrom design to on-site installation Fabrication locationsAs an international metering supplier, our specialised fabrication and integration partners are selected for competence, and logistic location. All have proven records of high performance both for project control and manufacturing skill. A short extract of the list of partners we work with:Metron Ltd. Elesfina, Greece NASH Engineering UAE Denholm Zholdas Atyrau, KZGMMOS Group Atyrau KZIndustrias Proton ltda Bogota, Colombia CAN Industrie GmbH Butzbach, Germany Gates Engineering Jebel Ali, UAE APACO AG Grelingen, Switzerland Oeltechnik Munster, FranceLoadtec Ltd Kent, UKTeknokon Gebze/Kocaeli, Turkey Mointajes Industriales Duque, Costa Rica Geweke Kuala Lumpur MY, NL Flashpoint Eqts. Pvt, Pune, India M.T.I. Laita A&C. srl, Italy Isoil Spa, ItalyCarotek Inc. USA PT World Metal,Cikarang, Indonesia..And many othersAll our partners are qualified/approved to ISO 9001 series, and are also controlled by our own in-house processes.Project engineeringOur project engineering centers are located in Reinach Switzerland, Weil am Rhein Germany, Dubai UAE, Panama City, Singapore and Almaty Kazakhstan with a direct team of over 40 qualified engineers. Our services and capabilities include:• Front end feed design - FEEDAssisting clients with site and office based visits to define feasibility and budgets for the proposed projects – including support in presentations to end users and majors.• Fixed-price proposals or ‘frame agreements’Fully detailed quotations most normally provide the confidence needed to proceed to an order, but other arrangements such as frame or ‘enterprise’ agreements are regularly confirmed with key clients.• Detailed system design and engineeringUsing end-user specifications and performancerequirements, we create fully detail-engineered scopes of supply. These include mechanical and electrical drawings, functional design specifications, performancecalculations, site plans, utility consumptions, NDE FAT and SAT procedures, calibration and re-validation schemes.• Project ControlTP and quality plans, witness plans, manufacturing program and status reports, cost control and change management• Supply and build of complete packaged systemProcurement of materials equipment and instruments, fabrication, surface treatment, assembly, finishing, testing, release for inspection and delivery services.• Computer control and metering panelsCustody flow computer, PLC control units, OPC and redundant communications, historians, test diagnostic and validation, HMI and DCS/supervisory interface.• Test and Despatch preparationExport documentation, certificate of origin, finalinspections, performance tests, FAT, SAT. Compliance with all international, national, client and metrological standards • Site Servicesinstallation supervision, commissioning, validation and maintenance, W@M accounts, 3rd party instrument services7 Successful projects all over the worldHigh accuracy and maximum reliability with certified solutions for custody transfer applicationsOur project references span the world and we are pleased to list just some of these on the following pages:Prequalification Package 89Prequalification Package 1021Prequalification Package 2223Prequalification Package 2425Prequalification Package 2627Prequalification Package 28。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
元器件方案德国F I S C H E R X U L M X Y M X-射线测厚仪方案书一、公司介绍：成立1953年是世界上专业生产涂镀层测厚仪最早的厂家之一,其电镀膜厚仪占世界80%市场,今天FISCHER仪器代表精确,精密,高品质的仪器,已成为镀层厚度测量和材料测试仪器领域公认的领导者,全球已有12个FISCHER的子公司和32个在不同国家的代表处活跃于全球，南通菲希尔测试仪器有限公司厦门办事处属于FISCHER集团在中国厦门,香港,上海,东莞,北京的五个办事处其中之一。
菲希尔厦门办事处致力于为福建本地客户提供更有力的售后服务保障。
二、端子连接器的行业运用在电子连接技术中存在大量制造触点的技术。
最终，通过这些技术，可以优化相应应用中的重要参数，如电子接触电阻或机械强度,焊接性能等。
为实现这些目标，通常在触点材料母体金属上电镀上一种或多种金属镀层。
这些镀层的厚度是触点性能的一个重要参数。
在生产金属触点时，在电镀过程中又不可能镀太厚导致企业成本增加,又不可以镀太薄导致质量下降引起客户投诉,测量涂镀层厚度是工艺控制和质量控制的核心内容。
日益增高的贵金属价格,无非是对企业的成本一个大的挑战,为了提高产品质量和降低企业成本,走品牌化战略, 选择一款高精度、高品质的X-RAY测厚仪,检测镀层厚度就显的十分有必要。
三、样品测试报告1、Sn(锡)/Ni(镍)/CuZnSnPb 插针HELMUT FISCHER GmbHIndustriestrasse 2171069 SindelfingenFischerscope XRAY XULM XYmProduct: 6 / Sn/Ni/CuZnSnPb Dir.: Fischer Block: 1 Application: 7 / Sn/Ni/CuZnSnPbn= 1 Sn 1 = 3.39 μｍ Ni 2 = 1.67 μｍn= 2 Sn 1 = 3.30 μｍ Ni 2 = 1.85 μｍn= 3 Sn 1 = 3.64 μｍ Ni 2 = 1.90 μｍn= 4 Sn 1 = 3.53 μｍ Ni 2 = 1.67 μｍn= 5 Sn 1 = 3.40 μｍ Ni 2 = 1.46 μｍMean 3.452 μｍ 1.712 μｍStandard deviation 0.133μｍ 0.174 μｍC.O.V. (%) 3.85 10.15Range 0.339μｍ 0.438 μｍNumber of readings 5 5Min. reading 3.30μｍ 1.46 μｍMax. reading 3.64μｍ 1.90 μｍMeasuring time 30 secOperator:Date: 2011/6/9 Time:12:38:172、Au(金)/Ni(镍)/CuSn 连接件UT FISCHER GmbHIndustriestrasse 2171069 SindelfingenFischerscope XRAY XULM XYmProduct: 5 / Au/Ni/CuSn Dir.: Fischer Block: 1 Application: 6 / Au/Ni/CuSnn= 1 Au 1 = 0.198 μｍ Ni 2 = 1.85 μｍn= 2 Au 1 = 0.166 μｍ Ni 2 = 1.87 μｍn= 3 Au 1 = 0.217 μｍ Ni 2 = 1.77 μｍn= 4 Au 1 = 0.223 μｍ Ni 2 = 1.78 μｍn= 5 Au 1 = 0.207 μｍ Ni 2 = 1.79 μｍn= 6 Au 1 = 0.208 μｍ Ni 2 = 1.77 μｍMean 0.203 μｍ 1.804 μｍStandard deviation 0.020μｍ 0.046 μｍC.O.V. (%) 9.97 2.55 Range 0.057μｍ 0.106 μｍNumber of readings 6 6 Min. reading 0.166μｍ 1.77 μｍMax. reading 0.223μｍ 1.87 μｍMeasuring time 50 secOperator:报告分析: 第二个样品很明显电镀厂少镀了金,和实际要求的1UM相差悬殊,如果数量很多一年下来所浪费的成本,可以再买一台X-射线测厚仪。
四、仪器介绍：德国FISCHER X-RAY设备遵循ASTM B568，DIN EN ISO 3497国际标准，主要基于WinFTM™ V6L核心控制软件的镀层厚度测量和材料分析的X-射线系统。
采用全新数学计算方法,采用最新的FP（Fundamental Parameter）计算方法、DCM (Distenco Controlled Measurement)及强大的电脑功能来进行镀层厚度的计算，在加强的软件功能之下，简化了测量比较复杂镀层的程序，甚至可以在不需要标准片之下，一样精准测量。
针对厦门骏丰电子有限公司所属的端子和连接件行业，我们推荐菲希尔XULM XYM型号，我们已在中国大陆连接器和端子行业至少有运用800台以上此机型，它具备的高精确度和稳定性。
推荐型号：XULM XYM五、FISCHER X-RAY XULM XYM介绍:FISCHERSCOPE®-X-RAY XULM XYM是一款应用广泛的能量色散型x射线光谱仪。
比例接收器能实现高计数率，这样就可以进行高精度测量。
为了使每次测量都能在最优的条件下进行，仪器配备了可电动调整的多个准直器及基本滤片。
由于采用了基本参数法，在没有标准片的情况下也能进行分析和测量。
XULM型X射线光谱仪有着良好的长期稳定性，这样就不需要经常校准仪器。
X-射线操作原理:1. X-射线管2. 负极3. 正极4. 初级X-射线5. 反射镜6. 光学镜片7. 摄像机8. 准值器9. 镀膜层10. 样品底材11. 激发X-荧光射线12. 比例接收器13. 计算脉冲14. 光谱图15. 测量数值六、FISCHER X-RAY WinFTM™ V6L 具备漂移补偿功能:正常情况下Au/Cu 1,34 µm 测得的频谱3次测量的平均值: 1,34 µm仪器漂移情况下Au/Cu 1,34 µm 测得的频谱3次测量的平均值: 1,28 µm“漂移补偿“如何工作: 在计算厚度之前，把漂移的频谱移到正确的位置3次测量的平均值: 1,34 µm七、技术特点和产品优势：1.企业用户测试中需要有很多种不同镀层组合需要测量和科研,软件分析能力尤其重要。
强大的软件WinFTM™V6L是这台仪器的核心，可以对任何一种镀层厚度测量提供最优的解决方案,可以测得单镀层（例：银/铜）,双镀层（例：金/镍/铜）,三镀层（例：铬/镍/铜/ABS)，双元合金镀;三元合金镀层,顶层镀层+中间双元合金镀层）,对电镀溶液的分析能力可达包含一或二种阳离子的电镀液。
2.FISCHER X-RAY采用真正的基本参数原理（FP）来测量厚度,元素分析可以在不使用标准片调校仪器之下一样可以精准测量，这是我们的优势。
这就避免传统X-RAY如果缺少一种标准片则无法测量且长期使用标准片容易老化影响这一难题，此方法不仅使用人员操作方便且每年可以为企业节约1-2万成本购买标准片和校准费用，此方法备受业内好评，FISCHER是唯一能实现这种方法的厂商。
3.高精度和稳定性：长期的稳定性和精确性是XULM优势所在，仪器测试精度达到2-5%,稳定性误差控制在0.2-2%,FISCHER X-RAY能准确无误保证的用户品质监控，提高生产力，节约成本。
4.功能的实用性：无数次的专利发明,包括使用DCM自动对焦方法和透明的准值器，操作简单。
而且由于不需要经常进行再校准，从而节省了使用者的时间、精力及经营成本。
5.优秀的人体学设计，简单的操作即测量结果的快速计算是对XULM最好的描述，使用安全而简单——无论是对经验丰富还是接受较少培训的员工都是如此，并且可以按客户报表打印输出。
6.产品质量：FISCHER制造用于镀层厚度测量和材料分析的X射线荧光系统有超50年的经验，可以对任何一种金属元素分析和镀层厚度测量提供最优的解决方案，德国原厂生产进口，日常使用无耗材，仪器故障率较其他的品牌是最底。
7.售后服务：在福建有大量使用客户，我司在福建设有办事处，有专职工程师负责售后服务，便于及时响应，减少客户运营成本，全方位解决用户的技术和应用问题，确保客户最大化效益。
八、客户案例：高质量水准的FISCHER仪器是多年的工业领域经验积累，广泛的科研及与有名望的合伙人合作的结果。
以下是公司在福建部分客户案例一览表：序号客户名称X-RAY型号1 厦门金鹭特种合金有限公司XDVM； XDLM 2322 ABB（厦门）有限公司; XDL-B XYMZ3 厦门宏发电声有限公司; XDLM PCB4 阿海珐输配电 (厦门)有限公司; XDL-B XYMZ5 厦门大学XAN-1506 厦门德利兴电气有限公司XAN-1507 厦门唯恩电气有限公司XAN-1508 厦门升明电子有限公司XAN-1509 福建捷联电子有限公司;XULM XYM10 厦门冠捷电子有限公司; XULM XYM11 厦门安费诺电子装配有限公司XULM XYM12 厦门凯佳工贸有限公司; XDL-B XYMZ13 安美特化学（厦门）有限公司; XDL-B XYMZ14 厦门宏正化工有限公司; XAN-15015 厦门和成路达工业有限公司XDL-B XYMZ16 厦门松霖集团; XDL-B XYMZ17 厦门建霖工业有限公司; XDAL-FD18 厦门长荣光学有限公司; XDL-B XYMZ19 厦门来明工业有限公司XAN-15020 厦门台和电子有限公司; XULM XYM21 厦门欣宇科技有限公司; XDL-B XYMZ22 厦门宁利电子有限公司; XULM XYM23 厦门广和源工贸有限公司；XDL-B XYMZ24 厦门弘信电子有限公司；XULM XYM25 厦门多威电子有限公司; XULM XYM26 厦门灿坤实业股份有限公司; XDL-B XYMZ27 厦门泰利眼镜工业有限公司; XDL-B XYMZ28 漳州长鼎光学有限公司; XDL-B XYMZ29 福州三照电子有限公司; XULM XYM30 厦门台松精密电子有限公司; XDL-B XYMZ31 厦门先锋电镀开发有限公司; XULM XYM32 厦门永红电子有限公司; XULM XYM33 厦门旺朋电子元气件有限公司;XULM XYM34 厦门新福莱科斯有限公司；XDL-B XYMZ35 厦门达超表面处理有限公司；XDL-B XYMZ36 厦门瑞华高科有限公司; XDL-B XYMZ37 台福（福州）有限公司; XULM XYM38 福州汇和科技有限公司; XULM XYM39 厦门洪氏企业; XDLM XYMZ40 福建金得利集团; XULM XYM41 漳州宏源表业有限公司; XULM XYM42 厦门柏恩氏电子有限公司; XULM XYM43 福建南平南孚电池有限公司; XDL-B XYMZ44 厦门宏发电力器材有限公司；XULM XYM45 厦门竞高电镀有限公司；XULM XYM46 泉州三星机电设备有限公司；XDL-B XYMZ47 厦门英诺尔电子科技有限公司；XULM XYM48 漳州泰达电子有限公司XULM XYM九、技术规格表：FISCHER XULM XYM技术规格表：仪器种类X-射线荧光镀层厚度分析仪它们十分适用于无损测量细小零部件上的镀层厚，运用在连接器，端子等小部件上。
