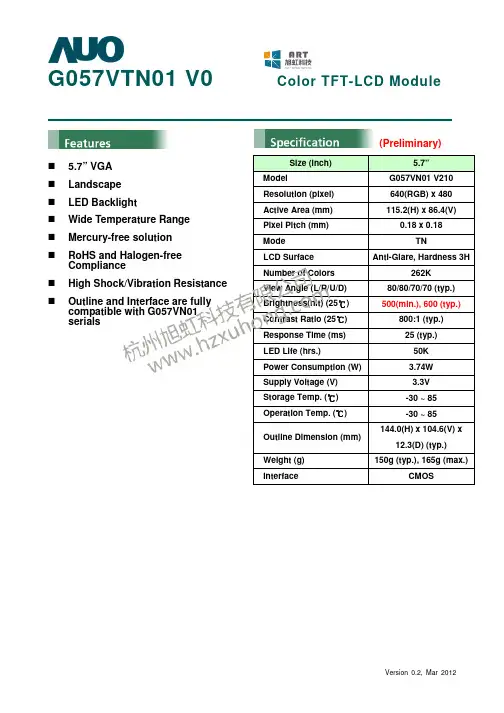

友达5.7寸液晶屏G057VTN01 V0规格书-杭州旭虹科技有限公司
G057VTN01 V0 Color TFT-LCD Module5.7” VGA Landscape LED BacklightWide Temperature Range Mercury-free solution RoHS and Halogen-freeComplianceHigh Shock/Vibration Resistance Outline and Interface are fullycompatible with G057VN01 serials(Preliminary)Size (inch)5.7” ModelG057VN01 V210 Resolution (pixel) 640(RGB) x 480 Active Area (mm) 115.2(H) x 86.4(V)Pixel Pitch (mm) 0.18 x 0.18Mode TNLCD Surface Anti-Glare, Hardness 3HNumber of Colors 262K View Angle (L/R/U/D) 80/80/70/70 (typ.) Brightness(nit) (25℃) 500(min.), 600 (typ.)Contrast Ratio (25℃) 800:1 (typ.) Response Time (ms) 25 (typ.) LED Life (hrs.)50K Power Consumption (W) 3.74W Supply Voltage (V) 3.3V Storage Temp. (℃) -30 ~ 85 Operation Temp. (℃) -30 ~ 85Outline Dimension (mm) 144.0(H) x 104.6(V) x12.3(D) (typ.) Weight (g) 150g (typ.), 165g (max.)InterfaceCMOSTFT- LCD Interface Signal Description:Note 1: “Low” stands for 0V. “High” stands for 3.3V. “NC” stands for ”No Connection”.TFT- LCD Signal (CN1): LCD Connector: ManufacturerStarconnConnector Model Number 089H33-000100-G2-R, compatible withIMSA-9637S-33Y902 & ELCO 08-6210--033-340-800+Pin# Symbol Pin# Symbol Pin# Symbol 1 GND 12 GND 23 B3 2 DOTCLK 13 G0 24 B4 3 NC 14 G1 25 B5 4 NC 15 G2 26 GND 5 GND 16 G3 27 DE 6 R0 17 G4 28 VDD 7 R1 18 G5 29 VDD 8 R2 19 GND 30 R/L 9 R3 20 B0 31 U/D 10 R4 21 B1 32 NC 11 R522B233GNDLED Backlight Unit (CN2): Backlight Connector:ManufacturerJSTConnector Model Number SM06B-SRKS-G-TBcompatible with JST SM06B-SRSS-TB (LS) (SN)Mating Connecter Model Number JST SHR-06V-BKHF-B or compatiblePin # Symbol Pin # Symbol 1 V LED 4 GND 2 V LED 5 PWM DIM 3GND6LED ON/OFFLED Light Bar Input (CN3): Light Bar Connector ManufacturerSTM or compatible Connector Model Number P24021P6 or compatible Mating Connecter Model NumberSM06B-SHLS-TF or compatiblePin # Symbol Pin Description Cable color1 AN1 Channel 1 LED anode Red2 AN2 Channel 2 LED anode Red3 AN3 Channel 3 LED anode Red4 CA1 Channel 1 LED cathode White5 CA2 Channel 2 LED cathode Blue6 CA3Channel 3 LED cathodeBlack工业液晶屏ｗｗｗ．ｈｚｘｕｈｏｎｇ．ｃｏｍReliability Test Criteria: ItemsRequired Condition Remark Temperature Humidity Bias40℃/90%,300HrNote 2 High Temperature Operation 85℃,300Hr Note 2 Low Temperature Operation -30℃,300Hr Note 2 High Temperature Storage 85℃,300 hours Note 2 Low Temperature Storage -30℃,300 hoursNote 2 Thermal Shock Test -20℃/30 min ,60℃/30 min ,100cyclesNote 2 Hot Start Test 85℃/1 Hr (min.), power on/off per 5 minutes, repeat 5 times Note 2 Cold Start Test -30℃/1 Hr (min.), power on/off per 5 minutes, repeat 5 times Note 2 Shock Test (Non-Operating) 50G, 20ms,Half-sine wave, (±X, ±Y , ±Z)Note 2Vibration Test (Non-Operating)(1)Random Wave 3.3rms, 0.5hr(X,Y,Z), 5~500hz (2)Sine Wave 6.8G, 10~400hz, 4hr40min (XYZ)Note 2ESDContact Discharge: ±8KV, 150pF(330Ω) 1sec, 8 points, 25times/pointAir Discharge: ±15KV, 150pF(330Ω) 1sec, 8 points, 25 times/pointNote 1,2Attitude TestOperating: 14,000 ft, Ramp: 2000 ft/min, 8hrs Non-operating: 40,000 ft, Ramp: 2000 ft/min, 24hrsNote 2Note1: According to EN61000-4-2 ESD class B criteria, some performance degradation is allowed. TFT-LCD module is self-recoverable, no data lost and no hardware failures after test. Note2:Water condensation is not allowed for each test items.Each test is done by new TFT-LCD module. Don’t use the same TFT-LCD module repeatedly for reliability test.The reliability test is performed only to examine the TFT-LCD module capability.To inspect TFT-LCD module after reliability test, please store it at room temperature and room humidity for 24 hours at least in advance.工业液晶屏ｗｗｗ．ｈｚｘｕｈｏｎｇ．ｃｏｍVersion 0.2, Mar 2012Mechanical Characteristics:工业液晶屏ｗｗｗ．ｈｚｘｕｈｏｎｇ．ｃｏｍ。
G057VN01 V0
AUO G057VN01 V0G057V N01 V0 Ver. 0.1(V ) Preliminary Specification ( ) Final SpecificationModule 5.7 Inch Color TFT-LCD Model NameG057VN01 V0CustomerDateChecked & Approved byNote: This Specification is subject to change without notice.Approved by DatePrepared byDavid Hsing 2007/11/09General Display Business Division / AU Optronics corporationContents1. Operating Precautions (4)2. General Description (5)2.1 Display Characteristics (5)2.2 Optical Characteristics (6)3. Functional Block Diagram (8)4. Absolute Maximum Ratings (9)4.1 Absolute Ratings of TFT-LCD Module (9)4.2 Absolute Ratings of Environment (9)5. Electrical Characteristics (9)5.1 TFT-LCD Driving (9)5.2 Backlight Unit Driving (11)6. Signal Characteristic (11)6.1 Pixel Format Image (11)6.2 Scanning Direction (12)6.3 The Input Data Format (12)6.4 TFT- LCD Interface Signal Description (13)6.5 TFT- LCD Interface Timing (14)6.6 LED Backlight Unit Interface (15)6.7 Power ON/OFF Sequence (15)7. Connector & Pin Assignment (16)7.1 TFT- LCD Signal (CN1): LCD Connector (16)7.2 LED Backlight Unit (CN2): LED Connector (16)7.3 PIN 1 definition of CN1 and CN2 (17)8. Reliability Test Criteria (17)9. Mechanical Characteristics (19)10. Label and Packaging (20)10.1 Shipping Label (on the rear side of TFT-LCD display) (20)10.2 Carton Package (20)11 Safety (20)11.1 Sharp Edge Requirements (20)11.2 Materials (20)11.3 Capacitors (20)11.4 National Test Lab Requirement (20)Version and Date Page Old description New Description Remark 0.1 Nov. 09, 2007 All First edition preliminaryspecifications1. Operating Precautions1) Display area (Polarizer) of TFT-LCD Module is easily to be damaged, please be cautious and notto scratch it.2) Be sure to power off your machine before connecting or disconnecting your signal cable toTFT-LCD Module.3) Wipe off water drop on display area immediately. Long contact with water may causediscoloration or spots.4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.5) Display area (Glass) of TFT-LCD Module may be broken or cracked if bump Module against hardobject.6) To avoid ESD (Electro Static Discharde) damage, be sure to ground yourself before handlingTFT-LCD Module.7) Do not open nor modify the TFT-LCD module assembly.8) Do not press the reflector sheet at the back of the module to any direction.9) In case if TFT-LCD module has to be put back into the packing container slot after it was takenout from the container, do not press the center of the LED Reflector edge. Instead, press at the far ends of the LED Reflector edge softly. Otherwise the TFT-LCD Module may be damaged. 10) When inserting or removing of your signal cable to TFT-LCD Module, be sure not to applyabnormal force (rotate, tilt…etc.) to the Connector of the TFT-LCD Module.11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a veryshort time. Please design your display product well to avoid external force applying to module by end-user directly.12) Small amount of materials without flammability grade are used in the TFT-LCD module. TheTFT-LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.13) Severe temperature condition may result in different luminance and short LED backlightopearting life time.14) Continuous operating TFT-LCD Module under high temperature environment may accelerateLED light bar exhaustion and reduce luminance dramatically.15) The data on this specification sheet is applicable when TFT-LCD module is placed in landscapeposition.16) Continuous displaying fixed pattern may induce image sticking. It’s recommended to use screensaver or moving content periodically if fixed pattern is displayed on the screen.2. General DescriptionG057VN01 V0 is designed for industrial display applications with VGA (640 x RGB x 480) resolution and 262k colors (RGB 6-bits). It is composed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit. G057VN01 V0 offers CMOS interface for display signal input. LED driving board for backlight unit is not included.2.1 Display CharacteristicsThe following items are G057QN01 V0 characteristics summary at 25 ℃ condition.Items Unit SpecificationsScreen Diagonal inch 5.7Active Area mm 115.2(H) x 86.4(V)Pixels H x V640 x 3(RGB) x 480Pixel Pitch mm 0.18 x 0.18Pixel Arrangement R.G.B. Vertical StripeDisplay Mode TN, Normally WhiteNominal Input Voltage VDD Volt 3.3 typ.Typical Power Consumption Watt 2.11W (LCD:0.69W/LED: 1.42W) All black patternWeight Grams 200g(typ.), 220g(max.)Physical Size mm 144.0(H)x 104.6(V) x 12.3(D) (typ.) Electrical Interface CMOSSurface Treatment Anti-Glare, Hardness 3HSupport Color 262K colorsThe most suitable view angle 12 o’clockTemperature RangeOperatingStorage (Non-Operating) o Co C-30 to +85-30 to +85RoHS Compliance RoHS Compliance2.2 Optical CharacteristicsThe optical characteristics are measured under stable conditions at 25℃ (Room Temperature):Item Unit Conditions Min. Typ. Max.Remark White Luminance [cd/m2] I F = 15mA / 1 LED line(center point) 400 -Note 1 Uniformity%5 Points- 1.3 Note 1, 2, 3 Contrast Ratio600 - Note 4[msec]Rising - 20 30 [msec] Falling- 15 20 Response Time[msec] Raising + Falling - 35 50 Note 5 [degree] [degree] Horizontal (Right) CR = 10 (Left) 60 60 70 70 - - Viewing Angle[degree] [degree]Vertical (Upper) CR = 10 (Lower) 50 50 60 60 - - Note 6 White x 0.263 0.313 0.363 White y 0.279 0.329 0.379 Red xTBD TBD TBD Red y TBD TBD TBD Green x TBD TBD TBD Green y TBD TBD TBD Blue x TBD TBD TBD Color / Chromaticity Coordinates (CIE 1931)Blue yTBD TBD TBD Color Gamut%-50-Note 1: Measurement methodEquipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (SR_3 or equivalent) Aperture1with 50cm viewing distance ∘Test Point Center Environment < 1 luxModule Driving EquipmentNote 2: Definition of 5 points position (Display active area: 115.2mm (W) x 86.4mm (H))Note 3:The luminance uniformity of 5 points is defined by dividing the minimum luminance values by the maximum test point luminanceNote 4: Definition of contrast ratio (CR):Note 5: Definition of response time:The output signals of photo detector are measured when the input signals are changed from “White” to “Black” (falling time) and from “Black” to “White” (rising time), respectively. The response time interval is between 10% and 90% of amplitudes. Please refer to the figure as below.Maximum Brightness of five pointsδW5 = Minimum Brightness of five pointsContrast ratio (CR)=Brightness on the “White” state Brightness on the “Black” stateNote 6: Definition of viewing angleViewing angle is the measurement of contrast ratio 10, at the s≧creen center, over a 180° horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as below: 90° (θ) horizontal left and right, and 90° (Φ) vertical high (up) and low (down). The measurement direction is typically perpendicular to the display surface with the screen rotated to its center to develop the desired measurement viewing angle.3. Functional Block DiagramThe following diagram shows the functional block of the G057VN01 V0 color TFT/LCD module:4. Absolute Maximum Ratings4.1 Absolute Ratings of TFT-LCD ModuleItem Symbol Min Max UnitLogic/LCD Drive Voltage Vin -0.3 +3.6 VoltLED backlight forwardcurrent (per channel)I LED0 20 mA4.2 Absolute Ratings of EnvironmentItem Symbol Min Max UnitOperating Temperature TOP -30 +85 o COperation Humidity HOP 5 95 %RHStorage Temperature TST -30 +85 o CStorage Humidity HST 5 95 %RHNote: Maximum Wet-Bulb should be 39 and no condensation.℃5. Electrical Characteristics5.1 TFT-LCD Driving5.1.1 Power SpecificationSymbol Parameter Min Typ Max Units Remark VDD Logic/LCD Drive Voltage 3.0 3.3 3.6 VoltIDD VDD Current - 210 - mA All Black Pattern (VDD=3.3V, at 60Hz)I rush LCD Inrush Current - - 1.5 A Note 1PDD VDD Power - 0.69 - Watt All Black Pattern (VDD=3.3V, at 60Hz)VDDrp Allowable Logic/LCD Drive RippleVoltage- - 100mVp-pAll Black Pattern(VDD=3.3V, at 60Hz)Note 1: Measurement condition:5.1.2 Signal Electrical CharacteristicsInput signals shall be low or Hi-Z state when VDD is off.ParameterSymbol Min. Typ. Max. Unit RemarksHigh VIH 0.7VDD - VDD V Logic Input Voltage forDisplay SignalsLow VIL 0 - 0.3VDD V High VIH 0.7VDD - VDD V Input Voltage for R/L & U/D LowVIL-0.3VDDVVDD rising time 0V3.3V5.2 Backlight Unit Driving5.2.1 Parameter guideline for LEDFollowing characteristics are measured under a stable condition using an LED driving board at 25 (Room Temperature):℃Symbol Parameter Min Typ Max Unit RemarkI F LED forward current -- 15 -- mA Ta = 25o C-- 32.8 TBD V I F = 15mA, Ta = -30o C V F LED forward voltage-- 31.6 TBD V I F = 15mA, Ta = 25o C-- 30.4 TBD V I F = 15mA, Ta = 85o C P LED LED Power -- 1.42 -- WattOperating Life 20000 (40000) -- Hrs I F = 15mA, Ta = 25o CI F is defined for one channel LED. There are total three LED channels in back light unit.G057VN01 V0 can be operated at operating temperature range, but optical performance should be evaluated at Ta =25 o C only.When G057VN01 V0 module is operated at high ambient temperature condition (over 25 o C), LED forward current I F should be less than 15 mA to avoid over LED junction temperature spec.If LED is driven by high current, high ambient temperature & humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% initial brightness. Typical operating life time is estimated data. 6. Signal Characteristic6.1 Pixel Format ImageFollowing figure shows the relationship between input signal and LCD pixel format.6.2 Scanning DirectionThe following figures show the image seen from the front view. The arrow indicates the direction of scan.6.3 The Input Data FormatThis product displays 262,144 colors in terms of the 64 grey levels on RGB respectively. The following table demonstrates the display of input data.6.4 TFT- LCD Interface Signal DescriptionPIN No. Symbol Pin Description1 GND Ground2 CLK Dot clock3 NC No Connection4 NC No Connection5 GND Ground6 R0 Red data (LSB)7 R1 Red data8 R2 Red data9 R3 Red data10 R4 Red data11 R5 Red data (MSB)12 GND Ground13 G0 Green data (LSB)14 G1 Green data15 G2 Green data16 G3 Green data17 G4 Green data18 G5 Green data (MSB)19 GND Ground20 B0 Blue data (LSB)21 B1 Blue data22 B2 Blue data23 B3 Blue data24 B4 Blue data25 B5 Blue data (MSB)26 GND Ground27 DE Data Enable Signal28 VDD Power supply (3.3V Typ. ONLY)29 VDD Power supply (3.3V Typ. ONLY)30 R/LHorizontal reverse scan (L: Normal, H: Right & Left reversal)31 U/DVertical reverse scan (H: Normal, L: Up & Down reversal)32 NC No Connection33 GND GroundNote 1: Input signals shall be in low status when VDD is off. Note 2: NC = No Connection6.5 TFT- LCD Interface Timing6.5.1 Timing Characteristics DE mode onlySignalSymbol Min. Typ. Max. Unit Remark Clock frequency (DOTCLK) 1/ T CLOCK 23.9 25.2 34.2 MHzNote1Period T H 770800 1000Active T HD 640 Horizontal SectionBlankingT HB 130 160 360 T CLOCKNote1Period T V 516 525 570Active TVD 480 Vertical SectionBlankingT VB36 4590 T LINENote1Note 1: Frame rate is 60 Hz.6.5.2 Input Timing DiagramDOTCLKDEHT HBDET VDInput Timing Definition ( DE Mode)Input Data Invaild Data Invaild Data6.6 LED Backlight Unit InterfacePin # Symbol Pin Description1 AN1 Anode 12 AN2 Anode 23 AN3 Anode 34 CA1 Cathode 15 CA2 Cathode 26 CA3 Cathode 36.7 Power ON/OFF SequenceVDD power and LED on/off sequence is as below. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.Power ON/OFF sequence timingValueParameterUnitsMin. Typ. Max.T10.5 - 10 msT2 0 - 50 msT3 0 - 50 msT4 0 - 10 msT5 200 - - msT6 200 - - msT7 500 - - msThe above on/off sequence should be applied to avoid abnormal function in the display. Please make sure to turn off the power when you plug the cable into the input connector or pull the cable out of the connector.7. Connector & Pin Assignment7.1 TFT- LCD Signal (CN1): LCD ConnectorConnector Name / Designation Signal ConnectorManufacturer Hirose or compatibleConnector Model Number FH12-33S-0.5SH(55) or compatiblePin#Symbol Pin#Symbol Pin#Symbol1 GND 12 GND 23 B32 CLK 13 G0 24 B43 NC 14 G1 25 B54 NC 15 G2 26 GND5 GND 16 G3 27 DE6 R0 17 G4 28 VDD7 R1 18 G5 29 VDD8 R2 19 GND 30 R/L9 R3 20 B0 31 U/D10 R4 21 B1 32 NC11 R5 22 B2 33 GND 7.2 LED Backlight Unit (CN2): LED ConnectorConnector Name / Designation Lamp ConnectorManufacturer JST or compatibleConnector Model Number SHLP-06V-S-B or compatibleMating Model Number SM06B-SHLS-TF or compatiblePin # Symbol Cable color Pin # Symbol Cable color1 AN1 Red 4 CA1 Blue2 AN2 Red 5 CA2 White3 An3 Red 6 CA3 Black7.3 PIN 1 definition of CN1 and CN28. Reliability Test CriteriaItems Required Condition Remark Temperature Humidity Bias 40/90%,300℃ hours Note 2 High Temperature Operation 85,300℃ hours Note 2 Low Temperature Operation -30,300℃ hours Note 2 High Temperature Storage 85,300 hours℃Note 2 Low Temperature Storage -30℃,300 hours Note 2 Thermal Shock Test -20℃/30 min ,60℃/30 min ,100cycles Note 2 Hot Start Test 85℃/1 Hr (min.), power on/off per 5 minutes, repeat 5 times Note 2 Cold Start Test -30℃/1 Hr (min.), power on/off per 5 minutes, repeat 5 times Note 2 Shock Test (Non-Operating) 50G,20ms,Half-sine wave,(+-X,+-Y,+-Z) Note 2 Vibration Test(Non-Operating)1.5G, 10~200~10Hz, Sine wave, 30mins/axis, 3 direction (X, Y, Z) Note 2ESD Contact : ± 8KV/ operation, Class B; Air : ± 15KV / operation, Class B(RL=150Ω, CL=330pF)Note 1,2Attitude Test Operating: 14,000 ft, Ramp: 2000 ft/min, 8hrsNon-operating: 40,000 ft, Ramp: 2000 ft/min, 24hrsNote 2Note1: According to EN61000-4-2 ESD class B criteria, some performance degradation is allowed. No data lost, Self-recoverable. No hardware failures.Note2:Water condensation is not allowed for each test items.Each test is done by new TFT-LCD module. Please don’t use the same TFT-LCD module repeatedly for reliability test.The reliability test is performed only to examine the TFT-LCD' module.To inspect TFT-LCD module after reliability test, please store it at room temperature and room humidity for 24hour at least in advance.G057VN01 V0 9. Mechanical CharacteristicsG057V N01 V0 Ver. 0.120/20 G057VN01 V010. Label and Packaging10.1 Shipping Label (on the rear side of TFT-LCD display)TBD10.2 Carton PackageTBD11. Safety11.1 Sharp Edge RequirementsThere will be no sharp edges or corners on the display assembly that could cause injury.11.2 Materials11.2.1 ToxicityThere will be no carcinogenic materials used anywhere in the TFT-LCD module. If toxic materials are used, they will be reviewed and approved by the responsible AUO toxicologist.11.2.2 FlammabilityAll components including electrical components that do not meet the flammability grade UL94-V1 in the TFT-LCD module will complete the flammability rating exception approval process.The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the printed circuit board.11.3 CapacitorsIf any polarized capacitors are used in the TFT-LCD module, provisions will be made to keep them from being inserted backwards.11.4 National Test Lab RequirementThe TFT-LCD module will satisfy all requirements for compliance to UL 60950 (U.S.A. Information Technology Equipment).。
艾默生UPS用户手册

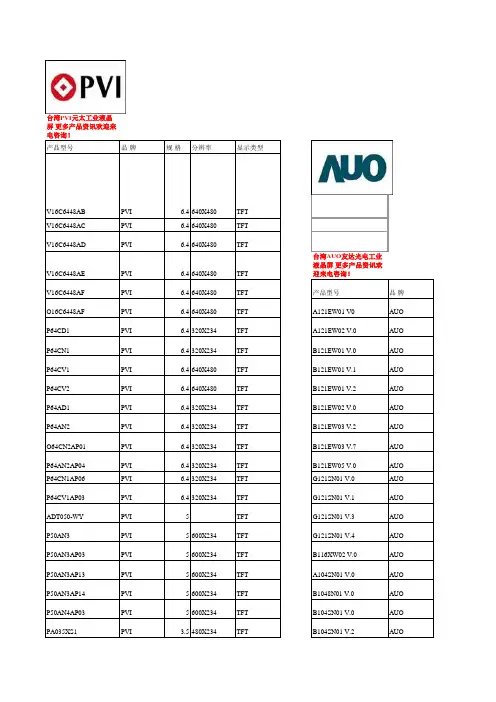

常用LCD型号大全
产品型号品牌规格分辨率显示类型V16C6448AB PVI 6.4640X480TFTV16C6448AC PVI 6.4640X480TFTV16C6448AD PVI 6.4640X480TFTV16C6448AE PVI 6.4640X480TFTV16C6448AF PVI 6.4640X480TFT产品型号品牌O16C6448AF PVI 6.4640X480TFT A121EW01 V0AUO P64CD1PVI 6.4320X234TFT A121EW02 V.0AUO P64CN1PVI 6.4320X234TFT B121EW01 V.0AUO P64CV1PVI 6.4640X480TFT B121EW01 V.1AUO P64CV2PVI 6.4640X480TFT B121EW01 V.2AUO P64AD1PVI 6.4320X234TFT B121EW02 V.0AUO P64AN2PVI 6.4320X234TFT B121EW03 V.2AUO O64CN2AP01PVI 6.4320X234TFT B121EW03 V.7AUOP64AN2AP04PVI 6.4320X234TFT B121EW05 V.0AUO P64CN1AP06PVI 6.4320X234TFT G121SN01 V.0AUOP64CV1AP03PVI 6.4320X234TFT G121SN01 V.1AUO ADT050-WY PVI5TFT G121SN01 V.3AUO P50AN3PVI5600X234TFT G121SN01 V.4AUO P50AN3AP03PVI5600X234TFT B116XW02 V.0AUO P50AN3AP13PVI5600X234TFT A104SN01 V.0AUO P50AN3AP14PVI5600X234TFT B1048N01 V.0AUO P50AN4AP03PVI5600X234TFT B104SN01 V.0AUO PA035XS1PVI 3.5480X234TFT B104SN01 V.2AUO PA035XSGN1PVI 3.5480X234TFT B104SN02 V.0AUO PA050DS2T1PVI5320X240TFT B104SN03AUO PA050DS7PVI5320X240TFT G104SN02 V.0AUO PA050DS7N1PVI5320X240TFT G104SN02 V.1AUOPD121SL1A070FW03 V3AUOA070FW03 V4AUOA070FW03 V7AUOA070FW03 V8AUOC070FW01 V0AUOC070FW01 V.1AUOC070FW03 V0AUOC070VW01 V0AUO产品型号品牌规格分辨率显示类型C070VW02 V0AUO NL10276AC30-01A NEC151024X768TFT C070VW02 V1AUO NL10276BC30-04D NEC151024X768TFT C070VW02 V2AUO NL10276BC30-24D NEC151024X768TFT C070VW03 V0AUO NL10276BC26-01NEC13.31024X768TFT A068EN01AUO NL10276BC26-02NEC13.31024X768TFT A065GW01 V0AUO NL10276AC24-01NEC12.11024X768TFT C065GW01 V0AUO NL10276AC24-02NEC12.11024X768TFT C065GW03 V.0AUO NL10276AC24-05NEC12.11024X768TFT A065VL01 V2AUO NL10276BC24-04NEC12.11024X768TFT C065VL01 V0AUONL10276BC24-13NEC12.11024X768TFT G065VN01 V.0AUO NL10276BC24-13C NEC12.11024X768TFT G065VN01 V.1AUO NL10276BC24-14NEC12.11024X768TFT G057VN01 V0AUO NL10276BC24-19D NEC12.11024X768TFT G057QN01AUO NL10276BC20-18NEC10.41024X768TFT A056DN01AUO NL10276AC20-01NEC10.41024X768TFTNL10276AC20-02NEC10.41024X768TFTNL10276AC20-03NEC10.41024X768TFTNL10276BC20-01NEC10.41024X768TFTNL10276BC20-04NEC10.41024X768TFTNL10276BC20-04C NEC10.41024X768TFTNL10276BC20-06Y NEC10.41024X768TFTNL10276BC20-07Y NEC10.41024X768TFT产品型号品牌NL10276BC20-12NEC10.41024X768TFT LP8658-B LGNL10276BC20-08NEC10.41024X768TFT LB040Q02-TD01LGNL12876BC15-01NEC8.91280X768TFT LB040Q02-TD02LGNL10276BC16-01NEC8.41024X768TFT LB040Q02-TD03LGNL10260BC19-01D NEC8.41024X600TFT LB040Q03-TD02LGNL10276BC13-01C NEC 6.51024X768TFT LB043WQ1-TD01LGNL10276BC12-01NEC 6.31024X768TFT LB064V02-A1LGNL10276BC12-02NEC 6.31024X768TFT LB064V02-B1LGNL8060AC31-12NEC12.1800X600TFT LB064V02-TD01LGNL8060AC31-12G NEC12.1800X600TFT LC064N1LGNL8060BC31-01NEC12.1800X600TFT LP064V1LGNL8060BC31-02NEC12.1800X600TFT LP064V2LGNL8060BC31-05NEC12.1800X600TFT LB065W01-B11B LG NL8060BC31-09NEC12.1800X600TFT LT065W01-B11B LG NL8060BC31-13A NEC12.1800X600TFT LB065W01-C11B LGNL8060BC31-13B NEC12.1800X600TFT LB065WQ2-B11B LGNL8060BC31-13S NEC12.1800X600TFT LB070W01-A1LGNL8060BC31-17NEC12.1800X600TFT LB070W02-TME2LG NL8060BC31-17D NEC12.1800X600TFT LB070W02-TML1LG NL8060BC31-17E NEC12.1800X600TFT LB070WQ5-TD01LG NL8060BC31-20 NEC12.1800X600TFT LB070WQ6-TD01LG NL8060BC31-27NEC12.1800X600TFT LB070WQ7-TD02LGNL8060BC31-28D NEC12.1800X600TFT LB070WV1-TD01LGNL8060BC31-28E NEC12.1800X600TFT LB070WV1-TD03LGNL8060BC31-32NEC12.1800X600TFT LB070WV1-TD07LGNL8060BC31-36NEC12.1800X600TFT LB070WV1-TD08LG NL8060BC31-41NEC12.1800X600TFT LB070WV4-TD02LG NL8060BC31-41C NEC12.1800X600TFT LB080WV3-A1LG NL8060BC31-41D NEC12.1800X600TFT LB080WV3-B1LGNL8060BC31-42NEC12.1800X600TFT LB080WV3-B2LGNL6448AC33-18J NEC10.4640X480TFT LP121S1LGNL6448AC33-18K NEC10.4640X480TFT LP121S2LGNL6448AC33-18X NEC10.4640X480TFT LP121S3-A LGNL6448AC33-21NEC10.4640X480TFT LP121S4LGNL6448AC33-24NEC10.4640X480TFT LP121S4-B2QT LGNL6448AC33-27NEC10.4640X480TFT LP121SA-A2LGNL6448AC33-29NEC10.4640X480TFT LP121SA-A2QT LGNL6448AC33-30NEC10.4640X480TFT LP121SB LGNL6448BC33-20NEC10.4640X480TFT LP121SL LGNL6448BC33-21NEC10.4640X480TFT LP121SP LGNL6448BC33-31NEC10.4640X480TFT LP121X1-A2LGNL6448BC33-31D NEC10.4640X480TFT LP121X1-A2C2LGNL6448BC33-46NEC10.4640X480TFT LP121X04-A2P1LGNL6448BC33-46D NEC10.4640X480TFT LP121X04-B2LGNL6448BC33-49NEC10.4640X480TFT LP121X04-B2P2LGNL6448BC33-50NEC10.4640X480TFT LP121X04-C2LGNL6448BC33-50E NEC10.4640X480TFT LP121X04-C2K2LGNL6448BC33-53NEC10.4640X480TFT LP121X05-A2LGNL6448BC33-54NEC10.4640X480TFT LP121X05-B2LGNL6448BC33-59NEC10.4640X480TFT LP121XQ LGNL6448BC33-59D NEC10.4640X480TFT LC130V01-A2K1 LGNL6448BC33-63NEC10.4640X480TFTNL6448BC33-63C NEC10.4640X480TFTNL6448BC33-63D NEC10.4640X480TFTNL6448BC33-64NEC10.4640X480TFTNL6448BC33-64C NEC10.4640X480TFTNL6448BC33-64D NEC10.4640X480TFTNL6448BC33-74NEC10.4640X480TFTNL6448BC33-74K NEC10.4640X480TFTNL6448CC33-30NEC10.4640X480TFT产品型号品牌NL6448CC33-30W NEC10.4640X480TFT LQ150X1LGN2A SHARP NL6448AC32-01NEC10.2640X480TFT LQ150X1LGN2C SHARP NL6448AC32-03NEC10.2640X480TFT LQ121K1LG11SHARPNL6448AC20-08NEC 6.5640X480TFT LQ121S1LG45SHARPNL6448BC20-08NEC 6.5640X480TFT LQ121S1LG51SHARP NL6448BC20-08E NEC 6.5640X480TFT LQ121S1LG52SHARP NL6448BC20-08F NEC 6.5640X480TFT LQ121S1LG55SHARP NL6448BC20-09Y NEC 6.5640X480TFT LQ121S1LG61SHARP NL6448BC20-14NEC 6.5640X480TFT LQ121S1LG64SHARP NL6448BC20-18NEC 6.5640X480TFT LQ121S1LH02SHARP NL6448BC20-18D NEC 6.5640X480TFT LQ121S1LH03SHARP NL6448BC20-20NEC 6.5640X480TFT LQ121S1LH13SHARP NL6448BC20-21C NEC 6.5640X480TFT LQ121S1LH33SHARP NL6448BC20-21D NEC 6.5640X480TFT LQ121S1LW01SHARP NL6448CC20-04NEC 6.5640X480TFT LQ121S7LY01SHARP NL6448BC19-01NEC 6.1640X480TFT LQ11S452SHARPNL8048BC24-01NEC9800X480TFT LQ113S1LH01SHARP NL8048BC19-02NEC7800X480TFT LQ113S1LH13SHARPNL4823HC37-03NEC7480X234TFT LQ113S1LH21SHARP NL4823BC37-05NEC7480X234TFT LQ11DS01SHARP NL4827HC19-01B NEC 4.3240X420TFT LQ11DS03SHARP NL3224AC35-01NEC 5.5320X240TFT LQ11DW01SHARP NL3224AC35-05NEC 5.5320X240TFT LQ11S30SHARP NL3224AC35-06NEC 5.5320X240TFT LQ11S31SHARP NL3224AC35-09NEC 5.5320X240TFT LQ11S31G SHARP NL3224AC35-10NEC 5.5320X240TFT LQ11S33SHARP NL3224AC35-13NEC 5.5320X240TFT LQ11S353SHARPNL3224BC35-20NEC 5.5320X240TFT LQ11S353B SHARP NL3224BC35-22NEC 5.5320X240TFT LQ11S42SHARP NL3224ER24-03NEC 3.8320X240TFT LQ11S44T SHARP NL2432DR22-02B NEC 3.5240X320TFT LQ11S46SHARP NL2432DR22-11B NEC 3.5240X320TFT LQ11S613SHARP NL2432DR22-12B NEC 3.5240X320TFT LQ110Y3DG01SHARPNL2432HC22-20NEC 3.5240X320TFT LQ110Y3DG02SHARP NL2432HC22-22B NEC 3.5240X320TFT LQ106K1LA01SHARPNL2432HC22-23B NEC 3.5240X320TFT LQ106K1LA01A SHARPLQ106K1LA01B SHARPLQ106K1LA01C SHARPLQ106K1LA01D SHARPLQ106K1LA02SHARPLQ106K1LA03SHARPLQ104X2LX05A SHARPLQ104X2LX11SHARPLQ10PX01SHARP产品型号品牌规格分辨率显示类型LQ10PX21SHARP TM049WB-22L31SANYO 4.9400X234TFT LQ10PX22SHARP TM058WA-22L01A SANYO 5.8400X234TFT LQ104W1LH02SHARP TM058WA-22L04SANYO 5.8400X234TFT LQ104S1DG21 SHARP TM065WA-22L SANYO 6.5400X234TFT LQ104S1DG31SHARP TM065WA-67P SANYO 6.5400X240TFT LQ104S1DG61SHARP TM065WA-67P01SANYO 6.5400X240TFT LQ104S1LG21SHARP TM070WA-22L04SANYO7480X234TFT LQ104S1LG31SHARP TM070WA-22L07SANYO7480X234TFT LQ104S1LG61SHARP TM070WA-22L09SANYO7480X234TFT LQ104S1LH01SHARP TM080SV-04L01SANYO8800X600TFT LQ104S1LH11SHARP TM080SV-22L03SANYO8800X600TFT LQ104S1LH13SHARP TM100SV-A01-01SANYO10800X600TFT LQ10S21SHARP TM100SV-02L01SANYO10800X600TFT LQ10S41SHARP TM100SV-02L02SANYO10800X600TFT LQ10DS01SHARP TM102WV-A02SANYO10.2800X480TFT LQ10DS05SHARP TM113SV-02L01SANYO11.3800X600TFT LQ10P011SHARP TM121SV-02L01SANYO12.1800X600TFT LQ10P311SHARP TM121SV-02L01A SANYO12.1800X600TFT LQ10P341SHARP TM121SV-02L01D SANYO12.1800X600TFT LQ10DH11SHARP TM121SV-02L03SANYO12.1800X600TFT LQ10DH15SHARP TM121SV-02L03B SANYO12.1800X600TFT LQ10DS0T SHARP TM121SV-02L04SANYO12.1800X600TFT LQ10D03J SHARP TM121SV-02L04C SANYO12.1800X600TFT LQ10D41SHARP TM121SV-02L07SANYO12.1800X600TFT LQ10D42SHARPLM-JA53-22NTW SANYO12.1800X600STN LQ075V3DG01SHARPLM-JA63-22NTW SANYO12.1800X600STN LQ075V3DG02SHARPLM-JB53-22NTK SANYO11.3800X600STN LQ074V3DC01SHARP LM-JC53-22NAW SANYO STN LQ072K1LA03SHARPLM-JC53-22NTW SANYO12.1800X600STN LQ71Y03SHARPLM-JK53-22NSQ SANYO12.1800X600STN LQ070Y5DA01SHARP LM-JK53-22NTR SANYO12.1800X600STN LQ070Y5DG01SHARPLM-JK53-22NTT SANYO12.1800X600STN LQ070Y5DG02SHARP LM-JK53-22NTX SANYO12.1800X600STN LQ070Y5DG05SHARP LM-JK63-22NTR SANYO12.1800X600STN LQ070Y5DR04SHARPLM-KE55-32NFZ SANYO10.4640X480STN LQ070Y3DG01SHARP LM-KE55-32NTK SANYO10.4640X480STN LQ070T3AG02SHARP LM-GD53-22NAZ SANYO131024X768STN LQ070T3GR01SHARP LM-GD53-22NTZ SANYO131024X768STN LQ070T5BG01SHARP LM-GD63-22NAZ SANYO131024X768STN LQ070T5CRQ1SHARP LM-GK53-22NTX SANYO13.31024X768STN LQ070T5CRQ2SHARPLQ070T5DG01SHARPLQ070T5GA01SHARPLQ070T5GG01SHARPLQ070T5GG01S SHARPLQ070T5GG02SHARPLQ070T5GG06SHARPLQ065Y5DG01SHARPLQ065T5AR01SHARP 产品型号品牌规格分辨率显示类型LQ065T5AR03SHARP TCG057QV1AC-G00Kyocera 5.7320X240TFT LQ065T5BR08SHARP TCG057QV1AC-G10Kyocera 5.7320X240TFT LQ065T5CGQ3SHARP TCG057VG1AC-G00Kyocera 5.7640X480TFT LQ065T5GG02S SHARPTCG057QV1AD-G10Kyocera 5.7320X240TFT LQ065T9BR51SHARP TCG057QV1AE-G10Kyocera 5.7320X240TFT LQ065T9DR51SHARPTCG057QVLAC-G00Kyocera 5.7320X240TFT LQ065T9DR51U SHARP TCG057QVLAD-G00Kyocera 5.7320X240TFT LQ065T9DR52U SHARP TCG057QVLBA-G00Kyocera 5.7320X240TFT LQ065T9DR53U SHARPKCS6448FSTT-X1Kyocera10.4640X480STN LM12S029SHARPKCS6448FSTT-X6Kyocera10.4640X480STN LM12S02SHARP KCS6448HSTT-X12Kyocera10.4640X480STN LM80C229SHARP KCS6448HSTT-X21Kyocera10.4640X480STN LM80C31SHARP KCS6448JSTT-X3Kyocera10.4640X480STN LM80C312SHARP KCS6448JSTT-X3Kyocera10.4640X480STN LM80C36SHARPKCS6448JSTT-X6Kyocera10.4640X480STN LM80C361SHARP KCS6448KSTT-X1Kyocera8.4640X480STN LM80C362SHARP KCS6448KSTT-X4Kyocera8.4640X480STN LM80C232SHARPKCS6448MSTT-X1Kyocera7.2640X480STN LM11X30SHARP KCS6448MSTT-X7Kyocera STN LM80C24SHARP KCS8060BSTT-X6Kyocera STN LM80C27SHARP KCT121SV1AA-A00Kyocera12.1800X600STN LM80C20P SHARP KCT121SV2AA-A01Kyocera12.1800X600STN LM80C209SHARP KCT10276BSTT-X5Kyocera151024X768STN LM80C219SHARP KG057QV1CA-G00Kyocera 5.7320X240STN LM80C21A SHARP KG057QV1CA-G01Kyocera 5.7320X240STN LM10V33SHARPKG057QV1CB-G00Kyocera 5.7320X240STN LM10V331SHARP KG104VG1AA-G00Kyocera10.4640X480STN LM10V332SHARP KHB065HV1AC-G83Kyocera 6.5640X240STN LM10V335SHARP KHB084SV1AA-G20Kyocera8.4800X600STN LM10V332R SHARP KHB084SV1AC-G20Kyocera8.4800X600STN LM80C03P SHARP KHB084SV1AD-G83Kyocera8.4800X600STN LM80C031X SHARP KHB084SV1AE-G83Kyocera8.4800X600STN LM80C032SHARP KHB104VG1BB-G82Kyocera10.4640X480STN LM80C034SHARP KHB104VG1BB-G92Kyocera10.4640X480STN LM64C350SHARP KHS057QV1AJ-G81Kyocera 5.7320X240STN LM64C351SHARP KHS057QV1AJ-L89Kyocera 5.7320X240STN LM64C352SHARP KHS072VG1MB-G83Kyocera7.2640X480STN LM64C353SHARP KHS072VG1MB-L89Kyocera7.2640X480STN LM64C356SHARP KHS072VG2MA-L89Kyocera7.7640X480STN LM64C35P SHARP KL6448USTS-FW Kyocera7.2640X480STN LM64C37P SHARP KL6448WSTC-FFW Kyocera STN LM64C38P SHARP KS6448ASTT-FW Kyocera7.2640X480STN LM64C362SHARPLM64C381SHARPLM64C389SHARPLM64C411SHARPLM64C509SHARPLM64C55SHARPLM64N303SHARPLM64P60SHARPLM64P62SHARP 产品型号品牌规格分辨率显示类型LM64P89SHARP TX14D11VM1CBA HITACHI 5.7320X240TFT LM64P89L SHARP TX14D12VM1CAB HITACHI 5.7320X240TFT LM64P89N SHARP TX14D12VM1CBA HITACHI 5.7320X240TFT LM641359SHARP TX16D11VM2CAA HITACHI TFT LM64C12P SHARP TX16D11VM2CBA HITACHI 6.2320X240TFT LM64C15P SHARP TX18D11VM1CAA HITACHI7800X480TFT LM64P90SHARP TX18D16VM1CAA HITACHI7800X480TFT LM64P78SHARP TX18D17VM2BAA HITACHI7480X290TFT LM64P80SHARP TX18D30VM2FAA HITACHI TFT LM64P81SHARP TX18D30VM2FAB HITACHI TFT LM64P83SHARP TX20D16VM2BAA HITACHI8800X480TFT LM64P83L SHARP TX23D11VM2BAA HITACHI9800X480TFT LM64P85SHARP TX24D55VC1CAA HITACHI9.4640X480TFT LM64P51SHARP TX24D56VC1CAA HITACHI10.4640X480TFT LM64P514SHARP TX26D01VM1CAA HITACHI10.4640X480TFT LM64P865SHARP TX26D02VM1CAA HITACHI10.4640X480TFT LM64P858SHARP TX26D11VM1CAA HITACHI10.4640X480TFT LM64P844SHARPTX26D20VC1CAA HITACHI10.41024X768TFT LM64P839SHARPTX26D20VC1CAB HITACHI10.41024X768TFT LM64P832SHARPTX26D20VC1CAC HITACHI10.41024X768TFT LM64P831SHARP TX26D31VC1CAA HITACHI10.4800X600TFT LM64P829SHARP TX26D32VC1CAA HITACHI10.4TFT LM64P825SHARP TX26D52VC1CAA HITACHI TFT LM64P824SHARP TX26D57VC1CAA HITACHI TFT LM64P823SHARP TX26D60VC1CAA HITACHI TFT LM64P822SHARP TX26D60VC1CAB HITACHI10.4800X600TFT LM64P821SHARP TX26D60VC1CAC HITACHI TFT LM64P815SHARP TX26D61VC1CAA HITACHI10.4800X600TFT LM64P806SHARP TX26D68VC1CAA HITACHI TFT LM64P805SHARP TX26D68VC1CAC HITACHI TFT LM64P801SHARP TX26D77VC1CAA HITACHI TFT LM64P791SHARP TX26D80VC1CAA HITACHI TFT LM64P731SHARP TX26D85VC1CAA HITACHI TFT LM64P728SHARP TX26D88VC1CAA HITACHI TFT LM64P725SHARP TX26D88VC1CAB HITACHI TFT LM64P724SHARP TX29D13VC1CAA HITACHI11.3800X600TFT LM64P723SHARPSP10Q003-T HITACHI STN LJ64ZU35SHARP SP10Q005-T HITACHI STN LJ64ZU49SHARP SP10Q006-T HITACHI 3.8240X320STN LJ64ZU50SHARP SP14N01L6ALCA HITACHI 5.1240X128STN LJ64ZU51SHARP SP14N001-Z1HITACHI 5.5240X128STN LJ64ZU52SHARP SP14N001-Z1A HITACHI 5.5240X128STN LJ64H051SHARP SP14N001-ZZA HITACHI 5.5240X128STN LJ64K051SHARP SP14Q001HITACHI 5.7320X240STN LJ44HM01SHARP SP14Q001-X HITACHI 5.7320X240STN LJ44KM01SHARP SP14Q002HITACHI 5.7320X240STN LJ64H052SHARP SP14Q002-A1HITACHI 5.7320X240STN LJ64K052SHARP SP14Q002-B1HITACHI 5.7320X240STN LJ512U05SHARP SP14Q002-C1HITACHI 5.7320X240STN LJ512U32SHARP SP14Q002-C1A HITACHI 5.7320X240STN LJ51AU27SHARP SP14Q002-C2A HITACHI 5.7320X240STN LJ024U35SHARP SP14Q002-T HITACHI 5.7320X240STN LJ280U32SHARP SP14Q003-C1HITACHI STN LM050QC1T01SHARP SP14Q003-ZZA HITACHI STN LM050QC1T03SHARP SP19V001-ZZC HITACHI7.5640X480STN LM050QC1T10SHARP SP16H001-T HITACHI 6.5640X240STN LM057QB1T073SHARP SR16H005-R HITACHI 6.5640X240STN LM057QBTT05SHARP SX14Q001-ZZA HITACHI 5.7320X240STN LM057QC1T01SHARP SX14Q002HITACHI 5.7320X240STN LM057QC1T08SHARP SX14Q003HITACHI 5.7320X240STN LM057QC1T10SHARP SX14Q004HITACHI 5.7320X240STN LM057QCTT02SHARP SX14Q004-ZZA HITACHI STN LM057QCTT03SHARP SP17Q001HITACHI STN LM060VS1T54SHARP SX17Q03LOBLZZ HITACHI STN LM072QCAT50SHARP SX19V001-Z1HITACHI7.5640X480STN LM081HB1T01SHARP SX19V001-ZZA HITACHI7.5640X480STN LM082VC1P02SHARP SX19V001-ZZB HITACHI7.5640X480STN LM082VC1T01SHARP SX19V004HITACHI STN LM085YB1T01SHARP SX19V007-Z2HITACHI7.5640X480STN LM089HB1T04SHARP SX19V007-Z2A HITACHI7.5640X480STN LM094SS1T51SHARP SX21V001HITACHI STN LM094SSTT63SHARP SX21V001-Z1HITACHI8.4640X480STN LM100SS1T52SHARP SX21V001-Z4A HITACHI8.2640X480STN LM100SS1T56SHARP SX25S003-ZZA HITACHI STN LM100SS1T522SHARP SX25S004HITACHI10.2800X600STN LM100SS1T523SHARP SX31S002HITACHI12.1800X600STN LM100SS1T561SHARP SX31S003HITACHI12.1800X600STN LM100SS1T562SHARP SX31S004HITACHI12.1800X600STN LM121VB1T01SHARP SX31S007HITACHI12.1800X600STN LM121VB1T02SHARP SX31S008HITACHI12.1800X600STN LM121SS1T529SHARP SX31S009HITACHI12.1800X600STN LM121SS1T709SHARPLM121SS1T53SHARPLM130SS1T57SHARPLM130SS1T579SHARPLM130SS1T61SHARPLM130SS1T611SHARPLM133SS1T60SHARPLM133SS1T609SHARP产品型号品牌规格分辨率显示类型EL320.240-FA3PLANAR 4.9320X240ELEL320.240.36PLANAR 5.7320X240ELEL320.240.36-AG PLANAR 5.7320X240ELEL320.240.36-IN PLANAR 5.7320X240ELEL320.240.36-HB PLANAR 5.7320X240ELMD320.256-70E PLANAR 6.4320X256ELEL320.256-F6PLANAR 6.4320X256ELEL512.256-H2PLANAR8.6512X256ELEL512.256-H3PLANAR8.6512X256ELEL512.256-SG1PLANAR512X256ELEL552.256-Q3PLANAR512X256ELEL640.200-SK PLANAR8.9640X200ELEL640.400-C1PLANAR9.1640X400ELEL640.400-C2PLANAR9.1640X400ELEL640.400-C3PLANAR9.1640X400ELEL640.400-CB1PLANAR9.1640X400ELEL640.400-CB2PLANAR9.1640X400ELEL640.400-CB3PLANAR9.1640X400ELEL640.400-CD3PLANAR9.1640X400ELEL640.400-CD4PLANAR9.1640X400ELEL640.480-AF1PLANAR 6.4640X480ELEL640.480-AG1PLANAR8.1640X480ELEL640.480-AM1PLANAR10.4640X480ELEL640.480-AM8PLANAR10.4640X480ELEL640.480-AA1PLANAR10.4640X480ELEL640.480-AAA PLANAR ELEL640.480-A4PLANAR10.4640X480ELEL640.480-AD4PLANAR10.4640X480EL产品型号品牌规格分辨率显示类型HV056WX1-100hyundai 5.61280X800TFT液晶屏HT07W12-141hyundai7TFT规格分辨率显示类型HV089WX1-100hyundai8.91280X768TFT12.11280X800TFT HT10X21-100hyundai10.41024X768TFT 12.11280X800TFT HT10X21-101hyundai10.41024X768TFT 12.11280X800TFT HT10X21-200hyundai10.41024X768TFT 12.11280X800TFT HT10X21-301hyundai10.41024X768TFT 12.11280X800TFT HT10X21-311hyundai10.41024X768TFT12.11280X800TFT HV104X01-100hyundai10.41024X768TFT12.11280X800TFT HV121WX4-100hyundai12.11280X800TFT12.11280X800TFT HV121WX4-110hyundai12.11280X800TFT12.11280X800TFT HV121WX5-100hyundai12.11280X800TFT12.1800X600TFT HT12S11hyundai12.1800X600TFT12.1800X600TFT HT121X01-101hyundai12.11024X768TFT12.1800X600TFT HT12X11-100hyundai12.11024X768TFT 12.1800X600TFT HT12X11-200hyundai12.11024X768TFT 11.61280X800TFT HT12X12-100hyundai12.11024X768TFT 10.4800X600TFT HT12X13-100hyundai12.11024X768TFT 10.4800X600TFT HT12X14-300hyundai12.11024X768TFT 10.4800X600TFT HT12X21-100hyundai12.11024X768TFT 10.4800X600TFT HT12X21-200hyundai12.11024X768TFT 10.4800X600TFT HT12X21-210hyundai12.11024X768TFT 10.4800X600TFT HT12X21-220hyundai12.11024X768TFT 10.4800X600TFT HT12X21-221hyundai12.11024X768TFT 10.4800X600TFT HT12X21-230hyundai12.11024X768TFT10.4800X600TFT HT12X21-240hyundai12.11024X768TFT 10.4800X600TFT HT12X21-351hyundai12.11024X768TFT10.4800X600TFT HT121WX2-103hyundai12.11280X768TFT10.4800X600TFT HV121WX4-110hyundai12.11280X768TFT10.4800X600TFT HV121WX5-100hyundai12.11280X768TFT10.4640X480TFT HV121WX5-110hyundai12.11280X768TFT10.4640X480TFT HV121X03-100hyundai12.11024X768TFT10.4800X600TFT10.2800X480TFT10.2800X480TFT10.11024X576TFT8.91024X600TFT8.91024X600TFT8.91024X600TFT8.91024X600TFT产品型号品牌规格分辨率显示类型8.91024X600TFT DMF682AN OPTREX 5.3256X128STN8.5480X234TFT T-55343GD035JU-LW-AEN OPTREX 3.5320X240TFT8.5480X234TFT T-55343GD035JU-LW-AND OPTREX 3.5320X240TFT8.4800X600TFT T-55382GD050JU-LW-A-ABN OPTREX5800X480TFT8.4800X600TFT T-51744GL065Z-FW-AJ OPTREX 6.5640X480TFT8.4800X600TFT T-51750GD065J-FW-AND OPTREX 6.5640X480TFT8.4800X600TFT T-51750GD065J-FW-AFN OPTREX 6.5640X480TFT8.4800X600TFT T-51750GD065J-FW-AJ OPTREX 6.5640X480TFT8.4800X600TFT T-51639D084JU-FW-A-AB OPTREX8.4640X480TFT8.4800X600TFT T-55151FD084J-MFW-A-AAN OPTREX8.4640X480TFT8.4800X600TFT T-55311D090J-FW-A-ABN OPTREX9800X480TFT7480X234TFTDMF-50081ZNF-FW OPTREX 4.7320X240STN7480X234TFT DMF-50174ZNB-FW OPTREX 5.7320X240STN7480X234TFT DMF-50260NF-FW-15OPTREX 9.4640X480STN7480X234TFT DMF-50260NFU-FW OPTREX 9.4640X480STN 7480X234TFTDMF-50262NF-FW OPTREX8.9640X400STN7800X480TFT DMF-50268NCU-FW-11OPTREX 5.7320X240STN 7800X480TFTDMF-50302NF-FWOPTREX11.3640X480STN7800X480TFT DMF-50316NB-FW-5OPTREX 5.2240X64STN 7800X480TFTDMF-50383NF-FWOPTREX7.4640X480STN7800X480TFTDMF-50556NF-SEW OPTREX STN7800X480TFT DMF-50715NFU-FW OPTREX STN7800X480TFT DMF-50766NC-FW-1OPTREX STN 6.8320X234TFT DMF-50840NB-FW OPTREX 5.7320X240STN 6.5400X234TFTDMF-50840NF-FW OPTREX5.7320X240STN6.5400X234TFT DMF-50840NF-SFW-4OPTREX 5.7320X240STN6.5400X234TFT DMF-50584NFU-FW OPTREX STN 6.5800X480TFT F-51430NFU-FW-AA OPTREX 9.4640X480STN 6.5800X480TFT F-51430NF-FW-AB OPTREX 9.4640X480STN 6.5640X480TFT F-51430NFU-FW-AENOPTREX9.4640X480STN6.5640X480TFT 5.7640X480TFT 5.7320X240TFT 5.6320X234TFT屏更多产品资讯欢迎来电咨询！规格分辨率显示类型3.5240X320TFT产品型号品牌规格分辨率显示类型4320X240TFT LTP350QV-E06SAMSUNG 3.5320X240TFT4320X240TFT LTV350QV-F02SAMSUNG 3.5320X240TFT4320X240TFT LTV350QV-F04SAMSUNG 3.5320X240TFT4320X240TFT LTV350QV-F05SAMSUNG 3.5320X240TFT4.3480X272TFT LTV350QV-F07SAMSUNG 3.5320X240TFT6.4640X480TFT LTV350QV-F08SAMSUNG 3.5320X240TFT6.4640X480TFT LTV350QV-F09SAMSUNG 3.5320X240TFT6.4640X480TFT LTV350QV-F0E SAMSUNG 3.5320X240TFT6.4640X480TFT LTP400WQ-F01SAMSUNG4480X272TFT6.4640X480TFT LTG430WQ-F02SAMSUNG 4.3480X240TFT6.4640X480TFT LTE430WQ-F07SAMSUNG 4.3480X240TFT6.5480X234TFT LTE430WQ-FOC SAMSUNG 4.3480X272TFT6.5480X234TFT LMS430HF02SAMSUNG 4.3480X272TFT 6.5480X234TFT LMS430HF05SAMSUNG 4.3480X272TFT6.5480X272TFT LMS430HF12-003SAMSUNG 4.3TFT7480X234TFT LTE480WV-F01SAMSUNG 4.8TFT7480X234TFT LTG500QV-F03SAMSUNG5320X240TFT7480X234TFT UG32F03SAMSUNG5320X2407480X272TFT UG32F04SAMSUNG 5.7320X240STN 7480X272TFT UG32F11SAMSUNG 5.7320X240STN 7480X272TFT UG32F25A SAMSUNG 5.7320X240STN7800X480TFT LTE700WQ-F02SAMSUNG7480X234TFT7800X480TFT LTE700WQ-F05SAMSUNG7480X234TFT7800X480TFT LTC700WV-F01SAMSUNG7800X480TFT7800X480TFT LTP700WV-F01SAMSUNG7800X480TFT7800X480TFT LMS700KF05SAMSUNG7800X480TFT 8800X480TFT LMS700KF06SAMSUNG7800X480TFT 8800X480TFT LMS700WS SAMSUNG71024X600TFT8800X480TFT LT071W1-101SAMSUNG7.1TFT12.1800X600TFT LT121S1-153SAMSUNG12.1800X600TFT 12.1800X600TFT LT121S1-154SAMSUNG12.1800X600TFT 12.1800X600TFT LT121S4-105SAMSUNG12.1800X600TFT 12.1800X600TFT LT121S5-105SAMSUNG12.1800X600TFT 12.1800X600TFT LT121SL-105SAMSUNG12.1800X600TFT 12.1800X600TFT LT121SS-105SAMSUNG12.1800X600TFT 12.1800X600TFT LT121SS-121SAMSUNG12.1800X600TFT 12.1800X600TFT LT121SS-122SAMSUNG12.1800X600TFT 12.1800X600TFT LT121SS-123SAMSUNG12.1800X600TFT12.1800X600TFT LT121SU-121SAMSUNG12.1800X600TFT12.11024X768TFT LT121SU-123SAMSUNG12.1800X600TFT12.11024X768TFT LT121S1-T01SAMSUNG12.1800X600TFT12.11024X768TFT LT121X1-121SAMSUNG12.11024X768TFT12.11024X768TFT LT121X1-123SAMSUNG12.11024X768TFT12.11024X768TFT LTM121SH-T01SAMSUNG12.1800X600TFT12.11024X768TFT LTM121SI-T01SAMSUNG12.1800X600TFT12.11024X768TFT LTN121AP02SAMSUNG12.11280X800TFT 12.11024X768TFT LTN121AP03SAMSUNG12.11280X800TFT 12.11024X768TFT LTN121AT02SAMSUNG12.11280X800TFT 12.11024X768TFT LTN121AT03SAMSUNG12.11280X800TFT13640X480TFT LTN121S6-T01 SAMSUNG12.1800X600TFT LTN121SU-L02SAMSUNG12.1800X600TFT LTN121W1-L01SAMSUNG12.11280X800TFT LTN121W1-L02SAMSUNG12.11280X800TFT LTN121W1-L03SAMSUNG12.11280X800TFTLTN121W1-S2SAMSUNG12.11280X800TFT LTN121X1-L01SAMSUNG12.11024X768TFT LTN121X1-L02SAMSUNG12.11024X768TFT晶屏LTN121X1-L03SAMSUNG12.11024X768TFT 规格分辨率显示类型LTN121XA-L01SAMSUNG12.11024X768TFT 151024X768TFTLTN121XF-L01SAMSUNG12.11024X768TFT 151024X768TFTLTN121XJ-L01SAMSUNG12.11024X768TFT12.11280X800TFTLTN121XJ-L02SAMSUNG12.11024X768TFT12.11024X768TFT LTN121XJ-L03SAMSUNG12.11024X768TFT12.11024X768TFT LTN121XJ-L05SAMSUNG12.11024X768TFT12.11024X768TFT LTN121XJ-L07SAMSUNG12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT12.11024X768TFT产品型号品牌规格分辨率显示类型12.11024X768TFT LTA035A350F TOSHIBA 3.5320X240TFT 12.11024X768TFT LTA050B352A TOSHIBA5400X234TFT12.11024X768TFT LTA055B0R0A TOSHIBA 5.5480X234TFT11.81024X768TFT LTA057A340F TOSHIBA 5.7320X240TFT12.1800X600TFT LTA057A343F TOSHIBA 5.7320X240TFT 12.1800X600TFT LTA057A344F TOSHIBA 5.7320X240TFT 12.1800X600TFT LTA057A345F TOSHIBA 5.7320X240TFT 12.1800X600TFT LTA065A040F TOSHIBA 6.5640X480TFT 12.1800X600TFT LTA065A041F TOSHIBA 6.5640X480TFT 12.1800X600TFT LTA065A043F TOSHIBA 6.5640X480TFT12.1800X600TFT LTA065B0D0F TOSHIBA 6.5640X480TFT12.1800X600TFT LTA065B0E0F TOSHIBA 6.5640X480TFT 12.1800X600TFT LTA070A320F TOSHIBA7800X480TFT 12.1800X600TFT LTA070A321F TOSHIBA7800X480TFT 12.1800X600TFT LTA070B052F TOSHIBA7800X480TFT 12.1800X600TFT LTA070B070F TOSHIBA7800X480TFT 12.1800X600TFT LTA070B240F TOSHIBA7800X480TFT 12.1800X600TFT LTA070B382A TOSHIBA7TFT 12.1800X600TFT LTA070B950F TOSHIBA7TFT12.1800X600TFT LTA070B0N0A TOSHIBA7480X234TFT12.1800X600STN C3X TOSHIBA9.5640X480STN12.1800X600STN TLX-8063S-ZZA TOSHIBA10.4640X480STN12.1800X600STN TLX-8101S-C3X TOSHIBA12.1800X600STN TLX-8102S-C3X TOSHIBA9.4640X480STN12.1800X600STN TLX-8133S-C3X TOSHIBA12.1800X600STN TLX-8134S-C3X TOSHIBA10.5640X480STN12.1800X600STN TLX-8183S-SIV2A TOSHIBA12.1800X600STN VF0051P01TOSHIBA 11.3800X600STN VFO111P02TOSHIBA11.31024X600STN NRL75-8809A-113TOSHIBA10.4640X480TFT11.3800X600STN KCB6448BSTT-X1TOSHIBA10.4640X480STN11.3800X600STN KCB6448BSTT-X11TOSHIBA10.4640X480STN11.3800X600STN VNBTLX5155S-ZZA TOSHIBA9.4640X480STN11.3800X600STN VNBTLX5159S-ZZA TOSHIBA STN11.3800X600STN VNBTLX515PS-ZZA TOSHIBA STN11.3800X600STN VNBTLX-8063S-ZZA TOSHIBA STN10.4640X480STN VNBTLX-8063S-ZZB TOSHIBA STN10.4640X480STN VNBTLX-8063X-ZZB TOSHIBA STN10.4640X480STN10.4640X480STN10.4640X480STN10.4800X600STN10.4800X600STN10.4800X600STN10.4800X600STN10.4640X480STN10.4640X480STN产品型号品牌规格分辨率显示类型10.4640X480STN AA050ME01Mitsubishi5800X480TFT 10.4640X480STN AA065VB01Mitsubishi 6.5640X480TFT 10.4640X480STN AA065VB03Mitsubishi 6.5640X480TFT 10.4640X480STN AA084VB01Mitsubishi8.4640X480TFT 10.4640X480STN AA084VB02Mitsubishi8.4640X480TFT 10.4640X480STN AA084VC03Mitsubishi8.4640X480TFT 10.4640X480STN AA084VC04Mitsubishi8.4640X480TFT 10.4640X480STN AA084VC05Mitsubishi8.4640X480TFT 10.4640X480STN AA084VE01Mitsubishi8.4640X480TFT 10.4640X480STN AA084XA02Mitsubishi8.41024X768TFT9.4640X480STN AA121SL07Mitsubishi12.1800X600TFT9.4640X480STN AA121SL09Mitsubishi12.1800X600TFT9.4640X480STN AA121SL10Mitsubishi12.1800X600TFT9.4640X480STN AA121SL12Mitsubishi12.1800X600TFT9.4640X480STN AA121SN01Mitsubishi12.1800X600TFT9.4640X480STN AA121SN03Mitsubishi12.1800X600TFT9.4640X480STN AA121SN04Mitsubishi12.1800X600TFT9.4640X480STN AA121SP01Mitsubishi12.1800X600TFT9.4640X480STN AA121XF01Mitsubishi12.11024X768TFT9.4640X480STN AA121XG01Mitsubishi12.11024X768TFT9.4640X480STN AA121XH01Mitsubishi12.11024X768TFT9.4640X480STN AA121XH03Mitsubishi12.11024X768TFT9.4640X480STN AA121XH05Mitsubishi12.11024X768TFT9.4640X480STN AA121XJ01Mitsubishi12.11024X768TFT9.4640X480STN AA121XJ02Mitsubishi12.11024X768TFT9.4640X480STN AA121TA01Mitsubishi12.11280X800TFT9.4640X480STN9.4640X480STN9.4640X480STN9.4640X480STN9.4640X480STN9.4640X480STN9.4640X480STN9.4640X480STN9.4640X480STN产品型号品牌规格分辨率显示类型9.4640X480STN NA19019-C001Fujitsu8.4800X600TFT9.4640X480STN CA51001-0248Fujitsu8.4800X600TFT9.4640X480STN NA19019-C002Fujitsu8.4800X600TFT8.9640X480STN NA19019-C101Fujitsu8.4800X600TFT8.6640X480STN NA19020-C821Fujitsu8.81024X600TFT8.4640X480STN NA19020-C801Fujitsu9.41024X512TFT8.4640X480STN NA19014-C402Fujitsu10.4640X480TFT8.4640X480STN NA19014-C801Fujitsu10.4800X600TFT8.4640X480STN NA19014-C802Fujitsu10.4800X600TFT8.4640X480STN NA19014-C901Fujitsu10.4800X600TFT8.4640X480STN NA19016-C201Fujitsu10.4800X600TFT8.4640X480STN NA19017-C051Fujitsu11.3800X600TFT8.1640X240STN NA19016-C301Fujitsu11.3800X600TFT。
友达液晶屏型号规格大全
友达液晶屏型号大全标签：友达液晶屏型号、友达液晶屏规格书、友达液晶屏、友达液晶显示屏、LCD显示屏、LCD液晶显示屏序号型号品牌尺寸组成分辨率亮度对比度背光1B125XW02 V0友达12.5"液晶屏1366×768 200 400:1 WLED 2B101EW05 V3友达10.1"液晶屏1280×800 WLED3B101EW05 V1友达10.1"液晶屏1280×800 WLED4A101SW02 V1友达10.1"液晶屏1024×600 275 500:1 WLED 5G220SW01 V1友达22.0"液晶屏1680×1050 CCFL6G215HW01 V0友达21.5"液晶屏1920×1080 300 5000:1 WLED7G190SF01 V0友达19.0"液晶屏1680×342 300 2000:1 WLED 8G240HW01 V0友达24.0"液晶屏1920×1080 300 3000:1 WLED9C080VW04 V0友达8.0"液晶屏800×480 400 800:1 WLED 10M215HW01 V1友达21.5"液晶屏1920×1080 300 1000:1 CCFL 11A036QN02 V5友达 3.6"液晶屏320×240 250 300:1 WLED 12A032QT01 V0友达 3.2"液晶屏240×320 260 350:1 WLED 13A030DN01 VD友达 3.0"液晶屏320×240 350 300:1 WLED 14A050VW01 V3友达 5.0"液晶屏800×480 WLED15T460HW08 V2友达46"液晶屏1920×1080 450 5000:1 WLED 16C070VW07 V2友达7.0"液晶屏800×480 400 500:1 WLED 17T400HW03 V0友达40"液晶屏1920×1080 450 5000:1 CCFL 18M185XW01 V0友达18.5"液晶屏1366×768 300 1000:1 CCFL 19A030DN05 V4友达 3.0"液晶屏320×240 400 400:1 WLED 20A027DN04 V1友达 2.7"液晶屏320×240 400 400:1 WLED 21A027DN04 V0友达 2.7"液晶屏320×240 400 400:1 WLED 22T315HW07 V0友达31.5"液晶屏1920×1080 350 4000:1 WLED 23T260XW06 V5友达26.0"液晶屏1366×768 350 3000:1 WLED 24M190PW01 V7友达19.0"液晶屏1440×900 200 700:1 CCFL 25M170EG01 VE友达17.0"液晶屏1280×1024 280 1000:1 CCFL 26G0121SN01 V0友达12.1"液晶屏800×600 400 500:1 CCFL 27B133XW03 V4友达13.3"液晶屏1366×768 200 500:1 WLED 28M185XW01 VC友达18.5"液晶屏1366×768 250 1000:1 CCFL 29A070VW05 V4友达7.0"液晶屏800×480 500 500:1 WLED 30T260XW05 V1友达26.0"液晶屏1366×768 CCFL31T460HW03 VM友达46"液晶屏1920×1080 450 CCFL 32T546HW04 V0友达55"液晶屏1920×1080 450 WLED 33T645HW05 V1友达64.5"液晶屏1920×1080 450 WLED 34T315HB01 V0友达31.5"液晶屏1920×1080 400 WLED 35T645HW03 V0友达64.5"液晶屏1920×1080 450 CCFL 36T576DC01 V1友达57.6"液晶屏2560×1080 450 WLED 37T576DC01 V0友达57.6"液晶屏2560×1080 250 WLED 38A043FL02 V1友达 4.3"液晶屏480×272 400 300:1 WLED 39T370HW05 V1友达37"液晶屏1920×1080 WLED40T370HW05 V0友达37"液晶屏1920×530 WLED41A040FL01 V5友达 4.0"液晶屏480×272 350 500:1 WLED 42T370HW04 V8友达37"液晶屏1920×1080 400 WLED 43T370HW04 V6友达37"液晶屏1920×1080 400 WLED 44T370HW04 V4友达37"液晶屏1920×1080 400 WLED 45T370HW04 V2友达37"液晶屏1920×1080 450 WLED 46T315XW03 V8友达31.5"液晶屏1366×768 420 CCFL47A025CN04 V2友达 2.5"液晶屏480×240(dot) 250 300:1 WLED48B170WP04 V0友达17.0"液晶屏1440×900 500 700:1 CCFL 49B133XW03 V5友达13.3"液晶屏1366×768 200 500:1 WLED 50M150XN07 V5友达15.0"液晶屏1024×768 270 600:1 CCFL 51M150XN07 V3友达15.0"液晶屏1024×768 200 500:1 CCFL 52H240QN02友达 2.4"液晶屏240×320 400 600:1 WLED 53H430VL02 V1友达 4.3"液晶屏480×800 350 900:1 WLED 54H430VL01 V2友达 4.3"液晶屏480×800 350 WLED 55G190EG02 V1友达19.0"液晶屏1280×1024 310 2000:1 WLED 56G043FW01 V0友达 4.3"液晶屏480×272 450 WLED 57A043FW05友达 4.3"液晶屏480×272 400 400:1 WLED 58H367VL01友达 3.7"液晶屏480×854 425 650:1 WLED 59B156HW01 V7友达15.6"液晶屏1920×1080 270 500:1 WLED 60B156HW01 V6友达15.6"液晶屏1920×1080 WLED61G084SN05 V9友达8.4"液晶屏800×600 450 600:1 WLED 62C070VW07 V0友达7.0"液晶屏800×480 400 500:1 WLED 63G057QN01 V2友达 5.7"液晶屏320×240 800 800:1 WLED 64B116XW01 V1友达11.6"液晶屏1366×768 200 500:1 WLED 65M185HW01 V6友达18.5"液晶屏1920×1080 WLED66M185HW01 VD友达18.5"液晶屏1920×1080 WLED67M185HW01 VB友达18.5"液晶屏1920×1080 CCFL68A065VL01 V3友达 6.5"液晶屏800×480 500 300:1 WLED 69A070FW04 V1友达7.0"液晶屏480×234 400 300:1 CCFL 70A030DN01 V3友达 3.0"液晶屏320×240 250 300:1 WLED 71B101AW02 V3友达10.1"液晶屏1024×600 200 400:1 WLED 72B101AW02 V2友达10.1"液晶屏1024×600 WLED73B101AW02 V1友达10.1"液晶屏1024×600 WLED74T315XW03 VE友达31.5"液晶屏1366×76875T315HW04 V9友达31.5"液晶屏1920×1080 400 4000:1 CCFL 76T315HW04 VD友达31.5"液晶屏1920×1080 400 5000:1 CCFL 77B133EW07 V2友达13.3"液晶屏1280×800 WLED78T460HW02 V4友达46"液晶屏1920×1080 550 2500:1 CCFL 79T420XW01 VD友达42"液晶屏1366×768 450 3000:1 CCFL 80T370XW02 VG友达37"液晶屏1366×768 400 3000:1 CCFL 81T315XW03 V2友达31.5"液晶屏1366×768 450 3000:1 CCFL 82T260XW02 VU友达26.0"液晶屏1366×768 450 3000:1 CCFL 83T460HW03 VJ友达46"液晶屏1920×1080 CCFL84T460HW03 V8友达46"液晶屏1920×108085T460HW03 V9友达46"液晶屏1920×1080 500 5000:1 CCFL 86T520HW01 V4友达52"液晶屏1920×1080 500 5000:1 CCFL 87B121EW09 V6友达12.1"液晶屏1280×800 200 400:1 WLED 88B133XW03 V2友达13.3"液晶屏1366×768 200 500:1 WLED 89B133XW01 V7友达13.3"液晶屏1366×768 200 500:1 WLED 90A027DN01 VQ友达 2.7"液晶屏320×240 350 400:1 WLED 91A080SN03 V3友达8.0"液晶屏800×600 210 500:1 WLED 92B140RW03 V1友达14.0"液晶屏1600×90093B140XW03 V0友达14.0"液晶屏1366×768 200 500:1 WLED 94B140XW03 V1友达14.0"液晶屏1366×768 200 400:1 WLED 95A070VW01 V0友达7.0"液晶屏800×480 CCFL96A027DN03 V2友达 2.7"液晶屏320×24097A084SN01 V1友达8.4"液晶屏800×600 CCFL98A141EW01 V0友达14.1"液晶屏1280×80099T315HW07 V1友达31.5"液晶屏1920×1080 400 4000:1 WLED 100B141EW05 V4友达14.1"液晶屏1280×800 220 400:1 WLED 101A030DW01 V2友达 3.0"液晶屏320×240 350 300:1 WLED 102M170EG01 VC友达17.0"液晶屏1280×1024 250 450:1 CCFL 103A201SN01 V6友达20.1"液晶屏800×600 500 500:1 CCFL 104T400XW01 V2友达40"液晶屏1366×768 CCFL105A027DN03 V8友达 2.7"液晶屏320×240 350 300:1 WLED 106C065GW04 V0友达 6.5"液晶屏400×240 450 600:1 WLED 107A070SN01 V1友达7.0"液晶屏800×600 250 500:1 WLED 108A027DW01 V1友达 2.7"液晶屏320×240 350 300:1 WLED 109T315XW04 V0友达31.5"液晶屏1366×768 450 3000:1 CCFL 110A080XN01 V0友达8.0"液晶屏1024×768 300 700:1 WLED 111A070XN01友达7.0"液晶屏1024×768 260 800:1 WLED 112A027DN01 VR友达 2.7"液晶屏320×240 250 300:1 WLED 113A027DN03 V7友达 2.7"液晶屏320×240 WLED114A190EN02 V0友达19.0"液晶屏1280×1024 350 1000:1 CCFL 115T420HW07 V4友达42"液晶屏1920×1080 450 4000:1 WLED 116T420HW06 V0友达42"液晶屏1920×1080 480 3000:1 CCFL 117T315HW05 V3友达31.5"液晶屏1920×1080 400 4000:1 WLED 118T315HW04 V2友达31.5"液晶屏1920×1080 490 5000:1 CCFL 119T315HW04 V0友达31.5"液晶屏1920×1080 450 5000:1 CCFL 120L150X3M EC-1友达15.0"液晶屏1024×768 200 350:1 CCFL 121L150X1M-1友达15.0"液晶屏1024×768 250 400:1 CCFL 122L141X1友达14.1"液晶屏1024×768 140 200:1 CCFL 123A061FW01 V0友达 6.1"液晶屏480×234 450 500:1 WLED 124B156HW02 V5友达15.6"液晶屏1920×1080 WLED125B156HW02 V3友达15.6"液晶屏1920×1080 WLED126T645HW05 V0友达64.5"液晶屏1920×1080 400 WLED 127T645HW02 V3友达64.5"液晶屏1920×1080 450128T645HW02 V1友达64.5"液晶屏1920×1080 500 5000:1 CCFL 129T645HW02 V0友达64.5"液晶屏1920×1080 500 5000:1 CCFL 130T645HW01 V0友达64.5"液晶屏1920×1080 500 2000:1 CCFL 131T546HW02 V1友达55"液晶屏1920×1080 WLED132T546HW02 V0友达55"液晶屏1920×1080 450 4000:1 WLED 133T546HW01 V4友达55"液晶屏1920×1080134T546HW01 V3友达55"液晶屏1920×1080135T546HW01 V2友达55"液晶屏1920×1080 450 5000:1 CCFL 136T546HW01 V1友达55"液晶屏1920×1080 450 5000:1 CCFL 137T520HW01 V5友达52"液晶屏1920×1080 450 5000:1 CCFL 138T520HW01 V3友达52"液晶屏1920×1080 500 5000:1 CCFL 139T520HW01 V1友达52"液晶屏1920×1080 500 5000:1 CCFL 140T520HW01 V0友达52"液晶屏1920×1080 500 5000:1 CCFL 141T460HW05 V0友达46"液晶屏1920×1080 500 5000:1 CCFL 142T460HW04 V7友达46"液晶屏1920×1080 450 WLED 143T460HW04 V6友达46"液晶屏1920×1080 400 4000:1 WLED 144T460HW04 V0友达46"液晶屏1920×1080 450 4000:1 WLED 145T460HW03 VH友达46"液晶屏1920×1080146T460HW03 VG友达46"液晶屏1920×1080 450 CCFL148T460HW03 V6友达46"液晶屏1920×1080 500 5000:1 CCFL 149T460HW03 V5友达46"液晶屏1920×1080 500 5000:1 CCFL 150T460HW03 V4友达46"液晶屏1920×1080 500 4000:1 CCFL 151T460HW03 V3友达46"液晶屏1920×1080 500 3500:1 CCFL 152T460HW03 V1友达46"液晶屏1920×1080 500 3500:1 CCFL 153T460HW02 V3友达46"液晶屏1920×1080154T460HW02 V2友达46"液晶屏1920×1080 500 1800:1 CCFL 155T460HW02 V1友达46"液晶屏1920×1080 550 2000:1 CCFL 156T460HW02 V0友达46"液晶屏1920×1080157T460HW01 V3友达46"液晶屏1920×1080 600 600:1 CCFL 158T460HW01 V0友达46"液晶屏1920×1080 600 800:1 CCFL 159T420XW01 VC友达42"液晶屏1366×768 450 2500:1 CCFL 160T420XW01 VB友达42"液晶屏1366×768 500 1500:1 CCFL 161T420XW01 V9友达42"液晶屏1366×768 500 1500:1 CCFL 162T420XW01 V8友达42"液晶屏1366×768163T420XW01 V7友达42"液晶屏1366×768 500 1500:1 CCFL 164T420XW01 V6友达42"液晶屏1366×768 500 1500:1 CCFL 165T420XW01 V5友达42"液晶屏1366×768 500 1500:1 CCFL 166T420XW01 V4友达42"液晶屏1366×768 500 1200:1 CCFL 167T420XW01 V3友达42"液晶屏1366×768 500 1200:1 CCFL 168T420XW01 V2友达42"液晶屏1366×768 500 1200:1 CCFL 169T420XW01 V0友达42"液晶屏1366×768 500 1200:1 CCFL 170T420HW07 V6友达42"液晶屏1920×1080 400 4000:1 WLED 171T420HW07 V5友达42"液晶屏1920×1080 400 4000:1 WLED 172T420HW07 V1友达42"液晶屏1920×1080 450 4000:1 WLED 173T420HW07 V0友达42"液晶屏1920×1080 450 4000:1 WLED 174T420HW06 V5友达42"液晶屏1920×1080 450 CCFL 175T420HW06 V3友达42"液晶屏1920×1080176T420HW06 V2友达42"液晶屏1920×1080 450 4000:1 CCFL 177T420HW06 V1友达42"液晶屏1920×1080178T420HW05 V1友达42"液晶屏1920×1080 500 5000:1 WLED 179T420HW05 V0友达42"液晶屏1920×1080 500 5000:1 CCFL 180T420HW04 V5友达42"液晶屏1920×1080181T420HW04 V4友达42"液晶屏1920×1080 500 5000:1 CCFL 182T420HW04 V3友达42"液晶屏1920×1080 500 5000:1 CCFL 183T420HW04 V2友达42"液晶屏1920×1080 500 5000:1 CCFL 184T420HW04 V1友达42"液晶屏1920×1080 500 5000:1 CCFL 185T420HW04 V0友达42"液晶屏1920×1080 500 4000:1 CCFL 186T420HW03 V1友达42"液晶屏1920×1080187T420HW03 V0友达42"液晶屏1920×1080188T420HW02 VD友达42"液晶屏1920×1080189T420HW02 VC友达42"液晶屏1920×1080190T420HW02 V4友达42"液晶屏1920×1080 500 2500:1 CCFL 191T420HW02 V2友达42"液晶屏1920×1080 500 1500:1 CCFL 192T420HW02 V1友达42"液晶屏1920×1080 500 2500:1 WLED 193T420HW02 V0友达42"液晶屏1920×1080 500 2500:1 CCFL 194T420HW01 V4友达42"液晶屏1920×1080195T420HW01 V3友达42"液晶屏1920×1080 500 2000:1 CCFL 196T420HW01 V2友达42"液晶屏1920×1080 500 1500:1 CCFL198T420HW01 V0友达42"液晶屏1920×1080 500 1500:1 CCFL 199T400XW01 V7友达40"液晶屏1366×768 CCFL200T400XW01 V6友达40"液晶屏1366×768 450 2000:1 CCFL 201T400XW01 V5友达40"液晶屏1366×768 CCFL202T400XW01 V4友达40"液晶屏1366×768 CCFL203T400XW01 V1友达40"液晶屏1366×768 CCFL204T400XW01 V0友达40"液晶屏1366×768 550 1500:1 CCFL 205T400HW03 V2友达40"液晶屏1920×1080 CCFL206T400HW02 V5友达40"液晶屏1920×1080 CCFL207T400HW02 V4友达40"液晶屏1920×1080 500 5000:1 CCFL 208T400HW02 V3友达40"液晶屏1920×1080 CCFL209T400HW02 V2友达40"液晶屏1920×1080 530 4000:1 CCFL 210T400HW02 V0友达40"液晶屏1920×1080 CCFL211T400HW01 V5友达40"液晶屏1920×1080 CCFL212T400HW01 V4友达40"液晶屏1920×1080 500 3000:1 CCFL 213T400HW01 V3友达40"液晶屏1920×1080 CCFL214T400HW01 V2友达40"液晶屏1920×1080 CCFL215T400HW01 V1友达40"液晶屏1920×1080 500 1700:1 CCFL 216T400HW01 V0友达40"液晶屏1920×1080 CCFL217T370XW04 VC友达37"液晶屏1366×768 CCFL218T370XW02 VF友达37"液晶屏1366×768 CCFL219T370XW02 VE友达37"液晶屏1366×768 500 2500:1 CCFL 220T370XW02 VC友达37"液晶屏1366×768 450 2500:1 CCFL 221T370XW02 V9友达37"液晶屏1366×768 CCFL222T370XW02 V6友达37"液晶屏1366×768 CCFL223T370XW02 V5友达37"液晶屏1366×768 500 1500:1 CCFL 224T370XW02 V4友达37"液晶屏1366×768 CCFL225T370XW02 V2友达37"液晶屏1366×768 CCFL226T370XW02 V1友达37"液晶屏1366×768 500 1000:1 CCFL 227T370XW02 V0友达37"液晶屏1366×768 500 1200:1 CCFL 228T370XW01 V9友达37"液晶屏1366×768 CCFL229T370XW01 V3友达37"液晶屏1366×768 CCFL230T370XW01 V2友达37"液晶屏1366×768 500 1000:1 CCFL 231T370XW01 V1友达37"液晶屏1366×768 500 1000:1 CCFL 232T370XW01 V0友达37"液晶屏1366×768 500 1000:1 CCFL 233T370HW04 V1友达37"液晶屏1920×1080 400 WLED 234T370HW04 V0友达37"液晶屏1920×1080 450 5000:1 WLED 235T370HW03 VG友达37"液晶屏1920×1080 CCFL236T370HW03 VD友达37"液晶屏1920×1080 450 4000:1 CCFL 237T370HW03 V9友达37"液晶屏1920×1080 CCFL238T370HW03 V5友达37"液晶屏1920×1080 450 4000:1 CCFL 239T370HW03 V3友达37"液晶屏1920×1080 450 4000:1 CCFL 240T370HW03 V2友达37"液晶屏1920×1080 CCFL241T370HW03 V1友达37"液晶屏1920×1080 CCFL242T370HW03 V0友达37"液晶屏1920×1080 500 5000:1 CCFL 243T370HW02 VF友达37"液晶屏1920×1080 500 3000:1 CCFL 244T370HW02 VC友达37"液晶屏1920×1080 500 3000:1 CCFL 245T370HW02 VB友达37"液晶屏1920×1080 500 2500:1 CCFL 246T370HW02 V7友达37"液晶屏1920×1080 500 2500:1 CCFL248T370HW02 V5友达37"液晶屏1920×1080 500 2500:1 CCFL 249T370HW02 V4友达37"液晶屏1920×1080 500 2500:1 CCFL 250T370HW02 V3友达37"液晶屏1920×1080251T370HW02 V2友达37"液晶屏1920×1080252T370HW02 V1友达37"液晶屏1920×1080 500 1500:1 CCFL 253T370HW01 V2友达37"液晶屏1920×1080 550 1000:1 CCFL 254T370HW01 V1友达37"液晶屏1920×1080 550 800:1 CCFL 255T370HW01 V0友达37"液晶屏1920×1080 550 800:1 CCFL 256T315XW06 V0友达31.5"液晶屏1366×768 400 4000:1 WLED 257T315XW05 V0友达31.5"液晶屏1366×768258T315XW04 V1友达31.5"液晶屏1366×768259T315XW03 V7友达31.5"液晶屏1366×768 420 CCFL 260T315XW03 V3友达31.5"液晶屏1366×768 420 3000:1 CCFL 261T315XW03 V1友达31.5"液晶屏1366×768 400 3000:1 CCFL 262T315XW02 VV友达31.5"液晶屏1366×768 450 3000:1 CCFL 263T315XW02 VT友达31.5"液晶屏1366×768 400 3000:1 CCFL 264T315XW02 VS友达31.5"液晶屏1366×768 450 3000:1 CCFL 265T315XW02 VR友达31.5"液晶屏1366×768 450 3000:1 CCFL 266T315XW02 VQ友达31.5"液晶屏1366×768 450 2500:1 CCFL 267T315XW02 VL友达31.5"液晶屏1366×768 450 2500:1 CCFL 268T315XW02 VF友达31.5"液晶屏1366×768 500 1800:1 CCFL 269T315XW02 VE友达31.5"液晶屏1366×768 470 1500:1 CCFL 270T315XW02 VD友达31.5"液晶屏1366×768 500 1500:1 CCFL 271T315XW02 VC友达31.5"液晶屏1366×768 500 1500:1 CCFL 272T315XW02 V9友达31.5"液晶屏1366×768 500 1500:1 CCFL 273T315XW02 V8友达31.5"液晶屏1366×768274T315XW02 V7友达31.5"液晶屏1366×768275T315XW02 V6友达31.5"液晶屏1366×768 500 1000:1 CCFL 276T315XW02 V5友达31.5"液晶屏1366×768 500 1200:1 CCFL 277T315XW02 V3友达31.5"液晶屏1366×768278T315XW02 V2友达31.5"液晶屏1366×768279T315XW02 V1友达31.5"液晶屏1366×768 500 1200:1 CCFL。
友达奇美液晶屏命名规则
虎将科技(深圳)有限公司监视器|广告机|投影机|安防设备制造商|友达光电产品命名规则友达光电，简称Auo ，命名规则：B121EW01，B170PW03第一位表示用途，2-4位为尺寸，5位为分辨率，6位为宽屏/普屏（在非a-Si 技术中标注所用技术），最后两位为产品代次，注：部分产品还有空格后加注V*（如B121EW07 V0） 还没有弄明白其含义。
具体细明如下： 第一位表示用途 B ；表示笔记型电脑用 G ：表示工业用 T ：表示电视用 M ：表示桌上电脑用 H ：表示手机用 C ：表示车载设备用A ：表示可移动产品（数码相机，PDA 等） 第二到四位表示尺寸例如：121代表12.1’ 170代表17’ 第五位表示分辨率 I ：128*128 Q ：320*240 A ：280*220 B ：640*240C ：160*234 /480*240虎将科技(深圳)有限公司监视器|广告机|投影机|安防设备制造商|D ：960*240 F ：480*234 V ：640*480 S ：1680*1050E ：1280*800 P ：1440*900X ：1024*768 1366*768 H ：1920*1080 U ：1920*1200注：因为产品太多，目前总结这些 可能有遗漏。
第六位表示普通屏幕和宽屏 N ：普通型 W ：宽屏型另外：在不用a-Si 屏的情况下它代表所用技术 L/T:：代表低温多晶硅技术 七八位表示产品代数：例如：01表示第一代产品，03表示第三代产品部分产品加空格后还有第九、十位，这个还没有弄明白其所代表的含义。
下面是AU 部分产品名称及其对应型号用途说明。
笔记本电脑Wide Aspect Ratio ModelSizeResolution虎将科技(深圳)有限公司监视器|广告机|投影机|安防设备制造商|B121EW01 12.1" WXGA (1280 x 800) B121EW03 12.1" WXGA (1280 x 800) B121EW04 12.1" WXGA (1280 x 800) B121EW07 V0 12.1" WXGA (1280 x 800) B133EW01 13.3" WXGA (1280 x 800) B141EW02 14.1" WXGA (1280 x 800) B141PW01 14.1" WXGA+ (1440 x 900) B154EW02 V1 15.4" WXGA (1280 x 800) B154PW04 V0 15.4" WXGA+ (1440 x 900) B170PW03 17'' WXGA+ (1440 x 900) B170PW07 17" WXGA+ (1440 x 900) B170UW02 17" WUXGA (1920 x 1200) B170UW02 V0 17"WUXGA (1920 x 1200)Standard Aspect Ratio Model Size Resolution B141XG09 V3 14.1" XGA (1024 x 768) B150XG02 V415''XGA (1024 x 768)液晶电视虎将科技(深圳)有限公司监视器|广告机|投影机|安防设备制造商|Model Size ResolutionT370HW02 37" Full HD (1920 x 1080) T420HW01 42" Full HD (1920 x 1080) T420HW01 V3 42" Full HD (1920 x 1080) T460HW02 46" Full HD (1920 x 1080) T645HW01 65Full HD (1920 x 1080)HD Model Size Resolution T200XW02 20" WXGA (1366 x 768) T230XW01 23" WXGA (1366 x 768) T260XW02 26" WXGA (1366 x 768) T315XW01 32" WXGA (1366 x 768) T315XW02 32" WXGA (1366 x 768) T370XW01 37" WXGA (1366 x 768) T370XW02 37" WXGA (1366 x 768) T420XW0142"WXGA (1366 x 768)桌上型电脑Wide Aspect Ratio Model Size Resolution M185XW01 V0 18.5" 1366 x 768M190PW01 V0 19" WXGA+ (1440 x 900) M201EW02 V8 20.1" WSXGA+ (1680 x 1050) M215HW01 V0 21.5" 1920 x 1080M220EW01 V0 22" WSXGA+ (1680 x 1050) M240UW04 V0 24" WUXGA (1920 x 1200) M240HW01 V0 24"1920 x 1080Standard Aspect Ratio ModelSizeResolution虎将科技(深圳)有限公司监视器|广告机|投影机|安防设备制造商|M170EG01 VD17SXGA (1280 x 1024一般工业用显示器G057QN01 5.7 QVGA (320 x 240) G057VN01 5.7 VGA (640 x 480) G065VN01 V0 6.5 VGA (640 x 480) G065VN01 V1 6.5 VGA (640 x 480) G084SN03 V1 8.4 SVGA (800 x 600) G084SN05 V7 8.4 SVGA (800 x 600) G104VN01 10.4 VGA (640 x 480) G104SN02 V1 10.4 SVGA (800 x 600) G104SN03 V1 10.4 SVGA (800 x 600) G121SN01 V1 12.1 SVGA(800x600) G121SN01 V3 12.1 SVGA (800x600) G150XG01 V1 15 XGA (1024 x 768) G150XG02 V0 15 XGA (1024 x 768) G150XG03 V2 15 XGA (1024 x 768) G420XW01 V0 42 WXGA (1366 x 768) G420XW02 V0 42 WXGA (1366 x 768) P645HW01 V0 65 FHD (1920 x 1080) P520HW01 V0 52 FHD (1920 x 1080) G220SW01 V0221680 x 1050移动电话Model Size Resolution H016IN01 1.56" 128 R.G.B. x 128 H167IN01 1.67" 128 R.G.B. x 160 H176HN01 1.76" 176 R.G.B. x 220 H177IN01 1.77" 128 R.G.B. x 160 H177IN021.77"160 R.G.B. x 128虎将科技(深圳)有限公司监视器|广告机|投影机|安防设备制造商|H019HN01 1.88" 176 R.G.B. x 220 H200HN01 2.0" 176 R.G.B. x 220 H283QN012.83"240 R.G.B. x 320LTPS ModelSizeResolutionH180QT01 1.8" 240 R.G.B. x 320 H200QT01 2.0" 240 R.G.B. x 320 H220QT02 2.2" 240 R.G.B. x 320 H222QL01 2.22" 240 R.G.B. x 320 H241QL01 2.4" 240 R.G.B. x 320 H283VL012.83"VGA 480 R.G.B. x 640数码相机 摄象机A015AN04 1.5" 280 x 220 A017CN01 1.7" 480 x 240 A020CN01 2.0" 480 x 240 A020BL01 2.0" LTPS 640 x 240 A024CN02 2.4" 480 x 234 A025BN01 2.5" 640 x 240 A025DL02 2.5'' LTPS 960 x 240 A027CW00 2.7" 480 x 234 A027DL01 2.7" LTPS 960 x 240 A027DN01 2.7" 960 x 240 A030DL01 3.0" LTPS 960 x 240 A030DL023.0" LTPS960 x 240车载产品C036QN02 3.6" 320 R.G.B. x 240 C065GW01 6.5" 400 R.G.B. x 234 C065VL016.5"800 R.G.B. x 480虎将科技(深圳)有限公司监视器|广告机|投影机|安防设备制造商|C070FW01 7.0" 480 R.G.B. x 234 C070VW02 7.0" 800 R.G.B. x 480 C080VW028.0"800 R.G.B. x 480Portable Media Player Model Size Resolution A036QN02 3.6 320 R.G.B. x 240 A070FW03 7.0" 480 R.G.B. x 234 A070VW02 7.0" 800 R.G.B. x 480 A085FW01 8.5" 480 R.G.B. x 234 A102VW0110.2"800 R.G.B. x 480一般应用Model Size Resolution A035CN02 3.5" 160 R.G.B. x 234 A040CN01 4.0" LED 160 R.G.B. x 234 A056DN015.6"320 R.G.B. x 234奇美电子产品命名规则奇美电子，简称CMO ，命名规则分两种1，大尺寸2，中小尺寸大尺寸命名规则第一位表示用途，第二位到四位为尺寸，第五位为分辨率，最后一位为产品代次,共六位，部分产品还有空格后加七八九位。
AOC显示器基本型号及参数
A O C显示器基本型号及参数Document serial number【NL89WT-NY98YT-NC8CB-NNUUT-NUT108】显示器尺寸对应的最佳分辨率AOC V24t详细参数切换到传统表格版基本参数显示参数接口其它显示器附件保修信息基本参数产品定位：：：最大分辨率：1920x1080 ：高清标准：1080p（全高清）：背光类型：：：显示：参数：300cd/㎡可视面积：×：170/160°：扫描频率：水平：30-80KHz垂直：55-75Hz：面板控制控制方式：按键语言菜单：英文，德语，法语，意大利语，西班牙语，俄语，葡萄牙语，土耳其语，简体中文接口：，，，，复合信号CVBS 其它接口：，外观设计机身颜色：黑色烤漆，银色底座外观设计：超薄设计，最薄处产品尺寸：××（包含底座）668×565×117mm（包装）产品重量：（净重）（毛重）底座功能：音箱：内置音箱（2×）壁挂：100×100mm其它电视功能：HDCP：支持HDCP电源性能：90~240V交流, 50/60Hz External Adapter ：最大:60W待机:1W：CCC, CB, CE, GOST，EPA其它性能：仰角：-3-10度其它特点：Eco Mode 5种亮度情景模式获得EPEAT金奖上市时间：2009年06月显示器附件包装清单：显示器主机?x1 底座?x1电源线?x1信号线?x1保修卡?x1电子光盘说明书?x1保修信息保修政策：全国联保，享受三包服务质保时间：3年质保备注：整机1月内包换，2年免费上门，3年免费全保客服电话：400-887-8007电话备注：8:00-22:00详细内容：在中国大陆（不包括香港、澳门特别政区）购买并在大陆地区使用的显示器，出现保修范围内的硬件故障时，凭显示器保修证正本和购机发票到“冠捷国内维修站一览表”中的任何一个维修站均可享受1个月包换，2年在规定的城市地区免费上门维修服务，3年免费保修（包含CRT及LCD面板）的123保修服务。
G057VN01.2_友达5.7寸液晶屏-杭州旭虹科技有限公司
Preliminary SpecificationFinal SpecificationModule 5.7 Inch Color TFT-LCD Model Name G057VN01 V2Customer DateChecked &Approved byNote: This Specification is subject to change without notice.Approved by DateDebbie Chiu 2011/10/18Prepared byDaniel PY Tsai2011/10/18 General Display Business Division / AU Optronics corporationContents1. Operating Precautions (4)2. General Description (5)2.1 Display Characteristics (5)2.2 Optical Characteristics (6)3. Functional Block Diagram (8)4. Absolute Maximum Ratings (9)4.1 Absolute Ratings (9)4.2 Absolute Ratings of Environment (9)5. Electrical Characteristics (10)5.1 TFT-LCD Driving (10)5.2 Backlight Unit Driving (11)6. Signal Characteristic (12)6.1 Pixel Format Image (12)6.2 Scanning Direction (12)6.3 The Input Data Format (13)6.4 TFT- LCD Interface Signal Description (15)6.5 TFT- LCD Interface Timing (16)6.6 LED Backlight Unit Interface Signal Description (17)6.7 Power ON/OFF Sequence (17)7. Connector & Pin Assignment (18)7.1 TFT- LCD Signal (CN1): LCD Connector (18)7.2 LED Backlight Unit (CN2): Backlight Connector (18)7.3 PIN 1 definition of CN1 and CN2 (20)8. Reliability Test Criteria (20)9. Mechanical Characteristics (22)10. Label and Packaging (23)10.1 Shipping Label (on the rear side of TFT-LCD display) (23)10.2 Carton Package (23)11 Safety (24)11.1 Keen Edge Requirements (24)11.2 Materials (24)11.3 Capacitors (24)11.4 National Test Lab Requirement (24)Record of RevisionVersion and Date PageOld description New DescriptionRemark0.1,May, 05, 2011AllFirst edition preliminary specifications 5Typical Power Consumption = TBD Typical Power Consumption =3.74W (LCD:0.5W/LED BLU: 3.24W)@ All black pattern, Full Load and V LED =12V5Weight = TBDWeight = 150g (typ.), 165g (max.)6Color / Chromaticity Coordinates =TBDUpdate Chromaticity Coordinates10VDD Power = TBD VDD Power = Typ. 0.5 w Max. 0.55 w11Input Current = TBDPower Consumption = TBD Input Current = 0.27 APower Consumption = 3.24 w 187.3 PIN 1 definition of CN1 and CN2Update 2D drawing 209. Mechanical Characteristics Update 2D drawing1.0 Oct.,03 201111161819Parameter guideline for LED Timing CharacteristicsConnector & Pin Assignment Connector & Pin Assignment Add LED backlight parameter Add Setup & Hold TimeAdd LED Light Bar Input (CN3)Add PIN 1 definition of CN31.1 Nov.22, 201121Assembly Module DrawingAdd CN2 coordinate1.2 Dec.11, 201411Update paremetr guideline of LED1. Operating Precautions1)Display area (Polarizer) of TFT-LCD Module is easily to be damaged, please be cautious and notto scratch it.2)Be sure to power off your machine before connecting or disconnecting your signal cable toTFT-LCD Module.3)Wipe off water drop on display area immediately.Long contact with water may causediscoloration or spots.4)When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.5)Display area (Glass) of TFT-LCD Module may be broken or cracked if bump Module against hardobject.6)To avoid ESD (Electro Static Discharge) damage, be sure to ground yourself before handlingTFT-LCD Module.7)Do not open nor modify the TFT-LCD module assembly.8)Do not press the reflector sheet at the back of the module to any direction.9)In case if TFT-LCD module has to be put back into the packing container slot after it was takenout from the container, do not press the center of the LED Reflector edge. Instead, press at the far ends of the LED Reflector edge softly. Otherwise the TFT-LCD Module may be damaged. 10)When inserting or removing of your signal cable to TFT-LCD Module, be sure not to applyabnormal force (rotate, tilt…etc.) to the Connector of the TFT-LCD Module.11)TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a veryshort time. Please design your display product well to avoid external force applying to module by end-user directly.12)Small amount of materials without flammability grade are used in the TFT-LCD module. TheTFT-LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.13)Severe temperature condition may result in different luminance, response time.14)Continuous operating TFT-LCD Module under high temperature environment may accelerateLED light bar exhaustion and reduce luminance dramatically.15)The data on this specification sheet is applicable when TFT-LCD module is placed in landscapeposition.16)Continuous displaying fixed pattern may induce image sticking. It’s recommended to use screensaver or moving content periodically if fixed pattern is displayed on the screen.2. General DescriptionG057VN01 V2 is designed for industrial display applications with VGA (640 x RGB x480) resolution and 262k colors (RGB 6-bits).It is composed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit including LED driver circuit.G057VN01 V2 offers CMOS interface for display signal input.2.1 Display CharacteristicsThe following items are G057VN01 V2characteristics summary at 25 (Room Temperature).Items Unit SpecificationsScreen Diagonal inch 5.7Active Area mm115.2(H) x 86.4(V)Pixels H x V640x3(RGB) x 480Pixel Pitch mm0.18 x 0.18Pixel Arrangement R.G.B. Vertical StripeDisplay Mode TN, Normally WhiteNominal Input Voltage VDD Volt 3.3 typ.Typical Power Consumption Watt 3.74W (LCD:0.5W/LED BLU: 3.24W)@ All black pattern, Full Load and V LED=12VWeight Grams150g(typ.), 165g (max.)Physical Size mm144.0(H)x 104.6(V) x 12.3(D) (typ.) Electrical Interface CMOS 6-bit Parallel RGB Surface Treatment Anti-Glare, Hardness 3HSupport Color262K colorsThe most suitable view angle12 o’clockTemperature RangeOperatingStorage (Non-Operating)o Co C-30 to +85-30 to +85RoHS Compliance RoHS Compliance2.2 Optical CharacteristicsThe optical characteristics are measured under stable conditions at 25 (Room Temperature).ItemUnit ConditionsMin.Typ.Max.Remark White Luminance cd/m2V LED =12V, D PWM =100%(center point)525700-Note 1Uniformity %5 Points- 1.3Note 1, 2, 3Contrast Ratio500800-Note 4msecRising -1520msec Falling -1015Response Timemsec Rising + Falling -2535Note 5degree degree Horizontal (Right)CR = 10 (Left)70708080--Viewing Angledegree degreeVertical (Upper)CR = 10 (Lower)60607070--Note 6White x 0.2630.3130.363White y 0.2790.3290.379Red x0.4990.5490.599Red y 0.2640.3140.364Green x 0.2790.3290.379Green y 0.5480.5980.648Blue x 0.1060.1560.206Color / Chromaticity Coordinates (CIE 1931)Blue y0.0680.1180.168Color Gamut%-50-Note 1: Measurement methodEquipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (SR_3 or equivalent)Aperture1with 50cm viewing distance∘Test Point Center Environment < 1 luxLCD ModuleSR_3 or equivalentmeasuring distanceModule Driving EquipmentNote 2: Definition of 5 points position (Display active area: 115.2mm(W) x 86.4mm(H))Note 3:The luminance uniformity of 5 points is defined by dividing the maximum luminance value by the minimum luminance value at full white condition.Note 4: Definition of contrast ratio (CR):Note 5: Definition of response time:The output signals of photo detector are measured when the input signals are changed from “White” to “Black” (falling time) and from “Black” to “White” (rising time), respectively. The response time interval definition is between 10% and 90% of amplitude. Please refer to the figure as below.Maximum Brightness of five pointsW5 =Minimum Brightness of five pointsContrast ratio (CR)=Brightness @ “White” state Brightness @ “Black” stateNote 6: Definition of viewing angleViewing angle is the measurement of contrast ratio 10, at the screen center, over 180° horizontal and 180° vertical range. The180° horizontal(θL, θR) and 180° vertical(ΦH, ΦL) range are illustrated as following figure.3.Functional Block DiagramThe following diagram shows the functional block of the G057VN01 V2 color TFT/LCD module.4. Absolute Maximum Ratings4.1 Absolute RatingsItem Symbo Min Max Unit Remark Logic/LCD Drive Voltage VDD-0.3+3.6Volt Ta= 25o C LCD Input Signal Voltage VIN-0.3+3.6Volt Ta= 25o C LED BLU Drive Voltage V LED023Volt Ta= 25o C LED Dimming Input VoltageV PWM08Volt Ta= 25o C High4.2 Absolute Ratings of EnvironmentItem Symbol Min Max Unit Remark Operating Temperature TOP-30+85 Note 1, 2 Operation Humidity HOP595%RH Note 1, 2 Storage Temperature TST-30+85 Note 1Storage Humidity HST595%RH Note 1tion.Note 1: Maximum Wet-Bulb should be39and no condensaNote 2:Only operation is guaranteed. Optical performance should be evaluated at 25 only.5. Electrical Characteristics5.1 TFT-LCD Driving5.1.1 Power SpecificationSymbol ParameterMin Typ Max Units RemarkVDD Logic/LCD Drive Voltage 3.0 3.3 3.6Volt IDD VDD Current -140155mA All Black Pattern (VDD=3.3V, at 60Hz)I rush LCD Inrush Current -- 1.5A Note 1PDD VDD Power-0.50.55WattAll Black Pattern (VDD=3.3V, at 60Hz)VDDrpAllowable Logic/LCD Drive Ripple Voltage --100mVp-pAll Black Pattern (VDD=3.3V, at 60Hz)Note 1: Measurement condition:Q3AO6402GD 2SD 1D 5D 6Q3AO6402GD2SD1D5D6C11uF/16VC21uF/25VC30.01uF/25VF1VR147K+12.0VVCCSW1SW MAG-SPST12(High to Low)Control Signal(LCD Module Input)R21K+3.3VR147KR21K90%10%VDD rising time0V3.3V0.5msVDD5.1.2 Signal Electrical CharacteristicsInput signals shall be low or Hi-Z state when VDD is off.Parameter Symbol Min.Typ.Max.Unit RemarksHigh VIH0.7VDD-VDD VoltLogic Input Voltage forDisplay Signals Low VIL0-0.3VDD VoltHigh VIH0.7VDD-VDD VoltInput Voltage for RL/UDLow VIL0-0.3VDD Volt5.2 Backlight Unit Driving5.2.1 Parameter guideline for LEDom Temperature) Following characteristics are measured under stable condition using a LED driving board at 25(Ro Symbol Parameter Min Typ Max Units RemarkV LED Input Voltage91220VoltI LED Input Current-0.270.297A V LED =12V, D PWM =100%P LED Power Consumption- 3.24 3.56Watt V LED =12V, D PWM =100%I rush LED Inrush Current- 1.5A V LED =12V, D PWM =100%Dimming control Voltage High 2.0 3.3 5.5VoltV PWM DIMDimming control Voltage Low--0.2VoltNote 1,2F PWM Dimming Frequency20030K HzD PWM Dimming duty cycle1100%On Control Voltage2 3.3 5.5VoltV LED On/OffNote 3, 4Off Control Voltage--0.8VoltI F LED Forward Current80mA Ta = 25oCV F LED Forward Voltage35.040.0IF = 80mA, Ta = 25oC P LED LED Power 2.8 3.2WattOperating Life50000--Hrs Note 5, 6Note 1: PWM dimming function can be operated by PWM signal. PWM duty cycle can adjust white Luminance.(PWM High: ON and PWM Low: OFF)Note 2: PWM signal can not be floating and pull-down to ground when waiting.Note 3: Enable (V LED On/Off) must be turned on late than V LED and PWM Signal.Note 4: Enable (V LED On/Off) must be turned off early than V LED and PWM Signal.Note 5: If G057VN01 V2module is driven by high current or at high ambient temperature & humidity condition.The operating life will be reduced.Note 6: Operating life means brightness goes down to 50% initial brightness. Minimum operating life time is estimateddata.Note 7: See Section 6.6 for LED Backlight Unit Interface Signal Description6. Signal Characteristic6.1 Pixel Format ImageFollowing figure shows the relationship between input signal and LCD pixel format.6.2 Scanning DirectionThe following figures show the image seen from the front view. The arrow indicates the direction of scan.Note1: TFT-LCD interface signal description is shown in section 6.4.6.3 The Input Data FormatThis product displays 262,144colors in terms of the 64 grey levels on RGB respectively. The following table demonstrates the display of input data.6.4 TFT- LCD Interface Signal DescriptionNote 1: “Low” stands for 0V. “High” stands for 3.3V. “NC” stands for ”No Connection”.6.5 TFT- LCD Interface Timing6.5.1 Timing Characteristics DE mode onlySignal Symbol Min.Typ.Max.Unit Remark Clock frequency (DOTCLK)1/ T CLOCK 23.925.234.2MHz Note1Setup Time Tdsu 8--ns DataHold TimeTdhd 8--ns RL,GL,BL to DCLKDESetup Time Tesu 8--nsPeriod T H 7708001000Active T HD 640Horizontal SectionBlankingT HB 130160360T CLOCKNote1Period T V 516525570Active T VD 480Vertical SectionBlankingT VB364590T LINENote1Note 1: Recommended frame rate is 60 Hz.6.5.2 Input Timing DiagramDOTCLKDET HT HBT HDDET VDInput Timing Definition ( DE Mode)T CLOCKInput Data Invaild Data Invaild Data6.6LED Backlight Unit Interface Signal DescriptionPin #Symbol Pin Description1V LED12V input2V LED12V input3GND Ground4GND Ground5PWM DIM1~100% PWM dimming6LED On/Off0V-Off; 3.3~5V/NC-OnNote 1: “NC” stands for ”No Connection”6.7 Power ON/OFF SequenceVDD power, LCD interface signals and backlight on/off sequence are shown in the following chart. Signals from any system shall be Hi-Z state or low level when VDD is off.Power ON/OFF sequence timingON/OFF sequence should be applied to avoid abnormal function in the display. Please make sure to turn off the power when you plug the cable into the input connector or pull the cable out of the connector.7. Connector & Pin Assignment7.1 TFT-LCD Signal (CN1): LCD ConnectorManufacturer Starconn089H33-000100-G2-R, compatible with Connector Model NumberIMSA-9637S-33Y902 & ELCO08-6210--033-340-800+ Pin#Symbol Pin#Symbol Pin#Symbol1GND12GND23B32DOTCLK13G024B43NC14G125B54NC15G226GND5GND16G327DE6R017G428VDD7R118G529VDD8R219GND30R/L9R320B031U/D10R421B132NC11R522B233GND 7.2 LED Backlight Unit (CN2): Backlight ConnectorManufacturer JSTSM06B-SRKS-G-TBConnector Model Numbercompatible with JST SM06B-SRSS-TB (LS) (SN) Mating Connecter Model Number JST SHR-06V-BKHF-B or compatiblePin #Symbol Pin #Symbol1V LED4GND2V LED5PWM DIM3GND6LED ON/OFF7.3 LED Light Bar Input (CN3): Light Bar ConnectorManufacturer STM or compatibleConnector Model Number P24021P6 or compatibleMating Connecter Model Number SM06B-SHLS-TF or compatiblePin #Symbol Pin Description Cable color 1AN1Channel 1 LED anode Red2AN2Channel 2 LED anode Red3AN3Channel 3 LED anode Red4CA1Channel 1 LED cathode White5CA2Channel 2 LED cathode Blue6CA3Channel 3 LED cathode Black7.4PIN 1 definition of CN1 and CN2(Rear side of TFT-LCD )7.5PIN 1 definition of CN38. Reliability Test CriteriaCN2CN1CN380 5G057VN01 V2Items Required Condition Remark Temperature Humidity Bias40/90%,300HrNote 2 High Temperature Operation85,300HrNote 2 Low Temperature Operation-30,300HrNote 2 High Temperature Storage85,300hoursNote 2 Low Temperature Storage-30 ,300 hours Note 2 Thermal Shock Test-20 /30 min ,60 /30 min ,100cycles Note 2 Hot Start Test 85 /1 Hr (min.), power on/off per 5 minutes, repeat 5 times Note 2 Cold Start Test-30 /1 Hr (min.), power on/off per 5 minutes, repeat 5 times Note 2 Shock Test(Non-Operating)50G,20ms,Half-sine wave, (±X, ±Y, ±Z)Note 2 Vibration Test(Non-Operating)1.5G, 10~200~10Hz, Sine wave, 30mins/axis, 3 direction (X, Y, Z)Note 2ESD Contact Discharge: ±8KV, 150pF(330Ω) 1sec, 8 points, 25 times/pointAir Discharge: ±15KV, 150pF(330Ω) 1sec, 8 points, 25 times/pointNote 1,2Attitude Test Operating: 14,000 ft, Ramp: 2000 ft/min, 8hrsNon-operating: 40,000 ft, Ramp: 2000 ft/min, 24hrsNote 2Note1: According to EN61000-4-2 ESD class B criteria, some performance degradation is allowed. TFT-LCD module is self-recoverable,no data lost and no hardware failures after test.Note2:●Water condensation is not allowed for each test items.●Each test is done by new TFT-LCD module. Don’t use the same TFT-LCD module repeatedly for reliability test.●The reliability test is performed only to examine the TFT-LCD module capability.●To inspect TFT-LCD module after reliability test, please store it at room temperature and room humidity for 24hours at least in advance.工业液晶屏ｈｔｔｐ：／／ｗｗｗ．ｈｚｘｕｈｏｎｇｌｃｄ．ｃｏｍ／10. Label and Packaging10.1 Shipping Label(on the rear side of TFT-LCD display)10.2 Carton PackageMax. capacity: 60 pieces TFT-LCD module per cartonMax. weight: 12.95 kg per cartonOutside dimension of carton: 520(L)mm* 340(W)mm* 250(H)mm11 Safety11.1 Keen Edge RequirementsThere will be no keen edges or corners on the display assembly that could cause injury.11.2 Materials11.2.1 ToxicityThere will be no carcinogenic materials used anywhere in the TFT-LCD module. If toxic materials are used, they will be reviewed and approved by the responsible AUO toxicologist.11.2.2 FlammabilityAll components including electrical components that do not meet the flammability grade UL94-V1 in the TFT-LCD Module will complete the flammability rating exception approval process.The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the printed circuit board.11.3 CapacitorsIf any polarized capacitors are used in the TFT-LCD module, provisions will be made to keep them from being inserted backwards.11.4 National Test Lab RequirementThe TFT-LCD Module will satisfy all requirements for compliance to UL 60950 (U.S.A. Information Technology Equipment).。
各品牌液晶显示器所采用面板型号
■acer宏基Acer FP563 = 15 inch 35ms TN (AUO L150X2M-1) panel.Acer AL1712 = 17 inch 16 ms TN panel.Acer AL1713 = 17 inch 25 ms TN (CPT CLAA170EA02) panel.Acer AL1714 = 17 inch 14 ms TN panel.Acer AL1715ms/msd = 17 inch 12 ms TN panel.Acer AL1732 = 17 inch 12 ms TN (AUO M170EG01 V9) panel.Acer AL1751wm = 17 inch 25 ms P-MVA (AUO M170XW01) panel.Acer AL1912s = 19 inch 16 ms TN panel.Acer AL1921 = 19 inch 25 ms PVA (SAMSUNG) panel.Acer AL1931 = 19 inch 25 ms MVA (Fujitsu) panel.Acer AL1922As = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4) panel. Acer AL2017 = 20.1 inch 8 ms TN (CMO M201P1-L01) panel. [SXGA+] Acer AL2021 = 20.1 inch 25 ms MVA (Fujitsu FLC51UXC8V) panel.Acer AL2021 ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel .Acer AL2021 ver3 = 20.1 inch 16 ms S-PVA (SAMSUNG LTM201U1) panel. Acer Ferrari F-20 (widescreen) = 20.1 inch 8 ms (g2g) P-MVA (AUO M2 01EW01) panel.Acer AL2416W (widescreen) = 24 inch 6 ms (g2g) PVA (SAMSUNG LTM240M1 ) panel■APPLE苹果Apple Studio Display 15 M2454 = 15 inch TN (LG.Philips LM151X3) pane l.Apple Studio Display 17 M7649 = 17 inch 35 ms ACE (SAMSUNG LTM170E4 -P01) panel.Apple Cinema Display 20 M8893 = 20.1 inch 50 ms DD-IPS (IDTech IAWS 64) panel.Apple Cinema Display 20 M9177 = 20.1 inch 16 ms S-IPS (LG.Philips L M201W01) panel.Apple Cinema Display 22 M5662 = 22 inch 60 ms IPS (LG.Philips LM220 W1) panel.Apple Cinema Display 23 M8537 = 23 inch 25 ms S-IPS (LG.Philips LM2 30W01) panel.Apple Cinema Display 23 M9178 = 23 inch 16 ms S-IPS (LG.Philips LM2 30W02) panel.Apple Cinema Display 30 M9179 = 30 inch 16 ms S-IPS (LG.Philips LM3 00W01) panel.■DELL戴尔DELL是世界最大的LCD成品生产与销售商Dell 1501FP = 15 inch TN (Toshiba LTM15C430) panel.Dell 1501FP ver2 = 15.1 inch 50 ms TN (LG.Philips LM151X2) panel.Dell 1503FP = 15 inch TN (SAMSUNG LTM150XS-L01) panel.Dell 1701FP = 17 inch TN (SAMSUNG LTM170E4-L01) panel.Dell 1702FP = 17 inch PVA (SAMSUNG) panel.Dell 1703FP = 17 inch 25ms PVA (SAMSUNG) panel.Dell 1704FPT = 17 inch 12 ms TN (SAMSUNG LTM170EU) panel.Dell 1704FPV = 17 inch 25 ms PVA (SAMSUNG LTM170E8-L01) panel.Dell 1706FP = 17 inch 25 ms PVA (SAMSUNG LTM170E8) panel.Dell 1800FP = 18 inch 30 ms IPS (LG.Philips LM181E06) panel.Dell 1900FP = 19 inch 25 ms PVA (SAMSUNG LTM190E1) panel.Dell 1905FP = 19 inch 20 ms PVA (SAMSUNG LTM190E4-L02) panel.Dell 1905FP ver2 = 19 inch 8 ms P-MVA (AUO M190EN03 V0) panel. Dell 1906FP = 19 inch 25 ms PVA (SAMSUNG LTM190E4) panel.Dell 2000FP = 20.1 inch 25 ms S-IPS (LG.Philips LM201U02) panel. Dell 2001FP = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel. Dell 2001FP ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04-SL02) panel.Dell 2001FP ver3 = 20.1 inch 12 ms (g2g) S-PVA (SAMSUNG LTM201U1-L01 ) panel.Dell 2007FP = 20.1 inch 16 ms S-IPS (LG.Philips LM201U05) panel. Dell 2007FP ver2 = 20.1 inch 16 ms S-PVA (SAMSUNG LTM201U1) panel. Dell 2005FPW (widescreen) = 20.1 inch 16 ms S-IPS (LG.Philips LM201W0 1) panel.Dell 2007WFP (widescreen) = 20.1 inch 16 ms S-IPS (LG.Philips LM201WE 2) panel.Dell 2405FPW (widescreen) = 24 inch 12 ms (g2g) PVA (SAMSUNG LTM240W 1-L04) panel.Dell 2405FPW (widescreen) ver2 = 24 inch 12 ms (g2g) PVA (SAMSUNG L TM240M1-L01) panel.Dell 2407WFP (widescreen) = 24 inch 6 ms (g2g) PVA (SAMSUNG LTM240M2 ) panel.Dell 3007WFP (widescreen) = 30 inch 11 ms (g2g) S-IPS (LG.Philips LM 300W01) panel.BenQ 明基BenQ FP591 = 15 inch 16 ms TN (AUO M150XN04) panel.BenQ FP71E+ = 17 inch 8 ms TN (AUO M170EG01) panel.BenQ FP71G+ = 17 inch 8 ms TN (AUO M170EG01) panel.BenQ FP71V+ = 17 inch 4 (g2g) ms TN (AUO) panel.BenQ FP71W = 17 inch 25 ms P-MVA (AUO) panel.BenQ FP72V = 17 inch 25 ms PVA (SAMSUNG) panel.BenQ FP731 = 17 inch 25 ms TN (CPT CLAA170EA03) panel.BenQ FP757 = 17 inch 16 ms TN (LG.Philips LM170E01) panel.BenQ FP767 = 17 inch 16 ms TN (AUO M170EG01 V0) panel.BenQ FP767 ver2 = 17 inch 12 ms TN (AUO M170EG01 V1) panel.BenQ FP781 = 17 inch 35 ms ACE (SAMSUNG LTM170E4) panel.BenQ FP783 = 17 inch 12 ms TN (AUO M170EG01 V0) panel.BenQ FP785 = 17 inch 25 ms P-MVA (AUO M170EG02) panel.BenQ FP791 = 17 inch 16 ms TN (AUO M170EN06 V2) panel.BenQ FP882 = 18.1 inch 50 ms IPS (LG.Philips LM181E05-C4) panel. BenQ FP1931M = 19 inch 25 ms P-MVA (Fujitsu FLC48SXC8V-01) panel. BenQ FP91E = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel. BenQ FP91G = 19 inch 12ms TN (AUO M190EN04) panel.BenQ FP91GP = 19 inch 8 ms (g2g) P-MVA (AUO M190EG01 V0) panel. BenQ FP91G P = 19 inch 8 ms (g2g) P-MVA (AUO M190EN03 V0) panel. BenQ FP91V = 19 inch 4ms (g2g) TN (AUO M190EG02 V0) panel.BenQ FP91V+ = 19 inch 6ms (g2g) TN (AUO) panel.BenQ FP931 = 19 inch 16 ms (g2g) TN (AUO) panel.BenQ FP937s = 19 inch 12ms TN (AUO M190EN04) panel.BenQ FP937s ver2 = 19 inch 12ms TN (LG.Philips LM190E03) panel. BenQ FP937s+ = 19 inch 8ms TN (SAMSUNG LTM190EX-L01) panel.BenQ FP937s+ ver2 = 19 inch 8ms TN (AUO) panel.BenQ FP93GX = 19 inch 2 ms (g2g) TN (AUO M190EG02 V1) panel.BenQ FP951 = 19 inch 25 ms (g2g) MVA (AUO) panel.BenQ FP991 = 19 inch 25 ms MVA-P (Fujitsu FLC48SXC8V) panel.BenQ FP992 = 19 inch 25 ms P-MVA (AUO M190EN02) panel.BenQ FP2081 = 20.1 inch 25 ms S-IPS (LG.Philips LM201U02) panel. BenQ FP2081 ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel .BenQ FP2091 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel. BenQ FP2092 = 20.1 inch 12 ms (g2g) S-PVA (SAMSUNG LTM201U1-L01) pan el.BenQ FP202W (widescreen) = 20.1 inch 8 ms TN (CPT CLAA201WA01) panel .BenQ FP231W (widescreen) = 23 inch 25 ms S-IPS (LG.Philips LM230W01) panel.BenQ FP231W (widescreen) ver2 = 23 inch 16 ms S-IPS (LG.Philips LM23 0W02) panel.■EIZO艺卓Eizo L371 = 15 inch 35 ms TN (SHARP) panel.Eizo L375 = 15 inch 25 ms TN (Mitsubishi AA150XJ01) panel.Eizo GAWIN M-10 = 15 inch 30 ms S-IPS (Hitachi TX317VC0CAA) panel. Eizo L461 = 16 inch 45 ms TN (SHARP LQ160E1LG08) panel.Eizo L465 = 16 inch 45 ms TN (SHARP LQ160E1LG21) panel.Eizo L550 = 17 inch 16 ms TN (AUO) panel.Eizo L551 (P170) = 17 inch 16 ms TN (SHARP LQ170E1LG11) panel.Eizo L557 = 17 inch 25 ms PVA (SAMSUNG LTM170E6-L03) panel.Eizo L560t-c = 17 inch 25 ms PVA (SAMSUNG) panel.Eizo L560t-c-k = 17 inch 25 ms PVA (SAMSUNG) panel.Eizo L565 = 17 inch 35 ms S-IPS (Hitachi TX43D15VC0CAD) panel.Eizo L567 = 17 inch 35 ms S-IPS (Hitachi TX43D15VC0CAD) panel.Eizo L568 (S170) = 17 inch 25 ms PVA (SAMSUNG LTM170E8-L02) panel. Eizo L578 (M170) = 17 inch 12 ms (g2g) PVA (SAMSUNG LTM170E8) panel .Eizo M1700 = 17 inch 8 ms TN (SAMSUNG LTM170EU) panel.Eizo P1700 = 17 inch 8 ms TN (SAMSUNG LTM170EU) panel.Eizo PLACEO = 17 inch 35 ms S-IPS (Hitachi TX43D15VC0CAD) panel. Eizo L66 = 18.1 inch TN (SHARP LQ181E1DR10) panel.Eizo L660 = 18.1 inch 50 ms IPS (IBM ITSX94N) panel.Eizo L661 = 18.1 inch 45 ms TN (SHARP LQ181E1DG11) panel.Eizo L665 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98) panel.Eizo L671 = 18.1 inch 45 ms ASV (SHARP LQ181E1DW21) panel.Eizo L675 = 18.1 inch 50 ms IPS (IBM ITSX94N1) panel.Eizo L676 = 18.1 inch 25 ms ASV (SHARP LQ181E1LW31) panel.Eizo L680 = 18.1 inch 40 ms S-IPS (Hitachi TX46D14VC0CA panel.Eizo L685 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98) panel.Eizo L685EX = 18.1 inch 40 ms DD-IPS (IDTech ITSX98N) panel.Eizo L695 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98N) panel.Eizo L760t-c = 19 inch 20 ms PVA (SAMSUNG) panel.Eizo L760t-c-k = 19 inch 20 ms PVA (SAMSUNG) panel.Eizo L767 = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo L768 = 19 inch 25 ms PVA (SAMSUNG LTM190E4-L02) panel.Eizo L768-AS = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo L778 (M190) = 19 inch 12 ms (g2g) PVA (SAMSUNG LTM190E4) panel .Eizo L788 = 19 inch 25 ms PVA (SAMSUNG LTM190E4-L02) panel.Eizo L795 = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo L797 = 19 inch 25 ms SA-SFT (NEC NL128102BC29-01) panel.Eizo S190 = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo S1910 = 19 inch 12 ms (g2g) PVA (SAMSUNG LTM190E4) panel.Eizo S1910-HR = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel.Eizo M1950 = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel. Eizo L771 = 19.6 inch 45 ms TN (SHARP LQ196U1LG01) panel.Eizo L885 = 20.1 inch 20 ms ASV (SHARP LQ201U1LW21) panel.Eizo L887 = 20.1 inch 20 ms ASV (SHARP LQ201U1LW28) panel.Eizo L985EX = 21.3 inch 50 ms S-IPS (Hitachi TX54D11VC0CA panel. Eizo L997 = 21.3 inch 30 ms S-IPS (Hitachi TX54D11VC0CAC) panel. Eizo S2110W (Widescreen) = 21.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM21 0M1-L01) panel.Eizo S2110W-K (Widescreen) = 21.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM 210M1-L01) panel.Eizo S2410W (widescreen) = 24.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM24 0M2-L01) panel.Eizo S2410W-K (widescreen) = 24.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM 240M2-L01) panel.Eizo CG18 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98) panel.Eizo CG19 = 19 inch 25 ms SA-SFT (NEC NL128102BC29-01) panel.Eizo CE210W (widescreen) = 21.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM21 0M1-L01) panel.Eizo CG21 = 21.3 inch 50 ms S-IPS (Hitachi TX54D11VC0CA panel.Eizo CG210 = 21.3 inch 30 ms S-IPS (Hitachi TX54D11VC0CAC) panel. Eizo CG220 (widescreen) = 22.2 inch 37 ms S-IPS (Mitsubishi AA222ZA01 ) panel.Eizo CE240W (widescreen) = 24.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM24 0M2-L01) panel.Eizo FA-2090 = 20.8 inch 50 ms DD-IPS (IDTech ITQX20) panel.■HP惠普HP L1520 = 15 inch TN (AUO L150X3M) panel.HP L1706 = 17 inch 12 ms TN panel.HP L1740 = 17 inch 13 ms TN panel.HP L1755 = 17 inch 25 ms PVA (SAMSUNG LTM170E8) panel.HP vs17 = 17 inch 16 ms TN panel.HP vs17e = 17 inch 8 ms TN panel.HP vs17x = 17 inch 16 ms TN panel.HP L1906 = 19 inch 12 ms TN panel.HP L1940 = 19 inch 25 ms MVA panel.HP L1955 = 19 inch 16 ms S-MVA panel.HP vs19 = 19 inch 16 ms TN panel.HP vs19e = 19 inch 8 ms TN panel.HP L2035 = 20 inch 16 ms S-IPS (LG.Philips LM201U04) panel.HP L2105 (Widescreen) = 21 inch 16 ms S-PVA (SAMSUNG LTM210M2) panel .HP F2304 (Widescreen) = 23 inch 25 ms S-IPS panel.HP L2335 (Widescreen) = 23 inch 16 ms S-IPS (LG.Philips LM230W02) pa nel.备注：HP显示器多是AOC的OEM■Hyundai现代Hyundai B70A = 17 inch 8 ms TN panel.Hyundai B71A = 17 inch 8 ms TN panel.Hyundai B90A = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Hyundai B91A = 19 inch 8 ms TN panel.Hyundai L19T = 19 inch 25 ms MVA panel.Hyundai L19T+ = 19 inch 8 ms TN panel.Hyundai L70D+ = 17 inch 12 ms TN panel.Hyundai L70S+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel. Hyundai L72D = 17 inch 8 ms TN panel.Hyundai L73D = 17 inch 8 ms TN panel.Hyundai L90D+ = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.Hyundai L91A = 19 inch 12 ms TN panel.Hyundai L91D = 19 inch 12 ms (g2g) MVA panel.Hyundai Q17 = 17 inch 20 ms TN (Hydis HT17E11-300 or HT17E12) panel. Hyundai Q17+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel.Hyundai Q320 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q321 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q400 = 40 inch 8 ms (g2g) PVA panel.Hyundai Q70U = 17 inch 3 ms (g2g) TN panel.Hyundai Q90U = 19 inch 3 ms (g2g) TN (AUO M190EG02 V1) panel.■Hyun dai 现代Hyundai B70A = 17 inch 8 ms TN panel.Hyundai B71A = 17 inch 8 ms TN panel.Hyundai B90A = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.Hyundai B91A = 19 inch 8 ms TN panel.Hyundai L19T = 19 inch 25 ms MVA panel.Hyundai L19T+ = 19 inch 8 ms TN panel.Hyundai L70D+ = 17 inch 12 ms TN panel.Hyundai L70S+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel. Hyundai L72D = 17 inch 8 ms TN panel.Hyundai L73D = 17 inch 8 ms TN panel.Hyundai L90D+ = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.Hyundai L91A = 19 inch 12 ms TN panel.Hyundai L91D = 19 inch 12 ms (g2g) MVA panel.Hyundai Q17 = 17 inch 20 ms TN (Hydis HT17E11-300 or HT17E12) panel. Hyundai Q17+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel.Hyundai Q320 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q321 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q400 = 40 inch 8 ms (g2g) PVA panel.Hyundai Q70U = 17 inch 3 ms (g2g) TN panel.Hyundai Q90U = 19 inch 3 ms (g2g) TN (AUO M190EG02 V1) panel.■IBM国际商用机器公司IBM L170m = 17 inch 16 ms TN panel.IBM L170P = 17 inch 25 ms PVA panel.IBM L171p = 17 inch 8 ms TN panel.IBM L190P = 19 inch 25 ms PVA panel.IBM L200p = 20 inch 16 ms S-IPS (LG.Philips LM201U03) panel.IBM T210 = 20.8 inch 50 ms IPS (IDTech ITQX20E) panel.IBM T221 = 22.2 inch 50 ms DD-IPS (IDTech MD22292B2/C2) panel.■Iiyama 饭山机电Iiyama AS4311U = 17 inch 40 ms ACE (SAMSUNG LTM170E4) panel.Iiyama AS4314UT = 17 inch 20 ms TN (HyDis HT17E12) panel.Iiyama AS4332UT = 17 inch 25 ms PVA (SAMSUNG) panel.Iiyama AS4431D = 17.4 inch 25 ms MVA (Fujitsu FLC44SXC8V) panel. Iiyama H430 = 17 inch 25 ms TN (CMO M170E6-L02 Rev.c1) panel. Iiyama E431S = 17 inch 16 ms TN (LG.Philips LM170E01) panel.Iiyama E480S-B = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Iiyama E480S-S = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Iiyama E481S-3 = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Iiyama E481S-1 = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel. Iiyama H1900-W/B = 19 inch 8 ms MVA-P (Fujitsu) panel.Iiyama L400W-B = 40 inch 23 ms PVA (SAMSUNG) panel.Iiyama AQU5611DT = 22 inch 50 ms DD-IPS (IDTech MD22292B2) panel.■LG乐金电子LG L172WT = 17 inch 25 ms S-IPS (LG.Philips LC171W03) panel.LG L173WA = 17 inch 25 ms S-IPS (LG.Philips LC171W03) panel.LG L1710B/S = 17 inch 16 ms TN (LG.Philips LM170E01-A4) panel.LG L1710B/S ver2 = 17 inch 16 ms TN (Hydis HT17E12-100) panel.LG L1710B/S ver3 = 17 inch 16 ms TN (AUO M170EN05) panel.LG L1715S (L1716S) = 17 inch 16 ms TN (LG.Philips LM170E01-A4) panel .LG L1715S (L1716S) ver2 = 17 inch 16 ms TN (Hydis HT17E12-200) pane l.LG L1715S (L1716S) ver3 = 17 inch 16 ms TN (AUO M170EN05) panel. LG L1720B/P/S = 17 inch 16 ms TN (LG.Philips LM170E01-A4) panel.LG L1720B/P/S ver2 = 17 inch 16 ms TN (LG.Philips LM170E01-A5) panel .LG L1730B/P/S = 17 inch 12 ms TN (LG.Philips LM170E01-A6) panel.LG L1810B = 18.1 inch 30 ms IPS (LG.Philips LM181E06-A4) panel.LG L1811B/S = 18.1 inch 30 ms IPS (LG.Philips LM181E05-C3/C4) panel. LG L1811B/S ver2 = 18.1 inch 30 ms IPS (LG.Philips LM181E06) panel.LG L1910B = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1915S = 19 inch 12 ms TN (LG.Philips LM190E03-B4) panel.LG L1920B = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1930B = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1930S = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1940B = 19 inch 25 ms S-IPS (LG.Philips LM190E02) panel.LG L1980U = 19 inch 12 ms TN (LG.Philips LM190E03) panel.LG L2000C = 20.1 inch 8 ms (g2g) S-IPS (LG.Philips LM201U05) panel. LG L2010B/P = 20.1 inch 25 ms S-IPS (LG.Philips LM201U03) panel.LG L2010B/P ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel .LG M203WA (widescreen) = 20.1 inch 16 ms S-IPS (LG.Philips LM201W01) panel.LG L2320A (widescreen) = 23 inch 25 ms S-IPS (LG.Philips LM230W01) p anel.■Mitsubishi三菱Mitsubishi MDT151X = 15 inch TN (Mitsubishi AA150XA03) panel.Mitsubishi RDT151X = 15.1 inch 50 ms TN (LG.Philips LM151X2) panel. Mitsubishi RDT152X = 15 inch TN (Mitsubishi AA150XB01) panel.Mitsubishi RDT152X-S = 15 inch TN (LG.Philips LM150X05) panel. Mitsubishi RDT195V = 19 inch 25ms S-IPS (LG.Philips LM190E01-C4) panel. Mitsubishi SX98lcd/">LCD = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) p anel.Mitsubishi UX21LCD = 21.3 inch 20 ms SA-SFT (NEC NL160120BC27-02) pan el.Mitsubishi RDT211H = 21.3 inch 20 ms SA-SFT (NEC NL160120BC27-02) pan el.■NEC日本电器公司NEC LCD1760NX = 17 inch 16 ms TN (AUO M170EN05) panel.NEC LCD1760NX ver2 = 17 inch 16 ms TN (LG.Philips LM170E01) panel. NEC LCD1770GX = 17 inch 8 ms TN panel.NEC LCD1770GX-BK = 17 inch 8 ms TN panel.NEC LCD1770NX = 17 inch 12 ms TN (LG.Philips LM170E01-G5) panel.NEC LCD70GX2 = 17 inch 4 ms (g2g) TN panel.NEC LCD72VM = 17 inch 16 ms TN (QD1s QD17EL07) panel.NEC LCD72XM = 17 inch 16 ms TN panel.NEC LCD72XM-BK = 17 inch 8 ms TN panel.NEC LCD1860NX = 18.1 inch 30 ms IPS (LG.Philips LM181E06-C4) panel. NEC LCD1880SX = 18.1 inch 33 ms A-SFT (NEC NL128102AC28-07) panel. NEC LCD1920NX = 19 inch 25 ms P-MVA (Fujitsu FLC48SXC8V-01) panel. NEC LCD1960NX = 19 inch 25 ms PVA (SAMSUNG) panel.NEC LCD1960NXi = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4/E02) pan el.NEC LCD1970GX = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.NEC LCD1970NX = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4/E02) pane l.NEC LCD1980SX = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.NEC LCD1970NXp = 19 inch 20 ms MVA panel.NEC LCD1970V = 19 inch 16 ms TN panel.NEC LCD1970VX = 19 inch 16 ms TN panel.NEC LCD1980SX = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.NEC LCD1980SXi = 19 inch 25 ms PVA (LG.Philips LM190E02-B4) panel. NEC LCD1980FXi = 19 inch 18 ms S-IPS (LG.Philips LM190E05-SL02) panel. NEC LCD1990SXi = 19 inch 18 ms S-IPS panel.NEC LCD91VM = 19 inch 25 ms PVA (SAMSUNG) panel.NEC LCD92VM = 19 inch 16 ms TN (AUO M190EN4) panel.NEC LCD90GX2 = 19 inch 4 ms (g2g) TN panel.NEC LCD92VM = 19 inch 16 ms TN (AUO M190EN4) panel.NEC LCD92XM = 19 inch 8 ms TN panel.NEC SpectraView 1980 = 19 inch 25 ms S-IPS (LG.Philips LM190E02) pan el.NEC LCD2080UX = 20.1 inch 25 ms S-IPS (LG.Philips LM201U03) panel. NEC LCD2080UX+ = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel. NEC LCD2080UXi = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04-SL02) pan el.NEC LCD2090UXi = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04-SL02) pan el.NEC LCD2070WNX (widescreen) = 20.1 inch 8 ms TN (CPT CLAA201WA01) pa nel.NEC LCD20WGX2 (widescreen) = 20 inch 6 ms (g2g) S-IPS (LG.Philips LM 201W01) panel.NEC LCD2170NX = 21.3 inch 8 ms (g2g) S-PVA (SAMSUNG LTM213U6) panel. NEC LCD2170NX-BK = 21.3 inch 8 ms (g2g) S-PVA (SAMSUNG LTM213U6) pan el.NEC LCD2180UX = 21.3 inch 20 ms SA-SFT (NEC NL160120BC27-02) panel. NEC LCD2180WG (LED) = 21 inch 20 ms SA-SFT (NEC NL160120BC27-02) pan el.NEC LCD2190UXi = 21.3 inch 10 ms (g2g) SA-SFT (NEC NL160120BC27-14) panel.NEC LCD3210 = 32 inch 20 ms S-IPS panel.NEC LCD4610 = 46 inch 8 ms (g2g) PVA (SAMSUNG LTA460W2) panel.■SAMSUNG三星电子SAMSUNG 152S = 15 inch 25 ms TN (Sanyo TM150XG-26L06) panel. SAMSUNG 171N = 17 inch 25 ms TN (SAMSUNG LTM170EU-L01) panel. SAMSUNG 171P = 17 inch 25 ms PVA (SAMSUNG LTM170E5) panel.SAMSUNG 172N = 17 inch 25 ms TN (SAMSUNG LTM170EU-L01-D) panel. SAMSUNG 172S = 17 inch 20 ms TN (Hydis HT17E12) panel.SAMSUNG 172T = 17 inch 25 ms PVA (SAMSUNG LTM170E5) panel.SAMSUNG 172X = 17 inch 12 ms TN (SAMSUNG LTM170EX-L01) panel. SAMSUNG 173P = 17 inch 25 ms PVA (SAMSUNG LTM170E6-L04) panel. SAMSUNG 173P+ = 17 inch 8 ms (g2g) PVA (SAMSUNG LTM170E8-L01) panel. SAMSUNG 173T = 17 inch 25 ms PVA (SAMSUNG LTM170E6-L02 or LTM170E6-L 04) panel.SAMSUNG 173VT = 17 inch 12 ms TN panel.SAMSUNG 181T = 18 inch 25 ms PVA (SAMSUNG LTM181E4) panel. SAMSUNG 191T = 19 inch 25 ms PVA (SAMSUNG LTM190E1) panel. SAMSUNG 193P = 19 inch 25 ms PVA (SAMSUNG LTM190E4) or 20 Ms PVA (LTM190E4-L02) panel.SAMSUNG 193P ver2 = 19 inch 20 Ms PVA (LTM190E4-L02) panel. SAMSUNG 193P+ = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel. SAMSUNG 194T = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 204T = 20 inch 16 ms (g2g) S-PVA (SAMSUNG LTM201U1) panel. SAMSUNG 204Ts = 20 inch 16 ms (g2g) S-PVA (SAMSUNG LTM201U1) panel. SAMSUNG 210T = 21 inch 35 ms PVA (SAMSUNG LTM213U3) panel. SAMSUNG 211MP = 21 inch 25 ms PVA (SAMSUNG LTM213U4-L04) panel. SAMSUNG 213T = 21 inch 25 ms PVA (SAMSUNG LTM213U4-L01 or SAMSUNG L M213U4-L04) panel.SAMSUNG 213T = 21 inch 25 ms PVA panel.SAMSUNG 214T = 21 inch 8 ms (g2g) S-PVA (SAMSUNG LTM213U6) panel. SAMSUNG 240T (Widescreen) = 24 inch 25 ms PVA (SAMSUNG LTM240W1) pan el.SAMSUNG 241MP (Widescreen) = 24 inch 25 ms PVA (SAMSUNG LTM240W1) pa nel.SAMSUNG 242MP = 24 inch 16 ms PVA (SAMSUNG LTM240M1-L01) panel. SAMSUNG 243T (Widescreen) = 24 inch 30 ms PVA (SAMSUNG LTM240W1-L03) panel.SAMSUNG 244T (widescreen) = 24 inch 6 ms (g2g) PVA (SAMSUNG LTM240M1 ) panel.SAMSUNG 400P = 40 inch 8 ms (g2g) PVA (SAMSUNG LTA400W2) panel. SAMSUNG 400Pn = 40 inch 8 ms (g2g) PVA (SAMSUNG LTA400W2) panel. SAMSUNG 460P = 46 inch 8 ms (g2g) PVA (SAMSUNG LTA460W2) panel. SAMSUNG 710MP = 17 inch 12 ms TN panel.SAMSUNG 710N = 17 inch 12 ms TN (SAMSUNG LTM170EU) panel.SAMSUNG 710T = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel. SAMSUNG 710V = 17 inch 16 ms TN panel.SAMSUNG 711T = 17 inch 25 ms PVA panel.SAMSUNG 713BM = 17 inch 8 ms TN panel.SAMSUNG 713N = 17 inch 8 ms TN (SAMSUNG LTM170EU) panel.SAMSUNG 720T = 17 inch 25 ms PVA (LTM170E8-L01) panel.SAMSUNG 721S = 17 inch 8 ms TN panel.SAMSUNG 721SA = 17 inch 8 ms TN panel.SAMSUNG 730BF = 17 inch 4 ms (g2g) TN panel.SAMSUNG 740N = 17 inch 8 ms TN panel.SAMSUNG 740T = 17 inch 25 ms PVA (SAMSUNG LTM170E8) panel. SAMSUNG 760BF = 17 inch 4 ms (g2g) TN panel.SAMSUNG 770P = 17 inch 6 ms (g2g) PVA (SAMSUNG LTM170E8) panel. SAMSUNG 910M = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 910MP = 19 inch 8 ms TN panel.SAMSUNG 910N = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 910T = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 910TM = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 913B = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. SAMSUNG 913N = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. SAMSUNG 913TM = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4) panel. SAMSUNG 913V = 19 inch 12 ms TN panel.SAMSUNG 915N = 19 inch 8 ms TN panel.SAMSUNG 920T = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 930B = 19 inch 8 ms TN (SAMSUNG) panel.SAMSUNG 930BF = 19 inch 4 ms (g2g) TN (SAMSUNG LTM190EX-L21) panel. SAMSUNG 930MP = 19 inch 25 ms PVA (SAMSUNG) panel.SAMSUNG 931MP = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4) panel. SAMSUNG 940B = 19 inch 8 ms TN panel.SAMSUNG 940MW (widescreen) = 19 inch 8 ms TN (SAMSUNG LTM190M2) pane l.SAMSUNG 940T = 19 inch 20 ms PVA (SAMSUNG LTM190E4) panel. SAMSUNG 960BF = 19 inch 4 ms (g2g) TN panel.SAMSUNG 970P = 19 inch 6 ms (g2g) PVA (SAMSUNG) panel.SAMSUNG LE-15S51B = 15 inch 25 ms TN (SAMSUNG LTM150XH-L06) panel. SAMSUNG LE-23R41B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA230W1-L02) pa nel.SAMSUNG LE-23R51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA230W1-L02) pa nel.SAMSUNG LE-26M51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-26R41B = 26 inch 8 ms (g2g) PVA (SAMSUNG LTA260W2) panel. SAMSUNG LE-26R51B = 26 inch 8 ms (g2g) PVA (SAMSUNG LTA260W2) panel. SAMSUNG LE-32M51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-32M61B = 32 inch 8 ms (g2g) S-PVA panel.SAMSUNG LE-32R41B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-32R51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-40M61B = 40 inch 8 ms (g2g) S-PVA panel.SAMSUNG LE-40R51B = 40 inch 8 ms (g2g) PVA (SAMSUNG LTA400W2) panel. SAMSUNG LE-46M51B = 46 inch 8 ms (g2g) S-PVA panel.SAMSUNG LW-15M23C = 15 inch 25 ms TN (SAMSUNG LTM150XH-L06) panel. SAMSUNG LW-17N23N = 17 inch 16 ms PVA (SAMSUNG LTA170W2-L01) panel. Samtron 73V = 17 inch 25 ms TN (SAMSUNG) panel.■SHARP夏普SHARP LL-T140A = 13.8 inch TN (SHARP) panel.SHARP LL-T1500A = 15 inch TN (SHARP LQ150X1DH10) panel.SHARP LL-T150A = 15 inch 45 ms TN (SHARP) panel.SHARP LL-T1502A = 15 inch 25 ms ASV (SHARP LQ150X1LW71) panel. SHARP LL-T1510A = 15 inch TN (SHARP LQ150X1DR10) panel.SHARP LL-T1511A = 15 inch TN (SHARP LQ150X1DR10) panel.SHARP LL-T15A1 = 15 inch TN (HYUNDAI HM15X11-200) panel.SHARP LL-T15G3-H/B = 15 inch 30 ms TN (SHARP LQ150X1DG80) panel. SHARP LL-T15G4-H/B = 15 inch 25 ms TN (SHARP LQ150X1LGN1A) panel. SHARP LL-T15V1 = 15 inch 25 ms TN (Mitsubishi AA150XC01) panel. SHARP LL-T1520-H/B = 15 inch 25 ms ASV (SHARP) panel.SHARP LL-T1530A = 15 inch TN (SHARP LQ150X1DR50) panel.SHARP LL-T1610W = 16 inch 45 ms TN (SHARP) panel.SHARP LL-T1620-H/B = 16 inch 25 ms ASV (SHARP LQ160E1LZ30) panel. SHARP LL-T17A3 = 17 inch 20 ms TN (SHARP) panel.SHARP LL-T17A4-H/B = 17 inch 20 ms TN (SHARP) panel.SHARP LL-T172A-B/W = 17 inch 16 ms TN (Hydis HT17E13-100) panel. SHARP LL-T1815-H/B = 18 inch 40 ms ASV (SHARP) panel.SHARP LL-T1820-H/B = 18 inch 25 ms ASV (SHARP LQ181E1LZ30) panel. SHARP LL-T18A1 = 18 inch 30 ms ASV (SHARP) panel.SHARP LL-T193G = 19 inch 18 ms S-IPS (LG.Philips LM190E05-SL02) panel .SHARP LL-T19D1-H/B = 19 inch 25 ms P-MVA (Fujitsu) panel.SHARP LL-T2010W = 20.1 inch 25 ms ASV (SHARP LQ201U1LZ00) panel. SHARP LL-T2015-H/B = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) pane l.SHARP LL-T2020-H/B = 20.1 inch 25 ms ASV (SHARP LQ201U1LZ00) panel.■SONY索尼SONY SDM-S51 = 15 inch 20 ms TN (LG.Philips LM150X05) panel.SONY SDM-M51 = 15 inch 20 ms TN (LG.Philips LM150X05) panel.SONY SDM-X52 = 15 inch 20 ms TN (LG.Philips LM150X05) panel.SONY SDM-M61 = 16 inch 35 ms TN (LG.Philips) panel.SONY SDM-S71 = 17 inch 20 ms TN (Samsung) panel.SONY SDM-S71R = 17 inch 30 ms TN (AUO) panel.SONY SDM-X72 = 17 inch 30 ms TN (AUO M170EN05) panel.SONY SDM-S74 = 17 inch 16 ms TN (AUO M170EN05-V1) panel.SONY SDM-HS73P = 17 inch 16 ms TN (AUO M170EN06 V2) panel.SONY SDM-HS74 = 17 inch 16 ms TN (AUO M170EN05-V5) panel.SONY SDM-HS74P = 17 inch 16 ms TN (AUO M170EN06 V2) panel.SONY SDM-HS75P = 17 inch 8 ms TN (AUO) panel.SONY SDM-HX73 = 17 inch 16 ms TN (LG.Philips LM170E01) panel.SONY SDM-S81 = 18.1 inch 20 ms IPS (CPT) panel.SONY SDM-M81 = 18.1 inch 30 ms IPS (LG.Philips LM181ES) panel. SONY SDM-X82 = 18.1 inch 50 ms IPS (LG.Philips LM181E05-C4) panel. SONY SDM-HS94P = 19 inch 12 ms PVA (AUO M190EN04 V1) panel.SONY SDM-HX95B = 19 inch 12 ms (g2g) PVA (Samsung LTM190E4) panel. SONY SDM-HX95S = 19 inch 12 ms (g2g) PVA (Samsung LTM190E4) panel. SONY SDM-S93 = 19 inch 25 ms MVA (AUO M190EN02) panel.SONY SDM-P234B = 23 inch 16 ms S-IPS (LG.Philips LM230W02) panel. SONY KLV-S23A10 = 23 inch 8 ms (g2g) PVA (Samsung LTA230W1-L02) pane l.SONY KLV-S26A10E = 26 inch 8 ms (g2g) PVA (Samsung LTA260W2) panel. SONY KLV-S32A10E = 32 inch 8 ms (g2g) PVA (Samsung LTA320W2) panel. SONY KLV-S40A10E = 40 inch 8 ms (g2g) PVA (Samsung LTA400W2) panel. SONY KLV-V26A10E = 26 inch 8 ms (g2g) PVA (Samsung LTA260W2) panel。
AOC显示器基本型号及全参数
显示器尺寸对应的最佳分辨率AOC V24t详细参数切换到传统表格版基本参数显示参数面板控制接口外观设计其它显示器附件保修信息基本参数•产品定位：娱乐影音•屏幕尺寸：23.6英寸•屏幕比例：16:9（宽屏）•最大分辨率：1920x1080 •最佳分辨率：1920x1080•高清标准：1080p（全高清）•面板类型：TN•背光类型：CCFL背光•动态对比度：60000:1•黑白响应时间：5ms显示参数•点距：0.2715mm•亮度：300cd/㎡•可视面积：521.28×293.22mm •可视角度：170/160°•显示颜色：16.7M•扫描频率：水平：30-80KHz垂直：55-75Hz•带宽：148.5MHz 面板控制•控制方式：按键•语言菜单：英文，德语，法语，意大利语，西班牙语，俄语，葡萄牙语，土耳其语，简体中文接口•视频接口：D-Sub（VGA），HDMI，色差，S端子，复合信号CVBS •其它接口：TV，音频输出外观设计•机身颜色：黑色烤漆，银色底座•外观设计：超薄设计，最薄处2.5cm•产品尺寸：595.4×483.54×220.13mm（包含底座）668×565×117mm（包装）•产品重量：5.5kg（净重）7.5kg（毛重）•底座功能：倾斜•音箱：内置音箱（2×2.5W）•壁挂：100×100mm其它•电视功能：支持电视功能•HDCP：支持HDCP•电源性能：90~240V交流, 50/60Hz External Adapter•消耗功率：最大:60W待机:1W•安规认证：CCC, CB, CE, GOST，EPA •其它性能：仰角：-3-10度•其它特点：Eco Mode 5种亮度情景模式获得EPEAT金奖•上市时间：2009年06月显示器附件•包装清单：显示器主机 x1 底座 x1电源线 x1信号线 x1保修卡 x1电子光盘说明书 x1保修信息•保修政策：全国联保，享受三包服务•质保时间：3年•质保备注：整机1月内包换，2年免费上门，3年免费全保•客服电话：400-887-8007•电话备注：8:00-22:00•详细内容：在中国大陆（不包括香港、澳门特别政区）购买并在大陆地区使用的显示器，出现保修范围内的硬件故障时，凭显示器保修证正本和购机发票到“冠捷国内维修站一览表”中的任何一个维修站均可享受1个月包换，2年在规定的城市地区免费上门维修服务，3年免费保修（包含CRT及LCD面板）的123保修服务。
友达全视角7寸工业液晶屏-G070VVN01.2 工控屏
LCD液晶屏： 友达全视角7寸工业液晶屏-G070VVN01.2 工控屏品牌友达（AUO）面板型号G070VVN01.2工作温度-20 ~70°C存储温度-30 ~ 80°C作业湿度5-95 (%RH)保存湿度5-95 (%RH)当前生产状态量产中液晶屏尺寸7英寸点分辨率800（RGB）*480（WXGA）像素密度133PPI像素排列RGB垂直条状宽高比15:9（宽:高）点间距0.0635*0.1905mm（横*竖）像素间距0.1905*0.1905mm（横*竖）液晶屏重量143g（Typ.）表面处理雾面，Hard Coating（3H）显示区域152.4*91.44mm（横*竖）可视区域154.2*93.2mm（横*竖）外观尺寸164.55*104.71mm（横*竖）外观尺寸8.5(Max.) mm (厚度)触摸屏带触摸屏（投射电容屏）显示模式MVA，常黑显示，透射式液晶屏亮度600cd/m2 (Typ.)对比度1500:1 (Typ.) (透射)显示颜色262K/16.2M (6-bit / 6-bit + FRC)显示色域70%NTSC(CIE1931)响应时间10/25(Typ.)(Tr/Td)(ms)可视角度80/80/80/80 (Typ.)(CR≥10) (左/右/上/下) 最佳视角全视角白色色度X:0.311; Y:0.328白场变动 1.25 (Max.)(9 points)灯管位置侧入式光源光源类型WLED灯管数量7S2P灯管形状阵列灯管数量 4 strings光源寿命30K(Min.)（小时）单灯电压22.4/25.2V（Typ./Max.）单灯电流120mA(Typ.)灯管功率总耗 2.69/3.03W (Typ./Max.)背光电路无信号大类TTL信号小类Parallel RGB(1 ch, 6/8-bit)面板电压 3.3V (Typ.)面板电流160/197mA (Typ./Max)面板功率528/650mW(Typ./Max)接口类型端子接口脚距 1.25 mm接口数量 1 pcs接口脚数20 pins●补充说明：以上资料仅供参考，如有某项不准确，可以联系我们客服提供产品的规格资料，产品均以pdf规格为准。
友达21.5寸消费类液晶屏P215HVN01.0-商规屏-21.5寸屏资料
TFT液晶屏：P215HVN01.0P215HVN01.0是友达光电股份有限公司(友达，AUO) 推出的一款采用a-Si TFT-LCD技术的21.5英寸液晶模组产品，它装配有WLED背光，无背光驱动，无触摸。
根据友达(AUO)于2015年12月1日发布的版本号为Ver0.2的产品规格书，P215HVN01.0显示分辨率为1920(RGB)×1080 (FHD)，宽高比为16:9 (宽：高)，像素采用RGB垂直条状排列。
它的显示区域尺寸为476.64×268.11 (宽×高) mm，可视尺寸为479.8×271.31 (宽×高) mm，外观尺寸为495.6×292.2 (宽×高)×11(厚) mm，表面处理为雾面，Hard coating (3H)，产品净重1.67Kgs (Typ.)。
背光方面此产品采用了15S4P WLED发光的侧入式光源(底部)，光源的使用寿命为30K小时，不含背光驱动。
P215HVN01.0采用了LVDS (2 ch, 8-bit)TFT液晶屏： 信号接口，总共30 pins，采用端子连接，驱屏电压为5.0V (Typ.)。
它的典型垂直刷新率Fv为60Hz。
如果开发新产品想采用P215HVN01.0液晶模组，屏库®建议您向友达(AUO)或其代理商了解关于P215HVN01.0的最新的生产状态信息和技术信息。
屏库®上所显示的面板参数均由屏库电子工程师依据规格书录入，已尽力减少错误，但不能保证参数的完全正确。
请以规格书为准！根据屏库掌握的情报此产品于2016年Q1量产，当前生产状态为量产中。
目前P215HVN01.0在屏库上有9条现货信息、15家供应商信息，属于目前屏库市场交易的主力型号产品。
屏库于2016年07月20日对此型号首次建立参数，并于2018年08月10日对参数进行了最后更新。
测距仪说明书
Fluke 753、Fluke 754说明书
i
753/754Βιβλιοθήκη 用户手册维护电池寿命 ............................................................................................................ 电池充电器 ................................................................................................................ 显示语言 ........................................................................................................................ 显示亮度 ........................................................................................................................ 日期和时间 ..................................................................................................................... 背光灯 ............................................................................................................................ 个性化产品 ..................................................................................................................... 测量模式 ........................................................................................................................ 测量量程 ................................................................................................................... 电气参数测量 ............................................................................................................ 通断性测试 ................................................................................................................ 压力测量 ................................................................................................................... 温度测量 ................................................................................................................... 热电偶的使用........................................................................................................ 热电阻 (RTD)........................................................................................................ 测量比例 ................................................................................................................... 线性输出变送器 .................................................................................................... 平方律过程变量 .................................................................................................... 使用自定义单位测量或输出 ....................................................................................... 使用 700-IV 电流分流器 ............................................................................................ 阻尼测量 ................................................................................................................... 输出模式 ........................................................................................................................ 输出电气参数 ............................................................................................................ 4 至 20 mA 变送器模拟 ............................................................................................. 提供回路电源 ............................................................................................................ 输出压力 ................................................................................................................... 热电偶模拟 ................................................................................................................ RTD 模拟 .................................................................................................................. 使用 Hart Scientific Drywell 输出温度 ........................................................................ 24 24 25 25 25 27 27 28 28 29 31 31 35 35 38 42 42 42 42 43 44 44 44 47 49 51 54 55 58
青云创新LCM液晶模组参数表
亮度 400 400 500 500 200 200 250 350 320 450 230 200 250 225
视角 60/60/70/70 60/60/70/70 60/60/70/70 60/60/70/70 70/70/70/70 50/65/65/65 75/75/75/75 75/75/75/75 45/65/65/65 55/65/70/70 55/65/70/70 50/60/70/70 65/55/65/65 70/60/70/70
2CCFL 电话亭、游戏机、股票机 LED 游戏机、航空航天
2CCFL 游戏机、航空航天 2CCFL 游戏机、电话亭、POS机、车载、工业 2CCFL 游戏机、电话亭、POS机、车载、工业 2CCFL 游戏机、电话亭、POS机、车载、工业 CCFL TFT笔记本 数字标牌、电话亭、POS机、LCD面板 TFT显示器、工业、娱乐 2CCFL 数字标牌、电话亭、POS机、车载、工业 阳光下可视，背光源可替换 阳光下可视，背光源可替换
TN TN
1024 x 768 1024 x 768
1100 1010
G150X1 –L02 G150X1-L03 G154I1 - L01 友达AUO彩色屏
LVDS LVDS LVDS
3.3 3.3 3.3
-30℃ ~ 70℃ -30℃ ~ 80℃ -30℃ ~ 80℃ 是
2CCFL 显示器、电视、工业、娱乐、车载 2CCFL 数字标牌、电话亭、POS机、娱乐、车载 阳光下可视，背光源可替换 2CCFL 数字标牌、电话亭、POS机、娱乐、车载 阳光下可视，背光源可替换
点间距(mm) 0.36 x 0.36 0.18 x 0.18 0.207 x 0.207 0.207 0.1905 ×0.1905 0.2025 x 0.2025 0.213 0.213 0.2745x0.2745 0.264 0.264 0.264 0.297 x 0.297 0.297 x 0.297
CLAA057VC01CW规格书
To : Ceramate 光碁 Date : 110120
TFT LCD
CLAA057VC01CW
ACCEPTED BY :
Ｃｅｒａｍａｔｅ 光基 Ｓａｌｅｓ Ｅｎｇｉｎｅｅｒ：ＪＡＫＥ ＷＵ Ｔｅｌ：０５１２－６８４１０３１４－８１１ Ｆａｘ：０５１２－６８４１０３１３
3.3 Power、Signal sequence ....................................................................................................... 7 3.4 Backlight.................................................................................................................................... 9 4. INTERFACE CONNECTION........................................................................................... 10 5. INPUT SIGNAL (DE ONLY MODE) ................................................................................ 12 5.1 Timing specification ............................................................................................................... 12 5.2 Timing Chart............................................................................................................................. 13 6. MECHANICAL DIMENSION ........................................................................................... 16 6.1 Front View ............................................................................................................................... 16 6.2 Rear View ............................................................................................................................... 17 7. OPTICAL CHARACTERISTICS ..................................................................................... 18 8. RELIABILITY TEST ........................................................................................................ 20 8.1 Temperature and Humidity ................................................................................................. 20 8.2 Shock and Vibration .............................................................................................................. 20 8.3 ESD.......................................................................................................................................... 21 8.4 Judgment Standard ............................................................................................................... 21
ADL QM67HDS 2nd Generation Intel Core 小型单板计算机说明书
ADLQM67HDS - 2nd Generation Intel Core, Quad/DC 2.1 - 2.5 GHzDescriptionThe ADLQM67HDS features Intel's latest embedded two-chip platform. This 2nd generation Intel Core™ processor integrates Intel’s HD Graphics 3000 engine with AVX (Advanced Vector Extensions) as well as the memory controller functions of a traditional GMCH. The QM67 Platform Controller Hub (PCH) provides PCI-Express I/O bandwidth at twice the speed (5Gbps) of previous Intel Core or Core 2 Duo plat-forms.The ADLQM67HDS is ideal for mobile and embedded applications where high pro-cessor performance is critical. It brings unparalleled performance to applications such as radar and sonar processing, image signal processing, tactical command and control, surveillance and reconnaissance, medical imaging and lab analysis, and industrial automation.In addition to the wide range of applications in which the ADLQM67HDS can excel, it also supports a broad set of features. The ADLQM67HDS has a discrete 8-bit digital I/O port as well as separate DVI-I and HDMI interfaces. The onboard DVI-I connector provides signaling for analog VGA, as well as can be configured as an HDMI with audio. The internal HDMI port can be configured to DVI-D through cabling options. The ADLQM67HDS also has 4x RS232 COM ports, 4x SATA with RAID 0, 1, 5 and 10 support. Two of the ports support up to SATA 6G while the other two support SATA 3G. 10x USB2.0 with 4x onboard connectors, two bootable Gigabit Ethernet LAN, HDA 7.1, and a 2x40-pin PCIE connector that is configurable as one x4 lane or four x1 lanes of PCI Express for addition of peripherals.NEW! ADLSST System Sensor Technology UtilityThe ADLSST System Sensor Technology v2.0 utility brings to the Linux environment the same type of CPU health monitor functions that have previously been readily available only in the Windows environment. Click here to download the drivers. ADL Embedded Solutions offers highly effective active and passive thermal solutions designed for this product. Contact your sales representative for more information.Features∙2nd Generation Intel® Core™ i7/i5, Quad/DC 2.1 GHz - 2.5 GHz ∙Intel QM67 PCH∙Up to 16GB DDR3-1333 DRAM SoDIMM204 (8GB x 2)∙PCIe 2.0 2x40 pin Bus Connector (One x4 or Four x1)∙4x SATA Ports with RAID (2x SATA 6G, 2x SATA 3G)∙2x 10/100/1000Mbit Ethernet LAN Port ∙4x RS232 COM Ports, 10x USB2.0 Ports ∙Separate Onboard DVI / VGA, HDMI / DVI ∙Dual Independent Displays ∙Hardware Monitor with API∙ADL-SST (System Sensor Technology)∙Watchdog Timer∙Windows 7, Windows 8, Windows 10, Linux Compatible ∙Discrete 8-bit GPIO Port ∙7.1 HD Audio with SPDIF In/Out∙4” x 5.8” (102mm x 147mm) 3.5-inch Form FactorOrdering InformationTechnical Specifications - ADLQM67HDS。
液晶屏规格对比表
LED背光，宽温，可反转 QVGA VGA
兼容群创TN92 LED背光，宽温
宽温
640*480 640*480 640*480 800*480 800*480 800*480 800*600 800*600 800*600 800*600 800*480 800*600 640*480 640*480 800*600 800*600 800*600 800*600 800*600 800*600 1024*768 1024*768 1024*768 1024*768 1024*768 1024*768 1280*1024 1280*1024 1280*1024 1680*1050 320*240 480*272 320*234 320*240 640*480 800*480 800*600 800*600
640*RGB*480 600:1 550
50/60/70/70
LED 50000 -30--80 -30--80
800*RGB*600 450:1 370
50/60/70/70
2*CCFL 50000 -10--65 -30--70
800*RGB*600 450:1 370
50/60/70/70
2*CCFL 50000 -10--65 -30--70
-30--70 -30--80 -30--80 -30--80 -30--70 -30--70 -30--80 -30--80
640*RGB*480 600:1 400 80/70/80/80(CR>=5) LED 50000 -30--80 -30--80
640*RGB*480 350:1 350
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
1.30 (/Max.)(5 points)
四、友达5.7寸友达高亮宽温工业液晶屏G057QN01 V2发光系统
灯管位置
侧入式光源
光源类型
WLED
光源寿命
50K(Min)（小时）
接口类型
端子
背光电路
含LED驱动器
背光电路
9.0/12.0/20.0V(Min./Typ./Max.)（输入电压）
电阻触摸屏、电容触摸屏选型：/Touch-screen/
液晶屏功率
0.46/0.51W(Typ./Max.)
信号电压
0≤VIL≤0.3VDD; 0.7VCC≤VIH≤VDD
接口类型
端子
接口脚距
0.5mm
接口数量
1pcs
接口脚数
33pins
●补充说明：以上友达5.7寸工业液晶屏G057QN01 V2资料仅供参考，如有某项不准确，可以联系我们客服提供G057QN01 V2产品的规格资料，产品均以pdf规格为准。
背光电路
0.24A(Typ.Max.)(输入电流)
背光功耗
2.88W(Typ.)
五、友达5.7寸友达高亮宽温工业液晶屏G057QN01 V2信号接口
信号大类
Parallel RGB
信号小类
CMOS（1 ch，6 -bit）
液晶屏电压
3.3(Typ.)
液晶屏电流
115/130mA（Tyห้องสมุดไป่ตู้.）（ICC）
对比度
800:1 (Typ.) (透射)
显示颜色
262K (6-bit)
显示色域
50% NTSC (CIE1931)
响应时间
15/10（Typ.）(Tr/Td)(ms)
可视角度
80/80/70/70 (Typ.)(CR≥10) (左/右/上/下)
最佳视角
12点钟直视
白色色度
X:0.313; Y:0.329
G057QN01 V2友达5.7寸高亮工业液晶屏- G057QN01V2宽温工业液晶屏参数资料
一：友达5.7寸友达高亮宽温工业液晶屏G057QN01 V2基本信息
品牌
友达（AUO）
液晶屏型号
G057QN01 V2
工作温度
-30 ~ 85°C
存储温度
-30 ~ 85°C
当前生产状态
量产中
二：友达5.7寸友达高亮宽温工业液晶屏G057QN01 V2结构特征
液晶屏尺寸
5.7英寸
点分辨率
320（RGB）*240(WQVGA)
像素密度
70PPI
像素排列
RGB垂直条状
宽高比
4:3（宽:高）
点间距
0.120*0.360mm（横*竖）
像素间距
0.360*0.360mm（横*竖）
面板重量
150/165g（Typ./Max.）
表面处理
雾化，Hard coating (3H)
显示区域
115.2*86.4mm（横*竖）
可视区域
118.2*89.4mm（横*竖）
外观尺寸
144.0*104.6 mm（横*竖）
外观尺寸
12.3（Typ.）mm (厚度)
触摸屏
无
三：友达5.7寸友达高亮宽温工业液晶屏G057QN01 V2光学特征
显示模式
TN，常白显示，透射式
液晶屏亮度
800 cd/m
