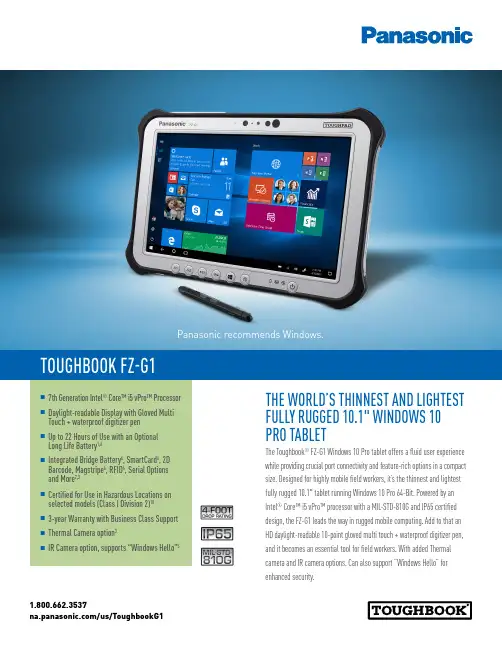

1.800.662.3537/us/ToughbookG1THE WORLD’S THINNEST AND LIGHTESTFULLY RUGGED 10.1" WINDOWS 10 PRO TABLETThe Toughbook ® FZ-G1 Windows 10 Pro tablet offers a fluid user experience while providing crucial port connectivity and feature-rich options in a compact size. Designed for highly mobile field workers, it’s the thinnest and lightest fully rugged 10.1" tablet running Windows 10 Pro 64-Bit. Powered by an Intel ® Core™ i5 vPro™ processor with a MIL-STD-810G and IP65 certified design, the FZ-G1 leads the way in rugged mobile computing. Add to that an HD daylight-readable 10-point gloved multi touch + waterproof digitizer pen, and it becomes an essential tool for field workers. With added Thermal camera and IR camera options. Can also support “Windows Hello” for enhanced security.TOUGHBOOK FZ-G1n 7th Generation Intel ® Core™ i5 vPro™ Processor n D aylight-readable Display with Gloved MultiTouch + waterproof digitizer pen n U p to 22 Hours of Use with an Optional Long Life Battery 1,6n I ntegrated Bridge Battery 6, SmartCard 6, 2DBarcode, Magstripe 6, RFID 6, Serial Options and More 2,3nC ertified for Use in Hazardous Locations onselected models (Class I Division 2)10n 3-year Warranty with Business Class Support n T hermal Camera option 3n I R Camera option, supports “Windows Hello”5Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice.Trademarks are property of their respective owners. | ©2018 Panasonic Corporation of North America. All rights reserved. Toughbook FZ-G1 mk5 Spec Sheet_07/18 | PSC-M18978SS1.800.662.3537/us/ToughbookG1WARRANTYn 3-year limited warranty, parts and laborDIMENSIONS & WEIGHT 8n 10.6"(L) x 7.4"(W) x 0.8"(H)n 2.4 lbs. (standard battery)n 2.9 lbs. (optional long life battery)INTEGRATED OPTIONS 9n 4G LTE multi carrier mobile broadband with satellite GPSn C hoice of LED or Laser 2D barcode reader (EA15 or EA21), GPS, Serial Dongle, Ethernet, MicroSDXC or second USB 2.0 port n C hoice of bridge battery, magstripe reader, insertable SmartCard reader,insertable SmartCard reader with bridge battery, contactless SmartCard/RFID HF reader or UHF 900MHz RFID reader n Thermal camera option ACCESSORIES 9nAC Adapter (3-prong) CF-AA6413CM n Standard Battery Pack FZ-VZSU84A2U n Long Life Battery Pack FZ-VZSU88U n MIL-461F version of standard battery (required to be 461Fcompliant) FZ-VZSU89A2U n Long Life Battery Bundle(includes rotating hand strap and corner guard set) FZ-BNDLG1LL1ST1CG4n Single Battery Charger Bundle FZ-BNDLG1BATCHRG n LIND 3-Bay Battery Charger FZ-LND3BAYG1n LIND Car Adapter 120W CF-LNDDC120n L IND Car/AC Adapter 90W (with USB port) CF-LNDACDC90n L IND Car Adapter 90W MIL-STD CF-LNDMLDC90n T all Corner Guard Set FZ-WCGG111n R otating Hand Strap and Tall Corner Guard Set Bundle FZ-BNDLG1ST1CG4n T oughMate G1 Always-On Case (with hand strap) TBCG1AONL-P n T oughMate G1 Professional Portfolio TBCG1PFLIO-BLK-P n ToughMate G1 “X” Hand Strap TBCG1XSTP-P n D esktop Cradle FZ-VEBG11AU n Vehicle Docks (no pass-through) – Gamber-Johnson 7160-0486-00-P – Havis with LIND power supply CF-H-PAN-702-P n Vehicle Docks (dual pass-through) – Gamber-Johnson 7160-0486-02-P – Havis with LIND power supply CF-H-PAN-702-2-P n Waterproof digitizer pen FZ-VNPG12U n Tether FZ-VNTG11U n 10.1" LCD Protective Film FZ-VPFG11U n Payment sleeve for Verifone e355 FZ-VPGG11MPlease consult your reseller or Panasonic representative before purchasing.Caution: Do not expose bare skin to this product when handling this unit in extreme hot or cold environments. A pproximate time. Battery operation and recharge times will vary based on many factors, including screen brightness, applications, features, power management, battery conditioning and other customer preferences. Battery testing results from MobileMark 2014. Bridge battery, magstripe reader, insertable SmartCard reader, insertable SmartCard reader with bridge battery, contactless SmartCard reader and UHF RFID reader are mutually exclusive. Please note, USB 3.0 port, HDMI port and Audio Jack cannot be accessed when the unit is equipped with the magstripe reader, but optional USB 2.0 port can be accessed. GPS, Serial Dongle, Ethernet, Barcode Reader, Thermal sensor, MicroSDXC and second USB 2.0 port are mutually exclusive options. 1GB = 1,000,000,000 bytes. Total usable memory will be less depending upon actual system configuration. When GPS or second USB is integrated, the webcam with infrared sensor cannot be installed. M agstripe reader, insertable SmartCard reader, insertable SmartCard reader with bridge battery, long life battery and UHF RFID reader include tall corner guards and rotating hand strap. Bridge battery (without SmartCard reader) includes medium corner guards and rotating hand strap. Requires software and activation to enable theft protection. Length measurements do not include protrusions. Weight varies with options and digitizer pen. A ccessories and Integrated Options may vary depending on your configuration. Visit the Panasonic website for more accessories and details. H azardous location certifications may not apply to all configurations. Consult your Panasonic representative for availability.SOFTWARE n W indows 10 Pro 64 bitDURABILITYn M IL-STD-810G certified (4’ drop, shock, vibration, rain, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)n IP65 certified sealed all-weather design n Optional ANSI/ISA 2.12.01-2013 Class I Division 2 on selected models n Solid state drive heatern Magnesium alloy chassis encased with ABS and elastomer corner guards n Optional hand strap or rotating hand strap n Port coversn Raised bezel for LCD impact protectionn Pre-installed replaceable screen film for LCD protection CPUn Intel Core i5-7300U vPro Processor– 2.6 GHz up to 3.5 GHz with Intel Turbo Boost Technology– Intel Smart Cache 3MBSTORAGE & MEMORY n 8GB DDR3L SDRAMn 256GB solid state drive (SSD) with heaternOptional 512GB and 1TB OptionDISPLAYn 10.1" WUXGA 1920 x 1200 with LED backlightingn 10-point capacitive multi touch + Waterproof Digitizer pen daylight-readable screen– 2-800 nit– IPS display with direct bonding– Anti-reflective and anti-glare screen treatments– Ambient light sensor, digital compass, gyro and acceleration sensors – Automatic screen rotation– Intel HD Graphics 620 (Built-in CPU) video controllerAUDIOn Integrated microphonen Intel High Definition Audio subsystem support n Integrated Monaural speakern On-screen and button volume and mute controls KEYBOARD & INPUTn 10-point gloved multi touch + digitizer screen– Supports bare-hand touch and gestures and electronic waterproof stylus pen – Supports glove mode and wet-touch mode n 7 tablet buttons (2 user-definable) n Integrated stylus holdern On-screen QWERTY keyboardCAMERAS n 2 MP (1920 x 1080 pixels), 30fps(Video), Monaural Microphone– Infrared Sensor with Windows Hello support5n 8MP rear camera with autofocus and LED flash INTERFACEn D ocking connector 24-pin n HDMIType An H eadphones/speaker Mini-jack stereo n USB 3.0 (x 1) Type A n Optional second USB 2.0 Type An Optional 10/100/1000 Ethernet RJ-45WIRELESSn Optional integrated 4G LTE multi carrier mobile broadband with satellite GPS – Sierra Wireless™ EM7455n Intel Dual Band Wireless-AC 8265 (IEEE802.11a/b/g/n/ac) n Bluetooth v4.2 , Classic mode/ Low Energy mode, Class 1 n O ptional dedicated GPS (u-blox)n Dual high-gain antenna pass-through POWER SUPPLYn L i-Ion battery pack:– Standard battery: Li-ion 11.1 V, 4200 mAh (typ.), 4080 mAh (min.)– Optional long life battery : Li-ion 10.8V, 9300mAh(typ.), 8700mAh (min.) n B attery operation :– Standard battery: 11 hours– Optional long life battery : 22 hours n B attery charging time :– Standard battery: 2.5 hours off, 3 hours on– Optional long life battery : 3 hours off, 4 hours onn O ptional bridge battery (1 minute swap time)n A C Adapter: Input: 100 V - 240 V AC, 50 Hz/ 60 Hz, Output: 16 V DC, 4.06ASECURITY FEATURESn Password Security: Supervisor, User, Hard Disk Lock n Kensington cable lock slotn Trusted platform module (TPM) security chip v.2.0 n Computrace theft protection agent in BIOS n Optional Insertable SmartCard readern Optional Contactless SmartCard/HF RFID reader– ISO 14443 A/B compliantPanasonic recommends Windows.。

1.5寸RGB OLED 模块用户手册说明书

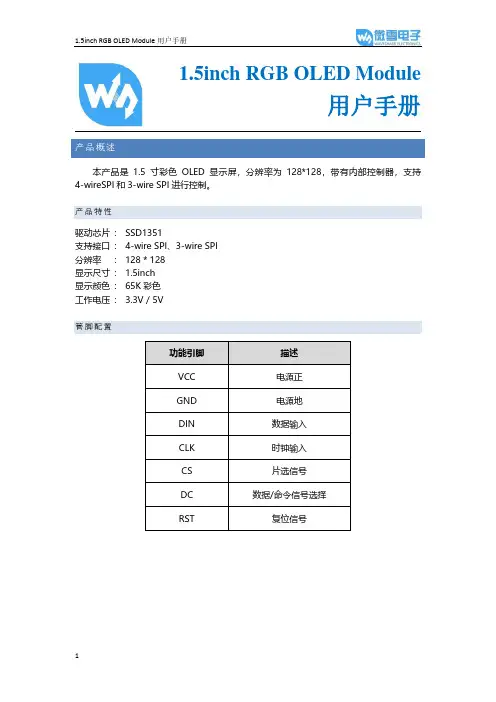

1.5inch RGB OLED Module用户手册产品概述本产品是1.5寸彩色OLED显示屏，分辨率为128*128，带有内部控制器，支持4-wireSPI和3-wire SPI进行控制。

产品特性驱动芯片: SSD1351支持接口: 4-wire SPI、3-wire SPI分辨率: 128 * 128显示尺寸: 1.5inch显示颜色: 65K彩色工作电压: 3.3V / 5V管脚配置功能引脚描述VCC 电源正GND 电源地DIN 数据输入CLK 时钟输入CS 片选信号DC 数据/命令信号选择RST 复位信号本OLED模块提供两种通信方式：4-wire SPI和3wire-SPI，在模块的背面有一个可选择焊接的电阻，通过该电阻来选择通信方式。

如下图：模块出厂默认使用4线SPI通信，即BS0默认接0注：下表为接口连接。

BS CS D/C DIN CLK4-wire SPI 0 片选D/C MOSI SCK3-wire SPI 1 片选需接地MOSI SCL具体硬件配置，如下：使用4线SPI:即出厂设置,BS接0连接到GND，DIN接控制引脚MOSI, CLK接控制引脚SCK; 使用3线SPI: BS接1连接到VCC，D/C需接地，DIN接控制引脚MOSI, CLK接控制引脚SCK;SSD1351是一款128RGB * 128 Dot Mattrix OLED/PLED 控制器，其内部有一个128*128*18bit的SRAM作为显示缓存区，支持262k和65k两种颜色深度。

并支持8bit 8080并行、8bit 6800并行、3wire-SPI和4wire-SPI等通信方式。

本模块选择了4wire-SPI和3wire-SPI作为通信方式，减小模块的面积，同时节省了控制器的IO资源。

4WIRE-SPI通信协议在4wire-SPI通信中，先将DC置1或置0，再发送一个或多个字节的数据。

当DC置1时，发送的字节将作为显示数据存入SSD1351的SRAM中，作为显示数据。

宏碁笔记本的技术参数

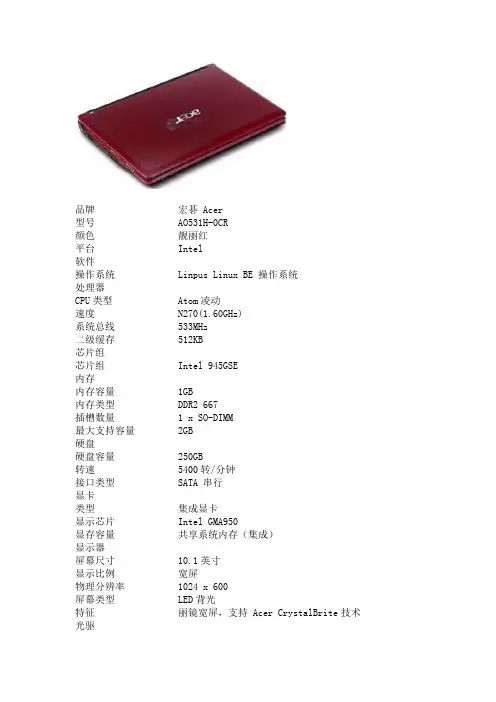

品牌宏碁 Acer型号AO531H-0CR颜色靓丽红平台Intel软件操作系统Linpus Linux BE 操作系统处理器CPU类型Atom凌动速度N270(1.60GHz)系统总线533MHz二级缓存512KB芯片组芯片组Intel 945GSE内存内存容量1GB内存类型DDR2 667插槽数量 1 x SO-DIMM最大支持容量2GB硬盘硬盘容量250GB转速5400转/分钟接口类型SATA 串行显卡类型集成显卡显示芯片Intel GMA950显存容量共享系统内存（集成）显示器屏幕尺寸10.1英寸显示比例宽屏物理分辨率1024 x 600屏幕类型LED背光特征丽镜宽屏，支持 Acer CrystalBrite技术光驱光驱类型无光驱通信调制解调器modem 无内置蓝牙无局域网10/100Mbps无线局域网802.11b/g无线模块内置3G 无端口PC卡插槽无USB 3 个IEEE 1394 无音频端口 1 x 麦克风接口; 1 x 音频接口显示端口VGA x 1音效系统扬声器双立体声音箱内置麦克风有输入设备键盘ASOne专用键盘,89%标准尺寸触摸板多触点触控板其它设备网络摄像头有摄像头像素30万指纹识别无读卡器 5 in 1读卡器电源电池3芯锂离子电池续航时间2-3小时, 具体时间视使用环境而定电源适配器100-240V自适应交流电源适配器机器规格尺寸255 (W) x 183 (D) x 19/26.9 (H) mm重量 1 kg(含3芯电池)特性特性描述支持Acer Recovery 还原管理软件电池x1 电源适配器x1 说明书x1本产品全国联保，享受三包服务，质保期为：三年有限质保，全球联保一年；笔记本电脑：整机三包有效期1年。

保修36个月的硬件包括：CPU、内存。

保修24个月的硬件包括：主板、显卡、LCD屏、硬盘、电源适配器、键盘、鼠标模块。

保修12个月的硬件包括：LCD之附件、光驱、DVD、CDR/W、软驱、Modem卡、网卡、摄像头等其余功能模块和部件。

G050VVN01.0,广视角友达液晶屏,5寸友达屏

液晶屏尺寸
5英寸
点分辨率
480（RGB）* 800（WXGA）
像素密度
188PPI
像素排列
RGB垂直条状
宽高比
3:5（宽:高）
点间距
0.045*0.135mm（横*竖）
像素间距
0.135*0.135mm（横*竖）
液晶屏重量
48.0g（Max.）
表面处理
雾面，Hard coating（3H）
显示区域
64.8*108.0mm（横*竖）
G050VVN01.0
一：友达5寸工业液晶屏G050VVN01.0基本信息
品牌
友达（AUO）
面板型号
G050V度
-10 ~ 80°C
作业湿度
5-95 (%RH)
保存湿度
5-95 (%RH)
当前生产状态
停产中
二：友达5寸工业液晶屏G050VVN01.0结构特征
响应时间
20/15(Typ.)(Tr/Td)(ms)
可视角度
80/80/80/80 (Typ.)(CR≥10) (左/右/上/下)
最佳视角
上下左右对称
四、友达5寸工业液晶屏G050VVN01.0发光系统
灯管位置
侧入式光源
光源类型
WLED
外观尺寸
71.2*119.5mm（横*竖）
外观尺寸
2.50±0.2 mm (厚度)
触摸屏
无
三：友达5寸工业液晶屏G050VVN01.0光学特征
显示模式
MVA，常黑显示，透射式
液晶屏亮度
450cd/m2 (Typ.)
对比度
700:1 (Typ.) (透射)
显示颜色
16.7M（8-bit )

各品牌液晶显示器所采用面板型号

■acer宏基Acer FP563 = 15 inch 35ms TN (AUO L150X2M-1) panel.Acer AL1712 = 17 inch 16 ms TN panel.Acer AL1713 = 17 inch 25 ms TN (CPT CLAA170EA02) panel.Acer AL1714 = 17 inch 14 ms TN panel.Acer AL1715ms/msd = 17 inch 12 ms TN panel.Acer AL1732 = 17 inch 12 ms TN (AUO M170EG01 V9) panel.Acer AL1751wm = 17 inch 25 ms P-MVA (AUO M170XW01) panel.Acer AL1912s = 19 inch 16 ms TN panel.Acer AL1921 = 19 inch 25 ms PVA (SAMSUNG) panel.Acer AL1931 = 19 inch 25 ms MVA (Fujitsu) panel.Acer AL1922As = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4) panel. Acer AL2017 = 20.1 inch 8 ms TN (CMO M201P1-L01) panel. [SXGA+] Acer AL2021 = 20.1 inch 25 ms MVA (Fujitsu FLC51UXC8V) panel.Acer AL2021 ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel .Acer AL2021 ver3 = 20.1 inch 16 ms S-PVA (SAMSUNG LTM201U1) panel. Acer Ferrari F-20 (widescreen) = 20.1 inch 8 ms (g2g) P-MVA (AUO M2 01EW01) panel.Acer AL2416W (widescreen) = 24 inch 6 ms (g2g) PVA (SAMSUNG LTM240M1 ) panel■APPLE苹果Apple Studio Display 15 M2454 = 15 inch TN (LG.Philips LM151X3) pane l.Apple Studio Display 17 M7649 = 17 inch 35 ms ACE (SAMSUNG LTM170E4 -P01) panel.Apple Cinema Display 20 M8893 = 20.1 inch 50 ms DD-IPS (IDTech IAWS 64) panel.Apple Cinema Display 20 M9177 = 20.1 inch 16 ms S-IPS (LG.Philips L M201W01) panel.Apple Cinema Display 22 M5662 = 22 inch 60 ms IPS (LG.Philips LM220 W1) panel.Apple Cinema Display 23 M8537 = 23 inch 25 ms S-IPS (LG.Philips LM2 30W01) panel.Apple Cinema Display 23 M9178 = 23 inch 16 ms S-IPS (LG.Philips LM2 30W02) panel.Apple Cinema Display 30 M9179 = 30 inch 16 ms S-IPS (LG.Philips LM3 00W01) panel.■DELL戴尔DELL是世界最大的LCD成品生产与销售商Dell 1501FP = 15 inch TN (Toshiba LTM15C430) panel.Dell 1501FP ver2 = 15.1 inch 50 ms TN (LG.Philips LM151X2) panel.Dell 1503FP = 15 inch TN (SAMSUNG LTM150XS-L01) panel.Dell 1701FP = 17 inch TN (SAMSUNG LTM170E4-L01) panel.Dell 1702FP = 17 inch PVA (SAMSUNG) panel.Dell 1703FP = 17 inch 25ms PVA (SAMSUNG) panel.Dell 1704FPT = 17 inch 12 ms TN (SAMSUNG LTM170EU) panel.Dell 1704FPV = 17 inch 25 ms PVA (SAMSUNG LTM170E8-L01) panel.Dell 1706FP = 17 inch 25 ms PVA (SAMSUNG LTM170E8) panel.Dell 1800FP = 18 inch 30 ms IPS (LG.Philips LM181E06) panel.Dell 1900FP = 19 inch 25 ms PVA (SAMSUNG LTM190E1) panel.Dell 1905FP = 19 inch 20 ms PVA (SAMSUNG LTM190E4-L02) panel.Dell 1905FP ver2 = 19 inch 8 ms P-MVA (AUO M190EN03 V0) panel. Dell 1906FP = 19 inch 25 ms PVA (SAMSUNG LTM190E4) panel.Dell 2000FP = 20.1 inch 25 ms S-IPS (LG.Philips LM201U02) panel. Dell 2001FP = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel. Dell 2001FP ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04-SL02) panel.Dell 2001FP ver3 = 20.1 inch 12 ms (g2g) S-PVA (SAMSUNG LTM201U1-L01 ) panel.Dell 2007FP = 20.1 inch 16 ms S-IPS (LG.Philips LM201U05) panel. Dell 2007FP ver2 = 20.1 inch 16 ms S-PVA (SAMSUNG LTM201U1) panel. Dell 2005FPW (widescreen) = 20.1 inch 16 ms S-IPS (LG.Philips LM201W0 1) panel.Dell 2007WFP (widescreen) = 20.1 inch 16 ms S-IPS (LG.Philips LM201WE 2) panel.Dell 2405FPW (widescreen) = 24 inch 12 ms (g2g) PVA (SAMSUNG LTM240W 1-L04) panel.Dell 2405FPW (widescreen) ver2 = 24 inch 12 ms (g2g) PVA (SAMSUNG L TM240M1-L01) panel.Dell 2407WFP (widescreen) = 24 inch 6 ms (g2g) PVA (SAMSUNG LTM240M2 ) panel.Dell 3007WFP (widescreen) = 30 inch 11 ms (g2g) S-IPS (LG.Philips LM 300W01) panel.BenQ 明基BenQ FP591 = 15 inch 16 ms TN (AUO M150XN04) panel.BenQ FP71E+ = 17 inch 8 ms TN (AUO M170EG01) panel.BenQ FP71G+ = 17 inch 8 ms TN (AUO M170EG01) panel.BenQ FP71V+ = 17 inch 4 (g2g) ms TN (AUO) panel.BenQ FP71W = 17 inch 25 ms P-MVA (AUO) panel.BenQ FP72V = 17 inch 25 ms PVA (SAMSUNG) panel.BenQ FP731 = 17 inch 25 ms TN (CPT CLAA170EA03) panel.BenQ FP757 = 17 inch 16 ms TN (LG.Philips LM170E01) panel.BenQ FP767 = 17 inch 16 ms TN (AUO M170EG01 V0) panel.BenQ FP767 ver2 = 17 inch 12 ms TN (AUO M170EG01 V1) panel.BenQ FP781 = 17 inch 35 ms ACE (SAMSUNG LTM170E4) panel.BenQ FP783 = 17 inch 12 ms TN (AUO M170EG01 V0) panel.BenQ FP785 = 17 inch 25 ms P-MVA (AUO M170EG02) panel.BenQ FP791 = 17 inch 16 ms TN (AUO M170EN06 V2) panel.BenQ FP882 = 18.1 inch 50 ms IPS (LG.Philips LM181E05-C4) panel. BenQ FP1931M = 19 inch 25 ms P-MVA (Fujitsu FLC48SXC8V-01) panel. BenQ FP91E = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel. BenQ FP91G = 19 inch 12ms TN (AUO M190EN04) panel.BenQ FP91GP = 19 inch 8 ms (g2g) P-MVA (AUO M190EG01 V0) panel. BenQ FP91G P = 19 inch 8 ms (g2g) P-MVA (AUO M190EN03 V0) panel. BenQ FP91V = 19 inch 4ms (g2g) TN (AUO M190EG02 V0) panel.BenQ FP91V+ = 19 inch 6ms (g2g) TN (AUO) panel.BenQ FP931 = 19 inch 16 ms (g2g) TN (AUO) panel.BenQ FP937s = 19 inch 12ms TN (AUO M190EN04) panel.BenQ FP937s ver2 = 19 inch 12ms TN (LG.Philips LM190E03) panel. BenQ FP937s+ = 19 inch 8ms TN (SAMSUNG LTM190EX-L01) panel.BenQ FP937s+ ver2 = 19 inch 8ms TN (AUO) panel.BenQ FP93GX = 19 inch 2 ms (g2g) TN (AUO M190EG02 V1) panel.BenQ FP951 = 19 inch 25 ms (g2g) MVA (AUO) panel.BenQ FP991 = 19 inch 25 ms MVA-P (Fujitsu FLC48SXC8V) panel.BenQ FP992 = 19 inch 25 ms P-MVA (AUO M190EN02) panel.BenQ FP2081 = 20.1 inch 25 ms S-IPS (LG.Philips LM201U02) panel. BenQ FP2081 ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel .BenQ FP2091 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel. BenQ FP2092 = 20.1 inch 12 ms (g2g) S-PVA (SAMSUNG LTM201U1-L01) pan el.BenQ FP202W (widescreen) = 20.1 inch 8 ms TN (CPT CLAA201WA01) panel .BenQ FP231W (widescreen) = 23 inch 25 ms S-IPS (LG.Philips LM230W01) panel.BenQ FP231W (widescreen) ver2 = 23 inch 16 ms S-IPS (LG.Philips LM23 0W02) panel.■EIZO艺卓Eizo L371 = 15 inch 35 ms TN (SHARP) panel.Eizo L375 = 15 inch 25 ms TN (Mitsubishi AA150XJ01) panel.Eizo GAWIN M-10 = 15 inch 30 ms S-IPS (Hitachi TX317VC0CAA) panel. Eizo L461 = 16 inch 45 ms TN (SHARP LQ160E1LG08) panel.Eizo L465 = 16 inch 45 ms TN (SHARP LQ160E1LG21) panel.Eizo L550 = 17 inch 16 ms TN (AUO) panel.Eizo L551 (P170) = 17 inch 16 ms TN (SHARP LQ170E1LG11) panel.Eizo L557 = 17 inch 25 ms PVA (SAMSUNG LTM170E6-L03) panel.Eizo L560t-c = 17 inch 25 ms PVA (SAMSUNG) panel.Eizo L560t-c-k = 17 inch 25 ms PVA (SAMSUNG) panel.Eizo L565 = 17 inch 35 ms S-IPS (Hitachi TX43D15VC0CAD) panel.Eizo L567 = 17 inch 35 ms S-IPS (Hitachi TX43D15VC0CAD) panel.Eizo L568 (S170) = 17 inch 25 ms PVA (SAMSUNG LTM170E8-L02) panel. Eizo L578 (M170) = 17 inch 12 ms (g2g) PVA (SAMSUNG LTM170E8) panel .Eizo M1700 = 17 inch 8 ms TN (SAMSUNG LTM170EU) panel.Eizo P1700 = 17 inch 8 ms TN (SAMSUNG LTM170EU) panel.Eizo PLACEO = 17 inch 35 ms S-IPS (Hitachi TX43D15VC0CAD) panel. Eizo L66 = 18.1 inch TN (SHARP LQ181E1DR10) panel.Eizo L660 = 18.1 inch 50 ms IPS (IBM ITSX94N) panel.Eizo L661 = 18.1 inch 45 ms TN (SHARP LQ181E1DG11) panel.Eizo L665 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98) panel.Eizo L671 = 18.1 inch 45 ms ASV (SHARP LQ181E1DW21) panel.Eizo L675 = 18.1 inch 50 ms IPS (IBM ITSX94N1) panel.Eizo L676 = 18.1 inch 25 ms ASV (SHARP LQ181E1LW31) panel.Eizo L680 = 18.1 inch 40 ms S-IPS (Hitachi TX46D14VC0CA panel.Eizo L685 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98) panel.Eizo L685EX = 18.1 inch 40 ms DD-IPS (IDTech ITSX98N) panel.Eizo L695 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98N) panel.Eizo L760t-c = 19 inch 20 ms PVA (SAMSUNG) panel.Eizo L760t-c-k = 19 inch 20 ms PVA (SAMSUNG) panel.Eizo L767 = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo L768 = 19 inch 25 ms PVA (SAMSUNG LTM190E4-L02) panel.Eizo L768-AS = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo L778 (M190) = 19 inch 12 ms (g2g) PVA (SAMSUNG LTM190E4) panel .Eizo L788 = 19 inch 25 ms PVA (SAMSUNG LTM190E4-L02) panel.Eizo L795 = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo L797 = 19 inch 25 ms SA-SFT (NEC NL128102BC29-01) panel.Eizo S190 = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.Eizo S1910 = 19 inch 12 ms (g2g) PVA (SAMSUNG LTM190E4) panel.Eizo S1910-HR = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel.Eizo M1950 = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel. Eizo L771 = 19.6 inch 45 ms TN (SHARP LQ196U1LG01) panel.Eizo L885 = 20.1 inch 20 ms ASV (SHARP LQ201U1LW21) panel.Eizo L887 = 20.1 inch 20 ms ASV (SHARP LQ201U1LW28) panel.Eizo L985EX = 21.3 inch 50 ms S-IPS (Hitachi TX54D11VC0CA panel. Eizo L997 = 21.3 inch 30 ms S-IPS (Hitachi TX54D11VC0CAC) panel. Eizo S2110W (Widescreen) = 21.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM21 0M1-L01) panel.Eizo S2110W-K (Widescreen) = 21.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM 210M1-L01) panel.Eizo S2410W (widescreen) = 24.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM24 0M2-L01) panel.Eizo S2410W-K (widescreen) = 24.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM 240M2-L01) panel.Eizo CG18 = 18.1 inch 40 ms DD-IPS (IDTech ITSX98) panel.Eizo CG19 = 19 inch 25 ms SA-SFT (NEC NL128102BC29-01) panel.Eizo CE210W (widescreen) = 21.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM21 0M1-L01) panel.Eizo CG21 = 21.3 inch 50 ms S-IPS (Hitachi TX54D11VC0CA panel.Eizo CG210 = 21.3 inch 30 ms S-IPS (Hitachi TX54D11VC0CAC) panel. Eizo CG220 (widescreen) = 22.2 inch 37 ms S-IPS (Mitsubishi AA222ZA01 ) panel.Eizo CE240W (widescreen) = 24.1 inch 8 ms (g2g) S-PVA (SAMSUNG LTM24 0M2-L01) panel.Eizo FA-2090 = 20.8 inch 50 ms DD-IPS (IDTech ITQX20) panel.■HP惠普HP L1520 = 15 inch TN (AUO L150X3M) panel.HP L1706 = 17 inch 12 ms TN panel.HP L1740 = 17 inch 13 ms TN panel.HP L1755 = 17 inch 25 ms PVA (SAMSUNG LTM170E8) panel.HP vs17 = 17 inch 16 ms TN panel.HP vs17e = 17 inch 8 ms TN panel.HP vs17x = 17 inch 16 ms TN panel.HP L1906 = 19 inch 12 ms TN panel.HP L1940 = 19 inch 25 ms MVA panel.HP L1955 = 19 inch 16 ms S-MVA panel.HP vs19 = 19 inch 16 ms TN panel.HP vs19e = 19 inch 8 ms TN panel.HP L2035 = 20 inch 16 ms S-IPS (LG.Philips LM201U04) panel.HP L2105 (Widescreen) = 21 inch 16 ms S-PVA (SAMSUNG LTM210M2) panel .HP F2304 (Widescreen) = 23 inch 25 ms S-IPS panel.HP L2335 (Widescreen) = 23 inch 16 ms S-IPS (LG.Philips LM230W02) pa nel.备注：HP显示器多是AOC的OEM■Hyundai现代Hyundai B70A = 17 inch 8 ms TN panel.Hyundai B71A = 17 inch 8 ms TN panel.Hyundai B90A = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Hyundai B91A = 19 inch 8 ms TN panel.Hyundai L19T = 19 inch 25 ms MVA panel.Hyundai L19T+ = 19 inch 8 ms TN panel.Hyundai L70D+ = 17 inch 12 ms TN panel.Hyundai L70S+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel. Hyundai L72D = 17 inch 8 ms TN panel.Hyundai L73D = 17 inch 8 ms TN panel.Hyundai L90D+ = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.Hyundai L91A = 19 inch 12 ms TN panel.Hyundai L91D = 19 inch 12 ms (g2g) MVA panel.Hyundai Q17 = 17 inch 20 ms TN (Hydis HT17E11-300 or HT17E12) panel. Hyundai Q17+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel.Hyundai Q320 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q321 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q400 = 40 inch 8 ms (g2g) PVA panel.Hyundai Q70U = 17 inch 3 ms (g2g) TN panel.Hyundai Q90U = 19 inch 3 ms (g2g) TN (AUO M190EG02 V1) panel.■Hyun dai 现代Hyundai B70A = 17 inch 8 ms TN panel.Hyundai B71A = 17 inch 8 ms TN panel.Hyundai B90A = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.Hyundai B91A = 19 inch 8 ms TN panel.Hyundai L19T = 19 inch 25 ms MVA panel.Hyundai L19T+ = 19 inch 8 ms TN panel.Hyundai L70D+ = 17 inch 12 ms TN panel.Hyundai L70S+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel. Hyundai L72D = 17 inch 8 ms TN panel.Hyundai L73D = 17 inch 8 ms TN panel.Hyundai L90D+ = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.Hyundai L91A = 19 inch 12 ms TN panel.Hyundai L91D = 19 inch 12 ms (g2g) MVA panel.Hyundai Q17 = 17 inch 20 ms TN (Hydis HT17E11-300 or HT17E12) panel. Hyundai Q17+ = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel.Hyundai Q320 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q321 = 32 inch 8 ms (g2g) PVA panel.Hyundai Q400 = 40 inch 8 ms (g2g) PVA panel.Hyundai Q70U = 17 inch 3 ms (g2g) TN panel.Hyundai Q90U = 19 inch 3 ms (g2g) TN (AUO M190EG02 V1) panel.■IBM国际商用机器公司IBM L170m = 17 inch 16 ms TN panel.IBM L170P = 17 inch 25 ms PVA panel.IBM L171p = 17 inch 8 ms TN panel.IBM L190P = 19 inch 25 ms PVA panel.IBM L200p = 20 inch 16 ms S-IPS (LG.Philips LM201U03) panel.IBM T210 = 20.8 inch 50 ms IPS (IDTech ITQX20E) panel.IBM T221 = 22.2 inch 50 ms DD-IPS (IDTech MD22292B2/C2) panel.■Iiyama 饭山机电Iiyama AS4311U = 17 inch 40 ms ACE (SAMSUNG LTM170E4) panel.Iiyama AS4314UT = 17 inch 20 ms TN (HyDis HT17E12) panel.Iiyama AS4332UT = 17 inch 25 ms PVA (SAMSUNG) panel.Iiyama AS4431D = 17.4 inch 25 ms MVA (Fujitsu FLC44SXC8V) panel. Iiyama H430 = 17 inch 25 ms TN (CMO M170E6-L02 Rev.c1) panel. Iiyama E431S = 17 inch 16 ms TN (LG.Philips LM170E01) panel.Iiyama E480S-B = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Iiyama E480S-S = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Iiyama E481S-3 = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. Iiyama E481S-1 = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel. Iiyama H1900-W/B = 19 inch 8 ms MVA-P (Fujitsu) panel.Iiyama L400W-B = 40 inch 23 ms PVA (SAMSUNG) panel.Iiyama AQU5611DT = 22 inch 50 ms DD-IPS (IDTech MD22292B2) panel.■LG乐金电子LG L172WT = 17 inch 25 ms S-IPS (LG.Philips LC171W03) panel.LG L173WA = 17 inch 25 ms S-IPS (LG.Philips LC171W03) panel.LG L1710B/S = 17 inch 16 ms TN (LG.Philips LM170E01-A4) panel.LG L1710B/S ver2 = 17 inch 16 ms TN (Hydis HT17E12-100) panel.LG L1710B/S ver3 = 17 inch 16 ms TN (AUO M170EN05) panel.LG L1715S (L1716S) = 17 inch 16 ms TN (LG.Philips LM170E01-A4) panel .LG L1715S (L1716S) ver2 = 17 inch 16 ms TN (Hydis HT17E12-200) pane l.LG L1715S (L1716S) ver3 = 17 inch 16 ms TN (AUO M170EN05) panel. LG L1720B/P/S = 17 inch 16 ms TN (LG.Philips LM170E01-A4) panel.LG L1720B/P/S ver2 = 17 inch 16 ms TN (LG.Philips LM170E01-A5) panel .LG L1730B/P/S = 17 inch 12 ms TN (LG.Philips LM170E01-A6) panel.LG L1810B = 18.1 inch 30 ms IPS (LG.Philips LM181E06-A4) panel.LG L1811B/S = 18.1 inch 30 ms IPS (LG.Philips LM181E05-C3/C4) panel. LG L1811B/S ver2 = 18.1 inch 30 ms IPS (LG.Philips LM181E06) panel.LG L1910B = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1915S = 19 inch 12 ms TN (LG.Philips LM190E03-B4) panel.LG L1920B = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1930B = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1930S = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4) panel.LG L1940B = 19 inch 25 ms S-IPS (LG.Philips LM190E02) panel.LG L1980U = 19 inch 12 ms TN (LG.Philips LM190E03) panel.LG L2000C = 20.1 inch 8 ms (g2g) S-IPS (LG.Philips LM201U05) panel. LG L2010B/P = 20.1 inch 25 ms S-IPS (LG.Philips LM201U03) panel.LG L2010B/P ver2 = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel .LG M203WA (widescreen) = 20.1 inch 16 ms S-IPS (LG.Philips LM201W01) panel.LG L2320A (widescreen) = 23 inch 25 ms S-IPS (LG.Philips LM230W01) p anel.■Mitsubishi三菱Mitsubishi MDT151X = 15 inch TN (Mitsubishi AA150XA03) panel.Mitsubishi RDT151X = 15.1 inch 50 ms TN (LG.Philips LM151X2) panel. Mitsubishi RDT152X = 15 inch TN (Mitsubishi AA150XB01) panel.Mitsubishi RDT152X-S = 15 inch TN (LG.Philips LM150X05) panel. Mitsubishi RDT195V = 19 inch 25ms S-IPS (LG.Philips LM190E01-C4) panel. Mitsubishi SX98lcd/">LCD = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) p anel.Mitsubishi UX21LCD = 21.3 inch 20 ms SA-SFT (NEC NL160120BC27-02) pan el.Mitsubishi RDT211H = 21.3 inch 20 ms SA-SFT (NEC NL160120BC27-02) pan el.■NEC日本电器公司NEC LCD1760NX = 17 inch 16 ms TN (AUO M170EN05) panel.NEC LCD1760NX ver2 = 17 inch 16 ms TN (LG.Philips LM170E01) panel. NEC LCD1770GX = 17 inch 8 ms TN panel.NEC LCD1770GX-BK = 17 inch 8 ms TN panel.NEC LCD1770NX = 17 inch 12 ms TN (LG.Philips LM170E01-G5) panel.NEC LCD70GX2 = 17 inch 4 ms (g2g) TN panel.NEC LCD72VM = 17 inch 16 ms TN (QD1s QD17EL07) panel.NEC LCD72XM = 17 inch 16 ms TN panel.NEC LCD72XM-BK = 17 inch 8 ms TN panel.NEC LCD1860NX = 18.1 inch 30 ms IPS (LG.Philips LM181E06-C4) panel. NEC LCD1880SX = 18.1 inch 33 ms A-SFT (NEC NL128102AC28-07) panel. NEC LCD1920NX = 19 inch 25 ms P-MVA (Fujitsu FLC48SXC8V-01) panel. NEC LCD1960NX = 19 inch 25 ms PVA (SAMSUNG) panel.NEC LCD1960NXi = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4/E02) pan el.NEC LCD1970GX = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel.NEC LCD1970NX = 19 inch 25 ms S-IPS (LG.Philips LM190E01-C4/E02) pane l.NEC LCD1980SX = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.NEC LCD1970NXp = 19 inch 20 ms MVA panel.NEC LCD1970V = 19 inch 16 ms TN panel.NEC LCD1970VX = 19 inch 16 ms TN panel.NEC LCD1980SX = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel.NEC LCD1980SXi = 19 inch 25 ms PVA (LG.Philips LM190E02-B4) panel. NEC LCD1980FXi = 19 inch 18 ms S-IPS (LG.Philips LM190E05-SL02) panel. NEC LCD1990SXi = 19 inch 18 ms S-IPS panel.NEC LCD91VM = 19 inch 25 ms PVA (SAMSUNG) panel.NEC LCD92VM = 19 inch 16 ms TN (AUO M190EN4) panel.NEC LCD90GX2 = 19 inch 4 ms (g2g) TN panel.NEC LCD92VM = 19 inch 16 ms TN (AUO M190EN4) panel.NEC LCD92XM = 19 inch 8 ms TN panel.NEC SpectraView 1980 = 19 inch 25 ms S-IPS (LG.Philips LM190E02) pan el.NEC LCD2080UX = 20.1 inch 25 ms S-IPS (LG.Philips LM201U03) panel. NEC LCD2080UX+ = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) panel. NEC LCD2080UXi = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04-SL02) pan el.NEC LCD2090UXi = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04-SL02) pan el.NEC LCD2070WNX (widescreen) = 20.1 inch 8 ms TN (CPT CLAA201WA01) pa nel.NEC LCD20WGX2 (widescreen) = 20 inch 6 ms (g2g) S-IPS (LG.Philips LM 201W01) panel.NEC LCD2170NX = 21.3 inch 8 ms (g2g) S-PVA (SAMSUNG LTM213U6) panel. NEC LCD2170NX-BK = 21.3 inch 8 ms (g2g) S-PVA (SAMSUNG LTM213U6) pan el.NEC LCD2180UX = 21.3 inch 20 ms SA-SFT (NEC NL160120BC27-02) panel. NEC LCD2180WG (LED) = 21 inch 20 ms SA-SFT (NEC NL160120BC27-02) pan el.NEC LCD2190UXi = 21.3 inch 10 ms (g2g) SA-SFT (NEC NL160120BC27-14) panel.NEC LCD3210 = 32 inch 20 ms S-IPS panel.NEC LCD4610 = 46 inch 8 ms (g2g) PVA (SAMSUNG LTA460W2) panel.■SAMSUNG三星电子SAMSUNG 152S = 15 inch 25 ms TN (Sanyo TM150XG-26L06) panel. SAMSUNG 171N = 17 inch 25 ms TN (SAMSUNG LTM170EU-L01) panel. SAMSUNG 171P = 17 inch 25 ms PVA (SAMSUNG LTM170E5) panel.SAMSUNG 172N = 17 inch 25 ms TN (SAMSUNG LTM170EU-L01-D) panel. SAMSUNG 172S = 17 inch 20 ms TN (Hydis HT17E12) panel.SAMSUNG 172T = 17 inch 25 ms PVA (SAMSUNG LTM170E5) panel.SAMSUNG 172X = 17 inch 12 ms TN (SAMSUNG LTM170EX-L01) panel. SAMSUNG 173P = 17 inch 25 ms PVA (SAMSUNG LTM170E6-L04) panel. SAMSUNG 173P+ = 17 inch 8 ms (g2g) PVA (SAMSUNG LTM170E8-L01) panel. SAMSUNG 173T = 17 inch 25 ms PVA (SAMSUNG LTM170E6-L02 or LTM170E6-L 04) panel.SAMSUNG 173VT = 17 inch 12 ms TN panel.SAMSUNG 181T = 18 inch 25 ms PVA (SAMSUNG LTM181E4) panel. SAMSUNG 191T = 19 inch 25 ms PVA (SAMSUNG LTM190E1) panel. SAMSUNG 193P = 19 inch 25 ms PVA (SAMSUNG LTM190E4) or 20 Ms PVA (LTM190E4-L02) panel.SAMSUNG 193P ver2 = 19 inch 20 Ms PVA (LTM190E4-L02) panel. SAMSUNG 193P+ = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4-L02) panel. SAMSUNG 194T = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 204T = 20 inch 16 ms (g2g) S-PVA (SAMSUNG LTM201U1) panel. SAMSUNG 204Ts = 20 inch 16 ms (g2g) S-PVA (SAMSUNG LTM201U1) panel. SAMSUNG 210T = 21 inch 35 ms PVA (SAMSUNG LTM213U3) panel. SAMSUNG 211MP = 21 inch 25 ms PVA (SAMSUNG LTM213U4-L04) panel. SAMSUNG 213T = 21 inch 25 ms PVA (SAMSUNG LTM213U4-L01 or SAMSUNG L M213U4-L04) panel.SAMSUNG 213T = 21 inch 25 ms PVA panel.SAMSUNG 214T = 21 inch 8 ms (g2g) S-PVA (SAMSUNG LTM213U6) panel. SAMSUNG 240T (Widescreen) = 24 inch 25 ms PVA (SAMSUNG LTM240W1) pan el.SAMSUNG 241MP (Widescreen) = 24 inch 25 ms PVA (SAMSUNG LTM240W1) pa nel.SAMSUNG 242MP = 24 inch 16 ms PVA (SAMSUNG LTM240M1-L01) panel. SAMSUNG 243T (Widescreen) = 24 inch 30 ms PVA (SAMSUNG LTM240W1-L03) panel.SAMSUNG 244T (widescreen) = 24 inch 6 ms (g2g) PVA (SAMSUNG LTM240M1 ) panel.SAMSUNG 400P = 40 inch 8 ms (g2g) PVA (SAMSUNG LTA400W2) panel. SAMSUNG 400Pn = 40 inch 8 ms (g2g) PVA (SAMSUNG LTA400W2) panel. SAMSUNG 460P = 46 inch 8 ms (g2g) PVA (SAMSUNG LTA460W2) panel. SAMSUNG 710MP = 17 inch 12 ms TN panel.SAMSUNG 710N = 17 inch 12 ms TN (SAMSUNG LTM170EU) panel.SAMSUNG 710T = 17 inch 12 ms TN (SAMSUNG LTM170EU-L11) panel. SAMSUNG 710V = 17 inch 16 ms TN panel.SAMSUNG 711T = 17 inch 25 ms PVA panel.SAMSUNG 713BM = 17 inch 8 ms TN panel.SAMSUNG 713N = 17 inch 8 ms TN (SAMSUNG LTM170EU) panel.SAMSUNG 720T = 17 inch 25 ms PVA (LTM170E8-L01) panel.SAMSUNG 721S = 17 inch 8 ms TN panel.SAMSUNG 721SA = 17 inch 8 ms TN panel.SAMSUNG 730BF = 17 inch 4 ms (g2g) TN panel.SAMSUNG 740N = 17 inch 8 ms TN panel.SAMSUNG 740T = 17 inch 25 ms PVA (SAMSUNG LTM170E8) panel. SAMSUNG 760BF = 17 inch 4 ms (g2g) TN panel.SAMSUNG 770P = 17 inch 6 ms (g2g) PVA (SAMSUNG LTM170E8) panel. SAMSUNG 910M = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 910MP = 19 inch 8 ms TN panel.SAMSUNG 910N = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 910T = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 910TM = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 913B = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. SAMSUNG 913N = 19 inch 8 ms TN (SAMSUNG LTM190EX-L01) panel. SAMSUNG 913TM = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4) panel. SAMSUNG 913V = 19 inch 12 ms TN panel.SAMSUNG 915N = 19 inch 8 ms TN panel.SAMSUNG 920T = 19 inch 25 ms PVA (SAMSUNG LTM190E1-L03) panel. SAMSUNG 930B = 19 inch 8 ms TN (SAMSUNG) panel.SAMSUNG 930BF = 19 inch 4 ms (g2g) TN (SAMSUNG LTM190EX-L21) panel. SAMSUNG 930MP = 19 inch 25 ms PVA (SAMSUNG) panel.SAMSUNG 931MP = 19 inch 8 ms (g2g) PVA (SAMSUNG LTM190E4) panel. SAMSUNG 940B = 19 inch 8 ms TN panel.SAMSUNG 940MW (widescreen) = 19 inch 8 ms TN (SAMSUNG LTM190M2) pane l.SAMSUNG 940T = 19 inch 20 ms PVA (SAMSUNG LTM190E4) panel. SAMSUNG 960BF = 19 inch 4 ms (g2g) TN panel.SAMSUNG 970P = 19 inch 6 ms (g2g) PVA (SAMSUNG) panel.SAMSUNG LE-15S51B = 15 inch 25 ms TN (SAMSUNG LTM150XH-L06) panel. SAMSUNG LE-23R41B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA230W1-L02) pa nel.SAMSUNG LE-23R51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA230W1-L02) pa nel.SAMSUNG LE-26M51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-26R41B = 26 inch 8 ms (g2g) PVA (SAMSUNG LTA260W2) panel. SAMSUNG LE-26R51B = 26 inch 8 ms (g2g) PVA (SAMSUNG LTA260W2) panel. SAMSUNG LE-32M51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-32M61B = 32 inch 8 ms (g2g) S-PVA panel.SAMSUNG LE-32R41B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-32R51B = 32 inch 8 ms (g2g) PVA (SAMSUNG LTA320W2) panel. SAMSUNG LE-40M61B = 40 inch 8 ms (g2g) S-PVA panel.SAMSUNG LE-40R51B = 40 inch 8 ms (g2g) PVA (SAMSUNG LTA400W2) panel. SAMSUNG LE-46M51B = 46 inch 8 ms (g2g) S-PVA panel.SAMSUNG LW-15M23C = 15 inch 25 ms TN (SAMSUNG LTM150XH-L06) panel. SAMSUNG LW-17N23N = 17 inch 16 ms PVA (SAMSUNG LTA170W2-L01) panel. Samtron 73V = 17 inch 25 ms TN (SAMSUNG) panel.■SHARP夏普SHARP LL-T140A = 13.8 inch TN (SHARP) panel.SHARP LL-T1500A = 15 inch TN (SHARP LQ150X1DH10) panel.SHARP LL-T150A = 15 inch 45 ms TN (SHARP) panel.SHARP LL-T1502A = 15 inch 25 ms ASV (SHARP LQ150X1LW71) panel. SHARP LL-T1510A = 15 inch TN (SHARP LQ150X1DR10) panel.SHARP LL-T1511A = 15 inch TN (SHARP LQ150X1DR10) panel.SHARP LL-T15A1 = 15 inch TN (HYUNDAI HM15X11-200) panel.SHARP LL-T15G3-H/B = 15 inch 30 ms TN (SHARP LQ150X1DG80) panel. SHARP LL-T15G4-H/B = 15 inch 25 ms TN (SHARP LQ150X1LGN1A) panel. SHARP LL-T15V1 = 15 inch 25 ms TN (Mitsubishi AA150XC01) panel. SHARP LL-T1520-H/B = 15 inch 25 ms ASV (SHARP) panel.SHARP LL-T1530A = 15 inch TN (SHARP LQ150X1DR50) panel.SHARP LL-T1610W = 16 inch 45 ms TN (SHARP) panel.SHARP LL-T1620-H/B = 16 inch 25 ms ASV (SHARP LQ160E1LZ30) panel. SHARP LL-T17A3 = 17 inch 20 ms TN (SHARP) panel.SHARP LL-T17A4-H/B = 17 inch 20 ms TN (SHARP) panel.SHARP LL-T172A-B/W = 17 inch 16 ms TN (Hydis HT17E13-100) panel. SHARP LL-T1815-H/B = 18 inch 40 ms ASV (SHARP) panel.SHARP LL-T1820-H/B = 18 inch 25 ms ASV (SHARP LQ181E1LZ30) panel. SHARP LL-T18A1 = 18 inch 30 ms ASV (SHARP) panel.SHARP LL-T193G = 19 inch 18 ms S-IPS (LG.Philips LM190E05-SL02) panel .SHARP LL-T19D1-H/B = 19 inch 25 ms P-MVA (Fujitsu) panel.SHARP LL-T2010W = 20.1 inch 25 ms ASV (SHARP LQ201U1LZ00) panel. SHARP LL-T2015-H/B = 20.1 inch 16 ms S-IPS (LG.Philips LM201U04) pane l.SHARP LL-T2020-H/B = 20.1 inch 25 ms ASV (SHARP LQ201U1LZ00) panel.■SONY索尼SONY SDM-S51 = 15 inch 20 ms TN (LG.Philips LM150X05) panel.SONY SDM-M51 = 15 inch 20 ms TN (LG.Philips LM150X05) panel.SONY SDM-X52 = 15 inch 20 ms TN (LG.Philips LM150X05) panel.SONY SDM-M61 = 16 inch 35 ms TN (LG.Philips) panel.SONY SDM-S71 = 17 inch 20 ms TN (Samsung) panel.SONY SDM-S71R = 17 inch 30 ms TN (AUO) panel.SONY SDM-X72 = 17 inch 30 ms TN (AUO M170EN05) panel.SONY SDM-S74 = 17 inch 16 ms TN (AUO M170EN05-V1) panel.SONY SDM-HS73P = 17 inch 16 ms TN (AUO M170EN06 V2) panel.SONY SDM-HS74 = 17 inch 16 ms TN (AUO M170EN05-V5) panel.SONY SDM-HS74P = 17 inch 16 ms TN (AUO M170EN06 V2) panel.SONY SDM-HS75P = 17 inch 8 ms TN (AUO) panel.SONY SDM-HX73 = 17 inch 16 ms TN (LG.Philips LM170E01) panel.SONY SDM-S81 = 18.1 inch 20 ms IPS (CPT) panel.SONY SDM-M81 = 18.1 inch 30 ms IPS (LG.Philips LM181ES) panel. SONY SDM-X82 = 18.1 inch 50 ms IPS (LG.Philips LM181E05-C4) panel. SONY SDM-HS94P = 19 inch 12 ms PVA (AUO M190EN04 V1) panel.SONY SDM-HX95B = 19 inch 12 ms (g2g) PVA (Samsung LTM190E4) panel. SONY SDM-HX95S = 19 inch 12 ms (g2g) PVA (Samsung LTM190E4) panel. SONY SDM-S93 = 19 inch 25 ms MVA (AUO M190EN02) panel.SONY SDM-P234B = 23 inch 16 ms S-IPS (LG.Philips LM230W02) panel. SONY KLV-S23A10 = 23 inch 8 ms (g2g) PVA (Samsung LTA230W1-L02) pane l.SONY KLV-S26A10E = 26 inch 8 ms (g2g) PVA (Samsung LTA260W2) panel. SONY KLV-S32A10E = 32 inch 8 ms (g2g) PVA (Samsung LTA320W2) panel. SONY KLV-S40A10E = 40 inch 8 ms (g2g) PVA (Samsung LTA400W2) panel. SONY KLV-V26A10E = 26 inch 8 ms (g2g) PVA (Samsung LTA260W2) panel。

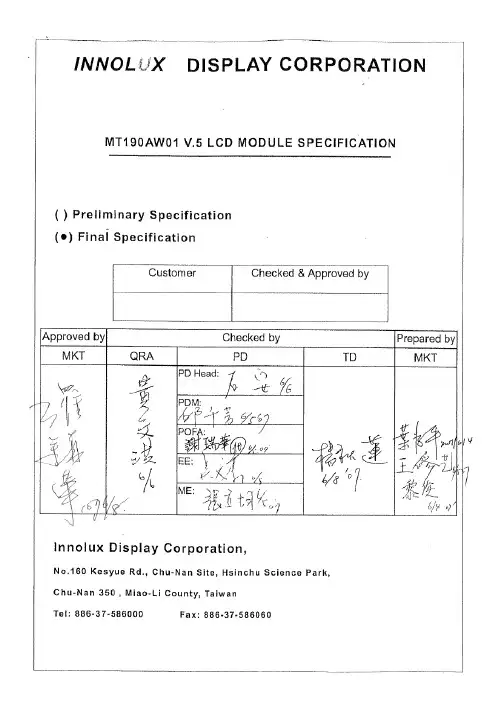

MT190AW01-V5[1]
