Linux系统下管理V7000存储的盘Linux系统用device-mapper multipathing driver管理V7000存储的盘1、查看主机上光纤卡的WWN[root@test1 host2]# pwd/sys/class/fc_host/host2[root@test1 host2]# cat port_name0x5001438006342f802、在V7000存储上进行mapping在存储上查看是否能看到该HBA卡的WWN，mapping后可重新扫描设备[root@oawas2 host2]# cd /sys/class/scsi_host/host2[root@oawas2 host2]# echo "- - -" >./scan可以看到认到盘了fdisk -l3、V7000使用Linux device-mapper multipathing driver作为多路径软件启用步骤：step1. service multipathd stopstep2.修改/etc/multipah.conf备份该文件cp /etc/multipath.conf /etc/bak.multipath.confblacklist {# 黑名单，就是禁止哪些设备使用multipathing driver# 默认情况下所以的设备都在multipath的黑名单中，所以即使启动了multip athd服务并加在了内核模块，multipath也不会对链路进行聚合，必须进行修改# 可以按照wwid逐一加入，也可以使用devnode的方式按照规律批量加入wwid 1HITACHI_D60055750023wwid 1HITACHI_D60055750028devnode "^(ram|raw|loop|fd|md|dm-|sr|scd|st)[0-9]*"devnode "^hd[a-z]"}defaults {# 默认情况下multipath生成dm设备之后，会同时在/dev/mapper/下生成以磁盘wwid为名的符号链接指向对应的dm设备。
HP_3PAR_StoreServ_7000_管理维护手册
保修时候确定以下信息
NOTE:
• Node IP : 192.168.XX.XX /3paradm/3pardata (默认，参考安装密码) • SP &VSP IP : 192.168.XX.XX /3parcust/3parInServ(默认) • 3par p7000 sn: SGHXXXXXX/xXXXXXXX • HP24 小时服务热线: 800-810-3860 / 400-810-3860
(2 nodes, 4 FC ports, 24 SFF slots)
4-port 8Gb/s FC HBA
HP M6710 2.5in 2U SAS
SFF SAS HDDs/SSDs HP G3 Rack Physical SP (Optional)
HP 3PAR StoreServ 7400
(2-node, 4 FC ports, 24 SFF slots)
1
2 0
3 1
4
2 2
1 0
0
1
1
Console port 2x cluster expansion ports 2x 6 Gb SAS 4-wide for optional 4-way configuration expansion ports 2x 8 Gb Fibre Channel host ports
• An Alert will be reported
HP AR StoreServ 7000 管理
© 2009 HP Confidential
管理工具介绍
• • • • • • IMC连接到3par CLI连接到3par 管理界面 System 查看存储信息 Performance&Reports查看 Event&Alerts
IBM_V7000配置实施文档(图文并茂)
2011/5/5
一、 设备
序号
1 2 3
设备名称
IBM Power 720 IBM Storwize V7000 IBM B24
数量
2 1 1
访问 IP
用户名/密码
二、IBM Storwize V7000 相关术语
1) Mdisk（被管理的磁盘） ：Storwize V7000 管理到的磁盘单元 2) StoragePool(池):由一个或多个 Mdisk 组成存储空间 3) Volumes(卷)：由存储池中创建的存储空间，提供给主机使用（lun）
2 / 33
4) 设置完成后，按下图的提示进行操作
5) 在浏览器中输入管理 IP 地址，如：https://172.16.0.235，输入用户名、密 码，用户名和密码在 USB Key 中有提示：superuser、passw0rd(‘0’为零)：
3 / 33
6) 按提示接受许可协议，并且进行其他的配置操作,以下配置中有些内容可 以自己研究下：
将该卷再映射到第二台主机 chustar2，2 台主机共享一个 lun：
19 / 33
配置完成后：
20 / 33
四、其他功能
拷贝服务： FlashCopy 一致性组 FlashCopy 映射 远程拷贝 伙伴关系
21 / 33
用户管理 用户 审计日志
配置 网络 时间通知 高级
22 / 33
选择某个 mdisk，可针对该 mdisk 进行相关“删除”等操作：
12 / 33
点击“物理存储器池新建池“，选择对应的 Mdisk，创建新池：
选择” 卷所有卷/按池划分的卷/按主机划分的卷新建卷”，创建新的卷：
V7000存储相关配置
完成此安装之后，需要设置一个 SDD 路径选择策略算法，该算法可以帮助您提高多路径配置的和受支持的存储设备的性能，并且可以让路径故障对应用程序透明。
以下路径选择策略受到支持：∙仅故障转移 (fo)由于 I/O 错误，在路径发生故障之前，应将所有 I/O 操作发送至相同（首选）路径。
然后为后续的 I/O 操作选择一个备用路径。
∙负载平衡 (lb)通过评估适配器上每个路径连接的负载来选择用于 I/O 操作的路径。
负载是同时进行的 I/O 操作数量的函数。
如果多个路径具有相同的负载，则会从这些路径中随机选择一条路径。
负载平衡模式还会并入故障转移保护。
负载平衡策略也称为优化策略。
∙负载平衡顺序 (lbs)该策略与用于顺序 I/O 优化的负载平衡策略相同。
此负载平衡顺序策略也称为优化顺序策略。
这是默认设置。
∙轮循 (rr)从没有用于最后一个 I/O 操作的路径中随机选择用于每个 I/O 操作的路径。
如果设备只有两个路径，那么 SDD 会交替使用这两个路径。
∙轮循顺序 (rrs)该策略与针对顺序 I/O 进行优化的轮循 (round-robin) 策略相同。
您需要为您的环境选择最适当的 SDD 路径选择策略，并使用以下方法应用该策略。
注意：在更改算法之前，您需要将磁盘保留策略更改为 no_reserve。
# chdev -l hdiskX -a reserve_policy=no_reserve用于设置不同的 SDD 路径选择策略算法的命令的示例# chdev -l hdiskX -a algorithm=load_balance_port# chdev -l hdiskX -a algorithm=round_robin您可以使用 pcmpath query device 命令查看磁盘策略。
图 2. 轮循算法您也可以使用 nmon 工具查看 FCS 适配器使用情况。
该工具可帮助您了解正在使用哪些 FCS 适配器。
IBMStorwizeV7000全资料解析
IBMStorwizeV7000全资料解析IBM Storwize V7000最全资料解析存储效率五项技术集于一身，IBM Storwize V7000中端存储新品解析最近IBM 新一代中端虚拟存储产品Storwize V7000在业内反响挺大，Storwize V7000是一款被IBM寄予厚望的产品，在发布这款新品之前，IBM特意为其制作了具有强烈神秘感的广告，并宣称这将是“改变存储游戏规则”的产品，确实，作为IBM全新的中端磁盘存储系统，围绕在Storwize V7000身上的谜题确实是太多了。
因此我特意整理了一些资料分享给大家，打造史上最全的V7000汇总贴。
IBM Storwize V7000有三个第一，1.第一个IBM自主研发的中端存储2.0产品，架构上突破传统，吸收了DS和IBM 横向扩展架构XIV 的精华；2.第一次集“EasyTier自动分层”“虚拟化”“精简调配”三大存储效率于一身的磁盘列阵，使IBM Storwize V7000当之无愧的成为更加看重存储效率的中端存储市场上的杀手级产品；3. 第一次把DS8000的RAID技术和自动分层，SVC虚拟化架构以及XIV的赏心悦目的管理界面等高端存储上的技术用在中端存储上，拥有企业级阵列的功能和使人眼前一亮的GUIIBM Storwize V7000技术参数IBM Storwize V7000目前是一个双控制器存储阵列（将来计划括充至8个控制器，与IBM SVC类似），每个控制器都利用了一个四核Jasper Forest（Nehalem）处理器来驱动虚拟化的三级后端存储，采用了SAS连接。
该系统采用了SVC（SANVolume Controller）代码堆栈，以及储存资源随需分配、虚拟化和数据保护等功能。
并添加了IBM 高端存储XIV的用户图形界面以及DS8000 RAID以及EasyTier功能。
可以说是集大成于一身。
V7000的主机接口是8Gbit/s的Fibre Channel，可选加四个1Gbit/E的iSCSI，iSCSI为原生支持。
IBM V7000配置实施文档
IBM Storwize V7000 配置实施文档
2011/5/5
一、设备
二、IBM Storwize V7000相关术语
1)Mdisk（被管理的磁盘）：Storwize V7000管理到的磁盘单元
2)StoragePool(池):由一个或多个Mdisk组成存储空间
3)Volumes(卷)：由存储池中创建的存储空间，提供给主机使用（lun）
三、实施步骤
1)安装上架、连线、加电正常
2)V7000的配置中有一个USB Key，该Key是用来管理V7000存储所需的，
将USB Key插入工程师的PC笔记本上，对其设置管理IP，设置完成后，
会在该Key中生存一个配置文件，再将该Key拔出，插入V7000控制器
上对应的管理以太网口上面的USB口，待V7000配置稳定后，即可通过
设置的IP地址对存储进行管理；
3)打开.exe执行程序，按提示进行IP的设置
4)设置完成后，按下图的提示进行操作
码，用户名和密码在USB Key中有提示：superuser、passw0rd(‘0’为零)：
以自己研究下：。
V7000存储高可用解决方案
V7000存储高可用解决方案(XXX容灾方案建议)容灾参考方案目录第1章 XXXX容灾方案参考 ..................................................................... .. (1)1.1 系统现状 ..................................................................... .. (1)1.2 容灾需求分析 ..................................................................... (1)1.3 容灾参考方案 ..................................................................... (2)1.3.1 总体架构规划 ..................................................................... ............................................... 2 1.3.2 V7000 外部存储虚拟化功能说明...................................................................... ............... 3 1.3.3 V7000 VDM(虚拟磁盘镜像)功能说明 ......................................................................31.3.4 后期存储扩展建议 ..................................................................... ....................................... 4 1.4 系统配置参考 ..................................................................... (4)第2章 V7000存储设备介绍 ..................................................................... .. (6)2.1 IBM V7000存储系统概述 ..................................................................... ..................................... 6 2.2 通过IBM SYSTEM STORAGE EASY TIER增强访问能力 (6)2.3 通过精简调配来优化效率...................................................................... ..................................... 7 2.4 动态迁移避免系统中断运行...................................................................... ................................. 7 2.5 通过复制服务来保护数据...................................................................... ..................................... 8 2.6 管理工具与IBM SYSTEMS DIRECTOR相集成 ..................................................................... .. (10)2.7 高性能SSD支持 ..................................................................... .................................................. 10 2.8 外部存储系统虚拟化 ..................................................................... . (10)第3章存储高可用技术建议 ..................................................................... (12)3.1 存储高可用性的内容 ..................................................................... ........................................... 12 3.2 存储高可用性方案的主要实现方式 ..................................................................... .................... 14 3.2.1 方式一:磁盘设备间数据镜像( 如LVMMirror ) (15)3.2.2 方式二:磁盘设备间数据复制(如PPRC或ERM) (19)3.2.3 方式三:采用SVC或V7000或V7000实现逻辑卷镜像 (21)3.2.4 三种HA方式的比较 ..................................................................... . (23)目录容灾参考方案第1章 XXXX容灾方案参考1.1 系统现状XXXX现有IT系统的现状大致如下图所示。
V7000存储相关配置

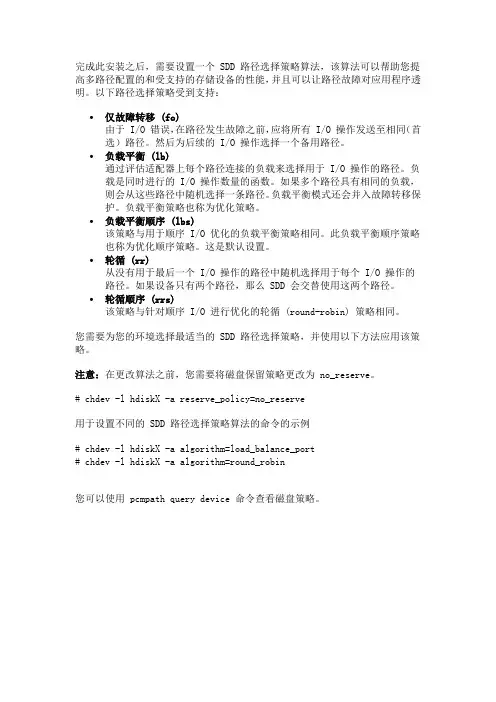

完成此安装之后，需要设置一个 SDD 路径选择策略算法，该算法可以帮助您提高多路径配置的和受支持的存储设备的性能，并且可以让路径故障对应用程序透明。
