CAMERON-全焊接球阀-中文版
阀门培训现场案例--Cameron-(2)
Cameron全焊接T30系列阀门案例
VALVES & MEASUREMENT
案例1
项目地点：山东 阀门信息：18” 400Class 管道介质：成品油 现场问题：阀门在投产初期内漏严重。
RAISING PERFORMANCE. TOGETHERTM
Cameron全焊接T30系列阀门案例
VALVES & MEASUREMENT
案例3
问题： 如何在管道打压期间保证阀座不受1.5倍压力的损坏 ？
RAISING PERFORMANCE. TOGETHERTM
Cameron全焊接T30系列阀门案例
VALVES & MEASUREMENT
案例3
问题： 如何在管道打压期间保证阀座不受1.5倍压力的损坏 ？
Cameron全焊接T30系列阀门案例
VALVES & MEASUREMENT
案例1
处理情况： 经查询相关资料，该批阀门在到货后，进行过单体 打压测试，测试结果显示每台阀门均达到密封标准 。在现场按照《Cameron 安装操作和维护手册》中 的阀门内漏处理办法，进行了处理，但由于阀座软 密封被划伤严重，问题仍无法解决。建议用户购买 新阀。
RAISING PERFORMANCE. TOGETHERTM
Cameron全焊接T30系列阀门案例
VALVES & MEASUREMENT
案例1
问题： 在阀门安装时，如何进行阀座的有效保护？
RAISING PERFORMANCE. TOGETHERTM
Cameron全焊接T30系列阀门案例
VALVES & MEASUREMENT
进口焊接热力球阀参数

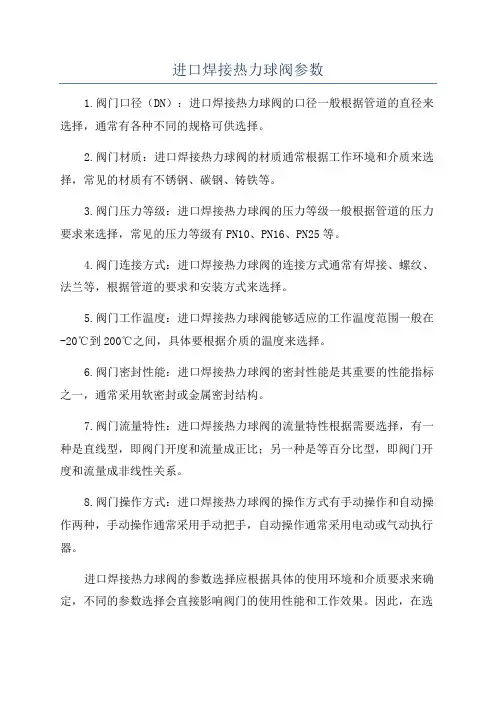

进口焊接热力球阀参数
1.阀门口径（DN）：进口焊接热力球阀的口径一般根据管道的直径来选择，通常有各种不同的规格可供选择。
2.阀门材质：进口焊接热力球阀的材质通常根据工作环境和介质来选择，常见的材质有不锈钢、碳钢、铸铁等。
3.阀门压力等级：进口焊接热力球阀的压力等级一般根据管道的压力要求来选择，常见的压力等级有PN10、PN16、PN25等。
4.阀门连接方式：进口焊接热力球阀的连接方式通常有焊接、螺纹、法兰等，根据管道的要求和安装方式来选择。
5.阀门工作温度：进口焊接热力球阀能够适应的工作温度范围一般在-20℃到200℃之间，具体要根据介质的温度来选择。
6.阀门密封性能：进口焊接热力球阀的密封性能是其重要的性能指标之一，通常采用软密封或金属密封结构。
7.阀门流量特性：进口焊接热力球阀的流量特性根据需要选择，有一种是直线型，即阀门开度和流量成正比；另一种是等百分比型，即阀门开度和流量成非线性关系。
8.阀门操作方式：进口焊接热力球阀的操作方式有手动操作和自动操作两种，手动操作通常采用手动把手，自动操作通常采用电动或气动执行器。
进口焊接热力球阀的参数选择应根据具体的使用环境和介质要求来确定，不同的参数选择会直接影响阀门的使用性能和工作效果。
因此，在选
购进口焊接热力球阀时，应根据具体的工艺要求和系统要求，选择适合的参数，以确保阀门的正常运行和使用效果。
全焊接球阀使用说明
全焊接球阀使用说明
一、产品说明
全焊接球阀整体采用无缝钢管焊接成型，避免铸造工艺沙孔带来外部泄漏的情况，全身无螺丝密封的设计，采用全自动机器人焊接，保证焊接质量，小巧轻便，便于保温，节省空间，便于安装，全焊接球阀凭借其本身优越的密封及稳定性，在各领域得到了广泛应用，得到了充分的肯定与认可。
二、应用范围
1、城镇集中供热：大型供热设备输出管线、主干线、各支线、楼宇及单元管网。
2、热交换机组：管道各进出口。
3、空调系统：机组及各支路管道。
4、工业：各种无腐蚀性液体、气体管道。
三、产品特点
1、阀体结构整体式焊接，不会有外部泄漏现象。
2、阀座由PTFE密封环及弹簧组成对压力和温度的变化适应能力强，在使用范围内不会产生任何的泄漏。
3、阀件全部采用的是数控机床加工，保证各零部件精度。
4、阀杆的防渗漏结构、多层密封，确保无泄漏。
5、阀杆操作轻便，无卡阻现象。
6、数控压装设备组装，扭矩轻，密封可靠。
四、主要零部件及材质。
全焊球阀介绍_图文
焊接方法：
全焊接球阀阀门焊接采用自动埋弧焊。
实景拍摄
装备篇
自贡高阀引进意大利新比隆全自动焊接中心
焊机总图：
焊机组成：龙门架1套，焊接机头2套，多特性电源2套，焊剂输送回收系统1套， 防窜动型可调式滚轮架1套，电器控制箱1套
焊机产地：上海
焊枪工作示意图：
焊接坡口示意图：
全焊接球阀应用现状
（1）目前，32〞以下（含32〞）高压全焊接国产球阀在中石油长输油气 管道已实现国产化；32〞以上的大口径全焊接阀门由于设计和制造技 术难度大，无实际应用业绩等，主要还是从美国喀麦（CAMERON）、 意大利格罗夫（GROVE）、德国舒克和伯马公司等引进。
（2）2005年西气东输公司采购了自贡阀门厂生产的 2台40〞class600 全焊接球阀用于金坛储气库工程（备用）；2006年采购了19台24〞 class400 全焊接球阀，用于淮武支线管道工程，其中16台用于线路 截断阀室，３台用于站场工艺管线。
中缅原油管线（2009年6月16日签署备忘录）
气、油双线并行，采取先建输气管线、再建输油管线的方式进行。 中缅原油管道起于缅甸西海岸的实兑港，经云南边城瑞丽抵达昆明，全长
约1100公里，预计总投资约25亿美元。 中缅天然气管线会继续延伸至广西南宁，全长2806公里，计划将在今年9
月开工建设，并于2012年试通气，年输气能力120亿立方米。
圆筒形全焊接球阀总体结构
球形全焊接球阀采用枢轴式固定球 结构，阀体采用紧凑型的球形锻件焊接而 成。阀门的重量小。
阀杆在全压差动作过程中除受操作扭 矩外，还受到来自管线压力所产生的弯曲 载荷。
圆筒形全焊接球阀采用支撑板式固定球结构， 阀体采用圆筒形锻件焊接而成。阀门的重量较大。
全焊接球阀的装配方法
全焊接球阀的装配方法全焊接球阀是一种常用的管道阀门，它采用焊接技术将阀体和阀座连接在一起，具有结构简单、密封性能好、耐高温高压等优点。
下面将介绍全焊接球阀的装配方法。
全焊接球阀的装配需要准备好所需的零部件，包括阀体、阀座、球体、阀杆、密封圈、弹簧等。
这些零部件在装配前应进行清洗和检查，确保无损坏和杂质。
接下来，将阀座安装在阀体上，通过螺纹连接或焊接固定。
确保阀座与阀体之间的连接紧密，并使用扳手或焊接工具进行固定。
然后，将球体放入阀座中，确保球体能够自由旋转。
球体与阀座之间的密封面应平整，无划伤或凹凸不平的情况。
如果有需要，可以更换球体或阀座以保证密封性能。
接下来，将阀杆插入球体，并通过螺纹连接或焊接固定。
确保阀杆与球体之间的连接牢固，并使用扳手或焊接工具进行固定。
阀杆的长度应适当，以确保阀门的操作灵活性和密封性能。
然后，将密封圈安装在阀座和阀体之间的密封面上。
密封圈应选用耐高温、耐高压的材料，并确保密封圈与阀座、阀体之间的接触紧密，无缺陷和松动。
根据需要，将弹簧安装在阀杆上，用于提供阀杆的弹性支撑力。
弹簧的选择应根据阀门的工作条件和要求进行，确保阀门的操作灵活性和密封性能。
在装配过程中，需要注意以下几点。
首先，要严格按照装配顺序进行操作，确保每个零部件的正确安装和连接。
其次，要注意阀门的操作方向，确保阀杆与球体的连接正确，以便实现阀门的开关功能。
此外，还要注意各个零部件的配合间隙，确保阀门的密封性能和操作灵活性。
通过以上装配方法，可以完成全焊接球阀的装配工作。
在实际操作中，还需注意安全措施，如佩戴防护手套和眼镜，避免受伤。
此外，装配过程中如遇到问题，应及时停止操作，并寻求专业人员的帮助和指导。
全焊接球阀的装配方法包括准备零部件、安装阀座和球体、连接阀杆、安装密封圈和弹簧等步骤。
在装配过程中要注意操作顺序和安全措施，以确保阀门的正常运行和使用效果。
希望以上内容能对全焊接球阀的装配方法有所帮助。
Cameron(中文)
TYPE 34 TC 金属对金属
• • • • • • • •
A – 阀体与末端连接 B – 阀球 C – 碳钨涂层 D – 阀座 E – 密封脂密封 F – 三角密封 G – 金属支撑弹簧 H – 板式弹簧
特色与优点
• 双关断与排放 • 内部限位 • 二级阀座密封 • 旋转阀座
双关断与排放
• 无论是在全开位还 是全关位阀腔都可 排放 • 优点
– 可测试阀门密封性 能 – 可更换阀杆密封
Valve Open
– 保护下游作业
Valve Closed
内部限位
• 限位与阀门一体 • 限位观察孔
– 阀杆大于或等于３” – 8” 1500# & 2500# – 12” & 更大
二级阀座密封
• 所有二级密封脂注口 都是相同标准规格 • 所有的注脂口边都有 一个埋地检查口A buried check is located at all injection ports
旋转阀座 • 14”及以上的Type 31 都 是标准的 Standard on 14” and larger Type 31 valves • 每次关阀时阀座旋转15度 Seat rotates 15 degrees as the valve closes • 优点
– 减少阀座磨损 Distributes seat wear – 防止阻塞 Prevents build up – 便于维护 Assists in maintenance
重量优点
尺寸 2” 8” 16” 24” 36” 42”
•
全焊接 44 670 2483 6938 19998 29920
分体式 79 975 3375 8700 23400 35900
CAMERON 阀门资料
Frac Manifold SystemsThe solution for improving the efficiency and economics of the fracing processcapacity, nominal size of the frac lines, nominal bore size of or at any angle, and will typically have one or two gate valves – two is common. One of the gate valves in each run may be actuated to allow for remote and fast control of the manifold with a central control panel, while a second, typically manual valve, may be used as a backup if required.One-leg frac manifold with safety platform for safe access to valvesTwo-leg manual valve and hydraulic valve isolation frac manifold with safety platform for safe access to valvesCameron’s frac manifold design is modular, flexible, and can result in a vast array of possible configurations.3Three-leg manual valve and hydraulic valve isolation frac manifoldTwo-leg manual valve and hydraulic valve isolation frac manifold2-leg vertical frac manifoldAllows for continuous operation of multiple wells, improving utilization of pumping servicesWith the introduction of zip fracing, gate valves assembledinto frac manifolds are exposed to nearly continuous service.frac manifolds are exposed to nearly continuous service, Given the erosive, corrosive, and sometimes sour natureFLS-R-Frac and FLS-DA2-Frac gate valves are designed with these special features:• T rimmed for maximum corrosion and erosion protection • C RA inlay in seat pockets and ring grooves for added protectionflS-r-frac gate valveAt the forefront of our frac valve offering is Cameron’s premium FLS-R-Frac gate valve, based on the widely recognized, field-proven FLS-R ™ gate valve. Designed as a manual valve for high-pressure applications, in all the nominal sizes and pressure classes required in the frac industry and with reliable metal-to-metal seals throughout, the FLS-R-Frac valve has established a global reputation as the ultimate heavy-duty, reliable gate valve for hydro-frac applications. The FLS-R-Frac valve’s design features a ball screw for the upper stem and a lower balancing stem, which combine to substantially reduce break-open and running torques. Another benefit of this premium design is that the gate quickly cycles from the fully-closed to the fully-open position, dramatically reducing exposure to potential erosion and contamination associated with the mid-range position.FLS-R-Frac Gate Valveutilized in order to mitigate turbulence that is known to exaggerate erosion• T wo grease fitting ports are utilized for flushing and greasing the valve body cavityCameron’s FLS-Frac, FLS-R-Frac and FLS-DA2-Frac gate valves are designed with special features.flS-frac gate valveDepending on the size and pressure requirements, Cameron’s FLS-style gate valves may be a better fit in some frac service environments. In these cases, Cameron offers the FLS-Frac valve, based on thefield-proven model FLS but modified for frac service in the same manner as the FLS-R-Frac valve.flS-da2 gate valveFor actuated frac gate valve requirements, Cameron offers the FLS-DA2-Frac gate valve, a gate valve that offers all the same metal sealing features of the FLS-R-Frac with the addition of a double-acting modelDA2 hydraulic actuator. The FLS-DA2-Fracgate valve features fast, positive remote actuation – opening and closing – with a simple design that provides for quick and easy field maintenance.7FLS-DA2-Frac Gate ValveFLS-Frac Gate ValveEquipment is offloaded and checkedfor NORM. Customer and well name are documented. Part number and serial number are verified.Valve is reassembled with qualified parts.Dedicated cells are set up to follow definedQA for frac valves. Technician beginsdisassembly.Valve is tested.Trained inspectors qualify or disqualifycomponents per FracServ procedures.Painted valves are tagged with test tagverifying repair is complete.9lifespan of elastomers and other soft goods in a frac valve.can cause pitting and other frac valve seal surface damage over time.frequently fluctuating pressure coupled with corrosive anderosive service, left unchecked, can damage the structural integrity of a valve’s body.if ignored, the dynamic nature of the frac environment can dramatically shorten the life of flange bolting due to fatigue damage.Sand and other particulate debris left unmonitored can affect the performance of grease fittings over time.Sand, acid, and many other erosive and corrosive elements of a frac job reduce the life of a valve’s gate and seat, if left untreated.real products to the rigors of real high-velocity frac fluid,as well as software simulations using 3D FEA, ABAQUS, Computational Flow Dynamics, and other analytical programs. These simulation exercises are directed at torque and fatigue life prediction, erosion analysis, and testing of other critical service features of flow containment and control equipment utilized in hydraulic fracturing and flowback operations.This testing is a necessary component in the development of Cameron’s in-depth knowledge and understandingof the harsh frac and flowback environment – hands-on knowledge that could not be attained by any other means. The results of these analyses are fed back into the design, manufacturing and service functions of the CameronHydraulic actuated gate valves being gas-testedGate valves being pressure-testedHardness inspection being conducted on seat ring Valve bodies in fixture for machiningValve body in process in gate valve cell Valve cavities going through finish machining processFrac Manifold Case StudyBackgroundWith the combination of horizontal drilling and hydraulic fracturing technologies, shale play drillingand production has taken our industry by storm. The high cost of the frac crew and equipment, however, has a substantial impact on profitability. Failure to fully utilize the time this equipment is onsite is extremely costly.The challengeA major operator working in northeastBritish Columbia challenged Cameron tofind a way to better utilize expensivestimulation resources and to increasethe number of frac intervals conductedeach day. Using the known conventionalpractices at the time they had beenable to average 2 x 200 ton fracsper day.T h e d a ily f r a c co m pl e ti ontr a n s it io n ti m e be tw ee n f r a cresulTsThe daily frac completion rate has risen up to ~ 4 x 200 ton fracs per day, and transition time between frac stages has been minimized.The manifold design is highly modular, and can be easily adapted to virtually any well pad layout. Quick changeout of valves and components allows for off-line repairs. Manifolds are skid mounted complete with platforms and handrails for easy transport and improved safety.Overall, Cameron’s frac manifold has been an operational and an economic success. Equipment performance related to wear or erosion has been outstanding, with as many as 1500 frac cycles conducted with only minimal wear.our soluTionCameron’s frac manifold design allows for essentially continuous utilization of the frac crew. This is accomplished by pre-connecting manifold outlets to multiple frac tree goat heads and directing the output of the manifold to alternating wells as isolation plugs are set and new frac zones are perforated.r a te h a s r is en a n ds ta g es h a s be en m in im iz ed.Surface SyStemSPO Box 1212Houston, TX 77251-1212USATel 1 713 939 2211No. 2 Gul Circle Jurong Industrial Estate Singapore, 629560Singapore Tel 65 6861 3355Queen Street, Stourton West Yorkshire LS10 ISB Leeds, LS10 1SB England, UK Tel 44 113 270 1144Learn more about Cameron’s frac manifolds at:©2013 Cameron | FracServ, FLS, FLS-R and Monoline are trademarks of Cameron. | SWP 2.5M 5/13 AD00281SURHSe Policy StatementAt Cameron, we are committed ethically, financially and personally to a working environment where no one gets hurt and nothing gets harmed.HE A L T H S AF E T Y A N DE N V I R O N ME N T AL E X C E L L E N C E C AM E R O N。
卡麦龙(库伯)产品介绍
美国卡麦龙(原库伯)离心式压缩机CAMERON（FORMERLY COOPER）专业离心机生产厂家，离心机“业界技术领跑者”，依美国石油协会API672标准之精髓设计制造。
CAMERON（FORMERLY COOPER）自50年代开始生产至今，其第一台离心机目前仍服役于美国著名的‘施乐’公司，距今已有50年历史。
专业的技术、长期的市场考验，所以值得信赖。
使用CAMERON（FORMERLY COOPER）压缩机，体验品牌的价值和品质。
在美国纽约证券交易所挂牌的卡麦龙集团(Cameeron)(股票代号：CAM)，是在石油、天然气、工业设备和相关服务方面具有全球领先地位的大型跨国企业，遍布全球的一万五千多名员工，为客户提供优质的产品和服务。
Cameron集团在世界各地都有业务，2/3的收入来自大约115个国家，几乎包括全世界每一个主要石油产地。
公司的工厂和服务中心遍及美国、加拿大、墨西哥、委内瑞拉、巴西、阿根廷、英国、挪威、荷兰、爱尔兰、法国、德国、奥地利、阿塞拜疆、哈萨克、尼加拉瓜、埃及、阿联酋、阿曼、巴基斯坦、新加坡、澳大利亚等。
分为三大部门油气开采和生产部主要为陆地和海洋钻采和生产提供各种钻采设备、流体控制系统、油气分离和处理系统，如防井喷器等。
1995年由Cooper Industry Company的一个部门形成。
下设3个子部门Cameron Controls,Cameron Actuators和Cameron Willis。
主要生产:陆上井口，陆上钻井，海上井口，海上钻井，闸阀，截断阀，防喷器，水下采油树，并负责整个系统的集成及检测服务。
防喷器等井控设备制造基地设在美国的休斯敦、Bervick和法国的Bezier。
Cameron为全球用户提供Camserv品牌的全面的卓越的售后服务体系，使每个用户可以放心使用Cameron的产品并得到及时满意的全天候24小时服务。
阀门和计量部致力于石油、天然气、能源以及冶金领域流体控制设备，始终保持着业界先驱的地位和行业最具竞争力的企业。
卡麦隆球阀手册
卡麦隆31 型全焊接球阀目录主要部件－－－－－－－－－－－－－－－－－－－－－－－－－4 概述－－－－－－－－－－－－－－－－－－－－－－－－－－－5 名牌信息－－－－－－－－－－－－－－－－－－－－－－－－－5 储存－－－－－－－－－－－－－－－－－－－－－－－－－－－5 安装－－－－－－－－－－－－－－－－－－－－－－－－－－－6 维护－－－－－－－－－－－－－－－－－－－－－－－－－－－9 故障分析－－－－－－－－－－－－－－－－－－－－－－－－－11主要零部件图图 1-库博.卡麦隆阀门卡麦隆全焊接球阀详细部件图序号描述1 键轴2 上部阀杆密封3 上部阀体4 下部阀杆密封5 阀杆轴承6 拨齿7 阀球8 阀座环9 唇式密封10 联接端部11 下部阀体卡麦隆全焊接球阀概述享誉石油行业的库博. 卡麦隆全焊接阀门将轻质高强的锻钢阀门部件与紧凑的球型阀体设计完美的集于一体。
卡麦隆全焊接阀门满足ANSI 150至2500 （PN20 至PN420) 及API2000至5000 标准的要求。
阀体采用锻钢材质,保证了材料内部金属晶粒的均匀一致和经久耐用。
卡麦隆全焊接球阀的尺寸范围为2”至56”（DN50至1400）。
设计满足苛刻条件并免维修的卡麦隆全焊接阀门可在多种工况选用。
卡麦隆全焊接阀门的独特设计使其同时具有最大的强度和最小的重量，并具有最大的抵抗管线压力和应力的能力。
紧凑球型的阀体设计避免了阀体联接法兰，因此减小了阀门外形尺寸和根除了泄漏渠道。
名牌信息：序号名牌标记际尺寸2 允许使用的最高温度3 允许使用的最低温度4 阀体材料代号5 阀座内嵌材料代号6 部件装配编号7 阀门长度设计磅级8 API9 最大工作压力10 最大操作压力11 阀座材料代号12 阀球材料代号13 阀门装配系列号14 生产日期图 2 -阀门铭牌存放阀门可存放期限为六个月。
在存放期间请注意以下事项：1. 确保阀门对焊端面保护盖在原位2. 如果阀门还未安装操作机构且阀门又需存放在室外, 则裸露的阀杆延长杆或阀杆匹配器应加保护盖以防雨淋。
美国卡麦隆管线球阀产品样本
C O O P E R C A M E R O N V A LV ES1FULLY WELDED BALL VALVESFULLY WELDED BALL VALVES Features and Benefits2, 3, 4 & 5In-line Sphere Launcher 6Accessories7HOW TO ORDER Standards, Specifications and Materials 8 & 9DIMENSION TABLES ASME/ANSI Class 150 through 2500 (PN 20 through PN 420)Full and Reduced Port Valves 10 through 22API PRESSURE CLASS 2000, 3000 & 5000 psiFull and Reduced Port Valves23, 24 & 25DIMENSION TABLES Actuator Mounting Information26, 27 & 28PIPING INFORMATION TABLE29TERMS AND CONDITIONS30 & 31TRADEMARK INFORMATION32TABLE OF CONTENTSTC145512/04 NP-5MP卡 麦 隆 全 焊 接 球 阀目 录全焊接球阀特点和优点管线清管球发送器附件如何购买卡麦隆球阀标准、规范和材料尺寸表全通径和缩径球阀全通径和缩径球阀尺寸表执行机构安装信息管子尺寸表商务条款和条件商标信息CO O P E R C A M E R O N V A LV E S2Engineered for heavy duty, maintenance free performance, the Cameron Fully Welded Ball Valve is commonly selected for a number of applications, including:One of the most trusted valves in the petroleum industry, itcombines the strength of forged components with a lightweight and compact spherical design.Cameron Fully Welded Ball Valves satisfy ASME/ANSI 150 through 2500 (PN 20 through PN 420) and API 2000 through10,000 standards. Made of forged steel to assure uniform fine grain structure and toughness, they may be specified in sizes from 2 in. to 56 in. (50 mm to 1400 mm).FEATURES AND BENEFITS•Gas transmission •NGL plants •Products pipeline •NGL pipeline •Measurements skids •Compressor stations •Dehydration systems •CO services 2•Gas separation systems •Offshore •Natural gas storage •Subsea•Dryer serviceTC145512/04 NP-5MFULLY WELDED BALL VALVES卡 麦 隆 全 焊 接 球 阀特 点 和 优 点石油工业中最值得信赖的阀门， 综合了轻型锻件的强度和紧凑式球形设计。
2.CAMERON全焊接球阀技术特点
Cameron 全焊接球阀技术特点综述 1. Cameron 阀体结构特点: 1.1阀体为真正的全焊接结构, Cameron 球阀的设计思想是来源于长输管道用户的实际需求。
即：线路球阀应和管道有同 样的使用寿命。
对于普通的分体式球阀或顶装式球阀，由于阀体结构上螺栓连接的存在， 使阀门存在外部可能的泄漏渠道。
当埋地使用时，由于腐蚀、管道对阀门的弯曲力等原因 其可靠性很难保证。
因此，长输管道线路埋地球阀使用全焊接球阀已成为业界广泛认可的 基本要求。
正是基于这种要求，Cameron 公司打破了普通球阀设计的局限从零开始成功的 研制并生产了世界上第一台全焊接球阀。
虽然其他厂家后来也陆续生产了焊接式球阀，但 都是修改原设计，简单地将原来普通分体式球阀的螺栓连接部分改为焊接而阀顶部的压盖 仍使用螺栓与阀体联接,这种结构不仅会增加泄漏渠道而且会使阀杆的支撑强度降低,增 加操作扭矩。
(见附图 1.1 和 1.2)。
图 1.1 其他焊接球阀的阀体顶部压盖 1.2 阀体采用真正的圆球形结构,图 1.2 Cameron 球阀全部是焊接结构正如上述 1.1 条所述，由于管线施工、地壳运动等原因，线路埋地球阀会受到来自管道的 弯曲、挤压等各种力。
同时需承受管线内介质的压力。
在所有几何体中，只有球形是对各 种受力均适合的几何形状。
因此 Cameron 球阀采用独有的球形形状。
从而使阀体强度最大、 重量最轻和受力最为均匀。
经耐压试验和抗弯曲试验证明 Cameron 球阀不仅可承受最大工 作压力的 6-7 倍（见附图 1.3）而且抗弯曲和抗挤压(见附图 1.4)。
图 1.3 Cameron 球阀的阀体承压 6-7 倍最大 工作压力的试验图 1.4 弯矩试验和挤压试验中 管道折断而阀门完好11．3 阀体采用全锻钢材质，避免了铸造材料可能带来的砂眼，疏松气孔等缺陷，阀体强度高，重量轻，即使大口径阀门也无需任何阀体支承。
2. 阀座结构特点 2.1 旋转阀座设计， 为最大限度地延长球阀的使用寿命，Cameron 公司的技术人员深入地研究了球阀损坏的各 种原因。
卡麦隆全焊接球阀
关阀限位
11/3/2011
18
卡麦隆球阀调试⑶
－－执行器/拨叉限位设定
⑴ 确认设定时允许操作阀门 ⑵ 松开开位限位螺母 ⑶ 逆时针旋转开位限位螺栓 ⑷ 手动（或用氮气瓶充气）全开阀门 ⑸ 检查阀位到达全开（全关）位置 ⑹ 顺时针旋转开位限位螺栓直至限位 螺栓与拨叉面相触，拧紧开位限 位螺母。如果螺栓不能转动，则 重复步骤⑶～⑹步 限位螺栓与拨叉面相触后， 切勿继续旋转限位螺栓 ⑺ 重复以上步骤设定关位限位，然后 旋转阀门至全开或 全关位置
故障原因
故障排除
齿轮箱/执行器故障 调节、维修或更换齿轮箱/执行器 阀球抱死 阀杆螺栓或螺母过 紧 清洗阀座 适当调节螺栓或螺母 切勿超过阀门允许的扭矩值
11/3/2011
34
谢谢大家!
11/3/2011
35
卡麦隆球阀是具有在带压情况下双关断 检查维护功能的阀门。无论阀门处于开 或关位，上下游压力均可通过阀座环与 阀腔隔离，阀腔可通过阀体排放口放空 或排放。当需要对阀门进行维护时，请 遵照以下步骤进行： 确保穿上合适的安全服装， 并遵循安全 守则。否则可能会伤害本人或他人。
11/3/2011 30
维护步骤（2）
11/3/2011 26
清洗液、密封脂用量表（1）
阀门尺寸 2” 3” 4” ” 6” 8” 10” 12” 14” 16” 18”
11/3/2011
每个阀座注入量（oz） 1 1 2 2 3 3 5 5 6 9
每个阀座注入量（cm3） 25 35 50 65 80 90 135 155 70 265
11/3/2011
17
卡麦隆球阀调试⑵
－－执行器/叶片式旋转油缸限位设定
关阀限位 ⑴ 确认设定时允许操作阀门 ⑵ 松开开位限位螺母 ⑶ 顺时针旋转开位限位螺栓 ⑷ 手动全开阀门 ⑸ 检查阀位到达全开（全关）位置 ⑹ 逆时针旋转开位限位螺栓直至执 行器限位块和叶片面相触，拧紧 开位限位螺母。如果螺栓不能转 动，则重复步骤⑶～⑹步 执行器限位块与叶片面相触后， 切勿继续旋转限位螺栓 ⑺ 重复以上步骤设定关位限位，然 后旋转阀门至全开或 全关位置 开阀限位 开阀限位
PERAR全焊接球阀安装操作维护手册中英文版
TM
Checked
M.P
Approved G.P. MM-IE-02-002
2.0 INSTALLATION AND OPERATION
Sheet 2 of 11
2.1 Installation
2.1.1 2.1.2 2.1.3
Be sure that the valve is in the "OPEN" position. Remove the flange covers. Install the valve on the pipework. Strictly avoiding any operation of the valve until cleaning of pipework is complete.
6.1 Rotate the ball (Pos.04) in closed position. 6.2 Unscrew the stem key cap screw (Pos.69) and remove the stem key (Pos.70).
Then unscrew the adapter plate nuts (Pos.17a) and remove the adapter plate (Pos.99). 6.3 Unscrew the gland plate nuts (Pos.17a) and remove the gland plate and
“WB Std.” TYPE
ܼ⛞䯔ԧᅮ⧗ᓣ⧗䯔“WB Std”ൟ ᅝ㺙ǃ᪡㓈ᡸݠ
INSTALLATION, OPERATION AND MAINTENANCE MANUAL FOR TRUNNION BALL VALVE “WB Std” TYPE
Cameron球阀安装、操作维护作业指导书
一、存放阀门可存放期限为六个月。
在存放期间请注意以下事项：1、确保阀门对焊端面保护盖在原位；2、如果阀门还未安装操作机构且阀门又需存放在室外，则裸露的阀杆延长杆或者阀杆匹配器应加保护盖以防雨淋。
3、如需长期存放，阀门应涂防腐剂并且端面加保护盖。
卡麦隆一程手册 476B 中提供了如何长期存放卡麦隆阀门的说明，请向当地的库博.卡麦隆阀门代表处索取。
二、安装1、阀门吊装1)应采用正确的方式吊装阀门，使阀体支撑负荷。
警告：其它凸出部件上，支耳和阀门端颈为系吊链的正确位置，请切勿将吊链系于手轮、齿轮箱或者执行器。
2)如果阀门上装配有吊耳，则应用吊耳吊装阀门。
3)在吊装阀门期间应使阀门端部保护盖保持在原位，惟独当阀门安装完毕后，才可移去保护盖。
警告：在吊装时，请注意保护阀门端面及阀门配件不受损坏，否则将导致阀门受损。
2、阀门位置：卡麦隆球阀可安装在任何位置，阀门的任何一端均可作为上游端。
3、阀球的保护：如果在阀门安装时，阀门必须保持在关位，请将暴露在外的阀球表面涂上油脂，这样可保护阀球不被飞溅的焊渣损坏。
警告①：在安装阀门时阀球应保持在全开位，否则将导致阀门的损坏。
警告②：请勿长期将阀门放置在半开位状态。
警告③：对无接管的对焊联端阀门，请切勿在阀球关位安装阀门。
4、阀位观察孔对3”及以上阀杆尺寸的阀门，当把管塞和安全塞从适配法兰上移去，即可观察到与阀门限位有关的键轴限位的位置。
当在开位观察孔中观察到键轴限位扣与阀位限位相重叠时，阀门处于全开位。
当在关位观察孔中观察到键轴限位扣与阀位限位相重叠时，阀门处于全关位。
5、安装齿轮箱/执行器：请按照以下说明安装阀门齿轮箱或者执行器。
1)确认阀门已处于全开或者全关位置及执行器适配的位置。
2) 根据阀杆及齿轮箱/执行器安装工具的不同，执行器有多个安装位置是可能的。
如果是这种情况，应首先确定客户希翼的手轮或者执行器控制盘的方位，然后一次进行安装 (推荐阀表面使用一薄层润滑剂)3)一旦操作器(执行器)安装完毕，应用螺栓固定执行器。
