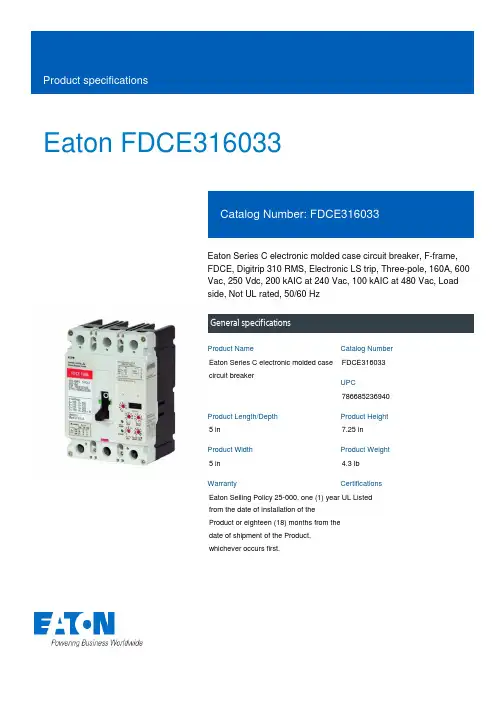

Eaton FDCE316033Eaton Series C electronic molded case circuit breaker, F-frame, FDCE, Digitrip 310 RMS, Electronic LS trip, Three-pole, 160A, 600 Vac, 250 Vdc, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, Load side, Not UL rated, 50/60 HzGeneral specificationsEaton Series C electronic molded case circuit breakerFDCE3160337866852369405 in7.25 in 5 in 4.3 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.UL Listed Product NameCatalog NumberUPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCertificationsNot UL ratedSeries C100 kAIC at 480 Vac 200 kAIC at 240 VacFFDCE50/60 HzComplete breakerLoad side600 Vac, 250 Vdc160 AElectronic LSThree-pole Application of Tap Rules to Molded Case Breaker TerminalsUL listed 100%-rated molded case circuit breakersApplication of Multi-Wire Terminals for Molded Case Circuit BreakersPower metering and monitoring with Modbus RTU product aidCircuit breaker motor operators product aidMulti-wire lugs product aidMotor protection circuit breakers product aidCurrent limiting Series C molded case circuit breakers product aidPlug-in adapters for molded case circuit breakers product aid StrandAble terminals product aidMOEM MCCB Product Selection GuideCounterfeit and Gray Market Awareness GuideBreaker service centersMolded case circuit breakers catalogEaton's Volume 4—Circuit ProtectionF-frame Molded Case Circuit Breaker DrawingTime Current Curves for Series C® F-Frame Circuit BreakersInstallation Instructions for Series C F-Frame Circuit Breakers Installation Instructions for EHD, EDB, EDS, ED, EDH, EDC, FDB, FD, HFD, FDC, HFDDC Circuit Breakers and Molded Case SwitchesCircuit breakers explainedCircuit Breakers ExplainedSeries C J-Frame molded case circuit breakers time current curvesF-Frame 310+ Molded-case circuit breakers 15-225AMOEM MCCB product selection guideSeries C G-Frame molded case circuit breakers time current curves Eaton Specification Sheet - FDCE316033Series C F-Frame molded case circuit breakersSpecial featuresSeriesInterrupt ratingFrameCircuit breaker type Frequency ratingCircuit breaker frame type TerminalsVoltage rating Amperage RatingTrip TypeNumber of poles Application notesBrochuresCatalogsDrawingsInstallation instructions MultimediaSpecifications and datasheetsEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

智觉模具保护器说明书

智觉模具保护器说明书

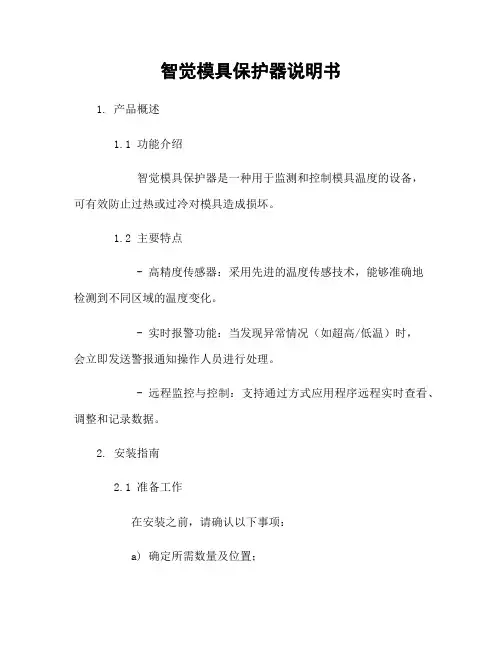

智觉模具保护器说明书1. 产品概述1.1 功能介绍智觉模具保护器是一种用于监测和控制模具温度的设备,可有效防止过热或过冷对模具造成损坏。

1.2 主要特点- 高精度传感器:采用先进的温度传感技术,能够准确地检测到不同区域的温度变化。

- 实时报警功能:当发现异常情况(如超高/低温)时,会立即发送警报通知操作人员进行处理。

- 远程监控与控制:支持通过方式应用程序远程实时查看、调整和记录数据。

2. 安装指南2.1 准备工作在安装之前,请确认以下事项:a) 确定所需数量及位置;b) 清理并平整安装表面;c) 确认电源供应是否符合规格要求。

3.使用方法步骤:a)将智觉模具保护器连接至电源,并开启设备。

等待系统自动初始化完成后,可以开始设置参数了;b)根据需要,在APP上选择相应选项来配置您想要达到目标值;c)设置完成后,系统将自动开始监测和控制模具温度。

4.故障排除以下是一些常见问题的解决方法:a) 设备无法启动:请检查电源是否连接正常,并确保供电稳定;b) 温度读数不准确:可能是传感器出现了故障,请联系售后服务进行维修或更换;c) 报警功能失效:请确认报警参数是否正确配置,并检查通知设备(如方式)与智觉模具保护器之间的连接状态。

5. 法律名词及注释- 模具: 在工业生产中用于成型、压铸等过程中所使用的装置。

- 监测: 对某个对象或者环境进行持续性地观察、记录以获得相关信息。

- 控制: 调节并使某物达到预期目标值。

在本文档指对模具温度进行调控操作。

6. 附件1. 安装手册.pdf2. 使用说明书.docx。

模具保护器操作手册(新版)

模具保护器操作手册(新版)
第 10 页 共 29 页 中国厦门伟迪康科技有限公司 TEL:0592-2102891
模具保护器操作说明书
ROI
(P.14)
区域设定,设置检测区域; 登陆基准画面 (P.15) 使其成为确认基准的画像; 设置(P.15) 设定相机拍照延时时间、次数、检测灵敏度; 相机参数 (P.16) 设定相机曝光、增益 基准画面设定(P.17) 设定基准画面灵敏度、忽略、报警点忽略、边缘过滤参数 I/O 设定特殊功能。一般不建议进行设定! 关机 关闭监视主机,关闭后系统不影响成型机正常使用 重启 重新启动监视器 清空 归零统计的模数和通过数 报告 查看历史 50 张的 NG 或 OK 图片 升级 进行对软体升级操作,在厂方提供升级软体后并按厂方电话支持下操
6.关于保管 请不要在多灰尘的温度高, 易结水珠的环境下保管, 否则会造成器具的故障, 绝缘不良。 再使用时请务必点检后在使用,否则可能会引起触电。火灾。
第6页 共 29 页 中国厦门伟迪康科技有限公司 TEL:0592-2102891
模具保护器操作说明书

硬件构成
主机-------------------------------------------------------------------------1 台 触摸屏-----------------------------------------------------------------------1 台 CCD 相机-------------------------------------------------------------------1 台 标准镜头--------------------------------------------------------------------1 台 相机用线缆-----------------------------------------------------------------1 条 相机用机架-----------------------------------------------------------------1 套 电源--------------------------------------------------------------------------1 套 红外照明光源--------------------------------------------------------------1 套 触摸屏线缆------------------------------------------------------------------1 条 1/0 线盒-----------------------------------------------------------------------1 套

SACE Tmax XT 型号的模具式电路保护器产品说明书

SACE Tmax XT 型号的模具式电路保护器产品说明书

—MOLDED C A SE CIRCUIT-BRE AKERS SACE Tmax XTBreak new groundS ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)—A molded case circuit-breaker range that ensures extreme performance and protection features up to 1600A. Designed to maximize ease of use, integration and connectivity. Built to deliver safety, reliability and quality.—Table of contents004 – 005SACE Tmax XT006 – 007Added values008 – 009Key features012 – 013Choosing the right product 014 – 015 Accessories018 – 021Products in detail024 – 025E lectronic trip units—SACE Tmax XTThe right choice: a complete circuit-breaker range for any solutionSACE Tmax XT2SACE Tmax XT5SACE Tmax XT7SACE Tmax XT44S ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)5SACE Tmax XT3SACE Tmax XT1 SACE Tmax XT66S ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCBS)There is a lot more to the range of SACE Tmax XT than what meets the eye, and the benefits for your business are notice-able. To start with, the whole selection and ordering process has been overhauled to make it far easier to get your hands on the parts you need, speeding things up by about 30%. Installation has been simplified to increase user-friendliness, frames have been streamlined to save space, and improved connectivity - such as Bluetooth and Ekip mobile - will save you considerable time. Another additional benefit is the reliable cloud connectivity and overall increase in information available, meaning diagnostics and maintenance are vastly improved, resulting in less downtime. Finally, thanks to the smart power controller concept, overall energy consumption can be reduced by up to 20%.—Added value each step of the way There is more than just a circuit-breaker in the SACE Tmax XT rangeA new generation of molded case circuit-breakers delivering great added value.7Continuous operationOptimuminterfaceSafety and protectionSpeed up your projects OptimizedlogisticsSpace savingSpeed up your projects Easy toinstallContinuous operation EnergyefficiencyCommissioningThe SACE Tmax XT range offers the potential to save serious time. Thanks to simplified installation of frames, integrating the circuit-breakers into a communication network, trip unit settings per-formed via LCD and Bluetooth and Ekip Mobile con-nectivity , you stand to save up to 40% time overall.Diagnostics and maintenanceWith up to 30% more data available on the cloud and ABB unique power controller concept, it is far easier to diagnose problems and carry out necessary maintenance. This helps to prevent faults, restore energy more quickly and avoid any unnecessary charging of utilities.Energy savingThe SACE Tmax XT range comes with the exclu-sive ABB-patented Ekip Power Controller which monitors installation loads and can limit the amount of power consumed at any time. The result is an overall reduction in power consump-tion of up to 20% and lower energy bills. Further-more, you have 1% energy measurement accuracy according to IEC 61557-12.Selection, ordering and handling 30% faster thanks to part numbersreduction (-10%), online configurator (-40% time) and smart packaging (-30% space).A D D ED VA LU ES8S ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)—01 Choose and custom-ize exactly the rightproducts for your needs, based on how you will use them. 10,000 solutions in one click —02 Effective energy management: 20% less power consump-tion with Power Controller enabled —03 Top reliability:Products designed and tested to exceed stan-dard requirements. More than 30 certificationsCloud-connectedTailor-madetechnologyCloud-connectedBeing connected is a key feature of today’s tech-nology and the SACE Tmax XT range of circuit- breakers offers more than just standalone pro-tection. Being considered key elements of an electrical distribution system, Tmax XT circuit- breakers give you the ability to monitor andmanage a wealth of information, easily, wherever you are. So even when on the road, anytime of the day or night, the power of full-access flexi-bility is in your hands.—Being able to monitor everything while being off-site provides a genuine feeling of you being in control at all times.Tailor-made solutionsJust because your project is complex, this does not mean your circuit-breaker setup has to be. All frames from XT1 to XT7 provide a common pro d uct experience that is backed up by a com-prehensive range of accessories with intuitive interfaces and ergonomic design. With maximum Outstanding technologyFlexibility is nothing without performance and the SACE Tmax XT range is able to deal with the most extreme breaking capacities, regardless of operating voltage, application, and environmen-tal conditions. Combined with the most precise electronic trip units in the smallest of frames, this ensures continuity of service and equipment pro-tection at all times.Top-level qualityAlmost a century of research and experience results in highly-reliable, top-level products that are ready to face all future challenges. Products like the SACE Tmax XT range set standards for edge technologies. Safety, product quality and reliability under pressure are fundamental to all ABB prod-ucts and the SACE Tmax XT range is no different.—Break new ground Key features of an outstanding product9—01—03—02—E A S E OF US E A N D I NS TA LL ATI O NMaximum flexibility for every application – SACE Tmax XT sets the new standard for electrical installations.Easy selection, one-size-fits-all accessories and intuitive design pave the way for smart manufacturing of panels and fast upgrades. Even for the most critical projects.12S ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCBS)Heavy duty Basic functionalityThermal-magnetic, Ekip DipEkip Touch/Hi-Touch —• Standard performance• Icu 70kA at 415/480V AC —• Extreme breaking capacity • 200kA at 415V AC• 100kA at 690V AC—Thermal-magnetic• TMF - TMD - TMA - TMG - MF - MAElectronic• Ekip Dip LIG - LS/I - LSI - LSIG -G Dip LS/I - M Dip I - M Dip LIU -M Dip LRIUNo communication/No display —Ekip Touch • LSI - LSIG - G Touch LSIG - M Touch LRIU - + Energy M Ekip Hi-Touch • LSI - LSIG - G Hi-Touch LSIG Full connectivity - Advanced logic - Power managementUniversally compatibleThe world of circuit-breakers is a complex one,yet choosing the right device for your individualneeds has never been simpler thanks to SACETmax XT range. Maybe you are looking for a basicprotection device for a standard distributionplant. Or perhaps you need something morecomplex, such as a device that integrates —Choosing the right circuit-breaker has never been so easyYou consider what you need. We’ll show you what is possible.protection, automation, measuring and commu-nication into a cloud-based supervision system. Whatever you are looking for, with a wealth of customization possibilities and a range of possible solutions depending on the breaking part and trip unit you choose, the power of circuit breakingis firmly in your hands.Possible combinations within the rangeBasic functionalityWhether you are a hotel owner or planning a production line,where you need to consider the overall power voltage over aperiod of time, the whole SACE Tmax XT range offers all thecircuit breaking power you need to keep your business run-ning long into the future.Thermal-magnetic, Ekip Dip – manual operationThis either consists of the standard thermal-magnetic tripunit intended for basic protection or the Ekip Dip trip unit,the first level of electronic trip unit that can provide in-creased accuracy, a wider regulation range, delayedshort-circuit protection and individual trip information.Heavy duty When it comes to heavy duty usage – whether it’s ships, chemical parks, mining, or heavy duty machinery – the SACE Tmax XT2, XT4, XT5 and XT7 frames are designed to work well beyond the normal constraints when you will be pushing the limits of your installation to the maximum.Ekip Touch/Hi-Touch – cloud functionality Once you are working with the XT2, XT4 XT5 or XT7 frames, all activity can be remotely monitored via the cloud thanks to the Ekip Touch/Hi-Touch trip units which send all data to the ABB Ability TM EDCS and can be monitored through smart-phone or tablet whenever and wherever you like.CH O OSI N G TH E R I G HT PR O D U C T13Tmax XT1Tmax XT2Tmax XT3Tmax XT4Tmax XT5Tmax XT6Tmax XT7Basic functionality (Icu@415V<70 kA)Heavy duty (Icu@415V>70 kA)Thermal-magnetic trip units Ekip Dip (standard electronic)Ekip Touch/Hi-Touch (smart electronic)14S ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)—Udipsusam esciis pariamet, que et faci quia conet, sit magnatia dolora esciis pariamet, que et faci solupiste dollorpostem pliqui cum image—AccessoriesExpand the capabilities of the SACE Tmax XT rangeIntegrating circuit-breakers into any installation requires different levels of optimization. Whether physical, electrical, operational or safety-focused, accessories take SACE Tmax XT to the next level.AccessoriesA large range of connections has been conceived to match the most common distribution systems. Auxiliary contacts can provide precise information regarding breaker status and plant conditions, maximizing operator awareness and the overall accuracy of a supervision system. In addition, dif-ferent types of coils and motor operator versions, designed to operate with the most common voltage sources and reduced power consumption, enable the possibility to control all installations remotely. Residual current devices up to 630A, sig-naling modules, installation components (e.g. phase barriers, terminal covers), key-locks and padlocks are just a few examples of the care taken to safeguard appliances and operators alike. Metering15Various accessories are also available:1. Breaking unit2. Trip units3. Front4. Polish plate5. Terminal covers6. Auxiliary contacts7. Key lock8. Service releases9. Communication module10. C onversion kit for plug-in/withdrawable versions11. G uide of fixed part in thewithdrawable version 12. Fixed part - FP 13. Front for lever operating mechanism - FLD 14. Stored energy motor operator - MOE 15. Direct rotary handle - RHD 16. Transmitted rotary handle - RHE 17. Conversion kit RHE > RHS 18. Cable rack 19. Phase separators 20. R ear orientated terminals - R 21. F ront extended spread terminals - ES 22. Front terminals for copper-aluminium - FC CuAl 23. Front extended terminals - EF 24. Residual current release2419162122231761012911723138520151418415ACCE SSO R IE SS ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)—PER FO R M A NCE A N D PROTEC TI O NContinuity of service and equipmentprotection – SACE Tmax XT sets the new standard when extreme breaking capacity is needed. Sharing the same logic, interfaces andfeatures regardless of operating voltageand environmental conditions. Embeddingthe most advanced protection into thesmallest of frames.S ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)SACE Tmax XT1The founderSmall, reliable, versatile. Your reliable partner for all standard applications.At a glance:• Up to 160A• For basic functionalities• Dimensions 76.2x70x130 (WxDxH mm)• Thermal-magnetic trip unit SACE Tmax XT2The aspirerCompact yet powerful. It fits everywhere and is able to deal with all complex tasks. At a glance:• Up to 160A• For heavy duty• Dimensions 90x82.5x130 (WxDxH mm)• Thermal-magnetic, Ekip Dip,Ekip Touch/Hi-Touch18—The SACE Tmax XT range at a glance The world of circuit breaking and circuit protection in your handsThe SACE Tmax XT range takes circuit protection to the nextlevel. Designed to perform at extremely high levels, simpleto install and able to provide increasingly better safety,there is a frame to meet each and every one of your require-ments. From a basic solution for standard applications -such as hotels - through to advanced, heavy-duty applica-tions with cloud connectivity for ships, chemical parks orairports, the new range has got it covered: securely, profes-sionally, reliably.19PR O D U C TS I N D E TA I LSACE Tmax XT4The entrepreneur A forward-thinking, multitasker. It finds solutions for all levels of complexity.At a glance:• Up to 250A • For heavy duty • Dimensions 105x82.5x160 (WxDxH mm)• Thermal-magnetic, Ekip Dip,Ekip Touch/Hi-TouchSACE Tmax XT3The workhorseSmall and experienced. For standardapplications that need few efforts.At a glance:• Up to 250 A• For basic functionalities• Dimensions 105x70x150 (WxDxH mm)•Thermal-magnetic trip unitS ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCBS)SACE Tmax XT5The gamechanger.Compact, extremely powerful and flexible. It shows the world what a circuit-breaker of the future can do, today. At a glance:• Up to 630A• For heavy duty• Dimensions 140x103x205 (WxDxH mm)• Thermal-magnetic, Ekip Dip, Ekip Touch/Hi-Touch SACE Tmax XT6The carpenterBuilt to last. It completes all assignments it has been entrusted with.At a glance:• Up to 1000A• For basic functionalities• Dimensions 210x103.5x268 (WxDxH mm)• Thermal-magnetic, Ekip Dip2021PR O D U C TS I N D E TA I LSACE Tmax XT7 M The motorized superhero The ultimate choice, with motor. It deals with the most heavy-duty demands smoothly.At a glance:• Up to 1600A • For heavy duty • Dimensions 210x178x268 (WxDxH mm)• Ekip Dip, Ekip Touch/Hi-TouchSACE Tmax XT7The superheroThe ultimate choice. It deals with the mostheavy-duty demands effortlessly.At a glance:• Up to 1600A• For heavy duty• Dimensions 210x166x268 (WxDxH mm)•Ekip Dip, Ekip Touch/Hi-TouchS ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)—DATA A N D CO N N EC TI V IT YPlant management of the future – SACE Tmax XT sets the new standard in modern plant and energy management. Access, monitor and control information remotely, anywhere, at any time. Improving efficiency and saving energy.24S ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)—01 All the tools neededto set up a compe-tent and effectiveenergy managementstrategy. 30% moreinformation abouta running system toempower ABB Ability TM P r o t e c t i o n a n di n f o r m a t i o n AccuracyThermal-magnetic trip units Thermal-magnetic trip units are intended for the protection of AC and DC networks. They are a solution for basic protection such as overloads and short-circuits.Ekip Dip trip unitsEkip Dip trip units represent the first level ofelectronic trip unit and are used to protect ACnetworks. Compared to thermal-magnetic tripunits, they can provide increased accuracy, a widerreg ulation range, delayed short-circuit protection,in di v idual trip information and test capa bility.Ekip Touch/Hi-Touch trip units Ekip Touch/Hi-Touch trip units offer state-of-the-art technology for AC-network protection. These trip units integrate a great number of protection and automation functionalities, performed with best-in-class accuracy. Measurement and supervi-sion data can be transmitted both on the local communication network (the most popular com-munication protocols are available) or directly over the Internet. Configuration of the trip unit is extremely user-friendly, mainly on the sizes where a color touchscreen display is available. Furthermore, as operational requirements evolve,for the first time ever customers can downloadnew functions from the ABB Ability Marketplace TM ,choosing among more than fifty different protec-tion, metering and automation functionalities.—Electronic trip units Ekip Dip and Ekip Touch/Hi-Touch The network under controlWhen it comes to accurate protection of the network, you cannot go wrong with Ekip Dip and Touch technology.Trip unit rangeThe protection units available for the SACE Tmax XTrange is organized in three layers, characterizedby increasing performance, interfaces, informa-tion sets and integration functions. Each layerincludes several trip unit versions, designed to match specific application needs such as distribu-tion, generator protection and motor protection.25CampaignS ACE TM A X X T M O L D ED C A SE CI R C U IT-B R E A K ER S (M CCB S)—QUA LIT Y A N D R ELI A B I LIT YAbsolute attention to detail, withstyle – from design to manufacturing, SACETmax XT sets the new standard for edgetechnologies. Almost a century of research and experience means top-level products that areready to face future challenges.© Copyright 2019 ABB. All rights reserved.Specifications subject to change without notice.9A K K 107046A 3308 - 05/2019—ABB SACEElectrification business Smart Power business line 5, Via PescariaI-24123 Bergamo - ItalyPhone: +39 035 395-111go.abb/xt。

模具保护器操作手册(新版)

模具保护器操作手册(新版)
第3页 共 29 页 中国厦门伟迪康科技有限公司 TEL:0592-2102891
模具保护器操作说明书
安全须知
1.关于使用环境,使用条件 本器具是屋内使用的,不可在屋外使用,如果在屋外使用,会引起触电,火 灾。 本器具请在容许温度范围内使用,否则会引起破损,变形,火灾和灯管的破 类 请不要在潮湿和有水的地方使用,否则会引起触电,火灾。 请不要在不安定的场所或易燃物的附近使用,否则会引起掉落,造成火灾, 受伤。 请使用指定的灯管,如果使用指定以外(不合适)的灯管,会造成器具的破 损,灯管的破裂。 请不要在带有强磁界, 强磁场装置的附近使用, 由于电磁波会造成器具工作 错误及动作画像混杂。 本器具内部以电子原件构成, 请在指定条件下使用。 没有严格遵守使用条件, 会造成器具破损,触电,火灾。 请使用指定的照相机座,照明磁力坐。如果选择错误,会造成颠倒,器具的 破损,受伤事故。
6.关于保管 请不要在多灰尘的温度高, 易结水珠的环境下保管, 否则会造成器具的故障, 绝缘不良。 再使用时请务必点检后在使用,否则可能会引起触电。火灾。
第6页 共 29 页 中国厦门伟迪康科技有限公司 TEL:0592-2102891
模具保护器操作说明书

硬件构成
主机-------------------------------------------------------------------------1 台 触摸屏-----------------------------------------------------------------------1 台 CCD 相机-------------------------------------------------------------------1 台 标准镜头--------------------------------------------------------------------1 台 相机用线缆-----------------------------------------------------------------1 条 相机用机架-----------------------------------------------------------------1 套 电源--------------------------------------------------------------------------1 套 红外照明光源--------------------------------------------------------------1 套 触摸屏线缆------------------------------------------------------------------1 条 1/0 线盒-----------------------------------------------------------------------1 套

模理特模具保护器word版

模理特模具保护器word版

模理特模具保护器目录第1章模理特模具监控保护装置介绍1.1、概述1.2、功能简介1.3、产品特征第2章安全上的注意点2.1、安全注意事项2.2、关于安装使用第3章使用前的准备3.1、线缆类的链接3.2、其它使用前的准备第4章操作方法4.1、插入电源4.2、主要项目4.3、条件设定4.4、登录基准影像4.5、区域设定4.6、确认4.7、测试4.8、系统4.9、时间、感度的调整4.10、2台照相机确认功能4.11、扩大表示功能第5章选配功能第6章故障诊断第7章 FK-601规格第8章信号链接图第9章注意事项第1章模理特模具监控保护装置介绍1.1概述国内领先技术、国际先进技术的注塑机模具保护系统。

模具保护器(又称模具监视器或电子眼),模理特模具监视能在一个完整的成型周期内对所关心的模具型腔面进行两次拍照,即一检和二检,通常一检所选择的时机为型开刚刚完成,顶出动作还没有进行的时刻,这时的型腔多附有刚成型出的产品,即有品腔,这时间拍照通常会检出所成型的产品是否不良,是否有留定模的产品;通常二检所选择的时机为顶出回退到位(不使用机械手时)或机械手已到安全区域且顶出回退到位,在合模动作还没有动作之前。

这时的模具型腔不含有成型品,即无品腔,这时拍照会检出是否有未脱落的制品,还能帮助判断镶件、顶杆和滑块的位置或状态是否正常。

当一检失败时,会有报警灯提示,又可以加入不顶出的连锁保护,当二检失败时,也有报警灯提示,并指示注塑机不准合模,这样就有效地保护了模具,避免不必要的损失。

1.2功能简介注塑机运行时,每个周期内昂贵的模具都可能因为残留或滑块错位而有损坏的危险,模具保护器可以防止这些情况发生!最先进的机器视觉技术用来进行检查,自动防止闭模并报警,保护昂贵的模具,避免停机修模,保障交货工期。

主要用途 1. 闭模前进行模穴、模芯、产品残留的确认 2. 滑块位置、顶出返回位置等位置确认 3. 插件插入错误确认 4. 顶出少折断确认 5. 检测产品是否有缺料或毛边产生 6. 检查多穴产品是否缺失 7. 检查多色产品混色是否正确 8. 防止残次品连续出现 9. 减少多余的顶针动作功能特点 1. 多种相机可供选择,分辨率1280X1024,1024X768,752X480,640X512,640X480 2. 任意形状ROI,可适应各种复杂模具和产品 3. 支持任意多个ROI 4. 每个ROI可单独设置灵敏度和传感单元密度 5. 自动ROI生成功能,极大简化检测设置过程 6. 触摸显示屏控制,操作方便 7. 分级密码控制,防止一般操作人员误操作。

Eaton Power Defense 模具型电流保护器PDG14M0025TFFJ的产品说明说明书

Eaton Power Defense 模具型电流保护器PDG14M0025TFFJ的产品说明说明书

Eaton PDG14M0025TFFJEaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Four Pole (100% N), 25A, 65kA/480V, T-M (Fxd-Fxd) TU, Standard Line and Load (PDG1X4T125)Eaton Power Defense molded case circuit breakerPDG14M0025TFFJ 78667923107476 mm 139.7 mm 101.6 mm 2.22 kg Eaton Selling Policy 25-000, one (1) year from the date of installation of theProduct or eighteen (18) months from thedate of shipment of the Product,whichever occurs first.RoHS Compliant UL 489CCC MarkedIEC 60947-2CSAProduct NameCatalog Number UPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCompliancesCertifications25 AComplete breaker 1Four-pole (100% N)PD1 Global Class AT-M (Fxd-Fxd) TU600 Vac600 V100% neutral protection Standard Line and Load65 kAIC at 480 Vac100 kAIC @240V (UL)70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 35 kAIC Icu @250 Vdc100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC) 65 kAIC @480V (UL)25 kAIC @600V (UL/CSA)35 kAIC Icu @125 Vdc Eaton Power Defense MCCB PDG14M0025TFFJ 3D drawingConsulting application guide - molded case circuit breakersPower Defense technical selling bookletPower Defense brochurePower Defense molded case circuit breaker selection poster Power Defense molded case circuit breakers - Frame 1 product aidMolded case circuit breakers catalogPDG1 CSA certificationPDG1 UL authorizationPDG1 CCC certificationAmperage RatingCircuit breaker frame type FrameNumber of poles Circuit breaker type ClassTrip TypeVoltage rating Voltage rating - maxProtection TerminalsInterrupt rating Interrupt rating range 3D CAD drawing package Application notes BrochuresCatalogsCertification reportsEU Declaration of Conformity - Power Defense molded case circuit breakersInstallation instructionsPower Defense Frame 1 Instructions - IL012152ENPower Defense Frame 1 UL Global variable depth rotary handle mech installation instructions - IL012308ENPower Defense padlockable handle lock hasp top off only installation instructions - IL012226ENPower Defense Frame 1 UL Global Multi-wire Terminal Load Side Aluminum Cat Number PDG1X4TA1253W Instructions - IL012199EN Power Defense Frame 1 UL global terminal shield cover IP30 4P -IL012175ENPower Defense Frame 1 UL global handle block padlockable -IL012178ENPower Defense Frame 1 UL global interphase barrier instructions -IL012313ENPower Defense Frame 1 UL global box terminal (steel) 125A 4P -IL012165EN H04Power Defense Frame 1 UL global DIN rail adapter 2, 3, 4-pole -IL012185ENPower Defense Frame 1 UL global screw terminal end cap kit 125A 4P - IL012164ENPower Defense Frame 1 UL global interphase barrier - IL012176EN Power Defense Frame 1 UL global handle block padlockable off only - IL012179ENPower Defense Frame 1-2-3-4 IP door barrier assembly instructions -IL012278ENPower Defense Frame 1 UL global DIN rail adapter three or four pole - IL012186ENPower Defense Frame 1 UL global Padlockable Handle Lock Hasp -IL012225ENPower Defense Frame 1 UL global handle block non padlockable -IL012177ENPower Defense Frame 1 UL Global Multi-Wire Terminal Load Side Aluminum Cat Num PDG1X4TA1256W Instructions - IL012200EN Power Defense Frame 1 UL global lock padlockable handle haspIL012180ENPower Defense Frame 1 UL global tunnel terminal (aluminum) 125A 4P - IL012166EN H04Power Defense Frame 1 UL global screw terminal end cap kit metric 125A 4P - IL012172ENInstallation videosPower Defense Frame 1 UL Global Aux, Alarm, ST and UVR AnimatedEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmediaInstructions.rh Power Defense Frame 3 Variable Depth Rotary Handle Mechanism Installation How-To VideoPower Defense molded case circuit breakersPower Defense Frame 2 Variable Depth Rotary Handle Mechanism Installation How-To Video Power Defense BreakersPower Defense Frame 5 Trip Unit How-To VideoPower Defense Frame 1 Aux, Alarm, and Shunt Trip How-To Video Power Defense Frame 6 Trip Unit How-To Video Eaton Power Defense for superior arc flash safety Eaton Specification Sheet - PDG14M0025TFFJ Power Defense time current curve Frame 1 - PDG1Single and double break MCCB performance revisited Molded case and low-voltage breaker health Safer by design: arc energy reduction techniquesMultimediaSpecifications and datasheetsTime/current curvesWhite papers。

模具保护器说明书(精)

模具保护器说明书(精)

上海智觉光电科技有限公司智觉模具监视系统说明书目录第一章:智觉模具监视系统简介–––––––––––––––––––––– 2 第二章:特色功能––––––––––––––––––––––––––––––4 第三章:产品配置及技术参数––––––––––––––––––––––––5 第四章:安装–––––––––––––––––––––––––––––––––6 第五章:如何使用––––––––––––––––––––––––––––––8 第一步:开机––––––––––––––––––––––––––––––––8 第二部:抓拍标准图像–––––––––––––––––––––––––––– 1 第三部:设置监测区域–––––––––––––––––––––––––––– 12 第四部:灵敏度调整––––––––––––––––––––––––––––– 12 第五步:误报警处理––––––––––––––––––––––––––––– 12 第六步:关机–––––––––––––––––––––––––––––––– 13 第七部:强制关机–––––––––––––––––––––––––––––– 13 第八步:相机参数设置–––––––––––––––––––––––––––– 13 第六章:系统维护–––––––––––––––––––––––––––––––14 第七章:问题解答–––––––––––––––––––––––––––––––16 第八章:光电技术–––––––––––––––––––––––––––––– 17 一、屏幕分辨率––––––––––––––––––––––––––––––– 17 二、光源––––––––––––––––––––––––––––––––––18 三、相机––––––––––––––––––––––––––––––––––19 四、景深––––––––––––––––––––––––––––––––––20 五、对比度–––––––––––––––––––––––––––––––––20 六、亮度––––––––––––––––––––––––––––––––––21 七、光源的位置––––––––––––––––––––––––––––––– 21 八、光源的均匀性–––––––––––––––––––––––––––––– 21 需要原版说明书打,衣五六衣吧七衣无无酒吧王一强第一章智觉模具监视系统简介 ----自动检查模腔安全及注塑产品质量中国注塑网CEO游旭新对模具监视系统下的定义为:“模具监视系统是基于机器视觉图像处理算法,通过光学装置和非接触CCD图像传感器、配合专用电脑控制器,自动接收和处理注塑生产过程中的每一帧模腔图像,以获得所需信息并与所存之标准模腔图像进行比对,依图像比对处理结果对模具安全及注塑机运动进行联锁控制的装置”。

SENTRON 3VA1 IEC 1000A 4-杆线保护模具电源保护器说明书

SENTRON 3VA1 IEC 1000A 4-杆线保护模具电源保护器说明书
Adjustable parameters
reference value setting current (Ir) / for L-tripping / with I2t characteristic set values setting current (Ir) / for L-tripping / with I2t characteristic adjustable response factor setting current (Ir) / for Ltripping / with I2t characteristic / minimum adjustable response factor setting current (Ir) / for Ltripping / with I2t characteristic / maximum adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic / minimum adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic / maximum type of value list delay time (tr) / for L-tripping / with I2t characteristic reference value delay time (tr) / for L-tripping / with I2t characteristic set values delay time (tr) / for L-tripping / with I2t characteristic adjustable response value delay time (tr) / for L-tripping / with I2t characteristic / minimum adjustable response value delay time (tr) / for L-tripping / with I2t characteristic / maximum adjustable response value setting current (Ii) / for I-tripping / maximum adjustable response value setting current (Ii) / for I-tripping / minimum reference value setting current (Ii) / for I-tripping type of value list setting current (Ii) / for I-tripping adjustable absolute value setting current (InN) / for Ntripping / maximum adjustable absolute value setting current (InN) / for Ntripping / minimum Adjustable response value current / li min. Adjustable response value current / li max. design of the N-conductor protection Ground fault protection / tripping switchable / I2t=ON/OFF

电源保护模具型电路保护器Eaton PDG22F0080TFFK说明说明书

电源保护模具型电路保护器Eaton PDG22F0080TFFK说明说明书

Eaton PDG22F0080TFFKEaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Two Pole, 80A, 25kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Line Only (PDG2X2T100)General specificationsEaton Power Defense molded case circuit breakerPDG22F0080TFFK 78667986126488.9 mm 152.4 mm 69.9 mm 2.041 kg Eaton Selling Policy 25-000, one (1) year from the date of installation of theProduct or eighteen (18) months from thedate of shipment of the Product,whichever occurs first.RoHS Compliant IEC 60947-2CSAUL 489CCC MarkedProduct NameCatalog Number UPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCompliancesCertifications80 AComplete breaker 2Two-polePD2 Global Class A T-M (Fxd-Fxd) TU600 Vac600 VStandard Terminals Line Only25 kAIC at 480 Vac 20 kAIC Icu/ 20 kAIC Ics/ 42 kAIC Icm @480V Brazil (IEC) 25 kAIC @480V (UL)25 kAIC Icu/ 25 kAIC Ics/ 52.5 kAIC Icm @380-415V (IEC) 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @240V (IEC) 10 kAIC Icu @125 Vdc 14 kAIC @600V (UL/CSA)25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @440V (IEC) 10 kAIC Icu @250 Vdc18 kAIC Icu/ 15/13 kAIC Ics/ 37.8 kAIC Icm @525V South Africa (IEC)35 kAIC @240V (UL)Eaton Power Defense PDG22F0080TFFK 3D drawing Consulting application guide - molded case circuit breakers Amperage Rating Circuit breaker frame type Frame Number of poles Circuit breaker type Class Trip Type Voltage rating Voltage rating - max TerminalsInterrupt rating Interrupt rating range3D CAD drawing packageApplication notesBrochuresPower Defense molded case circuit breaker selection posterPower Defense brochurePower Defense technical selling bookletPower Defense molded case circuit breakers - Frame 2 product aidCertification reportsPDG4 CB reportPDG4 CCC certificationPower Defense Declaration concerning California’s Proposition 65PDG2 CB reportEU Declaration of Conformity - Power Defense molded case circuit breakersInstallation instructionsPower Defense Frame 2 global terminal shield, 2 pole - IL012330EN Power Defense Frame 1 IEC and Frame 2 Rotary Mechanism with NFPA Handle Attachment Instructions (IL012260EN).pdfPower Defense Frame 2 terminal kit - PDG2X3(2)(4)TA150RF instructions - IL012244EN H01Power Defense Frame 2 tunnel terminal (aluminum), 50A, 2 pole instructions - IL012236EN H02Power Defense Frame 2 terminal kit - PDG2X3(2)(4)TA225RF instructions - IL012245EN H01Power Defense Frame 2 tunnel terminal kits - PDG2X1TA225K instructions- IL012239EN H01Power Defense Frame 2/3/4/5/6 voltage neutral sensor module wiring instructions – IL012316ENPower Defense Frame 2 locking devices and handle block instructions - IL012149ENPower Defense Frame 2 PDG2 and PDC(E)9 breaker instructions -IL012106ENPower Defense Frame 2 multi wire connector kit -PDG2X3(2)(4)TA2256W instructions - IL012242EN H01Power Defense Frame 2 box terminal (steel), 100A, 2 pole instructions - IL012234EN H02Power Defense Frame 2 tunnel terminal (aluminum), 100A, 2 pole instructions - IL012237EN H02Power Defense Frame 2 global interphase barrier 2 pole – IL012324EN Power Defense Frame 2 screw terminal_end cap kit, 225A, 2 pole instructions - IL012257EN H01Power Defense Frame 2 multi wire connector kit -PDG2X3(2)(4)TA2253W instructions - IL012243EN H01Power Defense Frame 2 clamp terminal (steel), 20A, 2 pole instructions - IL012246EN H02Power Defense Frame 1-2-3-4 IP door barrier assembly instructions - IL012278ENPower Defense Frame 2 tunnel terminal (aluminum), 150A, 2 pole instructions - IL012238EN H02Installation videosPower Defense Frame 2 TMTU Aux, Alarm, ST and UVR Animated Instructions.rhPower Defense Frame 2 withTMTU, Shunt Trip_UVR Animated Instructions.rhMultimediaPower Defense Frame 3 Variable Depth Rotary Handle Mechanism Installation How-To VideoEaton Power Defense for superior arc flash safetyPower Defense Frame 5 Trip Unit How-To VideoPower Defense BreakersPower Defense Frame 6 Trip Unit How-To VideoPower Defense molded case circuit breakersPower Defense Frame 2 Variable Depth Rotary Handle Mechanism Installation How-To VideoSpecifications and datasheetsEaton Specification Sheet - PDG22F0080TFFKTime/current curvesPower Defense time current curve Frame 2 - PD2White papersMolded case and low-voltage power circuit breaker healthSingle and double break MCCB performance revisitedMaking a better machineIntelligent circuit protection yields space savingsSafer by design: arc energy reduction techniquesMolded case and low-voltage breaker healthEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

Eaton EGB3063FFG Series G 模具电路保护器商品说明说明书

Eaton EGB3063FFG Series G 模具电路保护器商品说明说明书

Eaton EGB3063FFGEaton Series G molded case circuit breaker, EG-frame, EG,Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 63A, 600Y/347 Vac, 25 kAIC at 240 Vac, 18 kAIC at 480 Vac, Line and load, Not UL rated, 50/60 HzGeneral specificationsEaton Series G complete molded case circuit breakerEGB3063FFG 7821148763812.99 in 5.5 in3 in 2.93 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of theProduct or eighteen (18) months from thedate of shipment of the Product,whichever occurs first.CE Marked IEC RatedCSA CertifiedNot UL ListedProduct NameCatalog Number UPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCompliancesCertificationsCatalog NotesNot UL rated18 kAIC at 480 Vac25 kAIC at 240 VacEG63 AThree-poleSeries GComplete breakerEG50/60 HzComplete breakerLine and load600Y/347 VacFixed thermal, fixed magnetic Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Tap Rules to Molded Case Breaker TerminalsStrandAble terminals product aidCurrent limiting molded case circuit breaker module for series G, JG and CLMotor protection circuit breakers product aidComprehensive circuit protection for control panel applicationsCircuit breaker motor operators product aidMulti-wire lugs product aidSeries G MCCB quick selectorMolded case circuit breakers providing higher levels of selective coordination product aidCurrent limiting molded case circuit breaker module product aidPlug-in adapters for molded case circuit breakers product aidPower metering and monitoring with Modbus RTU product aidMOEM MCCB Product Selection GuideHigh performance operating handles for Series G circuit breakers product aidBreaker service centersEaton's Volume 4—Circuit ProtectionMolded case circuit breakers catalogEG-frame Molded Case Circuit Breaker DrawingEG-Frame Circuit Breaker 15-160 Amperes Technical DataNG and ND-Frame molded case circuit breakersEaton Specification Sheet - EGB3063FFGMOEM MCCB product selection guideEaton Series G type EGB, EGE, EGS, EGH, EGC, and EGK circuit breakersSpecial features Interrupt ratingFrameAmperage Rating Number of polesSeriesTypeCircuit breaker type Frequency ratingCircuit breaker frame type TerminalsVoltage ratingTrip Type Application notesBrochuresCatalogsDrawingsSpecifications and datasheets Time/current curvesEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

Eaton RGH316035E 型号的 Series G 电子模具电路保护器说明说明书

Eaton RGH316035E 型号的 Series G 电子模具电路保护器说明说明书

Eaton RGH316035EEaton Series G electronic molded case circuit breaker, RG-frame, RG, Digitrip 310 RMS, Electronic LSG trip, Three-pole, 1600A, 125 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, Imperial, 50/60 Hz, 80% ratedGeneral specificationsEaton Series G electronic molded case circuit breakerRGH316035E 7866855746779.75 in 15.5 in 15.5 in 102 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of theProduct or eighteen (18) months from thedate of shipment of the Product,whichever occurs first.UL Listed All R-Frame circuit breakers are suitablefor reverse feed use. Order terminalsseparately. Mounting hardware notincluded.Product NameCatalog NumberUPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCertificationsCatalog NotesSeries GImperial125 kAIC at 240 Vac 65 kAIC at 480 VacComplete breakerRGRG80% rated50 to 60 HzLine and load1600 AElectronic LSGThree-pole Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Tap Rules to Molded Case Breaker TerminalsCurrent limiting molded case circuit breaker module product aid StrandAble terminals product aidHigh performance operating handles for Series G circuit breakers product aidMOEM MCCB Product Selection GuideMolded case circuit breakers providing higher levels of selective coordination product aidMulti-wire lugs product aidPower metering and monitoring with Modbus RTU product aidMotor protection circuit breakers product aidPlug-in adapters for molded case circuit breakers product aidSeries G MCCB quick selectorComprehensive circuit protection for control panel applicationsCircuit breaker motor operators product aidCurrent limiting molded case circuit breaker module for series G, JG and CLSeries G Terminations and AccessoriesBreaker service centersJ-Frame 310+ and L-Frame 310+ Molded-case circuit breakersEaton's Volume 4—Circuit ProtectionMolded case circuit breakers catalogRG-frame Molded Case Circuit Breaker DrawingNG and ND-Frame molded case circuit breakersEaton Specification Sheet - RGH316035EMOEM MCCB product selection guideSeries G R-Frame 800-2500A, 240-690V Time Current CurveSeriesMounting hardware Interrupt rating TypeFrameCircuit breaker type RatingFrequency rating Terminals Amperage Rating Trip TypeNumber of poles Application notesBrochuresCatalogsDrawingsSpecifications and datasheets Time/current curvesEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

Eaton Moeller NZM 系列模具式电路保护器说明书

Eaton Moeller NZM 系列模具式电路保护器说明书

Eaton 259772Eaton Moeller series NZM - Molded Case Circuit Breaker. Shuntrelease, 12VAC/DC, +1early N/O, HIVGeneral specificationsEaton Moeller series NZM release259772NZM1-XAHIV12AC/DC401508259772637 mm66 mm32 mm0.044 kgIECUL/CSA RoHS conform IEC60947UL489CSA (File No. 22086)UL (File No. E140305)CSA-C22.2 No. 5-09UL listedCSA certifiedCSA (Class No. 1437-01)UL (Category Control Number DIHS) CE markingProduct Name Catalog Number Model Code EANProduct Length/Depth Product Height Product Width Product Weight Compliances CertificationsIs the panel builder's responsibility. The specifications for the switchgear must be observed.12 VMeets the product standard's requirements.10 msIs the panel builder's responsibility. The specifications for the switchgear must be observed.Does not apply, since the entire switchgear needs to be evaluated.Meets the product standard's requirements.12 VEarly-make auxiliary contact12 V50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release)Is the panel builder's responsibility.15 msCannot be used in conjunction with NZM...-XR... remote operator. If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on. Early make of auxiliary contact on switching on and off (manual operation): approx. 20 ms. Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.eaton-feerum-the-whole-grain-solution-success-story-en-us.pdf eaton-digital-nzm-brochure-br013003en-en-us.pdfeaton-digital-nzm-catalog-ca013003en-en-us.pdfDA-DC-03_NZM1eaton-circuit-breaker-release-nzm-mccb-dimensions.epseaton-circuit-breaker-undervoltage-nzm-mccb-3d-drawing-004.epsM1-XAHIV12AC_DCIL01203002ZThe new digital NZM RangeIntroduction of the new digital circuit breaker NZMDA-CS-nzm1_xuDA-CD-nzm1_xueaton-nzm-technical-information-sheet10.11 Short-circuit ratingRated control supply voltage (Us) at AC, 50 Hz - min 10.4 Clearances and creepage distancesMinimum command time - min10.12 Electromagnetic compatibility10.2.5 Lifting10.2.3.1 Verification of thermal stability of enclosures Rated control supply voltage (Us) at DC - minFitted with:Rated control supply voltage (Us) at AC, 50 Hz - max Frequency rating10.8 Connections for external conductorsMinimum command time - maxSpecial features BrochuresCatalogs Certification reports DrawingseCAD model Installation instructions Installation videos mCAD model Technical data sheetsVoltage rating at AC (x Us) - min.7Rated control supply voltage (Us) at DC - max12 V10.9.3 Impulse withstand voltageIs the panel builder's responsibility.Rated control supply voltage12 V AC/DC10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.Used withNZM1(-4), N(S)1(-4)Electric connection typeScrew connectionVoltage rating at AC (x Us) - max1.110.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.Number of contacts (normally closed contacts)10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.Voltage typeACFrameNZM1Reaction time20 msSuitable forOff-load switchPick-up power consumption (shunt release)2.5 VA/WRated control voltage (relay contacts)12 V AC12 V DC10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.Time on duty - max∞10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.Connection typeWith terminal block on the left-hand switch sideVoltage rating0.7 - 1.1 x Us10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.Undelayed short-circuit release - min0 ARated control supply voltage (Us) at AC, 60 Hz - min12 V10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.Terminal capacity (solid/flexible conductor)0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule18 - 14 AWG (2x) for undervoltage releases, off-delayed18 - 14 AWG (1x) at shunt release0.75 mm² - 2.5 mm² (2x) at shunt release with ferrule0.75 mm² - 2.5 mm² (2x) for undervoltage releases, off-delayed with ferrule18 - 14 AWG (2x) at shunt release0.75 mm² - 2.5 mm² (1x) for undervoltage releases, off-delayed with ferrule18 - 14 AWG (1x) for undervoltage releases, off-delayed10.10 Temperature riseEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmediaThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.Accessory Shunt release Meets the product standard's requirements.Meets the product standard's requirements.Meets the product standard's requirements.12 V10 AType10.2.2 Corrosion resistance10.2.4 Resistance to ultra-violet (UV) radiation 10.2.7 InscriptionsRated control supply voltage (Us) at AC, 60 Hz - max Number of contacts (normally open contacts)Undelayed short-circuit release - max Number of contacts (change-over contacts)。

Eaton NDC3800T33W电子模具电路保护器说明书

Eaton NDC3800T33W电子模具电路保护器说明书

Eaton NDC3800T33WEaton Series C electronic molded case circuit breaker, NG-frame, NDC, Digitrip 310 RMS, Electronic LS trip, Three-pole, 800A, 600 Vac, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, Without terminals, 50/60 Hz, 80% ratedGeneral specificationsEaton Series C electronic molded case circuit breakerNDC3800T33W 7866791661615.5 in 8.25 in 8.25 in 46.3 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.HACR Rated Product NameCatalog NumberUPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCompliancesSeries G200 kAIC at 240 Vac 100 kAIC at 480 VacDigitrip 310NGNDC80% ratedComplete breakerWithout terminals600 Vac800 AElectronic LSThree-pole Application of Tap Rules to Molded Case Breaker Terminals Application of Multi-Wire Terminals for Molded Case Circuit Breakers UL listed 100%-rated molded case circuit breakersStrandAble terminals product aidCircuit breaker motor operators product aidMulti-wire lugs product aidCurrent limiting Series C molded case circuit breakers product aid Motor protection circuit breakers product aidPower metering and monitoring with Modbus RTU product aidPlug-in adapters for molded case circuit breakers product aid Breaker service centersMolded case circuit breakers catalogEaton's Volume 4—Circuit ProtectionSeries C N-Frame Circuit Breaker - InstructionsCircuit breakers explainedCircuit Breakers ExplainedSeries C J-Frame molded case circuit breakers time current curves Series C G-Frame molded case circuit breakers time current curves MOEM MCCB product selection guideSeries C F-Frame molded case circuit breakersEaton Specification Sheet - NDC3800T33WSeriesInterrupt ratingTypeFrameCircuit breaker type RatingCircuit breaker frame type TerminalsVoltage rating Amperage RatingTrip TypeNumber of poles Application notesBrochuresCatalogsInstallation instructions MultimediaSpecifications and datasheetsEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

电子模具电路保护器Eaton NGC308036E说明书

电子模具电路保护器Eaton NGC308036E说明书

Eaton NGC308036EEaton Series G electronic molded case circuit breaker, NG-frame, NG, Digitrip 310 RMS, Electronic LSIG trip, Three-pole, 800A, 480 Vac, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, Line and load, Imperial, 50/60 Hz, 80% ratedGeneral specificationsEaton Series G electronic molded case circuit breakerNGC308036E 7866853790506 in9 in9 in 47 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of theProduct or eighteen (18) months from thedate of shipment of the Product,whichever occurs first.HACR Rated UL ListedCSA CertifiedAll Eaton NG-Frame circuit breakers are suitable for reverse feed use, Breakers do not ship with lugsProduct NameCatalog NumberUPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCompliancesCertificationsCatalog NotesSeries G100 kAIC at 480 Vac 200 kAIC at 240 VacComplete breakerNGNG80% ratedComplete breakerLine and load480 Vac800 AElectronic LSIGThree-pole Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Tap Rules to Molded Case Breaker TerminalsCurrent limiting molded case circuit breaker module for series G, JG and CLMulti-wire lugs product aidStrandAble terminals product aidMolded case circuit breakers providing higher levels of selective coordination product aidComprehensive circuit protection for control panel applicationsPower metering and monitoring with Modbus RTU product aidHigh performance operating handles for Series G circuit breakers product aidMOEM MCCB Product Selection GuideMotor protection circuit breakers product aidCircuit breaker motor operators product aidPlug-in adapters for molded case circuit breakers product aidCurrent limiting molded case circuit breaker module product aidSeries G MCCB quick selectorSeries G Terminations and AccessoriesBreaker service centersJ-Frame 310+ and L-Frame 310+ Molded-case circuit breakersMolded case circuit breakers catalogEaton's Volume 4—Circuit ProtectionNG-frame Molded Case Circuit Breaker DrawingInstruction Leaflet for Drawout Cassette for NG Frame Circuit BreakersMOEM MCCB product selection guideNG and ND-Frame molded case circuit breakersEaton Specification Sheet - NGC308036ESeries G N-Frame 320-1600A, 240-690V Time Current CurvesSeriesInterrupt ratingTypeFrameCircuit breaker type RatingCircuit breaker frame type TerminalsVoltage rating Amperage RatingTrip TypeNumber of poles Application notesBrochuresCatalogsDrawingsInstallation instructions Specifications and datasheetsTechnical service bulletinsEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respective/socialmediaSelling Polic 2 -000 - Distribution and Control Products and Services Warranty guides。

Eaton CLD3600T52WZGP 系列电子模具电路保护器说明说明书

Eaton CLD3600T52WZGP 系列电子模具电路保护器说明说明书

Eaton CLD3600T52WZGPEaton Series C electronic molded case circuit breaker, L-frame, CLD, Complete breaker, OPTIM 550, Electronic LSI trip, Three-pole, 600A, 600 Vac, 250 Vdc, no terminals, PowerNet kit, Zone selective interlock, 50/60 Hz, 100% ratedGeneral specificationsEaton Series C electronic molded case circuit breakerCLD3600T52WZGP 7821135327908.25 in 8.25 in 8.25 in 20 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.UL Listed Product NameCatalog NumberUPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCertifications65 kAIC at 240 Vac35 kAIC at 480 VacL100% rated600 AThree-poleSeries CPowerNet kitModel 550CLD50 to 60 HzComplete breaker Without terminals600 Vac, 250 Vdc Electronic LSIZone selective interlock Application of Tap Rules to Molded Case Breaker Terminals Application of Multi-Wire Terminals for Molded Case Circuit Breakers UL listed 100%-rated molded case circuit breakersCircuit breaker motor operators product aidStrandAble terminals product aidMotor protection circuit breakers product aidCurrent limiting Series C molded case circuit breakers product aid Multi-wire lugs product aidPower metering and monitoring with Modbus RTU product aidPlug-in adapters for molded case circuit breakers product aid Breaker service centersMolded case circuit breakers catalogEaton's Volume 4—Circuit ProtectionSeries C L-Frame with Digitrip OPTIM Trip Unit - ILCircuit Breakers ExplainedCircuit breakers explainedSeries C G-Frame molded case circuit breakers time current curves MOEM MCCB product selection guideSeries C J-Frame molded case circuit breakers time current curves Series C F-Frame molded case circuit breakersEaton Specification Sheet - CLD3600T52WZGPInterrupt ratingFrameRatingAmperage Rating Number of polesSeriesAccessoriesTypeCircuit breaker type Frequency ratingCircuit breaker frame type TerminalsVoltage ratingTrip Type Communication Application notesBrochuresCatalogsInstallation instructions MultimediaSpecifications and datasheetsEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

Eaton FD3225L 型号 C 完整模具式电路保护器说明说明书

Eaton FD3225L 型号 C 完整模具式电路保护器说明说明书

Eaton FD3225LEaton Series C complete molded case circuit breaker, Series C, F-frame molded case circuit breaker, 225A, Three-pole, Line and load terminals, Thermal magnetic trip, FD breakerGeneral specificationsEaton Series C complete molded case circuit breakerFD3225L 7866790153913.38 in4.13 in 4.13 in 4.5 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.UL Listed Product NameCatalog Number UPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCertificationsSeries C65 kAIC at 240 Vac35 kAIC at 480 VacFFD50 to 60 HzComplete breakerLine and load600 Vac, 250 Vdc225 AFixed thermal, fixed magnetic Three-pole Application of Tap Rules to Molded Case Breaker TerminalsUL listed 100%-rated molded case circuit breakersApplication of Multi-Wire Terminals for Molded Case Circuit BreakersCircuit breaker motor operators product aidMOEM MCCB Product Selection GuidePower metering and monitoring with Modbus RTU product aid StrandAble terminals product aidPlug-in adapters for molded case circuit breakers product aidMulti-wire lugs product aidMotor protection circuit breakers product aidCurrent limiting Series C molded case circuit breakers product aid Breaker service centersCounterfeit and Gray Market Awareness GuideEaton's Volume 4—Circuit ProtectionMolded case circuit breakers catalogFD3 3D Model XchangeFD3 3D InventorFD3 2D PDFTime Current Curves for Series C® F-Frame Circuit BreakersFD3 AutoCAD 2D Footprint (mm)Installation Instructions for EHD, EDB, EDS, ED, EDH, EDC, FDB, FD, HFD, FDC, HFDDC Circuit Breakers and Molded Case SwitchesCircuit Breakers ExplainedCircuit breakers explainedMOEM MCCB product selection guideSeries C G-Frame molded case circuit breakers time current curves Series C J-Frame molded case circuit breakers time current curvesEaton Specification Sheet - FD3225LSeries C F-Frame molded case circuit breakersSeriesInterrupt ratingFrameCircuit breaker type Frequency ratingCircuit breaker frame type TerminalsVoltage rating Amperage RatingTrip TypeNumber of poles Application notesBrochuresCatalogsDrawingsInstallation instructions MultimediaSpecifications and datasheetsEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

Eaton RGH325036E电子模具电路保护器说明书

Eaton RGH325036E电子模具电路保护器说明书

Eaton RGH325036EEaton Series G electronic molded case circuit breaker, RG-frame, RG, Digitrip 310 RMS, Electronic LSIG trip, Three-pole, 2500A, 125 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, Imperial, 50/60 Hz, 80% ratedGeneral specificationsEaton Series G electronic molded case circuit breakerRGH325036E 7866855746089.75 in 15.5 in 15.5 in 115 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of theProduct or eighteen (18) months from thedate of shipment of the Product,whichever occurs first.UL Listed All R-Frame circuit breakers are suitablefor reverse feed use. Order terminalsseparately. Mounting hardware notincluded.Product NameCatalog NumberUPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCertificationsCatalog Notes80% rated125 kAIC at 240 Vac 65 kAIC at 480 VacComplete breakerRG80% ratedComplete breakerLine and load2500 AElectronic LSIGThree-pole Application of Multi-Wire Terminals for Molded Case Circuit Breakers Application of Tap Rules to Molded Case Breaker TerminalsMOEM MCCB Product Selection GuidePlug-in adapters for molded case circuit breakers product aidPower metering and monitoring with Modbus RTU product aidHigh performance operating handles for Series G circuit breakers product aidCircuit breaker motor operators product aidMolded case circuit breakers providing higher levels of selective coordination product aidMulti-wire lugs product aidCurrent limiting molded case circuit breaker module product aid StrandAble terminals product aidCurrent limiting molded case circuit breaker module for series G, JG and CLComprehensive circuit protection for control panel applicationsSeries G MCCB quick selectorMotor protection circuit breakers product aidBreaker service centersJ-Frame 310+ and L-Frame 310+ Molded-case circuit breakersSeries G Terminations and AccessoriesMolded case circuit breakers catalogEaton's Volume 4—Circuit ProtectionRG-frame Molded Case Circuit Breaker DrawingEaton Specification Sheet - RGH325036EMOEM MCCB product selection guideNG and ND-Frame molded case circuit breakersSeries G R-Frame 800-2500A, 240-690V Time Current CurveSeriesInterrupt ratingTypeCircuit breaker type RatingCircuit breaker frame type TerminalsAmperage RatingTrip TypeNumber of poles Application notesBrochuresCatalogsDrawingsSpecifications and datasheets Time/current curvesEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

Eaton RGH325039E电子模具式电路保护器说明书

Eaton RGH325039E电子模具式电路保护器说明书

Eaton RGH325039EEaton Series G electronic molded case circuit breaker, RG-frame, RG, Digitrip 310 RMS, Electronic ALSIG with maintenance mode trip, Three-pole, 2500A, 125 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, Imperial, 50/60 Hz, 80% ratedGeneral specificationsEaton Series G electronic molded case circuit breakerRGH325039E 7866855778839.75 in 15.5 in 15.5 in 115 lb Eaton Selling Policy 25-000, one (1) year from the date of installation of theProduct or eighteen (18) months from thedate of shipment of the Product,whichever occurs first.UL Listed All R-Frame circuit breakers are suitablefor reverse feed use. Order terminalsseparately. Mounting hardware notincluded.Product NameCatalog NumberUPCProduct Length/Depth Product Height Product Width Product Weight WarrantyCertificationsCatalog Notes80% rated65 kAIC at 480 Vac125 kAIC at 240 VacComplete breakerRG80% ratedComplete breakerLine and load2500 AElectronic ALSIG with maintenance mode Three-pole Application of Tap Rules to Molded Case Breaker Terminals Application of Multi-Wire Terminals for Molded Case Circuit BreakersMulti-wire lugs product aidHigh performance operating handles for Series G circuit breakers product aidPlug-in adapters for molded case circuit breakers product aidMOEM MCCB Product Selection GuideCurrent limiting molded case circuit breaker module product aid Molded case circuit breakers providing higher levels of selective coordination product aidMotor protection circuit breakers product aidSeries G MCCB quick selectorStrandAble terminals product aidCurrent limiting molded case circuit breaker module for series G, JG and CLPower metering and monitoring with Modbus RTU product aid Comprehensive circuit protection for control panel applicationsCircuit breaker motor operators product aidBreaker service centersJ-Frame 310+ and L-Frame 310+ Molded-case circuit breakersSeries G Terminations and AccessoriesEaton's Volume 4—Circuit ProtectionMolded case circuit breakers catalogRG-frame Molded Case Circuit Breaker DrawingNG and ND-Frame molded case circuit breakersEaton Specification Sheet - RGH325039EMOEM MCCB product selection guideSeries G R-Frame 800-2500A, 240-690V Time Current CurveSeriesInterrupt ratingTypeCircuit breaker type RatingCircuit breaker frame type TerminalsAmperage RatingTrip TypeNumber of poles Application notesBrochuresCatalogsDrawingsSpecifications and datasheets Time/current curvesEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All Rights Reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmedia。

  1. 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。

上海智觉光电科技有限公司智觉模具监视系统说明书目录第一章:智觉模具监视系统简介–––––––––––––––––––––– 2 第二章:特色功能––––––––––––––––––––––––––––––4 第三章:产品配置及技术参数––––––––––––––––––––––––5 第四章:安装–––––––––––––––––––––––––––––––––6 第五章:如何使用––––––––––––––––––––––––––––––8 第一步:开机––––––––––––––––––––––––––––––––8 第二部:抓拍标准图像–––––––––––––––––––––––––––– 1 第三部:设置监测区域–––––––––––––––––––––––––––– 12 第四部:灵敏度调整––––––––––––––––––––––––––––– 12 第五步:误报警处理––––––––––––––––––––––––––––– 12 第六步:关机–––––––––––––––––––––––––––––––– 13 第七部:强制关机–––––––––––––––––––––––––––––– 13 第八步:相机参数设置–––––––––––––––––––––––––––– 13 第六章:系统维护–––––––––––––––––––––––––––––––14 第七章:问题解答–––––––––––––––––––––––––––––––16 第八章:光电技术–––––––––––––––––––––––––––––– 17 一、屏幕分辨率––––––––––––––––––––––––––––––– 17 二、光源––––––––––––––––––––––––––––––––––18 三、相机––––––––––––––––––––––––––––––––––19 四、景深––––––––––––––––––––––––––––––––––20 五、对比度–––––––––––––––––––––––––––––––––20 六、亮度––––––––––––––––––––––––––––––––––21 七、光源的位置––––––––––––––––––––––––––––––– 21 八、光源的均匀性–––––––––––––––––––––––––––––– 21 需要原版说明书打,衣五六衣吧七衣无无酒吧王一强第一章智觉模具监视系统简介 ----自动检查模腔安全及注塑产品质量中国注塑网CEO游旭新对模具监视系统下的定义为:“模具监视系统是基于机器视觉图像处理算法,通过光学装置和非接触CCD图像传感器、配合专用电脑控制器,自动接收和处理注塑生产过程中的每一帧模腔图像,以获得所需信息并与所存之标准模腔图像进行比对,依图像比对处理结果对模具安全及注塑机运动进行联锁控制的装置”。

在现代工业自动化生产中,涉及到各种各样的检验、生产监视及零件识别应用,例如零配件批量加工的尺寸检查,自动装配的完整性检查,电子装配线的元件自动定位,IC上的字符识别等。

通常人眼无法连续、稳定地完成这些带有高度重复性和智能性的工作,其它物理量传感器也难有用武之地。

由此人们开始考虑利用光电成像系统采集被控目标的图像,而后经计算机或专用的图像处理模块进行数字化处理,根据图像的像素分布、亮度和颜色等信息,来进行尺寸、形状、颜色等的判别。

这样,就把计算机的快速性、可重复性,与人眼视觉的高度智能化和抽象能力相结合,由此产生了机器视觉的概念。

注塑同仁们,欢迎您选择使用上海智觉光电科技有限公司之模具监视系统,就是运用机器视觉技术的最先进最新型的非接触注塑模腔保护及产品检测系统,本系统使用光电机器视觉技术,配合注塑机相关功能,使得您可以在很短的时间内,检查和保护一个精密模具模腔状况及注塑产品外观量尺寸。

智觉模具保护器采用佰万像素工业相机实时监视模腔表面,在极短的时间内对模具图像进行处理分析和判断,在模腔出现异常,注塑件出现残次产品时报警,从而起到保护模具的作用。

智觉模具监视系统支持同时检测多个模穴,每个检测区域均可设置不同的灵敏度及报警基数、警点大小、警点类型、从而可以精确地检查出模腔异常、脱模不良、嵌件错放、滑块移位和产品短射、产品飞边、粘附定模、顶针断留、顶退不良等各种问题。

模具保护器设置和操作非常简单易行。

在架好相机、布好光源,通过IO线与注塑机开模完成及允许锁模、允许顶出及安全门联锁后,您可以直接点击一键设置按钮,通过软件的提示,一步步自动完成所有设置,最终自动进入检测状态,模具保护器自动开始运行。

您也可以通过下面最简单的几个步骤,完成模具保护器的初始设置: 抓拍塑件:在开模完成,产品人工判定合格完整且未顶出的情形下,点击更新塑件按钮拍下塑件检测比对所属的标准图像,此标准图像预存于模具保护器中,以备日后所用。

抓拍模腔:在顶退完成,型芯到位,嵌件放妥,模腔正常,合模即将开始时,点击更新模腔按钮拍下标准模具图像。

此标准模具图像,预存于模具保护器中,以备日后所用。

手动生成检测区域(ROI):点击新增ROI按钮,使用触摸笔把您想保护监视的重点区域圈画出来,圈画完成后,自动弹出ROI参数设置框,您可根据需要(或经验)对框中的参数进行相应设置,以便可靠进行检测监视。

系统参数:系数参数是模具保护器能否依您所愿正常工作的关键要素,在自动进行检测之前一定要做相应的设置,其中主要有功能及时间参数的设置。

开始检测:点击开始检测按钮,开始进行模具保护!其实就这是这么简单。

接下来您只需要几十分钟的培训和试验,您就可以基本掌握智觉模具监视系统系统设置及检测算法的使用要领,在此基础上进一步熟练掌握智觉模具监视系统的高级功能,更好的用好模具监视系统。

大多数模具的保护工作都可以在0.02秒以内完成!第二章功能特色智觉模具监视系统的主要功能:支持任意形状检测区域设置,可适应各种复杂模具支持任意多个模穴、检测区域设置I 每个检测区域可单独设置灵敏度和传感单元密度及灰度值自动检测区域生成功能,极大简化检测保护设置过程自动开模完成及顶出完成捕捉功能减少接线难度可靠有效完善监视注塑模具模腔中多穴之情形检测注塑模具模腔穴中残留的材料或产品检测注塑模具滑块、顶针板之位移分辩插件、嵌件放置位置是否准确无误检测注塑模具中顶针是否断留,残存检测注塑件是否烧结、烧焦,是否短射检测中板是否堵穴产生不良产品检测顶出后之产品是否推到中板中。

检测注塑件是否粘附在中板上。

合理使用再顶出功能,减少多余之顶针动作减少脱模剂的使用,节能减排。

与机械手、安全门配合默契复检功能,减少误检和操作错误极易安装和操作,体积小 LED触摸显示屏控制,操作方便智觉模具监视系统特色:自动光线纠正功能,自动模腔定位功能,自动时间设置功能,一键自动设置功能,操作记录NG回放,视频回放等。

第三章产品配置及技术参数主机电源 DC 12V Main Unit 功耗 < 50 W 输入信号 6路干接点、自动获得输出信号 6路隔离继电器外形尺寸 290 × 215 × 75 mm 光源DC 12V 广角近红外LED光源显示器 LED觖摸屏 8---17寸可选机器视觉软件智觉模具保护器专用磁力座相机支架吸力大于75KG 主机可移动支架万向移动,上下可调佰万像素工业相机格式逐行扫描分辨率 1280×1024 像素祯率 30 祯/秒电源 5V 主机自带佰万像素工业镜头佰万以上像素镜头焦距8、 12、16 、25、50 mm 重量 7KG 需要原版说明书联系,衣五六衣吧七衣无无酒吧王一强第四章安装打开箱子,取出佰万像素工业相机、镜头、磁力表座、主机控制器和触摸显示器、直流电源、连接线、近红外光源及支架。

主机控制器集成了视觉控制器、供电电源、数字I/O 输入输出、报警器等功能。

在安装时要了解各部份大致功能,这样有利于正确、快速安装调试好。

注塑机旁边的活动支架上面是液晶显示屏和主机。

主机连接相机和近红外光源,由12V电源供用器供电。

I/O VGA Touch 输出12V 相机C1 电源12V 输出12V为3芯插孔,给显示器(12V)和近红外灯(Light)提供电源。

I/O线连接注塑机进行联机控制,注塑机模具模腔监视仪使用开模完成信号作为检查的开始信号,同时控制注塑机闭模、顶针、机械手,在检测结果出来后根据要求动作等功能。

根据需要选择连接方式。

一般情况下,I/O之 7,8连接注塑机之开模完成信号; 5,6输出给注塑机闭模控制信号; 3,4输出顶针控制信号; 1,2接收安全门关闭信号。

注意:I/O线之7,8 及1,2这二组信号线分别接注塑机之开模完成信号及安全门关闭信号,所需信号为干触点信号;5,6连接注塑机之合模允许信号,也可以根据具体情形串入到断开之合模信号中。

架好光源,进行图像清晰度调整:开启LED近红外照明电源及照耀角度,调整镜头位置、光圈和焦距,使图像大小、黑白、清晰度等都调整到合适程度。

调整时,需要了解的是:镜头焦距越短,视野越大(例如 8mm 镜头的视野比 12mm 和 16mm 大),镜头焦距越长,物体被放大后观察的越清楚;镜头光圈越小,则景深越大,物体的清晰范围越大,反之光圈越大,景深越小;镜头焦距越短,景深越大,焦距越长,景深越小。

所以,调整时需要根据情况选择合适的镜头和光圈,调整光圈得到合适的景深范围,同时调整相机的增益和曝光时间,补偿得到合适的亮度。

第五章如何使用需要原版说明书联系,衣五六衣吧七衣无无酒吧王一强第一步:开机按下面板前侧面的开机按钮,系统自动开启相机、显示器、主机电源,自动进入手动待机状态。

开机画面开机后,系统进入手动待机状态,显示摄像机观察到的模具实时图像功能介绍软件启动后,主要控制键在显示屏上方及右边点击开始点击“点击开始”键,系统将进入监视状态,此时屏幕显示的是“点击停止” 后台管理点击“后台管理”,屏幕跳出后台管理的用户名和密码,点击“OK”登陆进入后台,右键功能以及屏幕右方功能会自动放开显示塑件点击“显示塑件”,屏幕会显示您之前抓拍的标准塑件图像更新模腔点击“更新模腔”,重新拍摄一张标准之模腔图型存于电脑中。

更新塑件点击“更新塑件”,重新拍摄一张标准之塑件图型存于电脑中。

显示模腔点击“显示模腔”,屏幕会显示您之前抓拍的标准模腔图像系统参数点击“系统参数”,可进行模具保护器功能及各种时间及次数、个数设置 Delay Time 点击“Delay Time”,可进行塑件检测和模腔监视时间、依然顶出、自动设置报警基准设置。

一键设置点击“一键设置”,可依提示一步步快速完成检测前的设置准备工作。
