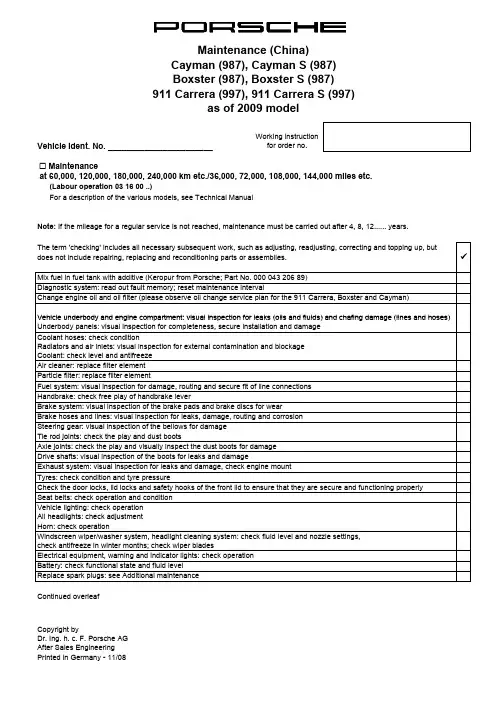

保时捷车型维修指南说明书
Vehicle Ident. No. _______________________Working instruction for order no.! Maintenanceat 60,000, 120,000, 180,000, 240,000 km etc./36,000, 72,000, 108,000, 144,000 miles etc.(Labour operation 03 16 00 ..)For a description of the various models, see Technical Manual Mix fuel in fuel tank with additive (Keropur from Porsche; Part No. 000 043 206 89)The term 'checking' includes all necessary subsequent work, such as adjusting, readjusting, correcting and topping up, but does not include repairing, replacing and reconditioning parts or assemblies.Change engine oil and oil filter (please observe oil change service plan for the 911 Carrera, Boxster and Cayman)"Note: If the mileage for a regular service is not reached, maintenance must be carried out after 4, 8, 12...... years.911 Carrera (997), 911 Carrera S (997)Boxster (987), Boxster S (987)as of 2009 modelDiagnostic system: read out fault memory; reset maintenance intervalVehicle underbody and engine compartment:visual inspection for leaks (oils and fluids)and chafing damage (lines and hoses)Continued overleaf Copyright byElectrical equipment, warning and indicator lights: check operationVehicle lighting: check operationAll headlights: check adjustmentHorn: check operationHandbrake: check free play of handbrake leverExhaust system: visual inspection for leaks and damage, check engine mountBrake hoses and lines: visual inspection for leaks, damage, routing and corrosionSteering gear: visual inspection of the bellows for damageTie rod joints: check the play and dust bootsSeat belts: check operation and conditionAir cleaner: replace filter elementFuel system: visual inspection for damage, routing and secure fit of line connectionsParticle filter: replace filter elementDrive shafts: visual inspection of the boots for leaks and damageBrake system: visual inspection of the brake pads and brake discs for wearTyres: check condition and tyre pressureCheck the door locks, lid locks and safety hooks of the front lid to ensure that they are secure and functioning properly Axle joints: check the play and visually inspect the dust boots for damageVehicle underbody and engine compartment: visual inspection for leaks (oils and fluids) and chafing damage (lines and hoses)Underbody panels: visual inspection for completeness, secure installation and damageCoolant hoses: check conditionRadiators and air inlets: visual inspection for external contamination and blockageCoolant: check level and antifreezeWindscreen wiper/washer system, headlight cleaning system: check fluid level and nozzle settings,check antifreeze in winter months; check wiper bladesReplace spark plugs: see Additional maintenanceBattery: check functional state and fluid levelpy g y Dr. Ing. h. c. F. Porsche AGAfter Sales EngineeringPrinted in Germany - 11/08Vehicle Ident. No. _______________________Working instruction for order no.! Additional maintenance for spark plugs(Labour operation 03 81 00 ..)"! Additional maintenance for drive belt (Labour operation 03 60 00 ..)! Additional maintenance for convertible top(Labour operation 03 70 00 ..)! Additional maintenance every 90,000 km/54,000 miles or every 6 years (Labour operation 03 83 00 ..)as of 2009 modelService and maintain convertible top (911 Carrera only)every 30,000 km/18,000 miles or every 2 years Replace spark plugs every 30,000 km/18,000 miles or every 4 years Check drive belt every 60,000 km/36,000 miles or every 4 years every 150,000 km/90,000 miles or every 10 years Check drive beltCheck drive belt every 240,000 km/144,000 miles or every 16 years Boxster (987), Boxster S (987)R l d i b lt911 Carrera (997), 911 Carrera S (997)Controlled all-wheel (only Carrera 4) : change oil! Additional maintenance every 180,000 km/108,000 miles or every 12 years(Labour operation 03 88 00 ..)! Every 2 yearsFile condition report for long-life guarantee! Every 4 years! After 4 years, then every 2 years! After 4, 8, 10 years, then every 2 yearsSignature (mechanic): _______________________________Test drive:Oils, fluids: visual inspection for leaksSignature (final check): _________________________Remote control, front seats, footbrake and handbrake (also actuation travel), engine, clutch, steering, transmission, ParkAssist, cruise control, PSM switch, PASM switch, Sport switch, heating, air conditioning and instruments: check operation Manual transmission: change oilAncillary unit mounts and suspension: visual inspection of all rubber mountings and boots for damageChange brake fluidReplace tyre sealantCheck tyre pressure monitoring system batteryPDK transmission: change clutch fluidReplace drive belt PDK transmission: change transmission oilAll-wheel final drive: change oil (911 Carrera only)Copyright byDr. Ing. h. c. F. Porsche AGAfter Sales EngineeringPrinted in Germany - 11/08Porsche Centre。
PORSCHE Cayenne, Cayenne S驾驶手册说明书
目录Leabharlann 概览图示........................................... 4
驾驶员侧驾驶舱............................................ 5 方向盘和仪表组............................................ 6 前部中控台................................................... 7
目录 1
显示剩余燃油可达里程 ............................. 115 显示轮胎气压 ........................................... 115 显示罗盘 .................................................. 115 显示导航信息 ........................................... 115 通过多功能显示器使用电话 ...................... 116 在多功能显示器上设置限速 ...................... 117 显示警告信息 ........................................... 118 显示车身水平高度控制系统的状态 ............ 119 显示锁止机构 / 越野档的状态 ................... 119 显示平均油耗 ........................................... 120 设置轮胎气压监控 .................................... 120 在多功能显示器上关闭车内监控和 倾斜传感器............................................... 129 车门镜同步调节........................................ 129 改变车辆解锁和锁止设置.......................... 130 开启 / 关闭日间行车灯 ............................. 132 设置照明延迟关闭 .................................... 133 设置时钟 .................................................. 133 设置罗盘 .................................................. 134 更改显示语言 ........................................... 135 更改显示单位 ........................................... 135 将显示复位到出厂设置 ............................. 135 警告信息综述 ........................................... 136
保时捷帕拉梅拉用户手册说明书
Panamera驾驶手册WK D970 00 93 15P a n a m e r aPorsche、保时捷盾徽、Panamera、PCCB、PCM、PDK、PTM、PSM、Tiptronic 和 Tequipment 均为Dr. Ing. h.c. F. Porsche AG（保时捷股份有限公司）的注册商标。
未经 Dr. Ing. h.c. F. Porsche AG（保时捷股份有限公司）书面授权，不得以任何形式对本手册进行翻印、摘录或复印。
© Dr. Ing. h.c. F. Porsche AG（保时捷股份有限公司）Porscheplatz 1D-70435 Stuttgart行车参考文件请将此文件随车携带，并在转售车辆时移交给新的车主。
建议如果您对您的车辆或本行车参考文件有任何疑问、建议或想法，请与我们联系：Dr. Ing. h.c. F. Porsche AG（保时捷股份有限公司）Vertrieb Customer RelationsPorscheplatz 1D-70435 Stuttgart装备由于我们一直都在不断进行创新与开发，因此您车辆的实际装备和规格可能与本驾驶手册中的图示或描述有所不同。
在我们出售的车辆中，某些装备的部件可能属于选装配置，或者根据法律要求或国家/地区的不同而有所不同。
您的保时捷 Porsche 中心将乐于为您提供有关此类装备的改装建议。
如果您的保时捷 Porsche 安装了任何本手册中未描述的装备，为您服务的Porsche中心将乐于提供相关的正确操作及保养建议。
由于各个国家/地区的法律要求不同，您车辆上的装备可能与本驾驶手册中的描述略有不同。
Panamera S E-Hybrid有关 Panamera S E-Hybrid 的信息，请参见单独的驾驶手册增补。
请特别注意警告及安全指南。
安全气囊警告标签如果在乘客侧座椅上装有儿童保护系统，存在乘客侧安全气囊被触发导致严重甚至致命伤害的风险。
保时捷981保养手册
保时捷981保养手册（原创版）目录一、保时捷 981 简介二、保时捷 981 保养的重要性三、保时捷 981 保养手册的主要内容四、保养手册的使用建议五、总结正文一、保时捷 981 简介保时捷 981 是保时捷公司推出的一款经典跑车，以其卓越的性能和优雅的外观深受消费者喜爱。
作为一款高性能车辆，保时捷 981 的保养尤为重要，不仅能够保证车辆的正常运行，还能够延长其使用寿命。
二、保时捷 981 保养的重要性保时捷 981 作为一款高端跑车，其保养的重要性不言而喻。
只有定期进行正确的保养，才能够确保车辆的性能和安全性。
同时，保养还能够提高车辆的使用寿命，让车辆保持良好的运行状态。
三、保时捷 981 保养手册的主要内容保时捷 981 保养手册主要包括以下几个方面的内容：1.保养周期：保时捷 981 的保养周期通常为每 10000 公里或每年一次，以先到者为准。
2.保养内容：保时捷 981 的保养内容包括机油更换、空气滤清器更换、燃油滤清器更换、刹车油更换、防冻液更换等。
3.保养注意事项：在保养过程中，需要注意的事项包括选择适合的车辆机油、使用原厂配件等。
四、保养手册的使用建议在使用保时捷 981 保养手册时，有以下几点建议：1.认真阅读保养手册，了解车辆的保养要求和标准。
2.按照保养手册的建议，定期进行保养，确保车辆的性能和安全性。
3.选择正规的保时捷维修中心进行保养，保证保养的质量和效果。
4.在保养过程中，注意保存保养记录，以便日后查询。
五、总结总之，保时捷 981 保养手册是车主进行车辆保养的重要参考，只有按照手册的要求进行定期、正确的保养，才能够确保车辆的性能和安全性，延长车辆的使用寿命。
保时捷维修手册：996_TI_4c
1 不适用于墨西哥
2 仅适用于欧盟 (EU) 国家/地区，且不包括英国、希腊、荷兰和瑞典。
标有“Rotation”（旋转）字样的箭头
“Inside/Outside”（内侧/外侧）标记
© Dr. Ing. h.c. F. Porsche AG Printed in Germany
2006-4-11 页 8 of 12
4 911 (996) 4440 ZH 1/06
车轮：
Porsche 夏季轮胎车轮概述
车轮轮盘内侧/外侧上的标识： 车轮尺寸，轮辋偏移量 (RO) (mm)、零件号和 Porsche 徽标
危险 轮胎压力不足和/或受损轮胎。 • 事故危险增加 ⇒ 轮胎压力决不能低于下面所示的轮胎压力。 ⇒ 定期检查轮胎，查看形状磨损是否均匀，是否存在可能的损坏，如破裂、鼓起、胎面分层、异物等。 ⇒ 不要对轮胎使用溶剂或其他化学物质（例如清洗或染色）。
2006-4-11 页 5 of 12
© Dr. Ing. h.c. F. Porsche AG Printed in Germany
调整后裙板
如果后裙板超出了用法兰连接的后侧部（切 口 A），则切掉或磨掉后裙板的超出部分 （箭头）。
翼子板接缝
垫圈
固定垫圈和车轮（标准的 911 GT3）
作为标准配置，911 GT3 附带 5 mm 厚的垫圈。 这些垫圈是使用沉头螺钉 (M6 x 16)（零件 号 900.269.106.09）与制动盘一起固定在 轮毂上的。 拧紧力矩 10 Nm 安装备胎之前，5-mm 的垫圈必须仍然固定 在车辆上。
2018年Porsche 911 GT3 GT2 RS维修指南说明书
Drain engine oil Change oil filter Underbody panels: visual inspection for completeness, secure installation and damage Tyres: check condition Visual inspection for leaks from underneath (oils and other fluids) Brake lines: visual inspection for damage, routing and corrosion Brake hoses: visual inspection for damage Steering gear: visual inspection of the bellows for damage Tie rod joints: check play and dust bellows Drive shafts: visual inspection of the boots for leaks and damage Axle joints: check the play and visually inspect the dust boots for damage Rear-axle steering: check bellows, dust boots and play on joints Anti-roll bar and connecting links: visual inspection for damage Check that threaded connections for chassis adjustment at front and rear are secure Check vehicle height Control boxes for exhaust flaps: check function Exhaust system: visual inspection for leaks and damage, check engine mount Replace spark plugs
保时捷各车型车主保养手册(,通用建议收藏)
第 1 任车主 （姓，名） 街道和门牌号码 城镇和邮政编码
第 2 任车主 （姓，名） 街道和门牌号码 城镇和邮政编码
第 3 任车主 （姓，名） 街道和门牌号码 城镇和邮政编码
第 4 任车主 （姓，名） 街道和门牌号码 城镇和邮政编码
第 5 任车主 （姓，名） 街道和门牌号码 城镇和邮政编码
第 6 任车主 （姓，名） 街道和门牌号码 城镇和邮政编码
1. 未将所购产品按规定用途使用或将其过度使用 （如赛车运 动中）；
2. 所购产品曾接受过由未经保时捷股份公司认可具有相应能 力的公司提供的非专业维修或保养服务；
3. 将未经保时捷股份公司授权的零配件安装到所购产品、未 按保时捷股份公司要求或未按用途和说明使用燃油、润滑 油、机油和其他油、冷却液、清洁液和抛光液；
4. 所购产品按未经保时捷股份公司授权的方式进行了改装；
5. 购买者未遵守保时捷股份公司在 《驾驶手册》及 《保修和 保养手册》中有关所购产品的处理、保养和养护的说明；
6. 不可抗力 （包括自然灾害或暴动、战争、军事行动等）、 第三方的犯罪活动，或购买者的故意行为；
7. 购买者未能按要求立即报告故障或提供立即返修的机会。
每 2 年进行一次附加保养
更换制动液 完成长期质保车况报告 Panamera S E-Hybrid：更换离合器的制动液；执行测试和自适应 补胎胶：检查保质期，必要时更换
每 90,000 km 进行一次附加保养，且每 4 年至少进行一次
更换 PDCC 储液罐 Panamera (V6)、 Panamera 4、 Panamera S、 Panamera 4S、 Panamera GTS、 Panamera Turbo：Porsche Doppelkupplung (PDK) 保时捷双离合器变速箱：更换变速箱油 Panamera S E-Hybrid：更换增压器传动皮带 空气滤清器：更换滤芯
2013-2015保时捷帕拉梅拉Panamera 970维修手册
最新全套保时捷维修资料------寶馳名車中心语言language：中文Chinese Italiano English Français Deutsch Español Japan日本2014-2015保时捷Macan 95B维修手册2014-2015保时捷918 Spyder 维修手册2013-2015保时捷帕拉梅拉Panamera 970维修手册2010-2012保时捷帕拉梅拉Panamera 970维修手册2012-2015保时捷卡雷拉Carrera911 991维修手册2006-2010保时捷卡雷拉Carrera911 996 997维修手册2012-2015保时捷Boxster, Cayman 981维修手册2009-2012保时捷卡曼Cayman 987维修手册2009-2012保时捷博克斯特Boxster 987维修手册2011-2012年保时捷卡宴Cayenne 92A维修手册2013-2015年保时捷卡宴Cayenne 92A维修手册2008-2011保时捷卡宴Cayenne 9PA维修手册2004-2006保时捷卡宴Cayenne 9PA维修手册2011-2014保时捷全车型常用保养维修手册2010-2013保时捷全车型编码故障码数据流汇集2009-2014保时捷全车型故障代码查询诊断帮助老款保时捷Porsche911维修手册老款保时捷Porsche968维修手册保时捷Macan 95B电路图保时捷918 Spyder电路图保时捷帕拉梅拉Panamera 970电路图保时捷帕拉梅拉Panamera 970电路图保时捷卡雷拉Carrera911 991电路图保时捷卡雷拉Carrera911 996 997电路图保时捷Boxster, Cayman 981电路图保时捷卡曼Cayman 987电路图保时捷博克斯特Boxster 987电路图保时捷卡宴Cayenne 92A电路图保时捷卡宴Cayenne 9PA电路图2005-2012保时捷电路图系统WDS2005-2015保时捷电路图系统WDS技术培训：保时捷Macan多媒体课程保时捷Panamera 多媒体课程保时捷918 Spyder多媒体课程保时捷911 Carrera多媒体课程保时捷卡宴Cayenne多媒体课程保时捷Boxster多媒体课程保时捷Hybrid技术多媒体课程保时捷舒适性电气系统多媒体课程保时捷PIWIS II诊断编程操作多媒体保时捷动力传输系统多媒体课程保时捷发动机电气系统多媒体课程保时捷PDK双离合器变速箱多媒体课程2015保时捷MacanDiesel MacanS MacanTurbo 95B培训手册2015保时捷918Spyder技术培训手册2014保时捷培训中心技师培训课件2014保时捷帕拉梅拉Panamera970所有车型技术培训手册2014保时捷卡曼981 Cayman CaymanS技术培训手册2014保时捷卡雷拉Carrera911 991 GT3技术培训手册2014保时捷电器CAN波形高级培训资料2014保时捷Macan 95B技术培训手册2014保时捷918 Spyder技术培训手册2014保时捷911 GT3技术培训手册2014 年款保时捷981 Cayman Cayman CaymanS培训手册2013年保时捷卡雷拉911 991Carrera CarreraS技术培训手册2013保时捷全车型电器诊断技术高级培训资料2013保时捷培训中心技师培训课件2013保时捷帕拉梅拉970 Panamera技术培训手册2013保时捷卡宴92A Cayenne发动机电器系统技术培训2013保时捷卡宴92A CayenneS Diesel技术培训手册2013保时捷卡宴92A Cayenne CayenneS Diesel 培训手册2013保时捷卡宴92A Cayenne CayenneS CayenneTurbo技术培训手册2013保时捷卡曼981 Cayman CaymanS 技术培训手册2013保时捷卡雷拉911Carrera4 Carrera4S技术培训手册2013保时捷博克斯特981 Boxster BoxsterS技术培训手册2012保时捷中心在线车型技师高级培训课程2012保时捷培训中心卡宴92A Cayenne培训课件2012保时捷培训中心技师培训课件2012保时捷帕纳梅拉970 Panamera技术培训手册2012保时捷卡宴92A Cayenne S Hybrid混合动力技术培训手册2012保时捷卡宴92A Cayenne CayenneS CayenneTurbo培训手册2012保时捷卡雷拉Carrera Carrera S 991技术培训手册2012保时捷车型发动机技师培训课件2012保时捷911 Carrera CarreraS技术培训手册2011保时捷培训中心技师培训课件2011保时捷卡宴92A Cayenne技术培训手册2010保时捷帕纳梅拉970 Panamera技术培训手册2009保时捷卡宴9PA Cayenne 技术培训手册2009保时捷卡宴9PA Cayenne Diesel技术培训手册2009保时捷卡雷拉Carrera997技术培训手册2009保时捷卡雷拉Carrera911技术培训手册2009保时捷987 Boxster Cayman技术培训手册2008保时捷卡宴9PA Cayenne CayenneS培训手册2007保时捷卡宴9PA Cayenne培训手册2007保时捷911 Carrera CarreraS技术培训手册2006保时捷卡曼987 CaymanS技术培训手册2006保时捷卡雷拉911 Carrera4 Carrera4S培训手册2006保时捷987 CaymanS技术培训手册2005保时捷卡宴9PA Cayenne CayenneS CayenneTurbo技术培训手册2005保时捷987 Boxster技术培训手册2005保时捷911卡雷拉CarreraS技术培训手册2004保时捷卡宴Cayenne 技术培训手册保时捷传动系统技术培训--认证技师课程保时捷底盘技术培训--认证技师课程保时捷发动机技术培训--认证技师课程保时捷电子和电气技术培训--认证技师课程保时捷发动机电器技术培训--认证技师课程保时捷诊断仪PIWIS_II技术培训课程保时捷金银铜级技师考试资料汇集保时捷技师基础培训资料技术会议与案例研讨：2005年保时捷技术会议与案例研讨2006年保时捷技术会议与案例研讨2007年保时捷技术会议与案例研讨2008年保时捷技术会议与案例研讨2009年保时捷技术会议与案例研讨2010年保时捷技术会议与案例研讨2011年保时捷技术会议与案例研讨2012年保时捷技术会议与案例研讨2013年保时捷技术会议与案例研讨保时捷PPN技术信息寶馳名車國際服務中心Bao Chi Super luxury car International Service Center。
cayman 保修保养手册
cayman 保修保养手册
Cayman是保时捷（Porsche）品牌的一款跑车，保时捷提供了详细的保修保养手册，以帮助车主了解如何正确地保养和维护他们的汽车。
保时捷的保修保养手册通常包括以下内容：
1. 保养计划，手册中会详细说明车辆的保养计划，包括定期更换机油、滤清器、刹车油等项目的时间表和方法。
2. 保养细节，手册中会提供关于每个保养项目的具体细节，例如需要使用的材料、工具和操作步骤等。
3. 保修条款，手册中通常也包括车辆的保修条款，包括保修期限、保修范围、保修的排除条款等内容。
4. 故障代码解读，手册中可能还包括车辆可能出现的故障代码及其含义，以帮助车主在出现故障时能够及时作出反应。
5. 保养建议，手册中通常也会提供一些建议，例如在特定的驾驶环境下需要额外注意的事项，以及一些常见问题的解决方法。
总的来说，保时捷Cayman的保修保养手册是车主必备的重要文件，它可以帮助车主了解如何正确地保养和维护他们的爱车，延长车辆的使用寿命，保持车辆的性能和安全性。
如果你是Cayman的车主，建议你仔细阅读并遵循手册中的建议进行保养和维护。
波士特奇汽车主机工程维护指南说明书
Vehicle Ident. No. _______________________Working instruction for order no.Major maintenanceat 60,000, 120,000, 180,000, 240,000 km etc. / 36,000, 72,000, 108,000, 144,000 miles etc.(Labour operation 03 26 00 ..)For a description of the various models, see Technical ManualContinued overleaf Copyright byDr. Ing. h. c. F. Porsche AGAfter Sales EngineeringPrinted in Germany - 06/08Battery: check functional state and fluid levelVehicle underbody and engine compartment: visual inspection for leaks (oils and fluids) and chafing damage (lines and hoses)Underbody panels: visual inspection for completeness, secure installation and damageCoolant hoses: check conditionRadiators and air inlets: visual inspection for external contamination and blockageCoolant: check level and antifreezeCheck spark plug change intervals in the Guarantee and Maintenance booklet and affix sticker if necessary (2008 model only)Seat belts: check operation and conditionClutch: check pedal end positionCheck that the threaded connections of the running gear adjustment at the front and rear are secureAir cleaner: replace filter element Fuel system: visual inspection for damage, routing and secure fit of line connectionsParticle filter: replace filter element9Note: If the mileage for a regular service is not reached, major maintenance must be carried out after 4, 8, 12...... years.911 Carrera (997), 911 Carrera S (997)Boxster (987), Boxster S (987)The term 'checking' includes all necessary subsequent work such as adjusting, readjusting, correcting and topping up, but does not include repairing, replacing and reconditioning parts or assemblies.Handbrake: check free play of handbrake leverExhaust system: visual inspection for leaks and damage, check engine mountBrake hoses and lines: visual inspection for leaks, damage, routing and corrosionSteering gear: visual inspection of the bellows for damageTie rod ends: check the play and dust bootsChange engine oil and oil filter (please observe oil change service plan for the 911 Carrera, Boxster and Cayman)Electrical equipment, warning and indicator lights: check operationVehicle lighting: check operationAll headlights: check adjustmentHorn: check operationDrive shafts: visual inspection of the boots for leaks and damageBrake system: visual inspection of the brake pads and brake discs for wearWindscreen wiper/washer system, headlight washer system: check fluid level and nozzle settings,check antifreeze in winter months; check wiper bladesTyres: check condition and tyre pressureCheck the door locks, lid locks and safety hooks of the front lid to ensure that they are secure and functioning properly Axle joints: check the play and visually inspect the dust boots for damageMix fuel in the tank with additive (Keropur from Porsche; Part No. 000 043 206 89) and check and if necessary affix additional Chinese sticker relating to fuel quality on the tank capReplace spark plugs: see Additional maintenanceVehicle Ident. No. _______________________Working instruction for order no. Additional maintenance for spark plugs(Labour operation 03 81 00 ..)9 Additional maintenance for drive belt (Labour operation 03 60 00 ..)Additional maintenance for convertible top(Labour operation 03 70 00 ..)Additional maintenance every 90,000 km / 54,000 miles or every 6 years (Labour operation 03 83 00 ..)Replace drive beltAdditional maintenance every 180,000 km / 108,000 miles or every 12 years (Labour operation 03 88 00 ..)Every 2 yearsFile condition report for long-life guarantee Every 4 yearsAfter 4 years, then every 2 yearsAfter 4, 8, 10 years, then every 2 years Signature (fitter): _______________________________Test drive:Oils, fluids: visual inspection for leaksSignature (final check): _________________________Copyright byDr. Ing. h. c. F. Porsche AGAfter Sales EngineeringPrinted in Germany - 06/08Porsche Centre Automatic transmission: change ATF and ATF filterAutomatic transmission: change oil in final driveAncillary unit mounts and suspension: visual inspection of all rubber mounts for damageChange brake fluidInspect airbag systemReplace tyre sealantCheck tyre pressure monitoring system batteryCheck roll-over protection system (911 Carrera Cabriolet only)All-wheel final drive: change oilRemote control, front seats, footbrake and handbrake (also actuation travel), engine, clutch, steering, transmission, ParkAssist, cruise control, PSM switch, PASM switch, Sport switch, heating, air conditioning and instruments: check operation Manual transmission: change oilCheck drive beltCheck drive belt911 Carrera (997), 911 Carrera S (997)Boxster (987), Boxster S (987)Service and maintain convertible top (911 Carrera only)every 30,000 km / 18,000 miles or every 2 years Replace spark plugs every 30,000 km / 18,000 miles or every 4 years Check drive belt every 60,000 km / 36,000 miles or every 4 years every 150,000 km / 90,000 miles or every 10 years every 240,000 km / 144,000 miles or every 16 years。
保时捷维修手册：987_TI_7c
技术信息Boxster(987)小组7车身—内侧设备©Dr.Ing.h.c.F.Porsche AG使用保时捷车辆车间文件的前提条件这些数据包括：保时捷车辆的技术信息和修理说明，以及培训文件。
这些说明信息仅供车间和车间工作人员使用。
笔记•Dr.Ing.h.c.F.Porsche AG保留对版权的独家所有权。
•不得转交给第三方。
•若无Dr.Ing.h.c.F.Porsche AG的明确同意，不得复制图片和文字或将它们用于其他电子或印刷出版物。
修理保时捷车辆的一般前提条件这些说明是正确地进行专业化保养与修理的基础。
所介绍的这些工作过程的内容要求装配工人对产品有全面的了解并接受过一定程度的培训。
装配工人在进行任何工作之前，必须已经通过Dr.Ing.h.c.F.Porsche AG 专门为熟悉产品和装配而设立的培训计划和课程获得有关产品的知识。
掌握这种知识水平是执行所述工作的前提。
如果在未掌握这些知识的情况下进行所述的修理工作，Dr.Ing.h.c.F.Porsche AG概不负责。
保时捷车辆车身作业的前提条件所介绍的修理工作仅适用于标准情况。
只限专门从事车身修理的熟练人员进行此类工作。
车间应根据损坏的总体情况，自行判断是否可将车辆恢复成正常状况。
保时捷车辆的修理工作需要使用Dr.Ing.h.c. F.Porsche AG推荐和批准的工具和车间设备。
必须根据Dr.Ing.h.c.F.Porsche AG的钣金、喷漆和防蚀/防腐工作说明正确实施所有车身修理工作。
警告注释和安全指南警告注释和安全指南按警告符号旁边的相应提示文字（危险、警告、注意）分类。
危险如不遵守操作说明则必然导致死亡或重伤的警告。
警告如不遵守操作说明则可能会导致死亡或重伤的警告。
注意如不遵守操作说明则会导致轻伤或财产损失的警告。
为防止由于工作不当而导致伤害、损失车辆性能和交通安全性、或者损坏车辆，请仔细阅读这些警告注释和安全指南并严格遵守。
997 中文维修手册
997 中文维修手册
《997中文维修手册》是一本详细介绍保时捷911（型号997）维修和保养的手册。
这本手册提供了全面的信息，旨在帮助车主和维修人员了解如何正确维护和修理911（997）车型。
手册的内容包括以下几个方面：
1. 车辆介绍：手册首先会对911（997）车型进行详细介绍，包括车辆的外观、内饰、动力系统、悬挂系统等方面的特点和技术参数。
这部分内容让读者对车辆有一个整体的了解。
2. 维修指南：手册提供了维修和保养的详细指南。
这包括了车辆的常见故障和维修方法，如发动机故障、电气系统故障、制动系统故障等。
手册会给出具体的排查和修复步骤，以及所需的工具和材料。
3. 保养计划：手册还包含了911（997）车型的保养计划。
这包括了定期更换机油、滤清器、火花塞等常规保养项目的时间和方法。
手册还会提供一些保养技巧和注意事项，以确保车辆保持良好的运行状态。
4. 零部件目录：手册提供了911（997）车型的零部件目录。
这包括了车辆的各个系统的零部件图和编号，以及它们的功能和安装位置。
这部分内容对于需要更换零部件或进行维修的人员非常有用。
5. 故障代码解读：手册还包含了911（997）车型的故障代码解读。
这些故障代码是由车辆的电脑系统自动检测并记录的，手册会解释每个故障代码的含义和可能的原因。
这对于快速定位和解决
故障非常有帮助。
总之，《997中文维修手册》是一本非常实用的手册，提供了丰富的信息和指导，帮助车主和维修人员正确维护和修理保时捷911（997）车型。
无论是初学者还是有经验的维修人员，都可以从中受益。
保时捷987活顶无法正常使用的修复
活 顶 进 行 驱 动 测 试 开 启 关 闭 都 正 常 ， 画 出 开 关 内 部 电路 图 ，如 图 ２所 示 。
图 １ 开 关 内部
难 道 是 开 关 没 有 给 出信 号 ？读 取 开 关
从 图 ２可 知 ，开 关 发 出 模 拟 信
的 数 据 流 ，发 现 开 关 数 据 没 有 变 化 。 号 ，仪 表 通 过 接 收 不 同 的 电 压 来 判 断
块 真 的 不 通 信 吗 ？由 于 笔 者 对 保 时 捷
既 然 开 关 的 线 是 到 仪 表 的 ，那 就
系 统 并 不 熟 悉 ，不 知 道 活 顶 控 制 单 元 是 仪 表 先 接 收 信 号 然 后 再 把 开 关 信
由 哪 个 模 块 控 制 及 其 具 体 位 置 。查 阅 号 传 输 给 后 端 模 块 ，那 么 开 关 到 底 有
保时捷９ ８７活顶无法正常使用的修复
吴 兵 舰 晏 礼 明
一 、 故 障 现 象 有 ｌ辆 保 时 捷 ９８７跑 车 ，客 户 反
活 顶 控 制 里 发 现 开 关 线 是 到 后 端 模 块 。
给 网 关 ，网关 再 把 数 据传 给 后 端 块 ，后 端 模 块 再 控 制 继 电 器 ，进 而
（舒 适 性 ）（无 信 号 ）。
呢 ？ 难 道 被 人 为 改 动 了 ，还 是 电路 图 锁 定 在 仪 表 ？ 由于 对保 时 捷 车 型 系
二 、诊 断 思 路 １．第 一 思 路
是 错 误 的 。下 定 决 心 一 定 要 找 出 开 关 线 的 走 向 ，最 终 发 现 开 关 有 ｌ根 ５Ｖ
查 阅 电 路 图 查 看 开 关 线 路 走 向 ，在 信 号 传 递 给 仪 表 ，而 后 通 过 ＣＡＮ 线
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
技术信息
Boxster(987)
小组7
车身—内侧设备©Dr.Ing.h.c.F.Porsche AG
使用保时捷车辆车间文件的前提条件
这些数据包括：保时捷车辆的技术信息和修理说明，以及培训文件。
这些说明信息仅供车间和车间工作
人员使用。
笔记
•Dr.Ing.h.c.F.Porsche AG保留对版权的独家所有权。
•不得转交给第三方。
•若无Dr.Ing.h.c.F.Porsche AG的明确同意，不得复制图片和文字或将它们用于其他电子或印刷出版物。
修理保时捷车辆的一般前提条件
这些说明是正确地进行专业化保养与修理的基础。
所介绍的这些工作过程的内容要求装配工人对产品有全面的了解并接受过一定程度的培训。
装配工人在进行任何工作之前，必须已经通过Dr.Ing.h.c.F.Porsche AG 专门为熟悉产品和装配而设立的培训计划和课程获得有关产品的知识。
掌握这种知识水平是执行所述工作的前提。
如果在未掌握这些知识的情况下进行所述的修理工作，Dr.Ing.h.c.F.Porsche AG概不负责。
保时捷车辆车身作业的前提条件
所介绍的修理工作仅适用于标准情况。
只限专门从事车身修理的熟练人员进行此类工作。
车间应根据损
坏的总体情况，自行判断是否可将车辆恢复成正常状况。
保时捷车辆的修理工作需要使用Dr.Ing.h.c. F.Porsche AG推荐和批准的工具和车间设备。
必须根据Dr.Ing.h.c.F.Porsche AG的钣金、喷漆和防
蚀/防腐工作说明正确实施所有车身修理工作。
警告注释和安全指南
警告注释和安全指南按警告符号旁边的相应提示文字（危险、警告、注意）分类。
危险
如不遵守操作说明则必然导致死亡或重伤的警告。
警告
如不遵守操作说明则可能会导致死亡或重伤的警告。
注意
如不遵守操作说明则会导致轻伤或财产损失的警告。
为防止由于工作不当而导致伤害、损失车辆性能和交通安全性、或者损坏车辆，请仔细阅读这些警告注
释和安全指南并严格遵守。
Dr.Ing.h.c.F.Porsche AG不可能为执行此项工作的人详细评估所有的危险状况。
因此，所有对保时捷车辆进行修理和维护的人都必须依靠自己的专门知识来保证自己的安全，并且所选择的过程不会对车辆带来任何负面效果，尤其不能损失车辆的安全性能。
因此，说明中明确指出，所述的工作过程中涉及的所有工作都必须遵守当地管理机构有关健康、事故预防和环境保护的有效指南和规则，并要符合适用的法律要求和法规规定。
注释
注释中针对如何使装配工人更便于工作提供了建议的工作过程。
下面的图示指明了这些信息：
页1of7©Dr.Ing.h.c.F.Porsche AG
Printed in Germany
笔记
•包含可以简化工作过程的建议信息。
由于我们的车辆在不断地发展与改进，因此车辆的实际技术状态和工作描述之间可能存在差异。
任何现
有的偏差都用补遗的方式加以修正，并用补遗来扩展描述的范围。
Dr.Ing.h.c.F.Porsche AG保留随时实施变化的权利，恕不另行通知。
©Dr.Ing.h.c.F.Porsche AG
Printed in Germany页2of7
Boxster(987)目录
7车身—内侧设备
7065车门杂物盒-开关盖时有噪音...............................2/054
页3of7©Dr.Ing.h.c.F.Porsche AG
Printed in Germany
技术信息Boxster
2/05ZH70657
车门杂物盒-开关盖时有噪音
车辆类型：Boxster(987)/Boxster S(987)
式样年:2005
关注事项：车门杂物盒盖。
情况：开关盖时出现卡嗒卡嗒的噪音。
开关车门杂物盒盖时，盖导向机构的齿轮可能发出卡嗒卡嗒的噪音。
其原因是盖铰链的支座的支撑力不足，这在不当公差条件下可导致盖铰链减震器上的
齿轮在盖定齿器的
个别齿上掉落。
为防止齿轮掉落，自下面列出的推出日期起，垫片已设计为在盖铰链的支座上带有额
外的固定肋。
Ludwigsburg的“零件服务”只提供带额外固定肋的改进型垫片。
在声明的推出日期之前生产的车辆上，盖铰链支座上的垫片和盖铰链的减震器应在客户
投诉时更换。
另外，必须目视检查盖的定齿器。
如果定齿器的齿明显损坏，则车门杂物盒盖也必须更换。
推出日期：
2005年3月21日，自以下车辆识别编号：
98Z5S700530Boxster/世界其他地区
98Z5U702353Boxster/世界其他地区
9825S710219Boxster/美国
9835U712288Boxster/美国
98Z5S720410Boxster S/世界其他地区
98Z5U722458Boxster S/世界其他地区
9825S730211Boxster S/美国
9835U731579Boxster S/美国
零件号为：
⇒997.555.597.00隔套
⇒997.555.841.00减震器
©Dr.Ing.h.c.F.Porsche AG Printed in Germany 2005-3-29页4of7
Boxster
7
7065
ZH
2/05
技术信息
工具：螺丝刀（小号）
快干胶，例如Loctite 414步骤：
1
拆下车门装饰衬板，⇒车间指南’705919-拆卸和安装车门装饰衬板。
’
注意
如果存放不当，车门装饰衬板可能损坏⇒
工作期间，将车门装饰衬板内侧向上放在干净柔软的表面上。
图1
2
在车门装饰衬板托架（⇒图1-项目1-）上，拆下盖铰链支座上的垫片（⇒图1-项目2-）。
2.1
将小号螺丝刀插在
垫片和支座上的锁销（⇒图1-项目A-）之间，并将垫片向上松开，脱离锁。
2.2
取下垫片并进行处
理。
图2
3
将盖铰链的减震器（⇒图2-项目1-）从支座（⇒图2-项目2-）上拆下。
3.1
用小螺丝刀将减震器上的凸耳（⇒图2-项目A-）按入。
3.2
将减震器（⇒图2-项目1-）向前
（⇒图2-箭头-）拉出支座（⇒图2-项目2-）。
4
检查盖上的定齿器（⇒图2-项目3-）是否有损坏：
•定齿器的齿未显示损坏⇒继续，步骤5。
•
定齿器的齿损坏⇒更换杂物盒盖，⇒车间指南’706519拆卸和安装杂物盒盖。
’安装盖时，使用新的减震器，然后继续，步骤6。
5
将新减震器卡入支座，直到减震器凸耳咔哒一声锁定在盖中。
2005-3-29页5of 7
©Dr.Ing.h.c.F.Porsche AG
Printed in Germany
技术信息
Boxster
2/05
ZH
7065
7
图3
6
安装改进型垫片。
改进型垫片（⇒图3）可通过额外的固定肋（⇒图3-项目1-）识别。
图4
6.1将垫片（⇒图4-项目1-）先插入支座的后锁销（⇒图4-项目A-）。
6.2
然后将垫片向前
（⇒图4-箭头-）卡入支座的前锁销（⇒图4-项目B-）。
图5
7
在减震器外壳（⇒图5-项目1-）和支座（⇒图5-项目2-）之间的三点上（⇒图5-项目A-）涂一些快干胶（例如Loctite 414），以将减震器固定于支座上它的安装位置。
8
安装车门装饰衬板。
工作时间：
70595560-更换车门装饰衬板中的卡箍和减震器：10时间单位
其中包括：更换垫片和减震器
不包括：
拆卸并安装的车门装饰衬板
©Dr.Ing.h.c.F.Porsche AG Printed in Germany
2005-3-29页6of 7
Boxster
77065ZH2/05技术信息
70651950-拆下和安装杂物盒盖：20时间单
位其中包括：更换垫片、减震器和杂物盒盖
不包括：拆卸并安装的车门装饰衬板
参考资料：⇒车间指南’705919-拆卸和安装车门装饰衬板。
’
⇒车间指南’706519-拆卸和安装杂物盒盖’
2005-3-29页7of7©Dr.Ing.h.c.F.Porsche AG
Printed in Germany。
