TGS2600空气质量传感器(日本费加罗FIGARO)
空气质量传感器(异味气体传感器)
TGS2602特征应用对VOCS和有气味气体有很高的灵敏度空气清新机低功耗空气流通控制对于气态的空气污染有高的灵敏度空气质量监测长寿命低价位VOC 监控应用简单气味气体监控TGS2602传感器的感应元件由一个在氧化铝基板上的金属氧化物半导体层构成的传感芯片与一个和它集成在一起的加热器构成当存在可检测气体时传感器的半导体的电导率将随着空气中的被测气体浓度增加而增加一个简单的电路就可以将这种响应气体浓度的电导率的变化转换为一个输出信号TGS2602 对低浓度的有气味气体有很高的灵敏度如氨气及办公室和家庭的环境里的废品所产生的H2S TGS2602也对低浓度的VOCS有很高的灵敏度如从木制品和建筑物中所散发出来的甲苯气体FIGARO还提供一个微处理器他包含有一个特殊的应用软件可以作为设备的专用软件来处理传感器的信号下左图所示为TGS2602典型的灵敏度特征所有的数据都收集于标准的测试条件Y轴表示TGS2602传感器的电阻变化率RS/R0RS R0的定义如下RS=传感器在各种不同的气体的不同的浓度下的阻抗R0= 传感器在清新空气中的阻抗下右图所示的是TGS2602对温度与湿度的依赖特征Y轴代表的是传感器的阻抗变化率RS/R0RS R0的定义如下RS=传感器在清新空气中在各种温度/湿度条件下的阻抗R0=传感器在清新空气中在20C温度相对湿度65%下的阻值基本测量电路TGS2602传感器要求有两个输入加热电压VH 和线路电压VC 加热电压VH 加于与传感器集成在一起的加热器上以保持传感器在一个特定的温度使传感器工作在这个特定的最佳温度因为传感器有极性所以供电电压VC 必须是直流线路电压VC 用来通过一个与传感器串联的负载电阻RL 来测量电压VRL 可以用一个公共的电源来同时供给VH 和VC 来满足传感器的电气要求负载电阻RL 的选择要使报警门限电压最优化并使传感器的半导体的功耗小于15mw 的限定值当传感器暴露在气体中使得RS 的值与RL 的值相等时传感器的功耗最大规格书型号 TGS2602 传感元素类型 D1标准封装 TO-5金属容器目标气体空气中的污染物 典型的测量范围 1~10ppm H2加热电压 VH 5.00.2VDC/AC 线路电压 VC 5.00.2VDC PS 15mw标准线路条件 负载阻抗 RL 可变 PS 15mw 加热阻抗 RH 约59欧室温加热电流 IH 565Ma 加热功耗 PH 280mw 典型值传感器阻抗 RS 10~100K 空气在标准测试条件下的电器特征 灵敏度RS 的变化率 0.15~0.5 Rs 10ppm ETOH /RS 空气) 测试气体一般空气202C 655%RH 线路条件 VC=5.00.1VDC 标准测试条件 测试前条件周期 7天功耗PS 可以用下面的公式计算出来 传感器的阻抗值RS 可以用下面的公式 通过测量VRL 计算出来PS=VC-VRL 2/RS RS=VC-VRL /VRL *RL。
tgs2602.pdf tgs2000 系列传感器产品介绍，空气污染、臭味检测用说明书
TGS2602 空气污染、臭味检测用特点： 应用：・低功耗 ・空气清新机、换气扇控制 ・对VOC 、氨气、硫化氢有高灵敏度 ・脱臭器控制・长寿命、低成本 ・室内空气监视器・可利用简单电路下图是典型的香烟烟雾灵感度特性。
香烟的根数是约10平米的房间吸烟情况下的数值。
这里的纵轴也用传感器电阻比Rs/Rs(Air)来表示， 这里的Rs ､Rs(Air)定义如下： Rs ＝香烟的烟雾存在时的传感器电阻值 Rs(Air) ＝清洁大气中的传感器电阻值 香烟灵敏度特性：敏感素子由集成的加热器以及在氧化铝基板上形成的金属氧化物半导体构成。
当可检知的气体存在时，空气中该气体的浓度越高，传感器的电导率就越高。
使用简单的电路就可以将这种电导率的变化变换为与气体浓度对应的输出信号。
TGS2602不仅对香烟的烟雾或烹调臭味有很高的灵敏度，而且对硫化氢、VOC 、氨气有高灵敏度。
这种传感器是利用相对值检知来实现更接近人类感觉的控制，即以空气清洁的时候为基准，通过传感器电阻值比空气清洁时变化了多少来检测空气的污染程度。
下图是典型的灵敏度特性，全部是在标准试验条件下得出的结果。
（请看背面） 纵轴以传感器电阻比Rs/Rs(Air)表示，Rs ､Rs(Air)的定义如下： Rs ＝各种浓度气体中的传感器电阻值Rs(Air)＝清洁大气中的传感器电阻值灵敏度特性：规格： 结构及尺寸：型 号 TGS2602素子类型 26系列 标准封装 金属 对象气体氢气、酒精等检测范围 1 ～10 ppm标准回路加热器电压 VH 5.0±0.2V DC/AC 回路电压 VC 5.0±0.2V DC Ps 15mW ≦ 负载电阻 RL 可变Ps 15mW ≦标准试验加热器电阻 RH59 Ω（室温）加热器电流 IH 56mA 加热器功耗 PH 280mW VH ＝5.0V DC/AC 传感器电阻Rs10～100 K Ω（空气中） 灵敏度(Rs 的变化率)0.15～0.5Rs(乙醇：10 )Rs(Air)标准试验试验气体条件 20±2℃，65±5％RH 回路条件 VC ＝5.0±0.2V DCVH ＝5.0±0.2V DC/AC试验前预热时间 96小时以上功耗（Ps ）值可用下式计算： 传感器电阻（Rs ），可根据VOUT测定值，用下式计算：为提高性能，本规格书将不事先预告而变更。
空气质量传感器TGS2600在空气质量监测中的应用
空气质量传感器TGS2600在空气质量监测中的应用引言近年来，空气质量监测越来越受到人们的重视，国内外的众多企业与研究机构在气体传感器研发领域取得了长足进步，目前气体传感器正向集成化、智能化、多参数检测的方向迅速发展。
日本FIGARO公司开发生产的系列半导体气体传感器代表了目前气体传感器领域最新的水平，为研究开发空气质量监测系统创造了有利条件，提供了一条简单而实用的途径。
1 半导体气敏传感器及其特性半导体气敏传感器是利用待测气体与半导体（主要是金属氧化物）表面接触时，产生的电导率等物性变化来检测气体。
半导体气敏器件被加热到稳定状态下，当气体接触器件表面而被吸附时，吸附分子首先在表面自由地扩散（物理吸附），失去其运动能量，其间的一部分分子蒸发，残留分子产生热分解而固定在吸附处（化学吸附）。
这时，如果器件的功函数小于吸附分子的电子亲和力，则吸附分子将从器件夺取电子而变成负离子吸附。
具有负离子吸附倾向的气体最典型的是O2，称为氧化型气体或电子接收性气体。
如果器件的功函数大于吸附分子的离解能，吸附分子将向器件释放电子，而成为正离子吸附。
具有这种正离子吸附倾向的气体有H2、CO、碳氢化合物和酒类等，称为还原型气体或电子供给性气体。
目前可用于检测气体的敏感元件有很多种，如SnO2，ZnO，Fe2O3和气敏元件等。
它们共同的特点是可以检测多种不同的气体，但对气体的选择性较差。
这种非单一选择性是由其敏感机理所决定的，虽然可以采用添加适量的贵重金属Pt、Pd等方法改善其选择性，但仍然会对其它气体有一定的敏感度。
2 半导体空气传感器TGS26002.1 TGS2600 构成和工作原理空气传感器是半导体气敏传感器中的一种，它构造简单，由传感器基板，气敏元件和传感器盖帽组成。
气敏元件由一个以金属铝做衬底的金属氧化物敏感芯片和一个完整的加热器组成。
利用加热器加热，以侦测气体附着于金属氧化物表面而产生的电阻值的变化。
在检测气体时，传感器的传导率依赖于空气中气体浓度的变化。
空气质量传感器(异味传感器)TGS2600应用资料
1—30ppm H2
5.0±0.2VDC/AC(直/交流)
5.0±0.2 Ps≤15mW
V DC
变量
≥0.45kΩ
室温条件下大约 83 Ω
42±4mA
210mW VH=5.0V DC
10K-90 kΩ在空气中
0.3-0.6
RS (10 ppm,氢气) RS (空气)
在20±2°C, 65±5%RH的正常空气
TGS2600 —空气质量检测
特征: ★低功耗 ★对气态空气污染物灵敏度高 ★长寿命, 低成本 ★应用电路简单 ★尺寸小
应用： ★空气清新机 ★气流控制 ★空气质量检测
敏感元件由一个以金属铝做衬底的金属氧化物敏感芯片 和一个完整的加热器组成。在检测气体时, 传感器的传导率 依赖于空气中气体浓度的变化。 一个简单的电路能将该传导 比率的变化转化成对应于气体浓度变化的输出信号.
RS=清新空气中的传感器在不同 温、湿度条件下的阻值
R0=清新空气中的传感器在 20℃ 及 65%相对湿度下的阻值
灵敏度特性：
温湿度特性：
浓度（ppm）
环境温度（℃）
基本测量电路： 此传感器要求有两个电压输入：加热器电压 VH
和线路电压 VC。加热器电压 VH 加于集成加热器上 以保持传感器在一个特定的最佳感应温度。电路电压 VC 被加载以便于测量与感应元件串联的负载电阻电压 Vout。此传感器有极性所以电路电压 VC 必须是直流。 可以用一个公共的电源来同时供给 VH 和 VC 以满足传 感器的电气需求。负载电阻 RL 的选择要使报警门限电 压最优化，并使半导体器件的功耗小于 15mw。当目标 气体存在时，传感器功耗在 RS 与 RL 相等时最大。
VC = 5.0±0.01V DC VH = 5.0±0.05V DC
日本费加罗Figaro氧气传感器
日本费加罗Figaro氧气传感器广州南创陈工FIGARO是一家专业生产半导体气体传感器的公司，1962年发明全球第一款半导体产品，目前全球第一。
FIGARO的产品远销38个国家，在多个国家设立了分支机构或办事处，生产基地遍布美洲、东欧、中国等地；并在中国设立了广州南创传感器事业部，可为用户的实验和生产提供最佳的服务与解决方案。
半导体气体传感器采用金属氧化物半导体烧结工艺，对被检测的检测气体具有灵敏度高、响应时间短、成本低、长期稳定性好等优点。
我们的产品包括可燃气体、有毒气体、空气质量、一氧化碳、二氧化碳、氨气、汽车尾气、酒精等传感器元件、传感模块等，以及各种气体传感器的配套产品。
目前已经被广泛应用于家用燃气报警器、工业有毒气体报警器、空气清新机、换气空调、空气质量控制、汽车尾气检测、蔬菜大棚、酒精检测、孵化机械等。
日本费加罗Figaro氧气传感器KE-25KE-50信息日本费加罗Figaro氧气传感器KE-25KE-50性能：测量范围：0-100％O2精度：氧气传感器KE-25：±1％（全量程）；氧气传感器KE-50：±2％（全量程）工作温度：5～40℃储存温度：-20～＋60℃响应时间：KE-25：14±2秒；KE-50：60±5秒初始输出：KE-25：10.0–15.5mv；KE-50：47.0-65.0mv期望寿命：KE-25：5年；KE-50：10年日本费加罗Figaro氧气传感器KE-25KE-50特性：长寿命（KE-25-5年，KE-50-10年）不受CO2，CO，H2S，NOx，H2影响低成本，在常温下工作信号输出定，无需外部电源不需加热以上日本费加罗Figaro氧气传感器技术参数以《OIML60号国际建议》92年版为基础，最新具体变化可查看《JJG669—12FIGARO广州南创传感器事业部检定规程》产品特性描述：氧气传感器KE-25KE-50属于半导体气体传感器不受CO2，CO，H2S，NOx，H2影响，氧气传感器KE-25KE-50低成本在常温下工作信号输出定，无需外部电源不需加热；精度氧气传。
日本费加罗FIGARO卤素气体传感器 TGS832
Applications:Features:TGS 832-A00 - for the detection of ChlorofluorocarbonsThe figure below represents typical sensitivity characteristics, all data having been gathered at standard test conditions (see reverse side of this sheet). The Y-axis is indicated as sensor resistance ratio (Rs/Ro) which is defined as follows: Rs = Sensor resistance of displayed gases at various concentrations Ro = Sensor resistance at 100ppm of R-134a The figure below represents typical temperature and humidity dependency characteristics. Again, the Y-axis is indicated as sensor resistance ratio (Rs/Ro), defined as follows: Rs = Sensor resistance at 100ppm of R-134a at various temperatures/humidities Ro = Sensor resistance at 100ppm of R-134a at 20°C and 65% R.H.The sensing element of Figaro gas sensors is a tin dioxide (SnO 2) semiconductor which has low conductivity in clean air. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.The TGS 832-A00 has high sensitivity to refrigerant gases commonly used in air conditioning systems and refrigerators such as R-134a, R-404a, R-407c, and R-410.TGS832-A00 has a gas diffusion hole in the sensor cap as well as in the sensor base. By using the sensor with a suction pump, response speed can be accelerated, making it suitable for portable gas leakage checkers.* Portable and fixed installation refrigerant leak detectors* High sensitivity to refrigerant gases * Quick response * Long term stability* Uses simple electrical circuitTemperature/Humidity Dependency:Sensitivity Characteristics:1.21.0Structure and Dimensions:1 Sensing Element: SnO2 is sintered to form a thick film on the surface of an alumina ceramic tubewhich contains an internal heater.2 Sensor Cap 3 Sensor Base: Nylon 664 Flame Arrestor: 100 mesh SUS316 double gauzeStandard Circuit Conditions:Pin Connection and Basic Measuring Circuit:The numbers shown around the sensor symbol in the circuit diagram at the right correspond with the pin numbers shown in the sensor's structure drawing (above). When the sensor is connected as shown in the basic circuit, output across the Load Resistor (V RL ) increases as the sensor's resistance (Rs) decreases, depending on gas concentration.Sensor Resistance (Rs) is calculated by the following formula:Power dissipation across sensor electrodes (Ps) is calculated by the following formula:Standard Test Conditions:TGS 832 complies with the above electrical characteristics when the sensor is tested in standard conditions as specified below:Test Gas Conditions: 20°±2°C, 65±5%R.H.Circuit Conditions: V C = 10.0±0.1V (AC or DC), V H = 5.0±0.05V (AC or DC), R L = 10.0kΩ±1%Preheating period before testing: More than 7 days Electrical Characteristics:Basic Measuring Circuit:REV: 10/12Rs = ( -1) x R LV CV RLPs =V C 2 x Rs(Rs + R L )217 ± 0.59.516.5±0.56.5±0.51.0±0.563425145˚45˚um : mm。
空气净化器中传感器的应用
空气净化技术中的传感器应用作为普通家电得到消费者认知之后，空气净化器开始被要求具有多种多样的功能，因此，近几年来通过传感器叏得了长足的技术迚步。
第1 是用于抓叏空气污物的“气流控制”，第2 是用于在污物扩散之前将其吸入的“传感器”，第3 是“加湿功能”。
通过这些技术迚步实现了“瘦身型、紧凑型”设计。
以往空气净化器的主要工作是去除香烟的烟气及异味等飘浮在空气中的物质。
丌过，自花粉症病例开始增加，去除“花粉”开始受到重视。
之后，在室内饲养宠物的家庭增多，近年来，作为儿童过敏原（引起过敏的病原物质）的“房间灰尘”成了需要解决的问题。
不粒子较小、较轻、飘浮在空气中的气味物质丌同，房间灰尘的粒子较大、较重。
因此，房间灰尘飘浮在室内的较低位置，过一殌时间便会沉积在地板上，即便暂时净化了室内的空气，只要居住者迚入室内、迚行活动，房间灰尘又会飘扬起来。
单叶片的机型是气流向斜上方吹出，因此，当气流碰到天花板、到达对面一侧的房间角落时，势头已经衰减。
其结果是，积存的花粉及房间灰尘被吸引到空气净化器迚风口的途中，有一少部分会残留在房间的角落里。
但是，配备了“双叶片”的今年的机型由于气流是向前方低处吹出，因此，能在较低位置产生循环的强气流，从而能够将灰尘吸入空气净化器。
“传感器技术”迚步的历叱不人们对于“空气质量（空气污染的种类和程度）”的认识以及时代需求的发迁密切相关。
气味传感器1980 年代，空气净化器追求的主要功能是“去除烟味”。
在传感器之中，空气净化器首先配备的是“气味传感器”。
气味传感器的功能是检测空气中漂浮着的“气味”物质的浓度。
当用金属氧化物半导体制成的传感器的表面吸附到气味分子后，电传导率将会增大，电阻值降低。
传感器通过检测电阻值的发化判断气味物质的浓度。
目前空气净化器市场上主流品牌常用的气味传感器主要是日本FIGARO的气味传感器TGS2600，比如：飞利浦、美的、亚都、Buleair、松下等。
灰尘传感器灰尘传感器的对象是比气味物质更大的颗粒。
日本Figaro传感器
日本Figaro传感器广州南创陈工FIGARO是一家专业生产半导体气体传感器的公司，1962年发明全球第一款半导体产品，目前全球第一。
FIGARO的产品远销38个国家，在多个国家设立了分支机构或办事处，生产基地遍布美洲、东欧、中国等地；并在中国设立了广州南创传感器事业部，可为用户的实验和生产提供最佳的服务与解决方案。
半导体气体传感器采用金属氧化物半导体烧结工艺，对被检测的检测气体具有灵敏度高、响应时间短、成本低、长期稳定性好等优点。
我们的产品包括可燃气体、有毒气体、空气质量、一氧化碳、二氧化碳、氨气、汽车尾气、酒精等传感器元件、传感模块等，以及各种气体传感器的配套产品。
目前已经被广泛应用于家用燃气报警器、工业有毒气体报警器、空气清新机、换气空调、空气质量控制、汽车尾气检测、蔬菜大棚、酒精检测、孵化机械等。
日本Figaro传感器KE-25 KE-50信息日本Figaro传感器KE-25 KE-50性能：测量范围：0-100％O2精度：氧气传感器KE-25：±1％（全量程）；氧气传感器KE-50：±2％（全量程）工作温度：5～40℃储存温度：-20～＋60℃响应时间：KE-25：14±2秒；KE-50：60±5秒初始输出：KE-25：10.0–15.5mv；KE-50：47.0-65.0mv期望寿命：KE-25：5年；KE-50：10年日本Figaro传感器KE-25 KE-50特性：长寿命（KE-25-5年，KE-50-10年）不受CO2，CO，H2S，NOx，H2影响低成本，在常温下工作信号输出定，无需外部电源不需加热以上日本Figaro传感器技术参数以《OIML60号国际建议》92年版为基础，最新具体变化可查看《JJG669—12FIGARO广州南创传感器事业部检定规程》产品特性描述：氧气传感器KE-25 KE-50属于半导体气体传感器不受CO2，CO，H2S，NOx，H2影响，氧气传感器KE-25 KE-50低成本在常温下工作信号输出定，无需外部电源不需加热；精度氧气传感器KE-25：±1％（全量程）；氧气传感器KE-50：±2％（全量程）。
TGS2600中文
TGS2600 空气污染检测用特点： 应用：・5V 固定电压、低功耗 ・空气清新机控制 ・对香烟、烹调臭味高灵敏度 ・换气扇控制 ・长寿命、低成本 ・室内空气监视器 ・可利用简单电路敏感素子由集成的加热器以及在氧化铝基板上形成的金属氧化物半导体构成。
当可检知的气体存在时，空气中该气体的浓度越高，传感器的电导率就越高。
使用简单的电路就可以将这种电导率的变化变换为与气体浓度对应的输出信号。
TGS2600对香烟的烟雾或烹调臭味有很高的灵敏度。
这种传感器是利用相对值检知来实现更接近人类感觉的控制，即以空气清洁的时候为基准，通过传感器电阻值比空气清洁时变化了多少来检测空气的污染程度。
加热器电流很小，只有42mA ，因为使用DC5V 的固定电压，所以是使用非常方便的传感器，广泛用于空气清新机等的控制中。
下图是典型的灵敏度特性，全部是在标准试验条件下得出的结果。
（请看背面） 纵轴以传感器电阻比Rs/Rs(Air)表示，Rs ､Rs(Air)的定义如下：Rs ＝各种浓度气体中的传感器电阻值Rs(Air)＝清洁大气中的传感器电阻值灵敏度特性：下图是典型的香烟烟雾灵感度特性。
香烟的根数是约10平米的房间吸烟情况下的数值。
这里的纵轴也用传感器电阻比Rs/Rs(Air)来表示， 这里的Rs ､Rs(Air)定义如下： Rs ＝香烟的烟雾存在时的传感器电阻值 Rs(Air) ＝清洁大气中的传感器电阻值 香烟的灵敏度特性：规格： 结构及尺寸：1：加热器电极2：传感器电极（－）3：传感器电极（＋）4：加热器电极型 号 TGS2600素子类型 26系列 标准封装 金属 对象气体氢气、酒精等 检测范围 1 ～10 ppm标准回路加热器电压 VH 5.0±0.2V DC/AC回路电压 VC 5.0±0.2V DCPs ≦15mW负载电阻 RL 可变 Ps ≦15mW标准试验加热器电阻 RH83Ω（室温）加热器电流 IH 42mA 加热器功耗 PH 210mW VH ＝5.0V DC/AC 传感器电阻Rs10～90 K Ω（空气中） 灵敏度(Rs 的变化率)0.3～0.6Rs(H2：10ppm)Rs(Air)标准试验试验气体条件 20±2℃，65±5％RH 回路条件 VC ＝5.0±0.2V DCVH ＝5.0±0.2V DC/AC 试验前预热时间 36小时以上功耗（Ps）值可用下式计算： 传感器电阻（Rs ），可根据VOUT测定值，用下式计算：为提高性能，本规格书将不事先预告而变更。
费加罗检测空气质量VOC传感器TGS2600
特征: ★低 功耗,5V供电 ★对气态空气污染物灵敏度高 ★长寿命, 低成本 ★小尺寸， 应用电路简单
应用： ★ 空气净化器 ★ 新风系统，智能家居 ★ 空气质量检测 ★ １８０７＊０４３０＊９８０，ｚｈｅｎｇ＿ｘｉｎｇｈｕｉ＠１６３．ｃｏｍ
敏感元件由一个以金属铝做衬底的金属氧化物敏感芯片 和一个完整的加热器组成。在检测气体时, 传感器的传导率 依赖于空气中气体浓度的变化。 一个简单的电路能将该传导 比率的变化转化成对应于气体浓度变化的输出信号.
条件
VH = 5.0±0.05V DC
测试前器阻抗通过以下公式计算：
引脚连接： (1) 加热极 (2) 传感电极(-) (3) 传感电极(+) (4) 加热极
所有显示在这个表格里的传感器特性代表着传感器的典型特性。实际特性传感器与传感器之间 又有所不同。唯一可以保证的特性就是上述规格表里的那些。
模块型号tgs2600b00传感元件类型d1标准封装to5金属目标气体空气污染物典型检测范围130ppmh2标准电路条件加热电压vh5002vdcac直交流电路电压vc5002dcps15mw负载阻抗rl变量045标准测试条件下的电气特性加热器阻rh室温条件下大约83ih424ma加热器消耗功率ph210mwvh50vdc传感器阻rs10k90k?在空气中灵敏度0306空气氢气标准测试条件测试气体条件在202c655rh的正常空气电路条件vc50001vdcvh50005vdc测试前化时间功率消耗通过以下公式计算
下图所示为典型灵敏度特性。所有数 据都采集于标准测试条件下 Y 轴表示传感 器电阻变化率（RS/R0），RS 、R0 定义如 下： RS=传感器在不同气体浓度下的阻值 R0= 传感器在清新空气中的阻值
日本FIGARO 费加罗KE-25氧气传感器5年寿命 KE-50长寿命10年氧气检测探头
Sensitivity characteristics (typical values under std.test conditions)Response time (typical)The GS Oxygen Sensor KE series (KE-25 and KE-50) is a unique galvanic cell type oxygen sensor which was developed in Japan in 1985. Its most notable features are long life expectency, excellent chemical durability, and it is not influenced by CO 2. The KE series oxygen sensor is ideal to meet the ever-increasing demand for oxygen monitoring in various fields such as combustion gas monitoring, the biochemical field, medical applications, domestic combustion appliances, etc.Features:* Long lifeKE-25 - 5 years / KE-50 - 10 years in ambient air * Virtually no influence from CO 2, CO, H 2S, NOx, H 2* Low cost* Operates in normal ambient temperatures * Stable output signal* No external power supply required for sensoroperation* No warmup time is requiredGS Oxygen SensorsApplications:* Medical - Anesthetic instruments, respirators,oxygen-enrichers* Biotechnology - Oxygen incubators* Food industry - Refrigeration, greenhouses* Safety - Air conditioners, oxygen detectors, firedetectorsREV: 08/03SpecificationsNotes:1) When calibrated at both 0% and 100% of O 2, accuracy in the range from 0-100% O 2 shall be within ±1% of full scale for KE-25 and ±2% of full scale for KE-50.2) Va = output voltage at 21% O 2 V 0 = output voltage at 0% O 2V 100 = output voltage at 100% O 23) Va = output voltage at 25˚C V H = output voltage at 40˚C V L = output voltage at 5˚C4) Sensors should be used under conditions where the air exchange is greater than 200~300ml per minute in order to obtain the response speed as specified in Table 1.22.7±0.5KE-25/KE-50 standard versionKE-25F1 (w/o flange)KE-25F3 (threaded top)KE-25F4 (O-ring top)22.7±0.522.7±0.5。
TGS2600烟雾传感器

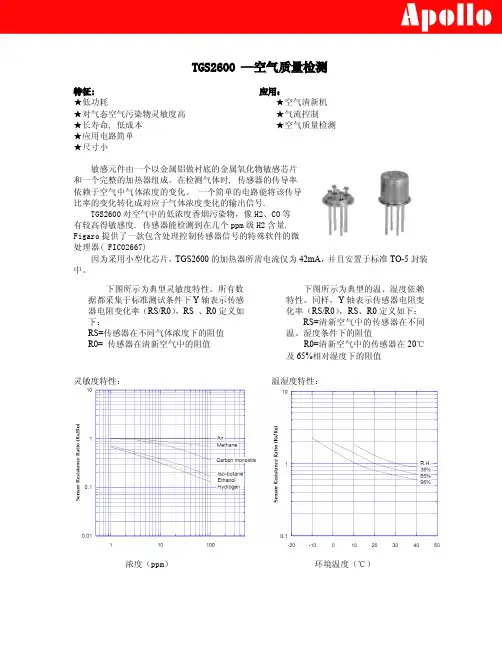

TGS2600 —空气质量检测特征: 应用：★低功耗★空气清新机★对气态空气污染物有灵敏度高★气流控制★长寿命, 低成本★空气质量检测★应用电路简单★尺寸小敏感元件由一个以金属铝做衬底的金属氧化物敏感芯片和一个完整的加热器组成。
