巴可放映机报错5800 温度高报错指导说明
巴可DP2K系列放映机故障诊断与处理
巴可DP2K系列放映机故障诊断与处理许鹏【摘要】近几年随着电影事业不断蓬勃的发展，大量新建的影院都采用全套2K 数字电影放映设备，第二代巴可DP2K数字放映机成为影院的主流配置。
经过一段时间的使用，绝大多数影院对这套数字放映机的操作、维护、保养等知识能基本掌握到位。
本文主要从实际出发，更深层次解析使用巾如何快速诊断放映机故障，并及时做适当处理，【期刊名称】《现代电影技术》【年(卷),期】2012(000)012【总页数】5页(P36-39,19)【关键词】数字放映机;故障诊断;电影放映设备;电影事业;快速诊断;影院;第二代【作者】许鹏【作者单位】中影巴可公司【正文语种】中文【中图分类】TB857.1近几年随着电影事业不断蓬勃的发展，大量新建的影院都采用全套2K数字电影放映设备，第二代巴可DP2K数字放映机成为影院的主流配置。
经过一段时间的使用，绝大多数影院对这套数字放映机的操作、维护、保养等知识能基本掌握到位。
本文主要从实际出发，更深层次解析使用中如何快速诊断放映机故障，并及时做适当处理，以节省维修时间，尽量不影响放映或减少票房的损失，并总结和归纳一些故障代码和故障维修的经验给热爱技术的放映员能在不时之需提供帮助。
首先，举一个实际发生的案例。
某影院GDC服务器搭配巴可DP2K－20C放映机，影院报告放映某部3D影片色彩偏差，放映2D影片色彩正常。
遇到此类问题，要沉着冷静，明确思路，第一步要确定大体方向，用排除法逐步缩小范围，定位故障。
常用的方法是通道不变情况下，在银幕上投射出放映机内部测试图案。
如正常，说明此故障与放映机关系不大，应该重点考虑服务器问题，或者更换两根视频线测试。
如测试图不正常，说明放映机发生问题的可能性较大，应选择其他通道再次测试，这样能够判断是否由于通道设置Marco文件损坏而造成图像的偏色，从而缩小范围。
通过这样的排查思路，很快就找到了发生故障的原因——服务器的放映列表里同时加载了2D广告片和3D正片，这样播放造成了格式的不兼容，导致放映3D正片偏色，重新编辑播放列表即可排除故障。
巴可放映机报警报错信息处理96940

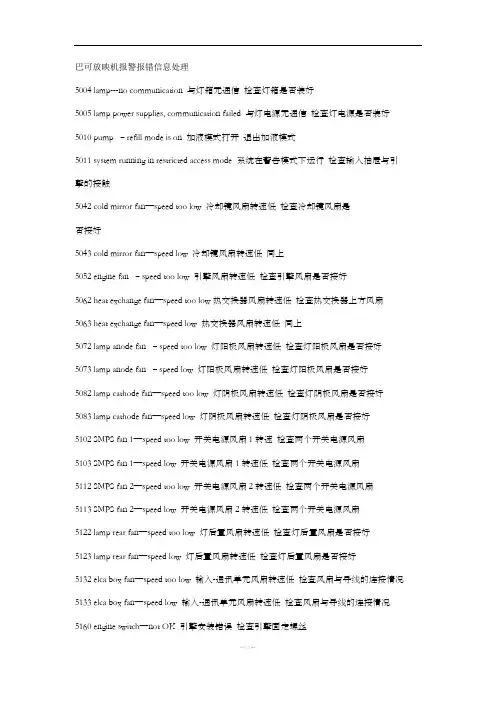

巴可放映机报警报错信息处理5004 lamp---no communication 与灯箱无通信检查灯箱是否装好5005 lamp power supplies, communication failed 与灯电源无通信检查灯电源是否装好5010 pump –refill mode is on 加液模式打开退出加液模式5011 system running in restricted access mode 系统在警告模式下运行检查输入抽屉与引擎的接触5042 cold mirror fan—speed too low 冷却镜风扇转速低检查冷却镜风扇是否接好5043 cold mirror fan—speed low 冷却镜风扇转速低同上5052 engine fan –speed too low 引擎风扇转速低检查引擎风扇是否接好5062 heat exchange fan—speed too low热交换器风扇转速低检查热交换器上方风扇5063 heat exchange fan—speed low 热交换器风扇转速低同上5072 lamp anode fan –speed too low 灯阳极风扇转速低检查灯阳极风扇是否接好5073 lamp anode fan –speed low 灯阳极风扇转速低检查灯阳极风扇是否接好5082 lamp cathode fan—speed too low 灯阴极风扇转速低检查灯阴极风扇是否接好5083 lamp cathode fan—speed low 灯阴极风扇转速低检查灯阴极风扇是否接好5102 SMPS fan 1—speed too low 开关电源风扇1转速检查两个开关电源风扇5103 SMPS fan 1—speed low 开关电源风扇1转速低检查两个开关电源风扇5112 SMPS fan 2—speed too low 开关电源风扇2转速低检查两个开关电源风扇5113 SMPS fan 2—speed low 开关电源风扇2转速低检查两个开关电源风扇5122 lamp rear fan—speed too low 灯后置风扇转速低检查灯后置风扇是否接好5123 lamp rear fan—speed low 灯后置风扇转速低检查灯后置风扇是否接好5132 elca box fan—speed too low 输入-通讯单元风扇转速低检查风扇与导线的连接情况5133 elca box fan—speed low 输入-通讯单元风扇转速低检查风扇与导线的连接情况5160 engine switch—not OK 引擎安装错误检查引擎固定螺丝5170 FIB—not connected FIB未连接好检查FIB确保两个螺丝拧紧5180 lamp house—not connected 灯箱未连接好检查灯箱上的3个固定螺丝5191 prism switch —warning , lens probably touches prism镜头位移过量调节镜头5212 pump—speed too low 泵速度过低检查泵线缆接头，电源板5213 pump—speed low 泵速度偏低检查泵线缆接头，电源板5230 lens zoom position—requested target not reached 调整或更换镜头镜头变焦无法达到指定位置5231 lens focus position-- requested target not reached 调整或更换镜头镜头聚焦无法达到指定位置5232 lens horizontal shift position-- requested target not reached检查变焦马达，镜头位置镜头水平位移未达到指定位置5233 lens vertical shift position-- requested target not reached 检查变焦马达，镜头位置镜头垂直位移未达到指定位置5237 lens position—clear requested target time out failed 镜头聚焦未达到指定位置同5231 5280 ambient—temperature too high 环境温度过高请改变环境温度5281 ambient—temperature high 环境温度高请改变环境温度5283 ambient—temperature low 环境温度低请改变环境温度5284 ambient—temperature sensor open 环境温度传感器开路检查传感器和导线或更换5285 ambient—temperature sensor short 环境温度传感器短路检查传感器和导线或更换5290 DMD blue temperature too high 蓝色通道DMD温度过高检查热交换器的过滤器5291 DMD blue temperature high 蓝色通道DMD温度偏高检查热交换器的过滤器5293 DMD blue temperature low 蓝色通道DMD温度偏低光处理器单元没有启动5294 DMD blue temperature sensor open 蓝色通道DMD温度传感器开路修复导线或更换光处理器单元5295 DMD blue temperature sensor short 蓝色通道DMD温度传感器短路修复导线或更换光处理器单元5300 DMD green temperature too high 绿色通道DMD温度过高更换过滤器5301 DMD green temperature high 绿色通道DMD温度偏高更换过滤器5303 DMD green temperature low 绿色通道DMD温度偏低光处理器单元没有启动5304 DMD green temperature sensor open 绿色通道DMD温度传感器开路检查传感器和导线5305 DMD green temperature sensor short 绿色通道DMD温度传感器短路检查传感器和导线5310 lamp temperature too high 疝灯温度过高检查过滤网和抽风5311 lamp temperature high 疝灯温度偏高检查过滤网和抽风5314 lamp—temperature sensor open 疝灯温度传感器开路检查传感器和导线5315 lamp—temperature sensor short 疝灯温度传感器短路检查传感器和导线5320 FCB—force LPS off 控制板强行关闭疝灯电源在日志中查找错误信息排除5330 PFC heat-sink—temperature too high 散热器温度过高检查进气口过滤网5331 PFC heat-sink—temperature high 散热器温度偏高检查进气口过滤网5340 DMD red temperature too high 红色通道DMD温度过高检查滤网，液冷循环5341 DMD red temperature high 红色通道DMD温度偏高检查滤网，液冷循环5343 DMD red temperature low 红色通道DMD温度偏低光处理器单元没有启动5344 DMD red temperature sensor open红色通道DMD温度传感器开路检查传感器和导线5345 DMD red temperature sensor short红色通道DMD温度传感器短路检查传感器和导线5350 SMPS primary heat-sink temperature too high 开关电源主散热器温度过高检查滤网和开关电源5351 SMPS primary heat-sink temperature high 开关电源主散热器温度偏高检查滤网和开关电源5360 SMPS secondary heat-sink temperature too high 检查滤网和开关电源（开关电源次散热器温度过高）5361 SMPS secondary heat-sink temperature high 检查滤网和开关电源（开关电源次散热器温度偏高）5364 SMPS secondary heat-sink temperature sensor open 更换SMPS模块（开关电源次散热器温度传感器开路）5365 SMPS secondary heat-sink temperature sensor short 更换SMPS模块（开关电源次散热器温度传感器短路）5401 +30v—voltage high +30v电压偏高更换风扇，马达控制板5403 +30v—voltage low +30v电压偏低检查开关电源和控制板5411 ++5v—voltage high ++5v电压偏高更换风扇，马达控制板5413 ++5v—voltage low ++5v电压偏低更换风扇，马达控制板5431 cold mirror fan—voltage high 冷镜风扇电压偏高更换风扇，马达控制板5432 cold mirror fan—voltage too low 冷镜风扇电压过低更换风扇，马达控制板5433 cold mirror fan—voltage low 冷镜风扇电压偏低更换风扇，马达控制板5441 engine fan voltage high 引擎风扇电压偏高更换风扇，马达控制板5442 engine fan voltage too low 引擎风扇电压过低更换风扇，马达控制板5443 engine fan voltage low 引擎风扇电压偏低更换风扇，马达控制板5451 heat exchange fan voltage high 热交换器风扇电压偏高更换风扇，马达控制板5452 heat exchange fan voltage too low 热交换器风扇电压过低更换风扇，马达控制板5453 heat exchange fan voltage low 热交换器风扇电压偏低更换风扇，马达控制板5461 lamp anode fan voltage high 疝灯阳极风扇电压偏高更换风扇，马达控制板5462 lamp anode fan voltage too low 疝灯阳极风扇电压过低更换风扇，马达控制板5463 lamp cathode fan voltage low 疝灯阴极风扇电压低检查阴极风扇或控制板5471 lamp cathode fan voltage high 疝灯阴极风扇电压偏高更换风扇，马达控制板5472 lamp cathode fan voltage too high 疝灯阴极风扇电压过高更换风扇，马达控制板5492 SMPS fan voltage too low 开关电源风扇电压过低更换风扇，马达控制板5493 SMPS fan voltage low 开关电源风扇电压偏低更换风扇，马达控制板5501 FIB +12v voltage high +12v 电压偏高检查供电板和开关电源5502 FIB +12v voltage low +12v 电压偏低检查供电板和开关电源5521 motor ,lens ,dowser voltage high 马达镜头光闸电压高更换风扇，马达控制板5523 motor ,lens ,dowser voltage low 马达镜头光闸电压低更换风扇，马达控制板5531 pump—voltage high 泵电压偏高更换风扇，马达控制板5532 pump—voltage too low 泵电压过低更换风扇，马达控制板5533 pump—voltage low 泵电压低更换风扇，马达控制板5551 TEC voltage high TEC半导体制冷器电压高检查单元线，控制板5553 TEC voltage low TEC半导体制冷器电压低检查单元线，控制板5561 ELCA box fan voltage high ELCA box风扇电压高/检查单元线，温度传感器，控制板5563 ELCA box fan voltage low ELCA box风扇电压低/检查单元线，温度传感器，控制板5571 lamp rear fan voltage high 灯后置风扇电压高更换风扇，马达控制板5572 lamp rear fan voltage low 灯后置风扇电压低更换风扇，马达控制板5573 lamp rear fan voltage too low 灯后置风扇电压过低更换风扇，马达控制板5581 +12v voltage high +12v电压偏高更换风扇，马达控制板5583 +12v voltage low +12v电压偏低查电源板，风扇，马达控制板5640 lamp power supplies，zero lamp power supplies detected 查电源接口，换LPS模块(疝灯电源无输出)5641 lamp power supplies-- lamp is on but SMPS is off 换SMPS模块，LPS 模块（疝灯亮但开关电源关闭）5642 lamp power supplies—at least one lamp power supply could not be detected 换灯电源（一个灯电源检测不到）5643 lamp power supplies—communication failed with at least one lamp power supply(至少一个疝灯供电装置通讯失败) 重新连接两个接口，更换整个灯电源模块5644 lamp power supplies—lamp is on but at least one lamp power supply is off(疝灯点亮，但至少一个疝灯供电装置关闭) 重新连接两个接口，更换整个灯电源模块5646 lamp set on—failed 点灯失败检查灯状况，运行时间是否超时5647 lamp—lamp is off due to an error 关灯保护检查灯状况，运行时间是否超时5654 lamp run time—read failed 读取灯运行时间失败检查灯箱是否装好5657 lamp run time—exceeds maximum 灯超时换灯，复位灯运行时间5658 lamp run time—read limits failed 读取灯运行极限时间失败检查灯箱是否装好5659 lamp run time—warning 疝灯运行时间报警换灯。
(完整版)巴可放映机镜头跑位调整指南
镜头跑位与限位调整方法故障现象1.切换通道后图像模糊（聚焦不实）或银幕上的图像位置偏移2.放映机尾灯黄灯告警，系统报5191（棱镜开关报警）,5230（镜头无法变焦）,5231（镜头无法聚焦）,5232（镜头无法水平移动）,5233（镜头无法上下移动），银幕画面不正，清晰度模糊3.切换画面后画面直接飘到一个方向的尽头(如天花板上)故障原因镜头安装不到位或镜头移位；控制板接触不良；按键板接触不良；镜头文件损坏解决办法第一步：镜头引导归位（此操作测试镜头马达是否可以正常变焦、聚焦，如果镜头引导归位可以成功完成，说明镜头可以自动调整，继续进行第五步）以管理员权限登录触摸屏，用户名“st”密码“default”，运行镜头引导：安装—高级—镜头参数，如图确认镜头参数与镜头上的编号对应，点启动开始引导，确定完成且没有报错第二步：重新安装镜头（重装镜头解决镜头没有固定好，没有安装到位的问题。
重新安装镜头后需要重做第一步）用手托住镜头，拨动镜头固定滑杆，将镜头取下，清洁内外镜头片后装回放映机。
操作时注意滑杆力度，镜头安装到位稳固（镜头下面有一可左右拨动的金属杆（图中红色部分），拨到左边是卸下镜头，右边是锁紧镜头，）。
开灯打测试图，看光是否从镜头中间打出。
尽量从镜头中间打出（可用一张白纸放到镜头前观察画面是否从镜头中间打出），如果不是，使用镜头位移，使光从镜头中间部分打出，如果此时投射画面不能打到银幕中央，调整放映机物理位置，试投影打到银幕中间部分。
第三步：重新插拔并清洁控制板（此操作解决因控制板接触不良，使放映员或放映机自动操作指令不能发送给镜头马达的问题。
此操作完成后需要重做第一步确认问题解决）可以尝试重新插拔控制板并清洁金手指（板卡插槽触点），一代机需要插拔板卡箱。
插拔板卡后有时会报5851错误代码，此时需要进行安全认证，认证方法是把钥匙靠近放映机感应区，此时按键板背灯会变成浅黄色，输入12345612，键盘闪绿光，表示认证通过。
巴可放映机报警报错信息处理
巴可放映机报警报错信息处理5003 light sensor - no communication 光线感应器 - 无通讯5004 lamp---no communication 与灯箱无通信检查灯箱是否装好5005 lamp power supplies, communication failed 与灯电源无通信检查灯电源线缆是否装好5010 pump –refill mode is on 加液模式打开退出加液模式5011 system running in restricted access mode 系统在警告模式下运行检查输入抽屉与引擎的接触5020重新安装一下控制板的类似手机卡的卡片5041 cold mirror fan - speed high 冷镜风扇–转速偏高5042 cold mirror fan—speed too low 冷却镜风扇转速过低检查冷镜风扇及背板间连线是否接好，是否可以活动5043 cold mirror fan—speed low 冷却镜风扇转速低同上5050 engine fan - speed too high 引擎风扇转速过高5051 engine fan - speed high 引擎风扇转速偏高5052 engine fan –speed too low 引擎风扇转速低检查引擎风扇是否接好5053 engine fan - speed low 引擎风扇速度低检查引擎风扇是否接好，是否可以活动5060 heat exchanger fan - speed too high 热交换器风扇转速过高5061 heat exchanger fan - speed high 热交换器风扇转速偏高5062 heat exchange fan—speed too low 热交换器风扇转速过低检查热交换器上方风扇5063 heat exchange fan—speed low 热交换器风扇转速偏低同上5070 lamp anode fan - speed too high 灯阳极风扇转速过高5071 lamp anode fan - speed high 灯阳极风扇转速偏高5072 lamp anode fan –speed too low 灯阳极风扇转速低检查灯阳极风扇是否接好5073 lamp anode fan –speed low 灯阳极风扇转速低检查灯阳极风扇是否接好5080 lamp cathode fan - speed too high 灯阴极风扇转速过高5081 lamp cathode fan - speed high 灯阴极风扇转速偏高5082 lamp cathode fan—speed too low 灯风扇控制速度低检查风扇接头和FCB 5083 lamp cathode fan—speed low 灯阴极风扇转速低检查灯阴极风扇是否接好5100 smps fan 1 (left side) - speed too high 开关电源风扇1（左侧）转速过高5101 smps fan 1 (left side) - speed high 开关电源风扇1（左侧）转速偏高5102 SMPS fan 1—speed too low 开关电源风扇1转速过低检查两个开关电源风扇5103 SMPS fan 1—speed low 开关电源风扇1转速偏低检查两个开关电源风扇5110 smps fan 2 (right side) - speed too high 开关电源风扇2（右侧）转速过高5111 smps fan 2 (right side) - speed high 开关电源风扇2（右侧）转速过高5112 SMPS fan 2—speed too low 开关电源风扇2转速过低检查两个开关电源风扇5113 SMPS fan 2—speed low 开关电源风扇2转速偏低检查两个开关电源风扇5120 lamp rear fan - speed too high 灯后置风扇转速过高5121 lamp rear fan - speed high 灯后置风扇转速偏高5122 lamp rear fan—speed too low 灯后置风扇转速过低检查灯后置风扇是否接好5123 lamp rear fan—speed low 灯后置风扇转速偏低检查灯后置风扇是否接好5132 elca box fan—speed too low 输入通讯单元风扇转速低检查风扇与导线的连接情况5133 elca box fan—speed low 输入通讯单元风扇转速低检查风扇与导线的连接情况5140 electronics fan 1 (top side) - speed too high 电子风扇1（顶面）转速过高5141 electronics fan 1 (top side) - speed high 电子风扇1（顶面）转速偏高5142 electronics fan 1 (top side) - speed too low 电子风扇1（顶面）转速过低5143 electronics fan 1 (top side) - speed low 电子风扇1（顶面）转速偏低5150 electronics fan 2 (bottom side) - speed too high 电子风扇2（底部）转速过高5151 electronics fan 2 (bottom side) - speed high 电子风扇2（底部）转速偏高5152 electronics fan 2 (bottom side) - speed too low 电子风扇2（底部）转速过低5153 electronics fan 2 (bottom side) - speed low 电子风扇2（底部）转速偏低5160 engine switch—not OK 引擎安装错误检查引擎固定螺丝5170 FIB—not connected FIB未连接好检查FIB确保两个螺丝拧紧5180 lamp house—not connected 灯箱未连接好检查灯箱上的3个固定螺丝5190 prism switch – error 棱镜开关 - 错误5191 prism switch—warning , lens probably touches prism 镜头位移过量调节镜头5210 pump - speed too high 泵速度过高5211 pump - speed high 泵速度偏高5212 pump—speed too low 泵速度过低检查水泵线缆接头接触，SMPS电源板电压;检查泵线缆接头，电源板5213 pump—speed low 泵速度偏低检查泵线缆接头，电源板5230 lens zoom position—requested target not reached 调整或更换镜头镜头变焦无法达到指定位置5231 lens focus position-- requested target not reached 调整或更换镜头镜头聚焦无法达到指定位置5232 lens horizontal shift position-- requested target not reached 检查变焦马达，镜头位置镜头水平位移未达到指定位置5233lens vertical shift position-- requested target not reached 检查变焦马达，镜头位置镜头垂直位移未达到指定位置5237lens position—clear requested target time out failed 镜头聚焦未达到指定位置同52315250 dmd red fan - speed too high 红色通道DMD风扇转速过高5251 dmd red fan - speed high 红色通道DMD风扇转速偏高5252 dmd red fan - speed too low 红色通道DMD风扇转速太低5253 dmd red fan - speed low 红色通道DMD风扇转速偏低5260 dmd green fan - speed too high 绿色通道DMD风扇转速过高5261 dmd green fan - speed high 绿色通道DMD风扇转速偏高5262 dmd green fan - speed too low 绿色通道DMD风扇转速太低5263 dmd green fan - speed low 绿色通道DMD风扇转速偏低5270 dmd blue fan - speed too high 蓝色通道DMD风扇转速过高5271 dmd blue fan - speed high 蓝色通道DMD风扇转速偏高5272 dmd blue fan - speed too low 蓝色通道DMD风扇转速太低5273 dmd blue fan - speed low 蓝色通道DMD风扇转速偏低5280 ambient—temperature too high 环境温度过高请改变环境温度5281 ambient—temperature high 环境温度高请改变环境温度5283 ambient—temperature low 环境温度低请改变环境温度5284 ambient—temperature sensor open 环境温度传感器开路检查传感器和导线或更换5285 ambient—temperature sensor short 环境温度传感器短路检查传感器和导线或更换5290 DMD blue temperature too high 蓝色通道DMD温度过高检查热交换器的过滤器5291 DMD blue temperature high 蓝色通道DMD温度偏高检查热交换器的过滤器5293 DMD blue temperature low 蓝色通道DMD温度偏低光处理器单元没有启动5294 DMD blue temperature sensor open 蓝色通道DMD温度传感器开路修复导线或更换光处理器单元5295 DMD blue temperature sensor short蓝色通道DMD温度传感器短路修复导线或更换光处理器单元5300 DMD green temperature too high绿色通道DMD温度过高更换过滤器5301 DMD green temperature high 绿色通道DMD温度偏高更换过滤器5303 DMD green temperature low 绿色通道DMD温度偏低光处理器单元没有启动5304 DMD green temperature sensor open 绿色通道DMD温度传感器开路检查传感器和导线5305 DMD green temperature sensor short 绿色通道DMD温度传感器短路检查传感器和导线5310 lamp temperature too high 疝灯温度过高检查过滤网和抽风5311 lamp temperature high 疝灯温度偏高检查过滤网和抽风5314 lamp—temperature sensor open 疝灯温度传感器开路检查传感器和导线5315 lamp—temperature sensor short 疝灯温度传感器短路检查传感器和导线5320 FCB—force LPS off 控制板强行关闭疝灯电源在日志中查找错误信息排除5330 PFC heat-sink—temperature too high 散热器温度过高检查进气口过滤网5331 PFC heat-sink—temperature high 散热器温度偏高检查进气口过滤网5332 pfc heatsink - temperature too low PFC散热片 - 温度过低5333 pfc heatsink - temperature low PFC散热片 - 温度偏低5340 DMD red temperature too high 红色通道DMD温度过高检查滤网，液冷循环5341 DMD red temperature high 红色通道DMD温度偏高检查滤网，液冷循环5342 dmd red - temperature too low 红色通道DMD温度过低5343 DMD red temperature low 红色通道DMD温度偏低光处理器单元没有启动5344 DMD red temperature sensor open红色通道DMD温度传感器开路检查传感器和导线5345 DMD red temperature sensor short红色通道DMD温度传感器短路检查传感器和导线5350 SMPS primary heat-sink temperature too high 开关电源主散热器温度过高检查滤网和开关电源5351 SMPS primary heat-sink temperature high 开关电源主散热器温度偏高检查滤网和开关电源5352 smps primary heatsink - temperature too low 开关电源的主要散热片温度过低5353 smps primary heatsink - temperature low 开关电源的主要散热片温度偏低5360 SMPS secondary heat-sink temperature too high 检查滤网和开关电源（开关电源次散热器温度过高）5361 SMPS secondary heat-sink temperature high 检查滤网和开关电源（开关电源次散热器温度偏高）5362 smps secundary heatsink - temperature too low 开关电源次散热器温度过低5363 smps secundary heatsink - temperature low 开关电源次散热器温度偏低5364 SMPS secondary heat-sink temperature sensor open 更换SMPS模块（开关电源次散热器温度传感器开路）5365 SMPS secondary heat-sink temperature sensor short 更换SMPS模块（开关电源次散热器温度传感器短路）5370 dmd red fan - voltage too high 红色通道DMD风扇电压过高5371 dmd red fan - voltage high 红色通道DMD风扇电压偏高5372 dmd red fan - voltage too low 红色通道DMD风扇电压过低5373 dmd red fan - voltage low 红色通道DMD风扇电压偏低5380 dmd green fan - voltage too high 绿色通道DMD风扇电压过高5381 dmd green fan - voltage high 绿色通道DMD风扇电压偏高5382 dmd green fan - voltage too low 绿色通道DMD风扇电压过低5383 dmd green fan - voltage low 绿色通道DMD风扇电压偏低5390 dmd blue fan - voltage too high 蓝色通道DMD风扇电压过高5391 dmd blue fan - voltage high 蓝色通道DMD风扇电压偏高5392 dmd blue fan - voltage too low 蓝色通道DMD风扇电压过低5393 dmd blue fan - voltage low 蓝色通道DMD风扇电压偏低5401 +30v—voltage high +30v电压偏高更换风扇，马达控制板5403 +30v—voltage low +30v电压偏低检查开关电源和控制板5411 ++5v—voltage high ++5v电压偏高更换风扇，马达控制板5413 ++5v—voltage low ++5v电压偏低更换风扇，马达控制板5420 tec blue - voltage too high TEC蓝色 - 电压过高5421 tec blue - voltage high TEC蓝色 - 电压偏高5422 tec blue - voltage too low TEC蓝色 - 电压过低5423 tec blue - voltage low TEC蓝色 - 电压偏低5430 cold mirror fan - voltage too high 冷镜风扇 - 电压过高5431 cold mirror fan—voltage high 冷镜风扇电压偏高更换风扇，马达控制板5432 cold mirror fan—voltage too low 冷镜风扇电压过低更换风扇，马达控制板5433 cold mirror fan—voltage low 冷镜风扇电压偏低更换风扇，马达控制板5441 engine fan voltage high 引擎风扇电压偏高更换风扇，马达控制板5442 engine fan voltage too low 引擎风扇电压过低更换风扇，马达控制板5443 engine fan voltage low 引擎风扇电压偏低更换风扇，马达控制板5450 heat exchanger fan - voltage too high 热交换器风扇电压过高5451 heat exchange fan voltage high 热交换器风扇电压偏高更换风扇，马达控制板5452 heat exchange fan voltage too low 热交换器风扇电压过低更换风扇，马达控制板5453 heat exchange fan voltage low 热交换器风扇电压偏低更换风扇，马达控制板5460 lamp anode fan - voltage too high 疝灯阳极风扇电压过高5461 lamp anode fan voltage high 疝灯阳极风扇电压偏高更换风扇，马达控制板5462 lamp anode fan voltage too low 疝灯阳极风扇电压过低更换风扇，马达控制板5463 lamp cathode fan voltage low 疝灯阴极风扇电压低检查阴极风扇或控制板5470 lamp cathode fan - voltage too high 疝灯阴极风扇电压过高5471 lamp cathode fan voltage high 疝灯阴极风扇电压偏高更换风扇，马达控制板5472 lamp cathode fan voltage too high 疝灯阴极风扇电压过高更换风扇，马达控制板5473 lamp cathode fan - voltage low 疝灯阴极风扇电压偏低5490 smps fan - voltage too high 开关电源风扇电压过高5491 smps fan - voltage high 开关电源风扇电压偏高5492 SMPS fan voltage too low 开关电源风扇电压过低更换风扇，马达控制板5493 SMPS fan voltage low 开关电源风扇电压偏低更换风扇，马达控制板5501 FIB +12v voltage high +12v 电压偏高检查供电板和开关电源5502 FIB +12v voltage low +12v 电压偏低检查供电板和开关电源5510 tec green - voltage too high TEC绿色 - 电压过高5511 tec green - voltage high TEC绿色 - 电压偏高5512 tec green - voltage too low TEC绿色 - 电压过低5513 tec green - voltage low TEC绿色 -电压偏低5521 motor ,lens ,dowser voltage high 马达镜头光闸电压高更换风扇，马达控制板5523 motor ,lens ,dowser voltage low 马达镜头光闸电压低更换风扇，马达控制板5530 pump - voltage too high 泵电压过高5531 pump—voltage high 泵电压偏高更换风扇，马达控制板5532 pump—voltage too low 泵电压过低更换风扇，马达控制板5533 pump—voltage low 泵电压偏低更换风扇，马达控制板5540 tec red - voltage too high TEC红 - 电压过高5541 tec red - voltage high TEC红 - 电压偏高5542 tec red - voltage too low TEC红 - 电压过低5543 tec red - voltage low TEC红 - 电压偏低5550 tec - voltage too high TEC半导体制冷器电压过高5551 TEC voltage high TEC半导体制冷器电压偏高检查单元线，控制板5552 tec - voltage too low TEC半导体制冷器电压过低5553 TEC voltage low TEC半导体制冷器电压偏低检查单元线，控制板5561 ELCA box fan voltage high ELCA box风扇电压高检查单元线，温度传感器，控制板5563 ELCA box fan voltage low ELCA box风扇电压低检查单元线，温度传感器，控制板5570 lamp rear fan - voltage too high 灯后置风扇电压过高5571 lamp rear fan voltage high 灯后置风扇电压高更换风扇，马达控制板5572 lamp rear fan voltage low 灯后置风扇电压低更换风扇，马达控制板5573 lamp rear fan voltage too low 灯后置风扇电压过低更换风扇，马达控制板5581 +12v voltage high +12v电压偏高更换风扇，马达控制板5583 +12v voltage low +12v电压偏低查电源板，风扇，马达控制板5590 tec red front - voltage too high TEC红前 - 电压过高5591 tec red front - voltage high TEC红前 - 电压偏高5592 tec red front - voltage too low TEC红前 - 电压过低5593 tec red front - voltage low TEC红前 - 低电压5600 tec green front - voltage too high TEC绿色前线 - 电压过高5601 tec green front - voltage high TEC绿色前线 - 电压偏高5602 tec green front - voltage too low TEC绿色前线 - 电压过低5603 tec green front - voltage low TEC绿色前线 - 电压偏低5610 tec blue front - voltage too high TEC蓝色前 - 电压过高5611 tec blue front - voltage high TEC蓝色前 - 电压偏高5612 tec blue front - voltage too low TEC蓝色前-电压过低5613 tec blue front - voltage low TEC蓝色前 - 低电压5620 electronics fan 1 (top side) - voltage too high 电子风扇1（顶面） - 电压过高5621 electronics fan 1 (top side) - voltage high 电子风扇1（顶面） - 电压偏高5622 electronics fan 1 (top side) - voltage too low 电子风扇1（顶面） - 电压过低5623 electronics fan 1 (top side) - voltage low 电子风扇1（顶面） - 电压偏低5630 electronics fan 2 (bottom side) - voltage too high 电子风扇2（底部） - 电压过高5631 electronics fan 2 (bottom side) - voltage high 电子风扇2（底部） - 电压偏高5632 electronics fan 2 (bottom side) - voltage too low 电子风扇2（底部） - 电压过低5633 electronics fan 2 (bottom side) - voltage low 电子风扇2（底部） - 电压偏低5640 lamp power supplies，zero lamp power supplies detected 检查电源接口，换LPS模块(疝灯电源无输出)5641 lamp power supplies-- lamp is on but SMPS is off 换SMPS模块， LPS 模块（疝灯亮但开关电源关闭）5642 lamp power supplies—at least one lamp power supply could not be detected （一个灯电源检测不到）检查灯电源连线接触或更换灯或灯电源5643 lamp power supplies—communication failed with at least one lamp power supply (至少一个疝灯供电装置通讯失败) 重新连接两个接口，更换整个灯电源模块5644 lamp power supplies—lamp is on but at least one lamp power supply is off (疝灯点亮，但至少一个疝灯供电装置关闭)重新连接两个接口，更换整个灯电源模块5646 lamp set on—failed 点灯失败检查灯状况，运行时间是否超时5647 lamp—lamp is off due to an error 关灯保护检查灯状况，运行时间是否超时5654 lamp run time—read failed 读取灯运行时间失败检查灯箱是否装好5657 lamp run time—exceeds maximum灯超时换灯，复位灯运行时间5658 lamp run time—read limits failed 读取灯运行极限时间失败检查灯箱是否装好5659 lamp run time—warning 疝灯运行时间报警换灯5670 dowser - set dowser open failed dowser - 集dowser打开失败5800 ti-boards - system status = fail 系统错-接触不良检查检查输入抽屉和引擎的接触5801 ti-boards - security error, please authorize 安全问题--需安全认证进行安全认证5802 ti-boards - power up self test = fail Ti板电源自检错临时处理措施可以放映，或换板5803 ti-boards- powerup self test = fail ICP板问题5807 ti-icp - read system status failed Ti-ICP读系统状态失败刷新软件并应用克隆，或更换ICP、HDSDI输入板，刷软件5811 ti-boards - power-good = fail Ti板电源问题更换电源板5812 ti-icp - read satellite info failed Ti-ICP读信息错更换HDSDI输入板5813 ti-icp - satellite firmware mismatch Ti-ICP固件不匹配 xxB系列ICP用到xxC上，刷新ICP软件，应用克隆5814 ti-icp - self test = fail ICP 拔插ICP，升级软件并克隆5815 ti-icp - certificate error TI-ICP - 证书错误5816 ti-icp - key error TI-ICP - 关键错误5817 ti-icp - icp board not detected 没有检测到ICP板5830 TI Link decrypter - No communication TI连接解码-无通信，可以放映 Enigma接触问题，软件升级ICP到v2.1以上.或开关顺序问题，与服务器连接冲突，在服务器关闭的情况下，重启机器。
巴可放映机报警报错信息处理
巴可放映机报警报错信息处理5004 lamp---no communication 与灯箱无通信检查灯箱是否装好5005 lamp power supplies, communication failed 与灯电源无通信检查灯电源是否装好5010 pump –refill mode is on 加液模式打开退出加液模式5011 system running in restricted access mode 系统在警告模式下运行检查输入抽屉与引擎的接触5042 cold mirror fan—speed too low 冷却镜风扇转速低检查冷却镜风扇是否接好5043 cold mirror fan—speed low 冷却镜风扇转速低同上5052 engine fan –speed too low 引擎风扇转速低检查引擎风扇是否接好5062 heat exchange fan—speed too low热交换器风扇转速低检查热交换器上方风扇5063 heat exchange fan—speed low 热交换器风扇转速低同上5072 lamp anode fan –speed too low 灯阳极风扇转速低检查灯阳极风扇是否接好5073 lamp anode fan –speed low 灯阳极风扇转速低检查灯阳极风扇是否接好5082 lamp cathode fan—speed too low 灯阴极风扇转速低检查灯阴极风扇是否接好5083 lamp cathode fan—speed low 灯阴极风扇转速低检查灯阴极风扇是否接好5102 SMPS fan 1—speed too low 开关电源风扇1转速检查两个开关电源风扇5103 SMPS fan 1—speed low 开关电源风扇1转速低检查两个开关电源风扇5112 SMPS fan 2—speed too low 开关电源风扇2转速低检查两个开关电源风扇5113 SMPS fan 2—speed low 开关电源风扇2转速低检查两个开关电源风扇5122 lamp rear fan—speed too low 灯后置风扇转速低检查灯后置风扇是否接好5123 lamp rear fan—speed low 灯后置风扇转速低检查灯后置风扇是否接好5132 elca box fan—speed too low 输入-通讯单元风扇转速低检查风扇与导线的连接情况5133 elca box fan—speed low 输入-通讯单元风扇转速低检查风扇与导线的连接情况5160 engine switch—not OK 引擎安装错误检查引擎固定螺丝5170 FIB—not connected FIB未连接好检查FIB确保两个螺丝拧紧5180 lamp house—not connected 灯箱未连接好检查灯箱上的3个固定螺丝5191 prism switch—warning , lens probably touches prism镜头位移过量调节镜头5212 pump—speed too low 泵速度过低检查泵线缆接头，电源板5213 pump—speed low 泵速度偏低检查泵线缆接头，电源板5230 lens zoom position—requested target not reached 调整或更换镜头镜头变焦无法达到指定位置5231 lens focus position-- requested target not reached 调整或更换镜头镜头聚焦无法达到指定位置5232 lens horizontal shift position-- requested target not reached检查变焦马达，镜头位置镜头水平位移未达到指定位置5233 lens vertical shift position-- requested target not reached 检查变焦马达，镜头位置镜头垂直位移未达到指定位置5237 lens position—clear requested target time out failed 镜头聚焦未达到指定位置同5231 5280 ambient—temperature too high 环境温度过高请改变环境温度5281 ambient—temperature high 环境温度高请改变环境温度5283 ambient—temperature low 环境温度低请改变环境温度5284 ambient—temperature sensor open 环境温度传感器开路检查传感器和导线或更换5285 ambient—temperature sensor short 环境温度传感器短路检查传感器和导线或更换5290 DMD blue temperature too high 蓝色通道DMD温度过高检查热交换器的过滤器5291 DMD blue temperature high 蓝色通道DMD温度偏高检查热交换器的过滤器5293 DMD blue temperature low 蓝色通道DMD温度偏低光处理器单元没有启动5294 DMD blue temperature sensor open 蓝色通道DMD温度传感器开路修复导线或更换光处理器单元5295 DMD blue temperature sensor short 蓝色通道DMD温度传感器短路修复导线或更换光处理器单元5300 DMD green temperature too high 绿色通道DMD温度过高更换过滤器5301 DMD green temperature high 绿色通道DMD温度偏高更换过滤器5303 DMD green temperature low 绿色通道DMD温度偏低光处理器单元没有启动5304 DMD green temperature sensor open 绿色通道DMD温度传感器开路检查传感器和导线5305 DMD green temperature sensor short 绿色通道DMD温度传感器短路检查传感器和导线5310 lamp temperature too high 疝灯温度过高检查过滤网和抽风5311 lamp temperature high 疝灯温度偏高检查过滤网和抽风5314 lamp—temperature sensor open 疝灯温度传感器开路检查传感器和导线5315 lamp—temperature sensor short 疝灯温度传感器短路检查传感器和导线5320 FCB—force LPS off 控制板强行关闭疝灯电源在日志中查找错误信息排除5330 PFC heat-sink—temperature too high 散热器温度过高检查进气口过滤网5331 PFC heat-sink—temperature high 散热器温度偏高检查进气口过滤网5340 DMD red temperature too high 红色通道DMD温度过高检查滤网，液冷循环5341 DMD red temperature high 红色通道DMD温度偏高检查滤网，液冷循环5343 DMD red temperature low 红色通道DMD温度偏低光处理器单元没有启动5344 DMD red temperature sensor open红色通道DMD温度传感器开路检查传感器和导线5345 DMD red temperature sensor short红色通道DMD温度传感器短路检查传感器和导线5350 SMPS primary heat-sink temperature too high 开关电源主散热器温度过高检查滤网和开关电源5351 SMPS primary heat-sink temperature high 开关电源主散热器温度偏高检查滤网和开关电源5360 SMPS secondary heat-sink temperature too high 检查滤网和开关电源（开关电源次散热器温度过高）5361 SMPS secondary heat-sink temperature high 检查滤网和开关电源（开关电源次散热器温度偏高）5364 SMPS secondary heat-sink temperature sensor open 更换SMPS模块（开关电源次散热器温度传感器开路）5365 SMPS secondary heat-sink temperature sensor short 更换SMPS模块（开关电源次散热器温度传感器短路）5401 +30v—voltage high +30v电压偏高更换风扇，马达控制板5403 +30v—voltage low +30v电压偏低检查开关电源和控制板5411 ++5v—voltage high ++5v电压偏高更换风扇，马达控制板5413 ++5v—voltage low ++5v电压偏低更换风扇，马达控制板5431 cold mirror fan—voltage high 冷镜风扇电压偏高更换风扇，马达控制板5432 cold mirror fan—voltage too low 冷镜风扇电压过低更换风扇，马达控制板5433 cold mirror fan—voltage low 冷镜风扇电压偏低更换风扇，马达控制板5441 engine fan voltage high 引擎风扇电压偏高更换风扇，马达控制板5442 engine fan voltage too low 引擎风扇电压过低更换风扇，马达控制板5443 engine fan voltage low 引擎风扇电压偏低更换风扇，马达控制板5451 heat exchange fan voltage high 热交换器风扇电压偏高更换风扇，马达控制板5452 heat exchange fan voltage too low 热交换器风扇电压过低更换风扇，马达控制板5453 heat exchange fan voltage low 热交换器风扇电压偏低更换风扇，马达控制板5461 lamp anode fan voltage high 疝灯阳极风扇电压偏高更换风扇，马达控制板5462 lamp anode fan voltage too low 疝灯阳极风扇电压过低更换风扇，马达控制板5463 lamp cathode fan voltage low 疝灯阴极风扇电压低检查阴极风扇或控制板5471 lamp cathode fan voltage high 疝灯阴极风扇电压偏高更换风扇，马达控制板5472 lamp cathode fan voltage too high 疝灯阴极风扇电压过高更换风扇，马达控制板5492 SMPS fan voltage too low 开关电源风扇电压过低更换风扇，马达控制板5493 SMPS fan voltage low 开关电源风扇电压偏低更换风扇，马达控制板5501 FIB +12v voltage high +12v 电压偏高检查供电板和开关电源5502 FIB +12v voltage low +12v 电压偏低检查供电板和开关电源5521 motor ,lens ,dowser voltage high 马达镜头光闸电压高更换风扇，马达控制板5523 motor ,lens ,dowser voltage low 马达镜头光闸电压低更换风扇，马达控制板5531 pump—voltage high 泵电压偏高更换风扇，马达控制板5532 pump—voltage too low 泵电压过低更换风扇，马达控制板5533 pump—voltage low 泵电压低更换风扇，马达控制板5551 TEC voltage high TEC半导体制冷器电压高检查单元线，控制板5553 TEC voltage low TEC半导体制冷器电压低检查单元线，控制板5561 ELCA box fan voltage high ELCA box风扇电压高/检查单元线，温度传感器，控制板5563 ELCA box fan voltage low ELCA box风扇电压低/检查单元线，温度传感器，控制板5571 lamp rear fan voltage high 灯后置风扇电压高更换风扇，马达控制板5572 lamp rear fan voltage low 灯后置风扇电压低更换风扇，马达控制板5573 lamp rear fan voltage too low 灯后置风扇电压过低更换风扇，马达控制板5581 +12v voltage high +12v电压偏高更换风扇，马达控制板5583 +12v voltage low +12v电压偏低查电源板，风扇，马达控制板5640 lamp power supplies，zero lamp power supplies detected 查电源接口，换LPS模块(疝灯电源无输出)5641 lamp power supplies-- lamp is on but SMPS is off 换SMPS模块，LPS 模块（疝灯亮但开关电源关闭）5642 lamp power supplies—at least one lamp power supply could not be detected 换灯电源（一个灯电源检测不到）5643 lamp power supplies—communication failed with at least one lamp power supply(至少一个疝灯供电装置通讯失败) 重新连接两个接口，更换整个灯电源模块5644 lamp power supplies—lamp is on but at least one lamp power supply is off(疝灯点亮，但至少一个疝灯供电装置关闭) 重新连接两个接口，更换整个灯电源模块5646 lamp set on—failed 点灯失败检查灯状况，运行时间是否超时5647 lamp—lamp is off due to an error 关灯保护检查灯状况，运行时间是否超时5654 lamp run time—read failed 读取灯运行时间失败检查灯箱是否装好5657 lamp run time—exceeds maximum 灯超时换灯，复位灯运行时间5658 lamp run time—read limits failed 读取灯运行极限时间失败检查灯箱是否装好5659 lamp run time—warning 疝灯运行时间报警换灯。
放映画面异常情况-常见解决方法(巴可)

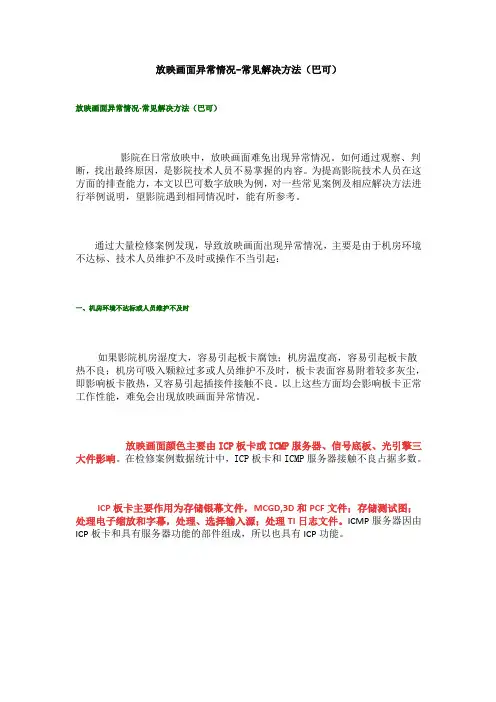

放映画面异常情况-常见解决方法（巴可）放映画面异常情况-常见解决方法（巴可）影院在日常放映中，放映画面难免出现异常情况。
如何通过观察、判断，找出最终原因，是影院技术人员不易掌握的内容。
为提高影院技术人员在这方面的排查能力，本文以巴可数字放映为例，对一些常见案例及相应解决方法进行举例说明，望影院遇到相同情况时，能有所参考。
通过大量检修案例发现，导致放映画面出现异常情况，主要是由于机房环境不达标、技术人员维护不及时或操作不当引起：一、机房环境不达标或人员维护不及时如果影院机房湿度大，容易引起板卡腐蚀；机房温度高，容易引起板卡散热不良；机房可吸入颗粒过多或人员维护不及时，板卡表面容易附着较多灰尘，即影响板卡散热，又容易引起插接件接触不良。
以上这些方面均会影响板卡正常工作性能，难免会出现放映画面异常情况。
放映画面颜色主要由ICP板卡或ICMP服务器、信号底板、光引擎三大件影响。
在检修案例数据统计中，ICP板卡和ICMP服务器接触不良占据多数。
ICP板卡主要作用为存储银幕文件，MCGD,3D和PCF文件；存储测试图；处理电子缩放和字幕，处理、选择输入源；处理TI日志文件。
ICMP服务器因由ICP板卡和具有服务器功能的部件组成，所以也具有ICP功能。
图1（为某影院ICP板卡积灰实拍）若由ICP板卡金手指氧化引起画面异常情况，可使用皮老虎和吸尘器清除表面灰尘；使用橡皮擦擦拭板卡金手指；使用吸尘器和柔软毛刷清洁信号底板插槽，一般可以解决。
ICMP服务器操作方法相同。
但影院机房环境应得到重视，并进行合理改善，放映人员应定期对设备进行A类、B类维护。
以下是某影院良好的机房环境现场采集照片。
如图2中a，b，c。
图（a）图（b）机房过道均安设空调帘避免过多粉尘进入图2（C 放映机房空间宽阔干净整洁）据该影院技术负责人介绍：最初的一家影城机房环境不佳，油烟严重，环境温度高，机房与外界相通，经常出现画面颜色异常情况，不知对板卡进行过多少次插拔，也经常有硬件坏损情况发生。
巴可放映机启动说明
待机状态，复位灯时间；
一定正确输入灯的序列号，确保正常操作！
触摸屏界面 维护 灯维护 灯更换 – 输入灯序列号
PC 或 Pad 网页版界面
维护 灯维护 灯更换 – 输入灯序列号
获取服务代码
获取服务代码
6
DP2K E-系列 数字电影放映机
快速启动指南– 操作人员
触摸屏和 PC 软件
使用PC或触摸屏上的Communictor软件界面
使用Communictor Lite网页软件界面
不要求安装额外的软件。 确保您的 PC 和放映机连接在同一个局域网内。 打开您的网络浏览器向导 输入放映机的主机名或 IP 地址（如：192.168.100.2）
启动页打开左下角
用户名：projectionist
登陆即可控制放映机。
密码：default
注意往里按下防尘滤网的两个插销，将防尘滤网从盖板上拆下。检查其“进风”侧是否有灰尘和 /或者油脂。如果防尘滤网被油脂污染了，则可用水洗防尘滤网，并将其彻底干燥。如果防尘滤网内只 有灰尘，没有油脂，则对防尘滤网进行真空吸尘。移除2块黑色泡沫垫，并弹去上面的灰尘。 将一个清洁的防尘滤网安装到盖板上。并确保两个插销和防尘滤网的两个固定唇是啮合好的。将 防尘滤网安装回放映机的前侧。确保它们的两个固定唇与放映机前盖板啮合良好。 水洗和干燥一个防尘滤网 清洗防尘滤网 用30 克（一把）碳酸钠对1升热水的比例制备清洗液。 将防尘滤网浸泡在溶液中30到60分钟。油脂应该在1小时后溶解掉。 如果防尘滤网仍然是被堵塞的，则重复该程序。 用清洁水冲洗防尘滤网，将残留的油脂都冲掉。 重复不断晃动过滤网，在离心力的作用下将所有过量的液体都甩掉。 然后彻底干燥防尘滤网。根据干燥条件的差异，通常可以在24小时左右完成自然凉干。 不管在什么情况下，都不能将潮湿的防尘滤网安装到放映机上。这可能导致严重的安全后果， 并危及机器系统内部的光学元件。
巴可影院实际问题讲解与分析
输入选择（input ） file : 选择DVI输入
镜头文件（lens ）： file 调用适用于DVI画幅的镜头文件
银幕文件（ ）：一般调用 screen file
2048*1080 No Crop
放映机配置文件（PCF file）：一般调用REC 709_2048_1080
4.设置完后保存并退出
放映机与触摸屏之间的连接方式
三种方式，以网络通讯优先 仅RS232（串行）：仅允许通过RS232 与放映机进行通信。 仅以太网(IP)：仅允许通过以太网连接进行通信。 以太网或RS232：允许通过以太网和RS232 与放映机通信。
巴可数字电影系统版权所有
Barco University
17
尾灯蓝色告警处理
巴可数字电影系统版权所有
Barco University
8
4
10. 影院反映放映影片对比度不好，没有层次感 故障原因：影厅墙面涂成黑白棋盘格，把反射到银幕上的光形成窜扰，导致对比 度下降严重，应把墙面涂成暗色调！
巴可数字电影系统版权所有
Barco University
9
11. DP2000放映图像出现蓝色垂直条纹 故障原因：引擎底部的阳极风扇严重积灰，堵塞进风口，导致引擎温度过高，蓝 色图像驱动板过热出现故障 请定期打开引擎侧盖，检查冷却液并清洁底部风扇进风口处的灰尘！
巴可数字电影系统版权所有 Barco University
32
16
4.激活镜头设置（lens setting），打合适的测试图 5.根据银幕实际尺寸调整镜头大小，聚焦及上下位移
6.调整完后选择flat或scope文件覆盖并保存
巴可数字电影系统版权所有
Barco University
巴可投影机DP2K各类故障代码-2
代码5005 灯电源 -- 通讯失败C2 通讯电缆与通讯板的接口C3 单根的与通讯端口的连接处C 与制冷风扇的连接线错误代码5053：引擎风扇转速过低（警告）错误代码5063：热交换器风扇转速过低（警告）C 与热交换器风扇连接的供电电线C 氙灯阳极风扇连接电线FC 氙灯阴极风扇与背板供电连接线FC 与风扇连接的电线C 风扇电线连接单元错误代码 5133 elcabox 风扇转速过低（错误）C 与风扇连接的电线FZ 机动镜头聚焦马达连线LC 马达与供电背板的连线B 传感器与供电板之间的连接电线错误代码5290 ：“微镜显示蓝色 温度过高”（错误）此故障亮蓝灯，以温度过高代码显示，原因与代码5291一致SG 温度传感器前方电缆，DMD绿色通道SR 温度传感器前方电缆，DMD红色通道TB Peltier element前方电缆，DMD蓝色通道TG Peltier element前方电缆，DMD绿色通道TR Peltier element前方电缆，DMD红色通道L 位于冷循环和光输出管上方的温度传感器电缆CA 格式盘猫眼的电线SH 遮光板电缆LS 位于光输出管内的光传感器连接电缆C 将传感器与供电板连接的线路C 灯箱外连接电源背板与温度传感器的电路部分错误代码 5320：“强制切断氙灯供电”错误代码 5431：镜面冷却风扇，电压过高（警告）错误代码5451：“热交换器风扇电压过高”（警告）错误代码5452：“热交换器风扇电压过低”（错误）此故障以“热交换器风扇电压过低”报警，引起它的原因是：错误代码 5462：“氙灯阳极风扇，电压过低”（错误）此故障以“氙灯阳极风扇，电压过低”报警，引起它的原因是：错误代码 5472：“氙灯阴极风扇，电压过低”（错误）此故障以“氙灯阴极风扇，电压过低”报警，引起它的原因是：错误代码 5492：“SMPS板风扇，电压过低”（错误）此故障以“SMPS板风扇，电压过低”报警，引起它的原因是：SB 马达叶片SC 与马达的连接电缆SH 马达与格式主板连接线错误代码 5551：“TEC板电压过高”（警告）错误代码 5562：“elcabox风扇电压过低”（错误）此故障以“elcabox风扇电压过低”报警，引起它的原因是：B 与格式主板的连接线C 将归位马达与电主板连接的电缆D 将旋转马达与电主板连接的电缆S 处于光管入口的温度传感器L 该处温度传感器的连接电缆P 热管T1 处于冷却模块和DMD之间的TEC组件S2 处于TEC组件和DMD之间的温度传感器S3 处于DMD前方的温度传感器错误代码 6004：“座前，温度传感器开路”（警告）错误代码 6014：“红色道组件，温度传感器开路”（错误）R 红色道温度传感器G 绿色道温度传感器BL DMD水冷模块温度传感器FR DMD座前温度传感器E 光引擎温度传感器H 热管水冷模块温度传感器TB TEC能源供应蓝色道TG TEC能源供应绿色道TR TEC能源供应红色道BL/BT DMD水冷模块蓝色道温度传感器错误代码 7473：“氙灯阴极风扇电压过低”（警告）39页。
巴可放映机错误代码及处理
5807 5812 5830 5836 5835
错误描述 “lamp - no communication” “lamp power supplies - communication failed” “cold mirror fan - speed too low” “engine fan - speed too low” “lamp anode fan - speed too low” “lamp cathode fan - speed too low” “lamp house - not connected” “prism switch - warning (lens probably touches prism)” “pump - speed too low” “ambient - temperature too high” “ambient - temperature low” “lamp - lamp is off due to an error” “lamp run time - exceeds maximum” “lamp power supplies - at least one lamp power supply could not be detected” “ti-boards - system status = fail” “ti-boards - security error, please authorize” “ti-boards - power up self test = fail” “ti-boards - power-good = fail” System-running in restricted access mode Ti-boards-Interface board arm status=fail Ti-boards-interface board fpga load status=fail Ti-boards-processor board fpga load status=fail Lamp set on =faid Pump-refill mode is on Dmd blue-temperature low Dmd green-temperature low Dmd red-tempreature low Lamp run time-read failed
【学术分享】AU5800全自动生化分析仪常见故障分析与检修
【学术分享】AU5800全自动生化分析仪常见故障分析与检修内容提要：本文对AU5800 全自动生化分析仪的结构做了简要介绍，并结合3例常见故障的检修过程，探讨AU5800 全自动生化仪有效的分析方法，提高其开机率和临床使用率。
0. 前言AU5800 全自动生化分析仪是美国贝克曼· 库尔特有限公司生产，是将生化分析过程中的取样、加试剂、混合、去干扰物、保温反应、自动监测、数据处理、打印报告以及试验后的清洗等步骤进行自动化操作的仪器[1]。
仪器主要结构包括：试剂加样单元、标本加样单元、搅拌单元、温度控制单元、比色单元、清洗单元、数据处理单元。
全自动生化分析仪以其灵活、准确、快速、多功能、高效率、高精密等特性广泛应用于日常生化项目的测定，提高了实验工作效率，减少了主观误差，保证了检验质量[2]。
1. 故障一1.1 故障现象仪器每天会有十几个标本Mg 值异常高，复检后正常。
1.2 故障分析与处理分别更换试剂、样品针、试剂针，故障未排除。
分析其他项目结果，显示为正常，说明仪器本身没有问题。
单做Mg 重复性检查结果正常，说明试剂正常。
再做所有项目的重复性检查，发现只有Mg 的CV 大于3%，且呈现有规律的两个正常值一个高值。
仔细检查仪器，发现有一个搅拌棒破损严重，且搅拌棒冲洗池有水残留。
判断为搅拌棒破损造成的交叉污染，以及冲洗池下水不畅导致上述问题。
更换破损的搅拌棒并清理冲洗池，故障排除。
2. 故障二2.1 故障现象很多项目结果明显有误，GLU ALB TGCHOL 等项目甚至出负数。
2.2 故障分析与处理初步检查后，发现比色杯溢水，擦干比色杯，结果显示正常，但一周后又出现同样故障。
进一步检查发现，冲洗喷嘴堵塞，清洗比色杯，清洗冲洗喷嘴，结果正常，但不久后又出现同样故障。
继续检查，发现很多比色杯边缘有破损，正是破损的比色杯碎片堵了冲洗喷嘴，而比色杯破损是由冲洗喷嘴位置不正引起的，重新调整冲洗喷嘴的位置，问题不再出现，故障排除。
巴可DP2K系列故障代码
BARCO DP2K 系列故障代码译表本文将列举绝大部分会显示在巴可DP2K系列放映机触摸屏与日志中的故障错误代码并译文备查，同时将针对部分常见的对我放映工作有价值的故障提供解决方法。
需要注意的是，某些代码会同时表示错误和警告，某些表示错误（error），某些是警告（waring ）。
在“警告”状态下，放映机虽将继续维持运转，但仍建议尽快解决导致“警报”的故障，否则，“警报”状态将有可能引发“错误”的产生，而最终导致停机事故的发生。
故障代码列表如下，可用ctrl+f快捷键进行搜索：1. Code 5003: “ light sen sor - no com muni cati on ” （Error）“灯传感器-无通讯”2. Code 5004: “ lamp - no com muni cati on ” （Error）“灯-无通讯”“ ”4.Code 5010: “ pump - refill mode is on“开关电源风扇1-转速过低”5.Code 5042:“cold mirror fan - speed too low“冷却泵-补充模式已开启”” (Error)” (Warni ng)“反射镜风扇 -转速过低”6.Code 5043: “cold mirror fan - speed low (Warni ng)“反射镜风扇 -转速低”7.Code 5052:“engine fan - speed too low(Error)“引擎风扇转速过低”8.Code 5053:“engine fan - speed low(Warni ng)“引擎风扇转速低”9.Code 5062: “heat excha nger fan - speed too low ” (Error)“散热器风扇 -转速过低”10.Code 5063: “ heat excha nger fan - speed low (Warni ng)“散热器风扇 -转速低”II.Code 5072: “lamp anode fan - speed too low (Error)“灯阳极风扇 -转速过低”12.Code 5073: “lamp anode fan - speed low (Warni ng)“灯阳极风扇 -转速低”13.Code 5082: “lamp cathode fan - speed too low ” (Error)“灯阴极风扇 -转速过低”14.Code 5083: “lamp cathode fan - speed low ” (Warni ng)“灯阴极风扇 -转速低”15.Code 5102: “smps fan 1 - speed too low (Error)16.Code 5103: “ smps fan 1 - speed low ” (Warning) “开关电源风扇 1 -转速低”17.Code 5112: “ smps fan 2 - speed too low ” (Error) “开关电源风扇 2 -转速过低”18.Code 5113: “ smps fan 2 - speed low ” (Warning) “开关电源风扇 2 -转速低”19.Code 5122: “lamp rear fan - speed too low ” (Error) “灯后部风扇- 转速过低”20.Code 5123: “lamp rear fan - speed low ” (Warning) “灯后部风扇- 转速低”21.Code 5132: “ elcabox fan - speed too low ” (Error) “电控盒风扇- 转速过低”22.Code 5133: “ elcabox fan - speed low ” (Error)“电控盒风扇- 转速低”23.Code 5160: “ engine switch - not ok ” (Error)引擎开关-不正常”24.Code 5170: “ fib - not conn ected ” (Error)“解码板-未连接”25.Code 5180: “lamp house - not conn ected ” (Error)26.Code 5191:“ prism switch - prism) ” (Warning)-warning (lens probably touches“棱镜开关警告（镜头可能已触动棱镜）27.Code 5212: “ pump - speed too low ” (Error)“冷却泵-转速过低”28.Code 5213:“pump - speed low“冷却泵-转速低”” (Warning)29.Code 5230: “ le ns zoom position -(Warning)-requested target not reached”“镜头变焦位置没有达到预定位置”30.Code 5232: “ le ns horiz on tal shift positi on - requestedtarget notreached ” (Warning)31. Code 5233: “ lens vertical shift position - requested target not reached ” (Warning)“镜头垂直移动位置-没有达到预定位置”参见523232. Code 5237: “ lens positi on - clear requested target time out failed (Warning)“镜头位置-接受明确指令超时”33. Code 5280: “ ambie nt - temperature too high ” (Error)34. Code 5281: “ ambie nt - temperature high ” (Warni ng)“环境-环境温度高”参见528035. Code 5283: “ ambie nt - temperature low ” (Warning)“环境-温度低”36. Code 5284: “ ambie nt - temperature sen sor ope n ” (Error)“环境-环境温感器断路”37. Code 5285: “ ambie nt - temperature sen sor short ” (Error)“环境-环境温感器短路”38. Code 5290: “ dmd blue - temperature too high ” (Error)“蓝DMD -温度过高”39. Code 5291: “ dmd blue - temperature high ” (Warni ng)“蓝DMD -温度高”40. Code 5293: “ dmd blue - temperature low ” (Warni ng)“蓝DMD -温度低”41. Code 5294: “ dmd blue - temperature sen sor ope n ” (Error) “蓝DMD -温感器断路”42. Code 5295: “ dmd blue - temperature sen sor short ” (Error) “蓝DMD -温感器短路”43. Code 5300: “ dmd gree n - temperature too high ” (Error)“绿DMD -温度过高”44. Code 5301: “ dmd gree n - temperature high ” (Warning)“绿DMD -温度高”45. Code 5303: “ dmd gree n - temperature low ” (Warning)“绿DMD -温度低”46. Code 5304: “ dmd gree n - temperature sen sor ope n ” (Error) “绿DMD -温感器断路”47. Code 5305: “ dmd gree n - temperature sen sor short ” (Error) “绿DMD -温感器短路”48. Code 5310: “lamp - temperature too high ” (Error)“灯温度过高”49. Code 5311: “lamp - temperature high ” (Warni ng)“灯-温度高”参见531050. Code 5314: “ lamp - temperature sensor open ” (Error)“灯- 温感器断路”51. Code 5315: “ lamp - temperature sensor short ” (Error)“灯- 温感器短路”52. Code 5320: “ fcb - force lps off ” (Error) “风扇控制板- 灯电源强制关闭”53. Code 5330: “ pfc heatsink - temperature too high ” (Error)“散热器- 温度过高”54. Code 5331: “ pfc heatsink - temperature high ” (Warning)“散热器- 温度高”55. Code 5340: “ dmd red - temperature too high ” (Error)“红DMD - 温度过高”56. Code 5341: “ dmd red - temperature high ” (Warning) “红DMD - 温度高”57. Code 5343: “ dmd red - temperature low ” (Warning) “红DMD - 温度低”58. Code 5344: “ dmd red - temperature sensor open ” (Error) “红DMD - 温感器断路”59. Code 5345: “ dmd red - temperature sensor short ” (Error) “红DMD - 温感器短路”60. Code 5350: “smps primary heatsink - temperature too high (Error)“开关电源主散热器- 温度过高”61. Code 5351: “ smps primary heatsink - temperature high (Warning)“开关电源主散热器- 温度高”62. Code 5360: “smps secundary heatsink - temperature too high (Error)开关电源副散热器 - 温度过高”66.Code 5401: “ +30v - voltage high ”(Warning)“ +30v - 电压高”67.Code 5403: “ +30v - voltage low ”(Warning)“+30v - 电压低”68.Code 5411: “ ++5v - voltage high ”(Warning)“ ++5v - 电压高”69.Code 5413: “ ++5v - voltage low ”(Warning)“ ++5v - 电压低”70.Code 5431: “ cold mirror fan - voltage high” (Warning)“反射镜风扇 -电压高”71.Code 5432: “ cold mirror fan - voltage too low” (Error)“反射镜风扇 -电压过低”72.Code 5433: “ cold mirror fan - voltage low” (Warning)“反射镜风扇 -电压低”73.Code 5441:“ engine fan - voltage high”(Warning)63.Code 5361: “ smps secundary heatsink (Warning)“开关电源副散热器 - 温度过高”64.Code 5364: “ smps secundary heatsink open ” (Error)“开关电源副散热器 - 温感器断路”65.Code 5365: “ smps secundary heatsink short ” (Error)“开关电源副散热器 - 温感器短路”temperature hightemperature sensortemperature sensor“引擎风扇- 电压高”74.Code 5442: “ engine fan - voltage too low(Error)“引擎风扇- 电压过低”75.Code 5443: “ engine fan - voltage low ” (Warning)引擎风扇- 电压低”76.Code 5451: “ heat exchanger fan - voltage high ” (Warning)“换热器风扇- 电压高”77.Code 5452: “ heat exchanger fan - voltage too low ” (Error)“换热器风扇- 电压过低”78.Code 5453: “ heat exchanger fan - voltage low ” (Warning)“换热器风扇- 电压低”79.Code 5461: “ lamp anode fan - voltage high ” (Warning)“灯阳极风扇- 电压高”80.Code 5462: “ lamp anode fan - voltage too low ” (Error)“灯阳极风扇- 电压过低”81.Code 5463: “ lamp anode fan - voltage low ” (Warning)“灯阳极风扇- 电压低”82.Code 5471: “ lamp cathode fan - voltage high ” (Warning)“灯阴极风扇- 电压高”83.Code 5472: “ lamp cathode fan - voltage too low ” (Error)“灯阴极风扇- 电压过低”84.Code 5473: “ lamp cathode fan - voltage low ” (Warning)“灯阴极风扇- 电压低”85.Code 5492: “ smps fan - voltage too low ”(Error)风扇控制板风扇- 电压过低”86.Code 5493: “ smps fan - voltage low ” (Warning)“风扇控制板风扇- 电压低”87.Code 5501: “ fib +12v - voltage high ” (Warning)“解码板+12v - 电压过高”88.Code 5503: “ fib +12v - voltage low ” (Warning)“解码板+ 12v - 电压低”89. Code 5521: “ motor (lens, dowser) - voltage high ” (Warning)“马达(镜头、光闸) - 电压高”90. Code 5523: “ motor (lens, dowser) - voltage low ” (Warning)“马达(镜头、光闸) - 电压低”91. Code 5531: “ pump - voltage high ” (Warning)“冷却泵- 电压高”92. Code 5532: “ pump - voltage too low ” (Error)“冷却泵- 电压过低”93. Code 5533: “ pump - voltage low ” (Warning)“冷却泵- 电压低”94. Code 5551: “ tec - voltage high ” (Warning)“珀耳贴致冷器- 电压高”95.Code 5553: “ tec - voltage low ” (Warning)“珀耳贴致冷器- 电压低”96.Code 5561: “ elcabox fan - voltage high ”(Warning)“电控盒风扇- 电压高”97.Code 5562: “ elcabox fan - voltage too low ” (Error)“电控盒风扇- 电压过低”98.Code 5563: “ elcabox fan - voltage low ”(Warning)“电控盒风扇- 电压低”99.Code 5571: “ lamp rear fan - voltage high ” (Warning)“灯后部风扇-电压高”lOO.Code 5572: “ lamp rear fan - voltage too low “灯后部风扇-电压过低”“+12v -电压高”“ +12v -电压低”103.Code 5640: “ lamp power supplies detected ” (Error)“灯电源没有探测到灯电源”104.Code 5641: “ lamp power supplies - lamp is on, but smps is off105. Code 5642: “ lamp power supplies - at least one lamp powersupply could not be detected ” (Error)参见5640(Error)101.Code 5581:“+12v - voltage high (Warni ng)102.Code 5583:“+12v - voltage low (Warni ng)-zero lamp power supplies106. Code 5643: “ lamp power supplies - com muni cati on failed with atleast one lamp power supply ” (Error)参见5640107. Code 5644: “ lamp power supplies - lamp is on, but at least onelamp power supply is off ” (Error)参见5640108. Code 5646: “ lamp - set lamp on failed ” (Error)109. Code 5647: “ lamp - lamp is off due to an error ” (Error)“灯由于一个错误氙灯已熄灭”110. Code 5654: “lamp run time - read failed ” (Error)“灯运行时间-读取失败”111. Code 5657: “lamp run time - exceeds maximum ” (Error)112. Code 5658: “ lamp run time - read limits failed ” (Error)“灯运行时间-限制读取失败”“”“ ”“ TI板-系统状态=失败”这是一个通用TI错误代码，需要进入触摸屏的“诊断-测试-自检”中勾选所有选项并进行检测，并将检测结果提供给服务商用以查找具体故障所在。
巴可放映机报警报错信息处理
巴可放映机报警报错信息处理巴可放映机报警报错信息处理5003light sensor - no communication 光线感应器 - 无通讯5004lamp---no communication 与灯箱无通信检查灯箱是否装好5005lamp power supplies, communication failed 与灯电源无通信检查灯电源线缆是否装好5010pump –refill mode is on 加液模式打开退出加液模式5011system running in restricted access mode 系统在警告模式下运行检查输入抽屉与引擎的接触5020重新安装一下控制板的类似手机卡的卡片5041cold mirror fan - speed high 冷镜风扇–转速偏高5042cold mirror fan—speed too low 冷却镜风扇转速过低检查冷镜风扇及背板间连线是否接好，是否可以活动5043cold mirror fan—speed low 冷却镜风扇转速低同上5050 engine fan - speed too high 引擎风扇转速过高5051 engine fan - speed high 引擎风扇转速偏高5052engine fan –speed too low 引擎风扇转速低检查引擎风扇是否接好5053engine fan - speed low 引擎风扇速度低检查引擎风扇是否接好，是否可以活动5060heat exchanger fan - speed too high 热交换器风扇转速过高5061heat exchanger fan - speed high 热交换器风扇转速偏高5062heat exchange fan—speed too low 热交换器风扇转速过低检查热交换器上方风扇5063heat exchange fan—speed low 热交换器风扇转速偏低同上5070lamp anode fan - speed too high 灯阳极风扇转速过高5071 lamp anode fan - speed high 灯阳极风扇转速偏高5072 lamp anode fan –speed too low 灯阳极风扇转速低检查灯阳极风扇是否接好5073lamp anode fan –speed low 灯阳极风扇转速低检查灯阳极风扇是否接好5080lamp cathode fan - speed too high 灯阴极风扇转速过高5081 lamp cathode fan - speed high 灯阴极风扇转速偏高5082lamp cathode fan—speed too low 灯风扇控制速度低检查风扇接头和FCB 5083lamp cathode fan—speed low 灯阴极风扇转速低检查灯阴极风扇是否接好5100smps fan 1 (left side) - speed too high 开关电源风扇1（左侧）转速过高5101smps fan 1 (left side) - speed high 开关电源风扇1（左侧）转速偏高5102 SMPS fan 1—speed too low 开关电源风扇1转速过低检查两个开关电源风扇5103SMPS fan 1—speed low 开关电源风扇1转速偏低检查两个开关电源风扇5110smps fan 2 (right side) - speed too high 开关电源风扇2（右侧）转速过高5111smps fan 2 (right side) - speed high 开关电源风扇2（右侧）转速过高5112SMPS fan 2—speed too low 开关电源风扇2转速过低检查两个开关电源风扇5113SMPS fan 2—speed low 开关电源风扇2转速偏低检查两个开关电源风扇5120lamp rear fan - speed too high 灯后置风扇转速过高5121lamp rear fan - speed high 灯后置风扇转速偏高5122 lamp rear fan—speed too low 灯后置风扇转速过低检查灯后置风扇是否接好5123lamp rear fan—speed low 灯后置风扇转速偏低检查灯后置风扇是否接好5132elca box fan—speed too low 输入通讯单元风扇转速低检查风扇与导线的连接情况5133elca box fan—speed low 输入通讯单元风扇转速低检查风扇与导线的连接情况5140electronics fan 1 (top side) - speed too high 电子风扇1（顶面）转速过高5141electronics fan 1 (top side) - speed high 电子风扇1（顶面）转速偏高5142electronics fan 1 (top side) - speed too low 电子风扇1（顶面）转速过低5143electronics fan 1 (top side) - speed low 电子风扇1（顶面）转速偏低5150electronics fan 2 (bottom side) - speed too high 电子风扇2（底部）转速过高5151electronics fan 2 (bottom side) - speed high 电子风扇2（底部）转速偏高5152electronics fan 2 (bottom side) - speed too low 电子风扇2（底部）转速过低5153electronics fan 2 (bottom side) - speed low 电子风扇2（底部）转速偏低5160engine switch—not OK 引擎安装错误检查引擎固定螺丝5170FIB—not connected FIB未连接好检查FIB确保两个螺丝拧紧5180lamp house—not connected 灯箱未连接好检查灯箱上的3个固定螺丝5190prism switch – error 棱镜开关- 错误5191prism switch—warning , lens probably touches prism 镜头位移过量调节镜头5210pump - speed too high 泵速度过高5211pump - speed high 泵速度偏高5212 pump—speed too low 泵速度过低检查水泵线缆接头接触，SMPS电源板电压;检查泵线缆接头，电源板5213pump—speed low 泵速度偏低检查泵线缆接头，电源板5230lens zoom position—requested target not reached 调整或更换镜头镜头变焦无法达到指定位置5231lens focus position-- requested target not reached 调整或更换镜头镜头聚焦无法达到指定位置5232lens horizontal shift position-- requested target not reached 检查变焦马达，镜头位置镜头水平位移未达到指定位置5233lens vertical shift position-- requested target notreached 检查变焦马达，镜头位置镜头垂直位移未达到指定位置5237lens position—clear requested target time out failed 镜头聚焦未达到指定位置同5231 5250dmd red fan - speed too high 红色通道DMD风扇转速过高5251dmd red fan - speed high 红色通道DMD风扇转速偏高5252dmd red fan - speed too low 红色通道DMD风扇转速太低5253dmd red fan - speed low 红色通道DMD风扇转速偏低5260dmd green fan - speed too high 绿色通道DMD风扇转速过高5261dmd green fan - speed high 绿色通道DMD风扇转速偏高5262dmd green fan - speed too low 绿色通道DMD风扇转速太低5263dmd green fan - speed low 绿色通道DMD风扇转速偏低5270dmd blue fan - speed too high 蓝色通道DMD风扇转速过高5271dmd blue fan - speed high 蓝色通道DMD风扇转速偏高5272dmd blue fan - speed too low 蓝色通道DMD风扇转速太低5273dmd blue fan - speed low 蓝色通道DMD风扇转速偏低5280ambient—temperature too high 环境温度过高请改变环境温度5281ambient—temperature high 环境温度高请改变环境温度5283ambient—temperature low 环境温度低请改变环境温度5284ambient—temperature sensor open 环境温度传感器开路检查传感器和导线或更换5285ambient—temperature sensor short 环境温度传感器短路检查传感器和导线或更换5290DMD blue temperature too high 蓝色通道DMD温度过高检查热交换器的过滤器5291DMD blue temperature high 蓝色通道DMD温度偏高检查热交换器的过滤器5293DMD blue temperature low 蓝色通道DMD温度偏低光处理器单元没有启动5294DMD blue temperature sensor open 蓝色通道DMD温度传感器开路修复导线或更换光处理器单元5295DMD blue temperature sensor short蓝色通道DMD温度传感器短路修复导线或更换光处理器单元5300DMD green temperature too high绿色通道DMD温度过高更换过滤器5301DMD green temperature high 绿色通道DMD温度偏高更换过滤器5303DMD green temperature low 绿色通道DMD温度偏低光处理器单元没有启动5304DMD green temperature sensor open 绿色通道DMD温度传感器开路检查传感器和导线5305DMD green temperature sensor short 绿色通道DMD温度传感器短路检查传感器和导线5310lamp temperature too high 疝灯温度过高检查过滤网和抽风5311lamp temperature high 疝灯温度偏高检查过滤网和抽风5314lamp—temperature sensor open 疝灯温度传感器开路检查传感器和导线5315lamp—temperature sensor short 疝灯温度传感器短路检查传感器和导线5320FCB—force LPS off 控制板强行关闭疝灯电源在日志中查找错误信息排除5330PFC heat-sink—temperature too high 散热器温度过高检查进气口过滤网5331PFC heat-sink—temperature high 散热器温度偏高检查进气口过滤网5332pfc heatsink - temperature too low PFC散热片- 温度过低5333pfc heatsink - temperature low PFC散热片- 温度偏低5340DMD red temperature too high 红色通道DMD温度过高检查滤网，液冷循环5341DMD red temperature high 红色通道DMD温度偏高检查滤网，液冷循环5342dmd red - temperature too low 红色通道DMD温度过低5343DMD red temperature low 红色通道DMD温度偏低光处理器单元没有启动5344DMD red temperature sensor open红色通道DMD温度传感器开路检查传感器和导线5345DMD red temperature sensor short红色通道DMD温度传感器短路检查传感器和导线5350SMPS primary heat-sink temperature too high 开关电源主散热器温度过高检查滤网和开关电源5351SMPS primary heat-sink temperature high 开关电源主散热器温度偏高检查滤网和开关电源5352smps primary heatsink - temperature too low 开关电源的主要散热片温度过低5353smps primary heatsink - temperature low 开关电源的主要散热片温度偏低5360SMPS secondary heat-sink temperature too high 检查滤网和开关电源（开关电源次散热器温度过高）5361SMPS secondary heat-sink temperature high 检查滤网和开关电源（开关电源次散热器温度偏高）5362smps secundary heatsink - temperature too low 开关电源次散热器温度过低5363smps secundary heatsink - temperature low 开关电源次散热器温度偏低5364SMPS secondary heat-sink temperature sensor open 更换SMPS模块（开关电源次散热器温度传感器开路）5365SMPS secondary heat-sink temperature sensor short 更换SMPS模块（开关电源次散热器温度传感器短路）5370dmd red fan - voltage too high 红色通道DMD风扇电压过高5371dmd red fan - voltage high 红色通道DMD风扇电压偏高5372dmd red fan - voltage too low 红色通道DMD风扇电压过低5373dmd red fan - voltage low 红色通道DMD风扇电压偏低5380dmd green fan - voltage too high 绿色通道DMD风扇电压过高5381dmd green fan - voltage high 绿色通道DMD风扇电压偏高5382dmd green fan - voltage too low 绿色通道DMD风扇电压过低5383dmd green fan - voltage low 绿色通道DMD风扇电压偏低5390dmd blue fan - voltage too high 蓝色通道DMD风扇电压过高5391dmd blue fan - voltage high 蓝色通道DMD风扇电压偏高5392dmd blue fan - voltage too low 蓝色通道DMD风扇电压过低5393dmd blue fan - voltage low 蓝色通道DMD风扇电压偏低5401+30v—voltage high +30v电压偏高更换风扇，马达控制板5403+30v—voltage low +30v电压偏低检查开关电源和控制板5411++5v—voltage high ++5v电压偏高更换风扇，马达控制板5413++5v—voltage low ++5v电压偏低更换风扇，马达控制板5420tec blue - voltage too high TEC蓝色- 电压过高5421tec blue - voltage high TEC蓝色- 电压偏高5422tec blue - voltage too low TEC蓝色- 电压过低5423tec blue - voltage low TEC蓝色- 电压偏低5430cold mirror fan - voltage too high 冷镜风扇- 电压过高5431cold mirror fan—voltage high 冷镜风扇电压偏高更换风扇，马达控制板5432cold mirror fan—voltage too low 冷镜风扇电压过低更换风扇，马达控制板5433cold mirror fan—voltage low 冷镜风扇电压偏低更换风扇，马达控制板5441engine fan voltage high 引擎风扇电压偏高更换风扇，马达控制板5442 engine fan voltage too low 引擎风扇电压过低更换风扇，马达控制板5443engine fan voltage low 引擎风扇电压偏低更换风扇，马达控制板5450heat exchanger fan - voltage too high 热交换器风扇电压过高5451heat exchange fan voltage high 热交换器风扇电压偏高更换风扇，马达控制板5452heat exchange fan voltage too low 热交换器风扇电压过低更换风扇，马达控制板5453 heat exchange fan voltage low 热交换器风扇电压偏低更换风扇，马达控制板5460lamp anode fan - voltage too high 疝灯阳极风扇电压过高5461lamp anode fan voltage high 疝灯阳极风扇电压偏高更换风扇，马达控制板5462lamp anode fan voltage too low 疝灯阳极风扇电压过低更换风扇，马达控制板5463lamp cathode fan voltage low 疝灯阴极风扇电压低检查阴极风扇或控制板5470lamp cathode fan - voltage too high 疝灯阴极风扇电压过高5471lamp cathode fan voltage high 疝灯阴极风扇电压偏高更换风扇，马达控制板5472lamp cathode fan voltage too high 疝灯阴极风扇电压过高更换风扇，马达控制板5473lamp cathode fan - voltage low 疝灯阴极风扇电压偏低5490smps fan - voltage too high 开关电源风扇电压过高5491smps fan - voltage high 开关电源风扇电压偏高5492SMPS fan voltage too low 开关电源风扇电压过低更换风扇，马达控制板5493SMPS fan voltage low 开关电源风扇电压偏低更换风扇，马达控制板5501FIB +12v voltage high +12v 电压偏高检查供电板和开关电源5502FIB +12v voltage low +12v 电压偏低检查供电板和开关电源5510tec green - voltage too high TEC绿色- 电压过高5511tec green - voltage high TEC绿色- 电压偏高5512tec green - voltage too low TEC绿色- 电压过低5513tec green - voltage low TEC绿色-电压偏低5521motor ,lens ,dowser voltage high 马达镜头光闸电压高更换风扇，马达控制板5523motor ,lens ,dowser voltage low 马达镜头光闸电压低更换风扇，马达控制板5530pump - voltage too high 泵电压过高5531pump—voltage high 泵电压偏高更换风扇，马达控制板5532pump—voltage too low 泵电压过低更换风扇，马达控制板5533pump—voltage low 泵电压偏低更换风扇，马达控制板5540tec red - voltage too high TEC红- 电压过高5541tec red - voltage high TEC红- 电压偏高5542tec red - voltage too low TEC红- 电压过低5543tec red - voltage low TEC红- 电压偏低5550tec - voltage too high TEC半导体制冷器电压过高5551TEC voltage high TEC半导体制冷器电压偏高检查单元线，控制板5552tec - voltage too low TEC半导体制冷器电压过低5553TEC voltage low TEC半导体制冷器电压偏低检查单元线，控制板5561ELCA box fan voltage high ELCA box风扇电压高检查单元线，温度传感器，控制板5563ELCA box fan voltage low ELCA box风扇电压低检查单元线，温度传感器，控制板5570lamp rear fan - voltage too high 灯后置风扇电压过高5571lamp rear fan voltage high 灯后置风扇电压高更换风扇，马达控制板5572lamp rear fan voltage low 灯后置风扇电压低更换风扇，马达控制板5573lamp rear fan voltage too low 灯后置风扇电压过低更换风扇，马达控制板5581+12v voltage high +12v电压偏高更换风扇，马达控制板5583+12v voltage low +12v电压偏低查电源板，风扇，马达控制板5590 tec red front - voltage too high TEC红前- 电压过高5591tec red front - voltage high TEC红前- 电压偏高5592tec red front - voltage too low TEC红前- 电压过低5593tec red front - voltage low TEC红前- 低电压5600tec green front - voltage too high TEC绿色前线- 电压过高5601tec green front - voltage high TEC绿色前线- 电压偏高5602tec green front - voltage too low TEC绿色前线- 电压过低5603tec green front - voltage low TEC绿色前线- 电压偏低5610tec blue front - voltage too high TEC蓝色前- 电压过高5611tec blue front - voltage high TEC蓝色前- 电压偏高5612tec blue front - voltage too low TEC蓝色前-电压过低5613tec blue front - voltage low TEC蓝色前- 低电压5620electronics fan 1 (top side) - voltage too high 电子风扇1（顶面）- 电压过高5621electronics fan 1 (top side) - voltage high 电子风扇1（顶面）- 电压偏高5622electronics fan 1 (top side) - voltage too low 电子风扇1（顶面）- 电压过低5623electronics fan 1 (top side) - voltage low 电子风扇1（顶面）- 电压偏低5630electronics fan 2 (bottom side) - voltage too high 电子风扇2（底部）- 电压过高5631electronics fan 2 (bottom side) - voltage high 电子风扇2（底部）- 电压偏高5632electronics fan 2 (bottom side) - voltage too low 电子风扇2（底部）- 电压过低5633electronics fan 2 (bottom side) -voltage low 电子风扇2（底部）- 电压偏低5640lamp power supplies，zero lamp power supplies detected 检查电源接口，换LPS模块(疝灯电源无输出)5641lamp power supplies-- lamp is on but SMPS is off 换SMPS模块，LPS 模块（疝灯亮但开关电源关闭）5642lamp power supplies—at least one lamp power supply could not be detected （一个灯电源检测不到）检查灯电源连线接触或更换灯或灯电源5643lamp power supplies—communication failed with at least one lamp power supply (至少一个疝灯供电装置通讯失败) 重新连接两个接口，更换整个灯电源模块5644 lamp power supplies—lamp is on but at least one lamp power supply is off (疝灯点亮，但至少一个疝灯供电装置关闭)重新连接两个接口，更换整个灯电源模块5646lamp set on—failed 点灯失败检查灯状况，运行时间是否超时5647lamp—lamp is off due to an error 关灯保护检查灯状况，运行时间是否超时5654lamp run time—read failed 读取灯运行时间失败检查灯箱是否装好5657lamp run time—exceeds maximum灯超时换灯，复位灯运行时间5658lamp run time—read limits failed 读取灯运行极限时间失败检查灯箱是否装好5659lamp run time—warning 疝灯运行时间报警换灯5670dowser - set dowser open failed dowser -集dowser打开失败5800ti-boards - system status = fail 系统错-接触不良检查检查输入抽屉和引擎的接触5801ti-boards - security error, please authorize 安全问题--需安全认证进行安全认证5802ti-boards - power up self test = fail Ti板电源自检错临时处理措施可以放映，或换板5803ti-boards- powerup self test = fail ICP板问题5807ti-icp - read system status failed Ti-ICP读系统状态失败刷新软件并应用克隆，或更换ICP、HDSDI输入板，刷软件5811ti-boards - power-good = fail Ti板电源问题更换电源板5812ti-icp - read satellite info failed Ti-ICP读信息错更换HDSDI输入板5813ti-icp - satellite firmware mismatch Ti-ICP固件不匹配xxB 系列ICP用到xxC上，刷新ICP软件，应用克隆5814ti-icp - self test = fail ICP 拔插ICP，升级软件并克隆5815 ti-icp - certificate error TI-ICP - 证书错误5816ti-icp - key error TI-ICP - 关键错误5817ti-icp - icp board not detected 没有检测到ICP板5830 TI Link decrypter - No communication TI连接解码-无通信，可以放映Enigma接触问题，软件升级ICP到v2.1以上.或开关顺序问题，与服务器连接冲突，在服务器关闭的情况下，重启机器。
巴可放映机报警报错信息处理
巴可放映机报警报错信息处理5003 light sensor - no communication 光线感应器 - 无通讯5004 lamp---no communication 与灯箱无通信检查灯箱是否装好5005 lamp power supplies, communication failed 与灯电源无通信检查灯电源线缆是否装好5010 pump –refill mode is on 加液模式打开退出加液模式5011 system running in restricted access mode 系统在警告模式下运行检查输入抽屉与引擎的接触5020重新安装一下控制板的类似手机卡的卡片5041 cold mirror fan - speed high 冷镜风扇–转速偏高5042 cold mirror fan—speed too low 冷却镜风扇转速过低检查冷镜风扇及背板间连线是否接好，是否可以活动5043 cold mirror fan—speed low 冷却镜风扇转速低同上5050 engine fan - speed too high 引擎风扇转速过高5051 engine fan - speed high 引擎风扇转速偏高5052 engine fan –speed too low 引擎风扇转速低检查引擎风扇是否接好5053 engine fan - speed low 引擎风扇速度低检查引擎风扇是否接好，是否可以活动5060 heat exchanger fan - speed too high 热交换器风扇转速过高5061 heat exchanger fan - speed high 热交换器风扇转速偏高5062 heat exchange fan—speed too low 热交换器风扇转速过低检查热交换器上方风扇5063 heat exchange fan—speed low 热交换器风扇转速偏低同上5070 lamp anode fan - speed too high 灯阳极风扇转速过高5071 lamp anode fan - speed high 灯阳极风扇转速偏高5072 lamp anode fan –speed too low 灯阳极风扇转速低检查灯阳极风扇是否接好5073 lamp anode fan –speed low 灯阳极风扇转速低检查灯阳极风扇是否接好5080 lamp cathode fan - speed too high 灯阴极风扇转速过高5081 lamp cathode fan - speed high 灯阴极风扇转速偏高5082 lamp cathode fan—speed too low 灯风扇控制速度低检查风扇接头和FCB 5083 lamp cathode fan—speed low 灯阴极风扇转速低检查灯阴极风扇是否接好5100 smps fan 1 (left side) - speed too high 开关电源风扇1（左侧）转速过高5101 smps fan 1 (left side) - speed high 开关电源风扇1（左侧）转速偏高5102 SMPS fan 1—speed too low 开关电源风扇1转速过低检查两个开关电源风扇5103 SMPS fan 1—speed low 开关电源风扇1转速偏低检查两个开关电源风扇5110 smps fan 2 (right side) - speed too high 开关电源风扇2（右侧）转速过高5111 smps fan 2 (right side) - speed high 开关电源风扇2（右侧）转速过高5112 SMPS fan 2—speed too low 开关电源风扇2转速过低检查两个开关电源风扇5113 SMPS fan 2—speed low 开关电源风扇2转速偏低检查两个开关电源风扇5120 lamp rear fan - speed too high 灯后置风扇转速过高5121 lamp rear fan - speed high 灯后置风扇转速偏高5122 lamp rear fan—speed too low 灯后置风扇转速过低检查灯后置风扇是否接好5123 lamp rear fan—speed low 灯后置风扇转速偏低检查灯后置风扇是否接好5132 elca box fan—speed too low 输入通讯单元风扇转速低检查风扇与导线的连接情况5133 elca box fan—speed low 输入通讯单元风扇转速低检查风扇与导线的连接情况5140 electronics fan 1 (top side) - speed too high 电子风扇1（顶面）转速过高5141 electronics fan 1 (top side) - speed high 电子风扇1（顶面）转速偏高5142 electronics fan 1 (top side) - speed too low 电子风扇1（顶面）转速过低5143 electronics fan 1 (top side) - speed low 电子风扇1（顶面）转速偏低5150 electronics fan 2 (bottom side) - speed too high 电子风扇2（底部）转速过高5151 electronics fan 2 (bottom side) - speed high 电子风扇2（底部）转速偏高5152 electronics fan 2 (bottom side) - speed too low 电子风扇2（底部）转速过低5153 electronics fan 2 (bottom side) - speed low 电子风扇2（底部）转速偏低5160 engine switch—not OK 引擎安装错误检查引擎固定螺丝5170 FIB—not connected FIB未连接好检查FIB确保两个螺丝拧紧5180 lamp house—not connected 灯箱未连接好检查灯箱上的3个固定螺丝5190 prism switch – error 棱镜开关 - 错误5191 prism switch—warning , lens probably touches prism 镜头位移过量调节镜头5210 pump - speed too high 泵速度过高5211 pump - speed high 泵速度偏高5212 pump—speed too low 泵速度过低检查水泵线缆接头接触，SMPS电源板电压;检查泵线缆接头，电源板5213 pump—speed low 泵速度偏低检查泵线缆接头，电源板5230 lens zoom position—requested target not reached 调整或更换镜头镜头变焦无法达到指定位置5231 lens focus position-- requested target not reached 调整或更换镜头镜头聚焦无法达到指定位置5232 lens horizontal shift position-- requested target not reached 检查变焦马达，镜头位置镜头水平位移未达到指定位置5233lens vertical shift position-- requested target not reached 检查变焦马达，镜头位置镜头垂直位移未达到指定位置5237lens position—clear requested target time out failed 镜头聚焦未达到指定位置同52315250 dmd red fan - speed too high 红色通道DMD风扇转速过高5251 dmd red fan - speed high 红色通道DMD风扇转速偏高5252 dmd red fan - speed too low 红色通道DMD风扇转速太低5253 dmd red fan - speed low 红色通道DMD风扇转速偏低5260 dmd green fan - speed too high 绿色通道DMD风扇转速过高5261 dmd green fan - speed high 绿色通道DMD风扇转速偏高5262 dmd green fan - speed too low 绿色通道DMD风扇转速太低5263 dmd green fan - speed low 绿色通道DMD风扇转速偏低5270 dmd blue fan - speed too high 蓝色通道DMD风扇转速过高5271 dmd blue fan - speed high 蓝色通道DMD风扇转速偏高5272 dmd blue fan - speed too low 蓝色通道DMD风扇转速太低5273 dmd blue fan - speed low 蓝色通道DMD风扇转速偏低5280 ambient—temperature too high 环境温度过高请改变环境温度5281 ambient—temperature high 环境温度高请改变环境温度5283 ambient—temperature low 环境温度低请改变环境温度5284 ambient—temperature sensor open 环境温度传感器开路检查传感器和导线或更换5285 ambient—temperature sensor short 环境温度传感器短路检查传感器和导线或更换5290 DMD blue temperature too high 蓝色通道DMD温度过高检查热交换器的过滤器5291 DMD blue temperature high 蓝色通道DMD温度偏高检查热交换器的过滤器5293 DMD blue temperature low 蓝色通道DMD温度偏低光处理器单元没有启动5294 DMD blue temperature sensor open 蓝色通道DMD温度传感器开路修复导线或更换光处理器单元5295 DMD blue temperature sensor short蓝色通道DMD温度传感器短路修复导线或更换光处理器单元5300 DMD green temperature too high绿色通道DMD温度过高更换过滤器5301 DMD green temperature high 绿色通道DMD温度偏高更换过滤器5303 DMD green temperature low 绿色通道DMD温度偏低光处理器单元没有启动5304 DMD green temperature sensor open 绿色通道DMD温度传感器开路检查传感器和导线5305 DMD green temperature sensor short 绿色通道DMD温度传感器短路检查传感器和导线5310 lamp temperature too high 疝灯温度过高检查过滤网和抽风5311 lamp temperature high 疝灯温度偏高检查过滤网和抽风5314 lamp—temperature sensor open 疝灯温度传感器开路检查传感器和导线5315 lamp—temperature sensor short 疝灯温度传感器短路检查传感器和导线5320 FCB—force LPS off 控制板强行关闭疝灯电源在日志中查找错误信息排除5330 PFC heat-sink—temperature too high 散热器温度过高检查进气口过滤网5331 PFC heat-sink—temperature high 散热器温度偏高检查进气口过滤网5332 pfc heatsink - temperature too low PFC散热片 - 温度过低5333 pfc heatsink - temperature low PFC散热片 - 温度偏低5340 DMD red temperature too high 红色通道DMD温度过高检查滤网，液冷循环5341 DMD red temperature high 红色通道DMD温度偏高检查滤网，液冷循环5342 dmd red - temperature too low 红色通道DMD温度过低5343 DMD red temperature low 红色通道DMD温度偏低光处理器单元没有启动5344 DMD red temperature sensor open红色通道DMD温度传感器开路检查传感器和导线5345 DMD red temperature sensor short红色通道DMD温度传感器短路检查传感器和导线5350 SMPS primary heat-sink temperature too high 开关电源主散热器温度过高检查滤网和开关电源5351 SMPS primary heat-sink temperature high 开关电源主散热器温度偏高检查滤网和开关电源5352 smps primary heatsink - temperature too low 开关电源的主要散热片温度过低5353 smps primary heatsink - temperature low 开关电源的主要散热片温度偏低5360 SMPS secondary heat-sink temperature too high 检查滤网和开关电源（开关电源次散热器温度过高）5361 SMPS secondary heat-sink temperature high 检查滤网和开关电源（开关电源次散热器温度偏高）5362 smps secundary heatsink - temperature too low 开关电源次散热器温度过低5363 smps secundary heatsink - temperature low 开关电源次散热器温度偏低5364 SMPS secondary heat-sink temperature sensor open 更换SMPS模块（开关电源次散热器温度传感器开路）5365 SMPS secondary heat-sink temperature sensor short 更换SMPS模块（开关电源次散热器温度传感器短路）5370 dmd red fan - voltage too high 红色通道DMD风扇电压过高5371 dmd red fan - voltage high 红色通道DMD风扇电压偏高5372 dmd red fan - voltage too low 红色通道DMD风扇电压过低5373 dmd red fan - voltage low 红色通道DMD风扇电压偏低5380 dmd green fan - voltage too high 绿色通道DMD风扇电压过高5381 dmd green fan - voltage high 绿色通道DMD风扇电压偏高5382 dmd green fan - voltage too low 绿色通道DMD风扇电压过低5383 dmd green fan - voltage low 绿色通道DMD风扇电压偏低5390 dmd blue fan - voltage too high 蓝色通道DMD风扇电压过高5391 dmd blue fan - voltage high 蓝色通道DMD风扇电压偏高5392 dmd blue fan - voltage too low 蓝色通道DMD风扇电压过低5393 dmd blue fan - voltage low 蓝色通道DMD风扇电压偏低5401 +30v—voltage high +30v电压偏高更换风扇，马达控制板5403 +30v—voltage low +30v电压偏低检查开关电源和控制板5411 ++5v—voltage high ++5v电压偏高更换风扇，马达控制板5413 ++5v—voltage low ++5v电压偏低更换风扇，马达控制板5420 tec blue - voltage too high TEC蓝色 - 电压过高5421 tec blue - voltage high TEC蓝色 - 电压偏高5422 tec blue - voltage too low TEC蓝色 - 电压过低5423 tec blue - voltage low TEC蓝色 - 电压偏低5430 cold mirror fan - voltage too high 冷镜风扇 - 电压过高5431 cold mirror fan—voltage high 冷镜风扇电压偏高更换风扇，马达控制板5432 cold mirror fan—voltage too low 冷镜风扇电压过低更换风扇，马达控制板5433 cold mirror fan—voltage low 冷镜风扇电压偏低更换风扇，马达控制板5441 engine fan voltage high 引擎风扇电压偏高更换风扇，马达控制板5442 engine fan voltage too low 引擎风扇电压过低更换风扇，马达控制板5443 engine fan voltage low 引擎风扇电压偏低更换风扇，马达控制板5450 heat exchanger fan - voltage too high 热交换器风扇电压过高5451 heat exchange fan voltage high 热交换器风扇电压偏高更换风扇，马达控制板5452 heat exchange fan voltage too low 热交换器风扇电压过低更换风扇，马达控制板5453 heat exchange fan voltage low 热交换器风扇电压偏低更换风扇，马达控制板5460 lamp anode fan - voltage too high 疝灯阳极风扇电压过高5461 lamp anode fan voltage high 疝灯阳极风扇电压偏高更换风扇，马达控制板5462 lamp anode fan voltage too low 疝灯阳极风扇电压过低更换风扇，马达控制板5463 lamp cathode fan voltage low 疝灯阴极风扇电压低检查阴极风扇或控制板5470 lamp cathode fan - voltage too high 疝灯阴极风扇电压过高5471 lamp cathode fan voltage high 疝灯阴极风扇电压偏高更换风扇，马达控制板5472 lamp cathode fan voltage too high 疝灯阴极风扇电压过高更换风扇，马达控制板5473 lamp cathode fan - voltage low 疝灯阴极风扇电压偏低5490 smps fan - voltage too high 开关电源风扇电压过高5491 smps fan - voltage high 开关电源风扇电压偏高5492 SMPS fan voltage too low 开关电源风扇电压过低更换风扇，马达控制板5493 SMPS fan voltage low 开关电源风扇电压偏低更换风扇，马达控制板5501 FIB +12v voltage high +12v 电压偏高检查供电板和开关电源5502 FIB +12v voltage low +12v 电压偏低检查供电板和开关电源5510 tec green - voltage too high TEC绿色 - 电压过高5511 tec green - voltage high TEC绿色 - 电压偏高5512 tec green - voltage too low TEC绿色 - 电压过低5513 tec green - voltage low TEC绿色 -电压偏低5521 motor ,lens ,dowser voltage high 马达镜头光闸电压高更换风扇，马达控制板5523 motor ,lens ,dowser voltage low 马达镜头光闸电压低更换风扇，马达控制板5530 pump - voltage too high 泵电压过高5531 pump—voltage high 泵电压偏高更换风扇，马达控制板5532 pump—voltage too low 泵电压过低更换风扇，马达控制板5533 pump—voltage low 泵电压偏低更换风扇，马达控制板5540 tec red - voltage too high TEC红 - 电压过高5541 tec red - voltage high TEC红 - 电压偏高5542 tec red - voltage too low TEC红 - 电压过低5543 tec red - voltage low TEC红 - 电压偏低5550 tec - voltage too high TEC半导体制冷器电压过高5551 TEC voltage high TEC半导体制冷器电压偏高检查单元线，控制板5552 tec - voltage too low TEC半导体制冷器电压过低5553 TEC voltage low TEC半导体制冷器电压偏低检查单元线，控制板5561 ELCA box fan voltage high ELCA box风扇电压高检查单元线，温度传感器，控制板5563 ELCA box fan voltage low ELCA box风扇电压低检查单元线，温度传感器，控制板5570 lamp rear fan - voltage too high 灯后置风扇电压过高5571 lamp rear fan voltage high 灯后置风扇电压高更换风扇，马达控制板5572 lamp rear fan voltage low 灯后置风扇电压低更换风扇，马达控制板5573 lamp rear fan voltage too low 灯后置风扇电压过低更换风扇，马达控制板5581 +12v voltage high +12v电压偏高更换风扇，马达控制板5583 +12v voltage low +12v电压偏低查电源板，风扇，马达控制板5590 tec red front - voltage too high TEC红前 - 电压过高5591 tec red front - voltage high TEC红前 - 电压偏高5592 tec red front - voltage too low TEC红前 - 电压过低5593 tec red front - voltage low TEC红前 - 低电压5600 tec green front - voltage too high TEC绿色前线 - 电压过高5601 tec green front - voltage high TEC绿色前线 - 电压偏高5602 tec green front - voltage too low TEC绿色前线 - 电压过低5603 tec green front - voltage low TEC绿色前线 - 电压偏低5610 tec blue front - voltage too high TEC蓝色前 - 电压过高5611 tec blue front - voltage high TEC蓝色前 - 电压偏高5612 tec blue front - voltage too low TEC蓝色前-电压过低5613 tec blue front - voltage low TEC蓝色前 - 低电压5620 electronics fan 1 (top side) - voltage too high 电子风扇1（顶面） - 电压过高5621 electronics fan 1 (top side) - voltage high 电子风扇1（顶面） - 电压偏高5622 electronics fan 1 (top side) - voltage too low 电子风扇1（顶面） - 电压过低5623 electronics fan 1 (top side) - voltage low 电子风扇1（顶面） - 电压偏低5630 electronics fan 2 (bottom side) - voltage too high 电子风扇2（底部） - 电压过高5631 electronics fan 2 (bottom side) - voltage high 电子风扇2（底部） - 电压偏高5632 electronics fan 2 (bottom side) - voltage too low 电子风扇2（底部） - 电压过低5633 electronics fan 2 (bottom side) - voltage low 电子风扇2（底部） - 电压偏低5640 lamp power supplies，zero lamp power supplies detected 检查电源接口，换LPS模块(疝灯电源无输出)5641 lamp power supplies-- lamp is on but SMPS is off 换SMPS模块， LPS 模块（疝灯亮但开关电源关闭）5642 lamp power supplies—at least one lamp power supply could not be detected （一个灯电源检测不到）检查灯电源连线接触或更换灯或灯电源5643 lamp power supplies—communication failed with at least one lamp power supply (至少一个疝灯供电装置通讯失败) 重新连接两个接口，更换整个灯电源模块5644 lamp power supplies—lamp is on but at least one lamp power supply is off (疝灯点亮，但至少一个疝灯供电装置关闭)重新连接两个接口，更换整个灯电源模块5646 lamp set on—failed 点灯失败检查灯状况，运行时间是否超时5647 lamp—lamp is off due to an error 关灯保护检查灯状况，运行时间是否超时5654 lamp run time—read failed 读取灯运行时间失败检查灯箱是否装好5657 lamp run time—exceeds maximum灯超时换灯，复位灯运行时间5658 lamp run time—read limits failed 读取灯运行极限时间失败检查灯箱是否装好5659 lamp run time—warning 疝灯运行时间报警换灯5670 dowser - set dowser open failed dowser - 集dowser打开失败5800 ti-boards - system status = fail 系统错-接触不良检查检查输入抽屉和引擎的接触5801 ti-boards - security error, please authorize 安全问题--需安全认证进行安全认证5802 ti-boards - power up self test = fail Ti板电源自检错临时处理措施可以放映，或换板5803 ti-boards- powerup self test = fail ICP板问题5807 ti-icp - read system status failed Ti-ICP读系统状态失败刷新软件并应用克隆，或更换ICP、HDSDI输入板，刷软件5811 ti-boards - power-good = fail Ti板电源问题更换电源板5812 ti-icp - read satellite info failed Ti-ICP读信息错更换HDSDI输入板5813 ti-icp - satellite firmware mismatch Ti-ICP固件不匹配 xxB系列ICP用到xxC上，刷新ICP软件，应用克隆5814 ti-icp - self test = fail ICP 拔插ICP，升级软件并克隆5815 ti-icp - certificate error TI-ICP - 证书错误5816 ti-icp - key error TI-ICP - 关键错误5817 ti-icp - icp board not detected 没有检测到ICP板5830 TI Link decrypter - No communication TI连接解码-无通信，可以放映 Enigma接触问题，软件升级ICP到v2.1以上.或开关顺序问题，与服务器连接冲突，在服务器关闭的情况下，重启机器。
巴可DPK系列故障代码
BARCO DP2K系列故障代码译表本文将列举绝大部分会显示在巴可DP2K系列放映机触摸屏与日志中的故障错误代码并译文备查，同时将针对部分常见的对我放映工作有价值的故障提供解决方法。
需要注意的是，某些代码会同时表示错误和警告，某些表示错误(error),某些是警告(waring)。
在“警告”状态下，放映机虽将继续维持运转，但仍建议尽快解决导致“警报”的故障，否则，“警报”状态将有可能引发“错误”的产生，而最终导致停机事故的发生。
故障代码列表如下，可用ctrl+f快捷键进行搜索：1. Code 5003: “ light sen sor - no com muni cation (Error)“灯传感器-无通讯”2. Code 5004: “ lamp - no com muni cation (Error)“灯-无通讯”3. Code 5005: “ lamp power supplies - com muni cati on failed (Error)“灯电源-通讯失败”4. Code 5010: “ pump - refill mode is on" (Warning) “冷却泵-补充模式已开启”5. Code 5042: “cold mirror fan - speed too low (Error) “反射镜风扇-转速过低”6. Code 5043: “cold mirror fan - speed low (Warning) “反射镜风扇-转速低”7. Code 5052: “engine fan - speed too low (Error) “引擎风扇-转速过低”8. Code 5053: “engine fan - speed low (Warning)引擎风扇-转速低”9.Code 5062: “heat exchanger fan - speed too low (Error) “散热器风扇 -转速过低”10.Code 5063: “ heat exchanger fan - speed low (Warning) “散热器风扇 -转速低”11.Code 5072: “ lamp anode fan - speed too lo w (Error) “灯阳极风扇 -转速过低”12.Code 5073: “ lamp anode fan - speed lo w (Warning) “灯阳极风扇 -转速低”13.Code 5082: “ lamp cathode fan - speed too lo w (Error) “灯阴极风扇 -转速过低”14.Code 5083: “ lamp cathode fan - speed lo w (Warning) “灯阴极风扇 -转速低”15.Code 5102: “ smps fan 1 - speed too low (Error)“开关电源风扇1 -转速过低”16. Code 5103: “ smps fan 1 - speed lo w (Warning)“开关电源风扇1 -转速低”17. Code 5112:“ smps fan 2 - speed too low (Error)“开关电源风扇2 -转速过低”18. Code 5113:“ smps fan 2 - speed lo w (Warning)“开关电源风扇2 -转速低”19. Code 5122: “ lamp rear fan - speed too low (Error)“灯后部风扇-转速过低”20. Code 5123: “ lamp rear fan - speed lo w (Warning) “灯后部风扇-转速低”21. Code 5132: “ elcabox fan - speed too low (Error) “电控盒风扇-转速过低”22. Code 5133: “ elcabox fan - speed low (Error) “电控盒风扇-转速低”23. Code 5160: “ engine switch - not ok (Error)“引擎开关-不正常”24. Code 5170: “ fib - not connected (Error)“解码板-未连接”25. Code 5180: “ lamp house - not connected (Error) “灯箱-未连接”26. Code 5191: “ prism switch - warning (lens probably touches prism) (Warning) “棱镜开关-警告(镜头可能已触动棱镜)”27. Code 5212: “ pump - speed too low (Error)“冷却泵-转速过低”28. Code 5213: “ pump - speed low (Warning)“冷却泵-转速低”29. Code 5230: “ lens zoom position - requested target not reached (Warning)30. Code 5232: “ lens horiz on tai shift positi on - requested target not reached (Warning)31. Code 5233: “ lens vertical shift position - requested target not reached (Warning) “镜头垂直移动位置-没有达到预定位置”参见523232. Code 5237: “ lens position - clear requested target time out failed (Warning)“镜头位置-接受明确指令超时”33. Code 5280: “ ambient - temperature too high (Error)“环境-环境温度过高”34. Code 5281:“ ambient - temperature high (Warning)“环境-环境温度高”参见528035. Code 5283: “ ambient - temperature loW (Warning)“环境-温度低”36. Code 5284: “ ambient - temperature sensor open (Error) “环境-环境温感器断路”37. Code 5285: “ ambient - temperature sensor short (Error) “环境-环境温感器短路”38. Code 5290: “ dmd blue - temperature too hig” (Error) “蓝DMD -温度过高”39. Code 5291:“ dmd blue - temperature hig” (Warni ng) “蓝DMD -温度高”40. Code 5293: “ dmd blue - temperature low” (Warning) “蓝DMD -温度低”41. Code 5294: “ dmd blue - temperature sensor open (Error) “蓝DMD -温感器断路”42. Code 5295: “ dmd blue - temperature sensor short (Error) “蓝DMD -温感器短路”43. Code 5300: “ dmd green - temperature too hig h (Error)“绿DMD -温度过高”44. Code 5301: “ dmd green - temperature hig h (Warning)“绿DMD -温度高”45. Code 5303: “ dmd green - temperature low (Warning)“绿DMD -温度低”46. Code 5304: “ dmd green - temperature sensor open (Error) “绿DMD -温感器断路”47. Code 5305: “ dmd green - temperature sensor short (Error) “绿DMD -温感器短路”48. Code 5310: “ lamp - temperature too high (Error)“灯-温度过高”49. Code 5311:“ lamp - temperature high (Warni ng)“灯-温度高”参见531050. Code 5314: “ lamp - temperature sensor open (Error) “灯-温感器断路”51. Code 5315: “ lamp - temperature sensor sho’rt (Error)“灯-温感器短路”52. Code 5320: “fcb - force lps off” (Error)“风扇控制板-灯电源强制关闭”53. Code 5330: “ pfc heats ink - temperature too high (Error) “散热器-温度过高”54. Code 5331: “ pfc heats ink - temperature high (Warning) “散热器-温度高”55. Code 5340: “ dmd red - temperature too high (Error)“红DMD -温度过高”56. Code 5341: “ dmd red - temperature high (Warning)“红DMD -温度高”57. Code 5343: “ dmd red - temperature low” (Warning)“红DMD -温度低”58. Code 5344: “ dmd red - temperature sensor open (Error)“红DMD -温感器断路”59. Code 5345: “ dmd red - temperature sensor short (Error)“红DMD -温感器短路”60. Code 5350: “ smps primary heats ink - temperature too high (Error)“开关电源主散热器-温度过高”61. Code 5351: “ smps primary heats ink - temperature high (Warning)“开关电源主散热器-温度高”62. Code 5360: “ smps sec un dary heats ink - temperature too high (Error) “开关电源副散热器-温度过高”63. Code 5361: “ smps sec un dary heats ink - temperature high (Warning) “开关电源副散热器-温度过高”64. Code 5364: “ smps sec un dary heats ink - temperature sen sor open(Error) “开关电源副散热器-温感器断路”65. Code 5365: “ smps sec un dary heats ink - temperature sen sor shorl(Error) “开关电源副散热器-温感器短路”66. Code 5401:“ +30v - voltage high' (Warni ng)“ +30v -电压高”67. Code 5403: “ +30v - voltage loW' (Warning)“ +30v -电压低”68. Code 5411:“ ++5v - voltage high” (Warni ng)“ ++5v -电压咼”69. Code 5413: “ ++5v - voltage low” (Warning)“ ++5v -电压低”70. Code 5431: “ cold mirror fan - voltage high (Warning)“反射镜风扇-电压高”71. Code 5432: “ cold mirror fan - voltage too low (Error)“反射镜风扇-电压过低”72. Code 5433: “ cold mirror fan - voltage low (Warning)“反射镜风扇-电压低”73. Code 5441: “ engine fan - voltage high (Warning)“引擎风扇-电压咼”74. Code 5442: “ engine fan - voltage too low/ (Error)引擎风扇电压过低”75. Code 5443: “ engine fan - voltage loW (Warning)“引擎风扇-电压低”76.Code 5451: “ heat exchanger fan - voltage high (Warning) “换热器风扇 -电压咼”77.Code 5452: “ heat exchanger fan - voltage too l6Wv (Error)“换热器风扇 -电压过低”78.Code 5453: “ heat exchanger fan - voltage l6Wv (Warning)“换热器风扇 -电压低”79.Code 5461: “ lamp anode fan - voltage hig h (Warning) “灯阳极风扇 -电压咼”80.Code 5462: “ lamp anode fan - voltage too low (Error) “灯阳极风扇 -电压过低”81.Code 5463: “ lamp anode fan - voltage low (Warning) “灯阳极风扇 -电压低”82.Code 5471: “ lamp cathode fan - voltage hig h (Warning) “灯阴极风扇 -电压咼”83.Code 5472: “ lamp cathode fan - voltage too low (Error) “灯阴极风扇 -电压过低”84. Code 5473: “ lamp cathode fan - voltage low (Warning) “灯阴极风扇-电压低”85. Code 5492: “ smps fan - voltage too low” (Error)“风扇控制板风扇-电压过低”86. Code 5493: “ smps fan - voltage loW (Warning)“风扇控制板风扇-电压低”87. Code 5501:“ fib +12v - voltage high' (Warni ng)“解码板+12v -电压过高”88. Code 5503: “fib +12v - voltage low" (Warning)“解码板+ 12v -电压低”89. Code 5521: “ motor (lens, dowser) - voltagehig'h“马达(镜头、光闸)-电压高”90. Code 5523: “ motor (lens, dowser) - voltage low “马达(镜头、光闸)-电压低”91. Code 5531:“ pump - voltage high (Warni ng) “冷却泵-电压高”92. Code 5532: “ pump - voltage too loW (Error) “冷却泵-电压过低”(Warni ng) (Warni ng)93. Code 5533: “ pump - voltage low (Warning)“冷却泵-电压低”94. Code 5551:“ tec - voltage high (Warni ng)“珀耳贴致冷器-电压高”95. Code 5553: “ tec - voltage low (Warning)“珀耳贴致冷器-电压低”96.Code 5561: “ elcabox fan - voltage high (Warning)“电控盒风扇 -电压咼”97.Code 5562: “ elcabox fan - voltage too low (Error)“电控盒风扇 -电压过低”98.Code 5563: “ elcabox fan - voltage low (Warning)“电控盒风扇 -电压低”99.Code 5571: “ lamp rear fan - voltage high (Warning) “灯后部风扇 -电压咼”100.Code 5572: “ lamp rear fan - voltage too low” (Error) “灯后部风扇 -电压过低”101. Code 5581: “+12v - voltage high' (Warning)“ +12v -电压高”102. Code 5583: “+12v - voltage low" (Warning)“+12v -电压低”103. Code 5640: “ lamp power supplies - zero lamp power supplies deteCted(Error)105. Code 5642: “ lamp power supplies - at least one lamp power supply could not be detectd” (Error)参见5640106. Code 5643: “lamp power supplies - com muni cati on failed with at least one lamp powersupply (Error)参见5640107. Code 5644: “lamp power supplies - lamp is on, but at least one lamp power supply is off' (Error)参见5640108. Code 5646: “lamp - set lamp on failed (Error)“灯-点灯失败”109. Code 5647: “ lamp - lamp is off due to an error (Error)llO.Code 5654: “ lamp run time - read failed (Error)“灯运行时间-读取失败”111. Code 5657: “ lamp run time - exceeds maximum (Error)“灯运行时间-已到最大寿命”112.Code 5658: “lamp run time - read limits failed (Error)“灯运行时间-限制读取失败”113.Code 5659: “ lamp run time - warning (Warning)114.Code 5800: “ti-boards - system status = fail (Error)“ TI板-系统状态=失败”这是一个通用TI错误代码，需要进入触摸屏的“诊断-测试-自检”中勾选所有选项并进行检测，并将检测结果提供给服务商用以查找具体故障所在。
巴可数字放映系统技术培训-荧光粉光源放映机详细介绍和故障排查
荧光粉激光光源放映机--中影光峰ALPD技术激光光源安装场地及使用要求1、产品运行环境Item 最小值典型值最大值单位周围环境10 25 35 * 摄氏度相对湿度5% - 85% n.a空气洁净度- - ISO 14644-1 第9类海拔-60 - 3000 米Item 最小值最大值单位交流电压200 240 伏交流频率50 60 赫兹功率要求- 15A/200伏交流电瓦2、供电电源要求•光源电源模组和放映机充分接地后方可使用，•禁止在放映机和光源未充分接地的情况下使用放映机3、网络需求Item NOC 网口需求通过VPN接入CFGDC NOC 1个空闲交换机网口1. 开关灯流程开关灯流程基本与氙灯一致，开机时间需20秒，请耐心等待；开关灯间隔时间1分钟以上。
2. 网络配置光源为租赁模式，需要单独接中影环球VPN 专线通过NOC 系统下时间授权。
所以，必须保持网络的畅通，否则授权时间用完后影响放映。
同时客服也将通过NOC 监控光源的使用状况，及时为用户排查使用中遇到的问题。
3. 光输出调整激光光源的光输出可调功率为20%-100% 4. Macro 设置2D 、3D Macro 为安装时光学测试设定好的值(激光改装时设定的MCGD 文件、LSC 文件、光输出模式请勿更改)，无需频繁调整电流值。
5. 灯型选择影院人员重置投影灯型时请确记选择改装光源时工程师初始选择的投影灯灯型； 6. 操作习惯使用习惯与氙灯投影机一样，不影响服务器、TMS 等的使用。
7. 散热激光热量通过影院风机抽走，若不安装风机，建议安装空调进行散热。
8. 授权充值注意事项a 、保证光源与NOC 连接正常，光源处于联网状态。
脱网状态无法进行授权b 、授权过程应在不放映的情况下进行，放映过程中无法进行授权充值。
c 、授权过程保证网络通畅，授权时不可断线脱网。
光源操作培训拆开放映机左侧外壳，用干净镜头布清洁投影机导光柱和光源合光模组出光透镜。
AU5800报警信息
报警号 报警信息3000 Text Not Received (ANL <- DPR) (A)[A]3001 Text Not Received (UNT <- SMP) (A)[A]3002 Text Not Received (SMP <- UNT) (A)[A]3003 DPR Communication Error (A, B, C, D, E, F, G, H)[A, B, C, D, E]3004 SMP Communication Error (A, B, C, D, E, F, G, H)[A, B, C, D, E]3005 Unit Communication Error (A, B, C, D, E, F, G, H)[A, B, C, D, E]3006 Text ID Information Unmatched (A, B, C, D, E, F)[A]3007 Text Receive Error (A, B)[A]3020 Distributed Control Primary Station Error (A, B, C, D, E, F, G, H)[A, B, 3021 Distributed Control Secondary Station Error (A, B, C, D, E, F, G, H)[A, B 3022 Motor Controller Error (A, B, C, D, E, F, G, H)[A, B, C, D, E]3023 Barcode Reader Communication Error (A, B, C, D, E, F, G, H)[A, B, C, D, E 3024 I/O Control Error (A, B, C, D, E, F, G, H)[A, B, C, D, E]3100 Inner S Transfer Unit (FA01) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3101 Inner S transfer unit (FA01) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3102 Inner S Transfer Unit (FA01) Error (Rotation) (A, B, C)[A, B, C, D, E] 3103 Inner S Dispenser Unit (SA-S-IN) Error (A)[A, B, C, D, E]3104 Inner S Inside Wash Dispenser Unit (SA-W-IN) Error (A)[A, B, C, D, E] 3110 Outer S Transfer Unit (FA11) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3111 Outer S Transfer Unit (FA11) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3112 Outer S Transfer Unit (FA11) Error (Rotation) (A, B, C)[A, B, C, D, E] 3113 Outer S Dispenser Unit (SA-S-OUT) Error (A)[A, B, C, D, E]3114 Outer S Inside Wash Dispenser (SA-W-OUT) Error (A)[A, B, C, D, E]3115 S Transfer Unit (FA01/FA11) Initialize Error [A]3120 Cuvette Wash Unit (FB) Error (A)[A, B, C, D, E]3125 Cuvette Wash Water Dispensing Disabled (A)[A, B, C, D, E]3130 R1/S Mixing Unit (FC01) Error (Up-Down) (A)[A, B, C, D, E]3131 R1/S Mixing Unit (FC01) Error (Rotation) (A)[A, B, C, D, E]3132 R1/S Mixing Unit (FC01) Error (Mixing) (A)[A, B, C, D, E]3135 R2 Mixing Unit (FC11) Error (Up-Down) (A)[A, B, C, D, E]3136 R2 Mixing Unit (FC11) Error (Rotation) (A)[A, B, C, D, E]3137 R2 Mixing Unit (FC11) Error (Mixing) (A)[A, B, C, D, E]3140 Inner R1 Transfer Unit (FD01) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3141 Inner R1 Transfer Unit (FD01) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3142 Inner R1 Transfer Unit (FD01) Error (Rotation) (A, B, C)[A, B, C, D, E] 3143 Inner R1 Dispenser Unit (SA-R1-IN) Error (A)[A, B, C, D, E]3144 Inside Wash Water Dispensing Disabled at Inner R1 Transfer (A)[A, B, C, D 3150 Outer R1 Transfer Unit (FD11) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3151 Outer R1 Transfer Unit (FD11) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3152 Outer R1 Transfer Unit (FD11) Error (Rotation) (A, B, C)[A, B, C, D, E] 3153 Outer R1 Dispenser Unit (SA-R1-OUT) Error (A)[A, B, C, D, E]3154 Inside Wash Water Dispensing Disabled at Outer R1 Transfer (A)[A, B, C, D 3155 R1 Transfer Unit (FD01/FD11) Initialize Error [A]3160 Inner R2 Transfer Unit (FD21) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3161 Inner R2 Transfer Unit (FD21) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3162 Inner R2 Transfer Unit (FD21) Error (Rotation) (A, B, C)[A, B, C, D, E] 3163 Inner R2 Dispenser Unit (SA-R2-IN) Error (A)[A, B, C, D, E]3164 Inside Wash Water Dispensing Disabled at Inner R2 Transfer (A)[A, B, C, D 3170 Outer R2 Transfer Unit (FD31) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3171 Outer R2 Transfer Unit (FD31) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3172 Outer R2 Transfer Unit (FD31) Error (Rotation) (A, B, C)[A, B, C, D, E] 3173 Outer R2 Dispenser Unit (SA-R2-OUT) Error (A)[A, B, C, D, E]3174 Inside Wash Water Dispensing Disabled at Outer R2 Transfer (A)[A, B, C, D 3175 R2 Transfer Unit (FD21/FD31) Initialize Error [A, B, C, D, E]3180 R1 Refrigerator Unit (DA01) Error (A)[A, B, C, D, E]3181 R2 Refrigerator Unit (DA11) Error (A)[A, B, C, D, E]3190 Cuvette Wheel (GA) Error (Rotation) (A)[A, B, C, D, E]3192 Sample Shutter Unit (CJ01) Error (A)[A, B, C, D, E]3200 Photometry Controller Error 1 (A, B, C, D, E, F, G, H)[A]3201 Photometry Controller Error 2 (A, B, C, D, E, F, G, H)[A, B, C, D, E] 3205 Thermal Control Error 1 (A, B, C, D, E, F, G, H)[A]3206 Thermal Control Error 2 (A, B, C, D, E, F, G, H)[A, B, C, D, E]3210 Cooling Unit (DB) Error (A)[A]3212 Temperature Controlled Bath Unit (GA) Temp. out of Range [A]3214 Cooling Unit (DB) Error (A)[A]3215 Sample Probe (FA) Error (Liquid Sensor) (A, B)[A, B, C, D, E]3216 Sample Probe (FA) Error (Liquid Sensor) (A, B)[A, B, C, D, E]3217 Sample Probe (FA) Error (Clot Sensor) (A, B)[A, B, C, D, E]3220 R1 Reagent Probe (FD01/FD11) Error (Liquid Sensor) (A, B)[A, B, C, D, E] 3221 R1 Reagent Probe (FD01/FD11) Error (Liquid Sensor) (A, B)[A, B, C, D, E] 3223 R2 Reagent Probe (FD21/FD31) Error (Liquid Sensor) (A, B)[A, B, C, D, E] 3224 R2 Reagent Probe (FD21/FD31) Error (Liquid Sensor) (A, B)[A, B, C, D, E] 3227 Second Washing Well Pouring Error (A)[A, B, C, D, E]3228 Second Washing Well Draining Error [A, B, C, D, E]3230 Sample Short (A, B, C, D, E, F, G, H, I, J, K)[A]dl[u ]3232 Sample Probe Short Aspiration (A, B, C, D, E, F)3233 Sample Probe Detergent Short (A)[A]3234 Sample Probe Detergent Empty (A, B)[A]3235 Sample Probe Detergent Empty (A, B)[A]3236 Sample Probe W2 Detergent Empty (A)[A]3237 Sample Pre-Diluent Short (A)[A]3238 Sample Pre-Diluent Run Out (A, B, C, D, E, F, G)[A]3239 Sample Pre-Diluent Run Out (A, B, C, D, E, F, G)[A]3240 Sample Pre-Diluent Diluent Empty (A, B, C, D, E, F, G, H, I, J)[A]3241 Sample Pre-Diluent Diluent Empty (A, B, C, D, E, F, G, H, I, J)[A]3245 R1 Reagent Short (A, B)[A]3246 R1 Reagent Run Out (A, B, C, D, E, F, G)[A]3247 R1 Reagent Run Out (A, B, C, D, E, F, G)[A]3248 R1 Reagent Empty (A, B, C, D, E, F, G, H, I, J, K)[A]3249 R1 Reagent Empty (A, B, C, D, E, F, G, H, I, J, K)[A]3250 R1 Probe Detergent Short (A)[A]3251 R1 Probe Detergent Empty (A, B)[A]3252 R1 Probe Detergent Empty (A, B)[A]3253 R1 Probe W2 Detergent Short (A)[A]3254 R1 Probe cold water Supply Error (A)[A]3255 R2 Reagent Short (A, B)[A]3256 R2 Reagent Run Out (A, B, C, D, E, F, G)[A]3257 R2 Reagent Run Out (A, B, C, D, E, F, G)[A]3258 R2 Reagent Empty (A, B, C, D, E, F, G, H, I, J, K)[A]3259 R2 Reagent Empty (A, B, C, D, E, F, G, H, I, J, K)[A]3260 R2 Probe Detergent Short (A)[A]3261 R2 Probe Detergent Empty (A, B)[A]3262 R2 Probe Detergent Empty (A, B)[A]3263 R2 Probe W2 Detergent Short (A)[A]3264 R1 Probe cold water Supply Error (A)[A, B, C, D, E]3270 Detergent Empty [A]3271 Detergent Empty [A]3272 Detergent Overflow [A]3273 Detergent Overflow [A]3275 Vacuum Tank Weak Pressure [A]3276 Vacuum Tank Full [A]3277 Concentrated waste water tank Full [A]3278 Washing waste water tank Full [A]3280 Detergent Generation Unavailable [A]3285 Photometer Unit (GB) Error (A)[A, B, C, D, E]3286 Photometric Data Error (A, B)[A]3287 Lamp Off Error [A]3288 Lamp Dark Error (A)[A]3295 R1 Reagent Refrigerator Cover Open [A]3296 R1 Reagent Refrigerator Cover Open [A]3297 R2 Reagent Refrigerator Cover Open [A]3298 R2 Reagent Refrigerator Cover Open [A]3300 Rack Loading Unit (CB) Pusher Error (A, B)[A, B, C, D, E]3301 Rack Loading Unit (CB) Receiver Error (A, B)[A, B, C, D, E]3302 ID Reader Lever 1 (CC1) Error (A)[A, B, C, D, E]3303 ID Reader Lever 2 (CC2) Error (A)[A, B, C, D, E]3304 Rack Buffer Unit (CD) Error (X-Axis) (A)[A, B, C, D, E]3305 Rack Buffer Unit (CD) Lever Error (Up-Down) (A)[A, B, C, D, E]3306 Rack Buffer Unit (CD) Error (Y-Axis) (A)[A, B, C, D, E]3307 Passing Lane Rack Feed Unit (CE) Error (A)[A, B, C, D, E]3308 Dispensing Lane Rack Feed Unit (CE) Error (A)[A, B, C, D, E]3309 Unloading Rack Feed Unit (CF) Error (A)[A, B, C, D, E]3310 Rack Unloading Unit (CG) Lever Error (A)[A, B, C, D, E]3312 Recovery Rack Feed Unit (CL) Error (A)[A, B, C, D, E]3313 ANL Passing Lane Belt (CH01) Error (A, B)[A, B, C, D, E]3314 ANL Passing Lane Lever (CH02) Error (A, B)[A, B, C, D, E]3315 ANL Dispensing Lane Belt (CH01) Error (A, B)[A, B, C, D, E]3316 ANL Dispensing Lane Lever 1 (CH01) Error (A, B)[A, B, C, D, E]3317 ANL Dispensing Lane Lever 1 (CH01) Retraction Error (A, B)[A, B, C, D, E] 3318 ANL Dispensing Lane Lever 2 (CH01) Error (A, B)[A, B, C, D, E]3319 ANL Dispensing Lane Lever 2 (CH01) Retraction Error (A, B)[A, B, C, D, E] 3320 ANL Dispensing Lane Stopper (CH01) Error (A, B)[A, B, C, D, E]3321 ANL Rack Feed Belt (CH01) Error (A, B)[A, B, C, D, E]3322 ANL Recovery Lane Belt (CH11) Error (A, B)[A, B, C, D, E]3323 ANL Lane Changer Unit (CK) Error (A, B)[A, B, C, D, E]3324 ANL Lane Change Stopper (CK) Error (A, B)[A, B, C, D, E]3325 ISE Passing Lane Belt (CM01) Error (A)[A, B, C, D, E]3326 ISE Passing Lane Lever (CM01) Error (A)[A, B, C, D, E]3327 ISE Dispensing Lane Belt (CM01) Error (A)[A, B, C, D, E]3328 ISE Dispensing Lane Lever (CM01) Error (A)[A, B, C, D, E]3329 ISE Recovery Lane Belt (CM11) Error (A)[A, B, C, D, E]3331 Passing Lane Rack Step Error (A, B)[A, B, C, D, E]3332 Dispensing Lane Rack Step Error (A, B)[A, B, C, D, E]3333 Passing Lane Rack Jam (A, B)[A, B, C, D, E]3334 Dispensing Lane Rack Jam (A, B)[A, B, C, D, E]3335 Recovery Lane Rack Jam (A, B)[A, B, C, D, E]3336 Passing Lane Rack Step Prohibition Signal Detected (A)[A, B, C, D, E] 3337 Dispensing Lane Rack Step Prohibition Signal Detected (A)[A, B, C, D, E] 3338 Sampler Unit Rack Jam (A)[A, B, C, D, E]3340 Rack Type Reading Error (A)[A]3341 Rack Type Unmatched (A, B, C)[A]3342 Rack Feed Error (A, B, C)[A]3343 Rack Step Synchronization Error (A, B, C, D, E, F)[A, B, C, D, E] 3344 Rack ID Barcode Reading Error (A, B, C)[A]3345 RB Incomplete3346 ACAL Incomplete3347 QC Incomplete3349 Rack Set Error (A)[A]3350 Rack Buffer Cover Open [A]3351 Rack Buffer Cover Open [A]3352 Rack Loading Stop [A]3353 Rack Loading Stop [A]3354 No Rack [A]3355 Rack ID Barcode Reading Error (A)3356 Priority Rack Cover Open [A]3357 No Priority Rack [A]3358 Recovery Rack ID Barcode Reading Error (A, B)[A]3360 Power Failure Detect [A]3361 Sample ID Barcode Reading Error (A)[A]3362 Maker Setting Parameter Error (A, B)[A]3363 Unit Communication Error (A)[A]3365 Replenishment Detergent Short [A]3366 Failed to Start Analysis3370 Cup Detect Error (A)3371 Passing Lane Initialization Error (A)[A]3372 Dispensing Lane Initialization Error (A)[A]3373 Rack Unloading Unit Full or No Rack Unloading Tray (A)[A]3374 No Priority Rack (A)[A]3375 Rack Existence on Passing Lane Feed Unit [A]3376 Rack Existence on Dispensing Lane Feed Unit [A]3377 Rack Existence on Recovery Rack Feed Unit [A]3378 Rack Unloading Unit Full (A)[A]3379 Rack Unloading Unit Full or No Tray [A]3380 No Rack Unloading Tray (A)[A]3381 Rack Existence at ID Reading Position (A)[A]3382 Rack Existence on Rack Transfer Unit (A)[A]3383 Rack Existence on Unloading Rack Feed Unit [A]3384 Rack Existence on Rack Buffer Unit (A)[A]3385 Rack Existence on ANL Passing Lane (A, B)[A]3386 Rack Existence on ANL Dispensing Lane (A, B)[A]3387 Rack Existence on ANL Recovery Lane (A, B)[A]3388 Rack Existence on ISE Passing Lane (A)[A]3389 Rack Existence on ISE Dispensing Lane (A)[A]3390 Rack Existence on ISE Recovery Lane (A)[A]3391 Rack Illegal Setting on Priority Rack Loading Unit (A)[A]3392 No Rack Unloading Tray (A)[A]3393 No Rack Loading Tray3401 LA rack feed unit (CN) Error (A)[A, B, C, D, E]3402 Rack unloading unit (CP) Error (A)[A, B, C, D, E]3406 Rack unloading unit (CP) Full (A)[A]3407 No Rack Unloading Tray (A)[A]3408 Rack ID Barcode Reading Error (A, B, C)[A]3409 LA rack carry-out operation is disabled (A, B)[A]3410 Rack unloading operation is disabled3411 Rack Illegal Setting on the lanes connected to LA (A)[A]3416 LA rack carry-in procedure Error (A)[A]3417 LA rack carry-out procedure Error (A)[A]3419 LA rack carry-out procedure Error (A)[A]3421 Rack Jam at carry-in from LA (A)[A]3422 Rack Jam at carry-out to LA (A)[A]3501 ISE Monitor Communication Error (A, B)[A]3502 ISE Sample Transfer Unit (FA21) Error (Up-Down) (A, B, C)[A, B, C, D, E] 3503 ISE Sample Transfer Unit (FA21) Error (Rotation) (A, B, C)[A, B, C, D, E] 3504 ISE Sample Probe (FA21) Level Sensor Error (A, B)[A, B, C, D, E]3505 ISE Sample Dispenser (SA21) Error (A)[A, B, C, D, E]3506 ISE Sample Probe Inside Wash Dispenser (SA31) Error (A)[A, B, C, D, E] 3507 ISE Sample Dispenser Pressure Sensor (IAS11) Error (A)[A, B, C, D, E] 3508 ISE Buffer Dispenser (SA01) Error (A, B)[A, B, C, D, E]3509 ISE Buffer Dispenser (SA01) Error (A, B)[A, B, C, D, E]3510 ISE Sample Pot Level Sensor Error (A, B)[A, B, C, D, E]3511 ISE Sample Pot Level Sensor Error (A, B)[A, B, C, D, E]3512 ISE Sample Pot Overflow (A, B)[A, B, C, D, E]3513 ISE Sample Pot Overflow (A, B)[A, B, C, D, E]3514 ISE Analog Power Supply Error (A, B)[A]3515 ISE Analog Power Supply Error (A, B)[A]3516 ISE Sample Syringe Priming Incomplete [A]3517 ISE Calibrator Illegal Setting [A]3518 ISE Drain Flow Cell Incomplete [A]3519 ISE Data Controller Error (A, B, C, D, E)[A]3520 ISE Data Controller Error (A, B, C, D, E)[A]3521 ISE Data Controller Error (A, B, C, D, E)[A]3522 ISE Mixing Motor Error (A, B)[A, B]3523 ISE Mixing Motor Error (A, B)[A, B]3524 ISE Roller Pump for MID Standard Solution Dispensing Error (A)[A, B] 3525 ISE Roller Pump for MID Standard Solution Dispensing Error (A)[A, B] 3526 ISE Roller Pump for Mixture Aspiration Error (A)[A, B]3527 ISE Roller Pump for Mixture Aspiration Error (A)[A, B]3528 ISE Controller Error (A)[A, B]3529 ISE Controller Error (A)[A, B]3530 ISE Sample Short (A, B, C, D, E, F, G, H, I, J)[A]3531 ISE Sample Probe Detergent Short (A)[A]3532 ISE Sample Probe Detergent Running Out (A)[A]3533 ISE Sample Probe Detergent Running Out (A)[A]3534 ISE Sample Probe Clot detect (A, B, C, D, E, F, G)[A]3535 Sample Probe False Aspiration Detected (A, B, C, D, E, F)[A]3536 ISE Buffer Solution Short (A)[A]3537 ISE MID Standard Solution Short (A)[A]3538 ISE Reference Solution Short (A)[A]3539 ISE Cleaning Solution Short [A]3540 IES Serum Standard Solution H Short [A]3541 IES Serum Standard Solution L Short [A]3542 IES Urine Standard Solution H Short [A]3543 IES Urine Standard Solution L Short [A]3544 ISE Na Selectivity Check Solution Short [A]3545 ISE K Selectivity Check Solution Short [A]3546 ISE Serum CRS Standard Solution H Short [A]3547 ISE Serum CRS Standard Solution M Short [A]3548 ISE Serum CRS Standard Solution L Short [A]3549 ISE Urine CRS Standard Solution H Short [A]3550 ISE Urine CRS Standard Solution M Short [A]3551 ISE Urine CRS Standard Solution L Short [A]3560 ISE Cover Open [A]3561 ISE Cover Open [A]3570 Check ISE Sample Probe Tip [A]3571 Concentration Calculation Disabled (A)[A]3572 Concentration Calculation Disabled (A)[A]3573 ISE Sequence Error (A, B, C, D, E)[A]3574 ISE Sequence Error (A, B, C, D, E)[A]3575 ISE MID Standard Solution Stability Error ( pre-calibration ) (A)[A] 3576 ISE MID Standard Solution Stability Error ( pre-calibration ) (A)[A] 3577 ISE MID Standard Solution Stability Error ( during calibration ) (A, B)[A 3578 ISE MID Standard Solution Stability Error ( during calibration ) (A, B)[A 3579 IES Serum Standard Solution H Stability Error (A)[A]3580 IES Serum Standard Solution H Stability Error (A)[A]3581 IES Serum Standard Solution L Stability Error (A)[A]3582 IES Serum Standard Solution L Stability Error (A)[A]3583 IES Urine Standard Solution H Stability Error (A)[A]3584 IES Urine Standard Solution H Stability Error (A)[A]3585 IES Urine Standard Solution L Stability Error (A)[A]3586 IES Urine Standard Solution L Stability Error (A)[A]3587 Na Concentration Low Error (A)[A]3588 Na Concentration Low Error (A)[A]3589 Na Concentration Low Error (A)[A]3600 Multi Reagent Switch (A, B, C, D, E)[A]3601 No Reagent Bottle for RB/ACAL (A, B, C)[A]3602 Reagent Short for RB/ACAL/QC (A, B, C)[A]3604 Reagent Refrigerator On Use [A]3605 RB/ACAL Sample Diluent Short (A, B)[A]3606 Check the Tip of Sample Probe (A)[A]3607 Check the Tip of R1 Reagent Probe (A)[A]3608 Check the Tip of R2 Reagent Probe (A)[A]3609 Sample Syringe Prime Incomplete [A]3610 Reagent Bottle Illegal Setting (A, B, C)[A]3611 Sample Probe Periodic Cleaning (A, B, C)[A]3620 Reagent ID Barcode Error (A, B)[A]3630 DI Water Short [A]3631 DI Water Empty [A]3632 DI Water Empty [A]3633 DI Water Overflow [A]3634 DI Water Supply Unavailable [A]3635 DI Water Supply Unavailable [A]3636 Master Detergent Empty [A]3637 Master Detergent Empty [A]3638 Master Detergent Supply Unavailable [A]3639 Master Detergent Overflow [A]3640 Reagent Probe Position Illegal (A, B)[A]3641 Photometry Error During a Cuvette Wash (A, B, C)[A]3901 ANL Program Error (A, B, C)[A, B]3902 ANL Program Error 1 (A, B, C, D)[A, B]3903 ANL Program Error 2 (A, B, C, D, E)[A, B]3904 ANL Program Error 3 (A, B, C, D, E, F)[A, B]3905 ANL Mechanical Error (A, B, C)[A, B, C, D, E]3906 ANL Mechanical Error 1 (A, B, C, D)[A, B, C, D, E]3907 ANL Mechanical Error 2 (A, B, C, D, E)[A, B, C, D, E] 3908 ANL Mechanical Error 3 (A, B, C, D, E, F)[A, B, C, D, E] 3909 ANL Debug Information 1 (A, B, C, D, E, F, G, H, I, J) 3910 ANL Debug Information 2 (A, B, C, D, E, F)[A, B]3911 ANL Debug Information 3 (A, B, C, D, E, F, G, H, I, J) 3912 ANL Debug Information 4 (A, B, C, D, E, F, G, H, I, J) 5001 ANL PROGRAM DOWNLOAD COMPLETED5002 INITIALIZE5003 WARM UP5004 STANDBY5005 MEASURE START5006 LAST RACK5007 SHIFT TO PAUSE5008 SHIFT TO STOP MODE5009 PAUSE5010 STOP5011 SYSTEM END5012 W1 START (A)5013 W2 START (A)5014 PHOTOCAL START (A)5015 W1 END (A)5016 W2 END (A)5017 PHOTOCAL END (A)5018 PHOTOCAL FAILURE (A, B)5020 MEASURE END5021 SHIFT TO STOP5022 W1 FAILURE (A, B)5023 W2 FAILURE (A, B)5028 BLANK INDEX DELETED (A)5029 BLANK REACTION DATA DELETED (A)5030 BLANK QC INDEX DELETED (A)5031 INDEX UPDATED (A)5032 INDEX DELETED (A)5033 REACTION DATA DELETED (A)5034 QC INDEX DELETED (A)5041 ISE CALIBRATION START (A)5042 ISE SELECTIVITY CHECK SATRT (A)5043 ISE CRS CALIBRATION START (A)5044 ISE CLEANING START (A)5045 ISE CLEANING ENHANCED START (A)5046 ISE CALIBRATION END (A)5047 ISE SELECTIVITY CHECK END (A)5048 ISE CRS CALIBRATION END (A)5049 ISE CLEANING END (A)5050 ISE CLEANING ENHANCED END (A)5051 POWER ON5090 LOGIN (A, B)5091 LOGOUT (A, B)5092 LOGIN FAILURE (A)5093 PASSWORD CHANGE FAILURE (A)5101 NO REAGENT BOTTLE (A, B, C, D, E)5103 REAGENT ID READ ERROR (A, B, C)5104 REAGENT ID READ ERROR (A, B, C)5105 REAGENT ID NOT DEFINED (A, B, C, D)5106 ILLEGAL REAGENT TYPE (A, B, C)5107 R2 REAGENT FOUND IN THE R1 REFRIGERATOR (A, B, C, D) 5108 R1 REAGENT FOUND IN THE R2 REFRIGERATOR (A, B, C, D) 5109 ILLEGAL BOTTLE TYPE (A, B, C)5110 ILLEGAL REAGENT POSITION (A, B, C)5111 REAGENT EXPIRED (A, B, C, D)5112 DIFFERENT LOT NO. REAGENT FOUND (A, B, C, D)5114 REAGENT TYPE CONVERTED (A, B, C)5115 BOTTLE TYPE CONVERTED (A, B, C)5116 THE REAGENT VOLUME EXCEEDED THE LIMIT (A, B, C, D, E) 5201 PHOTOCAL DATA ERROR (A)5202 CUVETTE MEAN CHECK ERROR (A)5203 PHOTOCAL LAMP CHECK ERROR (A)5251 INCUBATION BATH TEMPERATURE HIGH (A)5252 INCUBATION BATH TEMPERATURE LOW (A)5253 REAGENT REFRIGERATOR TEMPERATURE HIGH (A)5254 REAGENT REFRIGERATOR TEMPERATURE LOW (A)5301 PANIC VALUE (A, B, C, D, E, F)5302 HbA1c PRETREATMENT CHECK RANGE ERROR (A, B, C, D-E, F) 5303 HbA1c% CALCULATION FAILED (A, B, C, D-E, F)5304 NO COLOR DATA (A, B, C, D-E, F)5305 NO BLANK DATA (A, B, C, D-E, F)5306 RB DATA ERROR (A, B, C, D, E, F)5307 CALIBRATION FACTOR RANGE OVER (A, B, C, D, E, F)5308 CALIBRATION FACTOR RANGE UNDER (A, B, C, D, E, F) 5309 CALIBRATION OD RANGE OVER (A, B, C, D, E, F)5310 CALIBRATION OD RANGE UNDER (A, B, C, D, E, F)5311 CALIBRATION ERROR (A, B, C, D, E, F)5312 MULTIPOINT-CAL. OD SLOPE CHECK ERROR (A, B, C, D, E) 5313 1/2 POINT-CAL. CORRECTION FACTOR ERROR (A, B, C, D, E) 5314 QC DATA RANGE OVER (A, B, C, D, E, F)5315 QC DATA RANGE UNDER (A, B, C, D, E, F, G)5316 QC DATA MULTI-RULE CHECK ERROR (A, B, C, D, E, F) 5317 QC DATA DEVIATION CHECK ERROR (A, B, C, D, E, F, G) 5318 ISE CRS CALIBRATION FAILED (A)5319 HbA1c% LOT NO. UNMATCHED (A, B, C, D-E, F)5320 REACTION PROFILE CHECK ERROR (A, B, C, D, E, F, G, H) 5321 RATE REVERSE REACTION CHECK ERROR (A, B, C, D, E) 5322 LINEARITY CHECK ERROR (A, B, C, D, E)5323 REACTION PROFILE CHECK CONSECUTIVE JUDGEMENTERROR (A, B)5401 NO SAMPLE CUP (A, B, C-D, E)5402 SAMPLE NOP (A, B, C-D, E)5403 SAMPLE ID NOT FOUND (A, B, C-D, E)5404 NO TESTS REQUISITIONED (A, B, C-D, E)5405 MAXIMUM NUMBER OF SAMPLE (A, B, C-D, E)5406 SAMPLE NO. CALCURATE ERROR (A, B-C)5407 BROKEN LABEL (A, B-C, D)5408 SAMPLE ID READ ERROR (A, B-C)5409 MEASURE COMPLETED FOR THE READ SAMPLE ID (A, B-C, D)5410 MEASURE COMPLETED FOR THE READ SAMPLE ID (A, B-C, D)5411 MEASURE COMPLETED FOR THE READ SAMPLE ID (A, B-C, D)5412 CAN NOT SET THE RACK IN THIS POSITION (A,B)5413 RB RACK SETTING ERROR (A)5414 ILLEGAL SAMPLE ID (A-B, C)5415 NORMAL REPEAT NOT AVAILABLE (A-B, C)5416 A part of test requisition has been deleted on Calibration or QC Rack Requisition menu. (A,B)5501 THERE IS A DANGER THAT THE WAVELENGTH IS NOTREGISTERED AS SET (A,B)5502 CHECK RELATED PARAMETERS BY MISMATCHING TESTCODE (A, B, C <> D)5503 CHECK RELATED PARAMETERS BY CHANGING TEST CODE (A, B, C -> D) 5702 FILE NOT FOUND (A)5703 FILE WRITE ERROR (A)5751 PRINTER NOT SELECTED5753 PART OF DATA IS NOT OUTPUT YET5754 PRINTER BUSY6010 FAILED TO DELETE SAMPLE (A, B)6020 FAILED TO REQUISTION BECAUSE OF MAXIMUM SAMPLE NO. (A, B-C,D) 6024 NO REAGENT BLANK DATA (A, B, C-D, E)6025 NO CALIBRATION DATA (A, B, C, D, E)6031 ONLINE ERROR (A)(B C D E)6032 ONLINE FORMAT ERROR6033 ONLINE ILLEGAL TEXT CODE (A)6034 ONLINE ILLEGAL TEXT BLOCK No. (A<->B)6035 ONLINE ILLEGAL SAMPLE NO. (A B) C6036 ONLINE ILLEGAL RACK NO. (A B C :D-E) F6037 ONLINE ILLEGAL SEX TEXT (A B :C) D6038 ONLINE ILLEGAL AGE/MONTH (A B :C D) E6039 ONLINE ANALYSIS METHOD MISMATCH (A B :C<>D) E6040 ONLINE SAMPLE NO. MISMATCH (A B<>C D) E6041 ONLINE RACK NO. MISMATCH (A B :C-D<>E-F) G6042 ONLINE MISMATCH (A<>B)6043 ONLINE TEST ITEM ERROR (A B) C D6044 ONLINE REPEAT ITEM ERROR (A B C)6100 ONLINE CONNECTION ERROR (A)(B C D)6101 ONLINE ERROR (A)(B C D) E6102 ONLINE FORMAT ERROR (A B)(C) D6103 ONLINE SET UP ERROR (A B) C,D6104 ONLINE REQUISITION INFORMATION RECEIVE ERROR (A B) C,D6111 ONLINE ILLEGAL ANALYSIS METHOD (A B) C,D6112 ONLINE ILLEGAL SAMPLE KIND (A B) C,D6113 ONLINE ILLEGAL SAMPLE TYPE (A B) C,D6114 ONLINE ILLEGAL SAMPLE NO. (A B) C,D6115 ONLINE ILLEGAL RACK NO. (A B:C-D) E,F6116 ONLINE ILLEGAL SEX TEXT (A B:C) D,E6117 ONLINE ILLEGAL AGE/MONTH (A B:C D) E,F6118 ONLINE ILLEGAL PATIENT INFORMATION (A B:C D) E,F6119 ONLINE ILLEGAL SAMPLE ID (A B) C,D6120 ONLINE SAMPLE ID MIXED (A<>B) C6131 ONLINE ANALYSIS METHOD MISMATCH (A B<>C D) E,F6132 ONLINE SAMPLE KIND MISMATCH (A B<>C D) E,F6133 ONLINE SAMPLE TYPE MISMATCH (A B<>C D) E,F6134 ONLINE SAMPLE NO. MISMATCH (A B<>C D) E,F6135 ONLINE RACK NO. MISMATCH (A B:C-D<>E-F) G,H6136 ONLINE MISMATCH (A<>B) C6151 ONLINE TEST ITEM ERROR (A B:C D) E,F6152 ONLINE REPEAT ITEM ERROR (A B) C6153 ONLINE SAME SAMPLE ID ERROR (A B) C,D6161 ONLINE MAXIMUM SAMPLE NO. ERROR (A B) C,D6162 ONLINE SAMPLES REMAINING ERROR (A B) C,D6181 ONLINE PENDING TRANSFERS (A,B)6182 SAMPLE REGISTRATION WAS DONE FOR HOST DIRECTION (A B) C,D 6183 THERE IS UNPROCESSED SAMPLE AT CURRENT INDEX6500 PROService COMMUNICATION DATA ERROR (A B)6501 PROService COMMUNICATION BUFFER FULL (A B)6502 PROService COMMUNICATION TIMEOUT ERROR (A B)6503 PROService FILE TRANSFER FOLDER FULL (A)6504 FAILED TO LAUNCH THE BROWSER6801 PrepLink COMMUNICATION ERROR (A, B)6802 CHEM ID NOT FOUND (A)6803 CALCULATED TEST ERROR (A, B)7001 SET CALIBRATION INFORMATION (A, B)7002 OVER MAXIMUM SETTING OF SAMPLE BLANK (A)7003 NO REAGENT PARAMETER (A, B)7011 SET CALIBRATION INFORMATION (A, B, C)7012 PERFORM CALIBRATION (A, B, C)7013 SET CALIBRATOR INFORMATION (A, B, C)7014 UNIT OF CONC IS CHANGED. (A, B, C)8001 DPR-ANL COMMUNICATION ERROR (A, B)8002 DPR-ISE COMMUNICATION ERROR (A, B)8003 DPR-ANL COMMUNICATION TIMEOUT (A)8010 DIFFERENT VERSION OF FILE (A,B)8011 NO DATA FILE (A,B)8100 PRINTER ERROR8200 ALARM NO. NOT FOUND (A)8500 SAMPLE MANAGER EDIT (A, B, C, D)8501 QC DATA EDIT (A, B, C, D, E)8502 OVERWRITTEN BY REPEAT (A, B, C, D)8503 RECALCULATE DATA (A,B,C)8504 DATA CORRECTION (A,B,C)8505 SAMPLE ID EDIT (A,B,C)8506 DATA UPDATE ERROR (A, B)8507 A SAME SAMPLE ID EXISTS (A,B,C)8508 RECALCULATE CALIBRATION DATA (A,B,C,D,E,F,G,H)9000 PROGRAM ERROR (･･･)9001 PROGRAM INF (･･･)9999 DEBUG INF (･･･)翻译分析仪未接收到控制电脑传送的文本控制单元未接收到样本信息传送的文本样本未接收到控制单元传送的文本控制电脑与生化仪之间通讯错误样本信息通讯错误控制单元通讯错误文本标识信息不匹配（DPR与ANL之间)文本接受错误分布式控制第一级错误(生化仪内控制部分错误)分布式控制第二级错误(生化仪内控制部分错误）电机控制器错误条码阅读器通讯错误电路板输入输出错误内圈样品传输单元？上下运动错误内圈样品传输单元上下运动错误内圈样品传输单元旋转运动错误内圈样品分配器（注射器）运行错误内圈内冲洗分配器（注射器）运行错误外圈样品传输单元上下运动错误外圈样品传输单元上下运动错误外圈样品传输单元旋转运动错误外圈样品分配器（注射器）运行错误外圈内冲洗分配器（注射器）运行错误样本传输单元初始化错误比色杯冲洗单元错误比色杯冲洗分配器失效样品/R1搅拌单元上下运动错误样品/R1搅拌单元旋转运动错误样品/R1搅拌棒转动错误R2搅拌器上下运动错误R2搅拌器旋转运动错误R2搅拌棒转动错误内圈R1试剂传输单元上下运动错误内圈R1试剂传输单元上下运动错误内圈R1试剂传输单元旋转运动错误内圈R1试剂针分配器错误内圈R1试剂传输单元内冲洗分配器失效外圈R1试剂传输单元上下运动错误外圈R1试剂传输单元上下运动错误外圈R1试剂传输单元旋转运动错误外圈R1试剂传输单元分配器错误外圈R1试剂传输单元内冲洗分配器失效R1试剂传输单元运动初始化错误内圈R2试剂传输单元上下运动错误内圈R2试剂传输单元上下运动错误内圈R2试剂传输单元旋转运动错误内圈R2试剂传输单元分配器错误内圈R2试剂传输单元内冲洗分配器失效外圈R2试剂传输单元上下运动错误外圈R2试剂传输单元上下运动错误外圈R2试剂传输单元旋转运动错误外圈R2试剂传输单元分配器错误外圈R2试剂传输单元内冲洗分配器失效R2试剂传输单元运动初始化错误R1试剂仓单元错误R2试剂仓单元错误比色杯轮盘错误样本推板单元错误光度测定控制器错误1光度测定控制器错误2加热器控制错误 1加热器控制错误 2制冷单元错误孵育室温度超出范围制冷单元错误样品针液面探测错误样品针液面探测错误样品针堵孔探测错误R1试剂针液面探测错误R1试剂针液面探测错误R2试剂针液面探测错误R2试剂针液面探测错误HBA1c冲洗池浇注错误HBA1c冲洗池排水错误样本量少样本针堵孔样品针吸样量少样品针清洗液少样品针清洗液空样品针清洗液空样品针W2清洗液空样品预稀释液少样品预稀释液已使用完样品预稀释液已使用完样品预稀释液空样品预稀释液空R1试剂少R1试剂已使用完R1试剂已使用完R1试剂空R1试剂空R1试剂针清洗液少R1试剂针清洗液空R1试剂针清洗液空R1试剂针W2清洗液少R1试剂针冷却水供应错误R2试剂少R2试剂已使用完R2试剂已使用完R2试剂空R2试剂空R2试剂针清洗液少R2试剂针清洗液空R2试剂针清洗液空R2试剂针W2清洗液少R2试剂针水供应错误清洗原液空清洗液空清洗液溢出清洗液溢出真空压力弱真空罐满浓废液罐满淡废液罐满清洗液供应不足？光度测量单元错误光度测量数据错误光源灯关闭光源灯暗R1试剂仓盖打开R1试剂仓盖打开R2试剂仓盖打开R2试剂仓盖打开样品架固定单元进样错误样品架收集单元出架错误条码阅读器错误？条码阅读器错误？缓冲区样品架水平移动错误缓冲区样品架推杆错误缓冲区样品架上下移动错误样品架传输带错误分配轨道样本架进样错误样品架卸载单元出架错误样本架卸载单元推板错误重测架进样错误分析仪传输带错误分析仪传输推板错误分析仪分配带错误分析仪分配带推板错误分析仪分配带推板错误分析仪分配带推板错误分析仪分配带推板错误分析仪分配带挡板错误分析仪样品架进样轨道错误分析仪重测轨道错误分析仪变轨单元错误分析仪变轨单元挡板错误电解质传输轨道错误电解质传输轨道挡板错误电解质分配轨道错误电解质分配轨道挡板错误电解质重测轨道带错误传输轨道样本架运行错误分配轨道样本架运行错误传输轨道样本架卡住分配轨道样本架卡住重测轨道样本架卡住探测到传输轨道进架禁止信号探测到分配轨道进架禁止信号样本单元卡架。
