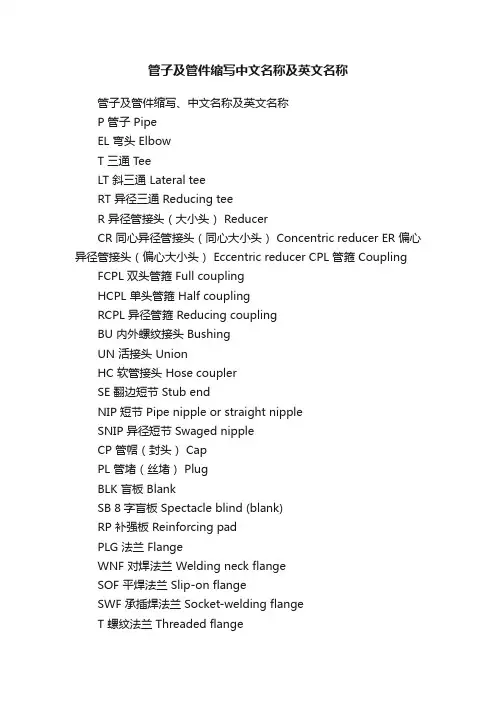

管子及管件缩写中文名称及英文名称管子及管件缩写、中文名称及英文名称P 管子 PipeEL 弯头 ElbowT 三通 TeeLT 斜三通 Lateral teeRT 异径三通 Reducing teeR 异径管接头（大小头） ReducerCR 同心异径管接头（同心大小头） Concentric reducer ER 偏心异径管接头（偏心大小头） Eccentric reducer CPL 管箍 Coupling FCPL 双头管箍 Full couplingHCPL 单头管箍 Half couplingRCPL 异径管箍 Reducing couplingBU 内外螺纹接头 BushingUN 活接头 UnionHC 软管接头 Hose couplerSE 翻边短节 Stub endNIP 短节 Pipe nipple or straight nippleSNIP 异径短节 Swaged nippleCP 管帽（封头） CapPL 管堵（丝堵） PlugBLK 盲板 BlankSB 8字盲板 Spectacle blind (blank)RP 补强板 Reinforcing padPLG 法兰 FlangeWNF 对焊法兰 Welding neck flangeSOF 平焊法兰 Slip-on flangeSWF 承插焊法兰 Socket-welding flangeT 螺纹法兰 Threaded flangeLJ 松套法兰 Lapped joint flangeREDF 异径法兰 Reducing flangeBF 法兰盖（日法兰） Blind flangeFSF 法兰密封面 Flange scaling faceFF 全平面 Flat faceRF 凸台面 Raised faceMFF 凹凸面 Male and female faceLF 凹面 Female faceLM 凸面 Male faceRJ 环连接面 Ring joint faceTG 榫槽面 T ongue and groove faceTF 榫面 T ongue faceGF 槽面 Groove faceG 垫片 GasketNMG 非金属垫片 Non-metallic gasketAG 石棉垫片 Asbestos gasketRG 橡胶垫片 Rubber gasketTEG 聚四氟乙烯包复垫片 PTFE envelope gasket SMG 半金属垫片 Semimetallic gasketMJG 金属包垫片 Meta-jacket gasketSWG 缠绕式垫片 Spiral wound gasketMG 金属垫片 Metallic gasketFMG 金属平垫片 Flat metallic gasketSMSG 齿形金属垫片 Solid metal serrated gasket LER 透镜式金属环垫 Lens ring gasketOCR 八角形金属环垫 Octagonal ring gasketOVR 椭圆形金属环垫 Oval ring gaksetIR/OR 内外定位环 Inner ring and outer ringIR 内定位环 Inner ringOR 外定位环 Outer ringB 螺栓 BoltSB 螺柱 Stud boltNU 螺母 NutTB 花蓝螺母 TurnbuckleWSR 垫圈 WasherSWSR 弹簧垫圈 Spring washerGV 闸阀 Gate valveGLV 截止阀 Globe valveCHV 止回阀 Check valveBUV 蝶阀 Butterfly valveBAV 球阀 Ball valvePV 旋塞阀 Plug valve (cock)CV 调节阀 Control valveSV 安全阀 Safety valvePRV 减压阀 Pressure reducing valveST 蒸汽疏水阀 Steam trapPRV 泄压阀 Pressur relief valveBV 呼吸阀 Breather valveNV 针形阀 Needle valveAV 角阀 angle valveDV 隔膜阀 diaphragm valveTWV 三通阀 tee valveSGV 插板阀SPR 气液分离器 SeparatorFA 阻火器 Flame arresterSR 过滤器 StrainerSRY Y型过滤器 Y-type strainerSRT T型过滤器 T-type strainerSRB 桶式过滤器 Bucket type strainer' t2 l; e, T. t1 } TSR 临时过滤器 Temporary strainerSIL 消声器 SilencerSG 视镜 Slight glassSC 取样冷却器 Sample coolerDF 排液漏斗 Drain funnelLM 管道混合器 Line mixerRO 限流孔板 Restriction orificeMO 混合孔板 Mixing orificeRD 爆破片（爆破膜） Rupture diskEJ 补偿器 Expansion jointINS 隔热 Thermal insulationH 保温 Hot insulationC 保冷 Cold insulationP 防烫伤隔热 Personnel protection insulation T&I 伴热 Tracing and insulationT 管道伴热（冷） TracingEST 蒸汽外伴热 External steam tracingIST 蒸汽内伴热 Internal steam tracingSJT 蒸汽夹套伴热 Steam-jacket tracingET 电伴热 Electric tracingM 金属材料 Metallic materialCS 碳钢 Carbon steelCAS 铸钢 Cast steelFS 锻钢 Forged steelAS 合金钢 Alloy steelSS 不锈钢 Stainless steelAUSTSS 奥氏体不锈钢 Austenitic stainless-steelCI 铸铁 Cast ironMI 可锻铸铁 Malleable ironDI 球墨铸铁 Ductile ironAL 铝 AluminumBRS 黄铜 BrassBRZ 青铜 BronzeCU 紫铜 CopperLAS 低合金钢 Low alloy steelFLAS 低合金锻钢 Forged low alloy steelCLAS 低合金铸钢 Cast low alloy steelTHK 壁厚 ThicknessSCH 表号 Schedule numberSTD 标准 StandardXS 加强 Extra strongXXS 特强 Double extra strongH 水平 HorizontalV 竖直、铅直、直立 VerticalGRD 地坪 GroundUG 地下 UndergroundBL 装置边界线 Battery limit lineESEW 事故沐浴洗眼器 Emergency shower and eye washer HS 软管站 Hose stationML 接续分界线 Match linePS 管道支架（管架） Piping supportPR 管桥 Pipe rackSTRU 构架（构筑物） StructureBLDG 建筑物 BuildingPD 清扫设施 Purge devicePT 池 PitSHLT 棚 ShelterCOFF 围堰 CofferdamFL 楼板 FloorPF 平台 PlateformEL 标高 ElevationBOP 管底 Bottom of pipeCOP 管中心 Center of pipeTOP 管顶 Top of pipeFOB 底平 Flat on bottomFOT 顶平 Flat on topTL 切线 Tangent lineBOS 支架底 Bottom of supportTOS 支架顶 Top of supportCL 净距（净空） ClearanceCTC 中心至中心 Center to centerCTF 中心至面 Center to faceCTE 中心至端部 Center to endETE 端到端 End to endFEF 法兰端面 Flange and faceFTF 面到面 Face to faceD 直径 DiameterDN 公称直径 Nominal diameterID 内径 Inside diameterOD 外径 Outside diameterDIM 尺寸 DimensionMAX 最大 MaximumMIN 最小 MinimumAVG 平均 AverageAPP 约、近似 ApproximatePT.EL 点标高 Point elevation11.1 PFD 工艺流程图 Process flow diagramPID 管道和仪表流程图 Piping & instrument diagram COD 接续图 Continued on drawingDTL 详图 DatailSPDWG 管路图 Spool drawing (each line isometric drawing) DWGI 所在图号 Drawing identificationLOW 材料表 List of materialMTO 汇料 Material take-offAPPX 附录 AppendixJOB. No. 工号 Job NumberBEDD 基础工程设计数据 Basic engineering design data, u3 }% M5 h+ f+ t. r! {3 [1 Q/ C DEDD 详细工程设计数据Detail engineering design dataREV. No. 修改号 Recision numberREF DWG 参考图 Reference drawing采样接口 Sample connectionCHOP 链条操作 Chain operatedCSC 铅封关 Car seal closeCSO 铅封开 Car seal openLC 锁闭 Lock closedLO 锁开 Lock openNC 正常关 Normally closeNO 正常开 Normally openATM 大气压 AtmospherePN 公称压力 Nominal pressureAW 电弧焊 Arc weldingGSAW 气体保护电弧焊 Gas shielded-arc weldingEFW 电熔焊 Elecric fusion weldingERW 电阻焊 Electric Resistance weldingGW 气焊 Gas weldingLW 搭接焊 Lap weldingBW 对焊 Butt weldingTW 定位焊 Tack weldingSW 承插焊 Socket weldingCW 连续焊 Continuous weldingSEW 密封焊 Seal weldingSFG 堆焊 SurfacingFW 现场焊接 Field weldingHT 热处理 Heat treatmentPH 预热 PreheatingSR 应力消除 Stress reliefPWHT 焊后热处理 Post weld heat treatmentEIT 检查、探伤和实验 Examination, inspection & testing VE 外观检查 Visual examination13.3.2 UI (UT) 超声探伤 Ultrasonic inspection (test) 13.3.3 RI (RT) 射线探伤Radiographic inspection (test) MPI (MT) 磁粉探伤Magnetic particle inspection (test) LPI (PT) 液体渗透检验Liquid penetrant inspection (test) HADT 硬度实验 Hardness testing HYDT 水压实验 Hydraulic testingPNET 气压实验 Pneumatic testingCE 焊条 Covered electrodeWW 焊丝 Welding wireCSP 冷紧 Cold springPE 平端面 Plain endBE 坡口端 Beveled endW/I 仪表带来 With instrumentCM 色标 Colour markCA 腐蚀裕度 Corrosion allowanceUTL 公用系统 UtilityUC 公用工程接头 Utility connection BC 螺栓分布圆 Bolt circle SUC 吸入（口） SuctionDIS 排出（口） DischargeSO 蒸气吹扫（口） Steam outDR 排液 DrainVT 放气 Vent。
材料名称-中英文对照
1 管道组成件Piping component1.1 管子Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand) 双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet) 异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet) 异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet)异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” bend斜接弯管mitre bend三节斜接弯管3-piece mitre bend折皱弯管corrugated bend圆度roundness1.4 法兰Flange (FLG）整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 承插焊法兰socket welding flange松套法兰lap joint flange (LJF)对焊法兰welding neckflange (WNF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange对焊环welding neck collar （与stub end相似）平焊环welding-on collar突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH)配对法兰companion-flange螺栓圆bolt circle (B.C.)1.5 垫片Gasket (GSKT)垫片的型式type of gasket平垫片flat gasket环形平垫片flat ring gasket平金属垫片flat metal gasket夹棉织物的橡胶elastomer with cotton fabric insertion夹石棉织物的橡胶elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片non graphited compressed white asbestos gasket天然白橡胶垫片natural white rubber gasket压缩石棉垫片compressed asbestos class gasket浸聚四氟乙烯的石棉垫片PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片spiral-wound metal gasket with asbestos filler内环inner ring外环，外定位环outer ring波纹金属垫片corrugated metal gasket波纹金属包嵌石棉垫片corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片corrugated metal double jacketed asbestos filled gasket 双夹套垫片double jacketed gasket金属包石棉平垫片flat metal jacketed asbestos filled gasket整体金属齿形垫片solid metal serrated gasket槽形金属垫片grooved metal gasket环形连接金属垫片ring joint metal gasket八角环形垫片octagonal ring gasket椭圆环形垫片oval ring gasket透镜式垫片lens gasket非金属垫片non-metallic gasket1.6 阀门Valve1.6.1 阀门结构、零件阀轭yoke外螺纹阀杆及阀轭outside screw and yoke (OS & Y) 阀杆stem内螺纹inside screw (IS)阀轭套yoke sleeve阀杆环stem ring阀座valve seat (body seat)阀座环、密封圈seat ring整体（阀）座integral seat堆焊（阀）座deposited seat阀芯（包括密封圈、杆等内件）trim阀盘disc阀盘密封圈disc seat阀体body阀盖bonnet阀盖衬套bonnet bush螺纹阀帽screw cap螺纹阀盖screw bonnet螺栓连接的阀盖bolted bonnet (BB)活接阀盖（帽）union bonnet (cap)螺栓连接的阀帽bolted cap (BC)焊接阀盖welded bonnet (WB)本体阀杆密封body stem seal石棉安全密封asbestos emenen seal倒密封back seal压力密封的阀盖pressure-tight bonnet动力操纵器powered operator电动操纵器electric motor operator气动操纵器pneumatic operator液压操纵器hydraulic operator快速操纵器quick-acting operator滑动阀杆sliding stem正齿轮传动spur gear operated伞齿轮传动bevel gear operated扳手操作wrench operated链轮chain wheel手轮hand wheel手柄hand lever (handle)气缸（或液压缸）操纵的cylinder operated链条操纵的chain operated等径孔道full bore; full port异径孔道reducing bore, reduced port,venturi port短型short pattern紧凑型（小型）compact type笼式环lantern ring压盖gland阀杆填料stem packing阀盖垫片bonnet gasket升杆式（明杆）rising stem (RS)非升杆式（暗杆）non-rising stem (NRS)指示器/限位器indicator/stopper注油器grease injector可更换的阀座环renewable seat ring1.6.2 常用阀(1）闸阀gate valve平行双闸板double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳flexible solid wedge整体楔形闸板solid wedge塞型闸阀plug gate valve直通型闸阀through conduit gate valve(2) 截止阀globe valve球心型阀盘globe type disc塞型阀盘plug type disc可转动的阀盘swivel disc(3) 节流闪阀throttle valve针阀needle valve(4) 角阀angle valve(5) Y型阀（Y 型阀体截止阀）Y-valve (Y-body globe valve)(6) 球阀ball valve三通球阀3-way ball valve装有底轴的trunnion mounted耐火型fire safe type浮动球型floating ball type防脱出阀杆blowout proof stem(7) 蝶阀butterfly valve对夹式（薄片型）wafer type凸耳式lug type偏心阀板蝶阀offset disc burerfly valve; eccentric butterfly valve 斜阀盘蝶阀canted disc butterfly valve连杆式蝶阀link butterfly valve8) 柱塞阀piston type valve(9) 旋塞阀plug valve三通旋塞阀three-way plug valve四通旋塞阀four-way plug valve旋塞cock衬套旋塞sleeve cock(10) 隔膜阀diaphragm valve橡胶衬里隔膜阀rubber lined diaphragm valve直通式隔膜阀straight way diaphragm valve堰式隔膜阀weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀check valve升降式止回阀lift check valve旋启式止回阀swing check valve, flap check valve落球式止回阀ball check valve弹簧球式止回阀spring ball check valve双板对夹式止回阀dual plate wafer type check valve无撞击声止回阀non-slam cheek valve底阀foot valve切断式止回阀stop check valve; non-return valve活塞式止回阀piston check valve斜翻盘止回阀tilting disc check valve蝶式止回阀butterfly check valve1.6.3 其它用途的阀安全泄气阀safety valve (SV)安全泄液阀relief valve (RV)安全泄压阀safety relief valve杠杆重锤式lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀twin type safety valve罐底排污阀flush-bottom tank valve电磁阀solenoid valve, solenoid operated valve电动阀electrically operated valve, electric-motor operated valve气动阀pneumatic operated valve低温用阀cryogenic service valve蒸汽疏水阀steam trap机械式疏水阎mechanical trap浮桶式疏水阀open bucket trap, open top bucket trap浮球式疏水阀float trap倒吊桶式疏水阀inverted bucket trap自由浮球式疏水阀loose float trap恒温式疏水阀thermostatic trap金属膨胀式蒸汽疏水阀metal expansion steam trap液体膨胀式蒸汽疏水阀liquid expansion steam trap双金属膨胀式蒸汽疏水阀bimetallic expansion steam trap压力平衡式恒温疏水阀balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀impulse steam trap放气阀（自动放气阀）air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀slab type sliding gate valve盖阀flat valve换向阀diverting valve, reversing valve热膨胀阀thermo expansion valve自动关闭阀self-closing gate valve自动排液阀self-draining valve管道盲板阀line-blind valve挤压阀squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板damper减压阀pressure reducing valve, reducing valve控制阀control valve膜式控制阀diaphragm operated control valve执行机构actuator背压调节阀back pressure regulating valve差压调节阀differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀regulating valve快开阀quick opening valve快闭阀quick closing valve隔断阀isolating valve三通阀three way valve夹套阔jacketed valve非旋转式阀non-rotary valve排污阀blowdown valve集液排放阀drip valve排液阀drain valve放空阀vent valve卸载阀unloading valve排出阀discharge valve吸入阀suction valve多通路阀multiport valve取样阀sampling valve手动阀hand-operated valve; manually operated valve 锻造阀forged valve铸造阀cast valve（水）龙头bibb; bib; faucet抽出液阀（小阀）bleed valve旁路阀by-pass valve软管阀hose valve混合阀mixing valve破真空阀vacuum breaker冲洗阀flush valve第一道阀；根部阀primary valve根部阀root valve总管阀header valve事故切断阀emergency valve1.7 管道特殊件Piping Specialty1.7.1 管道特殊件（组件）粗滤器strainer过滤器filter临时粗滤器（锥型）temporary strainer (cone type)y 型粗滤器y-type strainerT型粗滤器T-type strainer永久过滤器permanent filter丝网粗滤器gauze strainer洗眼器及淋浴器eye washer and shower视镜sight glass阻火器flame arrester喷嘴；喷头spray nozzle取样冷却器sample cooler消声器silencer膨胀节expansion joint波纹膨胀节bellow expansion joint单波single bellow双波double bellow多波multiple bellow压力平衡式膨胀节pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节axial movement type expansion joint 自均衡膨胀节（外加强环）self-equalizing expansion joint 带接杆膨胀节tied expansion joint万向型膨胀节universal type expansion joint球形补偿器ball type expansion joint填函式补偿器slip type (packed type) expansion joint单向滑动填料函补偿器single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头hose connection (HC)快速接头quick coupling金属软管metal hose橡胶管rubber hose挠性管flexible tube鞍形补强板reinforcing saddles补强板reinforcement pad特殊法兰special flange漏斗funnel排液环drip ring排液漏斗drain funnel插板blank垫环spacer8字盲板spectacle blind; figure 8 blind限流孔板restriction orifice爆破片rupture disk法兰盖贴面protective disc费托立克接头victaulic coupling1.8 端部连接End Connection法兰端flanged end坡口端beveled end (BE)对焊端butt welded end平端plain end (PE)承插焊端socket welding end螺纹端threaded end (TE)承口bell end焊接端welding end法兰连接（接头）flanged joint对焊连接（接头）butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint 锥管螺纹密封焊连接seal-welded taper pipe threaded joint 承插焊连接（接头）socket welded joint承插连接（接头）bell and spigot joint环垫接头ring joint (RJ)万向接头universal joint软钎焊连接（接头）soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角bevel for combined thickness法兰式的flanged (FLGD)对焊的butt welded (BW)螺纹的threaded (THD)承插焊的socket welded (SW)小端为平的small end plain (SEP)大端为平的large end plain (LEP)两端平both ends plain (BEP)小端带螺纹small end thread (SET)大端带螺纹large end thread (LET)两端带螺纹both end thread (BET)一端带螺纹one end thread (OET)支管连接branch connection焊接支管branch pipe welded directly to the run pipe。
管子及管件部分中英文对照
管子及管件部分中英文对照1 管道组成件Piping component1.1 管子PipeBE（BEVELLED ENDS）坡口Caps 管帽DRL 双倍尺SRL 单倍尺ERW:电阻焊SAW埋弧焊SSAW 螺旋埋弧焊LSAW 直缝埋弧焊SMLS 无缝管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe衬里管lined pipe复合管clad pipe碳钢管carbon steel pipe合金钢管alloy steel pipe不锈钢stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe铁合金钢管ferritic alloy steel pipe轧制钢管wrought-steel pipe锻铁管wrought-iron pipe无缝钢管seamless (SMLS) steel pipe焊接钢管welded steel pipe电阻焊钢管electric-resistance welded（ERW）steel pipe电熔（弧）焊钢板卷管electric-fusion (arc)-welded steel-plate pipe 螺旋焊接钢管spiral welded steel pipe镀锌钢管galvanized steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe水煤气钢管water-gas steel pipe塑料管plastic pipe玻璃管glass tube橡胶管rubber tube直管run pipe; straight pipe1.2 管件Fitting弯头elbow异径弯头reducing elbow带支座弯头base elbowk半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return带侧向口的弯头（右向或左向）side outlet elbow (right hand or left hand)双支管弯头（形）double branch elbow三通tee异径三通reducing tee等径三通straight tee带侧向口的三通（右向或左向）side outlet tee (right hand or 1eft hand)异径三通（分支口为异径）reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通base tee异径三通（一个直通口及分支口为异径）reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式）reducing tee (reducing on both runs, bull head)45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通cross等径四通straight cross异径四通reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径）reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径）reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径）reducing cross (reducing on one run and both outlet) 异径管reducer同心异径管concentric reducer偏心异径管eccentric reducer锻制异径管reducing swage螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet弯头支管台elbolet斜接支管台latrolet镶入式支管嘴sweepolet短管支管台nipolet支管台，插入式支管台boss管接头coupling, full coupling半管接头half coupling异径管接头reducing coupling活接头union内外螺纹缩接（俗称补芯）bushing管帽cap (C)堵头plug短节nipple异径短节reducing nipple; swage nipple1.3 弯管Bend预制弯管fabricated pipe bend跨越弯管（^ 形）cross-over bend偏置弯管（~ 形）offset bend90°弯管quarter bend环形弯管cirele bend单侧偏置90°弯管（? 形）single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| ?形）single offset “U” bend U形弯管“U” b end双偏置U膨胀弯管double offset expansion “U” bend。
常用管件管道配件中英文对照
常用管件管道配件中英文对照１.管件系列1.1>>P 管子Pipe1.2>> EL 弯头Elbow1.2.1> ELL 长半径弯头Long radius elbow1.2.2> ELS 短半径弯头Short radius elbow1.2.3>MEL 斜接弯头（虾米腰弯头）Mitre elbow1.2.4> REL 异径弯头Reducing elbow1.3>> T 三通Tee1.3.1> LT 斜三通Lateral tee1.3.2> RT 异径三通Reducing tee1.3.3> CROSS 四通1.4>>R 异径管接头（大小头）Reducer1.4.1> CR 同心异径管接头（同心大小头）Concentric reducer 1.4.2> ER 偏心异径管接头（偏心大小头）Eccentric reducer 1.5>> CPL 管箍Coupling1.5.1> FCPL 双头管箍Full coupling1.5.2> HCPL 单头管箍Half coupling1.5.3> RCPL 异径管箍Reducing coupling1.6>>BU 内外螺纹接头Bushing1.7>> UN 活接头Union1.8>> HC 软管接头Hose coupler1.9>> SE 翻边短节Stub end1.10>> NIP 短节Pipe nipple or straight nipple1.10.1>SNIP 异径短节Swaged nipple1.11>>CP 管帽（封头）Cap1.12>> PL 管堵（丝堵）Plug1.13>> BLK 盲板Blank1.13.1> SB 8字盲板Spectacle blind1.14>> PAD 补强板Reinforcing pad1.15>焊接支管台 WELDOLET1.16> 螺纹支管台 THREADOLET1.17> FO 限流孔板2 法兰2.1>> PLG 法兰Flange2.1.1> WNF 对焊法兰Welding neck flange2.1.2> SOF 平焊法兰Slip-on flange2.1.3> SWF 承插焊法兰Socket-welding flange2.1.4>T 螺纹法兰Threaded flange2.1.5> LJ 松套法兰Lapped joint flange2.1.6> REDF 异径法兰Reducing flange2.1.7> BF 法兰盖（盲法兰）Blind flange2.2>> FSF 法兰密封面Flange scaling face2.2.1> FF 全平面Flat face2.2.2>RF 凸台面Raised face2.2.3> MFF 凹凸面Male and female face2.2.4>LF 凹面Female face2.2.5> LM 凸面Male face2.2.6> RJ 环连接面Ring joint face2.2.7>TG 榫槽面Tongue and groove face2.2.8> TF 榫面Tongue face2.2.9> GF 槽面Groove face3 垫片3.1>> >G 垫片Gasket3.1.1>> NMG 非金属垫片Non-metallic gasket3.1.1.1> AG 石棉垫片Asbestos gasket3.1.1.2> RG 橡胶垫片Rubber gasket3.1.1.3> TEG 聚四氟乙烯包复垫片PTFE envelope gasket 3.1.2>> SMG 半金属垫片Semimetallic gasket3.1.2.1 >MJG 金属包垫片Meta-jacket gasket3.1.2.2> SWG 缠绕式垫片Spiral wound gasket3.1.3>> MG 金属垫片Metallic gasket3.1.3.1> FMG 金属平垫片Flat metallic gasket3.1.3.2> SMSG 齿形金属垫片Solid metal serrated gasket 3.1.3.3> LER 透镜式金属环垫Lens ring gasket3.1.3.4> OCR 八角形金属环垫Octagonal ring gasket3.1.3.5> OVR 椭圆形金属环垫Oval ring gakset3.1.3.6> IR/OR 内外定位环Inner ring and outer ring 3.1.3.7> IR 内定位环Inner ring3.1.3.8> OR 外定位环Outer ring4 坚固件4.1>> B 螺栓Bolt4.1.1> SB 螺柱Stud bolt4.2>> NU 螺母Nut4.3>> TB 花蓝螺母Turnbuckle4.4>> WSR 垫圈Washer4.4.1 >SWSR 弹簧垫圈Spring washer5 阀门5.1>> GV 闸阀Gate valve5.2>> GLV 截止阀Globe valve5.3>> CHV 止回阀Check valve5.4 >> BUV 蝶阀Butterfly valve5.5>> BAV 球阀Ball valve5.6>> PV 旋塞阀Plug valve (cock)5.7>> CV 调节阀Control valve5.8>> SV 安全阀Safety valve5.9>>RV 减压阀Pressure reducing valve 5.10>> ST 蒸汽疏水阀Steam trap5.11>> PRV 泄压阀Pressur relief valve5.12>> BV 呼吸阀Breather valve5.13>> NV 针形阀Needle valve5.14>> AV 角阀5.15>> DV 隔膜阀5.16>> TWV 三通阀5.17>> SGV 插板阀6 管道上用的小型设备6.1>> SPR 气液分离器Separator6.2 >>FA 阻火器Flame arrester6.3 >>SR 过滤器Strainer6.3.1> SRY Y型过滤器Y-type strainer6.3.2> SRT T型过滤器T-type strainer6.3.3> SRB 桶式过滤器Bucket type strainer 6.3.4> TSR 临时过滤器Temporary strainer 6.4.>> SIL 消声器Silencer6.5 >>SG 视镜Slight glass6.6 >>SC 取样冷却器Sample cooler6.7 >>DF 排液漏斗Drain funnel6.8>> LM 管道混合器Line mixer6.9>> RO 限流孔板Restriction orifice6.9.1> MO 混合孔板Mixing orifice6.1>>> RD 爆破片（爆破膜）Rupture disk6.11 >>EJ 补偿器Expansion joint7 隔热、伴热编号缩写中文名称英文名称7.1 >>INS 隔热Thermal insulation7.1.1> H 保温Hot insulation7.1.2> C 保冷Cold insulation7.1.3>> P 防烫伤隔热Personnel protection insulation7.2 >T&I 伴热Tracing and insulation7.3> T 管道伴热（冷）Tracing7.3.1> EST 蒸汽外伴热External steam tracing7.3.2> IST 蒸汽内伴热Internal steam tracing7.3.3 >SJT 蒸汽夹套伴热Steam-jacket tracing7.3.4 >ET 电伴热Electric tracing8、配管材料和等级8.1> M 金属材料Metallic material8.1.1> CS 碳钢Carbon steel8.1.2 >CAS 铸钢Cast steel8.1.3> FS 锻钢Forged steel8.1.4>> AS 合金钢Alloy steel8.1.5> SS 不锈钢Stainless steel8.1.6> AUST SS 奥氏体不锈钢Austenitic stainless-steel 8.1.7>> CI 铸铁Cast iron8.1.8> MI 可锻铸铁Malleable iron8.1.9> DI 球墨铸铁Ductile iron8.1.10> AL 铝Aluminum8.1.11> BRS 黄铜Brass8.1.12> BRZ 青铜Bronze8.1.13> CU 紫铜Copper8.1.14> LAS 低合金钢Low alloy steel8.1.15> FLAS 低合金锻钢Forged low alloy steel8.1.16> CLAS 低合金铸钢Cast low alloy steel8.2>> THK 壁厚Thickness8.2.1> SCH 表号Schedule number8.2.2> STD 标准Standard8.2.3 >>XS 加强Extra strong8.2.4>> XXS 特强Double extra strong9、装置布置9.1>> CN 建北Construction north9.2 >>E 东East9.3>> W 西West9.4>> S 南South9.5>> N 北North9.6>> H 水平Horizontal9.7>> V 竖直、铅直、直立Vertical9.8>> GRD 地坪Ground9.9>> UG 地下Underground9.10>> BL 装置边界线Battery limit line9.11>> ESEW 事故沐浴洗眼器Emergency shower and eye washer 9.12>> HS 软管站Hose station9.13 >>ML 接续分界线Match line9.14>> PS 管道支架（管架）Piping support9.15>> PR 管桥Pipe rack9.16>>STRU 构架（构筑物）Structure9.17>>BLDG 建筑物Building9.18>> PD 清扫设施Purge device9.19 >>PT 池Pit9.20 >>SHLT 棚Shelter9.21>> COFF 围堰Cofferdam9.22>> FL 楼板Floor9.23>> PF 平台Plateform10、尺寸标注10.1 >>>EL 标高Elevation10.2>> BOP 管底Bottom of pipe10.3>> COP 管中心Center of pipe10.4>> TOP 管顶Top of pipe10.5 >>FOB 底平Flat on bottom10.6>> FOT 顶平Flat on top10.7>> CL(屯) 中心线Center line10.8>> TL 切线Tangent line10.9>> SYM 对称的Symmetrical10.10>> BOS 支架底Bottom of support10.11 >>TOS 支架顶Top of support10.12>> CL 净距（净空）Clearance10.13>> CTC 中心至中心Center to center10.14>> CTF 中心至面Center to face10.15>> CTE 中心至端部Center to end10.16>> ETE 端到端End to end10.17>> FEF 法兰端面Flange and face10.18 >>FTF 面到面Face to face10.19 >>D 直径Diameter10.20>> DN 公称直径Nominal diameter10.21 >>ID 内径Inside diameter10.22>> OD 外径Outside diameter10.23>> DIM 尺寸Dimension10.24>> MAX 最大Maximum10.25 >>MIN 最小Minimum10.26>> AVG 平均Average10.27>> APP 约、近似Approximate10.28>> PT.EL 点标高Point elevation11 图表11.1>> PFD 工艺流程图Process flow diagram11.2>> PID 管道和仪表流程图Piping & instrument diagram11.3>> COD 接续图Continued on drawing11.4>> DTL 详图Datail11.5>> SPDWG 管段图Spool drawing (each line isometric drawing) 11.6>> DWGNO 图号Drawing number11.7>> DWGI 所在图号Drawing identification11.8>> LOW 材料表List of material11.9>> MTO 汇料Material take-off11.10>> APPX 附录Appendix11.11>> JOB. No. 工号Job Number11.12>> BEDD 基础工程设计数据Basic engineering design data 11.13>> DEDD 详细工程设计数据Detail engineering design data 11.14>> REV. No. 修改号Recision number11.15>> REF DWG 参考图Reference drawing11.16 >>SC 采样接口Sample connection12、操作方式及工作参数12.1>> AUT 自动Automatic12.2>> ML 手动Manual control12.3>> CHOP 链条操作Chain operated12.4 >>CSC 铅封关Car seal close12.5>> CSO 铅封开Car seal open12.6>> LC 锁闭Lock closed12.7>> LO 锁开Lock open12.8>> NC 正常关Normally close12.9>> NO 正常开Normally open12.10>> ATM 大气压Atmosphere12.11>> PN 公称压力Nominal pressure12.12>> A 绝压12.13>> G 表压12.14>> (T) 温度Temperature12.15>> (P) 压力Pressure13、施工13.1>> W 焊接Welding13.1.1> AW(SMAW) 电弧焊Arc welding13.1.2> GSAW 气体保护电弧焊Gas shielded-acr welding13.1.3> EFW 电熔焊Elecric fusion welding13.1.4 >ERW 电阻焊Electric Resistance welding13.1.5> GW 气焊Gas welding13.1.6> LW 搭接焊Lap welding13.1.7> BW 对焊Butt welding13.1.8 >TW 定位焊Tack welding13.1.9> SW 承插焊Socket welding13.1.10> CW 连续焊Continuous welding13.1.11> SEW 密封焊Seal welding13.1.12> SFG 堆焊Surfacing13.1.13> FW 现场焊接Field welding13.1.14 > TIG(GTAW) 钨极惰性气体保护焊(氩弧焊)Gas Tungsten Arc Weld 13.2 >>HT 热处理Heat treatment13.2.1>> PH 预热Preheating13.2.2 >SR 应力消除Stress relief13.2.3> PWHT 焊后热处理Post weld heat treatment13.3> EIT 检查、探伤和实验Examination, inspection & testing13.3.1> VE 外观检查Visual examination13.3.2>> UI (UT) 超声探伤Ultrasonic inspection (test)13.3.3>> RI (RT) 射线探伤Radiographic inspection (test)13.3.4> MPI (MT) 磁粉探伤Magnetic particle inspection (test) 13.3.5> LPI (PT) 液体渗透检验Liquid penterant inspection (test) 13.3.6> HADT 硬度实验Hardness testing13.3.7> HYDT 水压实验Hydraulic testing13.3.8> PNET 气压实验Pneumatic testing13.3.9> CE 焊条Covered electrode13.3.10> WW 焊丝Welding wire13.3.11> ASSY 装配、组合Assembly13.3.12 >F 现场Field13.3.13> F/F 现场制造Field faricated13.3.14> SF 现场决定Suit in field13.3.15> CSP 冷紧Cold spring13.3.16> BCT 螺栓冷紧Bolt cold tightening13.3.17> BHY 螺栓热紧Bolt hot tightening13.3.18> CO 清洗口Clean out13.3.19> ANNY 退火Annealed13.4 >PE 平端面Plain end13.5 >BE 坡口端Belelled end13.6> THR 螺纹Thread13.7 >HB 布氏硬度Brinnel hardness13.8> RC 洛氏硬度14、其他14.1> FDN 基础Foundation14.2> INF 信息（资料）Information14.3 >REF 参考Reference14.4 >REV 修改Revision14.5 >SEQ 序号（顺序）Sequence14.6> W/E 设备带来With equipment14.7> W/I 仪表带来With instrument14.8> CM 色标Colour mark14.9> CA 腐蚀裕度Corrosion allowance14.10> UTL 公用系统Utility14.11> UC 公用工程接头Utility connection14.12> QTY 数量Quantity14.13 >WT 重量Weight14.14> MHR 工时Man hour14.15> BC 螺栓分布圆Bolt circle14.16> HP 高点High point14.17> LP 低点Low point14.18> SUC 吸入（口）Suction14.19 DIS 排出（口）Discharge14.20> SO 蒸气吹扫（口）Steam out14.21> NPT 美国标准锥管螺纹National standard taper pipe thread 14.22> NPS 美国标准直管螺纹National standard straight pipe thread 14.23> DR 排液Drain14.24> VT 放气Vent14.25> RTG （压力）等级Rating14.26> CL 等级Class14.27 >SMLS 无缝Seamless14.28> 螺旋缝 Spiral seam。
管件名称中英文对照

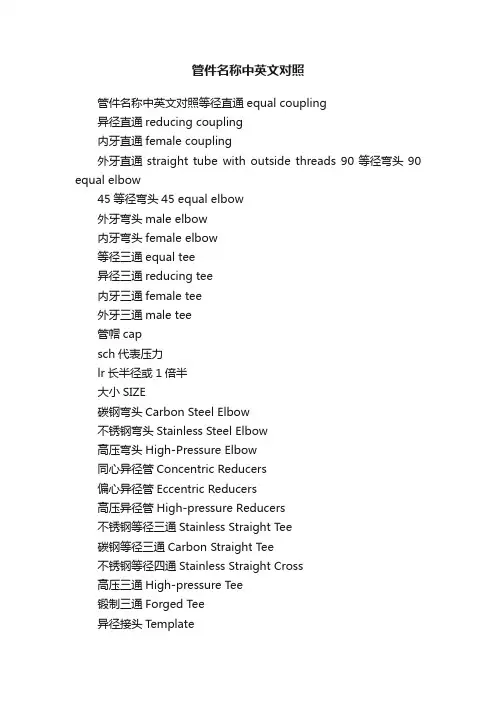

管件名称中英文对照管件名称中英文对照等径直通equal coupling异径直通reducing coupling内牙直通female coupling外牙直通straight tube with outside threads 90等径弯头90 equal elbow45等径弯头45 equal elbow外牙弯头male elbow内牙弯头female elbow等径三通equal tee异径三通reducing tee内牙三通female tee外牙三通male tee管帽capsch代表压力lr长半径或1倍半大小SIZE碳钢弯头Carbon Steel Elbow不锈钢弯头Stainless Steel Elbow高压弯头High-Pressure Elbow同心异径管Concentric Reducers偏心异径管Eccentric Reducers高压异径管High-pressure Reducers不锈钢等径三通Stainless Straight Tee碳钢等径三通Carbon Straight Tee不锈钢等径四通Stainless Straight Cross高压三通High-pressure Tee锻制三通Forged Tee异径接头Template管帽Caps法兰flange长径和短径弯头long and short radius elbows同心和偏心异径接头concentric and eccentric reducers 等径和异径三通straight and reducing outlet tees大小头CONCENTRIC REDUCER Tee Equal 相等的三通等径三通Straight Tee异径三通Reducing Tee等径四通Straight Cross90°短半径弯头90°SS Elbow (SR)90°长半径弯头90°SS Elbow (LR)高压厚壁弯头Thickness ElbowU型管Return Bend盲法兰Blank Flange弯管Bends翻边stub ends异径接头reducers公称通径nominal diameter外径(mm) outside diameter中心距至端面的距离center to end理论重量(kg/pcs) approx weight description 类种双丝头Nipple短节SWAGE NIPPLE内外螺纹活接头Union螺桩studHalf-Coupling单承口管箍Coupling双承口管箍盲板Blind Flangespectacle blind 带双圈的盲板Ecentric 偏心的结头（管线的）：tie-in插盲板：slip spade盲板：blank接头：fitting加热器：heater金属缠绕垫片（带外环）:SW with outside ring HR:热轧on site:manifold:管汇。
管材、管件、阀门、接头、管道特件、紧固件、密封等中英文对照
管材、管件、阀门、接头、管道特件、紧固件、密封等中英文对照(总10页)-CAL-FENGHAI.-(YICAI)-Company One1-CAL-本页仅作为文档封面，使用请直接删除管材、管件、阀门、接头、管道特件、紧固件、垫片、密封、工程材料等中英文对照化工管道设计技术英语词汇(1－2－3)1 管道组成件 Piping component1.1 管子 Pipe管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管 steel pipe铸铁管 cast iron pipe衬里管 lined pipe复合管 clad pipe碳钢管 carbon steel pipe合金钢管 alloy steel pipe不锈钢 stainless steel pipe奥氏体不锈钢管 austenitic stainless steel pipe铁合金钢管 ferritic alloy steel pipe轧制钢管 wrought-steel pipe锻铁管 wrought-iron pipe无缝钢管 seamless (SMLS) steel pipe焊接钢管 welded steel pipe电阻焊钢管 electric-resistance welded steel pipe电熔（弧）焊钢板卷管 electric-fusion (arc)-welded steel-plate pipe 螺旋焊接钢管 spiral welded steel pipe镀锌钢管 galvanized steel pipe热轧无缝钢管 hot-rolling seamless pipe冷拔无缝钢管 cold-drawing seamless pipe水煤气钢管 water-gas steel pipe塑料管 plastic pipe玻璃管 glass tube橡胶管 rubber tube直管 run pipe; straight pipe1.2 管件 Fitting弯头 elbow异径弯头 reducing elbow带支座弯头 base elbowk半径弯头 long radius elbow短半径弯头 short radius elbow长半径180°弯头 long radius return短半径180°弯头 short radius return带侧向口的弯头（右向或左向） side outlet elbow (right hand or left hand)双支管弯头（形） double branch elbow三通 tee异径三通 reducing tee等径三通 straight tee带侧向口的三通（右向或左向） side outlet tee (right hand or 1eft hand)异径三通（分支口为异径） reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通 base tee异径三通（一个直通口及分支口为异径） reducing tee (reducing on one run and outlet)异径三通（两个直通口为异径，双头式） reducing tee (reducing on both runs, bull head)45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (reducing on one run)45°斜三通(一个直通口及支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通 cross等径四通 straight cross异径四通 reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口及分支口为异径） reducing cross (reducing on one run and outlet)异径四通（两个分支口为异径） reducing cross (reducing on both outlet)异径四通（一个直通口及两个分支口为异径） reducing cross (reducing on one run and both outlet)异径管 reducer同心异径管 concentric reducer偏心异径管 eccentric reducer锻制异径管 reducing swage螺纹支管台 threadolet焊接支管台 weldolet承插支管台 sockolet弯头支管台 elbolet斜接支管台 latrolet镶入式支管嘴 sweepolet短管支管台 nipolet支管台，插入式支管台 boss管接头 coupling, full coupling半管接头 half coupling异径管接头 reducing coupling活接头 union内外螺纹缩接（俗称补芯） bushing管帽 cap (C)堵头 plug短节 nipple异径短节 reducing nipple; swage nipple 1.3 弯管 Bend预制弯管 fabricated pipe bend跨越弯管（^ 形） cross-over bend偏置弯管（~ 形） offset bend90°弯管 quarter bend环形弯管 cirele bend单侧偏置90°弯管（形） single offset quarter bendS形弯管“S” bend单侧偏置U形膨胀弯管（| 形）single offset “U” bendU形弯管“U” bend双偏置U膨胀弯管double offset expansion “U” be nd斜接弯管 mitre bend三节斜接弯管 3-piece mitre bend折皱弯管 corrugated bend圆度 roundness1.4 法兰 Flange (FLG）整体管法兰 integral pipe flange钢管法兰 steel pipe flange螺纹法兰 threaded flange滑套法兰（包括平焊法兰） slip-on flange (SO); slip-on welding flange 承插焊法兰 socket welding flange松套法兰 lap joint flange (LJF)对焊法兰 welding neckflange (WNF)法兰盖 blind flange, blind孔板法兰 orifice flange异径法兰 reducing flange盘座式法兰?? pad type flange松套带颈法兰 loose hubbed flange焊接板式法兰?? welding plate flange对焊环 welding neck collar （与stub end相似）平焊环 welding-on collar突缘短节 stub end, lap翻边端 lapped pipe end松套板式法兰 loose plate flange压力级 pressure rating, pressure rating class压力—温度等级 pressure-temperature rating法兰密封面，法兰面 flange facing突面 raised face (RF)凸面 male face (MF)凹面 female face (FMF)榫面 tongue face槽面 groove face环连接面 ring joint face全平面；满平面 flat face; full face (FF)光滑突面 smooth raised face (SRF)法兰面加工 facing finish粗糙度 roughness光滑的 smooth齿形 serrated均方根 root mean square (RMS)算术平均粗糙高度 arithmetical average roughness height (AARH)配对法兰 companion-flange螺栓圆 bolt circle (B.C.)1.5 垫片 Gasket (GSKT)垫片的型式 type of gasket平垫片 flat gasket环形平垫片 flat ring gasket平金属垫片 flat metal gasket夹棉织物的橡胶 elastomer with cotton fabric insertion夹石棉织物的橡胶 elastomer with asbestos fabric insertion夹石棉织物及金属丝加强的橡胶 elastomer with asbestos fabric insertion and with wire reinforcement无石墨压缩白石棉垫片 non graphited compressed white asbestos gasket天然白橡胶垫片 natural white rubber gasket压缩石棉垫片 compressed asbestos class gasket浸聚四氟乙烯的石棉垫片 PTFE impregnated asbestos gasket夹石棉的缠绕金属垫片 spiral-wound metal gasket with asbestos filler内环 inner ring外环，外定位环 outer ring波纹金属垫片 corrugated metal gasket波纹金属包嵌石棉垫片 corrugated metal gasket with asbestos inserted双夹套波纹金属包石棉垫片 corrugated metal double jacketed asbestos filled gasket双夹套垫片 double jacketed gasket金属包石棉平垫片 flat metal jacketed asbestos filled gasket整体金属齿形垫片 solid metal serrated gasket槽形金属垫片 grooved metal gasket环形连接金属垫片 ring joint metal gasket八角环形垫片 octagonal ring gasket椭圆环形垫片 oval ring gasket透镜式垫片 lens gasket非金属垫片 non-metallic gasket1.6 阀门 Valve1.6.1 阀门结构、零件阀轭 yoke外螺纹阀杆及阀轭 outside screw and yoke (OS & Y) 阀杆 stem内螺纹 inside screw (IS)阀轭套 yoke sleeve阀杆环 stem ring阀座 valve seat (body seat)阀座环、密封圈 seat ring整体（阀）座 integral seat堆焊（阀）座 deposited seat阀芯（包括密封圈、杆等内件） trim阀盘 disc阀盘密封圈 disc seat阀体 body阀盖 bonnet阀盖衬套 bonnet bush螺纹阀帽 screw cap螺纹阀盖 screw bonnet螺栓连接的阀盖 bolted bonnet (BB)活接阀盖（帽） union bonnet (cap)螺栓连接的阀帽 bolted cap (BC)焊接阀盖 welded bonnet (WB)本体阀杆密封 body stem seal石棉安全密封 asbestos emenen seal倒密封 back seal压力密封的阀盖 pressure-tight bonnet 动力操纵器 powered operator电动操纵器 electric motor operator 气动操纵器 pneumatic operator液压操纵器 hydraulic operator快速操纵器 quick-acting operator滑动阀杆 sliding stem正齿轮传动 spur gear operated伞齿轮传动 bevel gear operated扳手操作 wrench operated链轮 chain wheel手轮 hand wheel手柄 hand lever (handle)气缸（或液压缸）操纵的 cylinder operated链条操纵的 chain operated等径孔道 full bore; full port异径孔道 reducing bore, reduced port,venturi port短型 short pattern紧凑型（小型） compact type笼式环 lantern ring压盖 gland阀杆填料 stem packing阀盖垫片 bonnet gasket升杆式（明杆） rising stem (RS)非升杆式（暗杆） non-rising stem (NRS)指示器/限位器 indicator/stopper注油器 grease injector可更换的阀座环 renewable seat ring1.6.2 常用阀(1）闸阀 gate valve平行双闸板 double disc parallel seat开口楔形闸板split wedge挠性整体楔形闸扳 flexible solid wedge整体楔形闸板 solid wedge塞型闸阀 plug gate valve直通型闸阀 through conduit gatevalve(2) 截止阀 globe valve球心型阀盘 globe type disc塞型阀盘 plug type disc可转动的阀盘 swivel disc(3) 节流闪阀 throttle valve针阀needle valve(4) 角阀 angle valve(5) Y型阀（Y 型阀体截止阀） Y-valve (Y-body globe valve)(6) 球阀 ball valve三通球阀 3-way ball valve装有底轴的 trunnion mounted 耐火型 fire safe type浮动球型 floating ball type防脱出阀杆 blowout proof stem(7) 蝶阀 butterfly valve对夹式（薄片型） wafer type凸耳式 lug type偏心阀板蝶阀 offset disc burerflyvalve; eccentric butterfly valve斜阀盘蝶阀 canted disc butterfly valve连杆式蝶阀 link butterfly valve8) 柱塞阀 piston type valve(9)旋塞阀 plug valve三通旋塞阀 three-way plug valve四通旋塞阀 four-way plug valve旋塞 cock衬套旋塞 sleeve cock(10) 隔膜阀 diaphragm valve橡胶衬里隔膜阀 rubber lined diaphragm valve直通式隔膜阀 straight way diaphragm valve堰式隔膜阀 weir diaphragm valve(11) 夹紧式胶管阀pinch valve（用于泥浆、粉尘等）(12) 止回阀 check valve升降式止回阀lift check valve旋启式止回阀 swing check valve, flap check valve落球式止回阀 ball check valve弹簧球式止回阀 spring ball check valve双板对夹式止回阀 dual plate wafer type check valve无撞击声止回阀 non-slam cheek valve底阀 foot valve切断式止回阀 stop check valve; non-return valve活塞式止回阀 piston check valve斜翻盘止回阀 tilting disc check valve蝶式止回阀 butterfly check valve1.6.3 其它用途的阀安全泄气阀 safety valve (SV)安全泄液阀 relief valve (RV)安全泄压阀 safety relief valve杠杆重锤式 lever and weight type引导阀操纵的安全泄气阀pilot operated safety valve复式安全泄气阀 twin type safety valve罐底排污阀 flush-bottom tank valve电磁阀 solenoid valve, solenoid operated valve电动阀 electrically operated valve, electric-motor operated valve气动阀 pneumatic operated valve低温用阀 cryogenic service valve蒸汽疏水阀 steam trap机械式疏水阎 mechanical trap浮桶式疏水阀 open bucket trap, open top bucket trap浮球式疏水阀 float trap倒吊桶式疏水阀 inverted bucket trap自由浮球式疏水阀 loose float trap恒温式疏水阀 thermostatic trap金属膨胀式蒸汽疏水阀 metal expansion steam trap液体膨胀式蒸汽疏水阀 liquid expansion steam trap 双金属膨胀式蒸汽疏水阀 bimetallic expansion steam trap压力平衡式恒温疏水阀 balanced pressure thermostatic trap热动力式疏水阀thermodynamic trap脉冲式蒸汽疏水阀 impulse steam trap放气阀（自动放气阀） air vent valve (automatic air vent valve) （疏水阀用）平板式滑动闸阀 slab type sliding gate valve盖阀 flat valve换向阀 diverting valve, reversing valve热膨胀阀 thermo expansion valve自动关闭阀self-closing gate valve自动排液阀 self-draining valve管道盲板阀line-blind valve挤压阀 squeeze valve（用于泥浆及粉尘等）呼吸阀breather valve风门、挡板 damper减压阀 pressure reducing valve, reducing valve控制阀 control valve膜式控制阀 diaphragm operated control valve执行机构 actuator背压调节阀 back pressure regulating valve差压调节阀 differential pressure regulating valve压力比例调节阀pressure ratio regulating valve1.6.4 未指明结构（或阀型）的阀切断阀block valve; shut-off valve; stop valve调节阀 regulating valve快开阀quick opening valve快闭阀 quick closing valve隔断阀 isolating valve 三通阀 three way valve夹套阔 jacketed valve非旋转式阀 non-rotary valve排污阀 blowdown valve集液排放阀 drip valve排液阀 drain valve放空阀 vent valve卸载阀 unloading valve排出阀 discharge valve吸入阀suction valve多通路阀 multiport valve取样阀 sampling valve手动阀hand-operated valve; manually operated valve锻造阀 forged valve铸造阀 cast valve（水）龙头 bibb; bib; faucet抽出液阀（小阀） bleedvalve旁路阀 by-pass valve软管阀 hose valve混合阀 mixing valve破真空阀 vacuum breaker冲洗阀 flush valve第一道阀；根部阀 primary valve根部阀 root valve总管阀 header valve事故切断阀 emergency valve1.7 管道特殊件 Piping Specialty1.7.1 管道特殊件（组件）粗滤器 strainer过滤器filter临时粗滤器（锥型） temporary strainer (cone type)y 型粗滤器 y-type strainerT型粗滤器 T-type strainer永久过滤器 permanent filter丝网粗滤器 gauze strainer洗眼器及淋浴器 eye washer and shower视镜sight glass阻火器 flame arrester喷嘴；喷头 spray nozzle取样冷却器sample cooler消声器 silencer膨胀节 expansion joint波纹膨胀节 bellow expansion joint单波 single bellow双波 double bellow多波 multiple bellow压力平衡式膨胀节 pressure balanced expansion带铰链膨胀节hinged expansion joint轴向位移型膨胀节 axial movement type expansion joint自均衡膨胀节（外加强环）self-equalizing expansion joint带接杆膨胀节 tied expansion joint万向型膨胀节 universal type expansion joint 球形补偿器 ball type expansion joint填函式补偿器 slip type (packed type) expansion joint单向滑动填料函补偿器 single actionpacked slip joint1.7.2 管道特殊元件Piping Special Element软管接头 hose connection (HC)快速接头 quick coupling金属软管 metal hose橡胶管rubber hose挠性管 flexible tube鞍形补强板 reinforcing saddles补强板reinforcement pad特殊法兰 special flange漏斗 funnel排液环 drip ring 排液漏斗 drain funnel插板 blank垫环 spacer8字盲板 spectacle blind; figure 8 blind限流孔板 restriction orifice爆破片 rupture disk法兰盖贴面 protective disc费托立克接头 victaulic coupling1.8 端部连接 End Connection法兰端 flanged end坡口端 beveled end (BE)对焊端 butt welded end平端 plain end (PE)承插焊端 socket welding end螺纹端threaded end (TE)承口 bell end焊接端 welding end法兰连接（接头）flanged joint对焊连接（接头） butt welded joint螺纹连接，管螺纹连接threaded joint, pipe threaded joint锥管螺纹密封焊连接 seal-welded taper pipe threaded joint承插焊连接（接头） socket welded joint承插连接（接头） bell and spigot joint环垫接头 ring joint (RJ)万向接头universal joint软钎焊连接（接头） soldered joint搭接接头，松套连接lapped joint外侧厚度切斜角 bevel for outside thickncss内侧厚度切斜角bevel for inside thickness内外侧厚度切斜角 bevel for combined thickness法兰式的 flanged (FLGD)对焊的 butt welded (BW)螺纹的threaded (THD)承插焊的 socket welded (SW)小端为平的 small end plain (SEP)大端为平的 large end plain (LEP)两端平 both ends plain (BEP)小端带螺纹 small end thread (SET)大端带螺纹 large end thread (LET)两端带螺纹 both end thread (BET)一端带螺纹 one end thread (OET)支管连接branch connection焊接支管 branch pipe welded directly to the runpipe2 管道用紧固件及螺纹2.1 紧固件螺栓 bolt六角头螺栓 hexagonal head bolt方头螺栓 square head bolt螺柱，双头螺栓 stud bolt环头螺检 eye bolt沉头螺栓 countersunk (head) screw地脚螺栓 anchor bolt; foundation bolt松紧螺旋扣（花篮螺丝） turnbuckleU形螺栓 U-boltT形螺栓 T-bolt圆头螺钉 round head bolt机螺栓，机螺钉 maehine bolt顶开螺栓，顶起螺栓 Jack screw自攻螺钉 self tapping screw膨胀螺栓 expansion bolt粗制的 coarse精制的 finished, fine螺母 nut六角螺母 hexagonal nut方螺母 square nut蝶形螺母 wing nut扁螺母 flat nut锁紧螺母 lock nut垫圈 washer平垫圈 plain washer球面垫圈 spherical washer弹簧垫圈spring washer方垫圈 square washer斜垫圈 slant washer销轴 pinned shan销 pin开口销 cotter pin定位销 dowel pin带孔销 pin with hole圆锥销 taper pin铆钉 rivet键 key2.2?? 螺纹左螺纹left hand thread右螺纹 right hand thread管螺纹 pipe thread锥管螺纹 taper pipe thread直管螺纹straight pipe thread梯形螺纹 trapezoid thread螺距pitch of thread粗牙螺纹coarse thread细牙螺纹 fine thread特细牙螺纹extrafine thread通长螺纹full thread惠氏螺纹whitworth thread公制螺纹metric ibread美国标准锥管螺纹 American standard taper pipe thread (NPT)螺孔 tap3 材料、型钢及填料3.1 金属材料3.1.1 黑色金属 Ferrous Metal碳素钢 carbon steel (CS)低碳钢 low-carbon steel中碳钢 medium-carbon steel高碳钢 high-carbon steel普通碳素钢 general carbon steel 优质碳素钢 high-quality carbon steel普通低合金结构钢 general structure low-alloy steel合金结构钢 structural alloy steel合金钢alloy steel低合金钢 low alloy steel 中合金钢 medium alloy steel高合金钢 high alloy steel耐热钢 heat resisting steel高强度钢 high strength steel复合钢 clad steel工具钢 tool steel弹簧钢 spring steel 钼钢 molybdenum steel镍钢 nickel steel铬钢 chromium steel铬钼钢chrome-molybdenum steel铬镍钢 chromium-nickel steel,chrome-nickel steel不锈钢 stainless steel (S.S.)奥氏体不锈钢 Austenitic stainless steel马氏体不锈钢 Martensitic stainless steel司特来合金（钨铬钴台金） Stellite耐蚀耐热镍基合金 Hastelloy铬镍铁合金 inconel耐热铬镍铁合金 incoloy20合金 20 alloy平炉钢（马丁钢） Martin steel镇静钢killed steel半镇静钢 semi-killed steel沸腾钢 rimmed steel; rimming steel; open-steel锻钢 forged steel铸钢 cast steel铸铁 cast iron (C.I.)灰铸铁 grey cast iron可锻铸铁 malleable iron (MI)球墨铸铁nodular cast iron; nodular graphite iron生铁 pig iron熟铁，锻铁wrought iron铸件 casting高硅铸铁 high silicon cast iron3.1.2 镀层及制造方法渗铬钢，镀铬钢 chromized steel镀铬的 chromium-plated, chrome-plated镀层 plating锻造，型钢 swage锻造的，锻造 forging轧制rolling热轧 hot rolling冷轧 cold rolling挤压 extruding冷加工 cold working热加工 hot working拔制 drawing3.1.3 有色金属Non-ferrous Metal铝 aluminum铜，紫铜 copper黄铜 brass青铜 bronze铝青铜aluminum bronze磷青铜 phosphor bronze铝镁合金 aluminum magnesium锰青铜 manganese bronze蒙乃尔（注：镍及铜合金） Monel镍铜台金 nickel copper alloy非铁合金 nonferrous alloy钛 titanium铅 lead硬铅 hard lead3.1.4 材料性能极限强度 ultimate strength抗拉强度 tensilestrength屈服极限 yield limit屈服点 yield point延伸率 percentage elongation抗压强度 compressive strength抗弯强度 bending strength弹性极限 elastic limit冲击值 impact value疲劳极限 fatigue limit蠕变极限 creep limit持久极限 endurance limit布氏硬度 Brinell hardness洛氏硬度 Rockwell hardness维氏硬度 Vickers diamond hardness, diamond penetrator hardness蠕变断裂强度 creep rupture strength断面收缩率reduction of area韧性 toughess脆性 brittleness延性 ductility冷脆cold shortness冷流 cold flow3.2 非金属材料 Non-metallic Material塑料plastic丙烯腈—丁二烯—苯乙烯 acrylonitrile-butadiene-styrene (ABS)聚乙烯 polyethylene (PE)聚氯乙烯 polyvinyl chloride (PVC)苯乙烯橡胶styrene-rubber (SR)聚丁烯 polybutylene (PB)聚丙烯 polypropylene (PP)聚苯乙烯 polystyrene (PS)氯化聚醚 chlorinated polyether (CPE)聚酰胺polyamide (PA)聚碳酸酯 polycarbonate (PC)聚甲基丙烯酸甲酯 polymethyl methacrylate (PMMA)醋酸丁酸纤维素cellulose acetate butyrate (CAB)氯化聚氯乙烯 chlorinated polyvinyl chloride (CPVC)聚偏二氟乙烯polyvinylidene fluoride (PVDF)缩醛塑料 acetal plastic尼龙塑料 nylon plastic聚烯烃 polyolefin (PO)石墨酚醛塑料 graphite phenolic plastics 聚四氟乙烯 polytetrafluoroethylene (PTFE)纤维增强热塑性塑料 fiber reinforced thermoplastics热塑性塑料 thermoplastic热固性塑料thermosetting plastics胶粘剂 adhesive溶剂胶接剂 solvent cement树脂resin环氧树脂 epoxy, epoxy resin聚酯树脂 polyester resin聚酯纤维polyester fibers氟塑料 fluoroplastics聚氨基甲酸酯 polyurethane丙烯酸树脂 acrylic resin脲醛树脂 urea resin呋哺树脂 furan resin乙烯丙烯二烃单体 ethylene propylene diene monomer (EPDM)合成橡胶 synthetic rubber橡胶 rubber丁腈橡胶 nitrile butadiene rubber氯丁橡胶 neoprene 天然橡胶 natural rubber乙丙橡胶 ethylene propylene rubber (EPR)玻璃glass硼硅玻璃 borosilicate glass耐火砖 fire brick陶瓷 ceramic搪瓷porcelain enamel木材 wood3.3 型材型钢 shaped steel, section steel, swage角钢 angle steel槽钢 channel工字钢 I-beam宽缘工字钢或H钢 wide flanged beamT型钢 T-bar方钢 square bar扁钢 flat bar角钢 hexagonal steel bar圆钢 round steel; rod钢带 strap steel钢板 plate网纹钢板checkered plate腹板（指型钢的立板） web翼缘（指型钢的缘） wing3.4 填料及填料函填料 packing石棉绳 asbestos rope, asbestos cord．O形环 O-ring自密封 self-sealing四氟带 Teflon tap带铬镍合金丝的石棉绳asbestos rope with inconel wire, inconel wire asbestos浸聚四氟乙烯的石棉填料 Teflon impregnated asbestos packing金属填料 metallicstuffing填料箱，填料函 packing box, stuffing box填料函压盖 stuffing box gland。
管件名称(中英文)
管件名称中英文对照等径直通equal coupling异径直通reducing coupling牙直通 female coupling外牙直通straight tube with outside threads90等径弯头 90 equal elbow45等径弯头 45 equal elbow外牙弯头 male elbow牙弯头 female elbow等径三通 equal tee异径三通 reducing tee牙三通female tee外牙三通 male tee管帽capsch代表压力lr长半径或1倍半大小 SIZE碳钢弯头 Carbon Steel Elbow不锈钢弯头 Stainless Steel Elbow高压弯头 High-Pressure Elbow同心异径管 Concentric Reducers偏心异径管 Eccentric Reducers高压异径管 High-pressure Reducers不锈钢等径三通 Stainless Straight Tee 碳钢等径三通 Carbon Straight Tee不锈钢等径四通Stainless Straight Cross高压三通 High-pressure Tee锻制三通 Forged Tee异径接头 Template管帽 Caps法兰flange长径和短径弯头 long and short radius elbows同心和偏心异径接头concentric and eccentric reducers等径和异径三通 straight and reducing outlet tees 大小头 CONCENTRIC REDUCERTee Equal 相等的三通等径三通Straight Tee异径三通Reducing Tee等径四通Straight Cross90°短半径弯头90°SS Elbow (SR) 90°长半径弯头90°SS Elbow (LR)高压厚壁弯头Thickness ElbowU型管Return Bend盲法兰Blank Flange弯管Bends翻边stub ends异径接头reducers公称通径 nominal diameter外径(mm) outside diameter中心距至端面的距离 center to end理论重量(kg/pcs) approx weight description 类种双丝头 Nipple短节 SWAGE NIPPLE外螺纹活接头 Union螺桩 studHalf-Coupling单承口管箍Coupling双承口管箍盲板 Blind Flangespectacle blind 带双圈的盲板Ecentric 偏心的结头（管线的）：tie-in插盲板：slip spade盲板：blank接头：fitting加热器：heater金属缠绕垫片（带外环）:SW with outside ringHR:热轧on site:manifold:管汇D(S)Equal joint等径对接头T(S)Equal tee等径三通接头ZN Transition joint with internal screw螺纹转换接头D(R) Reduced joint异径对接头T(R) Reduced tee异径三通接头ZW1 Transition joint with extermal screw(1)外螺纹转换接头D(K)Adjustable joint可调对接头A90E A-Type b end90°A型90°弯头ZW2 Transition joint withextermal screw(2)外螺纹转换接头C Blind joint管帽HJG Straight motional joint直管式活接头ZL Transition joint with movable nut螺母移动转换接头ZN90E1 Transition bend 90°,with internal screw(long)螺纹转换90°弯头（长型）ZN90E2 TRANSITION BEND 90°，with internalscrew(short)螺纹转换90°弯头（短型）ZNT Transition tee with internal screw螺纹转换三通接头1.2 管件 Fitting弯头 elbow异径弯头 reducing elbow带支座弯头 base elbowk半径弯头 long radius elbow短半径弯头 short radius elbow长半径180°弯头 long radius return短半径180°弯头 short radius return带侧向口的弯头（右向或左向） side outlet elbow (right hand or left hand)双支管弯头（形） double branch elbow三通 tee异径三通 reducing tee等径三通 straight tee带侧向口的三通（右向或左向） side outlet tee (right hand or 1eft hand)异径三通（分支口为异径） reducing tee (reducing on outlet)异径三通（一个直通口为异径）reducing tee (reducing on one run)带支座三通 base tee异径三通（一个直通口与分支口为异径） reducing tee (reducing on one run and outlet) 异径三通（两个直通口为异径，双头式） reducing tee (reducing on both runs, bull head) 45°斜三通45° lateral45°斜三通（支管为异径）45° lateral (reducing on branch)45°斜三通(一个直通口为异径) 45° lateral (redu cing on one run)45°斜三通(一个直通口与支管为异径) 45° lateral (reducing on one run and branch)Y型三通（俗称裤衩）true “Y”四通 cross等径四通 straight cross异径四通 reducing cross异径四通（一个分支口为异径）reducing cross (reducing on one outlet)异径四通（一个直通口与分支口为异径） reducing cross (reducing on one run and outlet) 异径四通（两个分支口为异径） reducing cross (reducing on both outlet)异径四通（一个直通口与两个分支口为异径） reducing cross (reducing on one run and both outlet)异径管 reducer同心异径管 concentric reducer偏心异径管 eccentric reducer锻制异径管 reducing swage螺纹支管台 threadolet焊接支管台 weldolet承插支管台 sockolet弯头支管台 elbolet斜接支管台 latrolet镶入式支管嘴 sweepolet短管支管台 nipolet支管台，插入式支管台 boss管接头 coupling, full coupling半管接头 half coupling异径管接头 reducing coupling活接头 union外螺纹缩接（俗称补芯） bushing管帽 cap (C)堵头 plug短节 nipple异径短节 reducing nipple; swage nipple。
管件英文对照
弯头(Elbow):卡箍式弯头(Clamp Elbow),焊接式弯头(Weld Elbow),螺纹式弯头(Threaded Elbow);三通(Tee):卡箍式三通(Clamp Tee),焊接式三通(Weld Tee),螺纹式三通(Threaded Tee);四通(Cross):卡箍式四通(Clamp Cross),焊接式三通(Weld Cross),螺纹式三通(Threaded Cross);同心大小头(Concentric Reducer);偏心大小头(Eccentric Reducer);变径管(Reducer);活接/由任(Union);螺母(Nut);螺纹接头(Male);平接头(Liner);垫圈(Gasket);卡箍接头(Ferrule);软管接头(Hose Coupling);盲板(Banlk);卡箍(Clamp);人孔盖(Manways);泵(Pump);蝶阀(Butterfly Valve);止回阀(Check Valve);隔膜阀(Diaphragm Valve);球阀(Ball Valve);过滤器(Filter);取样阀/采样阀(Sample Valve);换向阀(Reversing Valve);呼吸器(Rebreather);地漏(Floor Drain);视镜(Sight Glass);清洗球(Cleaning Ball);管支架(Pipe Holder);卫生管(Sanitary Tube)。
材质有SS304，SS316或SS316L不锈钢，抗锈且抗腐蚀，耐受CIP ( Clean-In-Place )清洗程序，适合用于牛乳、食品、啤酒、饮料、制药、生技、化工、净水处理工厂以及其它高科技产业工厂。
管件中英文对照
英文单词及代号PIPE 管子ELBOW 弯头REDUCIG TEE 三通TEE REDUCING 变径三通CON REDUCIG 同心大小头REDUCIG ECC 偏心大小头COUP LING HALF 管台COUPLING FULL 管箍CAP 管帽FLANGE 法兰FLANGE BLIND 盲板法兰GASKET 垫片BOLT STUD 螺栓V ALVE GATE 闸阀V ALVE GLOBE 截止阀V ALVE GHECK 止回阀V ALVE BUTTERFL Y 蝶阀BALL VALVE 球阀JACKET BALL V ALVE 夹套型球阀STUB END 法兰翻边FLANGE LAP JOINT 活套法兰DRAIN CAP 导淋管帽GALV 度锌STY 过滤器SHORT 短半径BW 对焊SW 承插焊SCR，T= TH 丝接RF 法兰连接B 英寸SML 无缝EFW 有缝SC 螺纹管帽SHK 厚度SS 不锈钢CS 碳钢DEG 度LB 磅SCH 等级SO-RF 突面平焊SO-FF 全平面平焊UNION 活接法兰类型及类型代号凹(FM)凸(M)钢材的理论重量计算公式8.5 高速钢钢板：长×宽×壁厚×7.85 碳钢7.75 不锈钢钢管：（外径－壁厚）×壁厚×0.02491不锈钢0.02466碳钢圆钢：直径×直径×6.1654方钢：边宽×边宽×7.85六角钢：内切圆直径×内切圆直径×6.7981等边角钢；（边宽－边宽－壁厚）×壁厚×0.00785不等边角钢：（长边＋宽短边－宽壁厚）×边宽×0.00785工字钢：[（腿宽－腰厚）×F＋高]×腰厚×0.00785槽钢：[（腿宽－腰厚）×E＋高]×腰厚×0.00785H型钢：（高×高厚＋腿宽×腿厚×2）×0.00785注：一. F值：一般型号带a的为3.34，带b的为2.65，带c的为2.26。
管子及管件部分中英文对照
管子及管件部分中英文对照管子PipeCaps 管帽SAW埋弧焊管子(按照配管标准规格制造的) pipe管子(不按配管标准规格制造的其他用管) tube钢管steel pipe铸铁管cast iron pipe [kɑ:st ˈaiən paip]碳钢管carbon steel pipe合金钢管alloy steel pipe ['ælɔɪ]不锈钢管stainless steel pipe奥氏体不锈钢管austenitic stainless steel pipe [ˌɔ:stə'nɪtɪk] 轧制钢管wrought-steel pipe [rɔ:t]锻铁管wrought-iron pipe无缝钢管seamless steel pipe焊接钢管welded steel pipe热轧无缝钢管hot-rolling seamless pipe冷拔无缝钢管cold-drawing seamless pipe直管run pipe; straight pipe管件Fitting弯头elbow异径弯头reducing elbow长半径弯头long radius elbow短半径弯头short radius elbow长半径180°弯头long radius return短半径180°弯头short radius return三通tee异径三通reducing tee等径三通straight tee45°斜三通45°lateral四通cross等径四通straight cross异径四通reducing cross异径管reducer同心异径管concentric reducer [kənˈsentrɪk] 偏心异径管eccentric reducer [ɪkˈsentrɪk] 螺纹支管台threadolet焊接支管台weldolet承插支管台sockolet短节nipple ['nɪpl]异径短节reducing nipple; swage nipple弯管Bend90°弯管quarter bend [bend]Current 电流Inert gas 惰性气体Polarity 极性Filler metal 填充金属Base metal 母材Welding process 焊接方法Qualification 评定Pipe bend specimen 管子弯曲试样bend test 弯曲试验Welding supervised 焊接监督者Defects 缺陷Specification 标准Autual values 实际值Range qualified 评定范围法兰flangeU型管Return Bend翻边stub endsGeneral manager 总经理Representative 代表Attachment 附件承插焊法兰socket welding flange带颈对焊法兰welding neck flange对焊环welding neck collar平焊环welding-on collar整体管法兰integral pipe flange钢管法兰steel pipe flange螺纹法兰threaded flange滑套法兰（包括平焊法兰）slip-on flange (SO); slip-on welding flange 松套法兰lap joint flange (LJF)法兰盖blind flange, blind孔板法兰orifice flange异径法兰reducing flange盘座式法兰pad type flange松套带颈法兰loose hubbed flange焊接板式法兰welding plate flange突缘短节stub end, lap翻边端lapped pipe end松套板式法兰loose plate flange压力级pressure rating, pressure rating class压力—温度等级pressure-temperature rating法兰密封面，法兰面flange facing突面raised face (RF)凸面male face (MF)凹面female face (FMF)榫面tongue face槽面groove face环连接面ring joint face全平面；满平面flat face; full face (FF)光滑突面smooth raised face (SRF)法兰面加工facing finish粗糙度roughness光滑的smooth齿形serrated均方根root mean square (RMS)算术平均粗糙高度arithmetical average roughness height (AARH) 配对法兰companion-flange螺栓圆bolt circle (B.C.)。
钢管及管件中英文对照
钢管及管件中英文对照90°ELBOW,BW,20#,SMLS,LR,GB/T8163,SH/T3408,GrⅠ,Sch4090度弯头，对焊，20#碳钢材质，无缝，制造标准GB/T8163 ，验收标准SH/T3408，质量等级1级，SCH40是ASME壁厚表示方式三通1 1/2"*3/4" SW SCH80 20 GB/T14383(I)是什么意思异径三通 1 1/2"*3/4" SW(承插焊) SCH80(厚度，查询可得知具体厚度) 20（材质，20#碳钢）GB/T14383(I)（标准号）90 ELBOW 20# GALV SMLS GB/T8163,LR BW:SH3408 SCH80 其中GALV和LR 代表什么意思？" SWAGE NIPPLE 20# GB8163 PBE:MSS SP-95 SCH80 中PBE:MSS SP-95 是什么意思？SPIRAL WOUND GASKET CL150 RF ,4.5MM, 304+GRAF ,344 INNERRING,CS OUT RING: SH3407 其中红颜色的字母代表什么意思？20＃GB/T699 SW 平底形40T025/01 SCH160 中的红颜色的字母代表什么意思？螺柱/螺母STUD BOLT WITH 2 HEAVY NUTS,35CRMOA/35CRMOA,SH3404 其中红颜色的字母代表什么意思？以上表示的字母可以在哪里查到啊GALV英文为galvanized是镀锌的意思，一般是仪表风管线和水管线。
LR英文为long radius是长半径弯头的意思。
4.5MM, 304+GRAF ,344 INNERRING,CS OUT RING，表示垫片厚度为4.5mm，304不锈钢＋石墨外环，内环为344材质40T025/01，这个应该是洛阳石化设计院标准，关于加强管接头等管件STUD BOLT WITH 2 HEAVY NUTS,35CRMOA/35CRMOA，表示一个双头螺栓和2个六角螺母，材质为35CRMOA) c'1 GALV 镀锌 LR 长半径1 t0 y( e. ]$ ^: \$ G4 s d5 E2 PBE 两端平口 MSS SP-95 管件和阀门制造商协会标准* Q8 n& h1 M4 W5 e Z5 |2 P$ p3 厚度4.5MM 304+石墨缠绕垫304+GRAF 344不锈钢材料内环344 INNERRING 碳钢外环CS OUT RING4 洛阳设计院的标准“洛阳石化短接头图集”40T025/015 双头螺栓STUD BOLT WITH 2 HEAVY 螺母NUTS 材质35CRMOA/35CRMOACoupling half 1-1/2NPT 3000PSI ASTM 105CS 是什么意思啊介绍详细点特别是1-1/2NPT 是什么意思？半管接头规格1-1/2NPT （英寸）压力3000英镑碳素钢105CS（相当于20#）GATE VALVE A105 SW 13Cr W/STELLITE SEATS BB OS&Y PLAIN SOLID WEDGE API CL800 API 602SPW-304SS/GRAPHITE% z% r/ T M0 w) G' U8 G ]A105：指ASTM A105 是碳素钢锻件，它相应的中国牌号在GB/T12228-2005中规定为A105（20#钢）SW ：SOCKET WELDED承插焊，( n+ U; B0 ~( f2 e' y7 ?5 T13Cr W/STELLITE SEATS ：阀座材质为13Cr，阀座密封面堆焊了钨铬钴合金（W就是WELD，焊接），Cr13就是含13%Cr的马氏体不锈钢，耐磨耐温。
管件中英文整理
环形连接金属垫片 ring joint metal 八角环形垫片 octagonal ring gasket 椭圆环形垫片 oval ring gasket 透镜式垫片 lens gasket 非金属垫片 non-metallic gasket
管件英文术语 1 管道组成件 Piping component 1.1 管子 Pipe 管子(按照配管标准规格制造的) pipe 管子(不按配管标准规格制造的其他用 管) tube 钢管 steel pipe 铸铁管 cast iron pipe 衬里管 lined pipe 复合管 clad pipe 碳钢管 carbon steel pipe 合金钢管 alloy steel pipe 不锈钢 stainless steel pipe 奥氏体不锈钢管 austenitic stainc alloy steel pipe 轧制钢管 wrought-steel pipe 锻铁管 wrought-iron pipe 无缝钢管 seamless (SMLS) steel pipe 焊接钢管 welded steel pipe 电阻焊钢管 electric-resistance welded steel pipe 电熔（弧）焊钢板卷管 electric-fusion (arc)-welded steel-plate pipe 螺旋焊接钢管 spiral welded steel pipe 镀锌钢管 galvanized steel pipe 热轧无缝钢管 hot-rolling seamless 冷拔无缝钢管 cold-drawing seamless 水煤气钢管 water-gas steel pipe 塑料管 plastic pipe 玻璃管 glass tube 橡胶管 rubber tube 直管 run pipe; straight pipe
管件英汉对照词大全
管件英汉对照词大全2010-06-28 09:45管件 pipe fitting对焊管件 butt welding fittings碳钢对焊管件 carbon steel butt welding fittings不锈钢对焊管件 stainless steel butt welding fittings 弯头 elbow异径弯头 reducing elbow碳钢弯头 Carbon Steel Elbow不锈钢弯头 Stainless Steel Elbow高压弯头 High-Pressure Elbow等径三通 Straight Tee异径三通 Reducing Tee碳钢三通 CS Tee同心异径管 Concentric Recducer偏心异径管 eccentric reducer高压异径管 high-pressure reducer不锈钢管帽 stainless steel caps碳钢管帽 carbon steel caps四通 cross单承口管箍 half coupling双承口管箍 coupling半管接头 boss对焊管座 weldolets承插管座 sockolets螺纹管座 threadolets变径接头 welding insert补心\内外丝、螺套 bushing六角头螺套 hex head bushing平螺套 flush bushing管接头 coupler活接头、游任 union短接头、对丝 nipple六角对丝 hex nipple螺母 nut管堵、螺塞 plug六角头螺塞 hex head plug四方头螺塞 square head plug圆头螺塞 round head plug套筒 sleeve弯管 bendU型管 close return bend法兰 flange锻钢法兰 forged steel flanges对焊法兰 welding neck flanges平焊法兰 slip on flanges盲板法兰 blind flanges平板法兰 plate flanges承插焊法兰 socket welding flanges螺纹法兰 threaded flanges松套法兰 lap joint flanges翻边短节 stub ends公称通径 Nomonal Diameter端部外径 Outside Diameter at Bevel中心至端面 Center to End中心至中心 Center to Center背面到端面 Back to FaceNPT=Normal Pressure and Temperature 常温常压, 标准温度与压力90°短半径弯头90°SS Elbow (SR)90°长半径弯头90°SS Elbow (LR)高压厚壁弯头 Thickness ElbowTee Equal 相等的三通male plug 插头female socket 插座dust cap 防尘盖等径三通 Straight teesafety cap 安全罩异径三通 Reducing Tee等径四通 Straight Cross同心异径管 Concentric Reducers同中心的 concentric不同圆心的 eccentric偏心异径管 Eccentric Reducers高压异径管 High-pressure Reducers不锈钢等径三通 Stainless Straight Tee碳钢等径三通 Carbon Straight Tee不锈钢等径四通 Stainless Straight Cross高压三通 High-pressure Tee锻制三通 Forged Tee异径接头 Template管帽 Caps法兰 flangevalve 阀门类型description 类种Standard 标准Design 类型Type 类型Type Model 型号Material 材质classes 种类specification 规格机床类冲床punching machine机械手robot油压机hydraulic machine车床 lathe刨床planer铣床miller磨床grinder（钻床）driller线切割linear cutting金属切削 metal cutting机床 machine tool管件材质类steel 钢carbon steel 碳素钢rustless steel 不锈钢alloy steel 合金钢angle steel 角钢blister steel 泡钢carburizing steel 渗碳钢cast steel 铸钢cementation steel 渗碳钢chrome steel 铬钢chrome molybdenum steel 铬钼钢chrome-vanadium steel 铬钒钢dies steel 模具钢ferrite steel 铁素体钢ferritic steel 铁素体钢flat steel 扁钢flat-rolled steel 扁钢forged steel 锻造钢hard steel 硬钢hardened stainless steel 硬化不锈钢heat (-resisting) steel 耐热钢hig-carbon steel 高碳钢high manganese steel 高锰钢high-speed steel 高速钢；锋钢high strength steel 高强度钢high tensile steel 高强度钢H-section steel 工字钢low carbon steel 低碳钢low manganese steel 低锰钢mild steel 软钢nickel steel 镍钢nickel-chrome steel 镍铬钢nickel chromium steel 镍铬钢The Tube Inserting （卡套式接头）Compressioned Joint （管路截止阀）Welding Joint （焊接式接头）Velding Joint （扩口式接头）Ream Joint （控油压接头）Pipeline Cut-off Valves （紫铜管件）Fast Fittings （管夹）Oil-Pressure Controlling Connectors （快速接头）Pagoda-Shape Connectors （宝塔型接头）Hydraulic Rubber Tube Assembly （液压胶管总成）Flange （法兰）Inside-and-Outside Connectors （内外接头）Construction Machinery Connectors （工程机械接头）Connectors for Military Use （军用接头）长径和短径弯头 long and short radius elbows同心和偏心异径接头 concentric and eccentric reducers 等径和异径三通 straight and reducing outlet tees大小头 CONCENTRIC REDUCERU型管Return Bend盲法兰Blank Flange弯管Bends翻边stub ends异径接头reducers公称通径 nominal diameter外径(mm) outside diameter中心距至端面的距离 center to end理论重量(kg/pcs) approx weight双丝头 Nipple短节 SWAGE NIPPLE内外螺纹活接头 Union螺桩 studHalf-Coupling单承口管箍Coupling双承口管箍盲板 Blind Flangespectacle blind 带双圈的盲板Ecentric 偏心的活接活接 loose joint活接地 swinging earth活接结合 articulated joint活接联接器 joint coupling活接三通 union tee活接头 articulation; union swivel; union活接头螺母 union nut活接头螺栓 swing bolt活接头套管 union thimble活接卸槽 articulated chute (浇混凝土用的)弯头 joint弯头 angle fittings; bent pipe; elbow; knee弯头扳手 bent-handle wrench; bent spanner弯头车刀 angular tool弯头持针钳 curved needle holders弯头刀架 knee tool弯头道钉 brob弯头管 swan neck弯头键 gib head key弯头接合 knee-joint弯头螺栓 bolt with one end bent back弯头锁紧螺母 elbow jam unt弯头套管 elbow union弯头套筒扳手 offset socket wrench弯头脱水器 elbow separator弯头芯盒 elbow core box三通三通 tee bend; tee branch; tee joint; tee conneetion; tee fitting; wye; Y; yoke 三通玻璃栓 three-way glass stopcock三通道放大器 three-channel amplifier; three-path amplifier三通道自动驾驶仪 three-dimensional autopilot三通电缆分线盒 three-way coupling box三通阀 tee valve; three-port valve; three-way valve; triple valve三通阀盖 triple-valve cap三通阀活塞 triple-valve piston三通阀联箱 three way valve menifold三通阀体 triple body; triple-valve body三通管 single sweep tee; T-branch (pipe); three-limb tube三通管接头 tee pipe coupling三通横长 horizontal length of tee三通换向旋塞 three-way reversing cock三通活栓 three-way cock三通货协定 triparties currency agreement三通接头 tee coupling; tee fitting; tee union; three-way piece; three-way connection三通接线夹 three-way connector三通开关 three-way cock三通控制阀 three-way control valve三通连接 tee junction三通路循环器 three-terminal circulator三通式热风炉 three-pass stove三通天线转发开关 triplexer三通筒 triple cylinder三通筒垫密片 triple-cylinder gasket三通弯头 three-way elbow三通旋塞 tee cock; three-way cock; three-throw tap三通循环器 three-terminal circulator三通液体流量计 tee fluid flow meter三通闸阀 treble ported slide valve直通直通 direct connection; straight in; straight bore; through; feed(-)through; once-through 直通拨号 through dial(l)ing直通测量线路 end-to-end measurement直通单向阀 in-line check valve; straight check valve; straightway check valve直通道路 through road直通的 through and through直通地 dead earth; dead ground直通垫外底 through midsole直通电报 telex直通电报通信 telex communication直通电流 through current直通电流偏置 through current bias直通电路 direct circuit直通阀 pass valve; straight-through valve; straightway valve; through valve直通干馏炉 through retort直通锅炉 once-through boiler直通换料 once-through refuelling直通回路 straight circuit直通汇接呼叫制 straight forwardjunction working直通监控 through supervision直通接头 straight coupling; straight fitting直通接线装置 through joint直通街道 through expressway; through street; throughway直通进位 standing carry直通开关 globe cock直通空气制动阀 straight air brake valve直通空气制动器 straight air brake直通快动阀 straight-through fast acting valve直通连接 straight-through joint直通裂化 straight-through cracking直通流动 straight through flowpiping material specification。
