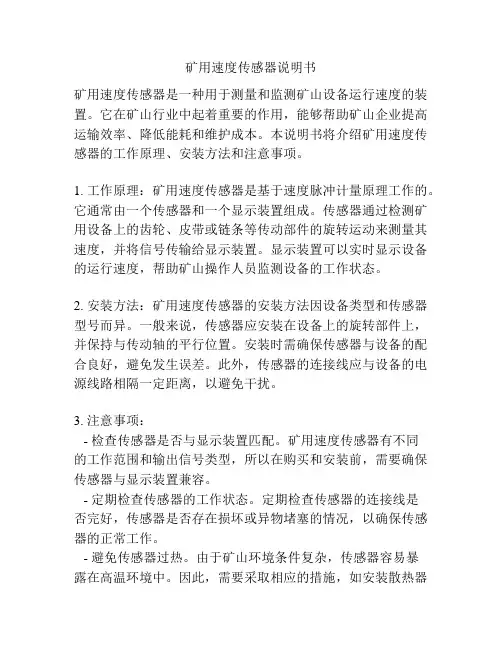

矿用速度传感器说明书矿用速度传感器是一种用于测量和监测矿山设备运行速度的装置。
它在矿山行业中起着重要的作用，能够帮助矿山企业提高运输效率、降低能耗和维护成本。
本说明书将介绍矿用速度传感器的工作原理、安装方法和注意事项。
1. 工作原理：矿用速度传感器是基于速度脉冲计量原理工作的。
它通常由一个传感器和一个显示装置组成。
传感器通过检测矿用设备上的齿轮、皮带或链条等传动部件的旋转运动来测量其速度，并将信号传输给显示装置。
显示装置可以实时显示设备的运行速度，帮助矿山操作人员监测设备的工作状态。
2. 安装方法：矿用速度传感器的安装方法因设备类型和传感器型号而异。
一般来说，传感器应安装在设备上的旋转部件上，并保持与传动轴的平行位置。
安装时需确保传感器与设备的配合良好，避免发生误差。
此外，传感器的连接线应与设备的电源线路相隔一定距离，以避免干扰。
3. 注意事项：- 检查传感器是否与显示装置匹配。
矿用速度传感器有不同的工作范围和输出信号类型，所以在购买和安装前，需要确保传感器与显示装置兼容。
- 定期检查传感器的工作状态。
定期检查传感器的连接线是否完好，传感器是否存在损坏或异物堵塞的情况，以确保传感器的正常工作。
- 避免传感器过热。
由于矿山环境条件复杂，传感器容易暴露在高温环境中。
因此，需要采取相应的措施，如安装散热器或使用耐高温的材料，以防止传感器过热引起故障。
- 定期校准传感器。
随着时间的推移，传感器的精确度可能会发生变化。
因此，建议定期校准传感器，以保证测量结果的准确性。
总结：矿用速度传感器是一种可靠的设备，能够帮助矿山企业实时监测和控制设备运行速度。
本说明书介绍了矿用速度传感器的工作原理、安装方法和注意事项。
使用矿用速度传感器可以帮助矿山企业提高生产效率和安全性，降低能耗和维护成本。
LZD127矿用隔爆兼本安型流量计 安装使用说明书
目 录1 序 言1 序言 (1)2 流量计简介 (2)3 转换器安装 (4)4 传感器安装 (5)5 电气连接 (7)6 转换器操作说明 (9)7 维修注意事项及常见故障判断 (15)附表 RS485通信协议 (16)LZD127矿用隔爆兼本安型流量计是以“法拉第电磁感应定律”为原理，测量圆形管道内液体流量的电磁流量计。
它整个设计符合GB3836.1-2010、GB3836.2-2010和GB3836.4-2010爆炸性环境的要求。
可安装使用于煤矿井下等有爆炸性危险的场所。
执行标准：生产标准执行唐山大方汇中仪表有限公司企业标准Q/DF004-2017《矿用隔爆兼本安型流量计》；防爆标准符合GB3836.1-2010、GB3836.2-2010和GB3836.4-2010爆炸性环境的要求；仪表性能执行唐山大方汇中仪表有限公司企业标准Q/DF004-2017《矿用隔爆兼本安型流量计》；出厂检定执行中华人民共和国国家计量检定规程JJG1033-2007《电磁流量计》。
LZD127矿用隔爆兼本安型流量计的型式批准证书号为：2007F176-13。
LZD127矿用隔爆兼本安型流量计通过“MA”认证。
安全标志编号：MAK110035～MAK110042防爆合格证号：CMExC17.0729防爆型式：矿用隔爆兼本质安全型防爆标志：Exd[ib]IMb◆◆◆◆◆◆◆◆在使用本仪表前请认真阅读本说明书，并妥善保管好本说明书以便日后查阅。
重要提示：关于流量计：本仪表的测量介质是导电性的液体或液固两相介质，其电导率不能低于5μs/cm(相当于软化水的电导率，一般的自来水、原水的电导率约为100μs/cm～500μs/cm)。
因此各种酸、碱、盐溶液、泥浆、矿浆、聚合物、污水、清水、自来水等都可以用电磁流量计测量。
而非导电介质如纯酒精、纯丙酮、油类物质等不能用电磁流量计测量。
测量介质中不能含有较多的铁磁物质和大量气泡。
使用中应保证测量管内充满液体，以免影响计量的准确性，并定期清除测量管内的结垢。
ifm5010流量传感器中文说明
3
2 功能和特性
2.1 应用范围 本设备可用于监控液体及气体介质的流量。 2.2 流量监控的工作原理 • 本设备采用量热原理，可检测流速并切换输出功能： -- 如果有介质流动，则关闭输出功能/如果无介质流动，则开启输出功能。 本设备交货时功能设定如下： 输出功能 = 常开。 如有需要，可将输出功能更改 为常闭 (→ 7.2)。 此时适用於： 如果有介质流动，则开启输出功能。 • 如果流速加快，且达到开关点时，开关状态将会改变。 • 如果流速再次减慢，且达到“开关点的迟滞还原”值时，开关状态将会改变。 迟滞状态随流速而改变，且主要受所设监控范围的影响。 设定范围为 5...100 cm/s （= 出厂设定）时，迟滞范围为 2...5 cm/s，流速加快 时迟滞值将增大。 • 设备的标准反应时间为 1...10 秒。 反应时间受开关点设定的影响： -- 低开关点 = 流量增加时快速反应。 -- 高开关点 = 流量减少时快速反应。
8
6.2 高流量调节（可选） 设备会将现有流量视为正常流量，并改变显示的指示状态（除开关点 LED 外，所 有 LED 呈绿色亮起）。 ►► 安装时，使用正常的流量环流。 不放。 ►► 按住按钮 >> LED 9 亮起，约 5 秒后开始闪烁。 ►► 释放按钮。 此时，设备已按流量条件调节。 设备进入工作模式，显示如示例 1 所示。 注意： 所作调节将影响开关点状态： 它将相应地增加（最高将达到 LED 7）。 CN 远程调节 → 7.5。
6
务必由合格的电工连接设备。 务必遵守电气设备安装相关的国内和国际法规。 电源电压应符合 EN 50178、SELV 和 PELV 标准。 ►► 切断电源。 ►► 按下图连接设备：
1 BN 2 3 4 1 A 4 BK 3 BU 2 WH L+ LP B 1 BN 4 BK 3 BU 2 WH L+ LP CN
GLY系列矿用气体流量传感器说明书
GLY系列矿用气体流量传感器1概述GLY系列矿用气体流量传感器（以下简称传感器）是用于监测煤矿井下或地面瓦斯抽放管道标况或工况流量、介质温度、压力等参数的本质安全型仪器。
1.1产品特点a)液晶显示管道流量、温度、压力等多种参数；b)具有485输出接口，可与上位机通讯；c)检测元件不接触流体，可靠性高，介质适应性强；d)无可动部件及磨损，结构牢固、简单；e)良好的抗震性能；f)允许工作温度范围宽；g)流量测量范围宽，准确度高。
1.2 主要功能及适用范围主要用于监测煤矿井下或地面瓦斯抽放管道标况或工况流量和压力、温度，适用于煤矿井下或地面瓦斯抽放管道。
1 显示功能能同时显示累积流量、瞬时流量、压力和温度2 通讯功能可以与分站的智能口进行RS485通讯，并能同时输出累积流量、瞬时流量、压力和温度1.3 型号的组成及其代表的意义1.4 使用环境a) 工作温度：0 ℃～ 40 ℃；b) 相对湿度：≤ 95 % ；c) 大气压力：80 kPa ～ 106 kPa ；d) 机械环境：无显著振动和冲击的场合；e) 有煤尘和瓦斯存在的场所。
f) 流量传感器接触介质温度（通过冷疑装置后）不大于80℃。
1.5 防爆型式及防爆标志防爆形式：矿用本质安全型，防爆标志：ExibI。
2 结构特征及工作原理2.1 工作原理：V型锥流量计是一种通过节流取差压以反映流量大小的节流装置。
节流件为一个悬挂在管道中央的锥形体，高压P1取自锥体前流体未扰动（即未形成节流，流体未加速）的管壁；低压P2取自后锥体中央，并通过引压管引至管外，其差压△P的平方根与流量成正比。
计算与孔板、喷咀等类似。
图1 V型锥流量传感器结构示意图1、法兰2、高压取压口3、低压取压口4、管道5、V型锥体2.2 结构特征传感头部分结构特征及各部尺寸如下图所示。
图2 结构特征图1 电源及信号进线口2 累积、瞬时、压力和温度显示屏3 电路盒盖4 负压端排气阀盖5 正压端排气阀盖6 正压端取压过程连接口7 负压端取压过程连接口8 外接Pt100热电阻连接口3技术特性3.1 工作电压和电流a)工作电压：12～24.5VDCb)工作电流：≤50mA 。
Series HFT流量传感器规格与操作说明说明书
Series HFT Flow Transmitters are typically used to transmit a signal proportional to flow rate to a process control computer, a PLC, a recorder, or a panel-mount display. The Flow Transmitters are used as the primary input device to record flow rates through hydraulic and pneumatic systems. The universal output transmitter circuit employed by the Series HFT Flow Transmitter is capable of producing output signals of 4-20mA, 0-5VDC, and 0-2000 Hz square wave pulse. A 1-5 VDC signal may be obtained from the 4-20 mA signal by placing a 249 Ω resistor in parallel with the receiver.Note:Refer to Series HF In-Line Flow Monitor, Bulletin F-55, “Installation and Operating Instructions” for installation, operation, and cleaning instructions for the basic flow monitor cartridge (included). The following instructions are specifically for the Series HFT circuitryfor transmitting a proportional output signal.SPECIFICATIONSService: Compatible gases or liquids.Wetted Materials: Body: Aluminum, brass or 304 SS;Seals: Buna-N or Fluoroelastomer; Magnet: PTFE coated Alnico; Other internal parts: 304 SS.Viscosity Limit: 500 SSU.Accuracy: ±4% FS over entire range; ±2.5% over center third of the measuring range.Repeatability: ±1% of full scale.Response Time: <100 msec.Output Signal: 4-20 mA; 0-5 V; 1-5 V.Temperature Limits:170°F (76°C).Pressure Limits: See Chart.Power Requirements:12-35 VDC.Enclosure Rating:NEMA 4X (IP65).Shipping Weight: 1/4 to 1/2˝ female NPT Models: 3lb (1.4 kg); 3/4 to 1˝ female NPT Models: 4.5 lb (2.0kg); 1-1/2˝ female NPT Models: 12 lb (5.4 kg).PRESSURE DIFFERENTIAL VS. FLOW RATE1/2˝ FEMALE NPT。
流量传感器产品说明书

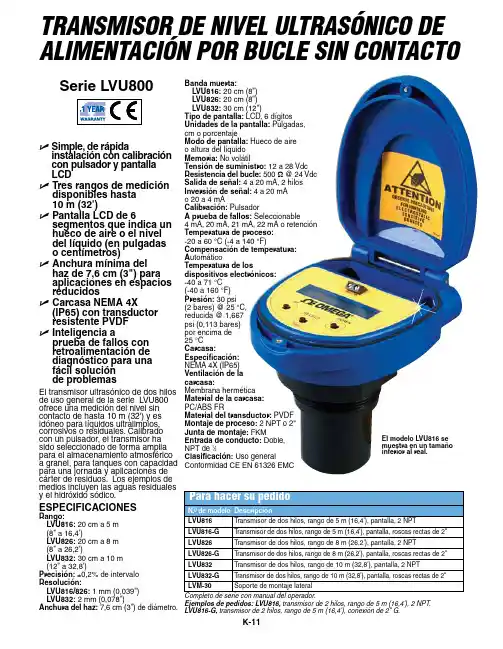

Banda muerta: LVU816: 20 cm (8") LVU826: 20 cm (8") LVU832: 30 cm (12")Tipo de pantalla: LCD, 6 dígitos Unidades de la pantalla: Pulgadas, cm o porcentaje Modo de pantalla: Hueco de aire o altura del líquido Memoria: No volátil Tensión de suministro: 12 a 28 Vdc Resistencia del bucle: 500 Ω @ 24 Vdc Salida de señal: 4 a 20 mA, 2 hilos Inversión de señal: 4 a 20 mA o 20 a 4 mA Calibración: Pulsador A prueba de fallos: Seleccionable 4 mA, 20 mA, 21 mA, 22 mA o retención Temperatura de proceso: -20 a 60 °C (-4 a 140 °F)Compensación de temperatura: A utomático Temperatura de los dispositivos electrónicos: -40 a 71 °C (-40 a 160 °F)Presión: 30 psi (2 bares) @ 25 °C, reducida @ 1,667 psi (0,113 bares) por encima de 25 °C Carcasa: Especificación: NEMA 4X (IP65)Ventilación de la carcasa:Membrana hermética Material de la carcasa: PC/ABS FR Material del transductor: PVDF Montaje de proceso: 2 NPT o 2"Junta de montaje: FKM Entrada de conducto: Doble, NPT de 1⁄2Clasificación: Uso general Conformidad CE EN 61326 EMC TRANSMISOR DE NIVEL ULTRASÓNICO DE ALIMENTACIÓN POR BUCLE SIN CONTACTOK-11Ejemplos de pedidos: LVU816, transmisor de 2 hilos, rango de 5 m (16,4'), 2 NPT .LVU816-G, transmisor de 2 hilos, rango de 5 m (16,4'), conexión de 2" G.U S imple, de rápida instalación con calibración con pulsador y pantalla LCD U T res rangos de medición disponibles hasta 10 m (32')U P antalla LCD de 6 segmentos que indica un hueco de aire o el nivel del líquido (en pulgadas o centímetros) U A nchura mínima del haz de 7,6 cm (3") para aplicaciones en espacios reducidos U C arcasa NEMA 4X (IP65) con transductor resistente PVDF U I nteligencia a prueba de fallos con retroalimentación de diagnóstico para una fácil solución de problemas El transmisor ultrasónico de dos hilos de uso general de la serie LVU800 ofrece una medición del nivel sin contacto de hasta 10 m (32') y es idóneo para líquidos ultralimpios, corrosivos o residuales. Calibrado con un pulsador, el transmisor ha sido seleccionado de forma amplia para el almacenamiento atmosférico a granel, para tanques con capacidad para una jornada y aplicaciones de cárter de residuos. Los ejemplos de medios incluyen las aguas residuales y el hidróxido sódico.ESPECIFICACIoNES Rango: LVU816: 20 cm a 5 m (8" a 16,4') LVU826: 20 cm a 8 m (8" a 26,2') LVU832: 30 cm a 10 m (12" a 32,8')Precisión: ±0,2% de intervalo Resolución: LVU816/826: 1 mm (0,039") LVU832: 2 mm (0,078")Anchura del haz: 7,6 cm (3") de diámetro.Serie LVU800El modelo LVU816 se muestra en un tamaño inferior al real.。
KGW-01矿用数字式温度传感器 说明书
执行标准：Q/LW001-2010KGW-01矿用数字式温度传感器使用说明书2010年5月20日哈尔滨隆威煤矿安全高新技术开发有限公司目录1、概述 (2)2、主要功能与结构 (2)3、主要技术指标 (2)4、工作原理 (3)5、传感器安装和使用 (4)6、运输与贮存 (5)7、开箱及检查 (5)8、随机资料及附件 (5)1、概述KGW-01矿用数字式温度传感器为矿用本质安全型仪器。
主要用于测量煤矿井下的环境温度，以便监视火灾的发生，也可用于其他场所的温度测量。
KGW-01矿用数字式温度传感器是矿用隔爆兼本质安全型，执行标准Q/LW001－2010《矿用数字式温度传感器企业标准》，其型号及规格如下：KG ——矿用传感器W ——数字温度传感器01 ——登记序列号设备使用环境条件要求如下：1. 温度：0℃～+40℃；2. 相对湿度：≤98%；3. 相对压力：80kPa～116kPa；4. 无显著振动和冲击的场合；5. 煤矿井下有爆炸性气体混合物，但无破坏绝缘的腐蚀性气体的场合。
2、主要功能与结构2.1 主要功能1. 由关联设备向传感器提供直流电源，传感器向配接设备提供测量信号；2. 传感器具有显示功能；3. 传感器监测的数值达到设定的报警值时,能自动发出声光报警信号。
2.2 结构传感器外壳采用不锈钢材料加工而成；外形尺寸(长×宽×高)：294 mm× 144 mm× 57 mm；重量：1.5 kg。
3、主要技术指标3.1基本误差：±0.5℃。
3.2测量范围：(0～+45)℃。
3.3输出频率模拟量信号1. 频率范围200 Hz～1000 Hz；2. 在整个频率范围内其正脉冲和负脉冲宽度均不得小于0.3ms；3. 有源输出高电平电压不小于3V，有源输出低电压不大于0.5V。
3.4 电缆单芯截面积不小于1.5mm2时，到分站之间的传输距应不小于2km。
3.5显示方式：3 位LED 数码管显示。
GUD500矿用围岩移动传感器说明书
GUD500矿用围岩移动传感器使用说明书执行标准：GB/T9969-2008GB3836-2010Q/HAKY07-2012前言GUD500矿用围岩移动传感器是我们根据汾西煤业集团、新疆焦煤公司、兖州矿业集团公司、同煤矿业集团公司、神华集团公司等十几个矿区使用单位的建议，开发研制的新一代改进型产品。
本说明书是按照GB/T9969-2008工业产品使用说明书总则和企业标准Q/HAKY07-2012的规定编写。
警告：1，严禁改变仪器电路及与电路有关的元器件的型号规格及参数2，严禁使用本说明书规定以外的电池。
3，严禁改变仪器的结构4，未经防爆联机检验不得与其它设备连接一概述1. GUD500矿用围岩移动传感器具有体积小、结构简单、操作方便、易于技术实现掌握和后续数据处理利用功能强等特点。
产品符合生产技术管理过程的要求与技术管理规范，亦凸现了技术性先进性的特点，是理想的顶板位移量监测产品。
具有推广应用前景。
传感器信号是通过信号线缆在线传输，与通讯分站配套进行数据监测通讯。
2. 可在下列环境条件下使用1) 温度：0℃~40℃2) 相对湿度：≤98%（25℃）3) 大气压力：80 KPa~116KPa4) 机械环境：无显著震动和冲击场合5) 适用于煤矿井下有瓦斯和煤尘爆炸危险的环境中。
二产品分类1. 型号与命名：G U D 500最大量程电子式测量位移传感器2. 防爆型式：矿用本质安全型。
3. 防爆标志：ExibⅠMb4. 外形尺寸及重量外形尺寸：(L⨯b⨯h ) ( mm)：⨯⨯重量：约1.5Kg三主要技术特性3.1 基本功能a) 有数字调校功能b) 能显示绝对位移值c) 报警功能，报警点在测量范围内可任意设置，报警显示值与设定值得差值应不超过±2mm3. 2 供电传感器的工作电压18V DC。
3.3 测量范围传感器测量范围为0mm ~500mm。
测量路数：2路显示分辨率1mm3.4 基本误差不超过：±3 mm3.5 重复性应不大于1mm。
GPD60(A)矿用压力传感器说明书(可编辑修改word版)
G P D60(A)矿用本安型压力传感器使用说明书ft东诚德电子科技有限公司1、概述1.1、用途及特点GPD60(A)矿用本安型压力传感器（以下简称传感器）主要用于综采支架压力的自动测量、显示。
它采用电阻式传感器和微处理控制的电子电路及干电池组成。
仪器采用一体化设计，具有防水、防爆、抗冲击、灵敏度高、使用寿命长等特点，是传统的指针式压力表的理想替代产品。
1.2、使用环境a)、环境温度：0℃~+40℃b)、平均相对湿度：小于 96%RH（+25℃）c)、大气压力：80Kpa~110Kpa;d)、煤矿井下有瓦斯，煤尘等爆炸危险的环境；e)、无强烈震动和冲击的地方；f)、无破坏金属和绝缘材料的腐蚀性气体的地方；g)、无滴水的地方。
2、结构组成（见图 1）压力传感器正面示意图3、工作原理压力传感器通过高压油管（引压孔的规格为Φ10（KJ10 国标））与被测装置的液体相联，将液体压力转换成电压信号，信号被放大后被单片计算机采集和处理后即可在数码管上显示。
4、技术指标a)、量程：0～60MPab)、测量点数：两点c)、引压孔：Φ10（KJ10 国标）d)、电源：DC6V 80mA （4 节1 号电池串联供电）e)、误差：≤±2.0%(F.S.)f)、防爆标志：矿用本质安全型 ExibIg)、防护等级：IP54h)、安装方式：掉挂或固定安装5、安装将传感器固定安装在支架下面（根据不同的支架形式选择合适的位置，应避免煤块砸落），传感器通过Φ10高压油管与传感器插座孔连接。
6、使用、操作6．1 启动用矿灯照射显示窗口一次或按下启动键，两种方法均可唤醒压力传感器，使其进入正常工作状态，此时，LED 依次显示：【P—1】、【00.0】；【P—2】、【00.0】。
a）【P – 1】左通道标志符，表示接下来显示的数据为左通道当前压力值：【00.0】表示左通道压力值为 00.0MPab）【P – 2】右通道标志符，表示接下来显示的数据为右通道当前压力值：【00.0】表示压力值为 00.0Mpa。
瓦斯传感器说明书
瓦斯传感器说明书
瓦斯传感器是一种用于检测煤矿井下空气中的瓦斯含量的检测仪表，具有多种标准信号制式输出，联检后能与煤矿监控系统、风电瓦斯闭锁装置及瓦斯断电仪配套使用。
该传感器具有稳定、使用方便等特点，调零、调精度、报警点设置等通过遥控器实现。
瓦斯传感器有多种类型，其中GD3型矿用瓦斯抽放多参数传感器是一种插入式流量测量仪表，适用于煤矿有瓦斯及煤尘爆炸危险的场所，能够实现管道参数监测（包括流量、压力、温度等）。
在使用瓦斯传感器时，需要注意以下几点：
1. 确保传感器安装在正确的位置，避免受到震动、冲击和高温的影响。
2. 在使用前，需要进行校准和标定，以确保测量结果的准确性。
3. 定期进行维护和保养，包括清洁传感器、检查电缆等。
4. 在发现异常情况时，应及时处理并联系专业人员进行检修。
总之，瓦斯传感器是煤矿安全生产中不可或缺的重要设备之一，正确使用和维护瓦斯传感器是保障煤矿安全生产的重要措施之一。
SFAW流量传感器说明书
Flow sensors SFAWFlow sensors SFAW Key features GeneralThe SFAW is intended to measure and monitor the flow, volume and tempera-ture of liquid media in piping systems or in terminals in industry. The flow ve-locity is recorded in accordance with the vortex principle. The flow rate and the accumulated volume are calculated from the flow velocity. An optional, integrated temperature sensor recordsthe temperature of the media. Connec-tion to higher-level systems is providedby 2 switching outputs, an analogueoutput and/or an IO-Link interface, de-pending on the type. The outputs canbe configured as appropriate to theapplication.The switching outputs can be config-ured to monitor a threshold value or arange. Either PNP or NPN and eithernormally open (NO) or normally closed(NC) can be set for the outputs. Processvalues can be read out and parameterschanged and transmitted to additionaldevices via the IO-Link interface.Application• Cooling circuit monitoring• Monitoring for leaks and line breaks• Process water monitoring• Filling volume monitoring OverviewAn installation concept with short mounting and dismounting times that is easy to implement in all installation situations.• Free choice of various media connections:– Threaded connection (femalethread) (G, R)• Free choice of media connection type on sensor input and sensor output side • Basic sensor body and media con-nections can be obtained separately• Ultra-simple and fast mounting ofmedia connections using clamps• Option of designing dedicated,application-specific connectionsMaximum flexibility and reduced ware-housing thanks to switchable electricaloutputs:• PNP/NPN• NC/NO contact function• Current output 4 ... 20 mAor voltage output1 ... 5 V, 0 ... 10 VFlow signal monitoring to detect unsta-ble flows. Possible causes for unstableflows include:• Air in the line• Line filling during start-up• Turbulent flows as a result of unfa-vourable or incorrect installation2d I nternet: /catalogue/...Subject to change – 2023/08Flow sensors SFAW Key featuresOperationMonitoring and setting a flow threshold, a flow range, a temperature threshold and atemperature range using a teach-in function or by entering values.• Flow indication, medium temperature indication, switching outputs and analogue value output for flow rates and temperature can be set on site in one device • Fast commissioning of the flow sensor thanks to intuitive menu navigation• Display colour red/blue as visual feedback that the flow rate or temperature thresholds are not met or have been exceeded• Min./max. value memory for monitoring the flow and temperature (storage of flow and temperature peaks)• To prevent undesirable switching status changes – an integrated adjustable filter damps the sensor signal generated by flow peaks• Scaling the analogue output to increase the signal dynamics • Switchable flow and volume units l/min, l/h, US gal/min, cfm, l, m3, US gal, cft• Switchable temperature units °C, °F• ECO function with option to switch off the display• Optional security code can be freely chosen (4-digit code)• All settings that have been carried out on one sensor (master) can be transferred (replication) to other, identical sensors (device). This significantly shortens the commissioning time.• Recorder mode for manual volume measurements with start, stop and reset functionality• Adjustable volume pulseIO-Link• Serial communication integrated using IO-Link 1.1• Analogue process values are provided digitally• The sensor can be parameterised and maintained remotely at control level using anIO-Link master• Automatic parameterisation following a sensor change means there is no need torepeat parameterisation and sensor settings after changing the sensor3 2023/08 – Subject to change d I nternet: /catalogue/...Flow sensors SFAWPeripherals overview4d I nternet: /catalogue/...Subject to change – 2023/08Flow sensors SFAWType codes52023/08 – Subject to change d I nternet: /catalogue/...6d I nternet: /catalogue/...Subject to change – 2023/08Flow sensors SFAWData sheetFunctionSFAW-…-PNLK-PNVBASFAW-…-PNLK-PN-VBA• Maximum flexibility and reduced warehousing thanks to switchable electrical outputs:– PNP/NPN, switchable– N/C or N/O contact, switchable – Current output 4 ... 20 mA or voltage output1 ... 5 V, 0 ... 10 V, switchable • Pulse output for volume measure-ment can be freely selected• Measuring signal filter for setting the rise time• Additional filter for smoothing thedisplay values1)For information about the area of use, see the declaration of conformity at: /catalogue/... d Support/Downloads.If the devices are subject to usage restrictions in residential, commercial or light-industrial environments, further measures for the reduction of the emitted interference may be necessary.1)Media with a kinematic viscosity š1.8 mm²/sec. [cSt]. Compatibility of the media with the substances in contact with the media must be ensured.Flow sensors SFAW Data sheet1)Accuracy of flow rate value = ± 2% FS for flow rate š 50% FS and ± 3% of measured value for flow rate › 50% FS2)Repetition accuracy of flow rate = < ± 0.5% FS for flow rate š 50% FS < ± 1% of measured value for flow rate › 50% FS7 2023/08 – Subject to change d I nternet: /catalogue/...Flow sensors SFAWData sheet1)Corrosion resistance class CRC 3 to Festo standard FN 940070High corrosion stress. Outdoor exposure under moderate corrosive conditions. Externally visible parts with primarily functional surface requirements which are in direct contact with a normal industrial environment.8d I nternet: /catalogue/...Subject to change – 2023/08Flow sensors SFAW Data sheet9 2023/08 – Subject to change d I nternet: /catalogue/...Flow sensors SFAWData sheet10d I nternet: /catalogue/...Subject to change – 2023/08Flow sensors SFAW Data sheet11 2023/08 – Subject to change d I nternet: /catalogue/...Flow sensors SFAWAccessoriesWall mounting SAMH-FW-W Array For wall or surface mountingMaterial:Stainless steelSeal SASF-FW-S-E ArrayFor sealing the fluid connectionsagainst the body of the flow sensors12d I nternet: /catalogue/...Subject to change – 2023/08Flow sensors SFAW AccessoriesSafety guard SACC-PU-G ArrayFor covering the display and operatingcomponentsClamp SAMH-FW-SB ArrayFor mounting the fluid connections onthe body of the flow sensors13 2023/08 – Subject to change d I nternet: /catalogue/...Flow sensors SFAWAccessories14d I nternet: /catalogue/...Subject to change – 2023/08Festo - Your Partner in AutomationConnect with us/socialmedia 1Festo Inc.2Festo Pneumatic 3Festo Corporation 4Regional Service Center 5300 Explorer DriveMississauga, ON L4W 5G4CanadaAv. Ceylán 3,Col. Tequesquináhuac 54020 Tlalnepantla, Estado de México1377 Motor Parkway Suite 310Islandia, NY 117497777 Columbia Road Mason, OH 45040Festo Customer Interaction CenterTel:187****3786Fax:187****3786Email:*****************************Multinational Contact Center 01 800 337 8669***********************Festo Customer Interaction Center180****3786180****3786*****************************S u b j e c t t o c h a n g e。
Festo SFAB流量传感器说明书
Flow sensors SFAB2d Internet: /catalogue/...Subject to change – 2023/08Flow sensors SFABKey featuresAt a glance4[1] Quick and secure installationthanks to QS fitting[2] Display can be rotated 270°[3] – High-contrast LCD display withblue background and white 9-segment display– Bar chart depicts current measured value– Switching point-dependent colour change [4] Central electrical connection viaan M12 plug[5] Panel mounting of the sensorusing retaining screws 5 measuring ranges from0.1 … 10 l/min to 10 … 100 l/min [6] Manifold mounting of the sensorwith H-rail or individually with adapter plate for wall mountingImpressive, straightforward, reliable Easy to operateThe flow sensors, featuring an attrac -tive display and control concept, are very impressive when it comes to:• Leakage detection in production • Leak testing of end products • Flow monitoring in parts feedingThe sensor provides:• Absolute flow rate information – with threshold values and – convenient switching point adjustment via a display • Cumulative air consumption measurement• Patented – adjustable consump-tion-based switching pulse for cu-mulative air consumption measure-ment via the switching output • A large, illuminated LCD display increases the operational safety and makes the currently displayed flow rate or consumption values easy to read.• Measured values outside the measuring range are visualised: flow rates are shown flashing.• Values that fall below or exceed the threshold values can also be identified from a distance or if the sensor is in an inaccessible location by the display changing colour.• Simple checking of the current sensor settings in SHOW mode • Simple switching between consumption and flow rate indicationFlexible installationSystematically more reliable Convenient This is made possible by the extremely compact design that dispenses with an upstream laminar flow inlet and outlet – the SFAB has an integrated flow steadying channel.The sensor can provide precise infor-mation even when flow conditions are fluctuating and unreliable thanks to the very large measuring range.• Clear and fast menu navigation • Integrated QS fittings • Fast teach-in • Rotatable display• Secure connections with extremely short assembly times•Manual consumption measurement with start/stop and reset functionalityAdvantages For the designerFor the machine operator• Owing to the high dynamic response of the measurement and large measuring range, a rough estimate of the system air consumption is sufficient to configure the sensor• Festo plug and work solution• The same device can be used for different applications• The sensor covers a large measuring range with a specified accuracy thanks to its high dynamic response of 1:100• NPN/PNP can be switched via the software • Minimal assembly times• Alternatively with 4 ... 20 mA or 0 ... 10 V analogue output• Flexible installation without restrictions caused by laminar flow inlets, any mounting position• Large choice of pneumatic connections is provided by the modular system • Construction of more powerful machines• Precise information is available even with fluctuating pressure conditions • Flow values can be read easily and reliably• Visualisation of deviations (colour change, flashing value)• Easy operation, no need for training • Greater system reliability •Values shown on the display:– can be shown for flow and consumption for different standard conditions – can be filtered/averaged independently of the analogue output in the case of high dynamic response of the measurement• Fast commissioning thanks to easy-to-use, intuitive teach-in functionFlow sensors SFAB Peripherals overview3 2023/08 – Subject to change d Internet: /catalogue/...Flow sensors SFABType codes4d Internet: /catalogue/...Subject to change – 2023/0852023/08 – Subject to changed Internet: /catalogue/...Flow sensors SFABData sheetFunction• Analogue output 0 ... 10 V , adjustable switching outputs 2x PNP or 2x NPN• Analogue output 4 ... 20 mA, adjustable switching outputs 2x PNP or 2x NPN• Freely selectable pulse output for consumption measurement• Analogue filter for setting the rise time• Digital filter for smoothing thedisplay valuesFlow sensors SFABData sheet1) Accuracy with nominal conditions (6 bar, 23°C and horizontal mounting position)2) % FS = % of the final value in the measuring range (full scale)6d Internet: /catalogue/...Subject to change – 2023/08Flow sensors SFAB Data sheet7 2023/08 – Subject to change d Internet: /catalogue/...Flow sensors SFABData sheet8d Internet: /catalogue/...Subject to change – 2023/08Flow sensors SFAB Data sheet9 2023/08 – Subject to change d Internet: /catalogue/...Flow sensors SFABOrdering data – Modular product system[1] Q6, T14 Not with flow measuring range 200, 600, 1000[2] Q8, T516 Not with flow measuring range 600, 100010d Internet: /catalogue/...Subject to change – 2023/08Flow sensors SFAB AccessoriesAdapter plate SDE1- ...-W ...For wall or surface mounting Material:Steel1) Included in the scope of delivery with SFAB-...-W...1) Additional accessories may be required for adaptation to the pneumatic connection.11 2023/08 – Subject to change d Internet: /catalogue/...Festo - Your Partner in AutomationConnect with us/socialmedia 1Festo Inc.2Festo Pneumatic 3Festo Corporation 4Regional Service Center 5300 Explorer DriveMississauga, ON L4W 5G4CanadaAv. Ceylán 3,Col. Tequesquináhuac 54020 Tlalnepantla, Estado de México1377 Motor Parkway Suite 310Islandia, NY 117497777 Columbia Road Mason, OH 45040Festo Customer Interaction CenterTel:187****3786Fax:187****3786Email:*****************************Multinational Contact Center 01 800 337 8669***********************Festo Customer Interaction Center180****3786180****3786*****************************S u b j e c t t o c h a n g e。
矿用管道流量传感器说明书
一、传感器外形图
第五章 结构和安装
二、安装
1、安装环境及条件 1)传感器部件中的流量计应安装在 与其公称通径相应的管道上； 2)流量计应该尽可能的安装在没有 机械振动管道的管道止，如果不得 已安装时，可加装软管过渡，或者 在流量上下游2D处加装管道固定 支撑点并加防震垫； 3)传感器的安装位置应远离强电磁 场源，如大功率变送器、电动机等 4)传感器应避免安装在温度较高、 受设备热辐射或含有腐蚀性气体的 场所，若必须安装时须有隔热通风 措施。
系统增益系数调试画面
噪声抑制系数调试画面
阈值系数调试画面
五、涡街流量计部分参 数介绍
1、管道口径 管道口径即为传感 器口径，仪表内有20、25、32、40 、50、65、80、100、125、150、 200、250、300mm共13种口径大小 供客户选用，用户选定管道口径后， 仪表自动确定流量量程和仪表系数的 小数点位置。 2、流体类型 流体类型中有三种 方式，0—液体，1—气体，2—蒸汽 ，用户可根据实际测量介质选择。用 户选定流体介质后，仪表自动确定流 体密度的小数点位置。 3、测量频率上限 测量频率 上限指在用户流量范围内，涡街传感 器的振动频率上限，涡街流量计的测 量频率上限共有46、57、67、82、 93、106、123、148、185、247、 370、555、634、740、888、1110
6、观察AD输入电压 该功能用 以检查AD采样电压。功能码显示为6 时，按下执行后，功能码闪烁显示， 此时按加或减即可显示。 7、调自检点 该功能用以设置自 检值，对应自检功能。需设置时，按 下遥控器功能键后，按遥控器加减键 ，使第一位数码管显示7，再按下执 行后，功能码闪烁显示，即进入调节 模式，可按加或减对自检值进行调节 8、复位 功能码显示为8时 ，按遥控器执行键后，功能码闪烁显 示，此时按加或减都可将传感器主机 复位。 9、刻度流量 功能码显示为9， 按遥控器执行键后，功能码闪烁显示 ，此时按加或减，将流量调至满刻度 值。六种口径的传感器测量气体和液 体的量程对应关系如右图所示
AFD4040流量传感器说明书
传感器与控制器ASAIR奥松电子操作说明流量传感器处理开关必须按照国家或地方有关电气/电子设备的规定正确处理。
开关不能与家庭垃圾一起处理!安全指令安全说明旨在保护用户免受危险情况和/或防止材料损坏。
在操作说明书中，潜在风险的严重性可以用以下信号词来表示:！警告指可识别的危险。
不遵守可能导致致命的伤害，并破坏设备或工厂部件。
！谨慎指的是一种危险。
不遵守可能会对开关和/或工厂造成轻微伤害和物质损害。
重要的指对用户至关重要的信息。
！危险指用户面临的迫在眉睫的危险。
不遵守可能导致致命的伤害。
◇流量范围∶5~40L/min◇重复性：＜2.0%◇压力等级：10bar（最大压力16bar）◇介质温度：-20~100℃螺纹型：G 1/2◇数字显示：无◇线性化：5点流量线性曲线◇精度：＜±3.0%F.S（流量）◇接液材质：Pom/SUS304（不锈钢）◇过程连接：◇环境温度：-10~65℃◇供电电源：18~28VDC◇信号输出：三线制4~20mA，与流量成线性关系AFD4040图1.AFD4040（单位：mm）电源指示灯流量指示灯AFD4040接线图序号针脚定义1电源正2NC3电源负4流量模拟量流量=（额Max −额Min ）∗（−4）/（−）+额Min安装安全说明旨在保护用户免受危险情况和/或防止材料损坏。
在操作说明书中，潜在风险的严重性可以用以下信号词来表示:配管方法：对产品配管时，请用扳手与配管部一体的金属部位（管路配件）进行配管。
若在其他的部位使用扳手，可能会导致流量开关破损。
特别是不能再M12连接器上使用扳手。
否则可能会导致连接器部破损安装配管：请不要使密封带混入管内。
配管连接：请不要因松弛而导致液体泄漏。
若超出紧固扭力范围拧紧，可能会导致开关损坏。
如果在不足规定紧固扭力的情况下组装，可能会使连接螺纹部松动。
！谨慎在运输过程中必须避免震动和剧烈震动。
即使开关外壳没有损坏，内部部件也可能损坏并引起故障。
矿用本安型超声波流量传感器矿用流量计防爆流量计
GLC250/500矿用本安型超声波流量传感器产品使用说明书山东中煤电器有限公司2011 年10 月25 H1.概述 (3)1.1主要用途及使用范围 (3)1.2型号组成及代表意义 (3)1.3使用环境条件 (3)2 结构特征与工作原理 (4)2.1 结构 (4)2.2 工作原理 (4)3 技术特性 (5)3.1 产品执彳亍标准 (5)3.2 主要参数 (5)3.3 关联设备 (5)3.4 尺寸重量 (5)3.4.1 尺寸. (5)3.4.2 重量 (5)4 安装、调试 (5)4.1 安装条件、技术要求 (6)4.2 安装 (6)4.2.1 传感器的安装. (6)4.2.2 主机的安装. (11)4.2.3 接线 (11)4.3 调 (12)5 使用、操作 (14)6 故障分析与排除 (14)7 保养、维修 (15)8 运输、贮存 (15)9 开箱及检查 (15)10 订货 (15)安装使用产品前，应详细阅读使用说明书矿用本安型超声波流量传感器使用说明书1.概述1.1主要用途及使用范用矿用本安型超声波流量传感器（以下简称流量传感器）采用低电压多脉冲平衡发射接收专利技术设计的一种全新通用时差型多功能超声波传感器，适用于工业环境下连续测量不含大浓度悬浮粒子或气体的大多数清洁均匀液体的流量和热量。
流量传感器使用了最新的著名国际半导体厂商生产的元器件，低功耗，高可鼎性，抗干扰，适用性好。
优化的智能信号自适应处理，用户无需任何电路调整。
先进的电路设汁、器件选用、优秀的硬件、软件设计，使流量传感器成为国内目前矿山行业的首选产品。
1.2型号组成及代表意义G L C 250/500L流量范围：500m3/h 管径范围:250mm------------- 超声波原理---------------- 流量------------------- 矿用传感器及墩感元件1.3使用环境条件——环境温度一5°C〜40°C；——海拔高度不超过2000m：——空气相对湿度不大于93% （25°C时）；——在有瓦斯、煤尘爆炸危险的场所；——在无破坏绝缘的腐蚀性气体或蒸汽的场所;——在无显著振动和冲击的场所；——污染等级为3级； ——安装类别为II 【类。
F-111流量传感器系列产品说明书
ߜContinuous Flow andTemperature Measurement ߜThree Supply Voltages Standard 10 to 30 Vdc, 110 Vac 50/60 Hz and 220 Vac 50/60 HzߜThree Outputs are Standard: 0 to 1 Vdc, 0 to 5 Vdc and 4 to 20 mA DC ߜRS232 OptionThe FX100 Series is especially designed for monitoring Air Velocity in the air conditioning, heating, and ventilation industry. The flow transmitter can be wired for either 4 to 20 mA, 0 to 5 Vor 0 to 1 V output. The outputs are forflow and temperature (“-T” option). RS232output and digital display are options.SPECIFICATIONSSensorsAir Velocity:Remote rotatingvane probe with 1.5 m (5') cable [your choice of 25 mm (1") or 70 mm (2.75") diameter]; 3⁄8"-16 Thread for mounting Temperature:PT100 RTDRangeHHF751-P2 Probe:40 to 7800 FPM (0.2 to 40.0 MPS) HHF751-P1A Probe:60 to 6800 FPM (0.3 to 35.0 MPS) HHF7-P2 Probe:40 to 7800 FPM (0.2 to 40.0 MPS); -20 to 80°C (-4 to 175°F)HHF7-P1 Probe:60 to 6800 FPM (0.3 to 35.0 MPS); -20 to 80°C (-4 to 175°F)AccuracyAir Velocity:±1% of measured value Temperature:±0.5°CResponse TimeAir Velocity:2 second average & update Temperature:Approximately 60 seconds Output:0 to 1 Vdc for 0 to 7800 FPM 0 to 5 Vdc for 0 to 7800 FPM 4 to 20 mA for 0 to 7800 FPM0 to 1 Vdc for -20 to 80°C (-5 to 175°F) 0 to 5 Vdc for -20 to 80°C (-5 to 175°F) 4 to 20 mA for -20 to 80°C (-5 to 175°F) Temperature Operating Range:-20 to 80°C (-4 to 175°F)Power: 110 Vac, 50/60 Hz or 220 Vac, 50/60 Hz, 10 to 30 Vdc (std)Housing:ABS plastic, splash resistantHHF751-P2, HHF7-P2:70 mm (2.75") diameter Probe Head:HHF751-P1A, HHF7-P1:25 mm (1.00") diameter Weight:510 g (18 oz.)Add “-220 VAC ” for 220 Vac unit, add “-110 VAC ” for 110 Vdc unit. No extra charge.Add “-RS232” to model number and add $127to price for RS232 Communications For additional sensor cable add $2/ft and specify as “-(length)” at end of model number.Ordering Example: FX102D-T , flow/temperature transmitter with display, $805.FX101$590Basic UnitAIR VELOCITY FLOW TRANSMITTERShown smaller than actual size Sensor IncludedB R O A D R A N G E !Dimensions Housing:122 x 122 x 56 mm(4.8 x 4.8 x 2.2")Probe Head:CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. Manchester, England0800-488-488GERMANY www.omega.deDeckenpfronn, Germany************FRANCE www.omega.frGuyancourt, France088-466-342BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44UNITED STATES 1-800-TC-OMEGA Stamford, CT.CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic596-311-899TemperatureCalibrators, Connectors, General Test and MeasurementInstruments, Glass Bulb Thermometers, Handheld Instruments for Temperature Measurement, Ice Point References,Indicating Labels, Crayons, Cements and Lacquers, Infrared Temperature Measurement Instruments, Recorders Relative Humidity Measurement Instruments, RTD Probes, Elements and Assemblies, Temperature & Process Meters, Timers and Counters, Temperature and Process Controllers and Power Switching Devices, Thermistor Elements, Probes andAssemblies,Thermocouples Thermowells and Head and Well Assemblies, Transmitters, WirePressure, Strain and ForceDisplacement Transducers, Dynamic Measurement Force Sensors, Instrumentation for Pressure and Strain Measurements, Load Cells, Pressure Gauges, PressureReference Section, Pressure Switches, Pressure Transducers, Proximity Transducers, Regulators,Strain Gages, Torque Transducers, ValvespH and ConductivityConductivity Instrumentation, Dissolved OxygenInstrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis InstrumentationHeatersBand Heaters, Cartridge Heaters, Circulation Heaters, Comfort Heaters, Controllers, Meters and SwitchingDevices, Flexible Heaters, General Test and Measurement Instruments, Heater Hook-up Wire, Heating Cable Systems, Immersion Heaters, Process Air and Duct, Heaters, Radiant Heaters, Strip Heaters, Tubular HeatersFlow and LevelAir Velocity Indicators, Doppler Flowmeters, LevelMeasurement, Magnetic Flowmeters, Mass Flowmeters,Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area Flowmeters, Vortex Shedding FlowmetersData AcquisitionAuto-Dialers and Alarm Monitoring Systems, Communication Products and Converters, Data Acquisition and Analysis Software, Data LoggersPlug-in Cards, Signal Conditioners, USB, RS232, RS485 and Parallel Port Data Acquisition Systems, Wireless Transmitters and Receivers。
流量传感器说明书
No. PF※※-OMK0004-FFlow sensorPFMV5##Safety Instructions 2 Model Indication and How to Order 10 Summary of Product parts 12 Definition and terminology 13 Mounting and Installation 14 Installation 14 Piping 16 Wiring 17 Troubleshooting 18 Specifications 19 Specifications 19 Characteristics data 20 Dimensions 22Safety InstructionsThese safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC)*1), and other safety regulations.*1) ISO 4414: Pneumatic fluid power -- General rules relating to systems.ISO 4413: Hydraulic fluid power -- General rules relating to systems.IEC 60204-1: Safety of machinery -- Electrical equipment of machines .(Part 1: General requirements)ISO 10218: Manipulating industrial robots -Safety.etc.Caution Caution indicates a hazard with a low level of risk which, if not avoided, couldresult in minor or moderate injury.Warning Warning indicates a hazard with a medium level of risk which, if not avoided,could result in death or serious injury.Danger Danger indicates a hazard with a high level of risk which, if not avoided, willresult in death or serious injury.Warning1. The compatibility of the product is the responsibility of the person who designs theequipment or decides its specifications.Since the product specified here is used under various operating conditions, its compatibility with specific equipment must be decided by the person who designs the equipment or decides its specifications based on necessary analysis and test results.The expected performance and safety assurance of the equipment will be the responsibility of theperson who has determined its compatibility with the product.This person should also continuously review all specifications of the product referring to its latest catalog information, with a view to giving due consideration to any possibility of equipment failure whenconfiguring the equipment.2. Only personnel with appropriate training should operate machinery and equipment.The product specified here may become unsafe if handled incorrectly.The assembly, operation and maintenance of machines or equipment including our products must be performed by an operator who is appropriately trained and experienced.3. Do not service or attempt to remove product and machinery/equipment until safety isconfirmed.1. The inspection and maintenance of machinery/equipment should only be performed after measures toprevent falling or runaway of the driven objects have been confirmed.2. When the product is to be removed, confirm that the safety measures as mentioned above areimplemented and the power from any appropriate source is cut, and read and understand the specific product precautions of all relevant products carefully.3. Before machinery/equipment is restarted, take measures to prevent unexpected operation and malfunction.4. Contact SMC beforehand and take special consideration of safety measures if theproduct is to be used in any of the following conditions.1. Conditions and environments outside of the given specifications, or use outdoors or in a placeexposed to direct sunlight.2. Installation on equipment in conjunction with atomic energy, railways, air navigation, space, shipping,vehicles, military, medical treatment, combustion and recreation, or equipment in contact with food and beverages, emergency stop circuits, clutch and brake circuits in press applications, safety equipment or other applications unsuitable for the standard specifications described in the product catalog.3. An application which could have negative effects on people, property, or animals requiring specialsafety analysis.4. Use in an interlock circuit, which requires the provision of double interlock for possible failure by usinga mechanical protective function, and periodical checks to confirm proper operation.Safety InstructionsCaution1.The product is provided for use in manufacturing industries.The product herein described is basically provided for peaceful use in manufacturing industries.If considering using the product in other industries, consult SMC beforehand and exchangespecifications or a contract if necessary.If anything is unclear, contact your nearest sales branch.Limited warranty and Disclaimer/Compliance RequirementsThe product used is subject to the following "Limited warranty and Disclaimer" and "Compliance Requirements".Read and accept them before using the product.Limited warranty and Disclaimer1. The warranty period of the product is 1 year in service or 1.5 years after the product isdelivered, whichever is first.*2)Also, the product may have specified durability, running distance or replacement parts.Please consult your nearest sales branch.2. For any failure or damage reported within the warranty period which is clearly ourresponsibility, a replacement product or necessary parts will be provided.This limited warranty applies only to our product independently, and not to any otherdamage incurred due to the failure of the product.3. Prior to using SMC products, please read and understand the warranty terms anddisclaimers noted in the specified catalog for the particular products.*2) Vacuum pads are excluded from this 1 year warranty.A vacuum pad is a consumable part, so it is warranted for a year after it is delivered.Also, even within the warranty period, the wear of a product due to the use of thevacuum pad or failure due to the deterioration of rubber material are not covered by the limited warranty.Compliance Requirements1. The use of SMC products with production equipment for the manufacture of weapons ofmass destruction (WMD) or any other weapon is strictly prohibited.2. The exports of SMC products or technology from one country to another are governed bythe relevant security laws and regulation of the countries involved in the transaction. Prior to the shipment of a SMC product to another country, assure that all local rules governing that export are known and followed.CautionSMC products are not intended for use as instruments for legal metrology.Products that SMC manufactures or sells are not measurement instruments that are qualified by pattern approval tests relating to the measurement laws of each country.Therefore, SMC products cannot be used for business or certification ordained by the measurement laws of each country.■NOTE○Follow the instructions given below when designing, selecting and handling the product.●The instructions on design and selection (installation, wiring, environment, adjustment, operation,maintenance, etc.) described below must also be followed.*Product specifications∙The direct current power supply used should be UL approved as follows.Circuit (Class 2) of maximum 30 Vrms (42.4 V peak) or less, with UL1310 Class 2 power supply unit or UL1585 Class 2 transformer.∙The product is a UL approved product only if it has a mark on the body.∙Use the specified voltage.Otherwise failure or malfunction can result.Insufficient supply voltage may not drive a load due to a voltage drop inside the product.Verify the operating voltage of the load before use.∙Do not exceed the specified maximum allowable load.Otherwise it can cause damage or shorten the lifetime of the product.∙Applicable operating fluid depends on the product.Check the details of the specifications before using.∙Before designing piping confirm the pressure loss at the sensor from the pressure loss graph.Confirm pressure loss of the sensor from the characteristics data.∙For the details of compressed air quality, refer to ISO 8573-1, 1.1.2 to 1.6.2.∙Use the specified measurement flow rate and operating pressure.Otherwise it can cause damage to the product or inability to measure correctly.∙Reserve a space for maintenance.Allow sufficient space for maintenance when designing the system.●Product handling*Installation∙Tighten to the specified tightening torque.If the tightening torque is exceeded the mounting screws and brackets may damaged.If the tightening torque is insufficient, the product may be displaced and the mounting screws may come loose (Refer to page 14”Mounting and Installation”.)∙Ensure that the FG terminal is connected to ground when using a commercially available switch-mode power supply.∙Do not drop, hit or apply excessive shock to the product.Otherwise damage to the internal parts can result, causing malfunction.∙Do not pull the lead wire forcefully, or lift the product by the lead wire. (Tensile force 49 N or less)Hold the product body when handling, to prevent damage, failure or malfunction∙When connecting the piping, hold the specified part of the body with a spanner.Hold the product body when handling, to prevent damage, failure or malfunction∙Any dust left in the piping should be flushed out by air blow before connecting the piping to the product.Otherwise it can cause damage or malfunction.∙Refer to the flow direction of the fluid indicated on the product label for installation and piping.∙Do not mount the body with the bottom facing upwards.Retention of air can cause inability to measure accurately.∙Do not insert metal wires or other foreign matter into the piping port.This can damage the sensor causing failure or malfunction.∙Never mount a product in a location that will be used as a foothold.The product may be damaged if excessive force is applied by stepping or climbing onto it.∙If there is a risk of foreign matter entering the fluid, install and pipe a filter or the mist separator at the inlet to avoid failure and malfunction.Refer to the figure below for the recommended pneumatic circuit.*Wiring∙Do not pull the lead wires.In particular, never lift a product equipped with fitting and piping by holding the lead wires.Otherwise damage to the internal parts can result, causing malfunction.∙Avoid repeatedly bending or stretching the lead wire, or placing heavy loads on itRepeated bending stress or tensile stress can cause damage to the sheath, or breakage of the wires.If the lead wire can move, fix it near the body of the product.The recommended bend radius of the lead wire is 6 times the outside diameter of the sheath, or 33 times the outside diameter of the wire insulation material, whichever is larger.Replace any damaged lead wire with a new one.∙Wire correctly.Incorrect wiring can damage the product.∙Do not perform wiring while the power is on.Otherwise damage to the internal parts can result, causing malfunction.∙Do not route wires and cables together with power or high voltage cables.Otherwise the product can malfunction due to interference or noise and surge voltage from power and high voltage cables.∙Confirm proper insulation of wiring.Poor insulation (interference from another circuit, poor insulation between terminals, etc.) can lead to excess voltage or current being applied to the product, causing damage.∙Keep wiring as short as possible to prevent interference from electromagnetic noise and surge voltage.Do not use a cable longer than 30 m.Wire the DC (-) line (blue) as close as possible to the power supply.∙When analogue output is used, install a noise filter (line noise filter, ferrite element, etc.) between the switch-mode power supply and this product.*Environment∙Do not use the product in area that is exposed to corrosive gases, chemicals, sea water, water or steam.Otherwise failure or malfunction can result.∙Do not use in a place where the product could be splashed by oil or chemicals.If the product is to be used in an environment containing oils or chemicals such as coolant or cleaning solvent, even for a short time, it may be adversely affected (damage, malfunction, or hardening of the lead wires)∙Do not use in an area where electrical surges are generated.If there is equipment generates large electrical surges (solenoid type lifter, high frequency induction furnace, motor, etc.) close to the product, damage or failure of the internal circuit may occur. Take measures against the surge sources, and prevent the wires from coming into close contact.∙Do not use a load which generates a surge voltage.When a surge-generating load such as a relay or solenoid is driven directly, use a product with a built-in surge absorbing element.∙The product is CE marked, but not immune to lightning strikes. Take measures against lightning strikes in the system.∙Do not use the product in areas that are exposed to vibration or impact.Otherwise failure or malfunction can result.∙Do not use the product in the presence of a magnetic field.This may lead to the malfunction of the product.∙Prevent foreign matter such as wire debris from entering the product.Otherwise failure or malfunction can result.∙Do not use the product in areas subject to large temperature cycle.Heating/cooling cycles other than ordinary changes in temperature can adversely affect the internal structure of the product∙Do not expose the product to direct sunlight.If using in a location directly exposed to sunlight, use a suitable protective cover.Otherwise failure or malfunction can result.∙Keep within the operating fluid temperature and operating temperatures range.The operating fluid temperature and operating temperature range is 0 to 50 o C.Operation below the minimum temperature limit may cause damage or operation failure due to frozen moisture in the fluid or air.Protection against freezing is necessary.An air dryer is recommended for elimination of drainage and water.Avoid sudden temperature changes even within the specified temperature range.∙Do not operate close to a heat source, or in a location exposed to radiant heat.Otherwise malfunction can result.*Adjustment and Operation∙Do not short-circuit the load.When the product load is short circuit, generated excess current lead to cause the damage of the product.∙Supply the power when there is no flow.∙If using the product to detect very small flow rates, warm up the product for 10 to 15 minutes first.There will be a drift on the analogue output of approximate ±2 to 30% immediately after supply is turn on. Within 10 minutes.∙Check regulators and flow adjustment valves before introducing the fluid.∙Pay attention to the response speed.When the sensor is used to check the suction, the response speed of the sensor might be delayed due to the piping volume between the suction nozzle and sensor. Therefore, take measures to reduce the piping volume.*Maintenance∙Perform regular maintenance and inspections.There is a risk of unexpected malfunction.∙Turn off the power supply, stop the supplied air, exhaust the residual pressure and verify the release of air before performing maintenance.There is a risk of unexpected malfunction.∙Perform drainage regularly.If condensate enters the secondary side, it can cause operating failure of pneumatic equipment.∙Do not use solvents such as benzene, thinner etc. to clean the product.They could damage the surface of the body and erase the markings on the body.Use a soft cloth to remove stains.For heavy stains, use a cloth lightly dampened with diluted neutral detergent, then wipe up any residue with a dry cloth.: Each accessory is not assembled with the product, but shipped together. Accessories/Part number■InstallationWhen the product is installed in a vertical direction, a natural convection is generated due to the sensor characteristics around the zero flow range, so there is a possibility that an error up to approximately 3%F.S.might be generated. Install the product taking this into consideration.Direct mounting∙Install the product using the M3 screws (2 pcs.).Bracket mounting∙Mount the bracket using the mounting screws (M3 x 15 L) supplied.∙The required tightening torque is 0.32±0.02 Nm.∙Install the product (with bracket) using the M4 screws (2 pcs. or 4 pcs.).∙Bracket thickness is approximately 1 mm.∙Refer to the dimension drawing of the bracket (page 22) for mounting hole dimensions.Manifold mounting∙Mount the bracket using the mounting screws supplied.∙The required tightening torque is 0.32 ± 0.02 Nm.∙Mounting in series using the mounting brackets is not suitable for all models, depending on which fitting type is used.∙Install the product (with bracket) using the M4 screws (4 pcs.).∙Bracket thickness is approximately 1 mm.∙Refer to the dimension drawing of the bracket (page 22) for mounting hole dimensions.■Piping∙The required tightening torque of the fitting is 1 to 1.5 Nm.∙If the tightening torque is exceeded, the product can be broken. If the tightening torque is insufficient, the fittings may become loose.∙When connecting the piping, hold the specified part of the body with a spanner.Using a spanner on other parts may damage the product.∙Avoid any sealing tape from entering inside the piping.∙Ensure that there is no leakage from loose piping.∙Avoid sudden changes in the piping size on the IN side of the sensor.∙Use this product within the specified operating pressure and temperature ranges.∙Use this product within the rated flow range.∙Proof pressure is 500 kPa.PFMV5 series recommended fitting list■WiringWiring of connector∙Connections should only be made with the power supply turned off.∙Use separate routes for the product wiring and any power or high voltage wiring.Otherwise, malfunction may result due to noise.∙Ensure that the FG terminal is connected to ground when using a commercially available switch-mode power supply. When a switch-mode power supply is connected to the product, switching noise will be superimposed and the product specification can no longer be met. This can be prevented by inserting a noise filter, such as a line noise filter and ferrite core, between the switch-mode power supply and the product, or by using a series power supply instead of a switch-mode power supply.Internal circuit and wiring exampleAnalogue output: 1 to 5 VOutput impedance: approx. 1 kΩTroubleshootingIf an operation failure occurs with the product, use the chart below to find out the cause of the problem. If none of the countermeasures seem to be applicable, or a replacement product operates normally when installed, the product may be faulty. A product can be damaged by the operating environment (system configuration etc). If the product seems to be faulty, please contact SMC.*1: Flow in the specification is the value at standard condition.*2: Analogue output shows 3 V when flow is zero. Changes to 5 V side when flow direction is IN→OUT. 1 V side when OUT→IN. *3: %F.S. in the table takes 4 V (1 to 5 V) as a full scale.*4: 0 kPa means release to the atmosphere.*5: Refer to the Analogue output characteristics.■Characteristics data●Analogue output characteristics (Non-linear output)●Pressure loss●Nozzle diameter and flow characteristics (Approximate values)Refer to catalog for details.■Dimensions (in mm)PFMV5□□PFMV5□□ + L-type bracketMount on one side Mount on both sides4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPANTel: + 81 3 5207 8249 Fax: +81 3 5298 5362URL Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.。
GLW30矿用气体流量传感器说明书V1.3
GLW30 矿用气体流量传感器 V1.3
警告： * 安装、使用前应阅读使用说明书，严格按说明书中方法进行安装和操作。 * 不得擅自修改本安电路。 * 检修时不得修改本安电路及关联电路中元器件的型号、规格及电气参数。 * 本安关联产品不得随意与其他未经联检的设备连接。
1. 概述
1.1 产品特点 GLW30 是天地（常州）自动化股份有限公司开发的一款数字化气体流量传感器，它内部采用恒 功率技术的传感器驱动方式和高精度仪用放大器以及 DC-DC 电源的一体化设计。适用于煤矿、石 油、化工、钢铁冶金、电力、轻工、医药、环保等工业部门的瓦斯气、空气、氧气、氮气、氩气、氦 气、烃类气体、二氧化碳气、一氧化碳气、天然气、煤气、烟道气等的监测。 该产品可替代孔板，文丘里管，阿牛巴等流量计。其特点是可靠性高，重复性好，压损小，无可 动部件，量程比宽，响应速度快，测量精度高，无须温压补偿。特别在大管径，低流速，流量范围变 化大及特小流量测量方面具有明显优势。 GLW30 独特的温度差测量方式克服了采用恒温差原理的气体流量传感器测量煤气流量时因煤气中 含水、油和杂质而造成的很大的零点漂移，导致无法测量的弊端。它也可以用于测量湿气体的质量流 量，如矿井下送风，排风系统中的风量（速）的实时检测。 1.2 防爆型式 矿用本质安全型，传感器本体部分防爆标志为“Ex ib ⅠMb” ，传感器探头部分防爆标志为“Ex ia ⅠMb” 。 1.3 命名 G L
设置实例序号参数说明0001001500000040000005仪表号00050001200波特率00100010000流量上限值00110000000流量下限值00120010000温度上限值00130000000温度下限值00140010000压力上限值00150000000压力下限值故障分析与排除常见故障与排除方法见表4常见故障与排除方法现象原因解决方法显示值过大插入位置不当b补偿系数设置不当c管道内水汽大a按照指定要求安装前端装多级虑水装置或更换安装位置流速低补偿系数设置不当c插入管道距离短正确安装探头方向b按照说明书调整该系数按照说明书调整插入深度流量输出波动大直管段不足b气流波动大对应参数修改无输出供电电源功率不足b接线问题正确接线rs485输出异常在使用中避免猛烈碰撞
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
传感器的电源系统由恒流源、串联稳压电源等部分组成。 2. 测量单元
2
GLW100G 流量传感器
在流体中设置旋涡发生体（阻流体），从旋涡发生体两侧交替地产生有规则的旋 涡，这种旋涡称为卡门涡街。在一定条件下，旋涡的发生频率与被测介质来流的平均 速度成正比。使用电荷放大器对旋涡信号进行放大，再经过整形，即可得到可供单片 计算机识别处理的数字信号。 3. 单片机电路
7～134 4～85
2.5～50 6.4～128
3～68
10～200
气体 参考流速（4～60）m/s
脉冲频率 Hz 测量范围 m3/h
185～2230 91～1370
8.8～106 18～271
所有数码管显示多相同段
段线路间短路
检查、处理
6
GLW100G 流量传感器
九、运输、贮存 1．在运输过程中不允许碰撞或重压，并应防止雨水侵入。 2．不使用时，应存放在温度（-40～60）℃ ，相对湿度小于 80%，通风良好，无腐蚀气 体的库房内；长期不使用时，应包装存放，搬动中避免剧烈振动和冲击。
十、随机文件及附件
由于使用了复合型集成电路，降低了整机元器件数量，提高了可靠性。 4. 输出电路
单片机对测量模块采集的数据进行运算处理后，根据当前输出信号制式和介质流 量值，计算出对应输出数字量驱动输出电路，输出相应信号。 5. 红外遥控接收电路
红外线接收电路由一体化红外接收译码集成电路组成构成，当该电路收到红外光 脉冲后，接收器将光编码信号转换成串行电信号送单片机进行处理，完成各项操作。
传感器的外壳为不锈钢外壳，机壳外表面抛光，结构坚固耐腐蚀。 3. 电路板
传感器采用双面电路板形式，结构简单。成品电路板表面喷涂两遍三防漆，防潮 抗腐蚀。电路板采用压紧式接线端子，安装结构易于拆卸，便于维修。 4. 联接
传感器与外部关联设备的联接采用带锁紧装置的插头，插接方便，接触可靠。
三、工作原理 传感器的完整电路系统由稳压电源电路、传感元件、测量模块、单片机电路、显
适用于对煤矿瓦斯抽放管道中的混合气体流量进行实时连续自动检测。 4．型号的组成及其代表意义
G L W 100 G
表示管道用 表示序号 表示旋涡式 表示流量 表示传感器
二、结构特征 1．配套
传感器为红外遥控成套仪器设备，一套由传感器主机和 FYF3 型遥控发送器构 成，传感器由关联设备提供本质安全型直流电源。 配套设备及关联设备见（附录1）。 2. 外壳
1
GLW100G 流量传感器
一、概述 1．产品特点
GLW100G 流量传感器（以下简称传感器）是采用卡门涡街原理研制开发的管道 流 量传感器。传感器采用智能化设计，将数字自适应滤波方法应用在涡街流量计中，突 破了传统模拟方法处理涡街信号的局限，从而大幅度地提高了传感器的性能。 2．主要用途
传感器能够对煤矿瓦斯抽放管道中的混合气体流量进行连续检测，并将检测流量 值换算成相应频率信号发送给关联设备。 3．适用范围
管段上安装使用时，可采取下面措施来减小振动带来的干扰： A:在传感器上游 2D 处加装管道支撑点 B:在满足直管段要求前提下，加装软件过度
5、流量传感器在安装过程中不允许用硬物撞击，否则将影响计量精度甚至损坏仪表。 当预留空间小于仪表厚度时，可先用两根全螺纹螺栓将安全空间撑大到能把传感器 放下，然后再用双头螺检紧固。
电流值 C1，C2 输入标定电流
七、维护与修理 1. 应指定专门维护人员使用、维护本传感器。 2. 搬运传感器时，应防止剧烈振动和撞摔。打开该传感器后盖时，应防止拉断机内连
线及损坏机内元件。 3. 传感器所接的本安电源，其原电路电气参数，连接电缆型号均不得改变，其电缆长
度不得超过原来经防爆试验合格后所确定的长度。定期清除传感器气体采样口附着 的灰尘。 4. 传感器长期不用时，应放置在干燥、无腐蚀气体、无辐射、无强烈震动的环境中。
配接设备：
序号
型号名称
1
KJ2007F1 井下分站
生产厂家
防爆形式与标志 安标证号 防爆证号
北京瑞赛长城航空 测控技术有限公司
防爆标志 ExibI
MFC080041 2074283
配套设备：
序号
型号名称
1
FYF3 遥控发送器
生产厂家
北京泽诺 科技开发公司
防爆形式与标志 安标证号 防爆证号
防爆标志 ExibI
1．传感器
1台
2. 航插电缆线
1根
3．使用说明书
1本
4．产品合格证
1张
5．FYF3 遥控发送器
1只
6．安装法兰、螺栓
1套
7. 安装密封垫圈
1套
十一、附录 1.关联设备、配接设备、配套设备表 2.流量传感器测量范围参考表 3.流量传感器外形尺寸表 4.关键零部件表 5.执行标准明细表
十二、产品资质 见 8、9、10 页。
10. 准确度等级：1.5 级（当 qt≤q＜qmax 时，最大允许误差为±1.5%；当 qmin≤q＜qt
时，最大允许误差为±3.0%）； 11. 显示方式：四位 LED 数码管显示； 12. 模拟信号输出：（200～1000）Hz（脉冲宽度大于 0.3ms）； 13.显示分辩率：0.1 m3/min； 14.传输距离：传感器与关联设备的传输距离 2km； 15.配套设备及关联设备见（附录 1）； 16.防爆型式：
3
GLW100G 流量传感器
所示）。
上游阻流件形式 同心收缩全开闸阀或缩颈
扩径 一个 90°弯头 同一个平面二个 90°弯头 不同平面二个 90°弯头
截止阀 注：D 为流量传感器口径。
表 5．1 上游直管段长度
≥15D ≥18D ≥20D ≥25D ≥40D ≥50D
下游直管段长度 ≥5D
图1
3、在传感器的上游侧不应设置流量调节阀 4、传感器不要安装在有强烈震动的管道上，以免影响测量精度，如传感器在有振动的
表 3 常见故障及处理方法
故障现象 传感器无任何显示 个别数码管无显示 个别数码管显示缺段 所有数码管显示缺相同段
原因分析 电源未接通 电源回路开路 电源回路短路 数码管阴极线路断路 数码管损坏 数码管虚焊 数码管损坏 段线路断路 段线路短路
处理方法 接通电源 检查、修复 检查、排除 检查、处理 更换 重新焊接 更换 检查、处理 检查、处理
7
GLW100G 流量传感器 8
GLW100G 流量传感器 9
GLW100Gቤተ መጻሕፍቲ ባይዱ流量传感器 10
附录 1
关联设备：
序号
型号名称
1
KDW6B1 矿用隔爆
兼本安型电源箱
GLW100G 流量传感器
生产厂家
防爆形式与标志 安标证号 防爆证号
北京瑞赛长城航空 测控技术有限公司
防爆标志 Exd[ib]I
MAA050003 21120513
5. 仪器的外壳、测量元件等重要配件，应从仪器的生产厂家购买，严禁代用。
6. 用户不能随意更改仪器的电路结构及元件的参数，以免影响仪器的防爆性能。
7. 严禁使用说明书中规定以外的关联设备使用，若与其他设备联接须经防爆检验。
八、故障分析与排除 传感器结构简单，维修方便，用户可对传感器常见故障自行维修。 传感器常见故障的处理，参见表 3：
红
电源－
绿
输出信号
蓝
空
3. 通电使用 传感器在接通电源后，单片机即上电复位启动即进入测量程序。 为保证传感器正常工作的性能，在实际使用前需对传感器进行认真调校。
4. 调校方法 当使用遥控器操控传感器时，将遥控器前端红外发射二极管指向被控传感器显示
窗口，按下遥控器键盘上相应按键，遥控器即发射对应控制编码，同时遥控器上发 射指示灯闪亮。 4.1 键盘使用 传感器配用的红外遥控器键盘各键功能如下： 4.1.1 试验键： 进入设置菜单、退出或保存； 4.1.2 复位键： 确认操作键； 4.1.3 菜单项“▲”、“▼”： 选择操作参数或切换显示状态； 4.1.4 调整项“▲”、“▼”： 修改参数内容。 4.2 运行状态说明
四、主要技术参数及性能 1. 工作条件：
a）温度：（0～40）℃； b）相对湿度：≤98%； c）大气压力：（80～116）kPa； d）在具有甲烷、煤尘等爆炸性混合物危险场所使用； 2. 贮存温度：（-40～60）℃； 3. 工作电压：DC（18～28）V； 4. 本安参数：Ui：DC 24V；Ii：60mA；Ci：0.1μF；Li：0mH； 5. 测量范围：见（附录 2）； 6. 被测介质温度：（-40～350）℃； 7. 被测介质压力：2.5MPa； 8. 阻力系数：Cd≤2.4； 9. 敏感元件工作寿命：＞1 年；
上电显示后放大板显示瞬时流量单位为立方米/每分 钟（m3/min）；
按菜单项“▲”、“▼”键可在瞬时流量（提示符为 “-F-”）与涡街脉冲（提示符为“-P-”）间切换。
5
GLW100G 流量传感器
项 SET 4-20
显示符号 do
CE
FH FL de dL OUT Cx Fx
表 2 设置参数说明
含义
4
GLW100G 流量传感器
六、使用方法 1. 配套电源 传感器由关联设备提供电源。 注意：连接前应确认关联设备输出电压符合传感器输入电压要求。 2. 联接方式 传感器由四芯航空插头与外部设备联接，其各接线端子功能如表 1：
表1 接线端号
1 2 3 4
航空插头接线端子功能明细表
定义
对应矿用电缆
电源＋
MFA110048 1114040
附录 2
传感器 口径
mm 25 40 50 80 100
参考仪表系数
脉冲数/m3 73410 17110 9856 2426 1193
