LGB 工字型电感器 工字型电感器

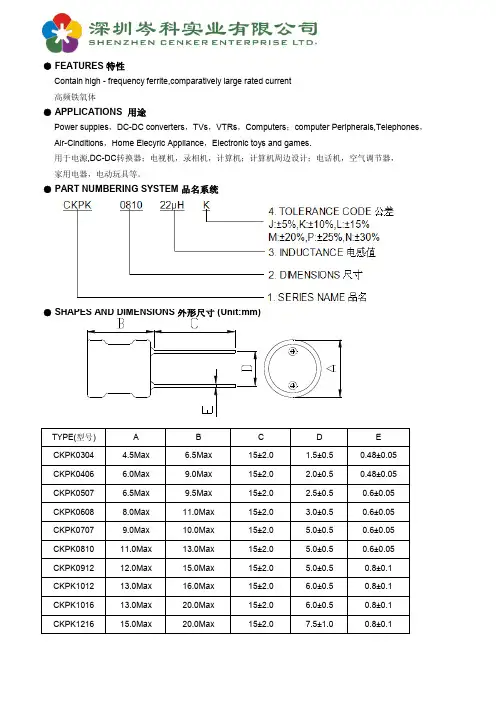

工字电感规格参数
● FEATURES 特性Contain high - frequency ferrite,comparatively large rated current高频铁氧体● APPLICATIONS 用途Power supples，DC-DC converters，TVs，VTRs，Computers；computer Peripherals,Telephones， Air-Cindltions，Home Elecyric Appliance，Electronic toys and games.用于电源,DC-DC转换器；电视机，录相机，计算机；计算机周边设计；电话机，空气调节器，家用电器，电动玩具等。
● PART NUMBERING SYSTEM 品名系统●TYPE(型号)A B C D ECKPK0304 4.5Max 6.5Max15±2.0 1.5±0.50.48±0.05CKPK0406 6.0Max9.0Max15±2.0 2.0±0.50.48±0.05CKPK0507 6.5Max9.5Max15±2.0 2.5±0.50.6±0.05CKPK06088.0Max11.0Max15±2.0 3.0±0.50.6±0.05CKPK07079.0Max10.0Max15±2.0 5.0±0.50.6±0.05CKPK081011.0Max13.0Max15±2.0 5.0±0.50.6±0.05CKPK091212.0Max15.0Max15±2.0 5.0±0.50.8±0.1CKPK101213.0Max16.0Max15±2.0 6.0±0.50.8±0.1CKPK101613.0Max20.0Max15±2.0 6.0±0.50.8±0.1CKPK121615.0Max20.0Max15±2.07.5±1.00.8±0.1● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0304-3R3M 3.30.200.55100KHz，0.25V CKPK0304-3R9M 3.90.220.50100KHz，0.25V CKPK0304-4R7M 4.70.250.45100KHz，0.25V CKPK0304-5R6M 5.60.300.40100KHz，0.25V CKPK0304-6R8M 6.80.300.38100KHz，0.25V CKPK0304-8R2M8.20.350.35100KHz，0.25V CKPK0304-100K100.350.321KHz，0.25V CKPK0304-120K120.400.301KHz，0.25V CKPK0304-150K150.500.281KHz，0.25V CKPK0304-180K180.600.271KHz，0.25V CKPK0304-220K220.700.251KHz，0.25V CKPK0304-270K270.800.241KHz，0.25V CKPK0304-330K330.900.231KHz，0.25V CKPK0304-390K390.900.221KHz，0.25V CKPK0304-470K47 1.00.201KHz，0.25V CKPK0304-560K56 1.20.191KHz，0.25V CKPK0304-680K68 1.50.181KHz，0.25V CKPK0304-820K82 2.00.171KHz，0.25V CKPK0304-101K100 3.00.161KHz，0.25V CKPK0304-121K120 3.50.151KHz，0.25V CKPK0304-151K150 4.00.151KHz，0.25V CKPK0304-181K180 5.00.141KHz，0.25V CKPK0304-221K220 6.00.141KHz，0.25V CKPK0304-271K2707.00.131KHz，0.25V CKPK0304-331K3308.00.121KHz，0.25V CKPK0304-391K3909.00.101KHz，0.25V CKPK0304-471K47011.00.081KHz，0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0406-4R7M 4.70.120 1.50100KHz，0.25V CKPK0406-5R6M 5.60.120 1.20100KHz，0.25V CKPK0406-6R8M 6.80.130 1.00100KHz，0.25V CKPK0406-8R2M8.20.1400.80100KHz，0.25V CKPK0406-100K100.1500.701KHz,0.25V CKPK0406-120K120.1800.601KHz,0.25V CKPK0406-150K150.2000.651KHz,0.25V CKPK0406-180K180.2400.631KHz,0.25V CKPK0406-220K220.2600.601KHz,0.25V CKPK0406-270K270.3000.561KHz,0.25V CKPK0406-330K330.4000.551KHz,0.25V CKPK0406-390K390.5000.521KHz,0.25V CKPK0406-470K470.6000.501KHz,0.25V CKPK0406-560K560.700.501KHz,0.25V CKPK0406-680K68 1.000.481KHz,0.25V CKPK0406-820K82 1.200.471KHz,0.25V CKPK0406-101K100 1.400.451KHz,0.25V CKPK0406-121K120 1.500.401KHz,0.25V CKPK0406-151K150 1.600.351KHz,0.25V CKPK0406-181K180 1.800.301KHz,0.25V CKPK0406-221K220 2.000.241KHz,0.25V CKPK0406-271K270 2.500.221KHz,0.25V CKPK0406-331K330 3.000.201KHz,0.25V CKPK0406-391K390 3.300.181KHz,0.25V CKPK0406-471K470 3.500.181KHz,0.25V CKPK0406-561K560 4.00.161KHz,0.25V CKPK0406-681K680 6.00.151KHz,0.25V CKPK0406-821K8207.00.121KHz,0.25V CKPK0406-102K10009.00.101KHz,0.25V CKPK0406-122K1200120.091KHz,0.25V CKPK0406-152K1500150.081KHz,0.25V CKPK0406-182K1800170.0701KHz,0.25V CKPK0406-222K2200220.0701KHz,0.25V CKPK0406-272K2700300.0601KHz,0.25V CKPK0406-332K3300330.0551KHz,0.25V ● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0507-4R7M 4.70.050 2.00100KHz，0.25V CKPK0507-6R8M 6.80.060 1.80100KHz，0.25V CKPK0507-100K100.080 1.601KHz,0.25V CKPK0507-120K120.10 1.601KHz,0.25V CKPK0507-150K150.14 1.501KHz,0.25V CKPK0507-180K180.15 1.201KHz,0.25V CKPK0507-220K220.16 1.001KHz,0.25V CKPK0507-270K270.200.901KHz,0.25V CKPK0507-330K330.300.801KHz,0.25V CKPK0507-390K390.400.751KHz,0.25V CKPK0507-470K470.450.701KHz,0.25V CKPK0507-560K560.500.651KHz,0.25V CKPK0507-680K680.550.601KHz,0.25V CKPK0507-820K820.600.551KHz,0.25V CKPK0507-101K1000.800.501KHz,0.25V CKPK0507-121K120 1.000.481KHz,0.25V CKPK0507-151K150 1.500.451KHz,0.25V CKPK0507-181K180 1.800.421KHz,0.25V CKPK0507-221K220 2.000.401KHz,0.25V CKPK0507-271K270 2.300.351KHz,0.25V CKPK0507-331K330 2.600.301KHz,0.25V CKPK0507-391K390 2.800.281KHz,0.25V CKPK0507-471K470 3.000.251KHz,0.25V CKPK0507-561K560 3.500.251KHz,0.25V CKPK0507-681K680 4.500.241KHz,0.25V CKPK0507-821K820 5.00.201KHz,0.25V CKPK0507-102K1000 6.00.181KHz,0.25V CKPK0507-122K120080.161KHz,0.25V CKPK0507-152K150090.151KHz,0.25V CKPK0507-182K1800100.141KHz,0.25V CKPK0507-222K2200120.101KHz,0.25V CKPK0507-272K2700160.091KHz,0.25V CKPK0507-332K3300200.081KHz,0.25V CKPK0507-392K3900240.071KHz,0.25V CKPK0507-472K4700260.0601KHz,0.25V CKPK0507-562K5600280.0551KHz,0.25V CKPK0507-682K6800300.0501KHz,0.25V CKPK0507-822K8200400.0451KHz,0.25V CKPK0507-103K10000600.0401KHz,0.25V ● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0608-100K100.09 2.001KHz,0.25V CKPK0608-120K120.10 1.901KHz,0.25V CKPK0608-150K150.11 1.801KHz,0.25V CKPK0608-180K180.12 1.601KHz,0.25V CKPK0608-220K220.12 1.501KHz,0.25V CKPK0608-270K270.17 1.201KHz,0.25V CKPK0608-330K330.19 1.001KHz,0.25V CKPK0608-390K390.220.951KHz,0.25V CKPK0608-470K470.230.901KHz,0.25V CKPK0608-560K560.290.851KHz,0.25V CKPK0608-680K680.370.801KHz,0.25V CKPK0608-820K820.390.751KHz,0.25V CKPK0608-101K1000.440.701KHz,0.25V CKPK0608-121K1200.640.651KHz,0.25V CKPK0608-151K1500.730.601KHz,0.25V CKPK0608-181K1800.820.551KHz,0.25V CKPK0608-221K2200.920.501KHz,0.25V CKPK0608-271K270 1.30.451KHz,0.25V CKPK0608-331K330 1.50.401KHz,0.25V CKPK0608-391K390 1.80.351KHz,0.25V CKPK0608-471K470 2.30.301KHz,0.25V CKPK0608-561K560 3.00.281KHz,0.25V CKPK0608-681K680 3.250.251KHz,0.25V CKPK0608-821K820 4.160.231KHz,0.25V CKPK0608-102K1000 5.000.211KHz,0.25V CKPK0608-122K1200 6.500.201KHz,0.25V CKPK0608-152K15008.000.171KHz,0.25V CKPK0608-182K18009.000.161KHz,0.25V CKPK0608-222K22009.500.141KHz,0.25V CKPK0608-272K270010.000.121KHz,0.25V CKPK0608-332K330011.000.101KHz,0.25V CKPK0608-392K390013.000.091KHz,0.25V CKPK0608-472K470017.000.0801KHz,0.25V CKPK0608-562K560020.000.0701KHz,0.25V CKPK0608-682K680027.000.0601KHz,0.25V CKPK0608-822K820032.000.0551KHz,0.25V CKPK0608-103K1000038.000.0501KHz,0.25V CKPK0608-123K1200043.000.0451KHz,0.25V CKPK0608-153K1500065.000.0401KHz,0.25V ● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0707-4R7M 4.70.025 3.00100KHz，0.25V CKPK0707-6R8M 6.80.030 2.50100KHz，0.25V CKPK0707-100K100.065 2.401KHz,0.25V CKPK0707-120K120.075 2.301KHz,0.25V CKPK0707-150K150.09 2.201KHz,0.25V CKPK0707-180K180.12 2.001KHz,0.25V CKPK0707-220K220.13 1.801KHz,0.25V CKPK0707-270K270.14 1.601KHz,0.25V CKPK0707-330K330.15 1.501KHz,0.25V CKPK0707-390K390.20 1.301KHz,0.25V CKPK0707-470K470.22 1.201KHz,0.25V CKPK0707-560K560.25 1.101KHz,0.25V CKPK0707-680K680.32 1.001KHz,0.25V CKPK0707-820K820.350.951KHz,0.25V CKPK0707-101K1000.400.901KHz,0.25V CKPK0707-121K1200.550.851KHz,0.25V CKPK0707-151K1500.800.801KHz,0.25V CKPK0707-181K1800.900.701KHz,0.25V CKPK0707-221K220 1.000.651KHz,0.25V CKPK0707-271K270 1.200.601KHz,0.25V CKPK0707-331K330 1.300.501KHz,0.25V CKPK0707-391K390 1.400.451KHz,0.25V CKPK0707-471K470 1.500.381KHz,0.25V CKPK0707-561K560 1.800.351KHz,0.25V CKPK0707-681K680 2.500.301KHz,0.25V CKPK0707-821K820 3.700.281KHz,0.25V CKPK0707-102K1000 4.000.261KHz,0.25V CKPK0707-122K1200 4.500.241KHz,0.25V CKPK0707-152K1500 5.600.221KHz,0.25V CKPK0707-182K1800 6.500.211KHz,0.25V CKPK0707-222K22007.700.201KHz,0.25V CKPK0707-272K27009.600.181KHz,0.25V CKPK0707-332K330012.000.171KHz,0.25V CKPK0707-392K390014.00.161KHz,0.25V CKPK0707-472K470020.00.151KHz,0.25V CKPK0707-562K560024.00.121KHz,0.25V CKPK0707-682K680028.00.101KHz,0.25V CKPK0707-822K820032.00.091KHz,0.25V CKPK0707-103K1000036.00.081KHz,0.25V CKPK0707-123K1200048.00.0701KHz,0.25V CKPK0707-153K1500056.00.0601KHz,0.25V ● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0810-3R3M 3.30.04 4.20100KHz,0.25V CKPK0810-3R9M 3.90.05 4.20100KHz,0.25V CKPK0810-4R7M 4.70.06 4.00100KHz,0.25V CKPK0810-5R6M 5.60.06 3.80100KHz,0.25V CKPK0810-6R8M 6.80.06 3.80100KHz,0.25V CKPK0810-8R2M8.20.06 3.60100KHz,0.25V CKPK0810-100K100.07 3.501KHz,0.25V CKPK0810-120K120.08 3.201KHz,0.25V CKPK0810-150K150.09 3.001KHz,0.25V CKPK0810-180K180.10 2.801KHz,0.25V CKPK0810-220K220.12 2.501KHz,0.25V CKPK0810-270K270.14 2.201KHz,0.25V CKPK0810-330K330.16 2.001KHz,0.25V CKPK0810-390K390.16 1.801KHz,0.25V CKPK0810-470K470.18 1.501KHz,0.25V CKPK0810-560K560.20 1.401KHz,0.25V CKPK0810-680K680.23 1.301KHz,0.25V CKPK0810-820K820.27 1.201KHz,0.25V CKPK0810-101K1000.30 1.201KHz,0.25V CKPK0810-121K1200.33 1.001KHz,0.25V CKPK0810-151K1500.460.801KHz,0.25V CKPK0810-181K1800.510.601KHz,0.25V CKPK0810-221K2200.620.551KHz,0.25V CKPK0810-271K2700.650.451KHz,0.25V CKPK0810-331K3300.790.401KHz,0.25V CKPK0810-391K3900.910.401KHz,0.25V CKPK0810-471K470 1.10.351KHz,0.25V CKPK0810-561K560 1.20.301KHz,0.25V CKPK0810-681K680 1.50.281KHz,0.25V CKPK0810-821K820 1.70.251KHz,0.25V CKPK0810-102K1000 2.00.221KHz,0.25V CKPK0810-122K1200 2.50.201KHz,0.25V CKPK0810-152K1500 2.90.181KHz,0.25V CKPK0810-182K1800 3.50.151KHz,0.25V CKPK0810-222K2200 4.20.141KHz,0.25V CKPK0810-272K2700 5.10.131KHz,0.25V CKPK0810-332K3300 6.10.121KHz,0.25V CKPK0810-392K39007.80.111KHz,0.25V CKPK0810-472K47008.00.1001KHz,0.25V CKPK0810-562K560010.00.0951KHz,0.25V CKPK0810-682K680014.00.0901KHz,0.25V CKPK0810-822K820015.00.0851KHz,0.25V CKPK0810-103K1000020.00.0801KHz,0.25V CKPK0810-123K1200022.00.0701KHz,0.25V CKPK0810-153K1500024.00.0601KHz,0.25V ● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0912-100K100.04 4.001KHz,0.25V CKPK0912-120K120.045 3.801KHz,0.25V CKPK0912-150K150.05 3.501KHz,0.25V CKPK0912-180K180.06 3.201KHz,0.25V CKPK0912-220K220.07 3.001KHz,0.25V CKPK0912-270K270.10 2.801KHz,0.25V CKPK0912-330K330.12 2.501KHz,0.25V CKPK0912-390K390.12 2.001KHz,0.25V CKPK0912-470K470.13 1.901KHz,0.25V CKPK0912-560K560.14 1.801KHz,0.25V CKPK0912-680K680.15 1.701KHz,0.25V CKPK0912-820K820.16 1.601KHz,0.25V CKPK0912-101K1000.25 1.501KHz,0.25V CKPK0912-121K1200.28 1.201KHz,0.25V CKPK0912-151K1500.30 1.001KHz,0.25V CKPK0912-181K1800.450.701KHz,0.25V CKPK0912-221K2200.500.601KHz,0.25V CKPK0912-271K2700.650.501KHz,0.25V CKPK0912-331K3300.850.451KHz,0.25V CKPK0912-391K3900.950.401KHz,0.25V CKPK0912-471K470 1.10.351KHz,0.25V CKPK0912-561K560 1.20.301KHz,0.25V CKPK0912-681K680 1.30.251KHz,0.25V CKPK0912-821K820 1.50.201KHz,0.25V CKPK0912-102K1000 2.00.201KHz,0.25V CKPK0912-122K1200 2.30.181KHz,0.25V CKPK0912-152K1500 2.90.171KHz,0.25V CKPK0912-182K1800 3.30.161KHz,0.25V CKPK0912-222K2200 4.50.151KHz,0.25V CKPK0912-272K2700 5.50.141KHz,0.25V CKPK0912-332K3300 5.70.131KHz,0.25V CKPK0912-392K3900 6.50.121KHz,0.25V CKPK0912-472K47007.20.121KHz,0.25V CKPK0912-562K56009.50.111KHz,0.25V CKPK0912-682K6800120.101KHz,0.25V CKPK0912-822K8200140.101KHz,0.25V CKPK0912-103K10000160.091KHz,0.25V CKPK0912-123K12000180.091KHz,0.25V CKPK0912-153K15000210.081KHz,0.25V CKPK0912-183K18000250.081KHz,0.25V CKPK0912-223K22000330.071KHz,0.25V CKPK0912-273K27000400.051KHz,0.25V CKPK0912-333K33000450.041KHz,0.25V ● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1012-3R3M 3.30.025 5.5100KHz,0.45V CKPK1012-3R9M 3.90.030 5.0100KHz,0.45V CKPK1012-4R7M 4.70.030 5.0100KHz,0.45V CKPK1012-5R6M 5.60.040 4.8100KHz,0.45V CKPK1012-6R8M 6.80.040 4.8100KHz,0.45V CKPK1012-8R2M8.20.045 4.5100KHz,0.45V CKPK1012-100K100.050 4.21KHz,0.45V CKPK1012-120K120.050 4.01KHz,0.45V CKPK1012-150K150.060 3.81KHz,0.45V CKPK1012-180K180.070 3.81KHz,0.45V CKPK1012-220K220.080 3.51KHz,0.45V CKPK1012-270K270.090 3.21KHz,0.45V CKPK1012-330K330.100 3.01KHz,0.45V CKPK1012-390K390.120 2.51KHz,0.45V CKPK1012-470K470.120 2.01KHz,0.45V CKPK1012-560K560.140 1.81KHz,0.45V CKPK1012-680K680.150 1.71KHz,0.45V CKPK1012-820K820.160 1.61KHz,0.45V CKPK1012-101K1000.180 1.51KHz,0.45V CKPK1012-121K1200.200 1.41KHz,0.45V CKPK1012-151K1500.250 1.21KHz,0.45V CKPK1012-181K1800.280 1.01KHz,0.45V CKPK1012-221K2200.3000.901KHz,0.45V CKPK1012-271K2700.4200.801KHz,0.45V CKPK1012-331K3300.5500.701KHz,0.45V CKPK1012-391K3900.6000.601KHz,0.45V CKPK1012-471K4700.6500.551KHz,0.45V CKPK1012-561K5600.7500.501KHz,0.45V CKPK1012-681K6800.8500.501KHz,0.45V CKPK1012-821K820 1.1000.401KHz,0.45V CKPK1012-102K1000 1.4000.301KHz,0.45VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1016-4R7M 4.70.020 5.8100KHz,0.25V CKPK1016-5R6M 5.60.025 5.5100KHz,0.25V CKPK1016-6R8M 6.80.025 5.4100KHz,0.25V CKPK1016-8R2M8.20.028 5.2100KHz,0.25V CKPK1016-100K100.035 5.01KHz,0.25V CKPK1016-120K120.035 4.51KHz,0.25V CKPK1016-150K150.040 4.01KHz,0.25V CKPK1016-180K180.060 4.01KHz,0.25V CKPK1016-220K220.080 3.81KHz,0.25V CKPK1016-270K270.100 3.51KHz,0.25V CKPK1016-330K330.100 3.51KHz,0.25V CKPK1016-390K390.120 3.21KHz,0.25V CKPK1016-470K470.120 3.01KHz,0.25V CKPK1016-560K560.130 2.81KHz,0.25V CKPK1016-680K680.140 2.51KHz,0.25V CKPK1016-820K820.150 2.21KHz,0.25V CKPK1016-101K1000.180 2.01KHz,0.25V CKPK1016-121K1200.200 1.81KHz,0.25V CKPK1016-151K1500.220 1.61KHz,0.25V CKPK1016-181K1800.250 1.51KHz,0.25V CKPK1016-221K2200.300 1.51KHz,0.25V CKPK1016-271K2700.350 1.41KHz,0.25V CKPK1016-331K3300.600 1.31KHz,0.25V CKPK1016-391K3900.700 1.21KHz,0.25V CKPK1016-471K4700.800 1.01KHz,0.25V CKPK1016-561K5600.900 1.01KHz,0.25V CKPK1016-681K680 1.0000.91KHz,0.25V CKPK1016-821K820 1.2000.81KHz,0.25V CKPK1016-102K1000 1.5000.71KHz,0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1216-330K330.08 5.01KHz,0.25V CKPK1216-390K390.10 4.51KHz,0.25V CKPK1216-470K470.11 4.21KHz,0.25V CKPK1216-560K560.12 4.01KHz,0.25V CKPK1216-680K680.13 3.51KHz,0.25V CKPK1216-820K820.14 3.31KHz,0.25V CKPK1216-101K1000.15 3.21KHz,0.25V CKPK1216-121K1200.16 3.01KHz,0.25V CKPK1216151K1500.17 2.71KHz,0.25V CKPK1216181K1800.18 2.51KHz,0.25V CKPK1216-221K2200.20 2.31KHz,0.25V CKPK1216-271K2700.30 2.01KHz,0.25V CKPK1216-331K3300.40 1.91KHz,0.25V CKPK1216-391K3900.50 1.81KHz,0.25V CKPK1216-471K4700.60 1.71KHz,0.25V CKPK1216-561K5600.70 1.61KHz,0.25V CKPK1216-681K6800.80 1.51KHz,0.25V CKPK1216-821K8200.90 1.41KHz,0.25V CKPK1216-102K1000 1.00 1.31KHz,0.25V CKPK1216-152K1500 1.50 1.01KHz,0.25V CKPK1216-182K1800 2.000.81KHz,0.25V CKPK1216-222K2200 3.000.71KHz,0.25V CKPK1216-272K2700 4.500.61KHz,0.25V CKPK1216-332K3300 6.000.51KHz,0.25V ● SPECIFICATION TABLE:。
工字电感选型规格参数
工字电感的特点和作用：具有高功率及高磁饱和性，低阻抗、体积小的特点。
工字电感，不仅体积小，而且比较容易安装便捷属于插件型电 感，占用空间小；高Q值因素；分布电容较小；自共振频率较高；特殊导针结构，不易产生闭路现象岑（cen）科电感为你提供工字电感选型参数知识资料●TYPE(型号)A B C D ECKPK0304 4.5Max 6.5Max15±2.0 1.5±0.50.48±0.05CKPK0406 6.0Max9.0Max15±2.0 2.0±0.50.48±0.05CKPK0507 6.5Max9.5Max15±2.0 2.5±0.50.6±0.05CKPK06088.0Max11.0Max15±2.0 3.0±0.50.6±0.05CKPK07079.0Max10.0Max15±2.0 5.0±0.50.6±0.05CKPK081011.0Max13.0Max15±2.0 5.0±0.50.6±0.05CKPK091212.0Max15.0Max15±2.0 5.0±0.50.8±0.1CKPK101213.0Max16.0Max15±2.0 6.0±0.50.8±0.1CKPK101613.0Max20.0Max15±2.0 6.0±0.50.8±0.1CKPK121615.0Max20.0Max15±2.07.5±1.00.8±0.1● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0304-3R3M 3.30.200.55100KHz，0.25V CKPK0304-3R9M 3.90.220.50100KHz，0.25V CKPK0304-4R7M 4.70.250.45100KHz，0.25V CKPK0304-5R6M 5.60.300.40100KHz，0.25V CKPK0304-6R8M 6.80.300.38100KHz，0.25V CKPK0304-8R2M8.20.350.35100KHz，0.25V CKPK0304-100K100.350.321KHz，0.25V CKPK0304-120K120.400.301KHz，0.25V CKPK0304-150K150.500.281KHz，0.25V CKPK0304-180K180.600.271KHz，0.25V CKPK0304-220K220.700.251KHz，0.25V CKPK0304-270K270.800.241KHz，0.25V CKPK0304-330K330.900.231KHz，0.25V CKPK0304-390K390.900.221KHz，0.25V CKPK0304-470K47 1.00.201KHz，0.25V CKPK0304-560K56 1.20.191KHz，0.25V CKPK0304-680K68 1.50.181KHz，0.25V CKPK0304-820K82 2.00.171KHz，0.25V CKPK0304-101K100 3.00.161KHz，0.25V CKPK0304-121K120 3.50.151KHz，0.25V CKPK0304-151K150 4.00.151KHz，0.25V CKPK0304-181K180 5.00.141KHz，0.25V CKPK0304-221K220 6.00.141KHz，0.25V CKPK0304-271K2707.00.131KHz，0.25V CKPK0304-331K3308.00.121KHz，0.25V CKPK0304-391K3909.00.101KHz，0.25V CKPK0304-471K47011.00.081KHz，0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0406-4R7M 4.70.120 1.50100KHz ，0.25V CKPK0406-5R6M 5.60.120 1.20100KHz ，0.25V CKPK0406-6R8M 6.80.130 1.00100KHz ，0.25V CKPK0406-8R2M 8.20.1400.80100KHz ，0.25V CKPK0406-100K 100.1500.701KHz,0.25V CKPK0406-120K 120.1800.601KHz,0.25V CKPK0406-150K 150.2000.651KHz,0.25V CKPK0406-180K 180.2400.631KHz,0.25V CKPK0406-220K 220.2600.601KHz,0.25V CKPK0406-270K 270.3000.561KHz,0.25V CKPK0406-330K 330.4000.551KHz,0.25V CKPK0406-390K 390.5000.521KHz,0.25V CKPK0406-470K 470.6000.501KHz,0.25V CKPK0406-560K 560.700.501KHz,0.25V CKPK0406-680K 68 1.000.481KHz,0.25V CKPK0406-820K 82 1.200.471KHz,0.25V CKPK0406-101K 100 1.400.451KHz,0.25V CKPK0406-121K 120 1.500.401KHz,0.25V CKPK0406-151K 150 1.600.351KHz,0.25V CKPK0406-181K 180 1.800.301KHz,0.25V CKPK0406-221K 220 2.000.241KHz,0.25V CKPK0406-271K 270 2.500.221KHz,0.25V CKPK0406-331K 330 3.000.201KHz,0.25V CKPK0406-391K 390 3.300.181KHz,0.25V CKPK0406-471K 470 3.500.181KHz,0.25V CKPK0406-561K 560 4.00.161KHz,0.25V CKPK0406-681K 680 6.00.151KHz,0.25V CKPK0406-821K 8207.00.121KHz,0.25V CKPK0406-102K 10009.00.101KHz,0.25V CKPK0406-122K 1200120.091KHz,0.25V CKPK0406-152K 1500150.081KHz,0.25V CKPK0406-182K 1800170.0701KHz,0.25V CKPK0406-222K 2200220.0701KHz,0.25V CKPK0406-272K 2700300.0601KHz,0.25V CKPK0406-332K3300330.0551KHz,0.25V● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0507-4R7M 4.70.050 2.00100KHz，0.25V CKPK0507-6R8M 6.80.060 1.80100KHz，0.25V CKPK0507-100K100.080 1.601KHz,0.25V CKPK0507-120K120.10 1.601KHz,0.25V CKPK0507-150K150.14 1.501KHz,0.25V CKPK0507-180K180.15 1.201KHz,0.25V CKPK0507-220K220.16 1.001KHz,0.25V CKPK0507-270K270.200.901KHz,0.25V CKPK0507-330K330.300.801KHz,0.25V CKPK0507-390K390.400.751KHz,0.25V CKPK0507-470K470.450.701KHz,0.25V CKPK0507-560K560.500.651KHz,0.25V CKPK0507-680K680.550.601KHz,0.25V CKPK0507-820K820.600.551KHz,0.25V CKPK0507-101K1000.800.501KHz,0.25V CKPK0507-121K120 1.000.481KHz,0.25V CKPK0507-151K150 1.500.451KHz,0.25V CKPK0507-181K180 1.800.421KHz,0.25V CKPK0507-221K220 2.000.401KHz,0.25V CKPK0507-271K270 2.300.351KHz,0.25V CKPK0507-331K330 2.600.301KHz,0.25V CKPK0507-391K390 2.800.281KHz,0.25V CKPK0507-471K470 3.000.251KHz,0.25V CKPK0507-561K560 3.500.251KHz,0.25V CKPK0507-681K680 4.500.241KHz,0.25V CKPK0507-821K820 5.00.201KHz,0.25V CKPK0507-102K1000 6.00.181KHz,0.25V CKPK0507-122K120080.161KHz,0.25V CKPK0507-152K150090.151KHz,0.25V CKPK0507-182K1800100.141KHz,0.25V CKPK0507-222K2200120.101KHz,0.25V CKPK0507-272K2700160.091KHz,0.25V CKPK0507-332K3300200.081KHz,0.25V CKPK0507-392K3900240.071KHz,0.25V CKPK0507-472K4700260.0601KHz,0.25V CKPK0507-562K5600280.0551KHz,0.25V CKPK0507-682K6800300.0501KHz,0.25V CKPK0507-822K8200400.0451KHz,0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0608-100K100.09 2.001KHz,0.25V CKPK0608-120K120.10 1.901KHz,0.25V CKPK0608-150K150.11 1.801KHz,0.25V CKPK0608-180K180.12 1.601KHz,0.25V CKPK0608-220K220.12 1.501KHz,0.25V CKPK0608-270K270.17 1.201KHz,0.25V CKPK0608-330K330.19 1.001KHz,0.25V CKPK0608-390K390.220.951KHz,0.25V CKPK0608-470K470.230.901KHz,0.25V CKPK0608-560K560.290.851KHz,0.25V CKPK0608-680K680.370.801KHz,0.25V CKPK0608-820K820.390.751KHz,0.25V CKPK0608-101K1000.440.701KHz,0.25V CKPK0608-121K1200.640.651KHz,0.25V CKPK0608-151K1500.730.601KHz,0.25V CKPK0608-181K1800.820.551KHz,0.25V CKPK0608-221K2200.920.501KHz,0.25V CKPK0608-271K270 1.30.451KHz,0.25V CKPK0608-331K330 1.50.401KHz,0.25V CKPK0608-391K390 1.80.351KHz,0.25V CKPK0608-471K470 2.30.301KHz,0.25V CKPK0608-561K560 3.00.281KHz,0.25V CKPK0608-681K680 3.250.251KHz,0.25V CKPK0608-821K820 4.160.231KHz,0.25V CKPK0608-102K1000 5.000.211KHz,0.25V CKPK0608-122K1200 6.500.201KHz,0.25V CKPK0608-152K15008.000.171KHz,0.25V CKPK0608-182K18009.000.161KHz,0.25V CKPK0608-222K22009.500.141KHz,0.25V CKPK0608-272K270010.000.121KHz,0.25V CKPK0608-332K330011.000.101KHz,0.25V CKPK0608-392K390013.000.091KHz,0.25V CKPK0608-472K470017.000.0801KHz,0.25V CKPK0608-562K560020.000.0701KHz,0.25V CKPK0608-682K680027.000.0601KHz,0.25V CKPK0608-822K820032.000.0551KHz,0.25V CKPK0608-103K1000038.000.0501KHz,0.25V CKPK0608-123K1200043.000.0451KHz,0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0707-4R7M 4.70.025 3.00100KHz ，0.25V CKPK0707-6R8M 6.80.030 2.50100KHz ，0.25V CKPK0707-100K 100.065 2.401KHz,0.25V CKPK0707-120K 120.075 2.301KHz,0.25V CKPK0707-150K 150.09 2.201KHz,0.25V CKPK0707-180K 180.12 2.001KHz,0.25V CKPK0707-220K 220.13 1.801KHz,0.25V CKPK0707-270K 270.14 1.601KHz,0.25V CKPK0707-330K 330.15 1.501KHz,0.25V CKPK0707-390K 390.20 1.301KHz,0.25V CKPK0707-470K 470.22 1.201KHz,0.25V CKPK0707-560K 560.25 1.101KHz,0.25V CKPK0707-680K 680.32 1.001KHz,0.25V CKPK0707-820K 820.350.951KHz,0.25V CKPK0707-101K 1000.400.901KHz,0.25V CKPK0707-121K 1200.550.851KHz,0.25V CKPK0707-151K 1500.800.801KHz,0.25V CKPK0707-181K 1800.900.701KHz,0.25V CKPK0707-221K 220 1.000.651KHz,0.25V CKPK0707-271K 270 1.200.601KHz,0.25V CKPK0707-331K 330 1.300.501KHz,0.25V CKPK0707-391K 390 1.400.451KHz,0.25V CKPK0707-471K 470 1.500.381KHz,0.25V CKPK0707-561K 560 1.800.351KHz,0.25V CKPK0707-681K 680 2.500.301KHz,0.25V CKPK0707-821K 820 3.700.281KHz,0.25V CKPK0707-102K 1000 4.000.261KHz,0.25V CKPK0707-122K 1200 4.500.241KHz,0.25V CKPK0707-152K 1500 5.600.221KHz,0.25V CKPK0707-182K 1800 6.500.211KHz,0.25V CKPK0707-222K 22007.700.201KHz,0.25V CKPK0707-272K 27009.600.181KHz,0.25V CKPK0707-332K 330012.000.171KHz,0.25V CKPK0707-392K 390014.00.161KHz,0.25V CKPK0707-472K 470020.00.151KHz,0.25V CKPK0707-562K 560024.00.121KHz,0.25V CKPK0707-682K 680028.00.101KHz,0.25V CKPK0707-822K 820032.00.091KHz,0.25V CKPK0707-103K 1000036.00.081KHz,0.25V CKPK0707-123K 1200048.00.0701KHz,0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0810-3R3M 3.30.04 4.20100KHz,0.25V CKPK0810-3R9M 3.90.05 4.20100KHz,0.25V CKPK0810-4R7M 4.70.06 4.00100KHz,0.25V CKPK0810-5R6M 5.60.06 3.80100KHz,0.25V CKPK0810-6R8M 6.80.06 3.80100KHz,0.25V CKPK0810-8R2M 8.20.06 3.60100KHz,0.25V CKPK0810-100K 100.07 3.501KHz,0.25V CKPK0810-120K 120.08 3.201KHz,0.25V CKPK0810-150K 150.09 3.001KHz,0.25V CKPK0810-180K 180.10 2.801KHz,0.25V CKPK0810-220K 220.12 2.501KHz,0.25V CKPK0810-270K 270.14 2.201KHz,0.25V CKPK0810-330K 330.16 2.001KHz,0.25V CKPK0810-390K 390.16 1.801KHz,0.25V CKPK0810-470K 470.18 1.501KHz,0.25V CKPK0810-560K 560.20 1.401KHz,0.25V CKPK0810-680K 680.23 1.301KHz,0.25V CKPK0810-820K 820.27 1.201KHz,0.25V CKPK0810-101K 1000.30 1.201KHz,0.25V CKPK0810-121K 1200.33 1.001KHz,0.25V CKPK0810-151K 1500.460.801KHz,0.25V CKPK0810-181K 1800.510.601KHz,0.25V CKPK0810-221K 2200.620.551KHz,0.25V CKPK0810-271K 2700.650.451KHz,0.25V CKPK0810-331K 3300.790.401KHz,0.25V CKPK0810-391K 3900.910.401KHz,0.25V CKPK0810-471K 470 1.10.351KHz,0.25V CKPK0810-561K 560 1.20.301KHz,0.25V CKPK0810-681K 680 1.50.281KHz,0.25V CKPK0810-821K 820 1.70.251KHz,0.25V CKPK0810-102K 1000 2.00.221KHz,0.25V CKPK0810-122K 1200 2.50.201KHz,0.25V CKPK0810-152K 1500 2.90.181KHz,0.25V CKPK0810-182K 1800 3.50.151KHz,0.25V CKPK0810-222K 2200 4.20.141KHz,0.25V CKPK0810-272K 2700 5.10.131KHz,0.25V CKPK0810-332K 3300 6.10.121KHz,0.25V CKPK0810-392K 39007.80.111KHz,0.25V CKPK0810-472K 47008.00.1001KHz,0.25V CKPK0810-562K 560010.00.0951KHz,0.25V CKPK0810-682K 680014.00.0901KHz,0.25V CKPK0810-822K 820015.00.0851KHz,0.25V CKPK0810-103K 1000020.00.0801KHz,0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0912-100K 100.04 4.001KHz,0.25V CKPK0912-120K 120.045 3.801KHz,0.25V CKPK0912-150K 150.05 3.501KHz,0.25V CKPK0912-180K 180.06 3.201KHz,0.25V CKPK0912-220K 220.07 3.001KHz,0.25V CKPK0912-270K 270.10 2.801KHz,0.25V CKPK0912-330K 330.12 2.501KHz,0.25V CKPK0912-390K 390.12 2.001KHz,0.25V CKPK0912-470K 470.13 1.901KHz,0.25V CKPK0912-560K 560.14 1.801KHz,0.25V CKPK0912-680K 680.15 1.701KHz,0.25V CKPK0912-820K 820.16 1.601KHz,0.25V CKPK0912-101K 1000.25 1.501KHz,0.25V CKPK0912-121K 1200.28 1.201KHz,0.25V CKPK0912-151K 1500.30 1.001KHz,0.25V CKPK0912-181K 1800.450.701KHz,0.25V CKPK0912-221K 2200.500.601KHz,0.25V CKPK0912-271K 2700.650.501KHz,0.25V CKPK0912-331K 3300.850.451KHz,0.25V CKPK0912-391K 3900.950.401KHz,0.25V CKPK0912-471K 470 1.10.351KHz,0.25V CKPK0912-561K 560 1.20.301KHz,0.25V CKPK0912-681K 680 1.30.251KHz,0.25V CKPK0912-821K 820 1.50.201KHz,0.25V CKPK0912-102K 1000 2.00.201KHz,0.25V CKPK0912-122K 1200 2.30.181KHz,0.25V CKPK0912-152K 1500 2.90.171KHz,0.25V CKPK0912-182K 1800 3.30.161KHz,0.25V CKPK0912-222K 2200 4.50.151KHz,0.25V CKPK0912-272K 2700 5.50.141KHz,0.25V CKPK0912-332K 3300 5.70.131KHz,0.25V CKPK0912-392K 3900 6.50.121KHz,0.25V CKPK0912-472K 47007.20.121KHz,0.25V CKPK0912-562K 56009.50.111KHz,0.25V CKPK0912-682K 6800120.101KHz,0.25V CKPK0912-822K 8200140.101KHz,0.25V CKPK0912-103K 10000160.091KHz,0.25V CKPK0912-123K 12000180.091KHz,0.25V CKPK0912-153K 15000210.081KHz,0.25V CKPK0912-183K 18000250.081KHz,0.25V CKPK0912-223K 22000330.071KHz,0.25V ● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1012-3R3M 3.30.025 5.5100KHz,0.45V CKPK1012-3R9M 3.90.030 5.0100KHz,0.45V CKPK1012-4R7M 4.70.030 5.0100KHz,0.45V CKPK1012-5R6M 5.60.040 4.8100KHz,0.45V CKPK1012-6R8M 6.80.040 4.8100KHz,0.45V CKPK1012-8R2M8.20.045 4.5100KHz,0.45V CKPK1012-100K100.050 4.21KHz,0.45V CKPK1012-120K120.050 4.01KHz,0.45V CKPK1012-150K150.060 3.81KHz,0.45V CKPK1012-180K180.070 3.81KHz,0.45V CKPK1012-220K220.080 3.51KHz,0.45V CKPK1012-270K270.090 3.21KHz,0.45V CKPK1012-330K330.100 3.01KHz,0.45V CKPK1012-390K390.120 2.51KHz,0.45V CKPK1012-470K470.120 2.01KHz,0.45V CKPK1012-560K560.140 1.81KHz,0.45V CKPK1012-680K680.150 1.71KHz,0.45V CKPK1012-820K820.160 1.61KHz,0.45V CKPK1012-101K1000.180 1.51KHz,0.45V CKPK1012-121K1200.200 1.41KHz,0.45V CKPK1012-151K1500.250 1.21KHz,0.45V CKPK1012-181K1800.280 1.01KHz,0.45V CKPK1012-221K2200.3000.901KHz,0.45V CKPK1012-271K2700.4200.801KHz,0.45V CKPK1012-331K3300.5500.701KHz,0.45V CKPK1012-391K3900.6000.601KHz,0.45V CKPK1012-471K4700.6500.551KHz,0.45V CKPK1012-561K5600.7500.501KHz,0.45V CKPK1012-681K6800.8500.501KHz,0.45V CKPK1012-821K820 1.1000.401KHz,0.45V CKPK1012-102K1000 1.4000.301KHz,0.45VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1016-4R7M 4.70.020 5.8100KHz,0.25V CKPK1016-5R6M 5.60.025 5.5100KHz,0.25V CKPK1016-6R8M 6.80.025 5.4100KHz,0.25V CKPK1016-8R2M8.20.028 5.2100KHz,0.25V CKPK1016-100K100.035 5.01KHz,0.25V CKPK1016-120K120.035 4.51KHz,0.25V CKPK1016-150K150.040 4.01KHz,0.25V CKPK1016-180K180.060 4.01KHz,0.25V CKPK1016-220K220.080 3.81KHz,0.25V CKPK1016-270K270.100 3.51KHz,0.25V CKPK1016-330K330.100 3.51KHz,0.25V CKPK1016-390K390.120 3.21KHz,0.25V CKPK1016-470K470.120 3.01KHz,0.25V CKPK1016-560K560.130 2.81KHz,0.25V CKPK1016-680K680.140 2.51KHz,0.25V CKPK1016-820K820.150 2.21KHz,0.25V CKPK1016-101K1000.180 2.01KHz,0.25V CKPK1016-121K1200.200 1.81KHz,0.25V CKPK1016-151K1500.220 1.61KHz,0.25V CKPK1016-181K1800.250 1.51KHz,0.25V CKPK1016-221K2200.300 1.51KHz,0.25V CKPK1016-271K2700.350 1.41KHz,0.25V CKPK1016-331K3300.600 1.31KHz,0.25V CKPK1016-391K3900.700 1.21KHz,0.25V CKPK1016-471K4700.800 1.01KHz,0.25V CKPK1016-561K5600.900 1.01KHz,0.25V CKPK1016-681K680 1.0000.91KHz,0.25V CKPK1016-821K820 1.2000.81KHz,0.25V CKPK1016-102K1000 1.5000.71KHz,0.25V。
工字电感的ae值
工字电感的ae值工字电感是一种常见的电感器件，其结构是由铁氧体、磁芯、线圈等部件组成。
它通常被用于电子电路中作为低通滤波器、高通滤波器和共模噪声滤波器等。
在工字电感设计和制造过程中，其中一个关键参数是AE值（A*L）。
本文将详细介绍工字电感AE值的含义、计算方法、影响因素以及相关应用。
一、AE值的含义AE值是工字电感的一个重要参数，它代表了电感器件的电感量。
AE值可以通过以下公式来计算：AE = A × L其中，A是工字电感截面积（单位为平方米），L是线圈长度（单位为米）。
单位为亨利（H）。
在工字电感制造过程中，通常需要根据电路的要求，选择合适的AE值。
较小的AE值表示电感器件的电感量较小，适用于需要较小电感量的电路；相反，较大的AE值则表示电感器件的电感量较大，适用于需要较大电感量的电路。
二、AE值的计算方法工字电感的AE值可以通过以下计算方法来确定：1. 计算工字电感的磁芯面积和线圈长度工字电感的磁芯面积可以通过测量磁芯截面的宽度和高度计算得出。
线圈长度可以通过测量线圈的长度来确定。
2. 计算AE值利用上述计算得到的磁芯面积和线圈长度，就可以通过公式AE = A × L计算工字电感的AE值。
三、影响AE值的因素AE值的大小受到多种因素的影响，包括磁芯材料、磁芯形状、线圈材料、线圈绕数等。
下面详细介绍这些因素对AE值的影响。
1. 磁芯材料和形状工字电感的磁芯通常使用铁氧体材料，磁芯的形状包括三角形、方形、圆形等。
磁芯材料的磁导率越高，AE值越大；磁芯的形状越宽，AE值越大。
2. 线圈材料线圈材料也会影响AE值。
一般来说，线圈使用的铜丝越粗，AE值越大；线圈使用的材料的电阻率越低，AE值越大。
3. 线圈绕数线圈绕数也对AE值的大小产生影响。
当工字电感的线圈绕数较多时，AE值相应也会变大。
工字电感的AE值是一个很重要的参数，因为它直接影响到电感器件的使用效果。
根据需要，工字电感的AE值可以调整来满足电路的要求。
工字电感定义
工字电感，带屏蔽罩为避免有些电感线圈在工作时产生的磁场影响其它电路及元器件正常工作，工字电感的产品特点:具有高功率及高磁饱和性，低阻抗、体积小的特点。
工字电感的定义工字电感是我们在插件作业中会经常看见电子元器件中的一种；一般是在工字磁芯上，根据不同参数要求进行绕线圈，并有引出两个引脚，这样制成的电感叫做工字电感。
常用工字电感（PK型电感）：被视为轴向电感的立式版，应用方便与轴向电感类似，但是常用工字电感可以拥有更大的体积的电感类型，电流自然也能得到一定的应用提升。
工字电感由于采样延迟、采样精度、驱动级延迟等因素，会导致输出电流产生误差。
工字电感在不同的电源电压和负载条件下，从表一中可以看到输出电流精度均能很好的控制在5.5%以内。
同时也可以看到，要实现较好的电流精度，固定负载下需要相应的电源电压与之匹配。
工字电感所绕制的线圈，其平面不与旋转面平行，而是相交成一定的角度，导线来回弯折的次数，常称为折点数。
蜂房式绕法的优点是体积小，分布电容小，而且电感量大。
工字电感性能变现在以下几个方面1.工字电感在电路中使用的工作频率是：40kHz-5MHz2.工字电感在电路中所能承受的工作温度：-30℃ to +125℃3.电感感量能够储存的温度是在：-25℃ to +85℃4.电感储存湿度的比例是在：30 to 95%5.工字电感的规格具有尺寸小，工字型的电感在绕制上是比较方便，安装简单、价格便宜，可靠性高的特点。
工字电感的骨架是由铜芯线圈的绕线支架的。
工字电感是电子电路或装置的属性之一，指的是：当电流改变时，因电磁感应而产生抵抗电流改变的电动势一些体积较大的固定式电感器或可调式电感器（如振荡线圈、阻流圈等），常用的工字电感被视为轴向电感的立式版，应用方便与轴向电感类似，但是常用工字电感可以拥有更大的体积的电感类型，电流自然也能得到一定的应用提升；大多数是将漆包线（或纱包线）直接绕在骨架上，再将磁心或铜心、铁心等装入骨架的内腔，以提高其电感量。
38-LGB 类型 工字型电感
尚有更多规格，可按需定制。
测试频率 (MHz)
7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796
额定电流 (mA) MAX
2000 1950 1900 1800 1750 1680 1500 1450 1320 1230 1150 1100 1000 970 920 860 800 710 660 600 550 500 470 430 400 370 350 320 300 275 250 220 200 190 170 155 150 140 120 110 100
品质因素 (MIN)
130 100 100 100 100 100 100 100 100 100 100 100 80 80 80 80 80 80 80 70 70 50 50 50 45 45 65 65 65 50 50 50 50 50 50 50 90 90 80 80 80 80 70 70 65 65 65 65 45 45 45 45 45 45
尚有更多规格，可按需定制。
测试频率 (MHz)
2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.796 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.252 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0796 0.0252 0.0252 0.0252
工字电感规格参数
● FEATURES 特性Contain high - frequency ferrite,comparatively large rated current高频铁氧体● APPLICATIONS 用途Power supples，DC-DC converters，TVs，VTRs，Computers；computer Peripherals,Telephones， Air-Cindltions，Home Elecyric Appliance，Electronic toys and games.用于电源,DC-DC转换器；电视机，录相机，计算机；计算机周边设计；电话机，空气调节器，家用电器，电动玩具等。
● PART NUMBERING SYSTEM 品名系统●TYPE(型号)A B C D ECKPK0304 4.5Max 6.5Max15±2.0 1.5±0.50.48±0.05CKPK0406 6.0Max9.0Max15±2.0 2.0±0.50.48±0.05CKPK0507 6.5Max9.5Max15±2.0 2.5±0.50.6±0.05CKPK06088.0Max11.0Max15±2.0 3.0±0.50.6±0.05CKPK07079.0Max10.0Max15±2.0 5.0±0.50.6±0.05CKPK081011.0Max13.0Max15±2.0 5.0±0.50.6±0.05CKPK091212.0Max15.0Max15±2.0 5.0±0.50.8±0.1CKPK101213.0Max16.0Max15±2.0 6.0±0.50.8±0.1CKPK101613.0Max20.0Max15±2.0 6.0±0.50.8±0.1CKPK121615.0Max20.0Max15±2.07.5±1.00.8±0.1● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0304-3R3M 3.30.200.55100KHz，0.25V CKPK0304-3R9M 3.90.220.50100KHz，0.25V CKPK0304-4R7M 4.70.250.45100KHz，0.25V CKPK0304-5R6M 5.60.300.40100KHz，0.25V CKPK0304-6R8M 6.80.300.38100KHz，0.25V CKPK0304-8R2M8.20.350.35100KHz，0.25V CKPK0304-100K100.350.321KHz，0.25V CKPK0304-120K120.400.301KHz，0.25V CKPK0304-150K150.500.281KHz，0.25V CKPK0304-180K180.600.271KHz，0.25V CKPK0304-220K220.700.251KHz，0.25V CKPK0304-270K270.800.241KHz，0.25V CKPK0304-330K330.900.231KHz，0.25V CKPK0304-390K390.900.221KHz，0.25V CKPK0304-470K47 1.00.201KHz，0.25V CKPK0304-560K56 1.20.191KHz，0.25V CKPK0304-680K68 1.50.181KHz，0.25V CKPK0304-820K82 2.00.171KHz，0.25V CKPK0304-101K100 3.00.161KHz，0.25V CKPK0304-121K120 3.50.151KHz，0.25V CKPK0304-151K150 4.00.151KHz，0.25V CKPK0304-181K180 5.00.141KHz，0.25V CKPK0304-221K220 6.00.141KHz，0.25V CKPK0304-271K2707.00.131KHz，0.25V CKPK0304-331K3308.00.121KHz，0.25V CKPK0304-391K3909.00.101KHz，0.25V CKPK0304-471K47011.00.081KHz，0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0406-4R7M 4.70.120 1.50100KHz ，0.25V CKPK0406-5R6M 5.60.120 1.20100KHz ，0.25V CKPK0406-6R8M 6.80.130 1.00100KHz ，0.25V CKPK0406-8R2M 8.20.1400.80100KHz ，0.25V CKPK0406-100K 100.1500.701KHz,0.25V CKPK0406-120K 120.1800.601KHz,0.25V CKPK0406-150K 150.2000.651KHz,0.25V CKPK0406-180K 180.2400.631KHz,0.25V CKPK0406-220K 220.2600.601KHz,0.25V CKPK0406-270K 270.3000.561KHz,0.25V CKPK0406-330K 330.4000.551KHz,0.25V CKPK0406-390K 390.5000.521KHz,0.25V CKPK0406-470K 470.6000.501KHz,0.25V CKPK0406-560K 560.700.501KHz,0.25V CKPK0406-680K 68 1.000.481KHz,0.25V CKPK0406-820K 82 1.200.471KHz,0.25V CKPK0406-101K 100 1.400.451KHz,0.25V CKPK0406-121K 120 1.500.401KHz,0.25V CKPK0406-151K 150 1.600.351KHz,0.25V CKPK0406-181K 180 1.800.301KHz,0.25V CKPK0406-221K 220 2.000.241KHz,0.25V CKPK0406-271K 270 2.500.221KHz,0.25V CKPK0406-331K 330 3.000.201KHz,0.25V CKPK0406-391K 390 3.300.181KHz,0.25V CKPK0406-471K 470 3.500.181KHz,0.25V CKPK0406-561K 560 4.00.161KHz,0.25V CKPK0406-681K 680 6.00.151KHz,0.25V CKPK0406-821K 8207.00.121KHz,0.25V CKPK0406-102K 10009.00.101KHz,0.25V CKPK0406-122K 1200120.091KHz,0.25V CKPK0406-152K 1500150.081KHz,0.25V CKPK0406-182K 1800170.0701KHz,0.25V CKPK0406-222K 2200220.0701KHz,0.25V CKPK0406-272K 2700300.0601KHz,0.25V CKPK0406-332K3300330.0551KHz,0.25V● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0507-4R7M 4.70.050 2.00100KHz ，0.25V CKPK0507-6R8M 6.80.060 1.80100KHz ，0.25V CKPK0507-100K 100.080 1.601KHz,0.25V CKPK0507-120K 120.10 1.601KHz,0.25V CKPK0507-150K 150.14 1.501KHz,0.25V CKPK0507-180K 180.15 1.201KHz,0.25V CKPK0507-220K 220.16 1.001KHz,0.25V CKPK0507-270K 270.200.901KHz,0.25V CKPK0507-330K 330.300.801KHz,0.25V CKPK0507-390K 390.400.751KHz,0.25V CKPK0507-470K 470.450.701KHz,0.25V CKPK0507-560K 560.500.651KHz,0.25V CKPK0507-680K 680.550.601KHz,0.25V CKPK0507-820K 820.600.551KHz,0.25V CKPK0507-101K 1000.800.501KHz,0.25V CKPK0507-121K 120 1.000.481KHz,0.25V CKPK0507-151K 150 1.500.451KHz,0.25V CKPK0507-181K 180 1.800.421KHz,0.25V CKPK0507-221K 220 2.000.401KHz,0.25V CKPK0507-271K 270 2.300.351KHz,0.25V CKPK0507-331K 330 2.600.301KHz,0.25V CKPK0507-391K 390 2.800.281KHz,0.25V CKPK0507-471K 470 3.000.251KHz,0.25V CKPK0507-561K 560 3.500.251KHz,0.25V CKPK0507-681K 680 4.500.241KHz,0.25V CKPK0507-821K 820 5.00.201KHz,0.25V CKPK0507-102K 1000 6.00.181KHz,0.25V CKPK0507-122K 120080.161KHz,0.25V CKPK0507-152K 150090.151KHz,0.25V CKPK0507-182K 1800100.141KHz,0.25V CKPK0507-222K 2200120.101KHz,0.25V CKPK0507-272K 2700160.091KHz,0.25V CKPK0507-332K 3300200.081KHz,0.25V CKPK0507-392K 3900240.071KHz,0.25V CKPK0507-472K 4700260.0601KHz,0.25V CKPK0507-562K 5600280.0551KHz,0.25V CKPK0507-682K 6800300.0501KHz,0.25V CKPK0507-822K 8200400.0451KHz,0.25V CKPK0507-103K10000600.0401KHz,0.25V● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0608-100K 100.09 2.001KHz,0.25V CKPK0608-120K 120.10 1.901KHz,0.25V CKPK0608-150K 150.11 1.801KHz,0.25V CKPK0608-180K 180.12 1.601KHz,0.25V CKPK0608-220K 220.12 1.501KHz,0.25V CKPK0608-270K 270.17 1.201KHz,0.25V CKPK0608-330K 330.19 1.001KHz,0.25V CKPK0608-390K 390.220.951KHz,0.25V CKPK0608-470K 470.230.901KHz,0.25V CKPK0608-560K 560.290.851KHz,0.25V CKPK0608-680K 680.370.801KHz,0.25V CKPK0608-820K 820.390.751KHz,0.25V CKPK0608-101K 1000.440.701KHz,0.25V CKPK0608-121K 1200.640.651KHz,0.25V CKPK0608-151K 1500.730.601KHz,0.25V CKPK0608-181K 1800.820.551KHz,0.25V CKPK0608-221K 2200.920.501KHz,0.25V CKPK0608-271K 270 1.30.451KHz,0.25V CKPK0608-331K 330 1.50.401KHz,0.25V CKPK0608-391K 390 1.80.351KHz,0.25V CKPK0608-471K 470 2.30.301KHz,0.25V CKPK0608-561K 560 3.00.281KHz,0.25V CKPK0608-681K 680 3.250.251KHz,0.25V CKPK0608-821K 820 4.160.231KHz,0.25V CKPK0608-102K 1000 5.000.211KHz,0.25V CKPK0608-122K 1200 6.500.201KHz,0.25V CKPK0608-152K 15008.000.171KHz,0.25V CKPK0608-182K 18009.000.161KHz,0.25V CKPK0608-222K 22009.500.141KHz,0.25V CKPK0608-272K 270010.000.121KHz,0.25V CKPK0608-332K 330011.000.101KHz,0.25V CKPK0608-392K 390013.000.091KHz,0.25V CKPK0608-472K 470017.000.0801KHz,0.25V CKPK0608-562K 560020.000.0701KHz,0.25V CKPK0608-682K 680027.000.0601KHz,0.25V CKPK0608-822K 820032.000.0551KHz,0.25V CKPK0608-103K 1000038.000.0501KHz,0.25V CKPK0608-123K 1200043.000.0451KHz,0.25V CKPK0608-153K1500065.000.0401KHz,0.25V● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0707-4R7M 4.70.025 3.00100KHz ，0.25V CKPK0707-6R8M 6.80.030 2.50100KHz ，0.25V CKPK0707-100K 100.065 2.401KHz,0.25V CKPK0707-120K 120.075 2.301KHz,0.25V CKPK0707-150K 150.09 2.201KHz,0.25V CKPK0707-180K 180.12 2.001KHz,0.25V CKPK0707-220K 220.13 1.801KHz,0.25V CKPK0707-270K 270.14 1.601KHz,0.25V CKPK0707-330K 330.15 1.501KHz,0.25V CKPK0707-390K 390.20 1.301KHz,0.25V CKPK0707-470K 470.22 1.201KHz,0.25V CKPK0707-560K 560.25 1.101KHz,0.25V CKPK0707-680K 680.32 1.001KHz,0.25V CKPK0707-820K 820.350.951KHz,0.25V CKPK0707-101K 1000.400.901KHz,0.25V CKPK0707-121K 1200.550.851KHz,0.25V CKPK0707-151K 1500.800.801KHz,0.25V CKPK0707-181K 1800.900.701KHz,0.25V CKPK0707-221K 220 1.000.651KHz,0.25V CKPK0707-271K 270 1.200.601KHz,0.25V CKPK0707-331K 330 1.300.501KHz,0.25V CKPK0707-391K 390 1.400.451KHz,0.25V CKPK0707-471K 470 1.500.381KHz,0.25V CKPK0707-561K 560 1.800.351KHz,0.25V CKPK0707-681K 680 2.500.301KHz,0.25V CKPK0707-821K 820 3.700.281KHz,0.25V CKPK0707-102K 1000 4.000.261KHz,0.25V CKPK0707-122K 1200 4.500.241KHz,0.25V CKPK0707-152K 1500 5.600.221KHz,0.25V CKPK0707-182K 1800 6.500.211KHz,0.25V CKPK0707-222K 22007.700.201KHz,0.25V CKPK0707-272K 27009.600.181KHz,0.25V CKPK0707-332K 330012.000.171KHz,0.25V CKPK0707-392K 390014.00.161KHz,0.25V CKPK0707-472K 470020.00.151KHz,0.25V CKPK0707-562K 560024.00.121KHz,0.25V CKPK0707-682K 680028.00.101KHz,0.25V CKPK0707-822K 820032.00.091KHz,0.25V CKPK0707-103K 1000036.00.081KHz,0.25V CKPK0707-123K 1200048.00.0701KHz,0.25V CKPK0707-153K1500056.00.0601KHz,0.25V● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0810-3R3M 3.30.04 4.20100KHz,0.25V CKPK0810-3R9M 3.90.05 4.20100KHz,0.25V CKPK0810-4R7M 4.70.06 4.00100KHz,0.25V CKPK0810-5R6M 5.60.06 3.80100KHz,0.25V CKPK0810-6R8M 6.80.06 3.80100KHz,0.25V CKPK0810-8R2M 8.20.06 3.60100KHz,0.25V CKPK0810-100K 100.07 3.501KHz,0.25V CKPK0810-120K 120.08 3.201KHz,0.25V CKPK0810-150K 150.09 3.001KHz,0.25V CKPK0810-180K 180.10 2.801KHz,0.25V CKPK0810-220K 220.12 2.501KHz,0.25V CKPK0810-270K 270.14 2.201KHz,0.25V CKPK0810-330K 330.16 2.001KHz,0.25V CKPK0810-390K 390.16 1.801KHz,0.25V CKPK0810-470K 470.18 1.501KHz,0.25V CKPK0810-560K 560.20 1.401KHz,0.25V CKPK0810-680K 680.23 1.301KHz,0.25V CKPK0810-820K 820.27 1.201KHz,0.25V CKPK0810-101K 1000.30 1.201KHz,0.25V CKPK0810-121K 1200.33 1.001KHz,0.25V CKPK0810-151K 1500.460.801KHz,0.25V CKPK0810-181K 1800.510.601KHz,0.25V CKPK0810-221K 2200.620.551KHz,0.25V CKPK0810-271K 2700.650.451KHz,0.25V CKPK0810-331K 3300.790.401KHz,0.25V CKPK0810-391K 3900.910.401KHz,0.25V CKPK0810-471K 470 1.10.351KHz,0.25V CKPK0810-561K 560 1.20.301KHz,0.25V CKPK0810-681K 680 1.50.281KHz,0.25V CKPK0810-821K 820 1.70.251KHz,0.25V CKPK0810-102K 1000 2.00.221KHz,0.25V CKPK0810-122K 1200 2.50.201KHz,0.25V CKPK0810-152K 1500 2.90.181KHz,0.25V CKPK0810-182K 1800 3.50.151KHz,0.25V CKPK0810-222K 2200 4.20.141KHz,0.25V CKPK0810-272K 2700 5.10.131KHz,0.25V CKPK0810-332K 3300 6.10.121KHz,0.25V CKPK0810-392K 39007.80.111KHz,0.25V CKPK0810-472K 47008.00.1001KHz,0.25V CKPK0810-562K 560010.00.0951KHz,0.25V CKPK0810-682K 680014.00.0901KHz,0.25V CKPK0810-822K 820015.00.0851KHz,0.25V CKPK0810-103K 1000020.00.0801KHz,0.25V CKPK0810-123K 1200022.00.0701KHz,0.25V CKPK0810-153K1500024.00.0601KHz,0.25V● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK0912-100K 100.04 4.001KHz,0.25V CKPK0912-120K 120.045 3.801KHz,0.25V CKPK0912-150K 150.05 3.501KHz,0.25V CKPK0912-180K 180.06 3.201KHz,0.25V CKPK0912-220K 220.07 3.001KHz,0.25V CKPK0912-270K 270.10 2.801KHz,0.25V CKPK0912-330K 330.12 2.501KHz,0.25V CKPK0912-390K 390.12 2.001KHz,0.25V CKPK0912-470K 470.13 1.901KHz,0.25V CKPK0912-560K 560.14 1.801KHz,0.25V CKPK0912-680K 680.15 1.701KHz,0.25V CKPK0912-820K 820.16 1.601KHz,0.25V CKPK0912-101K 1000.25 1.501KHz,0.25V CKPK0912-121K 1200.28 1.201KHz,0.25V CKPK0912-151K 1500.30 1.001KHz,0.25V CKPK0912-181K 1800.450.701KHz,0.25V CKPK0912-221K 2200.500.601KHz,0.25V CKPK0912-271K 2700.650.501KHz,0.25V CKPK0912-331K 3300.850.451KHz,0.25V CKPK0912-391K 3900.950.401KHz,0.25V CKPK0912-471K 470 1.10.351KHz,0.25V CKPK0912-561K 560 1.20.301KHz,0.25V CKPK0912-681K 680 1.30.251KHz,0.25V CKPK0912-821K 820 1.50.201KHz,0.25V CKPK0912-102K 1000 2.00.201KHz,0.25V CKPK0912-122K 1200 2.30.181KHz,0.25V CKPK0912-152K 1500 2.90.171KHz,0.25V CKPK0912-182K 1800 3.30.161KHz,0.25V CKPK0912-222K 2200 4.50.151KHz,0.25V CKPK0912-272K 2700 5.50.141KHz,0.25V CKPK0912-332K 3300 5.70.131KHz,0.25V CKPK0912-392K 3900 6.50.121KHz,0.25V CKPK0912-472K 47007.20.121KHz,0.25V CKPK0912-562K 56009.50.111KHz,0.25V CKPK0912-682K 6800120.101KHz,0.25V CKPK0912-822K 8200140.101KHz,0.25V CKPK0912-103K 10000160.091KHz,0.25V CKPK0912-123K 12000180.091KHz,0.25V CKPK0912-153K 15000210.081KHz,0.25V CKPK0912-183K 18000250.081KHz,0.25V CKPK0912-223K 22000330.071KHz,0.25V CKPK0912-273K 27000400.051KHz,0.25V CKPK0912-333K33000450.041KHz,0.25V● SPECIFICATION TABLE:PART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1012-3R3M 3.30.025 5.5100KHz,0.45V CKPK1012-3R9M 3.90.030 5.0100KHz,0.45V CKPK1012-4R7M 4.70.030 5.0100KHz,0.45V CKPK1012-5R6M 5.60.040 4.8100KHz,0.45V CKPK1012-6R8M 6.80.040 4.8100KHz,0.45V CKPK1012-8R2M8.20.045 4.5100KHz,0.45V CKPK1012-100K100.050 4.21KHz,0.45V CKPK1012-120K120.050 4.01KHz,0.45V CKPK1012-150K150.060 3.81KHz,0.45V CKPK1012-180K180.070 3.81KHz,0.45V CKPK1012-220K220.080 3.51KHz,0.45V CKPK1012-270K270.090 3.21KHz,0.45V CKPK1012-330K330.100 3.01KHz,0.45V CKPK1012-390K390.120 2.51KHz,0.45V CKPK1012-470K470.120 2.01KHz,0.45V CKPK1012-560K560.140 1.81KHz,0.45V CKPK1012-680K680.150 1.71KHz,0.45V CKPK1012-820K820.160 1.61KHz,0.45V CKPK1012-101K1000.180 1.51KHz,0.45V CKPK1012-121K1200.200 1.41KHz,0.45V CKPK1012-151K1500.250 1.21KHz,0.45V CKPK1012-181K1800.280 1.01KHz,0.45V CKPK1012-221K2200.3000.901KHz,0.45V CKPK1012-271K2700.4200.801KHz,0.45V CKPK1012-331K3300.5500.701KHz,0.45V CKPK1012-391K3900.6000.601KHz,0.45V CKPK1012-471K4700.6500.551KHz,0.45V CKPK1012-561K5600.7500.501KHz,0.45V CKPK1012-681K6800.8500.501KHz,0.45V CKPK1012-821K820 1.1000.401KHz,0.45V CKPK1012-102K1000 1.4000.301KHz,0.45VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1016-4R7M 4.70.020 5.8100KHz,0.25V CKPK1016-5R6M 5.60.025 5.5100KHz,0.25V CKPK1016-6R8M 6.80.025 5.4100KHz,0.25V CKPK1016-8R2M8.20.028 5.2100KHz,0.25V CKPK1016-100K100.035 5.01KHz,0.25V CKPK1016-120K120.035 4.51KHz,0.25V CKPK1016-150K150.040 4.01KHz,0.25V CKPK1016-180K180.060 4.01KHz,0.25V CKPK1016-220K220.080 3.81KHz,0.25V CKPK1016-270K270.100 3.51KHz,0.25V CKPK1016-330K330.100 3.51KHz,0.25V CKPK1016-390K390.120 3.21KHz,0.25V CKPK1016-470K470.120 3.01KHz,0.25V CKPK1016-560K560.130 2.81KHz,0.25V CKPK1016-680K680.140 2.51KHz,0.25V CKPK1016-820K820.150 2.21KHz,0.25V CKPK1016-101K1000.180 2.01KHz,0.25V CKPK1016-121K1200.200 1.81KHz,0.25V CKPK1016-151K1500.220 1.61KHz,0.25V CKPK1016-181K1800.250 1.51KHz,0.25V CKPK1016-221K2200.300 1.51KHz,0.25V CKPK1016-271K2700.350 1.41KHz,0.25V CKPK1016-331K3300.600 1.31KHz,0.25V CKPK1016-391K3900.700 1.21KHz,0.25V CKPK1016-471K4700.800 1.01KHz,0.25V CKPK1016-561K5600.900 1.01KHz,0.25V CKPK1016-681K680 1.0000.91KHz,0.25V CKPK1016-821K820 1.2000.81KHz,0.25V CKPK1016-102K1000 1.5000.71KHz,0.25VPART NUMBER品名INDUCTANCE(μH)电感值DCR (Max.)(Ω)直流电阻Idc (Max.)(A)额定电流TEST FREQUENCY测试频率CKPK1216-330K 330.08 5.01KHz,0.25V CKPK1216-390K 390.10 4.51KHz,0.25V CKPK1216-470K 470.11 4.21KHz,0.25V CKPK1216-560K 560.12 4.01KHz,0.25V CKPK1216-680K 680.13 3.51KHz,0.25V CKPK1216-820K 820.14 3.31KHz,0.25V CKPK1216-101K 1000.15 3.21KHz,0.25V CKPK1216-121K 1200.16 3.01KHz,0.25V CKPK1216151K 1500.17 2.71KHz,0.25V CKPK1216181K 1800.18 2.51KHz,0.25V CKPK1216-221K 2200.20 2.31KHz,0.25V CKPK1216-271K 2700.30 2.01KHz,0.25V CKPK1216-331K 3300.40 1.91KHz,0.25V CKPK1216-391K 3900.50 1.81KHz,0.25V CKPK1216-471K 4700.60 1.71KHz,0.25V CKPK1216-561K 5600.70 1.61KHz,0.25V CKPK1216-681K 6800.80 1.51KHz,0.25V CKPK1216-821K 8200.90 1.41KHz,0.25V CKPK1216-102K 1000 1.00 1.31KHz,0.25V CKPK1216-152K 1500 1.50 1.01KHz,0.25V CKPK1216-182K 1800 2.000.81KHz,0.25V CKPK1216-222K 2200 3.000.71KHz,0.25V CKPK1216-272K 2700 4.500.61KHz,0.25V CKPK1216-332K33006.000.51KHz,0.25V● SPECIFICATION TABLE:。
工字电感测试参数
工字电感测试参数1. 简介工字电感是一种常用的电子元件，通常用于滤波、能量储存、电流限制等电路中。
为了确保工字电感的性能和质量，需要对其进行参数测试。
本文将对工字电感测试参数进行详细介绍。
2. 测试参数2.1 电感值电感值是工字电感的重要参数之一，用于衡量电感元件对电流变化的反应程度。
它是指在恒定电压下，电感元件两端的电压随时间变化时所产生的感应电动势的比值。
电感值的单位为亨利（H）。
2.2 电感容量电感容量是电感元件的容量特性之一，是指在给定频率下，电感元件所能储存的最大能量。
电感容量越大，表示工字电感在储存能量时的效果越好。
2.3 电阻电阻是工字电感的另一个重要参数。
它是指电感元件对电流流过时的阻力。
电阻值越大，表示工字电感在电流限制方面的效果越好。
2.4 频率响应频率响应是指工字电感对频率变化的响应能力。
工字电感的频率响应特性可以通过频率范围和相位差来描述。
频率范围表示电感元件正常工作的频率范围，相位差表示工字电感对频率变化的时间延迟。
2.5 电感线性度电感线性度是指工字电感的电感值在不同电流下的变化程度。
一个线性度好的工字电感，在不同电流下的电感值变化较小，能够保持较好的稳定性。
2.6 磁芯材料磁芯材料是工字电感中用于增加电感效果的材料。
不同的磁芯材料具有不同的电感特性，对工字电感的参数测试和测试结果有一定的影响。
3. 测试方法和工具3.1 电感仪电感仪是用于测量工字电感参数的一种专用设备。
它可以测量电感值、电感容量、电阻等参数，并能够通过外部电路进行频率响应和线性度的测试。
3.2 外部电路为了测试工字电感的频率响应和线性度，通常需要搭建一定的外部电路。
外部电路可以包括信号发生器、示波器、电阻等元件，用于模拟真实工作环境并测量相关参数。
3.3 校准工具为了确保测试结果的准确性，需要使用校准工具对电感仪和外部电路进行校准。
校准工具可以是标准电感元件、标准电阻或其他可靠的校准设备。
4. 测试步骤4.1 准备工作首先需要准备好工字电感样品、电感仪和外部电路，并确保所有设备和电路的正常工作。
电感电感图片
目录
1.电感图片 2.电容图片
电感識別 Inductance recognition
色环电感-LGA
工字电感-LGB
EMI抑制器 recognition
音频线圈-LGBA
滤波电感-LGC
磁通磁管-RH
电感識別 Inductance recognition
涂装电感-LGD
升压电感-LGE
磁环磁珠-T
电感認識 Inductance recognition
阻流电感-LGF
环形线圈-LGH
6孔磁珠-IR6H
电感識別 Inductance recognition
EMI滤波-LGHA 共模电感-LGHB 阻抗线圈-IR2H
电感識別 Inductance recognition
電容 Capacitance
電容：電流容量(代码:C)
排容：一排電容並連在一起稱排容
電容的種類非常多，此種沒有極性及正反面之分
電解電容 Electrolytic Capacitance
電容：電流容量
此零件有極性之分，顏色部份為負(-)極
可调线圈-LKA
射频线圈-LKB
穿芯磁珠-IRH
电感識別 Inductance recognition
功率贴片-SMD
功率贴片-SMDRH
积层贴片-SMDA
电感識別 Inductance recognition
贴片磁珠-SMDB
绕线贴片-SMDC
功率贴片-SMDE
電解電容 Electrolytic Capacitance
電容：電流容量
零件代碼為 C
此零件有極性之分，顏色部份為負(-)極 或以零件腳長區分，長( + ) 、 短 ( - )
磁环电感和工字电感
工字电感的特点是具有高功率及高磁饱和性，低阻抗、体积小的特点。
工字电感不仅体积小，且安装便捷属于插件型电感，占用空间小；高Q 值因素；分布电容较小；自共振频率较高；特殊导针结构，不易产生闭路现象，
磁环电感是与连接电缆构成一个电感器(电缆中的导线在磁环上绕几圈作为电感线圈)，是常用的抗干扰元件，对于高频噪声有很好的屏蔽作用，故被称为吸收磁环，由于通常使用铁氧体材料制成，所以又称铁氧体磁环【简称磁环】，这要看看在电路中的作用了，要是滤波的倒是没什么，要是震荡电路，要求就较为严格，换上去也能用，但是性能没有工字的好。
掌握电感元件的电路符号,主要参数,型号命名和标识
4)．提高线圈的Q值所采取的措施 品质因数Q是反映线圈质量的重要参数，提高线圈的Q值，可以说是绕 制线圈要注意的重点之一。 （1）根据工作频率，选用线圈的导线 （2）选用优质的线圈骨架，减少介质损耗 （3）选择合理的线圈尺寸，可以减少损耗 （4）选定合理屏蔽罩的直径 （5）采用磁芯可使线圈圈数显著减少 （6）线圈直径适当选大些，利于减小损耗 （7）减小绕制线圈的分布电容
对于高频线圈电感量L由于测试起来更为麻烦，一般都根据在电路使用 效果适当调整，以确定其电感量是否合适。
对于多个绕组的线圈，还要用万用表检测各绕组之间线圈是否短路；对 于具有铁芯和金属屏蔽罩的线圈，要测量其绕组与铁芯或金属屏蔽罩之 间是否短路。
3)．绕制线圈的注意事项
线圈在实际使用过程中，有相当数量品种的电感线圈是非标准件，都 是根据需要有针对性进行绕制。自行绕制时，要注意以下几点：
（4）分布电容 线圈匝与匝之间、线圈与地之间、线圈与屏蔽盒之间以及线圈的
层与层之间都存在着电容，这些电容统称为线圈的分布电容。分布电 容的存在会使线圈的等效总损耗电阻增大，品质因数Q降低。为减少 当布电容，高频线圈常采用多股漆包或丝包线，绕制线圈时常采用蜂 房绕法或分段绕法等。
（5）额定电流 额定电流是指允许长时间通过线圈的最大工作电流。
图 6-5
（2）磁芯线圈 用导线在磁芯、磁环上绕制成线圈或者在空芯线圈中插入磁芯组成的线
圈均称为磁芯线圈，它的符号和实物外形如图 4-6 所示。
图 6-6
图 6-7所示的单管收音机电路中的高频扼流圈（ GZL ），就是选用了 磁芯线圈、它的作用是阻止高频信号通过，而让音频信号和直流电通过， 使耳机发现声音。
CD铁芯
ED铁芯
阶梯铁芯
OD铁芯
工字型电感的原理
工字型电感的原理
工字型电感，又称为工字电感，是一种以铁氧体等磁性材料为芯的电感元件。
它由中央磁芯和两个对称的侧边磁芯组成，形状类似于文字“工”。
工字型电感的工作原理基于电感的基本原理，即通过感应磁场来储存电能。
当电流流过工字电感的线圈时，线圈周围会产生磁场。
这个磁场与中央磁芯和侧边磁芯相互作用，导致磁通量增加。
由于磁场的变化，在线圈中会产生感应电动势（感应电压）。
这个感应电压的大小和极性取决于电流的变化方式和方向，遵循法拉第电磁感应定律。
工字电感的特殊之处在于它使用一个铁芯来增强其感应能力。
铁芯的存在使得磁场更加集中，增强了电感的感应能力。
这种增强感应能力的效果使得工字电感在电子电路中具有关键作用。
工字电感广泛应用于各种电子设备中，例如滤波、稳压、变换、调节及隔离等电路功能中。
在滤波电路中，工字电感可以起到去噪声、降纹波的作用，而在稳压电路中，工字电感则有助于保持稳定的电压输出。
通过储存和释放电能，工字电感可以平滑电流和电压，降低电路中的噪声和波动，提供稳定的电源。
总结来说，工字型电感的工作原理是基于电感的基本原理，通过感应磁场来储存电能。
其特殊之处在于使用铁芯增强感应能力，使其在电源管理和其他应用中具有重要作用。
1。
工字电感器的特性及其对电路性能的影响
工字电感器的特性及其对电路性能的影响工字电感器是一种常见的电子元件，广泛应用于各类电路中。
它具有一些特殊的特性，这些特性对电路性能起着重要的影响。
本文将介绍工字电感器的特性以及它对电路性能的影响，并探讨如何优化电路设计以充分发挥工字电感器的作用。
首先，让我们了解一下工字电感器的特性。
工字电感器是一种线圈元件，由铁芯和绕组构成。
它的特点主要体现在以下几个方面。
第一，高电感。
工字电感器的结构使得绕组线圈互相耦合，增加了电感的效果。
相比于其他类型的电感器，工字电感器的电感值相对较高，可以在电路中提供更好的电感效果。
第二，低直流电阻。
由于工字电感器通常使用高导电性的材料制成，其直流电阻相对较低。
这使得工字电感器在直流电路中具有较好的传输性能，并能减少电路功率损耗。
第三，高频电路性能优越。
工字电感器的结构使其具有良好的高频响应能力。
它能够在高频电路中提供较低的串扰和损耗，并增强电路的稳定性和可靠性。
接下来，让我们来讨论一下工字电感器对电路性能的影响。
首先，工字电感器对电路的频率响应有着显著的影响。
由于工字电感器具有良好的高频响应能力，它可以在高频电路中起到很好的滤波作用。
通过合理选择工字电感器的参数，可以使得电路对特定频率的信号有较好的通行性，并抑制其他频率的干扰信号。
这对于无线电通信、音频放大器等高频电路至关重要。
其次，工字电感器对电路的稳定性和抗干扰能力有很大的影响。
工字电感器的高电感和低直流电阻使得它能够提供稳定的电流传输，并减少电路中的功率损耗。
这对于电源线路、稳压电路等需要稳定电流和电压输出的电路非常重要。
同时，工字电感器对电路中的噪声和干扰信号具有一定的屏蔽能力，可以提高电路的抗干扰性能。
最后，工字电感器还对电路的效率和能量转换起着一定的影响。
由于工字电感器的低直流电阻和高效能性，它能够在电路中有效地转换电能，降低能量损耗，并提高电路的效率。
这在电源管理、电动机控制等需要高效能的电路中尤为重要。
工字电感测试参数
工字电感测试参数
工字电感测试参数通常包括以下几个方面：
1. 电感值范围：指电感器可以测试的电感值的范围，一般用于指定测试设备的适用范围。
2. 测试频率：指测量电感值时使用的频率，常见的测试频率有100Hz、1kHz、10kHz等。
3. 测量精度：指测量结果与实际值之间的误差，一般以百分比或绝对值表示。
4. 分辨率：指测量设备可以显示的最小变化值，通常以小数点后的位数表示。
5. 外壳材质：电感器外壳通常采用金属或塑料材质，不同材质对测试结果可能有影响。
6. 线性范围：指电感器在正常工作范围内的线性度，即输入和输出之间的关系是否满足线性关系。
7. 温度系数：指电感器在不同温度下电感值的变化情况，一般以ppm/℃或%℃表示。
8. 工作电流：指电感器可以承受的最大工作电流，超过该电流可能会对电感器产生损坏。
这些参数通常根据不同的应用需求来确定，可以根据具体情况选择适合的工字电感测试参数。
工字电感耐压值计算公式
工字电感耐压值计算公式引言：工字电感是电子电路中常见的元件之一，它具有承受一定电压的能力。
为了确保电路的安全运行，我们需要计算工字电感的耐压值。
本文将介绍工字电感耐压值的计算公式，并探讨其在实际应用中的意义。
一、工字电感耐压值的计算公式工字电感的耐压值取决于其结构和材料的特性。
根据经验公式，工字电感的耐压值可由以下公式计算得出：耐压值 = (受压面积 × 绝缘材料的耐压强度) / 包围电感的长度其中，受压面积是指工字电感两个绕线端子之间的绝缘材料所承受的压力面积，绝缘材料的耐压强度是指该绝缘材料能够承受的最大电场强度，包围电感的长度是指绕制工字电感所使用的绝缘材料的长度。
二、工字电感耐压值的意义工字电感的耐压值是衡量其绝缘性能的重要指标。
合理选择工字电感的耐压值，可以确保电路在高电压环境下的稳定运行。
如果工字电感的耐压值不足，可能导致电路发生击穿现象，从而引起电路故障或甚至危险事故。
三、工字电感耐压值的应用在实际应用中，我们需要根据具体电路的需求来选择合适的工字电感耐压值。
一般情况下，工字电感的耐压值应大于电路中的最高电压。
例如，如果电路中的最高电压为1000V，我们可以选择耐压值为1500V的工字电感，以确保电路的安全运行。
工字电感的耐压值还受到环境温度的影响。
在高温环境下，绝缘材料的耐压强度可能会降低，因此需要选择更高耐压值的工字电感。
结论：工字电感耐压值的计算公式为(受压面积× 绝缘材料的耐压强度) / 包围电感的长度。
合理选择工字电感的耐压值对于电路的安全运行至关重要。
在实际应用中，我们需要根据具体电路的需求和环境条件来选择合适的工字电感耐压值。
通过合理选择工字电感的耐压值，我们可以确保电路的稳定运行，避免电路故障和危险事故的发生。
