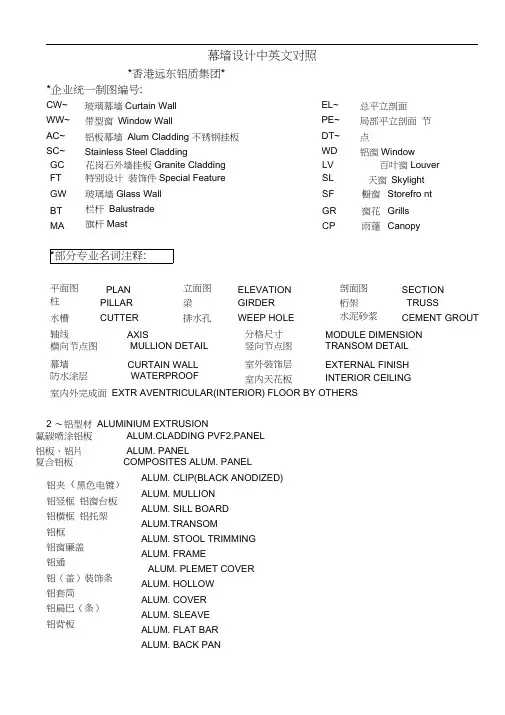

幕墙设计中英文对照

幕墙设计中英文对照

东铝质集团*

CW~ 玻璃幕墙Curtain Wall EL~ 总平立剖面

WW~ 带型窗Window Wall PE~ 局部平立剖面

AC~ 铝板幕墙Alum Cladding DT~ 节点

SC~ 不锈钢挂板Stainless Steel Cladding WD 铝窗Window

GC 花岗石外墙挂板Granite Cladding LV 百叶窗Louver

FT 特别设计装饰件Special Feature SL 天窗Skylight

GW 玻璃墙Glass Wall SF 橱窗Storefront

BT 栏杆Balustrade GR 窗花Grills

MA 旗杆Mast CP雨蓬Canopy

～1～

平面图PLAN 立面图ELEVATION 剖面图SECTION

柱PILLAR 梁GIRDER 桁架TRUSS

水槽CUTTER 排水孔WEEP HOLE 水泥砂浆CEMENT GROUT 轴线AXIS 分格尺寸MODULE DIMENSION

横向节点图MULLION DETAIL 竖向节点图TRANSOM DETAIL

幕墙CURTAIN WALL 室外装饰层EXTERNAL FINISH

防水涂层WATERPROOF 室内天花板INTERIOR CEILING

室内外完成面EXTR AVENTRICULAR(INTERIOR) FLOOR BY OTHERS

～2～铝型材ALUMINIUM EXTRUSION

氟碳喷涂铝板ALUM.CLADDING PVF2.PANEL

铝板、铝片ALUM. PANEL

复合铝板COMPOSITES ALUM. PANEL

铝夹(黑色电镀) ALUM. CLIP(BLACK ANODIZED)

铝竖框ALUM. MULLION

铝窗台板ALUM. SILL BOARD

铝横框ALUM. TRANSOM

铝托架ALUM. STOOL TRIMMING

铝框ALUM. FRAME

铝窗廉盖ALUM. PLEMET COVER

铝通ALUM. HOLLOW

铝（盖）装饰条ALUM. COVER

铝套筒ALUM. SLEAVE

铝扁巴（条）ALUM. FLAT BAR

铝背板ALUM. BACK PAN

铝百叶ALUM. LOUVRE

接驳件SPIDER FIXING

铝管ALUM. CHANNEL

铝角ALUM. ANGLE

铝锚托架ALUM. ANCHOR BRACKET

铝轻型槽ALUM. LIGHT TROUGH

铝锚片ALUM. ANCHOR PLATE

铝垫圈ALUM. WASHER PLATE (6063-T6)

磨光边框GLAZING FRAME

铝型材ALUM. EXTRUSION

锯齿垫圈SERRATED WASHER

铝副框ALUM. ADAPTOR

铝基板ALUM. SILL BOARD

铝角立柱CORNER ALUM. MULLION (6063-T6) PVF2 FINISH

铝横梁盖ALUM. TRANSOM COVER (6063-T5) PVF2 FINISH

铝水槽ALUM. GUTTER

铝窗扇ALUM. WINDOW SASH

ALUM. TRIMMING

铝支架ALUM. SUPPORT

铝压板ALUM. PRESSER

～3～

钢结构STEEL FRAME 钢构件STEEL WORK

铝通STEEL HOLLOW

“工”字钢STEEL “I”BEAM冷弯钢ECONOMIC STEEL

矩形钢管REC. STEEL TUBE 镀锌槽钢G.M.S. CHANNEL

镀锌角钢G.M.S. ANGLE STEEL 镀锌钢板G.M.S. PLATE

镀锌钢（垫）介子G.M.S. WASHER 不锈钢折弯槽S.S. BEND CHANNEL

不锈钢STAINLESS STEEL（S.S.）预埋件G.M.S.EMBED

不锈钢“T”型梁S.S. “T”BEAM “T”型钢STEEL T SECTION

发丝不锈钢板S.S. PLATE(HAIRLINE FINISH) 钢管STEEL TUBE

石板FLAG STONE

～4～

密封胶（防水胶）WEATHERSEAL SEALANT 结构胶STRUCTURAL SEALANT 绝缘垫片ISOLACTION SHEET 双面胶带DOUBLE SIDE TAPE 玻璃密封胶（夹胶玻璃专用密封胶）BETA-SEAL 海绵条SPONGE

防潮板WATERPROOF 橡胶条GASKET

聚脂塑料填塞棒（小圆棒）BACKER ROD 垫片SHIM

保温棉THERMAL INSULATION 橡胶垫块EPDM SEALANT

1小时防火棉 1 HOUR FIRE STOP INSULATION 地脚螺栓TRUSS BOLT

化学螺栓CHEMICAL BOLT 膨胀螺栓EXPANSION BOLT

不锈钢平头螺栓S.S. F.H. BOLT (F.H.S) 埋头螺丝DORMANT SCREW 不锈钢六角头螺栓配垫片S.S. H.E.X. HEAD BOLT&WASHER

不锈钢沉头螺丝S.S. F.H. SCREW 不锈钢盘头螺丝(P.H.S) S.S. P.H. SCREW

植钉STUD ALUM.钢钉DRIVING PIN 射钉PIN

铝铆钉ALUM. RIVE

M5x15 S.S PH. SELF TAPPING SREW M5x15 不锈钢自攻螺钉

: Machine Screw: 机械螺丝

B: T apping Screw: 自攻螺丝(分使用于金属与使用于塑料二种)

B-1: Sheet Metal Tapping Screw. (铁板牙自攻螺丝)

B-2: Plastic Tapping Screw. ( 塑料用, 自攻螺丝)

C: Wooden Screw : 木工螺丝

D: Drywall Screw : 水泥墙螺丝

E: Self Drilling Screws 钻尾螺丝（不锈钢钻尾螺丝，复合材料钻尾螺丝）

E-1:STAINLESS STEEL SELF DRILLING SCREWS 不锈钢钻尾螺丝

E-2:Bi-Metal Self Drilling Screws 复合材料钻尾螺丝

～4～（玻璃）

中空玻璃RISION INSULATION GLASS 夹胶玻璃LAMINATED GLASS

钢化清玻璃CLEAR IRON TEMPERED GLASS 玻璃栏杆GLASS BALUSTER

单片玻璃MONOLITHIC GLASS

12(LOW-E)+12A+12钢化中空玻璃12HS LOW-E+12+12HS INSULATING GLASS

8mm钢化玻璃(加铝背板) 8mm HS OPAQUE GLASS(ALUMINIUM BACK PAN)

～4～（其它）

厚度THK.

ALUM. ADAPTER 铝附框

ALUM. PRESSER 铝压板

MULTI-POINT LOCKING DEVICE 锁点

LOCK BOX W/REMOV ABLE HANDLE锁箱（手柄可拆卸）

钢通STEEL. HOLLOW

CEMENT GROUTINE 水泥防水砂浆
