微测辐射热计的应用
微波辐射计在现代大气探测中的应用

微波辐射计在现代大气探测中的应用作者:李丽王雪松来源:《吉林农业》2015年第04期摘要:微波辐射计是主要微波遥感仪器之一,在微波遥感系统中占有重要地位。
本文简单介绍了微波辐射计的概念、特点、种类及其应用。
通过了解微波辐射计有助于发挥其特长,使之更好地在各个方面发挥作用。
关键词:微波辐射计;特点;种类;应用中图分类号: P412 文献标识码: A DOI编号: 10.14025/ki.jlny.2015.07.0591 微波辐射与微波辐射计微波辐射通常指0.1~30厘米波长范围的辐射。
微波辐射本质也是一种“长波热辐射”。
自然界里许多物体都能吸收和发射微波辐射。
被动微波遥感不易被发现,具有良好的保密性,与雷达等主动微波遥感不同,属于被动接收。
被测目标自身所辐射的微波频段的电磁能量是极其微弱的信号,信号功率远远小于辐射计的噪声功率,信噪比微波辐射计由天线、数据记录装置、宽带接收机、数据存储装置组成。
它是一种高灵敏度的接收机,它的体积、功耗都很小,可以利用信号处理,获取更多的信息。
微波的穿透能力比较强,可以穿透云雾、雨雪,具有全天候的能力。
微波可以提供不同于红外遥感和可见光能提供的信息,因此优于可见光和红外。
微波辐射计常用的有全功率微波辐射计、Dicke型微波辐射计、数字增益自动补偿微波辐射计三种类型。
2 微波辐射计提供的大气信息微波辐射计可提供高精确度的大气综合参数,比如亮温、液态水的路径、可降水的水汽和大气低层的温度廓线;大气参数的低分辨率的垂直廓线,比如温度的垂直廓线、水汽强度廓线和液态水强度廓线;理想的测量值,比如资料同化、主动雷达或激光雷达观测资料的融合。
3 微波辐射计在气象学中的应用在气象学中的主要应用领域有大气微波遥感、陆地微波遥感、海洋微波遥感。
其中具体领域包括气象、地质、海洋、农林、军事、医疗、天文等方面。
微波辐射计的平台有地基、空基、星基。
例如地面、船载平台,飞机、导弹、气球平台,卫星、飞船、航天飞机平台。
微测量技术方法及应用

微测量技术方法及应用微测量技术是指对微观尺度下的特征和物理量进行测量的技术。
随着微电子技术和纳米技术的发展,微观领域的测量需求逐渐增加,因此微测量技术得到了广泛应用。
微测量技术主要依靠先进的仪器设备和精密的测量方法,可以对微观领域中的尺寸、形态、位置、应力、电磁场、温度、压力等多种物理量进行测量。
微测量技术的方法主要包括光学测量、力学测量、电学测量、热学测量和化学测量等。
光学测量是微测量技术中常用的一种方法,包括激光干涉测量、扫描电子显微镜、原子力显微镜等。
激光干涉测量是一种非接触式测量方法,可以实现对微观尺寸和形态的测量。
扫描电子显微镜能够扫描表面形貌,并能够对物体进行放大观察,可以用于微观形貌的测量。
原子力显微镜可以通过探针对样品表面进行扫描,探测器能够感知到样品表面的微弱力变化,从而实现对微观物体尺寸、形貌和电荷的测量。
力学测量方法主要包括纳米压痕、纳米力学探针等。
纳米压痕是一种采用纳米硬度计对材料进行压痕测试的方法,可以获得材料的硬度和弹性模量等力学性能参数。
纳米力学探针则通过控制探针对物体表面施加力,测量物体表面力-位移曲线,进而分析物体的弹性行为。
电学测量方法包括微电子器件的电性测量和量子点测量等。
微电子器件的电性测量可以通过测试器件的电学特性来评估器件的性能,包括电流、电压、电阻、电容、电感等参数。
在纳米尺度下,量子点测量能够实现对载流子的量子效应和电磁场等的测量。
热学测量方法主要包括纳米热电测量、纳米热断层显微镜等。
纳米热电测量是利用热电效应对样品进行测量的方法,通过测量样品产生的微小电压或电流来获得样品的温度或温度差。
纳米热断层显微镜则是一种通过红外辐射来观测样品热辐射分布的方法,可以实现对纳米尺度下样品温度的测量。
化学测量方法主要包括光谱学、电化学测量等。
光谱学通过测量物质对电磁波的吸收、散射、发射等来研究物质的性质和结构。
电化学测量则是利用物质在电极上的电化学反应来实现对物质成分和电化学参数的测量。
5在用微波辐射计测量降雨特性中的应用

在 程 () , 中 凡和b 根 辐 计 作 率 接 的 化 式由 考 献3 供的 方 4 可 据 射 工 频 和 收 极 形 参 文 [提 j
方法计算,T 可由统计模式计算得到,T 可由 , & 辐射计直接测量。当 , 由地面雨强雨量计测量 给出后,方程 () 4 中只有对应的辐射亮温 几一个物理量,因此就可以由方程 ()求出对应 4 降雨强度 万 时的辐射亮温 T b 。再将辐射亮温 T代入方程 ( 中,而方程 ( 中 T可由 b ) ] 扮 辐 射计直接测量, , T, h 也可直接测量,则方程 ()中 I 只有 R一个未知量,因此就可由方程 () I 求出对应辐射亮温 T时的功率反射系数R 根据大量的实际测量统计回归分析就可以得到mn b 。 ,
用。
由实验观侧研究表明.反射板上水层厚度虽然与降雨特性有关,但当雨强增大到一定值
时, 水层厚 度变化趋于平 缓.由 功率反 于 射系数直接影响天线 温度0的变化, 此, 来 因 反过
也可以由 辐射计所测里的天线温度 e来动态估算功率反射系数 R 平板反射器与犬项 .当 和辐 射计天线成 4 度角放置接收天顶方向的辐射时。不进行方位扫描, 5 这种情况下功率反射系 数R的统计模式可采用指数模式,即:
. , f E o d r
N wY rT nm l8, 1810 e . eu , 3 p -2. ok 9 p 1 m t d" 0- 6 e os p25 0 . h p 2
[ 1 2 CR cm edtn Rc 3 "p i aeutn rn u i p d tn 2 9 - I R o m naos . 8 e f tnao f a f s n ii ]9 C e i e 8 S ci c i o d y [ DCH g, .uad .. i rM.D ceadERWet trMi o ae im t ] ..og F G iu,BS d , .e rn .. s e" c w v r o er 」 . O r J ne T k , l o1 m aue et w t vpr i R v w o If r a d ii ee wa e V l , ..u o esr n o a r o" ei s nr e n m lm tr vs . K JB t n m f e a n e f a d
非制冷氧化钒微测辐射热计响应曲线

【非制冷氧化钒微测辐射热计响应曲线分析与应用】1. 概述非制冷氧化钒微测辐射热计是一种高精度、高灵敏度的热敏材料,在多个领域有着广泛的应用。
本文将围绕非制冷氧化钒微测辐射热计的响应曲线进行深度分析,探讨其原理以及在科学研究和工程应用中的重要性。
2. 非制冷氧化钒微测辐射热计的原理非制冷氧化钒微测辐射热计是一种基于辐射热测量原理的仪器,其核心部件是氧化钒热释电元件。
当元件受到外界热辐射时,产生温度变化,通过测量温度变化来确定辐射热量。
该原理的精密度和可靠性使得非制冷氧化钒微测辐射热计成为热辐射测量领域的重要工具。
3. 非制冷氧化钒微测辐射热计的响应曲线非制冷氧化钒微测辐射热计的响应曲线是指在不同辐射热量作用下,热计的输出响应曲线。
通过对其响应曲线的分析,可以了解热计在不同工作条件下的性能特点,进而指导实际应用。
4. 响应曲线的深入解析响应曲线的形状和特征反映了非制冷氧化钒微测辐射热计的灵敏度、线性度和稳定性。
通过对响应曲线的深入解析,可以研究影响热计性能的因素,为优化热计设计和改进应用提供理论依据。
5. 响应曲线的工程应用在工程领域,通过对非制冷氧化钒微测辐射热计的响应曲线进行实时监测和分析,可以实现对热工艺过程的精确控制,提高产品质量和生产效率。
在热辐射测量和热能利用领域,响应曲线的合理应用也能够推动新技术的发展和创新。
6. 总结与展望非制冷氧化钒微测辐射热计的响应曲线是其重要的性能参数,对其进行深入分析和应用有助于提高热辐射测量的准确度和可靠性。
随着科学技术的不断发展,相信非制冷氧化钒微测辐射热计的响应曲线在更多领域将发挥重要作用,为人类社会的发展和进步做出更大的贡献。
7. 个人观点作为文章写手,通过撰写本文,我更加深入地了解了非制冷氧化钒微测辐射热计的重要性和应用价值。
在未来的工作中,我将继续关注该领域的最新进展,努力为科学研究和工程实践提供更多有价值的信息和思路。
通过对非制冷氧化钒微测辐射热计的响应曲线进行深入分析和应用,可以更好地理解其工作原理和性能特点,为相关领域的热研究和工程实践提供重要支持。
微波辐射计应用场合与任务

目录1微波辐射计应用场合与任务 (2)2微波辐射计组成与关键技术 (3)3微波辐射计研究热点与趋势(星载微波辐射计) (7)4关于微波辐射计发展的思考建议 (9)参考文献 (10)微波辐射计(英语:microwave radiometer,缩写为“MWR”)也称为“微波辐射仪”,是一种用于测量亚毫米级到厘米级波长(频率约为1-1000GHz)的电磁波(微波)的辐射计。
微波辐射仪能接收大气中的某些成分在一定频率上强烈辐射的微波,经过一定的转换方法,得到大气在垂直和水平方向上的气象要素分布,并且还可以探测到云状、云高以及目力无法观测到的晴空湍流。
此仪器携带方便,可增加探空网在时间和空间上的密度,能观测到大气的连续变化,不致漏掉范围较小但变化剧烈的天气系统。
微波辐射计是一款被动式微波遥感设备,微波遥感起步晚于可见光和红外遥感。
但相对于可见光和红外遥感器而言,微波辐射计能全天候、全天时工作。
可见光遥感只能在白天工作,红外遥感虽可在夜晚工作,但不能穿透云雾。
微波辐射计主要用于中小尺度天气现象,如暴风雨、闪电、强降雨、雾、冰冻及边界层紊流。
对于短时间内生成或消散的中小尺度天气灾害,虽然只是地区性的,但部分事件危害性较大。
在目前中尺度天气现象监测过程中,探空气球和天气雷达是常用的手段。
探空气球会受到使用时间和空间的限制;天气雷达资料基本局限于降雨过程无降水时的欠缺;在离地面5公里范围内卫星遥感数据存在较大的误差。
被动式地基微波辐射计的出现,填补上述研究方法监测方面的空白,是其有效的补充手段。
微波辐射具有独立工作能力,能在几乎各种环境条件工作,非常适合于自动天气站。
用于反演完整的大气廓线,反演数据和原始数据全部保存。
提供完备的顾客定制或全球标准算法。
主要应用如下:对流层剖面的温度、湿度和液态水,天气和气候模型研究,卫星追踪(GPS,伽利略)湿/干延迟和湿度廓线,临近预报大气稳定性(灾害性天气检测),温度反演检测、雾、空气污染,绝对校准云雷达,湿/干延迟改正VLBI技术。
微测辐射热计的等效模型

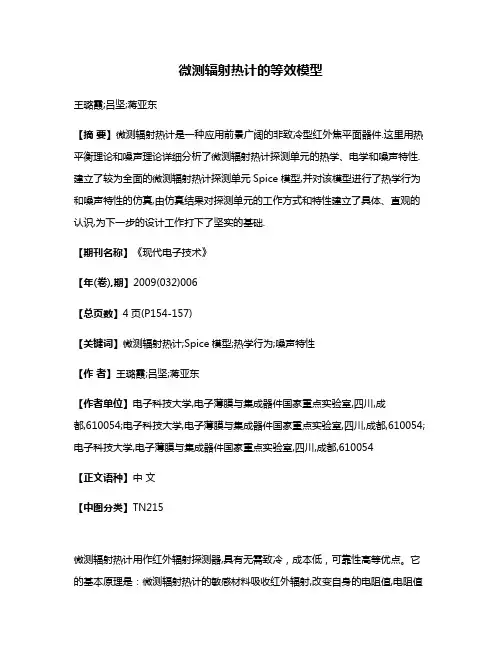

微测辐射热计的等效模型王璐霞;吕坚;蒋亚东【摘要】微测辐射热计是一种应用前景广阔的非致冷型红外焦平面器件.这里用热平衡理论和噪声理论详细分析了微测辐射热计探测单元的热学、电学和噪声特性.建立了较为全面的微测辐射热计探测单元Spice模型,并对该模型进行了热学行为和噪声特性的仿真,由仿真结果对探测单元的工作方式和特性建立了具体、直观的认识,为下一步的设计工作打下了坚实的基础.【期刊名称】《现代电子技术》【年(卷),期】2009(032)006【总页数】4页(P154-157)【关键词】微测辐射热计;Spice模型;热学行为;噪声特性【作者】王璐霞;吕坚;蒋亚东【作者单位】电子科技大学,电子薄膜与集成器件国家重点实验室,四川,成都,610054;电子科技大学,电子薄膜与集成器件国家重点实验室,四川,成都,610054;电子科技大学,电子薄膜与集成器件国家重点实验室,四川,成都,610054【正文语种】中文【中图分类】TN215微测辐射热计用作红外辐射探测器,具有无需致冷,成本低,可靠性高等优点。
它的基本原理是:微测辐射热计的敏感材料吸收红外辐射,改变自身的电阻值,电阻值的改变可以通过电压或电流信号的改变读出[1]。
目前研究报导的微测辐射热计的热敏薄膜材料有VO、多晶硅、多晶锗硅和Ti等材料。
目前,非致冷红外探测器的研究主要致力于越来越低的噪声等效温差(NETD)[2],低噪声信号的读出电路设计将成为关键。
由于有大量的参数影响微测辐射热计和读出电路的特性,需要综合分析探测器的热学、电学和噪声性能,因此建模和分析工作非常重要,而且建模分析还能够减小前期投入,对器件进行优化设计。
这里建立了微测辐射热计的Spice模型,仿真并分析了探测单元的热学行为和噪声特性。
1 微测辐射热计探测单元的建模微测辐射热计探测单元的微桥结构由桥面(光敏面)、桥腿(支撑柱)和衬底3部份构成。
图1所示是一种比较典型的微测辐射热计探测单元结构[3]。
微测辐射热计的热响应时间测试方法

微测辐射热计的热响应时间测试方法微测辐射热计是一种用于测量辐射热流密度的仪器,其热响应时间是指仪器从接收到热流信号到输出稳定的时间。
热响应时间的测试方法对于评估仪器的性能至关重要。
下面介绍一种常用的微测辐射热计热响应时间测试方法。
首先,需要准备一个热源,可以使用一个恒温水浴或者一个恒温热板作为热源。
将热源放置在微测辐射热计的探头上方,使其与探头距离为一定的距离,通常为10-20cm。
接下来,将微测辐射热计的输出信号接入一个数据采集系统,如示波器或数据采集卡。
在数据采集系统中设置一个触发电平,当微测辐射热计输出信号达到该电平时,数据采集系统开始记录数据。
然后,将热源的温度调整到一个稳定的值,记录下该温度。
将热源移动到微测辐射热计的探头上方,使其与探头距离为预定的距离。
在热源移动到探头上方的瞬间,触发数据采集系统开始记录数据。
在记录数据的过程中,热源应该保持稳定的温度,并且不要移动。
记录的数据应该包括微测辐射热计的输出信号和时间。
当微测辐射热计的输出信号稳定时,记录下该时刻的时间。
最后,根据记录的数据,计算微测辐射热计的热响应时间。
热响应时间可以定义为微测辐射热计输出信号从触发电平到稳定输出的时间差。
可以使用数据采集系统中的计算功能或者手动计算来得到热响应时间。
需要注意的是,在测试热响应时间时,应该尽量避免外界干扰,如风、震动等。
此外,测试时应该多次重复,取平均值来提高测试结果的准确性。
总之,微测辐射热计的热响应时间测试方法是一种简单有效的方法,可以用于评估仪器的性能。
通过测试热响应时间,可以了解微测辐射热计的响应速度,为后续的实验和应用提供参考。
恒压偏置条件下的微测辐射热计电流响应率的理论分析

2 D pr e t f nom t nC u tr A rF reR d r cd m ,Wu a 3 0 0 C ia . e at n o f ai o ne , i oc a a a e y m I r o A h n4 0 0 , hn )
Ab ta t n t i p p r o c o b lmerc f c l p a e a r y , w on u h mp r ci n o o v n i n s r c :I h s a e ,fr mir - o o ti o a ln r a s e p it o t t e i ef t f c n e t a e o ol c re tr s o svt r c si g me n n e o sa tv l g i smeh d,s tu e p y ia ema d l f h u r n —e p n i i p e sn a s u d r c n tn o t e b a t o y o a e p t h s l t r lmo e e h c h o t
高精 度 的 电流 源 , 实 际 的成 像 系 统一 般 情 况 下其 而 体 积 和使 用 空 间有一 定 的限 制 ,所 以实 际 的成 像 系 统一 般都 是采 用 恒定 电压 偏 置方式 。传 统 的微测 辐
热辐射探测器件资料

金属材料-正温度系数热敏电阻(PTR)
Positive Temperature Coefficient (PTC) thermistors 金属材料测辐射热计原理:一般金属的能带结构外 层无禁带,自由电子密度很大,以致外界光作用引 起的自由电子密度相对变化较半导体而言可忽略不 计。吸收辐射产生温升后,自由电子浓度的增加是 微不足道的。相反,因晶格振动的加剧妨碍了自由 电子作定向运动,从而电阻温度系数是正的
ΔT的考虑
在相同的入射辐射下,对于热电探测器总是希望 ΔT尽可能地大。 Φ0 T Φ0
T C 1 2 T
1 2 2
G
2
2C
1 2 2
ΔT随G和Cθ的减小而增大。 要减小Cθ,必须减小探测器热敏元件的体积和重量; 要减小G,必须减小热敏元件与周围环境的热交换。 由热时间常量τT的定义可知,减小G又会使τT增大 (牺牲探测响应时间)。所以在设计和选用热电探 测器时须采取折衷方案。另外G对探测极限也有影响。
3. 热敏电阻的参数
热敏电阻探测器的主要参数有: (1)电阻-温度特性
aT = A T R T AT 2 1 2 ① 正温度系数的热敏电阻 RT R0 e B R BT 1 1 a = R R e ② 负温度系数的热敏电阻 T B 2.303 2 lg T T T1 T R2 式中,R 为绝对温度 T2 时的实际电阻值; R 、R 分别
Φ0 温升与热导 T
G
T t
G t Φ0e C Φ0e jt G jC G jC
常数成反比,提高温升将使器件的惯性增大,时间响应变坏。 0 即频率很高或器件的惯性很大时 在高频时(ωτT >>1) T C 温升与热导无关,而与热容成反比,且随频率的增高而衰减。
非制冷微测辐射热计受激光辐照的温度响应

第50卷 第8期 激光与红外Vol.50,No.8 2020年8月 LASER & INFRAREDAugust,2020 文章编号:1001 5078(2020)08 0996 06·光电对抗·非制冷微测辐射热计受激光辐照的温度响应周 冰,贺 宣,刘贺雄,李秉璇,黄富瑜(陆军工程大学石家庄校区电子与光学工程系,河北石家庄050003)摘 要:红外成像技术的不断革新使得非制冷微测辐射热计在军用侦察装备当中逐渐普及,其激光干扰技术的研究也成为热点,而探测器像元受到激光辐照的温度响应是干扰成功的关键。
围绕斩波调制的激光辐照微测辐射热计的温度响应问题,立足UL01011型非晶硅探测器建立了模型,并通过有限元分析的方法研究了调制频率、占空比和激光功率三个参数各自对温度增量的影响。
通过分析推导得出结论:功率稳定的连续激光经斩波调制后辐照至非制冷微测辐射热计时,稳定状态下像元温度升高量的振荡均值,与调制频率成负指数关系,与占空比成正指数关系,与激光功率成倍率关系。
关键词:非制冷微测辐射热计;激光;温度响应;斩波调制中图分类号:TN977 文献标识码:A DOI:10.3969/j.issn.1001 5078.2020.08.017TemperatureresponseofuncooledmicrobolometerirradiatedbylaserZHOUBing,HEXuan,LIUHe xiong,LIBing xuan,HUANGFu yu(DepartmentofOpto ElectronicsEngineering,ArmyEngineeringUniversity,Shijiazhuang050000,China)Abstract:Thecontinuousinnovationofinfraredimagingtechnologyhasmadeuncooledmicrobolometerspopularinmilitaryreconnaissanceequipment Theresearchoflaserinterferencetechnologyhasbecomeahotspot,andthetemperatureresponseofdetectorpixelsirradiatedbylaseristhekeytothesuccessofinterference Inthispaper,thetem peratureresponseofthemicrobolometerirradiatedbychoppinglaserisstudied BasedontheUL01011amorphoussili condetector,themodelisestablished,andtheeffectonthetemperatureincrementofmodulationfrequency,dutycycleandlaserpowerarestudiedthroughfiniteelementanalysis Throughanalysisandderivation,itisconcludedthat,whentheuncooledmicro bolometerisirradiatedbypower stablecontinuouslasermodulatedbychopping,theaveragevalueoftheoscillationofthecelltemperatureinthesteadystateisinanegativeexponentialrelationshipwiththemodula tionfrequency;itispositivelyproportionaltothedutycycle;andisproportionaltothelaserpower.Keywords:uncooledmicrobolometer;laser;temperatureresponse;choppingmodulation基金项目:国家自然科学基金项目(No 61801507)资助。
激光辐照非制冷微测辐射热计的理论研究

第44卷 第4期2020年7月激 光 技 术LASERTECHNOLOGYVol.44,No.4July,2020 文章编号:1001 3806(2020)04 0411 07激光辐照非制冷微测辐射热计的理论研究周 冰,贺 宣,刘贺雄,李秉璇,张 炎(陆军工程大学石家庄校区电子与光学工程系,石家庄050003)摘要:为了研究非制冷微测辐射热计的激光损伤阈值,根据非制冷微测辐射热计的构造和成像原理,分析了像元温度响应机制,推导出了零偏置下和单次偏置时间内像元受到激光辐照的温度增量计算公式;建立了激光辐照非制冷微测辐射热计的有限元分析模型,结合实际工作条件加载热源载荷进行仿真,模拟了激光造成软损伤的过程。
结果表明,激光软损伤阈值可按照零偏置条件下像元温度响应的公式近似计算,其对应的温度偏差不大于3%。
该研究为激光压制干扰红外成像系统的损伤阈值计算提供了参考。
关键词:光学器件;损伤阈值;有限元仿真;温度响应中图分类号:TN977 文献标志码:A doi:10 7510/jgjs issn 1001 3806 2020 04 003ResearchonlaserirradiationuncooledmicrobolometerbasedonfiniteelementanalysisZHOUBing,HEXuan,LIUHexiong,LIBingxuan,ZHANGYan(DepartmentofOpto ElectronicsEngineering,ArmyEngineeringUniversity,Shijiazhuang050003,China)Abstract:Inordertostudythelaserdamagethresholdofanuncooledmicrobolometer,accordingtotheconstructionandimagingprincipleofuncooledmicrobolometer,thetemperatureresponsemechanismofthepixelwasanalyzed,andtheformulaforcalculatingthetemperatureincrementofthelaserunderthezerooffsetandsingleoffsettimewasderived.Afiniteelementanalysismodeloflaserirradiateduncooledmicrobolometerwasestablished.Simulationwascarriedoutbyloadingtheheatsourceloadincombinationwithactualworkingconditions.Thentheprocessofsoftdamagecausedbylaserwassimulated.Theconclusionwasdrawn:lasersoftdamagethresholdapproximatecalculationofthepixeltemperatureresponseunderzerobiasconditionscanbeusedtomeet3%accuracy.Thisstudyprovidesareferenceforthecalculationofdamagethresholdforlasersuppressioninterferenceinfraredimagingsystems.Keywords:opticaldevices;damagethreshold;finiteelementsimulation;temperatureresponse 作者简介:周 冰(1976 ),男,博士,副教授,硕士生导师,主要从事光电对抗方面的研究。
热辐射测量实验测量物体的热辐射能力

热辐射测量实验测量物体的热辐射能力热辐射是指物体由于其温度高于绝对零度而放射出的热能,也称为热辐射能力。
研究物体的热辐射能力对于深入理解物体的热学性质以及工程应用有着重要意义。
而热辐射测量实验则是一种常用的方法,可以准确地测量物体的热辐射能力。
在进行热辐射测量实验时,我们需要使用一些特定的仪器设备,如红外测温仪、热辐射计等。
重要的是,实验环境要尽可能地减少对测量结果的影响,例如尽量降低周围温度的起伏,减少热辐射的干扰等。
为了更好地理解热辐射测量实验,我们可以从以下几个方面进行讨论。
首先是仪器设备的选择与使用。
红外测温仪是一种能够通过红外线来检测物体温度的仪器,它可以在非接触的情况下测量物体的表面温度。
这对于需要避免破坏或无法接触的物体非常有用。
而热辐射计则是一种通过测量物体辐射出的热能来确定其温度的仪器。
它可以精确测量物体辐射的热能,并将其转换为温度值。
其次是实验环境的控制。
为了准确测量物体的热辐射能力,实验环境应尽量消除干扰因素。
因此,我们需要保持实验室温度的相对稳定,避免任何可能的温度波动。
此外,实验时还需避免周围环境中的热辐射对测量结果的影响,例如遮光罩的使用可以避免外部光源的影响。
最后是数据处理与分析。
通过热辐射测量实验所得到的数据可以用于研究物体的热学性质和工程应用。
例如,我们可以利用测得的热辐射数据计算出物体的辐射率和表面温度分布。
这些数据对于热辐射传热模型的建立和优化具有重要意义。
总而言之,热辐射测量实验是一种有效的方法,用于测量物体的热辐射能力。
通过合理选择和使用仪器设备,控制实验环境,并进行数据处理与分析,我们可以更深入地了解物体的热学性质,并为工程应用提供有力的支持。
热辐射测量实验的发展将为我们探索更多关于热辐射的秘密提供更多的可能性。
热红外辐射计和微波辐射计

3.风速风向(平静海面和粗糙海面的发 射率模型)
3.热红外辐射计
3.1 分类与特点 可见光和近红外辐射计(6000K)
红外辐射计 热红外辐射计(300K)
可见光与近红外信号强
热红外信号波长大,易衍射,不易受烟尘、雾、 气溶胶的影响
89.0 5km 3,000
1.1K
AMSR-E观测的全球海表面温度
微波辐射计
微波辐射计
4.2微波波段辐射传输方程
辐射传输方程的微分形式
dL(z) dz
LB
(z)kab
L(z)kab
L(z)是在位置z处的辐亮度; kab是在传输路径上介质的吸收系数; L(z)kab是因大气中吸收气体的吸收而衰减的辐亮度; LB(z)是与吸收气体温度相同的黑体发射的辐亮度
代入 L(T、l) (e T、l)LB (T、l)
得:
TB eTSST TB : 海面亮温(Brightness Temperature) TSST : 海面真实温度(Sea Surface Temperature)
基本原理
TB eTSST 发射率e( , f , ,Ts , Ss ,U10,)
0.9 0.8
30℃ 0.7 0.6 0.5
实线--35‰ 盐水 虚线--纯水
30℃
0℃
ρ
H,V
0.4 0 5 10 15 20 25 30 35 40 45 50 频率f (GHz)
微波辐射计
微波测量海表面盐度: 首选辐射计频率是L波段1.4GHz 首选极化状态是垂直极化 首选观测角是0~10度 在此条件下,天线探测的亮温几乎不受海面风速 和海浪的影响
一种优化的微测热辐射计热学参数性能测试分析方法

一
种 优 化 的 微测 热 辐 射 计 热 学 参 数 性 能 测 试 分 析 方 法
刘子 吕 坚, 兴, 蒋亚 王 骥, 郑 东, 涛
( 电子科技 大学 电子薄膜与集成器件 国家重点实验室 , 四川 成都 6 05 ) 10 4
摘 要 : 化 的 微 测 热 辐 射 计 热 学参 数 的 测 试 方 法 , 传 统 测 试 方 法 相 比 , 够 实 现 热 导 和 响 应 时 间 的精 确 测 量 , 优 与 能 克
E e t ncS in ea d T c n lg f hn , h n d 6 0 5 , h a lc o i ce c n e h oo yo ia C e g u 1 0 4 C i ) r C n
Ab t a t s r c :An i r v d t s me h d wa n r d c d mp o e e t t o sito u e .Co a e t eta i o a n ,i c u d b r r cso n m— mp r d wi t r dt n lo e t o l e mo ep e i n a d i hh i i p r o a .Ne e t ee s i i e s o i lme ta d a t if e c ff b c t d p o e s h o g h e tp o e s wi h e n1 s v r l s t s a y t mp e n n n i n u n e o a r a e r c s .T r u h t e t s r c s t t e h —l i h mir b lmee sf b i ae c o oo t r a rc t d,t i ts t o sr l b e a d p e iin hs e t meh d i ei l n r cso . a Ke r s y wo d :mir b l mee ;ts ;t ema o d c a c ;t e a a a i n e c o o o tr e t h r lc n u t n e h r l p c t c m c a
MP-3000A型地基微波辐射计探测性能及其在乌鲁木齐降水天气中的初步应用

5 7 8 ,d 0 i : 1 0 . 1 1 7 5 5 / j . i s s n . 1 0 0 6— 7 6 3 9 ( 2 0 1 3 )一 0 3— 0 5 7 0
MP一3 0 0 0 A型 地 基微 波 辐射 计 探 测 性 能 及 其在 乌 鲁木 齐 降水 天 气 中的初 步 应 用
整层可降水量 的相关 系数分别为 0 . 9 9 、 0 . 7 4、 0 . 9 2和 0 . 9 4, 均达 到 0 . 0 1显著性 水平 。1 0 k m 以下垂
直廓线分析表 明: 微波辐射计测量 的温 度值均小 于探 空测量值 , 相 量偏差冬季最小 , 夏季最 大。降水发生 时两者探 测的温湿度廓线变化趋势
2 . 1 温 度
力增 宽 的辐射 的强 度 和形 状 的信 息 , 可 以得 到 水 汽 廓线 。2 2 G H z附 近适 合 进 行 相 对 潮 湿 地 区 的 地 基 廓线 反演 。微 波遥 感 反演算 法 从早 期 的经验 统计 算 法 过 渡到 神 经 网络 方 法 I 2 , 已 经 有 了 很 大 的 发
空站 安置 了一 台 M P一3 0 0 0 A型 3 5通 道 微 波 辐 射
果表明温度误 差 < 2℃ , 水汽密度 <1 . 5 g・ m~, 微 波 辐射计对 中尺 度 天气 系统 结 构 有 较好 的监 测 能 力 。
计, 本 文利 用乌 鲁木 齐微 波辐 射计 和探 空站 2 0 1 0年 逐1 3 探测 资料 , 分 析 微 波辐 射 计 在 乌 鲁 木 齐 地 区 的 探测 性 能及 其在 降水 天气过 程 中温湿 参数 的变化 特 征, 为微 波 辐射计 在 乌鲁 木齐 天气预 报 、 空气 污染 预 报、 区域数 值模 式改 进 和 人 工 影 响 天气 中 的应 用 提 供科 学依 据 。此外 , 在 站 点 稀 疏 的 中国西 北 内 陆地
非制冷氧化钒微测辐射热计响应曲线

非制冷氧化钒微测辐射热计响应曲线非制冷氧化钒微测辐射热计响应曲线一、导言在当今社会,随着科技的不断进步,各种新型材料和仪器的应用也越来越广泛。
其中,非制冷氧化钒微测辐射热计作为一种新型热辐射测量仪器,其响应曲线对于热辐射的测量具有重要意义。
本文将对非制冷氧化钒微测辐射热计响应曲线进行全面评估,并探讨其深度和广度。
二、非制冷氧化钒微测辐射热计的基本原理非制冷氧化钒微测辐射热计是一种利用热敏电阻的热辐射测量仪器,其基本原理是基于热辐射与物体温度之间的关系。
通过测量物体发射的热辐射能量,可以确定物体的温度。
而非制冷氧化钒微测辐射热计正是利用热敏电阻对热辐射进行测量,从而得到响应曲线。
三、非制冷氧化钒微测辐射热计响应曲线的拟合与分析针对非制冷氧化钒微测辐射热计得到的原始数据,一般需要进行响应曲线的拟合与分析。
在进行曲线拟合时,通常会采用一些数学模型来描述响应曲线的特性。
通过对拟合后的曲线进行分析,可以得到一些重要的参数,比如峰值响应、响应时间等,这些参数对于热辐射的测量和分析具有重要意义。
四、关于非制冷氧化钒微测辐射热计响应曲线的应用非制冷氧化钒微测辐射热计响应曲线在实际应用中具有广泛的意义。
在太空技术领域,需要对航天器表面的热辐射进行测量和监控,而非制冷氧化钒微测辐射热计正是一种常用的测量工具。
在工业生产中,对于高温物体的热辐射测量也离不开非制冷氧化钒微测辐射热计的应用。
五、总结与展望通过对非制冷氧化钒微测辐射热计响应曲线的评估与分析,可以看出其在热辐射测量中的重要作用。
未来随着科技的不断发展,相信非制冷氧化钒微测辐射热计在热辐射测量领域中会有更广阔的应用前景,同时也将不断完善其响应曲线的测量与分析方法。
六、个人观点作为一种新型的热辐射测量仪器,非制冷氧化钒微测辐射热计在科研和工业生产中的应用前景十分广阔。
对于其响应曲线的研究和分析也是十分重要的,可以为相关领域的科研人员和工程师提供重要的参考和指导。
微测辐射热计的红外热响应模拟

weed n . T eefcs o ie sz r o e h f t fpx l i e e,s se d d fm hc n s ,ln t n d fs s e d d lg o - a u p n e i tik es e gh a d wit o up n e e ,d wnl d,vc u l h e a u m p c a eo h e eau ec a g sa d te a i o sa t fpx l id c d b nrrd rdain wee a aye .T a k g ntetmp rtr h n e n h r l t m me c nt so ies n u e y ifae a it r lzd o n o n
量轻, 响应波段宽和工作时间长等诸多优点 , 非常适 用于军事领域诸如陆、 空 的侦察 、 海、 监视与 目标捕
获, 导弹与灵巧武器制导等 ; 在民用方面可用于工业
构制造工艺 比较复杂 , 另外非致冷探测器常用的氮
化硅 、 氧化硅吸收层 , 元的大小 , 像 微桥支撑层 的厚 度, 支撑臂的长度 , 探测器 的封装对探测器灵敏度都 有很大的影响. 因此很有必要做一个详细 的分析. 本 文利用有限元法对不同 的像元结构 进行 了热学模 拟. 同时对平板空腔结构 的探测器单元 的红外响应 也做了计算+
( .F n tn l t il Lb , ins o t h i U i r t,C a ghu2 3 1 C ia 1 u co a Ma r s a . J guP le nc nv sy hnzo 106, hn ; i e a a yc ei
2.Nain a o ao y fr h r r d P y is h n h i n t u e o e h ia h sc ,C ie e Ac d my o ce c t a L b r tr f a e h s .S a g a I si t f c nc P y is h n s a e fS in e, ol o c t T l
微测辐射热计工作原理

微测辐射热计工作原理
微测辐射热计是一种用于测量物体表面温度的仪器,其工作原理基于
物体表面辐射的热量与温度之间的关系。
该仪器通过测量物体表面辐
射的热量,可以准确地计算出物体表面的温度。
微测辐射热计的工作原理可以简单地概括为以下几个步骤:
1. 接收辐射热量
微测辐射热计通过一个感应器接收物体表面辐射的热量。
该感应器通
常由一个热敏电阻或热电偶组成,可以将接收到的热量转化为电信号。
2. 转换电信号
微测辐射热计将感应器接收到的电信号转换为数字信号,以便进行后
续的计算和处理。
该转换过程通常由一个模数转换器完成。
3. 计算温度
微测辐射热计通过对接收到的数字信号进行计算,可以准确地计算出
物体表面的温度。
该计算过程通常由一个微处理器完成,可以根据不
同的应用需求进行编程。
微测辐射热计具有以下几个优点:
1. 非接触式测量
微测辐射热计可以通过接收物体表面辐射的热量进行测量,无需接触物体表面,因此可以避免对物体造成损伤或污染。
2. 高精度测量
微测辐射热计可以通过精确的计算和处理,实现对物体表面温度的高精度测量。
该仪器通常具有较高的分辨率和灵敏度,可以满足不同应用场景的需求。
3. 宽波长范围
微测辐射热计可以测量不同波长范围内的辐射热量,因此可以适用于不同类型的物体表面温度测量。
总之,微测辐射热计是一种非常实用的测量仪器,可以广泛应用于工业、医疗、环境等领域。
其高精度、非接触式测量和宽波长范围等特点,使其成为现代科技发展中不可或缺的一部分。
室温微测辐射热计太赫兹探测阵列技术研究进展(特邀)

第48卷第1期红外与激光工程2019年1月Vo l.48No.1I nfrared and Laser Engineering J an.2019室温微测辐射热计太赫兹探测阵列技术研究进展(特邀)王军,蒋亚东(电子科技大学光电科学与工程学院电子薄膜与集成器件国家重点实验室,四川成都610054)摘要:在室温太赫兹探测技术领域中,热敏微桥结构的太赫兹探测器具有探测波段宽、阵列规模大、集成度高、实时成像等显著特点。
文中对室温太赫兹探测技术、基于热敏材料的太赫兹探测技术国内外发展现状进行了综述,分析了基于氧化钒薄膜微桥结构的非制冷长波红外焦平面探测技术,存在着太赫兹波低吸收探测性能弱的不足,针对太赫兹波探测进行优化设计,同时介绍了电子科技大学在太赫兹探测阵列吸收结构方面的部分研究工作。
关键词:非制冷红外焦平面探测器;微桥结构;太赫兹探测器;金属吸收薄膜中图分类号:TN215文献标志码:A DOI:10.3788/IRLA201948.0102001Researc h development about room temperature terahertz detector array technology with microbolometer structure(invited)Wang Jun,Jiang Yadong(Sata Key Laboratory of Electric Thin Films and Integrated Devices,School of Optoelectronic Science and Engineering,University of Electronic Science and Technology of China,Chengdu610054,China)Ab stract:Terahertz(THz)detector with thermal sensitive microbolometer structure indicates many prominent features,such as wide band detecting region,large array pixels,high integrated device,real-time imaging,comparing with some other room-temperature THz technologies.Microbolometer structure using VO x t hin film as sensitive material has been successfully fabricated uncooled infrared focal plane array detector,but unsuitable for THz detection for very low THz wave absorption ratio.So some special design should be presented in the microbolometer structure to achieve high performance THz detector.Room-temperature THz technologies and development of microbolometer type THz detector array were introduced in this article briefly,and also the research about THz absorption material or structure in University of Electronic Science and Technology of China was presented in the paper.Key words:uncooled infrared focal plane array detector;microbolometer structure;terahertz detector;metal absorption thin film收稿日期:2018-08-18;修订日期:2018-09-17基金项目:国家自然科学基金研究创新群体(61421002);国防预研项目(41414020903)作者简介:王军(1982-),男,教授,博士生导师,主要从事室温太赫兹和红外探测技术方面的研究。
- 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。
Performance of 320x240 Uncooled Bolometer-typeInfrared Focal Plane ArraysYutaka Tanaka*a, Akio Tanaka c, Kiyoshi Iida b, Tokuhito Sasaki b, Shigeru Tohyama b,Akira Ajisawa b, Akihiro Kawahara b, Seiji Kurasina d Tsutomu Endoh a, Katsuya Kawano a, Kuniyuki Okuyama a, Kazuyuki Egashira b, Hideo Aoki b, Naoki Oda ba 1st Business Development Operations Unit, 1st Custom LSI Division, NEC Electronics1753 Shimonumabe, Nakahara-ku, Kawasaki, Kanagawa211-8666, Japanb Guidance and Electro-Optics Division, NEC Corporation1-10 Nisshin-cho, Fuchu, Tokyo183-8501, Japanc Silicon Systems Research Laboratories, NEC Corporation1120 Shimokuzawa, Sagamihara, Kanagawa 229-1198, Japand 2nd Operations Division, NEC Glass Component7-8 Ebisu-cho, Kanagawa-ku, Yokohama, Kanagawa, JapanABSTRACTThe performance of a 320 x 240 bolometer-type uncooled infrared (IR) Focal Plane Array (FPA) is described.Vanadium oxide thin film is adopted for the bolometer material, having a sheet resistance of ~10 kohms /square. It is patterned such that the bolometer resistance is by a factor of 10 larger than the sheet resistance. On-chip readout integrated circuit(ROIC) is designed to reduce signal drift , extend dynamic range for object temperature and extend ambient temperature range in which operates non-uniformity correction is carried out with about 1/10 fewer frequency than the former ROIC.The 320 x 240 FPA consists of pixels sensitive to IR radiation and optical black (OB) pixels covered with plate which shuts out IR radiation. Drift is reduced by current mirror circuit, using the OB pixels and digital compensation circuit based on voltage change of OB pixels resulting from change in operation temperature. Both the dynamic range and the ambient temperature range are extended by decreasing integration gain and developing low-noise, low-power and large swing operational amplifier (OP-AMP).Since decrease in integration gain degrades noise equivalent temperature difference (NETD), bias voltage forbolometer is increased by factor of 2 and bandwidth is reduced by route half. Finally, IR image was obtained with prototype camera and NETD value was found to be smaller than 0.1K for F/1 optics at 60Hz frame rate and thermal time constant was measured to be 12msec.Keywords: uncooled, microbolometer, infrared, focal plane array, noise, readout1.INTRODUCTIONSince uncooled IR cameras have characteristics of low price and maintenance-free, the demand for the IR cameras has increased. The uncooled IR cameras have been applied to such fields as security, surveillance, thermography, driver’s vision enhancement, intelligent transport systems and so forth. IR markets require several improvements to achieve user * Correspondence: Email : y-tanaka@; Telephone:+81-44-435-1634; Fax:+81-44-435-1911414Infrared Technology and Applications XXIX, Bjørn F. Andresen, Gabor F. Fulop, Editors,Proceedings of SPIE Vol. 5074 (2003) © 2003 SPIE · 0277-786X/03/$15.00friendliness, for example, compactness, light weight, low price and no interruption due to shutter during IR image acquisition. Reduction in pixel size makes optics more compact, lighter and cheaper. However, there is a problem of decrease in output signal due to smaller amount of incident IR radiation on each pixel. Therefore, resposivity has tobe increased and low noise ROIC should be developed. Furthermore, it is a problem for surveillance camera that realtime IR images are often interrupted by shutter operations which are indispensable for non-uniformity correction (NUC). Although, there is a solution to use radiation shield and obstruction-free aperture, optics is more expensive due to increase in number of lenses.This paper describes the following improvements;(1) Low noise, low power and large swing OP-AMPs in ROIC are designed,(2) Responsivity of bolometer array is increased,(3) Low noise and low power circuit for signal processing in camera is developed,(4) Shutter operations for NUC are hardly required to obtain realtime imagery, even in the case of a large amount of background radiation change resulting from variation in ambient temperature (about a couple of tens degrees C) for a wide range of object temperature (a couple of hundreds degrees C), and there improvements make NETD smaller than 0.1K for F/1 optics at 60Hz frame rate.2. VO X MICROBOLOMETER ARRAY2.1 STRUCTURE AND FABRICATIONThermal detectors should be thermally isolated from the heat sink to increase their sensitivities. A thermal isolation structure, i.e., a suspended microbridge structure, achieves the sensitivity increase because it prevents the heat collected by areas sensitive to IR radiation from escaping to the heat sink.Figures 1 (a) and 1 (b) show schematic structure of the bolometer pixel. The pixel is divided into two parts (figure 1 (a)), a silicon (Si) readout integrated circuit in the lower part and a suspended microbridge structure in the upper part. The two parts are separated by a cavity. The microbridge structure is composed of a diaphragm and two beams (figure 1 (b)). The diaphragm is supported by the two beams and is therefore thermally well isolated from the SiROIC heat sink. Figures 2 (a) and 2 (b) show secondary electron micrograph (SEM) pictures. The pixel size is37×37micrometer and the fill factor is 72%. The IR radiation is partly absorbed by the SiN passivation layer in the diaphragm and partly transmitted. The transmitted radiation is perfectly reflected back to the diaphragm by the reflecting layer and is absorbed again by the SiN passivation layer. Thus, about 80% of the incident IR radiation in10micrometer wavelength region is absorbed. The absorbed IR radiation heats the diaphragm and changes the bolometer resistance. Supplying a bias current enables the resistance change to be read out as a voltage change.(b)Figures 1. (a) Schematic cross-sectional view of bolometer pixel along bias current path, and(b) Schematic plan view of bolometer pixel.Proc. of SPIE Vol. 5074 4152.2 CHARACTERISTICSThe properties of a 320×240 bolometer-type uncooled IRFPA were investigated form the viewpoint of uniformity. Figures 3 (a), 3 (b) and 3 (c) are histograms of bolometer resistance (Rb), the temperature coefficient of resistance (TCR) and thermal conductance (Gth), respectively. Data was acquired every sixteen pixels.The distributions of Rb, TCR and Gth have non-uniformity of 10~20% peak-to-peak, ~5% peak-to-peak and ~10% peak-to-peak, respectively, for more than 50 fabrication runs. The distribution of TCR/Gth value, which is a good indicator of voltage responsivity (see the equation (1) mentioned later), has non-uniformity of 10~20% peak-to-peak. The typical value of thermal conductance is 0.1µW/K. It should be mentioned that the mean TCR value of –1.64%/K measured at 40degrees C in the figure corresponds to -1.87%/K at 20degrees C.The voltage responsivity (R V ) is expressed by equation (1), which includes key parameters of the deviceperformance, such as the temperature coefficient of bolometer resistance (TCR), thermal conductance (Gth), IR absorbance (N) and thermal time constant (Ttc).Gth Cth Ttc W V Ttc f πGth N Vb TCR Rv =]/[)×2(+11××=2ޓޓޓޓ (1)Here, Vb, f and Cth are bias voltage, chopping frequency and thermal mass, respectively.The relative responsivity is measured as a function of the chopping frequency (see figure 4). By fitting the equation (1) with the measured curves, the thermal time constant is calculated to be 12 msec. This is an adequate response time for obtaining thermal images at a TV frame rate. From the measured ፧thermal time constant value of 12msec and the measured Gth value of 0.1micro-W/K, the thermal mass of the diaphragm is estimated to be 1.2 nJ/K. The performance characteristics of doped VO X microbolometer array are summarized in Table 1.020406080100120140160180767880828486889092949698100 (a)(b)of resistance (%/K) measured at 40degrees CResistance(Kohms)Figure 3 (a). Histogram for bolometer resistanceFigures 2. (a) SEM picture of 320 x 240 bolometer arrays, and (b) Magnified pictureDiaphragmBeamN u m be r of p i x e l s416 Proc. of SPIE Vol. 5074Figure 3 (c). Histogram for thermal conductance Figure 4. Frequency dependence of responsivityTable1.Summary of design and performance characteristics of doped VO X microbolometer3.FPA ARCHITECTURE AND FPA DESIGNA block diagram of FPA is shown in Figure 5(a) and circuit configuration of readout channel is shown in Figure 5(b) and the chip photograph of the FPA is shown in Figure 6. The FPA has 320 x 240 pixels with 37 x 37 micrometer pitch. The uncooled IR sensor LSI was fabricated with the 0.5-micrometer CMOS process. The on-chip ROIC፧is composed of FPA, band-gap reference circuit(BGR), bias generation circuit(BGC), integration circuits, sample and hold(SH) circuits, multiplexers, output OP-AMP and horizontal and vertical shift registers, the ROIC is driven by only external three clocks and 4bit data. The 4bit data is externally provided to data buses in ROIC and the data consists of sensor bias, resistance of bias cancel circuit, integration capacitor, NUC data and so forth.(see table2) The ROIC can be operated in NTSC mode or in PAL mode and each pixel is pulse-biased. The 183 readout channels are employed for the column of the bolometer array and each readout channel reads out the 2-columns of the array. The readout channel is composed of bolometer bias circuit that supplies the bolometer with bias voltage, bias cancel circuit that subtracts pedestal component from the bias current and integrator that integrates the residual bolometer current. In the final stage of the readout channel, one analog output voltage is selected by two SH circuits. Combination of the integration capacitor with resistance in the bias cancel circuit should be selected to keep NETD value smaller than 0.1K,because the FPA’s operation temperature ranges from -30degrees C to 60degrees C,which changes the resistance of the bolometer from ~20kohms to ~500 kohms.Proc. of SPIE Vol. 5074 417Figure 5(b) Circuit configuration of readout channel 418 Proc. of SPIE Vol. 5074320 x 240 PIXELSBOLOMETER ARRY183 READOUT CHANNELSS/H AND MUXThe bolometer has high temperature coefficient of resistance to realize high responsivity to the incident infrared. This means that the bolometer is extremely sensitive to the chip temperature. In order to reduce the influence of change in the chip temperature (CT), this ROIC has the configuration shown in figure7. This circuit automatically removes change in the pedestal component of the bias current due to change in the chip temperature, so that it mitigates the required stability of the thermoelectric cooler (TEC), which is stringent, especially in turning on the power supply. In this configuration, OB pixels covered with a plate which shuts out IR radiation, act as bolometers whose resistances are changed by the chip temperature. The current that flows in the OB pixels are transformed into voltage by diffusion resister, and the voltage is entered into background radiation correction (BRC) through a low pass filter (LPF). This means that the current in the OB pixels are mirrored to the current generated by bias cancel circuit. In this way, the influence of chip temperature change, which exerts to both OB pixels and bolometer, is canceled. The OP-AMPs in each readout channel, which cancel temperature dependence of V GS in MOSFET, are also effective for reducing drift current. Moreover, the resistance of bias cancel circuit shown in figure 5(b) is, indeed, composed of two resistances with reverse TCRs, which is also effective for reducing drift current. Shutter frequency resulting from the drift is reduced by about 1/10 fewer than the former FPA[1] owing to the temperature compensated configuration of the readout channel.Figure 7 Temperature compensation configurationProc. of SPIE Vol. 5074 419Dynamic range of output signal and noise has to be simultaneously considered to improve performance of IR camera. Requirement for IR camera is as follows; shutter operations for NUC are hardly required to obtain realtime imagery, even in the case of a large amount of background radiation change resulting from variation in ambient temperature (about a couple of tens degrees C) for a wide range of object temperature (from -30degrees C to +150degrees C). This requirement can be achieved without radiation shield nor obstruction-free to lower cost of IR camera.In order to satisfy both dynamic ranges of temperature, it is necessary to decrease an integration gain. However, there is a problem due to increase in input conversion noise. Therefore, bias voltage of bolometer has to be increased to improve responsivity and ROIC with low noise and large voltage swing should be developed.A bias voltage of bolometer is actually increased by a factor of 2, namely 4V. The ROIC mentioned above is realized by the followings;(1) Integration time is doubled by increasing the number of readout channel.(Bandwidth is reduced by route half), (2) OP-AMPs with low noise, low power, small size and large voltage swing is designed, (3) Resistance of bias cancel circuit is selected,(4) Resister of bias cancel circuit is designed to have as large size as possible to decrease the 1/f noise,(5) Integration capacitor of bias cancel circuit is selected to make integration time as long time as possible.The thermal noise of each OP-AMP is reduced by increasing bias current. The 1/f noise of each OP-AMP is reduced by using large size MOSFET. Figure 8 shows the measured waveform for the analog output (Vout) of the OP-AMP. The dynamic range of an output OP-AMP is found to be in the range from +2.5V to +7.5V,using signals of defective pixels. This voltage range corresponds to the object temperature range from -30degrees C to +150degrees C and the ambient temperature range of a couple of tens degrees C.As is shown in figure 9, dynamic range (5V) of Vout contains object signal voltage, background IR radiation signal Figure 8. Output waveform of large voltage swing OP-AMPFigure 10 shows the calculated results for thermal noise and 1/f noise in each part of ROIC and camera. All noise values are converted into the values at the bolometer node. Total noise at the bolometer node is measured to be 20micro voltage rms at 60Hz fame rate, which agrees with the calculation. Although this value is roughly twice as large as the noise value of the former sensor [1], the bias voltage of bolometer is increased by a factor of 2 in this ROIC, and then NETD value doesn’t change.Figure 10. The calculated results for thermal noise and 1/f noise in each part of ROIC and cameraThe ROIC thus developed has such advantage that dynamic ranges of both object and ambient temperatures enlarged without changing NETD value. The design and performance characteristics of FPA and ROIC are summarized in Table 2.Table2.Summary of design and performance characteristics of FPA and ROICProc. of SPIE Vol. 5074 4214. PROTOTYPE CAMERA4.1 DESIGNThe prototype camera is shown in Figure 11.The camera has characteristics, such as compactness, light weight, low cost and low power. The camera utilizes 25mm focal length F/1 Ge optics with anti-reflection coating adapted to the 10micrometer wavelength region. A 320×240 bolometer-type uncooled FPA chip is incorporated into a vacuum sealed package and is placed at focal plane of the IR camera. The performance characteristics of camera are summarized in Table 3.The camera has a power consumption smaller than 6W. The weight is 800g(except for optics).The size of the prototype camera is as small as 80mm(height) x 77mm(width) x 129mm(length).ᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳᱳThe block diagram of the prototype camera is illustrated in figure 12. The camera electronics consist of a power supply board (PSB), analog circuit board (ACB) and two digital signal processing boards(DSPB). One can adjust output level, offset, gain, digital zoom, polarity, NUC and selection of pseudo color or white/black, with user interface on the rear panel of camera. The camera operates at 60Hz (NTSC) or 50Hz (PAL) frame rates .The PSB is designed to use commercial Li-ion battery. Therefore, the input power supply voltage ranges from 5.5V to 12V. The switching power supply is adopted to reduce power consumption. The PSB provides +3.3Vdc (digital), +5Vdc(digital), +15Vdc(analog) and +8Vdc (analog).The ACB consists of the low-noise power supply for ROIC and the temperature stabilization control circuit for thermoelectric cooler(TEC). The analog signal voltage of the ROIC is digitized to 14bit data .The DSPB has a wide variety of functions, including generation of timing clocks for ROIC, correlated double sampling which is used with thermally shorted pixels (see figure 6), NUC, digital noise reduction, defective pixels substitution ,gain and offset adjustment, and look up table for pseudo color and IR radiation correction. DSPB outputs include NTSC or PAL as well as LVDS 16bit parallel digital data. The DSPB accepts RS-232C commands.Two point corrections are made for the digitized data by exposing the FPA to two black bodies with different temperatures. The data is, thus, corrected for non-uniformity of bolometer responsivity.After the power supply is turned on, first, TEC is stabilized and a shutter temperature which is close to an ambient temperature, is measured. The shutter temperature is memorized to memory of DSPB. Next, the background IR radiation correction is performed by digital processing of DSPB which is to search IR radiation correction data with binary search method. If the shutter temperature is changed by a certain amount of temperature, the correctionprocessing is iterated. The certain amount of temperature is changed by the ambient temperature which is measured as the shutter temperature, and then is controlled by CPU of DSPB. The certain amount of temperature is slightly larger than a couple of tens degrees C.Figure 11. The photograph of the prototype camera Table3 Summary of performance characteristics of prototype cameraArray Size 320x240Optics FOCAL LENGTH 25mm F=1 Camera Size 80(H) x 77(W) x 129(L) mmCamera Weight 800gFrame Rate NTSC/PAL Conformity Analog:NTSC/PAL Conformity Outputs Digital:LVDS 8-bit Parallel output portRemote control RS-232C SerialContrast/Brightness AutomaticPower Consumption <6W NETD <100mKOparation Temparature-10~+50 degrees C422 Proc. of SPIE Vol. 5074Figure 12. The block diagram of the prototype camera4.2 TEST RESULTSA thermal IR image is, thus, obtained for F/1 optics and at 60 Hz frame rate (see figure 13). NETD value is measured for the prototype camera, by introducing IR radiation of calibrated black body source to a certain part of FPA. Values of signal and noise are read out, using 16bit digital output data of all pixels, and standard deviation is calculated and is taken as the noise value. The NETD value is found to be smaller than 0.1K.Proc. of SPIE Vol. 5074 4235. CONCLUSIONThe authors design, fabricate and evaluate a 320x240 bolometer-type uncooled IR FPA, on-chip readout circuit and camera. A thermal image with an NETD value smaller than 0.1 K is obtained for F/1 optics and at 60Hz frame rate.The drift characteristics of the ROIC are improved by the temperature compensated configuration and therefore, shutter operation frequency is reduced by 1/10 fewer than the former camera.This performance is good enough for uncooled IRFPA to be used for surveillance camera, radiometric camera and so forth.ACKNOWLEDGMENTSThe authors would like to thank Messrs. S.Matsumoto, H.Murofushi, K.Katoh, M.Miyoshi and M.Hijikawa (NEC Corporation), Messrs. H.Gotoh, Y.Tsuruta, A.Nakazato and F.Nishio (NEC Glass Components) for their collaboration during development and fabrication of detectors and camera.REFERENCES[1] A. Tanaka, K. Chiba, T.Endoh, K.Okuyama, A. Kawahara, K. Iida, N. Tsukamoto, “Low-noise readout circuitfor uncooled infrared FPA”, SPIE, 4130, pp.160-167, 2000.424 Proc. of SPIE Vol. 5074。
