模具验收checklist(中英文)

合集下载

模具验收翻译

Dies cam retard smoothly under spring perssure. 模具凸轮在弹簧压力下顺利减速。 Dies welded area have any cracks and blow holes. 模具焊接区有裂纹和气孔 Are springs assembled according to drawing? 所有的弹簧式根据图纸组装的吗？ Proper bearing 25mm minimum around the working edges. 围绕工作边缘最小的轴承要有25mm Pad must 0.5 mm clear from working edges. 垫必须离工作边缘0.5mm Pad holding area smooth ,free from bumps and unwanted areas 垫夹持区要平滑、没有隆起和多余的区域。 Pad travel as per drawing ___mm and actual ___mm. 按图纸垫行程 mm, 实际是 mm. Vertical pad and cam pad timing is correct. 竖直垫和凸起垫的使用时间是合理。
3.22 3.23 4.1 4.2 4.3 4.PAD CHECK 垫片检查 4.4 4.5 4.6 4.7 4.8 5.1 5.2 5.3 5.PRODUC TIVITY CHECK 生产力检查 5.4 5.5 5.6 5.7 5.8 6.1 6.2 6.3 6.SAFETY CHECK 安全检查 6.4 6.5 6.6 6.7 6.8 7.IN PROCESS CHECK 工艺检查 7.1 7.2 7.3
Pad retainers,spools and side pins must not rub with pad and there is no scoring marks.

模具设计checklist

3.模具安装参数校核Press
Mounting
YesΒιβλιοθήκη 3.1模具与注塑机相匹配的尺寸经过了检查 (油缸,油管) (拉杆间距,安全门), 在码模后必须确认水路与油路可以正常联接 The overall dimension of the mold in the injection machine is checked (cylinder, pipes) (tie bar clearance, curtain and build of press). 3.2 对有油缸抽芯模具，首先要确认注塑机油路控制是否足够,油路连接方式是否合理. For mould which need to use the cylinder, must check if the valid oil control circle that injection machine can supplied is enough and the oil connection is reasonable. 3.3 模具定位环的外径尺寸是否与选定的注射机匹配(动定模各一) ,200T的定位环是Staubil标准件, BMC的是200. 特别注意定位环的中心孔是否太小以便于中心顶杆通过。（非FIV工场内生产的模具适用） If centering ring diameter is conformance with selected injection press (valeo 200T press use the Stabuil ring), BMC mold is D200mm. To check the center holes if it is too small for center bar acrossing. 3.4 模具定位环的形状是否与规定相符(倒角) Is the shape of centering ring is conformance with the definition 3.5 模具厚度在注塑机的范围内,有经过确认. (450T moldt thickness is 380~750mm，850&1400T：500-1240，) If mold thickness is within the press range 3.6 顶出行程是否足够产品的正常取出 If ejection stroke is sufficient to remove parts

模具检查表(Toolmaker Checklist for shipment)

Toolmaker Check List模具检查表Customer 客戶名稱:Supplier 模具厂名称:Part Name 产品名稱:Supplier's Tool No. 模厂模具编号:Part No. 产品编号:Type of Mold模具类型:Customer's Mold No.客戶模具编号 :No. of Cavity几个型腔:YES NO NA Mold Base steel as specified模胚钢材符合要求Parting line interlocks installed, number of interlock =分型面定位件，数量Is there adequate clamp slot area锁模坑eyebolt holes per tool prints吊模孔Pry bar slots on parting lines and moving plates橇模槽Parting line safety straps are installed锁模板Cycle Counter计数器All screw and dowel holes per tool prints镙钉及定位销Mold base stamped with all critical information模胚打上模具重要资料All Corners on moldbase are chamfered模胚周边加倒角All sharp corners/burrs outside the molding area on moldbase and componentshas been removed to prevent injury 清理锋口K.O. paterns is per customer machine spec顶杆孔位置Flush Mounting and Thread Size = UNC3/8"顶出平柱装置，螺纹尺寸Locating Ring Diameter = 101.3定位环直径Sprue Radius = R0.6浇口半径Guided ejection system导向顶出系统Spring loaded ejection弹簧复位Ejector system operate freely顶出系统可自由滑动Ejector pins on contoured surface are keyed轮廓面顶针管位All ejector pins are numbered or lettered for location顶针位置编号Early Return are installed提早回顶针板Water leakage check检查漏水All water lines "INs" and "OUTs" properly identified运水编号Water Fittings are installed , type and model = NPT1/4" / JPB-2524, JPB-3524水嘴安装，标准/型号Note 备注:Signoff by Toolmaker 模具厂签认Check by 检查者:Date: Supervisor 主管:Date:。

模具验收报告单-中英文版

目的：为使模具制作及维修作业能降低成本，缩短制造周期，确保模具寿命，保证产品品质。

模具名称（
Mold Name ）
模具编号(Mold No) 制造人
(Maker) 质量部签字 (Signature by Quality dept)
设计部签字 (Signature by Design dept)
日期 (Date)
项目(Item) 评分 (Grade) 备注(Remark)
模具外型 (Mold Size) 浇注系统 (Feed system)
脱模系统 (Ejection system) 抽芯/滑块系统 (Sliding system) 冷却系统 (Cooling system)
产品送样 (Sample)

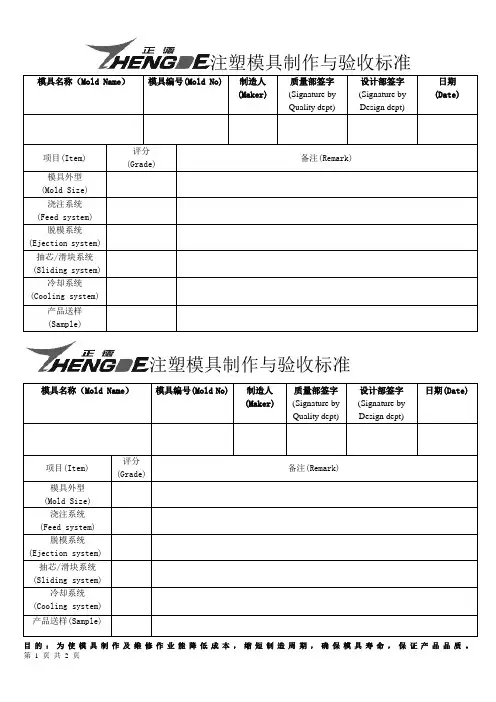

注塑模具制作与验收标准
模具名称（Mold Name ）
模具编号(Mold No)
制造人(Maker) 质量部签字(Signature by Quality dept) 设计部签字(Signature by Design dept)
日期(Date)
项目(Item) 评分 (Grade) 备注(Remark)
模具外型 (Mold Size) 浇注系统 (Feed system) 脱模系统 (Ejection system) 抽芯/滑块系统 (Sliding system) 冷却系统 (Cooling system) 产品送样(Sample)。

模具工程常用词汇英汉对照

模具工程常用词汇英汉对照die 模具figure file, chart file图档cutting die, blanking die冲裁模progressive die, follow (-on)die 连续模compound die复合模punched hole冲孔panel board镶块to cutedges=side cut=side scrap切边to bending折弯to pull, to stretch拉伸Line streching, line pulling线拉伸engraving, to engrave刻印upsiding down edges翻边to stake铆合designing, to design设计design modification设计变化die block模块folded block折弯块sliding block滑块location pin定位销lifting pin顶料销die plate, front board模板padding block垫块stepping bar垫条upper die base上模座lower die base下模座upper supporting blank上承板upper padding plate blank上垫板spare dies模具备品spring 弹簧bolt螺栓document folder文件夹file folder资料夹to put file in order整理资料spare tools location手工备品仓first count初盘人first check初盘复棹人second count 复盘人second check复盘复核人equipment设备waste materials废料work in progress product在制品casing = containerazation装箱quantity of physical invetory second count 复盘点数量quantity of customs count 会计师盘,点数量the first page第一联filed by accounting department for reference会计部存查end-user/using unit(department)使用单位summary of year-end physical inventory bills年终盘点截止单据汇总表bill name单据名称This sheet and physical inventory list will be sent to accountingdepartment together (Those of NHK will be sent to financial department)本表请与盘点清册一起送会计部－(NHK厂区送财会部)Application status records of year-end physical inventory List andphysical inventory card 年终盘点卡与清册使用－状况明细表blank and waste sheet NO. 空白与作废单号plate电镀mold成型material for engineering mold testing工程试模材料not included in physical inventory不列入盘点incoming material to be inspected进货待验description品名sample样品steel/rolled steel钢材material statistics sheet 物料统计明细表meeting minutes会议记录meeting type 会别distribution department分发单位location地点chairman主席present members出席人员subject主题conclusion结论decision items决议事项responsible department负责单位pre-fixed finishing date预定完成日approved by / checked by / prepared by核准/审核/承办PCE assembly production schedule sheet PCE组装厂生产排配表model机锺work order工令revision版次remark备注production control confirmation生产确认checked by初审approved by核准department部门stock age analysis sheet 库存货龄分析表on-hand inventory现有库存available material良品可使用obsolete material良品已呆滞to be inspected or reworked 待验或重工total合计cause description原因说明part number/ P/N 料号type形态item/group/class类别quality品质prepared by制表notes说明year-end physical inventory difference analysis sheet 年终盘点差异分析表physical inventory盘点数量physical count quantity帐面数量difference quantity差异量cause analysis原因分析raw materials原料materials物料finished product成品semi-finished product半成品packing materials包材good product/accepted goods/ accepted parts/good parts良品defective product/non-good parts不良品disposed goods处理品warehouse/hub仓库on way location在途仓oversea location海外仓spare parts physical inventory list备品盘点清单spare molds location模具备品仓skid/pallet栈板tox machine自铆机wire EDM线割EDM放电机coil stock卷料sheet stock片料tolerance工差score=groove压线cam block滑块pilot导正筒trim剪外边pierce剪内边drag form压锻差pocket for the punch head挂钩槽slug hole废料孔feature die公母模expansion dwg展开图radius半径shim(wedge)楔子torch-flame cut火焰切割set screw止付螺丝form block折刀stop pin定位销round pierce punch=die button圆冲子shape punch=die insert异形子stock locater block定位块under cut=scrap chopper清角active plate活动板baffle plate挡块cover plate盖板male die公模female die母模groove punch压线冲子air-cushion eject-rod气垫顶杆spring-box eject-plate弹簧箱顶板bushing block衬套insert 入块club car高尔夫球车capability能力parameter参数factor系数phosphate皮膜化成viscosity涂料粘度alkalidipping脱脂main manifold主集流脉bezel斜视规blanking穿落模dejecting顶固模demagnetization去磁;消磁high-speed transmission高速传递heat dissipation热传rack上料degrease脱脂rinse水洗alkaline etch龄咬desmut剥黑膜 D.I. rinse纯水次Chromate铬酸处理Anodize阳性处理seal封孔revision版次part number/P/N料号good products良品scraped products报放心品defective products不良品finished products成品disposed products处理品barcode条码flow chart流程表单assembly组装stamping冲压molding成型spare parts=buffer备品coordinate座标dismantle the die折模auxiliary fuction辅助功能poly-line多义线heater band 加热片thermocouple热电偶sand blasting喷沙grit 砂砾derusting machine除锈机degate打浇口dryer烘干机induction感应induction light感应光response=reaction=interaction感应ram连杆edge finder巡边器concave击convex凹short射料不足nick缺口speck瑕??shine亮班splay 银纹gas mark焦痕delamination起鳞cold slug冷块blush 导色gouge沟槽;凿槽satin texture段面咬花witness line证示线patent专利grit沙砾granule=peuet=grain细粒grit maker抽粒机cushion缓冲magnalium镁铝合金magnesium镁金metal plate钣金lathe车mill锉plane刨grind磨drill铝boring镗blinster气泡fillet镶;嵌边through-hole form通孔形式voller pin formality滚针形式cam driver铡楔shank摸柄crank shaft曲柄轴augular offset角度偏差velocity速度production tempo生产进度现状torque扭矩spline=the multiple keys花键quenching淬火tempering回火annealing退火carbonization碳化alloy合金tungsten high speed steel钨高速的moly high speed steel钼高速的organic solvent有机溶剂bracket小磁导liaison联络单volatile挥发性resistance电阻ion离子titrator滴定仪beacon警示灯coolant冷却液crusher破碎机机械类常用英语：塑胶原料acrylic 压克力casein 酪素cellulose acetate 醋酸纤维素CA cellulose acetate butyrate 醋酸丁酸纤维素CAB composite material 复合材料cresol resin 甲酚树脂CFdially phthalate 苯二甲酸二烯丙酯disperse reinforcement 分散性强化复合材料engineering plastics 工程塑胶epoxy resin 环氧树脂EPethyl cellulose 乙基纤维素ethylene vinylacetate copolymer 乙烯-醋酸乙烯EV A ethylene-vinlacetate copolyme 醋酸乙烯共聚物EV A expanded polystyrene泡聚苯乙烯EPSfiber reinforcement 纤维强化热固性/纤维强化复合材料high density polyethylene 高密度聚乙烯HDPEhigh impact polystyrene 高冲击聚苯乙烯HIPShigh impact polystyrene rigidity 高冲击性聚苯乙烯low density polyethylene 低密度聚乙烯LDPE melamine resin 三聚氰胺酚醛树脂MFnitrocellulose 硝酸纤维素phenolic resin 酚醛树脂plastic 塑胶polyacrylic acid 聚丙烯酸PAPpolyamide 耐龙PA polybutyleneterephthalate 聚对苯二甲酸丁酯PBT polycarbonate 聚碳酸酯PC polyethyleneglycol 聚乙二醇PFG polyethyleneoxide 聚氧化乙烯PEO polyethyleneterephthalate 聚乙醇对苯PETP polymetylmethacrylate 聚甲基丙烯酸甲酯PMMA polyoxymethylene 聚缩醛POM polyphenylene oxide 聚硫化亚苯polyphenyleneoxide 聚苯醚PPO polypropylene 聚丙烯PP polystyrene 聚苯乙烯PSpolytetrafluoroethylene 聚四氟乙烯PTFE polytetrafluoroethylene 聚四氟乙烯polythene 聚乙烯PE polyurethane 聚氨基甲酸酯PUpolyvinylacetate 聚醋酸乙烯PV AC polyvinylalcohol 聚乙烯醇PV A polyvinylbutyral 聚乙烯醇缩丁醛PVB polyvinylchloride 聚氯乙烯PVC polyvinylfuoride 聚氟乙烯PVF polyvinylidenechloride 聚偏二氯乙烯PVDC prepolymer 预聚物silicone resin 矽树脂thermoplastic 热塑性thermosetting 热固性thermosetting plastic 塑胶unsaturated polyester 不饱和聚酯树脂机械类常用英语(一.组装、冲压、喷漆等专业词汇)Assembly line组装线Layout布置图Conveyer流水线物料板Rivet table拉钉机Rivet gun拉钉枪Screw driver起子Electric screw driver电动起子Pneumatic screw driver气动起子worktable 工作桌OOBA开箱检查fit together组装在一起fasten锁紧(螺丝)fixture 夹具(治具)pallet栈板barcode条码barcode scanner条码扫描器fuse together熔合fuse machine热熔机repair修理operator作业员QC品管supervisor 课长ME制造工程师MT制造生技cosmetic inspect外观检查inner parts inspect内部检查thumb screw大头螺丝lbs. inch镑、英寸EMI gasket导电条front plate前板rear plate后板chassis 基座bezel panel面板power button电源按键reset button重置键Hi-pot test of SPS高源高压测试V oltage switch of SPS电源电压接拉键sheet metal parts 冲件plastic parts塑胶件SOP制造作业程序material check list物料检查表work cell工作间trolley台车carton纸箱sub-line支线left fork叉车personnel resource department 人力资源部production department生产部门planning department企划部QC Section品管科stamping factory冲压厂painting factory烤漆厂molding factory成型厂common equipment常用设备uncoiler and straightener整平机punching machine 冲床robot机械手hydraulic machine油压机lathe车床刨床miller铣床grinder磨床driller??床linear cutting线切割electrical sparkle电火花welder电焊机staker=reviting machine铆合机position职务president董事长general manager总经理special assistant manager特助factory director厂长department director部长deputy manager | =vice manager副理section supervisor课长deputy section supervisor =vice section superisor副课长group leader/supervisor组长line supervisor线长assistant manager助理to move, to carry, to handle搬运be put in storage入库pack packing包装to apply oil擦油to file burr 锉毛刺final inspection终检to connect material接料to reverse material 翻料wet station沾湿台Tiana天那水cleaning cloth抹布to load material上料to unload material卸料to return material/stock to退料scraped |'skræpid|报废scrape ..v.刮;削deficient purchase来料不良manufacture procedure制程deficient manufacturing procedure制程不良氧化scratch刮伤dents压痕defective upsiding down抽芽不良defective to staking铆合不良embedded lump镶块feeding is not in place送料不到位stamping-missing漏冲production capacity生产力education and training教育与训练proposal improvement提案改善spare parts=buffer备件forklift叉车trailer=long vehicle拖板车compound die合模die locker锁模器pressure plate=plate pinch压板bolt螺栓name of a department部门名称administration/general affairs dept总务部automatic screwdriver电动启子thickness gauge厚薄规gauge(or jig)治具power wire电源线buzzle蜂鸣器defective product label不良标签identifying sheet list标示单screwdriver holder起子插座pedal踩踏板stopper阻挡器flow board流水板hydraulic handjack油压板车forklift叉车pallet栈板glove(s)手套glove(s) with exposed fingers割手套thumb大拇指forefinger食指midfinger中指ring finger无名指little finger小指band-aid创可贴iudustrial alcohol工业酒精alcohol container沾湿台head of screwdriver起子头sweeper扫把mop拖把vaccum cleaner吸尘器rag 抹布garbage container灰箕garbage can垃圾箱garbage bag垃圾袋chain链条jack升降机production line流水线chain链条槽magnetizer加磁器lamp holder灯架to mop the floor拖地to clean the floor扫地to clean a table擦桌子air pipe 气管packaging tool打包机packaging打包missing part漏件wrong part错件excessive defects过多的缺陷critical defect极严重缺陷major defect主要缺陷minor defect次要缺陷not up to standard不合规格dimension/size is a little bigger尺寸偏大(小) cosmetic defect外观不良slipped screwhead/slippery screw head螺丝滑头slipped screwhead/shippery screw thread滑手speckle斑点mildewed=moldy=mouldy发霉rust生锈deformation变形burr(金属)flash(塑件)毛边poor staking铆合不良excesssive gap间隙过大grease/oil stains油污inclusion杂质painting peel off脏污shrinking/shrinkage缩水mixed color杂色scratch划伤poor processing 制程不良poor incoming part事件不良fold of pakaging belt打包带折皱painting make-up补漆discoloration羿色water spots水渍polishing/surface processing表面处理exposed metal/bare metal金属裸露lack of painting烤漆不到位safety安全quality品质delivery deadline交货期cost成本engineering工程die repair模修enterprise plan = enterprise expansion projects企划QC品管die worker模工production, to produce生产equipment设备to start a press开机stop/switch off a press关机classification整理regulation整顿cleanness清扫conservation清洁culture教养qualified products, up-to-grade products良品defective products, not up-to-grade products不良品waste废料board看板feeder送料机sliding rack滑料架defective product box不良品箱die change 换模to fix a die装模to take apart a die拆模to repair a die修模packing material包材basket蝴蝶竺plastic basket胶筐isolating plate baffle plate; barricade隔板carton box纸箱to pull and stretch拉深to put material in place, to cut material, to input落料to impose lines压线to compress, compressing压缩character die字模to feed, feeding送料transportation运输(be)qualfied, up to grade合格not up to grade, not qualified不合格material change, stock change材料变更feature change 特性变更evaluation评估prepare for, make preparations for 准备parameters参数rotating speed, revolution转速manufacture management制造管理abnormal handling异常处理production unit生产单位lots of production生产批量steel plate钢板roll material卷料manufacture procedure制程operation procedure作业流程to revise, modify修订to switch over to, switch---to throw--over switching over切换engineering, project difficulty工程瓶颈stage die工程模automation自动化to stake, staking, reviting铆合add lubricating oil加润滑油shut die架模shut height of a die架模高度analog-mode device类模器die lifter举模器argon welding氩焊vocabulary for stamping冲压常词汇stamping, press冲压punch press, dieing out press冲床uncoiler & strainghtener整平机feeder送料机rack, shelf, stack料架cylinder油缸robot机械手taker取料机conveyer belt输送带transmission rack输送架top stop上死点bottom stop下死点one stroke一行程inch寸动to continue, cont.连动to grip(material)吸料location lump, locating piece, block stop 定位块reset复位smoothly顺利dent压痕scratch刮伤deformation变形filings铁削to draw holes抽孔inquiry, search for查寻to stock, storage, in stock库存receive领取approval examine and verify审核processing, to process加工delivery, to deliver 交货to return delivenry to.to send delinery backto retrn of goods退货registration登记registration card登记卡to control管制to put forward and hand in提报safe stock安全库存acceptance = receive验收to notice通知application form for purchase请购单consume, consumption消耗to fill in填写abrasion磨损reverse angle = chamfer倒角character die字模to collect, to gather收集failure, trouble故障statistics统计demand and supply需求career card履历卡to take apart a die卸下模具to load a die装上模具to tight a bolt拧紧螺栓to looser a bolt拧松螺栓to move away a die plate移走模板easily damaged parts易损件standard parts标准件breaking.(be)broken,(be)cracked 断裂to lubricate润滑模具成形不良用语英汉对照aberration 色差atomization ?化bank mark ?料纹bite 咬入blacking hole 涂料孔(铸疵) blacking scab 涂料疤blister 起泡blooming 起霜blow hole 破孔blushing 泛白body wrinkle 侧壁皱纹breaking-in 冒口带肉bubble 膜泡burn mark 糊斑burr 毛边camber 翘曲cell 气泡center buckle 表面中部波皱check 细裂痕checking 龟裂chipping 修整表面缺陷clamp-off 铸件凹痕collapse 塌陷color mottle 色斑corrosion 腐蚀crack 裂痕crazing 碎裂crazing 龟裂deformation 变形edge 切边碎片edge crack 裂边fading 退色filler speak 填充料斑fissure 裂纹flange wrinkle 击缘起皱flaw 刮伤flow mark 流痕galling 毛边glazing 光滑gloss 光泽grease pits 污斑grinding defect 磨痕haircrack 发裂haze 雾度incrustation 水锈indentation 压痕internal porosity 内部气孔mismatch 偏模mottle 斑点necking 缩颈nick 割痕orange peel 橘皮状表面缺陷overflow 溢流peeling 剥离pit 坑pitting corrosion 点状腐蚀plate mark 模板印痕pock 麻点pock mark 痘斑resin streak 树脂流纹resin wear 树脂脱落riding 凹陷sagging 松垂saponification 皂化scar 疤痕scrap 废料scrap jam 废料阻塞scratch 刮伤/划痕scuffing 深冲表面划伤seam 裂痕shock line 模口挤痕short shot 充填不足shrinkage pool 凹孔sink mark 凹痕skin inclusion 表皮摺叠straightening 矫直streak 条状痕surface check 表面裂痕surface roughening 橘皮状表皮皱摺surging 波动sweat out 冒汗torsion 扭曲warpage 翘曲waviness 波痕webbing 熔塌weld mark 焊痕whitening 白化wrinkle 皱纹机械类常用英语：品质系统类ES Engineering Standarization 工程标准IWS International Workman Standard 工艺标准ISO International Standard Organization 国际标准化组织GS General Specification 一般规格PMC Production & Material Control 生产和物料控制PPC Production Plan Control 生产计划控制MC Material Control 物料控制ME Manafacture Engineering 制造工程部PE Project Engineering 产品工程部A/C Accountant Dept 会计部P/A Personal & Administration 人事行政部DC Document Center 资料中心QE Quality Engineering 品质工程(部)QA Quality Assurance 品质保证(处)QC Quality Control 品质管制(课)PD Product Department 生产部LAB Labratry 实验室IE Industrial Engineering 工业工程R&D Research & Design 设计开发部P Painting 烤漆(厂)A Asssembly 组装(厂)S Stamping 冲压(厂)。

模具基本术语英汉对照

各种模具常用成形方式accurate die casting 精密压铸 powder forming 粉末成形calendaring molding 压延成形 powder metal forging 粉末锻造cold chamber die casting 冷式压铸 precision forging 精密锻造cold forging 冷锻 press forging 冲锻compacting molding 粉末压出成形 rocking die forging 摇动锻造compound molding 复合成形 rotary forging 回转锻造compression molding 压缩成形 rotational molding 离心成形dip mold 浸渍成形 rubber molding 橡胶成形encapsulation molding 注入成形 sand mold casting 砂模铸造extrusion molding 挤出成形 shell casting 壳模铸造foam forming 发泡成形 sinter forging 烧结锻造forging roll 轧锻 six sides forging 六面锻造gravity casting 重力铸造 slush molding 凝塑成形hollow(blow) molding 中空(吹出)成形 squeeze casting 高压铸造hot chamber die casting 热室压铸 swaging 挤锻hot forging 热锻 transfer molding 转送成形injection molding 射出成形 warm forging 温锻investment casting 精密铸造 matched die method 对模成形法laminating method 被覆淋膜成形 low pressure casting 低压铸造lost wax casting 脱蜡铸造matched mould thermal forming 对模热成形模常用模具英语die 模具figure file, chart file图档cutting die, blanking die冲裁模progressive die, follow (-on)die 连续模compound die复合模punched hole冲孔panel board镶块to cutedges=side cut=side scrap切边to bending折弯to pull, to stretch拉伸Line streching, line pulling线拉伸engraving, to engrave刻印upsiding down edges翻边to stake铆合designing, to design设计design modification设计变化die block模块folded block折弯块sliding block滑块location pin定位销模具术语中英文对照，全面、精选第一期：组装、冲压、喷漆等专业词汇Assembly line组装线Layout布置图Conveyer流水线物料板Rivet table拉钉机Rivet gun拉钉枪Screw driver起子Electric screw driver电动起子Pneumatic screw driver气动起子worktable 工作桌OOBA开箱检查fit together组装在一起fasten锁紧(螺丝)fixture 夹具(治具)pallet栈板barcode条形码barcode scanner条形码扫描仪fuse together熔合fuse machine热熔机repair修理operator作业员QC品管supervisor 课长ME制造工程师MT制造技术cosmetic inspect外观检查inner parts inspect内部检查thumb screw大头螺丝lbs.inch镑、英寸EMI gasket导电条front plate前板rear plate后板chassis |'∫æsi| 基座bezel panel面板power button电源按键reset button重置键Hi-pot test of SPS高源高压测试Voltage switch of SPS电源电压接柆键sheet metal parts 冲件plastic parts塑料件SOP制造作业程序material check list物料检查表work cell工作间trolley台车carton纸箱sub-line支线left fork*车personnel resource department 人力资源部production department生产部门planning department企划部QC Section品管科stamping factory冲压厂painting factory烤漆厂molding factory成型厂common equipment常用设备uncoiler and straightener整平机punching machine 冲床robot机械手hydraulic machine油压机lathe车床planer |'plein |刨床miller铣床grinder磨床driller钻床linear cutting线切割electrical sparkle电火花welder电焊机staker=reviting machine铆合机position职务president董事长general manager总经理special assistant manager特助factory director厂长department director部长deputy manager |'depjuti| =vice manager副理section supervisor课长deputy section supervisor =vice section superisor副课长group leader/supervisor组长line supervisor线长assistant manager助理to move, to carry, to handle搬运be put in storage入库pack packing包装to apply oil擦油to file burr 锉毛刺final inspection终检to connect material接料to reverse material 翻料wet station沾湿台Tiana天那水cleaning cloth抹布to load material上料to unload material卸料to return material/stock to退料scraped |'skræpid|报废scrape ..v.刮;削deficient purchase来料不良manufacture procedure制程deficient manufacturing procedure制程不良oxidation |' ksi'dei★n|氧化scratch刮伤dents压痕defective upsiding down抽芽不良defective to staking铆合不良embeded lump|in'bed| |l mp|镶块feeding is not in place送料不到位stamping-missing漏冲production capacity生产力education and training教育与训练proposal improvement提案改善spare parts=buffer备件forklift*车trailer=long vehicle拖板车compound die合模die locker锁模器pressure plate=plate pinch压板bolt螺栓name of a department部门名称administration/general affairs dept总务部automatic screwdriver电动启子thickness gauge厚薄规gauge(or jig)治具power wire电源线buzzle蜂鸣器defective product label不良标签identifying sheet list标示单screwdriver holder起子插座pedal踩踏板stopper阻挡器flow board流水板hydraulic handjack油压板车forklift*车pallet栈板glove(s)手套glove(s) with exposed fingers割手套thumb大拇指forefinger食指midfinger中指ring finger无名指little finger小指band-aid创可贴iudustrial alcohol工业酒精alcohol container沾湿台head of screwdriver起子头sweeper扫把mop拖把vaccum cleaner吸尘器rag 抹布garbage container灰箕garbage can垃圾箱garbage bag垃圾袋chain链条jack升降机production line流水线chain链条槽magnetizer加磁器lamp holder灯架to mop the floor拖地to clean the floor扫地to clean a table擦桌子air pipe 气管packaging tool打包机packaging打包missing part漏件wrong part错件excessive defects过多的缺陷critical defect极严重缺陷major defect主要缺陷minor defect次要缺陷not up to standard不合规格dimension/size is a little bigger尺寸偏大(小) cosmetic defect外观不良slipped screwhead/slippery screw head螺丝滑头slipped screwhead/shippery screw thread滑手speckle斑点mildewed=moldy=mouldy发霉rust生锈deformation变形burr(金属)flash(塑件)毛边poor staking铆合不良excesssive gap间隙过大grease/oil stains油污inclusion杂质painting peel off脏污shrinking/shrinkage缩水mixed color杂色scratch划伤poor processing 制程不良poor incoming part事件不良fold of pakaging belt打包带折皱painting make-up补漆discoloration羿色water spots水渍polishing/surface processing表面处理exposed metal/bare metal金属裸露lack of painting烤漆不到位safety安全quality品质delivery deadline交货期cost成本engineering工程die repair模修enterprise plan = enterprise expansion projects企划QC品管die worker模工production, to produce生产equipment设备to start a press开机stop/switch off a press关机classification整理regulation整顿cleanness清扫conservation清洁culture教养qualified products, up-to-grade products良品defective products, not up-to-grade products不良品waste废料board看板feeder送料机sliding rack滑料架defective product box不良品箱die change 换模to fix a die装模to take apart a die拆模to repair a die修模packing material包材basket蝴蝶竺plastic basket胶筐isolating plate baffle plate; barricade隔板carton box纸箱to pull and stretch拉深to put material in place, to cut material, to input落料to impose lines压线to compress, compressing压缩character die字模to feed, feeding送料transportation运输(be)qualfied, up to grade合格not up to grade, not qualified不合格material change, stock change材料变更feature change 特性变更evaluation评估prepare for, make preparations for 准备parameters参数rotating speed, revolution转速manufacture management制造管理abnormal handling异常处理production unit生产单位lots of production生产批量steel plate钢板roll material卷料manufacture procedure制程operation procedure作业流程to revise, modify修订to switch over to, switch---to throw--over switching over切换engineering, project difficulty工程瓶颈stage die工程模automation自动化to stake, staking, reviting铆合add lubricating oil加润滑油shut die架模shut height of a die架模高度analog-mode device类模器die lifter举模器argon welding氩焊vocabulary for stamping冲压常词汇stamping, press冲压punch press, dieing out press冲床uncoiler & strainghtener整平机feeder送料机rack, shelf, stack料架cylinder油缸robot机械手taker取料机conveyer belt输送带transmission rack输送架top stop上死点bottom stop下死点one stroke一行程inch寸动to continue, cont.连动to grip(material)吸料location lump, locating piece, block stop 定位块reset复位smoothly顺利dent压痕scratch刮伤deformation变形filings铁削to draw holes抽孔inquiry, search for查寻to stock, storage, in stock库存receive领取approval examine and verify审核processing, to process加工delivery, to deliver 交货to return delivenry to. to send delinery back to retrn of goods退货registration登记registration card登记卡to control管制to put forward and hand in提报safe stock安全库存acceptance = receive验收to notice通知application form for purchase请购单consume, consumption消耗to fill in填写abrasion磨损reverse angle = chamfer倒角character die字模to collect, to gather收集failure, trouble故障statistics统计demand and supply需求career card履历卡to take apart a die卸下模具to load a die装上模具to tight a bolt拧紧螺栓to looser a bolt拧松螺栓to move away a die plate移走模板easily damaged parts易损件standard parts标准件breaking.(be)broken,(be)cracked 断裂to lubricate润滑common vocabulary for die engineering模具工程常用词汇die 模具figure file, chart file图档cutting die, blanking die冲裁模progressive die, follow (-on)die连续模compound die复合模punched hole冲孔panel board镶块to cutedges=side cut=side scrap切边to bending折弯to pull, to stretch拉伸Line streching, line pulling线拉伸engraving, to engrave刻印upsiding down edges翻边to stake铆合designing, to design设计design modification设计变化die block模块folded block折弯块sliding block滑块location pin定位销lifting pin顶料销die plate, front board模板padding block垫块stepping bar垫条upper die base上模座lower die base下模座upper supporting blank上承板upper padding plate blank上垫板spare dies模具备品spring 弹簧bolt螺栓document folder活页夹file folder资料夹to put file in order整理资料spare tools location手工备品仓first count初盘人first check初盘复棹人second count 复盘人second check复盘复核人equipment设备waste materials废料work in progress product在制品casing = containerazation装箱quantity of physical invetory second count 复盘点数量quantity of customs count会计师盘,点数量the first page第一联filed by accounting department for reference会计部存查end-user/using unit(department)使用单位summary of year-end physical inventory bills年终盘点截止单据汇总表bill name单据名称This sheet and physical inventory list will be sent to accounting department together (Those of NHK will be sent to financial department)本表请与盘点清册一起送会计部－(NHK厂区送财会部)Application status records of year-end physical inventory List and physical inventory card 年终盘点卡与清册使用－状况明细表blank and waste sheet NO.空白与作废单号plate电镀mold成型material for engineering mold testing工程试模材料not included in physical inventory不列入盘点sample样品incoming material to be inspected进货待验description品名steel/rolled steel钢材material statistics sheet物料统计明细表meeting minutes会议记录meeting type 会别distribution department分发单位location地点difference quantity差异量cause analysis原因分析raw materials原料materials物料finished product成品semi-finished product半成品packing materials包材good product/accepted goods/ accepted parts/good parts良品defective product/non-good parts不良品disposed goods处理品warehouse/hub仓库on way location在途仓oversea location海外仓spare parts physical inventory list备品盘点清单spare molds location模具备品仓skid/pallet栈板tox machine自铆机wire EDM线割EDM放电机coil stock卷料sheet stock片料tolerance工差score=groove压线cam block滑块pilot导正筒trim剪外边pierce剪内边drag form压锻差pocket for the punch head挂钩槽slug hole废料孔feature die公母模expansion dwg展开图radius半径shim(wedge)楔子torch-flame cut火焰切割set screw止付螺丝form block折刀stop pin定位销round pierce punch=die button圆冲子shape punch=die insert异形子stock locater block定位块under cut=scrap chopper清角active plate活动板baffle plate挡块cover plate盖板male die公模female die母模groove punch压线冲子air-cushion eject-rod气垫顶杆spring-box eject-plate弹簧箱顶板bushing block衬套insert 入块club car高尔夫球车capability能力parameter参数factor系数phosphate皮膜化成viscosity涂料粘度alkalidipping脱脂main manifold主集流脉bezel斜视规blanking穿落模dejecting顶固模demagnetization去磁;消磁high-speed transmission高速传递heat dissipation热传rack上料degrease脱脂rinse水洗alkaline etch龄咬desmut剥黑膜D.I. rinse纯水次Chromate铬酸处理Anodize阳性处理seal封孔revision版次part number/P/N料号good products良品scraped products报放心品defective products不良品finished products成品disposed products处理品barcode条形码flow chart流程窗体assembly组装stamping冲压molding成型spare parts=buffer备品coordinate坐标dismantle the die折模auxiliary fuction辅助功能poly-line多义线heater band 加热片thermocouple热电偶sand blasting喷沙grit 砂砾derusting machine除锈机degate打浇口dryer烘干机induction感应induction light感应光response=reaction=interaction感应ram连杆edge finder巡边器concave凸convex凹short射料不足nick缺口speck瑕疪shine亮班splay 银纹gas mark焦痕delamination起鳞cold slug冷块blush 导色gouge沟槽;凿槽satin texture段面咬花witness line证示线patent专利grit沙砾granule=peuet=grain细粒grit maker抽粒机cushion缓冲magnalium镁铝合金magnesium镁金metal plate钣金lathe车mill锉plane刨grind磨drill铝boring镗blinster气泡fillet镶;嵌边through-hole form通孔形式voller pin formality滚针形式cam driver铡楔shank摸柄crank shaft曲柄轴augular offset角度偏差velocity速度production tempo生产进度现状torque扭矩spline=the multiple keys花键quenching淬火tempering回火annealing退火carbonization碳化alloy合金tungsten high speed steel钨高速的moly high speed steel钼高速的organic solvent有机溶剂bracket小磁导liaison联络单volatile挥发性resistance电阻ion离子titrator滴定仪beacon警示灯coolant冷却液crusher破碎机模具工程类plain die简易模pierce die冲孔模forming die成型模progressive die连续模gang dies复合模shearing die剪边模riveting die铆合模pierce冲孔forming成型(抽凸,冲凸)draw hole抽孔bending折弯trim切边emboss凸点dome凸圆semi-shearing半剪stamp mark冲记号deburr or coin压毛边punch riveting冲压铆合side stretch侧冲压平reel stretch卷圆压平groove压线blanking下料stamp letter冲字(料号) shearing剪断tick-mark nearside正面压印tick-mark farside反面压印冲压名称类extension dwg展开图procedure dwg工程图die structure dwg模具结构图material材质material thickness料片厚度factor系数upward向上downward向下press specification冲床规格die height range适用模高die height闭模高度burr毛边gap间隙weight重量total wt.总重量punch wt.上模重量五金零件类inner guiding post内导柱inner hexagon screw内六角螺钉dowel pin固定销coil spring弹簧lifter pin顶料销eq-height sleeves=spool等高套筒pin销lifter guide pin浮升导料销guide pin导正销wire spring圆线弹簧outer guiding post外导柱stop screw止付螺丝located pin定位销outer bush外导套模板类top plate上托板（顶板）top block上垫脚punch set上模座punch pad上垫板punch holder上夹板stripper pad脱料背板up stripper上脱料板male die公模(凸模)feature die公母模female die母模(凹模)upper plate上模板lower plate下模板die pad下垫板die holder下夹板die set下模座bottom block下垫脚bottom plate下托板(底板)stripping plate内外打(脱料板)outer stripper外脱料板inner stripper内脱料板lower stripper下脱料板零件类punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子stamped punch字模冲子round punch圆冲子special shape punch异形冲子bending block折刀roller滚轴baffle plate挡块located block定位块supporting block for location定位支承块air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch压筋冲子reel-stretch punch卷圆压平冲子guide plate定位板sliding block滑块lifting pin顶料销die plate, front board模板padding block垫块stepping bar垫条upper die base上模座lower die base下模座upper supporting blank上承板upper padding plate blank上垫板spare dies模具备品spring 弹簧。

模具工业中英文翻译

模具工业中英文翻译模具常用术语中英文对照局部视图 Partial View冷料# Cold Slag线切割 Wire E.D.M轮廊 Contour螺纹孔 Tapping Hole连接件 Fittings斜针 Angle Pin接合 Engage替换镶件Interchangeable Mold Inserts 指定吨位的注塑机 Specific Press水嘴接头 Water Fittings螺纹 Eyebolt Thread回针 Stop Pin二级顶出针Sub-Leaderd Pin镶件 Mold Insert 加硬 Harden唧嘴 Sprue设计筒图 Design Preliminary名称块表 Title Block版本标识 Revision Level材料清单 Stock List制模 Build Mold手动滑块 Hand Slide漏水测试 Leak Test流道排气 Runner Vents抛光 Draw Polish侧抽芯 Side Action加强筋 Reinforcing三角撑 Gusset柱子 Bossed出模斜度 Draft外廊 Contour落单会议 Kick-Off Meeting装卸孔 Handling Hole运输安全带 Moldstrap码模槽 Clamp Slot撑头 Support Pillar螺牙1/2-13 Eye Bolt 1/2-13Tap 导柱位 Leader Pin Location耐落胶 Teflon Paste偏移量 Offset水塞 Water Line Plug撬模脚 Ppy Slot重新加工 Reworked配件 Components补偿 Compensation平面度 Parallel倒角 Chamfer模胚 Mold Base热嘴 Hotnozzle火花机 Edm熔接线 Weildline压机 Press晒纹 Texturing梯形 Trapezoid凸缘、法兰 Flange方铁 Spacer Block顶针板 Ejector Plate顶针底板 Ejector Retainer Plate垫板 Retainer Plate后模镶针 Core Pin拉圾钉 Stop Pin有托顶针 Shoulder Ejector Pin顶针板导套 Guided Ejection Bushing针板导柱 Guided Ejection Leader Pin唧嘴 Sprue Bushing三板模延伸式唧嘴Extension Nozzle Bushing 水口板导套Runner Stripper Plate Bushing定位圈（法兰） Locating Ring管钉（定位销） Dowel Pin管状管钉 Tubular Dowel吊环 Safety Hoist Ring日期印 Dating Insert环保印 Recycling Insert气顶 Air Poppet Valve截水口镶件 Runner Shut-Off Insert早回 Early Ejector Return加速项 Accelerated Ejector客户 Client 产品名 Part Name产品编号 Part No 缩水 Shrinkage版本 Rev 模胚 Mold Base下模镶件 Core Block上模镶件 Cavity Block小镶件 Sub-Insert下模小镶件 Core Sub-Insert上模小镶件 Cavity Sub-Insert行位 Slide行位镶件 Slide Insert压条 Gib压紧块（铲机） Jaw硬片（摩擦片） Wear Plate水口铁 Runner Bar上模水口铁 Upper Runner Bar下模水口铁 Lower Runner Bar弹簧 Spring水口勾针 Sprue Puller Pin顶针 Ejector Pin撑头 Support Pillar直身锁 Side Lock斜度锁 Interlock锁模板 Safety Bar‘O’令（密封圈） O'Ring喉塞 Plug隔水片 Baffle波子螺丝（行位定位螺丝） Ball-Catch 斜顶 Lifter控制开关 Switch回针 Return Pin斜导柱 Angle Pin推板 Stripper PlateA’板 A'PlateB’板 B'Plate方铁（垫铁）Spacer Block顶针板 Ejector Plate顶针底板 Ejector Retainer Plate垫板 Retainer Plate垃圾钉 Stop Pin有托顶针 Shoulder Ejector Pin顶针板导套 Guided Ejection Bushing针板导柱 Guided Ejection Leader Pin唧嘴 Sprue Bushing三板模延伸式唧嘴Extension Nozzle Bushing 水口板导套Runner Stripper Plate Bushing定位圈（法兰） Locating Ring管钉（定位销） Dowel Pin管状管钉 Tubular Dowel吊环 Safety Hoist Ring日期印 Dating Insert环保印 Recycling Insert气顶 Air Poppet Valve截水口镶件 Runner Shut-Off Insert早回 Early Ejector Return加速顶 Accelerated Ejector扁顶 Blade 出模斜波 Draft手动滑块模具 Hand Slide-In Type Mold回针板 Backup合模 Shutoff空隙槽 Clearance Slot导柱及导套 Leader Pin Bushing水口拉钩 Spuer Puller模框镶件Pocket Insert成型热固性塑胶模具Thermoset Mold 三板模 3-Plat Mold分型面 Parting Line司筒 Ejector Sleeve垫圈 Washer熔接线（夹水纹） Weldline吸针 Sucker Pin回针板 Retainer Plate顶出板 Knock -Out Plate电动安全开关Electrical-Safety Switch 脱开 Cut Of Position预先决定 Preload缓冲器 Bumper衬垫 Cushion公差 Tolerance突然性动作 Slam销针 Dowel钩槽 Gib精磨 Finished通框 Through Window粘后模 Sticking Core粘水口 Sticking Sprue夹水纹 Weld Line变形 Warpage走水不平均 Filling Uneven走不齐 Short Shot挂成品 Part Hanging漏水 Water Leakage刮花（擦伤） Galling漏电 Ele Leakage困气 Air Trapping温度 Temperature注塑模 Injection Mold入水 Gate试板 Sampling压力 Pressure倒圆 Fillet顶棍 Ejector顶白 Stress Mark粘前模 Sticking Cav名称块表 Title Block版本标识 Revision Level材料清单 Stock List斜导柱（斜边） Angle PinA板 A'plateB板 B'plate倒扣 Under-Cut披峰 Flash缩水 Sink Mark氮化 Nitride不规则四边形Trapezoid缩水 Shrinkage连续的 Consecutive雕刻 Engrave出模角 Draft分模面 Parting Surface擦位 Shut-Off(S/0)导套 Bushing回针 Return Pin加硬 Harden唧嘴 Sprue设计筒图 Design Preliminary 丝印 Silkprint不干胶 Adhesive Sticker导向针 Guide Din公差 Tolerance线切割 Wire-Cut电火花 Edm抛光 Polishing蚀纹 Texture探热针 Thermocouple三打螺丝毫（限螺丝） Stripper Bolt 盖板 Cover Plate齿轮 Gear油唧 Hydraulic Cylinder司筒 Ejector Sleeve导柱 Leader Pin冷料# Cold Slag线切割 Wire E.D.M.轮廓 Contour螺纹孔 Tapping Hole连接件 Fittings斜针 Angle Pin接合 Engage替换镶件Interchangeable Mold Inserts 指定吨位的注塑机Specific Press水嘴接头 Water Fittings螺纹 Eyebolt Thread回针 Stop Pin二级顶出针 Sub-Leader Pin镶件 Mold Insert锁定位 Lock楔子(铲鸡) Wedge高产量模量 High V olume Running Mold 剖面图 Cross Section 模具结构 Mold Construction模芯 Parting Core局部视图 Partial View热流道 Manifold热嘴 Hot Nozzle型腔数 Cav No模号 Mold No胶料 Material尺寸 Dimension重要尺寸 Critical Dimension雕刻 EngraveAssembly line组装线Layout布置图Conveyer流水线物料板Rivet table拉钉机Rivet gun拉钉枪Screw driver起子Pneumatic screw driver气动起子worktable 工作桌OOBA开箱检查fit together组装在一起fasten锁紧(螺丝)fixture 夹具(治具)pallet栈板barcode条码barcode scanner条码扫描器fuse together熔合fuse machine热熔机repair修理operator作业员QC品管supervisor 课长ME制造工程师MT制造生技cosmetic inspect外观检查inner parts inspect内部检查thumb screw大头螺丝lbs. inch镑、英寸EMI gasket导电条front plate前板rear plate后板chassis 基座bezel panel面板power button电源按键reset button重置键Hi-pot test of SPS高源高压测试V oltage switch of SPS 电源电压接拉键sheet metal parts 冲件plastic parts塑胶件SOP制造作业程序material check list物料检查表work cell工作间trolley台车carton纸箱sub-line支线left fork叉车personnel resource department 人力资源部production department生产部门planning department企划部QC Section品管科stamping factory冲压厂painting factory烤漆厂molding factory成型厂common equipment常用设备uncoiler and straightener整平机punching machine 冲床robot机械手hydraulic machine油压机lathe车床planer |'plein?|刨床miller铣床grinder磨床linear cutting线切割electrical sparkle电火花welder电焊机staker=reviting machine铆合机position职务president董事长general manager总经理special assistant manager特助factory director厂长department director部长deputy manager | =vice manager副理section supervisor课长deputy section supervisor =vice section superisor 副课长group leader/supervisor组长line supervisor线长assistant manager助理to move, to carry, to handle搬运be put in storage入库pack packing包装to apply oil擦油to file burr 锉毛刺final inspection终检to connect material接料to reverse material 翻料wet station沾湿台Tiana天那水cleaning cloth抹布to load material上料to unload material卸料to return material/stock to退料scraped |'skr?pid|报废scrape ..v.刮;削deficient purchase来料不良manufacture procedure制程deficient manufacturing procedure制程不良oxidation |' ksi'dei?n|氧化scratch刮伤dents压痕defective upsiding down抽芽不良defective to staking铆合不良embedded lump镶块feeding is not in place送料不到位stamping-missing漏冲production capacity生产力education and training教育与训练proposal improvement提案改善spare parts=buffer备件forklift叉车trailer=long vehicle拖板车compound die合模die locker锁模器pressure plate=plate pinch压板bolt螺栓administration/general affairs dept总务部automatic screwdriver电动启子thickness gauge厚薄规gauge(or jig)治具power wire电源线buzzer蜂鸣器defective product label不良标签identifying sheet list标示单location地点present members出席人员subject主题conclusion结论decision items决议事项responsible department负责单位pre-fixed finishing date预定完成日approved by / checked by / prepared by核准/审核/ 承办PCE assembly production schedule sheet PCE组装厂生产排配表model机锺work order工令revision版次remark备注production control confirmation生产确认checked by初审approved by核准department部门stock age analysis sheet 库存货龄分析表on-hand inventory现有库存available material良品可使用obsolete material良品已呆滞to be inspected or reworked 待验或重工total合计cause description原因说明part number/ P/N 料号type形态item/group/class类别quality品质prepared by制表notes说明yearend physical inventory difference analysis sheet 年终盘点差异分析表physical inventory盘点数量physical count quantity帐面数量difference quantity差异量cause analysis原因分析raw materials原料materials物料finished product成品semi-finished product半成品packing materials包材good product/accepted goods/ accepted parts/ good parts 良品defective product/non-good parts不良品disposed goods处理品warehouse/hub仓库on way location在途仓oversea location海外仓spare parts physical inventory list备品盘点清单spare molds location模具备品仓skid/pallet栈板tox machine自铆机wire EDM线割EDM放电机coil stock卷料sheet stock片料tolerance工差score=groove压线cam block滑块pilot导正筒trim剪外边pierce剪内边drag form压锻差pocket for the punch head挂钩槽slug hole废料孔feature die公母模expansion dwg展开图radius半径shim(wedge)楔子torch-flame cut火焰切割set screw止付螺丝form block折刀stop pin定位销round pierce punch=die button圆冲子shape punch=die insert异形子stock locater block定位块under cut=scrap chopper清角active plate活动板baffle plate挡块cover plate盖板male die公模female die母模groove punch压线冲子air-cushion eject-rod气垫顶杆spring-box eject-plate弹簧箱顶板bushing block衬套insert 入块club car高尔夫球车capability能力parameter参数factor系数phosphate皮膜化成viscosity涂料粘度alkalidipping脱脂main manifold主集流脉bezel斜视规blanking穿落模dejecting顶固模demagnetization去磁;消磁high-speed transmission高速传递heat dissipation热传rack 上料degrease脱脂rinse水洗alkaline etch龄咬desmut剥黑膜D.I. rinse纯水次Chromate铬酸处理Anodize阳性处理seal封孔revision版次part number/P/N料号good products良品scraped products报放心品defective products不良品finished products成品disposed products处理品barcode条码flow chart流程表单assembly组装stamping冲压molding成型spare parts=buffer备品coordinate座标dismantle the die折模auxiliary fuction辅助功能poly-line多义线heater band 加热片thermocouple热电偶sand blasting喷沙grit 砂砾derusting machine除锈机degate打浇口dryer烘干机induction感应induction light感应光response=reaction=interaction感应ram连杆edge finder巡边器concave凸convex凹short射料不足nick缺口speck瑕??shine亮班splay 银纹gas mark焦痕delamination起鳞cold slug冷块blush 导色gouge沟槽;凿槽satin texture段面咬花witness line证示线patent专利grit沙砾granule=peuet=grain细粒grit maker抽粒机cushion缓冲magnalium镁铝合金magnesium镁金metal plate钣金lathe车mill锉plane刨grind磨drill铝boring镗blinster气泡fillet镶;嵌边through-hole form通孔形式voller pin formality滚针形式cam driver铡楔shank摸柄crank shaft曲柄轴augular offset角度偏差velocity速度production tempo生产进度现状torque扭矩spline=the multiple keys花键quenching淬火tempering回火annealing退火carbonization碳化tungsten high speed steel钨高速的moly high speed steel钼高速的organic solvent有机溶剂bracket小磁导liaison联络单volatile挥发性resistance电阻ion离子titrator滴定仪beacon警示灯coolant冷却液crusher破碎机。

玩具检验Toys Checklist(中英文对照)

The package should comply to client’s requirement / approved samples; 包装必须符合客户的要求或与样品保持一致；
Text of illustration, instruction, label and warning statement etc. must be clearly printed in user’s language; 图解，说明书，标签，警告声明等应清晰地印有使用者语言；
2. Inspection Criteria of Product / Package 产品/包装验货标准
¾ Product: 产品
Must be without any unsafe defect for using; 不允许有在实际使用中任何对使用者造成伤害的缺陷；
Should be free of damaged, broken, scratch, crackle etc. Cosmetic / Aesthetics defect; 不应有任何损坏，破碎，擦伤，或碎裂等外观缺陷；
· Gap between moving parts is less than 5mm or more than 13mm
移动部件间的缝隙小于 5mm 或大于 13mm
X
· Small part (for under 36 months)
小部件（小于 36 个月的儿童使用的）
X
· Small part without warning statement (for less than 36 months)
¾ Acceptable Quality Limit: 可接受的质量限 Critical 0 Non-conformity is not allowed AQL 1.5 For Major Non-Conformity AQL 4.0 For Minor Non-Conformity

玩具验货述语中英对照

玩具验货述语中英对照outfit wet 公仔衫湿outfit shrinkage 公仔衫缩水outfit fade 公仔衫褪色outfit unfit 公仔衫褪色不合身poor cutting 剪裁不良poor sketching 钉缝形状不良poor sewing 车缝不良poor stitching 缝合不良poor embroidery 绣花不良poor brushing 梳发不良poor plush 织毛不良poor stuffing 入棉形状不良poor shape 外形不良poor hair styling 发形不良poor hair cutting 头发剪裁不良poor hot stamping 热烫不良poor hand stitching 手缝不良uneven shape 形状不对称low dense stitching 车缝太疏high dense stiting 车缝太密seam torn 缝口撕裂seam open 缝口爆开missing marrow 漏车骨jumping stitches 跳针stitching hole 针孔pucker 缝边皱起sewing machinery mark 衣车钳印long loose hair 长松头发long loose thread 长松线头velcro detach 魔术贴脱落sewing label loose 标签松脱materials run 物料走纱maaterials torn 物料烂over stuffing 入棉过多poor marrow 车骨不良under stuffing 入棉不足stuffing disproportion 入棉比例不对uneven stuffing 入棉不均匀stuffing expose 棉料外露pile trapped by seam 长毛夹于缝口thread trapped by seam 长线夹于缝口hair trapped by seam 头发夹于缝口bald spot on plush 毛发脱落露底color migration 经摩擦脱色color mismatch 颜色不匹配color deviation 颜色偏差fabric texture mismatch 布料组织不对ribbon fray 丝带散口materials fray 物料散口fabric fray 布料散口lable peel off 贴纸翘起seam allowance expose 纸口外露fabric torn 布料烂fabric w/punch mark/hole 南皮料有孔或洞face cover up 遮住脸部face distortion 脸部歪曲、变形poor blushing 颊红喷油不良foreign stuffing 外来填充料hair too long 头发太长hair too short 头发太短messy hair 头发凌乱missing sewing label 漏车缝标签over size 尺寸过大under size 尺寸不够poor dressing 衣着不良poor hair rooting 植发不良yarn run 走纱hair covers eye 头发遮住眼睛missing parts 漏装配件missing component 漏装附件missing date code/week code 漏印日期或星期码missing whole pack of accessory 漏装整包配件wrong packaging 包装错误packaging damaged 包装损坏packaging wrinkled 包装皱carton mark illegible 箱印模糊gift box illegible 彩盒印刷模糊story book illegible 故事书印刷模糊instruction sheet illegible 说明书印恻模糊blister card illegible 吸塑卡印刷模糊date code/week code illegible 日期/星期印刷模糊blister poor heat sealing 吸塑热封不良blister unseal 吸塑未封口incorrect blister 吸塑不对blister damaged 吸塑烂burn mark on blister 吸塑烧焦blister crack 吸塑裂blister crushed 吸塑压皱blister deformed 吸塑变形blister detached 吸塑用脱blister shrinkage 吸塑缩水blister undershot 吸塑走料不足incorrect blister card 吸塑卡用错fold mark on blister card 卡有折痕outfit sealed on blister 公仔衫夹于吸塑中blister card wet 吸塑卡湿burn mark on blister card 吸朔卡有烧焦痕blister card delimitation 吸塑卡纸内层分离blister card poor die-cut 吸塑卡裁剪不良blister card wrong die-cut 吸塑卡裁剪错误blister card wrinkle 吸塑卡皱blister card damaged 吸塑卡烂blister cannot stand properly 吸塑不能完全站立packing defectDefect Description（次品描述） Chinese Meaning（中文意思）polybag damaged 胶袋烂或穿孔polybag poor die-cut 胶袋剪裁不良missing vent holes on polybag 胶袋漏打出气孔polybag not sealed/taped 胶袋未封口polybay too thin 胶袋太薄incorrect polybag 胶袋不对j-hook damaged 挂钩烂j-hook wrinkle 挂钩皱j-hook poor die-cut 挂钩剪裁不良j-hook sticker dislocated 挂钩贴胶移位j-hook sticker exposed 挂钩胶贴凸起butterfly hook damaged 蝴蝶孔烂butterfly hook wrinkle 蝴蝶孔皱butterfly hook poor die-cut 蝴蝶孔剪裁不良butterfly hook delaminating 蝴蝶孔内层分离windown box film damaged 彩盒胶窗烂windown box film stress 彩盒胶窗顶白windown box film detached 彩盒胶窗甩脱windown box film poor sealing 彩盒胶窗粘合不良windown box film poor transprent 彩盒胶窗透明度不良white mark windown box film 彩盒胶窗发白dent mark windown box film 彩盒胶窗有凹痕gift box flap seam open 彩盒缝口爆开gift box crushed 彩盒压烂或压皱gift box deformed 彩盒变形gift box wet 彩盒湿gift box unseal 彩盒未封口gift box crumple 彩盒弄皱fold mark in gift box 彩盒有折痕tape poor sticking 胶纸粘合不良as receive small part 细小物体small part of insect 昆虫等细小物体screw came off 螺丝脱落small part of broken piece 细小破烂物sharp point 尖点sharp point on broken piece 破烂物有尖点sharp point on spping 弹簧附有尖点sharp point on gate remnant 水口附有尖点sharp point on screw's head 螺丝头附有尖点sharp edge 利边sherp edge on broken piece 破烂物有利边sharp edge on screw's head 螺丝头附有利边sharp edge on meter/battery contact plate 金属或电池片附有利边puncture hazard 刺伤性危险pinching hazard 压伤性危险rigid projection hazard 硬突起物伤害危险clearace 虚位missing paint 漏喷油poor painting 喷油差poor coating 油漆外层不良poor touch up 补油差paint abrasion 喷油擦花foreign paint 外来飞油dark paint 颜色深或暗scratch paint 喷油刮花paint smear 油污bubble paint 喷油起泡paint accumulated 聚油paint dislocation 喷油不到位paint glossy 喷油表面光滑dust paint 喷油有尘insufficient paint coverage 喷油薄uneven paint coverage 喷油厚薄不均over spray 喷油过多under spray 喷油不足color migration 摩擦脱色color mismatch 颜色不配对color misalignment 颜色不对称color deviation 颜色有偏差dull color 颜色深shine color 颜色光亮poor tempo 移印不良tempo incomplete 移印不完整tempo off posttion 移印移位tempo printing off set 移印套色不良poor silk screwwn printing 丝印不良poor electro-plating 电镀不良electro-plating peel off 电渡脱落electro-plating yellowish 电渡变黄electro-plating abrasion 电渡擦花electro-plating shadow 电渡阴阳色electro-plating black mark 电渡发黑electro-plating rainbow 电渡成彩虹印poor hot stamp 热烫不良rough surface 喷油表面不平整poor printing 印刷不良lacquer accumulation 力架集聚abnormal sound 杂音battery/contact spring exposed 电池弹簧凸出battery/contact spring came off 电池弹簧脱落contact plate rust 电池片生锈contact plate exposed 电池片外露contact plate came off 电池片松脱contact plate loosen 电池片松poor contact 接触不良poor function 功能不良int-non-function 间歇无功能mal-function 其中某一功能不良non-function 无功能sound too loud 声音太大sound too low 声音太小no sound 无声音weak/no light 灯弱或不能发光wire exposed 电线外露wire detached 电线甩脱wire poor welding 电线焊接不良short circuit 短路electric leakage 漏电battery coil over heat 电池线圈过热switch poor function 开关功能不良switch non-function 开关无功能circuit board damaged 电路板损坏circuit board non-function 电路板无功能circuit board loosen 电路板松poor soldering 焊锡不良cold solder 假焊no response on switched on 按动后无反应no sound on switched on 按动后无声音light on constantly 灯长明。

Tool Buy-off Checklist

electrical wires mounted out of scrap fall areas & away from sharp edge 电线的安装不要在落料槽附近和尖角附近 lifers raise/lower smoothly-no panel bounce 顶料上下移动顺畅，钣件不反弹 lifter&panel locate gage weldments are strong 顶料和定位规的焊接除要非常坚固
OP-No. 10 20 30 40 50 60 ST: ST: ST: ST: ST: ST: ST: ST: OP-No. 10 20 30 40 50 60 ST: ST: ST: ST: ST: ST: ST: ST: ST: OP-No. 10 20 30 40 50 60 ST: ST: ST:
ARENA 模具问题点验收清单
ST: ST: ST: ST: ST: ST: ST:
OP-No. 10 20 30 40 50 60 ST: ST: ST: ST: ST: ST: ST: ST: ST: ST: ST: ST:Байду номын сангаасST: ST: ST: ST:
panel detect proximity sensors mounted at proper height 钣件的探测感应器要安装正确
2 jack screws for sections present 每个单件都要有j/s孔 3 no scoring on flange steels 翻边块无划痕 4 flange steels are proper hardness 翻边块硬度要正确 5 positive return on aerial cams present 凸轮上有强制回弹装置 6 timing of cam pad proper 压料板上的定时凸轮要正确 7 pad balancer blocks present 压料板下面的停止块要正确 8 cam stop blocks backed up with casting 凸轮停止块有铸件的背托 9 flange steels proper entry timing 翻边钢块翻边适时 10 flange stripper present.operating properly 翻边压料板功能良好 H die automation 模具自动操作性 1 blank drewders present/operation 下料时有拉力 2 3 4 5

模具验收检查清单-通用项

G22
All sections are identified (Material, Detail number and hardness).所有部件都要进行标识（材料、部件号、硬度），且在其安装位置上也做相应标示。
G23
Scrap drops smoothly and slugs will not build up inside die or lay on bolster. Maximum scrap size is less thanmm wide Xmm across (mm across through front and rear).废料掉落顺畅且料豆不能落在模具内部或压机台面上;最大废料尺寸小于mm Xmm对角(废料坑mm)
G09
Minimummm clearance above all Fastening seats. Fastening is accessible from front and back.
压板槽上部空开至少mm；周圈空开至少mm。确保模具前后方向的锁付空间。
G10
4 Locator pin holes are visible in correct locations,mm(Front)mm(Rear) diameter withmm chamfer.
G05
Shut height ismm. Record actual measurements: DESIGN: ________mm ACTUAL: ________mm ;模具闭合高度mm.实际设计值：________mm，现场测量值：________mm
N/A
G06
Check the press C/L and the uniformity of the die C/L, Record the offset: X =mm , Y =mm. Confirm the die of unbalance loads is suit for press and specific solutions.检查压机C/L和模具C/L的一致性，偏心量：X=mm，Y=mm。在多工位联合安装中，确认模具存在的偏载是在压机正常工作的范围内，必要时需要制定相应的解决方案。

模具中英文对照(整理)

工程部 / Design department:1) Designer - 设计师。

2) Assembly drawing - 模具组装图。

3) Mold layout - 模具结构图。

4) 2D product drawing - 2D产品图。

5) 3D product data - 3D产品数据。

6) Part drawing - 散件图。

7) Insert molding - 镶件模。

8) 2 color mold / Double injection tool - 双色模。

9) Hydraulic system - 油/水压系统。

10) Parting line - 分模线。

11) Air venting - 排气槽。

12) Cooling system - 冷却系统。

13) Screw - 镙丝。

14) Hot runner system - 热流道。

15) Valve gate - 伐针入水口。

16) Fan gate - 扇型入水口。

17) Pin point gate - 针点进胶。

18) Moon gate / Banana gate - 香蕉，象牙入水口。

19) Submarine gate - 潜水口。

20) Injection machine tonnage - 注塑机吨数。

21) Number of cavity - 穴数。

22) Steel - 钢材。

23) Copper - 铜。

24) Tungsten copper - 钨铜。

25) Beryllium copper - 铍铜。

26) Hardening - 加硬/淬火。

27) Tempering - 回火。

28) Chroming - 电镀。

29) Painting - 喷漆。

30) Resin - 胶材。

31) Printing - 丝印。

32) Texturing - 嗮纹/咬花。

33) Socket screw - 带肩镙丝。

模具验收检查表(出口模具)

模具编号Mold No: 版本号 Version:
No Action
33
34 35
Mould supplier has to certificate the following items: Yes Is the mould number on the mould?模具上刻有与客户公司内部标识一致的模具编号 □ Mould fit on the injection machine and dimension on for the mounting wholes is ok? □ 模具外型尺寸及各安装孔位、尺寸与相应的注塑机台匹配 Are the opening strokes concerning the assembly drawing? □ 模具打开的行程及推板顶出行程和水口板开模距离(仅适用于三板结构)与模具装配图纸上是否一致 Is a lifting block on the mould? □ 模具带有与模具外形尺寸匹配的锁模扁担 Is draw bar’s balance good?模具有锁模扁担和起吊孔并能够保证模具平稳起吊 □ Can tool open and close smoolthly?模具打开和闭合过程轻松、安全、平稳 □ Is the diameter of the locating rings ok?定位圈的直径尺寸正确并与相应的注塑机台匹配 □ Is there insulating plate ?有隔热板 □ Is the right radius on the sprue bushing/nozzle?浇口套进料处的球面直径与相应的注塑机台匹配 □ Is there counter?有无计数器 □ Are all big movable parts having lubricated groove?所有大的移动部件都有油槽 □ Is the ejector unit moving easily?顶出系统运动足够的轻松 □ Correct screw thread on the ejector rod?顶出杆上的螺纹尺寸正确 □ Is ejector pins fixed if it is not allowed to be rotated?所有头部为非平面的顶针都有采取防转措施 □ Are all slides secured?所有滑块的运动安全可靠（有限位装置及防止脱出装置） □ Can slider be moved by hand smoothly and stably? □ 滑块部件可以在用人手操作的情况下运动自如平稳 Connection for water/oil/hydraulic and air are labeled? □ 各个种类的所有接口（包括水路、油路、液压缸、气压）都有标示 □ Cooling connector meet Customers requirement.水管连接头符合客户标准 □ Is cooling plug pipe according to Customers spec?冷却系统的水路堵丝符合客户要求 □ Did you test the cooling system for any leaks (15 bar)?已经测试过冷却系统的渗漏情况（15bar压力下）□ Whether use Viton O-Ring which can be used on hign mold temperature ? □ 使用耐高温的Viton材质的O形环 □ All transition in the runner system must be round流道系统中所有过渡点(转弯、交叉)都必须倒圆角 □ Is the runner system vented?流道系统是否有排气 □ Is partline venting system good模具分型面的排气是否良好 □ Are the cavities numbered (not on ejectors)? □ 所有模具型芯上都刻有相应的模穴号，此号码应与模穴产品号相一致 Whether family mold have mold part list?Whether engrave marks on mold part? □ 共模的模仁有无部件清单？是否在模仁上刻上标识以区分？ □ Are the hydraulic connectors at the cylinders ok?液压缸头部与模具部件连接处完好，尺寸正确 □ Is the function of any end switches tested? □ 模具上所有的非机械式开关（电气、磁性限位）及传感器都经过功能测试并确保能够正常使用 Is the function and the end switch for the unscrewing system tested? □ 脱螺纹系统的功能及距离都经过测试并确保能够正常使用 □ Hot runner system: connecting line should be coved for preventing damage. □ 热流道系统的电线应被覆盖在模具内部以确保生产情况下不会被损害 If have hot runner,please fill value on below list 如有热流道的模具请把加热及感温阻值填写在下表中. 1-2 3-4 5-6 7-8 序号 □ 加热阻值感温阻值 Whether Customers got latest mold drawing? 客户是否收到最终的硬拷贝及电子档模具图 □ Whether have spare part list?是否有备件清单 □

模具验收checklist(中英文)

3 进出油嘴,进出气嘴同冷却水嘴,并在IN,OUT前空一个字符加G(气),O(油).如G IN1.
★4 冷却水嘴，油嘴及气嘴的螺纹是否与Tooling data sheet相符
模
5
模具配件是否影响模具的吊装和存放,如安装时下方有外露的油缸,水嘴,预复位机构等,应有支撑腿保护.
具
6 模具顶出孔位置及尺寸是否符合图张要求.
统
★5 所有冷却进出口的螺牙应被检验.
★1 浇口套内主流道表面是否抛光至要求。浇
注系
★2 浇道是否抛光至要求。
统 ★3 流道及入水口尺寸，形状是否符合图面要求.
★1 热流道接线布局是否合理，易于检修，接线有编号并对应。
★2 热流道系统的型号是否与图纸吻合，进厂有无检测.
3 是否使用指定品牌及规格的插座，插座盒有无安装保护措施。
片 5 箱子合好后在喷了字的那个方向1张。
要 6 如果有备用件的，需要加1张。
求如果有些东西在这边无法安装的，或者漏掉的需要我司提出来在美国去做的也要
7 提供相应的照片。
检验结论:
合格 [ ]
不合格 [ ]
条件认可 [ ]
(此选项须经本公司项目负责人书面认可)
备注：
签字：
日期：
1.此表中未提及内容请参见客戶提供的 <Mold Construction Guide >and< Specs>.
外
7 定位圈直径及安装方式是否符合客户要求。
观
8 浇口套球R是否大于注塑机喷嘴球R,且与Tooling data sheet 相符。
及
模具外形尺寸是否符合指定的注塑机，码模方式是否符合客户要求。 9 （是否符合模具设计图纸）

玩具检验Toys Checklist(中英文对照)

玩具验货 Toys Checklist(中英文对照)
1. Scope 范围
This document specifies the general quality requirements for the category of Soft/Plush toys, Electrical/Battery operated toys, Ride-on toys, Infant toys and Other toys. It is used as a general guideline for inspection if clients have not defined their requirement. 此文件为玩具（包括长毛绒玩具，电池驱动玩具，乘骑式玩具，充气玩具等）验货的通用标准，如果客户没有特别的要求，在此定为通用的验货指南。
3. Inspection Plan & Defects classification 检验计划及缺陷分类
¾ Sampling procedure & Defects Definition, please refer to SHOP-HI001 General Inspection Operation Procedure 抽样程序以及缺陷定义，详见 SHOP-HI001 通用检查程序 – 最终随机检查。
¾ Package: 包装
All units will be adequately packaged, and constructed from suitably robust materials, such that it arrives in store in a merchantable condition; 产品要有足够强度的材料构成的充分包装，使得货物以可销售的状态到达目的仓库；

模具验收检查清单-冲压全工序

拉延件拉伸充分。（板料轮廓与拉延模拟进行比对分析）
D11
Is the blank size finalized? Record Coil width and Progression: _______________X _______________
确定板料的大小。记录卷料宽度和步距: _______________ X _______________
在凸模和凹模上选择合理的位置打足够多的排气孔，并考虑防尘。所有外板需要使用J型排气管。[TDM Section 3]
D14
Maximum number of cushion pins are used and are equal every quardrant.
每个区域都要使用最大数量的气顶杆，以及气顶杆在每个象限上的均匀分布。
D23
The height of the blankholder is optimized for the best blank wrap. Record Blank holder height: _____mm.
优化压边圈顶出行程，合理考虑料片在压边圈上的初始状态。记录压边圈顶出高度: ______mm。
D17
Flange up punches (half moons) are 32 mm diameter, mounted on the lower shoe. Draw panel have consistant flange ups with no splits and have 5-8mm gauging height.(All outer panels)
Title /标题:
Die Buyoff Checklist /模具验收检查清单- Trim Die /修边模

中英文模具验收报告

制表 Prepared by：
日期 Date:
第四联 4th page：财务部： Finance Dept.
备注 Notes： a) 此验收报告适用于项目量产后作模具最终验收； The report is apply to Final Acceptance Inspection after mass production b）自制模具可不经采购部填写和保存；未经塑模部而直接外发加工的模具可不经塑模部填写和保存. It’s not via Purchasing Department for internal making mould. It’s not via Mould Department for external making mould.
本单一式四联 In quadruplicate
第一联 1st page：使用单位: Using Dept.
第二联 2nd page：塑模部： Mould making Dept.
第三联 3rd page：采购部 Purchasing Dept. (外发加工适用 Apply to outward processing)
模具编号 Mould No.
供应厂商 Supplier
模具 T1 时间 Achieve time 模具使用单位 Using Dept. 使用单位 Using Dept.:
模具验收报告
Mould Acceptance Inspection Report
模具类型 Mould type 供应商联系电话 Supplier contact
number 供应商地址 Supplier Address 模具验收时间 Acceptance time
制作单位 Mould making Unit:

模具及工装验收单

Autoliv:ok nok NA Remarks:Checking list before trial 试模前检查清单Danger of injure 伤害的危险物Sharp edges 尖锐的边缘Whether there are no damage in equipment 是否没有设备损伤Parting line surface fit well 分型面贴合良好Smooth texture of cavity,crackfree 型腔光滑、无裂缝Surface roughness 光洁度要求The circuit of water system is correct without leaking 冷却系统进出回路正确Check the quality of polishing on all ribs 、bosses 检查所有筋、褡子的抛光质量Fluent action of the ejection pin 顶出系统动作流畅Complete components 零件是否装齐Whether the size fit request 尺寸是否符合要求Whether the components match with the drawing(eg.radius of the sprue bush 、locationring 、mold plate 、all kinds of connectors, etc)是否零件尺寸与图纸相匹配(如浇口套R 、定位圈、模板、各类接头等)Label the die height and weight on the mold 将模重标识于模具上Parting line surface fit well 模具型面质量是否达到要求The pouring intake of mould is ok(Size,Position) 模具的浇注系统是否合理(尺寸,位置)The type of water tie-in answer our need 水接头型号符合要求，无干涉Position and size of the annectent plate or screw 安全连接板的尺寸、安装合适Whether the position of exhaust is good 模具排气口位置是否合理It is firm and safe when suspensory 起吊平稳、安全、无干涉Nameplate of mould 模具铭牌Stability of mould when it is moving on the mould carrier 模具开合模平稳Checking list for the tool after trial 模具试模后检查清单:Whether lt can move smoothly 是否能平稳动作Whether it have no negative effect to the other equipment 对其他设备是否无影响No air bubble,No drape,No mark by pulling,No distortion是否无气泡、无褶皱、无拉伤和变形Whether the flash fit request 飞边厚度是否符合要求Whether the mushion is easy to take out 蘑菇头是否容易取出Achieve the require of product size 产品尺寸达到要求The texture of products is clear 产品纹理是否清晰Reaction time 模具发泡周期（）秒Whether it is easy to extraction products 产品取件是否方便Documentation 文件:Assembly drawing (Paper)组装图纸Assembly drawing (CAD)组装图纸Single part drawing (CAD)单个零件图纸BOM mechanic 机械设备清单Supplier index 供应商一览Spare part listing 备件清单Wearing part listing 易损件清单Maintenace instructions 维修手册Adjustment instructions 调整手册Operation instructions 操作指导书Environment influence evaluation 环境影响评估:Risk assessment 风险评估environment aspect 环境因素Supplier Mould & Frock approval 模具工装验收单Project:Date:Autoliv:Pre-Finalapproval:Supplier:SignitureLocation:Druck: 2017/4/6423199493.xls / 模具工装验收单1/2。

模具验收检查表

2.06 所有滑动部件须有开油槽,装模时是否涂耐高温润滑油,是否须做氮化处理,特殊见客户Specification 2.07 所有螺丝要求固定良好,且长度一致,斜顶固定螺丝底板上也要有过孔方便拧紧。 2.08 所有顶针须做有定位,并有编号,顶针孔光滑; 2.09 客户是否同意试模时在复位杆中加弹簧 ; 2.10 顶针运动顺畅,不可上下串动,顶针避空孔大小是否合适,B板过孔比顶针单边大0.5MM;顶针板过孔比顶针单边大0.1MM 2.11 固定在顶杆上的顶块固定可靠,须做防转处理，顶出块回位于内模配合处需有斜度 2.12 模具有二次顶出的，二次顶出的行程是否按照图纸要求制做 2.13 顶针顶出是否顺畅，有无变形和烧伤 2.14 顶针胶位面为异形和斜面时，是否有做定位和胶位面有晒纹 2.15 顶针杯头直径和厚度是否符合图纸标准 2.16 顶杆及二次顶出装置无偏心; 2.17 顶针和顶针孔中心是否有偏差 2.18 顶针避空孔深度是否合适（从产品面开始３０ｍｍ） 2.19 延时顶针动作有无问题 2.20 是否使用了特殊型号的顶针（扁形，极细，阶梯，其他)，是否可满足生产的要求 2.21 回针端面是否平整,无焊点,打磨痕,是否倒角。A板与回针端面有垫块。复位杆比平衡块低0.05MM. 2.22 推块顶出是否顺畅,顶杆是否有避空 2.23 顶出距离是否用限位块进行限位,复位时是否到底
