图纸英文常见缩写对照

施工图常见缩写

WL Water Level 水平面标高
BF 水底标高
SL Structural Level 结构标高
FF 室内楼地面标高
BS 踏步底标高
TR Top of Railing 栏杆扶手顶标高
BR Bottom of Railing 栏杆扶手底标高
BM Bottom of Mound 坡底部标高
TM Top of Mound 坡顶部标高
BW Bottom of Wall 墙体底部标高
Bop Bottom of Planter 种植槽底部标高
BP Bottom of Pool 池底标高
BK Bottom of Kerb 路牙底部标高
TK Top of Kerb 路牙顶部标高
TW Top of Wall 墙体顶部标高
TS Top of Space 区域标高（非铺装标高，如草坪等）FL Finish Level 完成面标高
FG Finish Grade 完成面平度
RL Road Level 主干道标高
HP Hight Point 地形最高点
LP Low Point 地形最低点
PA Planted Area 种植区域
WF Water Feature 水景区域
VG Lawn；Grass Turf 植草区
TP Top of Planter 种植池顶部标高
TG Top of Grate 积水井标高
TS Top of Soil 表层土壤
WF Water Fountain 喷泉
BC 路沿底标高。

在工作中常用的图纸中英文缩写

以下是我在工作中常用的ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED.未注焊缝均为连续焊ALL WELDS3mm FILLET UNLESS OTHERWISE STATED未注焊角高3mm.ALL UNSPECIFIED RADI-R3未注圆角R3REMOVE ALL BURRS AND SHARP EDGES棱角倒钝CHANNEL槽钢RSA708角钢70X70X8M30X1.5pitch M30X1.5的锥螺纹Tackweld点焊OD1/4"outside dimension1/4"的缩写外径直1/4"75CRS尺寸为75材质为冷轧钢板410OPENING REF410开口参考尺寸40REF尺寸为40,参考值2.5"BSP 2.5”圆锥管螺纹2.5"BSPT HEXAGON 2.5”六角圆锥管螺纹(即对丝)30x2.5FLAT BAR30X2.5扁钢TYP2POSNS2处11TOTAL COILS APROX.9WORKING COILS APROX.RIGHT HAND WOUND ONLY,END COILS SQUARE TO TOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明) FEMALE:内扣(母扣)MALE:外扣(公扣)偏心轴eccentric shaft销轴PIN开口销COTTER PIN螺杆screw紧定螺钉SET SCREW圆螺母ROUND NUT内六角螺钉SOCKET HEAD CAP SCREW六角螺钉HEX HD SETSCREW六角螺栓HEX HD BOLT挡圈closing ring弹性挡圈circlip轴承隔套distance sleeve of axletree轴承axletree深沟球轴承DEEP GROOVE BALL BEARING无扣长non-buckle longth弹簧SPRING吊环螺钉LIFTING EYE BOLT开槽盘头螺钉SLOTTED PAN HEAD SCREW圆锥滚子轴承TAPERED ROLLER BEARING推力球轴承THRUST BALL BEARING平键FLAT KEY弹簧垫圈SINGLE COIL SPRING WASHER平垫圈FLAT WASHER螺母FULL NYLOCK NUT圆螺母ROUND NUTACCESS Accessory附件ADJ Adjustable,Adjust调整ADPT Adapter使适应ADV Advance提前AL Aluminum铝ALLOW Allowance允许ALT Alternate改变ALY Alloy合金AMT Amout数量ANL Anneal锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate大约ASME Amer Society of Mech EngrsASSEM Assemble装配ASSY Assembly装配AUTH Authorized授权的AUTO Automatic自动的AUX Auxiliary辅助的AVG Average平均AWG American Wire GaugeBC Bolt Circle螺栓圆周BET Between之间BEV Bevel斜角BHN Brinell Hardness Number布氏硬度值BLK Blank,Block空白B/NM Bill of Material材料费BOT Bottom底部BP or B/P Blueprint蓝图BRG Bearing轴承BRK Break破裂BRKT Bracket支架BRO Broach钻孔BRS Brass黄铜BRZ Bronze青铜B＆S Brown＆Shape棕色＆形状BSC Basic基本的BUSH Bushing套管BWG Birmingham Wire GaugeC TO C Center-to-Center中心到中心CAD Computer-Aided Drafting电脑辅助设计CAM Computer-Aided MfgCAP Capacity容量CAP SCR Cap Screw螺帽CARB Carburize使渗碳CBORE Counterbore扩孔CCW Counter Clockwise逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective有效的ENCL Enclose,Enclosure附上ENG Engine引擎ENGR Engineer工程师ENGRG Engineering工程学EQLSP Equally Spaced等距EQUIV Equivalent相等EST Estimate估计EX Extra额外EXH Exhaust消耗EXP Experimental实验性的EXT Exension,External范围,外部FAB Fabricate伪造FAO Finish All OverFDRY Foundry铸造FIG Figure数据FIL Fillet,fillister带子FIM Full Indicator MovementFIN FinishFLX Fixture结构FLX Floor.Fluid,Flush基地,液体,冲洗FLEX Flexible易弯曲的FLG Flange边缘FORG Forging锻炼FR Frame,Front边框FIG Fitting装置FURN Furnish提供FWD Forward向前GA Gage,Gauge测量GALV Galvanized电镀GR Grade等级GRD Grind磨碎GRV Groove凹槽GSKT Gasket垫圈H＆G Harden and Grind加硬和磨碎HD Head主要的HDL Handle处理HDLS Headless无领导的HDN Harden使硬化HDW Hardware硬件HEX Hexagon六边形HGR Hanger衣架HGT Height高度HOR Horizontal水平的HRS Hot-Rolled SteelHSG Housing外罩HT TR Heat TrealOA Over All所有OBS ObsotetcOC On CenterOD Outside Diameter外直径OPP Opposite对立OPTL Optional可选择的OR Outside Radius外半径ORIG Original初始的PAT.Patent专利PATT Pattern形式PC Piece,Pitch Circle件，节距圆PCH Punch打孔PD Pitch DiameterPERF Perforate打孔PERM Permanent永久的PERP Perpendicular垂直的PFD Preferred首选的PKG Package,Packing包装PL Parting Line,Places,PlatePNEU PncumaticPNL Panel面板POL Polish磨光POS Position,Postive位置PR Pair对立PRI Primary基本的PROC Process程序PROD Product,Production产品，产量PSI Pounds per Square InchPT Part,Point零件，点QTR Quarter四份之一QTY Quantity数量QUAL Quality质量R Radius半径RA Rockwell Harden,A-ScaleRB Rockwell Harden,B-ScaleRC Rockwell Harden,C-ScaleRECD Received巳收到的RECT Rectangle长方形REF Reference相关的REINF Reinforce增强REL Release,Relief释放，缓解REM Remove移除REQD Requird有需要REE Retainer,ReturnREV Reverse,Revision,RevolutionRFS Regardless of Feature SizeRGH Rough粗糙的RH Right Hand右手RIV Rivet起皱RM Ream扩展RND Round周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive EngrsSCH Schedule进度表CFS Cold-Finished SteelCH Case HardenCHAM Chamfer斜面CHAN Channel渠道CHG Change改变CHK Check核查CI Cast Iron铸铁CIR Circle,Circular圆周CIRC Circumference圆周CL Centerline中心线CLP Clamp夹子CNC Computer Numerical Control电脑数值控制COMB Combination联合COML Commercial商业的CONC Concentric同中心的CONN Connect,Connector连接器COV Cover盖子CPLG Coupling联结CQ Commercial Quality商业等级钢CRS Cold Stds AssociationCRT Cathode Ray Tube阴级射线管CS Cast Steel铸铁CSA Canadian Stds AssociationCSK Countersink埋头孔CSTG Casting铸件CTR Center中心CU Cubic立方米CW Clockwise顺时针CYL Cylinder,Cylindrical柱面DBL Double双倍DEC Decimal小数DEG Degree摄氏度DET Detail详情DEV Develop发展DFT Draft草稿DIA Diameter直径DIM Dimension尺寸DIST Distance距离DN Down向下DP Deep,Diametral Pitch深度,径节DR Drill,Drill Rod钻孔DSGN Design设计DVTL Dovetail吻合DWG Drawing图纸DWL Dowel木钉DWN Drawn拔出EA Each每个ECC Eccentric古怪HVY Heavy重量HYD Hydraulic水压ID Inside Diameter内部直径IDENT Identification鉴定ILLUS Illustration说明IN Inch英寸INCL Include,Including包括INCR Increase增加INFO Information信息INSP Inspect检查INSTL Install安装INST Instruct,Instrument指示,工具INT Interior,Internal,Intersect内部的,内在的,交叉IR Inside Radius内部半径ISO Internal Stds Organization国际标准化组织JCT Junction连结JNT Journal杂志JT Joint连接K Key关键KNRL Knurl硬节KST KeyseatKWY Keyway键沟LB Pound英镑LBL Label标签LG Length,Long长度LH Left Hand左手LMC Least Material ConditionLOC Locate位于LT Light光LTR Letter信LUB Lubricate润滑MACH Machine机器MAINT Maintenance维护MATL Material材料MAX Maximum最大MECH Mechanical,Mechanism机械MED Medium媒介MFG Manufacturing制造业MI Malleable Iron可锻造的铁MIN Minimum,Minute最小，秒MISC Miscellaneous混杂的MM Millimeter毫米MMC Max Material ConditionMS Machine SteelMTG Mouting装备MULT Multiple倍数MWG Music Wire GagugNA Not Applicable不可应用的NATL National国内的NC Numerical Control数字电脑控制NEG Negative忽略的NO.Number号码NOM Nominal名义上的NPSM Natl Pipe Straight MechNPT Natl Pipe TaperedSCR Screw螺丝SEC Second秒SECT Section部分SEP Separate独立SEQ Sequence顺序SER Serial,Series系列SERR Serrate锯齿状SF SpotfaceSFT Shaft轴SGL Single单个SH Sheet纸SI Intl System of UnitsSL Slide使滑动SLV Sleeve袖子SOC Socket插座SP Space,Spaced,Spare空间SPL Special特别SPEC Specification规格SPG Spring跳SPHER Spherical球体SPRKT Sprocket链轮齿SQ Square平方SST Stainless Steel纯铁STD Standard标准STK Stock存货STL Steel铁STR Straight,Strip直的SUB Substitute替代物SUP Supply,Support供应SURF Surface表面SYM Symmetrical对称的SYS System系统T Teeth,Tooth牙齿TECH Technical技术TEMP Template,Temporary模板，暂时的THD Thread线THK Thick厚的TOL Tolerance公差TOT Total总计TPF Taper per FootTPI Taper per In,Threads per InchTPR Taper锥形TS Tool SteelTYP Typical典型UNC Unified Natl CoarseUNEF Unified Natl Extra FineUNF Unified Natl FineUNIV Universal普遍VAR Variable变量VERT Vertical垂直的VOL Volume音量VS Versus与．．相对W Wide,Width宽度WASH Washer洗衣机WDF Woodruff车叶草WI Wrought Iron熟铁WT Weight重量OUND,CR,11/2(1018).round指坯料形状,指圆棒CR,指坯料的最后工艺,即cold roll,冷轧而成的.1018指坯料的材料成分特性,即相当于18#钢1/12指坯料的大小SAE Extra fine美国汽车工程师协会的超细牙螺纹例：1/2-28SAE Extra fineSAE Reg美国汽车工程师协会的标准系列螺纹例：1/2-20SAE RegSAE-LT美国汽车工程师协会的圆锥外螺纹例：1/2-28SAE-LT1THREADx45°CHAMFER1螺距×45°的倒角用螺距来作为倒角长度是起导向作用!很多快速接头都是这样要求的。

图纸英文缩写对照

图纸英文缩写对照（请用Ctrl+F搜索）缩写全称翻译ACCESS Accessory 附件ADJ Adjustable, Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amount 数量ANL Anneal 锻炼ANSL American National Standard Label APPROX Approximate 大约ASME American Society of Mechanical Engineers ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counter bore 扩孔CCW Counter Clockwise 逆时针CDRILL Counter drillCDS Cold-Drawn SteelEFF Effective 有效的ENCL Enclose, Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Extension, External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet, fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor. Fluid, Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame, Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage, Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat TreatNTS Not to ScaleOA Over All 所有OBS ObsoleteOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece, Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package, Packing 包装PL Parting Line, Places, PlatePNEU PneumaticPNL Panel 面板POL Polish 磨光POS Position, Positive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product, Production 产品，产量PSI Pounds per Square InchPT Part, Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden, A-ScaleRB Rockwell Harden, B-ScaleRC Rockwell Harden, C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release, Relief 释放，缓解REM Remove 移除REQD Required 有需要REE Retainer, ReturnREV Reverse, Revision, Revolution RFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive Engineers SCH Schedule 进度表A/F——Across Flats——对边C`SINK——Counter Sink——沉头锥孔C`BORE——Counter Bore——沉头平底孔C——Chamfer——倒角EXT——External——外（外在的）INT——Internal——内（内在的）MATL——Material——材料LH——Left Hand——左旋（螺纹）RH——Right Hand——右旋（螺纹）REV——Revision——版本U`CUT——Under Cut——空刀槽S.FACE——Spot Face——刮平S.R——Spherical radius——球面半径R——Radius——半径P.F——Press Fit——紧配S.F——Slide Fit——滑配PCD——Pitch Circle Diameter——节圆直径DP——Deep——深度CL——Center Line——中心线FF——Force Fit——压配HRC——Hardened——热处理（淬火）BSF——British standard fine thread——英国细牙螺纹处理BSP——British standard pipe thread——英国管螺纹标准BSW——British standard worth thread——英国惠氏螺纹标准BSD——British standard dimension——英国度量标准尺寸BSG——British standard gauge——英国标准线规BSS——British standard specification——英国标准技术规格G——美国标准管牙M——Metric——公制螺纹NPT——国家管用螺纹（美制斜牙齿）UNC——United coarse thread——统一标准粗牙螺纹UNEF——United extreme fine thread——公称制细牙UNF——United fine thread——公称细牙CYL——Cylinder or cylindrical——圆柱DIA——Diameter——直径DWG NO——Drawing NO——图纸编号ANGLE 角度NATURE R 自然RALL ROUND 周边，全周NG 粗牙BOT (BOTT) 底部NF 细牙CB 沉头孔PART NO 料号CL 中心线PUNCH 冲头C+0.02 单边放大0.02间隙PIERCE PUNCH 落料冲头chamfer(C) 倒角PCS 个，块，件CA(NCA) 清角（不清角）Q'TY 数量CENTER(CEN) 中心，园心REF 参考DWG NO 图号REV 版次DEEP(DEP) 深度RIGHT 右EDGE 刀口SYM 中心对齐ECN NO 设变号码SMALL 小端EWL (newl) 清线头（不清线头）S落料斜度FINISH 硬度SCALE 比例GAP 单边间隙SECTION A-A 剖视A-A HEIGHT 高度SHEET 表单，页次HATCHING 阴影线SURFACE 表面HEAT TREATMENT 热处理TAP 攻牙INSERT 入块TYP 相同，尺寸一致LARGE 大端THRU(THR) 贯穿LEFT 左TOP 顶部MM 螺纹的规格THICK 厚度MARK 记号标记TAPPER 锥度斜度MATEL 材料材质TAN 切点MAX 最大值TAP1/2NPT 1/2英制管牙MIN 最小值UNIT 单位NAME 名称VIWE A 视图ANEF 特别攻牙SECA-A A-A剖视NRT 新制管牙。

英制图纸英文缩写含义

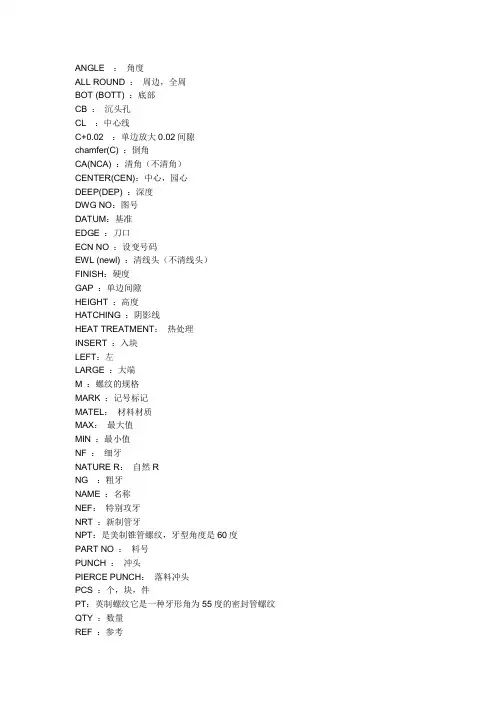

ANGLE ：角度ALL ROUND ：周边，全周BOT (BOTT) ：底部CB ：沉头孔CL ：中心线C+0.02 ：单边放大0.02间隙chamfer(C) ：倒角CA(NCA) ：清角（不清角）CENTER(CEN)：中心，园心DEEP(DEP) ：深度DWG NO：图号DATUM：基准EDGE ：刀口ECN NO ：设变号码EWL (newl) ：清线头（不清线头）FINISH：硬度GAP ：单边间隙HEIGHT ：高度HATCHING ：阴影线HEAT TREATMENT：热处理INSERT ：入块LEFT：左LARGE ：大端M ：螺纹的规格MARK ：记号标记MATEL：材料材质MAX：最大值MIN ：最小值NF ：细牙NATURE R：自然RNG ：粗牙NAME ：名称NEF：特别攻牙NRT ：新制管牙NPT：是美制锥管螺纹，牙型角度是60度PART NO ：料号PUNCH ：冲头PIERCE PUNCH：落料冲头PCS ：个，块，件PT：英制螺纹它是一种牙形角为55度的密封管螺纹QTY ：数量REF ：参考REV：版次RIGHT：右RC：是英制圆锥管螺纹内螺纹它是牙型角为55度的密封管螺纹R2：英制圆锥外管螺纹代号它是牙型角为55度SYM：中心对齐SMALL ：小端S：落料斜度SCALE：比例SHEET：表单，页次SURFACE ：表面SEC（section cut 部分切）A-A ：A-A剖视TAP ：攻牙TYP ：相同，尺寸一致THRU(THR) ：贯穿TOP：顶部THICK ：厚度TAPPER：锥度斜度TAN ：切点UNIT ：单位VIWE A ：视图A。

施工图常见缩写

WL Water Level 水平面标高
BF 水底标高
SL Structural Level 结构标高
FF 室内楼地面标高
BS 踏步底标高
TR Top of Railing 栏杆扶手顶标高
BR Bottom of Railing 栏杆扶手底标高
BM Bottom of Mound 坡底部标高
TM Top of Mound 坡顶部标高
BW Bottom of Wall 墙体底部标高
Bop Bottom of Planter 种植槽底部标高
BP Bottom of Pool 池底标高
BK Bottom of Kerb 路牙底部标高
TK Top of Kerb 路牙顶部标高
TW Top of Wall 墙体顶部标高
TS Top of Space 区域标高（非铺装标高，如草坪等）FL Finish Level 完成面标高
FG Finish Grade 完成面平度
RL Road Level 主干道标高
HP Hight Point 地形最高点
LP Low Point 地形最低点
PA Planted Area 种植区域
WF Water Feature 水景区域
VG Lawn；Grass Turf 植草区
TP Top of Planter 种植池顶部标高
TG Top of Grate 积水井标高
TS Top of Soil 表层土壤
WF Water Fountain 喷泉
BC 路沿底标高。

建筑图中常用的英文缩写

n PL = Plate P = Porch PT = Pressure Treated RFTR = Rafter RWD = Redwood REF = Refrigerator REIN = Reinforced RW = Retaining Wall RDG = Ridge R = Riser RF = Roof RFG = Roofing RM = Room RO = Rough Opening SC = Screen SEW = Sewer SHK = Shake SHTH = Sheathing SHGL = Shingle SH = Shower SDG = Siding
可编辑
.
GRND = Ground GYP BD = Gypsum Board HBD = Hardboard HWD = Hardwood H = Heat INSUL. = Insulation INT = Interior JMB = Jamb JST = Joist KIT = Kitchen LAU = Laundry LAV = Lavatory LT = Light LC = Louver LR = Living Room LV = Louver MC = Medicine Cabinet MET = Metal OC = On Center OPNG = Opening OH = Overhang PNL = Panel
可编辑
.
SL = Sill SK = Sink SKL = Skylight SL DR = Sliding Door SP = Soil Pipe SLR PAN = Solar Panel SOF = Soffit SV = Stack Vent ST = Stairs STWY = Stairway STL = Steel TH = Top Hinged TR = Tread UR = Utility Room VENT = Ventilation VS = Vent Stack WP = Waterproof WC = Water Closet WF = Wide Flange WDW =Window WD = Wood

图纸英文缩写对照

图纸英文缩写对照（请用Ctrl+F搜索）缩写全称翻译ACCESS Accessory 附件ADJ Adjustable, Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amount 数量ANL Anneal 锻炼ANSL American National Standard Label APPROX Approximate 大约ASME American Society of Mechanical Engineers ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counter bore 扩孔CCW Counter Clockwise 逆时针CDRILL Counter drillCDS Cold-Drawn SteelEFF Effective 有效的ENCL Enclose, Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Extension, External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet, fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor. Fluid, Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame, Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage, Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat TreatNTS Not to ScaleOA Over All 所有OBS ObsoleteOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece, Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package, Packing 包装PL Parting Line, Places, PlatePNEU PneumaticPNL Panel 面板POL Polish 磨光POS Position, Positive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product, Production 产品，产量PSI Pounds per Square InchPT Part, Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden, A-ScaleRB Rockwell Harden, B-ScaleRC Rockwell Harden, C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release, Relief 释放，缓解REM Remove 移除REQD Required 有需要REE Retainer, ReturnREV Reverse, Revision, Revolution RFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive Engineers SCH Schedule 进度表A/F——Across Flats——对边C`SINK——Counter Sink——沉头锥孔C`BORE——Counter Bore——沉头平底孔C——Chamfer——倒角EXT——External——外（外在的）INT——Internal——内（内在的）MATL——Material——材料LH——Left Hand——左旋（螺纹）RH——Right Hand——右旋（螺纹）REV——Revision——版本U`CUT——Under Cut——空刀槽S.FACE——Spot Face——刮平S.R——Spherical radius——球面半径R——Radius——半径P.F——Press Fit——紧配S.F——Slide Fit——滑配PCD——Pitch Circle Diameter——节圆直径DP——Deep——深度CL——Center Line——中心线FF——Force Fit——压配HRC——Hardened——热处理（淬火）BSF——British standard fine thread——英国细牙螺纹处理BSP——British standard pipe thread——英国管螺纹标准BSW——British standard worth thread——英国惠氏螺纹标准BSD——British standard dimension——英国度量标准尺寸BSG——British standard gauge——英国标准线规BSS——British standard specification——英国标准技术规格G——美国标准管牙M——Metric——公制螺纹NPT——国家管用螺纹（美制斜牙齿）UNC——United coarse thread——统一标准粗牙螺纹UNEF——United extreme fine thread——公称制细牙UNF——United fine thread——公称细牙CYL——Cylinder or cylindrical——圆柱DIA——Diameter——直径DWG NO——Drawing NO——图纸编号ANGLE 角度NATURE R 自然RALL ROUND 周边，全周NG 粗牙BOT (BOTT) 底部NF 细牙CB 沉头孔PART NO 料号CL 中心线PUNCH 冲头C+0.02 单边放大0.02间隙PIERCE PUNCH 落料冲头chamfer(C) 倒角PCS 个，块，件CA(NCA) 清角（不清角）Q'TY 数量CENTER(CEN) 中心，园心REF 参考DWG NO 图号REV 版次DEEP(DEP) 深度RIGHT 右EDGE 刀口SYM 中心对齐ECN NO 设变号码SMALL 小端EWL (newl) 清线头（不清线头）S落料斜度FINISH 硬度SCALE 比例GAP 单边间隙SECTION A-A 剖视A-A HEIGHT 高度SHEET 表单，页次HATCHING 阴影线SURFACE 表面HEAT TREATMENT 热处理TAP 攻牙INSERT 入块TYP 相同，尺寸一致LARGE 大端THRU(THR) 贯穿LEFT 左TOP 顶部MM 螺纹的规格THICK 厚度MARK 记号标记TAPPER 锥度斜度MATEL 材料材质TAN 切点MAX 最大值TAP1/2NPT 1/2英制管牙MIN 最小值UNIT 单位NAME 名称VIWE A 视图ANEF 特别攻牙SECA-A A-A剖视NRT 新制管牙。

装施图纸常见缩写表-中英文对照

装施图纸常见缩写表-中英文对照装施图纸常见缩写表-中英文对照 I图纸缩写表AR- Architecture Information Plan 建筑信息图EM- Electrical Mechanical Plan 机电设备图FC- Floor Covering Plan 地坪布置图FF- Fixture/Furning Plan 家具布置图RC- Reflected Ceiling Plan 天顶布置图EL- Elevation 立面图 DT- Detail 节点详图WF- Wall Finish Plan 墙身饰面图IL- Interior Landscaping Plan 室内景观设计图MR- Mockup Room 样板房IR- Interior Rendering 室内效果图PA- Public Area 公共区域空间缩写表客房空间ST-Standard Twin 标准双人房SK-Superior King 标准大床房SS-Superior Suite 标准套房HS-Hospitality Suite 标准残疾人套房DS-Deluxe Suite 豪华套房PS-Presidential Suite 总统套房ES-Executive Suite 行政套房EDS-Executive Deluxe Suite 行政豪华套房餐饮空间PDR-Privant （private ） Dinning Room 包厢 VIP-Very Important Person 贵宾SR-Specialty Restaurant 风味餐厅JC-Japanese Cooking 日本料理KC-Korean Cooking 韩国料理Chinese Restaurant 中餐厅Lobby Lounge 大堂吧Bar 酒吧Coffee Shop 咖啡厅Tea House 茶馆Ball Hall 宴会厅All-day Dinning 全日制餐厅Canteen 员工餐厅Pantry 备餐厅公共空间Concierge 礼宾Entrance 入口Reception Exterior 下客区（雨棚）Lobby 大堂Service Station 服务台Foyer 过厅Elevator Hall 电梯厅Rest Room 卫生间Corridor 走廊Cloister 回廊Lounge 休息厅Billiard 台球室GYM 健身室商务办公空间Business Center 商务中心第 1 页Meeting Room 会议室Multi-function Room 多功能厅商业空间Travel Agency 旅行社Book Store 书店Boutique Store 精品店（专卖店）Flower Shop 花店Retail 零售店办公空间Manager Room 经理办公室室内设计中英对照词汇翻译 Iblow-upart work by othersection planTV feature TVwall detailsselected artworktimber conpartment12mm thk tempered glass top finish 12mmpolished cu bronze table leg timber skirtingstudy desktimber backingsocket outletsingle switch socket outlet AFFLFFLpaint finishwall coveringmild steel L-angle support plan sectiondoor pullwallcoveringpivot hinge up to load 200kg up toelevationelevation @ corridorshower door hingesglass door sealdoor panelheavy-dutytrackvanitydoor framedoor closer concealenddoor viewershaftcorridordoor codeQTY=quantitylocationkitchendescriptioncloser 放大图艺术品有其他单位负责剖面图局部（TV 放大图）墙部细节（墙体大样）艺术品选定（艺术品自购）木格（隔断）厚钢化玻璃台面磨光铜桌脚木踢脚线书桌木材背衬（木衬板）电器插座（outlet 出口通风）单开关插座天花完成面地面完成面涂料完成面墙体完成面（壁纸）软钢L 角支撑（L 型软角钢支撑）平面大样门拉手墙面涂料（壁纸）枢轴合页，可负载200kg 胜任，直达立面图走廊立面图淋浴门合页（铰链状）玻璃门封条（封缝条，缓冲条）门板重型的，耐用的导轨梳妆台（小型卫生间）门框隐蔽式闭门器门镜管井，烟道走廊门编号数量，大量地点厨房描述闭门器第 2 页lockset 锁具stopper 软木塞（缓冲条，密封）hinge 铰链push 推，挤，按pull 拉，拨kick plate 刮板door bottom 门铃item 项目，条款，一条，一则brand 商标，牌子model size 型号尺寸cat no. cat=category 种类，类别refer to specification bookironmongery schedulefoyerstone floorebonished （matt ） timbercard key locking systemplan viewstone walldoor handledoor jambdoor buffervelvet surface wropfood/snackschampagne bottlekettle by othersice bucket12mm thick clear glass panel 12mm coated aluminium A/C air supply grille to match wallcoveringretractable timber bunds8mm thk mirror 8mmstone deckbath tubstone vanityremoveable timber shelvingbronze inlaylevel 8 guestroom plan 8scale 1:100hotelfor presention 03/28/1958keyplanstandaro king roomfurnishfixture & furnishing plan图）project NO. 3333sheet NO. 3333drawnapprovedrevisiondouble double bed roomconnection king roomsuitedesign consultants 参照规范用书五金店详单（报表）门厅石材地面亚光面人造黑檀木门卡系统平面图，俯视图石材墙门拉手（门侧柱）门顶缓冲器天鹅绒表面包装食物/零食香槟酒瓶水壶由其他单位负责冰桶厚清玻板备有饰面的铝制空调送风栏配合墙壁饰面（配合墙面的铝制空调格栅）可拉回的木帘（木制百叶帘）厚镜子石材层面浴缸梳妆台石材可移动的木饰面架板（放毛巾）嵌入式铜板层客房平面图比例1:100酒店提交于***索引平面图标准大床客房布置，陈列 vt固定，陈设平面图，家具布置图（平面布置工程号3333表格号3333制图批准修改，修订双人客房（双人双床客房）连接双人客房套房设计顾问第 3 页hirsch/bedner and associates HBAexecutive suite 行政套房internet station 上网站lounge area 休息室reception 接待处restroom 卫生间reading area 阅读区dining area 用餐区buffet counter 自助吧台 pantry area 配餐厅VIP entry foyer VIP 入口前厅bathroom 浴室，卫生间safe 保险箱luggage 行李bedroom 卧室living room 客厅mini bar 迷你吧台powder room 化妆室panty 配菜，备菜wine display 酒品展示区bar counter 柜台study room 研究室master bedroom 主人房master bahroom 主卫jacuzzi 按摩浴缸room matrix 房间矩阵图（索引，概述）individual plan 独立平面图（分类平面图）typical 典型的bathtub 浴缸presidential suite plan 总统套房平面图executive lounge plan 高级休息区平面图royal suite plan 高贵套房平面图satin bronze frame 缎子铜框（数量+观点+形状+国籍+材料绸子一样的青铜框） upholstered seat 软席upholstered panel fin 布饰面板（布面块软包）concealed light by lighting consultant 隐藏灯饰由照明顾问负责timber finish 木材饰面室内设计中英对照词汇翻译 IIetched glass finish 蚀刻玻璃完成面（绣蚀玻璃）headboard 床头板exhaust 排气timber sliding door 木饰面推拉门ceiling 天花concealed track 隐藏导轨（百叶）onyx veneer pendant 悬挂的玛瑙饰面（pendant 悬挂的，吊下的。

施工图中英文缩写

施工图中英文缩写标准缩写词:这里列出的名单代表了一套施工文件中一般遇到的多数缩写词。

在文件开头或开篇处，应当列出项目中用到的所有缩写词和其意义。

A Alum = 铝AC = 英亩A.C.C.M.P = 涂沥青的波纹金属管A.C.P = 石棉水泥管Approx = 近似的B B &B = 麻布包根的B.C = 路缘石底部Bit = 含沥青的B.M. = 基准线Bldg = 建筑B.S = 斜坡底部B.V.S = 竖曲线起点B.W = 在两方面C Cal = 测径器C.B = 雨水井C.L = 铸铁Cir = 圆形的CL = 中线C.L.F = 铁丝网C.O = 清除口Cm = 厘米C.M.P = 波纹金属管Col. = 圆柱Conc = 水泥Cont’r = 承包商Cor = 拐角C/S = 横坡C.F = 立方英尺C.Y = 立方码D D = 曲度Det’l = 细部D.M.H = 跌水窨井(yìnjǐng) D.F. = 饮水器Dim = 尺寸Dia = 直径Dwg. = 图纸Dep. = 横距Dir. = 定向的E-E- = 电气E = 东方Ea = 每个E.C. = 电气承包商El. = 立面E.A.P. = 外露混凝料铺面E.V.C. = 竖曲线底端Engr. = 工程师Exist. = 原有的Exp. = 扩展E.W. = 端壁E.S. = 端截面M M = 米Max = 最大值M.H = 检修孔Min = 最小值Misc = 混杂的Mon = 纪念建筑物，界石N N = 北向N.I.C = 不在合同中，未订合同N.T.S = 不按比例No. = 序号Nom = 毛尺寸O O.C = 位于中心，中心间距O.D = 外径P P.A = 绿化区域P.C.P = 多孔混凝土管P.V.C = 聚氯乙烯管P.C = 件P.C = 曲率点P.C.C = 空间曲率点PL = 地界线P.V.C = 垂直弯曲度P.V.T = 垂直正切点PT = 正切点R R = 半径R.C.P = 钢筋水泥管R.O.W = 通行权Rt = 右侧Req’d = 必须的Rew = 修订Reinf = 增强的S San = 卫生的Sect = 剖面Sh = 图纸S = 南侧S.I = 雨水口-ST- = 雨水道-SAN- = 生活污水管Spec. = 说明书或说明St’l = 钢Sq = 平方S.F = 平方英尺S.Y = 平方码Sta = 站S/S = 不锈钢F F.F. = 粉刷楼板面高度F.G. = 已修整坡度Fin. = 饰面FL = 楼面F.H. = 消防栓F.L = 流线F.S.D = 全尺寸细部图Ftg = 底脚FT. = 英尺G G = 量规-G- = 气体G = 加伦Galv = 电镀G.C = 总承包商GR = 防护栏Gd = 坡度G.V = 煤气阀H HB = 软管龙头HW = 拱面墙H.P = 高点Ht = 高度Hor = 水平的Hwy = 公路I I.D = 内径In = 英寸Inl = 人口Inv = 仰拱J J.B = 接线盒L L = 曲线长度Lat = 纬度L.P = 至低点Lt = 左侧Lin = 衬垫L.F = 线脚L.C = 景观承包商LA = 景观工程师。

建筑图常见英文缩写

建筑图常见英文缩写(总2页) -CAL-FENGHAI.-(YICAI)-Company One1-CAL-本页仅作为文档封面，使用请直接删除建筑图纸常见英文缩写ALUM = Aluminum AB = Anchor bolt BATH = Bathroom BT = bathtub BSMT = Basement BM = BeamBR = Bedroom BLK = Block BRK = BrickBD = Board BLDG = Building BL = Building LineCAB = Cabinet CSMT = Casement CDR = CedarCLG = Ceiling CTR = Center COL = ColumnCONC = Concrete COR = Cornice DET = DetailDIAM = Diameter DR = Dining Room DW = DishwasherDR = Door DRM = Dormer DH = Double HungDR = Douglas Fir DS = Downspout DW = DrywallELEC = Electric EL =Elevation EXT = ExteriorFIN = Finish FPL = Fireplace FIX = FixtureFL = Floor FTG = Footing FDN = FoundationFURN = Furnace GA = Gauge GDR= GirderGL = Glass GR = Grade GRND = GroundGYP BD = Gypsum Board HBD = Hardboard HWD = Hardwood H = Heat INSUL. = Insulation INT = InteriorJMB = Jamb JST = Joist KIT = KitchenLAU = Laundry LAV = Lavatory LT = LightLR = Living Room LV = Louver MC = Medicine Cabinet MET = Metal OC = On Center OPNG = OpeningOH = Overhang PNL = Panel PTN = PartitionPL = Plate P = Porch PT = Pressure TreatedRFTR = Rafter RWD = Redwood REF = RefrigeratorREIN = Reinforced RW = Retaining Wall RDG = RidgeR = Riser RF = Roof RFG = RoofingRM = Room RO = Rough Opening SC = ScreenSEW = Sewer SHK = Shake SHTH = SheathingSHGL = Shingle SH = Shower SDG = SidingSL = Sill SK = Sink SKL = SkylightSL DR = Sliding Door SP = Soil Pipe SLR PAN = Solar Panel SOF = Soffit SV = Stack Vent ST = StairsSTWY = Stairway STL = Steel TH = Top HingedTR = Tread UR = Utility Room VENT = VentilationVS = Vent Stack WP = Waterproof WC = Water Closet WF = Wide Flange WDW =Window WD = Wood。

图纸缩写

电气安装工程手册工程图纸都有图纸设计说明各个字母代表什么意思都有SR：沿钢线槽敷设BE：沿屋架或跨屋架敷设CLE：沿柱或跨柱敷设WE：沿墙面敷设CE：沿天棚面或顶棚面敷设ACE：在能进入人的吊顶内敷设BC：暗敷设在梁内CLC：暗敷设在柱内WC：暗敷设在墙内CC：暗敷设在顶棚内ACC：暗敷设在不能进入的顶棚内FC：暗敷设在地面内SCE：吊顶内敷设,要穿金属管一，导线穿管表示KBG为扣压式镀锌薄壁电线管，其连接是用扣压钳子，将管道和管件压出小坑，紧密连接。

JDG 为紧定式镀锌薄壁电线管，其连接靠管件顶丝顶紧管道，达到紧密连接。

SC-焊接钢管MT-电线管PC-PVC塑料硬管FPC-阻燃塑料硬管CT-桥架MR-金属线槽M-钢索CP-金属软管PR-塑料线槽RC-镀锌钢管二，导线敷设方式的表示DB-直埋TC-电缆沟BC-暗敷在梁内CLC-暗敷在柱内WC-暗敷在墙内CE-沿天棚顶敷设CC-暗敷在天棚顶内SCE-吊顶内敷设F-地板及地坪下SR-沿钢索BE-沿屋架，梁WE-沿墙明敷三，灯具安装方式的表示CS-链吊DS-管吊W-墙壁安装C-吸顶R-嵌入S-支架CL-柱上沿钢线槽：SR沿屋架或跨屋架：BE沿柱或跨柱：CLE穿焊接钢管敷设：SC穿电线管敷设：MT穿硬塑料管敷设：PC穿阻燃半硬聚氯乙烯管敷设：FPC电缆桥架敷设：CT金属线槽敷设：MR塑料线槽敷设：PR用钢索敷设：M穿聚氯乙烯塑料波纹电线管敷设：KPC穿金属软管敷设：CP直接埋设：DB电缆沟敷设：TC导线敷设部位的标注沿或跨梁（屋架）敷设：AB暗敷在梁内：BC沿或跨柱敷设：AC暗敷设在柱内：CLC沿墙面敷设：WS暗敷设在墙内：WC沿天棚或顶板面敷设：CE暗敷设在屋面或顶板内：CC吊顶内敷设：SCE地板或地面下敷设：FCHSM8-63C/3PDTQ30-32/2P 这两个应该是两种塑壳断路器的型号，HSM8-63C/3P 适用于照明回路中，为3极开关，额定电流为63A（3联开关）DTQ30-32/2P 也是塑壳断路器的一种，额定电流32A，2极开关电缆型号WDZ W 无烟D 低卤Z 阻燃BV是聚氯乙烯绝缘电线，固定敷设用，可用于室内明敷、穿管场合，导体长期允许工作温度70。

图纸英文缩写对照

图纸英文缩写对照（请用Ctrl+F搜索）缩写全称翻译ACCESS Accessory 附件ADJ Adjustable, Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amount 数量ANL Anneal 锻炼ANSL American National Standard Label APPROX Approximate 大约ASME American Society of Mechanical Engineers ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counter bore 扩孔CCW Counter Clockwise 逆时针CDRILL Counter drillCDS Cold-Drawn SteelEFF Effective 有效的ENCL Enclose, Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Extension, External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet, fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor. Fluid, Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame, Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage, Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat TreatNTS Not to ScaleOA Over All 所有OBS ObsoleteOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece, Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package, Packing 包装PL Parting Line, Places, PlatePNEU PneumaticPNL Panel 面板POL Polish 磨光POS Position, Positive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product, Production 产品，产量PSI Pounds per Square InchPT Part, Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden, A-ScaleRB Rockwell Harden, B-ScaleRC Rockwell Harden, C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release, Relief 释放，缓解REM Remove 移除REQD Required 有需要REE Retainer, ReturnREV Reverse, Revision, Revolution RFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive Engineers SCH Schedule 进度表A/F——Across Flats——对边C`SINK——Counter Sink——沉头锥孔C`BORE——Counter Bore——沉头平底孔C——Chamfer——倒角EXT——External——外（外在的）INT——Internal——内（内在的）MATL——Material——材料LH——Left Hand——左旋（螺纹）RH——Right Hand——右旋（螺纹）REV——Revision——版本U`CUT——Under Cut——空刀槽S.FACE——Spot Face——刮平S.R——Spherical radius——球面半径R——Radius——半径P.F——Press Fit——紧配S.F——Slide Fit——滑配PCD——Pitch Circle Diameter——节圆直径DP——Deep——深度CL——Center Line——中心线FF——Force Fit——压配HRC——Hardened——热处理（淬火）BSF——British standard fine thread——英国细牙螺纹处理BSP——British standard pipe thread——英国管螺纹标准BSW——British standard worth thread——英国惠氏螺纹标准BSD——British standard dimension——英国度量标准尺寸BSG——British standard gauge——英国标准线规BSS——British standard specification——英国标准技术规格G——美国标准管牙M——Metric——公制螺纹NPT——国家管用螺纹（美制斜牙齿）UNC——United coarse thread——统一标准粗牙螺纹UNEF——United extreme fine thread——公称制细牙UNF——United fine thread——公称细牙CYL——Cylinder or cylindrical——圆柱DIA——Diameter——直径DWG NO——Drawing NO——图纸编号ANGLE 角度NATURE R 自然RALL ROUND 周边，全周NG 粗牙BOT (BOTT) 底部NF 细牙CB 沉头孔PART NO 料号CL 中心线PUNCH 冲头C+0.02 单边放大0.02间隙PIERCE PUNCH 落料冲头chamfer(C) 倒角PCS 个，块，件CA(NCA) 清角（不清角）Q'TY 数量CENTER(CEN) 中心，园心REF 参考DWG NO 图号REV 版次DEEP(DEP) 深度RIGHT 右EDGE 刀口SYM 中心对齐ECN NO 设变号码SMALL 小端EWL (newl) 清线头（不清线头）S落料斜度FINISH 硬度SCALE 比例GAP 单边间隙SECTION A-A 剖视A-A HEIGHT 高度SHEET 表单，页次HATCHING 阴影线SURFACE 表面HEAT TREATMENT 热处理TAP 攻牙INSERT 入块TYP 相同，尺寸一致LARGE 大端THRU(THR) 贯穿LEFT 左TOP 顶部MM 螺纹的规格THICK 厚度MARK 记号标记TAPPER 锥度斜度MATEL 材料材质TAN 切点MAX 最大值TAP1/2NPT 1/2英制管牙MIN 最小值UNIT 单位NAME 名称VIWE A 视图ANEF 特别攻牙SECA-A A-A剖视NRT 新制管牙。

图纸英文缩写参考

Acronyms and Abbreviations in Engineering Complied by Allan Wise, based in Australia （标）AA - AmpereA/C - Air ConditioningA/H - After HoursAB - As BuiltAEC - Architecture, Engineering, and ConstructionAFL - Above Floor Level AFL - Above Finished LevelAG - Agricultural pipe drainAGL - Above Ground LevelAHD - Australian Height DatumAHU - Air Handler UnitAPPROX - ApproximatelyAS - Australian StandardASCII - American Standard Code for Information InterchangeATF - Along Top FlangeBB - Basin or BottomBLDG - BuildingBNS - Business Network ServicesBOT - BottomBQ - Bendable QualityBSP - British Standard PipeBT - Bath TubBT - Boundary Trap根据澳BTM - BottomBW - Both WaysCC - C shaped steel purlinC/C - C ross CentresC.J.-Control Joint (or Construction Joint)CAD - Computer Aided Design. Less commonly use is Computer AssistedDrafting.CCTV - Closed Circuit TeleVisionCFW - Continuous Fillet Weld CHS - Circular Hollow Section CL - Center Line CLG - Control JointCLR ClearanceCMU - Cement Masonry UnitCNJ- Construction JointCOL - ColumnCOMMS - CommunicationsCONN - ConnectionCONT - ContinuousCS - Cleaners SinkCT - ControllerCTR(S) - Centre/SCTRL - ControlCTRS - CentersCU - Dental CuspidorCVR - Cover ° C - Degrees CelsiusDDAR - Dressed All RoundDD - Design DrawingDIA - DiameterDIM - DimensionDN - Diameter NominalDP - Down PipeDR - DryerDW - DishwasherDWG - Drawing DWG(S) - Drawing/S EEA - Equal Angle (steel)EF - Each FaceEL - Elevated LevelEL - ElevationELEC - ElectricalEQ - EqualEQUIP - EquipmentEW - Each WayEWB - Electric Water BoilerEWC - Electric Water CoolerFFB - Footing BeamF'c - Characteristic Concrete Strength FCU - Fan Coil UnitFL - Floor LevelFOC - Fibre Optic CableFS - Far SideFSBL - Full Strength Butt WeldFTG - FootingFTP - Fibre Termination Panel (fibre optical cable)FW - Fillet WeldFWF - From Web Face (steel)GGALV - GalvanizedGCI - Galvanized corrugated iron.GIS - Graphic Information SystemGSM - Global System of Moblie or "Groupe Speciale Mobile" in French HH - Prewash Hose ReelHOR - HorizontalHORIZ - HorizontalHP - High PressureHWB - Hair Wash BasinIID - Inside DiameterIE - Invert ElevationIL - Invert LevelIO - Inspection OpeningIP - Intersection PointISO - International Standard Organisation prefered)JJIS - Japanese Industry StandardKkHz - KilohertzK.J. - Key JointKS - Kitchen SinkKWh - Kilo Watt Hour (metre)LL - Steel AngleLAN - Local Area NetworkLGX - Line Group Cross (Connector, fibre optical cable)LH - Left HandLPG - Liquid Petroleum GasLT - Laundry TroughMm - Metres (English) or MetersMAX - MaximumMDF - Main Distribution Frame (Telecommunications)MFR - ManufacturerMHz - Megahertz Micky Mouse - A toy project, of very low quality. MIN - MinimumMISC - MiscellaneousM.J. - Movement Jointmm -MillimetresMS - Mild SteelNNC - Normally ClosedNET - NetworkNo. - NumberNOM - NominalNS - Near SideN.S.O.P. - Not Shown On PlanNTS - Not To ScaleNZS - New Zealand StandardOOA or O/A - OverallOD - Outside DiameterOPT - OptionalPPCD - Pitch Circle DiameterPFC - Parallel Flange ChannelPL - PlatePT - Pressure TappingPVC - Ploy Vinyl ChlorideQQTY - QuantityR - RadiusRAD - Radius or radialREF - ReferenceREINF - ReinforcementREQ'D - RequiredREV - RevisionRH - Right HandRHS - Rectangular Hollow Section RL - Reduced Level or Relative Level SS - SinkSAN - SanitarySDU - Sanitary Disposal UnitSF - Strip FootingSHR - ShowerSHS - Square Hollow Section SIM - S imilarSQ - SquareSS or S/S - Stainless SteelSL - Structural LevelSSLStructural Slab Level-STD StandardTT - TopTB - Tie BeamTEMP - TemperatureTFC - Taper Flange Channel THK - ThickTO or T.O. or T.OFF - Top Off TR - Laundry TroughTUN - TundishTYP - TypicalUU/S - Under SideUA - Unequal Angle (steel)UB - Universal Beam (steel) UC - Universal Column (steel) UNO - Unless Noted OtherwiseUON is FFL - Finished Floor LevelUON - Unless Otherwise NotedUR - UrinalVVER - VerticalVERT - VerticalWWAN - Wide Area NetworkWB - Welded Beam (steel)WC - Welded Column (steel)WC - Water Closet (toilet)WC(P) - Water Closet With 'P' Trap WC(S) - Water Closet With 'S' TrapWD - Working DrawingWM - Washing MachineWP - Water Proof or Work PointX X - By. Example, "N12 x 1200 long" also means "N12 by 1200 long".ZZ - Zulu （Greenwich Mean Time）Z - Z shaped steel purlin Special Characters °C = Degrees Celsius ?= Diameter '# = Number PL:plate 钢板PFC：parallel flange channel 槽钢TFC：taper flange channel 槽钢TYP：typical ：典型的CHS：circular hollow section 圆通SHS：square hollow section 方通（正方形）RHS：Rectangular hollow section 方通（长方形）RC:Reinforced Concrete, 钢筋混凝土GJ 刚架LT 檩条LaT 拉条SC 水平支撑（剪刀支撑）GL 钢梁CL 次梁ZC 柱间支撑XG 梁（柱）间系杆TL 托梁QL 墙梁XT 斜拉条MZ 门边柱ML 门上梁YC 隅撑CG 撑杆HJ 桁架GTG 檐沟（天沟）GJZ 刚架柱GJL 刚架梁GLT 刚性檩条GXG 刚性系杆YXB 压型金属板WLT 屋脊檩条SQZ 山墙柱FHB 复合板GXG 刚性系杆YXB 压型金属板SQZ 山墙柱GLT 刚性檩条。

图纸英文常见缩写对照

图纸英⽂常见缩写对照ACCESS.Accessory附件CDRILL Counterdrill反钻孔ADJ Adjustable, Adjust可调节的，调节CDS Cold-Drawn Steel冷拔钢ADPT Adapter适配器CFS Cold-Finished Steel冷加⼯精整钢ADV Advance提前CH Case Harden壳体硬化AL Aluminum铝CHAM Chamfer倒⾓ALLOW.Allowance余量CHAN Channel槽钢ALT Alternate交替CHG Change变化ALY Alloy合⾦CHK Check检查AMT Amount量CI Cast Iron铸铁ANL Anneal退⽕CIR Circle，Circular圆的，圆形的ANSI AmerNatl Stds Institute美国国家标准局CIRC Circumference圆周APPROX Approximate⼤约CL Centerline中⼼线ASME Amer Society of Mech Engr美国机械⼯程师学会CLP Clamp夹⼦ASSEM Assemble可装配的CNC Computerized Numerical Cont电脑数值控制ASSY Assembly装配COMB Combination结合AUTH Authorized经授权的COML Commercial商业的AUTO.Automatic⾃动的CONC Concentric同⼼的AUX Auxiliary辅助的CONN Connect，Connector连接器AVG Average平均COV Cover覆盖AWG American Wire Gauge美国线规CPLG Coupling丝头CQ Commercial Quality商业等级钢BC Bolt Circle螺栓圆周CRS Cold-Rolled Steel冷轧钢BET Between在……之间CRT Cathode Ray Tube阴级射线管BEV Bevel斜⾓CS Cast Steel铸钢BHN Brinell Hardness Number布⽒硬度值CSA Canadian Stds Association加拿⼤标准协会BLK Blank, Block空⽩CSK Countersink埋头孔B/M Bill of material材质单CSTG Casting铸造BOT Bottom底部CTR Center中⼼BP or B/P Blueprint图纸CU Cubic⽴⽅的BRG Bearing轴承CW Clockwise顺时针的BRK Break破裂CYL Cylinder，Cylindrical圆柱的BRKT Bracket⽀架BRO Broach钻孔DBL Double两倍的BRS Brass黄铜DEC Decimal⼩数点BRZ Bronze青铜DEG Degree度数B&S Brown & Sharp英国电线线径规范DET Detail细节BSC Basic基本的DEV Develop开发BUSH.Bush套管DFT Draft制图BWG Brimingham Wire Gauge伯明翰线规DIA Diameter直径DIM Dimension尺⼨C TO C Center-to-Center中⼼到中⼼DIST Distance距离CAD Computer-Aided Drafting机械辅助制图DN Down向下的CAM Computer-Aided Mig机械辅助制造DP Deep, Diametral Pitch深，径节CAP Capacity能⼒DR Drill, Drill Rod钻，钻杆CAP SCR Cap Screw帽螺钉DSGN Design设计CARB Carburize渗碳DVTL Dovetail吻合CBORE Counterbore埋头孔DWG Drawing图纸CCW Counter Clockwise逆时针DWL Dowel⽊钉DWN Drawn拔出HGR Hanger 架HGT Height⾼度EA Each每个HOR Horizontal⽔平的ECC Eccentric偏⼼的HRS Hot-Rolled Steel热轧钢EFF Effective 有效的HSG Housing托架ENCL Enclose, Enclosure附上HT TR Heat Treat热处理ENG Engine发动机HVY Heavy重的ENGR Engineer⼯程师HYD Hydraulic⽔压的ENGRG Engineering⼯程EQL SP Equally Spaced 等距ID Inside Diameter内径EQUIV Equivalent 相等IDENT Identification识别EST Estimate估计ILLUS Illustration说明，插图EX Extra额外IN.Inch英⼨EXH Exhaust消耗INCL Include，Including包括EXP Experimental实验性的INCR Increase增加EXT Extension, External 范围,外部INFO Information信息INSP Inspect检验FAB Fabricate制造INSTL Install安装FAO Finish All Over全部处理INST Instruct,Instrument指⽰,⼯具FDRY Foundry铸造车间INT Interior,Internal,Intersect内部的,交叉FIG Figure数字IR Inside Radius内圆⾓FIL Fillet, Fillister 倒⾓，凹槽ISO Internatl Stds Organization国际标准化组织FIM Full Indicator Movement量表全程量FIN Finish完成JCT Junction连结FIX Fixture⼯装JNL Journal轴颈FL Floor，Fluid，Flush地⾯，液体，齐平JT Joint接头FLEX Flexible易弯曲的FLG Flange法兰K Key键，楔FORG Forging锻造KNRL Knurl刻痕，滚花FR Frame,Front框架，前⾯KST Keyseat键槽，楔形槽FTG Fitting装配KWY Keyway键沟FURN Furnish供给(装备)FWD Forward前⾯的，转发LB Pound磅LBL Label标签GA Gage,Gauge检具LG Length,Long长度GALV Galvanized镀锌LH Left Hand左⼿，左撇⼦GR Grade等级LMC Least Material Condition最⼩实体状态GRD Grind磨，打磨LOC Locate位于GRV Groove坡⼝LT Light轻的，浅的GSKT Gasket垫⽚LTR Letter字LUB Lubricate润滑H&G Harden and Grind硬化和打磨HD Head封头MACH Machine机器HDL Handle把⼿MAINT Maintenance维护，保养HDLS Headless⽆头MATL Material材料HDN Harden硬化MAX Maximum最⼤HDW Hardware硬件MECH Mechanical,Mechanism机械HEX Hexagon六边形MED Medium媒介MFG Manufacturing制造业PROD Product,Production产品，⽣产MI Malleable Iron可锻造的铁PSI Pounds per Square Inch磅/平⽅英⼨MIN Minimum, Minute最⼩的，分钟PT Part,Point零件，点MISC Miscellaneous混杂的mm Millimeter毫⽶QTR Quarter四分之⼀MMC Max Material Condition最⼤实体状态QTY Quantity数量MS Machine Steel机加⼯钢QUAL Quality质量MTG Mounting机座MULT Multiple倍数R Radius半径MWG Music Wire Gauge钢琴线量具RA Rockwell Hardness,A-Scale洛⽒硬度A级RB Rockwell Hardness,B-Scale洛⽒硬度B级NA Not Applicable不适⽤RC Rockwell Hardness,C-Scale洛⽒硬度C级NATL National国有的RECD Received巳收到的NC Numerical Control数控RECT Rectangle长⽅形NEG Negative负的REF Reference参考NO Number号码REINF Reinforce补强NOM Nominal公称REL Release, Relief释放，缓解NPSM Natl Pipe Straight Mech美国标准机械连接⽤直管REM Remove去除NPT Natl Pipe Tapered美国标准锥管螺纹REQD Required要求的NTS Not to Scale不按⽐例绘图RET Retainer,Return定位器，返回REV Reverse,Revision,Revolution版本,修改,旋转OA Over All总的RFS Regardless of Feature Size不考虑形体尺⼨OBS Obsolete陈旧的，过时的RGH Rough粗糙的OC On Center位于中⼼RH Right Hand右⼿OD Outside Diameter外径RIV Rivet铆钉OPP Opposite相反的RM Ream铰⼤….⼝径OPTL Optional可选择的RND Round圆的OR Outside Radius外圆⾓RPM Revolutions per Minute每分钟转数ORIG Original原始的，最初的RPW Resistance Projection Weld电阻凸焊PAT.Patent专利SAE Society of Automotive Engrs美国汽车⼯程师PATT Pattern外形SCH Schedule进度PC Piece,Pitch Circle件，节距圆SCR Screw螺钉PCH Punch 冲压SEC Second秒PD Pitch Diameter螺纹中径SECT Section部分PERF Perforate打孔SEP Separate分开的PERM Permanent永久的SEQ Sequence顺序PERP Perpendicular垂直的SER Serial,Series系列PFD Preferred⾸选的SERR Serrate锯齿状的PKG Package,Packing包装SF Spotface孔⼝平⾯PL Parting Line,Places,Plate分型线，地⽅，电镀SFT Shaft轴PNEU Pncumatic⽓动SGL Single单个PNL Panel⾯板SH Sheet⼀张, 薄⽚POL Polish抛光SI Intl System of Units国际单位制POS Position, Positive位置，正的SL Slide滑PR Pair成对的SLV Sleeve套筒PRI Primary初步的SOC Socket插座PROC Process过程，程序SP Space,Spaced,Spare 空间，备⽤的SPL Special特别的SPEC Specification规格SPG Spring弹簧SPHER Spherical球形的SPRKT Sprocket链轮齿SQ Square⽅的SST Stainless Steel不锈钢STD Standard标准STK Stock库存STL Steel钢STR Straight,Strip直的，带SUB Substitute替代品SUP Supply,Support 供应，⽀持SURF Surface表⾯SYM Symmetrical对称的SYS System系统T Teeth, Tooth⽛TECH Technical技术⽅⾯的TEMP Template,Temporary模板，暂时的THD Thread螺纹THK Thick厚TOL Tolerance公差TOT Total总计TPF Taper per Foot 每英尺锥度TPI Taper per In,Threads per Inc每英⼨锥度，每英⼨螺纹数TPR Taper锥度TS Tool Steel ⼯具钢TYP Typical典型的UNC Unified Natl Coarse 美制粗⽛UNEF Unified Natl Extra Fine 美制超细⽛UNF Unified Natl Fine 美制细⽛UNIV Universal 普遍的, 通⽤的VAR Variable变量VERT Vertical垂直的VOL Volume体积VERSUS Versus与...相对W Wide,Width 宽度WASH Washer垫圈WDF Woodruff 半圆,⽉形WI Wrought Iron 熟铁WT Weight重量。

工程图纸中英文缩写意义

工程图纸中英文缩写意义有专门的标准，多学习，多认识，多参与工程。

希望有所帮助。

. 石油化工企业配管工程常用缩写词SH/T 3902-93目次总则1、管子及管件2、法兰3、垫片4、坚固件5、阀门6、管道上用的设备7、隔热、伴热8、配管材料和等级9、装置布置10、尺寸标准11、图、表12、操作方式及工作参数13、施工14、其他总则本标准适用于石油化工企业工艺装置（单元）配管工程设计，其它配管工程设计可参照使用。

本标准未包括的缩写，设计需要时，可采用其它通用的英文缩写，或参照本标准派生。

1 管子及管件编号缩写中文名称英文名称1.1 P 管子Pipe1.2 EL 弯头Elbow1.2.1 ELL 长半径弯头Long radius elbow1.2.2 ELS 短半径弯头Short radius elbow1.2.3 MEL 斜接弯头（虾米腰弯头）Mitre elbow1.2.4 REL 异径弯头Reducing elbow1.3 T 三通Tee1.3.1 LT 斜三通Lateral tee1.3.2 RT 异径三通Reducing tee1.4 R 异径管接头（大小头）Reducer1.4.1 CR 同心异径管接头（同心大小头）Concentric reducer1.4.2 ER 偏心异径管接头（偏心大小头）Eccentric reducer1.5 CPL 管箍Coupling1.5.1 FCPL 双头管箍Full coupling1.5.2 HCPL 单头管箍Half coupling1.5.3 RCPL 异径管箍Reducing coupling1.6 BU 内外螺纹接头Bushing1.7 UN 活接头Union1.8 HC 软管接头Hose coupler1.9 SE 翻边短节Stub end1.10 NIP 短节Pipe nipple or straight nipple1.10.1 SNIP 异径短节Swaged nipple1.11 CP 管帽（封头）Cap1.12 PL 管堵（丝堵）Plug1.13 BLK 盲板Blank1.13.1 SB 8字盲板Spectacle blind (blank)1.14 RP 补强板Reinforcing pad2 法兰编号缩写中文名称英文名称2.1 PLG 法兰Flange2.1.1 WNF 对焊法兰Welding neck flange2.1.2 SOF 平焊法兰Slip-on flange2.1.3 SWF 承插焊法兰Socket-welding flange2.1.4 T 螺纹法兰Threaded flange2.1.5 LJ 松套法兰Lapped joint flange2.1.6 REDF 异径法兰Reducing flange2.1.7 BF 法兰盖（日法兰）Blind flange2.2 FSF 法兰密封面Flange scaling face2.2.1 FF 全平面Flat face2.2.2 RF 凸台面Raised face2.2.3 MFF 凹凸面Male and female face2.2.4 LF 凹面Female face2.2.5 LM 凸面Male face2.2.6 RJ 环连接面Ring joint face2.2.7 TG 榫槽面Tongue and groove face2.2.8 TF 榫面Tongue face2.2.9 GF 槽面Groove face3 垫片编号缩写中文名称英文名称3.1 G 垫片Gasket3.1.1 NMG 非金属垫片Non-metallic gasket3.1.1.1 AG 石棉垫片Asbestos gasket3.1.1.2 RG 橡胶垫片Rubber gasket3.1.1.3 TEG 聚四氟乙烯包复垫片PTFE envelope gasket 3.1.2 SMG 半金属垫片Semimetallic gasket3.1.2.1 MJG 金属包垫片Meta-jacket gasket3.1.2.2 SWG 缠绕式垫片Spiral wound gasket3.1.3 MG 金属垫片Metallic gasket3.1.3.1 FMG 金属平垫片Flat metallic gasket3.1.3.2 SMSG 齿形金属垫片Solid metal serrated gasket 3.1.3.3 LER 透镜式金属环垫Lens ring gasket3.1.3.4 OCR 八角形金属环垫Octagonal ring gasket 3.1.3.5 OVR 椭圆形金属环垫Oval ring gakset3.1.3.6 IR/OR 内外定位环Inner ring and outer ring3.1.3.7 IR 内定位环Inner ring3.1.3.8 OR 外定位环Outer ring4 坚固件编号缩写中文名称英文名称4.1 B 螺栓Bolt4.1.1 SB 螺柱Stud bolt4.2 NU 螺母Nut4.3 TB 花蓝螺母Turnbuckle4.4 WSR 垫圈Washer4.4.1 SWSR 弹簧垫圈Spring washer5 阀门编号缩写中文名称英文名称5.1 GV 闸阀Gate valve5.2 GLV 截止阀Globe valve5.3 CHV 止回阀Check valve5.4 BUV 蝶阀Butterfly valve5.5 BA V 球阀Ball valve5.6 PV 旋塞阀Plug valve (cock)5.7 CV 调节阀Control valve5.8 SV 安全阀Safety valve5.9 RV 减压阀Pressure reducing valve5.10 ST 蒸汽疏水阀Steam trap5.11 PRV 泄压阀Pressur relief valve5.12 BV 呼吸阀Breather valve5.13 NV 针形阀Needle valve5.14 AV 角阀5.15 DV 隔膜阀5.16 TWV 三通阀5.17 SGV 插板阀6 管道上用的小型设备编号缩写中文名称英文名称6.1 SPR 气液分离器Separator6.2 FA 阻火器Flame arrester6.3 SR 过滤器Strainer6.3.1 SRY Y型过滤器Y-type strainer6.3.2 SRT T型过滤器T-type strainer6.3.3 SRB 桶式过滤器Bucket type strainer6.3.4 TSR 临时过滤器Temporary strainer6.4 SIL 消声器Silencer6.5 SG 视镜Slight glass6.6 SC 取样冷却器Sample cooler6.7 DF 排液漏斗Drain funnel6.8 LM 管道混合器Line mixer6.9 RO 限流孔板Restriction orifice6.9.1 MO 混合孔板Mixing orifice6.1 RD 爆破片（爆破膜）Rupture disk6.11 EJ 补偿器Expansion joint7 隔热、伴热编号缩写中文名称英文名称7.1 INS 隔热Thermal insulation7.1.1 H 保温Hot insulation7.1.2 C 保冷Cold insulation7.1.3 P 防烫伤隔热Personnel protection insulation 7.2 T&I 伴热Tracing and insulation7.3 T 管道伴热（冷）Tracing7.3.1 EST 蒸汽外伴热External steam tracing7.3.2 IST 蒸汽内伴热Internal steam tracing7.3.3 SJT 蒸汽夹套伴热Steam-jacket tracing7.3.4 ET 电伴热Electric tracing8 配管材料和等级编号缩写中文名称英文名称8.1 M 金属材料Metallic material8.1.1 CS 碳钢Carbon steel8.1.2 CAS 铸钢Cast steel8.1.3 FS 锻钢Forged steel8.1.4 AS 合金钢Alloy steel8.1.5 SS 不锈钢Stainless steel8.1.6 AUSTSS 奥氏体不锈钢Austenitic stainless-steel8.1.7 CI 铸铁Cast iron8.1.8 MI 可锻铸铁Malleable iron8.1.9 DI 球墨铸铁Ductile iron8.1.10 AL 铝Aluminum8.1.11 BRS 黄铜Brass8.1.12 BRZ 青铜Bronze8.1.13 CU 紫铜Copper8.1.14 LAS 低合金钢Low alloy steel8.1.15 FLAS 低合金锻钢Forged low alloy steel 8.1.16 CLAS 低合金铸钢Cast low alloy steel8.2 THK 壁厚Thickness8.2.1 SCH 表号Schedule number8.2.2 STD 标准Standard8.2.3 XS 加强Extra strong8.2.4 XXS 特强Double extra strong9 装置布置编号缩写中文名称英文名称9.1 CN 建北Construction north9.2 E 东East9.3 W 西West9.4 S 南South9.5 N 北North9.6 H 水平Horizontal9.7 V 竖直、铅直、直立Vertical9.8 GRD 地坪Ground9.9 UG 地下Underground9.10 BL 装置边界线Battery limit line9.11 ESEW 事故沐浴洗眼器Emergency shower and eye washer 9.12 HS 软管站Hose station9.13 ML 接续分界线Match line9.14 PS 管道支架（管架）Piping support9.15 PR 管桥Pipe rack9.16 STRU 构架（构筑物）Structure9.17 BLDG 建筑物Building9.18 PD 清扫设施Purge device9.19 PT 池Pit9.20 SHLT 棚Shelter9.21 COFF 围堰Cofferdam9.22 FL 楼板Floor9.23 PF 平台Plateform10 尺寸标注编号缩写中文名称英文名称10.1 EL 标高Elevation10.2 BOP 管底Bottom of pipe10.3 COP 管中心Center of pipe10.4 TOP 管顶Top of pipe10.5 FOB 底平Flat on bottom10.6 FOT 顶平Flat on top10.7 CL(屯) 中心线Center line10.8 TL 切线Tangent line10.9 SYM 对称的Symmetrical10.10 BOS 支架底Bottom of support10.11 TOS 支架顶Top of support10.12 CL 净距（净空）Clearance10.13 CTC 中心至中心Center to center10.14 CTF 中心至面Center to face10.15 CTE 中心至端部Center to end10.16 ETE 端到端End to end10.17 FEF 法兰端面Flange and face10.18 FTF 面到面Face to face10.19 D 直径Diameter10.20 DN 公称直径Nominal diameter10.21 ID 内径Inside diameter10.22 OD 外径Outside diameter10.23 DIM 尺寸Dimension10.24 MAX 最大Maximum10.25 MIN 最小Minimum10.26 A VG 平均Average10.27 APP 约、近似Approximate10.28 PT.EL 点标高Point elevation11 图表编号缩写中文名称英文名称11.1 PFD 工艺流程图Process flow diagram11.2 PID 管道和仪表流程图Piping & instrument diagram 11.3 COD 接续图Continued on drawing11.4 DTL 详图Datail11.5 SPDWG(ISODWG) 管段图Spool drawing (each line isometric drawing)11.6 DWGNO 图号Drawing number11.7 DWGI 所在图号Drawing identification11.8 LOW 材料表List of material11.9 MTO 汇料Material take-off11.10 APPX 附录Appendix11.11 JOB. No. 工号Job Number11.12 BEDD 基础工程设计数据Basic engineering design data 11.13 DEDD 详细工程设计数据Detail engineering design data 11.14 REV. No. 修改号Recision number11.15 REFDWG 参考图Reference drawing11.16 SC 采样接口Sample connection12 操作方式及工作参数编号缩写中文名称英文名称12.1 AUT 自动Automatic12.2 ML 手动Manual control12.3 CHOP 链条操作Chain operated12.4 CSC 铅封关Car seal close12.5 CSO 铅封开Car seal open12.6 LC 锁闭Lock closed12.7 LO 锁开Lock open12.8 NC 正常关Normally close12.9 NO 正常开Normally open12.10 ATM 大气压Atmosphere12.11 PN 公称压力Nominal pressure12.12 A 绝压12.13 G 表压12.14 (T) 温度Temperature12.15 (P) 压力Pressure13 施工编号缩写中文名称英文名称13.1 W 焊接Welding13.1.1 AW 电弧焊Arc welding13.1.2 GSAW 气体保护电弧焊Gas shielded-acr welding13.1.3 EFW 电熔焊Elecric fusion welding13.1.4 ERW 电阻焊Electric Resistance welding13.1.5 GW 气焊Gas welding13.1.6 LW 搭接焊Lap welding13.1.7 BW 对焊Butt welding13.4.8 TW 定位焊Tack welding13.1.9 SW 承插焊Socket welding13.1.10 CW 连续焊Continuous welding13.1.11 SEW 密封焊Seal welding13.1.12 SFG 堆焊Surfacing13.1.13 FW 现场焊接Field welding13.2 HT 热处理Heat treatment13.2.1 PH 预热Preheating13.2.2 SR 应力消除Stress relief13.2.3 PWHT 焊后热处理Post weld heat treatment13.3 EIT 检查、探伤和实验Examination, inspection & testing 13.3.1 VE 外观检查Visual examination13.3.2 UI (UT) 超声探伤Ultrasonic inspection (test)13.3.3 RI (RT) 射线探伤Radiographic inspection (test)13.3.4 MPI (MT) 磁粉探伤Magnetic particle inspection (test) 13.3.5 LPI (PT) 液体渗透检验Liquid penterant inspection (test) 13.3.6 HADT 硬度实验Hardness testing13.3.7 HYDT 水压实验Hydraulic testing13.3.8 PNET 气压实验Pneumatic testing13.3.9 CE 焊条Covered electrode13.3.10 WW 焊丝Welding wire13.3.11 ASSY 装配、组合Assembly13.** F 现场Field13.3.13 F/F 现场制造Field faricated13.3.14 SF 现场决定Suit in field13.3.15 CSP 冷紧Cold spring13.3.16 BCT 螺栓冷紧Bolt cold tightening13.3.17 BHY 螺栓热紧Bolt hot tightening13.3.18 CO 清洗口Clean out13.3.19 ANNY 退火Annealed13.4 PE 平端面Plain end13.5 BE 坡口端Belelled end13.6 THR 螺纹Thread13.7 HB 布氏硬度Brinnel hardness13.8 RC 洛氏硬度14 其他编号缩写中文名称英文名称14.1 FDN 基础Foundation14.2 INF 信息（资料）Information14.3 REF 参考Reference14.4 REV 修改Revision14.5 SEQ 序号（顺序）Sequence14.6 W/E 设备带来With equipment14.7 W/I 仪表带来With instrument14.8 CM 色标Colour mark14.9 CA 腐蚀裕度Corrosion allowance14.10 UTL 公用系统Utility14.11 UC 公用工程接头Utility connection14.12 QTY 数量Quantity14.13 WT 重量Weight14.14 MHR 工时Man hour14.15 BC 螺栓分布圆Bolt circle14.16 HP 高点High point14.17 LP 低点Low point14.18 SUC 吸入（口）Suction14.19 DIS 排出（口）Discharge14.20 SO 蒸气吹扫（口）Steam out14.21 NPT 美国标准锥管螺纹National standard taperpipe thread 14.22 NPS 美国标准直管螺纹National standard straight pipe thread 14.23 DR 排液Drain14.24 VT 放气V ent14.25 RTG （压力）等级Rating14.26 CL 等级Class。

设计中图纸英文代号说明

设计中图纸英文代号说明AHU ——空气处理机CH. ——制冷机C.D. ——冷凝水管C.T. ——冷却塔CAV ——新风量控制箱EAF ——排风机EAD ——排风管EAG ——排风口EAL ——排风百叶FAG ——新风口FAL ——新风百叶FAF ——补风机F.A. ——新风FAD ——新风管F.D. ——防火阀HC ——加热盘管FC ——风机盘管HX ——热交换器L/L---------低位M/L--------中位MAD-------补风管MAF-------补风机N.C.-------常闭N.O.-------常开N.R.D.----风管止回阀P.A.-------经过处理的新风PDA-------新风管(经过处理的新风) PAU-------新风机(带处理功能) PAL-------新风百叶R.A.-------回风RAD-------回风管RAG-------回风口AEROFLEX “亚罗弗”保温ALCO “艾科”自控Alerton 雅利顿Alfa laval阿法拉伐ARMSTRONG “阿姆斯壮”保温AUX 奥克斯BELIMO 瑞士“搏力谋”BERONOR西班牙“北诺尔”电加热器BILTUR 意大利“百得”BOSIC “柏诚”自控BROAD 远大Burnham美国“博恩汉”锅炉CALPEDA意大利“科沛达”水泵CARLY 法国“嘉利”制冷配件Carrier 开利Chigo 志高Cipriani 意大利斯普莱力CLIMAVENETA意大利“克莱门特”Copeland“谷轮”压缩机CYRUS意大利”赛诺思”自控DAIKIN 大金Danfoss丹佛斯Dorin “多菱”压缩机DUNHAM-BUSH 顿汉布什DuPont美国“杜邦”制冷剂Dwyer 美国德威尔EBM “依必安”风机ELIWELL意大利“伊力威”自控EVAPCO美国“益美高”冷却设备EVERY CONTROL意大利“美控”Erie 怡日FRASCOLD 意大利“富士豪”压缩机FRICO瑞典“弗瑞克”空气幕FUJI “富士”变频器FULTON 美国“富尔顿”锅炉GENUIN “正野”风机GREE 格力GREENCOOL格林柯尔GRUNDFOS “格兰富”水泵Haier 海尔Hisense 海信HITACHI 日立Honeywell 霍尼韦尔Johnson 江森Kelon 科龙KRUGER瑞士“科禄格”风机KU BA德国“库宝”冷风机Liang Chi 良机LIEBERT 力博特MARLEY “马利”冷却塔Maneurop法国“美优乐”压缩机McQuary 麦克维尔Midea 美的MITSUBISHI三菱Munters 瑞典“蒙特”除湿机Oventrop德国“欧文托普”阀门Panasonic 松下RANCO “宏高”自控REFCOMP意大利“莱富康”压缩机RIDGID 美国“里奇”工具RUUD美国“路德”空调RYODEN “菱电”冷却塔SanKen “三垦”变频器Samsung 三星SANYO 三洋SASWELL英国森威尔Schneider 施耐德SenseAir 瑞典“森尔”传感器SIEMENS 西门子SINKO "新晃“空调SINRO “新菱”冷却塔STAND “思探得”加湿器SWEP 舒瑞普TECKA “台佳”空调Tecumseh“泰康”压缩机TRANE 特灵TROX德国“妥思”VASALA芬兰“维萨拉”传感器WILO德国“威乐”水泵WITTLER 德国”威特”阀门YORK 约克ZENNER德国“真兰”计量。

工程图纸英文缩写汉语对照

ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED. 未注焊缝均为连续焊ALL WELDS 3mm FILLET UNLESS OTHERWISE STATED 未注焊角高3mm.ALL UNSPECIFIED RADI - R3 未注圆角R3REMOVE ALL BURRS AND SHARP EDGES 所有尖角/棱角倒角并去毛11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUND ONLY,END COILS SQUARE TO TOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明) CHANNEL 槽钢RSA 708 角钢70X70X8M30X1.5 pitch M30X1.5的锥螺纹Tackweld 点焊OD 1/4" outside dimension 1/4"的缩写外径直1/4"75 CRS尺寸为75 材质为冷轧钢板410 OPENING REF 410 开口参考尺寸40 REF尺寸为40,参考值2.5" BSP 2.5” 圆锥管螺纹2.5" BSPT HEXAGON2.5” 六角圆锥管螺纹(即对丝)30x2.5 FLAT BAR 30X2.5 扁钢TYP 2 POSNS 2处FEMALE: 内扣(母扣)MALE: 外扣(公扣)偏心轴eccentric shaft销轴PIN开口销COTTER PIN螺杆screw轴承axletree挡圈closing ring弹性挡圈circlip弹簧SPRING紧定螺钉SET SCREW圆螺母ROUND NUT平键FLAT KEY圆螺母ROUND NUT六角螺栓HEX HD BOLT无扣长non-buckle longth平垫圈FLAT WASHER螺母FULL NYLOCK NUT吊环螺钉LIFTING EYE BOLT内六角螺钉SOCKET HEAD CAP SCREW六角螺钉HEX HD SETSCREW轴承隔套distance sleeve of axletree深沟球轴承DEEP GROOVE BALL BEARING 开槽盘头螺钉SLOTTED PAN HEAD SCREW 圆锥滚子轴承TAPERED ROLLER BEARING 推力球轴承THRUST BALL BEARING弹簧垫圈SINGLE COIL SPRING WASHER缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大约ASME Amer Society of Mech Engrs ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension,External 范围,外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译NTS Not to ScaleOA Over All 所有OBS ObsotetcOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece,Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package,Packing 包装PL Parting Line,Places,PlatePNEU PncumaticPNL Panel 面板POL Polish 磨光POS Position,Postive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product,Production 产品，产量PSI Pounds per Square InchPT Part,Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden,A-ScaleRB Rockwell Harden,B-ScaleRC Rockwell Harden,C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release,Relief 释放，缓解REM Remove 移除REQD Requird 有需要REE Retainer,ReturnREV Reverse,Revision,RevolutionRFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive EngrsSCH Schedule 进度表缩写全称翻译CFS Cold-Finished SteelCH Case HardenCHAM Chamfer 斜面CHAN Channel 渠道CHG Change 改变CHK Check 核查CI Cast Iron 铸铁CIR Circle, Circular 圆周CIRC Circumference 圆周CL Centerline 中心线CLP Clamp 夹子CNC Computer Numerical Control 电脑数值控制COMB Combination 联合COML Commercial 商业的CONC Concentric 同中心的CONN Connect,Connector 连接器COV Cover 盖子CPLG Coupling 联结CQ Commercial Quality 商业等级钢CRS Cold Stds AssociationCRT Cathode Ray Tube 阴级射线管CS Cast Steel 铸铁CSA Canadian Stds Association CSK Countersink 埋头孔CSTG Casting 铸件CTR Center 中心CU Cubic 立方米CW Clockwise 顺时针CYL Cylinder,Cylindrical 柱面DBL Double 双倍DEC Decimal 小数DEG Degree 摄氏度DET Detail 详情DEV Develop 发展DFT Draft 草稿DIA Diameter 直径DIM Dimension 尺寸DIST Distance 距离DN Down 向下DP Deep,Diametral Pitch 深度,径节DR Drill,Drill Rod 钻孔DSGN Design 设计DVTL Dovetail 吻合DWG Drawing 图纸DWL Dowel 木钉DWN Drawn 拔出EA Each 每个ECC Eccentric 古怪缩写全称翻译HVY Heavy 重量HYD Hydraulic 水压ID Inside Diameter 内部直径IDENT Identification 鉴定ILLUS Illustration 说明IN Inch 英寸INCL Include,Including 包括INCR Increase 增加INFO Information 信息INSP Inspect 检查INSTL Install 安装INST Instruct,Instrument 指示,工具INT Interior,Internal,Intersect 内部的,内在的,交叉IR Inside Radius 内部半径ISO Internal Stds Organization 国际标准化组织JCT Junction 连结JNT Journal 杂志JT Joint 连接K Key 关键KNRL Knurl 硬节KST KeyseatKWY Keyway 键沟LB Pound 英镑LBL Label 标签LG Length,Long 长度LH Left Hand 左手LMC Least Material ConditionLOC Locate 位于LT Light 光LTR Letter 信LUB Lubricate 润滑MACH Machine 机器MAINT Maintenance 维护MATL Material 材料MAX Maximum 最大MECH Mechanical,Mechanism 机械MED Medium 媒介MFG Manufacturing 制造业MI Malleable Iron 可锻造的铁MIN Minimum, Minute 最小，秒MISC Miscellaneous 混杂的MM Millimeter 毫米MMC Max Material ConditionMS Machine SteelMTG Mouting 装备MULT Multiple 倍数MWG Music Wire GagugNA Not Applicable 不可应用的NATL National 国内的NC Numerical Control 数字电脑控制NEG Negative 忽略的NO. Number 号码NOM Nominal 名义上的NPSM Natl Pipe Straight MechNPT Natl Pipe Tapered缩写全称翻译SCR Screw 螺丝SEC Second 秒SECT Section 部分SEP Separate 独立SEQ Sequence 顺序SER Serial,Series 系列SERR Serrate 锯齿状SF SpotfaceSFT Shaft 轴SGL Single 单个SH Sheet 纸SI Intl System of UnitsSL Slide 使滑动SLV Sleeve 袖子SOC Socket 插座SP Space,Spaced,Spare 空间SPL Special 特别SPEC Specification 规格SPG Spring 跳SPHER Spherical 球体SPRKT Sprocket 链轮齿SQ Square 平方SST Stainless Steel 纯铁STD Standard 标准STK Stock 存货STL Steel 铁STR Straight,Strip 直的SUB Substitute 替代物SUP Supply,Support 供应SURF Surface 表面SYM Symmetrical 对称的SYS System 系统T Teeth,Tooth 牙齿TECH Technical 技术TEMP Template,Temporary模板，暂时的THD Thread 线THK Thick 厚的TOL Tolerance 公差TOT Total 总计TPF Taper per FootTPI Taper per In,Threads per InchTPR Taper 锥形TS Tool SteelTYP Typical 典型UNC Unified Natl CoarseUNEF Unified Natl Extra FineUNF Unified Natl FineUNIV Universal 普遍VAR Variable 变量VERT Vertical 垂直的VOL Volume 音量VS Versus 与．．相对W Wide,Width 宽度WASH Washer 洗衣机WDF Woodruff 车叶草WI Wrought Iron 熟铁WT Weight 重量SAE Extra fine 美国汽车工程师协会的超细牙螺纹例：1/2-28 SAE Extra fineSAE Reg 美国汽车工程师协会的标准系列螺纹例：1/2-20 SAE RegSAE-LT 美国汽车工程师协会的圆锥外螺纹例：1/2-28 SAE-LT。
