机械图纸英语翻译以下是我在工作中常用的ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED. 未注焊缝均为连续焊ALL WELDS 3mm FILLET UNLESS OTHERWISE STATED 未注焊角高3mm. ALL UNSPECIFIED RADI - R3 未注圆角R3REMOVE ALL BURRS AND SHARP EDGES 棱角倒钝CHANNEL 槽钢RSA 708 角钢70X70X8M30X1.5pitch M30X1.5的锥螺纹Tackweld 点焊OD 1/4" outside dimension 1/4"的缩写外径直1/4"75 CRS 尺寸为75 材质为冷轧钢板410 OPENING REF 410 张口参照尺寸40 REF 尺寸为40,参照值2.5" BSP 2.5” 圆锥管螺纹2.5" BSPT HEXAGON 2.5” 六角圆锥管螺纹(即对丝)30x2.5 FLAT BAR 30X2.5 扁钢TYP 2 POSNS 2处11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUND ONLY,END COILS SQUARE TO TOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明) FEMALE: 内扣(母扣)MALE: 外扣(公扣)独爱轴eccentric shaft销轴PIN 张口销COTTER PIN螺杆screw紧定螺钉SET SCREW圆螺母ROUND NUT内六角螺钉SOCKET HEAD CAP SCREW六角螺钉HEX HD SETSCREW六角螺栓HEX HD BOLT挡圈closing ring弹性挡圈circlip轴承隔套distance sleeve of axletree轴承axletree深沟球轴承DEEP GROOVE BALL BEARING无扣长non-buckle longth弹簧SPRING吊环螺钉LIFTING EYE BOLT开槽盘头螺钉SLOTTED PAN HEAD SCREW圆锥滚子轴承TAPERED ROLLER BEARING推力球轴承THRUST BALL BEARING平键FLA T KEY弹簧垫圈SINGLE COIL SPRING WASHER 平垫圈FLAT WASHER螺母FULL NYLOCK NUT圆螺母ROUND NUTREMOVE ALL BURRS AND SHARP EDGES 所有尖角/棱角倒角并去毛刺40 REF 为测量的参照尺寸OD 1/4’ outside dimension 1/4"的缩写外径直1/4’------->应该为：外径值1/4"75 CRS 尺75 材质为冷轧钢板------->应该为：尺寸75 材质为冷轧钢板我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究理解；照此计算75是相当薄的缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 赞同ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大体ASME Amer Society of Mech Engrs ASSEM Assemble 装置ASSY Assembly 装置AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的A VG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 资料费BOT Bottom 底部BP or B/P Blueprint 宏图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 耗资EXP Experimental 实验性的EXT Exension,External 范围,外面FAB Fabricate 捏造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易波折的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 供应FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 办理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究理解；照此计算75是相当薄的缩写全称翻译ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 赞同ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大体ASME Amer Society of Mech Engrs ASSEM Assemble 装置ASSY Assembly 装置AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的A VG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 资料费BOT Bottom 底部BP or B/P Blueprint 宏图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose,Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 耗资EXP Experimental 实验性的EXT Exension,External 范围,外面FAB Fabricate 捏造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet,fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid,Flush 基地,液体,冲洗FLEX Flexible 易波折的FLG Flange 边缘FORG Forging 锻炼FR Frame,Front 边框FIG Fitting 装置FURN Furnish 供应FWD Forward 向前GA Gage,Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 办理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译NTS Not to ScaleOA Over All 所有OBS ObsotetcOC On CenterOD Outside Diameter 外直径OPP Opposite 对峙OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece,Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package,Packing 包装PL Parting Line,Places,PlatePNEU PncumaticPNL Panel 面板POL Polish 磨光POS Position,Postive 地址PR Pair 对峙PRI Primary 基本的PROC Process 程序PROD Product,Production 产品，产量PSI Pounds per Square InchPT Part,Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden,A-ScaleRB Rockwell Harden,B-ScaleRC Rockwell Harden,C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 加强REL Release,Relief 释放，缓解REM Remove 移除REQD Requird 有需要REE Retainer,ReturnREV Reverse,Revision,RevolutionRFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive EngrsSCH Schedule 进度表CFS Cold-Finished SteelCH Case HardenCHAM Chamfer 斜面CHAN Channel 渠道CHG Change 改变CHK Check 核查CI Cast Iron 铸铁CIR Circle, Circular 圆周CIRC Circumference 圆周CL Centerline 中心线CLP Clamp 夹子CNC Computer Numerical Control 电脑数值控制COMB Combination 联合COML Commercial 商业的CONC Concentric 同中心的CONN Connect,Connector 连接器COV Cover 盖子CPLG Coupling 联系CQ Commercial Quality 商业等级钢CRS Cold Stds AssociationCRT Cathode Ray Tube 阴级射线管CS Cast Steel 铸铁CSA Canadian Stds AssociationCSK Countersink 专心孔CSTG Casting 铸件CTR Center 中心CU Cubic 立方米CW Clockwise 顺时针CYL Cylinder,Cylindrical 柱面DBL Double 双倍DEC Decimal 小数DEG Degree 摄氏度DET Detail 详情DEV Develop 发展DFT Draft 稿本DIA Diameter 直径DIM Dimension 尺寸DIST Distance 距离DN Down 向下DP Deep,Diametral Pitch 深度,径节DR Drill,Drill Rod 钻孔DSGN Design 设计DVTL Dovetail 切合DWG Drawing 图纸DWL Dowel 木钉DWN Drawn 拔出EA Each 每个ECC Eccentric 独特缩写全称翻译HVY Heavy 重量HYD Hydraulic 水压ID Inside Diameter 内部直径IDENT Identification 判断ILLUS Illustration 说明IN Inch 英寸INCL Include,Including 包括INCR Increase 增加INFO Information 信息INSP Inspect 检查INSTL Install 安装INST Instruct,Instrument 指示,工具INT Interior,Internal,Intersect 内部的,内在的,交叉IR Inside Radius 内部半径ISO Internal Stds Organization 国际标准化组织JCT Junction 连接JNT Journal 杂志JT Joint 连接K Key 要点KNRL Knurl 硬节KST KeyseatKWY Keyway 键沟LB Pound 英镑LBL Label 标签LG Length,Long 长度LH Left Hand 左手LMC Least Material ConditionLOC Locate 位于LT Light 光LTR Letter 信LUB Lubricate 润滑MACH Machine 机器MAINT Maintenance 保护MATL Material 资料MAX Maximum 最大MECH Mechanical,Mechanism 机械MED Medium 媒介MFG Manufacturing 制造业MI Malleable Iron 可铸造的铁MIN Minimum, Minute 最小，秒MISC Miscellaneous 混杂的MM Millimeter 毫米MMC Max Material ConditionMS Machine SteelMTG Mouting 装备MULT Multiple 倍数MWG Music Wire GagugNA Not Applicable 不可以应用的NATL National 国内的NC Numerical Control 数字电脑控制NEG Negative 忽略的NO. Number 号码NOM Nominal 名义上的NPSM Natl Pipe Straight MechNPT Natl Pipe Tapered缩写全称翻译SCR Screw 螺丝SEC Second 秒SECT Section 部分SEP Separate 独立SEQ Sequence 序次SER Serial,Series 系列SERR Serrate 锯齿状SF SpotfaceSFT Shaft 轴SGL Single 单个SH Sheet 纸SI Intl System of UnitsSL Slide 使滑动SLV Sleeve 袖子SOC Socket 插座SP Space,Spaced,Spare 空间SPL Special 特别SPEC Specification 规格SPG Spring 跳SPHER Spherical 球体SPRKT Sprocket 链轮齿SQ Square 平方SST Stainless Steel 纯铁STD Standard 标准STK Stock 存货STL Steel 铁STR Straight,Strip 直的SUB Substitute 取代物SUP Supply,Support 供应SURF Surface 表面SYM Symmetrical 对称的SYS System 系统T Teeth,Tooth 牙齿TECH Technical 技术TEMP Template,Temporary 模板，暂时的THD Thread 线THK Thick 厚的TOL Tolerance 公差TOT Total 总计TPF Taper per FootTPI Taper per In,Threads per InchTPR Taper 锥形TS Tool SteelTYP Typical 典型UNC Unified Natl CoarseUNEF Unified Natl Extra FineUNF Unified Natl FineUNIV Universal 宽泛VAR Variable 变量VERT Vertical 垂直的VOL V olume 音量VS Versus 与．．相对W Wide,Width 宽度WASH Washer 洗衣机WDF Woodruff 车叶草WI Wrought Iron 熟铁WT Weight 重量齿轮及齿轮加工中英文比较-A部分A.1. abrasive tooth wear 齿面研磨磨损2. absolute tangential velocity 绝对切向速度3. accelerometer 加速表4. addendum 齿顶高5. addendum angle 齿顶角6. addendum circle 齿顶圆7. addendum surface 上齿面8. adhesive wear 粘着磨损9. adjustability 可调性10. adjustability coefficients 可调系数11. adjusting wedge 圆盘端铣刀的可调型楔块12. allowable stress 赞同应力13. alternate blade cutter 双面刀盘14. angular backlash 角侧隙15. angular bevel gears 斜交锥齿轮16. angular displacement 角移位17. angular pitch 齿端距18. angular testing machine 可调角度试验机19. approach action 啮入20. arbor 心轴21. arbor distance 心轴距22. arc of approach 啮入弧23. arc of recess 啮出弧24. attraction 收紧25. average cutter diameter 平均刀尖直径26. axial displacement 轴向位移27. axial factor 轴向系数28. axial locating surface 轴向定位面29. axial pitch 轴向齿距30. axial plane 轴向平面31. axial rakeangle 轴向前角32. axial thrust 轴向推力33. axle testing machine 传动桥试验机第4楼Piping work: 铺管工程Steam trace: 加热蒸汽管道Cutting: 切割socket weld 承插焊接fillet weld 角焊,填角焊branch connection 分支接续fabrication tolerance .制造容差local heat treatment 局部热办理threaded pipe 螺纹管seal welding 密封焊接flange joint 凸缘接头undercut 底切feeder 馈电线conduit outlet 电线引出口seal fitting 密封接头, 密封配件Screw thread lubricant 螺纹润滑剂Seal 绝缘层weld reinforcement 焊缝补强lock washer 锁紧[止动, 防松]垫圈electrical panel 配电板,配电盘nipple 螺纹接头zinc plated 镀锌的ring joint 环接, 围缘接合bolt 螺栓control 控制器National Electrical Code 全国电气规程master schedule 主要图表, 综合图表, 设计任务书, 主要作业表torque wrench 转矩扳手job site 施工现场flange connection 凸缘联接Hard hat 安全帽Goggles 护目镜Stockpile 储藏packing list 装箱单crate 柳条箱purchased material list 原资料进货单back-feed 反响wire coil 线盘线卷NPT thread 美国标准锥管螺纹cable gland 电缆衬垫terminal block 线弧, 接头排接线盒, 接线板, 线夹power drill 机械钻connector 接线器insulated sleeve 绝缘套管wire connector 接线器wire terminal 电线接头control wiring 控制线路motor lead 电动机引出线power wiring 电力布线tender document 供应证件orifice plate 挡板nut 螺母flange gasket 法兰垫片dimensional inspection 尺寸检验burn through 烧蚀piping system 管道系统reinforcement of weld 加强焊缝械专业词汇表"机械(常用)""abrasion, abrasive wear","磨料磨损" "active force, applied force","作用力" "actual size","实质尺寸""addendum angle","齿顶角" "addendum","齿顶高""addendum modification","径向变位" "addendum modification (for external gears)","径向变位量""addendum modification coefficient","径向变位系数""additive ","增加剂""adhesion wear","黏着磨损""adjusted rating life","修正额定寿命" "aerodynamic bearing","气体静压滑动轴承" "air spring","空气弹簧""angle drive","角度传动""angle of contact","包角""angle of transmission","作用角""angular bevel gear ","斜交锥齿轮" "angular contact bearing","角接触推力轴承" "angular contact bearing","角接触轴承""anti-friction bearing material","减磨轴承资料" "approach, engaging-in","啮入" "archimedes spiral","阿基米德螺线" "attitude angle","偏位角""auto-controlled clutch","自控离合器""axial load factor","轴向载荷系数""axial modification","齿向修形""axial module","轴向模数""axial pitch","轴向齿距""axial plane","轴平面""axial plane of wormwheel","蜗轮轴平面" "axial profile","轴向齿廓""back cone","背锥面""back cone angle","背锥角""back cone distance","中点锥距" "back cone tooth profile","背锥齿廓""back to back arrangement (rolling bearing)","背对背配置(转动轴承)""balancing mass","平衡质量""ball oscillating teeth","滚珠活齿""ball screw","滚珠丝杠""ball screw","滚珠丝杠""ball bearing","球轴承""band brake","带式制动器""base circle","基圆""base helix","基圆螺旋线""base tangent length","公法线长度""basic profile","基本牙型""basic rack","基本齿条""basic rack tooth profile","基本齿廓""basic rating life","基本额定寿命""basic size","基本尺寸""bath lubrication","油浴润滑""bathtub curve","浴盆曲线" "bearing","轴承""bearing axial load","轴承轴向载荷" "bearing bore diameter","轴承内径" "bearing bush","轴套""Bearing characteristic number","轴承特点系数""bearing liner","轴承衬""bearing load carrying capacity","轴承承载能力""bearing mean specific load","轴承压强" "bearing outside diameter","轴承外径" "bearing radial load","轴承径向载荷" "bearing ring","轴承套圈""bearing series (rolling bearing)","轴承系列(转动轴承)""bearing width","轴承宽度""bearing with solid lubricant","固体润滑滑动轴承""belleville spring","碟形弹簧""belt drive","带传动""belt length","带长""bending vibration","波折振动""bevel gear","锥齿轮""bevel gear with axes at right angles","正交锥齿轮""bevel gear with circular arc tooth profile","双重锥度齿锥齿轮""bevel gear with circular arc tooth profile","圆弧齿廓锥齿轮""bevel gear with standard taoered tooth profile","正常锥度齿锥齿轮""bevel gear with straight tooth profile","直线齿廓锥齿轮""bevel gear wuth 90° face angle","平顶齿轮" "block brake","块式制动器""block chain","块链""bobed bearing","多油叶滑动轴承" "bolt","螺栓""bottom clearance","顶隙""bottom land","齿槽底面""boundary dimension (rolling bearing)","外形尺寸(转动轴承)""boundary lubrication ","界线摩擦" "brake","制动器""brake drum","制动鼓""brake lining","制动衬片""brake piece","制动块""brake shoe","制动蹄""brake-band clutch","闸带离合器""bush chain","套筒链""cage","保持架""cam","凸轮""cam contour, cam profile","凸轮工作轮廓" "cam follower","凸轮从动件""cam pitch curve","凸轮理论轮廓" "Cavitation wear","气蚀磨损""center distance","中心距""center distance modification coefficient","中心距变动系数""center gear","中心轮""centric slider-crank mechanism","对心曲柄滑块机构""centrifugal clutch","离心离合器" "centrifugal tension","离心拉力" "centrifugal force","离心力""centrode mechanism","瞬心线机构" "Ceramic friction material ","金属陶瓷" "chain","链条""chain coupling","链条联轴器" "chain transmission","链传动" "chainwheel, sprocket","链轮""chordal height","弦齿高""circular arc profile","圆弧齿廓""circular helix","圆柱螺旋线""circular-arc gear","圆弧圆柱齿轮" "Circulating lubrication","循环润滑" "circumferential backlash","圆周侧隙" "classical V-belt","一般V带""clearance fit","缝隙配合""clevis pin with head","销轴""clutch ","离合器""coefficient of travel speed variation, advance- to-return time ratio","行程速度变化系数" "combined spring","组合弹簧""common apex ","公共锥顶" "compensator (hydrostatic bearing)","补偿器(静压轴承〕""compost bearing material","复合轴承资料" "compound planetary gear train","组合行星齿轮系""compound hinges, multiple hinges","复合铰链" "concave side","凹面""cone pulley","锥轮""conical pin , taper pin","圆锥销""conical spiral","圆锥螺旋线""conical spring","截锥螺旋弹簧" "conjugate flank","共轭齿面""conjugate profile","共轭齿廓""connecting link","联接链节" "Consistency","稠度""constant loading","恒幅载荷""constant rate (stiffness) spring","等刚度弹簧" "constant velocity motion curve","等速运动轨迹""contact fatigue ","接触疲倦""Contact fatigue","接触疲倦""contact ratio","重合度""Continuous lubrication ","连续润滑" "continuous system","连续系统""contrate gear","端面齿轮""controlled clutch","控制离合器" "conventional belt","一般平带""convex side","凸面""conveyor chain","输送链" "corresponding flanks","同侧齿面""cosine acceleration motion curve","余弦加速度运动轨迹""cotter pin ,split pin","张口销""cotton belt","编织平带""counterpart rack ","产形齿条" "couple","力偶""coupled modes","耦合振型""coupler, floating link","连杆""coupling ","联轴器""coupling with corrugated pipe","涟漪管联轴器""coupling with elastic spider","梅花形弹性联轴器""coupling with non-metallic elastic element","非金属弹性元件联轴器""coupling with rubber plates","橡胶板联轴器" "coupling with rubber type element","轮胎式联轴器""crank","曲柄""cranked link chain","弯板链""crank-rocker mechanism","曲柄摇杆机构" "crest","齿顶""crew mechanism","螺旋机构""cross recessed countersunk head screw","十字槽沉头螺钉""cross recessed pan head screw","十字槽盘头螺钉""cross-belt drive","交叉传动""crossed helical gear pair","交叉轴斜齿轮副" "crossed roller bearing","交叉滚子轴承" "crossing point of axes","轴线交点""crown gear","冠轮""crowned teeth","鼓形齿""cumulative error in pitch ","螺距累积误差" "cumulative fatigue damage","疲倦累积伤害" "curtate cycloid","短幅摆线""curtate epicycloid","短幅外摆线""curtate involute","缩短渐开线""curvature correction factor (spring)","曲度系数(弹簧)""curved tooth bevel gear","曲线齿锥齿轮" "cycl, , ic loading","循环载荷" "cycloid","摆线""cycloidal drive with small teeth difference","摆线少齿差传动""cycloidal profile","摆线齿廓""cycloidal-pin gear speed reducer","摆线针轮减速器""cylindrical gear","圆柱齿轮""cylindrical helical compression spring","圆柱螺旋压缩弹簧""cylindrical helical tension spring","圆柱螺旋拉伸弹簧""cylindrical helical torsion spring","圆柱螺旋扭转弹簧""cylindrical pin, straight pin","圆柱销" "cylindrical roller bearing","圆柱滚子轴承" "cylindrical worm","单导程圆柱蜗杆" "cylindrical worm","圆柱蜗杆" "damping","阻尼""datum circumference","基准圆周长" "datum diameter","基准直径""datum line differential","基准线差""datum plane","基准平面""datum width","基准宽度" "dedendum","齿根高""dedendum anle","齿根角""deep groove ball bearing","深沟球轴承" "degree of freedom","自由度""deviation ","尺寸误差""deviation in pitch ","螺距误差""diameter series (rolling bearing)","直径系列(转动轴承)""diametral pitch","径节""diaphragm coupling","膜片联轴器" "differential mechanism","差动机构" "differential screw mechanism","差动螺旋机构" "dimension series (rolling bearing)","尺寸系列(转动轴承)""discrete system","失散系统""disengaging time (clutch)","分别时间(离合器)""distortion","畸变""double direction thrust bearing","双向推力轴承""double row bearing","双列轴承""double V-belt","双面V带""double-circular-arc gear","双圆弧齿轮" "driven","从动件""driven gear","从动齿轮""driven pulley","从动带轮""driving gear","主动齿轮""driving pulley","主动带轮""driving force","驱动力""driving link ","主动件""dry friction ","干摩擦""dual clutch","双作用离合器""dual lead cylindrical worm","双导程圆柱蜗杆" "duplex roller chain","双排滚子链" "dynamic load","动载荷""dynamic balance of rotor","转子的动平衡" "dynamic load","动载荷""dynamics of machinery","机械动力学" "eccentric element","独爱元件""eccentric mechanism","独爱轮机构" "effective circumference","有效圆周长" "effective coil number","有效圈数" "effective diameter","有效直径""effective line differential","有效线差" "effective stress concentration factor","有效应力集中系数""effective tension","有效拉力""effective width","有效宽度""effective resistance","工作阻力" "efficiency","效率""elastic pin coupling ","弹性柱销齿式联轴器" "elasto-hydrodynamic lubrication ","弹性流体动力润滑""electromagnetic clutch","电磁离合器" "electromagnetic whirlpool brake","电磁涡流制动器""electrostatic bearing","静电轴承""elliptic bearing","椭圆滑动轴承" "embeddability","嵌入性""end relief","齿端修薄" "engagement","啮合""engaging time(clutch)","接合时间(离合器)" "engaging(clutch)","接合过程(离合器)" "epicycloid","外摆线""epicycloid gear","摆线齿锥齿轮" "equidistant curve of curtate hypocycloid","短幅外摆线的等距曲线""equidistant curve of epicycloid","内摆线的等距曲线""equidistant curve of epicycloid","外摆线的等距曲线""equidistant curve of prolate epicycloid","长幅外摆线的等距曲线" "equilibrium","力平衡""Equivalent coefficient of friction","当量摩擦系数""equivalent load","当量载荷""equivalent force","等效力""equivalent link","等效构件""equivalent mass","等效质量""equivalent moment","等效力矩" "escapement","擒纵机构""external thread","外螺纹""external gear","外齿轮""external pin wheel","外齿针齿轮" "external tab washer","外舌止动垫圈" "external teeth lock washer ","外齿锁紧垫圈" "Extreme-pressure lubrication","极压润滑" "face to face arrangement (rolling bearing)","当面配置(转动轴承)""facewidth","齿宽""failure","无效""farthest dwell angle","远休止角" "Fastener","紧固件""fatigue limit","疲倦极限""fatigue strength","疲倦强度" "fault","故障""feather key","滑键""feather key ,dive key","导向平键" "fillet","齿根过渡曲面""fillet radius","齿根圆角半径""filling slot balll bearing","装填槽球轴承" "finite life design","有限寿命设计""flange coupling","凸缘联轴器""flanged bearing","凸缘轴承""flat belt drive","平带传动""flat key","平键""flat spring","片弹簧""flat spring coupling","簧片联轴器"。
机械图纸中常用词汇英语缩写
机械图纸中常用词汇英语缩写Credit is the best character, there is no one, so people should look at their character first.机械图纸英语翻译以下是我在工作中常用的ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED. 未注焊缝均为连续焊ALL WELDS 3mm FILLET UNLESS OTHERWISE STATED 未注焊角高3mm. ALL UNSPECIFIED RADI - R3 未注圆角R3 REMOVE ALL BURRS AND SHARP EDGES 棱角倒钝CHANNEL 槽钢 RSA 708 角钢 70X70X8 M30X1.5 pitch M30X1.5的锥螺纹Tackweld 点焊OD 1/4" outside dimension 1/4"的缩写 外径直1/4"75 CRS 尺寸为75 材质为冷轧钢板410 OPENING REF 410 开口参考尺寸40 REF 尺寸为40;参考值 2.5" BSP 2.5” 圆锥管螺纹 2.5" BSPT HEXAGON 2.5” 六角圆锥管螺纹即对丝30x2.5 FLAT BAR 30X2.5 扁钢TYP 2 POSNS 2处 11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUND ONLY;END COILS SQUARE TO TOUCH. 总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.此为弹簧技术说明 FEMALE: 内扣母扣 MALE: 外扣公扣 偏心轴 eccentric shaft 销轴 PIN开口销 COTTER PIN 螺杆 screw紧定螺钉 SET SCREW 圆螺母 ROUND NUT内六角螺钉 SOCKET HEAD CAP SCREW六角螺钉 HEX HD SETSCREW 六角螺栓 HEX HD BOLT 挡圈 closing ring 弹性挡圈 circlip轴承隔套 distance sleeve of axletree 轴承 axletree深沟球轴承 DEEP GROOVE BALL BEARING无扣长 non-buckle longth 弹簧 SPRING吊环螺钉 LIFTING EYE BOLT开槽盘头螺钉 SLOTTED PAN HEAD SCREW 圆锥滚子轴承 TAPERED ROLLER BEARING 推力球轴承THRUST BALL BEARING 平键 FLAT KEY弹簧垫圈 SINGLE COIL SPRING WASHER 平垫圈 FLAT WASHER 螺母 FULL NYLOCK NUT 圆螺母 ROUND NUTREMOVE ALL BURRS AND SHARP EDGES 所有尖角/棱角倒角并去毛刺 40 REF 为测量的参考尺寸OD 1/4’ outside dimension 1/4"的缩写 外径直1/4’------->应该为：外径值1/4"75 CRS 尺75 材质为冷轧钢板 ------->应该为：尺寸75 材质为冷轧钢板 我见过18GA.048"CRS 、16GA.060CRS 、14GA.075CRS;其中GA 是表示厚度的;但与英寸的关系还没研究明白；照此推算75是相当薄的缩写 全称 翻译 ACCESS Accessory 附件 ADJ Adjustable;Adjust 调整 ADPT Adapter 使适应 ADV Advance 提前 AL Aluminum 铝 ALLOW Allowance 允许 ALT Alternate 改变 ALY Alloy 合金 AMT Amout 数量 ANL Anneal 锻炼ANSL Amer Natl Stds Institute APPROX Approximate 大约 ASME Amer Society of Mech EngrsASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ;Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose;Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension;External 范围;外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet;fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid;Flush 基地;液体;冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame;Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage;Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal我见过18GA.048"CRS、16GA.060CRS、14GA.075CRS;其中GA是表示厚度的;但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESS Accessory 附件ADJ Adjustable;Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds Institute APPROX Approximate 大约ASME Amer Society of Mech Engrs ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ;Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL CounerdrillCDS Cold-Drawn Steel缩写全称翻译EFF Effective 有效的ENCL Enclose;Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Exension;External 范围;外部FAB Fabricate 伪造FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet;fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor.Fluid;Flush 基地;液体;冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame;Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage;Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat Treal缩写全称翻译NTS Not to ScaleOA Over All 所有OBS ObsotetcOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PAT. Patent 专利PATT Pattern 形式PC Piece;Pitch Circle 件;节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package;Packing 包装PL Parting Line;Places;Plate PNEU Pncumatic PNL Panel 面板POL Polish 磨光POS Position;Postive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product;Production 产品;产量PSI Pounds per Square InchPT Part;Point 零件;点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden;A-ScaleRB Rockwell Harden;B-ScaleRC Rockwell Harden;C-Scale RECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release;Relief 释放;缓解REM Remove 移除REQD Requird 有需要REE Retainer;ReturnREV Reverse;Revision;Revolution RFS Regardless of Feature Size RGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per Minute RPW Resistance Projection Weld SAE Society of Automotive Engrs SCH Schedule 进度表CFS Cold-Finished SteelCH Case HardenCHAM Chamfer 斜面CHAN Channel 渠道CHG Change 改变CHK Check 核查CI Cast Iron 铸铁CIR Circle; Circular 圆周CIRC Circumference 圆周CL Centerline 中心线CLP Clamp 夹子CNC Computer Numerical Control 电脑数值控制COMB Combination 联合COML Commercial 商业的CONC Concentric 同中心的CONN Connect;Connector 连接器COV Cover 盖子CPLG Coupling 联结CQ Commercial Quality 商业等级钢CRS Cold Stds AssociationCRT Cathode Ray Tube 阴级射线管CS Cast Steel 铸铁CSA Canadian Stds AssociationCSK Countersink 埋头孔CSTG Casting 铸件CTR Center 中心CU Cubic 立方米CW Clockwise 顺时针CYL Cylinder;Cylindrical 柱面DBL Double 双倍DEC Decimal 小数DEG Degree 摄氏度DET Detail 详情DEV Develop 发展DFT Draft 草稿DIA Diameter 直径DIM Dimension 尺寸DIST Distance 距离DN Down 向下DP Deep;Diametral Pitch 深度;径节DR Drill;Drill Rod 钻孔DSGN Design 设计DVTL Dovetail 吻合DWG Drawing 图纸DWL Dowel 木钉DWN Drawn 拔出EA Each 每个ECC Eccentric 古怪缩写全称翻译HVY Heavy 重量HYD Hydraulic 水压ID Inside Diameter 内部直径IDENT Identification 鉴定ILLUS Illustration 说明IN Inch 英寸INCL Include;Including 包括INCR Increase 增加INFO Information 信息INSP Inspect 检查INSTL Install 安装INST Instruct;Instrument 指示;工具INT Interior;Internal;Intersect 内部的;内在的;交叉IR Inside Radius 内部半径ISO Internal Stds Organization 国际标准化组织JCT Junction 连结JNT Journal 杂志JT Joint 连接K Key 关键KNRL Knurl 硬节KST KeyseatKWY Keyway 键沟LB Pound 英镑LBL Label 标签LG Length;Long 长度LH Left Hand 左手LMC Least Material ConditionLOC Locate 位于LT Light 光LTR Letter 信LUB Lubricate 润滑MACH Machine 机器MAINT Maintenance 维护MATL Material 材料MAX Maximum 最大MECH Mechanical;Mechanism 机械MED Medium 媒介MFG Manufacturing 制造业MI Malleable Iron 可锻造的铁MIN Minimum; Minute 最小;秒MISC Miscellaneous 混杂的MM Millimeter 毫米MMC Max Material ConditionMS Machine SteelMTG Mouting 装备MULT Multiple 倍数MWG Music Wire GagugNA Not Applicable 不可应用的NATL National 国内的NC Numerical Control 数字电脑控制NEG Negative 忽略的NO. Number 号码NOM Nominal 名义上的NPSM Natl Pipe Straight Mech NPT Natl Pipe Tapered缩写全称翻译SCR Screw 螺丝SEC Second 秒SECT Section 部分SEP Separate 独立SEQ Sequence 顺序SER Serial;Series 系列SERR Serrate 锯齿状SF SpotfaceSFT Shaft 轴SGL Single 单个SH Sheet 纸SI Intl System of UnitsSL Slide 使滑动SLV Sleeve 袖子SOC Socket 插座SP Space;Spaced;Spare 空间SPL Special 特别SPEC Specification 规格SPG Spring 跳SPHER Spherical 球体SPRKT Sprocket 链轮齿SQ Square 平方SST Stainless Steel 纯铁STD Standard 标准STK Stock 存货STL Steel 铁STR Straight;Strip 直的SUB Substitute 替代物SUP Supply;Support 供应SURF Surface 表面SYM Symmetrical 对称的SYS System 系统T Teeth;Tooth 牙齿TECH Technical 技术TEMP Template;Temporary 模板;暂时的THD Thread 线THK Thick 厚的TOL Tolerance 公差TOT Total 总计TPF Taper per FootTPI Taper per In;Threads per InchTPR Taper 锥形TS Tool SteelTYP Typical 典型UNC Unified Natl CoarseUNEF Unified Natl Extra FineUNF Unified Natl FineUNIV Universal 普遍VAR Variable 变量VERT Vertical 垂直的VOL Volume 音量VS Versus 与．．相对W Wide;Width 宽度WASH Washer 洗衣机WDF Woodruff 车叶草WI Wrought Iron 熟铁WT Weight 重量齿轮及齿轮加工中英文对照-A部分A.1. abrasive tooth wear 齿面研磨磨损2. absolute tangential velocity 绝对切向速度3. accelerometer 加速表4. addendum 齿顶高5. addendum angle 齿顶角6. addendum circle 齿顶圆7. addendum surface 上齿面8. adhesive wear 粘着磨损9. adjustability 可调性10. adjustability coefficients 可调系数11. adjusting wedge 圆盘端铣刀的可调型楔块12. allowable stress 允许应力13. alternate blade cutter 双面刀盘14. angular backlash 角侧隙15. angular bevel gears 斜交锥齿轮16. angular displacement 角移位17. angular pitch 齿端距18. angular testing machine 可调角度试验机19. approach action 啮入20. arbor 心轴21. arbor distance 心轴距22. arc of approach 啮入弧23. arc of recess 啮出弧24. attraction 收紧25. average cutter diameter 平均刀尖直径26. axial displacement 轴向位移27. axial factor 轴向系数28. axial locating surface 轴向定位面29. axial pitch 轴向齿距30. axial plane 轴向平面31. axial rakeangle 轴向前角32. axial thrust 轴向推力33. axle testing machine 传动桥试验机第4楼Piping work: 铺管工程Steam trace: 加热蒸汽管道Cutting: 切割socket weld 承插焊接fillet weld 角焊;填角焊branch connection 分支接续fabrication tolerance .制造容差local heat treatment 局部热处理threaded pipe 螺纹管seal welding 密封焊接flange joint 凸缘接头undercut 底切feeder 馈电线conduit outlet 电线引出口seal fitting 密封接头; 密封配件Screw thread lubricant 螺纹润滑剂Seal 绝缘层weld reinforcement 焊缝补强lock washer 锁紧止动; 防松垫圈electrical panel 配电板;配电盘nipple 螺纹接头zinc plated 镀锌的ring joint 环接; 围缘接合bolt 螺栓control 控制器National Electrical Code 全国电气规程master schedule 主要图表; 综合图表; 设计任务书; 主要作业表torque wrench 转矩扳手job site 施工现场flange connection 凸缘联接Hard hat 安全帽Goggles 护目镜Stockpile 贮存packing list 装箱单crate 柳条箱purchased material list 原材料进货单back-feed 反馈wire coil 线盘线卷NPT thread 美国标准锥管螺纹cable gland 电缆衬垫terminal block 线弧; 接头排接线盒; 接线板; 线夹power drill 机械钻connector 接线器insulated sleeve 绝缘套管wire connector 接线器wire terminal 电线接头control wiring 控制线路motor lead 电动机引出线power wiring 电力布线tender document 提供证件orifice plate 挡板nut 螺母flange gasket 法兰垫片dimensional inspection 尺寸检验burn through 烧蚀piping system 管道系统reinforcement of weld 加强焊缝械专业词汇表"机械常用""abrasion; abrasive wear";"磨料磨损" "active force; applied force";"作用力" "actual size";"实际尺寸""addendum angle";"齿顶角" "addendum";"齿顶高""addendum modification";"径向变位" "addendum modification for external gears";"径向变位量""addendum modification coefficient";"径向变位系数""additive ";"添加剂""adhesion wear";"黏着磨损""adjusted rating life";"修正额定寿命" "aerodynamic bearing";"气体静压滑动轴承" "air spring";"空气弹簧""angle drive";"角度传动""angle of contact";"包角""angle of transmission";"作用角""angular bevel gear ";"斜交锥齿轮" "angular contact bearing";"角接触推力轴承" "angular contact bearing";"角接触轴承""anti-friction bearing material";"减磨轴承材料" "approach; engaging-in";"啮入" "archimedes spiral";"阿基米德螺线" "attitude angle";"偏位角""auto-controlled clutch";"自控离合器""axial load factor";"轴向载荷系数""axial modification";"齿向修形""axial module";"轴向模数""axial pitch";"轴向齿距""axial plane";"轴平面""axial plane of wormwheel";"蜗轮轴平面" "axial profile";"轴向齿廓""back cone";"背锥面""back cone angle";"背锥角""back cone distance";"中点锥距""back cone tooth profile";"背锥齿廓""back to back arrangement rolling bearing";"背对背配置滚动轴承""balancing mass";"平衡质量""ball oscillating teeth";"滚珠活齿""ball screw";"滚珠丝杠""ball screw";"滚珠丝杠""ball bearing";"球轴承""band brake";"带式制动器""base circle";"基圆""base helix";"基圆螺旋线""base tangent length";"公法线长度""basic profile";"基本牙型""basic rack";"基本齿条""basic rack tooth profile";"基本齿廓""basic rating life";"基本额定寿命" "basic size";"基本尺寸""bath lubrication";"油浴润滑""bathtub curve";"浴盆曲线" "bearing";"轴承""bearing axial load";"轴承轴向载荷" "bearing bore diameter";"轴承内径" "bearing bush";"轴套""Bearing characteristic number";"轴承特性系数""bearing liner";"轴承衬""bearing load carrying capacity";"轴承承载能力""bearing mean specific load";"轴承压强" "bearing outside diameter";"轴承外径" "bearing radial load";"轴承径向载荷" "bearing ring";"轴承套圈""bearing series rolling bearing";"轴承系列滚动轴承""bearing width";"轴承宽度""bearing with solid lubricant";"固体润滑滑动轴承""belleville spring";"碟形弹簧""belt drive";"带传动""belt length";"带长""bending vibration";"弯曲振动""bevel gear";"锥齿轮""bevel gear with axes at right angles";"正交锥齿轮""bevel gear with circular arc tooth profile";"双重锥度齿锥齿轮""bevel gear with circular arc tooth profile";"圆弧齿廓锥齿轮""bevel gear with standard taoered tooth profile";"正常锥度齿锥齿轮""bevel gear with straight tooth profile";"直线齿廓锥齿轮""bevel gear wuth 90° face angle";"平顶齿轮" "block brake";"块式制动器""block chain";"块链""bobed bearing";"多油叶滑动轴承" "bolt";"螺栓""bottom clearance";"顶隙""bottom land";"齿槽底面""boundary dimension rolling bearing";"外形尺寸滚动轴承""boundary lubrication ";"边界摩擦" "brake";"制动器""brake drum";"制动鼓""brake lining";"制动衬片""brake piece";"制动块""brake shoe";"制动蹄""brake-band clutch";"闸带离合器""bush chain";"套筒链""cage";"保持架""cam";"凸轮""cam contour; cam profile";"凸轮工作轮廓" "cam follower";"凸轮从动件""cam pitch curve";"凸轮理论轮廓" "Cavitation wear";"气蚀磨损""center distance";"中心距""center distance modification coefficient";"中心距变动系数""center gear";"中心轮""centric slider-crank mechanism";"对心曲柄滑块机构""centrifugal clutch";"离心离合器" "centrifugal tension";"离心拉力" "centrifugal force";"离心力""centrode mechanism";"瞬心线机构" "Ceramic friction material ";"金属陶瓷" "chain";"链条""chain coupling";"链条联轴器""chain transmission";"链传动" "chainwheel; sprocket";"链轮""chordal height";"弦齿高""circular arc profile";"圆弧齿廓""circular helix";"圆柱螺旋线""circular-arc gear";"圆弧圆柱齿轮" "Circulating lubrication";"循环润滑" "circumferential backlash";"圆周侧隙" "classical V-belt";"普通V带""clearance fit";"间隙配合""clevis pin with head";"销轴""clutch ";"离合器""coefficient of travel speed variation; advance- to-return time ratio";"行程速度变化系数" "combined spring";"组合弹簧" "common apex ";"公共锥顶" "compensator hydrostatic bearing";"补偿器静压轴承〕""compost bearing material";"复合轴承材料" "compound planetary gear train";"组合行星齿轮系""compound hinges; multiple hinges";"复合铰链""concave side";"凹面""cone pulley";"锥轮""conical pin ; taper pin";"圆锥销""conical spiral";"圆锥螺旋线""conical spring";"截锥螺旋弹簧" "conjugate flank";"共轭齿面""conjugate profile";"共轭齿廓" "connecting link";"联接链节" "Consistency";"稠度""constant loading";"恒幅载荷""constant rate stiffness spring";"等刚度弹簧" "constant velocity motion curve";"等速运动轨迹""contact fatigue ";"接触疲劳""Contact fatigue";"接触疲劳""contact ratio";"重合度""Continuous lubrication ";"连续润滑" "continuous system";"连续系统""contrate gear";"端面齿轮""controlled clutch";"操纵离合器" "conventional belt";"普通平带""convex side";"凸面""conveyor chain";"输送链" "corresponding flanks";"同侧齿面""cosine acceleration motion curve";"余弦加速度运动轨迹""cotter pin ;split pin";"开口销""cotton belt";"编织平带""counterpart rack ";"产形齿条" "couple";"力偶""coupled modes";"耦合振型""coupler; floating link";"连杆""coupling ";"联轴器""coupling with corrugated pipe";"波纹管联轴器""coupling with elastic spider";"梅花形弹性联轴器""coupling with non-metallic elastic element";"非金属弹性元件联轴器""coupling with rubber plates";"橡胶板联轴器" "coupling with rubber type element";"轮胎式联轴器""crank";"曲柄""cranked link chain";"弯板链""crank-rocker mechanism";"曲柄摇杆机构" "crest";"齿顶""crew mechanism";"螺旋机构""cross recessed countersunk head screw";"十字槽沉头螺钉""cross recessed pan head screw";"十字槽盘头螺钉""cross-belt drive";"交叉传动""crossed helical gear pair";"交错轴斜齿轮副" "crossed roller bearing";"交叉滚子轴承" "crossing point of axes";"轴线交点""crown gear";"冠轮""crowned teeth";"鼓形齿""cumulative error in pitch ";"螺距累积误差" "cumulative fatigue damage";"疲劳积累损伤" "curtate cycloid";"短幅摆线""curtate epicycloid";"短幅外摆线""curtate involute";"缩短渐开线""curvature correction factor spring";"曲度系数弹簧""curved tooth bevel gear";"曲线齿锥齿轮" "cycl; ; ic loading";"循环载荷" "cycloid";"摆线""cycloidal drive with small teeth difference";"摆线少齿差传动""cycloidal profile";"摆线齿廓""cycloidal-pin gear speed reducer";"摆线针轮减速器""cylindrical gear";"圆柱齿轮""cylindrical helical compression spring";"圆柱螺旋压缩弹簧""cylindrical helical tension spring";"圆柱螺旋拉伸弹簧""cylindrical helical torsion spring";"圆柱螺旋扭转弹簧" "cylindrical pin; straight pin";"圆柱销" "cylindrical roller bearing";"圆柱滚子轴承" "cylindrical worm";"单导程圆柱蜗杆" "cylindrical worm";"圆柱蜗杆" "damping";"阻尼""datum circumference";"基准圆周长" "datum diameter";"基准直径""datum line differential";"基准线差""datum plane";"基准平面""datum width";"基准宽度" "dedendum";"齿根高""dedendum anle";"齿根角""deep groove ball bearing";"深沟球轴承" "degree of freedom";"自由度""deviation ";"尺寸偏差""deviation in pitch ";"螺距偏差""diameter series rolling bearing";"直径系列滚动轴承""diametral pitch";"径节""diaphragm coupling";"膜片联轴器" "differential mechanism";"差动机构" "differential screw mechanism";"差动螺旋机构""dimension series rolling bearing";"尺寸系列滚动轴承""discrete system";"离散系统""disengaging time clutch";"分离时间离合器" "distortion";"畸变""double direction thrust bearing";"双向推力轴承""double row bearing";"双列轴承""double V-belt";"双面V带""double-circular-arc gear";"双圆弧齿轮" "driven";"从动件""driven gear";"从动齿轮""driven pulley";"从动带轮""driving gear";"主动齿轮""driving pulley";"主动带轮""driving force";"驱动力""driving link ";"主动件""dry friction ";"干摩擦""dual clutch";"双作用离合器""dual lead cylindrical worm";"双导程圆柱蜗杆" "duplex roller chain";"双排滚子链""dynamic load";"动载荷""dynamic balance of rotor";"转子的动平衡" "dynamic load";"动载荷""dynamics of machinery";"机械动力学" "eccentric element";"偏心元件""eccentric mechanism";"偏心轮机构" "effective circumference";"有效圆周长" "effective coil number";"有效圈数" "effective diameter";"有效直径""effective line differential";"有效线差" "effective stress concentration factor";"有效应力集中系数""effective tension";"有效拉力""effective width";"有效宽度""effective resistance";"工作阻力" "efficiency";"效率""elastic pin coupling ";"弹性柱销齿式联轴器" "elasto-hydrodynamic lubrication ";"弹性流体动力润滑""electromagnetic clutch";"电磁离合器" "electromagnetic whirlpool brake";"电磁涡流制动器""electrostatic bearing";"静电轴承""elliptic bearing";"椭圆滑动轴承" "embeddability";"嵌入性""end relief";"齿端修薄" "engagement";"啮合""engaging timeclutch";"接合时间离合器" "engagingclutch";"接合过程离合器" "epicycloid";"外摆线""epicycloid gear";"摆线齿锥齿轮" "equidistant curve of curtate hypocycloid";"短幅外摆线的等距曲线""equidistant curve of epicycloid";"内摆线的等距曲线""equidistant curve of epicycloid";"外摆线的等距曲线""equidistant curve of prolate epicycloid";"长幅外摆线的等距曲线" "equilibrium";"力平衡""Equivalent coefficient of friction";"当量摩擦系数""equivalent load";"当量载荷""equivalent force";"等效力" "equivalent link";"等效构件""equivalent mass";"等效质量""equivalent moment";"等效力矩" "escapement";"擒纵机构""external thread";"外螺纹""external gear";"外齿轮""external pin wheel";"外齿针齿轮" "external tab washer";"外舌止动垫圈" "external teeth lock washer ";"外齿锁紧垫圈" "Extreme-pressure lubrication";"极压润滑" "face to face arrangement rolling bearing";"面对面配置滚动轴承""facewidth";"齿宽""failure";"失效""farthest dwell angle";"远休止角" "Fastener";"紧固件""fatigue limit";"疲劳极限""fatigue strength";"疲劳强度" "fault";"故障""feather key";"滑键""feather key ;dive key";"导向平键" "fillet";"齿根过渡曲面""fillet radius";"齿根圆角半径""filling slot balll bearing";"装填槽球轴承" "finite life design";"有限寿命设计""flange coupling";"凸缘联轴器""flanged bearing";"凸缘轴承""flat belt drive";"平带传动""flat key";"平键""flat spring";"片弹簧""flat spring coupling";"簧片联轴器" "flexibility of spring ";"弹簧柔度""flexible gear; flexpline";"柔性齿轮" "floating bearing";"浮环滑动轴承" "fluctuating load";"变载荷""fluid friction ";"流体摩擦""fluid lubrication ";"液体润滑" "flywheel";"飞轮""forced vibration";"受迫振动""foundation bolt";"地脚螺栓""four-bar mechanism";"四杆机构""four-point contact ball bearing";"四点接触轴承""fracture mechanics ";"断裂力学"。
机械制图专业英文缩写
ANGLE 角度
NATURE R 自然R
ALL ROUND 周边，全周
NG 粗牙
BOT (BOTT) 底部
NF 细牙
CB 沉头孔
PART NO 料号
CL 中心线
PUNCH 冲头
C+0.02 单边放大0.02间隙PIERCE PUNCH 落料冲头chamfer(C) 倒角
PCS 个，块，件
CA(NCA) 清角（不清角）
Q'TY 数量
CENTER(CEN) 中心，园心REF 参考
DWG NO 图号
REV 版次
DEEP(DEP) 深度
RIGHT 右
EDGE 刀口
SYM 中心对齐
ECN NO 设变号码
SMALL 小端
EWL (newl) 清线头（不清线头）S落料斜度
FINISH 硬度
SCALE 比例
GAP 单边间隙
SECTION A-A 剖视A-A HEIGHT 高度
SHEET 表单，页次HATCHING 阴影线
SURFACE 表面
HEAT TREATMENT 热处理TAP 攻牙
INSERT 入块
TYP 相同，尺寸一致
LARGE 大端
THRU(THR) 贯穿
LEFT 左
TOP 顶部
MM 螺纹的规格
THICK 厚度
MARK 记号标记TAPPER 锥度斜度MATEL 材料材质
TAN 切点
MAX 最大值
TAP1/2NPT 1/2英制管牙MIN 最小值
UNIT 单位
NAME 名称
VIWE A 视图A
NEF 特别攻牙
SECA-A A-A剖视
NRT 新制管牙。
机械图纸常识

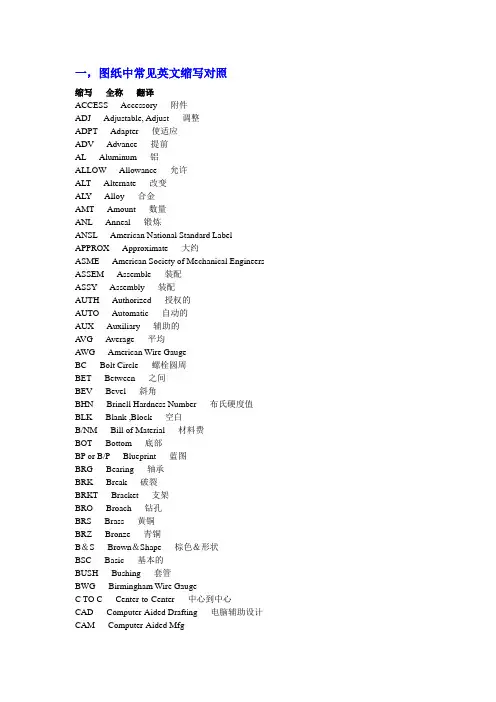

一，图纸中常见英文缩写对照缩写全称翻译ACCESS Accessory 附件ADJ Adjustable, Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许ALT Alternate 改变AL Y Alloy 合金AMT Amount 数量ANL Anneal 锻炼ANSL American National Standard Label APPROX Approximate 大约ASME American Society of Mechanical Engineers ASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的A VG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counter bore 扩孔CCW Counter Clockwise 逆时针CDRILL Counter drillCDS Cold-Drawn SteelCS Cast Steel 铸铁CSA Canadian Stds AssociationCSK Countersink 埋头孔CSTG Casting 铸件CTR Center 中心CU Cubic 立方米CW Clockwise 顺时针CYL Cylinder,Cylindrical 柱面DBL Double 双倍DEC Decimal 小数DEG Degree 摄氏度DET Detail 详情DEV Develop 发展DFT Draft 草稿DIA Diameter 直径DIM Dimension 尺寸DIST Distance 距离DN Down 向下DP Deep,Diametral Pitch 深度,径节DR Drill,Drill Rod 钻孔DSGN Design 设计DVTL Dovetail 吻合DWG Drawing 图纸DWL Dowel 木钉DWN Drawn 拔出EFF Effective 有效的ENCL Enclose, Enclosure 附上ENG Engine 引擎ENGR Engineer 工程师ENGRG Engineering 工程学EQLSP Equally Spaced 等距EQUIV Equivalent 相等EST Estimate 估计EX Extra 额外EXH Exhaust 消耗EXP Experimental 实验性的EXT Extension, External 范围,外部FAO Finish All OverFDRY Foundry 铸造FIG Figure 数据FIL Fillet, fillister 带子FIM Full Indicator MovementFIN FinishFLX Fixture 结构FLX Floor. Fluid, Flush 基地,液体,冲洗FLEX Flexible 易弯曲的FLG Flange 边缘FORG Forging 锻炼FR Frame, Front 边框FIG Fitting 装置FURN Furnish 提供FWD Forward 向前GA Gage, Gauge 测量GALV Galvanized 电镀GR Grade 等级GRD Grind 磨碎GRV Groove 凹槽GSKT Gasket 垫圈H＆G Harden and Grind 加硬和磨碎HD Head 主要的HDL Handle 处理HDLS Headless 无领导的HDN Harden 使硬化HDW Hardware 硬件HEX Hexagon 六边形HGR Hanger 衣架HGT Height 高度HOR Horizontal 水平的HRS Hot-Rolled SteelHSG Housing 外罩HT TR Heat TreatNTS Not to ScaleHVY Heavy 重量HYD Hydraulic 水压ID Inside Diameter 内部直径IDENT Identification 鉴定ILLUS Illustration 说明IN Inch 英寸INCL Include,Including 包括INCR Increase 增加INFO Information 信息INSP Inspect 检查INSTL Install 安装INST Instruct,Instrument 指示,工具INT Interior,Internal,Intersect 内部的,内在的,交叉IR Inside Radius 内部半径ISO Internal Stds Organization 国际标准化组织JCT Junction 连结JNT Journal 杂志JT Joint 连接K Key 关键KNRL Knurl 硬节KST KeyseatKWY Keyway 键沟LB Pound 英镑LBL Label 标签LG Length,Long 长度LH Left Hand 左手LMC Least Material ConditionLOC Locate 位于LT Light 光LTR Letter 信LUB Lubricate 润滑MACH Machine 机器MAINT Maintenance 维护MATL Material 材料MAX Maximum 最大MECH Mechanical,Mechanism 机械MED Medium 媒介MFG Manufacturing 制造业MI Malleable Iron 可锻造的铁MIN Minimum, Minute 最小，秒MISC Miscellaneous 混杂的MM Millimeter 毫米MMC Max Material ConditionMS Machine SteelMTG Mouting 装备MULT Multiple 倍数MWG Music Wire GagugNA Not Applicable 不可应用的NA TL National 国内的NC Numerical Control 数字电脑控制NEG Negative 忽略的NO. Number 号码NOM Nominal 名义上的NPSM Natl Pipe Straight MechNPT Natl Pipe TaperedSCR Screw 螺丝SEC Second 秒SECT Section 部分SEP Separate 独立SEQ Sequence 顺序SER Serial,Series 系列SERR Serrate 锯齿状SF SpotfaceSFT Shaft 轴SGL Single 单个SH Sheet 纸SI Intl System of UnitsSL Slide 使滑动SLV Sleeve 袖子SOC Socket 插座SP Space,Spaced,Spare 空间SPL Special 特别SPEC Specification 规格SPG Spring 跳SPHER Spherical 球体SPRKT Sprocket 链轮齿SQ Square 平方SST Stainless Steel 纯铁STD Standard 标准STK Stock 存货STL Steel 铁STR Straight,Strip 直的SUB Substitute 替代物SUP Supply,Support 供应SURF Surface 表面SYM Symmetrical 对称的SYS System 系统T Teeth,Tooth 牙齿TECH Technical 技术TEMP Template,Temporary 模板，暂时的THD Thread 线THK Thick 厚的TOL Tolerance 公差TOT Total 总计TPF Taper per FootTPI Taper per In,Threads per InchTPR Taper 锥形TS Tool SteelTYP Typical 典型UNC Unified Natl CoarseUNEF Unified Natl Extra FineUNF Unified Natl FineUNIV Universal 普遍V AR Variable 变量VERT Vertical 垂直的VOL Volume 音量VS Versus 与．．相对W Wide,Width 宽度WASH Washer 垫圈WI Wrought Iron 熟铁WT Weight 重量OA Over All 所有OBS ObsoleteOC On CenterOD Outside Diameter 外直径OPP Opposite 对立OPTL Optional 可选择的OR Outside Radius 外半径ORIG Original 初始的PA T. Patent 专利PATT Pattern 形式PC Piece, Pitch Circle 件，节距圆PCH Punch 打孔PD Pitch DiameterPERF Perforate 打孔PERM Permanent 永久的PERP Perpendicular 垂直的PFD Preferred 首选的PKG Package, Packing 包装PL Parting Line, Places, PlatePNEU PneumaticPNL Panel 面板POL Polish 磨光POS Position, Positive 位置PR Pair 对立PRI Primary 基本的PROC Process 程序PROD Product, Production 产品，产量PSI Pounds per Square InchPT Part, Point 零件，点QTR Quarter 四份之一QTY Quantity 数量QUAL Quality 质量R Radius 半径RA Rockwell Harden, A-ScaleRB Rockwell Harden, B-ScaleRC Rockwell Harden, C-ScaleRECD Received 巳收到的RECT Rectangle 长方形REF Reference 相关的REINF Reinforce 增强REL Release, Relief 释放，缓解REM Remove 移除REQD Required 有需要REE Retainer, ReturnREV Reverse, Revision, RevolutionRFS Regardless of Feature SizeRGH Rough 粗糙的RH Right Hand 右手RIV Rivet 起皱RM Ream 扩展RND Round 周围RPM Revolutions per MinuteRPW Resistance Projection WeldSAE Society of Automotive Engineers SCH Schedule 进度表A/F——Across Flats——对边C`SINK——Counter Sink——沉头锥孔C`BORE——Counter Bore——沉头平底孔C——Chamfer——倒角EXT——External——外（外在的）INT——Internal——内（内在的）MATL——Material——材料LH——Left Hand——左旋（螺纹）RH——Right Hand——右旋（螺纹）REV——Revision——版本U`CUT——Under Cut——空刀槽S.FACE——Spot Face——刮平S.R——Spherical radius——球面半径R——Radius——半径P.F——Press Fit——紧配S.F——Slide Fit——滑配PCD——Pitch Circle Diameter——节圆直径DP——Deep——深度CL——Center Line——中心线FF——Force Fit——压配HRC——Hardened——热处理（淬火）BSF——British standard fine thread——英国细牙螺纹处理BSP——British standard pipe thread——英国管螺纹标准BSW——British standard worth thread——英国惠氏螺纹标准BSD——British standard dimension——英国度量标准尺寸BSG——British standard gauge——英国标准线规BSS——British standard specification——英国标准技术规格G——美国标准管牙M——Metric——公制螺纹NPT——国家管用螺纹（美制斜牙齿）UNC——United coarse thread——统一标准粗牙螺纹UNEF——United extreme fine thread——公称制细牙UNF——United fine thread——公称细牙CYL——Cylinder or cylindrical——圆柱DIA——Diameter——直径DWG NO——Drawing NO——图纸编号ANGLE 角度NA TURE R 自然RALL ROUND 周边，全周NG 粗牙BOT (BOTT) 底部NF 细牙CB 沉头孔PART NO 料号CL 中心线PUNCH 冲头C+0.02 单边放大0.02间隙PIERCE PUNCH 落料冲头chamfer(C) 倒角PCS 个，块，件CA(NCA) 清角（不清角）Q'TY 数量CENTER(CEN) 中心，园心REF 参考DWG NO 图号REV 版次DEEP(DEP) 深度RIGHT 右EDGE 刀口SYM 中心对齐ECN NO 设变号码SMALL 小端EWL (newl) 清线头（不清线头）S落料斜度FINISH 硬度SCALE 比例GAP 单边间隙SECTION A-A 剖视A-AHEIGHT 高度SHEET 表单，页次HA TCHING 阴影线SURFACE 表面HEAT TREATMENT 热处理TAP 攻牙INSERT 入块TYP 相同，尺寸一致LARGE 大端THRU(THR) 贯穿LEFT 左TOP 顶部MM 螺纹的规格THICK 厚度MARK 记号标记TAPPER 锥度斜度MATEL 材料材质TAN 切点MAX 最大值TAP1/2NPT 1/2英制管牙MIN 最小值UNIT 单位NAME 名称VIWE A 视图ANEF 特别攻牙SECA-A A-A剖视NRT 新制管牙二，图纸中标题对应含义1. PART NO(P/N) 料号2. TITLE(PART NAME) 品名3. SIZE 型号4. MODEL NO 使用机型机种5. MATERIAL 材料,材质6. THICKNESS/DIMENSIONS 厚度/尺寸7. TOLERANCE 公差LINER:线性尺寸公差ANGLES:角度公差TOLERANCE AREA:公差区分表8. TREATMENT 处理9. FINISH 产品完成后细加工方面10. SCALE 比例尺11. REVISIONS(REV) 变更项(其中REV也表示版别)12. DIMENSIONS(UNIT)单位13. NOTES 注意事项14. METRIC 米制的,公制的,15. BURR DIRECTION 毛边方向三.图纸中常见符号含义1. R:圆弧半径2. ψ:圆直径(內径,外径)3. Sψ(SR):球面直径或半径4. M:攻牙(普通牙型)5. P:螺距6. C:倒角(等腰直角三角形C為直邊尺寸)7. T(δ):厚度8. 平面度//:平行度9. ⊥:垂直度◎:同轴度10.SECTION A---A分解图中代号)11.DETAIL A: A部放大12. 锥度⁄—⁄ (∫---∫):线条省略。
