C系列TDK高压瓷片电容命名规格书

合集下载

TDK电容清单

C
SMD，一般
C0603CH1H1R5C
C
SMD，中耐压
C1608CH2E101J
C
SMD，高耐压，COG
C4532CH3F101K
C
SMD，高耐压，X7R
C4520X7R3D471K
C
SMD，低ESL，倒装型（LW倒装）
C0816JB1C103K
C
SMD，高温保证
C11608X8R2A102K
CC45
圆板型带导线，光高频率低损耗
CD
圆板型带导线，安规品
CD(S)70-B2GA101KYNS
CK45
圆板型带导线，一般
CK45-B3FD101KYNN
CK45-RB
圆板型带导线，光高频率低损耗
CK45-B3DD101KYNR
CK45-RR
圆板型带导线，光高频率低损耗
CK45-R3DD101K-NR
CKC
SMD阵列，4单元
CKCL44CH1H100F
CKC
SMD阵列，2单元
CKCM25CH1H100F
CKD
SMD，低ESL，3端贯通
CKD510JB1H220S
CKG
SMD金属支架电容
CKG57NX5R1H226M
CLL
SMD，低ESL，ULI
CLLD11X7R1A104M
CS
圆板型带金属端子，安规品
TDK电容清单
系列号
型号举例
备注
C
SMD，薄型
C1608JB1H104K
左边的型号只是随便举个例子，我们有各种尺寸、电容、温度的型号，只要您需要TDK的东西都可以和我们联系。
ROHM的产品我们有电容、二极管、IC等，IC包括电源木块，升压和降压、打印头等。

片式陶瓷电容规格书

Structure and Dimensions
L
T BW
W
Size Code 05 10
EIA Code 0402 0603
Dimension(mm) L 1.00 0.05 1.60 0.10 2.00 0.10 W 0.50 0.05 0.80 0.10 1.25 0.10 1.25 0.15 1.25 0.20 1.60 0.20 T 0.50 0.05 0.50+0.0/-0.1 0.80 0.10 0.85 0.10 1.25 0.10 1.25 0.15 1.25 0.20 0.60 0.10 0.85 0.15 0.85 0.10(*) 1.15 0.10 1.25 0.15 1.60 0.20 0.85 0.15 0.85 0.10(*) 0.90 0.10 1.60 0.20 1.80 0.20 2.00 0.20 2.50 0.20 2.50 0.30 2.00 0.20 3.20 0.30 3.20 0.30 Thickness Code 5 5 8 C F Q Y 6 C P F H C 9 H U I J v I L L 0.50 0.30 BW 0.2+0.15/-0.1 0.30 0.20
th
Spec(mm) 0.02 0.03 0.05 + 0.0/-0.1 0.10 0.10 0.10 0.15 0.10 0.15 0.2 0.15 * 0.10 0.15 0.10 0.10 0.15 0.20 0.15 * 0.10 0.10 0.10 0.20 0.15
Size
Code H U
0.40 0.40 0.40 0.40
2.50 2.00 3.20 5.00
0.30 0.20 0.30 0.40

不同厂家瓷片电容规格书

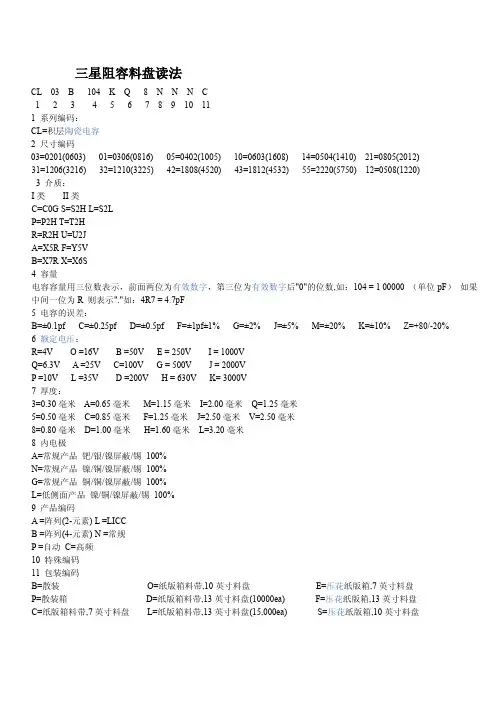

三星阻容料盘读法CL03B104K Q8N N N C12345678910111系列编码：CL=积层陶瓷电容2尺寸编码03=0201(0603)01=0306(0816)05=0402(1005)10=0603(1608)14=0504(1410)21=0805(2012)31=1206(3216)32=1210(3225)42=1808(4520)43=1812(4532)55=2220(5750)12=0508(1220)3介质：I类II类C=C0G S=S2H L=S2LP=P2H T=T2HR=R2H U=U2JA=X5R F=Y5VB=X7R X=X6S4容量电容容量用三位数表示，前面两位为有效数字，第三位为有效数字后"0"的位数,如：104=100000（单位pF）如果中间一位为R则表示"."如：4R7=4.7pF5电容的误差：B=±0.1pf C=±0.25pf D=±0.5pf F=±1pf±1%G=±2%J=±5%M=±20%K=±10%Z=+80/-20%6额定电压：R=4V O=16V B=50V E=250V I=1000VQ=6.3V A=25V C=100V G=500V J=2000VP=10V L=35V D=200V H=630V K=3000V7厚度：3=0.30毫米A=0.65毫米M=1.15毫米I=2.00毫米Q=1.25毫米5=0.50毫米C=0.85毫米F=1.25毫米J=2.50毫米V=2.50毫米8=0.80毫米D=1.00毫米H=1.60毫米L=3.20毫米8内电极A=常规产品钯/银/镍屏蔽/锡100%N=常规产品镍/铜/镍屏蔽/锡100%G=常规产品铜/铜/镍屏蔽/锡100%L=低侧面产品镍/铜/镍屏蔽/锡100%9产品编码A=阵列(2-元素)L=LICCB=阵列(4-元素)N=常规P=自动C=高频10特殊编码11包装编码B=散装O=纸版箱料带,10英寸料盘E=压花纸版箱,7英寸料盘P=散装箱D=纸版箱料带,13英寸料盘(10000ea)F=压花纸版箱,13英寸料盘C=纸版箱料带,7英寸料盘L=纸版箱料带,13英寸料盘(15,000ea)S=压花纸版箱,10英寸料盘TDK贴片电容型号C2012X7R1H104K T系列名称体积材料电压容量误差包装积层贴片陶瓷片式电容器0603=0201CH0J=6.3V C=0.25T=卷带1005=0402COG1A=10V D=0.5B=袋装1608=0603JB1C=16V J=5%2012=0805JF1E=25V K=10%3216=1206X7R1H=50V M=20%3225=1210X5R2A=100V Z=+80-20%4532=1812Y5V2E=250V5650=22202J=630V4520=18083A=1KV3D=2KV3F=3KV1.元器件字母标识所对应误差列表(1)电容列表字母C D F J K M Z误差±0.25PF±0.5PF±1.0PF±5%±10%±20%+80%-20%(2)电阻列表字母D F G J K M Z误差±0.5%±1%±2%±5%±10%±20%+80%-20%2.元器件值识别标记(1)电阻标记值电阻值2R2=2.2Ω5R6=5.6Ω102=1KΩ682=6800Ω=6.8kΩ333=33KΩ104=100KΩ564=560KΩ(2)电容标记值电容量0R5=0.5PF010=1PF110=11PF471=470PF332=3300PF223=22000PF=0.022uF3.各公司表面贴装电阻．电容型号规格表示实例(1)KYOCERA公司电容CM21X7R105K0A T①②③④⑤⑥⑦⑧(2)KYOCERA公司电阻CR10—562J—T②④⑤⑧(3)ROHM公司电阻MCR01MZS G562①②⑧⑤④(4)ROHM公司电容MCH212F104Z K①②⑥③④⑤⑧(5)MuRata公司电容GRM36X7R472K25PT①②③④⑤⑥⑧(6)TDK电容C1005COG1E100D T①②③⑥④⑤⑧①：表示系列编号②：表示元器件尺寸③：表示元器件温度特性④：表示元器件的值⑤：表示元器件值允许误差⑥：表示元器额定电压⑦：表示元器件终端类型⑧：表示包装编号国巨贴片电容。

常用高压贴片和大容量贴片电容规格

常用高压贴片和大容量贴片电容规格LED灯常用高压贴片和大容量贴片电容规格高压陶瓷贴片电容-可代替传统插件电容缩小电源体积(LED电源专用) 规格主要有:102/1KV 1206封装222/1KV 1206封装472/1KV 1206封装103/1KV 1206封装2.2u/100V 1812封装473/250V 1206封装473/630V 1206封装10u/16V 1206封装10u/25V 1210封装22u/10V 1206封装22U/16V 1210封装以上都为X7R或X5R材质，容量精度为10%LED阻容降压用-（代替插件CBB）250V 224 1812封装250V 334 1812封装250V 474 1812封装250V 684 1812封装250V 105 1812封装500V 224 1812封装400V 105 2220封装以上都为X7R材质，耐125度高温无极灯我司专业生产高压高频贴片电容-高频无极灯专用(代替CBB) 规格主要有:1KV NP0 101 221 331 471 102。

100P 3KV NP0 1808/1812封装220P 3KV NP0 1808或1812封装-820P 2KV NP0 1812封装102 2KV NP0 1812封装100P 1KV NP0 1206封装220P 1KV NP0 1206封装470P 1KV NP0 1206封装102 1KV NP0 1206封装0.47u 100V X7R 1206封装0.68u 100V X7R 1206封装节能灯高压贴片电容-代替插件瓷片和薄膜电容缩小体积(节能灯专用) 规格主要有:223/100V 1206封装102/1KV 1206封装332/1KV 1206封装222/1KV 1206封装250V/473 1206封装400V/104 1210封装HID灯常用高压贴片电容和大容量贴片电容规格如下：1KV 100p 1206封装1KV 221 1206封装1KV 102 1206封装1KV 222 1206封装1KV 472 1206封装1KV 103 1206封装630V 104 1812封装10U/25V 1210封装10U/50V 1210封装以上都为陶瓷X7R材质，耐温-55-125度。

tdk电容车规级命名

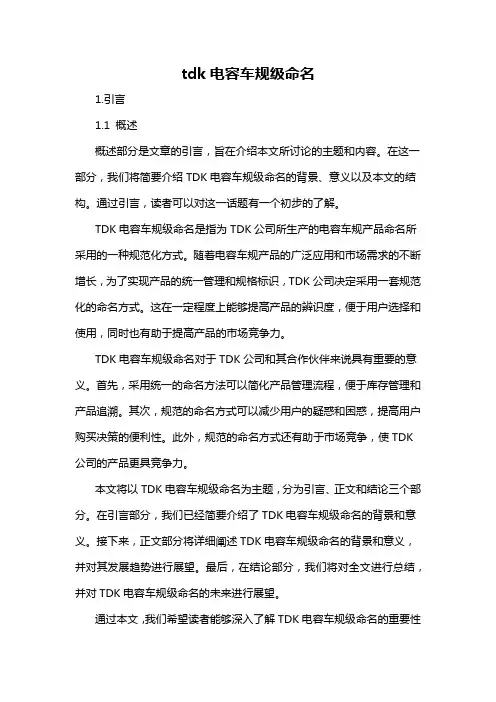

tdk电容车规级命名1.引言1.1 概述概述部分是文章的引言，旨在介绍本文所讨论的主题和内容。

在这一部分，我们将简要介绍TDK电容车规级命名的背景、意义以及本文的结构。

通过引言，读者可以对这一话题有一个初步的了解。

TDK电容车规级命名是指为TDK公司所生产的电容车规产品命名所采用的一种规范化方式。

随着电容车规产品的广泛应用和市场需求的不断增长，为了实现产品的统一管理和规格标识，TDK公司决定采用一套规范化的命名方式。

这在一定程度上能够提高产品的辨识度，便于用户选择和使用，同时也有助于提高产品的市场竞争力。

TDK电容车规级命名对于TDK公司和其合作伙伴来说具有重要的意义。

首先，采用统一的命名方法可以简化产品管理流程，便于库存管理和产品追溯。

其次，规范的命名方式可以减少用户的疑惑和困惑，提高用户购买决策的便利性。

此外，规范的命名方式还有助于市场竞争，使TDK 公司的产品更具竞争力。

本文将以TDK电容车规级命名为主题，分为引言、正文和结论三个部分。

在引言部分，我们已经简要介绍了TDK电容车规级命名的背景和意义。

接下来，正文部分将详细阐述TDK电容车规级命名的背景和意义，并对其发展趋势进行展望。

最后，在结论部分，我们将对全文进行总结，并对TDK电容车规级命名的未来进行展望。

通过本文，我们希望读者能够深入了解TDK电容车规级命名的重要性和影响，同时也能够对TDK公司在这一领域的发展具有更清晰的认识。

接下来，让我们开始正文部分，详细探讨TDK电容车规级命名的背景和意义。

1.2 文章结构本文将围绕TDK电容车规级命名展开讨论，共分为引言、正文和结论三个部分。

引言部分首先概述了文章的主题，即TDK电容车规级命名。

接着介绍了文章的结构，明确了各个部分的内容和目的。

最后，指出了本文的目的，即探讨TDK电容车规级命名的背景和意义，以及对其未来发展的展望。

正文部分包括两个主要部分，分别是TDK电容车规级命名的背景和其意义。

TDK EPCOS C0802C104K5G 电容器说明书.pdf_1718686580.98793

Dimensions: [mm]Scale - 5:1Product Marking:Marking100 (Inductance Code)7440404210074404042100BC74404042100T e m p e r a t u r eT pT L74404042100Cautions and Warnings:The following conditions apply to all goods within the product series of WE-LQS of Würth Elektronik eiSos GmbH & Co. KG:General:•This electronic component is designed and manufactured for use in general electronic equipment.•Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury.•Electronic components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer. •The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the wire insulation may be damaged or dissolved.•Do not drop or impact the components, the component may be damaged.•Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektroniks’ specifications, for its validity and sustainability over time.•The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products also apply to customer specific products.Product specific:Soldering:•The solder profile must comply with the technical product specifications. All other profiles will void the warranty.•All other soldering methods are at the customers’ own risk.•Strong forces which may affect the coplanarity of the components’ electrical connection with the PCB (i.e. pins), can damage the part, resulting in avoid of the warranty.Cleaning and Washing:•Washing agents used during the production to clean the customer application might damage or change the characteristics of the wire insulation, marking or plating. Washing agents may have a negative effect on the long-term functionality of the product.•Using a brush during the cleaning process may break the wire due to its small diameter. Therefore, we do not recommend using a brush during the PCB cleaning process.Potting:•If the product is potted in the customer application, the potting material may shrink or expand during and after hardening. Shrinking could lead to an incomplete seal, allowing contaminants into the core. Expansion could damage the components. We recommend a manual inspection after potting to avoid these effects.Storage Conditions:• A storage of Würth Elektronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of shipment.•Do not expose the components to direct sunlight.•The storage conditions in the original packaging are defined according to DIN EN 61760-2.•The storage conditions stated in the original packaging apply to the storage time and not to the transportation time of the components. Packaging:•The packaging specifications apply only to purchase orders comprising whole packaging units. If the ordered quantity exceeds or is lower than the specified packaging unit, packaging in accordance with the packaging specifications cannot be ensured. Handling:•Violation of the technical product specifications such as exceeding the nominal rated current will void the warranty.•Applying currents with audio-frequency signals may result in audible noise due to the magnetostrictive material properties.•The temperature rise of the component must be taken into consideration. The operating temperature is comprised of ambient temperature and temperature rise of the component.The operating temperature of the component shall not exceed the maximum temperature specified.These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable.However, no responsibility is assumed for inaccuracies or incompleteness.Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODChriB002.0012023-02-28DIN ISO 2768-1mDESCRIPTIONWE-LQS SMT Semi-ShieldedPower Inductor ORDER CODE74404042100SIZE/TYPE BUSINESS UNIT STATUS PAGEImportant NotesThe following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG:1. General Customer ResponsibilitySome goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not.2. Customer Responsibility related to Specific, in particular Safety-Relevant ApplicationsIt has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be downloaded at .3. Best Care and AttentionAny product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty.4. Customer Support for Product SpecificationsSome products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.5. Product R&DDue to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Section 1 and 2 remains unaffected.6. Product Life CycleDue to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products.7. Property RightsAll the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used.8. General Terms and ConditionsUnless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at .Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODChriB002.0012023-02-28DIN ISO 2768-1mDESCRIPTIONWE-LQS SMT Semi-ShieldedPower Inductor ORDER CODE74404042100SIZE/TYPE BUSINESS UNIT STATUS PAGE。

TDK电容规格对照表

1. SCOPEThis specification is applicable to chip type multilayer ceramic capacitors with a priority over the other relevant specifications.Production places defined in this specification shall be TDK-EPC Corporation Japan,TDK (Suzhou) Co., Ltd and TDK Components U.S.A. Inc.EXPLANATORY NOTE:This specification warrants the quality of the ceramic chip capacitors. The chips should be evaluated or confirmed a state of mounted on your product.If the use of the chips goes beyond the bounds of the specification, we can not afford to guarantee.2. CODE CONSTRUCTION(Example)Catalog Number : C2012 X7R 1E 105 K A125 A (Web) (1) (2) (3) (4) (5) (6) (7) (8) Item Description : C2012 X7R 1E 105 K T xxxx(1) (2) (3) (4) (5) (9) (10)(1) TypePlease refer to product list for the dimension of each product.(2) Temperature Characteristics (Details are shown in table 1 No.7 and No.8 at page 5)(3) Rated Voltage(4) Rated CapacitanceStated in three digits and in units of pico farads (pF).The first and Second digits identify the first and second significant figures of the capacitance, the third digit identifies the multiplier.R is designated for a decimal point.Example 2R2 → 2.2pF105 → 1,000,000pF(5) Capacitance tolerance(6) Thickness code (Only Catalog Number)(7) Package code (Only Catalog Number)(8) Special code (Only Catalog Number)(9) Packaging (Only Item Description)(10) Internal code (Only Item Description)3. RATED CAPACITANCE AND CAPACITANCE TOLERANCE3.1 Standard combination of rated capacitance and tolerances5. STORING CONDITION AND TERM5 to 40°C at 20 to 70%RH6 months Max.6. P.C. BOARDWhen mounting on an aluminum substrate, large case sizes such as C3225, C4532 and C5750 types are more likely to be affected by heat stress from the substrate.Please inquire separate specification for the large case sizes when mounted on the substrate.7. INDUSTRIAL WASTE DISPOSALDispose this product as industrial waste in accordance with the Industrial Waste Law.8. PERFORMANCE(continued)(continued)(continued)(continued)*As for the initial measurement of capacitors (Class2) on number 8,12,13,14 and 15, leave capacitors at 150 -10,0°C for 1 hour and measure the value after leaving capacitors for 24 ± 2h in ambient condition.Dimensions (mm)TDK (EIA style) a b c C0402 (CC01005)0.2 0.8 0.2 C0603 (CC0201)0.3 0.8 0.3 C1005 (CC0402)0.4 1.5 0.5 C1608 (CC0603) 1.0 3.0 1.2 C2012 (CC0805) 1.2 4.0 1.65 C3216 (CC1206) 2.2 5.0 2.0 C3225 (CC1210) 2.2 5.0 2.9 C4532 (CC1812) 3.5 7.0 3.7 C5750 (CC2220)4.5 8.05.6Material : Glass Epoxy ( As per JIS C6484 GE4 )P .C. Board thickness : Appendix-2a 0.8mmAppendix-1a, 1b, 2b 1.6mmCopper ( thickness 0.035mm ) Solder resist9. INSIDE STRUCTURE AND MATERIALMATERIALNo. NAMEClass1 Class21 Dielectric CaZrO 3 BaTiO 32 ElectrodeNickel (Ni) 3 Copper (Cu) 4 Nickel(Ni) 5Termination Tin (Sn)10. RECOMMENDATIONAs for C3225, C4532 and C5750 types, It is recommended to provide a slit (about 1mm wide) in the board under the components to improve washing Flux. And please make sure to dry detergent up completely before.11. SOLDERING CONDITIONAs for C0402, C0603, C1005, C3225, C4532 and C5750 types, reflow soldering only.No. Process Condition2)Direct contact of the soldering iron with ceramic dielectric of chip capacitorsmay cause crack. Do not touch the ceramic dielectric and the terminations bysolder iron.5 Soldering5-7. Sn-Zn solderSn-Zn solder affects product reliability.Please contact TDK in advance when utilize Sn-Zn solder.5-8. Countermeasure for tombstoneThe misalignment between the mounted positions of the capacitors and the landpatterns should be minimized. The tombstone phenomenon may occur especiallythe capacitors are mounted (in longitudinal direction)in the same direction of thereflow soldering.(Refer to JEITA RCR-2335B Annex 1 (Informative) Recommendations to prevent thetombstone phenomenon)1) 2)If an unsuitable cleaning fluid is used, flux residue or some foreign articles may stick to chip capacitors surface to deteriorate especially the insulation resistance.If cleaning condition is not suitable, it may damage the chip capacitors.2)-1. Insufficient washing(1)(2)(3) Terminal electrodes may corrode by Halogen in the flux.Halogen in the flux may adhere on the surface of capacitors, and lower the insulation resistance.Water soluble flux has higher tendency to have above mentioned problems (1) and (2).2)-2. Excessive washingWhen ultrasonic cleaning is used, excessively high ultrasonic energy outputcan affect the connection between the ceramic chip capacitor's body and theterminal electrode. To avoid this, following is the recommended condition.Power : 20 W/ max.Frequency : 40 kHz max.Washing time : 5 minutes max.6Cleaning2)-3. If the cleaning fluid is contaminated, density of Halogen increases, and it maybring the same result as insufficient cleaning.10 Capacitance agingThe capacitors (Class 2) have aging in the capacitance. They may not be used in precision time constant circuit. In case of the time constant circuit, the evaluation should be done well. 11Estimated life and estimated failure rate of capacitorsAs per the estimated life and the estimated failure rate depend on the temperature and the voltage. This can be calculated by the equation described in JEITA RCR-2335B Annex 6 (Informative) Calculation of the estimated lifetime and the estimated failure rate ( Voltage acceleration coefficient : 3 multiplication rule, Temperature acceleration coefficient : 10°C rule)The failure rate can be decreased by reducing the temperature and the voltage but they will not be guaranteed.12 OthersCautionThe products listed on this specification sheet are intended for use in general electronic equipment (AV equipment, telecommunications equipment, homeappliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition.The products are not designed or warranted to meet the requirements of theapplications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this specification sheet. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in this specification, please contact us.(1) Aerospace/Aviation equipment(2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment(4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment(7) Transportation control equipment(8) Public information-processing equipment (9) Military equipment(10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment(13) Other applications that are not considered general-purpose applicationsWhen designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment.13. Packaging labelPackaging shall be done to protect the components from the damage duringtransportation and storing, and a label which has the following information shall be attached.1) Inspection No.2) TDK P/N3) Customer's P/N4) Quantity*Composition of Inspection No.Example M2 A – ΟΟ– ΟΟΟ(a)(b) (c) (d) (e)a) Line codeb) Last digit of the yearc) Month and A for January and B for February and so on. (Skip I)d) Inspection Date of the month.e) Serial No. of the day14. Bulk packaging quantityTotal number of components in a plastic bag for bulk packaging: 1,000pcs.As for C0402, C0603 and C1005 types, not available for bulk packaging.15. TAPE PACKAGING SPECIFICATION1. CONSTRUCTION AND DIMENSION OF TAPING1-1. Dimensions of carrier tapeDimensions of paper tape shall be according to Appendix 3, 4. Dimensions of plastic tape shall be according to Appendix 5, 6. 1-2. Bulk part and leader of taping1-3. Dimensions of reelDimensions of Ø178 reel shall be according to Appendix 7, 8. Dimensions of Ø330 reel shall be according to Appendix 9, 10.1-4. Structure of tapingDrawing directionBottom cover tape(Bottom cover tape is not always applied.)2. CHIP QUANTITYChip quantity (pcs.) TypeThickness of chipTaping Material φ178mm reel φ330mm reelC0402 0.20 mm Paper 20,000 - C0603 0.30 mm Paper 15,000 - C1005 0.50 mm Paper 10,000 50,000 C1608 0.80 mmPaper 4,000 10,0000.60 mmPaper 0.85 mm Paper or Plastic4,000 C20121.25 mm Plastic 2,000 10,0000.60 mm Paper 0.85 mmPaper or Plastic4,0001.15 mm 1.30 mm 10,000 C32161.60 mm Plastic 2,0008,0001.15 mm 2,00010,0001.25 mm 1.30 mm1.60 mm 2,000 8,0002.00 mm 2.30 mm C32252.50 mm Plastic1,000 5,0001.60 mm2.00 mm1,0002.30 mm 2.50 mm 3,0002.80 mm C45323.20 mm Plastic5002,0002.00 mm2.30 mm 2.50 mm 3,000C57502.80 mmPlastic 5002,0003. PERFORMANCE SPECIFICATIONS3-1. Fixing peeling strength (top tape)0.05-0.7N. (See the following figure.)Direction of cover tape pullingDirection of pulling3-2. Carrier tape shall be flexible enough to be wound around a minimum radius of 30mm with components in tape.3-3. The missing of components shall be less than 0.1%3-4. Components shall not stick to fixing tape.3-5. The fixing tapes shall not protrude beyond the edges of the carrier tape not shall cover the sprocket holes.Appendix 3Paper TapePitch holeAppendix 4Paper Tape(Unit : mm)* The values in the parentheses ( ) are for reference.(Unit : mm)*The values in the parentheses ( ) are for reference.* As for 2.5mm thickness products, apply values in the brackets [ ].(Unit : mm)* The values in the parentheses ( ) are for reference.C0402, C0603, C1005, C1608, C2012, C3216, C3225( As for C3225 type, any thickness of the item except 2.5mm )(Material : Polystyrene)Symbol A B C D E W1 Dimension Ø178 ± 2.0 Ø60 ± 2.0Ø13 ± 0.5Ø21 ± 0.8 2.0 ± 0.5 9.0 ± 0.3 Symbol W2 rDimension 13.0 ± 1.4 1.0Appendix 8C3225, C4532, C5750 ( As for C3225 type, applied to 2.5mm thickness products )(Material : Polystyrene)Symbol W2 rDimension 17.0 ± 1.4 1.0C0603, C1005, C1608, C2012, C3216, C3225( As for C3225 type, any thickness of the item except 2.5mm )(Unit : mm) Symbol A B C D E WDimension Ø382 max.(NominalØ330)Ø50 min. Ø13 ± 0.5Ø21 ± 0.8 2.0 ± 0.5 10.0 ± 1.5Symbol t rDimension 2.0 ± 0.5 1.0Appendix 10C3225, C4532, C5750 ( As for C3225 type, applied to 2.5mm thickness products )Symbol A B C D E WDimension Ø382 max.(NominalØ330)Ø50 min. Ø13 ± 0.5Ø21 ± 0.8 2.0 ± 0.5 14.0 ± 1.5Symbol t r Dimension 2.0 ± 0.5 1.0。

片状瓷介电容器的标注对照

片状瓷介电容器的标注对照片状瓷介电容器有多种标注方法。

同一特性的产品，有不一样的标注。

下面介绍一些片状瓷介电容器的标注方法。

1 常见的瓷介电容器型号和规格的标注顺序国产电容器：“型号-尺寸代号-温度系数或特性-额定电压-标称容量-允许偏差-（其他）”国外电容器（或按国外方法标注的国产电容器）：“型号-尺寸代号-温度系数或特性-标称容量-允许偏差-额定电压-（其他）”风华片状陶瓷电容器：“尺寸代号-温度系数或特性-标称容量-允许偏差-额定电压-（其他）”KEMET片状陶瓷电容器：“C-尺寸代号-规格-标称容量-允许偏差-额定电压-温度系数或特性-（其他）”2型号国产电容器的型号命名按“GB/T 2470-1995 电子设备用固定电阻器、固定电容器型号命名方法”规定。

例如——CC4表示1类多层（独石）瓷介电容器——CT4表示2类多层（独石）瓷介电容器——CC41表示片状1类多层（独石）瓷介电容器——CT41表示片状2类多层（独石）瓷介电容器高压电容器也有标注为CC48、CT48的。

由于生产厂家不同，特别是国外厂家，标注方法不一样，应参考厂家的技术手册。

3 尺寸代号片状电容器的尺寸代号常用“0603”、“0805”、“1206”等表示，这是按英寸（0.01in）计的表示法。

还有用EIA代码如“2012”、“3216”等表示，这是按毫米（0.1mm）计的表示法。

4 温度系数或特性本公司常用的瓷介电容器的温度系数或特性的各种代码见表1。

表15 额定电压额定电压表示方法见表2。

表2 额定电压Edc6 标称值（略）。

7 允许偏差（略）。

2009.4.21。

高压陶瓷贴片电容

使用注意事项
使用本产品前，请务必阅读
安全注意事项
注意
1. 2. 3. 4. 5. 6. 7.
计划将本产品目录中记载的产品用于可能对人身安全或对社会造成重大损失的用途时，请务必通知本公司的销售窗口。本产品目录中记载的产品因改良及其他原因可能在不经预告的情况下进行变更或停止供应。关于本产品目录中记载的产品，本公司备有记载了各产品的规格及安全注意事项的 “ 交货规格书 ”。在选用产品时，建议签定交货规格书。在出口本产品目录中记载的产品时，有时会被归为 “ 外汇及外贸管理法 ” 中规定的管制货物等。在这种情况下，需要有依据该法规定的出口许可。关于本产品目录的内容，未经本公司许可不得擅自转载或复制。因使用本产品目录中记载的产品而发生涉及本公司或第三者的知识产权及其他权利的问题时，本公司对此将不承担责任。并且，本公司不对该等权利的实施权办理许可。本产品目录适用于从本公司或本公司的正规代理商购买的产品。从其他第三者购买的产品不在适用范围之内。
EIA CC2220 [C5750]
C0G 代码
103 123 153 183 223 273 333 J:±5%
3A (1KV)
标称厚度 2.80 mm
为了能够更加正确、安全地使用产品，请务必索取能进一步确认详细特性、规格的采购规格书。记载内容可能因为产品改良等原因不经预告而更改，恕不另行通知。
目录型号 C1608C0G1E103J(080AA) C1608C0G1E103J080AA
交货型号（交货标签上的标识） C1608C0G1E103JT000N C1608C0G1E103JT000N
20160829 / mlcc_reminders.fm
(1/5)

CT81-15KV-222高压瓷片电容规格书

•避免过多的影响，如坠落造成。
• Do not apply solder to stud terminals.
•请勿焊接螺柱端子。
• Do not re-machine the terminals.
•不要再机终端。
(3) Usage
（3）用法
• When the capacitor is used for high-speed pulses such as with a laser, make sure that the
Manufacturer of high voltage ceramic capacitors
CT81 SERIES D
HIGH VOLTAGE CERAMIC CAPACITORS LEAD RADIAL TYPE ( 15KVDC222M)
B
40
30
ΔC/C(%)
20
10
0
-10
-20
-30 -40
No
Part Number
Dielectric voltage
C
TOL.
D
T
F
d
1 CT81-15KVD222M Y5T
(K15V)
2(2pF0)0
(2%0) 21 8 12.5 0.8
◆ Ordering Information
Model
Rated Voltage
CT81-15KVD222M
15kvdc
Y5T 电容变化电压关系曲线
Y5T Capacitance change vs Voltage
◆注意事项
PRECAUTIONS
（1）运输和储存
(1) During transportation and storage

tdk热敏电阻命名规则

tdk热敏电阻命名规则
TDK热敏电阻的命名规则通常采用了以下的方式：
1. 第一个字母 "NTC"：代表 Negative Temperature Coefficient （负温度系数），即温度升高时阻值下降的特性。

2. 第二个字母 "R"：代表 Resistor（电阻）。

3. 第三个字母 "C"：代表 Ceramic（陶瓷材料）。

4. 接下来的数字：代表热敏电阻的尺寸或者电阻特性。

5. 最后的字母：代表产品系列或者其他特殊要求。

例如，常见的TDK热敏电阻型号为 "NTC-R"，代表陶瓷材料的负温度系数电阻。

具体的型号可以根据具体的规格来命名，例如 "NTC-RG203" 表示直径为2mm的热敏电阻。

需要注意的是，不同的厂家可能采用不同的命名规则，以上仅是一种常见的命名方式。

电容封装识别

以下是TDK贴片电容型号，你找下面的型号对比就是C 2012 X7R1H 104 K T系列名称体积材料电压容量误差包装积层贴片陶瓷片式电容器0603=0201 CH 0J=6.3V C=0.25 T=卷带1005=0402 COG 1A=10VD=0.5 B=袋装1608=0603 JB 1C=16V J=5%2012=0805 JF1E=25V K=10%3216=1206 X7R1H=50V M=20%3225=1210 X5R2A=100V Z=+80-20%4532=1812 Y5V2E=250V5650=22202J=630V4520=18083A=1KV3D=2KV3F=3KV1.元器件字母标识所对应误差列表(1)电容列表字母 C D F J K M Z误差±0.25PF ±0.5PF ±1.0PF ±5% ±10% ±20% +80% -20% (2)电阻列表字母 D F G J K M Z误差±0.5% ±1% ±2% ±5% ±10% ±20% +80% -20% 2.元器件值识别标记(1)电阻标记值电阻值2R2 2.2Ω5R6 5.6Ω102 1KΩ682 6800Ω333 33KΩ104 100KΩ564 560KΩ(2)电容标记值电容量0R5 0.5PF010 1PF110 11PF471 470PF332 3300PF223 22000PF513 51000PF3.各公司表面贴装电阻．电容型号规格表示实例(1) KYOCERA公司电容CM 21 X7R 105 K 10 A T①②③④⑤⑥⑦⑧(2) KYOCERA公司电阻CR10—562 J—T②④⑤⑧(3)ROHM公司电阻MCR 01 MZS G 562①②⑧⑤④(4)ROHM公司电容MCH 21 2 F 104 Z K①②⑥③④⑤⑧(5)MuRata公司电容GRM 36 X7R 472 K 25 PT①②③④⑤⑥⑧(6)TDK电容C 1005 COG 1E 100D T①②③⑥④⑤⑧①：表示系列编号②：表示元器件尺寸③：表示元器件温度特性④：表示元器件的值⑤：表示元器件值允许误差⑥：表示元器额定电压⑦：表示元器件终端类型⑧：表示包装编号电容器耐压的标注也有两种常见方法，一种是把耐压值直接印在电容器上，另一种是采用一个数字和一个字母组合而成。

CT81高压瓷片电容规格书

4
直径 diameter(mm)
3.6-4.5
5 4.6-5.5
6 5.6-6.5
7 6.6-7.5
8 7.6-8.5
9 8.6-9.5
10
12
9.6-10.5 11.6-12.5
4 温度特性见温度系数及ＥＩＡ代码表： Temperature coefficient:Please consider temperature characteristics and EIA code
5 瓷片电容引线形式 Lead style
代号 symbol
引线形式
1
直脚 (长20mm-28mm)b
2
直脚 (长16mm-19mm)b
3
切脚（短脚）
4
编带直脚型 (b )
5
编带小内弯型
6
编带大内弯型 (a )
7
特殊脚型 (b )
8
双外弯 (c )
9
外单弯(w )
0
前后弯 (b )
Style Straight lead (length 20mm) Straight lead (length 16mm)
820 1000
1500 1800
2700 3300
10000
1200 1800
2200 3300
3900 4700
2200 3300
3900 4700
6800 8200
3900 4700
100 470
470 560
2200 3300
100 270
560 820
680 1000
4700 5600
330 680
低损耗型 (Low DF Model)

tdk贴片电阻电容规格书_概述及解释说明

tdk贴片电阻电容规格书概述及解释说明1. 引言1.1 概述引言部分将对整篇文章的内容进行概述，介绍文章所要讨论的主题以及相关背景信息。

本篇文章的标题为"TDK贴片电阻电容规格书概述及解释说明"，旨在全面介绍和解释TDK贴片电阻和电容的规格书。

1.2 文章结构本文按照以下结构组织：引言、TDK贴片电阻电容规格书概述、TDK贴片电阻规格书解释说明、TDK贴片电容规格书解释说明、结论。

通过这样的结构安排，我们将逐步深入探讨TDK贴片电阻和电容的规格书，并对其进行详尽的解释和说明。

1.3 目的本文旨在帮助读者更好地理解和应用TDK贴片电阻和电容的规格书。

通过对规格书中涉及的参数、意义以及不同型号尺寸对应的规格说明等进行逐一解释，读者可以更全面地了解并正确使用这些信息。

同时，本文也将展望TDK贴片电阻和电容规格书未来的发展趋势，为读者提供启示。

以上就是引言部分内容，接下来我们将进入第二部分——"TDK贴片电阻电容规格书概述"。

2. TDK贴片电阻电容规格书概述：2.1 什么是TDK贴片电阻和电容:TDK贴片电阻是一种小型、高性能的电子元件，用于限制和控制电流流动。

它通常由陶瓷材料制成，具有高精度和稳定性。

TDK贴片电容也是一种小型化的元件，用于储存和释放电荷。

它通常由金属膜、陶瓷或塑料构成。

2.2 TDK贴片电阻电容的特点和应用领域:TDK贴片电阻具有体积小、频率响应范围广、功耗低以及温度稳定等特点。

因此，在各个领域广泛应用，例如通信设备、计算机硬件、汽车电子等。

TDK贴片电容具有高频率响应、低ESR（等效串联电阻）以及良好的温度特性等特点。

它被广泛应用于数字产品、移动设备、工业自动化等领域。

2.3 TDK贴片电阻电容规格书的意义和作用:TDK贴片电阻和电容规格书是厂商提供给客户的重要文档，它包含了元件的详细规格和参数信息。

规格书不仅提供了元件的尺寸、容量、电阻值等基本信息，还包括了其他重要特性，如温度系数、功率耐受能力等。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

MULTILAYER CERAMIC CHIP CAPACITORS
C Series Commercial Grade Mid Voltage (100 to 630V)
Type:
C1005 [EIA CC0402] C1608 [EIA CC0603] C2012 [EIA CC0805] C3216 [EIA CC1206] C3225 [EIA CC1210] C4532 [EIA CC1812] C5750 [EIA CC2220]
2. We may modify products or discontinue production of a product listed in this catalog without prior notiﬁcation. 3. We provide “Delivery Speciﬁcation” that explain precautions for the speciﬁcations and safety of each product
Notice: Effective January 2013, TDK will use a new catalog number which adds product thickness and packaging speciﬁcation detail. This new catalog number should be referenced on all catalog orders going forward, and is not applicable for OEM part number orders. Please be aware the last ﬁve digits of the catalog number will differ from the item description (internal control number) on the product label. Contact your local TDK Sales representative for more information.
Features
• 9ROWDJHUDWLQJRI9WR9ZLWKFDSDFLWDQFHUDQJHXSWRȝ) • High capacitance has been achieved through precision technologies
that enable the use of multiple thinner ceramic dielectric layers. • Low residual inductance assures superior frequency characteristics. • Excellent DC Bias properties. • A lineup with wide-ranging rated voltages that enables selections that
Issue date: Mar 2015
20150309 / mlcc_commercial_midvoltage_en
MULTILAYER CERAMIC CHIP CAPACITORS
REMINDERS
Please read before using this product
SAFETY REMINDERS
listed in this catalog. We strongly recommend that you exchange these delivery speciﬁcations with customers that use one of these products. 4. If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according to the “Foreign Exchange and Foreign Trade Control Law”. In such cases, it is necessary to acquire export permission in harmony with this law. 5. Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our company. 6. We are not responsible for problems that occur related to the intellectual property rights or other rights of our company or a third party when you use a product listed in this catalog. We do not grant license of these rights. 7. This catalog only applies to products purchased through our company or one of our company’s ofﬁcial agencies. This catalog does not apply to products that are purchased through other third parties.
Page 1
20150309 / mlcc_commercial_midvoltage_en
MULTILAYER CERAMIC CHIP CAPACITORS
C Series
Mid Voltage (100 to 630V)
Type: C1005 [EIA CC0402], C1608 [EIA CC0603], C2012 [EIA CC0805], C3216 [EIA CC1206], C3225 [EIA CC1210], C4532 [EIA CC1812], C5750 [EIA CC2220]
1.15 mm
125
1.25 mm
Code
130 160 200 230 250 280 320
Thickness
1.30 mm 1.60 mm 2.00 mm 2.30 mm 2.50 mm 2.80 mm 3.20 mm
Packaging Style
Code A B K
Style 178 mm Reel, 4 mm Pitch 178 mm Reel, 2 mm Pitch 178 mm Reel, 8 mm Pitch
Temperature Range
-25 to +85°C -55 to +125°C -25 to +85°C -55 to +85°C -55 to +105°C -55 to +125°C -55 to +125°C -55 to +125°C
Rated Voltage (DC)
Code
Voltage (DC)
L Body Length W Body Width T Body Height B Terminal Width G Terminal Spacing
Catalog Number Construction
C
•
3225
•
X7R
•
2A
•
105
•
K
•
200
•
A
•
A
Series Name
Dimensions L x W (mm)
Capacitance Tolerance
Code
Tolerance
C
± 0.25pF
D
± 0.50pF
F
± 1%
G
± 2%
J
± 5%
K
± 10%
M
± 20%
Nominal Thickness
Code
Thickness
050
0.50 mm
060
0.60 mm
080
0.80 mm
085
0.85 mm
115
are suitable for needs.
Applications
Shape & Dimensions
• Snubber in power supply • Electric flash circuits in digital still camera • Power factor improvement • Input-output filter in power supply • Driver circuit in plasma display • Noise bypass
Temperature Characteristics
Temperature Characteristics
CH C0G JB X5R X6S X7R X7S X7T
Temperature Coefficient or Capacitance Change
0±60 ppm/°C 0±30 ppm/°C ±10% ±15% ±22% ±15% ±22% +22/-33%
C4532
4.50 ± 0.40 3.20 ± 0.40
C5750
5.70 ± 0.40 5.00 ± 0.40
*Dimension tolerance are typical values
Terminal
0.10 min. 0.20 min. 0.20 min. 0.20 min. 0.20 min. 0.20 min. 0.20 min.
