意大利脉冲阀使用说明书
意大利TURBO图尔波FP60直角型使用说明
电磁线圈无电
电源无输出、导线断、虚接
电磁线圈烧毁（电压过高或不稳）
更换新线圈、增设稳压装置
电压过低（低于额定电压10%）
检查导线电阻，必要时更新
电磁铁不吸合或吸合不到位
芯柱弯曲，电磁铁卡死或卡滞
更换配件
电压过低（低于额定电压10%）
使电压达到额定值
气包无压或压低
进口阀门未开、管线或阀门漏气
10.除尘器在没有防雨设施的情况下，不要将电磁线圈接线插座上的入线口朝上安装，以防雨水进入。接线插座内的接线板与其外壳可以进行4×90°旋转；
11.电磁线圈与接线插座间有橡胶密封垫，可保证插销与插座间的进水造成短路。接线后用螺钉将两者旋紧；
12.不要自行拆、装先导阀。
四、故障及排除
故障显示
故障原因
调整及排除方法
地址：南京建邺区庐山路158号
更换密封圈
膜片方向装反
调整安装方向
脉冲阀漏气
螺钉未紧，安装面漏气
坚固螺钉
销声器孔漏气是阀内压力未平衡
手或机械方法强制平衡若干次
膜片方向装反，使小膜片反向变形
更换小膜片
气源不洁造成膜片渗气孔堵塞
疏通膜片渗气孔
与膜片接触的表面不洁或有异物
擦试清除
大、小膜片机械损坏
更换相应配件
大膜片磨损
更换大膜片
供气量小、阀内压力平衡时间长
13.膜片数量：
FP60型2.5”脉冲阀为双膜片阀；
14.可选装消声器使除尘器安静工作，连接螺纹为G3/8”。
三、现场安装及注意事项：
1.必须在系统完全卸压的情况下拆、装脉冲阀；
2.安装前，应清净气包及管线内的锈蚀和各种污物；
3.脉冲阀必须现场进行最终安装。
电磁脉冲阀的使用是怎样的呢
电磁脉冲阀的使用是怎样的呢电磁脉冲阀是一种电磁阀的变种，它是一种利用电磁脉冲原理来控制液体或气体流动的阀门。
与普通的电磁阀相比，电磁脉冲阀具有更快的响应速度、更稳定的控制性能和更广泛的应用领域。
本文将介绍电磁脉冲阀的使用方法和相关注意事项。
电磁脉冲阀的工作原理电磁脉冲阀通过电磁脉冲控制来控制阀门的开启和关闭。
其结构主要由两部分组成：电磁驱动器和普通阀门。
电磁驱动器包括磁环、线圈和导磁材料，当输入电流通入线圈时，磁环会产生磁通量变化，进而激励导磁材料中的涡电流生成瞬间磁场脉冲，这个磁场脉冲可以带动普通阀门的开启和关闭。
电磁脉冲阀的特点是控制精度高、反应时间短、寿命长、质量稳定，使用寿命可达百万次以上。
它广泛应用于冶金、石油、化工、机床、环保等领域，如高压水流切割、喷淋降尘、压缩空气控制等行业。
电磁脉冲阀的使用方法步骤一：安装电磁脉冲阀安装电磁脉冲阀时，要注意选择适当的位置，如避开高温、高压等场所，要求安装位置在有足够的光线、容易维护等方便的地方。
其次是物品的安装，这要注意一定的安装间隔，不应互相干扰。
安装注意事项：•电磁脉冲阀必须垂直安装，保证阀体在同一个平面内；•电磁脉冲阀的设计工作电压和使用的电压是否一致，不得超过规定电压范围；•电磁脉冲阀进出口连接要牢固，严防漏气现象。
步骤二：阀门操作方法使用电磁脉冲阀前，必须先了解该阀门的开启、关闭操作方法，摇杆调节，能够方便客户手动关闭阀门，方便检修操作。
步骤三：控制器使用电磁脉冲阀可以通过微计算机控制器来完成自动化操作，用于控制液体、气体等介质的流动。
通过微计算机控制器和程序设计，可以实现电磁脉冲阀自动开关，自动调节流量等功能。
电磁脉冲阀的注意事项在使用电磁脉冲阀时，需注意有以下几个要点：1.清洁工作：电磁脉冲阀安装，要确保管道内部清洁，以免杂物和异物影响阀体的正常工作。
2.噪音级别：由于电磁脉冲阀在高频下工作，会产生一定的噪声，因此使用时需要特别注意锁定，减少噪声产生。
意大利autel公司简介
意大利Autel（欧特尔）公司是欧洲一家有着30多年开发、研制、生产、销售高品质的除尘设备专用脉冲阀、清灰控制仪、粉尘监测仪及相关除尘器设备电控元件的专业制造商。
自1980年成立至今，公司一直秉承着专业、专注、创新、求实的理念，首创了“高速自复式膜片”并应用于全系列脉冲阀上，第二代智能脉冲控制仪也实现了量化生产。
Autel（欧特尔）公司凭借着设备运行精确稳定的监控系统、高品质脉冲清灰系统，提高了除尘设备的效率，降低了能源的损耗，赢得了同行业和客户的认可，并连续多年在欧洲同行业的技术及销量雄居先驱领导地位。
在技术领先，产品适销的情况下，Autel（欧特尔）公司一如既往执行的（TQM）公司优品管理系统，并在2001年3月取得了欧洲DNV的UIN EN ISO 9001认证。
为客户提供稳定优良的产品，不断精益求精，让客户得到最大的满意是Autel（欧特尔）公司的核心精神和目标。
公司过往业绩：Autel欧特尔脉冲阀在全球销售网络上已经成功销往意大利，德国，西班牙，美国，印度，印尼，巴西等国，特别是在水泥行业设备中取得令人满意的成绩，以下为几家实际采用欧特尔脉冲阀及相关智能脉冲控制仪的厂家名称：1）AAF-加拿大设备制造商2）FL smiDTH3）THERMAX-印度最大除尘设备制造商4）LAFARGE-拉法基水泥设备厂5）ITALCEMENTI-意大利最大水泥设备厂6）REDECAM以上皆安装了AUTEL欧特尔脉冲阀以及其脉冲阀控制仪等产品，并已实际在设备上运转。
以下附上公司及产品实际的照片：Autel欧特尔公司在意大利的厂房外观。
脉冲阀系列产品，从3/4寸到3寸淹没阀。
阀门内部独特构造，有更大充气量。
独特的几何膜片设计，高速自复式膜片能在瞬间达到最高峰值。
拉法基水泥厂在罗马尼亚的设备上装配的就是Autel 欧特尔脉冲阀、气包系列及其相关控制仪元件。
此套设备配置有Autel欧特尔智能脉冲阀控制仪。
拉法基公司感谢Autel 欧特尔公司在除尘设备低压脉冲阀设备上所给予的技术支持。
FESTO VZWP-L-… 二路、控制阀门、电磁阀门说明书
Solenoid valves VZWP, servo-controlledKey features and overview FunctionThe solenoid valve VZWP-L-… is a servo-controlled 2/2-way valve with solenoid coil. The solenoid valve is closed when de-energised. When energised, the differential pressure from the secondary side of the piston is reduced via the servo hole. The differential pressure lifts the piston away from the valve seat.General Application Design Advantages-N-Connecting threadG 1/4 … G 1 -M-Flow rate Kv1.5 … 11.5 m3/h All applications with a differentialpressure of 0.5 barApplications with an open mediumcircuitThe valve features a simple, sturdydesign. The valve drive only fulfilsa pilot control function, whichrelieves the burden on the mainsealing elementHigh pressures can be controlledwith large nominal diameters usingsmall magnetsThe valves can be operated with air,neutral gases and neutral liquidsThe N/C version guarantees that thevalve will be closed in the event ofa voltage failureSubject to change – 2019/05 2è Internet: /catalog/...Type codesVZWP–L–M22C–G14–130–V–1–P4–40 TypeVZWP Electrically actuated process valve,servo-controlledValve typeL In-line valveValve functionM22C2/2-way valve, normally closed (N/C),mechanical resetProcess valve connectionG14Thread G 1/4G38Thread G 3/8G12Thread G 1/2G34Thread G 3/4G1Thread G 1Nominal size (DN)13013 mm25025 mmSealing material–NBRV FPMNominal voltage124 V DC2A110 V AC3A230 V ACElectrical connectionP4Plug socket, 3-pinMedium pressure40Max. 40 barè Internet: /catalog/...2019/05 – Subject to change3Technical dataGeneral technical dataProcess valve connection G 1/4G 3/8G 1/2G 3/4G 1Nominal size (DN)1313132525Valve function2/2-way, single solenoid, closedDesign Piloted piston poppet valveType of mounting In-line installationActuation type ElectricType of control PilotedManual override NoneMounting position Coil preferably on topSealing principle SoftDirection of flow Non-reversibleMax. viscosity[mm2/s]22Protection class IP65Product weight[g]6005755501500 1400Operating and environmental conditionsProcess valve connection G 1/4G 3/8G 1/2G 3/4G 1Switching time on[ms]100100100130130Switching time off[ms]250250250300300Standard nominal flow rate[l/min]1600 2100 2650 8750 12250Flow rate[m3/h] 1.52 2.58.211.5Medium pressure[bar]0.5 (40)Process valve nominal pressure (PN)40Differential pressure[bar]0.5Medium Compressed air in accordance with ISO 85731:2010 [7:4:4]Neutral liquidsInert gasesFurther media upon requestAmbient temperature[°C]–10 (35)Temperature of medium[°C]–10 (80)Leak rate to EN 12266-1ACorrosion resistance class CRC1)11)Corrosion resistance class 1 according to Festo standard 940 070Components subject to low corrosion stress. Transport and storage protection. Parts that do not have primarily decorative surface requirements, e.g. in internal areas that are not visible or behind covers.MaterialsSolenoid valves Material numberHousing Cast brass CW617NScrews High-alloy stainless steel 1.4301Seals NBR, FPM–Note on materials Contains PWIS (paint-wetting impairment substances)–RoHS-compliant–4è Internet: /catalog/...Subject to change – 2019/05Technical dataElectrical data24 V DC110 V DC230 V DCElectrical connection Type A Type A Type APlug Plug PlugTo EN 175301-803To EN 175301-803To EN 175301-803Coil characteristicsDirect current DC[V]24––[W] 6.8––Alternating current AC[V]–110230[Hz]–50, 6050, 60Pick-up power[VA]–10.510.5Holding power[VA]–87.6Permissible voltage fluctuations[%]±10±10±10Duty cycle[%]100100100Protection class IP65IP65IP65CE marking (see declaration of conformity)–To EU Low Voltage Directive To EU Low Voltage Directiveè Internet: /catalog/...2019/05 – Subject to change5Subject to change – 2019/056è Internet: /catalog/...Technical dataB1B2D1D2H1H2H3H4L1L2L3L4L5T1T2ßVZWP-L-M22C-G14-130-…4830G 1/4M488733051106754252112.5 4.527VZWP-L-M22C-G38-130-…4830G 3/8M488733051106754252112.5 4.527VZWP-L-M22C-G12-130-…4830G 1/2M488733051106754252112.54.527B1B2D1D2H1H2H3H4L1L2L3L4L5T1T2ßVZWP-L-M22C-G34-250-…7030G 3/4M6112883051399654402816641VZWP-L-M22C-G1-250-…7030G 1M6112883051399654402816641Technical dataè Internet: /catalog/...2019/05 – Subject to change7Festo - Your Partner in AutomationConnect with us/socialmedia 1Festo Inc.2Festo Pneumatic 3Festo Corporation 4Regional Service Center 5300 Explorer DriveMississauga, ON L4W 5G4CanadaAv. Ceylán 3,Col. Tequesquináhuac 54020 Tlalnepantla, Estado de México1377 Motor Parkway Suite 310Islandia, NY 117497777 Columbia Road Mason, OH 45040Festo Customer Interaction CenterTel:187****3786Fax:187****3786Email:*****************************Multinational Contact Center 01 800 337 8669***********************Festo Customer Interaction Center180****3786180****3786*****************************S u b j e c t t o c h a n g e。

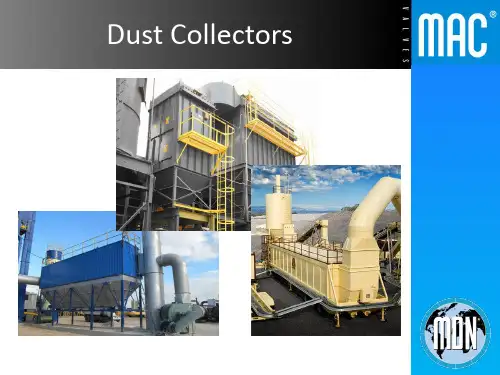

MAC 脉冲除尘阀 - 中文演示
