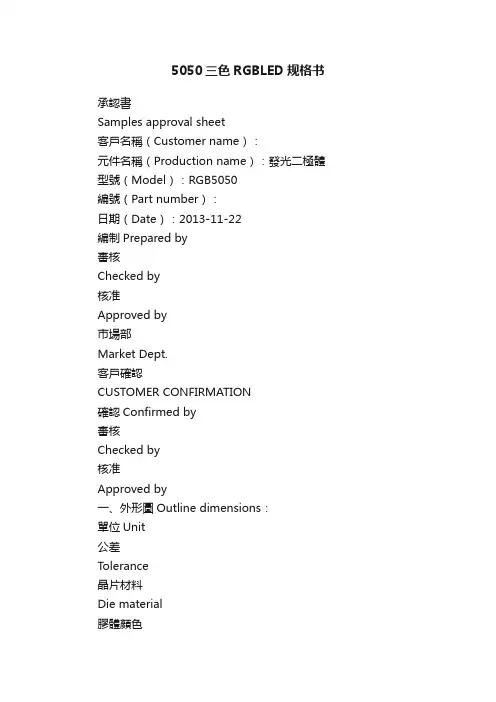

5050三色RGBLED规格书
5050三色RGBLED规格书承認書Samples approval sheet客戶名稱（Customer name）：元件名稱（Production name）：發光二極體型號（Model）：RGB5050編號（Part number）：日期（Date）：2013-11-22編制Prepared by審核Checked by核准Approved by市場部Market Dept.客戶確認CUSTOMER CONFIRMATION確認Confirmed by審核Checked by核准Approved by一、外形圖Outline dimensions：單位Unit公差Tolerance晶片材料Die material膠體顏色Lens color發光顏色Emission colormm ±0.2mm ---- --※備註：承認書之編號和型號可用于查詢，客戶如有需要，請提供相應的編號和型號。
Remark：P/N & Model in samples approval sheet can be used to inquire，please provide corresponding P/N& model if customer need .二、光電參數Photoelectricity Parameter（環境溫度Ambient temperature：25℃濕度humidity：RH60%）項目Item符號Symbol測試條件Testcondition最小值Min典型值Type最大值Max單位Unit正向電壓Forward voltage VF IF=20mA R 1．9 -- 2．1V IF=20mA G 3．0 -- 3.3IF=20mA B 3．0 -- 3.3反向電流Reverse current IR VR=5V -- -- 10 μA發光強度Luminous intensity IV IF=20mA R 700 -- 900MCD IF=20mA G 1500 -- 1700IF=20mA B 500 -- 700主波長Dominant wavelengthλd IF=20mA R 620 -- 625nm IF=20mA G 520 523 525IF=20mA B 460 462 465光譜半寬度Spectrum line half widthΔλIF=20mA -- 60 -- nm 視角Viewing Angle2θ1/2 IF=20mA -- 120 -- deg備註：亮度測試公差±15%、波長測試公差±1nm、正向電壓測試公差±0.05V Remark：The tolerance of intensity:±15%, The tolerance of wave length:±1nm,The tolerance of forwards voltage: ±0.05V. Only reference for above data when testing.三、極限參數Absolute Maximum Rating（環境溫度Ambient temperature：25℃濕度humidity：RH60%）項目Item符號Symbol數值Value單位Unit備註Remark正向電流Forward Current IF 20 mA ---正向峰值電流Peck forward currentIFM 75 mA F=1KHZ,占空比(duty cycle)1/10反向耐壓Reverse Voltage VR 15 V --- 耗散功率Power DissipationPm 80 mW ---工作環境溫度OperationtemperatureTamb -25至+80 ℃--- 貯藏溫度Storage temperatureTstg +40至+60 ℃---焊接溫度Solderin g temperature Tsol 240 ℃焊接,≤3SSoldering,≤3S型號Model：RGB5050頁碼Page： 3/4四、典型光電特性曲線圖T ypical photoelectricity characteristic curve chart型號Model：RGB5050頁碼Page： 4/4R 五、可靠性實驗項目Reliability Test Project判斷標準Judging criterion:項目 Item符號 Symbol實驗條件 Experiment condition判斷標準CriteriaMin.Max.Forward V oltage V F I F =20mA ---- Initial Datex1.1Reverse Current I R V R =5V ---- 30μA Luminous IntensityIVI F =20mAInitial Datex0.8----描述 Description 項目 Item測試標準 T est criterion 測試條件 T est condition 測試時間 T est time 數量 Qty 失效數量 Fail qty 壽命測試 Life test常溫壽命測試Life test(room temperature) JIS7021:B4 T a=25℃±5℃，IF=30mA1000Hrs22環境測試 Ambience test高溫存儲High temperature store JIS7021:B10 MIL-STD-202:210A MIL-STD-750:2031 T a=85℃±5℃ 1000Hrs 22 0低溫存儲Low temperature storeJIS7021:B12 T a= -35℃±5℃ 1000Hrs 22 0 高溫高濕測試High temperature/ humidity testJIS7021:B11 MIL-STD-202:103D T a=85℃±5℃ RH=85% 1000Hrs22冷熱衝擊測試Cold / Heat strike test JIS7021::B4 MIL-STD-202:107D MIL-STD-750:102630min-10℃±5℃←→100℃±5℃ 5min 5min50Cycles 22 0冷熱迴圈測試Cold and heat cycle testJIS7021:A3 MIL-STD-202:107D MIL-STD-705:105E 5min 5min 5min -35℃～25℃～85℃～-35℃ 30min 5min 30min 5min 50Cycles 22 0。
LA-5050RGB-A LED说明书
LA-5050RGB-A●目录：（Content）◆封面:(Cover)━‥━‥━‥━‥━‥━‥━‥━‥━‥‥━‥━‥PAGE:1OF12◆产品简介(Product introduction)━‥━‥━‥━‥━‥━‥‥━‥━‥PAGE:2OF12◆外形尺寸图及应用领域(Outline Dimensions)━‥━‥━‥━‥━‥━PAGE:3OF12◆产品编码解说及光电参数：Electrical-Optical Characteristics━‥━‥PAGE:4OF12◆色区分BIN及色温坐标：（Intensity Bin Limit）━‥━‥‥━‥━‥━PAGE:5OF12◆光电特性曲线图：（Optical Characteristics）━‥━‥━‥━‥━‥━‥PAGE:7OF12◆信赖度测试项目及标准：（Test items and results of reliability）‥‥‥PAGE:8OF12◆包装规范：（Packing）━‥━‥━━‥━‥━━‥━‥━‥━‥━‥━‥PAGE:9OF12◆产品使用说明及注意事项:(Usage and Handling Instructions)‥‥‥PAGE:10-12OF12●特性：（Features）◆ 5.4长*5.0宽*1.6高：（5.4mm*5.0mm*1.6mm SMT LED Thickness.）◆角度：120度：（View Anglc:120°）◆包装：1000/一盒：（Package：1000PCS/Packet）◆发光颜色：RGB（Emitted Color:RGB）◆混色型：（Mono-color type）◆工作温度：-40～80度：（Operating Temperature:-40～+80℃）◆焊接温度：260度10秒：（S oldering Temperature：260for10sec℃）◆超大功率：（Supper High Power Consumption）◆可做不同的种类：（Various Colors And Types Available.）◆胶水：硅胶：（Resin(Mold):Silicone）◆反向电压5V：（Reverse Voltage:5V）◆储存温度-40～+100度：（Storage Temperature:-40～+100℃）◆脉冲电流60mA注：脉冲宽度0.1mS占空比1/10Pulsed Forward Current60mA(Duty1/10,Pulse Width0.1mS.）LA-5050RGB-ALA-5050RGB-ALA-5050RGB-A●分BIN参数：（Color Coordinate Comparison）·色坐标范围LA-5050RGB-A●典型光学特性曲线：（Typical optical characteristics curves）环境温度与正向电流特性曲线正向电流与相对光强特性曲线Ambient Temperature vs.Forward Current Forward Current VS.Relative Intensity正向电压与正向电流特性曲线环境温度与相对光强特性曲线Forward Voltage VS.Forward Current Ambient Temperature VS.Relative Intensity相对光谱分布特性曲线辐射图特性曲线Relative spectral emission Radiation diagramLA-5050RGB-ALA-5050RGB-A●包装规格✧标签：（Label）卷轴尺寸：（Reel Dimensions）✧载带规格（单位：mm):（Tape Specifications(Units:mm）✧防潮带包装：（Moisture Resistant Packaging）注：标注公差为±0.1mm，单位：mm：（Note:The tolerances unless mentioned is±0.1mm,Unit:mm）LA-5050RGB-A●回流焊接曲线图（IR reflow soldering Profile）✧有铅焊接（Lead solder）✧无铅焊接（Lead Free solder）注意：（NOTES：）1.我们建议的回流焊温度为240℃±5℃，最高的焊接温度要控制在260℃以内。
5050RGB规格书(中文)
标示区有无由蓝色变为粉红色.如漏气或变色现象,请联系厂家或退回厂家高温除湿处理,(高温除湿 环境：120 度，6H)切勿自行处理 2-2. 打开包装前， LEDs 需储存在温度低于 30℃，湿度低于 70%RH 。 2-3. 打开包装后，在温度低于 30℃ ，湿度低于 60%RH 的情况下，且开封到焊接完成控制在 4H。 2-4. 如果吸湿材料 (硅凝胶)已经消退或是 LEDs 已经超过了储存时间, 则需要基于以下条件进行烘烤 处理： 60±5℃ / 24 小时。 3. 回流焊注意事项 3-1. 无铅锡膏的温度曲线
█ 电性与光学特性(Ta=25℃)
参数 正向电压 反向电流 发光角度 波长
光通量
符号
条件
最小 平均 最大 单位
R IF=20mA
2.0
--
2.3
VF G IF=20mA
2.9
--
3.2
V
B IF=20mA
2.9
--
3.2
IR
VR=5V
--
--
5
μA
2θ1/2
IF=3*20mA
--
120
--
deg
R IF=20mA
3-2. 回流焊不能超过两次。 3-3. 焊接期间, 加热时不要在 LEDs 上添加任何压力。 3-4. 焊接后, 正常回温至 40℃以下后才可过电流。 4. 防护措施
用适当的工具从材料侧面夹取，因产品使用硅胶封装避免在应用过程中压伤胶体，损伤内部结构造
成不良。LED 为半导体敏感器件，静电放电（ESD）或脉冲电流（EOS）可能会损害 LED。 作业机台 有效接地、作业中作好静电防护，可有效提升产品品质。贴片 LED 灯珠在生产过程中及灯具使用环境 需避免与硫.卤素.酸.醇.碱.酮肟类挥发性化合物,强氧化物.增塑剂(又名塑化剂,领苯二甲酸二辛酯 DOP 或邻苯二甲酸二丁酯 DBP,PVC 物料即含有大量增塑剂)等腐蚀性物质接触
5050RGB声控灯条规格书
使用本产品之前，敬请仔细阅读本手册，确保完全理解本规格书以避免不必要的损坏和额外的费用。
产品简介LED RGB声控灯条采用先进的PWM控制技术，能够实现多钟RGB颜色变化（详细模式见下文）；采用RF无线射频遥控进行模式选择调节，实现静态、跳变、渐变和音频感应等灯光变化效果，同时客户可根据实际需求对静态颜色进行亮度调节，对动态变化进行速度调节；该款产品是基于音频分析技术和更人性化遥控器设计基础上进行升级的第二代音乐控制器,达到完美的音频控制效果和用户体验；并可以与本公司的RGB信号放大器进行功率扩展，实现更多LED灯的同步化，理论上可以连接无数个RGB放大器。
技术参数工作温度-20-60℃供电电压12~24V静态功耗<1W连接方式共阳灰度级256级（可连发）速度档100级（可连发）净重185g毛重215g外型尺寸L130ΧW64ΧH24 mm包装尺寸L137ΧW80ΧH54 mm输出3回路输出电流≤4A(每回路)遥控方式RF发射接收频率433.92Mhz遥控距离20m模式14种控制器输出功率12V:≤144W产品特点1、产品供电电压12V电压；2、输出为三回路，每路允许最大电流为4A，能带12V30灯/米的灯带20米，12V60灯/米的灯带10米；3、采用RF无线遥控方式，具有遥控距离远，无方向性，可穿透一定厚度阻碍物等特点，环境的不同，最大距离可以达到20米；常规产品的无线遥控器是可通用的，如需要一对一控制，需要对其编码；4、具有断电记忆存储功能，每次上电都会保留上次掉电时的变化模式；5、14种模式，包括8种静态颜色、3种动态变化和3种音乐模式，其中3种音乐模式分别对应F.T.:DJ(快节奏变化)、M.T.:动感(通用型的节奏变化)、C.T.:柔情(慢节奏变化)；音频模式时可通过黑色旋钮调节灵敏度；6、音频控制可以通过麦克风和音频线输入信号两种方法实现;7、为了实现更多灯具的同步，可与本公司的RGB信号放大器进行功率扩展。
DS174 LUXEON 5050 产品数据手册说明书
DS174 LUXEON 5050 Product Datasheet ©2021 Lumileds Holding B.V. All rights reserved.No. E507562(LES). LUXEON 5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.FEatuREs and BEnEFItsPRImaRy aPPlICatIons Superior lm/W enables outstanding efficacy in end applicationHigh Bay Extremely reliable package design affirms long lifetime in harsh environments [1]Low Bay Robust coating design for enhanced sulfur protection capability (LUXEON 5050 Square LES) [1]Floodlights Two voltage configurations are compatible with low cost high efficacy drivers Wall PackLow R th enables effective thermal dissipation design for higher efficiency Landscape Lighting Hot-color targeting ensures color is within ANSI bin at 85°CSpotlights 3-step and 5-step MacAdam ellipse binning structure ensures excellent color uniformityMore…1.Refer to reliability datasheet for more details.Table of ContentsGeneral Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Product Test Conditions (2)Part Number Nomenclature (2)Lumen Maintenance (2)Environmental Compliance (2)Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Product Selection Guide (3)Optical Characteristics (6)Electrical and Thermal Characteristics (6)Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Spectral Power Distribution Characteristics (7)Light Output Characteristics (8)Forward Current Characteristics (10)Radiation Pattern Characteristics (12)Product Bin and Labeling Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Decoding Product Bin Labeling (13)Luminous Flux Bins (14)Color Bin Definitions (15)Forward Voltage Bins (16)Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Reflow Soldering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 JEDEC Moisture Sensitivity (18)Solder Pad Design (19)Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Pocket Tape Dimensions (19)Reel Dimensions (20)DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. iGeneral Product InformationProduct Test ConditionsLUXEON 5050 LEDs are tested with a 20ms monopulse specified below at a junction temperature, Tj, of 25°C. Forward voltageand luminous flux are binned at a Tj of 25°C, while color is hot-targeted at a Tjof 85°C.160mA – LUXEON 5050 (Round LES) – 24V and LUXEON 5050 (Square LES) – 30V640mA – LUXEON 5050 (Round LES) – 6V800mA – LUXEON 5050 (Square LES) – 6VPart Number NomenclaturePart numbers for LUXEON 5050 follow the convention below:L 1 5 0 –A A B B 5 0 C C 0 0 0 D 0Where:A A– designates nominal ANSI CCT (22=2200K, 27=2700K, 30=3000K, 35=3500K 40=4000K, 50=5000K,57=5700K, 65=6500K)B B– designates minimum CRI (70=70CRI, 80=80CRI, 90=90CRI)C C– designates voltage (06=6V, 24=24V, 30=30V)D– designates product type (0=Round LES, S=Square LES)Therefore, the following part number is used for a LUXEON 5050 Square LES, 3000K 80CRI, 30V:L 1 5 0 – 3 0 8 0 5 0 3 0 0 0 0 S 0Lumen MaintenancePlease contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-term performance of this product.Environmental ComplianceLumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON 5050 is compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE).DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 2Performance Characteristics Product Selection GuideLUXEON 5050 (Round LES)24V 2700K70535637163160L150-2770502400000 3000K70553663170160L150-3070502400000 3500K70600668171160L150-3570502400000 4000K70580680174160L150-4070502400000 5000K70580680174160L150-5070502400000 5700K70570665170160L150-5770502400000 6500K70570660169160L150-6570502400000 2200K80440500128160L150-2280502400000 2700K80500572146160L150-2780502400000 3000K80516595152160L150-3080502400000 3500K80527605154160L150-3580502400000 4000K80539630161160L150-4080502400000 5000K80539630161160L150-5080502400000 5700K80539630161160L150-5780502400000 6500K80539617157160L150-6580502400000 2700K90414475121160L150-2790502400000 3000K90428490125160L150-3090502400000 3500K90445510130160L150-3590502400000 4000K90456530135160L150-4090502400000 5000K90456530135160L150-5090502400000 5700K90456530135160L150-5790502400000LUXEON 5050 (Round LES)6V 2200K70515580149640L150-2270500600000 2700K70535637163640L150-2770500600000 3000K70553663170640L150-3070500600000 3500K70600668171640L150-3570500600000 4000K70580680174640L150-4070500600000 5000K70580680174640L150-5070500600000 5700K70570665170640L150-5770500600000 6500K70570660169640L150-6570500600000 2200K80440500128640L150-2280500600000 2700K80500572146640L150-2780500600000 3000K80516595152640L150-3080500600000 3500K80527605154640L150-3580500600000 4000K80539630161640L150-4080500600000 5000K80539630161640L150-5080500600000 5700K80539630161640L150-5780500600000 6500K80539617157640L150-6580500600000 2700K90414475121640L150-2790500600000 3000K90428490125640L150-3090500600000 3500K90445510130640L150-3590500600000 4000K90456530135640L150-4090500600000 5000K90456530135640L150-5090500600000 5700K90456530135640L150-5790500600000Table 1a continued on next page:1. Correlated color temperature is hot targeted at Tj =85°C.2. Luminous flux and CRI are based upon mounted package on highly reflective surface at Tj =25°C. Typical CRI is approximately 2 points higher than the minimum CRI specified, but thisis not guaranteed.3. Lumileds maintains a tolerance of ±2 on CRI and ±7% on luminous flux measurements.DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 3LUXEON 5050 (Square LES)30V 2700K70693775159160L150-27705030000S0 3000K70720803165160L150-30705030000S0 3500K70729815167160L150-35705030000S0 4000K70743835171160L150-40705030000S0 5000K70743833171160L150-50705030000S0 5700K70738823169160L150-57705030000S0 6500K70720803165160L150-65705030000S0 2200K80586630129160L150-22805030000S0 2700K80650695142160L150-27805030000S0 3000K80665730150160L150-30805030000S0 3500K80679735151160L150-35805030000S0 4000K80700768157160L150-40805030000S0 5000K80702768157160L150-50805030000S0 5700K80700768157160L150-57805030000S0 6500K80688740152160L150-65805030000S0 2700K90558600123160L150-27905030000S0 3000K90586630129160L150-30905030000S0 3500K90600640131160L150-35905030000S0 4000K90609655134160L150-40905030000S0 5000K90618665136160L150-50905030000S0 5700K90605650133160L150-57905030000S0LUXEON 5050 (Square LES)6V 2200K70621695142800L150-22705006000S0 2700K70693775159800L150-27705006000S0 3000K70720803165800L150-30705006000S0 3500K70729815167800L150-35705006000S0 4000K70743835171800L150-40705006000S0 5000K70743833171800L150-50705006000S0 5700K70738823169800L150-57705006000S0 6500K70720803165800L150-65705006000S0 2200K80586630129800L150-22805006000S0 2700K80650695142800L150-27805006000S0 3000K80665730150800L150-30805006000S0 3500K80679735151800L150-35805006000S0 4000K80700768157800L150-40805006000S0 5000K80702768157800L150-50805006000S0 5700K80700768157800L150-57805006000S0 6500K80688740152800L150-65805006000S0 2700K90558600123800L150-27905006000S0 3000K90586630129800L150-30905006000S0 3500K90600640131800L150-35905006000S0 4000K90609655134800L150-40905006000S0 5000K90618665136800L150-50905006000S0 5700K90605650133800L150-57905006000S0Notes for Table 1a:1. Correlated color temperature is hot targeted at Tj =85°C.2. Luminous flux and CRI are based upon mounted package on highly reflective surface at Tj =25°C. Typical CRI is approximately 2 points higher than the minimum CRI specified, but thisis not guaranteed.3. Lumileds maintains a tolerance of ±2 on CRI and ±7% on luminous flux measurements.DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 4LUXEON 5050 (Round LES)- 24V 2700K707.288.53 2.18L150-2770502400000 3000K707.668.69 2.23L150-3070502400000 3500K708.308.75 2.24L150-3570502400000 4000K707.108.84 2.26L150-4070502400000 5000K708.018.90 2.28L150-5070502400000 5700K708.028.84 2.27L150-5770502400000 6500K708.048.86 2.27L150-6570502400000 2200K80 6.947.85 2.01L150-2280502400000 2700K807.208.14 2.09L150-2780502400000 3000K807.168.34 2.14L150-3080502400000 3500K80 5.408.42 2.16L150-3580502400000 4000K807.958.59 2.20L150-4080502400000 5000K807.748.60 2.20L150-5080502400000 5700K807.758.55 2.19L150-5780502400000 6500K808.008.60 2.20L150-6580502400000 2700K90 6.777.59 1.94L150-2790502400000 3000K90 6.977.75 1.98L150-3090502400000 3500K907.237.90 2.02L150-3590502400000 4000K7907.588.17 2.09L150-4090502400000 5000K907.678.13 2.08L150-5090502400000 5700K907.498.08 2.07L150-5790502400000LUXEON 5050 (Round LES)- 6V 2200K707.508.32 2.13L150-2270500600000 2700K707.288.53 2.18L150-2770500600000 3000K707.668.69 2.23L150-3070500600000 3500K708.308.75 2.24L150-3570500600000 4000K707.108.84 2.26L150-4070500600000 5000K708.018.90 2.28L150-5070500600000 5700K70 2.008.84 2.27L150-5770500600000 6500K708.048.86 2.27L150-6570500600000 2200K80 6.947.85 2.01L150-2280500600000 2700K807.208.14 2.09L150-2780500600000 3000K807.168.34 2.14L150-3080500600000 3500K80 5.408.42 2.16L150-3580500600000 4000K807.958.59 2.20L150-4080500600000 5000K807.748.60 2.20L150-5080500600000 5700K807.758.55 2.19L150-5780500600000 6500K808.008.60 2.20L150-6580500600000 2700K90 6.777.59 1.94L150-2790500600000 3000K90 6.977.75 1.98L150-3090500600000 3500K907.237.90 2.02L150-3590500600000 4000K907.588.17 2.09L150-4090500600000 5000K907.678.13 2.08L150-5090500600000 5700K907.498.08 2.07L150-5790500600000Notes for Table 1b:1. Correlated color temperature is hot targeted at Tj =85°C.2. CRI and PPF are specified at Tj =25°. Typical CRI is approximately 2 points higher than the minimum CRI specified, but this is not guaranteed.3. Lumileds maintains a tolerance of ±2 on CRI and ±7.5% on PPF.4. PPF data is calculated from luminous flux measurements.DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 5DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 6Optical CharacteristicsTable 2 . Optical characteristics for LUXEON 5050 at test current, T=25°C .Notes for Table 2:1. Total angle at which 90% of total luminous flux is captured.2. Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.Electrical and Thermal CharacteristicsL150-xxxx500600000 5.8 6.1 6.6-3 2.4L150-xxxx5030000S029.030.532.0-15 1.4L150-xxxx5006000S05.86.16.6-31.4Notes for Table 3:1. Lumileds maintains a tolerance of ±1% on forward voltage measurements.2. Measured between 25°C and 85°C.Absolute Maximum RatingsDC Forward Current [1, 2]240mA for L150-xxxx502400000800mA for L150-xxxx500600000240mA for L150-xxxx5030000S01000mA for L150-xxxx5006000S0Peak Pulsed Forward Current [1, 3]300mA for L150-xxxx5024000001000mA for L150-xxxx500600000300mA for L150-xxxx5030000S01250mA for L150-xxxx5006000S0LED Junction Temperature [1] (DC & Pulse)125°C ESD Sensitivity (ANSI/ESDA/JEDEC JS-001-2012)Class 2Operating Case Temperature [1]105°C LED Storage Temperature -40°C to 105°CAllowable Reflow Cycles 3Reverse Voltage (V reverse )LUXEON LEDs are not designed to be driven in reverse biasNotes for Table 4:1. Proper current derating must be observed to maintain the junction temperature below the maximum allowable junction temperature.2. Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple,” are acceptable if the following conditions are met: – The frequency of the ripple current is 100Hz or higher– The average current for each cycle does not exceed the maximum allowable DC forward current – The maximum amplitude of the ripple does not exceed the maximum peak pulsed forward current 3. At 10% duty cycle with pulse width of 10ms.Characteristic CurvesFigure 1a. Typical normalized power vs. wavelength for L150-xx7050xx000x0 at test current, T=25°C .j=25°C .jDS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 7DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 8Figure 1c. Typical normalized power vs. wavelength for L150-xx9050xx000x0 at test current, T j=25°C .jjDS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 9jjjj Radiation Pattern CharacteristicsFigure 5. Typical radiation pattern for L150-xxxx50xx000x0 at specified test current, T=25°C .j=25°C .Figure 6. Typical polar radiation pattern for L150-xxxx50xx000x0 at specified test current, TjProduct Bin and Labeling DefinitionsDecoding Product Bin LabelingIn the manufacturing of semiconductor products, there are variations in performance around the average values given in the technical datasheet. For this reason, Lumileds bins LED components for luminous flux or radiometric power, color point, peak or dominant wavelength and forward voltage.LUXEON 5050 (Round LES) LEDs are labeled using a 4-digit alphanumeric CAT code following the format below:A B C CWhere:A– designates luminous flux bin (example: L=600 to 650 lm, M=650 to 700 lm)B – designates color bin (example: 3=3 SDCM, 5=5 SDCM parts)C C– designates forward voltage bin (example: A1, A2, B1, B2)Therefore, a LUXEON 5050 (Round LES) with a lumen range of 600 to 650 lm, color bin of 3 and forward voltage range of 23.5 to 24.2V has the following CAT code:L 3 A 1LUXEON 5050 (Square LES) LEDs are labeled using a 4-digit alphanumeric CAT code following the format below:A B B CWhere:A– designates luminous flux bin (example: L=600 to 650 lm, M=650 to 700 lm)B B – designates color bin: (example: 83=2700K and 3 SDCM, 35=5000K and 5 SDCM)C– designates forward voltage bin (example: A, B, C, D)Therefore, a LUXEON 5050 (Square LES) with a lumen range of 600 to 650 lm, color bin of 83 and forward voltage range of 29.0 to 30.0V has the following CAT code:L 8 3 ALuminous Flux BinsTable 5 lists the standard luminous flux bins for LUXEON 5050 LEDs. Although several bins are outlined, product availability in a particular bin varies by production run and by product performance. Not all bins are available in all CCTs.Table 5. Luminous flux bin definitions for LUXEON 5050, T=25°C .H450500J500550K550600L600650M650700N700750P750800Q800850R850900S900950T9501000Notes for Table 5:1. Lumileds maintains a tolerance of ±7% on luminous flux measurements.Color Bin DefinitionsFigure 7. 3- and 5-step MacAdam ellipse illustration for hot-color targeting expected at 85°C.=85°C .Table 6. 3- and 5-step MacAdam ellipse color bin definitions for LUXEON 5050 at test current, hot-color targeted at T Array 2700K Single 3-step MacAdam ellipse(0.4578, 0.4101)0.008100.0042053.70°383 3000K Single 3-step MacAdam ellipse(0.4338, 0.4030)0.008340.0040853.22°373 3500K Single 3-step MacAdam ellipse(0.4073, 0.3917)0.009270.0041454.00°363 4000K Single 3-step MacAdam ellipse(0.3818, 0.3797)0.009390.0040253.72°353 5000K Single 3-step MacAdam ellipse(0.3447, 0.3553)0.008220.0035459.62°333 5700K Single 3-step MacAdam ellipse(0.3287, 0.3417)0.007450.0032059.09°323 6500K Single 3-step MacAdam ellipse(0.3123, 0.3282)0.006690.0028558.57°313 2200K Single 5-step MacAdam ellipse(0.5018, 0.4153)0.014380.0066349.27°5A5 2700K Single 5-step MacAdam ellipse(0.4578, 0.4101)0.013500.0070053.70°585 3000K Single 5-step MacAdam ellipse(0.4338, 0.4030)0.013900.0068053.22°575 3500K Single 5-step MacAdam ellipse(0.4073, 0.3917)0.015450.0069054.00°565 4000K Single 5-step MacAdam ellipse(0.3818, 0.3797)0.015650.0067053.72°555 5000K Single 5-step MacAdam ellipse(0.3447, 0.3553)0.013700.0059059.62°535 5700K Single 5-step MacAdam ellipse(0.3287, 0.3417)0.012430.0053359.09°525 6500K Single 5-step MacAdam ellipse(0.3123, 0.3282)0.011150.0047558.57°515 Notes for Table 6:1. Lumileds maintains a tolerance of ±0.005 on x and y coordinates in the CIE 1931 color space.Forward Voltage BinsTable 7. Forward voltage bin definitions for LUXEON 5050, T=25°C .L150-xxxx502400000A224.225.0 B125.025.8 B225.826.5L150-xxxx500600000A1 5.8 6.0 A2 6.0 6.2 B1 6.2 6.4 B2 6.4 6.6L150-xxxx5030000S0A29.030.0 B30.031.0 C31.032.0L150-xxxx5006000S0A 5.8 6.0B 6.0 6.2C 6.2 6.4D 6.4 6.6Notes for Table 7:1. Lumileds maintains a tolerance of ±0.1V on forward voltage measurements.Mechanical DimensionsNotes for Figure 8:1. Drawings are not to scale.2. All dimensions are in millimeters.Figure 8. Mechanical dimensions for LUXEON 5050 (Round LES), left, and LUXEON 5050 (Square LES), right.smin smaxRamp-Up Rate (TL to Tp)3°C / second maximumLiquidous Temperature (TL)217°CTime Maintained Above Temperature TL (tL)60 to 150 secondsPeak / Classification Temperature (Tp)260°CTime Within 5°C of Actual Peak Temperature (tp)20 to 40 secondsRamp-Down Rate (Tp to TL)6°C / second maximumTime 25°C to Peak Temperature8 minutes maximum JEDEC Moisture SensitivitySolder Pad DesignNotes for Figure 10:1. Drawings are not to scale.2. All dimensions are in millimeters.3. Refer to application brief AB174 for additional details regarding recommended PCB layout design.Figure 10. Recommended PCB solder pad layout for LUXEON 5050 (Round LES) and LUXEON 5050 (Square LES).Packaging InformationPocket Tape DimensionsNotes for Figure 11:1. Drawings are not to scale.2. All dimensions are in millimeters.Figure 11. Pocket tape dimensions for LUXEON 5050 (Round LES) and LUXEON 5050 (Square LES).Notes for Figures 12a and 12b:1. Drawings are not to scale.2. All dimensions are in millimeters.12a. Reel dimensions for LUXEON 5050 (Round LES). Figure 12b. Reel dimensions for LUXEON 5050 (Square LES).DS174 LUXEON 5050 Product Datasheet 20210525 ©2021 Lumileds Holding B.V. All rights reserved. 20©2021 Lumileds Holding B.V. All rights reserved.。
5050 0.5W规格书
Color bin limit(If=150mA)—◎white
色区范围(IF=150mA) —白光
Bin
X
Y
Bin
X
Y
Bin
0.283 0.284
0.3035 0.332
0.295 0.297
0.315 0.3435
A0
A7
B4
0.298 0.288
0.316 0.332
0.287 0.276
0.306 0.322
Y 0.357 0.3697 0.3568 0.345 0.369 0.3827 0.3697 0.357 0.3812 0.3956 0.3827 0.369 0.321 0.342 0.332 0.3135 0.342 0.355 0.3435 0.332
White CIE Chromaticity Diagram
Our 5050 products, use silica gel packages, effectively improve the heat dissipation performance. Reliability is better than companies in general, it is a complete white combination with high brightness, low-light decay characteristics.
0.316 0.332
0.329 0.33
0.317 A6
0.308
0.319 0.311
0.329 0.345 B3
0.3455 0.3568
0.306 0.322
0.3442 0.3421
X 0.329 0.3466 0.3455 0.329 0.329 0.3478 0.3466 0.329 0.329 0.3489 0.3478 0.329 0.287 0.301 0.3035 0.2895 0.301 0.314 0.315 0.3035
5050灯珠，5050灯珠参数，...
5050灯珠，5050灯珠参数，...5050灯珠，5050灯珠参数，5050灯珠电压电流，5050灯珠是多少瓦，5050灯珠规格书有哪些？5050灯珠因为体积大，散热性能比较好，所以，很多LED灯珠应用上设计师们都会选择5050灯珠来做光源，特别是5050单色，双色，三色、四色和五色灯珠都能做。
所以，5050灯珠被广泛用在灯带，汽车仪表灯，手机背光及按键，户外照明等产品应用上。
虽然5050灯珠系列应用极广，但是很多工程师和采购朋友在选型和购买的时候，依然对5050灯珠参数，功率，电流，电压不太了解。
常常咨询：5050灯珠是多少瓦？5050灯珠和2835的区别？5050灯珠接线图，5050灯珠参数电压，5050灯珠引脚图，5050灯珠焊盘尺寸，5050灯珠电压电流0.5W，5050灯珠黄光工作电压电流，晶元5050灯珠价格，5050灯珠电压电流0.5W。
像这些5050灯珠的参数问题，一般在5050灯珠规格书里面就有详细的说明了。
5050led贴片灯珠参数1、尺寸：5mm*5mm*1.6mm2、电压：5050白光 3.0-3.4V,3、电流：60mA4、功率：0.2W和0.5W更多的5050灯珠参数请看下图：5050灯珠和3030灯珠有什么区别？1、封装尺寸不同：（1）、5050灯珠封装尺寸是长、宽、高为 5.0X5.0X1.6mm。
（2）、3030灯珠封装尺寸是长、宽、高为 3.0X3.0X0.6mm。
2、颜色不同：（1）、3030灯珠一般主要是做单色灯为主。
(特别以白光1W为主)（2）、5050灯珠常做成双、三色全彩，一灯双色、三色用混合效果好。
3、功率不同：（1）、3030灯珠功率为0.2-1W。
（2）、5050灯珠功率为常规是0.2W-0.5W。
以上是5050灯珠，5050灯珠参数，5050灯珠电压电流，5050灯珠是多少瓦，5050灯珠规格书有哪些的常用参数。
5050灯珠，5050灯珠参数，5050灯珠电压电流，5050灯珠是多少瓦，5050灯珠规格书尺寸都是比较多咨询的。
5050系列高压灯带规格书1doc
60
LUX-FLT50SW060C-230-020 White 765 lm
60
LUX-FLT50SW060C-230-050 White 765 lm
60
LUX-FLT50WW060C-230-005
Warm white
665 lm
60
LUX-FLT50WW060C-230-020
Warm white
-5-
-2-
深圳纳科士光电科技有限公司
Shenzhen Luxes Optoelectronics CO,.Ltd
Lux-FLT50XX060C-230-XXX
产品光电参数表：
产品型号
颜色
光通量 LED 数
/M
量/M
LUX-FLT50SW060C-230-005 White 765 lm
3．不要将灯带作连续性的扭曲，多次扭曲易造成内部电源线路疲劳损伤，扭 曲角度不小于 45 度，不要在直径 60mm 以下的弧度弯曲。软灯带在户外、 户内使用应做好安全防范措施，以免减少火灾，电击和人身伤害。
4. 在安装时用螺丝将轨道固定在要装饰的物体表面上，将灯嵌入轨道夹内， 注意灯体的发光面部分要朝上。软灯带在使用过程中，请勿用任何物体包 住，遮盖软灯带表面。
使用注意事项
1．每条灯带均接有整流桥堆和插头，只需将插头插入电源插座内即可方便使 用。使用前请明确产品功率，确保供电线路不超负荷，电路有电路保护 器，如电源插座带有保险丝或接了漏电开关。使用时请参照产品技术及光 电参数内容，确保在电压参数±5%范围内工作。
2．如需自定义长度，应在单元组焊接位置剪切，不可小于最小单元长度或在 单元组内剪切。剪切后须注意，切口应用防水绝缘胶封好，以免烧坏产品 或出现安全事故（因此造成的损失，产品供应商不负责）。我司不建议客 人自行裁剪长度，如需求非标准长度产品，请与我司市场人员联系。
5050灯珠规格书
0.4386
4000K
Rank
CIE-X
0.3760
40C02 0.3859 (3900-4100K) 0.3920
0.3822
5000K
Rank
CIE-X
0.3444
50C02 0.3469 (4700-5000K) 0.3558
0.3539
6500K
Rank
CIE-X
0.3104
CIE-Y 0.424 0.4116 0.4204 0.4329
条件 =60mA
=60mA =60mA =60mA
最小
18 20 22
2.9 3.0 3.1 3.2 3.3 118
62
最大
20 22 24
3.0 3.1 3.2 3.3 3.4 123
85
单位 lm V deg -
4
4.: 03/01/2013: 03/01/2013 Rev: 01
5050 灯珠规格书
ZT5050W: 03/01/2013 Rev: 01
目录
1.产品描述 2.最大额定值 3.光电参数 4.典型光电特性曲线 5.分光标准 6.可靠性测试 7.产品规格尺寸 8.料盘结构和包装 9.回流焊 10.使用注要事项
240℃ 20-40 秒 最大 6℃/每秒 最大 8 分钟
10.使用注意事项 储存 (1) 打开包装前 在温度不超过 40℃及湿度不超过 90%RH 条件下，LED 可以保存一年，在储存的时候， 建议采用带干燥剂的防潮袋的包装方式。 (2)打开包装后 LED 需要储存在<=40℃＆<=60%RH 相对湿度的条件下，我们强烈建议您从打开包装到 完成贴片整个过程在一个星期内完成。 如果有未使用完的剩余 LED，我们建议重新使用出厂时的防潮剂，并且需要重新密封。 如果干燥剂过期了，请将 LED 放在 60℃烤箱烘烤 12 小时。 LED 电极和引线框架是由表面镀了银的铜合金构成，镀银层会受到来自周围环境的破 坏，请把 LED 远离那种会腐蚀 LED 电极镀银层的环境，LED 电极被腐蚀后，会降低它的 焊接能力和光电参数。 请避免 LED 使用在温度快速变化的环境中，尤其是会发生冷凝的高湿环境中。
智能LED控制和光源电路的5050大小包装产品说明书
Instruction ManualILPL-K501-RGBW-SK105-01Product OverviewThe ILPL-K501-RGBW-SK105-01 is an Intelligent LED with control and light emitting circuit, all contained in a 5050 sized package.Based on the industry standard SK6182 device, the control circuit consists of signal shaping amplification, built-in constant current source, and a high precision RC oscillator.The data protocol being used is the unipolar NRZ communication mode, where the 32-bit data is transmitted from the controller to DIN of the first LED, after an internal data latch, the remaining data is passed through the internal amplification circuit and sent out of the DO port to the remaining pixels. Using ‘automatic shaping forwarding technology’ means the number of cascaded LEDs is only limited by the signal transmission speed.Applicationsz Task Lightingz Back Lightingz Desk Lightingz Garage Lightingz Accent Lightingz Under Cabinet Lightingz Bar Lightingz Refrigerationz Industrial Applicationsz PhotographyTechnical Featuresz Control circuit and the RGBW die all in one 5050 sized devicez Grey level adjusting control (256 level grey scale)z Red drive special control enhances colour balancez Transmission distance between two points can be up to 10Mz Using a typical data transmission frequency of 800 Kbps, you can achieve refresh rates of 30 frames per secTechnical Drawing (mm)Notes:1. All dimensions are in millimeters.2. Tolerance is ±0.1mm unless otherwise notedPIN configurationAbsolute Maximum Ratings (Ta=25˚,VSS=0V)The electrical parameters (unless otherwise specified, TA=-20 - +70˚C, VDD=4.5 - 5.5V, VSS=0V)The dynamic parameters (Ta=25˚C)The data transmission time (TH+TL=1.25μs±600ns)T0H0 code, high level time0.3μs±0.15μs T0L0 code, low level time0.9μs±0.15μs T1H 1 code, high level time0.6μs±0.15μs T1L 1 code, low level time0.6μs±0.15μs Trst Reset code, low level time80μsTiming waveformmode:ConnectionInputcode:The method of data transmissionThe data structure of 24bitNote: high starting, in order to send data (R7 - R6 - ...... ..W0) The typical application circuit:CIE chromaticity coordinates (ANSI Natural white)ANSI Warm White Color bin structuresStandard LED Performance Graph1020%0.0040%60%80%Forward Current(mA)Forward Voltage(V) Tj=25 °CN o r m a l i z e d L u m i n o u s F l u xF o r w a r dC u r r e n t (m A )Typical Relative Luminous Flux vs. Forward CurrentForward Voltage vs. Forward Current12040608010020%0.0040%60%80%Thermal Pad Temperature (T=25°C)N o r m a l i z e dL u m i n o u s F l u xThermal Pad Temperature vs. Relative Light Output12020%0.0040%60%80%Wavelength (nm)R e l a t i v e E m i s s i o n D i s t r i b u t i o nWavelength Characteristics7590604530150.40.20.60.81.090°Typical Radiation Pattern 120°Radiation Angle1020150150.02050150150%200406080100F o r w a r d C u r r e n t (m A )Thermal Pad Temperature vs. Forward Current200406080100Thermal Pad Temperature (°C)120TOP SMD LED Application Notes1. FeaturesThe Purposes of making OPSCO’s customers and users to have a clear understanding on the ways how to use the LED.2. DescriptionGenerally. The LED can be used the same way as other general purposed semiconductors. When using OPSCO’s TOP SMD LED, the following precautions must be taken to protect the LED.3. Cautions3.1. Dust & CleaningThis emitter has a silicone surface, There are many benefits to the silicone surface in terms of optical properties and improved reliability. However, silicone is a softer material and prone to attract dust. Whilea minimal amount of dust and debris on the LED will not cause significant reduction in illumination, steps should be taken to keep the emitter free of dust.These include keeping the LEDs in the manufacturer’s package prior to assembly and storing assemblies in an enclosed area after installing the emitters.Surface condition of this device may change when organic solvents such as trichloroethylene or acetone were applied.Avoid using organic solvent, it is recommended that isopropyl be used as a solvent for cleaning the LEDs. When using other solvents, it should be confirmed beforehand whether the solvents will dissolve the package and the resin of not.Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence as ultrasonic cleaning on the LEDs depends on factors such as ultrasonic power. Baking time and assembled condition. Before cleaning, a pre-test should be done to confirm whether any damage to the LEDs will occur.3.2. Moisture Proof PackageIn order to avoid the absorption of moisture during transportation and storage, LED are packed in the aluminum envelop, A desiccant is included in the aluminum envelop as it absorbs moisture. When moisture is absorbed into the AMT package it may vaporize and expand during soldering. There is a possibility that this can cause exfoliation of the contacts and damage to the optical characteristics of the LEDs. For this reason, the moisture proof package is used to keep moisture to a minimum in the package.3.3. StorageIn order to avoid the absorption of moisture, It is recommended to store SMD LED (in bulk or taped) inthe dry box (or the desiccator ) with a desiccant, Otherwise to store them in the following environment as recommended.a. Temperature: 5˚C — 30˚Cb. Humidity: 60% RH MaxIt is recommended to solder the LED as soon as possible after unpacking the aluminum envelop, But in case that the LED have to be left unused after unpacking envelop again is requested.The LED should be soldering within 1 hours after opening the package.If baking is required, A baking treatment should be performed as follows:70˚C ±5˚C for more than 24 hours.Reflow Soldering CharacteristicsIn testing, OPSCO has found S50 LEDs to be compatible with JEDEC J-STD-020C,using the parameters listed below. As a general guideline OPSCO recommends that users follow the recommended soldering profile provided by the manufacturer of solder paste used.Note that this general guideline is offered as a starting point and may require adjustment for certain PCB designs and Configurations of reflow soldering equipment.Tem per at ure(°C )L Profile Feature Lead-Based Solder Lead-Free SolderAverage Ramp-Up Rate (Ts max to Tp )3˚C/second max.3˚C/second max.Preheat: Temperature Min (Ts min)100˚C 150˚CPreheat: Temperature Min (Ts max)150˚C 200˚CPreheat: Time ( ts min to ts max )60-120 seconds 60-180 secondsTime Maintained Above: Temperature (TL)183˚C 217˚CTime Maintained Above: Time (t L)60-150 seconds 60-150 secondsPeak/Classification Temperature (T P)215˚C 240˚CTime Within 5˚C of Actual Peak Temperature ( tp)<10 seconds <10 secondsRamp-Down Rate 6˚C/second max.6˚C/second max.Time 25˚C to Peak Temperature <6 minutes max.<6 minutes max.Note: All temperatures refer to topside of the package, measured on the package body surface.Heat GenerationThermal design of the end product is of paramount importance. Please consider the heat generation of the LED when making the system design. The coefficient of temperature increase per input electric power is affected by the thermal resistance of the circuit board and density of LED placement on the board, as wellas components. It is necessary to avoid in tense heat generation and operate within the maximum rating given in this specification. The operating current should be decided after considering the ambient maximum temperature of LEDs.Electrostatic Discharge & Surge CurrentElectrostatic discharge (ESD) or surge current (EOS) may damage LED.Precautions such as ESD wrist strap, ESD shoe strap or antistatic gloves must be worn whenever handling of LED.All devices, equipment and machinery must be properly grounded.It is recommended to perform electrical test to screen out ESD failures at final inspection.It is important to eliminate the possibility of surge current during circuitry design.Moisture Proof PackageCannot take any responsibility for any trouble that are caused by using the LEDs at conditions exceeding our specifications.The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent looking directly at the LEDs with unaided eyes for more than a few seconds.The formal specification must be exchanged and signed by both parties before large volume purchase begins. The appearance and specifications of the product may be modified for improvement without notice.For further information please contact ILSThe values contained in this data sheet can change due to technical innovations. Any such changes will be made without separate notification.。
贴片LED5050RGB规格书
Classification Life Test
Test Item Operating Life Test High Temperature Storage Low Temperature Storage Temp &Humidity Test
Standard Test Method JIS7021:B4 MIL-STD-202:107D MIL-STD-750:1026 JIS7021:B10 MIL-STD-202:210A MIL-STD-750:2031 JIS7021:B12
FAX：0769-8200 2227 WEB：
(日期)
LED(SMD)5050RGB
Approved By: (客戶承認)
Prepared By:(我司承認)
Approval Check Design Sales
核准
審核
製作
業務
TEL：0769-8200 2226 E-MIAL∶chenmo@
FAX：0769-8200 2227 WEB：
Max.260℃ for 5 sec Max. (3min from the base of the epoxy bulb)
■Typical Electrical & Optical Characteristics(Ta=25°)
Items Symbol Condition
G,B
Min 3.0 1.9 --620 515 460 300 900 200 ---
5℃ RH=85﹪± 5℃RH ﹣10℃±5℃
1000h
22
0/22
Environment Test
Thermal Shock Test
JIS7021:B4 MIL-STD-202:107D MIL-STD-750:1026
5050RGBW中文规格书
5050RGBW中文规格书型号：YT5050RGBWOS4-4560描述:5050RBGW贴片发光二极管是5050RGB行业内标准的封装产品的升级版，此类产品为高可靠性及应用范围非常广泛，此高可靠性的产品非常适用于半户外及户外全彩显示屏及相关高可靠性要求的应用场合。
特性:尺寸(mm):5.0x5.0mm 表面贴片发光二极管胶体颜色:透明发光颜色:七彩和白光发光角度:120°表面颜色:表面白色应用:ＬＥＤ面板灯，半户外和户外显示屏红绿蓝全彩屏产品在不断更新，建议有新产品代替时使用.产品参数：注意:所有尺寸单位为mm；如无特殊说明误差范围为±0.05mm 。
＊＊＊应用注意事项特点本文件主要向顾客及用户介绍怎样如何更好的使用我司的SMD LED 产品。
描述一般来说，SMD 5050跟一般的半导体有相同的用法。
当使用荧月电子的ＳMD5050产品，请遵从以下的使用方法以保护SMD LED 产品。
1.清洁：不要使用不明化学液体清洗SMD LED，不明的化学液体可能会损坏SMDLED。
当必要清洗时，把SMD LED沉浸在酒精里，在正常的室温下少于1 分钟并且自然干燥15 分钟，然后才开始使用。
2.防潮湿包装为避免产品在运输及储存中吸湿,SMD LED 的包装是用防潮的铝包装袋包装，并且包装袋里面含有干燥剂及湿度卡，干燥剂主要起到控制包装袋里的湿度，湿度卡主要是起到监控包装袋里的湿度。
3.储存a.包装袋密封后贮存在条件为温度< 40℃，湿度< 60%RH，保存期为12 个月。
当超过保质期时，需要重新烘烤。
b.在开包装之前，请先检查包装袋有无漏气或湿度指示卡有无变色，如果有漏气或湿度指示卡有变色现象，请重新烘烤后再使用。
c.开封后请在以下条件使用：温度< 30℃、湿度在30%RH 以下；如果使用时间超出24小时，须做以下烘烤处理才可使用。
d.烘烤条件：产品在烘箱在温度为70℃±5℃；相对湿度≤10%RH，时间:24 小时。
5050灯带规格书
特点•5M*10mm贴片软灯条（30L E D/M）.•印制电路板厚度：0.2mm•印制电路板宽度：10mm•工作电压：24V 直流.•工作电流:0.3A/M.•LED 可视角度(2θ1/2):120°•使用寿命：50000H•防水等级：IP20.应用户外照明：建筑装饰照明、标致照明、路径和轮廓标识、水下工程照明；广告照明：广告字的背光源、超薄灯箱、发光字、发光招牌；气氛照明：酒吧、KTV、咖啡厅等娱乐场所气氛渲染、工艺品照明。
室内装饰：高档专卖店、商铺等室内商业氛围照明、汽车装饰、楼梯走廊家居装饰照明；实物图静电敏感设备应用场景：LED 灯带3灯带参数光电参数压降说明：发光角度外形尺寸500010033.3310.00FPCSMD LED Res lstcr.501.753M stiker1. 所有的单位为 mm.2. 如无特殊说明，所有的公差均为3 .包装说明注意事项a)富晟LED灯带是静电敏感产品，应采取措施避免静电，诸如在使用过程中戴静电手环或防静电手套，所有的装置、设备仪器接地。
建议对组装后的LED灯带进行测试，确认LED灯带是否受到静电的破坏，确认方法为（参考）：低电流或低电压，LED不能点亮或同等条件下亮度较其他LED明显偏暗为缺陷品；b)LED灯带供电电压为12V，过长使用（超过5M）压降上升，导热尾部供电电压不足，造成LED亮暗不均匀，建议使用时，超过5米从中间供电或者两头供电；c)富晟LED灯带为柔性线路板，使用过程中请勿旋转折叠，以免造成线路破坏；d)LED灯带长时间暴露在阳光或偶尔暴露在紫外线下可能导致胶体黄变；e)为保证LED灯带光电性能，请保持LED灯带发光区域表面清洁，避免手指印或其它异物覆盖；f)富晟LED灯带自带双面胶，粘贴前需保证粘贴表面平整.干净.无油；g)富晟LED灯带自带双面胶粘性强，不可在粘贴后又拉起质量保证限制●在正常使用条件下的品质保证：是基于产品的正确保存、安装、使用和维护；●由于客户安装使用不当，违反产品操作规程，而引起的产品损坏；●未经授权的修改或误用；●在指定的环境外操作本产品，或是在非指定的维修点进行配置及维修；●客户自行安装的电路造成的损坏。
Lucky Light LED Light Strip Lamp LS-5050数据表说明书
●No UV or IR light radiation.●Provide120ºbeam angles.●Easy Installation●Very Low Power Consumption:Less than14.4Watts/m●Long lifetime:25000hours(L70).●High CRI:70-85●Correlated Color Temperature:RGB color●Operating temperature:-20℃∽+60℃●12V DC input.●60leds per meter,each3leds as one series,each series can becutted,5meter per roll.●Led type:5050LED●Waterproof grade IP54Features:Benefits:●Energy Cost Savings:Over60%Compared to Incandescent.●Solid-State:High-Shock&High-Vibration Resistant, Both Electrical and Mechanical●Eco-Friendly:No Mercury,No Lead Content●No Hazardous Emissions:No UV or IR Radiation●Constant Light Output:Even Lighting,Non-HalationApplication:●Entertainment Lighting ●Architectural lighting ●City Beautification●Landscape lighting.●Furniture decoration ●Bar lighting●Other lightingInput Voltage 12V DC Wattage14.4W/m Operating Frequency 50-60Hz Operating Temperature -20℃∽+60℃Storage Temperature -30℃∽+70℃Net Weight per piece (g)----CertificationRoHS CompliantLs-5050/F/60/RN/21②③④⑤⑥ProductBeam Angle Total LumensCCT/Wavel engthColor CRILS-5050F60RN-3120º600±5%Red 624nm Full:RGB ≧70Green 525nm Blue 470nmProduct Specifications:Product Selection Guide:①LS:Light Strip ②5050:LED Type ③F:Full(RGB)④60:60pcs of LED⑤RN:DC 12V⑥3:Waterproof grade IP5410005010Notes:1.All dimensions unit in mm2.Tolerances are ±0.5mm unless otherwise noted.Small cartonФ176mm*18Hmm (Ф6.92"*0.71"H)5000mm Light strip insideMedium carton285L*235W*125Hmm11.22"L*9.25"W*4.92"H 7pcs small carton insideBig carton465L*305W*410Hmm(18.31"L*12.01"W*16.14"H)6pcs medium carton inside42pcs Light strip insidePackage210W*230Hmm (8.27"W*9.06"H1pcs small carton inside●Turn off power before inspection,installation,or removal.●Not for use where exposed to the weather ●Do not use in totally enclosed fixtures.●Please make sure to use a suitable adapter.Please mind the minimum load of your adapter.Product Dimensions:Package DimensionInstallation Instructions and Warnings:。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
承认书客户名称
Client appellation:
产品型号
Model NO.: 5050RGB 1.5W
产品规格
Specification: 5050 Top View LEDs
样品编号
NO.:
地址: 深圳市宝安区沙井镇新和大道丽城工业园A栋邮编(Postal Code):518000
电话(TEL):0755-
传真(FAX):0755-
■特征:
●宽角度全彩LED
●支架有6个PIN脚
●具有宽的发光角度
●上锡方式:回流焊
●抗静电
●无铅
●符合ROHS
■描述 :
●5050产品拥有宽的发光角度及高光效，该全彩产品采用蓝色、红色、绿色波长芯
片加特殊工艺制作而成
■用途:
●背光
●灯条
●模组
■外观描述:
■封装尺寸
1. 所有标注尺寸的单位均为毫米
2. 除了特别注明,所有标注尺寸的公差均为±0.10mm
█绝对最大额定值(Ta = 25℃)
█电性与光学特性(Ta=25℃)
█典型的光学特性曲线:
R
█典型的光学特性曲线:
G
█典型的光学特性曲线:
B
█信赖性测试项目与条件:
产品的可靠性应满足于下列项目：
信任级别：90％
NO 项目测试条件测试时间/回合数样品数量判定标准Ac/Re
Notes:
Ivt: 信赖性测试前Iv值；
Iv: 完成信赖性测试后Iv值；
U：规格上限值
L：规格下限值
■使用说明
1. 过电流保护
客户必须使用电阻来保护，否则电压的漂移会引起电流的大幅度改变(发生击穿现象).
灯珠使用时电流必须在规定范围之内，避免电流过大造成不良。
2. 储存
2-1. 准备使用产品前不要打开防潮袋。
开封前请先检查包装袋有无漏气,开包后检查湿度标示卡20%RH 标示区有无由蓝色变为粉红色.如漏气或变色现象,请联系厂家或退回厂家高温除湿处理,(高温除湿环境：120度，6H)切勿自行处理
2-2. 打开包装前，LEDs需储存在温度低于30℃，湿度低于70%RH 。
2-3. 打开包装后，在温度低于30℃，湿度低于60%RH 的情况下，且开封到焊接完成控制在4H。
2-4. 如果吸湿材料(硅凝胶)已经消退或是LEDs已经超过了储存时间, 则需要基于以下条件进行烘烤
处理：60±5℃ / 24 小时。
3. 回流焊注意事项
3-1. 无铅锡膏的温度曲线
3-2. 回流焊不能超过两次。
3-3. 焊接期间, 加热时不要在LEDs上添加任何压力。
3-4. 焊接后, 正常回温至40℃以下后才可过电流。
4. 防护措施
用适当的工具从材料侧面夹取，因产品使用硅胶封装避免在应用过程中压伤胶体，损伤内部结构造成不良。
LED为半导体敏感器件，静电放电（ESD）或脉冲电流（EOS）可能会损害LED。
作业机台有效接地、作业中作好静电防护，可有效提升产品品质。
贴片LED灯珠在生产过程中及灯具使用环境需避免与硫.卤素.酸.醇.碱.酮肟类挥发性化合物,强氧化物.增塑剂(又名塑化剂,领苯二甲酸二辛酯DOP 或邻苯二甲酸二丁酯DBP,PVC物料即含有大量增塑剂)等腐蚀性物质接触
注：如需更加详细产品规格信息请联系销售代表，谢谢！。
