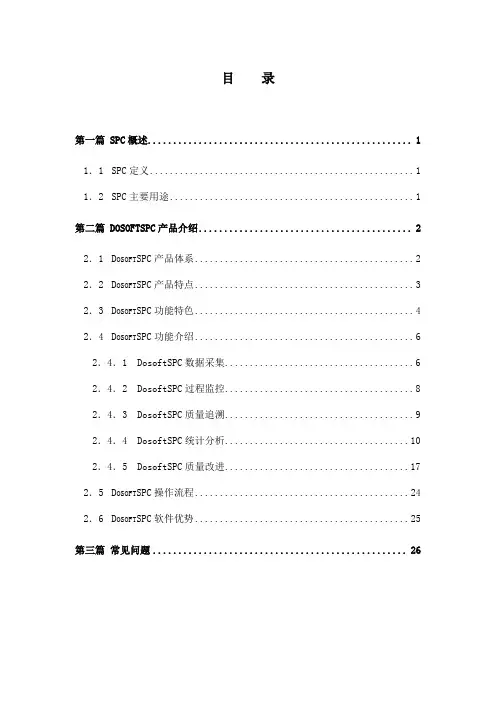

目录第一篇 SPC概述 (1)1．1SPC定义 (1)1．2SPC主要用途 (1)第二篇 DOSOFTSPC产品介绍 (2)2．1D OSOFT SPC产品体系 (2)2．2D OSOFT SPC产品特点 (3)2．3D OSOFT SPC功能特色 (4)2．4D OSOFT SPC功能介绍 (6)2．4．1 DosoftSPC数据采集 (6)2．4．2 DosoftSPC过程监控 (8)2．4．3 DosoftSPC质量追溯 (9)2．4．4 DosoftSPC统计分析 (10)2．4．5 DosoftSPC质量改进 (17)2．5D OSOFT SPC操作流程 (24)2．6D OSOFT SPC软件优势 (25)第三篇常见问题 (26)第一篇SPC概述1．1 SPC定义SPC（Statistical Process Control）中文译名“统计过程控制系统”，是应用于企业质量管理的至为有效的方法和工具，六西格玛的核心工具之一。

它运用数理统计的方法，对过程进行监控，对检测所得的各种质量数据进行统计分析，保证过程的稳定，提高过程能力，帮助质量管理人员有效的分析和解决质量问题，不断提升品质，有效地减少不良品的产生，从而大幅降低企业的成本，提高企业的经济效益和核心竞争力。

1．2 SPC主要用途企业质量管理三境界：●质量检验阶段：企业只进行质量的检验，不进行分析●质量分析阶段：企业采用EXCEL等简单工具，进行部分，不定期的问题分析●质量控制阶段：建立质量控制平台，进行预警，监控，分析，控制的闭环控制系统。

1、采用国际标准的质量过程控制系统，建立了从数据采集，过程监控，图形分析，过程控制的闭环控制平台——提高管理水平，加强质量意识。

2、提供了基于网络和数据库的数据分析工具，改变传统手工的简单烦琐图形绘制——提高办公效率，降低劳动强度，创造个性化工作环境。

3、建立统一分析标准，固化先进管理模式，保存完整质量数据——避免人为因素，减少员工流失带来的损失，保证系统可持续稳定运行。

Process Control Systems

Course Content
The topics that will be covered are aroduction to Process Control: Incentives and motivation for process control. 2. Mathematical Tools: Mathematical modeling of dynamic processes. Linearization of nonlinear systems. Laplace transforms.
Course Objectives
3. Use and apply modern computational techniques and tools (Matlab) for solving process control problems
4. Become familiar with industrial control systems, such as level control, flow control, pressure control, temperature control and concentration control mostly in chemical industry.
Course Textbook
• Pao C. Chau
Process Control: A First Course with MATLAB
Cambridge University Press, 1 edition, 2002
Additional References
• [1] D. E. Seborg, et. al, Process Dynamics and Control, Wiley; 2 edition, 2003 • [2] T. E. Marlin, Process Control, McGraw-Hill, 2nd edition, 2000 • [3] 邵裕森, 戴先中. 过程控制工程. 机械工业出版社, 2000 • [3] 王树青, 戴连亏, 于玲, 过程控制工程, 化学工业出版社, 2008 • [4] 何离庆, 张寿明, 朱文嘉, 过程控制系统与装置, 重庆大学出版社, 2006

Process Control过程控制

8
零件冷加工 Parts cold working
折边机 Folding machine
冷加工下料资料 Cold working Cutting document 图纸 Drawing
焊前零件加工 Parts machining before welding 3.2 焊前装配Assemblg before 9 1 来料检验 Check dimension of parts 平台检验 Check platform
钻床和铣床加工 Drilling machine and Machine milling machine weld 卷尺 Tape 尺寸 Dimension
清单和图纸 Bills and drawings
检验所有来料零件 Check dimension of all parts 检验平台平整度 Check flatness of platform 1、在件7-3上敲出十字中心样冲 Stamp anvil on P7-3 2、根据装焊左右指导书装焊件7-1、件7-2、件7-3 Assemblg P7-1、P7-2andP7-3 according to G170418-01 在平台上划出安装线 Crossed on platform
备注 Remark
卷尺和激光水准仪装配 Tape and laser level Assemblg 打磨机 Grinding machine CO2 焊机 CO2 welder 外观 Appearance 焊接 Welding
6
7
WPS和装焊作业指导书 WPS，Assemblg ＆ welding process G170418-01 焊前尺寸记录表：HL-W6L32CBF-ITP-3.2 Dimension inspection before weld： HL-W6L32CBF-ITP-3.2

重大自动化过程控制_process_control_中文_翻译_第一章

重⼤⾃动化过程控制_process_control_中⽂_翻译_第⼀章Process Control Systems过程控制系统College of Automation,Chongqing University过程控制⾃动化重庆⼤学1Outline of the IntroductionW hat Is Process Control?DefinitionA few examples and forms⼀些例⼦和形式W hat Does It Do?Differences from automatic control theory⾃动控制理论的差异?W hat to be controlled?How Does It Do?如何实现Formulating the problem制定问题Control Equipment and Process Equipment控制设备和⼯艺设备?M odeling the process of the Problem建模过程的问题Introduction to Process Control Operator’s View of Process Control操作员的观点的过程控制A Day in aLife of a PlantOperatorDefinitionThe technology ofcontrolling a series of events to transform a material into a desired end product is called process control.控制技术的⼀系列事件把资料达到所希望的最终产品,被称为过程控制Short examples:M aking of fire for cooking rice (primitive and modern)The fly-ball governor for steam engine control (1774)短的例⼦:让⽕煮⽶饭(原始的和现代)州长的fly-ball蒸汽发动机控制(1774)Tendency of industrial process controlbeing computerized,being automatized , andbeing instrumented w ith smart sensors and M EM S⼯业过程控制的趋势在计算机化,在潜意识中⾃动使⽤,被装备智能传感器和微机电系统(M EM S)A Few Examples1.Flow Control in Oil refinery Plant:Do w e run around the plant to adjust the valves w hen required?流量控制,是炼油⼚植物:我们到处跑植物调节阀门在需要的时候吗?A Few Examples2. pH ControlManual⼿册AutomatedpH controlA Few Examples:3. Room temperature controlA Few Example4. Watt Centralfugal Speed Governor ⽡特Centralfugal调速器A Few Examples5. Level Control液位控制A Few Examples6. Cross Direction ProceControl⼗字⽅向过程控制Several hundred sensors andactuators,M illisecond operation,Controlling paper thickness tow ithin microns!⼏百传感器和执⾏器,微操作,控制纸张厚度和在微⽶!A Few Examples7. Discrete M anufacturing Processes 离散型制造过程A Few Examples8. Typical continuous processes典型的连续过程A Few Examples9. Typical non-continuous processesA Few Examples10. A Semi-Continuous Process半连续过程How large shouldthe tank volume be?油箱体积是多⼤呢？Sample-Plant: M ill W ide Process Control轧机⼴泛的过程控制Sample Softw are: Honeyw ell Intellimap样品软件:霍尼韦尔IntellimapW hat Is Process Control?Summary of the Examples- Forms总结的例⼦-形式Discrete M anufacturing, M otion, and Packaging离散型制造、运动、和包装Robotic Assembly Line in Automotive Production机械的汽车⽣产流⽔线M etal Stamping for the discrete pieces of product 五⾦冲压为离散件产品Continuous Production of Fuels, Chemicals连续⽣产的燃料、化学品Room Temperature Control室温控制Nucleus Chemical Reactor核化学反应器Batch Production of intermediate/end products批量⽣产中间/终端产品Adhesives and gluesFood, Beverages, andM edicineW hat Is Process Control?Tedency: Being Compueterized, Automatized, and Instrumented by smart sensors and M EM S计算机化，⾃动化，和动态化由智能传感器和微机电系统Sensors, local indicators,and valves in the process传感器、当地的指标,和阀门在这个过程中Valve openingdetermined by thesignal from computerDisplays of variables, calculations, commands to valves andhistorical data are in the centralized control center.显⽰变量的影响,计算,命令对阀门和历史数据是在中央控制中⼼Differences from Automatic Control Theory⾃动控制理论的差异?Using Control Theory as a ToolSolving the Real-W orld Problems forM aintaining controlled variables at the desired values保持控制变量在期望值M anufacturing products w ith consistent quality w hen raw material properties change⽣产质量稳定的产品，原料性质改变时？Responding dangerous situations w ith given time危险的情况下和给定的时间响应Being Specialized by transducer作为专业的传感器Smart sensorsM EM S 微机电系统。

过程装备与控制工程专业英语翻译-完全版(课文阅读材料)综合各版精华

PART I 力学基础知识█Unit 1力系的一般平衡条件在这一节，我们将研究为了使一个物体保持平衡，作用在其上的力和力偶所必须满足的条件。

根据牛顿第一定律，施加在一个静止物体上的力系的合力一定为零。

然而，请注意这个定律对力矩或力系的转动效应只字未提。

显然，合力矩也一定为零，否则物体将会转动。

这里的基本问题是，按照先前的规定，牛顿第一定律（和第二定律）只适用于非常小的物体，或者尺寸可以忽略的非零质量的质点。

然而，它可以推广到下述有限尺寸的物体。

考虑一个由两个质点组成的系统，并假设1f 和2f 是由于它们之间相互作用产生的力(图.1.1)。

这些力称为内力，因为它们是由于系统内部的物体之间的相互作用而产生的。

假定内力服从牛顿第三定律，我们有12f f =-。

假如还有质点与系统外物体相互作用产生的力施加在质点上，如1,2F F 和3F ，这些力称为外力。

显然，作用在某个特定质点上的力一定有相同的作用点，因为质点的尺寸可以忽略。

如果系统内的每一个质点处于平衡，我们就可以说系统是平衡的。

这种情况下，依据牛顿第一定律，作用在每个质点上的力的合力一定为零。

对质点A 我们有： ∑=++=0121f F F F A而对质点B 有：∑032=+=F f F B 作用在系统上的力的总和为： 123120A B F F F F F F f f =+=++++=∑∑∑现在让我们来研究这些力对于某一点P 的合力矩。

参照图1.1，我们有：12()()P A B M r F r F =⨯+⨯∑∑∑ 其中0==∑∑B A F F ；如前所述，那么合力矩也一定为零。

由于力1f 和2f 有相同的作用线，力矩的平衡条件可以改写为：1121223()0P M r F F f f r F =⨯++++⨯=∑ 其中12f f =-；因此力和力矩的平衡条件就简化为：0321=++=∑F F F F和 111223()()()0P M r F r F r F =⨯+⨯+⨯=∑换句话说，如果系统处于平衡，那么作用在上面的外力和一定为零，并且这些外力对任一点的合力矩也一样为零。

Process Control 过程控制

Lesson 4 Process Control1 Process-Control PrinciplesProcess Control is the active changing of the process based on the results of process monitoring. In process control, the basic objective is to regular the value of some quantity. To regulate means to maintain that quantity at some desired value regardless of external influences. The desired value is called the reference value or setpoint.Figure 5.9 shows the process to be used for this discussion. Liquid is flowing into a tank at some rate Qin and out of the tank at some rate Qout. The liquid in the tank has some height or level h. It is known that the flow rate out varies as the square root of the height, so the higher the level the faster the liquid flows out. If the output flow rate is not exactly equal to the input flow rate, the tank will either empty, if Qin > Qout, or overflow, if Qout < Qin.This process has a property called self-regulation. This means that for some input flow rate, the liquid height will rise until it reaches a height for which the output flow rate matches the input flow rate. A self-regulating system does nit provide regulation of a variable to any particular reference value. In this example the liquid level will adopt some value foe which input and output flow rates are the same and there it will stay. If the input flow rate changed, then the level would change also, so it is not regulated to a reference value.Suppose we want to maintain the level at some particular value H in Figure 5.9, regardless of the input flow rate, then something more than self-regulation is needed.Human-Aided ControlHuman-aided control shows a modification of the tank system to allow artificial regulation of the level by a human. To regulate the level so that in maintains the value H it will be necessary to employ a sensor to measure the level. This has been provided via a sight tube. The actual liquid level or height is called the controlled variable. In addition, a value has been added so the output flow rate can be changed by the human. The output flow rate is called the manipulated variable or controlling variable.Now the height can be regulated apart from the input flow rate using the following strategy: The person measures the height in the sight tube and compares the value to the setpoint. If the measured value is larger, the human opens the value a little to let the flow out increase, and thus the level lowers toward the setpoint. If the measured value is smaller than the setpoint, the person closes the value a little to decrease the flow out and allow the level to rise toward the setpoint.By a succession of incremental opening and closing of the value, the human can bring the level to the setpoint value H and maintain it there by continuous monitoring of the sight tube and adjustment of the value.Automatic ControlTo provide automatic control, the system is modified using machines, electronics, or computers to replace the operations of the human. An instrument called a sensor is added that is able to measure the value of the level and convert it into a proportional signal. The signal is provided as input to a machine, an electronic circuit, or a computer, called the controller. This performs the function of the human in evaluating the measurement and providing an output signal to change the value setting via an actuator connected to the valve by a mechanical linkage.2 Identification of ElementsThe elements of a process-control system are defined in terms of separate functional parts of the system.ProcessIn general, a process can consist of a complex assembly of phenomena that relate to some manufacturing sequence. Many variables may be involved in such a process, and it may be desirable to control all these variables at the same time. There are single-variable process, in which only one variable is to be controlled, as well as multivariable processes, in which many variables, perhaps interrelated, may require regulation.MeasurementClearly, to effect control of a variable in a process, we must have information on the variable itself. Such information is found by measuring the variable. In general, a measurement refers to the conversion of the variable into some corresponding analog of the variable, such as a pneumatic pressure, an electrical voltage, or a current. A sensor is a device that performs the initial measurement and energy conversion of a variable into analogous electrical or pneumatic information. Further transformation or signal conditioning may be required to complete the measurement function. The result of the measurement is a representation of the value in some forms required by the other elements in the process-control operation.ControllerThe next step in the process-control sequence is to examine the error and determine what action, if any, should be taken. This part of the control system has many names; however, controller is the most common. The evaluation may be performed by an operator, by electronic signal processing, by pneumatic signal processing, or by a computer. The controller requires an input of both a measured indication of the controlled variable and a representation of the reference value of the variable, expressed in the same terms as the measured value.Control ElementThe final element in the process-control operation is the device that exerts a direct influence on the process; that is, it provides those required changes in the controlled variable to bring it to the setpoint. This element accepts an input from the controller, which is then transformed into some proportional operation performed on the process.3 Process-Control Block DiagramTo provide a practical, working description of process control, it is useful to describe the elements and operations involved in more generic terms. Such a description should be independent of a particular application and thus be applicable to all control situations. A model may be constructed using blocks to represent each distinctive element. The characteristics of control operation then may be developed from a consideration of the properties and interfacing of these elements. Figure 5.10 shows a general block diagram. The controlled variable in the process is denoted by e in this diagram, and the measured representation of the controlled variable is labeled b. The controlled variable setpoint is labeled r, for reference.The error detector is a subtracting-summing point that outputs an error signal e=r-b to the controller for comparison and action.The purpose of a block diagram approach is to allow the process-control system to be analyzed as the interaction of smaller and simpler subsystems. If the characteristics of each element of the system can be determined, then the characteristics of the assembled system can be established by an analytical marriage of these subsystems. The historical development of the system approach in technology is dictated by this practical aspect: first, to specify the characteristics desired of a total system and, then, to delegate the development of subsystems thatprovide the overall criteria..4 Control System EvaluationA process-control systems is used to regulate the value of some process variable. When such a system is in use, it is natural to ask, “How well is it working?” This is not an easy question to answer, because it is possible to adjust a control system to provide different kinds of response to errors. This section discusses some methods for evaluating how well the system is working.The variable used to measure the performance of the control system is the error, which is the difference between the constant setpoint or reference value r and the controlled variable c(t).Since the value of the controlled variable may vary in time, so may the error.In principle, the objective of a control system is to make the error exactly zero, but the control system responds only to errors. Conversely, if the error were zero and stayed zero, the control system would be doing nothing and would not be needed in the first place. Therefore, this objective can never be perfectly achieved, and there will always be some errors. The question of evaluation becomes one of how large the error is and how it varies in time.The purpose of the control system is to regulate the value of some variables. This requires that action be taken on the purpose itself in response to a measurement of the variable. If this is not done correctly, the control system can cause the process to become unstable. In fact, the more tightly we try to control the variable, the greater the possibility of an instability.The first objective, then, simply means that the control system must be designed and adjusted so the system is stable. Typically, as the control system is adjusted to give better control, the likelihood of instability also increases.。

processcontrol

Y(t)
1/Ti
ω
TI减小
t
§2-4 比例微分调节
工程上一般都是将比例和微分作用组合成比例-微分调节器，其输入输出关系为：微分部分输出与偏差的变化速度成正比，
de u K c (e TD ) u0 dt
即偏差变化大则输出增大。TD等于零时，微分作用消除，调节器变为比例调节。
由于微分作用的特点，使其对惯性较大的被控对象有“超前”调整作用，故一般用于有较大滞后被控对象的场合。微分时间常数调整得当，可使过渡过程缩短，增加系统稳定性，减少动态偏差。如果微分作用过大，系统将变得非常敏感，控制系统的控制质量将变差，甚至变成不稳定。实际调整TD的结果应使系统的闭环零点靠近系统的第二大极点，从而抵消第二大极点对系统过渡过程
其中 u2(t) = – u1(t – ∆t)
y(t) = y1(t) + y2(t) = y1(t) – y1(t – ∆t)
所需的阶跃响应即为
u
0
t
U1(t)
y1(t) = y(t) + y1(t – ∆t)
利用此结果递推作图得到阶跃响应如图示。 b.由阶跃响应确定近似传递函数的方法
y
t0
C B A
t
●对系统稳定性的影响：比例度越大，调节器输出变化小，被控变量变化缓慢，过渡过程平稳。随着比例度的减小，系统的稳定程度降低，其过渡过程逐渐从衰减振荡走向临界振荡直至发散振荡。
比例调节 ----- 是最基本、最主要、应用最普遍的控制规律（简单、快速、经济），通常
适用于干扰少、扰动幅度小、负荷变化不大、滞后较小或控制精度要求不高的场合。
O
C
冷凝水 0 μa μ1 μ0 μc 100
