Cisco思科策略路由的概念原理配置实例
Cisco基于策略路由的配置实例

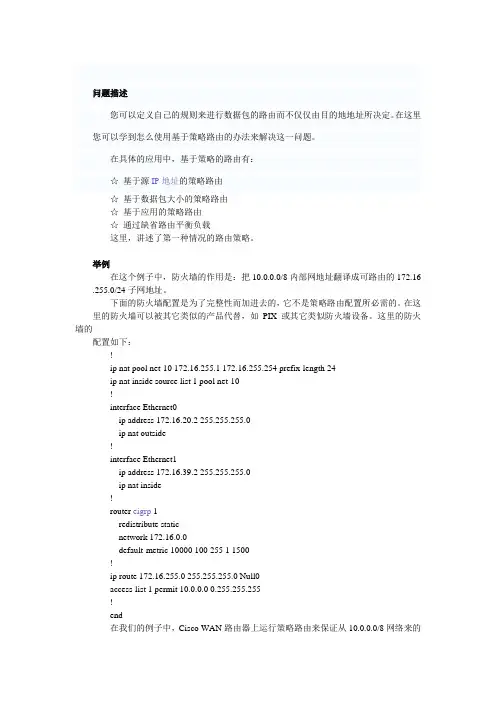

问题描述您可以定义自己的规则来进行数据包的路由而不仅仅由目的地地址所决定。
在这里您可以学到怎么使用基于策略路由的办法来解决这一问题。
在具体的应用中,基于策略的路由有:☆基于源IP地址的策略路由☆基于数据包大小的策略路由☆基于应用的策略路由☆通过缺省路由平衡负载这里,讲述了第一种情况的路由策略。
举例在这个例子中,防火墙的作用是:把10.0.0.0/8内部网地址翻译成可路由的172.16 .255.0/24子网地址。
下面的防火墙配置是为了完整性而加进去的,它不是策略路由配置所必需的。
在这里的防火墙可以被其它类似的产品代替,如PIX或其它类似防火墙设备。
这里的防火墙的配置如下:!ip nat pool net-10 172.16.255.1 172.16.255.254 prefix-length 24ip nat inside source list 1 pool net-10!interface Ethernet0ip address 172.16.20.2 255.255.255.0ip nat outside!interface Ethernet1ip address 172.16.39.2 255.255.255.0ip nat inside!router eigrp 1redistribute staticnetwork 172.16.0.0default-metric 10000 100 255 1 1500!ip route 172.16.255.0 255.255.255.0 Null0access-list 1 permit 10.0.0.0 0.255.255.255!end在我们的例子中,Cisco WAN路由器上运行策略路由来保证从10.0.0.0/8网络来的P数据包被发送到防火墙去。
配置中定义了两条net-10策略规则。
第一条策略就定义了从10.0.0.0/8网络来的IP数据包被发送到防火墙去(我们很快会看到这里的配置有问题)。
思科路由器原理及配置
Router(config-if)#clock rate 64000 Router(config-if)#
配置串型接口封装类型
关闭或打开一个接口
Router#configure terminal Router(config)#interface serial 0 Router(config-if)#shutdown %LINK-5-CHANGED: Interface Serial0, changed state to administratively down %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0, changed state to down
© 2001,
Security Overview (Rev 1.1 Oct.. 2001) -40
显示 running-config 显示 startup-config Commands
In RAM
wg_ro_c#show running-config Building configuration... Current configuration: ! version 12.0 ! -- More --
访问控制列表
访问控制列表的作用 工作过程 访问控制列表的分类
配置访问控制列表
访问表类型按编号定义
编号 1~99 100~199 200~299 300~399 600~699 700~799 800~899 900~999 1000~1099 协议 IP IP Ethernet Type Codes DECnet AppleTalk Ethernet Addresses IPX IPX IPX 类型 标准 扩展 N/A 两者 两者 N/A 标准 扩展 SAP过滤
Cisco交换机做策略路由

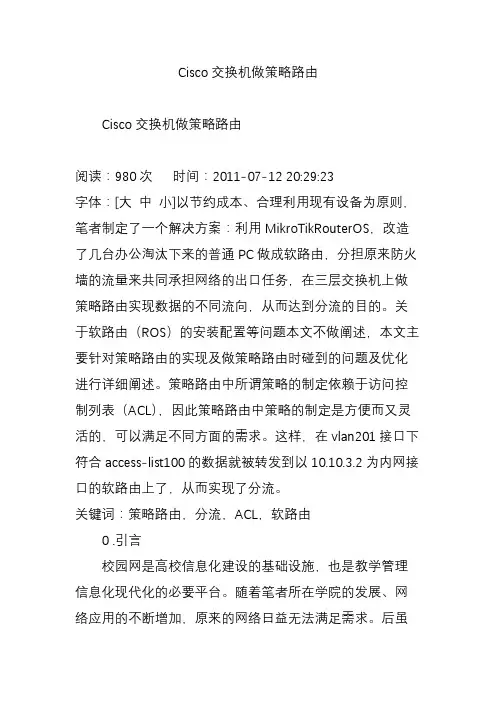

Cisco交换机做策略路由Cisco交换机做策略路由阅读:980次时间:2011-07-12 20:29:23字体:[大中小]以节约成本、合理利用现有设备为原则,笔者制定了一个解决方案:利用MikroTikRouterOS,改造了几台办公淘汰下来的普通PC做成软路由,分担原来防火墙的流量来共同承担网络的出口任务,在三层交换机上做策略路由实现数据的不同流向,从而达到分流的目的。
关于软路由(ROS)的安装配置等问题本文不做阐述,本文主要针对策略路由的实现及做策略路由时碰到的问题及优化进行详细阐述。
策略路由中所谓策略的制定依赖于访问控制列表(ACL),因此策略路由中策略的制定是方便而又灵活的,可以满足不同方面的需求。
这样,在vlan201接口下符合access-list100的数据就被转发到以10.10.3.2为内网接口的软路由上了,从而实现了分流。
关键词:策略路由,分流,ACL,软路由0 .引言校园网是高校信息化建设的基础设施,也是教学管理信息化现代化的必要平台。
随着笔者所在学院的发展、网络应用的不断增加,原来的网络日益无法满足需求。
后虽升级了网络核心三层交换机,但购买于早期的出口防火墙,因性能有限,越来越成为校园网络的瓶颈。
升级网络出口设备当然是解决这一瓶颈比较好的方法,但一款高性能的路由器或防火墙往往价格不菲,而且还可能存在单点失效问题,不能完全解决问题。
为此,以节约成本、合理利用现有设备为原则,笔者制定了一个解决方案:利用MikroTik RouterOS,改造了几台办公淘汰下来的普通PC做成软路由,分担原来防火墙的流量来共同承担网络的出口任务,在三层交换机上做策略路由实现数据的不同流向,从而达到分流的目的。
关于软路由(ROS)的安装配置等问题本文不做阐述,本文主要针对策略路由的实现及做策略路由时碰到的问题及优化进行详细阐述。
1.策略路由简介策略路由是一种比利用目标网络进行路由更加灵活的数据包路由转发机制,策略路由的优先级别高于普通路由。
思科CCNP认证PBR策略路由与BGP协议详解
思科CCNP认证PBR策略路由与BGP协议详解本⽂讲述了思科CCNP认证PBR策略路由与BGP协议。
分享给⼤家供⼤家参考,具体如下:PBR——策略路由定义:通过流量策略来执⾏选路的⼀种转发⼿段。
控制层⾯——给路由的转发做指导数据层⾯——在路由表中找到路由的出接⼝或者下⼀跳传统的路由表转发只能通过数据的⽬标地址做策略。
策略路由可以根据源地址、⽬的地址、源端⼝、⽬的端⼝、协议、TOS等流量特征来做决策提供路由——灵活性⾼,但速度慢,需要⼀个⼀个抓,操作相对⿇烦。
路由表与策略路由的关系:策略路由是先于路由表执⾏的,策略路由没有捕获的流量依然会去执⾏路由表。
两种配置:1:接⼝下配置access-list 100 permit ip host 1.1.1.1 any //⽤ACL捕获流量route-map pbr permit 10 //定义route-mapnatch ip address 10 //调⽤被ACL捕获的流量set ip next-hop 10.1.1.1 //设置下⼀跳int f0/1ip policy route-map pbr //接⼝下调⽤只能捕获该接⼝的⼊接⼝流量做策略(不能处理本路由器产⽣的流量)。
2:全局配置access-list 100 permit ip host 1.1.1.1 any //⽤ACL捕获流量route-map pbr permit 10 //定义route-mapmatch ip address 10 //调⽤被ACL捕获的流量set ip next-hop 10.1.1.1 //设置下⼀跳ip local policy route-map pbr能够捕获所有接⼝⼊接⼝流量以及本路由器产⽣的流量(源地址是本路由器地址)3:策略路由的冗余设置route-map pbr permit 10match ip address 1ip next-hop verify-availability 10.1.24.2 1 track 1 //track 成功则本条⽣效,track失败则执⾏下⼀条set语句track ip next-hop 10.1.34.3track 1 ip sla 1 //定义⼀个track监控sla的探测结果ip sla 1 //定义⼀个slaip icmp-echo 10.1.12.1 source-ip 10.4.4.4 //设置其探针ip sla schedule 1 life forever start-time now //设置sla 1的执⾏时间4:default 语句在route-map的set ip default这个位置输⼊,定义被捕获的流量为先查路由表。
CISCO交换机策略路由配置说明

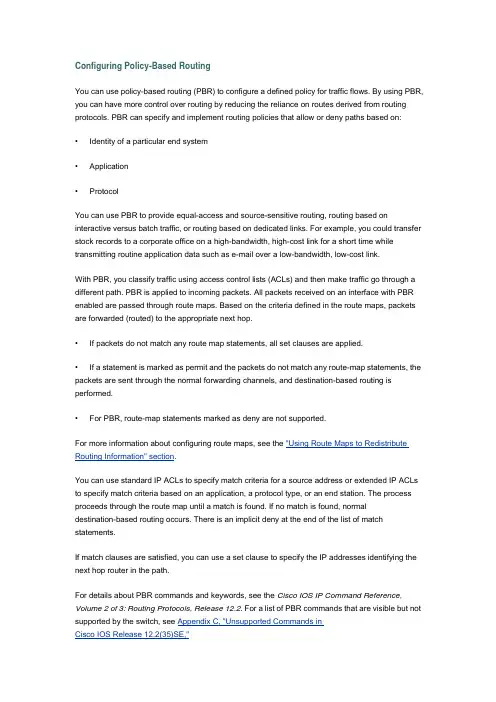

Configuring Policy-Based RoutingYou can use policy-based routing (PBR) to configure a defined policy for traffic flows. By using PBR, you can have more control over routing by reducing the reliance on routes derived from routing protocols. PBR can specify and implement routing policies that allow or deny paths based on:•Identity of a particular end system•Application•ProtocolYou can use PBR to provide equal-access and source-sensitive routing, routing based on interactive versus batch traffic, or routing based on dedicated links. For example, you could transfer stock records to a corporate office on a high-bandwidth, high-cost link for a short time while transmitting routine application data such as e-mail over a low-bandwidth, low-cost link.With PBR, you classif y traffic using access control lists (ACLs) and then make traffic go through a different path. PBR is applied to incoming packets. All packets received on an interface with PBR enabled are passed through route maps. Based on the criteria defined in the route maps, packets are forwarded (routed) to the appropriate next hop.•If packets do not match any route map statements, all set clauses are applied.•If a statement is marked as permit and the packets do not match any route-map statements, the packets are sent through the normal forwarding channels, and destination-based routing is performed.•For PBR, route-map statements marked as deny are not supported.For more information about configuring route maps, see the "Using Route Maps to Redistribute Routing Information" section.You can use standard IP ACLs to specify match criteria for a source address or extended IP ACLs to specify match criteria based on an application, a protocol type, or an end station. The process proceeds through the route map until a match is found. If no match is found, normaldestination-based routing occurs. There is an implicit deny at the end of the list of match statements.If match clauses are satisfied, you can use a set clause to specify the IP addresses identifying the next hop router in the path.For details about PBR commands and keywords, see the Cisco IOS IP Command Reference, Volume 2 of 3: Routing Protocols, Release 12.2. For a list of PBR commands that are visible but not supported by the switch, see Appendix C, "Unsupported Commands inCisco IOS Release 12.2(35)SE,"Note This software release does not support PBR when processing IPv4 and IPv6 traffic.PBR Configuration GuidelinesBefore configuring PBR, you should be aware of this information:•To use PBR, you must have the IP services image installed on the switch.•Multicast traffic is not policy-routed. PBR applies to only to unicast traffic.•You can enable PBR on a routed port or an SVI.•The switch does not support route-map deny statements for PBR.•You can apply a policy route map to an EtherChannel port channel in Layer 3 mode, but you cannot apply a policy route map to a physical interface that is a member of the EtherChannel. If you try to do so, the command is rejected. When a policy route map is applied to a physical interface, that interface cannot become a member of an EtherChannel.•You can define a maximum of 246 IP policy route maps on the switch.•You can define a maximum of 512 access control entries (ACEs) for PBR on the switch.•When configuring match criteria in a route map, follow these guidelines:–Do not match ACLs that permit packets destined for a local address. PBR would forward these packets, which could cause ping or Telnet failure or route protocol flapping.–Do not match ACLs with deny ACEs. Packets that match a deny ACE are sent to the CPU, which could cause high CPU utilization.•To use PBR, you must first enable the routing template by using the sdm prefer routing global configuration command. PBR is not supported with the VLAN or default template. For more information on the SDM templates, see Chapter 7, "Configuring SDM Templates."•VRF and PBR are mutually exclusive on a switch interface. You cannot enable VRF when PBR is enabled on an interface. In contrast, you cannot enable PBR when VRF is enabled on an interface.•The number of TCAM entries used by PBR depends on the route map itself, the ACLs used, and the order of the ACLs and route-map entries.•Policy-based routing based on packet length, TOS, set interface, set default next hop, or set default interface are not supported. Policy maps with no valid set actions or with set action set to Don't Fragment are not supported.•Beginning with Cisco IOS Release 12.2(35)SE, the switch supports quality of service (QoS) DSCP and IP precedence matching in PBR route maps with these limitations:–You cannot apply QoS DSCP mutation maps and PBR route maps to the same interface.–You cannot configure DSCP transparency and PBR DSCP route maps on the same switch.–When you configure PBR with QoS DSCP, you can set QoS to be enabled (by entering the mls qos global configuration command) or disabled (by entering the no mls qos command). When QoS is enabled, to ensure that the DSCP value of the traffic is unchanged, you should configure DSCP trust state on the port where traffic enters the switch by entering the mls qos trust dscp interface configuration command. If the trust state is not DSCP, by default all nontrusted traffic would have the DSCP value marked to 0.Enabling PBRBy default, PBR is disabled on the switch. To enable PBR, you must create a route map that specifies the match criteria and the resulting action if all of the match clauses are met. Then, you must enable PBR for that route map on an interface. All packets arriving on the specified interface matching the match clauses are subject to PBR.PBR can be fast-switched or implemented at speeds that do not slow down the switch.Fast-switched PBR supports most match and set commands. PBR must be enabled before you enable fast-switched PBR. Fast-switched PBR is disabled by default.Packets that are generated by the switch, or local packets, are not normally policy-routed. When you globally enable local PBR on the switch, all packets that originate on the switch are subject to local PBR. Local PBR is disabled by default.Note To enable PBR, the switch must be running the IP services image.Beginning in privileged EX EC mode, follow these steps to configure PBR:•••Use the no route-map map-tag global configuration command or the no match or no setroute-map configuration commands to delete an entry. Use the no ip policy route-map map-tag interface configuration command to disable PBR on an interface. Use the no ip route-cache policyinterface configuration command to disable fast-switching PBR. Use the no ip local policy route-map map-tag global configuration command to disable policy-based routing on packets originating on the switch.。
