氮气发生器使用说明书
GX-500氮氢空一体机的操作规程

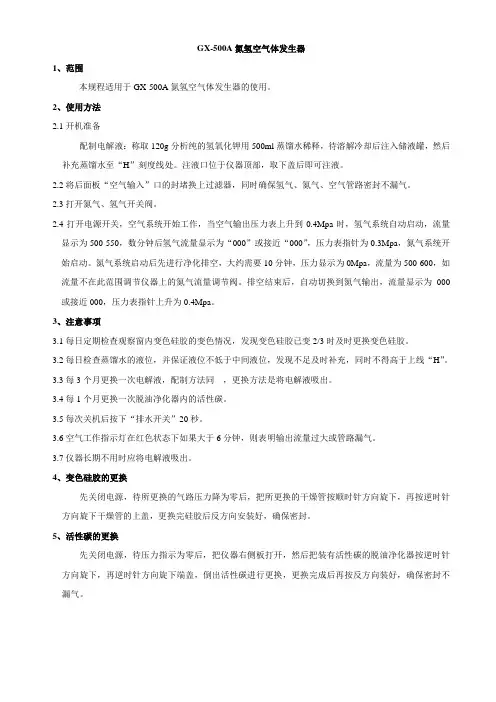

GX-500A氮氢空气体发生器1、范围本规程适用于GX-500A氮氢空气体发生器的使用。
2、使用方法2.1开机准备配制电解液:称取120g分析纯的氢氧化钾用500ml蒸馏水稀释,待溶解冷却后注入储液罐,然后补充蒸馏水至“H”刻度线处。
注液口位于仪器顶部,取下盖后即可注液。
2.2将后面板“空气输入”口的封堵换上过滤器,同时确保氢气、氮气、空气管路密封不漏气。
2.3打开氮气、氢气开关阀。
2.4打开电源开关,空气系统开始工作,当空气输出压力表上升到0.4Mpa时,氢气系统自动启动,流量显示为500-550,数分钟后氢气流量显示为“000”或接近“000”,压力表指针为0.3Mpa,氮气系统开始启动。
氮气系统启动后先进行净化排空,大约需要10分钟,压力显示为0Mpa,流量为500-600,如流量不在此范围调节仪器上的氮气流量调节阀。
排空结束后,自动切换到氮气输出,流量显示为000或接近000,压力表指针上升为0.4Mpa。
3、注意事项3.1每日定期检查观察窗内变色硅胶的变色情况,发现变色硅胶已变2/3时及时更换变色硅胶。
3.2每日检查蒸馏水的液位,并保证液位不低于中间液位,发现不足及时补充,同时不得高于上线“H”。
3.3每3个月更换一次电解液,配制方法同,更换方法是将电解液吸出。
3.4每1个月更换一次脱油净化器内的活性碳。
3.5每次关机后按下“排水开关”20秒。
3.6空气工作指示灯在红色状态下如果大于6分钟,则表明输出流量过大或管路漏气。
3.7仪器长期不用时应将电解液吸出。
4、变色硅胶的更换先关闭电源,待所更换的气路压力降为零后,把所更换的干燥管按顺时针方向旋下,再按逆时针方向旋下干燥管的上盖,更换完硅胶后反方向安装好,确保密封。
5、活性碳的更换先关闭电源,待压力指示为零后,把仪器右侧板打开,然后把装有活性碳的脱油净化器按逆时针方向旋下,再逆时针方向旋下端盖,倒出活性碳进行更换,更换完成后再按反方向装好,确保密封不漏气。
