☆如何阅读质粒图谱

如何阅读质粒图谱最近由于实验需要,需要查阅载体图谱,到园子里搜罗一番,发现虽然有人问载体图谱阅读的问题,也有前辈回答,但都不详细,借自己也在琢磨这个问题的机会,将我学到的东西整理一下,于大家分享。

载体主要有病毒和非病毒两大类,其中质粒DNA是一种新的非病毒转基因载体。

一、一个合格质粒的组成要素#复制起始位点Oril 即控制复制起始的位点。

原核生物DNA分子中只有一个复制起始点。

而真核生物DNA分子有多个复制起始位点。

＃抗生素抗性基因可以便于加以检测，如Amp+l ,Kan+＃多克隆位点MCS 克隆携带外源基因片段l＃P/E 启动子/增强子l＃Termsl 终止信号＃加poly（A）信号l 可以起到稳定mRNA作用二、如何阅读质粒图谱第一步：首先看Ori的位置，了解质粒的类型（原核/真核/穿梭质粒）第二步：再看筛选标记，如抗性，决定使用什么筛选标记。

（1）Ampr 水解β－内酰胺环，解除氨苄的毒性。

（2）tetr 可以阻止四环素进入细胞。

（3）camr 生成氯霉素羟乙酰基衍生物，使之失去毒性。

（4）neor（kanr）氨基糖苷磷酸转移酶使G418（卡那霉素衍生物）失活（5）hygr 使潮霉素β失活。

第三步：看多克隆位点（MCS）。

它具有多个限制酶的单一切点。

便于外源基因的插入。

如果在这些位点外有外源基因的插入，会导致某种标志基因的失活，而便于筛选。

决定能不能放目的基因以及如何放置目的基因。

第四步：再看外源DNA插入片段大小。

质粒一般只能容纳小于10Kb的外源DNA片段。

一般来说，外源DNA片段越长，越难插入，越不稳定，转化效率越低。

第五步：是否含有表达系统元件，即启动子－核糖体结合位点－克隆位点－转录终止信号。

这是用来区别克隆载体与表达载体。

克隆载体中加入一些与表达调控有关的元件即成为表达载体。

选用那种载体，还是要以实验目的为准绳。

启动子－核糖体结合位点－克隆位点－转录终止信号＃启动子－促进DNA转录的DNA顺序，这个DNA区域常在基因或操纵子编码顺序的上游，是DNA分子上可以与RNApol特异性结合并使之开始转录的部位，但启动子本身不被转录。

质粒图谱

)质粒图谱登记号：00012)质粒名称：pIRES3)来源：BD Co4)用途：真核双表达5)是否可以提供更详细资料：可以6)是否可以共享：7)联系方式：PM)质粒图谱登记号：00022)质粒名称：pECFP-C13)来源：BD Co4)用途：检测真核表达5)是否可以提供更详细资料：可以6)是否可以共享：7)联系方式：pm1)质粒图谱登记号：00032)质粒名称：pShuttle3)来源：4)用途：5)是否可以提供更详细资料：6)是否可以共享：7)联系方式：2)pShuttle MCS很多人用pEGFP-C1，我也来发一个)质粒图谱登记号：00042)质粒名称：pSBR322、pUC183)来源：4)用途：5)是否可以提供更详细资料：6)是否可以共享：7)联系方式：1)质粒图谱登记号：00052)质粒名称：pcDNA3.1(+)/CAT3)来源：invitrogen4)用途：真核表达5)是否可以提供更详细资料：可以6)是否可以共享：无偿7)联系方式：PM1)质粒图谱登记号：00062)质粒名称：pQEx3)来源：Qiagen4)用途：原核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM2)1)质粒图谱登记号：00072)质粒名称：pIVEX2.33)来源：Rocho4)用途：体外转录翻译5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM质粒图谱登记号：0008质粒名称：pIRES-EGFP来源：用途：是否可以提供更详细资料：是否可以共享：否联系方式：1)质粒图谱登记号：00092)质粒名称：pET-28a（+）3)来源：Novagen4)用途：原核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM1)质粒图谱登记号：00112)质粒名称：pET-32a(+)3)来源：novagen4)用途：原核表达5)是否可以提供更详细资料：6)是否可以共享：7)联系方式：pm1)质粒图谱登记号：00132)质粒名称：pcDNA3.1/Zeo (+)3)来源：invitrogen4)用途：原核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM)质粒图谱登记号：00132)质粒名称：pEGFP-N33)来源：clontech4)用途：真核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM)质粒图谱登记号：00142)质粒名称：pcDNA33)来源：invitrogen4)用途：真核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM)质粒图谱登记号：00152)质粒名称：pfastbac13)来源：invitrogene4)用途：昆虫表达5)是否可以提供更详细资料：不可以6)是否可以共享：不可以7)联系方式：PM)质粒图谱登记号：00162)质粒名称：pEGFP-C33)来源：clontech4)用途：真核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PMwangjun2002274 edited on 2004-06-22 00:041)质粒图谱登记号：00172)质粒名称：pSecTag23)来源：Invitrogen4)用途：真核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM)1质粒图谱登记号：00192)质粒名称：pET20b3)来源：NOVAGEN4)用途：原核表达5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM1)质粒图谱登记号：00222)质粒名称：pThioHisA3)来源：invitrogen4)用途：原核表达5)是否可以提供更详细资料：4.365kb , HP-thioredoxin fusion proteinexpressionvector, trc promoter, Ampr, a EK cleavage site lies between HP-thioredoxin and MCS宿主菌TOP10（基因型为：F-mcrA △（mrr-hsd RMS-mcrBC）Ф80 lacZ M15 △lacX74 deoR recAl araD139 △（ara-leu）7697 galU galK rpsL endAl nupG6)是否可以共享：交换或其它7)联系方式：PM2)3)1)质粒图谱登记号：00242)质粒名称：pcDNA3.1-Myc-His-A-3)来源：invitrogen4)用途：真核核表达4))质粒图谱登记号：00252)质粒名称：pSUPER.neo3)来源：4)用途：siRNA5)是否可以提供更详细资料：可以6)是否可以共享：交换7)联系方式：PM)质粒图谱登记号：00312)质粒名称：pSilencer1.0-siRNA3)来源：Ambion4)用途：RNAi5)是否可以提供更详细资料：/techlib/Documents.html?fkResSxn=7&fkSub Sxn=236)是否可以共享：实验结束后，可提供含shRNA模板的质粒7)联系方式：pm5) )质粒图谱登记号：00322)质粒名称：pSilencer2.0-U6siRNA 3)来源：Ambion4)用途：RNAi ，与1.0相比，可以建立稳转株5)更详细资料：/techlib/prot/fm_7209.pdf 6)是否可以共享：交换 7)联系方式：pm6)会员名：mlluoE-mail：*************可提供试验资源名称和简要介绍：pSilencer 3.1-H1 neo Vector，是Ambion公司目前最高版本的shRNA 载体，为扩增此载体我已插入目的片段，如有战友需要，将此片段双酶切再连上自己的片段即可。

质粒图谱大全

（转载）一. 九种表达载体Pllp-OmpA, pllp-STII, pMBP-P, pMBP-C,pET-GST, pET-Trx, pET-His, pET-CKS, pET-DsbA二. 克隆载体pTZ19RDNApUC57DNAPMD18TPQE30pUC18pUC19pTrcHisApTrxFuspRSET-ApRSET-BpVAX1PBR322pbv220pBluescriptIIKS( )L4440pCAMBIA-1301pMAL-p2XpGD926三.PET 系列表达载体ProteinExpression?ProkaryoticExpression?pETDsbFusionSystems39band40b ProteinExpression?ProkaryoticExpression?pETExpressionSystem33b ProteinExpression?ProkaryoticExpression?pETExpressionSystems ProteinExpression?ProkaryoticExpression?pETExpressionSystemsplusCompetentCells ProteinExpression?ProkaryoticExpression?pETGSTFusionSystems41and42 ProteinExpression?ProkaryoticExpression?pETNusAFusionSystems43.1and44 ProteinExpression?ProkaryoticExpression?pETVectorDNAProteinPurification?PurificationSystems?Strep?TactinResinsandPurificationKits四.PGEX 系列表达载体TEcoR?pGEX-1I/BAPpGEX-2TpGEX-2TKpGEX-3XpGEX-4T-1pGEX-4T-2pGEX-4T-3pGEX-5X-1pGEX-5X-2pGEX-5X-3pGEX-6P-1pGEX-6P-2pGEX-6P-3五.PTYBsystemPTYB1PTYB2PTYB11PTYB12六. 真核表达载体pCDNA3.1(-)pCDNA3.1( )pPICZalphaApGAPZα APYES2.0pBI121pEGFP-N1pEGFP-C1pPIC9KpPIC3.5K如何阅读分析质粒图谱载体主要有病毒和非病毒两大类, 其中质粒DNA是一种新的非病毒转基因载体。

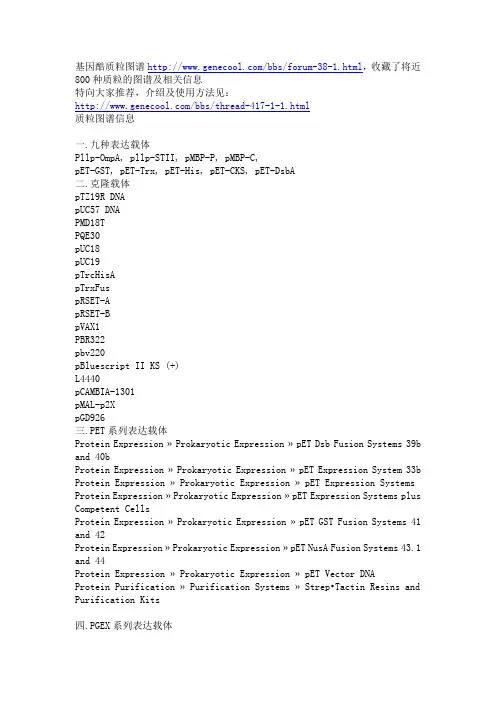

如何阅读分析质粒图谱[1]

基因酷质粒图谱/bbs/forum-38-1.html，收藏了将近800种质粒的图谱及相关信息特向大家推荐，介绍及使用方法见：/bbs/thread-417-1-1.html质粒图谱信息一.九种表达载体Pllp-OmpA, pllp-STII, pMBP-P, pMBP-C,pET-GST, pET-Trx, pET-His, pET-CKS, pET-DsbA二.克隆载体pTZ19R DNApUC57 DNAPMD18TPQE30pUC18pUC19pTrcHisApTrxFuspRSET-ApRSET-BpVAX1PBR322pbv220pBluescript II KS (+)L4440pCAMBIA-1301pMAL-p2XpGD926三.PET系列表达载体Protein Expression » Prokaryotic Expression » pET Dsb Fusion Systems 39b and 40bProtein Expression » Prokaryotic Expression » pET Expression System 33b Protein Expression » Prokaryotic Expression » pET Expression Systems Protein Expression » Prokaryotic Expression » pET Expression Systems plus Competent CellsProtein Expression » Prokaryotic Expression » pET GST Fusion Systems 41 and 42Protein Expression » Prokaryotic Expression » pET NusA Fusion Systems 43.1 and 44Protein Expression » Prokaryotic Expression » pET Vector DNAProtein Purification » Purification Systems » Strep•Tactin Resins and Purification Kits四.PGEX系列表达载体T EcoR pGEX-1 I/BAPpGEX-2TpGEX-2TKpGEX-3XpGEX-4T-1pGEX-4T-2pGEX-4T-3pGEX-5X-1pGEX-5X-2pGEX-5X-3pGEX-6P-1pGEX-6P-2pGEX-6P-3五.PTYB systemPTYB1PTYB2PTYB11PTYB12六.真核表达载体pCDNA3.1(-)pCDNA3.1(+)pPICZ alpha ApGAPZαAPYES2.0pBI121pEGFP-N1pEGFP-C1pPIC9KpPIC3.5K如何阅读分析质粒图谱载体主要有病毒和非病毒两大类,其中质粒DNA是一种新的非病毒转基因载体。

pUC18 和 pUC19质粒图谱

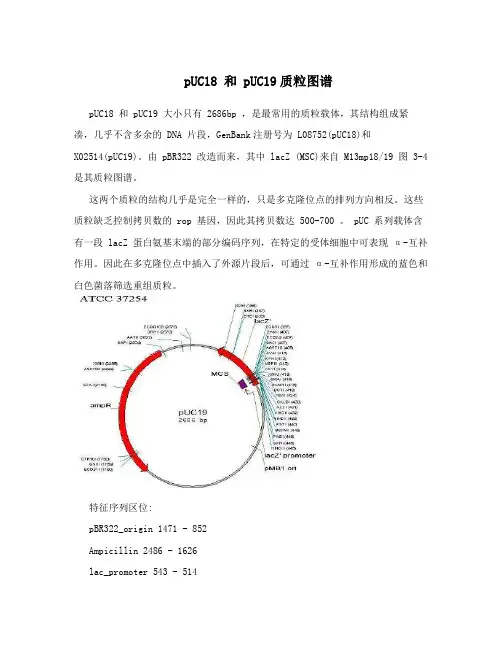

pUC18 和 pUC19质粒图谱pUC18 和 pUC19 大小只有 2686bp ，是最常用的质粒载体，其结构组成紧凑，几乎不含多余的 DNA 片段，GenBank注册号为 L08752(pUC18)和X02514(pUC19)。

由 pBR322 改造而来，其中 lacZ (MSC)来自 M13mp18/19 图 3-4 是其质粒图谱。

这两个质粒的结构几乎是完全一样的，只是多克隆位点的排列方向相反。

这些质粒缺乏控制拷贝数的 rop 基因，因此其拷贝数达 500-700 。

pUC 系列载体含有一段 lacZ 蛋白氨基末端的部分编码序列，在特定的受体细胞中可表现α-互补作用。

因此在多克隆位点中插入了外源片段后，可通过α-互补作用形成的蓝色和白色菌落筛选重组质粒。

特征序列区位:pBR322_origin 1471 - 852Ampicillin 2486 - 1626lac_promoter 543 - 514AmpR_promoter 2556 - 2528M13_pUC_rev_primer 500 - 478M13_reverse_primer 479 - 461M13_forward20_primer 379 - 395M13_pUC_fwd_primer 364 - 386lacZ_a 398 - 250pGEX_3_primer 51 - 29Orf2 2486 - 1626NOS terminator sequence:ggatccatcgttcaaacatttggcaataaagtttcttaagattgaatcctgttgccggtcttgcgatg attatcatataatttctgttgaattacgttaagcatgtaataattaacatgtaatgcatgacgttgtttatgagatgggtttt tatgattagagtcccgcaattatacatttaatacacgatagaaaacaaaatatagcgcgcaaactaggataaattatcgcgcg cggtgtcatctatgttactagtaatcgat设计引物:Forward primer: 5’ ggaGGATCCggatccatcgttcaaac 3’ (含BamH I 位点GGATCC及三个保护碱基)Reverse pri mer: 5’ atcGAATTCATCGATTACTAGTAACATAG 3’ (含EcoR I 位点GAATTC及三个保护碱基)请查一下NOS终止子序列内有没有这两个酶切点。
