变桨控制器接线使用说明

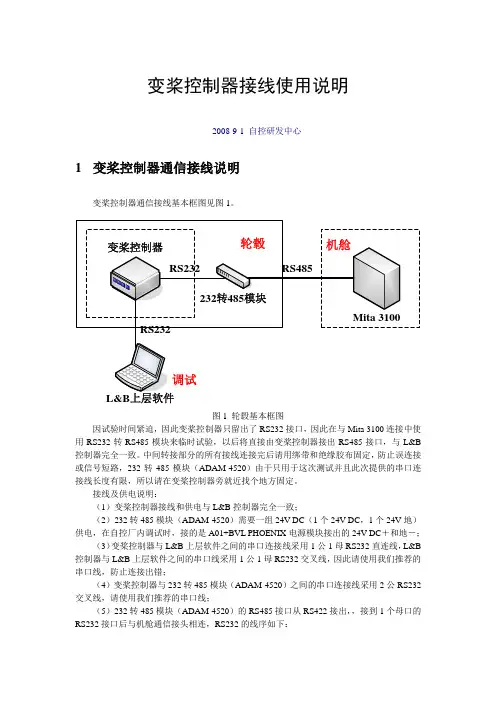

变桨控制器接线使用说明2008-9-1 自控研发中心1变桨控制器通信接线说明变桨控制器通信接线基本框图见图1。
图1 轮毂基本框图因试验时间紧迫，因此变桨控制器只留出了RS232接口，因此在与Mita 3100连接中使用RS232转RS485模块来临时试验，以后将直接由变桨控制器接出RS485接口，与L&B 控制器完全一致。
中间转接部分的所有接线连接完后请用绑带和绝缘胶布固定，防止误连接或信号短路，232转485模块（ADAM-4520）由于只用于这次测试并且此次提供的串口连接线长度有限，所以请在变桨控制器旁就近找个地方固定。
接线及供电说明：（1）变桨控制器接线和供电与L&B控制器完全一致；（2）232转485模块（ADAM-4520）需要一组24V DC（1个24V DC，1个24V地）供电，在自控厂内调试时，接的是A01+BVL PHOENIX电源模块接出的24V DC＋和地－；（3）变桨控制器与L&B上层软件之间的串口连接线采用1公1母RS232直连线，L&B 控制器与L&B上层软件之间的串口线采用1公1母RS232交叉线，因此请使用我们推荐的串口线，防止连接出错；（4）变桨控制器与232转485模块（ADAM-4520）之间的串口连接线采用2公RS232交叉线，请使用我们推荐的串口线；（5）232转485模块（ADAM-4520）的RS485接口从RS422接出，，接到1个母口的RS232接口后与机舱通信接头相连，RS232的线序如下：图2 RS422/485接口2变桨控制器使用说明厂内调试：厂内调试使用L&B软件，基本调试步骤同L&B控制器。
首先拔掉变桨控制器与机舱的通信线，将1公1母的RS232直连线公头连接变桨控制器（连接L&B控制器使用的是1公1母的交叉线），母头连接PC或笔记本电脑，然后运行L&B上层软件，已经测试过的版本RP Pitch Visu V4.3.0.0和V3.7.0.0。
东汽风机能建变浆培训
主要内容1、供电回路充电器供电主控提供400VAC经滑环后给变桨控制系统，变桨主控柜经A插头分别给三个轴箱提供400VAC；经F插头分别给三个轴提供230VAC；提供充电器供电电源；提供插座电源。
充电器传感器，实时监控电池箱内的温度，并进行温度补偿充电器对三个电池箱循环充电充电器对电池电压进行电压低于190VDC，或高于252VDC时，输出故障信号，辅助触点断开。
后备电池直流控制回路后备电池通过M插头分别给轴箱供电限位开关起到启动刹车的作用风机出现故障时为变桨电机提供备用电源进行紧急顺桨。
每节蓄电池12V7.2Ah，一组6节，每个电池柜有3组共18节。
总电压为216VDC。
RS485通讯模块24V电源模块PLC发出的脉冲信号当PLC故障或监控到PLC发出分流电阻直流变三相滤波器电流互感器，测量电机电流，输出为4-20MA模拟量信号。
直流驱动器直流变桨电机控制柜中的24V信号经G插头的3脚到三个轴箱，使轴箱中的继电器4K1线圈闭合得电，使主接触器4K2线圈得电，驱动器使能信号OK,正常变桨。
触发驱动器的使能信号主接触器正常变桨刹车接触器3S后5K1线圈失电断开。
电池开关低电压穿越设置功能为过/欠压检测、相序检测。
过电压设置：480 表示电网电压大于480VAC设定值时，输出过压报警信号，辅助触点断开，F1指示灯亮。
欠电压设置：320 表示电网电压小于320VAC设定值时，输出过压报警信号，辅助触点断开，F2指示灯亮。
相序设置：15%表示相与相之间电压差不能60V，当超过60V时，输出报警信号。
三相电网电压监控继电器输出触点，当此信号的24VDC断开的时候，断电延时继电器延时3S后线圈失电。
断电延时继电器，低电压穿越回路91°限位开关95°限位开关3S后断开电枢三相主电源后备电池电源速度设定0～+/-10VRS485通讯速度反馈夹紧法兰轴/电枢转子电机加热电机风扇电机测速电机刹车机械复位编码器接口PLC I/O模块在“GEL In”在“Position”选项下可以设定变桨的目标角度值，在。
苏州能健变桨系统PLC使用说明书
苏州能健电气有限公司
四，通讯协议说明
（1）硬件部分：RS485 通讯，偶校验，1 位起始位，8 位数据位，1 位停止位。 传输速率：19200 bits/s。 （2）协议部分： 1，报文结构：
82H 96H
数据部分
校验位
特点： 二进制报文。 数据部分结构：数据长度 | 功能码 | 数据。 校验码=数据部分所有数据进行 XOR。 在数据部分或校验位出现 82H，则需要人为的再次发送 82H，该 82H 仅在传输 过程中作为底层硬件校验使用，并不计入数据长度和数据校验码计算，包括在程 序中也不使用。 在传输数据时，小数点需要忽略，真实数据被放大 100 倍进行传输。 所有带高低字节的数据，都是从低字节到高字节排列顺序在数据帧内存放的。
360000 公式：Multiplier = -----------------------
4096 × 9.267 × X
其中，360000 为 360°× 1000（编码器转一圈为 360°，另外，Pitch Visual 显示的十进制位数为 1000）；
4096 为使用的 SSI 编码器精度； 9.267 为齿数比：139/15=9.267（139 为桨叶叶片轴承齿数，15 为驱 动齿轮齿数； X 即轮毂内桨叶所连齿轮箱减速比。 1A004: 0。（备用） 1A005: 3。（保留）小数位设定。 1A006～1A014: 0。（备用） 1A015: 0。（保留）校零度数，只在使用 Pitch Visual 校零时有效。 1A016～1A017: 0。（备用） 1A018～1A020: 0。（备用） 1A021: 1000。0°到 90°慢速正向点动速度，单位：0.001°/s，该参数为放大 1000 倍关系，所以 1000 即 1°/s，绝对值数值，参数设置范围为 0~9000。 1A022: 8000。0°到 90°快速正向点动速度，单位：0.001°/s，该参数为放大 1000 倍关系，所以 8000 即 8°/s，绝对值数值，参数设置范围为 0~9000。 1A023: 1000。90°到 0°慢速逆向点动速度，单位：0.001°/s，该参数为放大 1000 倍关系，所以 1000 即 1°/s，绝对值数值，参数设置范围为 0~9000。
苏州能健变桨控制系统操作维护手册
7.3 空转试验 根据相关标准规定，直流串励电动机不允许额定电压下空载或轻载运行
（电机容易飞车），因此，空转试验应在低电压（小于 20%额定电压）的情况 下进行。
高速空转时间不宜过长，如果电机动作，说明电机正常，应停机。 7.4 说明： 7.4.1 经过项 1、项 2 检测，应能基本判定是否电机故障。但是，由于电机 结构中还有刹车、测速发电机、编码器等，电机空载试验可以帮助判定是否 其它情况。 7.4.2 如果刹车通电时听不到刹车动作声音，说明刹车器通电电压不符合要 求；如果听到刹车器动作声音，电机仍然不转，可以只给刹车器通电，手动 旋转电机轴伸，电机不转，说明刹车抱死；电机能转，再检测主回路通电电 压。 7.4.3 经过以上检测仍然无法判断电机状况，建议将电机返厂检测处理。 7.5 测量电机应在确保安全情况下进行。 7.5.1 确保用电安全。 7.5.2 空转试验时，电机转速可能很高，容易出危险，如果感觉电机声音异 常或者转速太高，应立即断电。
24/35/7 2
风机电压 刹车电压
220VAC 200VDC
2. 外形图
8
3. 重载针脚定义
定义 电枢 励磁 加热带 Pt100 PTC 4. 电机绝缘电阻
线位号 1 2 3 4 38 40 11 12 13 14
定义 测速发电机 （根据需要选择）
刹车
风机
温度开关
线位号 22 21 20 29 31 43 地 39 39 41
需更换驱动器。2）、若模块没有损坏且复位后能正常运行，则更换驱动器 主控板。
功率模块（IGBT）测量方法（动力线端子）：1）、驱动器输入 400V 断 电 10 分钟后，用万用表二级管档测量驱动器的动力线端子红表笔对 2 脚， 黑表笔分别对 9 和 14；黑表笔对 3，红表笔分别对 9 和 14，值都为 350 左 右。 2）、驱动器输入 400V 不断电，用万用表直流档（1000V）测量驱动器的动 力线端子红表笔分别对 2、3 脚，黑表笔分别对 9 和 14 脚，电压值在 300V 以 下。
1.5g用户手册(V2.0)

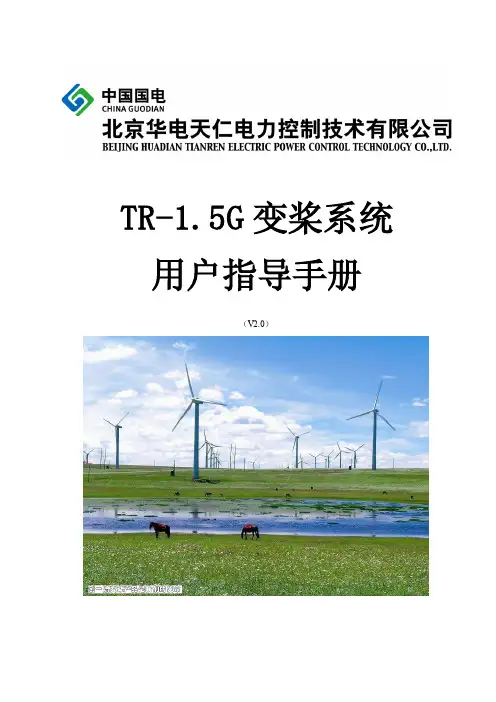

TR-1.5G变桨系统用户指导手册（V2.0）目录警告 (2)第一部分系统概述 (3)一、技术参数及规格 (3)二、系统结构介绍 (4)三、与风机主控的接口 (6)四、主要部件 (8)第二部分箱体安装说明 (16)一、箱体内部A-B-C区布置图 (16)二、各区内部安装说明 (17)三、箱体侧面安装图 (19)四、TR-1.5G轴箱安装力矩标准表 (19)第三部分调试界面说明 (20)一、E系列PLC调试界面说明 (20)（一）、Pitch System（变桨系统基本信息） (21)（二）、Error（变桨系统故障报警） (22)（三）、Temperatures（变桨系统温度信息） (23)（四）、Initialization（变桨系统初始化参数） (24)（五）、Test run（变桨系统手动调试） (25)（六）、Test dig IO（变桨系统数字量输入输出） (26)（七）、AC2 Info（伺服驱动器相关信息） (27)（八）、Main Controller（变桨与主控通讯） (28)二、K系列PLC调试界面说明 (29)（一）、软件配置步骤 (29)（二）、基本信息 (32)（三）、错误列表 (33)（四）、温度信息 (36)（五）、DIO信息 (37)（六）、AC2信息 (39)（七）、主控信息 (40)（八）、手动调试 (41)（九）、版本信息 (43)第四部分操作说明 (44)一、上电前检查： (44)二、上电过程： (45)三、变桨系统工作方式 (45)四、校零和T EACH操作 (51)五、风场吊装变桨操作说明 (53)（一）、手操盒变桨 (53)（二）、手动模式变桨 (59)第五部分故障列表及处理方法 (60)警告轮毂中作业严格遵守《联合动力现场工作人员安全生产管理规范》！在低温环境下变桨轴箱需要自行加热至5℃以上PLC才能启动，严禁低温环境下人为强制启动PLC！吊装作业时，吊车起吊前必须确认三个轴箱1Q1处于断开状态！进入轮毂后，确认三个轴箱6S1开关全部打至手动状态！如需进入桨叶内作业，确保关断1Q1电源开关，保证桨叶不会转动！如要更换变桨电机，确保桨叶内机械锁可靠锁住桨叶，保证桨叶不会转动！如需更换轴箱内部元件，确保在断电情况下、验电之后进行。
05 2.5MW变桨驱器I型系统器件的识别及产品说明书
变桨系统集中培训目录一、变桨系统功能及原理介绍二、变桨系统拓扑结构三、系统器件识别与功能介绍四、变桨系统安全链介绍五、变桨柜操作控制盒介绍一、变桨系统功能及原理介绍1、变桨系统根据风机启动、变桨、停机、维护等要求，按照上位机PLC通过PROFIBUS DP发送的桨距角调节命令，将三个叶片桨距角同步调节到所需的位置，同时向上位机PLC发送相关状态信息及运行参数。
2、变桨系统是风力发电机组的重要组成部分，主要功能是通过对叶片桨距角的控制，实现最大风能捕获以及变速运行；同时还是风力发电机组的主刹车系统。
3、基本功能：通过改变风机的桨叶角度来调节风力发电机的功率以适应随时变化的风速；保障风机机组安全。
4、工作原理：变桨系统接收机组主控系统的指令，调节风机的叶片到指定角度：额定风速以下，桨叶位置保持在0度附近，最大限度捕获风能，保证空气动力效率；达到或超过额定风速时，根据主控系统的指令调节叶片角度，保证机组的输出功率；超过安全风速或紧急情况下，调节桨叶至安全位置，实现急停顺桨功能，保证机组的安全。
5、在急停顺桨状态下，变桨系统是在机组主控系统之外独立工作的，这样可以避免因机组的主控系统停止工作或是错误工作而不能急停顺桨。
XS6、XS4、XS5、XS3、XS11、变桨系统拓扑结构：结构介绍：1、滑环到变桨柜之间的电缆分为动力电缆（XS1）和信号电缆（XS6）。
2、动力电缆与信号电缆从滑环起到1#变桨柜连接器，再由同一连接器引出电缆到2#变桨柜，再到3#变桨柜截止。
3、动力电缆为变桨系统提供400VAC电源，信号电缆为变桨系统提供PROFIBUS DP通信和安全链的连接。
1、变桨系统充电器：器件介绍：1、左图为变桨系统充电器的外观图。
2.0MW及以上的机组所使用的充电器的外观基本一致。
2、充电器的作用就是将交流电整流成直流电，为变桨驱动器及超级电容器提供电源；其中2.0MW与2.5MW-E版所用充电器是将400VAC整流成85VDC，95A；2.5MW-D版与3.0MW所用充电器是将400VAC整流成100VDC，90A。
变桨控制器使用说明
3 CAN A_L
低电平 CAN 电压输入/输出
4 CAN B_H
高电平 CAN 电压输入/输出
5 CAN B_L
低电平 CAN 电压输入/输出
d) 端口 E1,E2,E3,E4:数字量输入
E1 接收 6 路输入，E2、E3 和 E4 接收 8 路输入。其中 E1 为系统信号数字
量输入。
端口 名称
功能
需要东方电气自动控制工程有限公司技术人员重新配置软件参数。
c) 端口 C2：CAN 通信
C2 为 CAN 通信接口，包括两个 CAN 通信接口。
3-3
DMPCL002 变桨控制器说明书
KM800-005000BSM
端口 名称
功能
1
GND
（C）
CAN GND
2 CAN A_H
高电平 CAN 电压输入/输出
Vt 给定变桨
速度、角
+
度
St +
Degrees 速度 Vk +
转换
V V Uo
U
M
SSI
图 3 变桨控制原理图
2 变桨控制器端口说明 变桨距控制器端口分布如图 4 所示。其中 E1、E2、E3、E4 为数字量输入
端口；E5 为两线制 PT100 温度测量输入端口；E6 为 0~20mA 电流或 0~10V 电 压测量输入端口；A1、A2、A3 为数字量输出和模拟量输出端口；Z1、Z2、Z3 为读取编码器端口。
7
DE1.6
手动充电测试信号输入
E2，E3，E4：桨叶 1，2，3 的信号
端口 1 2
3
名称
GND DEx.1 DE2.2 DE3.2
功能
能健变桨系统说明书
1.安全信息
注意：请在每次调试前查看以下的安全须知 应用场合：电气设备安装场合 危险请注意：这些电气设备在工业能源系统中使用。在安装过程中，整个电 气设备是密闭的，非常危险，而且有些部件会被颠倒或被移动。所以，如果没有 对这些设备正确使用或没有进行很好的维护的话，会损坏这些设备。对系统安全 负责的专业人员应该保证做到下面几点： （1）仅能让专业人员操作设备 （2）专业操作人员必须随身携带安全作业指导书，并且需要随时查看这些 指导书 （3）非专业人员禁止操作设备
应该改变这些合同条款的确定。所有合同中确定的责任包含完全和唯一有效的保
证条款。这些合同条款不能因为操作指导的改变而有所扩展或者限制。在这本操
作指导书内的关于产品描述和相关图片是用于示范作用的，真实性无庸置疑。如
果客户发现产品图片介绍和真实的产品有较大的差异，
将会提供最新的
操作改动。这个改动资料将不能代替当前这份硬件操作手册，而将会付在一起交
变桨控制系统被放置在风机的轮毂内，整个系统包括 3 个轴箱，3 个电容箱， 3 个直流电机，所有的连接线，以及操作手册。变桨控制系统和速度控制一起工 作来维持转子进行稳定的功率输出。当阵风来临时，转子运转加速，但是桨叶以 稳定速度的变化方向将转子速度减慢。这导致了发电机上负载明显的减小。通过 这种方法，产生电能可以稳定的供给电网。一旦在变桨系统控制单元正常工作时 发生电网断电等故障时，每个桨叶有自身的后备电容箱，装在轴箱内部随着桨叶 一起旋转。为了很好的控制电能输出，变桨机械系统为整个安全/刹车系统服务。 每个桨叶变桨会独立工作。所以，一旦暴风雨来临，每个桨叶都能转到一个安全 的位置，将转子转速从非正常工作状况恢复到安全转速。
1.2.1 运输的注意事项
（1）概述 这些注意事项描述了每个卸载和运送的环节器件的处理方法。搬运方需要考
变桨系统用户手册
1 变桨控制系统(PCS)特点................................................................................................................. 5 2 变桨控制系统(PCS)系统描述......................................................................................................... 6 3 变桨控制系统(PCS)部件及部件功能............................................................................................. 7
3.4.4.1 风扇动力线缆 ........................................................................................................... 26 3.4.4.2 限位开关线缆 ........................................................................................................... 27 3.4.4.3 电机编码器动力线缆 ............................................................................................... 27 3.4.4.4 叶片编码器线缆 ....................................................................................................... 28 3.4.4.5 电机动力线缆 ........................................................................................................... 28 3.4.5 连接器 ........................................................................................................................... 29
SSB变桨系统说明(注释)
总部 S a l z b e r g e nPDF Created with deskPDF PDF Writer - Trial :: PDF Created with deskPDF PDF Writer - Trial :: 全球化服务商店 总部 青岛设备 （在建中） Salzbergen, 德国 中国Racine, 美国SSB 将会出现在重要时区和主要风场地点。
PDF Created with deskPDF PDF Writer - Trial :: 聚焦现场服务风力发电机组的电动系统全球技术支持 热线与客户紧密合作进行培训支持长期服务协议更新与更新改造PDF Created with deskPDF PDF Writer - Trial :: 电动变桨系统(交流/直流)主-和顶部箱发电机箱特殊柜如：风架风架／／SCADAPDF Created with deskPDF PDF Writer - Trial :: SSB-风能的历史1992:开发安装300/600 kW 失速系统1995: 为1,5 MW 风机开发电动变桨系统1998: 1,5 MW 变桨系统的序列生产 开发和生产主开发和生产主－－和顶部柜2003:为1.5MW 风机生产第1000th 系统2005: 开发数控设备 (如数字逆变器如数字逆变器，，数字通信)600kW 主动失速型风机的主控柜PDF Created with deskPDF PDF Writer - Trial :: 使用中的SSB 产品SSB 轴箱轴箱 SSB 电池箱电池箱 SSB 顶部箱SSB 变桨直流驱动变桨直流驱动 SSB 交流偏航驱动PDF Created with deskPDF PDF Writer - Trial :: 离岸风机应用PDF Created with deskPDF PDF Writer - Trial :: 参考清单PDF Created with deskPDF PDF Writer - Trial :: Repower MD70, MD77, MM82, MM92Nordex S70, S77Fuhrländer FL1500WinWinD WWD1NEG Micon (Vestas) NM80, NM92, NM110Leitner LeitwindFuji NWT3-1Unison KBP-2000MGeneral Electric TW300, TW600, TZ750, GE900, GE1.5s, sl, sle, xle,GE2.X,GE3.6s, sl！超过 6.000系统已供应给各大风力发电机生产商系统已供应给各大风力发电机生产商！变桨系统PDF Created with deskPDF PDF Writer - Trial :: 内容概览PDF Created with deskPDF PDF Writer - Trial :: •变桨系统结构与功能•变桨电机•变桨电机的功率整流器•变桨控制器•控制•控制箱•轴箱•电池•电池充电系统•安全说明变桨系统结构与功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统的结构与功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统MD 77元件:转速计发电机、、绝对编码器和压力的空气冷却的转子叶片配备一个变桨集成停车制动、、转速计发电机•集成停车制动电机•每个冗余轴一个额外绝对编码器•每个转子叶片一套电池用于电源电压失败和脱口安全链的叶片变桨控制•带充电控制和电池电压监测的电池充电器•每个转子叶片一个三相转换器用于提供直接电流变桨电机数据•控制系统用于自动转子叶片控制(变桨控制器)•除了变桨电击,所有其它元件都安装在三轴里/电池箱和一个控制箱变桨系统的结构和功能独立驱动风扇停车制动转速计 绝对编码器 PDF Created with deskPDF PDF Writer - Trial :: 变桨系统电池箱结构和功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统的结构与功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统MD 77元件:•集成停车制动、转速计发电机、绝对编码器和压力的空气冷却的转子叶片配备一个变桨电机•每个冗余轴一个额外绝对编码器•每个转子叶片一套电池用于电源电压失败和脱口安全链的叶片变桨控制•带充电控制和电池电压监测的电池充电器•每个转子叶片一个三相转换器用于提供直接电流变桨电机数据•控制系统用于自动转子叶片控制(变桨控制器)•除了变桨电击,所有其它元件都安装在三轴里/电池箱和一个控制箱变桨系统的结构与功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统MD 77元件:•集成停车制动、转速计发电机、绝对编码器和压力的空气冷却的转子叶片配备一个变桨电机•每个冗余轴一个额外绝对编码器•每个转子叶片一套电池用于电源电压失败和脱口安全链的叶片变桨控制•带充电控制和电池电压监测的电池充电器•每个转子叶片一个三相转换器用于提供直接电流变桨电机数据•控制系统用于自动转子叶片控制(变桨控制器)•除了变桨电击,所有其它元件都安装在三轴里/电池箱和一个控制箱变桨系统的结构与功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统MD 77元件:转速计发电机、、绝对编码器和压力的空气冷却的转子叶片配备一个变桨集成停车制动、、转速计发电机•集成停车制动电机•每个冗余轴一个额外绝对编码器•每个转子叶片一套电池用于电源电压失败和脱口安全链的叶片变桨控制•带充电控制和电池电压监测的电池充电器•每个转子叶片一个三相转换器用于提供直接电流变桨电机数据•控制系统用于自动转子叶片控制(变桨控制器)•除了变桨电击,所有其它元件都安装在三轴里/电池箱和一个控制箱变桨系统控制箱结构和功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统的结构与功能PDF Created with deskPDF PDF Writer - Trial :: 变桨系统MD 77元件:•集成停车制动、转速计发电机、绝对编码器和压力的空气冷却的转子叶片配备一个变桨电机•每个冗余轴一个额外绝对编码器•每个转子叶片一套电池用于电源电压失败和脱口安全链的叶片变桨控制•带充电控制和电池电压监测的电池充电器•每个转子叶片一个三相转换器用于提供直接电流变桨电机数据•控制系统用于自动转子叶片控制(变桨控制器)•除了变桨电击,所有其它元件都安装在三轴里/电池箱和一个控制箱变桨系统控制箱/轴&电池箱的结构和功能PDF Created with deskPDF PDF Writer - Trial :: PDF Created with deskPDF PDF Writer - Trial :: •变桨系统间接控制功率•变桨系统是风机主要的制动系统•每个转子叶片可以单独地调整，而且连接到轮毂上。
变桨调试操作
注意：任何对变桨系统操作都要求同时两个以上的操作人员相 互配合，绝对不允许单人对变桨系统的单独操作。
Forward：朝0度变桨； Manual:手动控制模式； Backward：朝90度变桨； Auto: 自动控制模式；
0度/90度变 桨控制旋钮
400V电源 断路器
手动/自动变 桨控制旋钮
三、变桨调试
变桨控制柜状态设置 变桨控制柜主断路器Q1：OFF 变桨模式选择旋钮S1：M 强制手动变桨模式：激活。激活方法：移出X11：8、9短接排，插入X11：5、6进行短接。
检查变桨系统的通讯地址：变桨控制柜1子站地址为：41；变桨控制柜2子站地址为：42；变桨控制 柜3子站地址为：43。地址设定方法：面对BC3150，在DP接口下有2个旋转码盘，第1个码盘为 “×1”，第2个码盘为“×10”。例如图3设定地址41，将第1个码盘设定为1，第2个码盘设定为4。 DP连接器的设置：41号子站DP连接器上的终端电阻需拨至“OFF”位置， 42号子站DP连接器上的终 端电阻需拨至“OFF”位置，43号子站DP连接器终端电阻需拨至“ON”位置。（若按顺序调试，调试 哪个变桨系统可先将DP连接器终端电阻需拨至“ON”位置）
90度限位开关挡块调整操作
90°限位开关位置校正： 旋转变桨旋钮S2至“B”，使叶片顺时针旋转（面对轮毂），观察叶片角度，旋转至92°时，停止变 桨。调整挡块与限位开关，使限位开关被触发，但小于92°限位开关不被触发，调整限位开关的滚 轮在挡块斜面与平面形成的凸角处触发，防止限位开关被挡块撞断。调整完毕后，观察90°限位开 关反馈，如果为高电平，说明限位开关未被触发，需要继续调节。完成上述操作后，手动变桨进行 测试，观察叶片角度在92°附近，90°限位开关反馈信号的变化是否符合调试要求。
变桨系统调试使用手册(国产化 (风能发电))
变更一览1) A: 因文件错误或升级的变更B: 完成或增加功能的变更C: 限制或减少功能的变更目录1、系统介绍 (4)2．变桨控制系统的结构 (4)3、系统调试 (7)3.1系统上电 (7)3.1.1 控制柜上电 (7)3.1.2 轴柜上电 (7)3.2系统连接 (7)3.3调试 (9)4、系统的维护及运输 (10)4.1伺服驱动器 (10)4.1.1安全 (10)4.1.2操作使用 (11)4.1.3机械安装 (11)4.1.3运输安装 (11)4.2编码器 (11)4.3.3充电器 (12)4.4PLC (12)4.5其他电子设备 (12)1、系统介绍变桨系统是现代大型风机的重要组成部分。
变桨伺服控制系统作为风力发电控制系统的外环，在风力发电机组的控制中起着十分重要的作用。
它控制风力发电机组的叶片节距角可以随风速的大小进行自动调节，在低风速起动时，桨叶节距可以转到合适的角度，使风轮具有最大的起动力矩；当风速过高时，通过调整桨叶节距，改变气流对叶片的攻角，从而改变风力发电机组获得的空气动力转矩，使发电机功率输出保持稳定。
本产品采用直流型变桨伺服控制系统，系统主要由PLC﹑可逆直流调速装置﹑通过减速齿轮转动桨叶的直流电机﹑绝对式位置编码器等组成，并采用蓄电池作为后备电源，结构上分为一个控制箱、三个轴箱、三个蓄电池箱共七个电气箱体，其原理图概图见图2。
PLC组成变桨的控制系统，它通过CAN总线和主控制系统通信，接受主控制系统的指令(主要是桨叶转动的速度和角度指令)，并控制可逆直流调速装置驱动直流电机，带动桨叶朝要求的方向和角度转动，同时PLC还负责蓄电池的充电控制、蓄电池电压的监控等辅助控制。
本系统具备以下优点：⑴启动性好：采用串激直流电机，起动力矩大，对于转动重达数吨、直径数十米的叶片有好处；⑵由于采用直流无级调速,低速性能好；⑶加后备电池比较方便。
2．变桨控制系统的结构变桨系统包括一个主控柜，3个轴柜和3个蓄电池柜，每个叶片配有一个轴柜和一个蓄电池柜，可以参看电气结构原理概图图2。
