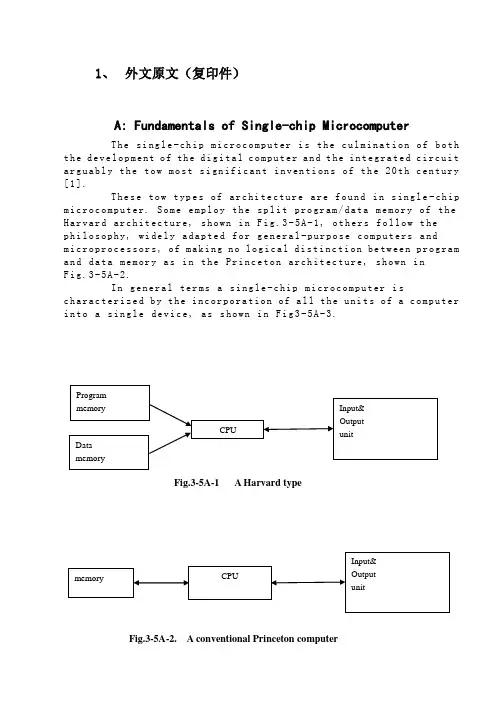

3-电气工程及其自动化专业 外文文献 英文文献 外文翻译 plc方面
1、外文原文（复印件）A: Fundamentals of Single-chip MicrocomputerTh e si ng le-ch i p mi cr oc om pu ter is t he c ul mi nat i on o f bo th t h e d ev el op me nt o f th e d ig it al com p ut er an d t he int e gr at ed ci rc ui ta r gu ab ly th e t ow m os t s i gn if ic ant i nv en ti on s o f t h e 20t h c en tu ry[1].Th es e to w typ e s of a rc hi te ctu r e ar e fo un d i n s in gl e-ch ip m i cr oc om pu te r. So m e em pl oy t he sp l it p ro gr am/d ata me mo ry o f th e H a rv ar d ar ch it ect u re, sh ow n in Fi g.3-5A-1, o th ers fo ll ow t hep h il os op hy, wi del y a da pt ed f or ge n er al-p ur po se co m pu te rs a ndm i cr op ro ce ss or s, of ma ki ng no lo gi c al di st in ct io n be tw ee n p ro gr am a n d da ta m em or y a s i n th e Pr in cet o n ar ch it ec tu re,sh ow n inF i g.3-5A-2.In g en er al te r ms a s in gl e-chi p m ic ro co mp ut er i sc h ar ac te ri zed b y the i nc or po ra tio n of al l t he uni t s o f a co mp ut er i n to a s in gl e dev i ce, as s ho wn in Fi g3-5A-3.Fig.3-5A-1 A Harvard typeFig.3-5A-2. A conventional Princeton computerFig3-5A-3. Principal features of a microcomputerRead only memory (ROM).R OM i s u su al ly f or th e p er ma ne nt,n o n-vo la ti le s tor a ge o f an a pp lic a ti on s pr og ra m .M an ym i cr oc om pu te rs an d mi cr oc on tr ol le r s a re in t en de d fo r h ig h-v ol ume a p pl ic at io ns a nd h en ce t he e co nom i ca l ma nu fa ct ure of t he d ev ic es r e qu ir es t ha t the co nt en ts o f the pr og ra m me mo ry b e co mm it te dp e rm an en tl y d ur in g th e m an uf ac tu re o f c hi ps . Cl ear l y, th is im pl ie sa ri g or ou s a pp roa c h t o R OM co de d e ve lo pm en t s in ce c ha ng es ca nn otb e m ad e af te r man u fa ct ur e .T hi s d e ve lo pm en t pr oce s s ma y in vo lv e e m ul at io n us in g a s op hi st ic at ed deve lo pm en t sy st em w i th a ha rd wa re e m ul at io n ca pa bil i ty a s we ll a s th e u se of po we rf ul so ft wa re t oo ls.So me m an uf act u re rs p ro vi de ad d it io na l RO M opt i on s byi n cl ud in g i n th ei r ra ng e de vi ce s wi th (or i nt en de d fo r us e wi th) u s er pr og ra mm ab le m em or y. Th e s im p le st of th es e i s us ua ll y d ev ice w h ic h ca n op er ate in a m ic ro pr oce s so r mo de b y usi n g so me o f th e i n pu t/ou tp ut li ne s as a n ad dr es s an d da ta b us f or acc e ss in g e x t er na l m e mo ry. T hi s t ype o f d ev ic e c an b e ha ve fu nc ti on al l y a s t he si ng le c h ip mi cr oc om pu te r fr om wh ic h i t i s de ri ve d a lb eit w it h r es tr ic ted I/O an d a mo di fie d e xt er na l ci rcu i t. T he u se o f t h es e RO Ml es sd e vi ce s is c om mo n e ve n in p ro du ct io n c ir cu it s wh er e t h e v ol um e do es n o t ju st if y th e d e ve lo pm en t co sts of c us to m on-ch i p RO M[2];t he re c a n st il l b e a si g ni fi ca nt s a vi ng in I/O a nd ot he r c hi ps co mp ar ed t o a c on ve nt io nal mi cr op ro ce ss or b as ed c ir cu it. M o re e xa ctr e pl ac em en t fo r RO M d ev ic es c an b e o bt ai ne d in t he f o rm o f va ri an ts w i th 'pi gg y-ba ck'EP RO M(Er as ab le p ro gr am ma bl e ROM)s oc ke ts o rd e vi ce s w it h EP ROM i ns te ad o f R OM 。
毕业论文外文翻译-高层建筑供配电系统设计
毕业论文外文翻译-高层建筑供配电系统设计Design of Power Supply and Distribution System for High-rise BuildingsAbstractPower supply and distribution system is the lifeline of high-rise buildings. The design of power supply and distribution system is based on the characteristics of high-rise buildings, which requires not only reliable supply of power, but also the safety of electricity utilization and efficient energy consumption. In this paper, the design of power supply and distribution system for high-rise buildings is discussed, focusing on the selection of power supply mode, the design of power distribution system, the design of grounding system, the selection of electrical equipment and the design of lightning protection system. The application of advanced technologies such as distributed power supply, energy management and control system, and intelligent electrical equipment can improve the energy efficiency and utilization of high-rise buildings, reduce energy consumption and carbon emissions, and promote the development of green buildings.Keywords: high-rise buildings; power supply and distribution system; energy efficiency; green buildingsIntroductionHigh-rise buildings are an important symbol of urban development and represent the trend of modern architecture. With the continuous improvement of people’s living standards, the demand for high-rise buildings is increasing. Power supply and distribution system is an essential part of high-rise buildings, which plays a crucial role in the operation and maintenance of buildings. The design of power supply and distribution system for high-rise buildings needs to consider many factors, such as technical performance, safety and reliability, energy efficiency, economic benefits and environmental protection, etc. In recent years, with the rapid development of new energy and advanced technology, the design of power supply and distribution system for high-rise buildings has undergone significant changes, which focus on improving energy efficiency and reducing emissions. This paper analyzes the design of power supply and distribution system for high-rise buildings, summarizes the selection principles and design methods of various systems, and explores the application of new technologies to improve energy efficiency and promote the development of green buildings.1. Selection of Power Supply ModeThe power supply mode is the basic foundation of power supply and distribution system of high-rise buildings. In the selection of power supply mode, it is necessary to consider the characteristics of the building and the surrounding environment, and ensure the reliability and safety of power supply. Currently, the main power supply modes for high-rise buildings are grid-connected power supply and distributed power supply.1.1 Grid-connected Power SupplyGrid-connected power supply is a traditional power supply mode, which is widely used in high-rise buildings. It has the advantages of reliable power supply, convenient operation and maintenance, and stable voltage and frequency. However, grid-connected power supply is vulnerable to natural disasters such as typhoons and earthquakes, and may cause power outages, which will affect the normal life and work of residents. Moreover, the development of distribution network is limited by the capacity of the grid, which may cause overloaded operation and reduce the energy efficiency of high-rise buildings.1.2 Distributed Power SupplyDistributed power supply is a new power supply mode, which can improve the energy efficiency of high-rise buildings and reduce the dependence on the grid. Distributed power supply includes combined heat and power (CHP), solar power, wind power and other renewable energy sources. CHP is a highly efficient power generation technology, which can generate electricity and heat at the same time, and utilize the waste heat for air conditioning and domestic hot water. Solar power and wind power are clean energy sources, which have the advantages of zero emissions and long service life. Distributed power supply can reduce the transmission and distribution losses of power supply, and improve the energy efficiency of high-rise buildings. However, the initial investment of distributed power supply is relatively high, and the technical level of electrical equipment and maintenance management is demanding.2. Design of Power Distribution SystemThe power distribution system is responsible for the power transmission and distribution of high-rise buildings, which should ensure the safety and reliability of the power supply. The design of power distribution system includes the selection of power distribution equipment, the layout of power distribution room, and the calculation of power load.2.1 Selection of Power Distribution EquipmentThe selection of power distribution equipment should meet the requirements of technical performance, safety and reliability, and energy efficiency. The main power distribution equipment includes switchgear, transformer, busbar, distribution panel, etc. The switchgear should have the function of over-current protection, short-circuit protection and earth leakage protection, and should have the advantages of small volume, low noise and high reliability. The transformer should be selected according to the capacity and voltage level, and should have the advantages of low loss, high efficiency and small size. The busbar should have the advantages of high strength, good conductivity and low resistance. The distribution panel should have the functions of metering, control, protection and communication, and should be easy to operate and maintain.2.2 Layout of Power Distribution RoomThe layout of power distribution room should be reasonable and convenient for operation and maintenance. The power distribution room should be located near the power supply entrance, and should have the advantages of good ventilation, dry, clean and spacious. The power distribution room should be equipped with the necessary security measures, such as fire prevention, explosion-proof, and lightning protection.2.3 Calculation of Power LoadThe calculation of power load is the key to the design of power distribution system. The power load includes lighting load, air conditioning load, power load and special load, etc. The calculation of power load should take into account the diversity of load, the possibility of peak load, and the capacity of power supply equipment. The primary consideration is to ensure the safety and reliability of power supply, and then to improve the energy efficiency of power utilization.3. Design of Grounding SystemThe grounding system is an important safety measure for high-rise buildings. The design of grounding system should meet the requirements of electrical safety and electrostatic discharge protection.3.1 Electrical SafetyThe grounding system should have the functions of lightning protection, over-voltage protection, over-current protection and earth leakage protection, etc. The grounding resistance should be less than the specified value, and the grounding wire should have good conductivity and corrosion resistance. The grounding system should be comprehensively tested and maintained regularly.3.2 Electrostatic Discharge ProtectionThe electrostatic discharge protection is to prevent the accumulation of static electricity and the damage of electrical equipment. The design of electrostatic discharge protection includes the selection of anti-static grounding material, the setting of anti-static floor, and the installation of anti-static equipment. The electrostatic discharge protection is especially important for data centers and sensitive electrical equipment.4. Selection of Electrical EquipmentThe selection of electrical equipment is an important part of the design of power supply and distribution system for high-rise buildings. The selection of electrical equipment should meet the requirements of technical performance, safety and reliability, environmental protection and energy efficiency.4.1 Technical PerformanceThe electrical equipment should meet the relevant national and international standards, and have the characteristics of high efficiency, low noise, long service life and easy maintenance. The electrical equipment should have the functions of protection, control, measurement and communication, and should be compatible with the automation system.4.2 Safety and ReliabilityThe electrical equipment should have the functions of over-current protection, short-circuit protection, ground connection protection and lightning protection, etc. The electrical equipment should be installed and maintained by qualified personnel, and should be tested and checked regularly to ensure the safety and reliability of power supply and distribution system.4.3 Environmental Protection and Energy EfficiencyThe electrical equipment should have the advantages of environmental protection and energy efficiency, and should meet the requirements of green building standards. The electrical equipment should have the functions of power monitoring, energy management and control, and should be able to optimize the energy utilization and reduce the energy consumption.5. Design of Lightning Protection SystemThe lightning protection system is an important safety measure for high-rise buildings, which can prevent the damage of lightning to electrical equipment and human life. The design of lightning protection system includes the selection of lightning protection device, the installation of lightning rod, the connection of grounding wire, and the calculation of lightning protection zone.5.1 Selection of Lightning Protection DeviceThe lightning protection device should have the functions of lightning protection, over-voltage protection, surge protection and electromagnetic pulse protection, etc. The lightning protection device should be reliable and durable, and should meet the relevant national and international standards.5.2 Installation of Lightning RodThe lightning rod should be installed on the roof of high-rise buildings, and should be connected with the grounding system. The lightning rod should be placed in a high position, and should be made of light and strong materials, such as aluminum alloy or stainless steel. The lightning rod should be inspected regularly to ensure its effectiveness.5.3 Connection of Grounding WireThe grounding wire should be connected with the lightning rod, the grounding system, and the electrical equipment. The grounding wire should have the advantages of low resistance, good conductivity and corrosion resistance. The grounding wire should be tested and checked regularly to ensure its effectiveness.5.4 Calculation of Lightning Protection ZoneThe calculation of lightning protection zone is the basis for the design of lightning protection system. The lightning protection zone includes the direct lightning strike zone and the induced lightning zone. The direct lightning strike zone is the area covered by the lightning rod, and the induced lightning zone is the area beyond the direct lightning strike zone. The calculation of lightning protection zone should consider the characteristics of lightning, such as the stroke current, the distance from the lightning source, and the soil resistivity.ConclusionThe design of power supply and distribution system for high-rise buildings is a complex and important work. The selection of power supply mode, the design of power distribution system, the design of grounding system, the selection of electrical equipment, and the design of lightning protection system are the main aspects of the design of power supply and distribution system. The application of advanced technologies such as distributed power supply, energy management and control system, and intelligent electrical equipment can improve the energy efficiency and utilization of high-rise buildings, reduce energy consumption and carbon emissions, and promote the development of green buildings. The design of power supply and distribution system for high-rise buildings should adhere to the principles of safety, reliability, energy efficiency, economic benefits and environmental protection, and strive to create a better living and working space for residents.。
电气毕业设计英文文献及翻译——智能建筑中火灾探测系统的发展
附录一：中文翻译智能建筑中火灾探测系统的发展Z.刘，学者马卡尔和A.K.光金建筑研究协会加拿大国家研究委员会，电子邮件：******************摘要火灾探测和其相应的安全系统是智能建筑的关键部分。
本文论述了火灾探测及报警系统在智能建筑中最新的发展趋势。
新的技术和概念在智能建筑中的开发，例如先进的多功能传感器，计算机视觉系统和无线传感器通过因特网实时控制，对综合服务体系建设同时也进行了审查和讨论。
这些新技术和概念将提高火灾探测系统对区分火和非火威胁的能力并且将增加更多有效的时间进行生命财产保护。
然而，仍然需要许多的努力去消除这些新技术进一步发展所遇到的障碍。
简介智能建筑可以被定义为一个结合了最佳概念，设计，材料，系统和技术，可以提供快速响应，有效的可支持智能的环境，为实现以上目标所具有充分生命跨度的建筑[1-6]。
与传统建筑相比，智能建筑能够减少能源消耗，减少维修和服务操作的成本，提供更好的安全服务，改进易用的布局规划和重新规划，并增加了建设占用的满意度[4-7]。
其他好处还包括对提供更安全，更健康，更舒适的工作条件和环保成效和不断变化的用途、技术的适应。
智能建筑的支持者还认为这些建筑物将通过改善工作环境来提高员工的生产能力。
在过去二十年来，智能建筑的概念在许多新的或扩建办公室的规划中已成为一个重要的参考因素[3-6]。
这也进一步发展到涵盖了其他类型的居住与工作环境，如家庭，工厂和教育设施环境。
火灾探测和相应的安全系统是智能化建筑的关键部分。
在每年的安装和维护建筑中火灾探测系统要花费数十亿美元，以确保来自避免不了的火灾的安全[8]。
智能建筑中智能系统的发展为使完成这项任务更有效，更高效，更经济提供了机会。
新型传感器将生产的更早，提供更可靠的消防检测。
无线系统将消除对布线的需要并为消防人员在到达火灾现场之前提供机会去制定灭火策略。
综合建筑系统会减少误报的可能性，提升建筑疏散和协助灭火的速度。
电气工程及其自动化专业外文文献英文文献外文翻译方面
1、 外文原文（复印件）A: Fundamentals of Single-chip MicrocomputerT h e sin gle -ch ip mi c ro co m p u t e r is t h e cu lm in at io n of b ot h t h e d e ve lo p me nt of t h e d ig ita l co m p u t e r a n d t h e i nte g rated c ircu it a rgu ab l y t h e to w mo st s ign if i cant i nve nt i o n s of t h e 20t h c e nt u ry [1].T h ese to w t yp e s of arch ite ct u re are fo u n d in s in gle -ch ip m i cro co m p u te r. S o m e e mp l oy t h e sp l it p ro gra m /d at a m e m o r y of t h e H a r va rd arch ite ct u re , s h o wn in -5A , ot h e rs fo l lo w t h e p h i lo so p hy, wid e l y ad a p ted fo r ge n e ral -p u rp o se co m p u te rs an d m i cro p ro ce ss o rs , of m a kin g n o l o g i ca l d i st in ct i o n b et we e n p ro gra m an d d ata m e m o r y as in t h e P rin c eto n a rch ite ct u re , sh o wn in -5A.In ge n e ra l te r m s a s in g le -ch ip m ic ro co m p u t e r is ch a ra cte r ized b y t h e in co r p o rat io n of all t h e u n its of a co mp u te r into a s in gle d e vi ce , as s h o w n in F i g3-5A-3.-5A-1A Harvard type-5A. A conventional Princeton computerProgrammemory Datamemory CPU Input& Output unitmemoryCPU Input& Output unitResetInterruptsPowerFig3-5A-3. Principal features of a microcomputerRead only memory (ROM).RO M is u su a l l y fo r t h e p e r m an e nt , n o n -vo lat i le sto rage of an ap p l i cat io n s p ro g ram .M a ny m i c ro co m p u te rs a n d m i cro co nt ro l le rs are inte n d ed fo r h i gh -vo lu m e ap p l i cat io n s a n d h e n ce t h e e co n o m i cal man u fa c t u re of t h e d e vi ces re q u ires t h at t h e co nt e nts of t h e p ro gra m me mo r y b e co mm i ed p e r m a n e nt l y d u r in g t h e m a n u fa ct u re of c h ip s . C lea rl y, t h i s imp l ies a r i go ro u s ap p ro a ch to ROM co d e d e ve lo p m e nt s in ce ch an ges can n o t b e mad e af te r m an u fa ct u re .T h i s d e ve l o p m e nt p ro ces s m ay i nvo l ve e mu l at i o n u sin g a so p h ist icated d e ve lo p m e nt syste m wit h a h ard wa re e mu l at i o n capab i l it y as we ll as t h e u s e of p o we rf u l sof t war e to o l s.So m e m an u fa ct u re rs p ro vi d e ad d it i o n a l ROM o p t io n s b y in clu d in g in t h e i r ran ge d e v ic es w it h (o r inte n d ed fo r u s e wit h ) u se r p ro g ram m a b le m e mo r y. T h e s im p lest of t h e se i s u su a l l y d e v i ce wh i ch can o p e rat e in a m i cro p ro ce s so r mo d e b y u s in g s o m e of t h e in p u t /o u t p u t l in es as an ad d res s a n d d ata b u s fo r a cc es sin g exte rn a l m e m o r y. T h is t yp e o f d e vi ce can b e h ave f u n ct i o n al l y as t h e s in gle ch ip m i cro co m p u t e r f ro m wh i ch it i s d e ri ved a lb e it wit h re st r icted I/O an d a m o d if ied exte rn a l c ircu it. T h e u s e of t h e se RO M le ss d e vi ces i s co mmo n e ve n in p ro d u ct io n circu i ts wh e re t h e vo lu m e d o e s n ot ju st if y t h e d e ve lo p m e nt co sts of cu sto m o n -ch ip ROM [2];t h e re ca n st i ll b e a si gn if i cant sav in g in I/O an d o t h e r ch ip s co m pared to a External Timing components System clock Timer/ Counter Serial I/O Prarallel I/O RAM ROMCPUco nve nt io n al m i c ro p ro ces so r b ased circ u it. M o re exa ct re p l a ce m e nt fo rRO M d e v ice s can b e o b tain ed in t h e fo rm of va ria nts w it h 'p i g g y-b a c k'E P ROM(E rasab le p ro gramm ab le ROM )s o cket s o r d e v ice s w it h E P ROMin stead of ROM 。
电气外文文献-翻译
Circuit breaker断路器Compressed air circuit breaker is a mechanical switch equipment, can be i 空气压缩断路器是一种机械开关设备，能够在n normal and special conditions breaking current (such as short circuit cur 正常和特殊情况下开断电流（比如说短路电流）。
rent). For example, air circuit breaker, oil circuit breaker, interference circ 例如空气断路器、油断路器，干扰电路的导体uit conductor for the application of the safety and reliability of the circuit 干扰电路的导体因该安全可靠的应用于其中，breaker, current in arc from is usually divided into the following grades: a 电流断路器按灭弧远离通常被分为如下等级：ir switch circuit breaker, oil circuit breaker, less oil circuit breaker, compr 空气开关断路器、油断路器、少油断路器、压缩空essed air circuit breaker, a degaussing of isolating switch, six sulfur hexaf 气断路器、具有消磁性质的隔离开关、六氟luoride circuit breaker and vacuum breaker. Their parameters of voltage, 化硫断路器和真空断路器。
他们的参数有电压等级、current, insulation level of breaking capacity, instantaneous voltage off ti 开断容量的电流、绝缘等级开断时间的瞬时电压恢复和me of recovery and a bombing. Breaker plate usually include: 1 the maxi 轰炸时间。
建筑电气外文文献
提高个人的生活质量，通过他们的智能家居该项目的假设是：可以增加一个人的生活质量的“智能技术”集成到他们的家庭环境。
这个假设是非常广泛的，因此，研究人员将调查它考虑到多方面的，潜在的过度研磨，分节的人口。
特别是，该项目将重点放在与卫生保健需求的环节，因为它认为，这些子章节将获得最大的受益于这种增强的方法住房。
两个研究问题流从这一假说：什么是保健，可以改善通过“智能住宅”的问题，什么是技术问题需要解决，让“智能住宅”建造？虽然存在少量的措施，在加拿大境外，据称这方面的调查，没有这方面的全球视野。
工作往往是在小围的各个部分是如何有助于实现更大的目标只有有限的想法。
这个项目有一个非常强烈的责任感，并认为，如果没有这一全球性的方向，其他措施将失败，以解决各部分的重要问题，而且正确的全局方向的总和的部分会产生更大的回报比的各个组成部分。
这个新的领域与业务流程工程领域，有许多相似之处，很多产品失败的原因只考虑一个子集的问题，通常是技术的子集。
成功的项目和实施才开始启动，当人们开始认识到，一个全面的方法是至关重要的。
这种整体性的要求也适用于领域的“聪明屋”，如果我们真的希望它有利益于社区，而不仅仅是技术的兴趣。
话虽如此，下面列出的大部分工作是非常重要的，在其个人的主题包含了大量新奇的。
医疗保健和保障性住房：至目前为止，很少有人协调，研究如何“聪明屋”的技术可以帮助体弱的老人留在家里，或降低成本所经历的非正式照顾者。
因此，建议研究的目的是确定帮助老年人保持自己的独立性和帮助照顾者维持他们的爱心活动中的各种住宅技术的实用性。
整体设计的研究是集中在两个群体的老年人。
首先是老人出院急性护理环境的潜在能力下降，保持独立。
一个例子是有髋关节置换手术的老年人。
本集团可能会受益于技术，这将有助于他们成为适应他们的行动不便。
第二个是老年人有慢性健康问题，如老年痴呆症和接受援助的非正式护理员的生活在距离。
关心的高级生活的距离是非正式照顾者在照顾者的职业倦怠的高风险。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
建筑电气文献及外文翻译————————————————————————————————作者：————————————————————————————————日期：建筑电气电气工程设计包括两个主要的设计方面。
主要是一部分的电能的转换及分配和电力的供配、照明系统、防雷接地系统。
一般来说,建筑主要的变化包括:高压和低压配电系统、变压器、备用电源系统。
电力系统包括配电和控制，室内和室外照明系统包括所有类型的照明，防雷系统包括入侵波防护、闪电传感器、接地、等电位连接和局部等电位连接等。
辅助等电位连接等。
在短短的20年里,系统在技术和产品的面貌发生了翻天覆地的变化。
许多的设计理念也发生了巨大的变化。
开关设备如高压系统的第一个断路器油断路器，后来油断路器的逐步发展,不仅规模大,但是一般都包含油物质。
由于开关设备尺寸较大,我们还必须建立独立的设备房间,占据了大量的建筑面积。
现在真空断路器和六氟化硫断路器,不仅体积小,而且短路容量大，外壳尺寸远小于原来的橱柜，并且断路器没有任何油,防火性能大大提高。
而且断路器和其他低压设备在一个房间里,这样即节省空间又方便管理。
过去大容量的低压断路器,短路电流容量逐渐变大,规模也逐渐变小,而且更加稳定,使系统运行更加安全可靠,为设计带来了方便。
向着智能化低压断路器方向发展,断路器各种参数可以通过总线工业控制,信号直接传输到计算机。
干式变压器的出现,对建筑电气设计带来了极大的方便,因为没有变压器油泄漏和火灾的可能性,以便它可以很容易地安装在建筑本身,甚至直接到负荷中心。
它还消除变压器对油的需求限制,构建大容量设备时可以使用干式变压器。
在实际工程设计中曾应用四个台湾2500kVA干式变压器。
在使用紧急发电机方面,从性能和尺寸的角度来看,比过去进步很多。
除了使用柴油发电机；应急照明使用EPS备用电源；中断供电在一个毫秒以内的设备,可以使用UPS。
电力设备的控制从单一元件的控制到控制继电器控制变化。
除了更好的性能的各种组件的规模较小,也降低控制箱的规模。
由于数字技术更多的运用于控制能达到最佳的控制状态来控制设备。
进一步提高了节能的效果。
照明系统从过去单一光源、灯具和低效率的状态向更广泛的前景发展。
建筑中使用的光源可供选择的品种数量很多。
光的发光效率和色调在向着高效的方向发展,灯具不断地改进其效率和不同形式的灯具运用于不同场合。
例如,普通的荧光灯镇流器由普通的镇流器向节能型镇流器方向发展。
还对谐波组件的大小进行精简,生产低谐波电子镇流器。
许多措施如配件和灯具的使用,可以满足设计要求,同时能实现不同的体系结构、照明要求的各种场所。
无论照明和室内装饰照明还是道路照明和户外庭院建筑的光照明,所有的都展示了照明技术的发展和建筑照明的好处与便利。
另一个设计使用于电气设备和其他设备,如双电源开关的互投。
与传统的专业生产产品相比,除了传统的功率切换外,双电源还能满足每个其他电子设备的需要,极大地提高供电的可靠性和连续性。
电力电缆和电线是被广泛使用的产品。
过去的电线电缆,种类稀少。
现在引入各种电缆,从普通阻燃PVC电缆到耐火、少烟无卤、防电磁干扰环境的电缆等。
导线材料从普通的矿物绝缘绝缘材料到总线绝缘,高效绝缘等分支机构。
电力建设中这些技术是安全、可靠、方便的,提供了一个有效的环境保护。
针对特殊需求分布、建设的一些新设备得到了广泛的应用。
例如大型医院手术室医疗机构漏电保护、漏电监测系统等。
技术的发展强大在很多地方都有显现如实际工程和技术人员,以及我们自己的经验。
如此巨大的发展为中国的电力建设和电力建设安全使用奠定了良好的基础也创造了条件。
随着建筑智能化技术的深入应用,一些设备、系统控制和控制系统已逐渐成为一个专业性的监控,并具有开放建筑设备监控系统通信协议、互联网和通信系统。
建筑物内如自动功率控制系统,采用现场总线技术的数据采集和处理,集中控制变量分配系统实现远程监控和远程控制以及远程无人变电站的实现。
连续收集和分析系统能提前给出建议或警告,以方便系统的安全运行。
自动功率控制系统利用计算机技术、信息技术、控制技术、传感器技术、通信网络技术、电力电子技术等综合技术,它基本上可以取代传统的二次回路而且接线简单、性能可靠、易于维护。
与此同时,根据建筑的能耗进行的第二次重大节能照明控制系统也会逐步实现。
专业照明控制系统已经广泛应用于许多建筑物。
照明控制由一个实时传感器控制定时控制。
此外,现场控制、远程控制和控制多种灵活的控制现场,达到最大的能量利用,同时实现功能和人性化的舒适的照明系统。
各种建筑标准也相应出台，如1980年代末《标准建筑设计防火规范》GBJ16-87；1990年代《民用建筑照明设计标准》GBJ133-90；《民用建筑电气设计规范》JGJ/ T16 - 92；《工业企业照明设计标准》GB50034 - 92；《高层民用建筑设计防火规范》GB50045 - 95；《供配电系统设计规范》GB50052 - 95；《l0kV及以下变电所设计规范》GB50053 - 94；《低压配电设计规范》GB50054 - 95；《通用用电设备设计规范》GB50055 - 93；《建筑物防雷设计规范》GB50057-94等等。
紧随后的是建筑电气设计基础建设电气设计的标准化。
智能建筑技术只是一种手段，配备智能功能、强调效率、能耗低、更干净,真正实现以人为本。
在实现节能的前提下,提高建筑的功能、环境保护和可持续发展的目标。
构建可持续发展的实现从战略的角度来看,注重环境保护，保持生态系统稳定。
可持续发展是一个永恒的主题，经过多年的实践,在一个理性和务实的态度下,以实际需要和实际应用为标准,不是盲目地追随片面而是追求全面、先进的智能系统,在技术上做到领先。
设计需做了合理的投资,使用不同的功能。
根据投资和管理需求的具体情况来确定先进的、可靠的、经济合理的和最优的方案，这个概念现在已经成为智能建筑行业的共识。
建筑智能技术使所有的学院和大学的建设开辟了这一技术相应的专业课程和促进了相关专业学生的发展。
智能建筑技术包括:建筑设备自动控制系统、安全系统、停车场管理系统、火灾自动报警和消防系统、通信和计算机网络系统、综合布线系统、广播系统、有线电视系统、视频会议系统等,超过10个子系统的集成。
是我国第一个独立于国内建筑智能技术系统集成子系统的开发。
1、20世纪的建筑设备监控系统的发展由1980年代的集中监控开始,由于可靠性差、速度慢，1990年代后已经很少使用,并取代了分布式控制。
在1990年代末,随着计算机技术、控制技术、网络和通信技术开发和集成,监控施工设备技术发展迅速。
2、安全技术和安全措施也逐步发展,包括中央监控、入侵警报、访问控制(门)、巡逻削减等更多的周边防御和其他子系统。
安全系统从最初的子系统相互独立的到各子系统之间相互联系。
大大增加了安全性、可靠性和实时为人们的工作、学习和生活安全保障。
闭路电视监控系统从模拟到数字的方向发展,整个安全系统的规模也在运动数字系统、集成的方向发展。
3、运用通信网络技术的智能建筑通信网络,包括计算机网络、双向有线电视传输网络和电话通讯网络。
前两个智能网络作为一个宽带主干网络把几乎所有的信息技术和信息资源管理的几乎所有的用户连接到一起。
在1990年代中期之前，有一个为所有类型的网络和用户的市场。
但在1990年代末,由于以太网连接的灵活性和优越的性能、易于维护和使用等优点,ICT网络逐渐在列表中。
以太网传输速率,从最初的10Mbps,100Mbps 到1 Gbps,10Gbps甚至更高的利率。
智能建筑电话网络(ISDN,SL)目前用于语音通信、数据和图像的窄带宽数据通信,它让人们通过通信网络、电视、电话会议等功能实现相互交流。
智能访问技术的关键是与外界建立联系,它使世界变得越来越小。
人们的工作、生活发生了剧大的变化。
智能建筑访问网络或互联网,越来越多的高带宽需求的接收,满足日益增长的用户需求数据通信。
在有线电视网络的发展同时,无线网络由于其灵活性,也进入了一个快速发展阶段。
从2003年的基于最初的路线的轮询策略的研究到现在超过100兆赫。
移动互联网正为人们提供很大的方便,并在许多领域发展潜力巨大，网络正在成为趋势。
4、综合布线技术PDS是智能建筑数据、语音和多媒体的通信平台。
综合布线技术进入中国市场以来,因其优异的性能,并且对于智能建筑的国内市场来说是一个新概念、新技术,在建筑业立即引起了巨大的反响。
该技术已广泛应用于所有类型的智能建筑。
为了满足网络传输带宽和新产品的开发速度，PDS引入3线、5线到6线,甚至提高标准到七线系统的产品,以满足千兆网络的需求。
提高网络的传输速率,以适应已经投入10G网络市场的发展。
新的多模和单模光纤传输媒介作为一个很好的材料将被广泛使用。
从铜线、光纤电缆、技术和产品的不断更新，PDS充分反映了智能建筑的快速发展,新技术的应用和广阔的发展前景。
5、智能建筑系统集成技术一般连接各个子网络。
每个子系统的操作预计将完成他们的工作,但尚未达到共享信息资源。
为了实现有效的管理,各个子系统之间的信息资源共享、系统集成。
在系统集成过程中,选择平台集成、网络结构、集成子系统的范围是不同的、集成模型也是不同的。
随着计算机技术、网络技术、控制技术、显示技术的发展,建筑设备监控系统和其他系统通过计算机网络连接。
完成基于建筑设备监控系统的系统集成模式。
平等的在各自的系统集成,建立一个网络管理系统集成。
作为一个子系统可以降低现场控制网络集成。
实时数据子系统、开放、行业标准接口,转换成统一的格式存储在数据库或服务器系统集成。
综合网络管理系统实现统一管理子系统程序、监控和信息交换系统集成, 系统集成实现协议的各个子系统之间的联系有关控制和信息共享。
提高管理效率,增强处理突发事件的能力和节约能源的目的、节省人力。
这是建筑设备管理系统(BMS)。
系统集成不是我们的目的,而是为了增强建筑的功能和技术手段,提高管理效率,整合内容不是更好,但根据使用和管理的需要,以及成熟的技术,该系统是可靠和合理的投资。
有效管理的前提是集成的需求。
(6)智能住宅区1990年代国际电子智能住宅提出的理念。
智能建筑技术逐渐蔓延到居民区,在最初几个经济较发达的沿海城市已经成功。
智能技术开始建设居住小区的住宅和公共建筑。
智能建筑智能技术迅速扩展,已成为智能建筑发展的一个重要市场。
公共建筑和住宅智能化,这是市场的需求,也是实际的发展需求。
智能设计研究所将中国住宅将放在一个重要位置,为住宅提供一个智能平台。
住宅的智能设计是先进的和具有挑战性的领域。
住宅小区智能化技术的发展可以分为以下方面:系统设计强调以人为本的设计理念,应该迎合居民所有级别的方便、安全、舒适和处理功能的要求，处理好先进和实用之间的关系和合理的投资。
