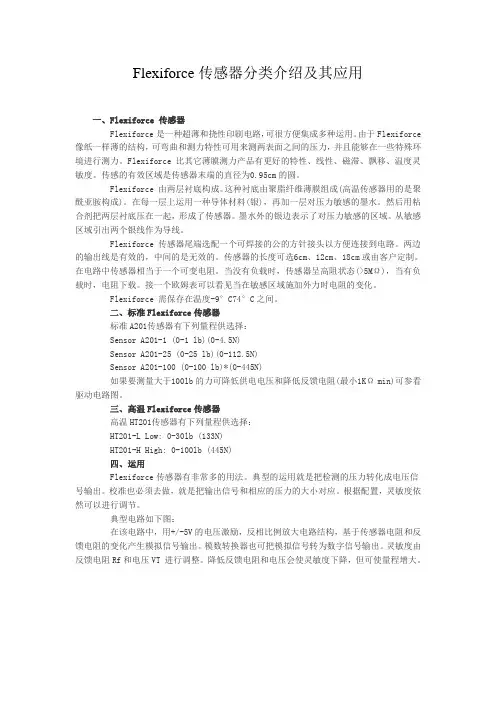

Flexiforce传感器分类介绍及其应用一、Flexiforce 传感器Flexiforce是一种超薄和挠性印刷电路，可很方便集成多种运用。
由于Flexiforce 像纸一样薄的结构，可弯曲和测力特性可用来测两表面之间的压力，并且能够在一些特殊环境进行测力。
Flexiforce 比其它薄膜测力产品有更好的特性、线性、磁滞、飘移、温度灵敏度。
传感的有效区域是传感器末端的直径为0.95cm的圆。
Flexiforce 由两层衬底构成。
这种衬底由聚脂纤维薄膜组成(高温传感器用的是聚酰亚胺构成)。
在每一层上运用一种导体材料(银)，再加一层对压力敏感的墨水。
然后用粘合剂把两层衬底压在一起，形成了传感器。
墨水外的银边表示了对压力敏感的区域。
从敏感区域引出两个银线作为导线。
Flexiforce 传感器尾端选配一个可焊接的公的方针接头以方便连接到电路。
两边的输出线是有效的，中间的是无效的。
传感器的长度可选6cm、12cm、18cm或由客户定制。
在电路中传感器相当于一个可变电阻。
当没有负载时，传感器呈高阻状态(>5MΩ)，当有负载时，电阻下载。
接一个欧姆表可以看见当在敏感区域施加外力时电阻的变化。
Flexiforce 需保存在温度-9°C74°C之间。
二、标准Flexiforce传感器标准A201传感器有下列量程供选择：Sensor A201-1 (0-1 lb)(0-4.5N)Sensor A201-25 (0-25 lb)(0-112.5N)Sensor A201-100 (0-100 lb)*(0-445N)如果要测量大于100lb的力可降低供电电压和降低反馈电阻(最小1KΩ min)可参看驱动电路图。
三、高温Flexiforce传感器高温HT201传感器有下列量程供选择：HT201-L Low: 0-30lb (133N)HT201-H High: 0-100lb (445N)四、运用Flexiforce传感器有非常多的用法。
杰弗里·艾伦科技有限公司产品说明书：压力传感器
Conductivity Instrumentation, Dissolved Oxygen Instrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis Instrumentation
GAGE PRESSURE RANGES
psi
bar
MODEL NO.
0 to 1
0 to 68.9 mbar PX480A-001GV
0 to 6
0 to 414 mbar PX480A-006GV
0 to 15 0 to 1.0
PX480A-015GV
0 to 30 0 to 2.1
PX480A-030GV
PX480A-015VACV $195 DP25B-S, DP41-S, DPiS Series
-14.7 to 15 -1.0 to 1.0 PX480A-015CV 195 DP25B-S, DP41-S, DPiS Series
-14.7 to 30 -1.0 to 2.1 PX480A-030CV 195 DP25B-S, DP41-S, DPiS Series
1-Year Stability: <0.25% FS
Proof Pressure: 2x FS
Burst Pressure: 3x FS
0 to 1000 0 to 69.0 PX480A-1KSV
265 DP25B-S, DP41-S, DPiS Series
0 to 2000 0 to 138
Process Temperature: -40 to 100°C (-40 to 212°F)
FlexiForce标准型号A201传感器说明书
DS Rev I 062821ISO 9001:2008 Compliant & 13485:2016 RegisteredThe FlexiForce A201 is our standard sensor and meets the requirements of most customers. The A201 is a thin and flexible piezoresistive force sensor that is available off-the-shelf in a variety of lengths for easy proof of concept. These ultra-thin sensors are ideal for non-intrusive force and pressure measurement in a variety of applications. The A201 can be used with our test & measurement, prototyping, and embedding electronics, including the FlexiForce Sensor Characterization Kit, FlexiForcePrototyping Kit, FlexiForce Quickstart Board, and the ELF™ System*. You can also use your own electronics, or multimeter.FlexiForce™Standard Model A201BenefitsPhysical PropertiesThickness 0.203 mm (0.008 in.)Length 191 mm (7.5 in.)** (optional trimmed lengths: 152 mm (6 in.), 102 mm (4 in.), 51 mm (2 in.))Width14 mm (0.55 in.)Sensing Area 9.53 mm (0.375 in.) diameterConnector3-pin Male Square Pin (center pin is inactive)Substrate Polyester Pin Spacing 2.54 mm (0.1 in.)✓ROHS COMPLIANT• Thin and flexible • E asy to use• C onvenient and affordable* Sensor will require an adapter/extender to connect to the ELF System. Contact yourTekscan representative for assistance.** Length does not include pins. Please add approximately 6 mm (0.25 in.) for pin length for a total length of approximately 197 mm (7.75 in).Typical PerformanceEvaluation ConditionsLinearity (Error)< ±3% of full scaleLine drawn from 0 to 50% loadRepeatability < ±2.5%Conditioned sensor, 80% of full force applied Hysteresis < 4.5% of full scaleConditioned sensor, 80% of full force appliedDrift< 5% per logarithmic time scaleConstant load of 111 N (25 lb)Response Time < 5µsecImpact load, output recorded on oscilloscope Operating Temperature -40°C - 60°C (-40°F - 140°F)Convection and conduction heat sources Durability≥ 3 million actuations Perpendicular load, room temperature, 22 N (5 lb)Temperature Sensitivity0.36%/°C (± 0.2%/°F)Conductive heating***All data above was collected utilizing an Op Amp Circuit (shown on the next page). If your application cannot allow an Op Amp Circuit, visit/flexiforce-integration-guides, or contact a FlexiForce Applications Engineer.***©Tekscan Inc., 2021. All rights reserved. Tekscan, the Tekscan logo, and FlexiForce are trademarks or registered trademarks of Tekscan, Inc.+1.617.464.4283|1.800.248.3669|****************|/flexiforceP urchase T oday o nline aT www .Tekscan .com /sToreVOLUMEDISCOUNTSA s k U sAb o u t Ou rSensing Area14 mm (.55 in.)191 mm (7.5 in.)6 mm (.25 in.)Actual size of sensorTrim LinesV OUT = -V REF * (R F / R S )• Polarity of V REF must be opposite the polarity of V SUPPLY • Sensor Resistance R S at no load is typically >1MΩ• Max recommended current is 2.5mAV OUTC 1R F V SS = GroundV DD = V SUPPLYC 1 = 47 pFR FEEDBACK (R F ) = 100kΩ POTENTIOMETER V REF OptionsSquare Wave Up to 5V , 50% Max Duty CycleDC0.25V - 1.25VMCP6004-V REF100K potentiometer and 47 pF are general recommendations; your specific sensor may be best suited with a different potentiometer andcapacitor. Testing should be performed to determine this.R SRecommended Circuit†This sensor can measure up to 4,448 N (1,000 lb). In order to measure higher forces, apply a lower drive voltage (-0.5 V, -0.25 V, etc.) and reduce the resistance of the feedback resistor (1kΩ min.). To measure lower forces, apply a higher drive voltage and increase the resistance of the feedback resistor.Sensor output is a function of many variables, including interface materials.Therefore, Tekscan recommends the user calibrate each sensor for the application.Standard Force Rangesas Tested with Circuit Shown4.4 N (0 - 1 lb)111 N (0 - 25 lb) 445 N (0 - 100 lb) †。
拉力传感器使用指南
拉力传感器使用指南英文回答：Introduction:A force sensor, also known as a load cell or tension sensor, is a device used to measure the force or tension applied to it. It is widely used in various industries such as automotive, aerospace, and manufacturing. In this guide, I will provide you with the necessary information on how to use a force sensor effectively.Calibration:Before using a force sensor, it is crucial to calibrate it properly. Calibration ensures accurate and reliable measurements. To calibrate the sensor, you will need a known weight or force. Apply the known force to the sensor and record the output. Repeat this process with different known forces to create a calibration curve. This curve willallow you to convert the sensor's output to the actual force applied.Mounting:Proper mounting of the force sensor is essential for accurate measurements. Make sure the sensor is securely attached to the object or structure where the force will be applied. Avoid any external factors that may introduce additional forces or vibrations, as they can affect the sensor's readings. Additionally, ensure that the sensor is aligned with the direction of the force to obtain accurate results.Wiring and Connections:When connecting the force sensor to a data acquisition system or control unit, it is crucial to follow the manufacturer's instructions. Use the recommended cables and connectors to ensure a reliable and stable connection. Check the wiring for any loose connections or damage that may affect the sensor's performance. Proper grounding isalso important to minimize electrical noise and interference.Data Acquisition and Analysis:To measure and analyze the force data from the sensor, you will need a data acquisition system or software. Connect the sensor to the system and configure the settings according to your requirements. Start recording the force data and monitor the readings in real-time. Once the datais collected, you can analyze it using various statistical or graphical tools to gain insights into the force applied.Troubleshooting:If you encounter any issues with the force sensor, there are a few common troubleshooting steps you can take. First, check the wiring and connections to ensure they are properly secured. Next, verify that the sensor iscalibrated correctly and that the applied force fallswithin the sensor's range. If the issue persists, consult the manufacturer's documentation or contact their technicalsupport for further assistance.Conclusion:Using a force sensor requires proper calibration, mounting, wiring, and data acquisition. By following the guidelines provided in this guide, you can effectively utilize a force sensor for accurate and reliable force measurements. Remember to always refer to the manufacturer's instructions and seek professional help if needed.中文回答：引言：拉力传感器，也称为称重传感器或张力传感器，是一种用于测量施加在其上的力或张力的设备。
VEGA (flex)物位传感器的调试说明(内部资料)
利用PACTWARE操作软件对VEGA物位传感器的调试说明FX60系列导向微波式物位传感器版本：3.0寇新华2006．9目录调试设备及连线------------------------------------------------------------------------------------ 3 PACTWARE的进入和初步配置---------------------------------------------------------------- 4 传感器量程的设定--------------------------------------------------------------------------------- 11 传感器的缆（棒）长------------------------------------------------------------------------------ 13 传感器测量条件的选择--------------------------------------------------------------------------- 15 电流输出的设定-------------------------------------------------------------------------------------- 17 虚假回波的处理-------------------------------------------------------------------------------------- 18 测量数据采集周期的设定-------------------------------------------------------------------------- 23 传感器的快速反应----------------------------------------------------------------------------------- 25 结束----------------------------------------------------------------------------------------------------- 27调试设备及连线调试设备：●安装了PACTWARE软件的PC；----------------------------------●VEGA的通讯接口转换器CONNECT3；----------------------连线：●可以在安装物位传感器的现场，利用专用“I2C”插头插入传感器的“I2C”插座（见下图）用安装了PACTWARE软件的PC和通讯接口转换器CONNECT3对传感器进行调试。
FlexiForce-Sensors技术手册
FlexiForce® Sensors User ManualFlexiForce® SensorsUser ManualTekscan, Inc. 307 West First Street, South Boston, MA 02127 Tel: 617.464.4500/800.248.3669 fax: 617.464.4266 Email: m arketing@ web: w Table of ContentsWELCOME (6)ISO (6)I NTRODUCTION (7)G ETTING A SSISTANCE (7)OVERVIEW (8)F LEXI F ORCE S ENSORS (8)Standard FlexiForce Sensors (8)High-Temperature FlexiForce Sensors (9)A PPLICATION (9)SENSOR LOADING CONSIDERATIONS (10)S ENSOR L OADING (10)S ATURATION (10)C ONDITIONING S ENSORS (11)CALIBRATION (12)C ALIBRATION G UIDELINES (12)SENSOR PERFORMANCE CHARACTERISTICS (13)R EPEATABILITY (13)L INEARITY (13)H YSTERESIS (13)D RIFT (13)T EMPERATURE S ENSITIVITY (13)S ENSOR L IFE /D URABILITY (14)SENSOR PROPERTIES (15)S TANDARD F LEXI F ORCE S ENSOR (M ODEL A201) (15)H IGH-T EMPERATURE F LEXI F ORCE S ENSOR (M ODEL HT201) (15)WELCOMEISOTekscan is registered to the following standard(s): •ISO 9001: 2000•ISO 13485: 2003INTRODUCTIONThis manual describes how to use Tekscan's FlexiForce Sensors. These sensors are ideal for designers, researchers, or anyone who needs to measure forces without disturbing the dynamics of their tests. The FlexiForce sensors can be used to measure both static and dynamic forces (up to 1000 lbf.), and are thin enough to enable non-intrusive measurement.The FlexiForce sensors use a resistive-based technology. The application of a force to the active sensing area of the sensor results in a change in the resistance of the sensing element in inverse proportion to the force applied.GETTING ASSISTANCETekscan, Inc. will provide technical assistance for any difficulties you may experience using your FlexiForce system.Write, call or fax us with any concerns or questions. Our knowledgeable support staff will be happy to help you. Comments and suggestions are always welcome.FlexiForcea division of Tekscan, Inc.307 West First StreetSouth Boston, MA 02127-1309Phone: (617) 464-4500Fax: (617) 464-4266E-mail: flexiforce@Copyright © 2008 by Tekscan, Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means without the prior written permission of Tekscan, Inc., 307 West First Street, South Boston, MA 02127-1309. Tekscan, Inc. makes no representation or warranties with respect to this manual. Further, Tekscan, Inc. reserves the right to make changes in the specifications of the product described within this manual at any time without notice and without obligation to notify any person of such revision or changes.FlexiForce is a registered trademarks of Tekscan, Inc.Windows 95/98/ME/2000/XP/Vista, MS-DOS, Word, Notepad, and Excel are registered trademarks of Microsoft Corporation.OVERVIEWThis section outlines Sensor Construction and Application.FLEXIFORCE SENSORSThe FlexiForce sensor is an ultra-thin and flexible printed circuit, which can be easily integrated into most applications. With its paper-thin construction, flexibility and force measurement ability, the FlexiForce force sensor can measure force between almost any two surfaces and is durable enough to stand up to most environments. FlexiForce has better force sensing properties, linearity, hysteresis, drift, and temperature sensitivity than any other thin-film force sensors. The "active sensing area" is a 0.375” diameter circle at the end of the sensor.The sensors are constructed of two layers of substrate. This substrate is composed of polyester film (or Polyimide in the case of the High-Temperature Sensors). On each layer, a conductive material (silver) is applied, followed by a layer of pressure-sensitive ink. Adhesive is then used to laminate the two layers of substrate together to form the sensor. The silver circle on top of the pressure-sensitive ink defines the “active sensing area.” Silver extends from the sensing area to the connectors at the other end of the sensor, forming the conductive leads.FlexiForce sensors are terminated with a solderable male square pin c onnector, which allows them to be incorporated into a circuit. The two outer pins of the connector are active and the center pin is inactive. The length of the sensors can be trimmed by Tekscan to predefined lengths of 2”, 4” and 6” or can be trimmed by the customer. If the customer trims the sensor, a new connector must be attached. This can be accomplished by purchasing staked pin connectors and a crimping tool. A conductive epoxy can also be used to adhere small wires to each conductor. The sensor acts as a variable resistor in an electrical circuit. When the sensor is unloaded, its resistance is very high (greater than 5 Meg-ohm); when a force is applied to the sensor, the resistance decreases. Connecting an ohmmeter to the outer two pins of the sensor connector and applying a force to the sensing area can read the change in resistance.Sensors should be stored at temperatures in the range of 15°F (-9°C) to 165°F (74°C) Standard FlexiForce SensorsThe Standard A201 sensor is available in the following force ranges:•Sensor A201-1 (0-1 lb. force range)•Sensor A201-25 (0-25 lb. force range)•Sensor A201-100 (0-100 lb. force range)** In order to measure forces above 100 lbs. (up to 1000 lbs), apply a lower drive voltage andreduce the resistance of the feedback resistor (1kΩ min.). See the sample drive circuit below.High-Temperature FlexiForce SensorsThe High-Temperature HT201 sensor is available in the following force ranges* (as tested with the sample drive circuit).•Sensor HT201-L Low: 0-30lb (133N) force range•Sensor HT201-H High: 0-100lb (445N) force range* In order to measure forces outside specified ranges, use recommended circuit and adjustdrive voltage and/or reference resistanceAPPLICATIONThere are many ways to integrate the FlexiForce sensor into an application. One way is to incorporate it into a force-to-voltage circuit. A means of calibration must then be established to convert the output into the appropriate engineering units. Depending on the setup, an adjustment could then be done to increase or decrease the sensitivity of the sensor.An example circuit is shown below. In this case, it is driven by a -5 V DC excitation voltage. This circuit uses an inverting operational amplifier arrangement to produce an analog output based on the sensor resistance and a fixed reference resistance (R F). An analog-to-digital converter can be used to change this voltage to a digital output. In this circuit, the sensitivity of the sensor could be adjusted by changing the reference resistance (R F) and/or drive voltage (VT);a lower reference resistance and/or drive voltage will make the sensor less sensitive, and increase its active force range.In the circuit shown, the dynamic force range of the sensor can be adjusted by changing the reference resistor (R F) or by changing the Drive Voltage (V O). Refer tothe Saturation section for additional information.SENSOR LOADING CONSIDERATIONSThe following general sensor loading guidelines can be applied to most applications, and will help you achieve the most accurate results from your tests. It is important that you read the Sensor Performance Characteristics section for further information on how to get the most accurate results from your sensor readings.SENSOR LOADINGThe entire sensing area of the FlexiForce sensor is treated as a single contact point. For this reason, the applied load should be distributed evenly across the sensing area to ensure accurate and repeatable force readings. Readings may vary slightly if the load distribution changes over the sensing area.Note that the sensing area is the silver circle on the top of the sensor only.It is also important that the sensor be loaded consistently, or in the same way each time.If the footprint of the applied load is smaller than the sensing area, the load should not be placed near the edges of the sensing area, to ensure an even load distribution.It is also important to ensure that the sensing area is the entire load path, and that the load is not supported by the area outside of the sensing area.If the footprint of the applied load is larger than the sensing area, it may be necessary to use a "puck." A puck is a piece of rigid material (smaller than the sensing area) that is placed on the sensing area to ensure that the entire load path goes through this area. The puck must not touch any of the edges of the sensing area, or these edges may support some of the load and give an erroneous reading.The FlexiForce sensor reads forces that are perpendicular to the sensor plane. Applications that impart "shear"forces could reduce the life of the sensor. If the application will place a "shear" force on the sensor, it should be protected by covering it with a more resilient material.If it is necessary to mount the sensor to a surface, it is recommended that you use tape, when possible. Adhesives may also be used, but make sure that the adhesive will not degrade the substrate (polyester) material of the sensor before using it in an application. Adhesives should not be applied to the sensing area; however, if it is necessary, ensure that the adhesive is spread evenly. Otherwise, any high spots may appear as load on the sensor.SATURATIONThe Saturation force is the point at which the device output no longer varies with applied force. The saturation force of each sensor is based on the maximum recommended force specified by Tekscan, which is printed on the system packaging or the actual sensor, along with the "Sensitivity."02/05/09 FlexiForce Sensor User Manual (Rev G)The saturation value is based on using the circuit and the values shown in the example circuit in the ‘Application’ section. In this example, the saturation force (maximum force) of each sensor is related to the RF (reference resistance), and can be altered by changing the sensitivity. The sensitivity of the sensor would be adjusted by changing the reference resistance (RF); a lower reference resistance will make the system less sensitive, and increase its active force range.It is essential that the sensor(s) do not become saturated during testing.CONDITIONING SENSORSExercising, or Conditioning a sensor before calibration and testing is essential in achieving accurate results. It helps to lessen the effects of drift and hysteresis. Conditioning is required for new sensors, and for sensors that have not been used for a length of time.To condition a sensor, place 110% of the test weight on the sensor, allow the sensor to stabilize, and then remove the weight. Repeat this process four or five times. The interface between the sensor and the test subject material should be the same during conditioning as during calibration and actual testing.IMPORTANT! Sensors must be properly conditioned prior to calibration and use.CALIBRATIONCalibration is the method by which the sensor’s electrical output is related to an actual engineering unit, such as pounds or Newtons. To calibrate, apply a known force to the sensor, and equate the sensor resistance output to this force. Repeat this step with a number of known forces that approximate the load range to be used in testing. Plot Force versus Conductance (1/R). A linear interpolation can then be done between zero load and the known calibration loads, to determine the actual force range that matches the sensor output range.Resistance Curve: Conductance Curve:CALIBRATION GUIDELINESThe following guidelines should be considered when calibrating a sensor:•Apply a calibration load that approximates the load to be applied during system use, using dead weights or a testing device (such as an MTS or Instron). If you intend to use a "puck" during testing, also use it when calibrating the sensor. See Sensor LoadingConsiderations for more information on using a puck.•Avoid loading the sensor to near saturation when calibrating. If the sensor saturates at a lower load than desired, adjust the "Sensitivity."•Distribute the applied load evenly across the sensing area to ensure accurate force readings. Readings may vary slightly if the load distribution changes over the sensingarea.•Sensors should be calibrated at the same temperature for which testing will occur. This is especially important for High-Temp Sensors, as these sensors have a wide operatingtemperature range. If multiple temperatures are used during testing, calibrate the sensors at those same multiple temperatures.Note: Read the Sensor Performance Characteristics section before performing a Calibration.SENSOR PERFORMANCE CHARACTERISTICSThere are a number of characteristics of sensors, which can affect your results. This section contains a description of each of these conditions, and recommendations on how to lessen their effects.REPEATABILITYRepeatability is the ability of the sensor to respond in the same way to a repeatedly applied force. As with most measurement devices, it is customary to exercise, or "condition" a sensor before calibrating it or using it for measurement. This is done to reduce the amount of change in the sensor response due to repeated loading and unloading. A sensor is conditioned by loading it to 110% of the test weight four or five times. Follow the full procedure in the Conditioning Sensors section.LINEARITYLinearity refers to the sensor’s response (digital output) to the applied load, over the range of the sensor. This response should ideally be linear; and any non-linearity of the sensor is the amount that its output deviates from this line. A calibration is performed to "linearize" this output as much as possible. FlexiForce standard sensors are linear within +/- 3%. FlexiForce High-Temperature sensors have a linearity that is 1.2% of full scale.HYSTERESISHysteresis is the difference in the sensor output response during loading and unloading, at the same force. For static forces, and applications in which force is only increased, and not decreased, the effects of hysteresis are minimal. If an application includes load decreases, as well as increases, there may be error introduced by hysteresis that is not accounted for by calibration. DRIFTDrift is the change in sensor output when a constant force is applied over a period of time. If the sensor is kept under a constant load, the resistance of the sensor will continually decrease, and the output will gradually increase. It is important to take drift into account when calibrating the sensor, so that its effects can be minimized. The simplest way to accomplish this is to perform the sensor calibration in a time frame similar to that which will be used in the application. TEMPERATURE SENSITIVITYIn general, your results will vary if you combine high loads on the sensor with high temperatures. To ensure accuracy, calibrate the sensor at the temperature at which it will be used in the application. If the sensor is being used at different temperatures, perform a calibration at each of these temperatures, save the calibration files, then load the appropriate calibration file when using the sensor at that temperature.SENSOR LIFE / DURABILITYSensor life depends on the application in which it is used. Sensors are reusable, unless used in applications in which they are subjected to severe conditions, such as against sharp edges, or shear forces. FlexiForce sensors have been successfully tested at over one million load cycles using a 50 lb. force.Rough handling of a sensor will also shorten its useful life. For example, a sensor that is repeatedly installed in a flanged joint will have a shorter life than a sensor installed in the same joint once and used to monitor loads over a prolonged period. After each installation, visually inspect your sensors for physical damage.It is also important to keep the sensing area of the sensor clean. Any deposits on this area will create uneven loading, and will cause saturation to occur at lower applied forces.SENSOR PROPERTIESSTANDARD FLEXIFORCE SENSOR (MODEL A201)Sensor PropertiesThickness 0.008(0.208mm)Length 8” (203 mm) 6” (152 mm) 4” (102 mm) 2” (51 mm)Width 0.55” (14 mm)Sensing Area 0.375” (9.53 mm) diameterConnector 3-pin male square pin (center pin is inactive) Typical PerformanceForce Ranges 0-1 lb (4.4 N)0-25 lbs (110 N) 0-100 lbs (440 N)*Operating TemperatureRange15°F to 140°F (-9°C to 60°C)Linearity (Error) +/- 3%Repeatability +/- 2.5% of full scale (conditioned sensor, 80% force applied) Hysteresis <4.5% of full scale (conditioned sensor, 80% force applied)Drift <5% per logarithmic time scale (constant load of 90% sensor rating) Response Time <5 microsecondsOutput Change/Degree F Up to 0.2% (~0.36% / °C).Loads <10 lbs, operating temperature can be increased to 165°F (74°C).HIGH-TEMPERATURE FLEXIFORCE SENSOR (MODEL HT201) Sensor PropertiesThickness 0.008”(0.203mm) Length 7.75” (197 mm)Optional: 6” (152 mm)Trimmed: 4” (102 mm)Lengths: 2” (51 mm)Width 0.55” (14 mm)Sensing Area 0.375” (9.53 mm) diameterConnector 3-pin Male Square Pin (center pin is inactive) Substrate Polyimide (ex: Kapton)Typical PerformanceForce Ranges 0-30 lbs (133N)0-100 lbs (445N)Operating Temperature Range 15°F to 400°F (-9°C to 204°C)Repeatability +/- 3.5% of full scaleLinearity +/- 1.2% of full scaleHysteresis 3.6% of full scaleDrift 3.3% per log timeOutput Change/Degree F 0.16%。
FLexiForce薄膜传感器
FLexiForce薄膜传感器Flexiforce sensorFlexiforce超薄型力量感测片具有如纸般薄的厚度，柔软的卷曲性以及耐用性，可适用与各种不同的安装环境。
标准型 A201感测片物理特性：厚度0.008’’(0.208mm)长度 2—8’’(51－－-203mm)宽度0.55’’(14mm)感测范围0.357’’,直径（9.53 mm）接头 3 pin male square pin特性表：线性误差 <+/-5%重复性 <+/-2.5% of full scale (80%力量加载)磁滞性 <4.5% of full scale (80%力量加载)漂移 <5% log time (90% 固定力量加载)反应时间 <5% msec工作温度15°F—140°F(-9°C—60°C)力量量测范围 0－－-1 ibs (4.4N)0－－-25 ibs(110N)0－－-100 ibs(440N)温度灵敏度0.2%/°F(0.36%/°C)公司简介麦思科技有限公司成立于2001年，公司创立宗旨是为用户提供最新的测量技术与全方位的压力分布感测技术服务。
随着科技发展及应用技术的日新月异，为因应客户对测量技术的需求与日俱增，以期能为不同的用户提供更完备的测量解决方案。
我们乐于接受不同的挑战，协助客户解决问题是我们努力的方向，我们以客户满意的评价为荣，也因客户的支持与肯定，麦思科技得以不断的茁壮成长。
公司主营代理美国T ekscan公司压力分布测量全系产品，为美国Tekscan中国区的一级代理商。
创立于1987的美国T ekscan公司已经成为世界高解析薄膜接触压力测量系统供应商的领导者。
我们的产品已应用于各种产业，从工业到医学T ekscan的高解析度薄膜压力感测技术无处不在，包括汽车、人体工学、封装、半导体以及更多的应用。
FSS系列低档度力量传感器说明书
FSS SeriesLow Profile Force SensorDESCRIPTIONThe FSS Series Force Sensor provides precise, reliable force sensing performance in a compact, commercial-grade package at a cost effective price. The sensor features a proven sensing technology that uses a specialized piezoresistive,micromachined silicon sensing element. The low power,unamplified, uncompensated Wheatstone bridge circuit design provides inherently stable mV outputs over the force range.Force sensors operate on the principle that the resistance of silicon-implanted piezoresistors will increase when theresistors flex under any applied force. The sensor concentrates force from the application, through the stainless steel ball, directly to the silicon-sensing element. The amount ofresistance changes in proportion to the amount of force being applied. This change in circuit resistance results in a corresponding mV output level change.The sensor package design incorporates patented modular construction. The use of innovative elastomeric technology and engineered molded plastics results in overforce capacities of up to three times the rated force. The stainless steel ball provides excellent mechanical stability and is adaptable to a variety of applications.The FSS Series Sensor delivered 20 million operations in Mean Cycles to Failure (MCTF) reliability testing at 50°C [122°F]. This test determines the number of possible sensor operations at full scale until failure.FEATURES AND BENEFITS∙ RoHS-compliant materials meet Directive 2002/95/ECallows use in industries requiring regulation compliance ∙ Low deflection (approx. 30 µm typical at full scale) helpsreduce measurement error∙ Direct mechanical coupling of the actuation ball to thesense element reduces coupling errors and keeps mechanical hysteresis to a minimum∙ Product rating of 20 million MCTF at 25 °C [77 °F], subjectto application variation, provides for consistent output over time and reduces repairs or replacements∙ Small size minimizes space on the printed circuit board(PCB)∙ Provides enhanced sensitivity without compromisingsignal integrity, resulting in low system noise and reducing measurement errors∙ Electrically ratiometric output accommodates supplyvoltage variations, leading to low ratiometricity error ∙ Low voltage supply allows for use in many batterypowered applications∙ High resistance to electrostatic discharge (ESD) meetsESD Sensitivity Classification Level 3B (8 KV), reducing special handling during assembly∙ Sensor output has low sensitivity to many mountingstressesPOTENTIAL APPLICATIONS Medical∙ Infusion pumps∙ Ambulatory non-invasive pumps ∙ Occlusion detection∙ Kidney dialysis machines ∙ Enteral pumpsIndustrial∙ Load and compression sensing ∙ Variable tension control ∙ Robotic end-effectors ∙ Wire bonding equipmentFSS Series2 11. All force-related specifications are established using dead weight or compliant force.2. The range of voltage excitation which can be supplied to the product to produce an output which isproportional to force but due to ratiometricity errors may not remain within the specified performance limits. Non-compensated force sensors, excited by constant current (1.5 mA) instead of voltage, exhibit partial temperature compensation of span.3. The output signal obtained when the zero force is applied to the sensor. Also known as "null" or "zero".4. The change in the null resulting from a change in temperature. It is not a predictable error as it can shift upand down from unit to unit. Change in temperature causes the entire output curve to shift up or down along the voltage axis.5. The algebraic difference between output signals measured at the upper and lower limits of the operating forcerange. Also known as "full scale output" or simply "span".6. The maximum deviation of product output from a straight line fitted to output measured over the operatingforce range. T he straight line through a set of points which minimizes the sum of the square of the deviations of each of the points from the straight line.7. The ratio of output signal change to the corresponding input force change. Sensitivity is determined bycomputing the ratio of span to the specified operating force range multiplied by the supply voltage being used.8. The maximum deviation in sensitivity due to changes in temperature over the operating temperaturerange, relative to sensitivity measured at 25 °C.9. The maximum difference between output readings when the same force is applied consecutively, underthe same operating conditions, with force approaching from the same direction within the operating force range.10. The maximum force which may safely be applied to the product for it to remain in specification once force isreturned to the operating force range. Exposure to higher forces may cause permanent damage to theproduct. Unless otherwise specified, this applies to all temperatures within the operating temperature range.1. The temperature range over which the product may safely be exposed without excitation or force applied. Under these conditions theproduct will remain in specification after excursion to any temperatures in this range. Exposure to temperatures beyond this range may cause permanent damage to the product.2. MCTF is a basic measure of reliability for a non-repairable device. It is the mean number of cycles to maximum operating force over whicha sensor can be expected to operate until failure. The mean value is determined statistically from a probability distribution for failures based upon test data. MCTF may vary depending on the specific application in which a sensor is utilized.Low Profile Force SensorHoneywell Sensing and Control311. Absolute maximum ratings are the extreme limits that the product can withstand without damage to the product.2. The temperature range over which the product may safely be exposed without excitation or force applied. Under these conditions, theproduct will remain in the specification after excursions to any temperature in this range. Exposure to temperatures beyond this range may cause permanent damage to the product.3. The maximum temperature and time to which the product may be exposed for processing of solder electrical connections.Figure 3. Packaging Dimensions (For reference only.) Short Tube: 43,9 mm [1.73 in] long, 5 units/tubeStandard Tube: 584 mm [22.99 in] long, 100 units/ tubeTape and Reel (mm)2.∙∙Sensing and Control Honeywell1985 Douglas Drive NorthGolden Valley, MN 55422 080809-2-ENFebruary 2013© 2013 Honeywell International Inc. All rights reserved.MISUSE OF DOCUMENTATIONWARRANTY/REMEDYHoneywell warrants goods of its manufacture as being free of defective materials and fa ulty workmanship. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgement or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items it finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages.While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the customer to determine the suitability of the product in the application.Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use.PERSONAL INJURYSALES AND SERVICEHoneywell serves its customers through a worldwide network of sales offices, representatives and distributors. For application assistance, current specifications, pricing or name of the nearest Authorized Distributor, contact your local sales office or:E-mail:*********************Internet:Phone and Fax:Asia Pacific +65 6355-2828+65 6445-3033 FaxEurope +44 (0) 1698 481481+44 (0) 1698 481676 FaxLatin America +1-305-805-8188+1-305-883-8257 FaxUSA/Canada +1-800-537-6945+1-815-235-6847+1-815-235-6545 FaxMouser ElectronicsAuthorized DistributorClick to View Pricing, Inventory, Delivery & Lifecycle Information:H oneywell:FSS1500NSR FSS1500NST FSS1500NGT FSS1500NGR。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
Flexiforce传感器分类介绍及其应用
一、Flexiforce 传感器
Flexiforce是一种超薄和挠性印刷电路，可很方便集成多种运用。
由于Flexiforce 像纸一样薄的结构，可弯曲和测力特性可用来测两表面之间的压力，并且能够在一些特殊环境进行测力。
Flexiforce 比其它薄膜测力产品有更好的特性、线性、磁滞、飘移、温度灵敏度。
传感的有效区域是传感器末端的直径为0.95cm的圆。
Flexiforce 由两层衬底构成。
这种衬底由聚脂纤维薄膜组成(高温传感器用的是聚酰亚胺构成)。
在每一层上运用一种导体材料(银)，再加一层对压力敏感的墨水。
然后用粘合剂把两层衬底压在一起，形成了传感器。
墨水外的银边表示了对压力敏感的区域。
从敏感区域引出两个银线作为导线。
Flexiforce 传感器尾端选配一个可焊接的公的方针接头以方便连接到电路。
两边的输出线是有效的，中间的是无效的。
传感器的长度可选6cm、12cm、18cm或由客户定制。
在电路中传感器相当于一个可变电阻。
当没有负载时，传感器呈高阻状态(>5MΩ)，当有负载时，电阻下载。
接一个欧姆表可以看见当在敏感区域施加外力时电阻的变化。
Flexiforce 需保存在温度-9°C74°C之间。
二、标准Flexiforce传感器
标准A201传感器有下列量程供选择：
Sensor A201-1 (0-1 lb)(0-4.5N)
Sensor A201-25 (0-25 lb)(0-112.5N)
Sensor A201-100 (0-100 lb)*(0-445N)
如果要测量大于100lb的力可降低供电电压和降低反馈电阻(最小1KΩ min)可参看驱动电路图。
三、高温Flexiforce传感器
高温HT201传感器有下列量程供选择：
HT201-L Low: 0-30lb (133N)
HT201-H High: 0-100lb (445N)
四、运用
Flexiforce传感器有非常多的用法。
典型的运用就是把检测的压力转化成电压信号输出。
校准也必须去做，就是把输出信号和相应的压力的大小对应。
根据配置，灵敏度依然可以进行调节。
典型电路如下图：
在该电路中，用+/-5V的电压激励，反相比例放大电路结构，基于传感器电阻和反馈电阻的变化产生模拟信号输出。
模数转换器也可把模拟信号转为数字信号输出。
灵敏度由反馈电阻Rf和电压VT 进行调整。
降低反馈电阻和电压会使灵敏度下降，但可使量程增大。
用途简介：
医疗用途：牙齿咬合力测量;病人组织插管测力;临床大夫触力检验测量;心肺复苏、人工呼吸救护训练(CPR)(位置、深度、频率)触力测量;诊断设备研究肌肉关节活动情况;发音矫正;智能鞋垫进行走路平衡能力测控(老年人走路摔倒报警);重症病人，老人监护报警等。
汽车运用：乘员探测;安全气囊对乘员压力;拖车刹车控制。
休闲娱乐运用：体育用具;健身器材;握力测量;GOLF训练。
工业运用：安全装置;包装与密封;自动化生产;滚动轴承;电缆卷轴;电脑芯片。
其它：动物或人类咬力测量;触力设备;抓力;库存管理;设备监控;机器人;等等。
传感器载荷考虑因素
下面的传感器负载运用指导适合任何运用，以帮助您取得精确的测量结果。
后面传感器性能参数表对您获取准确的传感器数据也是至关重要的。
一、传感器负载
Flexiforce传感器整个传感区域被当成一个独立的接触点。
因此，负载应均匀分布在传感区域以保证准确和重复的测力数据。
如果负载分布改变就会轻微地改变传感器的读数。
(传感器传感区域就是银线包围中间的部分)
施加负载的持续也很重要，并保证每次是同样的方式;
不要让传感区域外面的部分也支持负载;
如果要测的负载大于传感区域，那么可使用一个圆盘(一般由硬材料构成，并小于传感区域)，使负载通过圆盘压住传感区域，注意不要压住传感区域的边缘。
加的力需垂直于传感区域的平面。
如果施加剪切的力会降低传感器的寿命。
如非要加这样的力，需要有弹性材料进行保护。
如果把传感器放在一个表面，可使用带子或胶水。
注意不要把胶水沾在了传感区域，如果一定要的话，要保证涂的均匀，否则一些高点会变成负载。
二、饱和值
饱和值就是输出不再随施加的力而变化的点。
每个传感器的饱和值会印在包装盒或传感器上和灵敏度在一起。
饱和值在上面的运用电路中和反馈电阻Rf有关，当降低反馈电阻Rf时可降低灵敏度，但可增大量程，也就是可增大饱和值。
注意在测试中不要让外力到达饱和值。
三、传感器适应使用
在测试或校准前，让传感器适应或适用对取得准确的测量数据是必须的。
它可以帮助减少磁滞和飘移。
对于新传感器需要让它用一段时间以适应环境。
让传感器适应使用，可采用110%的力加在传感器上，让传感器稳定，再移动负载。
重复这个过程四到五次。
传感器和测试材料的接触面需保持和测试和校准时一致。
(重要：在校准和使用前，传感器必须经过适应使用)
校准
校准就是让传感器的输出和真正的测力值建立一个对应关系如磅或牛顿。
校准时，可采用一已知力加在传感器上，然后把传感器的阻值和力值对应起来。
用一些和测试时接近的力值，重复进行这个校准的过程。
力和电导(1/R)的对应图如下。
一个线性的对应关系可从图中看出。
然后，你可用传感器的输出值来决定你的测力的大小了
电阻曲线
电导曲线
校准指导：
在校准传感器可参考下列指导：
有与实际测试中相近的力来进行校准。
(用已知的力，如砝码或测力机)。
如在校准中用圆盘那么在测试中也用。
在校准时避免和测力饱和值接近，如在很少的力就饱和了，那么就调整灵敏度。
在感应区域内，均匀放置负载。
负载分布改变，结果会有轻微变动。
测试和校准时温度需保持一致。
传感器性能指标描述：
有一些性能指标会影响到传感器的测量结果。
这里对每个指标进行一些描述，以帮助减少不必要的影响。
重复性：对于同样多次施加的力，传感器能保持显示数据的一致性。
通常，我们建议通过对传感器进行适应“训练”后，再进行测试或校准。
线性：指传感器针对负载的响应偏移超过了传感器的实际量程。
校准可以尽量使输出保持线性。
Flexiforce传感器的输出线性在+/- 3%以内。
Flexiforce高温传感器的线性可以做到满量程的1.2%。
磁滞：在加负载和移除负载时，传感器的实际输出值的差异。
在静态时，在负载增加时，磁滞是非常小的。
但在负载一会小一会大时，会有磁滞引起的误差。
飘移：指在施加力后一段时间，输出会有相应的变化。
如果在一个固定的负载下，输出电阻持续减少，输出就会慢慢增大。
在校准时考虑到飘移的因素，可减少其影响。
最简单的方法是保证校准时和实际测试时的时间段一致。
温度灵敏度：通常，输出在大负载情况下会随温度升高而变化。
为保证准确性，校准和测试时要保持一致温度。
如果不一致，最好在不同的温度下都做一校准，并以保存备用。
寿命：寿命是根据你的使用情况而定。
一般传感器可以反复使用，除了在一些极端情况下：如承受硬边或冲击力。
经测试，对一个50lb的Flexiforce传感器可以使用一百万次。
物理损伤自然会降低它的寿命。
保持传感区域清洁，否则脏物会引起测量不准，及过早地进入饱和状态。
传感器性能指标
标准Flexiforce传感器(型号：A201)
高温Flexiforce传感器。
